Modification of Non-Metallic Inclusions in Stainless Steel by Addition of CaSi

Abstract

The focus of this study involved comparative investigations of non-metallic inclusions in 316L stainless steel bars without and with Ca treatments. The inclusions were extracted by using electrolytic extraction (EE). After that, the characteristics of the inclusions, such as morphology, size, number, and composition, were investigated by using a scanning electron microscope (SEM) in combination with an energy dispersive X-ray spectroscopy (EDS). The following four types of inclusions were observed in 316L steels: (1) Elongated MnS (Type I), (2) MnS with hard oxide cores (Type II), (3) Undeformed irregular oxides (Type III), and (4) Elongated oxides with a hard oxide core (Type IV). In the reference sample, only a small amount of the Type III oxides (Al₂O₃–MgO–MnO–TiO_x) existed. However, in Ca-treated 316L steel, about 46% of the observed inclusions were oxide inclusions (Types III and IV) correlated to gehlenite and to a mixture of gehlenite and anorthite, which are favorable for the machinability of steel. Furthermore, untransformed oxide cores (Al₂O₃–MgO–MnO) were also found in the inclusions of Type IV. The mechanism leading to different morphologies of oxide inclusions is also discussed.

1. Introduction

Non-metallic inclusions (NMIs) play a detrimental role with respect to the quality and mechanical properties of steels, causing reduced toughness and shorter fatigue life and potentially increasing the failure risk of the final product [1]. The effect of inclusions on the mechanical properties of steels depends on the chemical composition, density, size, shape, orientation, and distribution of the inclusions. One approach applied for decades in the steelmaking industry is to develop steels with low levels of impurities. However, it is also reported that some inclusions (such as MnS and Ca-modified oxides, among others) can help to improve the steel machinability (for instance by decreasing the wear on the cutting tool, thus extending the tool’s life) [2]. Previous studies [3,4,5] show that inclusions improve machinability primarily by two ways: (1) as a source of stress concentration effects, favoring machinability by reducing the cutting force and increasing the chip breakability during machining, (2) as a lubricant (tool protection layer) in the contact zone of the cutting tool and material (reducing the abrasive and chemical wear of the tool), which is beneficial for the tool life. Thus, modification of NMIs and control of their characteristics in steels during steel manufacturing are very important to balance favorable machinability properties with the desired mechanical property for diverse types of steels.

Ca treatment is one way to modify the inclusions. For instance, Al₂O₃ inclusions in aluminum-killed steels, which can form clusters up to more than 100 µm, can be modified to smaller compact spherical calcium–aluminate (CaO–Al₂O₃) inclusions by calcium addition [6,7]. It is also reported that the suggested content of CaO in modified inclusions after modification should be in the range 25–60 wt % [8]. However, Guo et al. [9] reported that the formation of sulfide enriched by CaS (with quite a high melting temperature) might cause a nozzle clogging problem during casting of free cutting and structural steels with high sulfur contents. Therefore, it is difficult to control sulfide shape by Ca addition. Liu et al. [10] found that inclusion compositions changed from Al₂O₃ to CaO–Al₂O₃–CaS by Ca treatment of X70 pipeline steel.

The modification of oxide inclusions by Ca addition can also improve the machinability of steels [11,12,13,14,15]. For instance, Bletton et al. [11] investigated the inclusion types and machinability properties in three samples of AISI 316L stainless steel with different Ca contents taken from hot-rolled bars. They concluded that the anorthite (CaO·Al₂O₃·2SiO₂) and gehlenite (2CaO·Al₂O₃·SiO₂) inclusions, having relatively low melting temperatures, can be more easily deformed and form a protective lubricant layer between the workpiece and cutting tools during machining. Ånmark et al. [14] investigated the effect of Ca-rich inclusions on tool wear during the hard-turning of a Ca-treated carburizing steel. Ca treatment improved the tool life significantly by the formation of a Ca-enriched slag barrier composed of (Mn,Ca)S and (Ca,Al)(O,S) on the tool. However, systematic investigations of inclusion characteristics and their effect on the final properties of Ca-treated industrial stainless steels have not been sufficient up to now.

Conventionally, NMIs in steels are evaluated in two dimensions (2D) on a polished cross section of a metal sample by using light optical (LO) or scanning electron microscope (SEM). Previous research [16,17,18] has established significant drawbacks of this 2D conventional method and suggested three-dimensional (3D) investigations based on extraction methods for more reliable measurements regarding the number and size of different inclusions and clusters.

This study is focused on comparative investigations of non-metallic inclusions in industrial 316L Si-killed stainless steels without and with Ca treatment. Here, 3D investigations of inclusions on film filters after electrolytic extraction (EE) were conducted for the evaluation of inclusions characteristics (such as morphology, size, number, and composition) in stainless steel without and with Ca treatment.

2. Materials and Methods

2.1. Materials

Steel samples of industrial 316L stainless steel produced without (reference heat—316R) and with Ca addition (experimental heat—316Ca) were evaluated in this study. The compositions of steels were determined by the steelmaking company (Sandvik Materials Technology AB, Sandviken, Sweden), using usual standard techniques. Details of their compositions are given in

Table 1. Composition of samples of the reference steel (316R) and the Ca-treated steel (316Ca).

Steel Grade	Ca-treated	C	Si	Mn	Cr	Ni	S a	O a	Ca a	Al a
		(mass %)
316R	No	0.02	0.38	1.60	16.82	11.18	70	20	-	40
316Ca	Yes	0.01	0.46	1.58	16.86	11.14	90	59	28	40

^a Content of elements given in ppm.

. It should be noted that the contents of sulfur and oxygen in 316Ca steel were higher than in 316R steel.

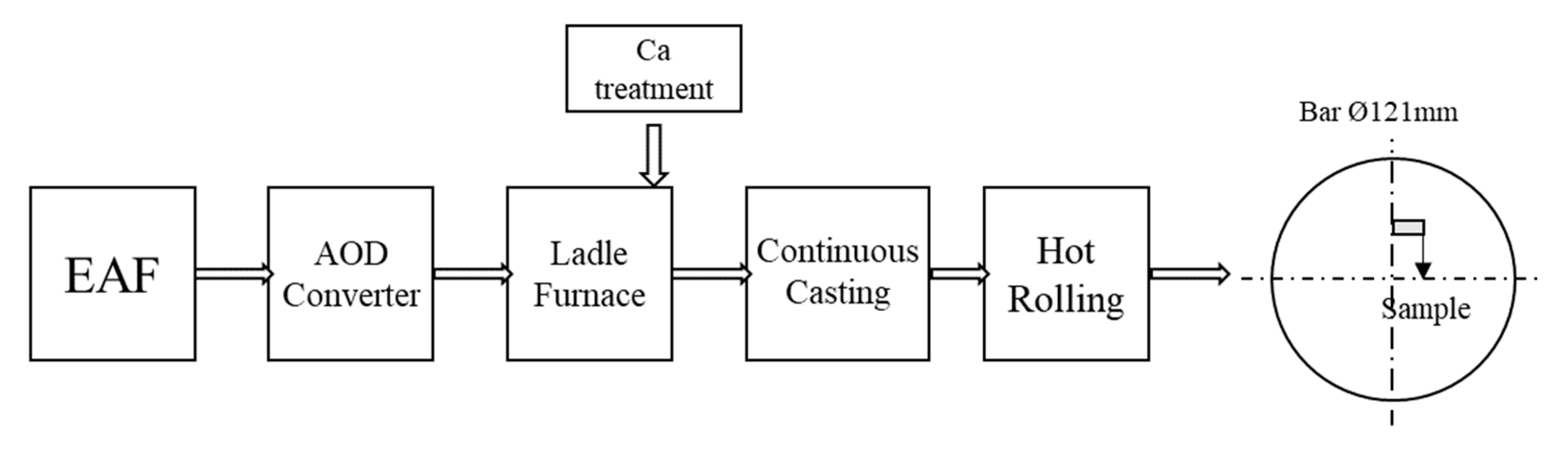

The production route for the reference and experimental heats in the company is shown in Figure 1. It includes scrap melting in an electric arc furnace (EAF), de-carburization in an argon oxygen decarburization (AOD) converter, ladle treatment in a ladle furnace, and continuous casting. Ca treatment is done by adding a CaSi wire at the end of the ladle treatment. A reference sample was produced by using the same process route without Ca treatment. Steel samples for the evaluation of non-metallic inclusions were cut from the middle-radius zone of hot-rolled bars (Ø121 mm) in the longitudinal direction, as shown in Figure 1.

2.2. Electrolytic Extraction and Investigation of Inclusions

For the evaluation of the characteristics of non-metallic inclusions (such as number, size, composition, and morphology), the steel samples were partially dissolved by using EE. However, inclusions did not dissolve during this EE process. Figure 2a shows a schematic diagram of the EE equipment.

The electrolytic extraction process was carried out by using two different non-aqueous electrolytes, namely 10% AA (10% acetylacetone–1% tetramethylammonium chloride–methanol) and 2% TEA (2% triethanolamine–1% tetramethylammonium chloride–methanol). The experiments were run with the following electric settings: voltage, 3.2–4.3 V, electric current, 50–70 mA, and electric charge, 500 or 1000 coulombs. The weight of the dissolved metal varied from 0.09 to 0.18 g, depending on the electric charge being used during the extraction.

After extraction, a membrane polycarbonate film filter with an open-pore size of 0.4 µm was used to collect the undissolved non-metallic inclusions. The inclusion investigations were performed by using a scanning electron microscope (SEM, S3700N-Hitachi, Hitachi High-Technologies Corporation, Tokyo, Japan) in the back-scattered electrons (BSE) mode at different magnifications. The compositions of the extracted inclusions were analyzed by using energy dispersive X-ray spectroscopy (EDS, Bruker, Karlsruhe, Germany) included in the SEM equipment. The main parameters of the electrolytic extractions and SEM investigations of non-metallic inclusions in different samples are given in

Table 2. Main parameters of the electrolytic extractions and SEM investigations of non-metallic inclusions (NMIs) in different samples.

Steel Grade	Sample	Observed Area, Aobs (mm2)	Dissolved Metal, Wdis (g)	Dissolved Depth (µm)	Number of Observed NMIs, n	Size Range (µm)
316R	R	0.898	0.1563	≈188	435	2–98
316Ca	A	0.898	0.0935	≈85	180	3–124

.

Length ($L$) and width ($W$) of different NMIs were measured on the SEM images, as shown in Figure 2b. The equivalent size ($D_e$) of deformed elongated inclusion was estimated by using the following equation assuming the inclusion is a long ellipsoid:

$$D_e=\sqrt[3]{W^2\cdot L},$$

(1)

The number of inclusions per unit volume of steel ($N_v$) and volume fraction ($f_v$) of different NMIs in steel was estimated by using the equations below:

$$N_v=\frac{n}{V_m},$$

(2)

where $n$ is the number of observed inclusions, and $V_m$ is the volume of dissolved metal that was observed;

$$f_v=\frac{V_{inc}}{V_m}=\frac{{\displaystyle \sum _{i=1}^n(\frac{\pi }{6}\times L_i\times W_i^2)}}{V_m},$$

(3)

where $V_{inc}$ is the total volume of observed inclusions, $L_i$ is the length of the i-th inclusion, and $W_i$ is the width of the i-th inclusion.

$$V_m=\frac{w_{dis}}{\mathsf{\rho }}\times \frac{A_{obs}}{A_{fil}},$$

(4)

where $A_{fil}$ is the whole filtration area of a film filter with collected inclusions (=1200 mm³), $A_{obs}$ is the total observed area of the film filter used for the image analysis, $w_{dis}$ is the weight loss of the metal sample during EE, and $\mathsf{\rho }$ is the metal density (=0.0078 g/mm³).

3. Results and Discussions

3.1. Characterization of Inclusions after Extraction in Different Electrolytes

It is known that CaO-containing phases in NMIs might be dissolved partially or completely during extraction in strong solutions, otherwise an inaccurate result would be obtained. According to the results reported by Inoue et al. [19], 2% TEA and 10% AA electrolytes can be selected for the extraction of CaO–Al₂O₃ and CaO–SiO₂ inclusions depending on the concentration of CaO in the inclusions. Therefore, both 10% AA and 2% TEA electrolytes were used for the extraction of CaO–Al₂O₃–SiO₂ inclusions from Ca-treated 316L steel and comparison of the obtained results in this study.

The contents of CaO and the ratios of CaO/SiO₂ and CaO/Al₂O₃ in different oxide NMIs extracted by using these two electrolytes are shown in Figure 3, depending on the inclusion length. Dotted lines on this figure correspond to the average values for all analyzed oxide inclusions.

It was found that the content of CaO in all oxide phases of the observed inclusions was lower than 50%. In this case, the compositions of the inclusions extracted by using 2% TEA and 10% AA electrolytes did not show differences. Therefore, it may be safely suggested that the CaO-containing phases (<50% CaO) in NMIs did not dissolve during both extractions. Moreover, the morphology and size of the observed inclusions after extraction in the two different electrolytes were also similar. On the basis of these results, it was concluded that the 10% AA electrolyte was suitable to extract (Ca, Al, Si) oxide. Thus, in the remaining document, only the results from using the 10% AA electrolyte during EE will be discussed.

3.2. Classification of Non-Metallic Inclusions in 316R and 316Ca Steels

Overall, four main types of non-metallic inclusions were observed in 316R and 316Ca steels. Typical photos, size ranges, aspect ratios (AR = L/W), and composition ranges are presented in

Table 3. Classification of the inclusions observed in reference (316R) and Ca-treated (316Ca) stainless steels. AR, aspect ratio.

Typical SEM Images	316R			316Ca
	L (µm)	AR	Composition	L (µm)	AR	Composition
	5–98	7–30	MnS > 90%	14–124	7–25	MnS 90–100% and (Al, Ca)O < 10%
	2–36	1–8	MnS 30–90% and (Al, Mg, Mn)O 10–70%	3–33	1–7	MnS 30–90% and (Al, Ca, Si)O 10–70%
	2–10	1–3	Al2O3 48–75% MgO 2–24% MnO 9–29% TiOx 1–21%	3–15	1–3	CaO 33–41% Al2O3 24–31% SiO2 30–33% MgO 2–4% TiOx <1%
	none	-	-	4–28	2–14	Oxide (CaO 26–39% Al2O3 16–30% SiO2 28–39% MgO 0–5% TiOx 0–14%) and MnS

.

Type I inclusions correspond to elongated rod-like MnS inclusions; Type II inclusions are complex oxy-sulfides, containing a hard oxide core or particles and deformed MnS sulfide; Type III inclusions are undeformable irregular oxides and have quite a homogeneous composition. Type III oxide inclusions in 316R steel contained mostly Al₂O₃, MgO, MnO, and TO_x, and their size was in the range from 2 up to 10 µm.

Type III inclusions in the 316Ca steel were mostly undeformable CaO–SiO₂–Al₂O₃–MgO oxides. However, some inclusions had a tail containing a higher concentration of SiO₂ and lower concentrations of CaO and Al₂O₃. This tail was soft and could be deformed during hot rolling, as shown in Figure 4a.

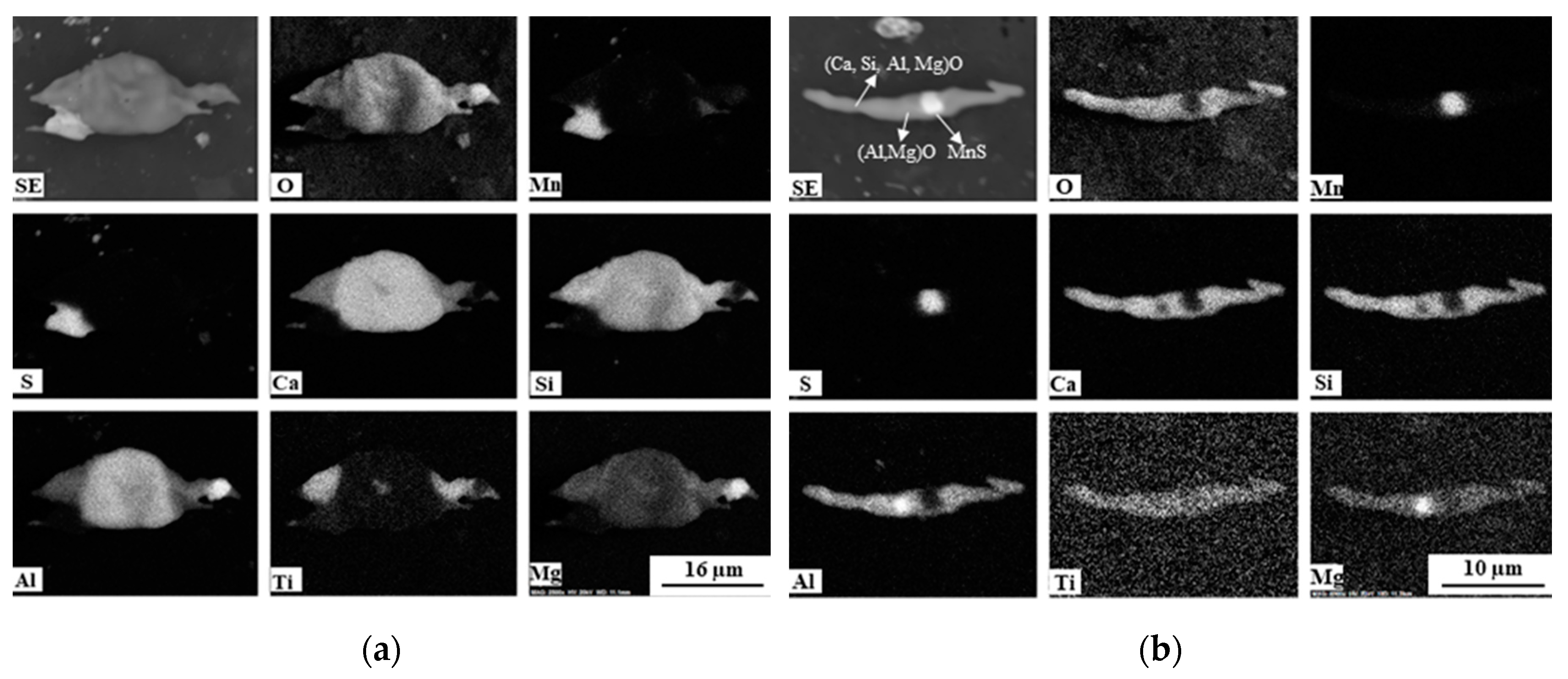

Type IV inclusions in 316R steel were not observed. This was due to all oxide inclusions in the reference sample being Al₂O₃ or Al₂O₃–MnO–MgO phases, which were not deformed during hot rolling. Type IV inclusions in 316Ca steel corresponded to elongated CaO–SiO₂–Al₂O₃ oxides containing a higher concentration of SiO₂ (up to 39%) and lower concentrations of CaO and Al₂O₃. Moreover, these deformed oxides contained also some amounts of TiO_x and MgO. However, line scanning and EDS mapping of some Type IV inclusions detected unmodified Al₂O₃–MgO cores, as shown in Figure 4b. This can explain the quite high Al₂O₃ and MgO contents in some Type IV inclusions determined during EDS investigation.

Similar inclusions, having an Al₂O₃–MgO core covered by a Ca-rich oxide layer, have also been reported by other researchers [20,21]. Furthermore, an undeformed manganese sulfide particle could be found in this inclusion during the investigation. Elongated oxide inclusions containing manganese sulfide cores were also found by Bletton et al. [20]. These deformable lime silicoaluminate inclusions were mainly determined as pseudo-wollastonite, gehlenite, and anorthite [11,20]. They were predominantly bound up with sulfides and were found to form associated inclusions containing manganese sulfide cores.

3.3. Particle Size Distribution of the Inclusions Observed in 316R and 316Ca Steels

The number of inclusions per unit volume (N_v), size, AR, and volume fraction (f_v) of diverse types of inclusions is given in

Table 4. Distribution and information about different types of inclusions found in 316Ca steel.

Samples	Inclusion Type	L (μm)	W (μm)	De (μm)	AR	fv × 104	Nv (mm−3)	Frequency (%)
316R	Type I	33.2 ± 24.8 (5–98)	2.6 ± 1.4 (1–7)	6.0 ± 3.5 (1–16)	7–30	6.7	2667	9.2
	Type II	5.0 ± 3.8 (2–36)	1.8 ± 0.7 (1–7)	2.4 ± 1.1 (1–10)	1–8	3.7	24,933	86.4
	Type III	5.4 ± 2.2 (2–10)	3.6 ± 1.5 (2–8)	4.0 ± 1.6 (2–9)	1–3	0.7	1267	4.4
	Type IV	-	-	-	-		-	-
316Ca	Type I	43.0 ± 32.4 (14–124)	3.7 ± 1.1 (2–5)	8.1 ± 3.2 (4–14)	7–25	4.1	1003	5.0
	Type II	7.0 ± 4.8 (3–33)	2.6 ± 0.8 (1–5)	3.6 ± 1.3 (2–10)	1–7	3.5	9811	48.9
	Type III	6.2 ± 3.0 (3–15)	3.3 ± 0.9 (2–6)	4.1 ± 1.3 (2–8)	1–3	2.1	4460	22.2
	Type IV	10.7 ± 5.2 (4–28)	2.3 ± 0.6 (1–4)	3.8 ± 1.1 (2–7)	2–14	1.7	4794	23.9

D_e, equivalent size of deformed elongated inclusions; f_v, volume fraction; N_v, number of inclusions per unit volume of steel.

.

It can be seen that the reference 316R sample contained mostly MnS inclusions of Type II (86%) and Type I (9%). Only a small amount of Type III oxides (Al₂O₃–MgO–MnO–TO_x) existed in this sample. Also, almost pure Al₂O₃ inclusions were found in the sample. However, Type IV inclusions were not observed in the reference sample.

Although the content of S in the Ca-treated steel (316Ca) was higher, the number of elongated sulfides of Type I and oxy-sulfides of Type II was about 2.5 times smaller compared to that in the reference 316R steel. However, the length, width, and equivalent size of those inclusions in 316Ca steel were larger than the respective characteristics of the given inclusions in 316R steel. The number of oxide inclusions in the Ca-treated steel increased significantly and corresponded to ≈22% and ≈24% of the total amount of observed inclusions for Type III and Type IV inclusions, respectively. This can be explained by the higher content of oxygen in 316Ca steel compared to the 316R steel. Overall, Ca treatment of 316L stainless steel decreased the total number of inclusions by ≈30%, though the total f_v of the inclusions were similar in both samples.

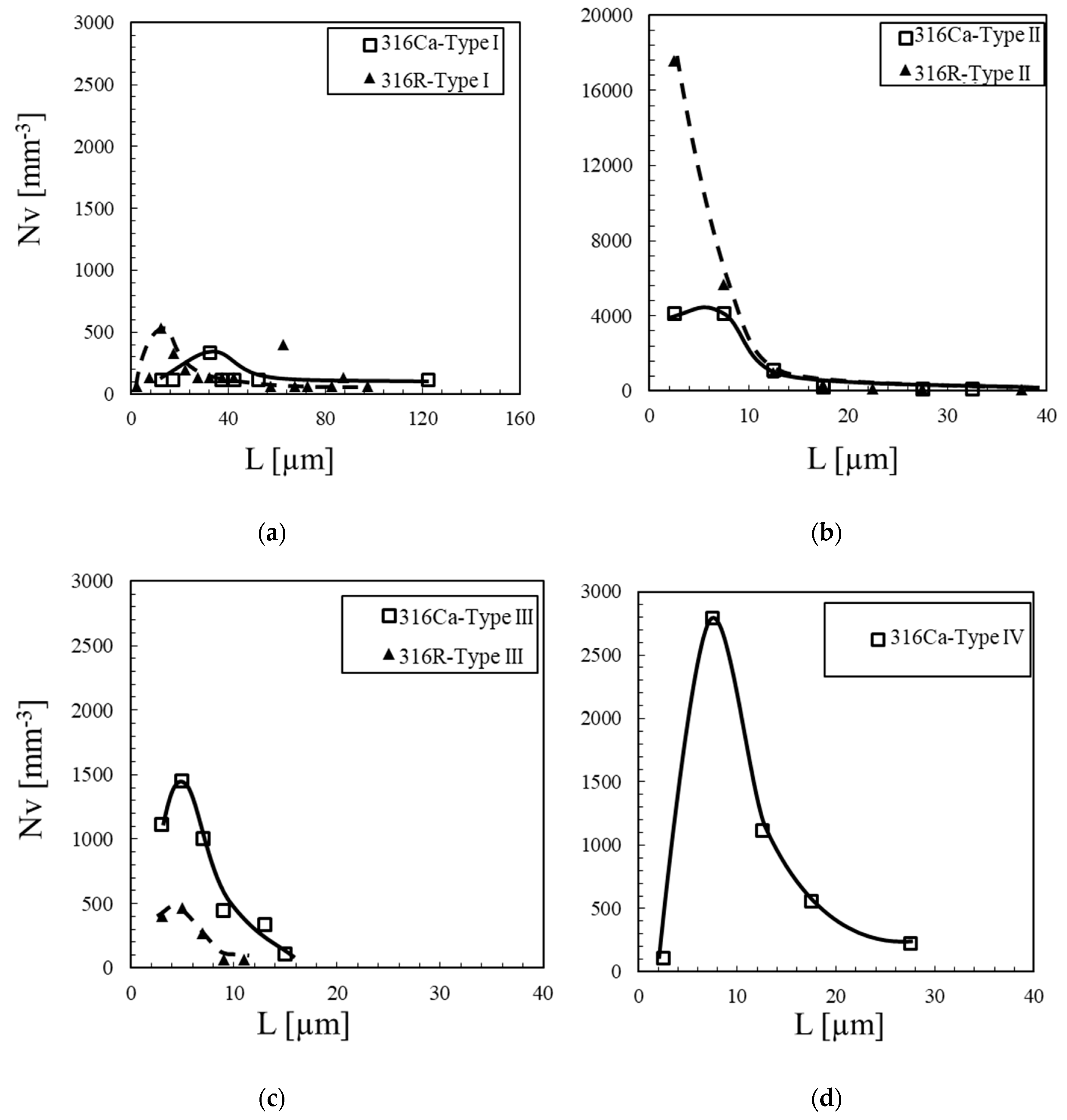

The size distributions of different types of inclusions obtained by SEM are shown in Figure 5 in terms of N_v with a constant size step of 5 µm. It can be seen that the oxy-sulfide inclusions of Type II were the most numerous. However, Ca treatment of steel decreased the number of small-size oxy-sulfides (L < 10 µm) by about three times.

The contents of the main oxide components (Al₂O₃, SiO₂, and CaO) in the typical Type III and Type IV inclusions in 316Ca steel are shown in Figure 6 as a function of inclusion length. It can be seen that the compositions of large-size Type III oxides (L > 6 µm) were more stable and homogeneous because the contents of Al₂O₃, SiO₂, and CaO were similar. However, Type IV complex oxides were heterogeneous due to the high scattering of the composition for inclusions of different size. As shown in Figure 4b, Type IV inclusions contained an untransformed oxide core having very high contents of Al₂O₃ and MgO and small contents of CaO and SiO₂. Furthermore, undeformed MnS particles were detected in some elongated Type IV inclusions, but CaS was not found.

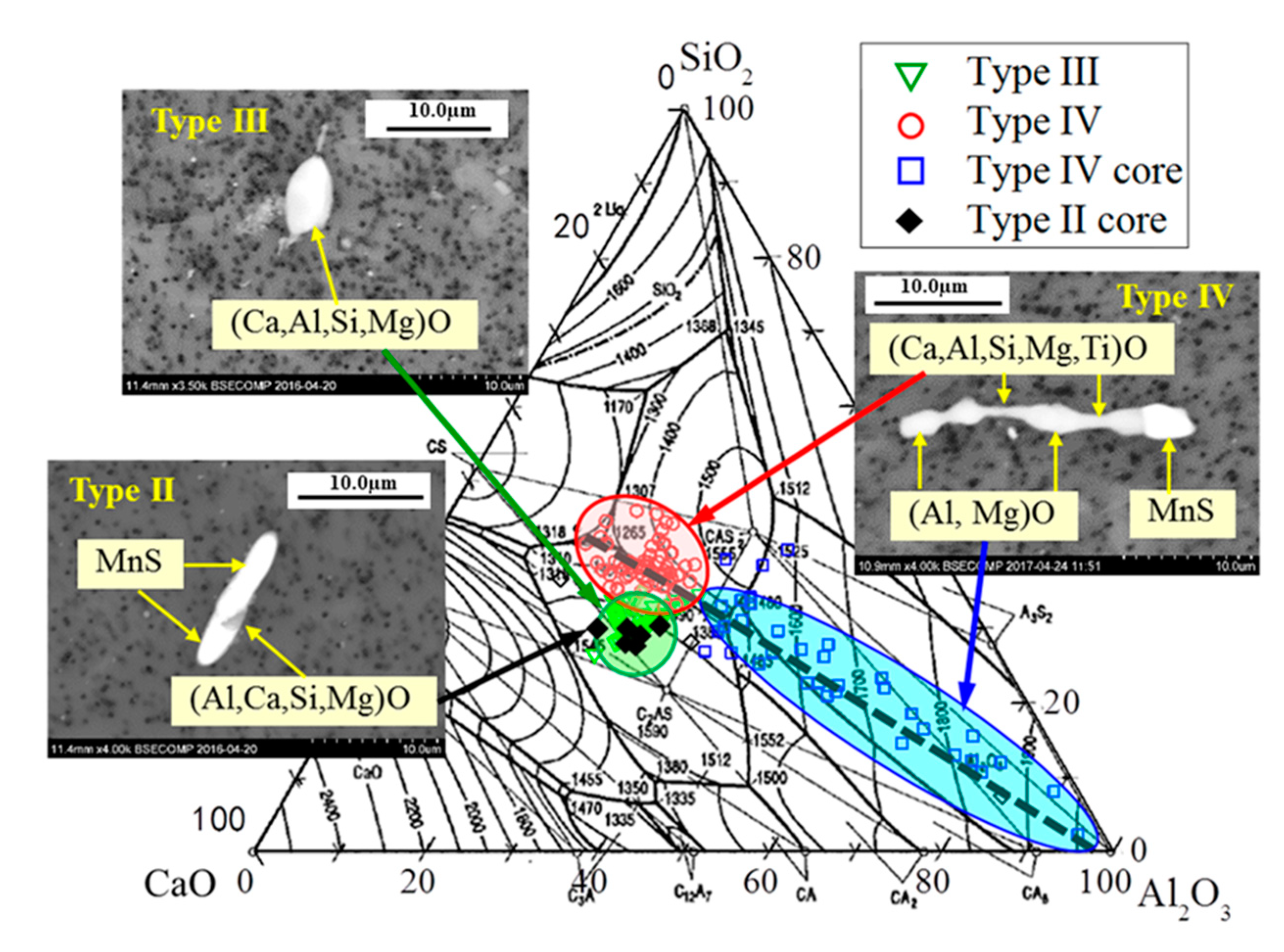

The triangle CaO–Al₂O₃–SiO₂ diagram in Figure 7 shows that most oxides of Type II (black diamond marks) and Type III (green triangle marks) in 316Ca steel were located in the area near gehlenite with a melting point ≥1500 ℃. The elongated part of Type IV inclusions had a higher content of SiO₂ and was located in the zone between the anorthite (CaO·Al₂O₃·2SiO₂) and gehlenite (2CaO·Al₂O₃·SiO₂) phases, which corresponds to a lower melting point zone (around 1300–1400 ℃). This composition of inclusions corresponds to a liquid phase during steel casting and to a soft oxide during rolling. The undeformed oxide core of Type IV inclusions had a similar ratio of CaO and SiO₂ (around 1:1) as the outer layer but a much higher content of Al₂O₃ and MgO (40%–95%), which corresponded to the oxide phases with higher melting points (>1450 ℃). Therefore, it can be concluded that the undeformed cores contained almost pure Al₂O₃ or Al₂O₃–MgO.

3.4. Mechanism of Inclusion Transformation

On the basis of the obtained results, it was shown that two types of oxide inclusions (Type III and Type IV inclusions) can be formed simultaneously during Ca treatment of 316L stainless steel. The presence of these two types of modified inclusions in steel can be explained by some differences between the initial oxide inclusions before CaSi addition. It was found that Type III oxide inclusions in 316R steel could be divided into two groups: (i) Type IIIa—liquid or semi-liquid inclusions with higher content of MnO and TiO_x (17–60% Al₂O₃, <10% MgO, 15–29% MnO, and 5–21% TiO_x) and (ii) Type IIIb—regular/irregular solid oxide inclusions with higher contents of Al₂O₃ and MgO (60–75% Al₂O₃, 10–24% MgO, 9–15% MnO, and 1–10% TiO_x).

After the addition of the CaSi wire, most of MnO and TiO_x, and part of Al₂O₃ in the liquid Type IIIa oxides could be reduced more easily and faster by Ca and Si. Therefore, CaO content was larger in the homogeneous Type III oxides in 316Ca steel. As a result, these obtained inclusions were harder and could not be deformed during hot rolling. A small amount of oxide phases, that were precipitated later on the surface of these solid oxides of Type III, had a smaller CaO content and a larger SiO₂ content due to the fast decrease of the Ca concentration in the melt. These precipitated phases were softer and could be deformed during hot rolling (as shown in by the tails in Figure 4a).

Other solid oxides, having a larger concentration of Al₂O₃ and MgO (Type IIIb), could not be modified quickly and completely due to a limitation of reduction reactions in the solid oxide phases. Therefore, an outer layer of modified oxides was formed slower due to the fast decreasing Ca concentration in the melt. As a result, the outer oxide layer had a smaller CaO content and a larger SiO₂ content compared to the solid oxide of Type III and could be deformed during hot rolling (as shown in Figure 4b). However, these Type IV modified complex inclusions in 316Ca steel could have an undeformed core that contained mostly Al₂O₃ and MgO.

Thus, after Ca treatment of 316L steel, about 46% of the observed inclusions were oxide inclusions (Types III and IV) correlated to gehlenite and to a mixture of gehlenite and anorthite inclusions. Therefore, it is believed that these modified oxide inclusions (especially the Type IV inclusions) can significantly improve the machinability of 316L stainless steel. The effects of different types of inclusions observed in Ca-treated stainless steel will be discussed in a separate article.

4. Conclusions

Non-metallic inclusions in commercial 316L steels without Ca treatment (316R) and with Ca treatment (316Ca) were studied. The characteristics of the inclusions were determined by using 3D investigations after EE. Based upon the presented experimental results, the following conclusions were drawn:

• Similar compositions of oxide inclusions in 316Ca steel were obtained after EE by using 2% TEA and 10% AA electrolytes.
• The 316L steels contained four types of inclusions: (1) elongated MnS (Type I), (2) MnS sulfides with hard oxide cores (Type II), (3) undeformed irregular oxides (Type III), and (4) elongated oxides with a hard oxide core (Type IV).
• In the reference sample, the oxide composition was mainly Al₂O₃–MgO–MnO. However, after Ca treatment of 316L steel, about 46% of the observed inclusions were oxide inclusions (Types III and IV), which correlated to gehlenite and to a mixture of gehlenite and anorthite, which are favorable for the machinability of steel.
