Study of Selective Recovery of Lead- and Zinc-Based Products from Leachate After Alkaline Leaching of Copper Shaft Furnace Dust

Abstract

A leachate from alkaline leaching of copper shaft furnace (CSF) dust as a hazardous waste was used in this study for performing a chemical precipitation experiment of lead, zinc, and copper. The precipitation processes for lead, zinc, and copper were theoretically optimized based on a thermodynamic study. To determine suitable operating conditions, metal phase stability, reaction mechanisms, and precipitation order were analyzed using the Hydra/Medusa and HSC Chemistry v.10 software packages. In the first experimental stage, treatment of the alkaline leachate resulted in the formation of insoluble lead sulfate (PbSO₄), while zinc remained dissolved for subsequent recovery. In the second stage, the zinc-bearing solution was treated with Na₂CO₃, producing a mixed zinc precipitate consisting of Zn₅(OH)₆(CO₃)_2(s). This study determined that the optimal conditions for chemically precipitating lead as PbSO₄ from alkaline leachate (pH 13.5) are the use of 1 mol/L H₂SO₄ at pH 3.09 and Eh 0.22 V at 25 °C, while optimal zinc precipitation from this solution (pH 3.02) is achieved with 2 mol/L Na₂CO₃ at pH 9.39 and Eh –0.14 V at 25 °C. A small amount of copper present in the solution co-precipitated and was identified as an impurity in the zinc product. The chemical composition of the resulting precipitates was confirmed by SEM–EDX analysis.

1. Introduction

Over the past decade, a global increase in electric vehicle sales has been observed, leading to a more than four times increase in copper consumption within this sector [1,2]; therefore, in the European Union, copper is considered a critical and strategic raw material [3,4].

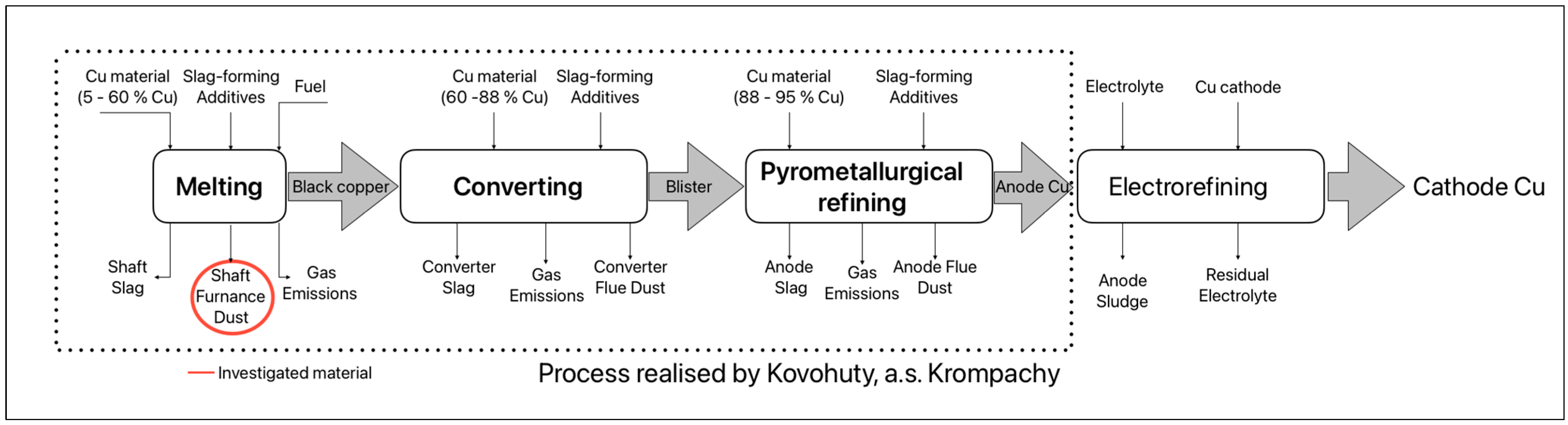

The pyrometallurgical process of copper production, depending on the treatment of primary or secondary raw materials, is carried out in three main stages: smelting, converting, and refining [5,6]. The scheme of secondary copper production is shown in Figure 1. Flue dust is generated in all three processes. They differ in chemical composition, which depends on the mineralogical composition of the concentrates, the melt, and the circulating materials (slag, flue dust, etc.) and their respective ratios [7].

During the thermal processes of copper production, fine dust particles known as flue dust are generated. According to the European Waste Catalogue, flue dust is classified as hazardous waste [8]. With the need for increased copper production, the amount of this waste will also rise. Flue dust from copper production contains heavy metals, primarily zinc, lead, and tin, as well as residual copper in oxide form [9]. Among the priorities of the EU waste management strategy is the effort to increase the recycling rate of waste before its energy recovery [10]. It is, therefore, essential to apply processing methods to copper production flue dust that allow for the recovery of metals or compounds based on zinc, lead, tin, and copper within acceptable technological and environmental requirements. Considering the composition of the flue dust, hydrometallurgical processing methods are preferred, as they are less environmentally demanding than pyrometallurgical techniques [11,12].

Several authors worldwide have studied the hydrometallurgical treatment of flue dust. The leaching agents used include sulfuric acid solutions [11,13,14], acetic acid [15], nitric acid [16], and sodium hydroxide solutions [17,18]. Research has also addressed pre-treatment processes, such as oxidative roasting, prior to leaching [19]. Jianyong Che et al. [20] studied an environmentally friendly process that selectively recovers As, Cu, Pb, Zn, and Bi from copper smelting flue dust through low-temperature roasting, leaching in dilute scrubbing H₂SO₄, and cementation, while Pb and Bi are subsequently processed mechanochemically or electrolytically. Jun Chen et al. [21] investigated that adding H₂SO₄ significantly lowers the roasting temperature and promotes the formation of soluble metal sulfates, with over 99% of Cl and Br removed at 325 °C using 1.5 × H₂SO₄; in addition, Cu, Zn, and Cd were almost completely leached in water. Microwave-assisted leaching, used in study [22], showed that non-microwave leaching occurs in two stages due to the formation of a product layer, whereas microwave-assisted leaching reduces the formation of this layer and enhances copper dissolution. Multiple extraction methods were investigated in the process of recovering metals (Zn, Pb, Sn, and Cu) from the leachate, such as chemical precipitation, cementation, or solvent extraction [15,17,23]. The authors [24] investigated the direct separation of copper and zinc from a highly acidic leaching solution. Copper and part of the zinc were precipitated using H₂S, and then the zinc remaining in the residue was re-leached with the original leaching solution. For the precipitation of copper sulfide from acidic sulfate solution, H₂S was also used [25]. Solvent extraction is used for the separation of Cu and Zn from acidic solutions after leaching dust wastes, with laboratory tests achieving Cu yields of 69–87% and Zn yields of 75–80% [26]. Chemical precipitation was then used to selectively separate zinc and lead from the leach solution, with sodium sulfide successfully precipitating lead at a Na₂S/Pb ratio of ~2.0 and zinc at a Na₂S/Zn ratio of ~3.0 [27]. The optimal conditions for copper involved using nitric acid (4 mol/L) at a temperature of 80 °C, achieving a copper leaching efficiency of 99.4%. Copper was then synthesized as copper oxide through precipitation from the leach solution [16].

The main objective of this research is to perform thermodynamic predictions through the construction and analysis of speciation and Pourbaix diagrams under defined conditions in a CSF dust leaching system, followed by the subsequent precipitation of lead and zinc from solution. The optimal leaching parameters were determined by considering the stability of various chemical species of zinc, lead, copper, and tin, as well as their distribution as a function of pH and redox potential.

Furthermore, this study proposes the optimal concentrations of sulfuric acid for lead precipitation and sodium carbonate for zinc precipitation to provide deeper insight into the complex reaction system and to establish optimal process parameters. To predict the most suitable operating conditions, an analysis of metal phase stability, possible chemical reactions, and their relative order was carried out using the Hydra/Medusa software package (https://speciation.net/Database/Components/HydraMedusa-;i1947) and HSC Chemistry v.10.

In addition to the thermodynamic assessment, this work focuses on the hydrometallurgical processing of CSF dust with the aim of recovering marketable zinc- and lead-based products. The valorization of hazardous waste into commercially viable materials would significantly contribute to addressing the challenges associated with CSF dust treatment, a by-product generated during copper production. Special attention is also given to evaluating the influence of impurities such as Cu and Sn present in the leach solution, as their behavior can substantially affect both the efficiency and selectivity of the precipitation processes.

2. Materials and Methods

Chemical analysis of solid and liquid samples was performed using a combination of X-ray fluorescence spectrometry (XRF) (SPECTRO Analytical Instruments GmbH, Kleve, Germany) and atomic absorption spectroscopy AAS (iCE 3300 AA-ThermoFisher Scientific, Grand Island, NY, USA), depending on the elemental composition and detection requirements. Samples of CSF dust and produced precipitates were characterized by scanning electron microscope (SEM) (MIRA 3 FE-SEM microscope TESCAN, Brno, Czech Republic) equipped with a high-resolution cathode (Schottky field emitter), a three-lens Wide Field OpticsTM design, and an Energy-dispersive X-ray detector (EDX) (Oxford Instruments, Abingdon, UK).

The redox potential (Eh) and pH were measured using an Orion Lab Star PH111 pH meter (Thermo Fisher Scientific, Waltham, MA, USA).

Pourbaix Eh–pH diagrams were employed to evaluate the leaching thermodynamics using HSC Chemistry, version 10 (Metso Finland Oy, Espoo, Finland). Predicted speciation diagrams in aqueous solutions were generated using MEDUSA software (version 32-bit, 2010, Royal Institute of Technology, Stockholm, Sweden) (Make Equilibrium Diagrams Using Sophisticated Algorithms).

All chemical reagents used for leaching and precipitation experiments are summarized in

Table 1. The usage, purpose, and properties of the leaching reagents.

Name	Content	Purity	Producer	City/State
NaOH	98 (%)	Analytical	Centralchem	Bratislava/Slovakia
H2SO4	96 (%)	Analytical	Penta Chemicals Unlimited	Prague/Czech Republic
Na2CO3	99.2 (%)	Analytical	Chemapol	Prague/Czech Republic

.

3. Results and Discussion

3.1. Alcaline Leaching

The alkaline leachate used in the experiments conducted in this laboratory research was obtained by alkaline leaching a copper shaft furnace (CSF) dust sample from secondary copper production at the company Kovohuty, a. s., Krompachy (Krompachy, Slovakia). The CSF dust, containing 44.02% Zn, 14.57% Pb, 1.12% Cu, and 1.59% Sn, predominantly occurs in the flue dust in an oxidic form. The alkaline leaching aimed to extract the metals (Zn, Pb, Cu, and Sn) into solution under conditions that would achieve the highest possible yield of lead in the leachate. The optimal leaching conditions (1 mol/L NaOH solution, pH 14, temperature 80 °C, liquid-to-solid ratio of 20, under atmospheric pressure) were adopted from the study by Laubertová et al. [17].

Oxides SnO₂, PbO, and ZnO are amphoteric and dissolve in a basic 2 mol/L NaOH solution (pH 14) at 80 °C, forming stable complex ions [Sn(OH)₆]²⁻, [HPbO₂]⁻, and [Zn(OH)₄]²⁻. CuO decomposes at high temperatures in NaOH at pH 14 to the complex [Cu(OH)₄]²⁻, but is not considered amphoteric. Navarro M. et al. [28] confirmed the solubility of CuO in NaOH. SnO₂ has high solubility and forms stable complexes. The solubility of PbO and ZnO is lower, and some of the oxide may remain partially undissolved in the solution. Higher leaching temperature (80 °C) enhances the dissolution kinetics but only slightly affects the equilibrium potential (Eh). The leaching chemical Equations (1)–(4), based on thermodynamic predictions, are proposed, and their values of Gibbs free energy at a temperature of 80 °C are provided in

Table 2. Values of Gibbs free energy (at 80 °C and pH 14) of Equations (1)–(4).

Chemical Reaction	ΔG°T (kJ)	No.
	80 °C
${\mathrm{P}\mathrm{b}\mathrm{O}}_{\left(\mathrm{s}\right)}+\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}+{\mathrm{H}}_2\mathrm{O}={{\mathrm{H}\mathrm{P}\mathrm{b}{\mathrm{O}}_2}^{-}}_{\left(\mathrm{a}\mathrm{q}\right)}+{{\mathrm{N}\mathrm{a}}^{+}}_{\left(\mathrm{a}\mathrm{q}\right)}+{\mathrm{H}}_2\mathrm{O}$	−31.128	(1)
${\mathrm{Z}\mathrm{n}\mathrm{O}}_{\left(\mathrm{s}\right)}+2\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}+{\mathrm{H}}_2\mathrm{O}={{\mathrm{Z}\mathrm{n}{\left(\mathrm{O}\mathrm{H}\right)}_4}^{2-}}_{\left(\mathrm{a}\mathrm{q}\right)}+2{{\mathrm{N}\mathrm{a}}^{+}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−78.120	(2)
${\mathrm{S}\mathrm{n}{\mathrm{O}}_2}_{\left(\mathrm{s}\right)}+2\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}+2{\mathrm{H}}_2\mathrm{O}={{\mathrm{S}\mathrm{n}{\left(\mathrm{O}\mathrm{H}\right)}_6}^{2-}}_{\left(\mathrm{a}\mathrm{q}\right)}+2{{\mathrm{N}\mathrm{a}}^{+}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−77.277	(3)
${\mathrm{C}\mathrm{u}\mathrm{O}}_{\left(\mathrm{s}\right)}+2\mathrm{N}\mathrm{a}\mathrm{O}\mathrm{H}+2{\mathrm{H}}_2\mathrm{O}={{\mathrm{C}\mathrm{u}{\left(\mathrm{O}\mathrm{H}\right)}_4}^{2-}}_{\left(\mathrm{a}\mathrm{q}\right)}+2{{\mathrm{N}\mathrm{a}}^{+}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−50.080	(4)

. A comparison of the ΔG°_T values from Equations (1) and (4) shows that all equations have a high probability of proceeding in the direction of product formation.

3.2. Chemical Precipitation

After the leaching process was completed, the process of recovering metals or their compounds from the solution using the chemical precipitation method followed. The solution obtained after alkaline leaching contained 8651 ppm Pb, 1630 ppm Zn, and 97.5 ppm Cu. This solution provided the initial sample for lead precipitation and was designated as MRD82. The pH value of the solution was 13.05, and the measured redox potential (Eh) was −0.350 mV. The aim of this part of the process was to extract metals from the solution to form sparingly soluble (or insoluble) compounds, which can then be used in the next metal production process. The appropriate precipitating agent must be selected according to the solubility of inorganic compounds in water based on its further commercial use and environmental impact. Therefore, in the first step, the research focused on the selective recovery of lead from the solution, followed by studying possible methods for recovering zinc, copper, or tin from the solution.

3.2.1. Lead Precipitation

Lead sulfate (PbSO₄) can be considered a useful lead compound, as it is used as an active material in lead-acid batteries [29]. Lead sulfide (PbS) can be used as a raw material for lead smelting and production of metallic lead [24]. For the precipitation of lead from the alkaline leachate, a 0.5 mol/L sulfuric acid (H₂SO₄) solution was used for experiments. To predict the precipitation conditions, Eh–pH diagrams (pH—the acidity/basicity of the environment; Eh—the electrochemical potential) of the systems Zn–S–Na–H₂O, Cu–S–Na–H₂O, Pb–S–Na–H₂O, and Sn–S–Na–H₂O were studied at 25 °C and at a pressure of 101,325 Pa using HSC Chemistry software, version 10 [30]. Eh–pH diagrams, also known as Pourbaix diagrams, illustrate the thermodynamic stability regions of various species in an aqueous solution. These stability regions are displayed as a function of pH and electrochemical potential.

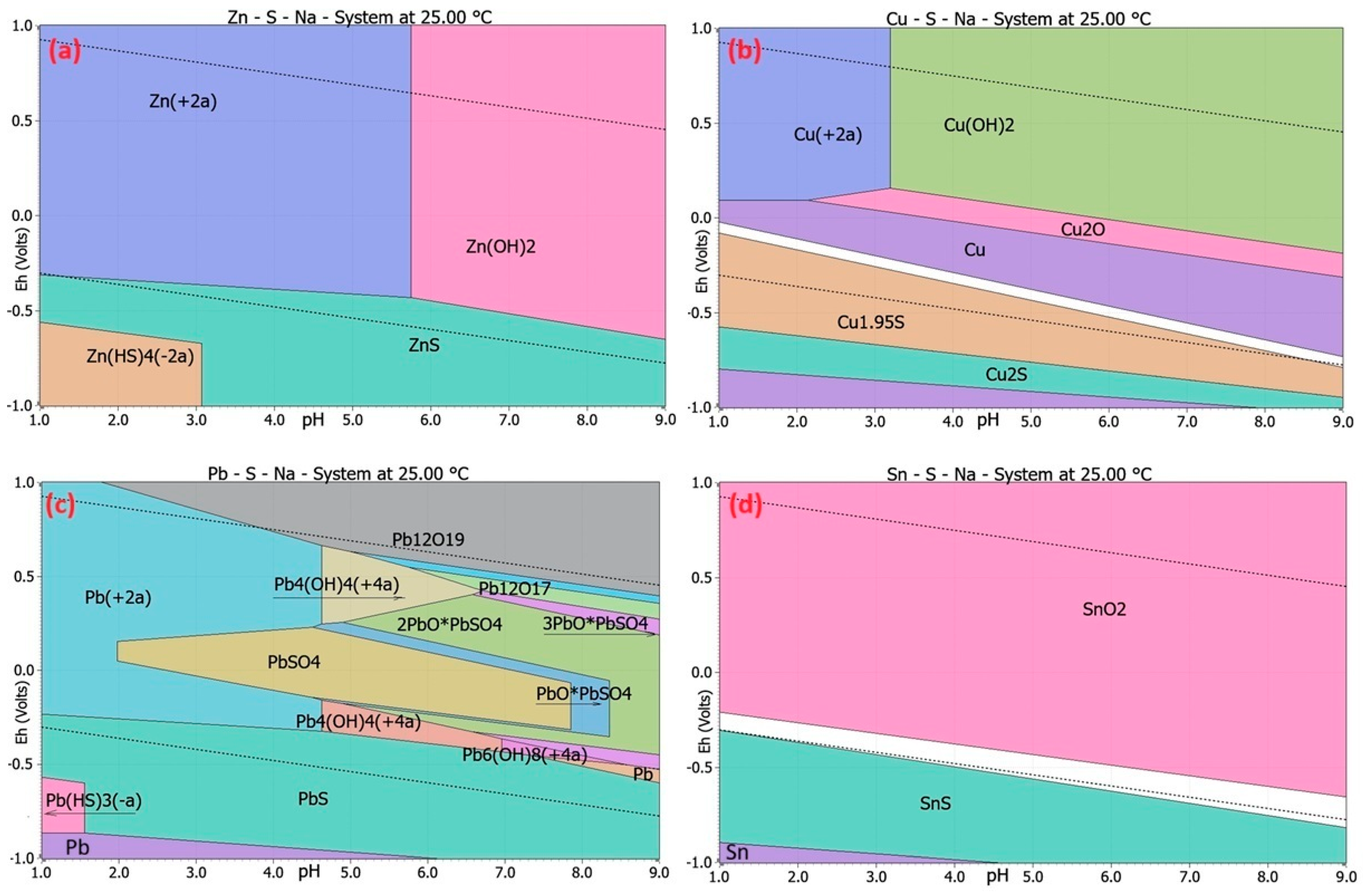

Figure 2 shows the potential–pH diagrams of the Zn–S–Na–H₂O, Cu–S–Na–H₂O, Pb–S–Na–H₂O, and Sn–S–Na–H₂O systems at 25 °C, based on all species’ specification and using a 1 to 9 pH scale.

Based on the thermodynamic predictions, the following chemical equations are proposed. Equations (5)–(13) describe the behavior of Zn, Pb, Cu, and Sn after the addition of sulfuric acid as a precipitating agent to the alkaline leachate. Equations (5)–(13), with their values of Gibbs free energy at a temperature of 25 °C, are listed in

Table 3. Proposed equations for the precipitation of metals from the solution using H₂SO₄ (pH range from 1 to 9) at 25 °C.

Chemical Reaction	ΔG°25 °C (kJ)	Ks	pH	No.
${\mathrm{Z}\mathrm{n}{\left(\mathrm{O}\mathrm{H}\right)}_4}^{2-}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+{4\mathrm{H}}^{+}={\mathrm{Z}\mathrm{n}}^{2+}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+4{{\mathrm{H}}_2\mathrm{O}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−219.449	–	1–5.6	(5)
${\mathrm{Z}\mathrm{n}{\left(\mathrm{O}\mathrm{H}\right)}_4}^{2-}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+{2\mathrm{H}}^{+}={\mathrm{Z}\mathrm{n}\left(\mathrm{O}\mathrm{H}\right)}_{2\left(\mathrm{s}\right)}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+2{{\mathrm{H}}_2\mathrm{O}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−153.833	–	5.6–8.5	(6)
${\mathrm{Z}\mathrm{n}\left(\mathrm{O}\mathrm{H}\right)}_{2\left(\mathrm{s}\right)}={2\mathrm{O}\mathrm{H}}^{-}+{\mathrm{Z}\mathrm{n}}^{2+}$	94.095	3.263 × 10−17	5.6–8.5	(7)
${\mathrm{C}\mathrm{u}{\left(\mathrm{O}\mathrm{H}\right)}_4}^{2-}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+{4\mathrm{H}}^{+}={\mathrm{C}\mathrm{u}}^{2+}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+4{{\mathrm{H}}_2\mathrm{O}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−226.762	–	1–3.2	(8)
${\mathrm{C}\mathrm{u}{\left(\mathrm{O}\mathrm{H}\right)}_4}^{2-}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+{2\mathrm{H}}^{+}={\mathrm{C}\mathrm{u}\left(\mathrm{O}\mathrm{H}\right)}_{2\left(\mathrm{s}\right)}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+2{{\mathrm{H}}_2\mathrm{O}}_{\left(\mathrm{a}\mathrm{q}\right)}$	−190.229	–	3.3–9	(9)
${\mathrm{C}\mathrm{u}\left(\mathrm{O}\mathrm{H}\right)}_{2\left(\mathrm{s}\right)}={2\mathrm{O}\mathrm{H}}^{-}+{\mathrm{C}\mathrm{u}}^{2+}$	123.177	2.618 × 10−22	3.3–9	(10)
${\mathrm{H}\mathrm{P}\mathrm{b}{\mathrm{O}}_2}^{-}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+{3\mathrm{H}}^{+}={2\mathrm{H}}_2\mathrm{O}+{\mathrm{P}\mathrm{b}\mathrm{S}\mathrm{O}}_{4\left(\mathrm{s}\right)}$	−203.974	–	2–7.8	(11)
${\mathrm{P}\mathrm{b}\mathrm{S}\mathrm{O}}_{4\left(\mathrm{s}\right)}={{\mathrm{S}\mathrm{O}}_4}^{2-}+{\mathrm{P}\mathrm{b}}^{2+}$	44.435	1.639 × 10−8	2–7.8	(12)
${{\mathrm{S}\mathrm{n}{\left(\mathrm{O}\mathrm{H}\right)}_6}^{2-}}_{\left(\mathrm{a}\mathrm{q}\right)}+{{\mathrm{S}\mathrm{O}}_4}^{2-}+{2\mathrm{H}}^{+}={\mathrm{S}\mathrm{n}\mathrm{O}}_{2\left(\mathrm{s}\right)}+{{4\mathrm{H}}_2\mathrm{O}}_{\left(\mathrm{a}\mathrm{q}\right)}+{{\mathrm{S}\mathrm{O}}_4}^{2-}$	−165.560	–	1–9	(13)

. Negative values of standard Gibbs energies indicate that the reactions will proceed in the direction of reactant formation and should be spontaneous at a temperature of 25 °C.

The Eh–pH diagram shown in Figure 2a displays that zinc is present in the solution as Zn²⁺ at a temperature of 25 °C in the pH range of 1–5.6 with (Eh = –0.2 to 1 V) and (Eh = –0.3 to 0.6 V), and at a pH of 5.6–9 with (Eh = –0.3 to 0.6 V) and (Eh = –0.9 to 0.2 V), and as insoluble Zn(OH)_2(s) in stability limits of water, Equations (5) and (6). The Eh–pH diagram shown in Figure 2b displays that copper is present in the solution as Cu²⁺ at a temperature of 25 °C in the pH range of 1 to 3.2 with (Eh = 0.1 to 0.9 V), and at a pH of 1–3.2 with (Eh = 0.2 to 0.8 V), and pH 3.2 to 9 (Eh = –0.5 to 0.2 V) as insoluble Cu(OH)_2(s) in stability limits of water, Equations (8) and (9).

The Eh–pH diagram shown in Figure 2c displays that lead is in the solution, presenting as Pb²⁺ at a temperature of 25 °C in the pH range of 1–4.5, and it contains a region of an insoluble compound PbSO₄ at pH 2 to 7.8 (Eh = 0.2 to −0.2 V) in stability limits of water, Equation (11). Equation (14) shows that tin is insoluble as SnO_2(s) in the pH range 1–9. In this area, compound Sn(SO₄)O₂ is shown. The solubility product (Ks) of the insoluble compound Zn(SO)₄ is 3.263 × 10⁻¹⁷, Cu(SO)₄ is 2.618 × 10⁻²², and PbSO₄ is 1.514 × 10⁻⁸ at 25 °C, Equations (7), (10) and (12).

Thermodynamic studies indicate that Zn and Cu remain in solution at around pH 3 and an Eh of approximately 0.2 V, whereas Pb will precipitate from the solution as the sparingly soluble compound PbSO₄ at 25 °C. This statement is further supported by the prediction of fraction diagrams in aqueous solutions created using the MEDUSA software, which has been used to predict the conditions for Zn and Pb recovery in several research studies [31,32].

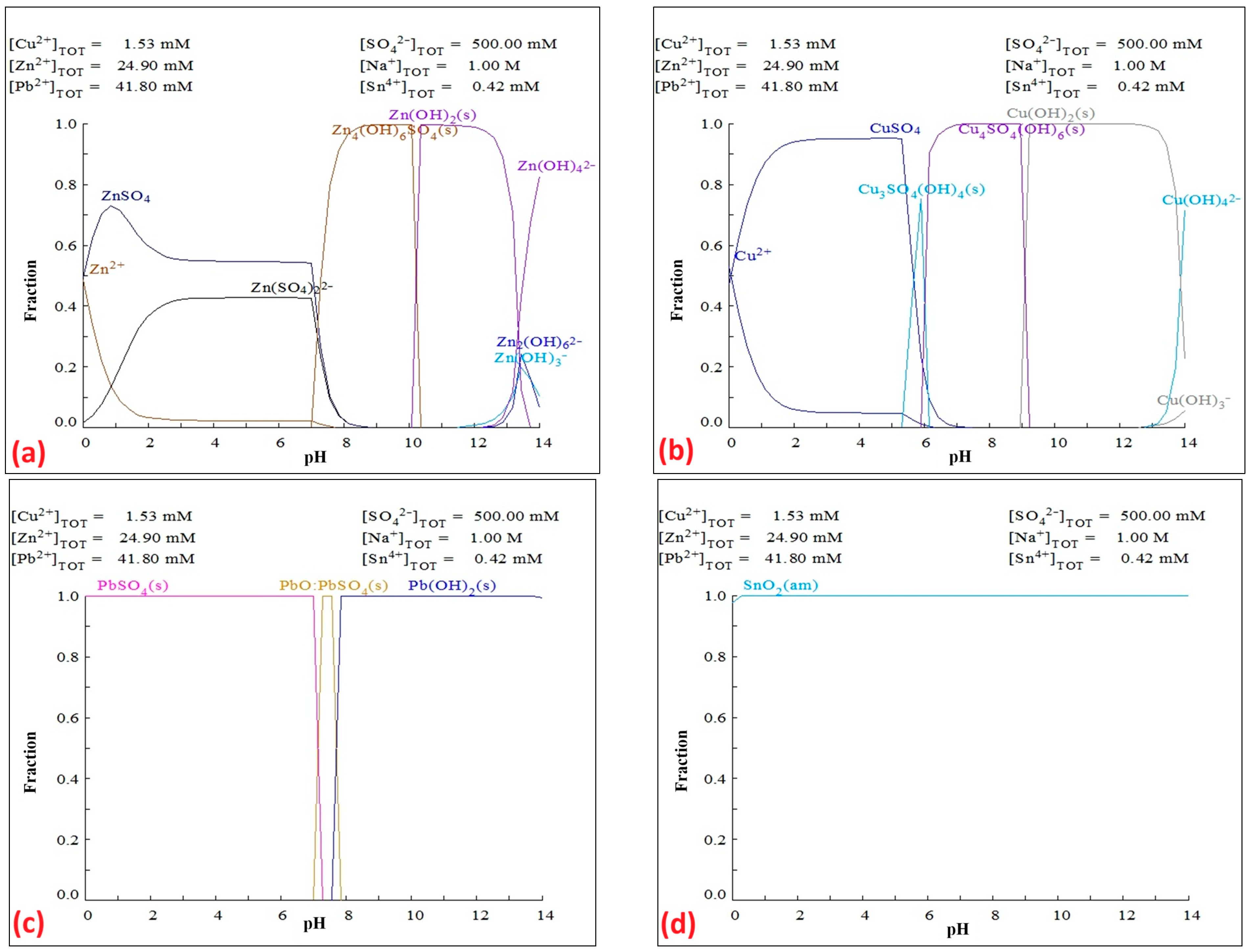

Figure 3 shows the fraction diagrams of metal precipitation occurring in an alkaline solution upon the addition of H₂SO₄.

Figure 3a shows the fraction diagram of Zn precipitation using H₂SO₄, from which it can be inferred that Zn is likely to be present in solution as Zn(OH)_2(s) in the pH range of 10.5–13.5, while a narrow region of Zn₄(OH)₆SO_4(s) formation occurs in the pH range of 8–10. In the pH range of 0–7, zinc is likely to be present in solution as ionic ZnSO₄, Zn²⁺, and Zn(SO₄)₂², confirmed by research study authors Gajic et al. [33].

Figure 3b shows the fraction diagram of Cu precipitation using H₂SO₄, from which it can be inferred that Cu is present in solution as Cu(OH)_2(s) in the pH range of 9.5–14. In the pH range of 6–9.5, a region of Cu₄SO₄(OH)_6(s) formation occurs, and in the pH range of 5.5–6, a region of Cu₃SO₄(OH)_4(s) formation appears, which overlaps with the region of CuSO₄ formation (pH 0–6) with Cu²⁺ ions.

Figure 3c shows the fraction diagram of Pb precipitation using H₂SO₄, from which it can be inferred that in the pH range of 8–14, lead is present in solution as Pb(OH)_2(s), while a narrow region of PbO:PbSO_4(s) formation occurs between pH 7 and 8. Lead precipitates from the solution as PbSO₄ in the pH range of 0–7.

Figure 3d shows the fraction diagram of Sn precipitation using H₂SO₄, from which it can be inferred that Sn is likely present as amorphous SnO₂ in the pH range of 12–14. Tin is not present in the solution after leaching in the proposed treatment of CSF dust. Based on a thermodynamic study of Eh–pH and fraction diagrams, its precipitation together with lead in the current process is not expected, although its removal would be necessary if some Sn were to leach from the dust, which represents a topic for further research.

A 1 mol/L H₂SO₄ solution was used for the precipitation of lead from the alkaline leachate (pH 13.05). During the precipitation process, pH and redox potential (Eh) were continuously monitored at 25 °C under constant stirring at 300 rpm. The input sample for each experiment was the MRD82 sample. Gradual addition of the reagent led to the formation of precipitates in the solution at various pH values (

Table 4. Results of the chemical analysis by AAS of the solutions before and after Pb precipitation, including their pH and Eh values.

Sample	Solution	Precipitate Agent	pH (-)	Eh (V)	Pb (ppm)	Zn (ppm)	Cu (ppm)	Color **
MRD82	Initial Sample *	–	13.05	−0.350	8651	1630	97.5	−
MRD86	Pb precipitation	1 mol/L H2SO4	3.09	0.225	10.2	1198	67.80	White
MRD83	Pb precipitation	1 mol/L H2SO4	5.16	0.103	9.7	1158	49.20	White
MRD84	Pb precipitation	1 mol/L H2SO4	7.75	−0.047	6.8	60.20	1.60	White
MRD85	Pb precipitation	1 mol/L H2SO4	12.00	−0.295	335.6	24.50	2.70	Blue–Green

*—Initial sample for lead precipitation; **—Precipitate color.

). The resulting suspensions were subsequently filtered and dried. The filtrates were analyzed using AAS to determine their elemental composition, and their Eh values were measured. The dried precipitates were analyzed by SEM–EDX to determine their elemental composition. Each experiment under identical conditions was repeated three times. At pH 3.09 and Eh 0.225 V, 99% of Pb ions were precipitated (white precipitate), while Zn ions (1198 ppm) and Cu ions (67 ppm) remained in the solution. The formation of the white precipitate confirms the expected formation of PbSO₄, as predicted by the thermodynamic study based on the Eh–pH diagrams (Figure 2) and the fractional diagrams (Figure 3). A similar situation was observed at pH 5.16 and Eh 0.103 V.

At pH 7.75 and Eh −0.047 V, lead also precipitated as a white solid; however, the Zn concentration in the solution (60.2 ppm) indicates that zinc had begun to co-precipitate into the white solid phase. At pH 12 (Eh −0.295 V), Pb (335.6 ppm), Zn (24.5 ppm), and Cu (2.7 ppm) were precipitated. The formation of a blue–green precipitate indicates the presence of Cu(OH)₂, in agreement with Figure 2 and Figure 3. This is also supported by the thermodynamic study of Gajić et al. [33], who confirmed that if the pH value exceeds 3.5, the leached copper may precipitate in the form of Cu₃SO₄(OH)₄, Cu₄SO₄(OH)₆, or CuO. The formation of Pb in the form of hydroxides is also possible. The analytical results obtained after precipitation are summarized in Table 4. Based on the changes in the concentrations of Pb, Zn, and Cu ions in the MRD86 solution relative to the initial MRD82 sample, it can be concluded that nearly 99% of Pb was precipitated from the solution, while Zn losses reached 26.5%, and Cu losses reached 30%. However, when comparing the metal content at the input and output, the Zn and Cu present in the precipitate may be considered impurities. The addition of 1 mol/L H₂SO₄ may have contributed to the observed decrease in the concentrations of Zn and Cu in the MRD86 solution. The decrease in concentrations may result not only from precipitation but also from the change in the solution volume.

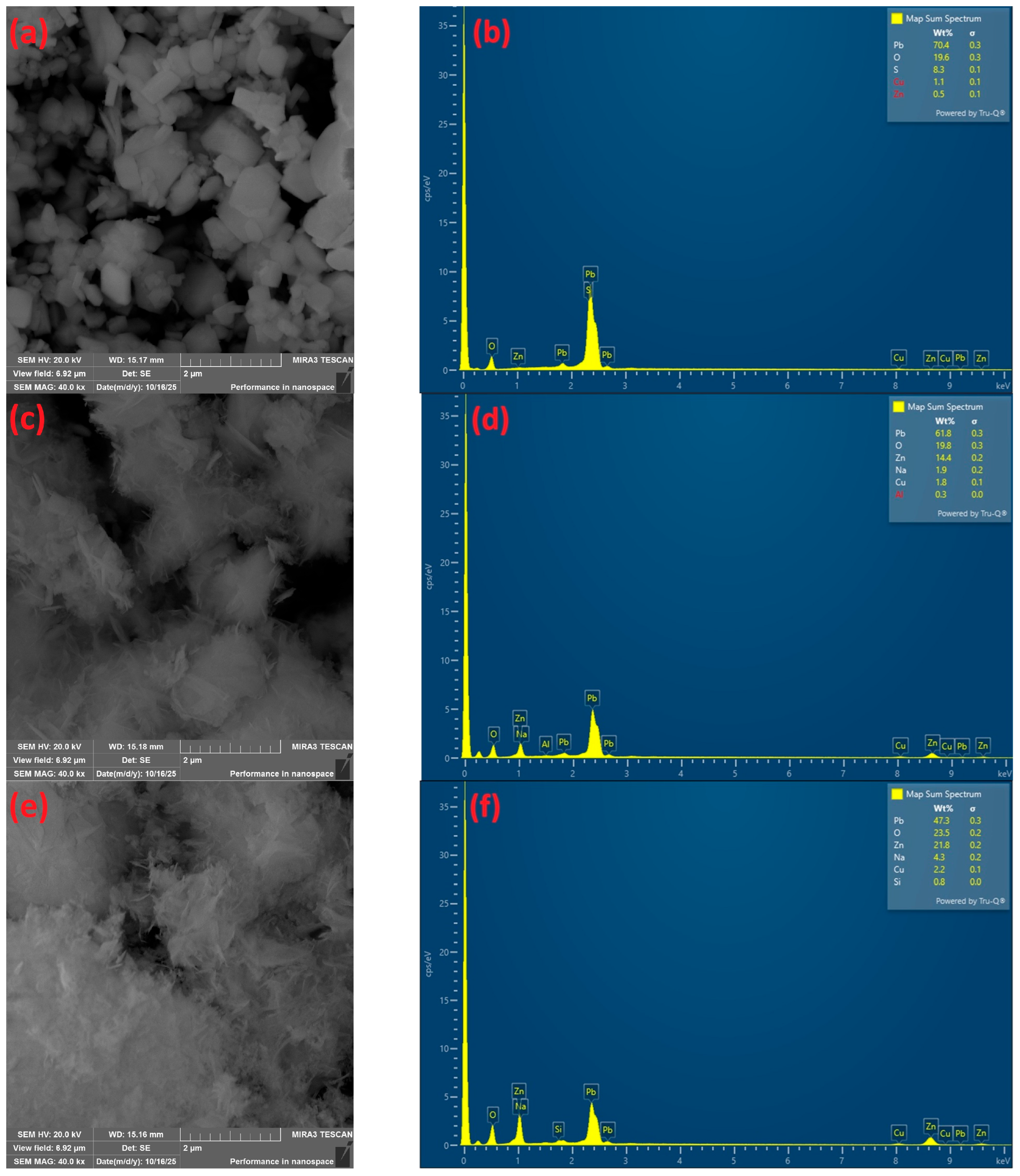

The resulting precipitates were subjected to SEM–EDX analysis to determine their morphology and chemical composition (Figure 4).

The morphology of the precipitate sample at pH 3.9, observed by scanning electron microscopy (SEM), is shown in Figure 4a. In Figure 4a, the sample morphology is presented at a magnification of 40,000×, revealing particles of various shapes, with the majority exhibiting a blocky, angular form. EDX analysis (Figure 4b) indicated the presence of the major elements Pb, O, and S. Based on the EDX results, as well as theoretical studies of the Eh–pH and fractional diagrams, the precipitate is most likely PbSO₄ [17].

The morphology of the precipitate at pH 7.75 (Figure 4b) and at pH 12 (Figure 4c) reveals “cotton-like” particles forming smaller aggregates, with occasional needle-shaped particles. EDX analysis indicated the presence of the major elements Pb, Zn, Cu, and O (Figure 4d). Based on the EDX results and theoretical studies of the Eh–pH and fractional diagrams, the precipitates are likely composed of lead, zinc, and copper hydroxide compounds.

3.2.2. Zinc Precipitation

In the second stage of leachate processing (pH 3), the objective was to recover zinc from the solution as an insoluble compound that could be further utilized in industry, using a suitable precipitating agent. An example of a slightly soluble compound is ZnCO₃, which is employed as a pigment, corrosion inhibitor, in cosmetics, and for other applications. The solubility product (K_s) of zinc carbonate (ZnCO₃) at 25 °C and an ionic strength of I = 0.0 mol·dm⁻³ is 1.276 × 10⁻¹⁰. Based on the properties of this compound, as well as environmental considerations, Na₂CO₃ was chosen as the precipitating agent. The Eh–pH diagrams of the individual systems were studied (Figure 5).

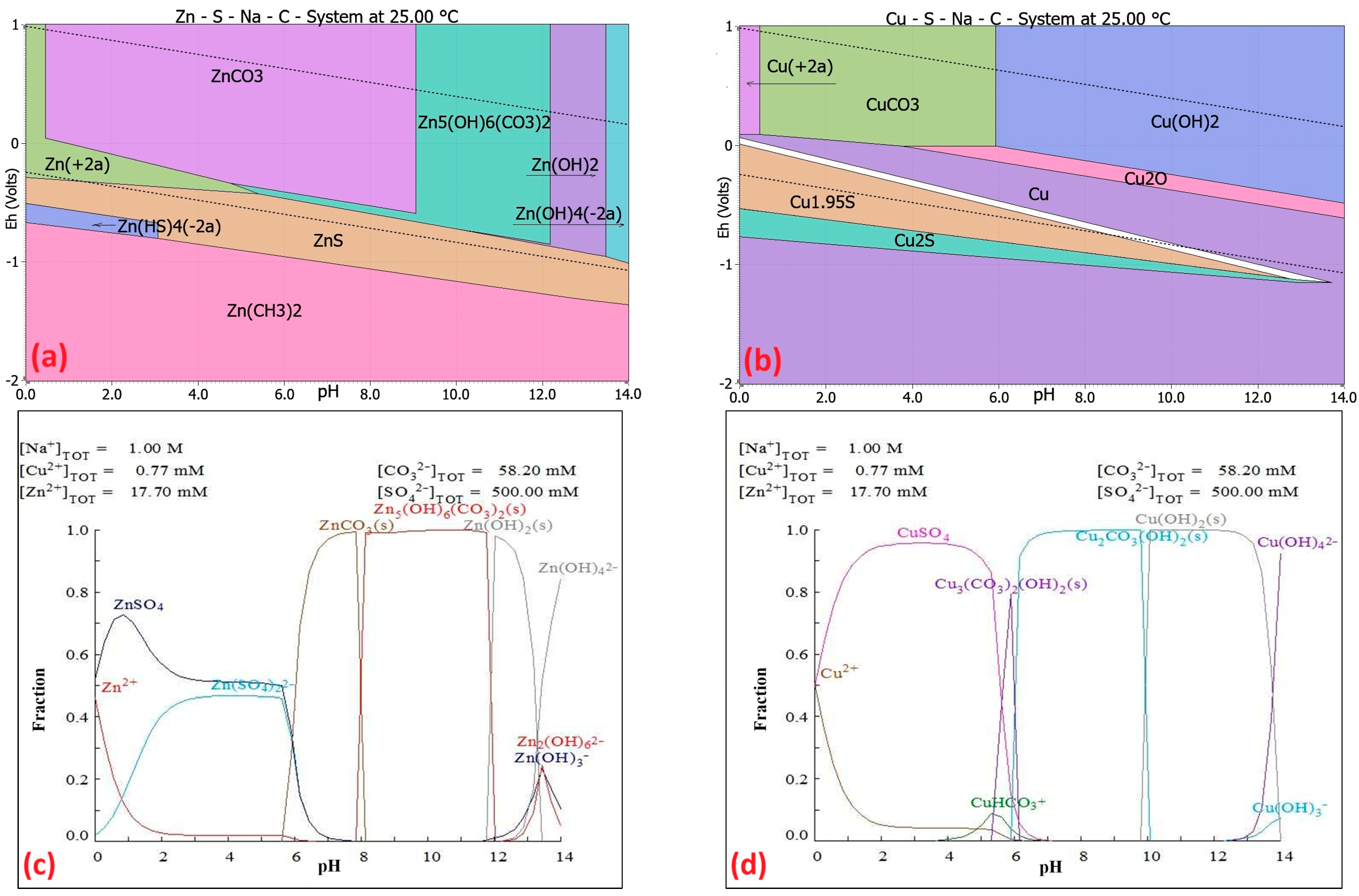

From the Eh–pH diagrams of the Zn–S–Na–C–H₂O system (Figure 5a) and the Cu–S–Na–C–H₂O system (Figure 5b), it can be concluded that precipitation will occur within the pH range of 1.5 to 9 according to Equations (14) and (15), whereas at pH 9.2 to 12.3, the formation of Zn₅(OH)₆(CO₃)₂ precipitate would occur (

Table 5. Proposed equations for the precipitation of metals from the solution using Na₂CO₃ (pH range from 0 to 14) at 25 °C.

Chemical Reaction	ΔG°25 °C (kJ)	Ks	pH	No.
${\mathrm{Z}\mathrm{n}}^{2+}+{{\mathrm{C}\mathrm{O}}_3}^{2-}={\mathrm{Z}\mathrm{n}\mathrm{C}\mathrm{O}}_{3\left(\mathrm{s}\right)}$	−56.470	–	1.5–9.2	(14)
${\mathrm{Z}\mathrm{n}\mathrm{C}\mathrm{O}}_{3\left(\mathrm{s}\right)}={{\mathrm{C}\mathrm{O}}_3}^{2-}+{\mathrm{Z}\mathrm{n}}^{2+}$	56.470	1.276 × 10−10	1.5–9.2	(15)
${5\mathrm{Z}\mathrm{n}}^{2+}+{{2\mathrm{C}\mathrm{O}}_3}^{2-}+{6\mathrm{O}\mathrm{H}}^{-}={\mathrm{Z}{\mathrm{n}}_5\left(\mathrm{O}\mathrm{H}\right)}_6({\mathrm{C}\mathrm{O}}_3{)}_2$	−429.151	–	9.2–12.3	(16)
${\mathrm{Z}\mathrm{n}5\left(\mathrm{O}\mathrm{H}\right)}_6({\mathrm{C}\mathrm{O}}_3{)}_2=5\mathrm{Z}\mathrm{n}\mathrm{O}+2{\mathrm{C}\mathrm{O}}_{2\left(\mathrm{g}\right)}+3{{\mathrm{H}}_2\mathrm{O}}_{\left(\mathrm{a}\mathrm{q}\right)}$	73.734	1.205 × 10−13	9.2–12.3	(17)
${\mathrm{C}\mathrm{u}}^{2+}+{{\mathrm{C}\mathrm{O}}_3}^{2-}={\mathrm{C}\mathrm{u}\mathrm{C}\mathrm{O}}_{3\left(\mathrm{s}\right)}$	−56.360	–	0.5–5.9	(18)
${\mathrm{C}\mathrm{u}\mathrm{C}\mathrm{O}}_{3\left(\mathrm{s}\right)}={{\mathrm{C}\mathrm{O}}_3}^{2-}+{\mathrm{C}\mathrm{u}}^{2+}$	56.360	1.334 × 10−10	0.5–5.9	(19)
${\mathrm{C}\mathrm{u}}^{2+}+{{\mathrm{C}\mathrm{O}}_3}^{2-}{+2\mathrm{O}\mathrm{H}}^{-}={\mathrm{C}\mathrm{u}\left(\mathrm{O}\mathrm{H}\right)}_{2\left(\mathrm{s}\right)}+{{\mathrm{C}\mathrm{O}}_3}^{2-}$	−123.177	–	5.9–14	(20)
${\mathrm{C}\mathrm{u}\left(\mathrm{O}\mathrm{H}\right)}_{2\left(\mathrm{s}\right)}={2\mathrm{O}\mathrm{H}}^{-}+{\mathrm{C}\mathrm{u}}^{2+}$	55.252	2.618 × 10−22	5.9–14	(21)

). Copper in this pH range is expected to precipitate as CuCO₃ (pH 0.3–5.9) and as Cu(OH)₂ (pH 5.9–14) at 25 °C. Equations (14)–(21), along with their Gibbs free energy values at 25 °C, are presented in Table 5. The solubility products (K_s) of the insoluble compounds ZnCO_3(s), Zn₅(OH)₆(CO₃)₂, CuCO_3(s), and Cu(OH)_2(s) are also listed in Table 5.

Figure 5 shows the fraction diagrams (created using the MEDUSA software) for the precipitation of metals from the solution using Na₂CO₃ [11,31].

Figure 5c shows the fraction diagram for Zn precipitation using Na₂CO₃, which indicates that with the addition of Na₂CO₃, Zn begins to precipitate from pH 6. From pH 8 to 12, zinc precipitates from the solution as Zn₅(OH)₆(CO₃)_2(s). From pH 12 to 13.5, it occurs as Zn(OH)_2(s).

Figure 5d shows the fraction diagram for Cu precipitation using Na₂CO₃, indicating that in the pH range 6–10, Cu in solution is likely present as Cu₂CO₃(OH)_2(s) (100% of the precipitate), while at pH 10–13.5, it occurs as Cu(OH)_2(s). At lower pH values, depending on the concentration in the solution, Cu may exist either in ionic form or as a precipitate. Zinc extraction from the solution after lead precipitation is carried out by the precipitation method. Based on theoretical knowledge of precipitation, solubility studies of individual inorganic compounds, and their environmental impact, sodium carbonate is considered the most suitable precipitating agent for zinc extraction, targeting a solution pH of approximately 9.

For the precipitation experiments, a 2 mol/L Na₂CO₃ solution (precipitating agent) was used at 25 °C under continuous stirring at 300 rpm. During the precipitation process, pH and redox potential (Eh) were measured. The feed solution for each experiment consisted of the post-lead-precipitation solutions. The resulting precipitates were filtered, dried at 65 °C, and analyzed by SEM–EDX to determine their morphology and chemical composition. The resulting solutions were filtered, and liquid samples were collected for analysis by AAS to confirm the content of the target metals and the precipitation of Zn ions from the solution. At pH 9.11, more than 99% of Zn was precipitated from the solution (

Table 6. Results of chemical analysis by AAS of the solutions before and after Zn precipitation, along with their corresponding pH and Eh values.

Sample	Solution	Precipitate Agent	pH (-)	Eh (V)	Pb (ppm)	Zn (ppm)	Cu (ppm)	Precipitate **
MRD83	IS for MRD94 *	–	5.16	0.103	9.7	1158	49.2	–
MRD94	Zn precipitation	2 mol/L Na2CO3	9.39	−0.140	0.3	2.7	2.0	Green/White
MRD92	Zn precipitation	2 mol/L Na2CO3	8.69	−0.099	0.3	9.1	2.6	Green
MRD93	Zn precipitation	2 mol/L Na2CO3	9.11	−0.123	0.2	3.9	3.2	Green

*—Initial sample for zinc precipitation; **—Precipitate color.

); however, along with zinc, over 98% of Cu also precipitated. The redox potential at this pH was −0.123 V, which corroborates the theoretical prediction of PbSO₄ formation based on the Eh–pH and fraction diagrams. The addition of 2 mol/L Na₂CO₃ may have contributed to the observed decrease in the concentrations Cu and Zn in the MRD94 solution.

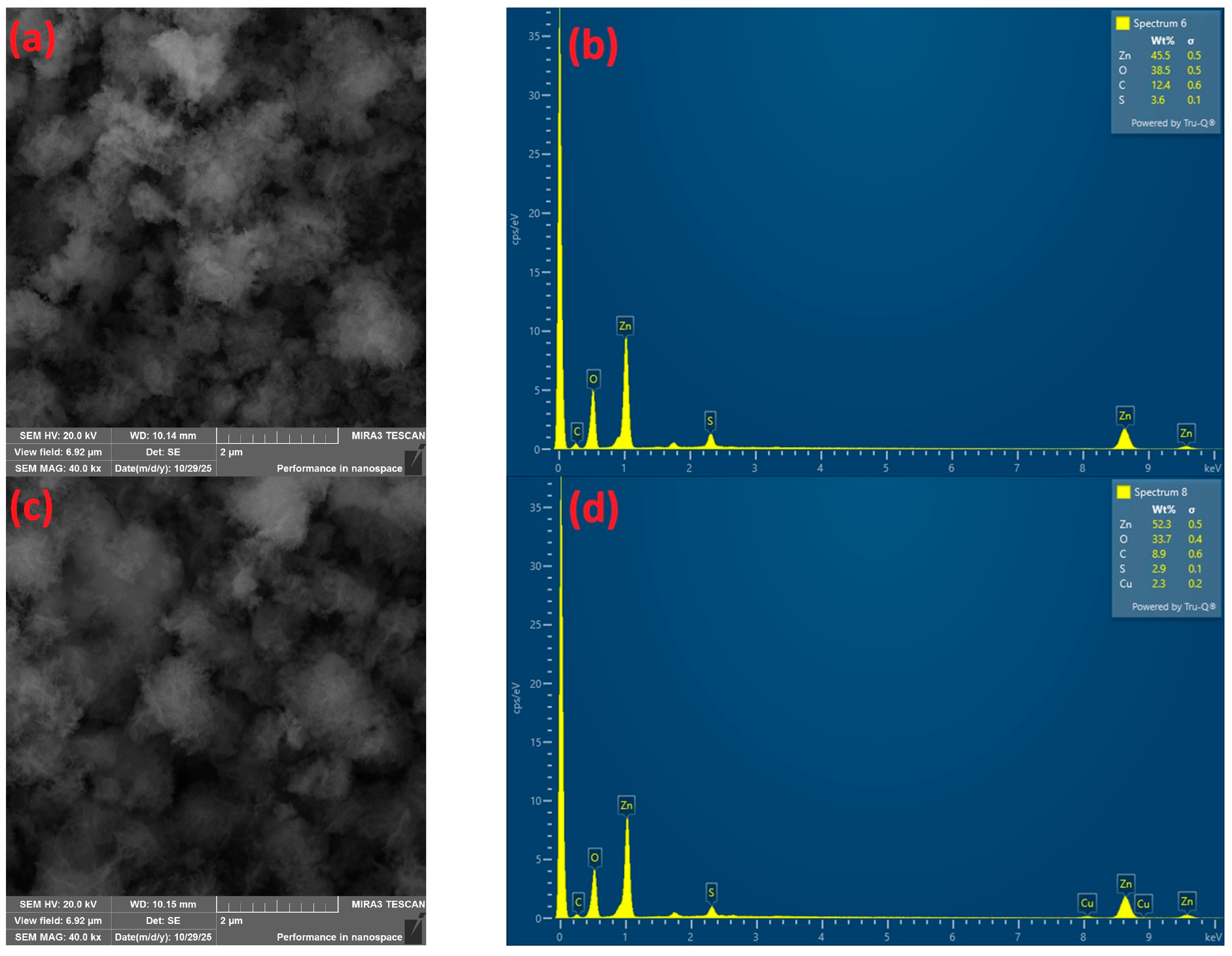

The morphology of the precipitate formed at pH 9.39 was observed using a scanning electron microscope (SEM) (Figure 6a). In Figure 6a, the morphology at a magnification of 40,000× shows fine particles aggregated into clusters. EDX analysis (Figure 6b) revealed the presence of Zn, C, O, and S. Based on the EDX results and theoretical studies of the Eh–pH and fraction diagrams, the precipitate is likely a zinc-based compound, such as Zn(OH)₂, Zn₅(OH)₆(CO₃)_2(s), and Zn₄(OH)₆SO_4(s).

The morphology of the precipitate at pH 8.69, observed using scanning electron microscopy (SEM), is shown in Figure 6c. In Figure 6c, the particle morphology exhibits smaller particles, forming “cotton-like” aggregates. EDX analysis (Figure 6d) indicated the presence of Zn, Cu, C, O, and S. Based on the EDX results and theoretical studies of the Eh–pH and fraction diagrams, the precipitate likely consists of zinc-based compounds (Zn(OH)₂, Zn₅(OH)₆(CO₃)_2(s), and Zn₄(OH)₆SO_4(s)) and copper (Cu(OH)₂). However, by comparing the metal content in the input and output, Zn and Cu in the precipitate can be considered impurities. EDX analysis does not allow for a definitive confirmation of the exact stoichiometry or purity of the precipitate at the trace-element level. It is also necessary to focus on determining the XRD analysis of the precipitate, as documented in the work of authors [17].

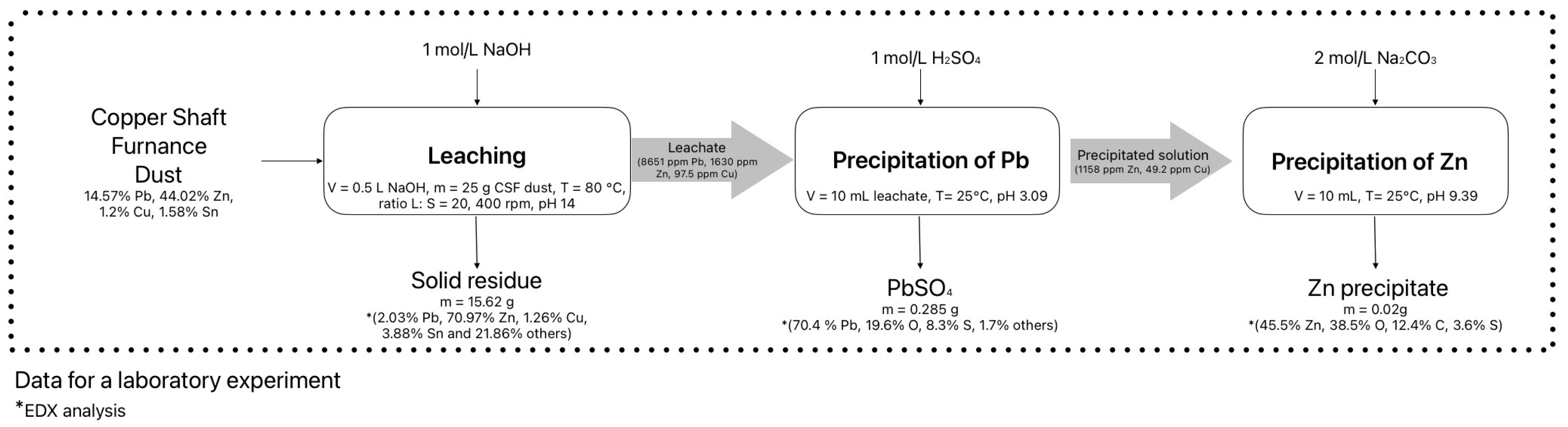

Figure 7 illustrates the proposed scheme for hydrometallurgical processing of CSF dust. Following the leaching of CSF dust under optimal conditions, the first extraction phase involves the precipitation of lead from the solution using the precipitating agent H₂SO₄ to achieve pH 3.09, resulting in the formation of PbSO₄. In the second extraction phase, zinc is precipitated using the precipitating agent Na₂CO₃, forming a zinc-based precipitate at pH 9.39 and 25 °C. At each stage, the amounts of reagents added, the masses and compositions of solids, and the compositions and volumes of solutions are tracked to provide a clear overview of the material flows and to illustrate the distribution of metals throughout the process. The amounts of the precipitating agents H₂SO₄ and Na₂CO₃ were added after the pH of the solution was adjusted.

4. Conclusions

The present theoretical study focuses on the extraction of metals from the solution obtained after alkaline leaching of CSF dust as a hazardous waste. The precipitation processes for lead and zinc were successfully optimized theoretically by designing them based on a thermodynamic study, which determined their optimal parameters:

• For efficient precipitation of lead from an alkaline solution at pH = 14, lead forms the insoluble compound PbSO₄ within the pH range 2 to 7.8 (Eh = 0.2 to –0.2 V) within the stability limits of water;
• For efficient precipitation of zinc from an acidic solution in the pH range 6–8, Zn is expected to precipitate as ZnCO₃;
• If the solution also contains Cu, copper will precipitate in the form of Cu₂CO₃(OH)_2(s) (pH 6–10) and as Cu(OH)_2(s) (pH 10–13.5) at ambient temperatures and will be present as an impurity in the zinc precipitate.

The first stage of the experimental work included processing the alkaline leachate formed in the insoluble compound of lead sulfate (PbSO₄) as a solid precipitate, while zinc remained in ionic form in the solution for subsequent recovery. This solution was utilized in the second stage of the process by adding Na₂CO₃, resulting in a zinc-based precipitate consisting of Zn(OH)₂ (12–13.5 pH) and Zn₅(OH)₆(CO₃)_2(s) (8–12 pH). In addition, the experimental investigation led to the following conclusions:

• The optimal conditions for precipitating lead as PbSO₄ from an alkaline leachate (pH 13.5) are a 1 mol/L H₂SO₄ solution at pH 3.09 and Eh 0.22 V at 25 °C;
• The optimal conditions for precipitating zinc from this solution (pH 3.09) are the use of 2 mol/L Na₂CO₃ as the precipitating agent at pH 9.39 and Eh −0.14 V at 25 °C.

Since the solution contained small amounts of copper, this fraction also precipitated and is considered an impurity in the resulting zinc precipitate. The final precipitates were subjected to SEM–EDX analysis to confirm their chemical composition.

Further research is required, and the next stage should include testing the process illustrated in Figure 7. In this phase, it is essential to conduct optimization studies with a broader range of investigated variables, as well as to evaluate the effects of different concentrations of precipitating solutions during the precipitation process, with an emphasis on kinetic modeling. In addition, further research should focus on the removal of copper prior to zinc precipitation from the solution. Copper coprecipitation under optimal zinc precipitation conditions can reduce the purity of Zn-rich precipitates and negatively affect subsequent hydrometallurgical processing. Because copper has a higher redox potential than zinc, it can be selectively reduced prior to zinc precipitation, converting Cu²⁺ to metallic Cu or Cu⁺ species. This can be achieved, for example, by cementation using powdered zinc, although this approach requires experimental verification.
