Three-Dimension Crack Propagation Behavior of Conical-Cylindrical Shell

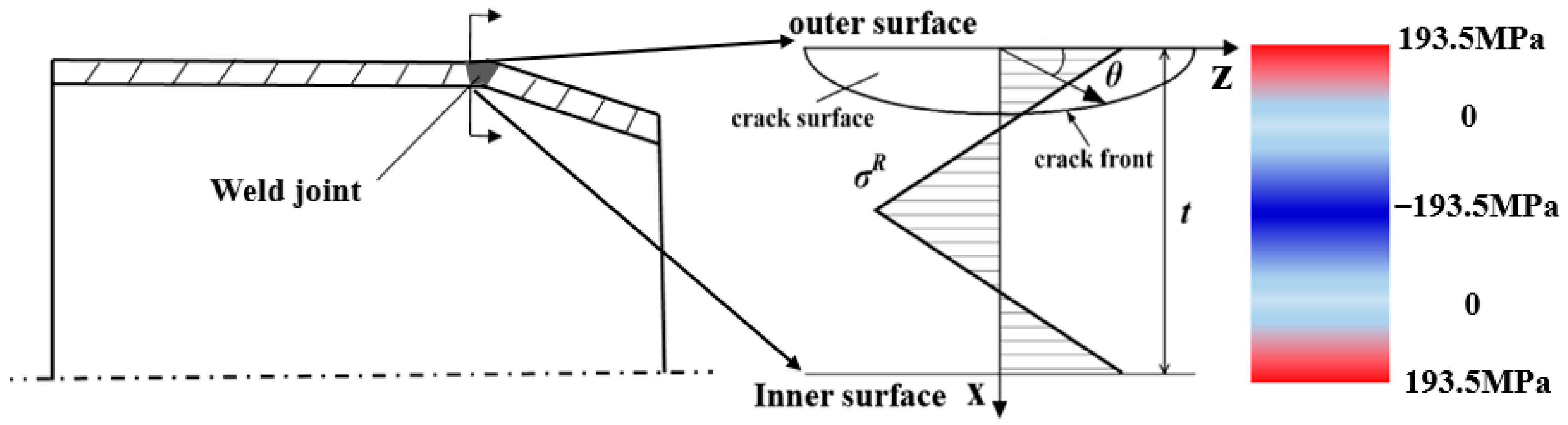

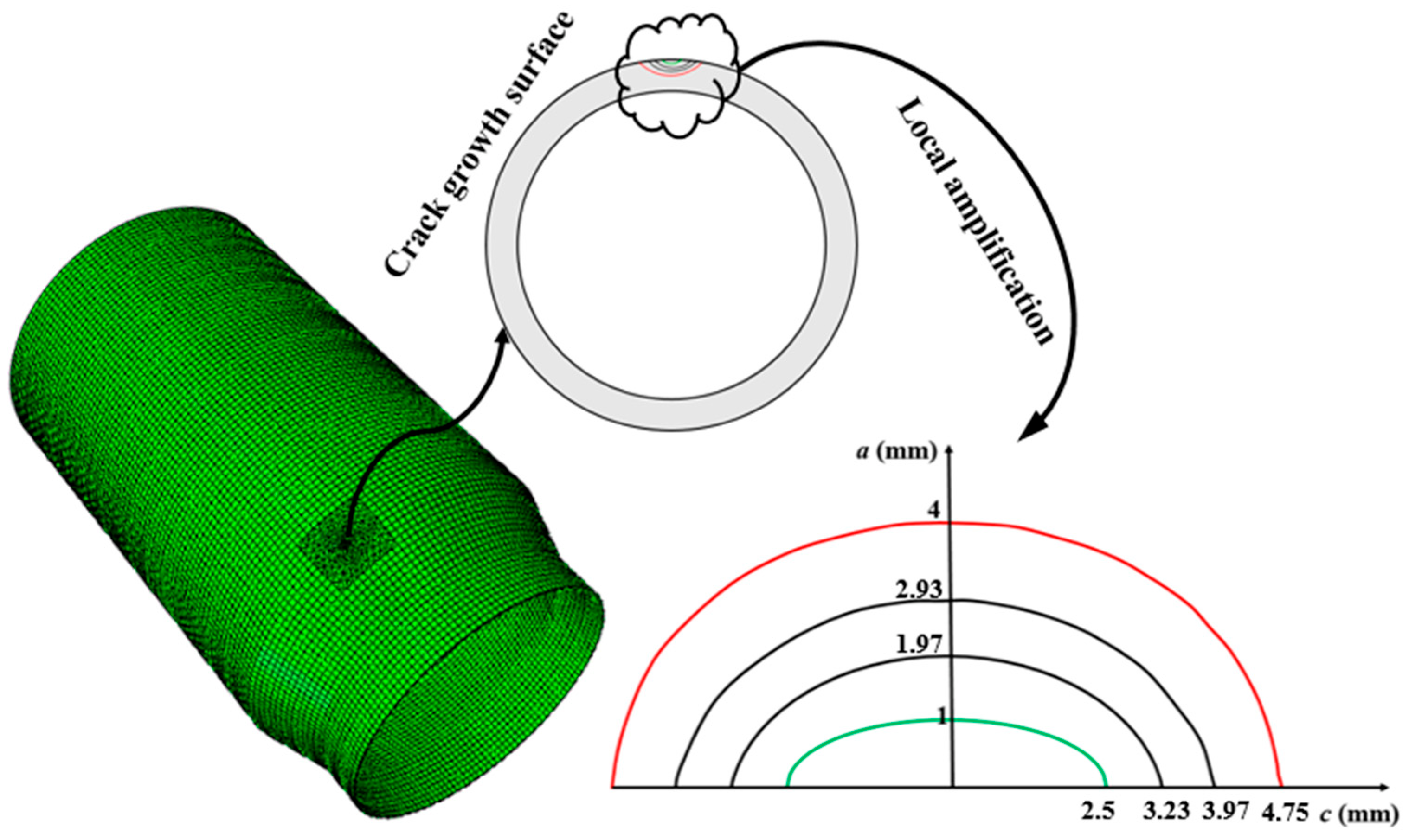

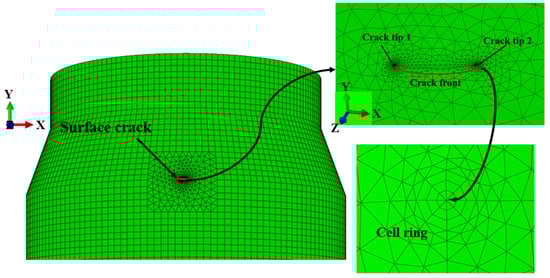

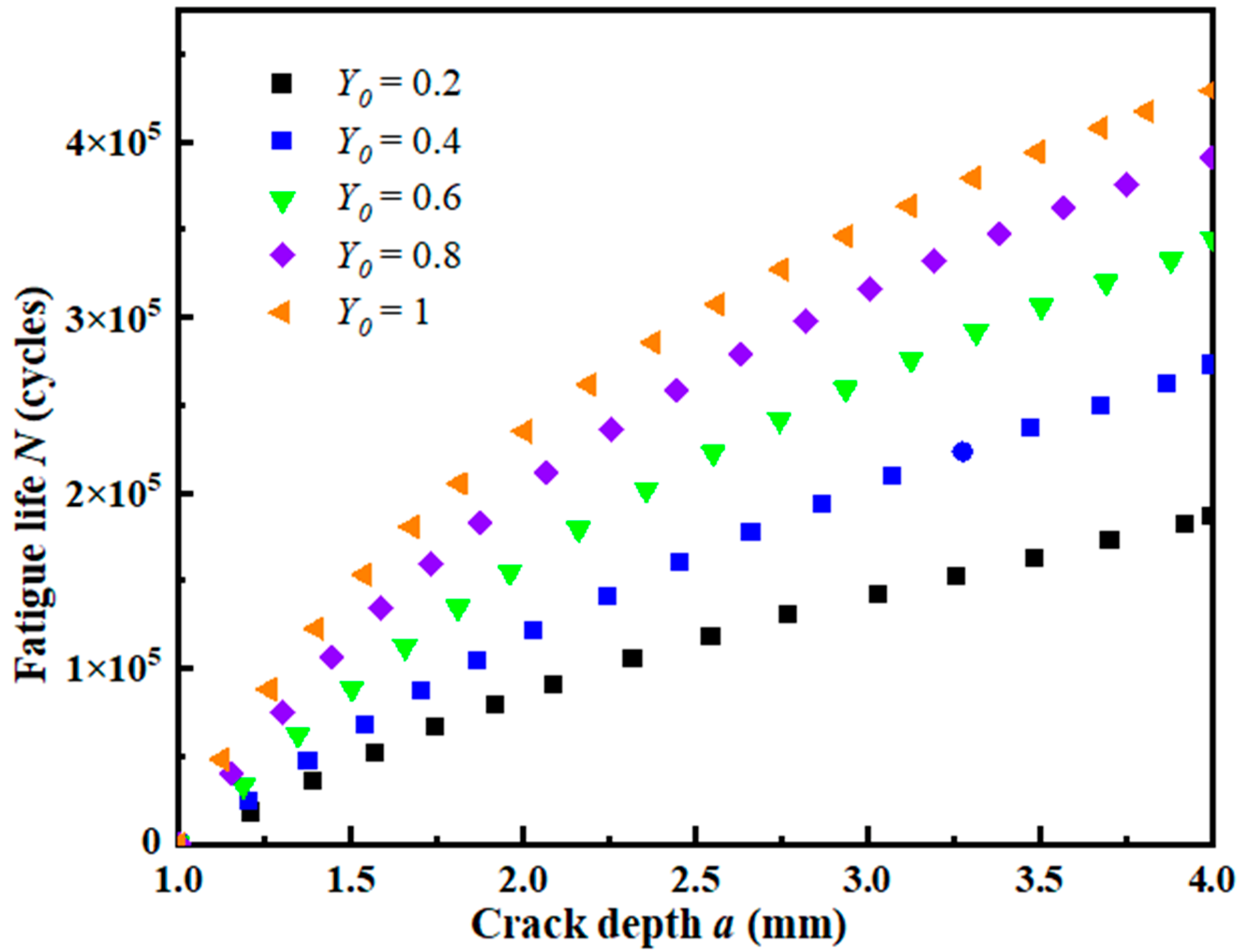

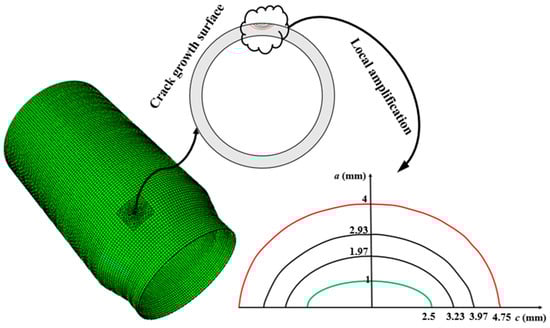

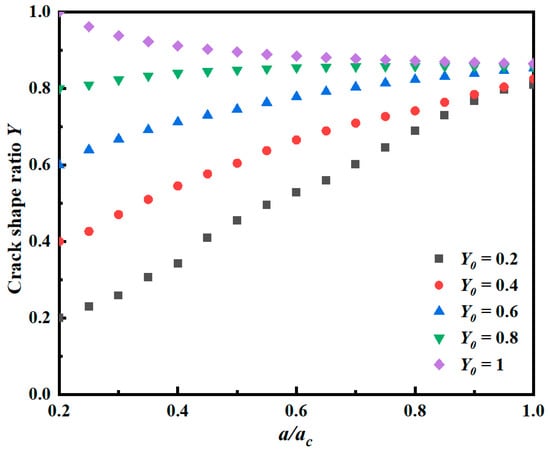

The conical-cylindrical shell is prone to stress concentration in the convex cone position under the action of deep-sea pressures. This results in unidirectional or bidirectional positive tensile stresses on the surfaces of the shell. The conical-cylindrical shell is a large, welded structure. Welding residual stress was generated at the cone-column joint position, resulting in high-stress concentration at this location. Under both the residual stress of welding and seawater pressure, cracks easily form and propagate on the shell weld toe, leading to fatigue damage and even structural failure. In this paper, based on the seawater’s alternating load and the residual stress of welding, the three-dimensional crack propagation process was studied for the submarine conical-cylindrical shell. The effects of crack depth and shape ratio on crack propagation trend and fatigue life were analyzed. The results can provide references for predicting the crack propagation trend, assessing the remaining life and evaluating the structural safety of the submarine conical-cylindrical shell.
