Next Article in Journal / Special Issue
Morphology of Inclusions and Its Refinement Mechanism in the New P91 Heat-Resistant Pipeline Steel
Previous Article in Journal
Phase Equilibria of the Mg-Zn-Sm System in Mg-Rich Corner at 320 °C and 400 °C
Previous Article in Special Issue
The Effect of the Shear Flow on Columnar Crystal Growth in an Undercooled Melt


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Metals
Volume 12
Issue 10
10.3390/met12101554
metals-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Mechanism of Balanced Strength and Ductility in High-Strength Low-Alloy Steel

by
Yuzhi Zhu
1,
Yunke Jia
1,
Xiaohua Chen
2,
Yanlin Wang
1 and
Zidong Wang
1,*
1
School of Materials Science and Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Metals 2022, 12(10), 1554; https://doi.org/10.3390/met12101554
Submission received: 22 July 2022 / Revised: 14 September 2022 / Accepted: 15 September 2022 / Published: 20 September 2022
(This article belongs to the Special Issue Microstructure and Mechanical Properties of Nanocrystalline Metals)
Browse Figures
Versions Notes

Abstract

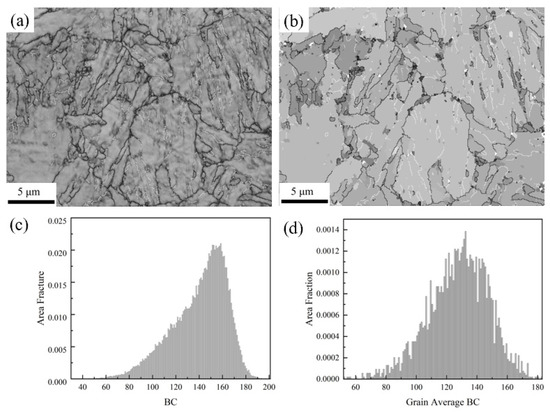

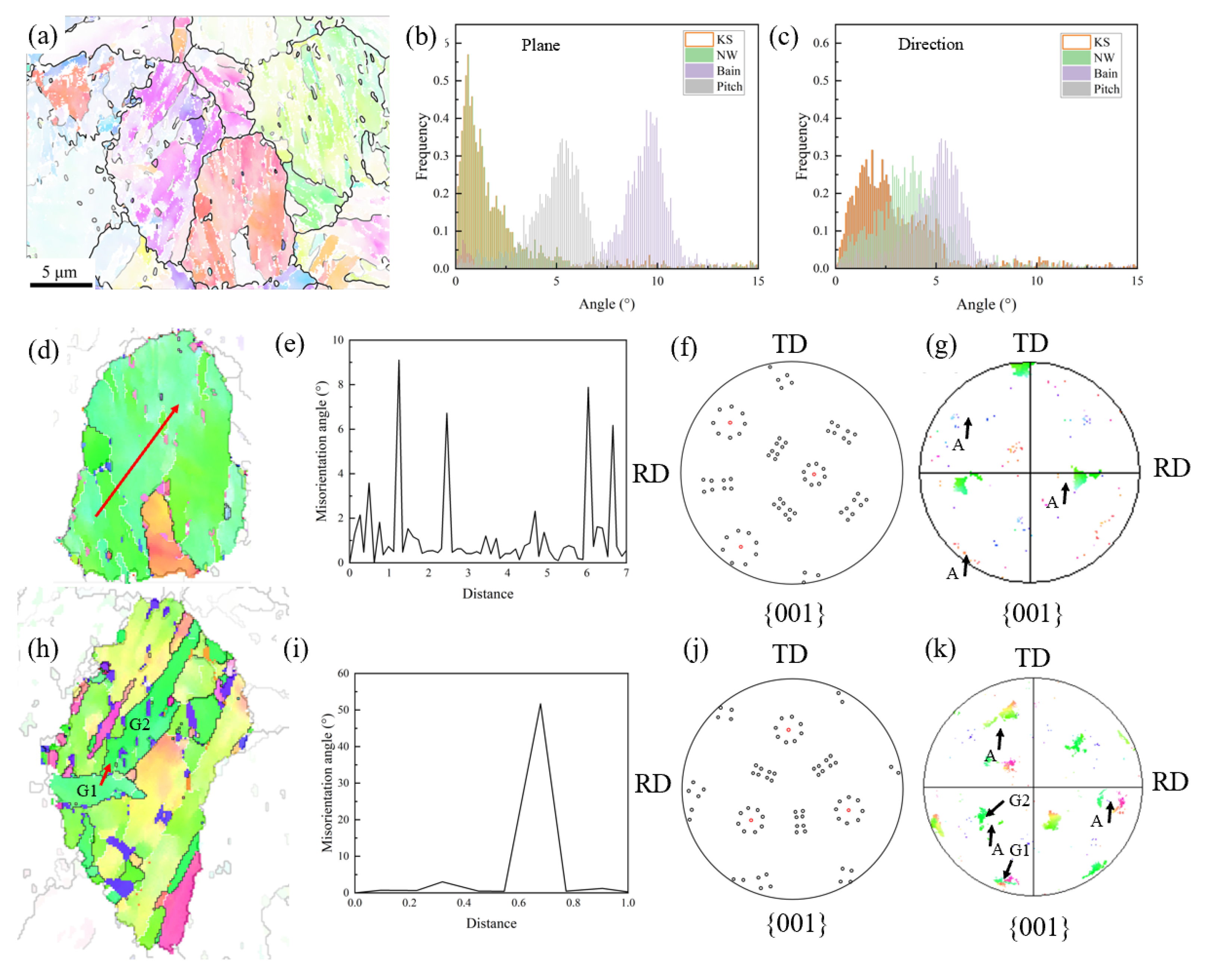

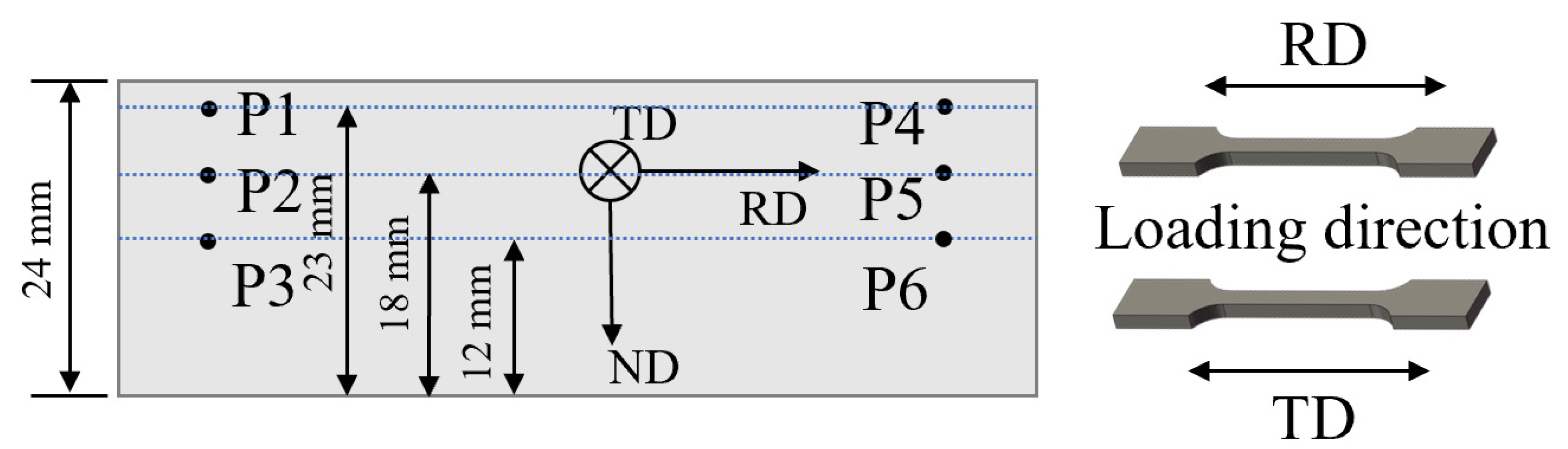

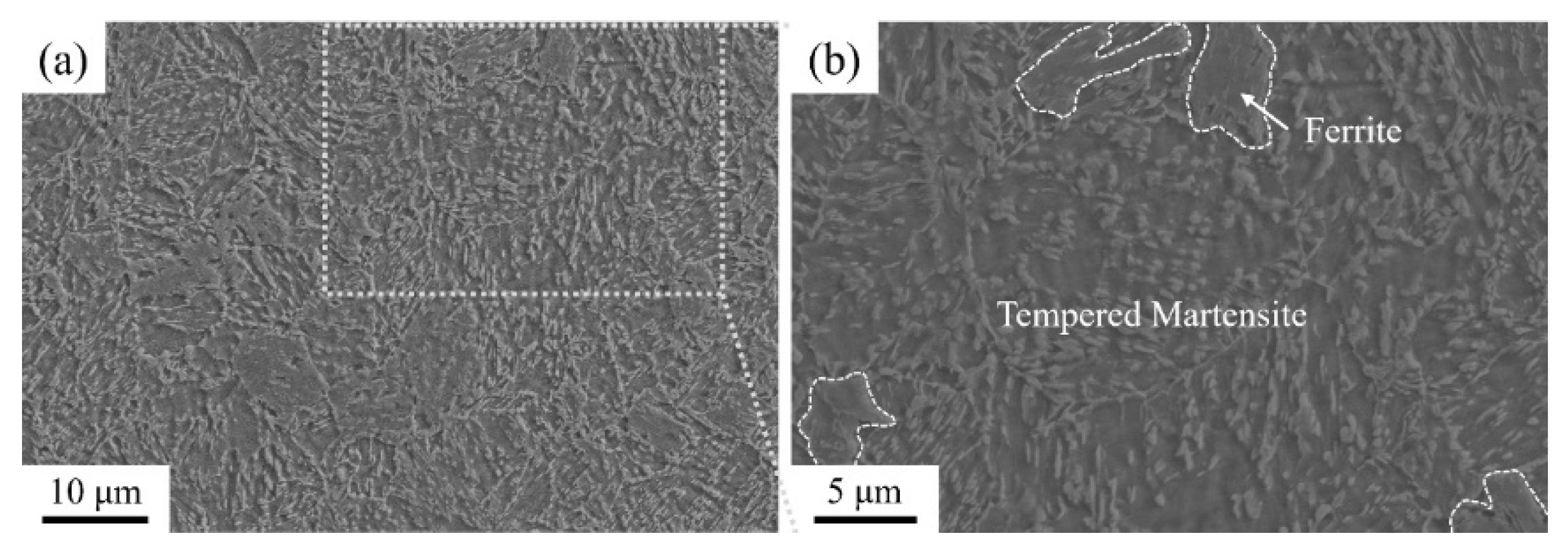

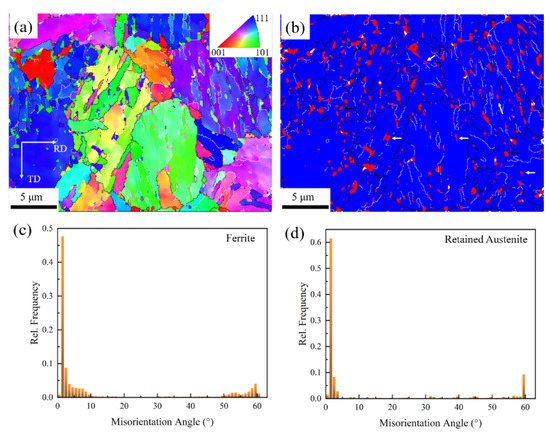

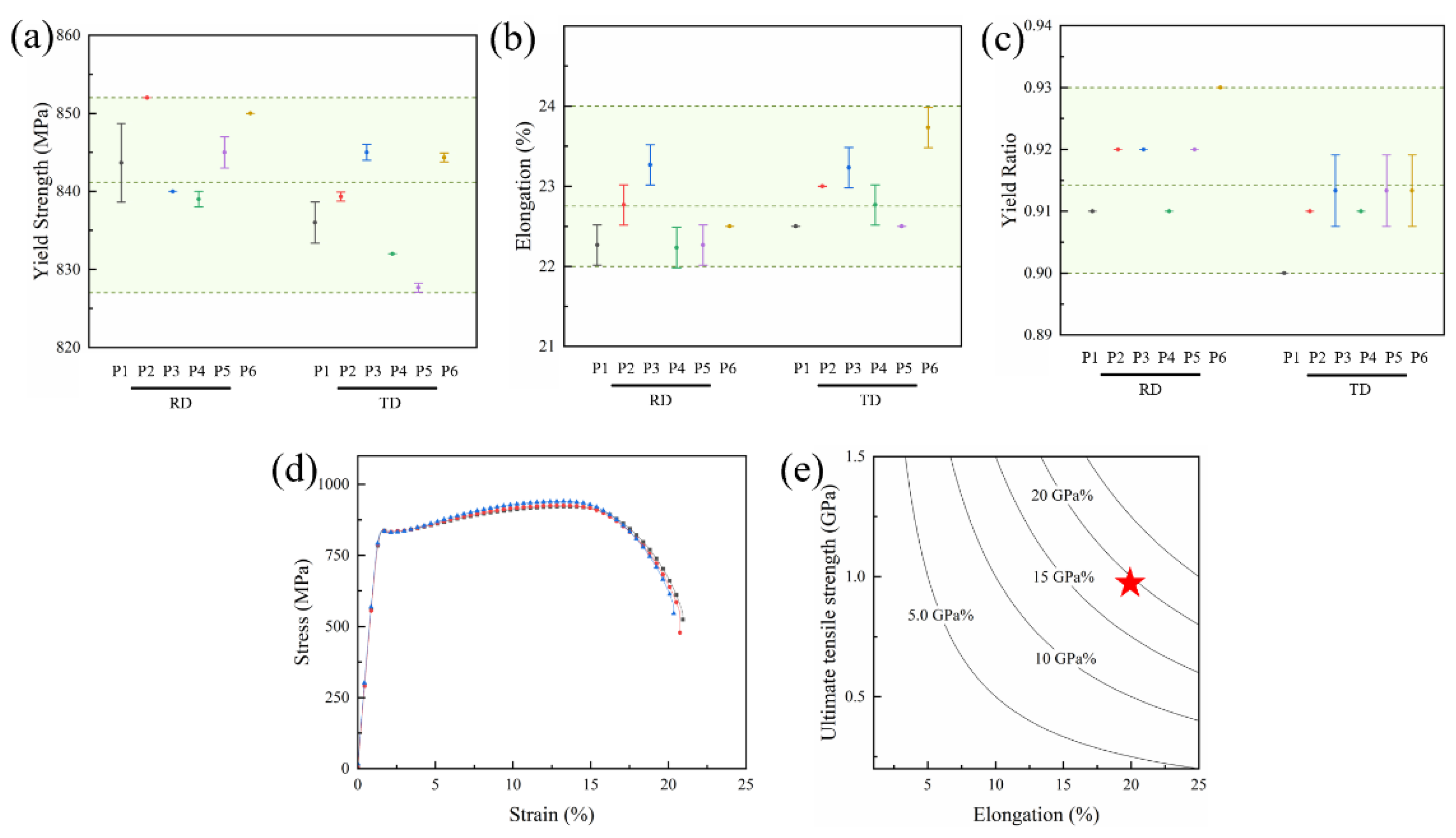

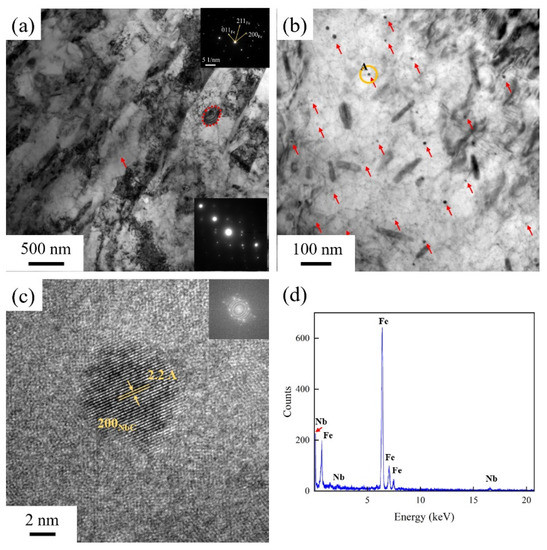

A high-strength low-alloy steel with balanced strength and ductility was reported. A product of the strength and elongation (PSE) at a break of ~19 GPa% was obtained. The microstructure of the material was investigated by scanning electron microscopy, electron backscattered diffraction, and transmission electron microscopy methods. Phase transformation follows the K–S orientation relationships. Interconnecting structures generate due to the variant interactions within one prior austenite grain. The multi-phase microstructure containing both soft and hard phases contributes to good plasticity. The homogeneously distributed NbC nanoparticles make up the loss of strength ascribed to the soft retained austenite and keep the strength at an extremely high level.
Keywords: high-strength low-alloy steel; phase transformation; precipitation; TEM; EBSD high-strength low-alloy steel; phase transformation; precipitation; TEM; EBSD

Share and Cite

MDPI and ACS Style

Zhu, Y.; Jia, Y.; Chen, X.; Wang, Y.; Wang, Z. Mechanism of Balanced Strength and Ductility in High-Strength Low-Alloy Steel. Metals 2022, 12, 1554. https://doi.org/10.3390/met12101554

AMA Style

Zhu Y, Jia Y, Chen X, Wang Y, Wang Z. Mechanism of Balanced Strength and Ductility in High-Strength Low-Alloy Steel. Metals. 2022; 12(10):1554. https://doi.org/10.3390/met12101554

Chicago/Turabian Style

Zhu, Yuzhi, Yunke Jia, Xiaohua Chen, Yanlin Wang, and Zidong Wang. 2022. "Mechanism of Balanced Strength and Ductility in High-Strength Low-Alloy Steel" Metals 12, no. 10: 1554. https://doi.org/10.3390/met12101554

APA Style

Zhu, Y., Jia, Y., Chen, X., Wang, Y., & Wang, Z. (2022). Mechanism of Balanced Strength and Ductility in High-Strength Low-Alloy Steel. Metals, 12(10), 1554. https://doi.org/10.3390/met12101554

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
