Laves Phase Formation in High Entropy Alloys

Abstract

One of the intriguing recent results in the field of high-entropy alloys is the discovery of single-phase equiatomic multi-component Laves intermetallics. However, there is no clear understanding that a combination of chemical elements will form such high-entropy compounds. Here we contribute to understanding this issue by modifying the composition of duodenary TiZrHfNbVCrMoMnFeCoNiAl (12x) alloy in which we recently reported the fabrication of hexagonal C14 Laves phase. We consider three alloys based on 12x: 7x = 12x-VCrMoMnFe, 12x + Sc, 12x + Be and observe that all of them crystalize with the formation of C14 Laves phase as a dominant structure. We report that 12x + Be alloy reveals a single-phase C14 structure with a very high concentration of structural defects and ultra-fine dendritic microstructure with an almost homogenous distribution of the constituted elements over the alloy matrix. The analysis of electrical and magnetic properties reveals that the Laves phases are Curie-Weiss paramagnets, which demonstrate metallic conduction; 7x and 12x alloys also reveal a pronounced Kondo-like anomaly. Analysis of experimental data as well as ab initio calculations suggest that chemical complexity and compositional disorder cause strong s-d band scattering and thus the rather high density of d-states in the conduction band.

1. Introduction

One of the widely accepted paradigms in modern materials science is the use of multicomponent multi-principal element alloys to design new materials [1,2,3,4,5,6,7]. The terms high-entropy alloys (HEAs), complex concentrated alloys, and compositionally complex alloys are used to name such materials.

Over the past 15 years of intensive studies of HEAs, the researches have been focused on simple solid solutions (SSSs), such as FCC, BCC, HCP, and their mixtures. Special attention has been given to synthesizing single-phase SSSs and studying their properties and phase stability. To date, only several tens of single-phase high-entropy SSSs are known [8]. Unfortunately, they usually do not demonstrate any exceptional properties and are unable to compete with traditional functional materials.

This situation inspires searching for new types of HEAs. One of the promising classes includes multicomponent intermetallic compounds whose structure is more complex than for SSS HEAs. In particular, single-phase metallic HEAs with B2 structure [9,10] and half-Heusler type structure [11] have been fabricated. There is also a broad separate field of high-entropy oxides, which is also under active development [12]. Following Refs. [9,10], we will further refer to such systems as high-entropy intermetallic compounds (HEIC), although the role of the entropy in their formation is a matter of discussion [8].

One of the most intriguing recent results in the field of HEIC is the fabrication of equiatomic multi-component Laves intermetallics. In particular, single-phase C14 hexagonal structures have been successfully synthesized in several equiatomic alloys with the number of components from 4 to 28 [13,14,15,16,17,18]. Recently, we have made another step on this way by fabricating stable C14 Laves phase in duodenary TiZrHfNbVCrMoMnFeCoNiAl alloy [19]. We will further refer to such compounds as high-entropy Laves phases (HELPs). The duodenary HELP, which we recently reported, will be specially referred to as 12x.

The discovery of HELPs arise several fundamental issues. First, the mechanisms responsible for Laves phase formation in multicomponent alloys are not clear. To explain Laves phase stability, several simple geometric or electronic characteristics are usually utilized [15,16,20]. Among them are atomic size ratio, atomic size polydispersity ($\delta$), valence electron concentration (VEC), electronegativity differences ($\Delta \chi$), etc. However, there are at least two general problems that restrict strongly the prognostic power of these characteristics. First, their ranges, which are empirically obtained to be optimal for Laves phase formation, are rather broad and can include many alloys that do not form that phases. For example, atomic size ratios which are typically observed for binary Laves phases are within a range of 1.05 to 1.67 [21]. On the one hand, all the reported HELPs satisfy this criterion. On the other hand, there are many elements whose sizes are within this ratio and not each equiatomic combination of these elements will form Laves phases. A similar situation takes place for other simple characteristics. Second, the selectivity of these characteristics decreases with an increase in the number of components. For example, if we compare VECs for an N-nary and (N + 1)-nary equiatomic alloys containing transition metals then the results may depend weakly on the choice of the additional element in the case of $N\gg 1$. Thus, VEC can fail to estimate if the addition of some element in a multicomponent alloy will destabilize the Laves phase.

It seems that some complex interplay between geometric factors, electronic structure, configurational entropy, and maybe other factors is responsible for HELPs stability. Therefore, there is no intuitive understanding that a combination of chemical elements will form HEPLs. Here we contribute to understanding this issue. We consider a series of alloys by extracting/adding elements from the 12x alloy. Thus, we study the following systems: TiZrHfNbCoNiAl (7x), 12x + Sc, 12x + Be. The first one is 7x = 12x − VCrMoMnFe which means we extract from the base alloy a series of neighboring 3d metals (V,Cr,Mn,Fe) as well as one 4d metal (Mo). This extraction changes substantially both the distribution of interparticle distances (geometric factor) and electronic characteristics and so it is interesting if this alloy will also form HELP. The motivation to consider 12x + Sc and 12x + Be is that we add to the base 12x alloy the elements with either larger (Sc) or smaller size (Be) to check if they destabilize the parent Laves phase.

Another issue is the physicochemical properties of HELPs, which are important for possible practical applications of such systems. So far, the researches have been focused on the structure and phase stability of fabricated HELPs and therefore their characteristics are not well understood. To fill partially this gap, we address the thermodynamic, electronic, and magnetic properties of the alloys under investigation.

2. Materials and Methods

The compounds were prepared of pure elemental metals (>99.99%) by arc-melting under a flowing helium atmosphere. The alloy ingots were inverted and re-melted at least ten times to attain chemical and structural homogeneity. The mass loss after melting was less than 0.3 %. Homogenization of the samples was performedby vacuumannealing at the temperature of 673 K for 50 h. Obviously, these thermal conditions are insufficient to completely re-crystallize such high-temperature intermetallic compounds but are suitable for confirming phase stability at moderate temperatures. The fabricated HEAs are quenched high-temperature phases that can be very unstable under other conditions [22]. The annealing temperature has been chosen taking into account the following facts. First, according to binary phase diagrams, the C14 Laves structure forming in the as-cast samples seems to be a high-temperature phase. At moderate or low temperatures, one can expect either Laves phase with other structures or phase decomposition into a multiphase state. Second, we use the results for similar Laves compounds, recently reported in [15]. According to this study, the thermal annealing at 525 K for 40 h is sufficient to ensure the sample homogenization. Based on that, we slightly increase the annealing temperature (up to 673 K) and time exposure (up to 50 h) to better homogenize the fabricated intermetallics and to prove their phase stability. X-ray diffraction analysis (XRD) was carried out using an Empyrean high-resolution X-ray diffractometer equipped with a PIXcel3D registering detector (PANanalytical) and an Anton Paar HTK 1200N heater chamber. Diffraction spectra were obtained in $\mathrm{CuKff}\alpha$ filtered radiation over the temperature range of 300–1273 K, in a vacuum of ∼10${}^{-4}$ mbar. The parameters of the microstructure (the average value of coherent scattering regions (CSR) and the average value of microdeformation) were determined by the broadening of the diffraction lines using the graphical method of the Williamson-Hall [23]. The microstructure of the compounds was examined by both scanning electron microscopy (SEM) and optical microscopy methods by using a LOMO MMU-3 metallurgical microscope equipped with a CCD SONY ICX452AQ camera and a Carl Zeiss EVO 40 instrument, respectively. The samples for optical micrographs were previously mechanically polished and then chemically etched in a solution of HNO${}_3$:HF:H${}_2$O taken in the ratio of 1:3:7. The electron microscopy analysis was performed on mechanically polished samples, without additional chemical etching. Specific heat of the samples was measured on a DSC 214 Polyma calorimeter in the temperature range of 100–520 K. Magnetization (by vibrating sample magnetometry) and electrical conductivity (by four-probe method) of the compound were explored using a Cryogenic CFS-9T-CVTI measurement system in a temperature interval of 300–5 K. The resolution for magnetization and conductivity tests was 5 and 0.5%, respectively.

3. Results

3.1. X-ray Diffraction Analysis

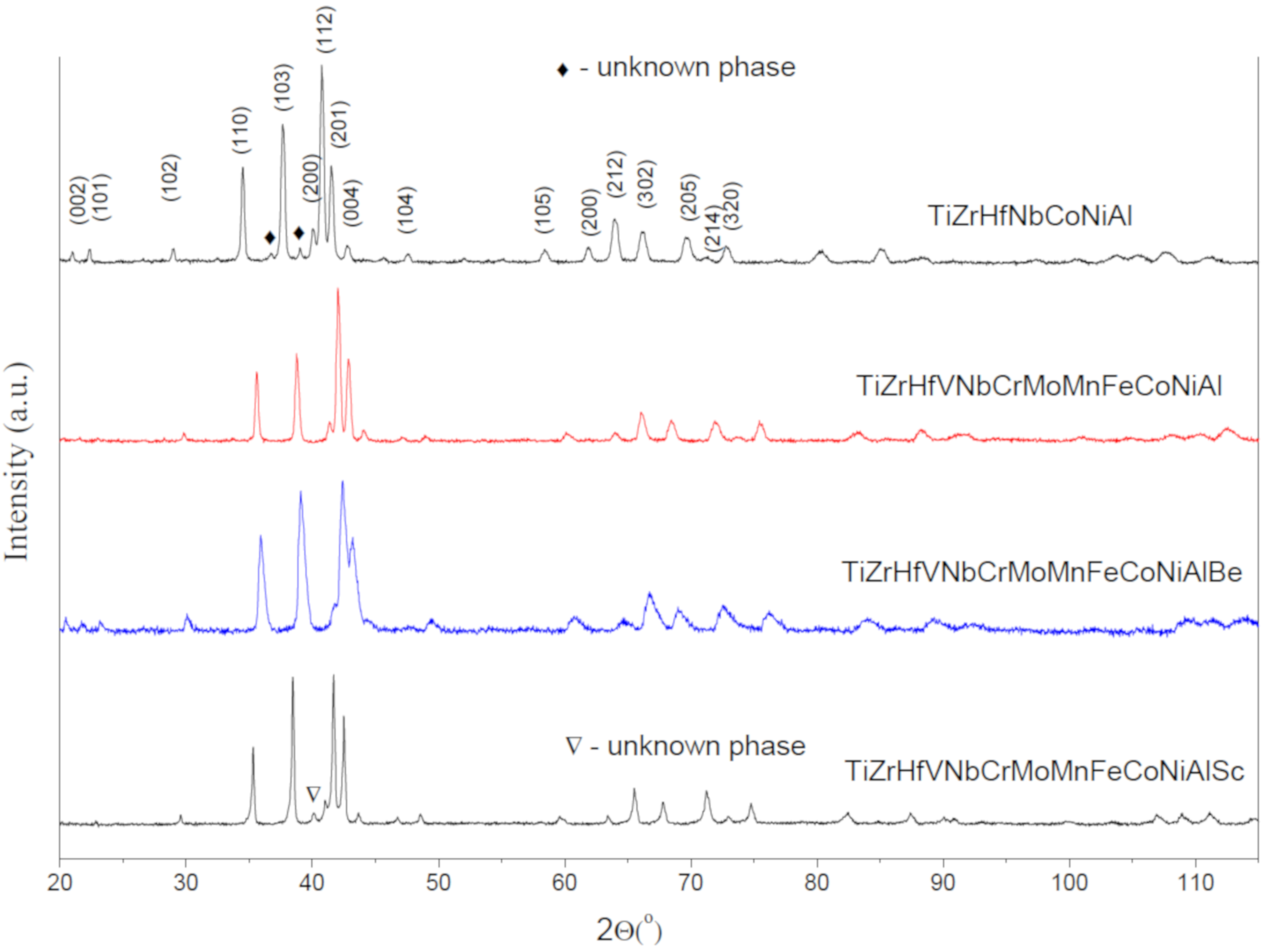

Powder X-ray diffraction patterns of the alloys under investigation are shown in Figure 1. Analysis of the data reveals that 12x and 12x + Be alloys are single-phase systems in which all diffraction lines can be assigned to a hexagonal C14 Laves phase (prototype ${\mathrm{MgZn}}_2$). Most of XRD peaks in 7x and 12x + Sc alloys also belong to C14symmetry but there are a few undetectable peaks and so these alloys are not single-phase systems. It is hardly possible to bring unequivocally these peaks into correlation with some structures because the fractions of these phases are small and the peaks of the main C14 phase are broad due to strong disorder. We argue that 12x + Sc alloy is a two-phase material with precipitations (about 8%) of C15 cubic Laves phase. The 7x alloy probably contains small additions of Ni₄O_0.6Ti₂Zr₆. Some additional conclusions regarding the structure of these impurity phases can be made using electronic microscopy data (see discussion below).

We have performed the calculation of the unit cell parameters for C14 phases by the Rietveld method using the starting model [24] (see

Table 1. The structural parameters and the average values of microstrain ($\epsilon$) for the annealed samples of TiZrHfNbCoNiAl (7x), TiZrHfNbVCrMoMnFeCoNiAl (12x), TiZrHfNbVCrMoMnFeCoNiAlSc (12x + Sc) and TiZrHfNbVCrMoMnFeCoNiAlBe (12x + Be) HEAs. Space group $P{6}_3/mmc$.

Parameter	7x	12x	12x + Sc	12x + Be
a, Å	5.1923(3)	5.03234(6)	5.07770(2)	4.9835(9)
c, Å	8.436(1)	8.2041(2)	8.2778(5)	8.1298(4)
c/a	1.625	1.630	1.630	1.631
V, Å${}^3$	196.96(5)	179.930(4)	184.78(1)	174.859(9)
$R_P$ (%)	6.7	3.3	10.3	3
$R_{WP}$ (%)	8.5	4.4	14.0	5
$R\left(F^2\right)$ (%)	7.4	6.7	8.4	7
${\chi }^2$ (%)	2.5	1.3	4.5	1.01
$\epsilon \times {10}^{-3}$	2.6	2.6	1.9	3.9

). It can be seen from the Table 1 that, in all the alloys studied, the ratios of the unit cell parameters c/a are close to the ideal value of 1.633 for a close-packed hexagonal lattice (HCP). A slight compression of the unit cells during annealing may indicate a certain redistribution of elements over nonequivalent crystallographic positions.

We also perform an analysis of the integral width of the diffraction lines by the Williamson-Hall method to determine some microstructure parameters. These results indicate that the broadening of the diffraction lines is caused only by microstrains. The estimated microstrain values are presented in Table 1. We see that the deformation degree ($\epsilon$) is rather high for all systems, especially for 12x + Be. The most probable reason for the stressed state in the HELPs is the occupation of crystallographic positions by atoms of various types (having different radii and different electronic structures).

3.2. Optical and SEM Analysis

The microstructure of the Laves phases has been characterized with both optical and electron microscopy methods. The optical images allow revealing the microstructural morphology of the samples, while the electron microscopy imaging gives mainly details for chemical elements distribution. As seen in Figure 2a, the 7x sample demonstrates a fine dendritic microstructure. The BSD scanning made over the whole surface of the intermetallic compound does not reveal significant variations in chemical composition or obvious signs for impurity phases. We find that dendrites and interdendritic regions have practically the same chemical compositions. The results of local analysis for the specific regions indicated by arrows in Figure 2b are collected in

Table 2. Chemical element distribution in TiZrHfNbCoNiAl (7x) high entropy Laves phase. The regions named as A, B, and C refer to the corresponding microareas illustrated in Figure 2b.

Region	Ti	Zr	Hf	Nb	Co	Ni	Al
A	13.93	16.44	15.70	14.93	14.08	14.36	10.56
B	16.28	13.44	14.75	12.23	14.11	14.30	14.89
C	12.73	14.10	13.87	17.56	15.78	11.80	14.16

. Scanning over a large sample surface (100 × 100 $\mathsf{\mu }$m) reveals that the weighted overall chemical composition in 7x alloy is very similar to the equiatomic ratio. The chemical inhomogeneity detected by BSD-SEM is likely due to either the dendritic crystallization process or the precipitation of additional phases. The as-cast alloy demonstrates much more pronounced chemical inhomogeneity compared with the annealed sample. During the thermal processing, the compound partially relaxes but retains its initial dendritic structure. More prolonged exposition time is required to completely homogenize the crystalline structure in this refractory intermetallic.

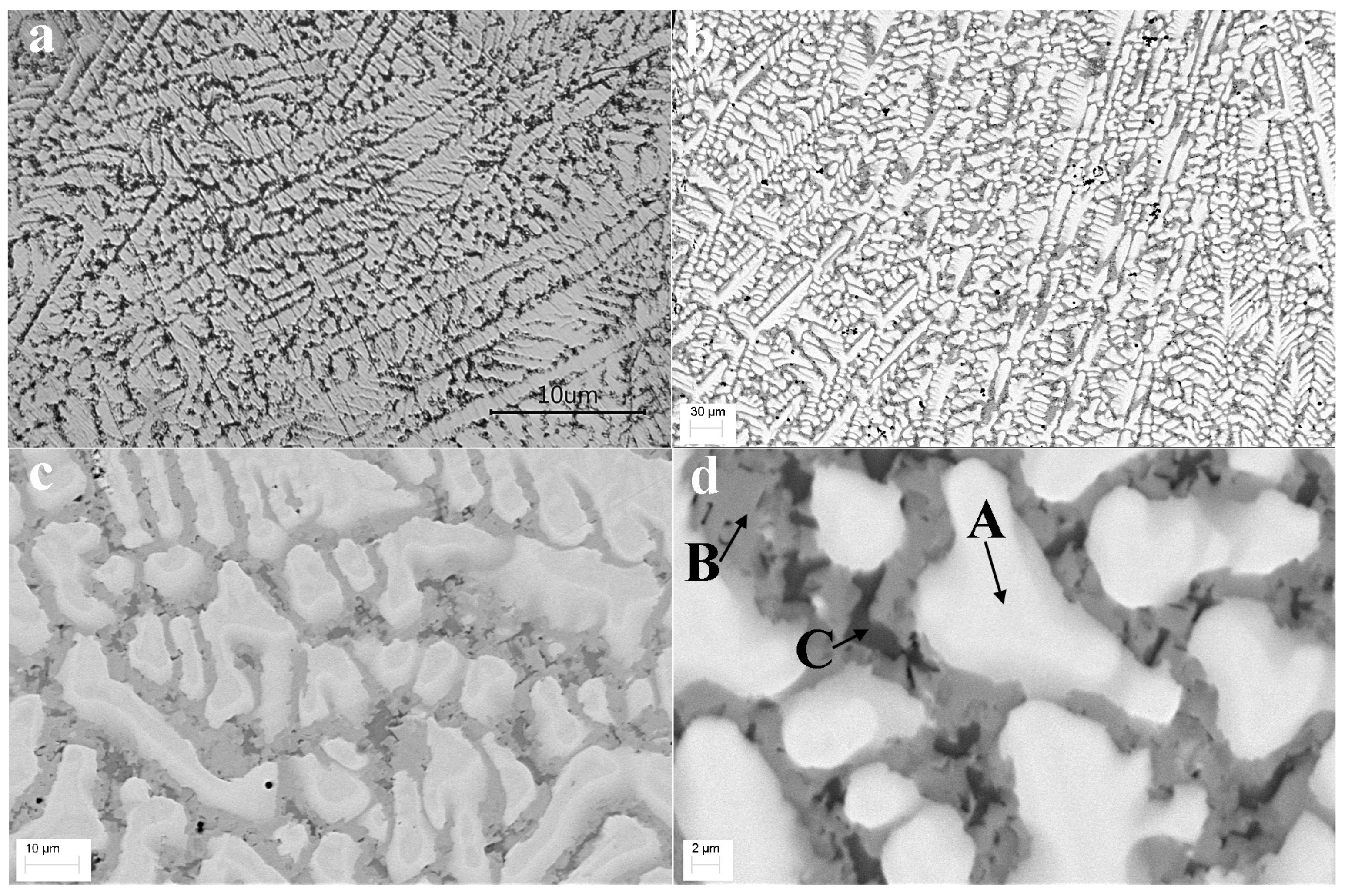

Microscopy scanning performed on duodenary 12x alloy has revealed its dendritic microstructure and rather homogeneous distribution of the constituent metals over the dendritic matrix. We find no detectable changes in the HEA microstructure during thermal processing; the alloy completely retains its initial dendritic morphology after annealing. The chemical composition of the dendrites well corresponds to the nominal element ratio. The interdendritic areas (gray zones in Figure 3d) are enriched in Ti and Ni, see the results of the local analysis in

Table 3. Chemical element distribution in TiZrHfNbVCrMoMnFeCoNiAl (12x) high entropy Laves phase.

Element	White (A)	Gray (B)	Dark (C)
Ti	5.35	6.94	11.65
Zr	19.87	8.94	8.65
Hf	46.37	9.22	6.84
Nb	-	9.89	8.80
V	3.79	8.59	8.46
Cr	3.55	9.19	7.10
Mo	-	9.46	8.04
Mn	2.28	5.06	4.66
Fe	4.27	9.19	7.91
Co	4.15	8.02	8.86
Ni	5.14	7.36	10.41
Al	5.26	8.15	8.61

. Interesting sphere-like precipitations of 1–2 $\mathsf{\mu }$m in diameter are observed along the dendritic boundaries, see white inclusions in Figure 3b–d. These precipitations are distributed evenly over the alloy matrix. Their chemical composition was found to deviate significantly from the dendritic structures. We have detected with EDX that hafnium and zirconium predominate in the chemical composition of these inclusions. Note that the precipitations take place for both the as-cast and the thermally treated samples. We see no noticeable changes in the structural morphology of the dendrites and the spherical inclusions after annealing. And chemical element distribution over the alloy microstructure retains practically the same. The microstructure inhomogeneities revealed with the microscopy tests confirm the fact that the refractory HEA needs high temperatures and very long exposure times to be homogenized. Note that the HEAs under consideration have large values of the configurational entropy, $\Delta S_{\mathrm{conf}}$ is 1.95–2.56 R. All that drastically slows down the thermal relaxation processes.

As follows from the microscopy observations performed on the alloy 12x + Sc, both the as-cast and heat-treated samples demonstrate a fine dendritic microstructure, see the optic micrograph in Figure 4a. Backscattered electron SEM images (Figure 4b–d) reveal clear chemical element segregation between dendrites and interdendritic regions. At least three specific microareas can be recognized, as indicated by arrows in Figure 4d. The results of local chemical analysis for these regions are given in

Table 4. Chemical element distribution in TiZrHfNbVCrMoMnFeCoNiAlSc (12x + Sc) high entropy Laves phase.

Element	White (A)	Gray (B)	Dark (C)
Ti	4.79	12.20	6.26
Zr	7.91	8.59	5.26
Hf	10.47	5.59	3.82
Nb	10.21	7.34	1.72
V	8.39	6.33	1.09
Cr	11.73	4.56	0.92
Mo	9.76	4.41	0.69
Mn	6.74	5.87	1.04
Fe	9.74	6.57	1.45
Co	6.51	10.25	7.27
Ni	2.73	10.51	34.68
Al	7.52	8.44	3.92
Sc	3.52	9.34	31.87

. According to EDX analysis, the dendritic grains are enriched in refractory elements (Hf, Nb, Mo, and Cr), while the grain boundaries (grey fields) contain an excess of Ti, Ni, and Co. Significant chemical inhomogeneity is observed for interdendritic regions, where scandium and nickel elements dominate. One can conclude that scandium due to its large atomic radius tends to segregate from the parent phase and form an additional one. These dark precipitations enriched in Sc and Ni metals can be classified as inclusions of a secondary phase. The microscopic observations confirm dual-phase microstructure for the HEA 12x + Sc detected with XRD analysis. Note that microstructure morphology and element redistribution in the alloy before and after thermal treating are practically the same. This fact indicates that the HEA is a thermally stable dual-phase material.

The HEA containing beryllium demonstrates different microstructure morphology compared with other multicomponent alloys investigated. As seen in Figure 5, the sample has an ultra-fine dendritic microstructure with an almost homogenous distribution of the constituted elements over the alloy matrix. Local variations in chemical composition are within the EDX sensor resolution. According to XRD results, 12x + Be alloy is a single-phase C14 compound with very strong structural defectiveness compared with other explored HEAs. The SEM data confirm completely this result and so we report the formation of a new stable single-phase HELP.

Summarizing the data obtained by XRD and SEM methods, we can make additional conclusions regarding the structure of the systems under consideration. According to XRD, 7x alloy contains the main C14 Laves phase and impurity phase which is detectable by only two low-intensity peaks. These peaks are probably belong to Ni₄O_0.6Ti₂Zr₆ impurity phase, which is perhaps a surface oxide. The SEM results reveal the existence of three areas whose compositions are close to the equiatomic one. These small deviations from equiatomic composition are probably a result of dendritic liquation.

Similar analysis can be performed for 12x + Sc alloy. XRD analysis reveals one low-intensity peak which cannot be assigned to C14 Laves phase. SEM analysis confirms the existence of the second phase, which is almost evenly enriched in Ni and Sc. Taking this information into account, we suggest that the undetectable XRD peak can be assigned to a solid solution based on Ni${}_2$Sc (C15 Laves phase). Such a situation when the system is a mixture of different Laves phase polytypes is common enough [25].

The most intriguing situation takes place for the 12x system. XRD analysis detects no phases but C14 Laves intermetallic. This result is carefully confirmed by Rietveld refinement; all the detected peaks have been perfectly described by the single-phase C14 structure model (see also Ref. [19]). However, SEM analysis reveals sphere-like precipitations along the dendritic boundaries (see white inclusions in Figure 3b–d) whose chemical composition is strongly enriched in hafnium and zirconium. To explain this fact, we can make two hypotheses: (i) 12x alloy is a single-phase HELP with a complicated microstructure and strongly inhomogeneous element distribution due to dendritic segregation effects; (ii) the alloy is a mixture of a dominant C14 phase and an impurity phase whose XRD peaks overlap the peaks of the main phase. It should be noticed the composition of these precipitations obeys well the general formula ${\mathrm{A}}_2\mathrm{B}$, where A = (Zr, Hf), and B—other elements. Taking into account that Hf and Zrhave the largest atomic sizes among the elements containing a 12x system, we can guess that we deal with the second phase which is a solid solution based on Hf₂Co C15 Laves phase. We check that the most intensive reflection (511) overlaps the peak (103) of the main C14 phase, and therefore the Hf₂Co phase is not detected by XRD).

3.3. Specific Heat

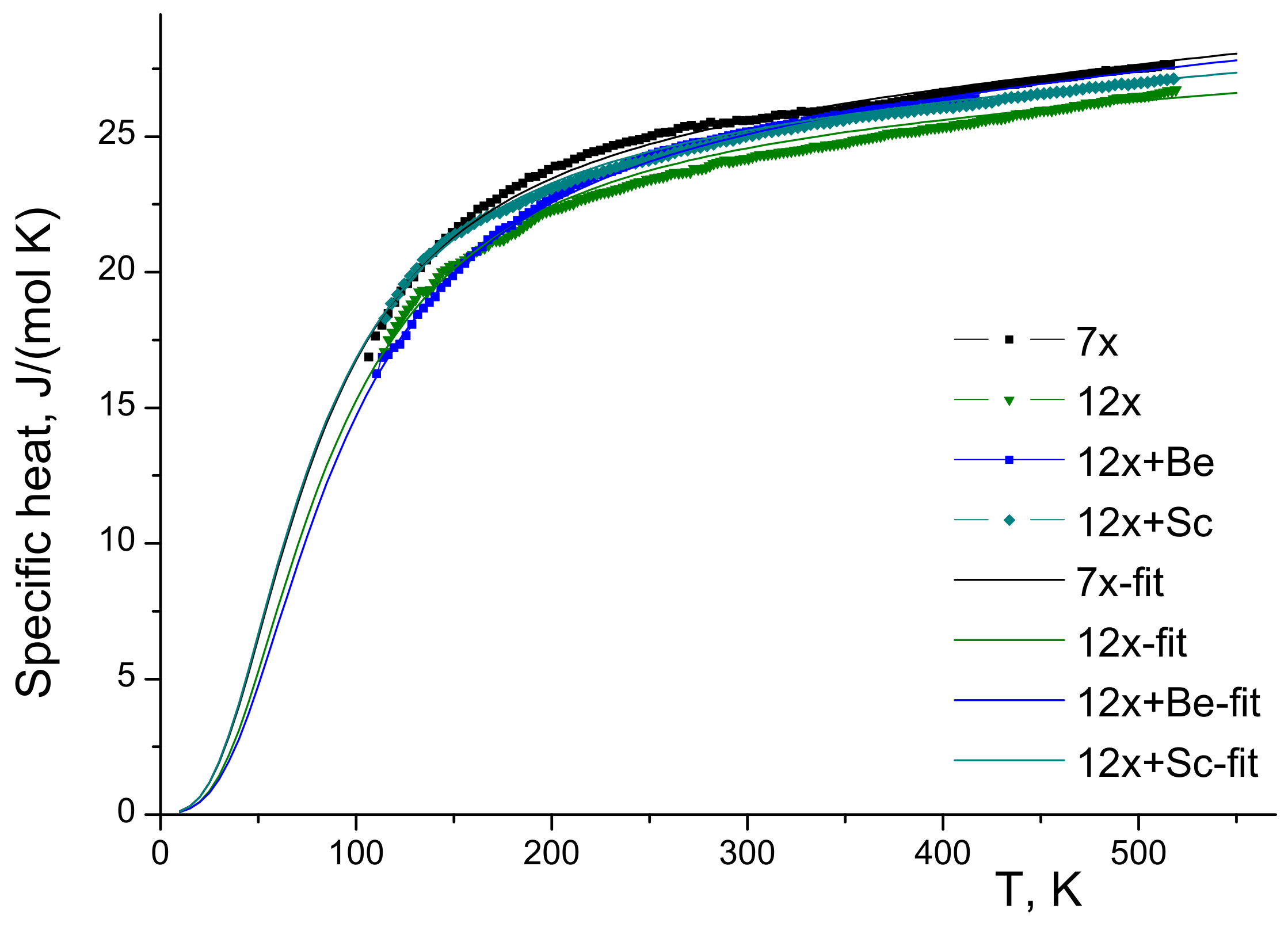

The complicated chemical composition and defective crystalline structure of the samples allow one to expect extraordinary physical properties. To characterize HELPs under consideration, we have measured their specific heat capacity, see Figure 6. These measurements serve the twofold purpose of revealing abnormal specific heat contribution and determining the Debye characteristic temperature. We see that all the intermetallics demonstrate typical behavior of the property with temperature.

The specific heat of the samples near the room temperatures is about that predicted by the Dulong-Petit law. At temperatures above 300 K, the C(T) dependencies are linear with a weak positive slope. These observations motivate us to conclude that there are no abnormal specific heat contributions. We suggest that prevailing standard lattice contribution and an additional linear term determine the specific heat capacity of the intermetallics. The linear increase in the specific heat with temperature is due to both the conduction electrons and anharmonic lattice vibrations. Formally, these linear contributions can be taken into account as $\beta T$, where $\beta$ is the temperature coefficient. We modify the standard Debye model to fit the experimental data in the following form:

$$C\left(T\right)=9R{(\frac{T}{{\mathsf{\Theta }}_D})}^3\underset{0}{\overset{{\mathsf{\Theta }}_D/T}{\int }}\frac{e^x{x}^4}{{(e^x-1)}^2}dx+\beta T$$

(1)

where R is the molar gas constant, ${\mathsf{\Theta }}_D$ is the Debye characteristic temperature, the second term is the specific heat contribution due to the conduction electrons and anharmonic lattice vibrations. It is worth noting that the Equation (1) describes the isochoric specific heat C${}_V$, while we measure isobaric one C${}_P$. We neglect thermal expansion effects and accept that C${}_V$≅ C${}_P$. As is well known, in the case of solids this approach is completely adequate. The best-fitting coefficients for Equation (1) are collected in

Table 5. Parameters of the Equations (1) and (2) providing the best fit of the experimental specific heat and resistivity for TiZrHfNbCoNiAl (7x), TiZrHfNbVCrMoMnFeCoNiAl (12x), TiZrHfNbVCrMoMnFeCoNiAlSc (12x + Sc) and TiZrHfNbVCrMoMnFeCoNiAlBe (12x + Be) high entropy Laves phases.

Sample	${\mathit{\rho }}_0$, $\mathsf{\mu }\mathsf{\Omega }\times \mathbf{cm}$	${\mathsf{\Theta }}_{\mathit{D}}$, K	$\mathit{\beta }$, mJ/(mol ×${\mathit{K}}^2$)	A, $\mathsf{\mu }\mathsf{\Omega }\times \mathbf{cm}\times \mathit{K}$	C, $\mathsf{\mu }\mathsf{\Omega }\times \mathbf{cm}\times {\mathit{K}}^{-3}$	D, $\mathsf{\mu }\mathsf{\Omega }\times \mathbf{cm}$	$\mathsf{\mu }$, K
7x	515.4	310	64	$0.12\times {10}^{-4}$	$2.85\times {10}^{-15}$	$255\times {10}^{-10}$	120
12x	295.4	340	39	$1.02\times {10}^{-4}$	$2.45\times {10}^{-15}$	$195\times {10}^{-10}$	80
12x + Sc	565.1	305	51	$1.55\times {10}^{-4}$	$4.53\times {10}^{-15}$	-	-
12x + Be	910.0	360	62	$15.85\times {10}^{-4}$	$4.85\times {10}^{-15}$	-	-

. One can see that the Debye temperatures of the HEAs are practically the same. It seems reasonable that the alloys with an identical crystalline structure and similar chemical compositions demonstrate analogous vibrational properties. The temperature coefficient $\beta$ for the alloys is too small to discuss extensively. This only means that both electron and anharmonic contributions in the specific heat of the Laves phases are not anomalous. Summarising, we conclude that the chemical complexity and strongly defected crystalline structure of the fabricated alloys do not provide enhanced specific heat or its abnormal behavior with temperature.

3.4. Electrical Resistivity

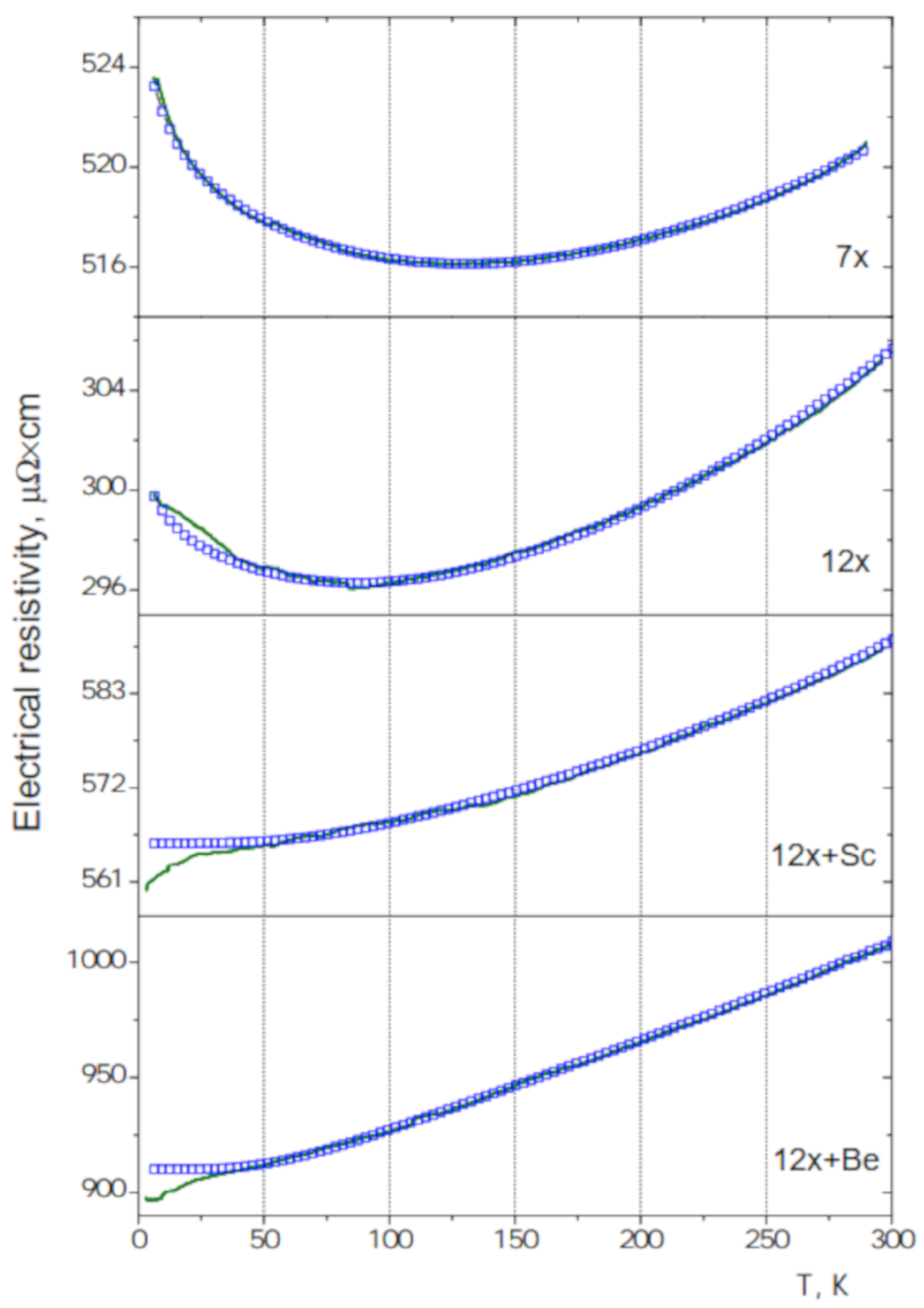

All the fabricated Laves phases demonstrate high values of the resistance expected for intermetallic compounds of this type, see Figure 7. The 7x and 12x samples reveal a pronounced Kondo-like anomaly below which the resistivity noticeably increases. This feature is absent for the HEAs containing scandium and beryllium. The $\rho \left(T\right)$ curves of the samples above 100–150 K have a positive slope that indicates metallic conductivity for all the phases. We have measured the resistivity on both the as-cast and annealed samples and found no qualitative changes in the resistance behavior after the thermal treatment. As expected for a thermally relaxed crystal structure, the homogenized alloys show reduced electrical resistivity.

The observed temperature behavior of the resistance is the result of a superposition of several factors. Indeed, we deal with the HEAs that have strongly distorted crystal lattices comprising different magnetic and non-magnetic transition elements redistributed over crystallographic positions in a stochastic way. Thus, we have to account for different scattering mechanisms to describe correctly the experimental results. A modified Bloch-Grüneisen equation is utilized for the fitting:

$$\rho \left(T\right)={\rho }_0+\frac{A}{{\mathsf{\Theta }}_D}{\rho }_{\mathrm{el}-\mathrm{ph}}\left(T\right)+C{T}^3+Dln\frac{\mu }{T}$$

(2)

where ${\rho }_0$ is the residual resistivity due to static lattice defects and uncontrolled impurities, the second term describes electron-phonon scattering, ${\mathsf{\Theta }}_D$ is Debye characteristic temperature, the third term is the resistance contribution due to Mott’s s-d interband scattering, and the last one is the Kondo contribution term. Note that this equation includes many adjusting parameters that complicate the fitting procedure and, therefore, there is a risk of misinterpretation of the results. To simplify the approximation, we accept the Debye temperatures for each composition equal to those determined from the specific heat measurements, see Table 5. When the Debye parameter is fixed, the approximation goes correctly. So we extract the following electronic parameters given in Table 5. One can see that the ${\rho }_0$ component is the main contribution to the HEA resistance. Such values are expectable for materials with a defected crystalline structure and ultra-fine microstructure. Another interesting fact is that the term describing Mott’s s-d interband scattering is rather large, which indicates a significant role of d-electrons in the electrical conductivity of the HEA. This situation is very expectable because the considered Laves phase consists predominantly of d-transition metals. For the samples 7x and 12x, the Kondo temperatures $\mu$ estimated during the fitting procedure correlate well with the resistivity minimum positions in the $\rho \left(T\right)$ dependencies. This fact suggests that the performed data approximation is correct. Based on the resistance results, we conclude that the defected crystalline structure and chemical complexity inherent to the fabricated alloys are the main reasons for the high electrical resistivity of the high entropy Laves phases and their complicated temperature behavior.

3.5. Magnetic Properties

The alloys under consideration are mixtures of various transitions elements, which allows one to expect unusual magnetism. We have measured the mass magnetic susceptibility for the HEAs in the range of 4–300 K, see Figure 8. All the phases demonstrate weak paramagnetic susceptibility over the explored temperature interval. No signs of magnetic ordering were found. We tested both as-cast and annealed samples of the alloys to prove possible evolution in magnetic properties during the thermal processing [19]. No significant changes were found in magnetism between the samples measured, indicating the thermal stability of the Laves phase. Analysis of the magnetic data reveals that the heat-treated samples are paramagnets whose magnetic susceptibility can be successfully described by the generalized Curie-Weiss law $\chi ={\chi }_0+C/(T-\mathsf{\Theta })$ in the interval of 300 K–100 K. At temperatures below 100 K, the curve fitting is not well due to long-range and short-range magnetic correlations between uncompensated magnetic moments or the Kondo anomaly.

The experimental data have been fitted with the parameters listed in

Table 6. Magnetic characteristics of the HEAs: temperature-independent magnetic susceptibility contribution ${\chi }_0$, paramagnetic Curie temperature $\mathsf{\Theta }$, effective magnetic moments per atom ${\mu }_{\mathrm{eff}}$, electron density of states at the Fermi level $n_{E_F}$.

Sample	${\mathit{\chi }}_0$ (${\mathbf{cm}}^3/\mathbf{g}$)	$\mathsf{\Theta }$ (K)	${\mathit{\mu }}_{\mathbf{eff}}$ (${\mathit{\mu }}_{\mathit{B}}$)	${\mathit{n}}_{{\mathit{E}}_{\mathit{F}}}$ (eV${}^{-1}$)
7x	$1.02\times {10}^{-6}$	−329	1.23	0.8
12x	$3.13\times {10}^{-6}$	−130	0.43	2.3
12x + Sc	$2.67\times {10}^{-6}$	−60	0.17	1.9
12x + Be	$2.80\times {10}^{-6}$	−195	0.29	1.9

.

One can see that the paramagnetic temperatures ${\mathsf{\Theta }}_p$ for the HEA samples are large and negative that indicates strong antiferromagnetic correlations. The effective magnetic moments calculated for the HEAs are noticeably less than those expected from an additive mixture of neutral atoms. So we can conclude that a part of d-electrons that determine magnetism of the system is involved in chemical bonding. From the temperature-independent susceptibility contribution ${\chi }_0$, we estimate the value of the electron density of states (DOS) at the Fermi level. Briefly, we extract the contribution of Pauli susceptibility ${\chi }_P$ into ${\chi }_0$ and then apply the formula ${\chi }_P=2S{\mu }_B^{2}n\left(E_F\right)$, where S is Stoner exchange parameter, which reflects effects of electronic correlations [26] (we set $S=1.5$). This estimation gives rather high values for $n\left(E_F\right)$ that suggests that the d-orbitals dominate the conduction band of the compounds. The existence of the s-d hybridization gives an essential contribution to the electron scattering processes, providing high electrical resistivity of the HEAs. On the other hand, the enhanced DOS means that no energy gap or pseudogap is formed in the intermetallics. The experimentally discovered metallic type of conductivity in the phases also confirms this fact. Summarising, we can conclude that the explored multicomponent Laves phases are ordinary weak paramagnets of Curie-Weiss-like type down to liquid helium temperatures.

3.6. Ab Initio Calculations

To address the electronic structure and properties of interatomic interaction in the system, we perform ab initio calculations utilizing density functional theory as implemented in VASP code [27]. Projector augmented-wave (PAW) pseudopotentials and Perdew-Burke-Ernzerhof (PBE) [28,29] gradient approximation to the exchange-correlation functional were applied [30]. The wave function was expanded by the plane-wave basis set in the periodic boundary condition, and plane wave cut-off energy was 500 eV. Only $\mathsf{\Gamma }$-point was used for sampling the Brillouin zone because rather large supercells were considered (see below).

The calculation of the electronic structure of disordered multicomponent solid solutions is a non-trivial task. For the 2–4 component systems, the special quasirandom structures (SQSs) are usually utilized for that purpose [31,32]. Since generating SQSs for 12–13 component systems in a usual way is a difficult task, we apply two alternative ways. First, we calculate DOSs for 3 × 3 × 3 supercells of the C14 Laves phase (327 atoms) and permutate the alloy components on the lattice using an evolutionary algorithm as implemented in the USPEX code [33]. The algorithm searches for a configuration that maximizes the configurational disorder described via a properly designed structural fingerprint and gives a generalized version of the SQS [34]. Second, we consider supercells of 512 atoms at thermodynamic states corresponding to the liquid phase. Equilibrium configurations were generated via ab initio molecular dynamics using the protocol described in [35].

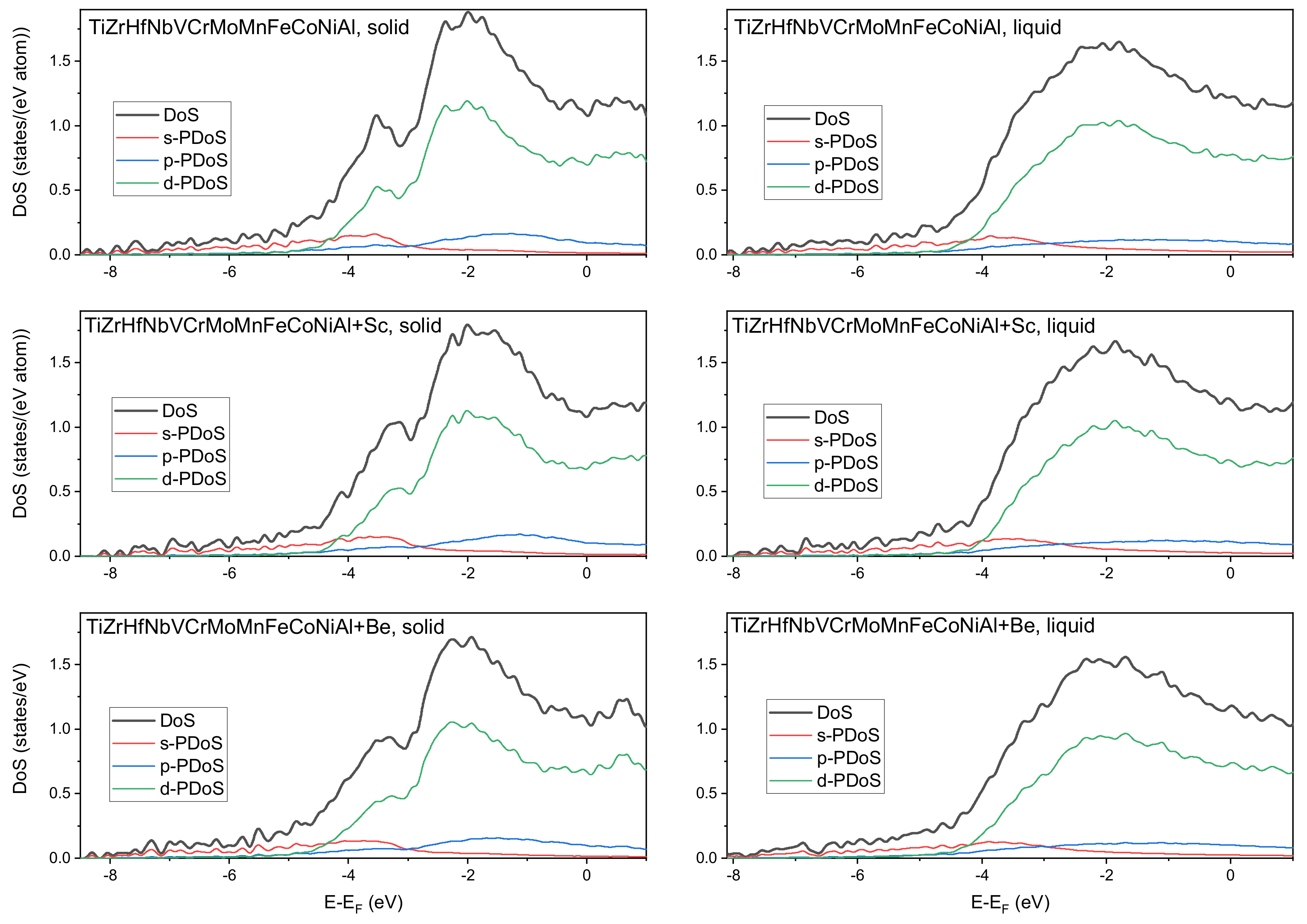

The resulted DOSs are presented in Figure 9. We see that the general properties of DOSs for liquid and solid states are qualitatively the same that suggests strong structural disorder in the systems under consideration. Total DOSs for all three systems demonstrate purely metallic behavior with rather high values near the Fermi level. The projected DOSs expectedly reveal a dominant contribution of d-states in total DOSs. Note that DOSs calculated in both solid and liquid states and for all systems reveal the same value on the Fermi level $n\left(E_F\right)\approx 1.2$ eV${}^{-1}$, which is the same order as evaluated from experimental data on the magnetic susceptibility. The difference between these values is caused by the fact that the formula related $n\left(E_F\right)$ and Pauli susceptibility is obtained from the free electron model. The Stoner parameter applied to take into account the electron correlations can not be obtained explicitly and thus the $n\left(E_F\right)$ extracted from experimental data is only the estimation of the order of magnitude. The fact that the electronic structure of all the alloys is practically the same supports the idea that experimentally observed difference in the behavior of the resistivity in HELPs under study is mostly caused by the difference in their microstructure.

4. Discussion

From the point of view of high-entropy intermetallic development, the most interesting result is fabricating a new single-phase HELP in 12x + Be alloy. We can conclude that beryllium addition to the 12x composition facilitates the formation of a chemically homogenous single-phase solid solution. The remarkable level of structural defects observed in this alloy can be explained by the small atomic size of the beryllium. This metal can easily replace and occupy crystallographic positions in lattice sites, forming a substitution solid solution. Besides, an interstitial solid solution can be formed because small beryllium atoms can also occupy the interstitial lattice positions. In the case of the system under consideration, both solid solution types can be formed simultaneously, providing strong structural distortions.

Taking into account the above findings as well as previously reported results [13,14,15,16,17,18], we can conclude that the formation of Laves phases in multicomponent multi-principal element metallic alloys is a surprisingly universal phenomenon. Indeed, considering multicomponent mixtures of metals with different atomic sizes and different electronic characteristics, we very often, and maybe even most often, observe solid solutions in which Laves phase (usually C14 one) is at least the dominant phase. The origin of this universality is not well understood. However, we argue that the mechanism of Laves phase stabilization is rather topological than electronic. The idea is when mixing many metals of differing atomic sizes, we get a system with a rather broad and continuous distribution of interparticle distances. From the point of view of solid phase formation, such systems behave effectively as polydisperse mixtures of hard (or soft) spheres. It is known, that such mixtures can form Laves phases at certain ranges of size dispersity [36]. This analogy between the structural formation in multicomponent metallic alloys and polydisperse hard-sphere mixtures is interesting and deserves separate investigation.

Another important and rather general conclusion is that multicomponent HELPs are not always single-phase materials but rather mixtures of several Laves phases. This behavior is a consequence of the fact that there are many Laves polytypes, which can compete during the solidification process [25]. This situation is well known in binary and ternary alloy and it is reasonable to expect that it is also a general feature of HELP-forming multicomponent alloys. Even when a single-phase state is thermodynamically favorite, multi-Laves-phase HEAs may be stable due to very long relaxation times. Such a complex structure of HELPs makes it difficult to recognize all the phases in a system under investigation. Particularly, it is often not clear if the system is a true single-phase HELP even when XRD analysis and microscopy support this idea. When considering HELPs with different composition complexity, we find also that there is no clear correlation between configurational entropy and the Laves phases stabilization. The conclusion we draw from these findings is that configurational entropy is a negligible factor in the stabilization of HELPs.

5. Conclusions

We have addressed Laves phase formation in multicomponent multi-principal element metallic alloys as well as their structural, thermodynamic, electronic, and magnetic properties. We consider duodenary TiZrHfNbVCrMoMnFeCoNiAl (12x) alloy, in which the formation of single-phase C14 Laves phase has been recently reported [19], and study three alloys based on 12x: 7x = 12x-VCrMoMnFe, 12x + Sc, 12x + Be. We observe that all three systems crystalize with the formation of C14 Laves phase as a dominant structure. However, the microstructure and phase composition of the alloys under consideration are essentially different. The alloy with the addition of beryllium 12x + Be reveals a single-phase C14 structure with a very high concentration of structural defects and ultra-fine dendritic microstructure with an almost homogenous distribution of the constituted elements over the alloy matrix. The 7x alloy is a mixture of two phases: the main C14 Laves phase and probably some portion of surface oxide phase. The 12x + Sc alloy is a mixture of two Laves phases with C14 as the main phase and C15 Ni${}_2$Sc-based solid solution as an impurity one. Note that all the fabricated structures demonstrate thermal stability; we did not see any noticeable structural changes after isothermal annealing at T = 673 K for 50 h.

From a practical viewpoint, the explored high entropy intermetallics do not demonstrate extraordinary physical properties. Complex chemical composition and defective crystalline structure of the phases have a significant impact on the electrical resistivity only. All the HELPs are high-resistivity but metallic materials. Other explored physical properties behave as usual. So we find typical for many solids temperature dependencies of the specific heat obeying classical Debye model. There are no abnormal specific heat contributions or exothermic/endothermic effects. The coexistence of various transition elements in the HELP lattice does not provide unusual magnetism or magnetic ordering. The explored HELPs are ordinary weak paramagnets of Curie-Weiss type down to liquid helium temperatures. All the intermetallics are characterized by the enhanced DOS, indicating that no energy gaps or pseudogaps are formed in the systems.

Our findings contribute to the understanding of structure formation mechanisms in high-entropy alloys and open up prospects for discovering new types of multicomponent single-phase intermetallics.
