Numerical Simulation and Evaluation of Campbell Running and Gating Systems

Manufacturing Theme, Cranfield University, Cranfield MK430AL, UK
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 68; https://doi.org/10.3390/met10010068
Received: 2 December 2019 / Revised: 26 December 2019 / Accepted: 27 December 2019 / Published: 1 January 2020
(This article belongs to the Special Issue Dedicating to Professor John Campbell's 80th Birthday)

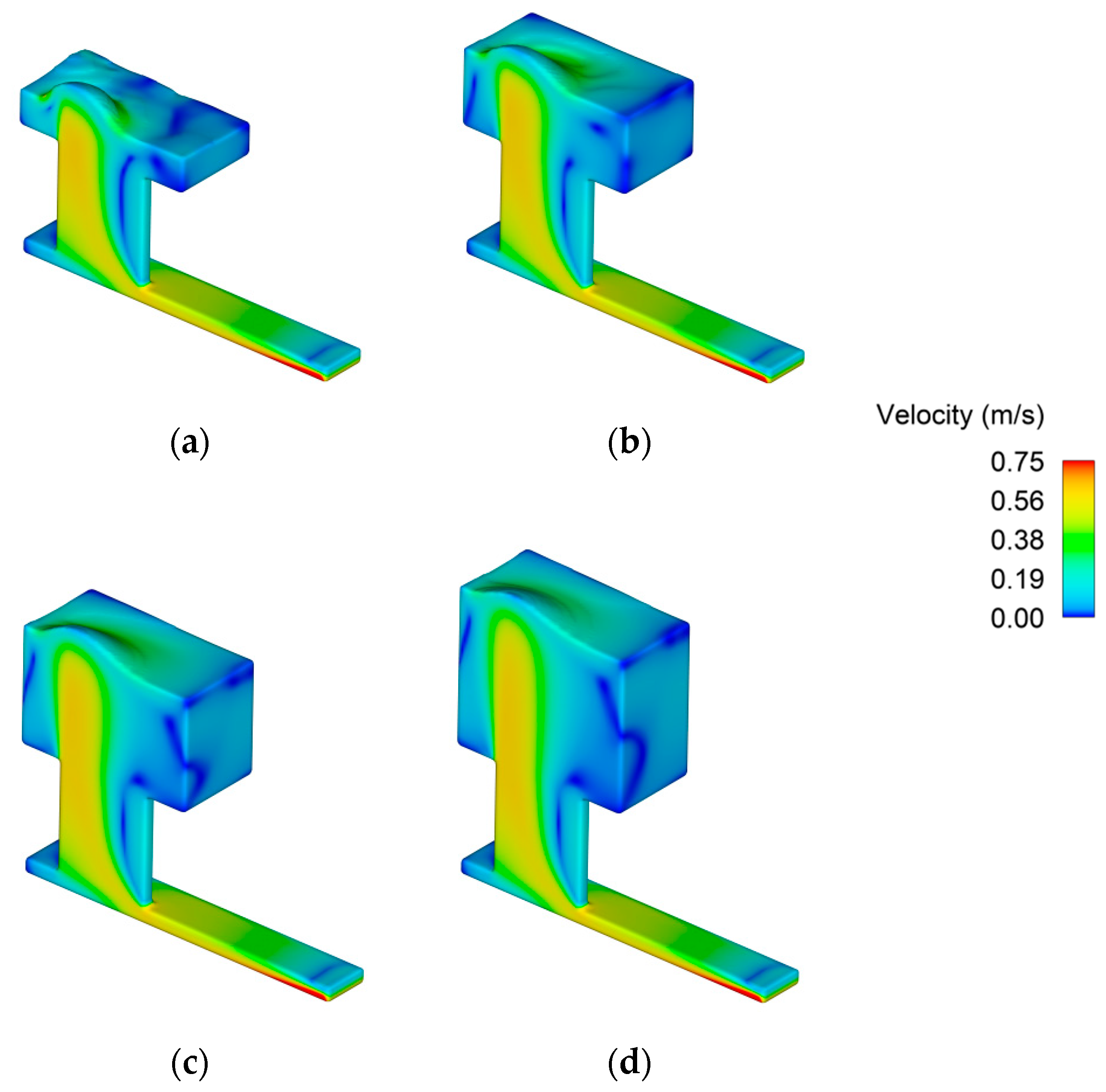

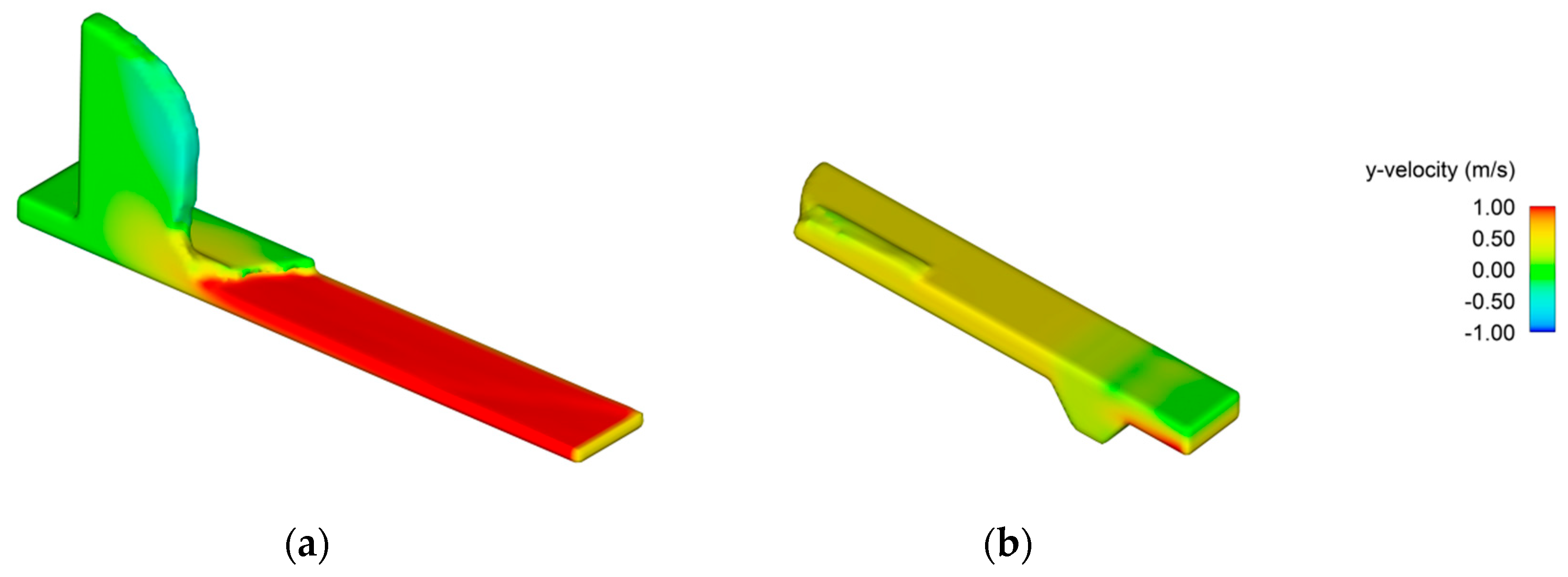

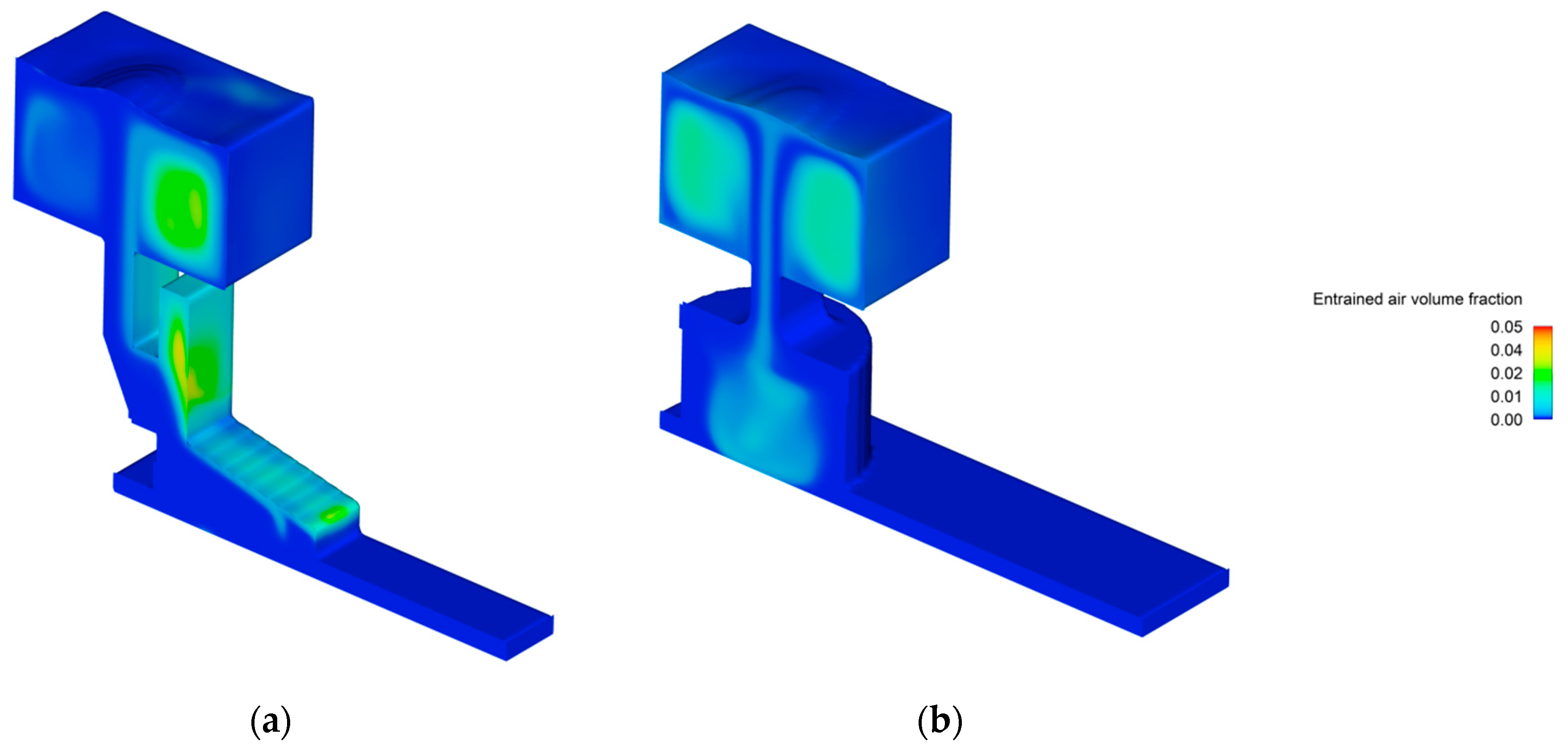

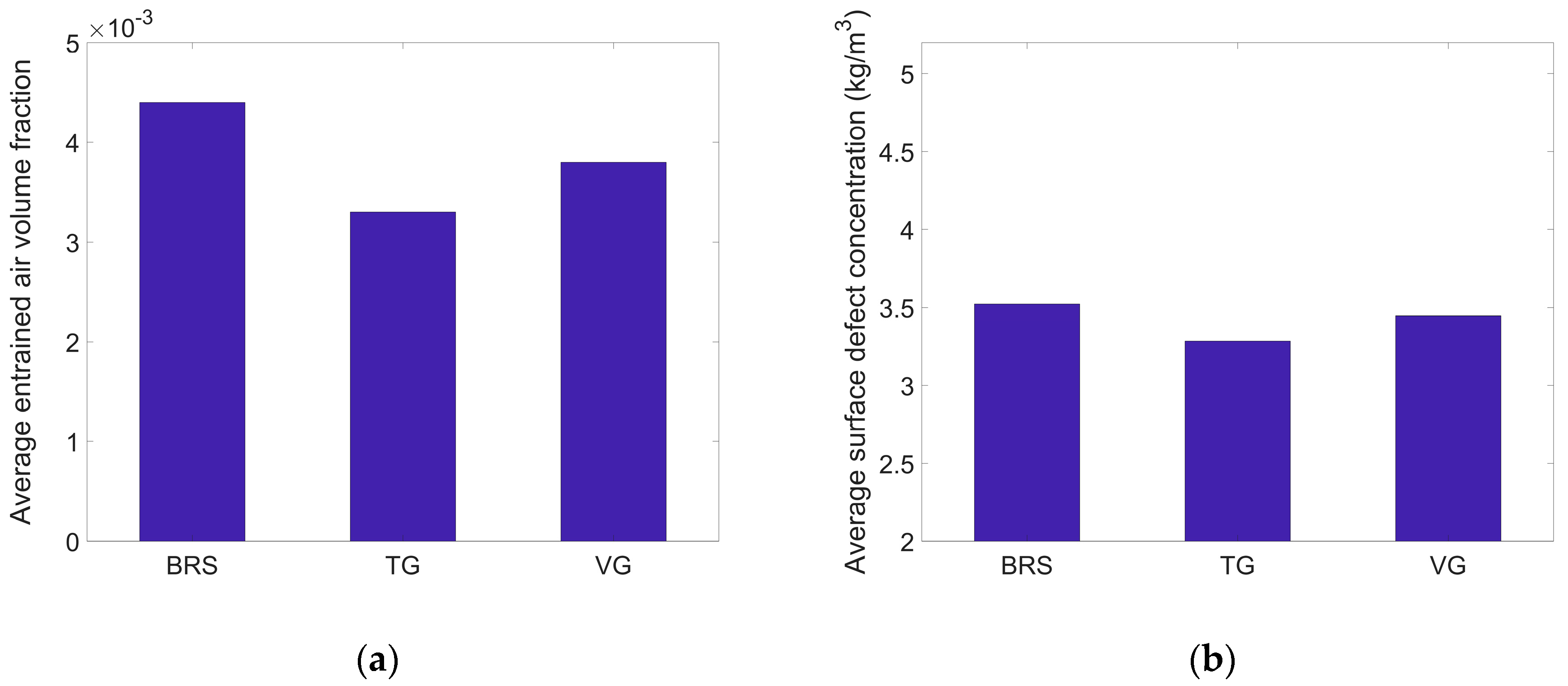

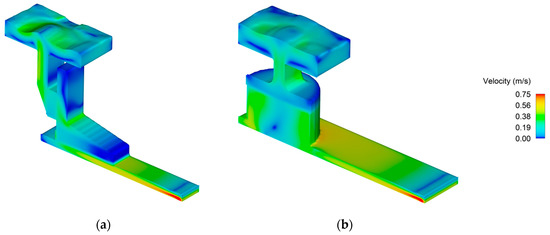

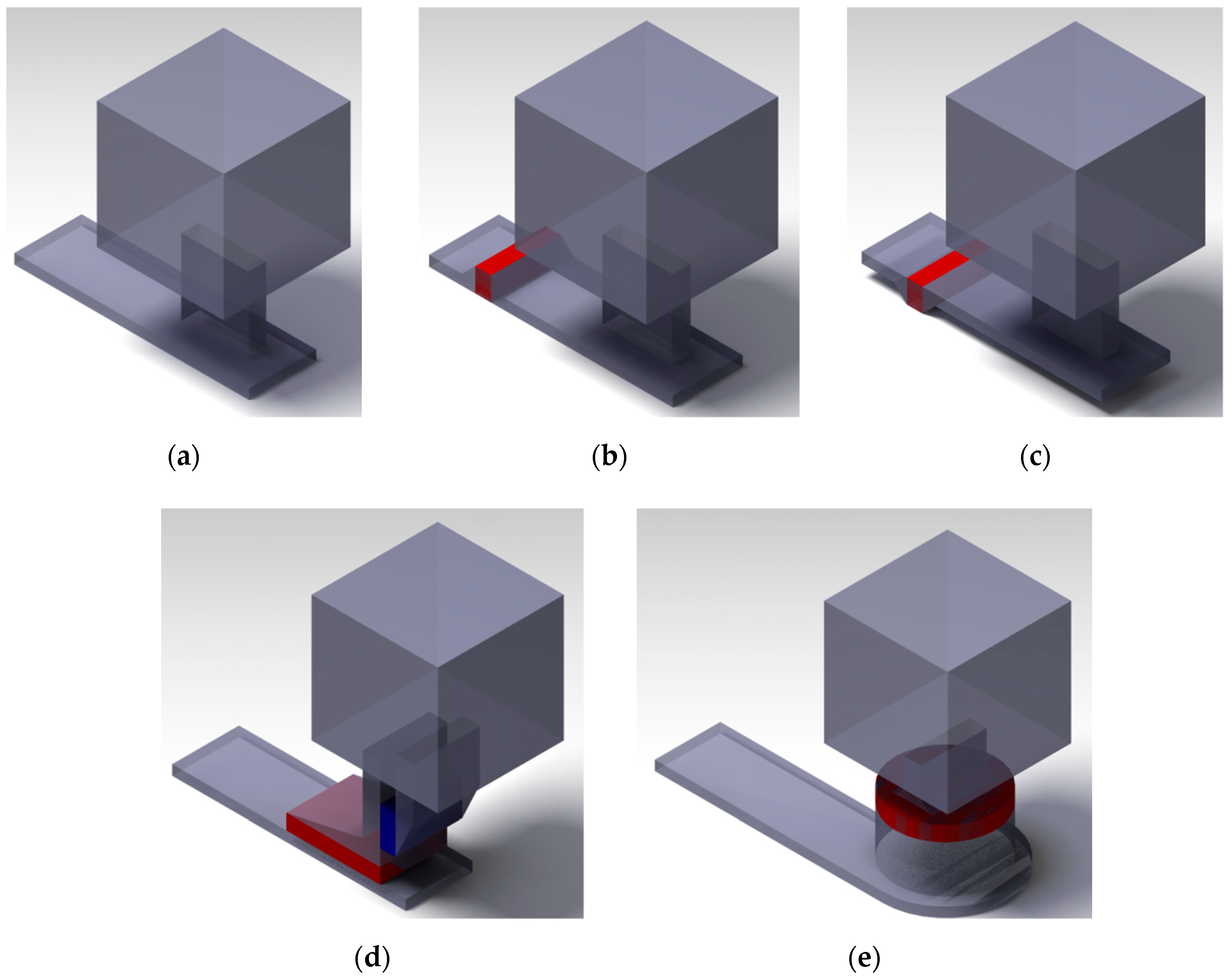

The most common problems encountered in sand casting foundries are related to sand inclusions, air, and oxide films entrainment. These issues can be addressed to a good extent or eliminated by designing proper running systems. The design of a good running system should be based on John Campbell’s “10 casting rules”; it should hinder laminar and turbulent entrainment of the surface film on the liquid, as well as bubble entrainment. These rules have led to the establishment of a group of components such as high and low placed filters (HPF/LPF) and standard gate designs such as the trident gate (TG) and vortex gate (VG) which are incorporated in well-performing running system designs. In this study, the potential of the aforementioned running system designs to eliminate air entrainment and surface defects has been investigated via means of computational fluid dynamics (CFD) simulations. The obtained results suggest that the use of filters significantly enhances the quality of the final cast product; moreover, all of the gating system designs appear to perform better than the basic running system (BRS). Finally, the five in total running and gating system designs have been evaluated with respect to their ability to produce good quality cast products (reduced air entrainment and surface defects) and their sustainability component (runner scrap mass). View Full-Text
Keywords: Campbell running systems; CFD; sustainability Campbell running systems; CFD; sustainability
Show Figures

Figure 1

MDPI and ACS Style

Papanikolaou, M.; Pagone, E.; Jolly, M.; Salonitis, K. Numerical Simulation and Evaluation of Campbell Running and Gating Systems. Metals 2020, 10, 68.
