Article

Genesis of the Giant Aynak Copper Deposit, Afghanistan: Constraints from Sulphide Geochemistry (ICP-MS) and Fluid Inclusions

by
Hamidullah Waizy
1,2,*,
Norman R. Moles
3,* and
Martin P. Smith
3
1
Department of Earth Sciences, Durham University, Durham DH1 3LE, UK
2
Department of Geological Engineering and Exploration of Mines, Kabul Polytechnic University, Kabul 1001, Afghanistan
3
School of Applied Sciences, University of Brighton, Brighton BN2 4GJ, UK
*
Authors to whom correspondence should be addressed.
Minerals 2026, 16(8), 844; https://doi.org/10.3390/min16080844
Submission received: 22 July 2026 / Revised: 12 August 2026 / Accepted: 14 August 2026 / Published: 15 August 2026
(This article belongs to the Special Issue Formation and Characteristics of Sediment-Hosted Ore Deposits)

Abstract

Located 30 km south–southeast of Kabul in Logar province, Aynak is the largest and best-known copper orebody in Afghanistan. The deposit is hosted by the Loy Khwar Formation, a Neoproterozoic–Cambrian metasedimentary sequence of dolomite marble, carbonaceous quartz schist and quartz–biotite–dolomite schist. The primary ore minerals are chalcopyrite and bornite, with less abundant pyrite and minor cobaltite, chalcocite, pyrrhotite, sphalerite and molybdenite. Sulphides occur as bedded laminae and disseminations, in metamorphic segregations, and in syn- to post-metamorphic cross-cutting veins. Building on the mineralogical, lithogeochemical and sulphur isotope framework established by Waizy et al. (2020), ICP-MS analyses of sulphide-rich separates from Central and Western Aynak (n = 31) were undertaken to characterise trace-element distributions, evaluate possible metal sources, and further constrain the genetic model of the deposit. Co and As enrichment in chalcopyrite-dominant samples is consistent with cobaltite, whereas Co enrichment in the absence of arsenic suggests the possible presence of carrollite. Fluid inclusion analyses of secondary quartz-hosted inclusions indicate interaction between the Aynak deposits and saline aqueous fluids (32 to 47 equivalent wt% NaCl) at minimum P-T conditions of ~100–200 MPa and 300 °C. It is uncertain whether these fluid parameters relate to primary copper transport and deposition, or to remobilisation during metamorphism. Nevertheless, comparison with analogous sediment-hosted copper deposits suggests that highly saline basinal brines played an important role in the formation and evolution of the deposit. Occurrences of scapolite provide additional evidence for a model of brine-related mineralisation. Together with previously published mineralogical, lithogeochemical and sulphur isotope evidence, these findings support a sedimentary–diagenetic origin for the Aynak copper deposit that is broadly comparable with sediment-hosted stratiform copper systems of the Central African Copperbelt.

1. Introduction

Copper remains one of the world’s most important industrial and strategic metals and continues to be in high demand owing to increasing urbanisation, electrification, renewable energy technologies, and the global energy transition. Afghanistan hosts numerous copper deposits in sediment-hosted, porphyry, skarn and vein-hosted systems [1], many of which occur within the Kabul Copper District. The district covers approximately 800 km2 within the tectonically complex Kabul Block [2] and includes the world-class Aynak deposit together with the economically important Darband and Jawhar copper deposits (Figure 1). The Aynak deposit is located approximately 30 km south–southeast (SSE) of Kabul in Logar Province. Its regional geological setting, mineralogy and sulphur isotope characteristics have been described previously [3], whereas the present study focuses on new sulphide geochemistry and fluid inclusion evidence that further constrain the genesis of the deposit.
The Aynak deposit has been exploited for more than 2400 years and contains extensive archaeological remains, including ancient copper smelting furnaces, widespread slag deposits, monasteries and Buddhist settlements, reflecting a long history of copper production. Following its rediscovery during Afghan–Soviet exploration programmes in the 1970s, extensive geological investigations and drilling defined one of the largest known copper resources in Asia, with an indicated resource of approximately 240 Mt grading 2.3% Cu. Total ore reserves calculated using block model and log-kriging methods and using a cut-off grade of 0.2% Cu are estimated at 453–468 million tonnes, averaging 1.05%–1.08% Cu [4]. Although the deposit was leased for development to the Metallurgical Corporation of China (MCC), commercial mining has yet to commence owing to a combination of archaeological, technical, economic, political and security challenges.

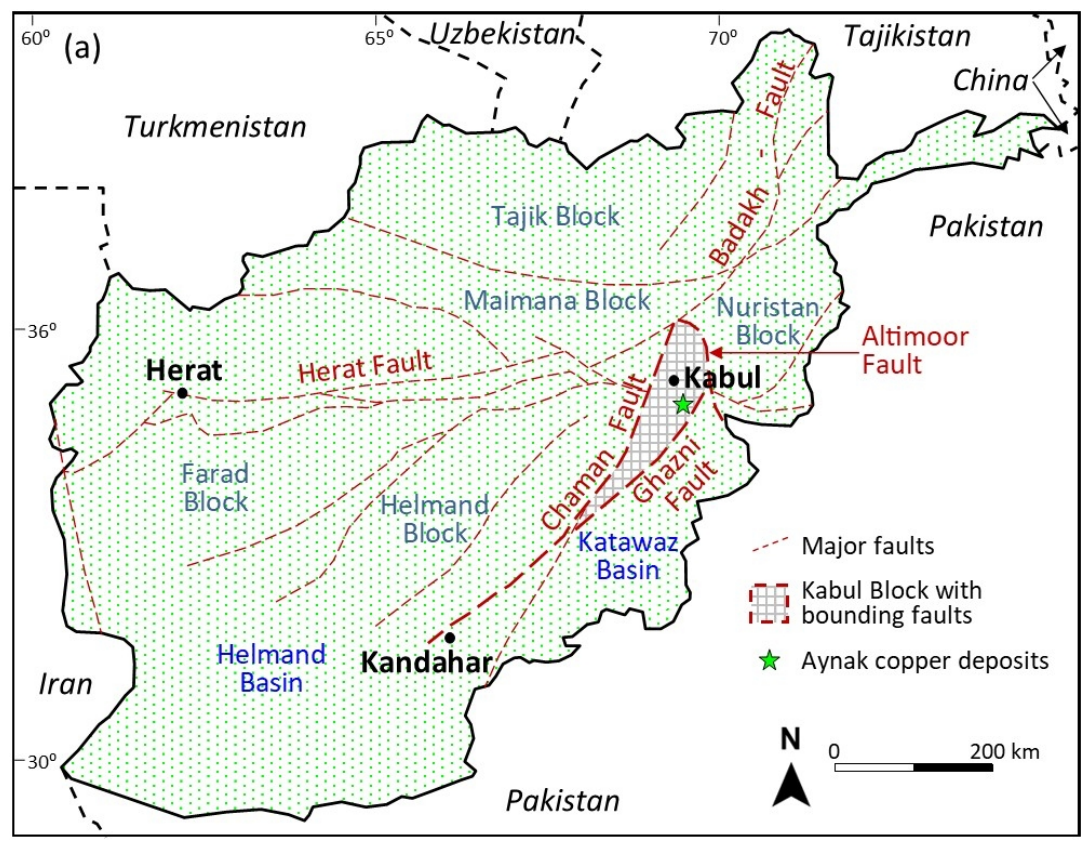

Figure 1. (a) Tectonic map of Afghanistan with locations of the Kabul Block and the Aynak copper deposits, modified from [3,5]. (b) Digital terrain model of the northern part of the Kabul Block superimposed with locations of mineralisation, modified from [5]. Orange squares indicate sediment-hosted copper occurrences; the Aynak deposits are arrowed. Green squares and triangle indicate occurrences of chromite and asbestos in the Logar ultramafic complex. White star northwest of Kabul indicates location of the Khayakhana quarry (location details in [6]). Yellow box indicates the area shown in Figure 2.
Figure 1. (a) Tectonic map of Afghanistan with locations of the Kabul Block and the Aynak copper deposits, modified from [3,5]. (b) Digital terrain model of the northern part of the Kabul Block superimposed with locations of mineralisation, modified from [5]. Orange squares indicate sediment-hosted copper occurrences; the Aynak deposits are arrowed. Green squares and triangle indicate occurrences of chromite and asbestos in the Logar ultramafic complex. White star northwest of Kabul indicates location of the Khayakhana quarry (location details in [6]). Yellow box indicates the area shown in Figure 2.
Minerals 16 00844 g001aMinerals 16 00844 g001b

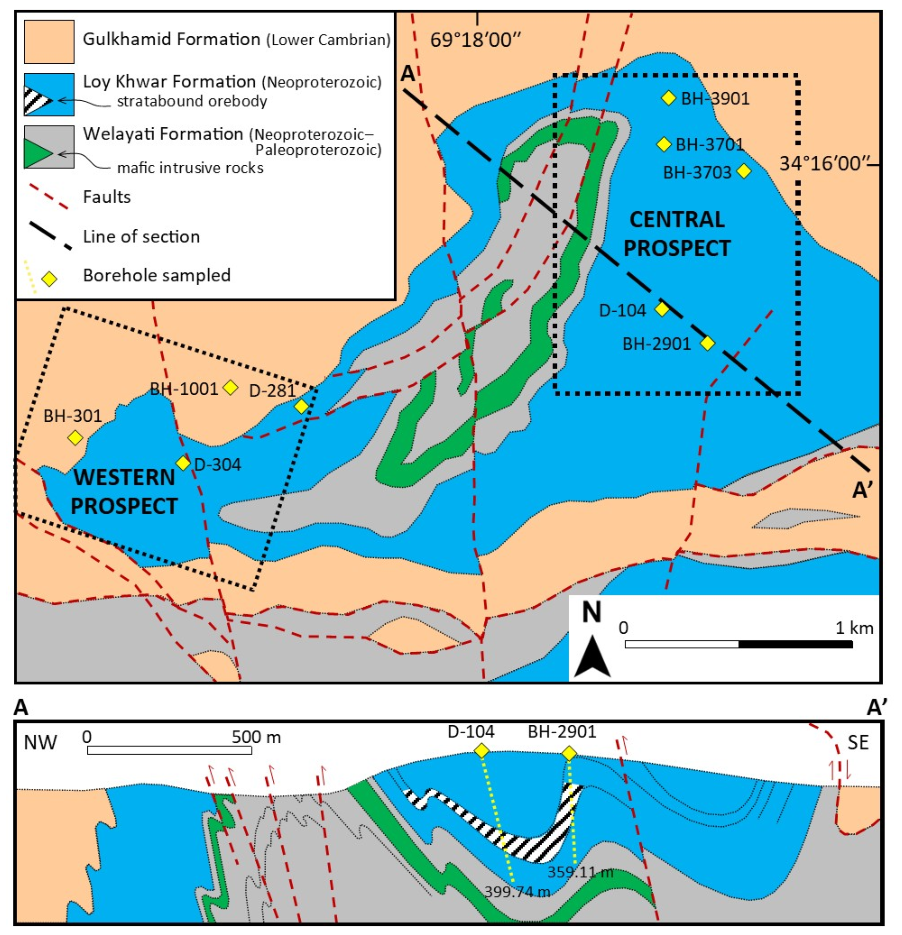

Figure 2. Simplified geological map and cross-section of the Aynak deposits, modified from AGS and BGS [1] and Waizy et al. [3] showing the Central and Western prospect areas and locations of drillholes from which samples were obtained for this study. Note that prefixes ‘BH-’ and ‘D-’ have been removed in the names of drill-core samples presented later.
Figure 2. Simplified geological map and cross-section of the Aynak deposits, modified from AGS and BGS [1] and Waizy et al. [3] showing the Central and Western prospect areas and locations of drillholes from which samples were obtained for this study. Note that prefixes ‘BH-’ and ‘D-’ have been removed in the names of drill-core samples presented later.
Minerals 16 00844 g002
Copper mineralisation at Aynak is hosted principally by metasedimentary rocks of the Loy Khwar Formation, whereas the underlying Welayati Formation comprises metavolcanic and metasedimentary basement rocks that contain minor disseminated and vein-hosted sulphides [5]. Previous studies have proposed that these basement rocks may have acted as a potential source of copper and associated metals through metamorphic-hydrothermal remobilisation. Because the Welayati Formation was not intersected by drilling at Aynak, sulphide-bearing samples were collected from equivalent basement exposures in the Khayarkhana (Tara Khel) area near Kabul Airport (Figure 1b) to evaluate this hypothesis. Detailed descriptions of the regional geology and stratigraphy are provided in Section 2 and in Waizy et al. [3]. Regional metamorphism has extensively recrystallised the Aynak deposit host rocks and sulphide assemblages, largely obliterating primary ore textures that would otherwise provide direct evidence of mineralising processes [7,8]. However, even in weakly metamorphosed sediment-hosted copper deposits where primary textures are preserved, distinguishing between syngenetic, diagenetic and epigenetic mineralisation may remain problematic [9,10]. Consequently, petrographic observations alone are insufficient to resolve the origin of the Aynak mineralisation. Independent geochemical constraints are therefore required. Although Waizy et al. [3] established a mineralogical, lithogeochemical and sulphur isotope framework for the deposit, important questions remained regarding the distribution of trace elements within the sulphide assemblages, the possible contribution of the Welayati Formation as a metal source, and the characteristics of the mineralising fluids. In this study, ICP-MS analyses of sulphide separates from the Aynak deposit and sulphide-bearing rocks of the Khayarkhana area are used to characterise trace-element distributions, evaluate possible metal sources, and provide new constraints on the genesis of the deposit. The new sulphide geochemistry and fluid inclusion datasets are used to test these outstanding questions and to refine the previously proposed genetic model by integrating them with the earlier mineralogical, lithogeochemical and sulphur isotope evidence. The results also have broader implications for understanding metamorphosed sediment-hosted copper systems and may assist future exploration within the Kabul Copper District and comparable geological terranes.

2. Geological Setting of the Aynak Copper Deposit

2.1. Stratigraphy

The Aynak deposit occupies an area of ~6 km2 comprising two prospects: Central Aynak and Western Aynak (Figure 2). The ore field is hosted by metamorphosed sedimentary and volcanic–sedimentary rocks of Neoproterozoic to possibly Cambrian age. These are partially overlain by Upper Permian, Neogene and Quaternary sedimentary deposits that infill a wide erosion–tectonic depression (Figure 2 and Figure 3). The Aynak area also contains several intrusive igneous bodies that can be grouped into three principal complexes according to their age and composition: (i) Late Proterozoic sub–alkaline intrusions; (ii) Ediacaran–Cambrian dykes; and (iii) Lower Cretaceous ultramafic intrusions [11,12].
The geological framework and stratigraphy of the Aynak deposit have been described in detail by AGS & BGS [5,11] and summarised by Waizy et al. [3]. The following account focuses on those geological features that are most relevant to the sulphide geochemistry and fluid inclusion data presented in this study. The oldest outcropping rocks in the area belong to the Welayati Formation. Akocdzhanyan et al. [13] divided these rocks into three lithological units. The oldest unit occurs in the cores of anticlinal structures in the south and north of the deposit and comprises garnet-bearing gneisses, amphibolitic gneisses and schists, containing staurolite, andalusite and sillimanite. This unit is overlain with an angular unconformity by a sequence of basaltic–andesitic metavolcanic rocks with intercalations of quartzitic and carbonate schists. Despite regional greenschist-facies metamorphism, the metavolcanic rocks locally preserve primary volcanic textures and fabrics. The metavolcanic rocks are conformably overlain by the uppermost unit, which comprises quartzitic schists and carbonate schists. Although the Welayati Formation hosts only minor disseminated and vein-type sulphide mineralisation, it has been proposed as a potential source of copper and associated metals for the Aynak deposit through metamorphic-hydrothermal remobilisation, a hypothesis examined later in this study.
The Welayati Formation is overlain unconformably by the Loy Khwar Formation, which has a thickness of 420 and 880 m in the western and central prospects, respectively. This formation, which is host to the copper mineralisation at Aynak, comprises a repetitive cyclical sequence of dolomite marble, carbonaceous quartz schist and quartz–biotite–dolomite schist. The stratigraphy of the Loy Khwar Formation was established during the Afghan–Russian exploration programme [14], which subdivided the succession into seven members and several sub-members (Figure 3). In the western prospect, the formation comprises a sequence of interbedded schists and calcareous metasedimentary rocks. The meta–evaporite mineral scapolite occurs locally within the schists and provides evidence for evaporitic components within the original sedimentary succession. Schist and dolomite marble commonly have fine rhythmic layering. Stromatolite remnants elsewhere within the Kabul Block support a Neoproterozoic age of the formation, although the historical identification of the algae Tannuofia has also been interpreted as indicating an Early Cambrian age [5,15,16,17].
The Gulhamid Formation conformably overlies the Loy Khwar Formation (Figure 3), and is widely distributed throughout the Aynak area, attaining a thickness of approximately 500 m. Only the lower part of the formation is exposed, comprising amphibolites and melanocratic amphibole–biotite and calcareous–biotite schist, which represent a basic to intermediate volcanic protolith. Subordinate intercalations of dolomite marble, carbonaceous quartz schists, and calcareous biotite schists also occur. The formation contains disseminated magnetite with minor ilmenite, hematite and pyrite [5].
Upper Permian and Quaternary clastic sediments partially cover the older bedrock outcrop in the vicinity of the ore deposits.

2.2. Structural Geology

The Aynak ore field is situated within the Kabul Block, which has undergone a complex tectonic evolution involving Precambrian crustal development followed by multiple Phanerozoic deformation events and later Alpine reactivation [2,3,5,12,18]. At the deposit scale, the geological architecture is dominated by the asymmetrical Aynak anticline, approximately 4 km long and up to 2.5 km wide, with a core composed of amphibolites and gneisses of the Welayati Formation and limbs formed principally by the ore-hosting Loy Khwar Formation (Figure 3). The anticline trends predominantly northeast but swings to an east–west orientation towards its southwestern closure, suggesting superimposed deformation. The southeastern limb dips gently and contains several secondary folds, whereas the northwestern limb is steeply dipping to locally overturned, reflecting strong compressional deformation [3,5]. Structural complexity is further enhanced by northeast-trending reverse (thrust) faults, numerous subsidiary faults, and later north–south, east–west and northeast–southwest fault sets, many of which are associated with brecciation and local mylonitisation. Although these structures locally displaced and modified the ore-bearing succession, copper mineralisation remains closely controlled by the stratigraphy of the Loy Khwar Formation, indicating that deformation primarily redistributed rather than generated the sulphide mineralisation. Regional metamorphism produced pervasive foliation, recrystallisation and local remobilisation of sulphides into quartz–carbonate veins and metamorphic segregations, obscuring many primary textures while preserving the overall stratabound geometry of the deposit.

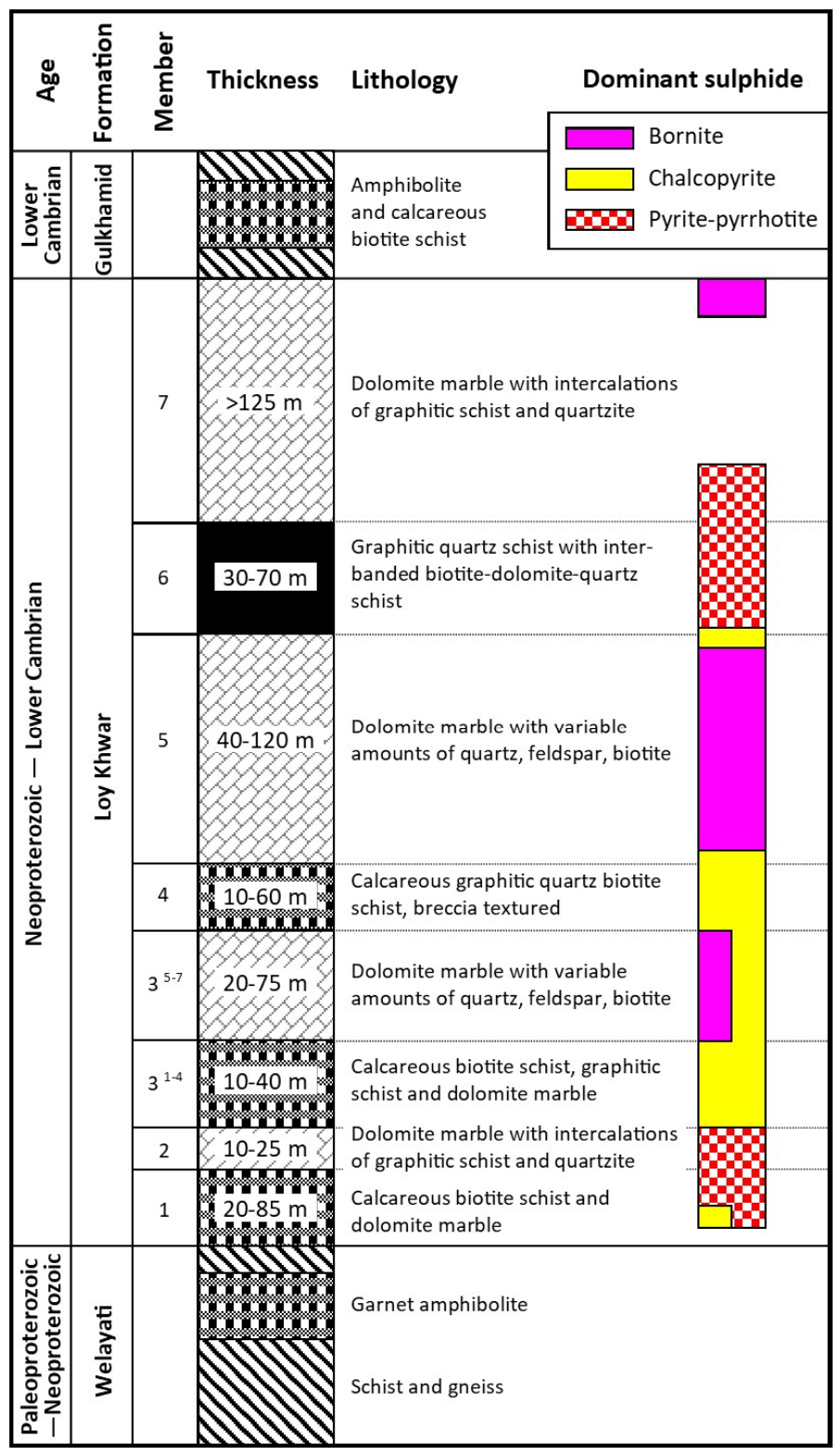

Figure 3. Generalised stratigraphic column, after MoMP and AGS [1] and Waizy et al. [3] showing the major rock types and sulphide mineral zonation in the Aynak deposit. Not to scale, as thicknesses differ within, and between, the Central and Western parts of the ore deposit.
Figure 3. Generalised stratigraphic column, after MoMP and AGS [1] and Waizy et al. [3] showing the major rock types and sulphide mineral zonation in the Aynak deposit. Not to scale, as thicknesses differ within, and between, the Central and Western parts of the ore deposit.
Minerals 16 00844 g003

2.3. Mineralogy

The wall-rock units of the Central and Western Aynak deposits are mineralogically similar. The ore bodies in these areas are hosted within the Ediacaran–Cambrian metasedimentary sequence of the Loy Khwar Formation, as previously described. The principal rock-forming minerals in the host rocks include carbonates, quartz, micas, and plagioclase feldspar, with scapolite also present in some samples. Carbonates are ubiquitous, dominated by ferroan dolomite, with calcite constituting a major component of dolomitic marble. Quartz occurs both as a fine-grained matrix in quartz-rich metasediments and as coarsely crystalline aggregates within metamorphic segregations and veins, commonly associated with dolomite, bornite, and chalcopyrite. The coarse quartz hosts abundant fluid inclusions that form the basis of the microthermometric investigations presented later in this study, giving the quartz a characteristic milky-white appearance in hand specimens. Biotite, phlogopite, and muscovite are abundant in the host rocks, particularly within quartz–mica–dolomite schist units. Plagioclase, ranging compositionally from andesine and oligoclase to albite, is commonly found in quartz–feldspar and feldspar–carbonate host rocks. Scapolite was identified as an important constituent in several Western Aynak samples by optical microscopy and SEM energy-dispersive X-ray (EDX) analyses. Because scapolite commonly forms in evaporite-bearing or saline fluid environments, its composition is particularly relevant to the interpretation of the ore-forming fluids discussed later. SEM-EDX analyses indicate that its composition ranges from Na1.99Ca1.89Al4.30Si7.70O24Cl to Na2.56Ca1.36Al4.01Si7.99O24Cl. Potassium is present in amounts of up to 0.6 wt%, while sulphur was not detected. Although carbonate ion concentrations cannot be determined using this analytical method, they are likely to be low, given the relatively high chlorine contents (2.1–3.1 wt%). Apatite is widespread, occurring as small, disseminated crystals within the host rocks and in veins and segregations with chalcopyrite and pyrite. Garnet is rare, with compositions intermediate between almandine and spessartine–grossular, and a minor pyrope component. In addition to the primary rock-forming minerals, minor quantities of rutile, ilmenite, titanite, magnetite, hematite, and zircon were observed microscopically in the studied samples [3]. Collectively, these mineral assemblages define the mineralogical framework of the host rocks and provide the basis for interpreting the sulphide geochemistry and fluid inclusion data presented in the following sections.
The lower sections of the main orebody are hosted in carbonaceous dolomite–quartz schist, which is locally breccia-textured. These rocks contain chalcopyrite, pyrite and pyrrhotite with minor cobaltite and sphalerite [19]. The central and upper sections of the orebody are hosted by carbonaceous quartz–biotite schist, quartzites and dolomite marble. In these sections, bornite is the dominant ore mineral, accompanied by subordinate chalcopyrite and minor molybdenite, cobaltite and magnetite. Minor amounts of carrollite, smaltite and pentlandite were reported by previous investigators, e.g., Yurgenson et al. [19], but these minerals were not identified in the samples examined in the present study [3]. The dominant sulphides, chalcopyrite, bornite and pyrite, occur as stratabound laminae, disseminations, cross-cutting veins, and in metamorphic segregations (Figure 4) associated with coarsely crystalline quartz, dolomite and calcite. In contrast, the minor quantities of pyrrhotite, cobaltite, chalcocite, sphalerite, cuprite and molybdenite commonly occur as disseminated grains.

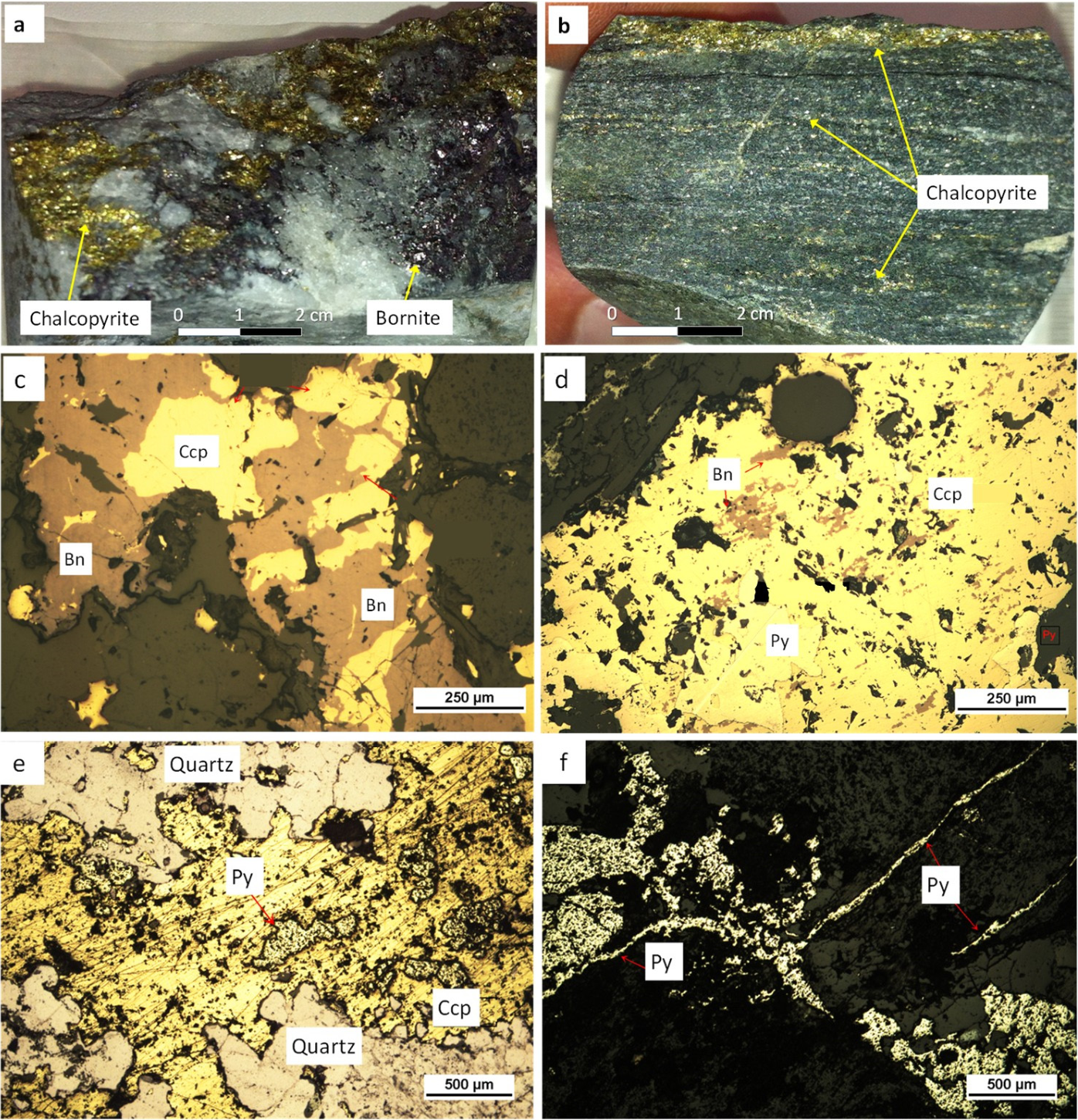

Figure 4. Representative drill-core samples and reflected-light photomicrographs illustrating the principal sulphide mineralisation at the Aynak deposit. (a) Massive chalcopyrite and bornite segregations in dolomite marble, sample 281–3. (b) Stratabound chalcopyrite laminae in dolomite marble, sample 3901–2. (cf) Photomicrographs of main sulphide minerals, all taken in reflected light (Bn, bornite; Ccp, chalcopyrite; Py, pyrite). (c) Sample 3703–3a showing extensive bornite exsolution in chalcopyrite or chalcopyrite replacement by bornite. (d) Replacement of pyrite and bornite by massive chalcopyrite in sample 304–2. (e) Pyrite replacement by chalcopyrite in sample 2901–3. (f) Cross-cutting pyrite veins in 1001–2. Images reproduced and modified from figures in [3].
Figure 4. Representative drill-core samples and reflected-light photomicrographs illustrating the principal sulphide mineralisation at the Aynak deposit. (a) Massive chalcopyrite and bornite segregations in dolomite marble, sample 281–3. (b) Stratabound chalcopyrite laminae in dolomite marble, sample 3901–2. (cf) Photomicrographs of main sulphide minerals, all taken in reflected light (Bn, bornite; Ccp, chalcopyrite; Py, pyrite). (c) Sample 3703–3a showing extensive bornite exsolution in chalcopyrite or chalcopyrite replacement by bornite. (d) Replacement of pyrite and bornite by massive chalcopyrite in sample 304–2. (e) Pyrite replacement by chalcopyrite in sample 2901–3. (f) Cross-cutting pyrite veins in 1001–2. Images reproduced and modified from figures in [3].
Minerals 16 00844 g004
Rock exposures in the Khayarkhana areas comprise amphiboles, basalt, quartzite and marble containing sulphide-bearing veins and segregations dominated by chalcopyrite, pyrite and pyrrhotite [3,18]. These sulphide-bearing basement rocks were included in the present study because they provide representative samples of the Welayati Formation, allowing comparison with the Aynak ore assemblages to evaluate their potential as a source of copper and associated metals.
SEM-EDX analyses of pyrite from 14 samples [18] indicate that pyrite is close to the stoichiometric formula FeS2, with only 6 of 45 analyses reporting Co and Ni concentrations above the analytical detection limit of 0.2 wt%. Nickel concentrations of 1.2 wt% and 2.4 wt% were measured in individual pyrite grains from Central Aynak samples 3703-4 and 3901-1, respectively (Table 1). Pyrite from sample 104-4a contains 1 and 4 wt% Co. In Western Aynak sample 1001-4, a single pyrite analysis yielded 9.3 wt % Co, although cobalt was not detected in other pyrite crystals within the same thin section. Arsenic was not detected by SEM-EDX in any pyrite. Chalcopyrite and bornite analysed by SEM-EDX are close to their stoichiometric formulae with trace element concentrations below the analytical detection limits [18]. These SEM-EDX observations indicate that trace-element enrichment in the principal copper sulphides is generally limited, thereby providing an important framework for interpreting the more sensitive ICP-MS analyses presented in the following sections.

3. Materials and Methods

3.1. Sulphide Geochemistry from Partial Acid Dissolution and ICP-MS

Due to deep weathering and supergene alteration, primary sulphide minerals are no longer present in near-surface rocks in the Aynak area. Consequently, all sulphide samples used in this study were obtained from deep exploration drill-core provided by the Metallurgical Corporation of China (MCC) and the Ministry of Mines and Petroleum (MoMP). A total of 31 sulphide-bearing drill-core samples were obtained from the Central and Western Aynak. In addition, 5 sulphide-bearing samples were collected from the ‘potential copper source rocks’ that outcrop with minimal oxidation in the Khayarkhana area. Waizy et al. [3] report the results of detailed petrographic studies undertaken to understand the petrography and mineralogy of the samples and to establish textural relationships between the ore minerals.
To obtain the separation of pure sulphides from intergrown silicates and carbonates, the ~150–250 g drill-core samples were crushed and passed through sieves of various mesh sizes. Sulphide particles from the <500 µm and <250 µm fractions were handpicked under a binocular microscope and then crushed and treated with dilute acetic acid to dissolve any associated carbonate minerals while minimising attack on the sulphide phases. Aliquots (100 mg) of the sulphide concentrates were digested for 3 h in concentrated nitric acid (HNO3) then centrifuged to remove residual solids and diluted twenty-fold prior to ICP-MS analysis. Details of the preparation procedure, the analytical instrument, calibration and quality assurance, and a complete datasheet obtained from this method are available as Supplementary Materials. The resulting ICP-MS data is presented in Section 4.1.

3.2. Fluid Inclusion Microscopy

Fluid inclusions hosted in quartz associated with the Aynak copper mineralisation were analysed to characterise the nature of the ore-forming fluids and to constrain the pressure-temperature (P-T) conditions of mineralisation. Eight quartz-bearing samples from mineralised veins and hydrothermally altered host rocks in the Central and Western Aynak copper deposits were selected for fluid inclusion microthermometry (Table 2).
Analyses were undertaken on doubly polished wafers approximately 100 µm thick using a Linkam THM600 (Linkam Scientific Instruments Ltd., Redhill, Surrey, UK) heating/freezing stage coupled to a Nikon ECLIPSE E600 microscope (Nikon Corporation, Tokyo, Japan) at the School of Applied Sciences, University of Brighton. The stage permits heating to 600 °C and cooling to −190 °C by circulating liquid nitrogen around the sample chamber. The Linkam system is microprocessor controlled, and the heating/freezing rate can be controlled accurately. Measured variables included the degree of fill of individual inclusions, and the temperatures at which certain phase changes take place [20,21], including (i) the first melting of the inclusion following freezing (TFM); (ii) total homogenization of the liquid and vapour phases (THL-V); and (iii) dissolution (homogenisation) of daughter minerals (e.g., halite or sylvite, TS). The resulting microthermometric data are presented in Section 4. The heating/freezing stage was calibrated by carrying out the thermometric analysis on: (a) CO2 melting within a synthetic CO2 inclusion (−56.6 °C), (b) ice melting of distilled water (normally 0 °C), (c) melting of water-CO2 clathrate-hydrate at 9.9 °C, (d) the temperature of CO2 homogenization (26.9 °C), (e) the total melting of potassium permanganate (396 °C). The heating rates during measurement were 0.5–1 °C/min at low T and 5–10 °C/min at high T. The precision of measurements is typically ±0.2 °C during cooling runs, and ±1 °C during heating to halite dissolution and homogenisation.

4. Results

4.1. Sulphide Geochemistry

The aim of ICP-MS analysis was to quantify the concentrations of major components (Cu and Fe) and trace elements (including Ni, Co, As, Ag, Au, V, Mn, Mo, Te, Se, Sb, Cd and Tl) in sulphide concentrates obtained from the Aynak deposit and from the ‘potential source rocks’ of the Khayarkhana area. Table 3a presents the concentrations of metals and metalloids typically hosted by sulphide minerals (Fe, Co, Ni, Cu, Zn, As, Se, Mo, Ag, Cd and Pb), normalised to a total of 100 wt%. Concentrations of Sb, Tl and Au were excluded from the normalisation because they were consistently near or below their analytical detection limits. Although sulphur was not analysed, for the purposes of this discussion it is considered that all these elements are contained in sulphides. However, despite the acetic acid treatment (Section 3.1), some Fe may also be hosted by residual carbonate and silicate inclusions in the concentrates.
In Table 3a, samples are listed in order of decreasing Cu values in each area (CA, WA, KH) to facilitate comparisons between the dominant sulphide mineralogy (e.g., bornite, chalcopyrite, pyrite) and the geochemistry of the sulphide separates. Samples are listed in the same order in Table 3b which shows approximate sulphide proportions (expressed as weight %, not volume %) of major sulphide species that have been calculated from the metal concentrations. These calculated sulphide proportions represent approximate stoichiometric estimates derived from bulk ICP-MS metal concentrations and supporting petrographic observations. They should not be interpreted as quantitative modal mineral abundances because sulphur was not analysed, pyrite and pyrrhotite cannot be distinguished solely from the bulk chemical data, and minor residual silicate or carbonate phases may contribute to the analysed concentrates.
Stoichiometrically pure bornite has 85% Cu and 15% Fe based on metal-only proportions, and similarly chalcopyrite has approximately 53% Cu and 47% Fe. Based on these stoichiometric proportions, Fe and Cu in the Cu-rich samples are assigned to bornite or chalcopyrite or, in a few cases, both. For the purpose of these calculations, normalised Zn values are assigned to sphalerite, considered to be the only Zn-bearing sulphide in Aynak ore, and Co and Ni values are assigned to a hypothetical CoNiFeS phase (not a specific mineral). The remaining Fe not accounted for by these phases is assigned to iron sulphides, noting that pyrite and pyrrhotite cannot be distinguished in the absence of data on sulphur concentrations in the acid-digested sulphide separates.
Five Aynak samples in which bornite had been visually confirmed as the dominant sulphide yield calculated percentages close to 100% bornite (Table 3b). Using the stoichiometric formula for bornite, Cu5FeS4, in some cases the calculated proportion exceeds 100%. This may be due to calibration issues and/or to natural variation in bornite composition. Natural bornite exhibits substantial variation in the relative amounts of copper and iron with solid solution extending towards chalcopyrite (CuFeS2) and digenite (Cu9S5); the Fe:Cu:S ratio of high-temperature solid solutions is variable, and cooling leads to various exsolutions [23,24] which can be distinguished at nanometre scales [25]. These results emphasise that the calculated sulphide proportions are approximate stoichiometric estimates derived from bulk sulphide chemistry and are intended to support interpretation of the sulphide assemblages rather than to represent quantitative modal mineral abundances. They should therefore be considered together with the petrographic observations and mineralogical evidence presented in this study and by Waizy et al. [3].
The inferred occurrence of minor sulphide phases discussed below is based principally on the bulk sulphide geochemistry, interpreted in conjunction with petrographic observations. Although these geochemical associations provide useful constraints on the likely host minerals of several trace elements, they do not constitute definitive mineral identification. Confirmation of the inferred phases would require in situ mineral chemical analyses, such as SEM-EDS, electron probe microanalysis (EPMA) or LA-ICP-MS.
Cobalt and nickel show no systematic correlation on a scatterplot (Figure 5a). Bornite-dominant samples are notably poor in these elements. Nickel concentrations are highest (up to 1.9 wt%) in one pyrite-dominant sample from Aynak (sample 3703-3) and in two samples from the Khayarkhana area (TK-Kh3 and TK-Kh5-S2). The latter comprise mainly pyrrhotite and the likely host mineral for Ni is pentlandite. The Aynak pyrite sample enriched in Ni, sample 3703-3, is a quartz-dolomite marble (Table 1) and also contains pyrrhotite (part-replaced by post-metamorphic pyrite), although other pyrrhotite-bearing Aynak samples are not particularly enriched in Ni.
Two chalcopyrite-rich samples are relatively rich in both Co and As, one from Central Aynak (2901-3-S2) and one from Western Aynak (301-2-S1) (Table 3a and Figure 5b). Petrographic and SEM investigations confirmed the presence of cobaltite in sample 2901-3 as well as in Western Aynak chalcopyrite-rich sample 304-3 [18]. The enrichment of arsenic and cobalt in sample 301-2-S1 is consistent with the presence of cobaltite despite this not being observed in a thin section [18]. Considering the low arsenic contents of other sulphide samples that report 1.0%–1.3% Co in the normalised data, namely 2901-3-S2, 301-5 and 304-2 (Table 3a), the Co-bearing, As-absent sulphide carrollite CuCo2S4 may occur in these samples. Carrollite has previously been reported by Yurgenson et al. [19] as occurring in Aynak ore but was not observed in thin sections of the samples used in this study [1,18] (discussed in Section 5.1).

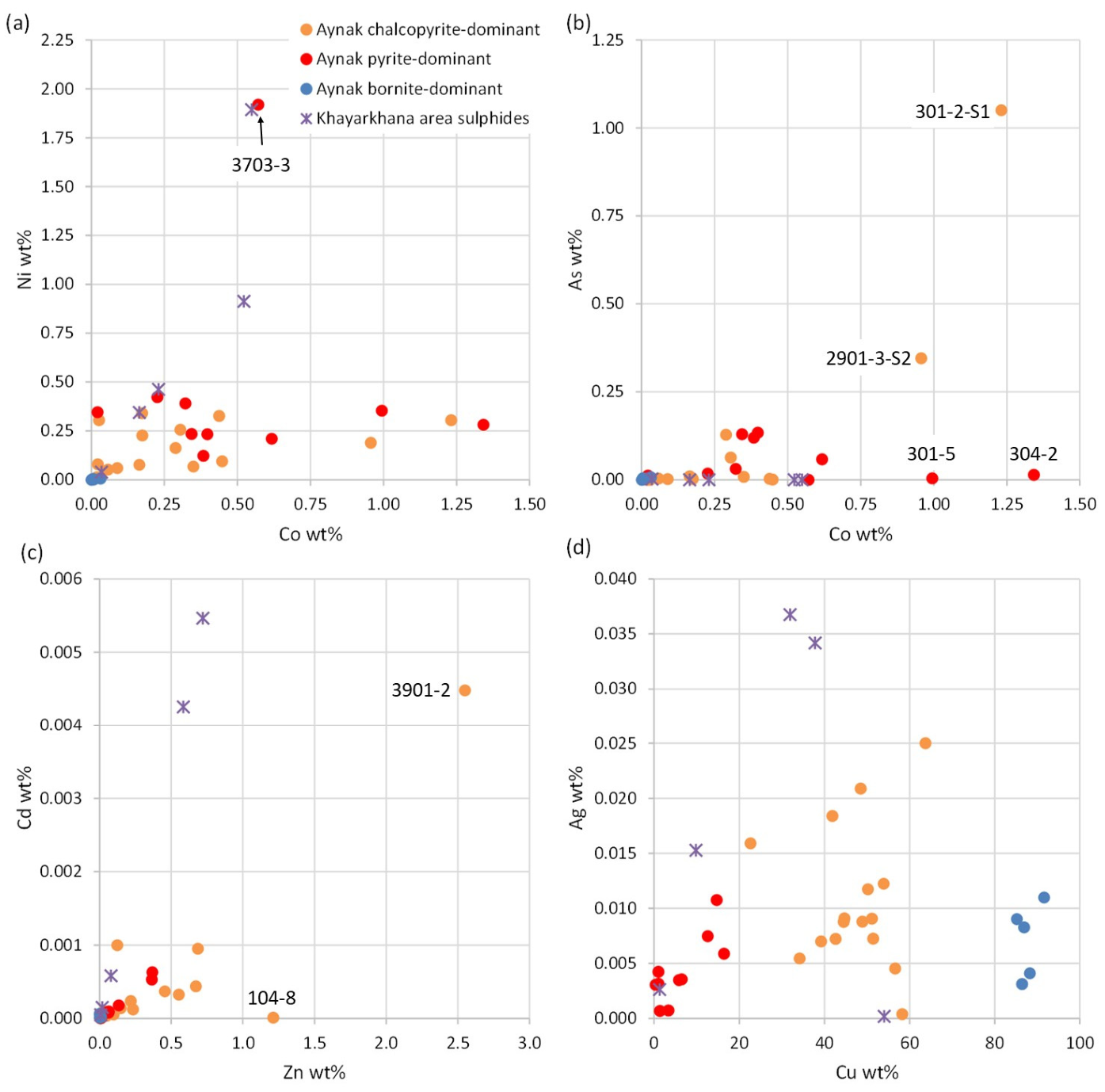

Figure 5. Scatterplots of metal and metalloid concentrations in sulphide samples analysed by ICP-MS (normalised to total 100%; Table 3a) showing differences between bornite-, chalcopyrite-, and pyrite-dominant samples from the Aynak orebody and sulphide samples from the Khayarkhana area. (a) Co vs. Ni. (b) Co vs. As. (c) Zn vs. Cd. (d) Cu vs. Ag.
Figure 5. Scatterplots of metal and metalloid concentrations in sulphide samples analysed by ICP-MS (normalised to total 100%; Table 3a) showing differences between bornite-, chalcopyrite-, and pyrite-dominant samples from the Aynak orebody and sulphide samples from the Khayarkhana area. (a) Co vs. Ni. (b) Co vs. As. (c) Zn vs. Cd. (d) Cu vs. Ag.
Minerals 16 00844 g005
Relatively high Zn values in two samples from Central Aynak (1.2% of total sulphide-associated metal content in 104-8 and 2.6% in 3901-2: Table 3a) are consistent with the presence of sphalerite (Table 3b). Petrographic examination previously confirmed sphalerite in sample 3901-2 [3] but not in other drill-core samples. Sample 104-8 and other samples that contain Zn up to 0.7% of the sulphide-associated metals are inferred to contain minor sphalerite that was not observed in thin sections. Cadmium concentrations, which are generally very low in Aynak sulphides, reach 45 ppm (0.004%: Table 3a) in sphalerite-bearing sample 3901-2, and similar Cd values occur in two sulphide concentrates from the Khayarkhana area that contain 0.6%–0.7% Zn (Table 3a and Figure 5c).
Western Aynak sample 301-3-S1 contains 0.23% Mo in the sulphide-associated metal content (Table 3a), suggesting that this rock may contain molybdenite. Waizy [18] and Waizy et al. [3] report that, in petrographic and SEM studies, molybdenite was found in two chalcopyrite-rich samples from Western Aynak, namely 301-2 and 304-4. In the thin section of sample 304-4, molybdenite forms irregular, elongate grains 30–50 μm in length, associated with chalcopyrite, pyrite and minor cobaltite. However, in the sulphide concentrate obtained from this sample, the Mo concentration is low (50 ppm, shown as 0.005% in Table 3a). Although molybdenite was petrographically identified in sample 304-4, the highest bulk Mo concentration was recorded in sample 301-3-S1.
In the analysed sample set, the highest Ag concentrations (up to 0.04 wt%) are in two Khayarkhana area sulphide samples (Table 3a and Figure 5d). Ag shows no systematic correlation with either Cu (Figure 5d) or with Pb contents in the samples. Pb values in the normalised dataset are up to 0.033 wt% in Aynak samples and 0.043 wt% in the Khayarkhana area.

4.2. Fluid Inclusions

As the host rocks of the copper mineralisation in the Aynak area were affected by regional metamorphism and deformation, primary fluid inclusions were not observed within the analysed samples. Of the eight samples prepared for fluid inclusion analysis, only one sample (104-5) from Central Aynak contained secondary fluid inclusions suitable for microthermometric analysis. The secondary fluid inclusions hosted by quartz in this sample are commonly small (around 10–20 µm) and are of different generations, being hosted in cross-cutting trails (healed microfractures). Of the observed fluid inclusions, 60%–70% contain a halite daughter crystal recognised by its cubic habit [20] that occupies 5%–30% of the inclusion volume (Figure 6a,b). The remaining inclusions are two-phase aqueous inclusions consisting of liquid water and vapour bubble. In addition to these relatively large inclusions, numerous trails of smaller (about 2–8 µm) secondary inclusions are present, which commonly contain halite daughter crystals. Some of these smaller inclusions are necked down and deformed, often in the orientation of the microfractures within the samples; therefore, few were suitable for thermometric analysis (Figure 6c,d). Although more than one generation of secondary inclusions is present, the available data does not permit these populations to be distinguished confidently. Consequently, the results represent a limited dataset and should be interpreted as recording at least one post-entrapment fluid event rather than being assumed to represent the primary ore-forming fluid.
The temperatures of first melting (TFM); final ice melting (TIce), where it is present; liquid–vapour homogenization (THL-V); and halite dissolution (TSol), where the halite daughter crystal was present, were measured during microthermometric analysis (Table 4). Measurements of the first melting temperature were difficult to obtain due to the secondary nature of the fluid inclusions and their small sizes. Nevertheless, several measurements for the TFM were obtained (Table 4). The measured TFM values were compared with the eutectic temperatures of experimentally determined salt–water systems summarised by Shepherd et al. [20] (Table 3).
The measured values for TFM fall into two main ranges, from −27 to −29 (n = 3) and −53 to −56 (n = 5). These eutectic temperatures suggest that the trapped fluids contain Na, Mg, Ca, and possibly K chlorides. The presence of halite daughter crystals indicates that many inclusions appear to be saturated with respect to NaCl, while the occurrence of minor, unidentified secondary daughter phases in a few inclusions may represent salts of one or more of the other components, such as Mg, Ca, or K (Table 5).
Liquid–vapour homogenization temperatures (THL-V) were measured for 17 secondary fluid inclusions hosted by quartz (Table 4). The measured THL-V values range from 156 °C to 296 °C, with all inclusions homogenising from the liquid + vapour state to a single liquid phase (Figure 7). In some inclusions, the presence of minor CO2 may have caused decrepitation before complete homogenisation was achieved.
For fluid inclusions that are unsaturated with respect to halite, salinity (equivalent wt% NaCl) can be calculated for the NaCl-H2O binary system from the freezing-point depression, defined as the decrease in the final ice-melting temperature caused by dissolved NaCl (Equation (1), [27]). In Equation (1), θ represents the freezing-point depression (°C) relative to 0 °C at which ice melts:
Salinity (equiv. wt% NaCl) = 1.78ϴ − 0.0442ϴ2 + 0.000557ϴ3
For fluid inclusions saturated with respect to NaCl, salinity was calculated from the halite dissolution temperature using the empirical relationship of Sterner et al. [28] (Equation (2)). Here, γ represents the halite dissolution temperature (T/100, where T is expressed in °C).
Salinity (equiv. wt% NaCl) = 26.242 + 0.4928γ + 1.42γ2 − 0.223γ3 + 0.04129γ4 + 0.006295 γ5 − 0.001967 γ6 + 0.0001112 γ7
Of the 17 secondary quartz-hosted fluid inclusions analysed microthermometrically, halite dissolution temperatures (TSol) suitable for salinity calculations were obtained for 11 inclusions (Table 4). Salinity values calculated using Equation (2) are presented in Table 4 and Figure 8.
The measured eutectic temperatures indicate that the trapped fluids were more compositionally complex than the simple H2O–NaCl binary system and likely contained additional dissolved chloride salts (e.g., Ca-, Mg- and K-bearing chlorides). Consequently, the calculated salinities should be regarded as approximate NaCl-equivalent values rather than the exact composition of the mineralising fluids.
The salinity values obtained from sample 104-5 (Figure 8) are high, generally exceeding 30 equivalent wt% NaCl. Measured salinities range from 32.1 to 47.4 equivalent wt% NaCl, though only two measurements yielded values greater than 40 equivalent wt% NaCl (45.1 and 47.4 equivalent wt% NaCl, respectively). McGowan [29] noted that salinity estimates derived from Equation (2) should be regarded as approximate because the equation is most accurate where THL-V exceeds TSol. Sterner et al. [28] further suggested that, for THL-V values above 300 °C, the uncertainty may reach approximately ±5 equivalent wt% NaCl.
The fluid inclusion data indicate that the fluids circulating through the quartz-dolomite marble at Aynak, either during or post-dating vein formation, were relatively hot (minimum T 200–300 °C) and saline in nature. However, homogenization temperatures represent minimum trapping temperatures and may not correspond to the actual temperatures of mineral precipitation, which depend on both pressure (controlled largely by burial depth) and the density of the trapped fluid [20]. The host rocks for copper mineralisation in the Aynak area were subjected to considerable burial depth during basin-scale deformation. This depth of burial (lithostatic pressure) has significant effects on the true temperature of formation of the mineralized beds, and ideally it would be useful to correct the homogenization data with respect to the pressure. As only secondary fluid inclusions from one sample were measured during this study and there is a lack of information on actual depths of burial, a pressure correction was not applied to the homogenization temperatures. Nevertheless, a pressure-temperature diagram for the system NaCl-H2O is presented (Figure 9) using methods described in the caption of Figure 9.
Determination of pressure-temperature conditions of trapping is limited because of the sparsity of measurable fluid inclusions and the complex nature of the assemblages. Fluid inclusions that homogenise by halite dissolution must have trapping pressures above the liquid–vapour curve, and calculation of P at Tsol halite suggests minimum trapping pressures of around 100–200 MPa. Lw + V inclusions homogenise at a higher temperature than Lw + Sh + V, and the isochores constructed suggest that these inclusions must have been trapped at lower pressure, higher temperature or both compared to the halite-bearing inclusions. The trapping conditions cannot be fully constrained without independent pressure or temperature constraints, but the data are consistent with interaction of high salinity brines with the deposit followed by dilution with increasing temperature. Alternatively, it may be that dilution occurred during exhumation of the deposit and Lw + V fluid inclusions were trapped at lower pressure. Minimum possible trapping conditions for the dominant halite-saturated fluids are 200–300 °C, at ~100–200 MPa (1–2 Kbar).

5. Discussion

5.1. Sulphide Mineralogy and Geochemistry

ICP-MS analyses of dissolved sulphide concentrates from drill-core samples of the Aynak orebody and sulphide-bearing outcrop samples from the Khayarkhana area indicate that the analysed sulphides comprise variable proportions of bornite, chalcopyrite and iron sulphides, together with minor Co, Ni, Zn, As and Mo-bearing phases. Trace amounts of Cd in some Zn-bearing samples are likely to be hosted in sphalerite. Trace amounts of Se, Ag and Pb were detected in many of the analysed samples but exhibit little correlation with other elements and could not be assigned to specific sulphide minerals. This would require in situ micro-analysis of individual sulphide crystals using LA-ICP-MS.
Most Aynak sulphide concentrates are characterised by low As concentrations, and only one analysed sulphide concentrate gave a concentration >0.35% As in the total sulphide-associated element values (Table 3a). Based on the low concentration of As in other chalcopyrite-rich samples, combined with relative enrichment in Co and Ni, it is suggested that carrollite, CuCo2S4, is the likely host for Co rather than the arsenic-rich mineral cobaltite (CoAsS). Carrollite is a common mineral in the Zambian and Congo Copperbelts and is the major cobalt-bearing sulphide in the Zambian sector [35]. Although carrollite has previously been reported from Aynak (Section 4.1), it was not identified in our more recent petrographic investigations [3,18]. The formula is more specifically Cu1.2+(Co2.4+)2(S1.5−)4 [36] and carrollite commonly contains Ni [37,38]. A solid solution exists between CuCo2S4 and Cu(Ni,Co)2S4 in which Ni can replace 50% of the Co [39]. Pentlandite is probably the host mineral for Ni enrichment in samples that contain pyrrhotite. The occurrence of sphalerite and molybdenite is supported by previous petrographic observations [3,18], whereas the possible occurrence of carrollite in the present study is inferred from the bulk sulphide geochemistry and should therefore be regarded as tentative pending confirmation by in situ mineral chemical analyses.
Cook et al. [24] report that bornite from skarn and epithermal ore deposits hosts significant amounts (hundreds to thousands of ppm) of Se and Ag, but is a poor host for Ni and Co. In our bulk dissolution analyses of Aynak sulphide samples, neither Se nor Ag shows a significant correlation with Cu (Table 3a and Figure 5). In contrast, our results indicate that Se is relatively enriched in the pyrite- and pyrrhotite-rich samples, attaining concentrations of 0.019% (normalised data) in Central Aynak sample 3703-3 and in pyrrhotite-dominant sulphides from the Khayarkhana area.
In Section 1 it was mentioned that the Welayati Formation basement rocks exposed in the Khayarkhana area (Tara Khel) north of Aynak (Figure 1b) have been considered by previous researchers as representative of the ‘potential source rocks’ for the mineralizing fluids that transported copper to form the Aynak deposit. Our analyses of a small number of sulphide samples from the Tara Khel area (Table 1 and Table 3; Figure 5) indicate that Ni and Co have similar concentration ranges to the Aynak sulphides, but As, Se and Ag have distinctly different ranges in concentration to the Aynak sulphides. On the basis of these geochemical differences, our data do not support the hypothesis that these sampled Welayati Formation basement rocks were the principal source of the copper and associated metals forming the Aynak deposit. Instead, we favour a model in which metals were leached from the sedimentary strata of the Loy Khwar Formation in which the Aynak deposit is hosted. The metals were transported laterally by saline basinal brines, consistent with the fluid inclusion evidence presented in this study. The predominance of bornite–chalcopyrite assemblages, the inferred presence of carrollite, and the occurrence of highly saline basinal brines are broadly consistent with fluid evolution models proposed for sediment-hosted stratiform copper deposits in the Central African Copperbelt, e.g., ref. [40,41,42]. However, given the limited number of analysed samples, these results do not exclude the possibility that other parts of the Welayati Formation may also have contributed metals to the mineralising system.

5.2. Fluid Inclusion Data of Comparable Ore Deposits

The fluid inclusion dataset presented here for the Aynak deposit, albeit limited in the number of samples analysed, represent the first such dataset published for copper deposits in Afghanistan. Fluid inclusion data for the Zambian Copperbelt deposits is limited, considering the importance of these metal-rich ore horizons and the extensive use of fluid inclusion analysis in the study of ore deposits. Annels [43] presented fluid inclusion analysis conducted by Cunningham [44] on samples from Chambishi and Chambishi Southeast, who focused on investigating the mineralisation temperature using sub-concordant quartz veins that host sulphides. Annels [43] interpreted the quartz veins and related sulphides as being introduced at the same time as disseminated sulphides due to the identical mineralogy of host rocks and veins and similar isotope composition. He reported ranges of ore fluid salinities and temperatures of 9%–16% and 130–160 °C for veins associated with early pyrite and carrollite, and 16%–22% and 125–145 °C for paragenetically later bornite and chalcopyrite. These contrast with the much higher temperatures and salinities of fluids reported here from the Aynak orebody.
Richards et al. [45] undertook fluid inclusion analysis on the Musoshi deposit in Zambia, using data from vertical quartz-hematite vein arrays from within the footwall arkoses. They proposed a fluid temperature of approximately 395 ± 5 °C, with 39 wt% NaCl, 15 wt% KCl, and minor amounts of CO2. These are significantly higher in both temperature and salinity than the Aynak fluids (excepting two high-salinity inclusions). Richards et al. [45] interpreted halite dissolution temperatures to approximate the true trapping temperatures of the fluids, whereas the measured THL-V values (335–380 °C) were regarded as minimum trapping temperatures.
McGowan [29] carried out fluid inclusion analysis on the Nchanga copper-cobalt deposit of the Zambian Copperbelt (subsequently reported by McGowan et al., 2006 [46]). Based on fluid characteristics, in combination with alteration mineral assemblages and whole-rock geochemistry, the authors suggested a potential ore-forming fluid of medium temperatures (after pressure correction), that was from 300° to 310 °C within faults and 220° to 240 °C within ore zones (THtot = 230 to 240 °C and 160° to 180 °C, respectively) and of high salinity in the range 30 to 38 equivalent wt% NaCl. It should be noted that, based on structural associations of higher ore grades with thrust faults and differing temperatures of fluids in the fault and strata-hosted orebodies, these authors interpreted the Nchanga deposit as epigenetic, suggesting that Cu and Co were introduced to the host rocks during compressional deformation rather than during sedimentation.
The quartz-hosted secondary fluid inclusions characteristics documented at Aynak are broadly comparable with those reported from Nchanga and other deposits of the Central African Copperbelt. The measured homogenization temperatures of 150° to 300 °C and calculated salinities of 32 to 47 equivalent wt% NaCl (except for two outlier measurements) indicate that the analysed secondary fluids were relatively saline and medium temperature. The fluid inclusion data indicate that the Aynak deposit interacted with moderately hot, high salinity (chloride-rich) brines during at least one stage of its geological evolution. The current limitations of the data set mean that this cannot be directly linked to either copper transport and deposition or to remobilisation during metamorphism. Nevertheless, comparison with fluid inclusion studies from other sediment-hosted copper deposits strongly suggests that highly saline basinal brines played an important role in the formation and evolution of the Aynak copper deposit.
Although the available fluid inclusion dataset is limited to secondary inclusions from a single analysed sample, the observed fluid characteristics provide useful constraints on at least one saline fluid event that affected the Aynak deposit. When considered together with the independent mineralogical, lithogeochemical, sulphur isotope and sulphide geochemistry evidence, these observations are consistent with the involvement of saline chloride-rich fluids during the evolution of the mineralising system. In light of the geological and sulphur isotope observations reported by Waizy et al. [3], together with the new sulphide geochemistry and fluid inclusion data presented here, and current understanding of the Central African Copperbelt, a magmatic source for the analysed saline fluids is unlikely. Instead, the integrated evidence is consistent with a medium-temperature and high-salinity character of basinal brines generated within the sedimentary basin, which were expelled toward the basin margins during subsequent compression and deformation [46,47,48,49]. This interpretation is also supported by the predominance of bornite–chalcopyrite mineralisation, the inferred occurrence of carrollite, and the geochemical similarities between the Aynak deposit and sediment-hosted stratiform copper systems elsewhere in the Central African Copperbelt [40,41]. Although the available fluid inclusion dataset is limited, the observed fluid characteristics are consistent with a basinal-brine model and complement the independent mineralogical, lithogeochemical, sulphur isotope and sulphide geochemistry evidence presented in this and previous studies.

6. Conclusions

  • The hypogene sulphide mineralisation at the Aynak deposit is dominated by chalcopyrite, bornite and pyrite, occurring as stratabound laminae, disseminations, cross-cutting veins and metamorphic segregations. Minor pyrrhotite, chalcocite, cobaltite, carrollite, sphalerite and molybdenite occur as disseminated grains and inclusions, which indicate a more complex sulphide assemblage than previously recognised.
  • ICP-MS analyses of dissolved sulphide-rich separates from drill-core samples of the Aynak orebodies are interpreted in terms of the widely ranging proportions of the major and minor sulphide minerals, and substitution of trace elements in certain sulphides. The geochemical data for cobalt and arsenic confirm that cobaltite is present in some samples and indicate the possible presence of carrollite in other samples (despite carrollite not being observed in thin section petrography).
  • Differences in the trace element geochemistry of sulphide-rich separates from the Aynak orebodies and the analysed sulphide-bearing basement metamorphic rocks outcropping in the Khayarkhana area suggest that the basement rocks were unlikely to have been the principal source of the metals forming the stratabound Aynak copper deposit. However, the limited number of analysed basement samples does not allow the Welayati Formation as a whole to be excluded as a potential contributor.
  • Fluid inclusion data for quartz-hosted secondary inclusions, considered together with petrographic observations, whole-rock geochemistry and sulphur isotope evidence, suggest interaction between the Aynak deposit and saline aqueous fluids (32 to 47 equivalent wt% NaCl) at minimum P-T conditions of ~100–200 MPa and 300 °C. These hydrothermal fluids were capable of transporting significant quantities of dissolved components including Mg, Ca, Na, as well as Cu. Although the available data do not allow this fluid event to be unequivocally linked to either primary copper mineralisation or later metamorphic remobilisation, comparison with other sediment-hosted stratiform copper deposits strongly suggests that highly saline basinal brines played an important role in the formation of the Aynak giant copper deposit. Lower salinity brines (12–18 wt% NaCl eq.) interacted with the deposit either at higher P-T conditions or at lower P (>100 Mpa) and 250–300 °C.
  • This study provides the first integrated mineralogical, lithogeochemical, sulphur isotope, sulphide geochemistry and fluid inclusion evidence for a copper deposit in Afghanistan, offering new constraints on the genesis of the Aynak deposit and providing additional support for a sedimentary–diagenetic model comparable to sediment-hosted stratiform copper systems of the Central African Copperbelt. Although some aspects, particularly the ultimate metal source and the timing of the recorded saline fluids, require further investigation, the available evidence is consistent with this genetic interpretation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/min16080844/s1, File S1: (a) ICP-MS info; (b) ICP-MS data output; (c) Metal proportions; (d) Derived mineral proportions.

Author Contributions

Data treatment and writing original draft, H.W., N.R.M. and M.P.S.; review and editing, H.W., N.R.M. and M.P.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the University of Brighton for the laboratory work, and the overall PhD program was funded by a World Bank project, with Bahawodin Baha, Principal Lecturer at the University of Brighton, as the program organizer.

Data Availability Statement

The data that support the findings of this study are available on request from the corresponding authors.

Acknowledgments

This paper is based on research undertaken as part of a Ph.D. project at the University of Brighton, UK. The authors gratefully acknowledge Bahawodin Baha for facilitating financial support for the project. We also thank colleagues at the Ministry of Mines and Petroleum of Afghanistan (MoMP), particularly the Aynak Copper Project Office, and the Afghanistan Geological Survey (AGS) for their assistance during fieldwork and sample collection. Pete Lyons and Magda Grove of the School of Applied Sciences, University of Brighton, are thanked for their technical assistance with sample preparation and sulphide geochemical analyses. We thank the reviewers for their insightful comments and recommendations that helped to improve the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ministry of Mines and Petroleum (MoMP); Afghanistan Geological Survey (AGS). Copper of Afghanistan; Minerals in Afghanistan Series; Ministry of Mines and Petroleum (MoMP): Kabul, Afghanistan; Afghanistan Geological Survey (AGS): Kabul, Afghanistan, 2014. Available online: https://mmpaf.wordpress.com/wp-content/uploads/2017/09/momp_copper_-midas_jan_2014_latest.pdf (accessed on 15 January 2015).
  2. Faryad, S.W.; Moiny, H.; Waizy, H. Petrological evidence for Neoproterozoic subduction in the Kabul Block, Afghanistan. Precambrian Res. 2026, 445, 108198. [Google Scholar] [CrossRef] [Scilit]
  3. Waizy, H.; Moles, N.R.; Smith, M.P.; Boyce, A.J. Formation of the giant Aynak copper deposit, Afghanistan: Evidence from mineralogy, lithogeochemistry and sulphur isotopes. Int. Geol. Rev. 2020, 63, 2076–2104. [Google Scholar] [CrossRef] [Scilit]
  4. Shafayi, S.H.; Torab, F.M. Ore Deposit Boundary Modification in Afghanistan Aynak Central Copper Deposit using Sequential Indicator Simulation and Indicator Kriging. J. Min. Environ. 2022, 13, 325–340. [Google Scholar]
  5. Afghanistan Geological Survey (AGS); British Geological Survey (BGS). Aynak Information Package. Part I: Introduction; Afghanistan Geological Survey (AGS): Kabul, Afghanistan; British Geological Survey (BGS): Nottinghamshire, UK, 2005.
  6. Collett, S.; Faryad, S.W.; Mosazai, A.M. Polymetamorphic evolution of the granulite-facies Paleoproterozoic basement of the Kabul Block, Afghanistan. Mineral. Petrol. 2015, 109, 463–484. [Google Scholar] [CrossRef] [Scilit]
  7. Craig, J.R.; Vokes, F.M. The metamorphism of pyrite and pyritic ores: An overview. Mineral. Mag. 1993, 57, 3–18. [Google Scholar] [CrossRef] [Scilit]
  8. Fontbote, L.; Kouzmanov, K.; Chiaradia, M.; Pokrovski, G.S. Sulfide minerals in hydrothermal deposits. Elements 2017, 13, 97–103. [Google Scholar] [CrossRef] [Scilit]
  9. Large, R.R.; Bull, S.W.; Cooke, D.R.; McGoldrick, P.J. A genetic model for the HYC deposit, Australia, based on regional sedimentology, geochemistry and sulfide–sediment relationships. Econ. Geol. 1998, 93, 1345–1368. [Google Scholar] [CrossRef] [Scilit]
  10. Taylor, B.E. Biogenic and thermogenic sulfate reduction in the Sullivan Pb–Zn–Ag deposit, British Columbia (Canada): Evidence from micro-isotopic analysis of carbonate and sulfide in bedded ores. Chem. Geol. 2004, 204, 215–236. [Google Scholar] [CrossRef] [Scilit]
  11. Afghanistan Geological Survey (AGS); British Geological Survey (BGS). Aynak Information Package. Part II: Geological Setting of Aynak and Summary of Exploration; Afghanistan Geological Survey (AGS): Kabul, Afghanistan; British Geological Survey (BGS): Nottinghamshire, UK, 2005.
  12. Shroder, J.F.; Eqrar, N.; Waizy, H.; Ahmadi, H.; Weihs, B.J. Review of the geology of Afghanistan and its water resources. Int. Geol. Rev. 2022, 64, 1009–1031. [Google Scholar] [CrossRef] [Scilit]
  13. Akocdzhanyan, L.A.; Kryukov, Y.A.; Zagorodniy, G.G.; Kashin, A.A.; Koloskov, V.P.; Kubatkin, L.V.; Makimov, T.M.; Nevretdinov, E.B.; Novosoltsev, V.M.; Sulikayev, K.I.; et al. Preliminary Report on Results of Geological Exploration of the Aynak Copper Deposit During 1974–1976; English translation compiled by Afghanistan Geological Survey and British Geological Survey (2005); Afghanistan Geological Survey (AGS): Kabul, Afghanistan; British Geological Survey (BGS): Nottinghamshire, UK, 2005. [Google Scholar]
  14. Gusev, I.A.; Samonin, I.A.; Slavin, V.I.; Chmyriov, V.M.; Mirzad, S.H. Geological Structure of the Kabul Copper Ore Field; Afghanistan Geological Survey Archive: Kabul, Afghanistan, 1979.
  15. Mennessier, G. Les Caractères Structuraux Des Montagnes de la Région de Kaboul (Afghanistan); Afghanistan Geological Survey Archive: Kabul, Afghanistan, 1961; (In French).
  16. Slavin, V.I.; Fedorov, T.O.; Feroz, N.M. The Geology and Age of the Metamorphic Complex in the Kabul District; Vestnik Moskovskogo Gosudarstvennogo Universiteta (Vestnik MSU): Moscow, Russia, 1972. [Google Scholar]
  17. Feruz, N.M. The Geological Structure of the Kabul Tectonic Zone (Afghanistan). Ph.D. Thesis, Moscow State University, Moscow, Russia, 1973. [Google Scholar]
  18. Waizy, H. Geology and Genesis of the Aynak Copper Deposits in the Kabul Basin, Afghanistan. Ph.D. Thesis, University of Brighton, Brighton, UK, 2018; 230p. [Google Scholar]
  19. Yurgenson, G.A.; Akram, A.M.; Dzhelani, K.G.; Gavrilov, A.M. Mineralnyye tipy rud I posledovatel’nost’ obrazovaniya sul’fidov na mestorozhdenii medi Aynak (Respublika Afganistan) [Type minerals of ores and sulphide sequence in Aynak copper deposit, Afghanistan]. Izv. Vyss. Uchebnykh Zaved. Geol. Razved. 1981, 1981, 150–153. [Google Scholar]
  20. Shepherd, T.J.; Rankin, A.H.; Alderton, D.H.M. A Practical Guide to Fluid Inclusion Studies; Blackie: Glasgow, Scotland; London, UK, 1985; 239p. [Google Scholar]
  21. Fall, A. Application of Fluid Inclusions in Geological Thermometry. Ph.D. Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, USA, 2008. Available online: http://scholar.lib.vt.edu/theses/available/et12262008-152910/unrestricted/ETD_AFall1.pdf (accessed on 5 April 2015).
  22. Warr, L.N. IMA–CNMNC approved mineral symbols. Mineral. Mag. 2021, 85, 291–320. [Google Scholar] [CrossRef] [Scilit]
  23. Morimoto, N.; Kullerud, G. Polymorphism in bornite. Am. Mineral. 1961, 46, 1270–1282. [Google Scholar]
  24. Cook, N.J.; Ciobanu, C.L.; Danyushevsky, L.V.; Gilbert, S. Minor and trace elements in bornite and associated Cu-(Fe)-sulfides: A LA-ICP-MS study. Geochim. Cosmochim. Acta 2011, 75, 6473–6496. [Google Scholar] [CrossRef] [Scilit]
  25. Ciobanu, C.L.; Cook, N.J.; Ehrig, K. Ore minerals down to the nanoscale: Cu-(Fe)-sulphides from the iron oxide copper gold deposit at Olympic Dam, South Australia. Ore Geol. Rev. 2017, 81, 121–138. [Google Scholar] [CrossRef] [Scilit]
  26. Borisenko, A.S. Study of the salt composition of solutions in gas–liquid inclusions in minerals by the cryometric method. Sov. Geol. Geophys. 1977, 18, 11–19. [Google Scholar]
  27. Bodnar, R.J. Revised equation and table for determining the freezing point depression of H2O–NaCl solutions. Geochim. Cosmochim. Acta 1993, 57, 683–684. [Google Scholar] [CrossRef] [Scilit]
  28. Sterner, S.M.; Hall, D.L.; Bodnar, R.J. Synthetic fluid inclusions. V. Solubility relations in the system NaCl–KCl–H2O under vapour-saturated conditions. Geochim. Cosmochim. Acta 1988, 52, 989–1005. [Google Scholar] [CrossRef] [Scilit]
  29. McGowan, R.R. The Origin of the Nchanga Copper–Cobalt Deposits of the Zambian Copperbelt. Ph.D. Thesis, University of Southampton, Southampton, UK, 2003; 247p. [Google Scholar]
  30. Archer, D.G. Thermodynamic properties of the NaCl–H2O system. II. Thermodynamic properties of NaCl(aq), NaCl·2H2O(cr), and phase equilibria. J. Phys. Chem. Ref. Data 1992, 21, 793–829. [Google Scholar] [CrossRef] [Scilit]
  31. Bodnar, R.J. Synthetic fluid inclusions: XII. The system H2O–NaCl. Experimental determination of the halite liquidus and isochores for a 40 wt.% NaCl solution. Geochim. Cosmochim. Acta 1994, 58, 1053–1063. [Google Scholar] [CrossRef] [Scilit]
  32. Lecumberri-Sanchez, P.; Steele-MacInnis, M.; Bodnar, R.J. A numerical model to estimate trapping conditions of fluid inclusions that homogenize by halite disappearance. Geochim. Cosmochim. Acta 2012, 92, 14–22. [Google Scholar] [CrossRef] [Scilit]
  33. Zhang, Y.G.; Frantz, J.D. Determination of the homogenization temperatures and densities of supercritical fluids in the system NaCl–KCl–CaCl2–H2O using synthetic fluid inclusions. Chem. Geol. 1987, 64, 335–350. [Google Scholar] [CrossRef] [Scilit]
  34. Bakker, R.J. Package FLUIDS 1. Computer programs for analysis of fluid inclusion data and for modelling bulk fluid properties. Chem. Geol. 2003, 194, 3–23. [Google Scholar] [CrossRef] [Scilit]
  35. Mendelsohn, F. The Geology of the Northern Rhodesian Copperbelt; Macdonald: London, UK, 1961; 423p. [Google Scholar]
  36. Pattrick, R.A.D.; Coker, V.S.; Pearce, C.I.; Telling, N.D.; van der Laan, G. The oxidation state of copper and cobalt in carrollite, CuCo2S4. Can. Mineral. 2008, 46, 1317–1322. [Google Scholar] [CrossRef] [Scilit]
  37. Craig, J.R.; Vaughan, D.J.; Higgins, J.B. Phase relations in the Cu–Co–S system and mineral associations of the carrollite (CuCo2S4)–linnaeite (Co3S4) series. Econ. Geol. 1979, 74, 657–671. [Google Scholar] [CrossRef] [Scilit]
  38. Riley, J.F. Ferroan carrollites, cobaltian violarites, and other members of the linnaeite group: (Co,Ni,Fe,Cu)3S4. Mineral. Mag. 1980, 43, 733–739. [Google Scholar] [CrossRef] [Scilit]
  39. Wagner, T.; Cook, N.J. Carrollite and related minerals of the linnaeite group: Solid solutions and nomenclature in light of new data from the Siegerland district, Germany. Can. Mineral. 1999, 37, 545–558. [Google Scholar]
  40. Hitzman, M.W.; Kirkham, R.V.; Broughton, D.W.; Thorson, J.; Selley, D. The sediment-hosted stratiform copper ore system. In Economic Geology 100th Anniversary Volume (1905–2005); Hedenquist, J.W., Thompson, J.F.H., Goldfarb, R.J., Richards, J.P., Eds.; Society of Economic Geologists: Littleton, CO, USA, 2005; pp. 609–642. [Google Scholar]
  41. Cailteux, J.L.H.; Kampunzu, A.B.; Lerouge, C.; Kaputo, A.K.; Milesi, J.-P. Genesis of sediment-hosted stratiform copper–cobalt deposits, Central African Copperbelt. J. Afr. Earth Sci. 2005, 42, 134–158. [Google Scholar] [CrossRef] [Scilit]
  42. Selley, D.; Broughton, D.; Scott, R.J.; Hitzman, M.W.; Bull, S.W.; Large, R.R.; McGoldrick, P.J.; Croaker, M.; Pollington, N. A new look at the geology of the Zambian Copperbelt. In Economic Geology 100th Anniversary Volume (1905–2005); Hedenquist, J.W., Thompson, J.F.H., Goldfarb, R.J., Richards, J.P., Eds.; Society of Economic Geologists: Littleton, CO, USA, 2005; pp. 965–1000. [Google Scholar]
  43. Annels, A.E. Ore genesis in the Zambian Copperbelt, with particular reference to the northern sector of the Chambishi Basin. In Sediment-Hosted Stratiform Copper Deposits; Boyle, R.W., Brown, A.C., Jefferson, C.W., Jowett, E.C., Kirkham, R.V., Eds.; Special Paper; Geological Association of Canada: St. John’s, NL, Canada, 1989; Volume 36, pp. 427–452. [Google Scholar]
  44. Cunningham, M.J. Copper-Cobalt Mineralisation in the Northern Portion of the Chambishi Basin, Zambia. Ph.D. Thesis, University College Cardiff, Cardiff, UK, 1986. [Google Scholar]
  45. Richards, J.P.; Krogh, T.E.; Spooner, E.T.C. Fluid inclusion characteristics and U–Pb rutile age of late hydrothermal alteration and veining at the Musoshi stratiform copper deposit, Central African Copperbelt, Zaire. Econ. Geol. 1988, 83, 118–139. [Google Scholar] [CrossRef] [Scilit]
  46. McGowan, R.R.; Roberts, S.; Boyce, A.J. Origin of the Nchanga copper–cobalt deposits of the Zambian Copperbelt. Miner. Depos. 2006, 40, 617–638. [Google Scholar] [CrossRef] [Scilit]
  47. Oliver, J. Fluids expelled tectonically from orogenic belts: Their role in hydrocarbon migration and other geologic phenomena. Geology 1986, 14, 99–102. [Google Scholar] [CrossRef] [Scilit]
  48. Hanor, J.S. The sedimentary genesis of hydrothermal fluids. In Geochemistry of Hydrothermal Ore Deposits, 2nd ed.; Barnes, H.L., Ed.; John Wiley & Sons, Inc.: New York, NY, USA, 1979; pp. 137–189. [Google Scholar]
  49. Garven, G.; Raffensperger, J.P. Hydrogeology and geochemistry of ore genesis in sedimentary basins. In Geochemistry of Hydrothermal Ore Deposits, 3rd ed.; Barnes, H.L., Ed.; John Wiley & Sons, Inc.: New York, NY, USA, 1997; pp. 125–189. [Google Scholar]

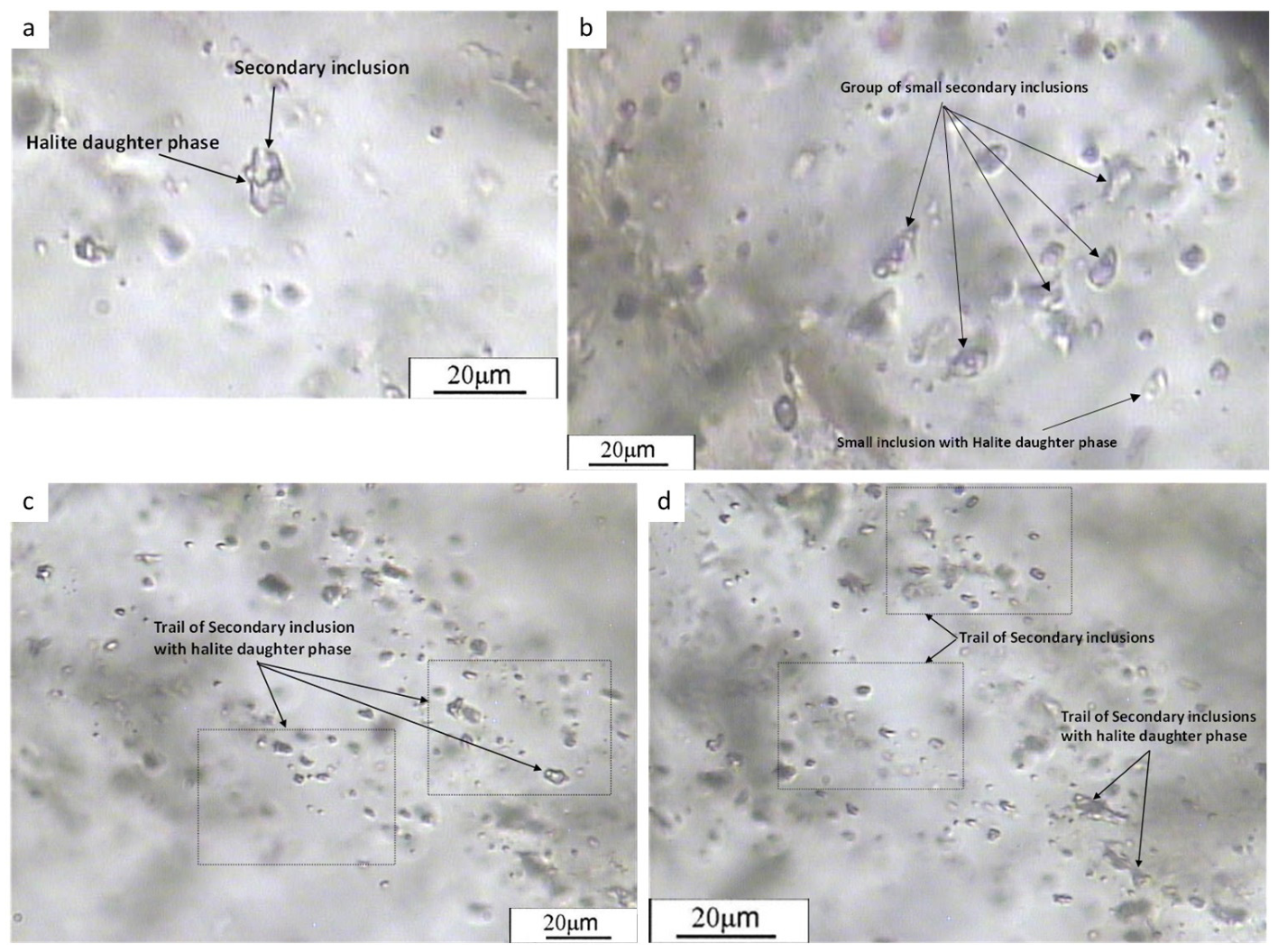

Figure 6. Photomicrographs of quartz-hosted fluid inclusions in Central Aynak sample 104-5. (a) Secondary inclusion containing a cubic halite daughter crystal. (b) Cluster of small secondary fluid inclusions, and inclusion with a halite daughter crystal. (c) Trail of very small secondary fluid inclusions. (d) Trails of relatively large fluid inclusions containing halite daughter crystals.
Figure 6. Photomicrographs of quartz-hosted fluid inclusions in Central Aynak sample 104-5. (a) Secondary inclusion containing a cubic halite daughter crystal. (b) Cluster of small secondary fluid inclusions, and inclusion with a halite daughter crystal. (c) Trail of very small secondary fluid inclusions. (d) Trails of relatively large fluid inclusions containing halite daughter crystals.
Minerals 16 00844 g006

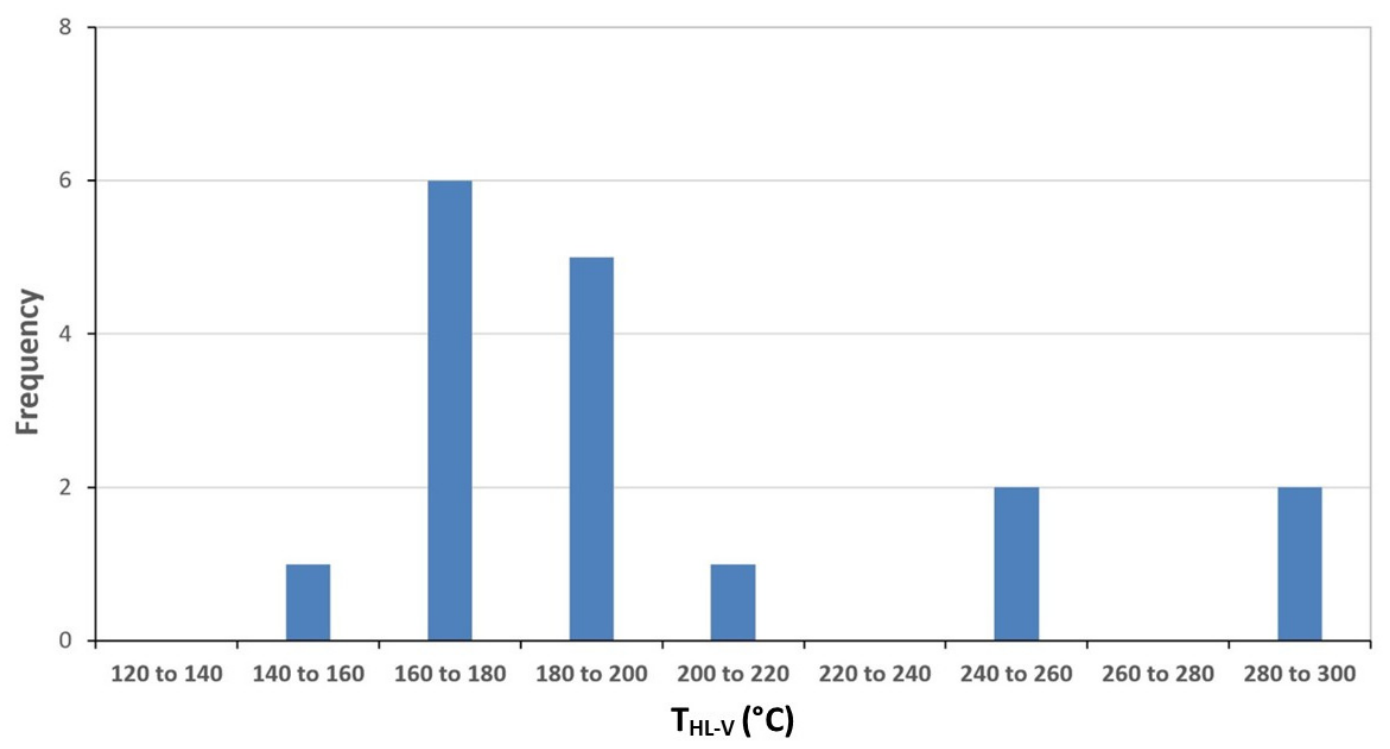

Figure 7. Liquid–vapour homogenization temperatures (THL-V) of secondary quartz-hosted fluid inclusions in Central Aynak sample 104-5. All inclusions homogenised to the liquid phase.
Figure 7. Liquid–vapour homogenization temperatures (THL-V) of secondary quartz-hosted fluid inclusions in Central Aynak sample 104-5. All inclusions homogenised to the liquid phase.
Minerals 16 00844 g007

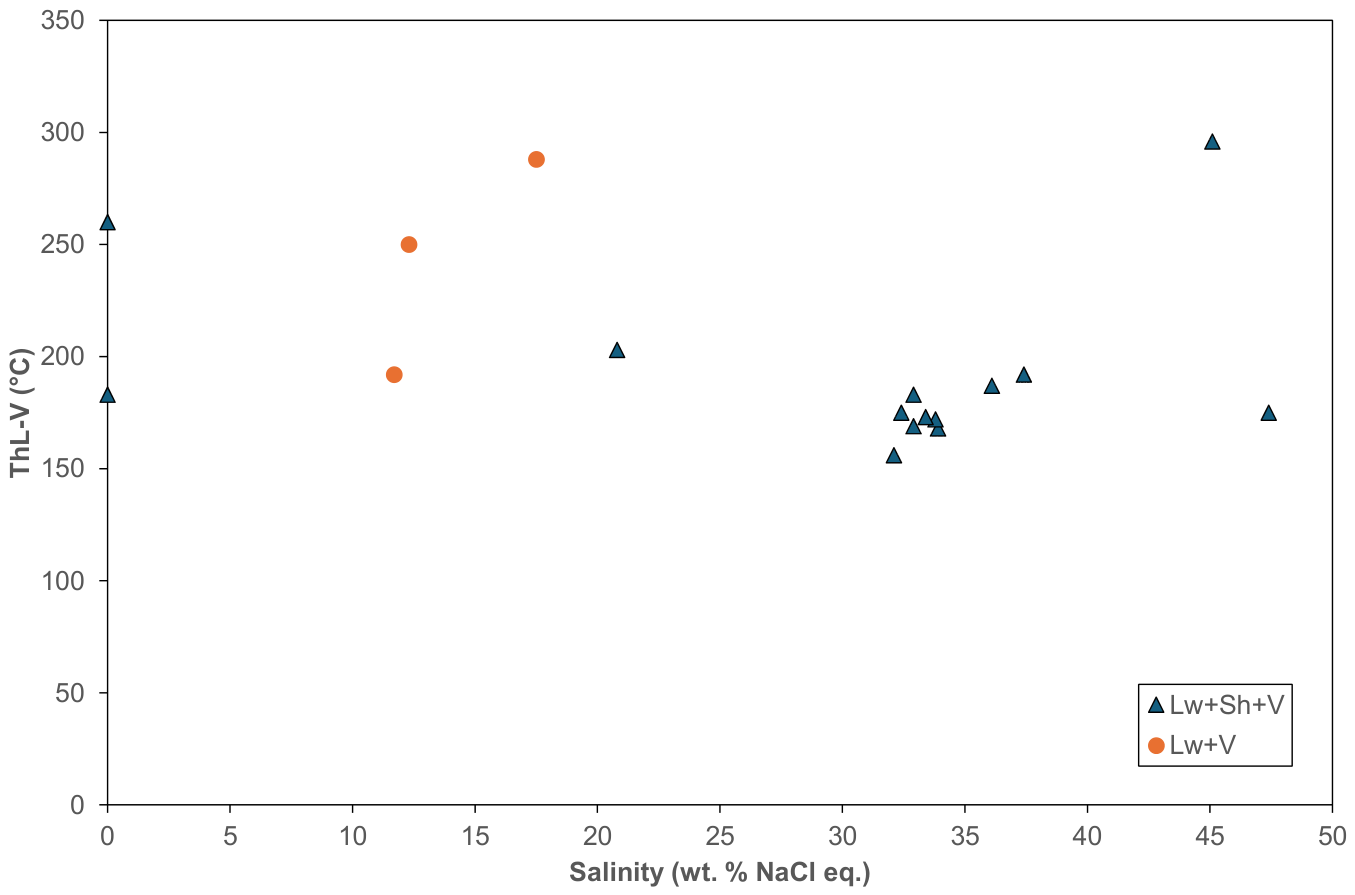

Figure 8. Salinity–liquid–vapour homogenization temperature (THL-V) plot for secondary quartz-hosted fluid inclusions in Central Aynak sample 104-5 (n = 17). Where halite dissolution temperature (TSol) could not be obtained for the measurement, the corresponding THL-V range is shown on the Y-Axis.
Figure 8. Salinity–liquid–vapour homogenization temperature (THL-V) plot for secondary quartz-hosted fluid inclusions in Central Aynak sample 104-5 (n = 17). Where halite dissolution temperature (TSol) could not be obtained for the measurement, the corresponding THL-V range is shown on the Y-Axis.
Minerals 16 00844 g008

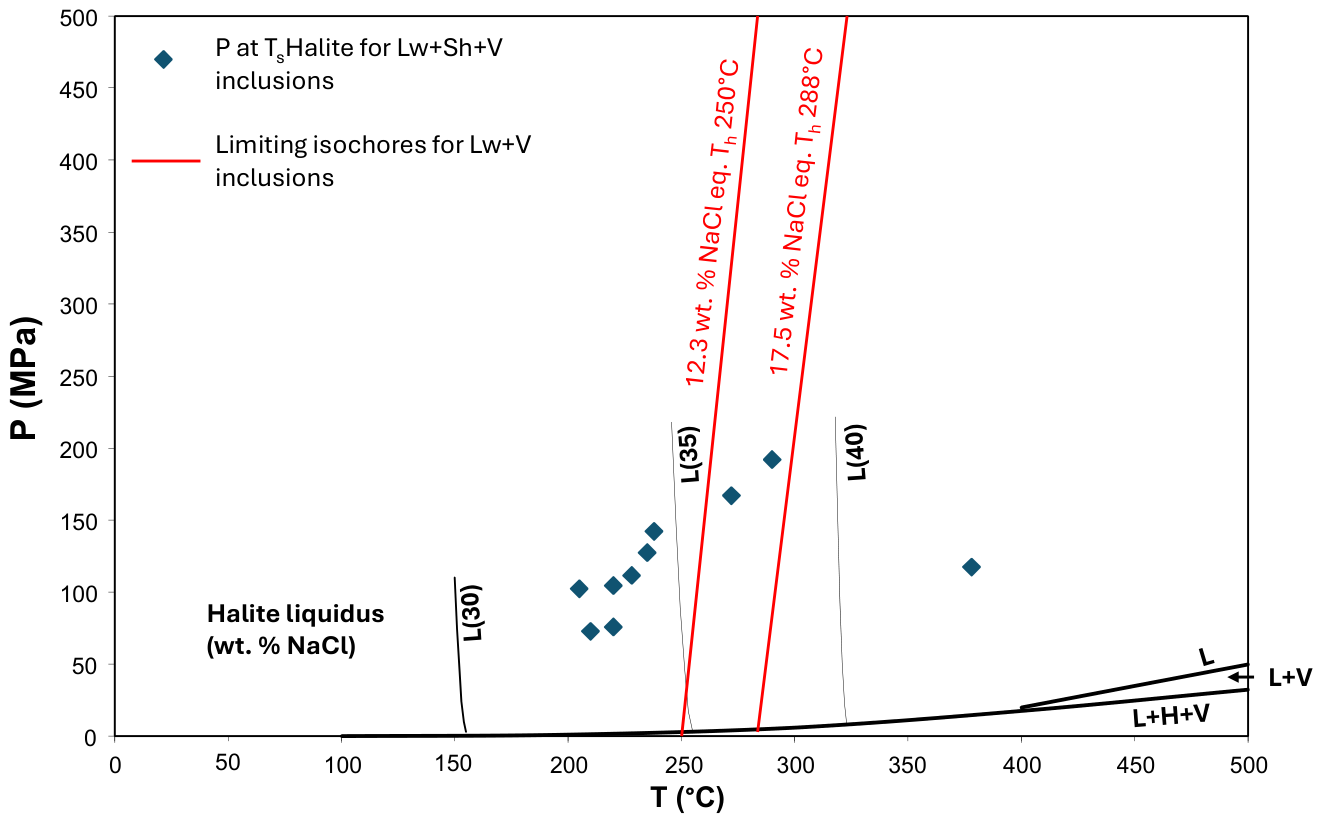

Figure 9. Pressure-temperature (P-T) isochore diagram for the system NaCl-H2O. The solid curves show the co-existence (equilibrium) of liquid + halite + vapour (L + H + V) and liquid plus vapour (L + V) [30]. The thin lines labelled with L (30), etc., are halite liquidus curves (i.e., the melting/dissolution curves for halite) at different equivalent wt% NaCl calculated from Bodnar [31]. The plotted points represent the pressure of halite dissolution for inclusions where Tsol > THL-V, calculated using equations from Lecumberri-Sanchez et al. [32]. The red lines show the isochores (line of constant density) for the highest and lowest THL-V in Lw + V inclusion calculated using the equation of Zhang and Frantz [33] and the FLUIDS software package of Bakker [34].
Figure 9. Pressure-temperature (P-T) isochore diagram for the system NaCl-H2O. The solid curves show the co-existence (equilibrium) of liquid + halite + vapour (L + H + V) and liquid plus vapour (L + V) [30]. The thin lines labelled with L (30), etc., are halite liquidus curves (i.e., the melting/dissolution curves for halite) at different equivalent wt% NaCl calculated from Bodnar [31]. The plotted points represent the pressure of halite dissolution for inclusions where Tsol > THL-V, calculated using equations from Lecumberri-Sanchez et al. [32]. The red lines show the isochores (line of constant density) for the highest and lowest THL-V in Lw + V inclusion calculated using the equation of Zhang and Frantz [33] and the FLUIDS software package of Bakker [34].
Minerals 16 00844 g009
Table 1. Dominant mineralogy and host rock type of sulphide samples selected for ICP-MS analysis.
Table 1. Dominant mineralogy and host rock type of sulphide samples selected for ICP-MS analysis.
LocationNo.Sample NameDominant
Sulphide
Rock Type
Central Aynak12901-3-S2CcpGrey dolomite marble
22901-4-S2Ccp
33701-1PyQuartz + carbonate schist
43703-1-S2PyGrey-black marble + quartz schist
53703-3-S2BnQuartz + dolomite marble
63703-3-S3Ccp
73703-4-S1PyBlack schist
83703-4-S2Py
93901-2CcpDolomite marble
103901-3Ccp
11104-1BnMarble
12104-2Bn+CcpQuartz + dolomite schist
13104-5CcpQuartz + dolomite marble
14104-8PyBlack schist
Western Aynak15281-2-S1BnDolomite marble
16281-2-S2Pyh
17281-3-S2-3Bn+Ccp
18281-3-S1Ccp
19281-5-S1CcpBiotite + carbonate schist
20301-2-S1CcpGraphite + carbonate quartz schist
21301-3-S1Ccp+PyLight grey quartz + dolomite marble
22301-3-S2Bn
23301-4CcpDolomite marble
24301-5Py+CcpBiotite, quartz + carbonate schist
251001-2PyhGrey-black graphite + quartz schist
261001-3CcpQuartz + dolomite marble
271001-4-S1CcpCarbonate + graphite schist
281001-5-S2Py+CcpGraphite + biotite + quartz+ dolomite marble
29304-2Ccp+PyhGrey graphite schist + marble
30304-3-S2CcpMarble + layered quartz
31304-4PyhDolomite marble + quartz
Tara Khel-Khayarkhana32TK-Kh-3PyQuartzite
33TK-Kh-3Pyh
34TK-Kh-5-S1PyGabbroic amphibolite
35TK-KH-5-S1Pyh+Ccp
36TK-Kh-5-S2Pyh
Mineral abbreviations: Ccp, Chalcopyrite; Bn, Bornite; Py, Pyrite; Pyh, Pyrrhotite.
Table 2. Drill-core samples selected for fluid inclusion studies.
Table 2. Drill-core samples selected for fluid inclusion studies.
No.Sample NameLocationDepth (m)
12901-2Central Aynak157
23703-4587
33901-2351
4104-5282
5104-7350
6301-4Western Aynak350
71001-4782
8304-3265
Table 3. (a). Metal values (wt% basis, normalised to total 100% metals) in sulphide separates analysed by acid dissolution and ICP-MS. Although values are shown to 2 or 3 decimal places, it should be noted that this data is semi-quantitative due to analytical uncertainties and bias inherent in the normalising procedure. Area codes: CA, Central Aynak; WA, Western Aynak; KH, Khayarkhana. (b). Approximate sulphide modal proportions calculated from chemical analyses of sulphide separates. Samples are listed in the same order as in Table 3a.
Table 3. (a). Metal values (wt% basis, normalised to total 100% metals) in sulphide separates analysed by acid dissolution and ICP-MS. Although values are shown to 2 or 3 decimal places, it should be noted that this data is semi-quantitative due to analytical uncertainties and bias inherent in the normalising procedure. Area codes: CA, Central Aynak; WA, Western Aynak; KH, Khayarkhana. (b). Approximate sulphide modal proportions calculated from chemical analyses of sulphide separates. Samples are listed in the same order as in Table 3a.
(a)
AreaSampleSubsampleFeCoNiCuZnAsSeMoAgCdPb
CA3703-3S211.730.030.0188.210.01<0.001<0.0010.0020.004<0.0010.002
CA104-1 13.62<0.01<0.0186.37<0.01<0.0010.0010.0040.003<0.001<0.001
CA104-2 34.950.020.0863.691.210.001<0.0010.0140.025<0.0010.006
CA3703-4S241.740.020.0158.220.01<0.001<0.0010.002<0.001<0.0010.002
CA104-5 49.360.170.2350.200.010.0020.0030.0110.012<0.0010.004
CA2901-4S250.810.300.2648.480.050.0640.0030.0080.021<0.0010.003
CA3901-3S157.000.160.0842.600.120.0110.007<0.0010.0070.0010.013
CA2901-3S263.820.960.1934.120.550.3450.0030.0020.005<0.0010.005
CA3901-2 74.030.440.3322.612.550.0030.0050.0010.0160.0040.017
CA3703-1S292.770.340.236.450.060.1300.0070.0020.004<0.0010.002
CA3701-1 93.350.400.235.810.060.1340.0070.0020.004<0.0010.002
CA3703-3S396.150.571.921.32<0.01<0.0010.0180.0010.001<0.0010.014
CA3703-4S198.220.320.391.00<0.010.0310.0070.0050.003<0.0010.012
CA104-8 98.380.620.210.320.360.0590.0080.0010.0030.0010.033
WA281-2S18.370.01<0.0191.60<0.01<0.001<0.001<0.0010.011<0.0010.001
WA281-3S2-313.080.01<0.0186.89<0.01<0.001<0.001<0.0010.008<0.0010.001
WA301-3S214.82<0.01<0.0185.16<0.01<0.001<0.001<0.0010.009<0.0010.002
WA281-3S143.350.030.0156.590.01<0.001<0.001<0.0010.005<0.0010.001
WA1001-3 45.820.090.0653.920.100.002<0.0010.0010.012<0.0010.003
WA304-3S247.860.290.1651.390.150.1280.0020.0040.007<0.0010.004
WA281-5S148.280.030.3151.140.220.0040.007<0.0010.009<0.0010.005
WA301-3S150.700.060.0548.920.030.0040.0020.2340.009<0.0010.003
WA301-4 54.530.450.1044.670.230.0010.0010.0020.009<0.0010.001
WA1001-4S154.400.350.0744.480.670.0090.0030.0030.009<0.0010.006
WA301-2S154.821.230.3141.860.681.0500.0030.0180.0180.0010.006
WA1001-5S259.840.170.3439.170.460.0050.0060.0010.007<0.0010.007
WA301-5 82.120.990.3516.380.130.0040.0010.0050.006<0.001<0.001
WA304-2 83.661.340.2814.670.010.0140.0040.0060.011<0.0010.003
WA1001-2 86.660.020.3512.580.370.0130.0080.0020.0070.0010.001
WA281-2S295.980.230.423.300.010.0180.0070.0030.001<0.0010.032
WA304-4 98.350.380.120.950.060.1200.0070.0050.004<0.0010.004
KHTK-KH-3 45.730.030.0454.030.010.0020.0020.151<0.001<0.0010.002
KHTK-KH-5 60.930.160.3537.780.72<0.0010.0100.0020.0340.0050.009
KHTK-Kh5S166.720.230.4631.910.58<0.0010.012<0.0010.0370.0040.043
KHTK-Kh5S288.630.520.919.810.08<0.0010.0190.0060.0150.0010.009
KHTK-Kh3 96.230.551.891.280.02<0.0010.0180.0000.003<0.0010.011
(b)
Sulphide proportions inferred from chemistry (see Notes)
Note # 12, 34, 56789
AreaSampleSubsampleMain sulphide (visual ID)% Bn% Ccp% Sp% CoNiFeS% Py+Pyhsum
CA3703-3S2Bn103.8 103.8
CA104-1 Bn101.6 101.6
CA104-2 Bn+Ccp35.163.61.20.1 100.0
CA3703-4S2Bn+Ccp16.483.6 0.0 100.0
CA104-5 Ccp 94.3 0.45.3100.0
CA2901-4S2Ccp 91.1 0.68.4100.0
CA3901-3S1Ccp 80.0 0.219.7100.0
CA2901-3S2Ccp 64.10.61.134.2100.0
CA3901-2 Ccp (+Py+Sp) 42.52.50.854.2100.0
CA3703-1S2Py 12.1 0.687.3100.0
CA3701-1 Py 10.9 0.688.4100.0
CA3703-3S3Py (+Pyh+pentlandite?) 2.5 2.595.0100.0
CA3703-4S1Py 1.9 0.797.4100.0
CA104-8 Py 0.6 0.898.6100.0
WA281-2S1Bn107.8 107.8
WA281-3S2-3Bn+Ccp102.2 102.2
WA301-3S2Bn100.2 100.2
WA281-3S1Ccp11.388.7 100.0
WA1001-3 Ccp 99.9 0.1 100.0
WA304-3S2Ccp 99.5 0.5 100.0
WA281-5S1Ccp 99.50.20.3 100.0
WA301-3S1Ccp+Py 99.9 0.1 100.0
WA301-4 Ccp 99.20.20.5 100.0
WA1001-4S1Ccp 98.90.70.4 100.0
WA301-2S1Ccp (+cobaltite?) 78.60.71.519.1100.0
WA1001-5S2Py+Ccp 73.60.50.525.5100.0
WA301-5 Py+Ccp 30.80.11.367.7100.0
WA304-2 Ccp (+Pyh, carrollite?) 27.6 1.670.8100.0
WA1001-2 Pyh 23.60.40.475.6100.0
WA281-2S2Pyh 6.2 0.693.2100.0
WA304-4 Pyh 1.80.10.597.7100.0
KHTK-KH-3 Py+Ccp 101.5 0.1 101.6
KHTK-KH-5 Py+Ccp 71.00.70.527.8100.0
KHTK-Kh5S1Pyh+Ccp 59.90.60.738.8100.0
KHTK-Kh5S2Pyh 18.4 1.480.1100.0
KHTK-Kh3 Pyh (+pentlandite?) 2.4 2.495.2100.0
Notes: 1 Abbreviations as per [22]: Bn, bornite; Ccp, chalcopyrite; Py, pyrite; Pyh, pyrrhotite; Sp, sphalerite; Minerals bracketed and in red font are suggested by the chemistry, not observed in thin sections (see text); 2% bornite calculated from Cu value assuming stoichiometric proportions; 3 % bornite and % chalcopyrite calculated using relative proportions of Fe and Cu; 4% chalcopyrite calculated by difference from 100% after subtracting Zn and Co+Ni; 5 % chalcopyrite calculated from Cu value assuming stoichiometric proportions; 6% sphalerite equals normalised Zn values; 7% CoNiFeS equals sum of normalised Co and Ni values; 8% Py+Pyh equals remainder such that total is at least 100%; 9 Italics if calculated sum of sulphide phases exceeds 100%.
Table 4. Secondary fluid inclusion data for sample 104-5, Central Aynak.
Table 4. Secondary fluid inclusion data for sample 104-5, Central Aynak.
TypeTFM °CTIce °CTSol °CTHL-V (°C)SalinityNotes
Lw+Sh+V−53−2723816833.9
Lw+V−27.3−22.8?260?decrepitated
Lw+Sh+V−29?37829645.1
Lw+V−29−8.5?25012.3
Lw+V−56−13.5?28817.5
Lw+Sh+V??27218736.1did not freeze to −80
Lw+Sh+V??20515632.1
Lw+V−56?22016932.9
Lw+V−55?29019237.4
Lw+V−53−17.5?20320.8
Lw+V?−8?19211.7
Lw+Sh+V??>40017547.4decrepitated
Lw+Sh+V??23517233.8set on same trail
Lw+Sh+V??22817333.4set on same trail
Lw+Sh+V??21017532.4set on same trail
Lw+Sh+V???183?set on same trail
Lw+Sh+V??22018332.9set on same trail
Contractions: Lw, liquid water; Sh, solid halite; V, vapour; TFM, temperature of first melting; TIce, temperature of ice melting; TSol, temperature of halite dissolution; THL-V, temperature of liquid–vapour homogenisation. Question mark (?) indicates the value could not be determined.
Table 5. Eutectic temperature of various salt–water systems and solid phases formed during freezing (Shepherd et al. [20] using the data of Borisenko [26]).
Table 5. Eutectic temperature of various salt–water systems and solid phases formed during freezing (Shepherd et al. [20] using the data of Borisenko [26]).
Salt SystemEutectic Temperature (°C)Solid Phases
H2O-NaCl-CaCl2−55Ice + NaCl.2H2O + CaCl2.6H2O
H2O-MgCl2-CaCl2−52.2Ice + MgCl2.2H2O + CaCl2.6H2O
H2O-KCl-CaCl2−50.5Ice + CaCl2.6H2O
H2O-CaCl2−49.5Ice + CaCl2.6H2O
H2O-Na2CO3-K2CO3−37.0Ice + (K,Na)2CO3.6H2O + K2CO3.6H2O
H2O-NaCl-FeCl2−37.0Ice + NaCl.2H2O + FeCl2.6H2O
H2O-FeCl2−35.0Ice + FeCl2.6H2O
H2O-NaCl-MgCl2−35.0Ice + NaCl. 2H2O + MgCl2.12H2O
H2O-MgCl2−33.6Ice + MgCl2.12H2O
H2O-NaCl-KCl−23.5Ice + NaCl.2H2O
H2O-NaCl−12.2Ice + NaCl.H2O
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Waizy, H.; Moles, N.R.; Smith, M.P. Genesis of the Giant Aynak Copper Deposit, Afghanistan: Constraints from Sulphide Geochemistry (ICP-MS) and Fluid Inclusions. Minerals 2026, 16, 844. https://doi.org/10.3390/min16080844

AMA Style

Waizy H, Moles NR, Smith MP. Genesis of the Giant Aynak Copper Deposit, Afghanistan: Constraints from Sulphide Geochemistry (ICP-MS) and Fluid Inclusions. Minerals. 2026; 16(8):844. https://doi.org/10.3390/min16080844

Chicago/Turabian Style

Waizy, Hamidullah, Norman R. Moles, and Martin P. Smith. 2026. "Genesis of the Giant Aynak Copper Deposit, Afghanistan: Constraints from Sulphide Geochemistry (ICP-MS) and Fluid Inclusions" Minerals 16, no. 8: 844. https://doi.org/10.3390/min16080844

APA Style

Waizy, H., Moles, N. R., & Smith, M. P. (2026). Genesis of the Giant Aynak Copper Deposit, Afghanistan: Constraints from Sulphide Geochemistry (ICP-MS) and Fluid Inclusions. Minerals, 16(8), 844. https://doi.org/10.3390/min16080844

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
