Comparative Study on the Differential Adsorption Mechanisms of Typical Light/Heavy Rare Earth Ions by Kaolinite and Halloysite

Abstract

The inevitable toxicity and bioaccumulation of rare earth elements (REEs) have posed potential pollution risks to the environment. In this study, two major clay minerals from weathered ion-adsorption rare earth deposits—tubular halloysite and platy kaolinite—were used as research objects, and a series of batch adsorption experiments were conducted on light rare earth elements (La, Eu) and heavy rare earth elements (Y, Dy) at different concentrations, aiming to clarify the adsorption mechanisms of rare earth ions onto clay minerals. The results showed that under the same conditions, the adsorption capacity of halloysite was higher than that of kaolinite. The unit adsorption capacity of both kaolinite and halloysite for REEs increased with rising pH. The adsorption processes of REEs onto kaolinite and halloysite were better fitted by the pseudo-second-order kinetic model and the Langmuir model, indicating that the adsorption was a homogeneous process dominated by chemisorption, with a fast adsorption rate that was basically completed within the first 5 min. The 1/n values fitted by the Freundlich model were all between 0 and 1, suggesting that the adsorption reaction was favorable. Rare earth ions were adsorbed onto halloysite and kaolinite through outer-sphere complexation (electrostatic attraction) and inner-sphere complexation.

1. Introduction

Rare earth elements (REEs) are essential raw materials and important strategic resources for modern industry [1]. New magnetic materials widely used in metallurgy, the petrochemical industry, special glass, precision ceramics, catalysis, high-temperature superconductors, opto-magnetic and other fields are known as industrial vitamins [2,3]. The main sources of REEs are rare earth mines and high net waste residues containing high contents of REEs [4,5]. For example, ionic rare earth ores usually account for more than 50% of the total rare earth content, and ionic-phase REEs are easily extracted by various electrolyte solutions (such as NaCl solutions, (NH₄)₂SO₄ solutions, and MgCl₂ solutions) through exchange [6,7]. China is extremely rich in rare earth resources and possesses a large number of large-scale rare earth deposits. Since 2005, China’s rare earth production and export volume have both accounted for more than 90% of the global rare earth demand [8]. Ion-adsorption rare earth deposit is a highly important type of rare earth deposit in China and the predominant global source of heavy rare earth elements (HREE), occupying a pivotal position in the global rare earth market. Kaolinite (Kaol) and halloysite (Hal) are the major clay minerals in ion-adsorption rare earth ores [9,10].

Clay minerals are natural adsorbents that can effectively adsorb REEs in the environment [11]. Clay minerals are layered aluminosilicate minerals composed of a silica tetrahedral layer and an alumina octahedral layer [12]. Kaolinite (Kaol) and halloysite (Hal) are both 1:1 clay minerals. Many surface-active adsorption sites exist on the surface of clay minerals. Moreover, structural defects such as isomorphic replacement occur during the formation of clay minerals, which results in clay minerals always having a negative charge and effectively adsorbing rare earth ions. It is a common natural mineral adsorbent. At present, many researchers have studied the adsorption of REEs by clay minerals. For example, the adsorption of La³⁺ by kaolinite is divided into three stages: the water-soluble phase lanthanum, the ionic phase lanthanum and the colloidal phase lanthanum [13,14]. Compared with flaky kaolinite, halloysite has a larger specific surface area, an abundant pore structure and a greater number of surface hydroxyl groups because of its tubular morphology [15,16]. Under the same conditions, the unit adsorption capacity of halloysite for Eu³⁺ is greater than that of kaolinite for Eu³⁺ [17]. At high background ion concentrations, kaolinite and halloysite preferentially adsorb light rare earth ions. At low background ion strengths, there is no obvious difference, and the adsorption capacity of REEs increases with increasing pH [17,18,19]. However, the mechanism of adsorption of REEs by clay minerals is still not clear, and studies of light and heavy REEs by different clay minerals are relatively rare.

In this study, kaolinite and halloysite, the main clay minerals in weathered elution-type rare earth ores, were selected. La, Eu, Y, and Dy were used as representatives of light and heavy rare earth elements, respectively, to construct a rare earth element adsorption system using clay minerals. The adsorption effects of these minerals on rare earth ions under different conditions were investigated, and the adsorption kinetics and thermodynamics were analyzed. Scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FTIR), and X-ray photoelectron spectroscopy (XPS) were employed to characterize the morphology and composition of the minerals before and after adsorption. The results are of great significance for clarifying the adsorption mechanism of rare earth ions on clay minerals and provide important theoretical guidance for the development of rare earth extraction technologies.

2. Materials and Methods

2.1. Materials and Chemicals

The kaolinite (CAS: 1318-74-7) and halloysite (CAS: 1332-58-7) used in the experiments were purchased from Shanghai McLean Co., Ltd., Shanghai, China. and are relatively pure clay minerals. The REEs used were lanthanum oxide (99%), yttrium oxide (99.9%), europium oxide (99.9%), and dysprosium oxide (99.99%), which were purchased from Shanghai McLean Co., Ltd., Shanghai, China. The reagents used were nitric acid, sodium hydroxide, and sodium nitrate of reagent grade. Dissolve lanthanum oxide (99%), yttrium oxide (99.9%), euro-pium oxide (99.9%), and dysprosium oxide (99.99%) in nitric acid to obtain solutions of lanthanum nitrate, yttrium nitrate, europium nitrate, and dysprosium nitrate. A certain concentration of europium nitrate solution was then prepared at a constant volume for the adsorption experiments. The background solution was a sodium nitrate solution with a concentration of 0.01 mol/L. All the solutions were prepared with deionized water.

2.2. Analysis and Characterization Methods

The particle sizes of kaolinite and halloysite were determined via laser particle size analysis. The composition of pristine kaolinite and halloysite was determined via X-ray fluorescence spectrometry (XPF, Rigaku ZSX Primus III+, Rigaku Corporation, Takatsuki-shi, Osaka, Japan), the concentration of rare earth ions in the solution before and after adsorption was determined via inductively coupled plasma emission spectrometry (ICP–OES, Spectro Blue, Spectro, Kleve, Germany), the functional groups on the mineral surface before and after adsorption were determined via Fourier transform infrared spectroscopy (FT-IR, Nexus 670, Nicolet, Madison, WI, USA), the phase composition of the mineral sample was analyzed via X-ray diffraction (XRD, Rigaku SmartLab SE, Akishima, Tokyo, Japan), the chemical state changes of the mineral surface elements were determined via X-ray photoelectron spectroscopy (XPS, Thermo Scientific K-Alpha, East Grinstead, UK), and scanning electron microscopy (SEM–EDS, MIRA4 LMH, TESCAN, Tescan, Czech Republic) was used to observe the morphology and elemental composition of the clay minerals before and after adsorption.

2.3. Batch Adsorption Experiment

All batch adsorption experiments were conducted in 50 mL anaerobic flasks on a constant-temperature shaker oscillating at 25 °C and 200 rpm. Kaolinite and halloysite (0.2 g) were added to 20 mL of REE solution with a solid–liquid ratio of 10 g/L. The background solution was a sodium nitrate solution with a concentration of 0.01 mol/L. After mixing evenly, the anaerobic flask was placed in a shaker and shaken for 24 h. The effects of contact time (1, 2, 5, 10, 20, and 60 min), initial REE (Dy³⁺, Eu³⁺, La³⁺, and Y³⁺) concentration (2.5, 5, 10, 20, 40, 60, 80, and 100 mg/L), and initial pH (2, 3, 4, 5, and 6) on the adsorption of REEs by kaolinite and halloysite were systematically investigated. After adsorption, solid–liquid samples were collected, and the reaction mixture was centrifuged to obtain the supernatant and clay minerals adsorbed with rare earth ions. The mixture was subsequently centrifuged at 10,000 rpm for 5 min. For the adsorbed clay minerals, vacuum freeze-drying was used, and the supernatant after centrifugation was diluted with 10% nitric acid. ICP–OES was used to detect the concentrations of REEs. According to Equation (1), the amount of REEs (Dy³⁺, Eu³⁺, La³⁺, Y³⁺) adsorbed per unit mass of kaolinite and halloysite was calculated:

$$Q_e={\displaystyle \frac{\left(C_o-C_e\right)V}{m}}$$

(1)

where C_o is the initial concentration of REEs, C_e is the concentration in the solution after adsorption equilibrium is reached, V is the volume of the REE solution in the adsorption system, and m is the mass of the clay minerals in the adsorption system. Q_e is the unit adsorption amount of REEs by clay minerals after adsorption equilibrium. Each adsorption experimental group underwent three experiments, effectively reducing experimental errors. All the data are the average of three repeated experiments.

2.4. Adsorption Kinetics Model

Adsorption kinetics can describe the adsorption efficiency of adsorbates and the correlation between the adsorption capacity qt and time t and are used to study the influence of various factors on chemical reaction rates. To investigate the adsorption behavior of REEs on kaolinite and halloysite, pseudo-first-order kinetic equations, pseudo-second-order kinetic equations, and intraparticle diffusion models were used to fit and study the adsorption process.

Pseudo-first-order dynamic equation:

$$\mathit{ln}\left(q_e-q_t\right)=\mathit{ln}{q}_e-k_{1}t$$

Pseudo-second-order dynamic equation:

$${\displaystyle \frac{t}{q_t}}={\displaystyle \frac{1}{k_2{q}_e^2}}+{\displaystyle \frac{t}{q_e}}$$

Intraparticle diffusion model:

$$q_t=k_n{t}_{0.5}+C$$

where k₁, k₂, and k_n are kinetic rate constants representing chemical reaction rates; t represents the amount of REEs adsorbed onto clay minerals at time t; q_e represents the maximum adsorption amount at adsorption equilibrium; and C represents a constant determined by the thickness of the boundary layer.

2.5. Adsorption Isotherm

In solid–liquid adsorption systems, the relationship between the adsorption capacity and initial concentration is studied at a certain temperature. The fitting of adsorption isotherms to adsorption experimental data plays an important role in studying the adsorption capacity, adsorption strength, adsorption state, and adsorption process. In this work, the two most commonly used adsorption models, the Freundlich model and Langmuir model, are used to fit the adsorption data at different concentrations.

Langmuir model:

$$Q={\displaystyle \frac{ Q_m{K}_{L}C}{1+K_{L}C}}$$

where Q is the adsorption capacity at equilibrium, C is the concentration of rare earth ions at equilibrium, Q_m is the maximum adsorption capacity at adsorption equilibrium, and K_L is the Langmuir constant.

Freundlich model:

$$Q=K_F{C}^{{\displaystyle \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$n$}\right.}}$$

where Q is the adsorption capacity at equilibrium, C is the rare earth ion concentration at equilibrium, K_F is the distribution coefficient, n is the nonuniformity factor, indicating the degree of nonlinearity between the solution concentration and adsorption, and 1/n is the adsorption constant, which can reflect the influence of the adsorbent on the affinity and binding stability of the adsorbate.

3. Results

3.1. Sample Characterization

The particle sizes of kaolinite and halloysite are shown in Figure S1, with halloysite having a specific surface area of 1.1 m²/g and kaolinite having a specific surface area of 0.9 m²/g. Halloysite has a larger specific surface area than kaolin does, with kaolinite particles ranging from 1.096 μm to 52.481 μm and 90% of the particles being smaller than 31.493 μm. The particle size of halloysite ranges from 0.479 μm to 79.433 μm, with 90% of the particle size being less than 21.042 μm. The XRD patterns of the pristine kaolinite and halloysite samples are shown in Figure S2. The chemical compositions of the pristine kaolinite and halloysite samples are shown in Table S1. The 42.12% Al₂O₃ and 53.62% SiO₂ values of kaolinite and 45.74% Al₂O₃ and 52.52% SiO₂ values of halloysite indicate that kaolinite and halloysite are mainly composed of aluminosilicates with high purity and few impurities and that there are no REEs in the original sample.

3.2. Influence of Adsorption Time

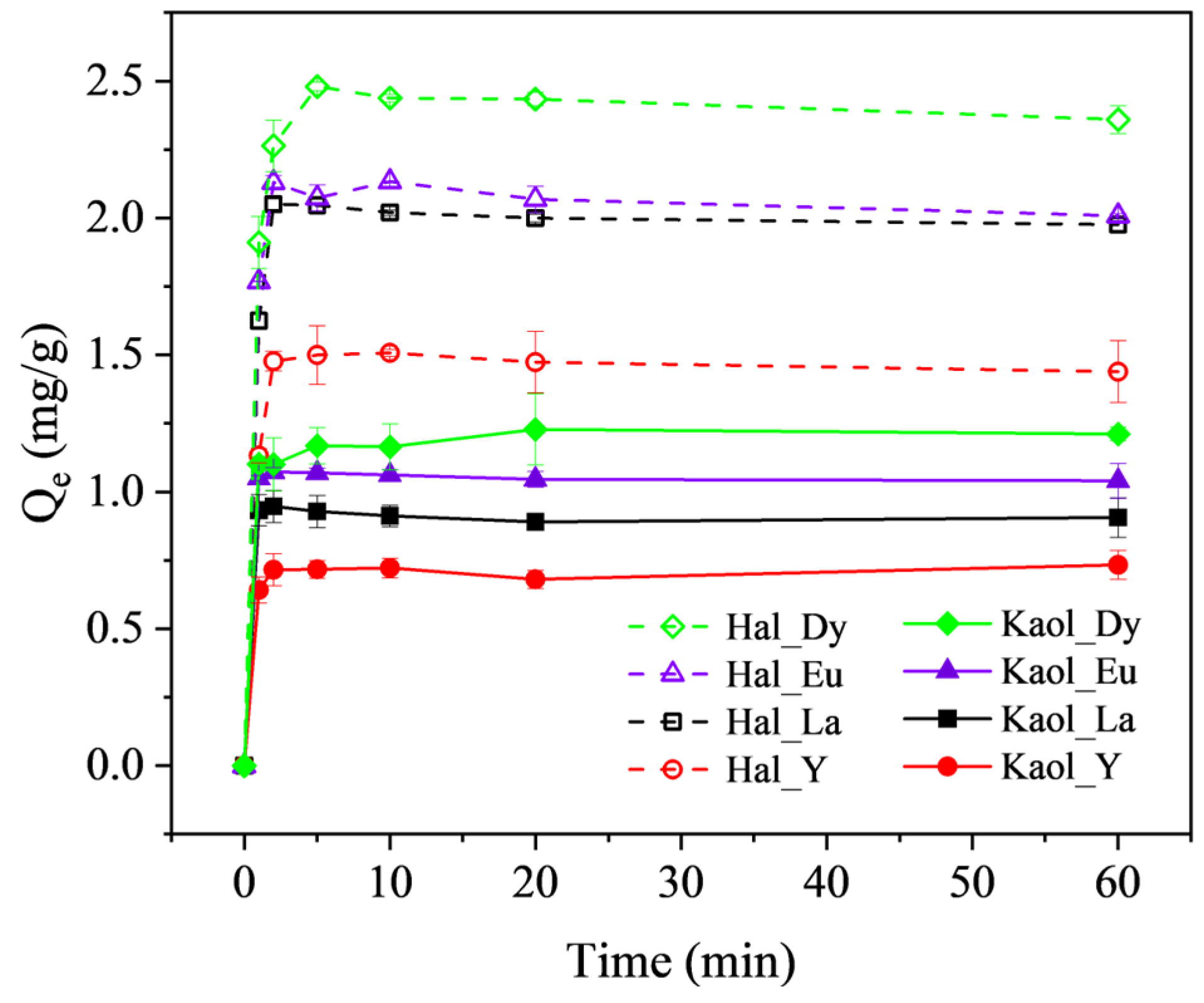

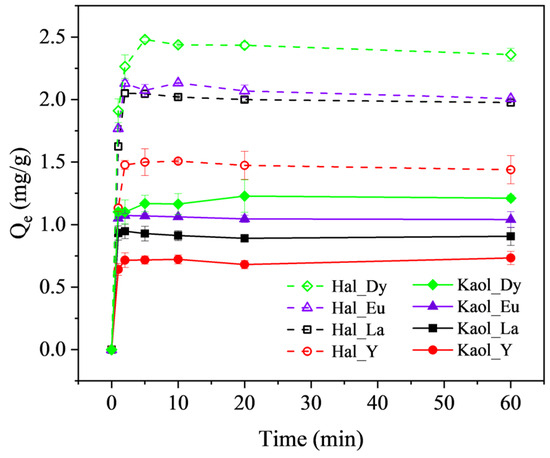

Adsorption time is an important factor in establishing a steady-state concentration. Under the experimental conditions of a solid–liquid ratio (S/L) of 10 g/L, an REE concentration of 60 mg/L, and a pH of 4 at 25 °C, the unit adsorption capacity of halloysite and kaolinite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ varied with time, as shown in Figure 1. The adsorption capacity of kaolinite and halloysite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ increases with time until equilibrium is reached. Under the same conditions, halloysite has a better adsorption capacity for REEs than does kaolinite, and halloysite has a larger specific surface area than does kaolinite. Adsorption occurs rapidly in the first 5 min, with the vast majority of rare earth ions (approximately 95%) already adsorbed in the first 5 min, indicating that the adsorption process mainly occurs in the first 5 min. At equilibrium, the unit adsorption capacities of halloysite for La³⁺, Y³⁺, Eu³⁺ and Dy³⁺ are 1.975 mg/g, 1.438 mg/g, 2.008 mg/g and 2.359 mg/g, respectively; the unit adsorption capacities of kaolinite for La³⁺, Y³⁺, Eu³⁺ and Dy³⁺ are 0.905 mg/g, 0.733 mg/g, 1.040 mg/g and 1.211 mg/g, respectively. In the initial stage of adsorption, kaolinite and halloysite have more surface-active sites, and the concentration of rare earth ions in the solution is high. The two quickly combine. As the adsorption process continues, many active sites are occupied, and the number of rare earth ions in the solution decreases. The adsorption rate slows until adsorption and desorption reach dynamic equilibrium. The binding force and electrostatic repulsion on the surface of clay minerals cancel each other out, and adsorption reaches equilibrium.

The adsorption rate is fast, and under the experimental conditions of an REE concentration of 60 mg/L and pH 3, the unit adsorption capacity of these rare earth ions for halloysite and kaolinite is Dy³⁺ > Eu³⁺ > La³⁺ > Y³⁺. Among them, Y and Dy are heavy REEs, and Eu and La are light REEs, which may be related to the “lanthanide element shrinkage phenomenon” [20].

3.3. Influence of the Solution pH and Initial Concentration

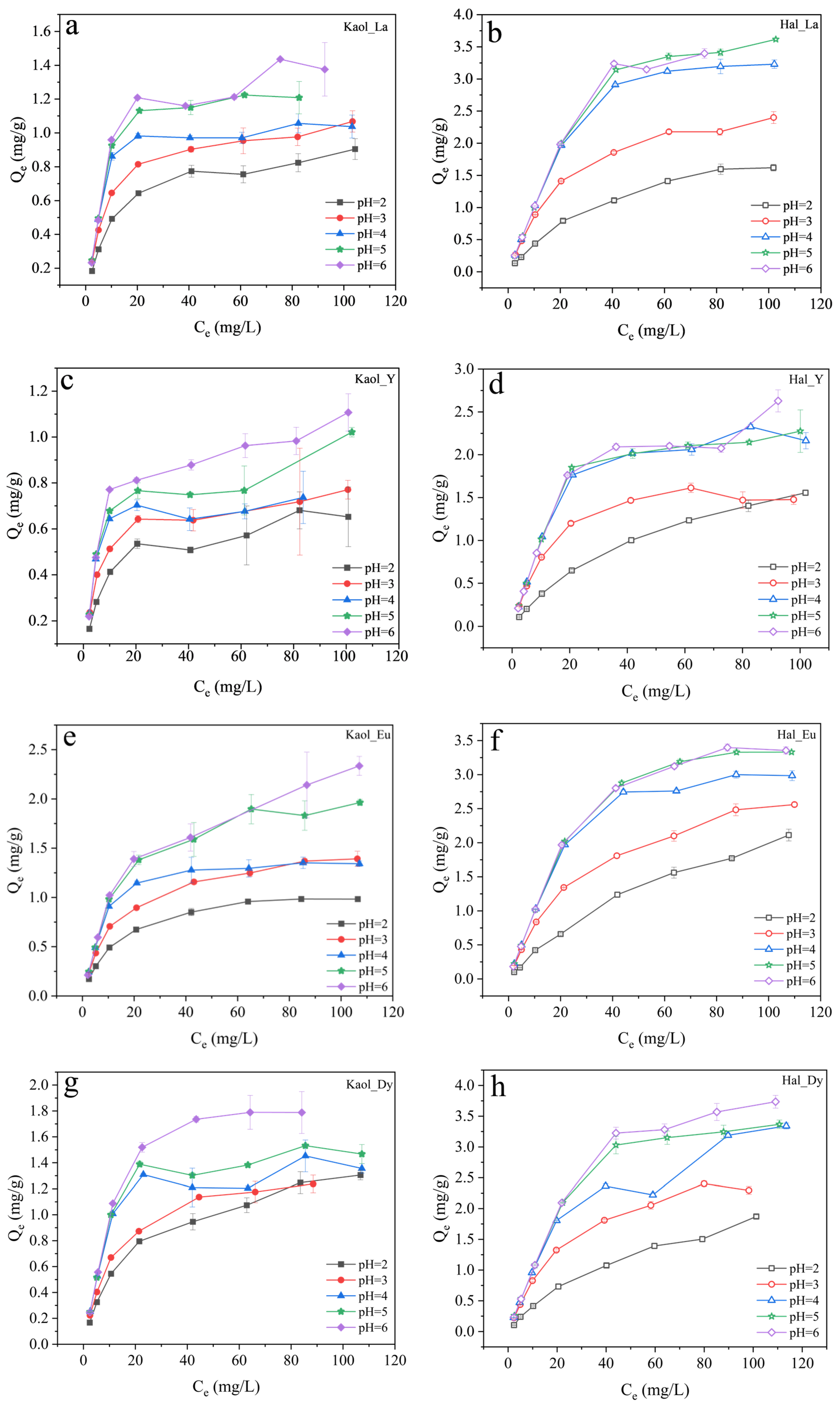

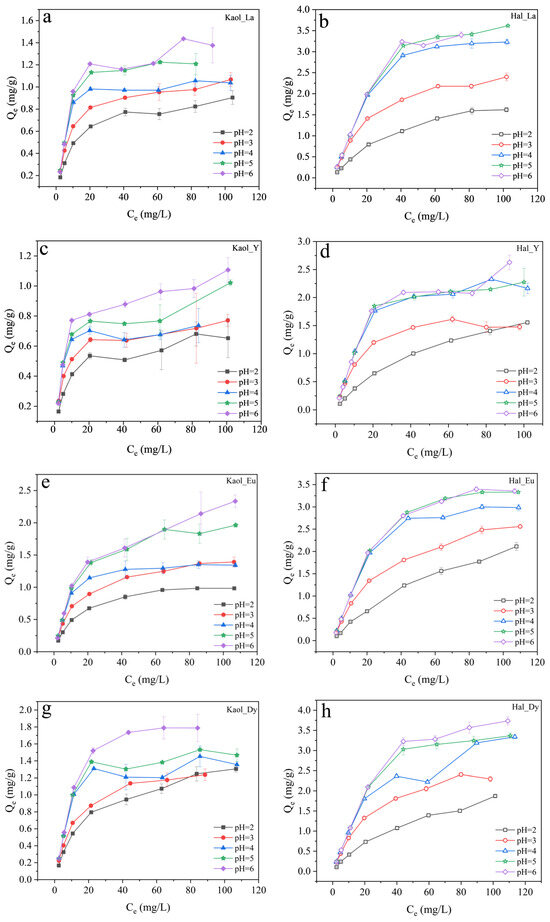

As shown in Figure 2, the adsorption curves of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ show similar changes. At the same initial concentration, the amount of the four rare earth ions adsorbed on kaolinite and halloysite increases with increasing pH. The increase in adsorption capacity with increasing solution pH is usually closely related to the deprotonation of hydroxyl groups on the surface of clay minerals. The pH of aqueous solutions plays an important role in the adsorption of REEs by clay minerals through competition between H⁺ and metal ions. Under strongly acidic conditions, most of the surface of clay minerals is covered by H⁺. As the pH increases, the concentration of H⁺ in the aqueous solution decreases, the competitive ability of REEs increases, and the adsorption capacity increases.

According to the literature, REEs can form hydroxide precipitates in alkaline aqueous solutions, which can interfere with the adsorption results [21]. Therefore, a pH range of 2–6 was selected for the experiments on the adsorption of REEs. Under the same pH conditions, the equilibrium adsorption capacity of the four rare earth ions on kaolinite and halloysite increased with increasing initial concentration until equilibrium was reached. The adsorption efficiency decreases with increasing rare earth ion concentration, and the higher the pH is, the higher the adsorption rate. As the initial concentration increases, the content of REEs in the solution increases. With an increase in the number of rare earth ions in contact with kaolinite and halloysite, REEs will occupy more adsorption sites. As the number of adsorption sites decreases, the adsorption efficiency decreases.

Under the same experimental conditions, the adsorption amounts of the four REEs on halloysite were greater than those on kaolinite, indicating that there are more adsorption sites on halloysite than on kaolinite and that halloysite has a stronger adsorption capacity for REEs. This may be due to the small particle size of halloysite, which has a larger specific surface area than kaolinite. Comparing the adsorption of the four rare earth ions by kaolinite and halloysite, the unit adsorption capacity of several rare earth ions on kaolinite and halloysite is La³⁺ > Dy³⁺ > Eu³⁺ > Y³⁺. This may be related to the ionic radius, as REEs are typically adsorbed on the surface of clay minerals in the form of hydrated outer complexes at 8–9 times their size through inner and outer ring complexation. Light rare earth ions are generally ninefold coordinated, whereas heavy rare earth ions are often eightfold coordinated [22,23,24].

3.4. XRD Analysis

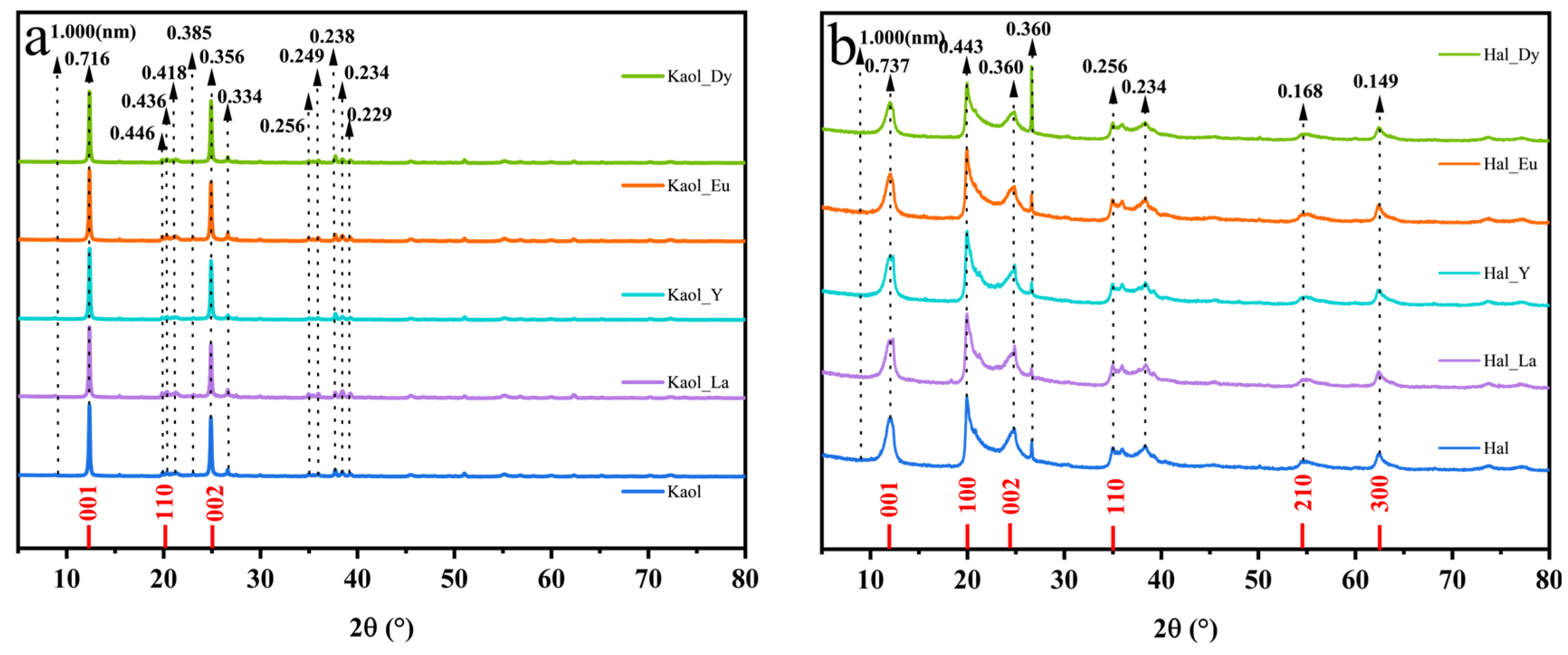

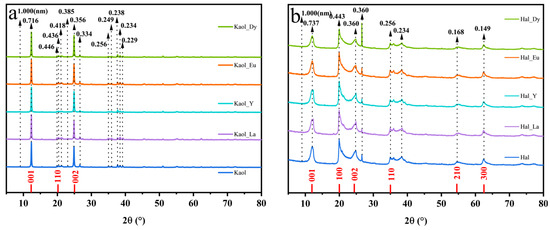

The XRD patterns of kaolinite and halloysite before and after the adsorption of REEs are shown in Figure 3. The d₀₀₁ and d₀₀₂ crystal planes of kaolinite and halloysite can characterize the basal plane features such as interlayer spacing and stacking order; the d₁₁₀ crystal plane and the unique d₂₁₀ crystal plane of halloysite can reflect the characteristics of edge active sites, lattice framework and tubular structure of minerals [25,26]. The results indicate that both clay minerals used in the adsorption experiments are high-purity clay minerals. After the adsorption of REEs by kaolinite, no new diffraction peaks appeared, and the significant characteristic diffraction reflections did not change significantly. This may be because the amount of REEs adsorbed by kaolinite is too small, resulting in unclear changes in the XRD patterns. After the adsorption of REEs by halloysite, the intensity of the diffraction peak at 26.6° changed, suggesting that this change may be related to the adsorption of different types and concentrations of REEs.

3.5. SEM–EDS Analysis

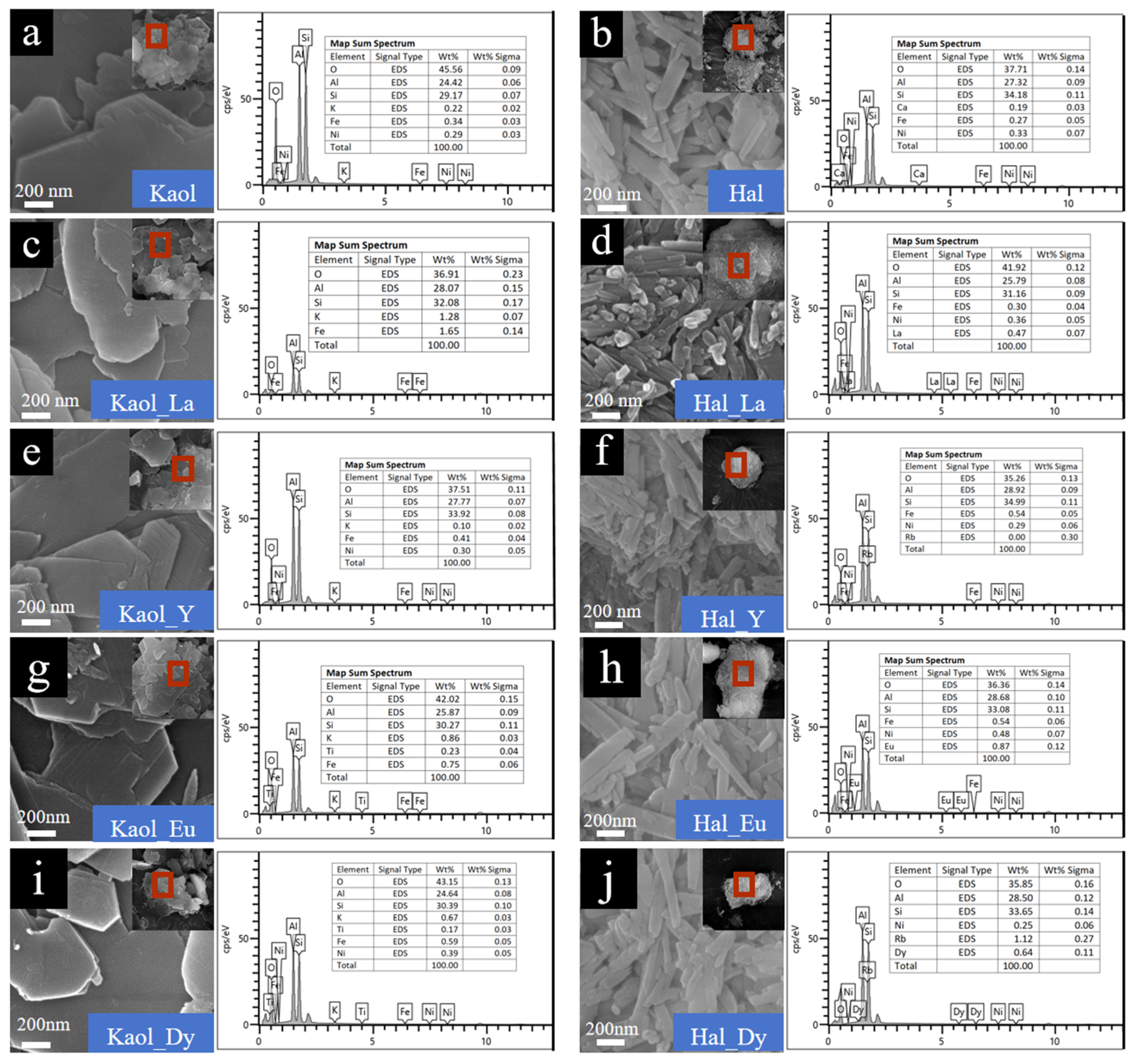

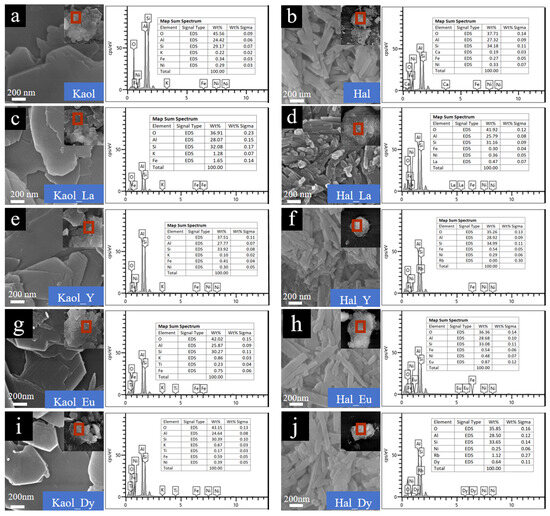

SEM–EDS images of kaolinite and halloysite before and after the adsorption of REEs are shown in Figure 4. Figure 4a shows that kaolinite has a sheet-like morphology. Figure 4b shows that the halloysite sample has a tubular morphology with smaller crystal particles. Similarly, halloysite is significantly smaller than kaolinite. A comparison of Figure 4c,e,g,i and Figure 4d,f,h,j reveals that there is no significant change in the surface morphology of kaolinite and halloysite before and after adsorption; EDS reveals that the main elements of kaolinite and halloysite are O, Si, and Al, which indicates that the clay minerals have high purity and few impurities. REEs were detected in Figure 4d,h,j in the samples of La, Eu, Y and Dy adsorbed by halloysite. This may be due to the high adsorption capacity of these three elements on halloysite, indicating that REEs are adsorbed onto clay minerals and that halloysite has a stronger adsorption capacity for REEs than kaolinite does.

3.6. FTIR Analysis

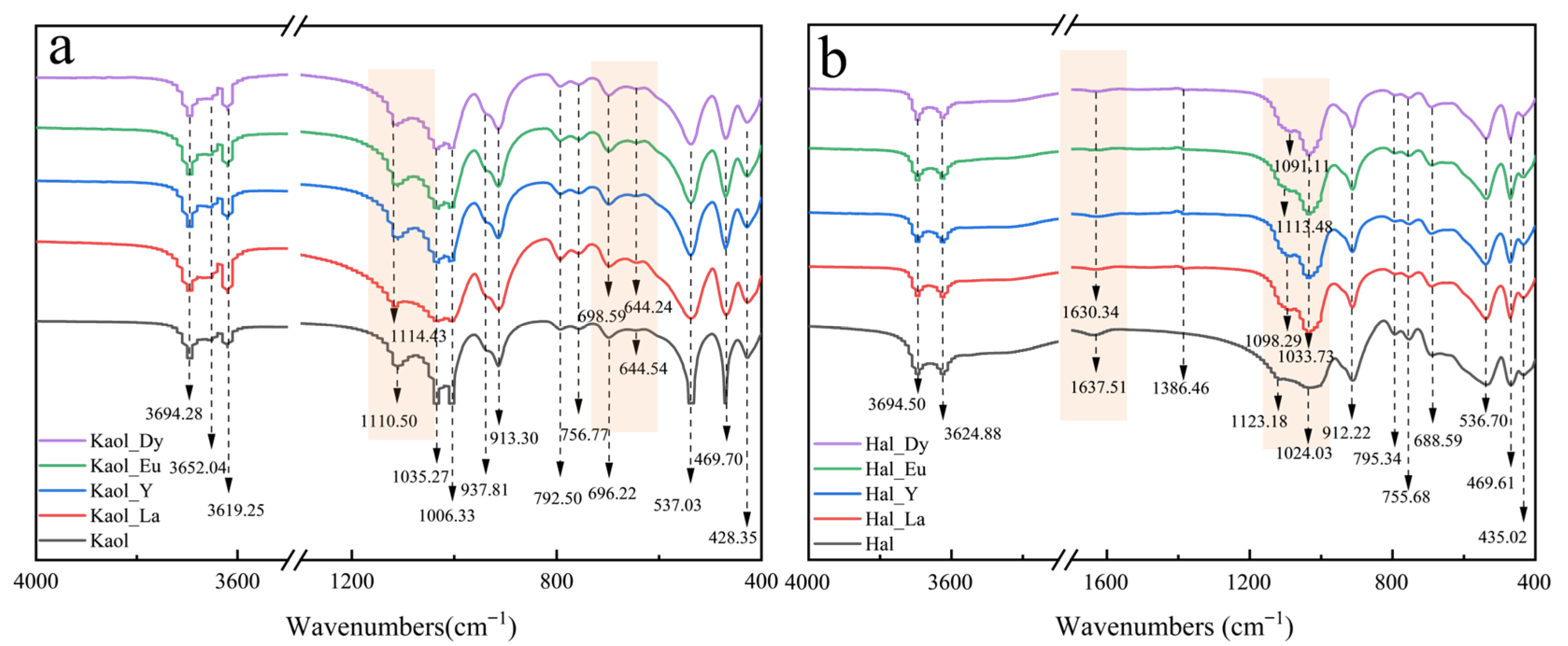

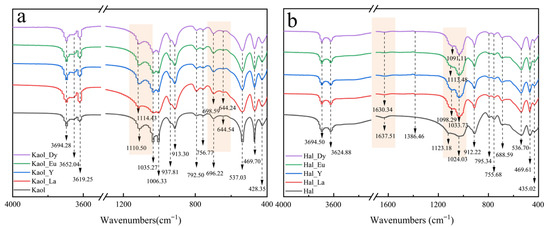

To further investigate the adsorption mechanism of REEs by kaolinite and halloysite, FT-IR was used to characterize kaolinite and halloysite before and after the adsorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺. The characteristic peaks of the infrared results indicate that the sample is high-purity kaolinite and halloysite. The characteristic peaks of Si–O–Si, Al–OH, and Al–O–Si did not significantly change after adsorption, indicating that the adsorption process did not change the basic structure of the clay minerals. There are many hydroxyl groups on the surface of clay minerals. The FT-IR spectra of kaolinite adsorbing four REEs are shown in Figure 5a. The peaks at 3694.28 cm⁻¹, 3652.04 cm⁻¹, and 3619.25 cm⁻¹ are caused by –OH stretching vibrations. The peaks at 1035.27 cm⁻¹ and 1006.92 cm⁻¹ are due to Si–O–Si stretching vibrations. The peak at 1110.50 cm⁻¹ changes to 1114.34 cm⁻¹, indicating that adsorption is related to Si–O–Si. The peaks at 756.77 cm⁻¹ and 700.06 cm⁻¹ are due to Si–O tensile vibration, and the peaks at 913.30 cm⁻¹ and 937.81 cm⁻¹ are caused by the Al–OH bending vibration. The FT-IR spectra of the four REEs adsorbed by halloysite are shown in Figure 5b. The infrared vibration bands attributed to the –OH stretching vibration are at 3694.50 cm⁻¹ and 3624.88 cm⁻¹. The infrared vibration band at 3694.50 cm⁻¹ corresponds to the extension vibration of the inner surface hydroxyl group, and the infrared vibration band at 3624.88 cm⁻¹ corresponds to the stretching vibration of the inner hydroxyl group [27]. The characteristic peak at 1637.51 cm⁻¹ is caused by HOH deformation and stretching vibration, resulting in a shift in the peak after adsorption, as well as a shift in the peak at 1123.18 cm⁻¹. After adsorption, the absorption peak of Al–OH at 912.22 cm⁻¹ weakened, and the band narrowed, indicating that rare earth ions were adsorbed on the surface of the clay minerals, covering the original aluminum hydroxyl groups. This suggests that clay minerals have a good adsorption effect on rare earth ions [28].

3.7. TEM–EDS Analysis

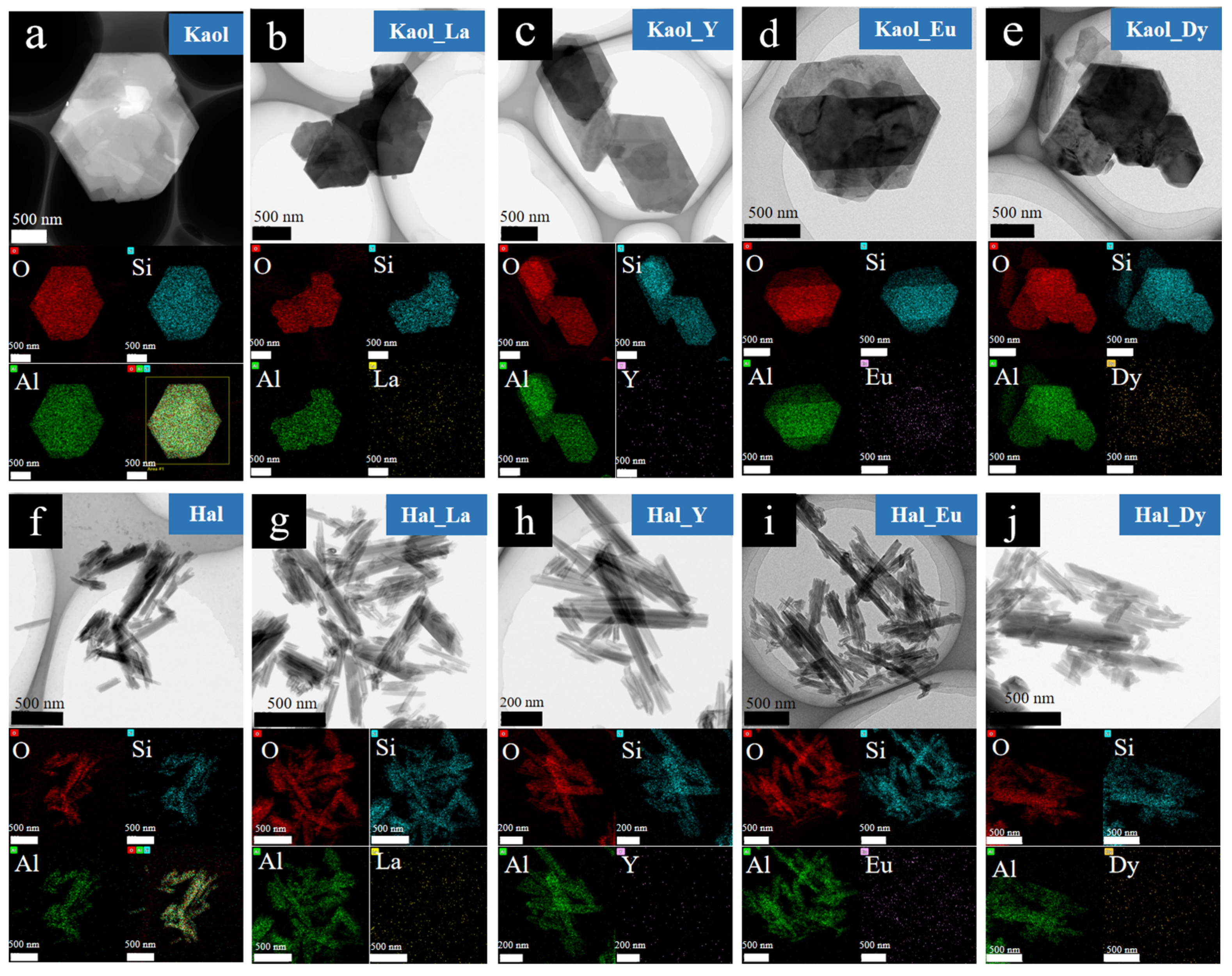

The TEM and EDS images of kaolinite and halloysite before and after the adsorption of REEs are shown in Figure 6. Kaolinite has a sheet-like morphology, whereas halloysite has a tubular structure with smaller particles. Both halloysite and kaolinite have crystal structures, with kaolinite being more pronounced as a single crystal, possibly due to the smaller particle size of halloysite crystals. Adsorption has no significant effect on the surface of clay minerals, and the EDS results indicate that the adsorption capacity of halloysite is greater than that of kaolinite. Meanwhile, the EDS results show that rare earth elements are enriched on clay minerals, indicating that clay minerals can adsorb rare earth elements.

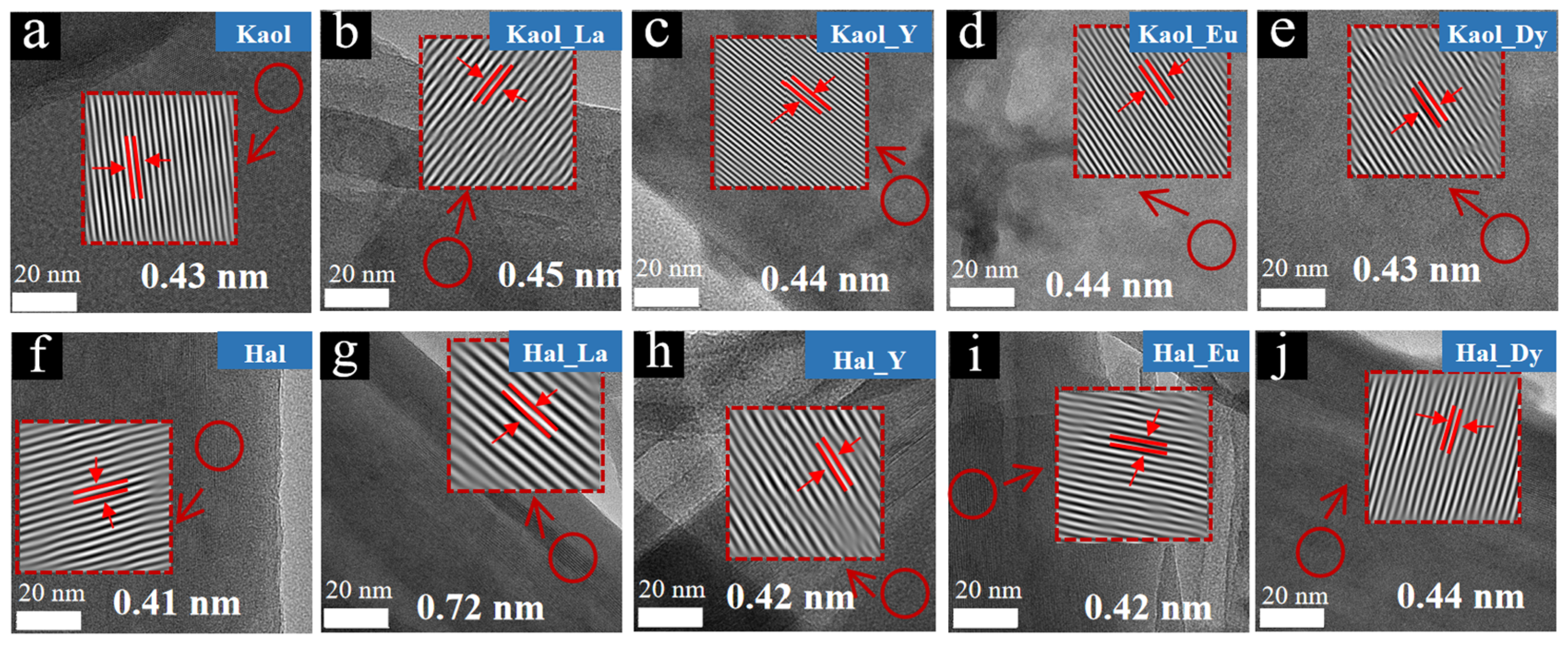

Figure 7 shows the HRTEM results of kaolinite and halloysite before and after the adsorption of REEs. Both kaolinite and halloysite have a single-crystal structure. Before adsorption, the lattice stripe spacings of kaolinite and halloysite were 0.43 nm and 0.41 nm, respectively. After the adsorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺, the lattice stripe spacings of kaolinite increased to 0.45 nm, 0.44 nm, 0.44 nm, and 0.43 nm, respectively. After the adsorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺, the lattice stripe spacings of halloysite increased to 0.72, 0.42, 0.42, and 0.44 nm, respectively. After adsorption, the lattice stripe spacing of kaolinite and halloysite increased to varying degrees, which may be due to rare earth ions entering the interlayer.

3.8. XPS Analysis

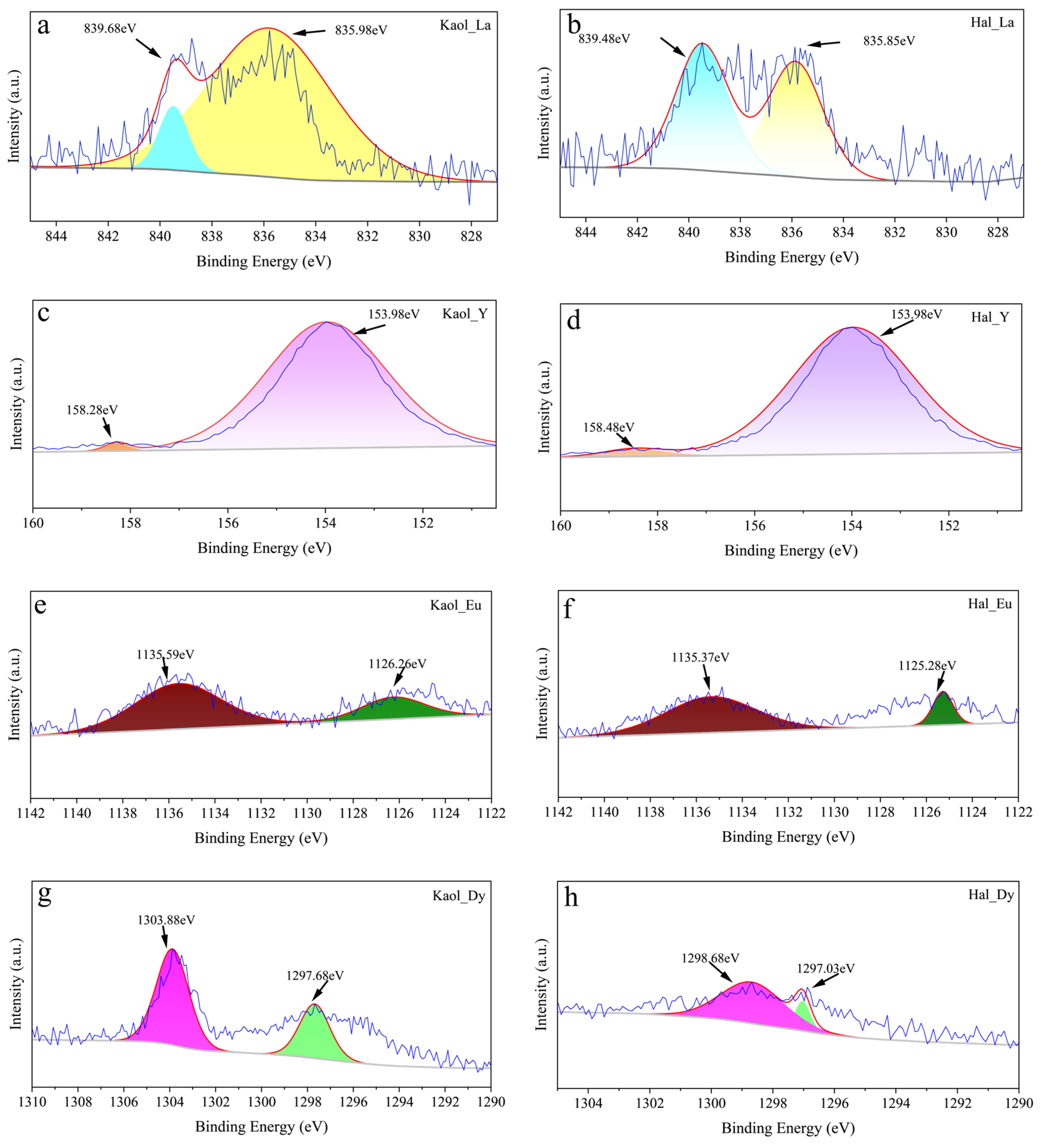

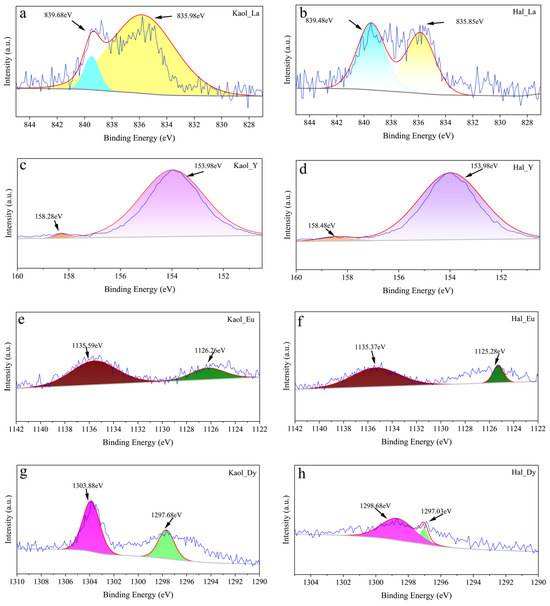

To investigate the chemical states of REEs adsorbed on the surfaces of kaolinite and halloysite. XPS tests were conducted on kaolinite and halloysite samples with adsorbed La³⁺, Y³⁺, Eu³⁺, and Dy³⁺. The results are shown in Figure 8. The results revealed that REEs were indeed present on the surfaces of kaolinite and halloysite. Peak fitting was performed on the La 3d5/2, Y 3d5/2, Eu 3d5/2, and Dy 3d5/2 XPS spectra, and it was found that the Kaol/La, Hal/La, Kaol/Y, Hal/Y, Hal/Eu, Kaol/Eu, Kaol/Dy, and Hal/Dy samples presented two different binding energy peaks. The relevant fitting parameters are shown in

Table 1. Binding energy positions and peak area ratios of the REE 3d5/2 XPS spectra of the adsorbed samples.

Sample Name	Binding Energy (eV)	The Ratio of the Area of Peaks a and b
Kaol/La	835.98 (a), 839.26 (b)	~10:1
Hal/La	835.85 (a), 839.48 (b)	~1:1
Kaol/Y	153.98 (a), 158.28 (b)	~80:1
Hal/Y	153,98 (a), 158,48 (b)	~32:1
Kaol/Eu	1126.26 (a), 1135.59 (b)	~1:3
Hal/Eu	1125.28 (a), 1135.37 (b)	~5:1
Kaol/Dy	1297.68 (a), 1303.88 (b)	~1:2
Hal/Dy	1297.03 (a), 1298.58 (b)	~1:6

. Peaks with different binding energies usually indicate different chemical forms of REEs. Taking La as an example, the binding energy of La 3d5/2 in La(OH)₃ is 834.5 eV; the binding energy of La 3d5/2 in La₂(CO₃)₃ is 835.0 eV [29,30,31] Therefore, in the XPS spectrum of La 3d5/2 in the Hal/La samples, the two peaks at binding energies of 835.85 eV and 839.48 eV indicate the presence of two different chemical states of La(III) ions in the Hal/La samples.

Previous studies have shown that the inner ring complex is formed by the complexation of aluminum/silicon hydroxyl groups on the surface of clay minerals with rare earth ions, and the outer ring complex is formed by electrostatic gravitation. The energy of the inner ring complex of Eu(III) is 1134.3–1134.89 eV [11,32], indicating that the binding energy of Eu 3d5/2 in Hal/Eu samples at 1135.59 eV was the inner ring complex of Eu(III) ions, and the binding energy at 1126.26 eV was mainly the outer ring complex. The adsorption modes of the Kaol/La, Hal/La, Kaol/Y, Hal/Y, Kaol/Eu, Kaol/Dy, and Hal/Dy samples are similar. REEs are adsorbed on clay minerals in the form of inner ring complexes and outer ring complexes, and most of the inner ring complexes are dominant. In the Kaol/Y and Hal/Y samples, the inner ring complexes were similar. The specific outer ring complexes are 80:1 and 32:1, respectively. This may be because Y is a heavy REE that tends to form inner ring complexes with aluminum/silicon hydroxyl groups on the surface of clay minerals and rare earth ions.

3.9. Adsorption Kinetics

To study the changes in adsorption efficiency over time and the factors affecting the rate during the adsorption process, pseudo-first-order and pseudo-second-order kinetic equations were used to fit the adsorption kinetics curves. The fitted curves and corresponding parameter values are shown in Figure 9 and

Table 2. Adsorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ by kaolinite and halloysite. Fitting parameters of the pseudo-first-order kinetic model and pseudo-second-order kinetic model.

Rare-Earth Element	Adsorbent	Pseudo-First-Order Kinetic Model			Pseudo-Second-Order Kinetic Model
		qe (mg/g)	k1 (min−1)	R2	qe (mg/g)	k2 (g/mg·min)	R2
La(III)	Hal	2.026	1.706	0.995	1.976	−6.177	0.999
	Kaol	0.919	63.005	0.996	0.904	−52.093	0.999
Y(III)	Hal	1.489	1.506	0.994	1.439	−4.566	0.999
	Kaol	0.715	2.298	0.995	0.733	4.059	0.999
Eu(III)	Hal	2.086	1.957	0.994	2.006	−2.122	0.999
	Kaol	1.058	4.878	0.998	1.039	−8.851	0.999
Dy(III)	Hal	2.422	1.520	0.997	2.362	−3.286	0.999
	Kaol	1.178	2.612	0.990	1.216	4.897	0.999

and

Table 3. Fitting parameters of the intraparticle diffusion models for kaolinite and halloysite adsorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺.

Rare-Earth Element	Adsorbent	Stage I			Stage II			Stage II
		C1	kd1	R2	C2	kd2	R2	C3	kd3	R2
La(III)	Hal	0.048	0.718	0.851	0.973	−0.019	0.984	0.903	−1.684	−0.997
	Kaol	0.032	1.482	0.983	2.079	−0.018	0.773	2.045	−0.009	0.933
Y(III)	Hal	0.024	0.530	0.925	0.710	0.003	0.831	0.685	0.001	−0.613
	Kaol	0.016	1.060	0.991	1.455	0.017	0.817	1.545	−0.014	0.894
Eu(III)	Hal	0.053	0.812	0.857	1.081	−0.006	0.903	1.070	−0.004	0.511
	Kaol	0.048	1.554	0.966	2.105	0.003	−0.987	2.200	−0.025	0.860
Dy(III)	Hal	0.059	0.837	0.836	1.062	0.036	0.344	1.162	0.007	−0.456
	Kaol	0.057	1.657	0.959	2.174	0.096	0.079	2.503	−0.018	0.878

. Compared with the pseudo-first-order kinetic fitting coefficients, the pseudo-second-order kinetic fitting coefficients R² of kaolinite and halloysite for the adsorption of the four REEs are as high as 0.999, all close to 1. After adsorption equilibrium, the theoretical unit adsorption capacities of halloysite for La³⁺, Y³⁺, Eu³⁺ and Dy³⁺ are 1.976 mg/g, 1.439 mg/g, 2.006 mg/g and 2.362 mg/g, respectively; the theoretical unit adsorption capacities of kaolinite for La³⁺, Y³⁺, Eu³⁺ and Dy³⁺ are 0.904 mg/g, 0.733 mg/g, 1.039 mg/g and 1.216 mg/g, respectively. The adsorption behavior of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ rare earth ions on kaolinite and halloysite is closer to the unit adsorption amount obtained from the experiment. Therefore, the adsorption behaviors of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ all conform to pseudo-second-order kinetic equations, indicating that adsorption is chemical adsorption. Chemical factors such as changes in the rare earth ion concentration and the number of active sites on clay minerals affect the adsorption efficiency.

3.10. Adsorption Isotherms

To study the saturated adsorption capacity and adsorption types of kaolinite and halloysite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ rare earth ions, the adsorption data of kaolinite and halloysite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ were fitted with the most common Freundlich and Langmuir models to fit the experimental adsorption equilibrium data in Figure 2. The linear fitting results are shown in Figure 10, Figure 11, Figure 12 and Figure 13, and the fitting correlation coefficients are shown in

Table 4. Langmuir and Freundlich isotherms of La³⁺ adsorption on kaolinite and halloysite.

Adsorbent	pH	Langmuir			Freundlich
		qm (mg·g−1)	KL (L·g−1)	R2	1/n	KF (mg·g−1)·(g·L−1)1/n	R2
Hal	2	2.389	0.022	0.996	0.562	0.041	0.973
	3	2.927	0.042	0.995	0.455	0.064	0.948
	4	4.316	0.037	0.976	0.479	0.091	0.902
	5	4.878	0.032	0.978	0.506	0.098	0.916
	6	5.256	0.289	0.969	0.578	0.104	0.918
Kaol	2	0.939	0.102	0.985	0.315	0.021	0.920
	3	1.100	0.127	0.989	0.283	0.023	0.903
	4	1.121	0.188	0.918	0.227	0.020	0.709
	5	1.377	0.141	0.940	0.287	0.031	0.763
	6	1.503	0.126	0.931	0.300	0.034	0.807

,

Table 5. Langmuir and Freundlich isotherms of Y³⁺ adsorption on kaolinite and halloysite.

Adsorbent	pH	Langmuir			Freundlich
		qm (mg·g−1)	KL (L·g−1)	R2	1/n	KF (mg·g−1)·(g·L−1)1/n	R2
Hal	2	2.386	0.017	0.999	0.602	0.036	0.989
	3	1.784	0.083	0.966	0.344	0.041	0.845
	4	2.653	0.065	0.967	0.385	0.061	0.863
	5	2.642	0.068	0.960	0.384	0.062	0.853
	6	2.920	0.056	0.952	0.438	0.069	0.863
Kaol	2	0.677	0.143	0.943	0.274	0.014	0.892
	3	0.773	0.193	0.973	0.228	0.014	0.874
	4	0.754	0.307	0.869	0.183	0.011	0.624
	5	0.938	0.195	0.867	0.248	0.019	0.796
	6	1.086	0.162	0.946	0.263	0.022	0.855

,

Table 6. Langmuir and Freundlich isotherms of Eu³⁺ adsorption on kaolinite and halloysite.

Adsorbent	pH	Langmuir			Freundlich
		qm (mg·g−1)	KL (L·g−1)	R2	1/n	KF (mg·g−1)·(g·L−1)1/n	R2
Hal	2	3.772	0.011	0.996	0.674	0.041	0.991
	3	3.318	0.030	0.996	0.498	0.064	0.975
	4	3.807	0.042	0.978	0.449	0.082	0.900
	5	4.418	0.035	0.985	0.481	0.090	0.920
	6	4.487	0.034	0.987	0.488	0.091	0.929
Kaol	2	1.138	0.071	0.997	0.360	0.026	0.934
	3	1.554	0.071	0.995	0.363	0.035	0.955
	4	1.494	0.120	0.972	0.286	0.032	0.821
	5	2.222	0.068	0.987	0.375	0.051	0.913
	6	2.644	0.050	0.979	0.419	0.058	0.954

and

Table 7. Langmuir and Freundlich isotherms of Dy³⁺ adsorption on kaolinite and halloysite.

Adsorbent	pH	Langmuir			Freundlich
		qm (mg·g−1)	KL (L·g−1)	R2	1/n	KF (mg·g−1)·(g·L−1)1/n	R2
Hal	2	2.979	0.014	0.991	0.632	0.040	0.990
	3	3.033	0.037	0.993	0.479	0.064	0.953
	4	4.145	0.031	0.963	0.499	0.081	0.944
	5	4.365	0.037	0.976	0.468	0.090	0.900
	6	4.978	0.031	0.982	0.502	0.098	0.924
Kaol	2	1.496	0.049	0.987	0.422	0.033	0.971
	3	1.419	0.079	0.997	0.369	0.034	0.933
	4	1.500	0.130	0.909	0.273	0.031	0.746
	5	1.642	0.117	0.933	0.289	0.035	0.776
	6	2.159	0.080	0.971	0.372	0.053	0.853

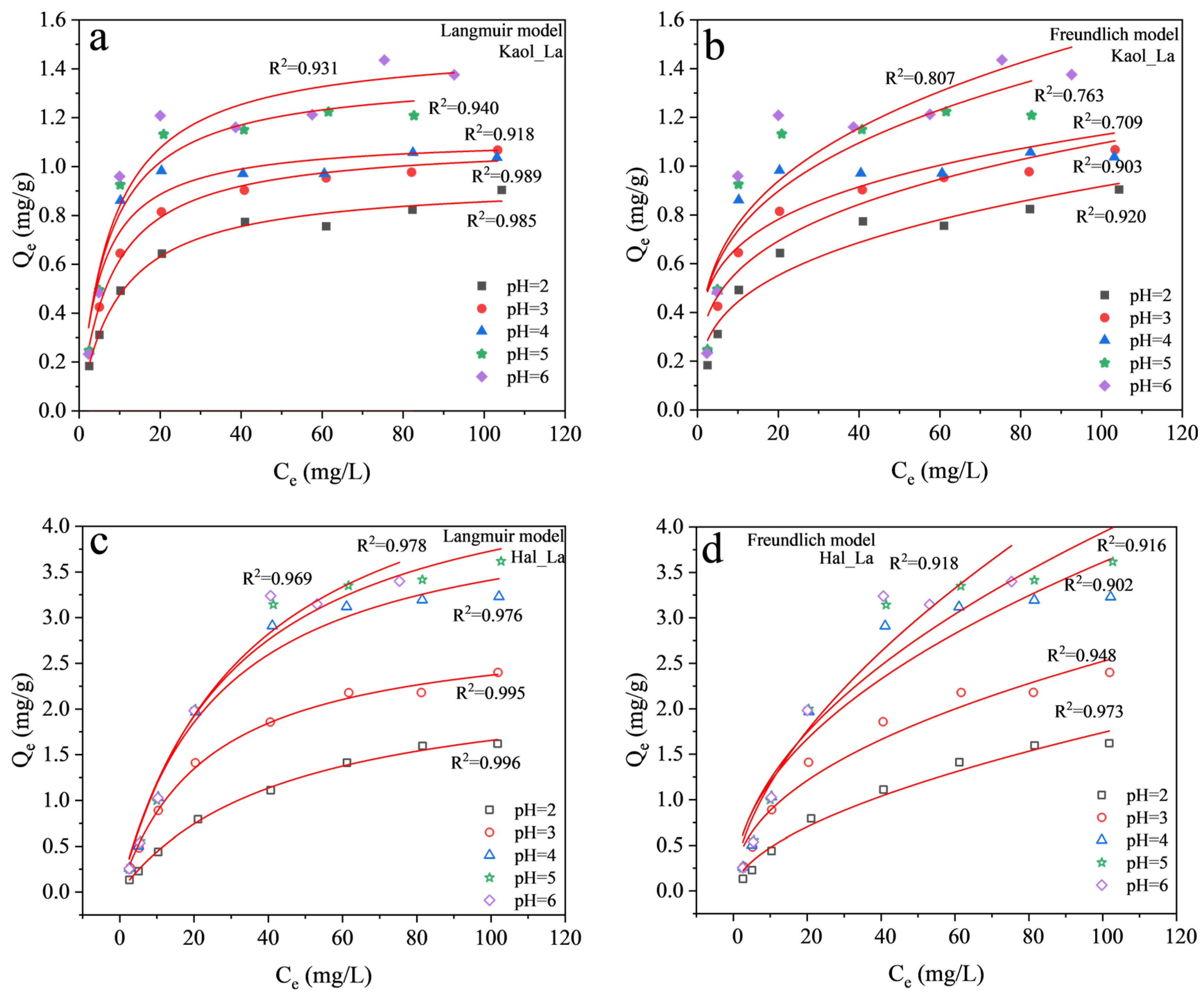

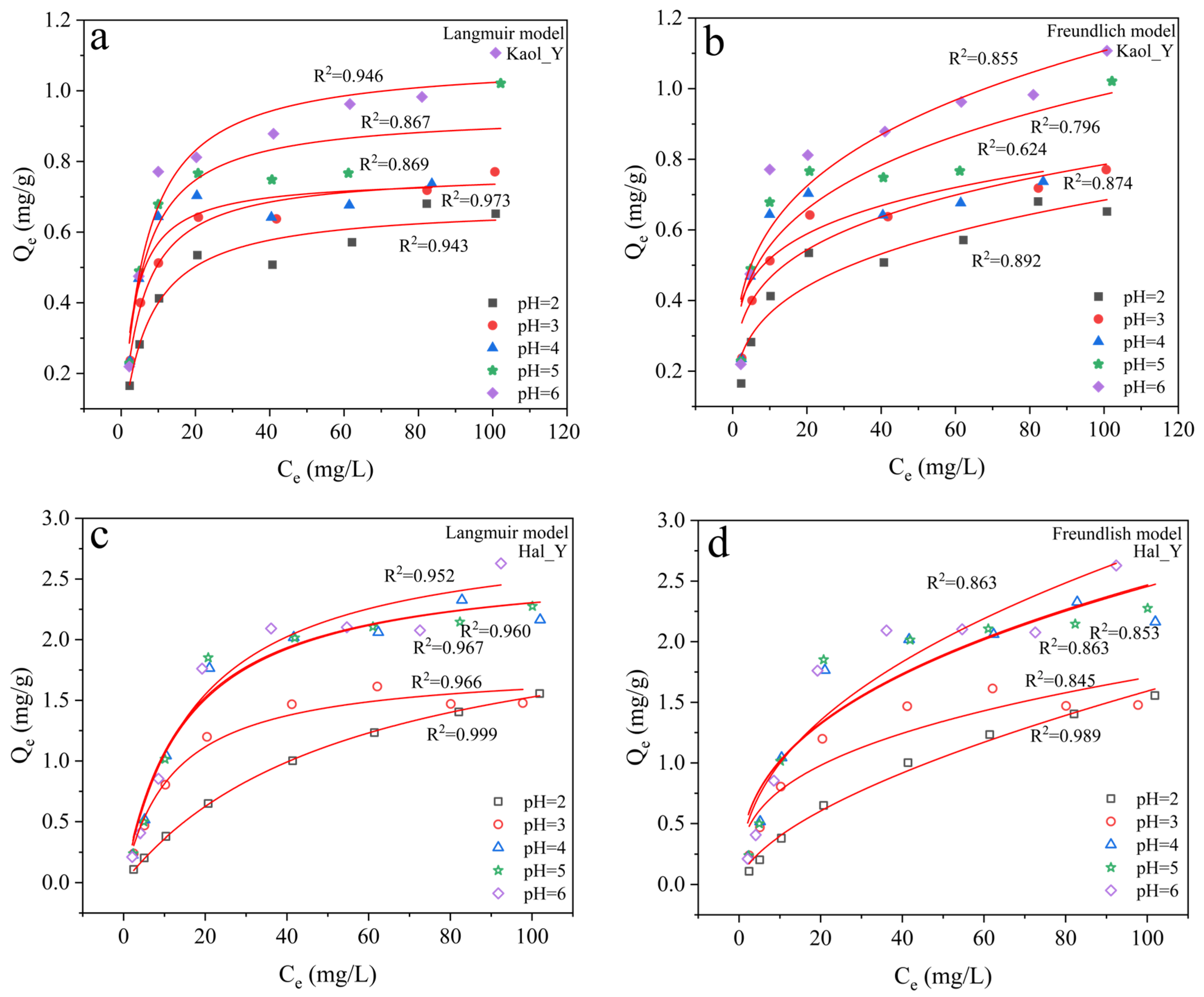

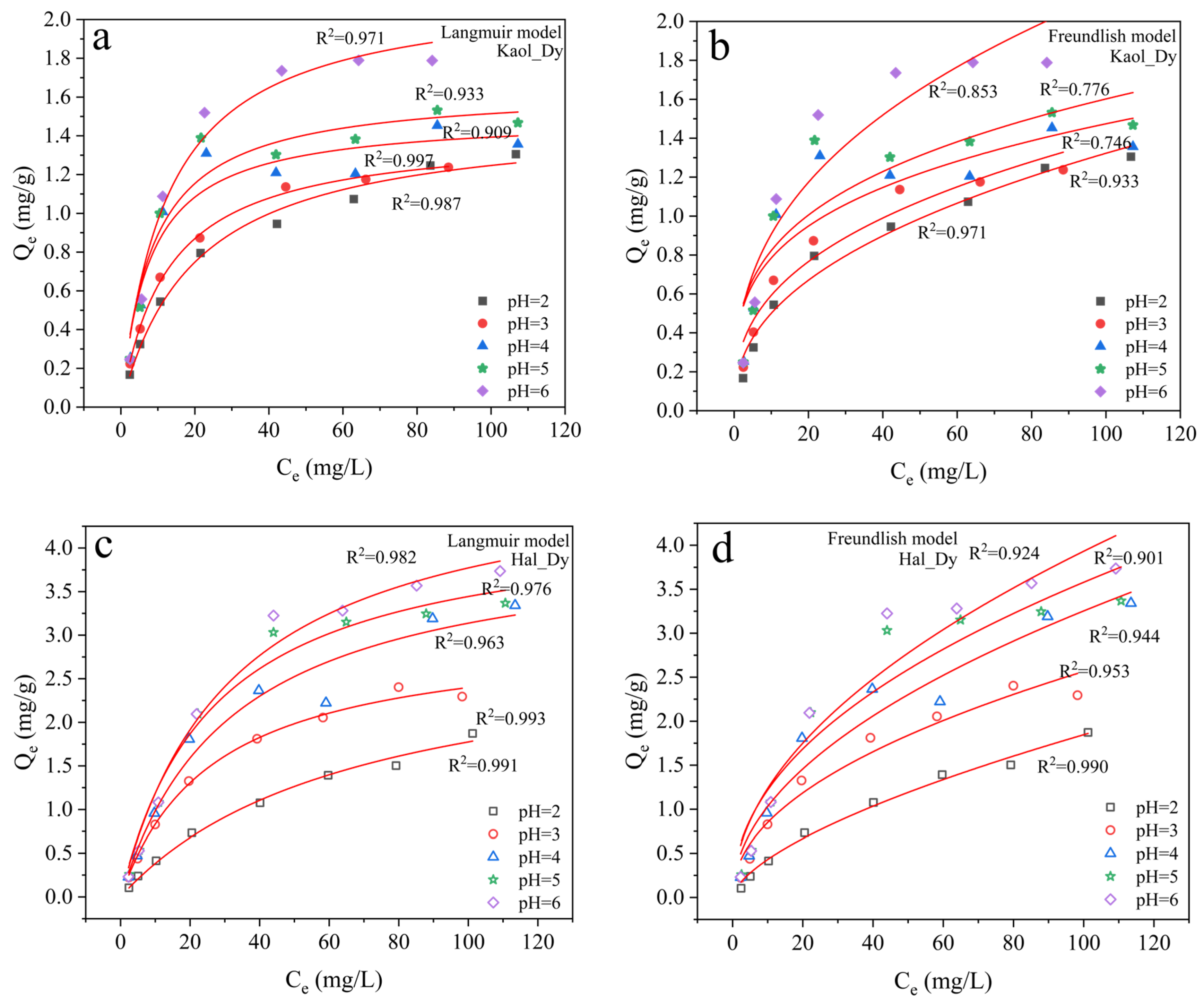

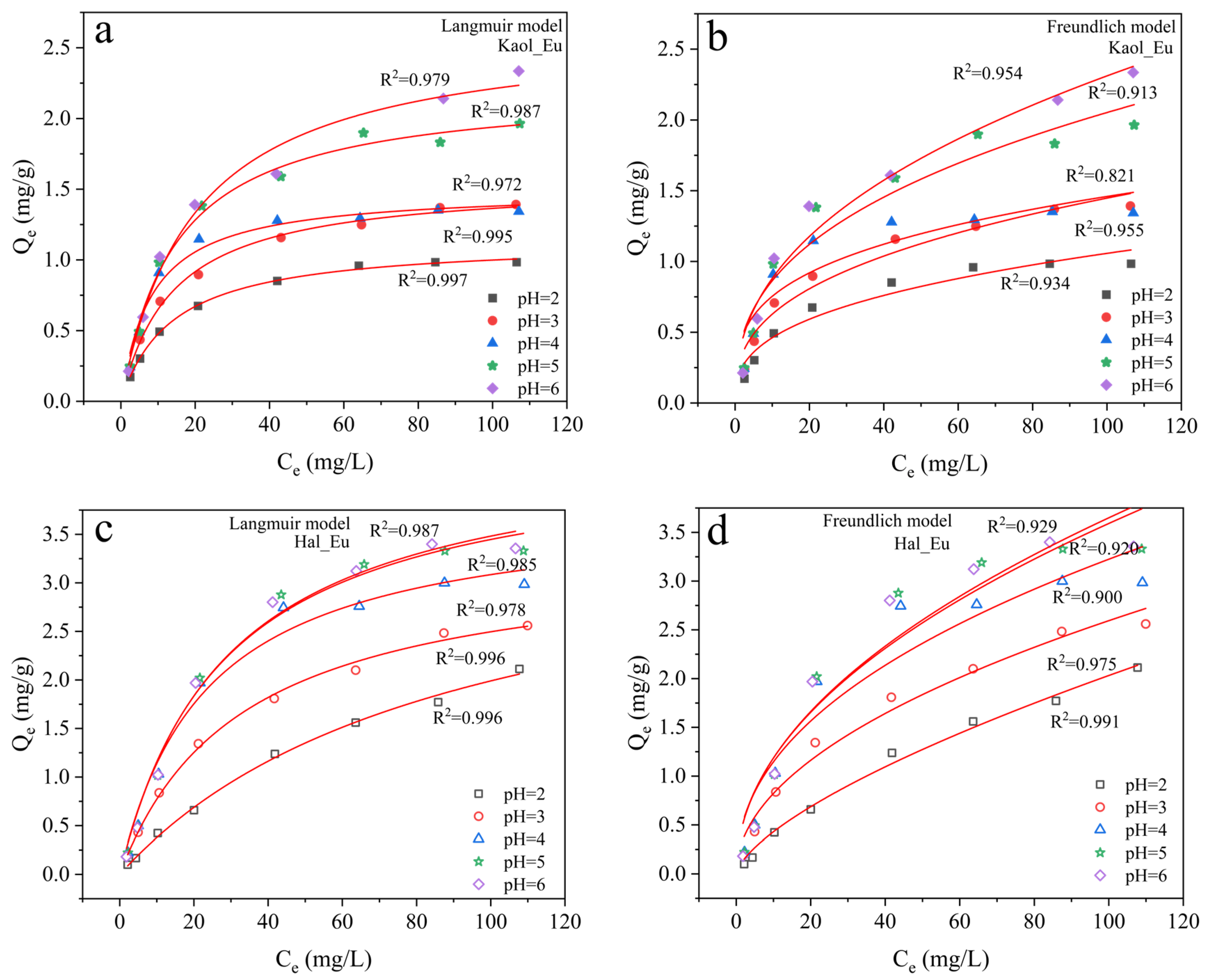

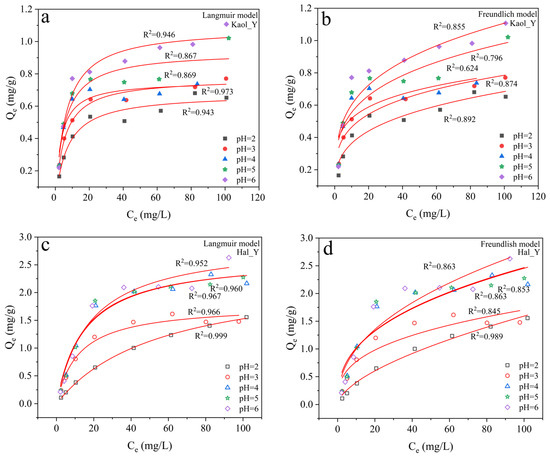

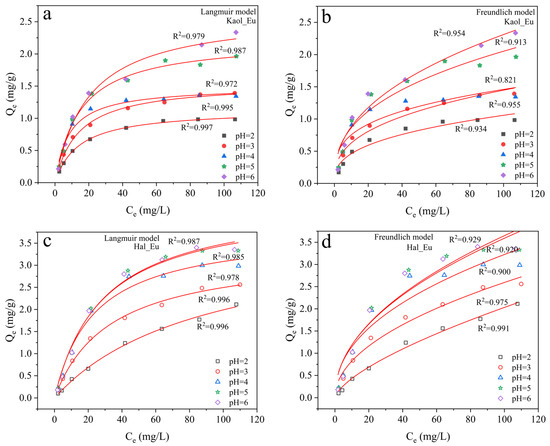

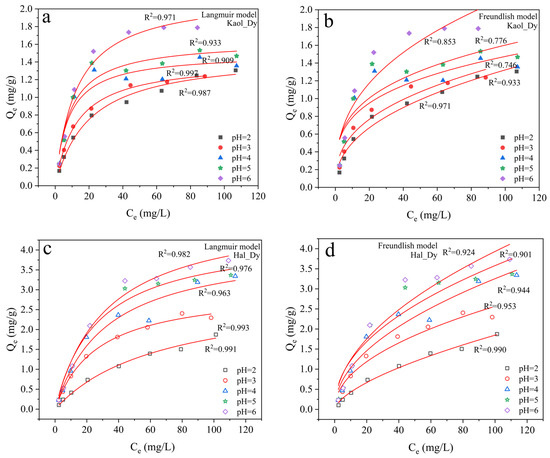

. Figure 10, Figure 11, Figure 12 and Figure 13 show that the adsorption curves of clay minerals adsorbing different REEs are similar and that their adsorption mechanisms are similar. According to the fitting parameters, kaolinite and halloysite have similar adsorption mechanisms. The correlation coefficients of the Langmuir model fit for La³⁺, Y³⁺, Eu³⁺ and Dy³⁺ adsorption were greater than 0.95, 0.85, 0.97 and 0.90, respectively. The correlation coefficients fitted by the Langmuir model for these four REEs are greater than the R² values fitted by the Freundlich model under the same conditions. The Langmuir model better described the adsorption process of kaolinite and halloysite adsorbing La³⁺, Y³⁺, Eu³⁺, and Dy³⁺, indicating that kaolinite and halloysite as adsorbents had uniform adsorption interfaces and that the adsorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ on the surface was uniform monolayer molecular adsorption and that there was no interaction between the adsorbed rare earth ions. Moreover, under certain experimental conditions, the adsorption and desorption of La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ by kaolinite and halloysite can reach dynamic equilibrium, resulting in maximum unit adsorption. It is generally believed that multimolecular layer adsorption is controlled by physical adsorption, whereas single-molecular layer adsorption is controlled by chemical adsorption; thus, chemical adsorption is the main speed control step, which is the same as the fitting result of the adsorption kinetic model [23].

According to the data in Table 4, Table 5, Table 6 and Table 7, the Langmuir model theoretical maximum adsorption capacities of kaolinite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ are 1.503 mg/g, 1.086 mg/g, 2.644 mg/g and 2.159 mg/g, respectively; the Langmuir model theoretical maximum adsorption capacities of halloysite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ are 5.256 mg/g, 2.920 mg/g, 4.487 mg/g and 4.978 mg/g, respectively, which are all close to the actual maximum adsorption capacities. For the adsorption of these four rare earth ions, the maximum adsorption capacity of halloysite is greater than that of kaolinite. The 1/n values fitted by the Freundlich model are all between 0 and 1, indicating that the adsorption reaction easily occurs, and the 1/n values fitted by the adsorption of halloysite for La³⁺, Y³⁺, Eu³⁺, and Dy³⁺ at pH = 2 exceed 0.5, indicating that the adsorption reaction is not conducive to occur at low pH, which may be due to the competitive adsorption of more H⁺ in the solution and the protonation of clay minerals, resulting in a reduction in the amount of dysprosium at the adsorption site.

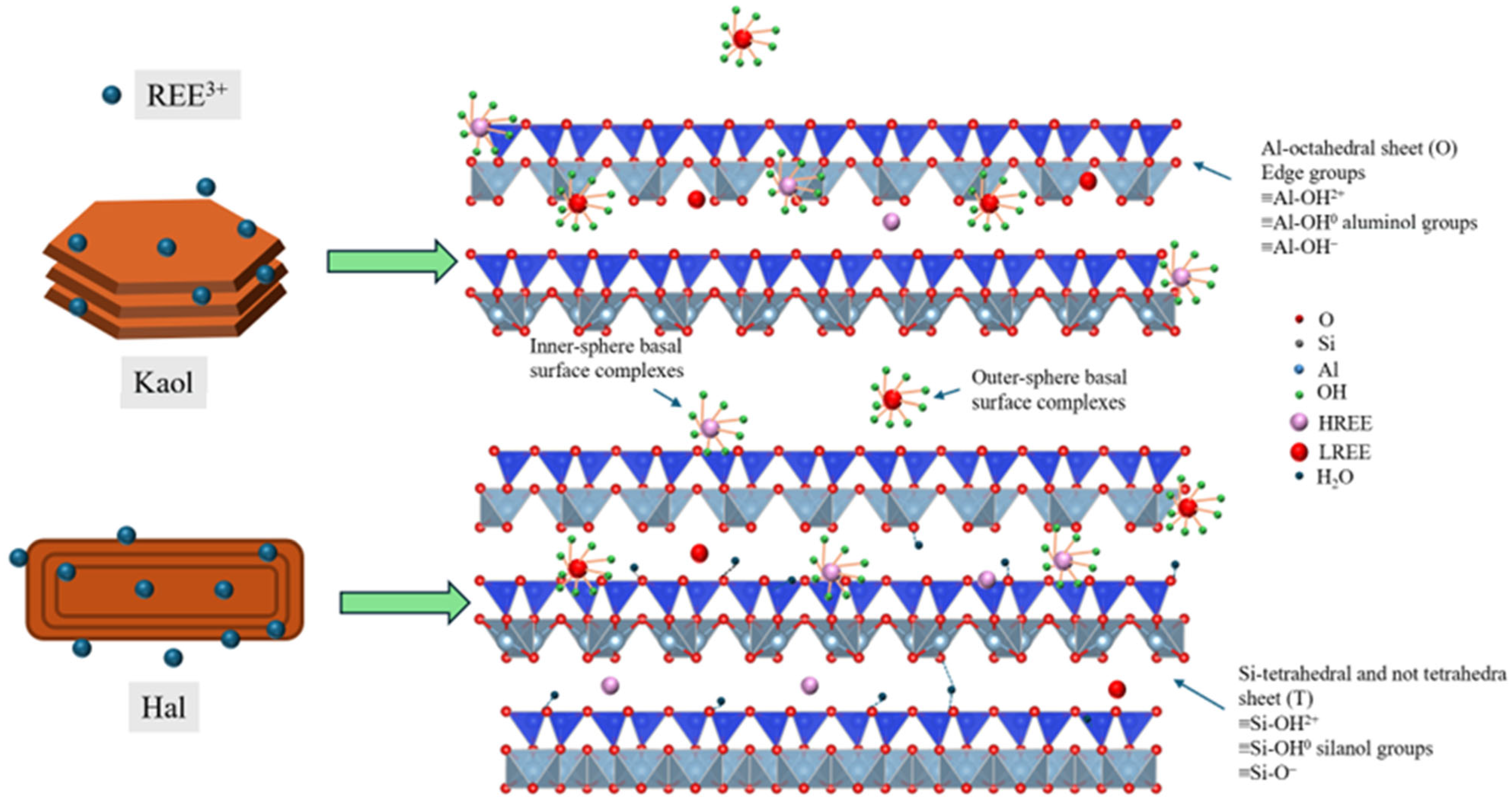

3.11. Mechanistic Analysis

This study selected two typical clay minerals with high contents of weathered and leached rare earth minerals, kaolinite and halloysite, as well as the light REEs La and Eu and the heavy REEs Y and Dy, to study the adsorption mechanism of clay minerals on REEs, which is beneficial for elucidating the environmental and industrial implications of REE recovery. The adsorption of REEs by kaolinite and halloysite is a complex process governed by surface charge, hydroxyl group interactions, and chemical bonding, as shown in Figure 14.

The pseudo-second-order kinetic model and Langmuir monolayer adsorption model accurately describe the adsorption process, indicating that uniform, chemical adsorption is controlled by surface reactions. The formation of inner ring complexes between REE ions and surface hydroxyl groups is the dominant adsorption mechanism, with outer ring complexation contributing to a lesser extent. The influence of the solution pH and ionic radius on the adsorption capacity highlights the need for tailored approaches in REE recovery from diverse sources. These mechanistic insights provide a solid foundation for the development of efficient and sustainable REE extraction technologies.

Clay minerals such as kaolinite and halloysite possess a net negative surface charge due to isomorphic substitution, where lower valence cations (e.g., Al³⁺ or Fe³⁺) replace Si⁴⁺ in the silica tetrahedral layer [7,18]. This substitution results in a permanent negative charge, which is balanced by cations in the interlayer or on the surface. The surface charge characteristics of these clay minerals play crucial roles in their interactions with REEs. The hydroxyl groups (-OH) present on the basal and edge surfaces of kaolinite and halloysite are pivotal in REE adsorption. These hydroxyl groups can undergo protonation or deprotonation reactions depending on the solution pH, thereby altering the surface charge and enhancing the mineral’s capacity to adsorb cations, including REEs. The deprotonation of surface hydroxyls at higher pH values increases the negative surface charge, facilitating stronger electrostatic interactions with positively charged REE ions [33,34].

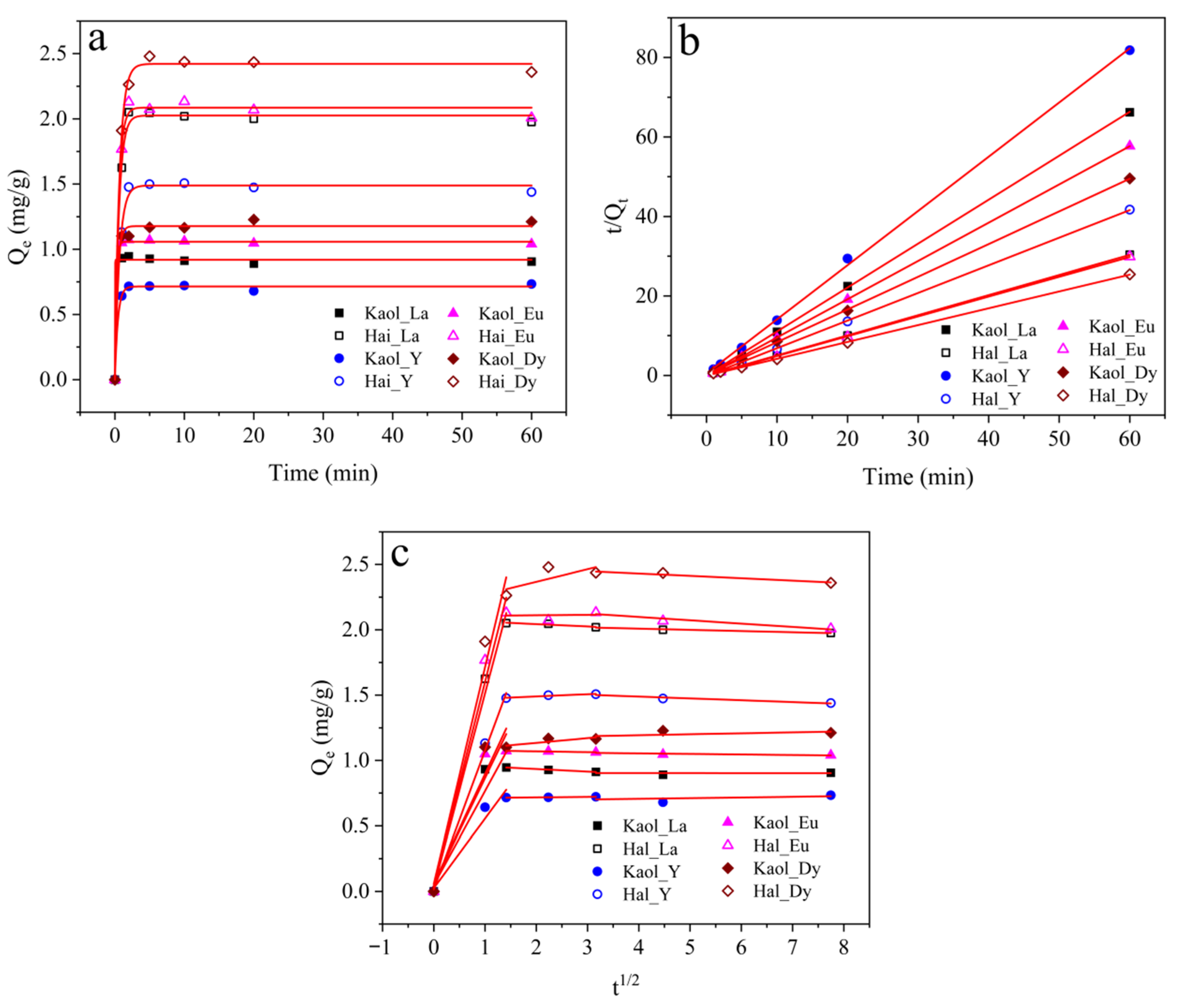

The adsorption kinetics of REEs on kaolinite and halloysite, as elucidated in Figure 9 and Table 2 and Table 3, conform to the pseudo-second-order kinetic model. This model suggests that the rate-limiting step involves chemical adsorption, where REE ions form chemical bonds with surface functional groups on clay minerals. The rapid initial adsorption rate, which reached equilibrium within the first five minutes, indicates a high affinity of REEs for clay surfaces. The consistency of the adsorption process with the Langmuir monolayer adsorption model further supports the notion of uniform, chemical adsorption. The Langmuir model assumes a homogeneous surface with finite adsorption sites, where each site can accommodate only one adsorbate molecule [35]. The high correlation coefficients (R² > 0.95) obtained from fitting the experimental data to the Langmuir model confirm the applicability of this model to REE adsorption by kaolinite and halloysite.

Spectroscopic analyses, including X-ray photoelectron spectroscopy (XPS) and Fourier transform infrared spectroscopy (FTIR), provide insights into the nature of REE-clay interactions. XPS results revealed that REEs are adsorbed on halloysite and kaolinite through both outer ring complexation (electrostatic attraction) and inner ring complexation. The inner ring complexes, formed by the coordination of REE ions with surface hydroxyl groups, are dominant. The FTIR spectra of the clay minerals before and after REE adsorption show characteristic peaks corresponding to Si–O–Si, Al–OH, and Al–O–Si vibrations. The absence of significant shifts in these peaks suggests that the basic structure of the clay minerals remains intact upon REE adsorption. However, subtle changes in peak positions and intensities indicate interactions between REE ions and surface functional groups. Specifically, the weakening and narrowing of the Al-OH absorption peak after REE adsorption suggest that REE ions are coordinated to these hydroxyl groups, forming inner ring complexes.

The effect of the solution pH on REE adsorption is profound. As the pH increases, the deprotonation of surface hydroxyl groups enhances the negative surface charge, thereby increasing the adsorption capacity for REEs. This trend is consistent across both kaolinite and halloysite, although halloysite has a higher adsorption capacity because of its larger specific surface area and greater number of surface hydroxyl groups. The variation in adsorption capacity among different REEs (La, Eu, Y, Dy) can be attributed to differences in ionic radius and the “lanthanide contraction” phenomenon [33]. Compared with heavy REEs (e.g., Y, Dy), light REEs (e.g., La) have larger ionic radii, which affects their coordination chemistry and interaction with clay surfaces [36,37]. The smaller ionic radius of heavy REEs allows for stronger coordination with surface hydroxyl groups, potentially explaining their higher adsorption capacities for clay minerals.

Understanding the mechanistic details of REE adsorption by clay minerals has significant implications for environmental remediation and industrial extraction processes. The ability of kaolinite and halloysite to effectively adsorb REEs from low-concentration sources, such as mine drainage and industrial wastewaters, offers a sustainable and cost-effective solution for REE recovery. Moreover, the selective adsorption of specific REEs on the basis of their ionic radius and coordination chemistry can be exploited to develop tailored adsorption materials for specific applications. Future research should focus on manipulating edge site densities through mineral modification to further increase the adsorption efficiency.

4. Conclusions

The adsorption of REEs by kaolinite and halloysite is a complex process governed by surface charge, hydroxyl group interactions, and chemical bonding. Under the same conditions, the adsorption capacity of halloysite is greater than that of kaolinite, and the unit adsorption capacity of kaolinite and halloysite for REEs increases with increasing pH. The adsorption capacity of different REEs for clay minerals also varies, which may be related to the radius of rare earth ions and the differentiation of light and heavy REEs. The adsorption process of kaolinite and halloysite on REEs is more in line with the pseudo-second-order kinetic model and Langmuir monolayer adsorption model. This indicates that the adsorption process is uniform, is mainly controlled by chemical adsorption, and that the adsorption rate is fast. The adsorption process of rare earth ions by halloysite and kaolinite also involves interactions between the surfaces of two clay minerals and free hydrated rare earth ions. Many hydroxyl groups (such as aluminum hydroxyl groups) on the surface of halloysite and kaolinite minerals can adsorb rare earth ions through inner ring complexation. Owing to atomic substitution, both clay minerals have permanent negative charges and can adsorb rare earth ions through outer ring complexation (electrostatic attraction). These findings provide a solid foundation for the development of efficient and sustainable REE extraction technologies.
