Holocene Evolution of Labu Peatland, Brunei Darussalam: An Initial Inventory Based on Multi Palaeoenvironmental Proxies

Abstract

This research investigates ten sediment cores extracted from Holocene deposits in Labu, northern Temburong District, Brunei Darussalam, to provide an initial inventory of the encountered peat-forming environments. Proximate, ultimate, and geochemical analyses were performed, along with mineralogical characterisations and ¹⁴C radiocarbon dating, as well as preliminary palaeontological and palynological examinations of the peat and underlying substrate layers. Localised organic deposits, termed “peat pockets”, were identified, with the oldest found to have begun accumulating under topogenous-mire conditions during the Middle Holocene. This coincides with the Mid-Holocene sea-level rise, which is thought to have peaked at 6000–4500 years BP. However, our data suggest that sea level may have continued rising until approximately 2500 years BP, peaking between 2500 and 1700 years BP, followed by delta progradation in Temburong. These “peat pockets” gradually coalesced into larger topogenous mires associated with estuarine environments. Over time, they became less influenced by marine conditions and increasingly shaped by a freshwater regime, resembling an upper delta system, similar to the present-day landscape observed in Temburong. It is proposed that these mires transitioned from a topogenous to an ombrogenous phase approximately 250 to 320 years BP, as inferred through forward age extrapolation based on a constant accumulation rate. The findings support the hypothesis of inland coastline migration during the Middle Holocene, followed by retraction due to deltaic progradation in the Late Holocene. These fluctuations align with well-established sea-level changes driven by climatic variability.

1. Introduction

Peatlands, covering approximately 3% of the global land area and hosting about 10% of the freshwater [1], are vital carbon sinks, sequestering nearly half of the atmospheric carbon dioxide [2]. Beyond carbon sequestration, they provide numerous ecosystem services, including water regulation, biodiversity habitats, and resources such as fruits and timber [3,4]. In Southeast Asia (SEA), peatlands span over 26 Mha, accounting for 69% of the world’s tropical peatland area [5]. This extensive coverage is primarily located in Sundaland, a tectonically stable region that emerged during the Pleistocene. Following the Last Glacial Period (LGP) and the subsequent rapid sea-level rise from the Early Holocene onwards, peatlands in SEA predominantly formed in marine-influenced to deltaic or fluviolacustrine systems associated with flooded coasts [6,7]. These developments underscore the dynamic interplay between geological processes and climatic conditions in shaping peatland environments.

Given their capacity to store vast amounts of carbon and their role in regulating local climates, understanding peatland dynamics is essential for addressing global climate challenges. Protecting these ecosystems not only contributes to carbon sequestration but also supports biodiversity and sustainable resource management. Beyond their ecological significance, peatlands serve as crucial palaeoenvironmental archives, including palaeobotanic and palaeoclimatic records, that enhance our understanding of past climates and environments, thereby assisting in predicting future environmental trends [8].

Brunei Darussalam represents a critical area with underexplored peatlands (including Labu) that hold significant potential for advancing our understanding of tropical peatland dynamics in this vital region [9]. Although studies have explored the ecological aspects and carbon storage capacity of Brunei’s peatlands (e.g., [10,11,12,13,14]), their geological characteristics remain understudied, creating a knowledge gap regarding their unique dynamics, as only a few stratigraphic details and geological information exist from Ulu Mendaram [9,15]. The Labu Peatland represents a critical piece of the puzzle in understanding peatland evolution within SEA, contributing to a broader regional understanding of these vital ecosystems.

Peatlands face threats from global climate change, which worsens droughts and leads to declining water tables. Additionally, wildfires and human activities, such as construction, agricultural conversion, livestock grazing, and illegal wood logging, further compound these challenges [2,16,17]. Despite global pressures, Brunei Darussalam actively preserves significant pristine peatlands, covering a total area of 576.5 kha, which constitutes approximately 19% of the country’s land area [12,18], predominantly located in the western region and along coastal lowlands, extending inland alongside rivers in the Tutong, Belait, and Temburong Districts [8]. Therefore, an inventory of the geological context of these ecosystems, including the lithological successions and the peat attributes, can serve as a baseline study for monitoring the environmental and climatic impact on peatlands in the region, as well as for planning restoration activities in disturbed peatlands, thereby underscoring the need for their preservation [8].

To our knowledge, this is the first study of the Labu peatland, as no previous research has ever been conducted on its ecological, hydrological, or geological aspects. This study specifically aims to interpret the evolution of peat-forming environments in Temburong District. By integrating existing research on Brunei’s peatlands with current studies on SEA’s palaeoenvironmental evolution, this research seeks to provide insights into the palaeoclimatic and palaeoenvironmental conditions of northern Borneo during the Middle to Late Holocene. The studied peatland is relatively pristine, located on the coastal lowlands, and acts as a valuable archive of the regional environmental changes. The findings aim to contribute to filling existing research gaps and to provide valuable information for conservation strategies and the enhancement of our understanding of tropical peatland ecosystems within SEA, one of the most significant regions for biodiversity and carbon storage globally.

2. Study Area

Brunei Darussalam, located on the northwest coast of Borneo (Figure 1), experiences two distinct climatic seasons: dry and wet. Temperatures range from 23.2 to 31.0 °C, with annual rainfall averaging approximately 3000 mm [19]. Its geological setting is dominated by three deltaic systems: the Meligan Delta, which includes the Meligan Formation (Middle Oligocene to Early Miocene), the Champion Delta, comprising the Setap Shale, as well as the Belait, Lambir, Miri, and Seria Formations (spanning from Middle to Late Miocene or Pliocene), and the Baram Delta, active since the Late Miocene and possibly as early as the Middle Miocene [20,21]. In the region of Temburong, the oldest Meligan Formation is unconformably overlain by the Setap Shale (Oligocene to Middle Miocene) and Belait Formations (Early to Late Miocene). The Belait Formation exhibits lateral transitions to the Setap Shale. The Lambir, Miri, and Seria Formations do not outcrop in the study area. The sedimentary sequences produced by these deltaic systems frequently exhibit facies variations, characterised by alternations of sandstone and claystone [22,23,24]. Quaternary alluvial sediments unconformably overlie the older formations.

The Labu Peatland is situated in the coastal lowlands of Temburong District, in the vicinity of the Sultan Haji Omar ‘Ali Saifuddien (SOAS) Bridge, and overlies Holocene inorganic sediments (Figure 1). It is bounded and presumably influenced by the modern Limbang, Temburong, and Trusan Rivers, which, together with the Padas River, supply sediments to Brunei Bay (Figure 1A). Brunei Bay has been tectonically shaped by the eponymous strike slip fault [25].

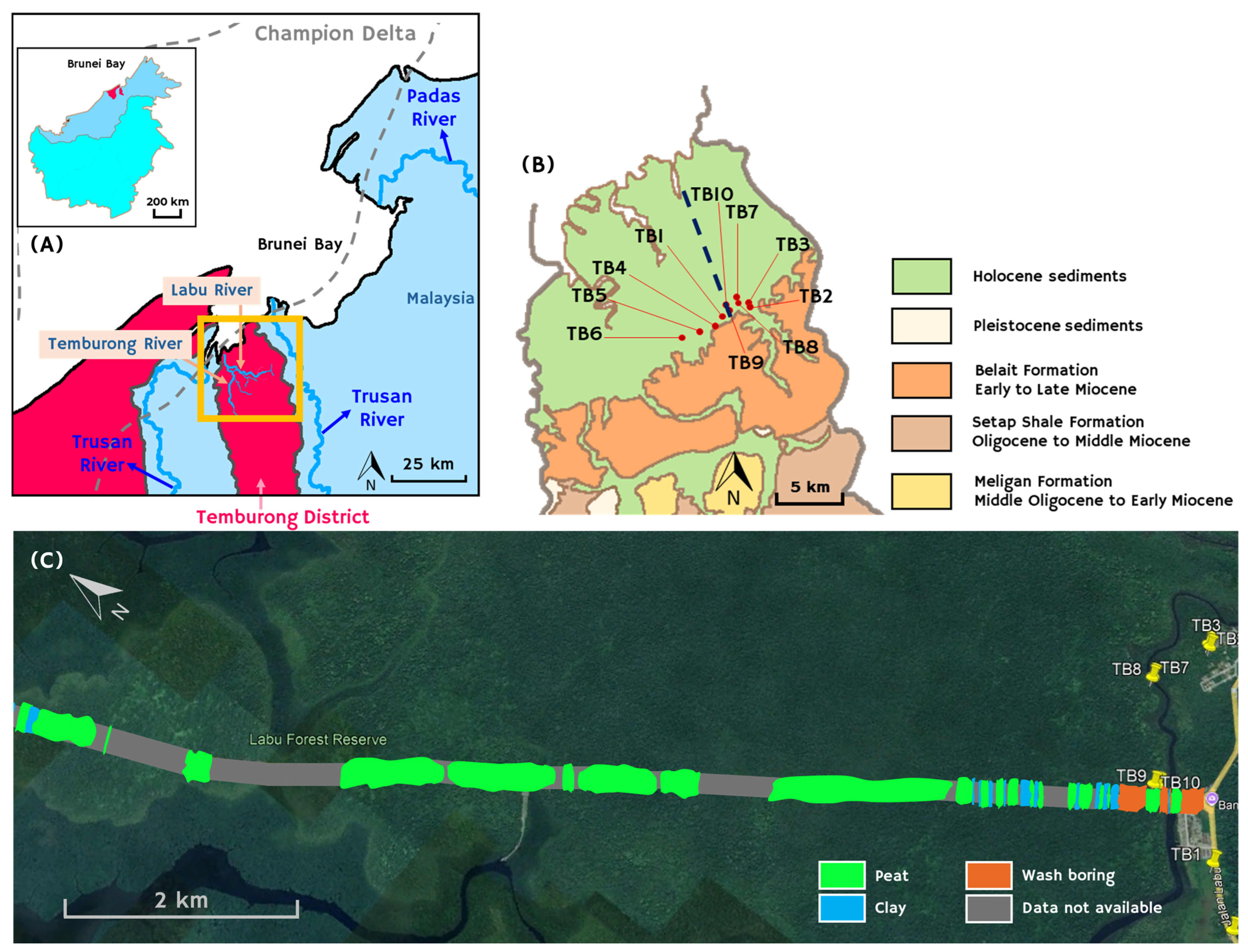

Figure 1. (A) Map of the coastal areas of Brunei Bay, which are shaped by the modern Limbang, Temburong, Trusan, and Padas Rivers, in the petroleum-bearing Champion Delta (outlined by dashed lines); the frame indicates the area depicted in panel B; (B) Simplified geological map of the north Temburong District, the eastern exclave of Brunei Darussalam (modified after [26]), indicating the positions of drilled sites TB1 to TB10; the dashed line indicates the position of SOAS Bridge, shown on panel C; (C) surface lithology of the area at the SOAS Bridge from borehole data kindly provided by China State Construction Engineering Corporation Ltd., Beijing, China The surface peat domains, interpreted as peat pockets, are locally interrupted by clay sediments. The inset shows the location of Brunei Darussalam on Borneo Island. Borehole data are not available from the grey areas.

Figure 1. (A) Map of the coastal areas of Brunei Bay, which are shaped by the modern Limbang, Temburong, Trusan, and Padas Rivers, in the petroleum-bearing Champion Delta (outlined by dashed lines); the frame indicates the area depicted in panel B; (B) Simplified geological map of the north Temburong District, the eastern exclave of Brunei Darussalam (modified after [26]), indicating the positions of drilled sites TB1 to TB10; the dashed line indicates the position of SOAS Bridge, shown on panel C; (C) surface lithology of the area at the SOAS Bridge from borehole data kindly provided by China State Construction Engineering Corporation Ltd., Beijing, China The surface peat domains, interpreted as peat pockets, are locally interrupted by clay sediments. The inset shows the location of Brunei Darussalam on Borneo Island. Borehole data are not available from the grey areas.

3. Material and Methods

3.1. Sample Collection

Ten boreholes were drilled in the Temburong lowland area using an Eijkelkamp, Giesbeek, The Netherlands, hand-driven (Russian-type) peat sampler, reaching a maximum depth of 550 cm under the surface in order to obtain an initial lithological log (Figure 1B,

Table 1. Details and data from the boreholes in the Labu peatland.

Site/Core	Depth (cm)	Lithology	hg	Total Moisture (wt.%)	Ash Yield (wt.%)	pH	EC (μS/cm)	Eh (mV)
TB2	0–5	Peat	6	81.88	20.33	3.76	149.9	332.9
	5–14	Peaty/Clayey mud		44.16	89.49	4.38	29.5	365.5
	14–60	Peaty/Clayey mud		54.32	83.09	4.34	35.4	387.1
	60–80	Peaty/Clayey mud		44.50	86.94	3.42	288.6	383.3
	80–100	Peaty/Clayey mud		40.29	87.59	3.39	343.4	416.6
	100–127	Peaty/Clayey mud		45.22	81.53	2.96	1577.6	416
	127–159	Peaty/Clayey mud		41.68	85.64	2.95	1163.7	441.1
	159–178	Clay		35.99	93.07	3.16	1134	402.3
	178–195	Clay		31.28	93.67	5.28	777.2	216.3
TB4	10–30	Clay		51.70	90.69	4.39	94.8	241.8
	30–70	Clay		39.56	92.93	5.18	51.8	276.3
	80–100	Clay		37.43	92.35	3.48	388.4	341.4
TB5	0–25	Peat	7	85.17	5.72	3.84	92.9	451.8
	25–50	Peat	7	87.67	18.00	3.70	134.1	390.1
	50–75	Peat	7	85.07	25.59	3.30	333.0	420.2
	75–100	Peat	7	84.30	31.23	2.48	1883.0	409.5
	100–133	Peat	7	82.92	45.68	2.34	2630.0	426.3
	133–150	Clayey mud		64.99	74.27	3.23	1080.9	414.9
	150–175	Alternations of clayey mud and fine detrital mud		55.93	77.96	3.28	1024.9	421.6
	175–200			55.03	78.60	3.23	1285.0	429.9
	200–225			55.13	79.02	3.32	1124.1	416.0
	225–250			54.20	79.51	2.79	1693.0	405.1
	300–320	Clay		57.84	90.45	3.82	575.2	370.0
TB6	8–30	Peat	6	83.06	26.28	4.32	57.8	378.4
	30–50	Peat	6	82.65	40.25	4.07	97.7	388.7
	50–75	Peat	6	77.24	50.00	3.13	498.9	418.8
	75–100	Peat	6	76.58	54.46	2.73	1270.6	421.4
	105–130	Clayey mud		65.61	71.91	2.74	2019.2	425.4
	130–150	Clayey mud		64.29	69.05	2.97	1267	427
	230–250	Clay		34.64	92.13	3.27	1116.6	405.7
	490–520	Clay		35.42	93.03	6.48	341.5	294.7
TB10	0–25	Peat	6	81.82	35.71	3.78	72.3	346.3
	25–50	Mud		62.98	80.40	3.67	45.3	444.8
	50–78	Mud		64.71	73.48	3.15	212.0	426.2
	78–91	Mud		64.38	79.41	2.45	1766.0	454.8
	91–102	Clayey mud		54.17	82.98	2.88	1530.2	431.2
	120–140	Clay		46.22	87.17	2.99	1054.3	414.3

; see also Supplementary). The cores were logged at the site based on their macroscopic features and the peat humification degree (hg) following the Von Post squeeze technique [27]. A total of 37 samples (11 peat, 17 organic-rich, and 9 inorganic) from five cores, were collected. The selection of sampling cores was based to cover the overall identified lithological successions (Table 1). Two samples were collected for radiometric dating: TB5 (123–133 cm) and TB10 (69–78 cm). The TB5 (123–133 cm) sample consists of peat and represents the basal peat layer overlying carbonaceous sediments, whereas the TB10 (69–78 cm) sample comprises peaty mud and corresponds to the lowest horizon containing sufficient carbonaceous material above the underlying inorganic sediments. These samples were selected to determine the onset of peat and carbonaceous accumulations at these sites, respectively. These samples (10 and 9 cm thick, respectively) were sliced directly from the core and subsequently stored at the Mineralogy, Petrology, and Geochemistry (MPG) Laboratory at the Faculty of Science, Universiti Brunei Darussalam (UBD).

3.2. Proximate and Ultimate Analyses

All the collected peat samples were air-dried, and the initial moisture was determined by weighing until a constant weight was achieved. The hygroscopic moisture was determined by weighing 1 g of the air-dried sample before and after oven-drying at 105 °C for 24 h until a stable weight was reached (ASTM D3173/D3173M-17a [28]).

Ash yield was determined on the dry samples using a Carbolite, Derbyshire, UK, AAF 12/18 ashing furnace at 550 ± 3 °C for four hours (ASTM D2974-20E1 [29]). Ash yield is primarily used to define and classify lithologies, although no global consensus exists on the precise limits (e.g., [30]). In this paper, peat is defined as having less than 50 wt.% ash yield on a dry basis (db), following [31]. However, ash yields up to 55 wt.% can also be considered peat, according to the comprehensive study of Wüst et al. [32], who investigated tropical peatlands. Ash yield values between 55 and 65 wt.% (db) indicate peaty mud, whereas sediments with an ash yield between 65% and 80% (db) are classified as clayey mud. Sediments with ash yield values above 80% (db) are considered inorganic.

The carbon (C), hydrogen (H), nitrogen (N), and sulphur (S) contents of 12 organic-matter-rich samples from boreholes TB5, TB6, and TB10, containing the thickest organic sediment layers, were analysed at the Chemistry Laboratory, Faculty of Science, UBD. A mass of 10 ± 0.5 mg of vanadium pentoxide was added to 3 ± 0.5 mg of the dry sample and analysed using a Thermo Fisher Scientific, Waltham, MA, USA, FLASH 2000 CHNS-O Analyzer (ASTM D5373-21 [33]). Results are reported on a dry, ash-free basis (wt.%, daf), with oxygen (O) calculated by subtracting the sum of C, H, N, and S from 100%.

Geochemical analyses for inorganic compounds were performed on selected oven-dried peat samples with variable ash yields at Activation Laboratories (Actlabs), Ontario, Canada. Samples underwent Aqua Regia digestion and were analysed using a Perkin Elmer, Waltham, MA, USA, Sciex ELAN 6000 inductively coupled plasma–mass spectrometer (ICP-MS). Quality assurance/quality control (QA/QC) included certified reference materials, procedural blanks, and duplicate samples to assess analytical accuracy and precision. Analytical uncertainty was generally within 10%–20%, with duplicate precision better than 20% for most elements, and accuracy verified to be generally within 15% of the certified values. The samples were selected from two intervals, the surface 0–25 cm and 123–133 cm depth in core TB5, to investigate and compare environmental conditions associated with markedly different electrical conductivity (EC) values.

3.3. Physical–Chemical Properties

The determination of pH and redox potential (Eh) values was conducted at the MPG Laboratory using a Mettler Toledo, Greifensee, Switzerland, multimeter (SevenExcellence S470), in accordance with ISO 10390:2021 [34] and ISO 11271:2022 [35]. Following this, the solutions were filtered using Whatman, Little Chalfont, UK, G2 filter paper, and their electrical conductivity (EC) was measured.

3.4. Mineralogical Determination

Inorganic samples were pulverised in an agate mortar to a particle size passing through a 230-mesh sieve and were then placed in sample holders for X-ray diffraction (XRD) analysis. The mineralogical composition of the inorganic samples was determined using a Shimadzu MAXima-X XRD-7000 diffractometer (Shimadzu, Kyoto, Japan), employing Ni-filtered CuKα radiation at 40 kV and 30 mA at the Centre for Advanced Material and Energy Studies (CAMES), UBD. The samples were scanned over a 2–70° 2θ interval, with a scanning rate of 5°/min and an angle step size of 0.02°. Interpretation of the diffractograms and the identification of minerals were performed using Match! software version 4.×.

3.5. Radiocarbon Dating

Humic acids and plant remains in the samples were separated at the Laboratory of Archaeometry, Institute of Nanoscience and Nanotechnology, NSR ‘Demokritos’, Athens Greece, for ¹⁴C radiocarbon dating analysis, using the radiometric gas proportional counting technique. This method involves converting the sample into CO₂ and measuring the radioactivity in cylindrical gas proportional counters, which detect beta particles emitted during the decay of ¹⁴C atoms. Calibrated dates were determined using the program OxCal v.4.4.4 [36] and the IntCal2020 calibration curve [37].

3.6. Micropalaeontological and Palynological Examinations

Micropalaeontological analysis, specifically the examination of foraminifera, was carried out on inorganic substrates from the TB6 core (490–520 cm depth) in the Palaeontology Laboratory at Geosciences, UBD. At the laboratory, samples were wet-sieved through a 425 μm mesh, and the residues were transferred onto a metal tray for examination under a Raxvision microscope at 2× to 4× magnifications [38].

In addition, a preliminary palynological assessment was performed on one profile to confirm the general palaeoenvironment of the Labu Basin. For this analysis, 10 g of sample from the inorganic substrate of the TB4 core (40–70 cm depth) was processed for palynomorph extraction. The sample was initially treated with 40% diluted hydrofluoric acid and soaked for three days to dissolve the silicate minerals. The sample was then boiled in 37% diluted hydrochloric acid for five minutes to remove carbonates and other soluble components, followed by chlorination to eliminate residual organic matter. Acetolysis was subsequently applied to further clean the sample by breaking down residual cellulosic material, thereby facilitating the identification work [39]. After these treatments, the sample was mounted and examined under a ZEISS, Oberkochen, Germany, Axiolab 5 light microscope at 40× magnification.

4. Results

4.1. Lithological Features

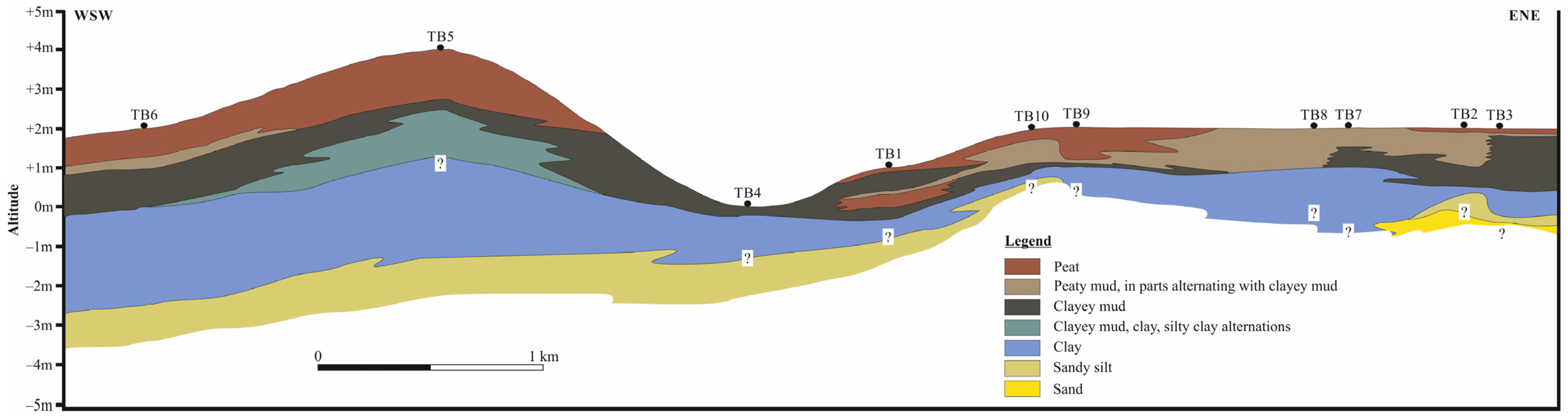

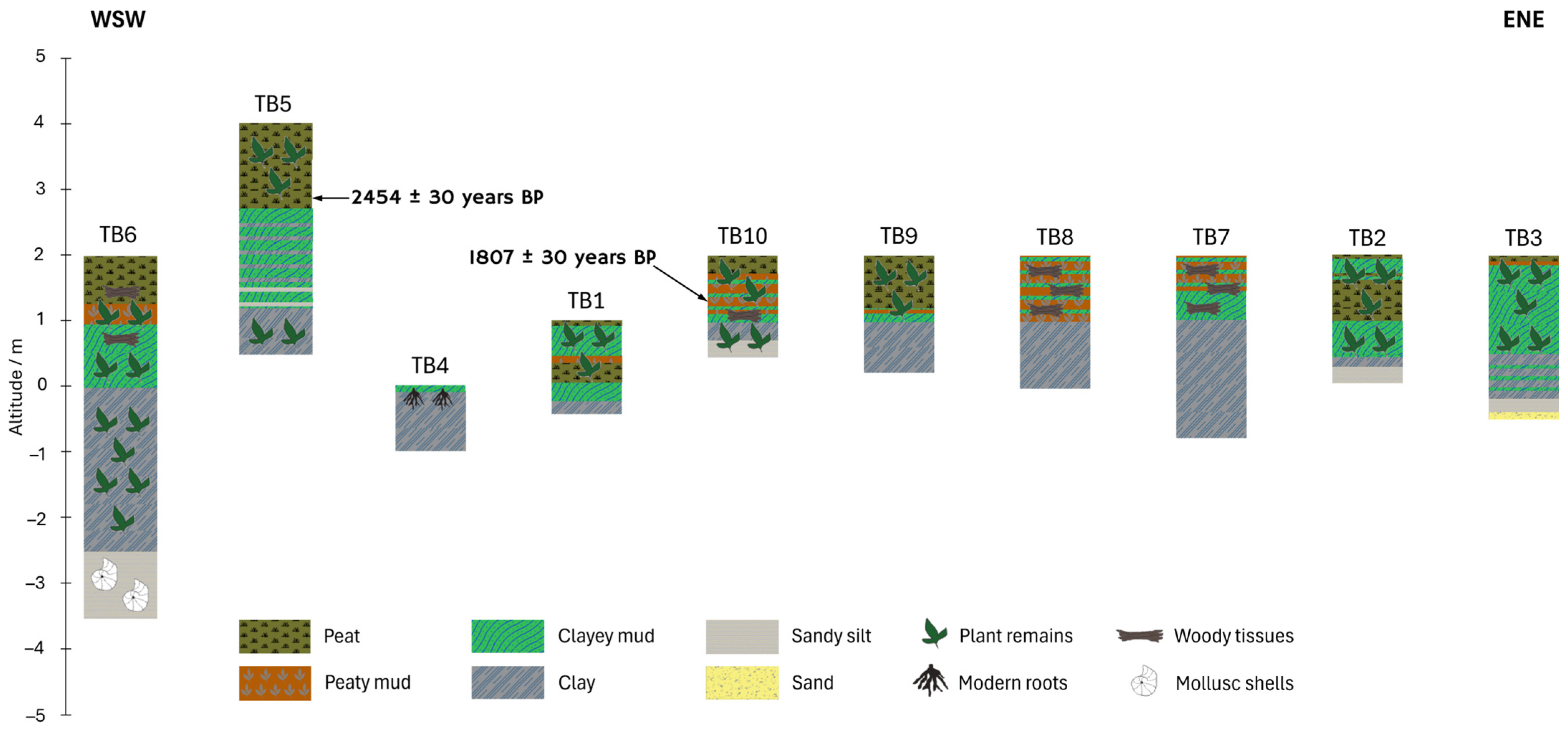

Ten boreholes were drilled along a roughly west–east-trending transect near the low-altitude coastal area of Temburong, reaching an altitude up to +4 m (Figure 2). TB6 and TB5, located on the western end of the transect, were the two deepest boreholes, reaching depths of 550 and 350 cm, respectively. Our boreholes, along with an extensive network of over 1000 predrills and more than 100 additional boreholes conducted in the Temburong District during the construction of the SOAS Bridge (Figure 1C), suggest sporadic occurrences of peat and other carbonaceous sediments (peaty mud and clayey mud) interbedded with inorganic sediment deposits and intercepted by clay layers (Table 1 and Figure 3). Logging data from these boreholes reveal that the Labu Peatland exhibits variable peat thickness, typically ranging from a few centimetres to 2–4 m, with some localities reaching up to 8 m (China State Construction Engineering Corporation Ltd., Beijing, China, personal communication).

Peat and other carbonaceous sediments in the Labu Basin are accumulating more in ‘peat pockets’, namely small, isolated peatlands dependent on the Holocene topography, than in extended peatlands (Figure 1C and Figure 3). The analysed samples revealed peat deposits of varying thicknesses, with a maximum drilled thickness of 133 cm and an overall maximum thickness of organic sediments (including peaty mud and clayey mud), reaching 280 cm in core TB5. The peat shows moderate to high humification degrees, ranging from 6 to 7 (Table 1; for detailed loggings see Supplementary). Peat thickness generally attenuates towards the east, measuring only 7–10 cm in cores TB2 and TB3. Extensive light to dark grey inorganic sedimentary substrates, including alternations of clay, sandy silt, and local sand, with lateral transitions dominated by white quartz, underlie the drilled organic sediments. Plant remains, mollusc shells, modern roots, and woody tissues are frequently included throughout all beds of the Labu Basin (Figure 2). The occurrence of Shorea albida predominates in the central and eastern parts of the transect, whereas the areas to the north of it are also largely dominated by Shorea albida but remain mostly inaccessible. In contrast, the western region (TB5, TB6) is characterised by the presence of Cyperaceae, primarily Cyperus platystylis and other Cyperus species.

4.2. Physical–Chemical Properties and Proximate Analyses

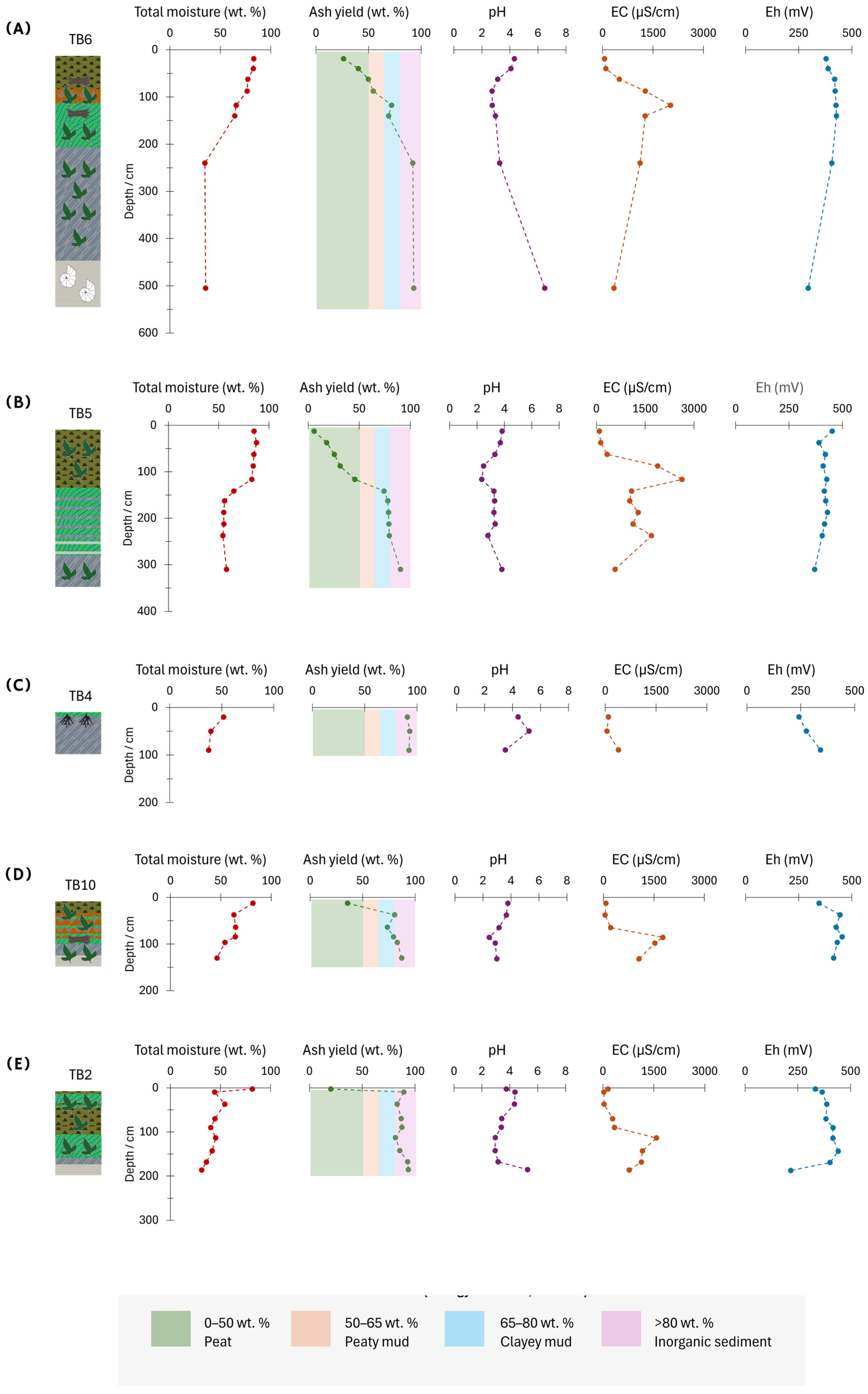

The moisture and ash yield are clear indicators of organic sediment characteristics. The relevant properties of the analysed samples are listed in Table 1. The peat moisture ranges from 76.6 to 87. 7 wt.%, decreasing in the carbonaceous sediments (40.7–65.6 wt.%) and reaching minimum values in the inorganic substrates (31.3–57.8 wt.%; Figure 4). The ash yield of the peat (<50 wt.%, db) generally decreases upwards, with its lowest values recorded at the top of cores TB6, TB5, and TB2 (26.3, 5.7, and 20.3 wt.%, respectively), indicating an upward increase in organic matter within the Labu peat deposits (Figure 4). The pH values are acidic with slight variations (TB6: 2.7–6.5; TB5: 2.3–3.8; TB4: 3.5–5.3; TB10: 2.5–3.8; TB2: 3.0–5.3), consistent with typical tropical peatland pH values in SEA (3–4; [40]). All cores show their most acidic values roughly between 50 and 150 cm depth, with slightly higher values towards the surface of the cores (Figure 4).

Electrical conductivity varies notably across the boreholes. In TB6, the EC values rise from 342 μS/cm at the substrate to 1267 μS/cm at a depth of 140 cm, peaking at 2019 μS/cm at a depth of 118 cm. It then decreases significantly in the overlying peat layer, from 499 μS/cm at 63 cm to 58 μS/cm at the surface (Figure 4A, Table 1). A similar trend is observed in TB5, where the EC rises from 575 μS/cm at the inorganic substrate to 1693 μS/cm at 238 cm, peaking at 2630 μS/cm at 117 cm depth, followed by a gradual decline toward the surface (Figure 4B). In TB10, the EC increases to 1530 μS/cm at 97 cm, peaks at 1766 μS/cm at 85 cm, and then drops to 72.3 μS/cm in the uppermost peat layer (Figure 4D). Similarly, TB2 shows a peak EC of 1577.6 μS/cm at 114 cm, decreasing to 149.9 μS/cm in the overlying peat layer (Figure 4E). These EC peaks coincide with the lowest pH values in all cores. Redox potential varies minimally (216.3–454.8 mV), indicating mildly reducing to mildly oxidising conditions throughout the profiles.

4.3. Geochemical Results

The determination of C, H, N, and S contents was conducted on the peat layers of cores TB2, TB5, TB6, and TB10 (Figure 5,

Table 2. CHNSO data from samples of the Labu peatland (daf: dry, ash-free basis; -: below the detection limit).

Site/ Core	Depth (cm)	Lithology	C (wt.%, daf)	H (wt.%, daf)	N (wt.%, daf)	S (wt.%, daf)	O (wt.%, daf)	H/C Atomic Ratio	O/C Atomic Ratio	C/N Atomic Ratio
TB2	0–5	Peat	49.86	5.68	3.13	0.31	41.02	1.37	0.62	18.57
	5–14	Peaty/Clayey mud	36.30	4.28	4.08	34.24	21.10	1.42	0.44	10.38
	14–60	Peaty/Clayey mud	36.68	4.43	2.83	27.37	28.69	1.45	0.59	15.14
	60–80	Peaty/Clayey mud
	80–100	Peaty/Clayey mud
	100–127	Peaty/Clayey mud
	127–159	Peaty/Clayey mud
	159–178	Clay
	178–195	Clay
TB5	0–25	Peat	56.98	6.72	2.48	0.39	33.43	1.42	0.44	26.81
	25–50	Peat	61.24	6.08	0.95	1.40	30.33	1.19	0.37	75.21
	50–75	Peat	51.99	4.51	0.77	2.44	40.29	1.04	0.58	78.61
	75–100	Peat	56.46	5.50	0.47	4.60	32.97	1.17	0.44	140.15
	100–133	Peat	51.00	5.23	0.58	6.37	36.82	1.23	0.54	102.59
	133–150	Clayey mud
	150–175	Alternations of clayey mud and fine detrital mud
	175–200
	200–225
	225–250
	300–320	Clay
TB6	8–30	Peat	51.77	5.29	1.30	0.26	41.38	1.23	0.60	46.54
	30–50	Peat	49.81	4.69	0.95	0.99	43.56	1.13	0.66	60.96
	50–75	Peat	46.40	4.56	0.78	3.23	45.03	1.18	0.73	69.41
	75–100	Peaty mud	41.17	4.39	0.72	5.96	47.76	1.28	0.87	66.70
	105–130	Clayey mud
	130–150	Clayey mud
	230–250	Clay
	490–520	Clay
TB10	0–25	Peat	59.69	5.92	2.20	1.76	30.42	1.19	0.38	31.61
	25–50	Mud	88.28	-	1.45	1.38	8.88	-	0.08	70.81
	50–78	Mud	63.47	-	0.95	1.86	33.72	-	0.40	78.02
	78–91	Mud	60.13	-	-	7.48	32.39	-	0.40	-
	91–102	Clayey mud
	120–140	Clay

). In TB6, carbon and hydrogen range from 41.2 to 51.8 wt.% and from 4.4 to 5.3 wt.%, respectively (dry, ash-free basis). Core TB5 shows similar ranges: 51.0–61.2 wt.% C and 4.5–6.7 wt.% H (dry, ash-free basis). The organic layers in the TB2 core are slightly poorer in C, ranging from 36.3 to 49.9 wt.%, whereas hydrogen contents range from 4.3 to 5.7 wt.%. The carbon contents in the organic lithologies of TB10 range from 59.7 to 63.5 wt.%, with one sample at 25–50 cm depth exhibiting an exceptionally high value of 88.3 wt.% C. Hydrogen contents in TB10 are extremely low in the peaty mud layers, and only the topmost peat layer shows a hydrogen value of 5.92 wt.%. Nitrogen and sulphur contents show comparable trends in all cores. Nitrogen generally increases from 2.8 to 4.1 wt.% in TB2, from 0.5 to 2.5 wt.% in TB5, from 0.7 to 1.3 wt.% in TB6, and from 1.0 to 2.2 wt.% in TB10 towards the surface. In contrast, S contents generally decrease towards the surface, ranging from 34.2 to 0.3 wt.% in TB2, from 6.4 wt.% to 0.4 wt.% in TB5, from 6.0 wt.% to 0.3 wt.% in TB6, and from 7.5 to 1.4 wt.% in TB10. Higher S concentrations are generally associated with elevated EC values (compare Figure 4 and Figure 5), which are likely affected by the presence of pyrite and oxidation processes. An exception is core TB2, which contains the highest amount of S; however, its variation is unrelated to the EC. The H/C and O/C ratios of the peat samples from four cores, plotted on a Van Krevelen diagram [41], are consistent with typical peat characteristics, indicating a perhydrous tendency (i.e., relatively high H/C ratios; Figure 6).

Trace element bulk geochemical analyses were conducted on peat samples from the 100–133 cm interval of core TB5 (highest EC = 2630 μS/cm) and the surface sample (0–25 cm; EC = 93 μS/cm) for comparison. The surface sample contains lower amounts of As, B, Cd, Co, Cr, Cu, Mg, Mo, Na, Ni, Pb, Sb, U, V, Y, and Zn than the deeper sample (Table 3).

The Post-Archean Australian Shale (PAAS)-normalised rare earth element (REE) pattern of the 100–133 cm sample is richer in total REE compared to the 0–25 cm sample. Both specimens demonstrate bell-shaped normalised patterns with middle REE (MREE) enrichments (Figure 7). Such patterns are typically observed in peaty or organic-rich sediments [42,43,44] or phosphate-rich deposits [45,46]. X-ray diffractograms revealed no evidence of phosphatic minerals, indicating that the REE signatures in both the 0–25 cm and 100–133 cm specimens are primarily governed by their organic matter, which forms stronger complexes with MREE and produces highly stable organic complexes [42,43,44].

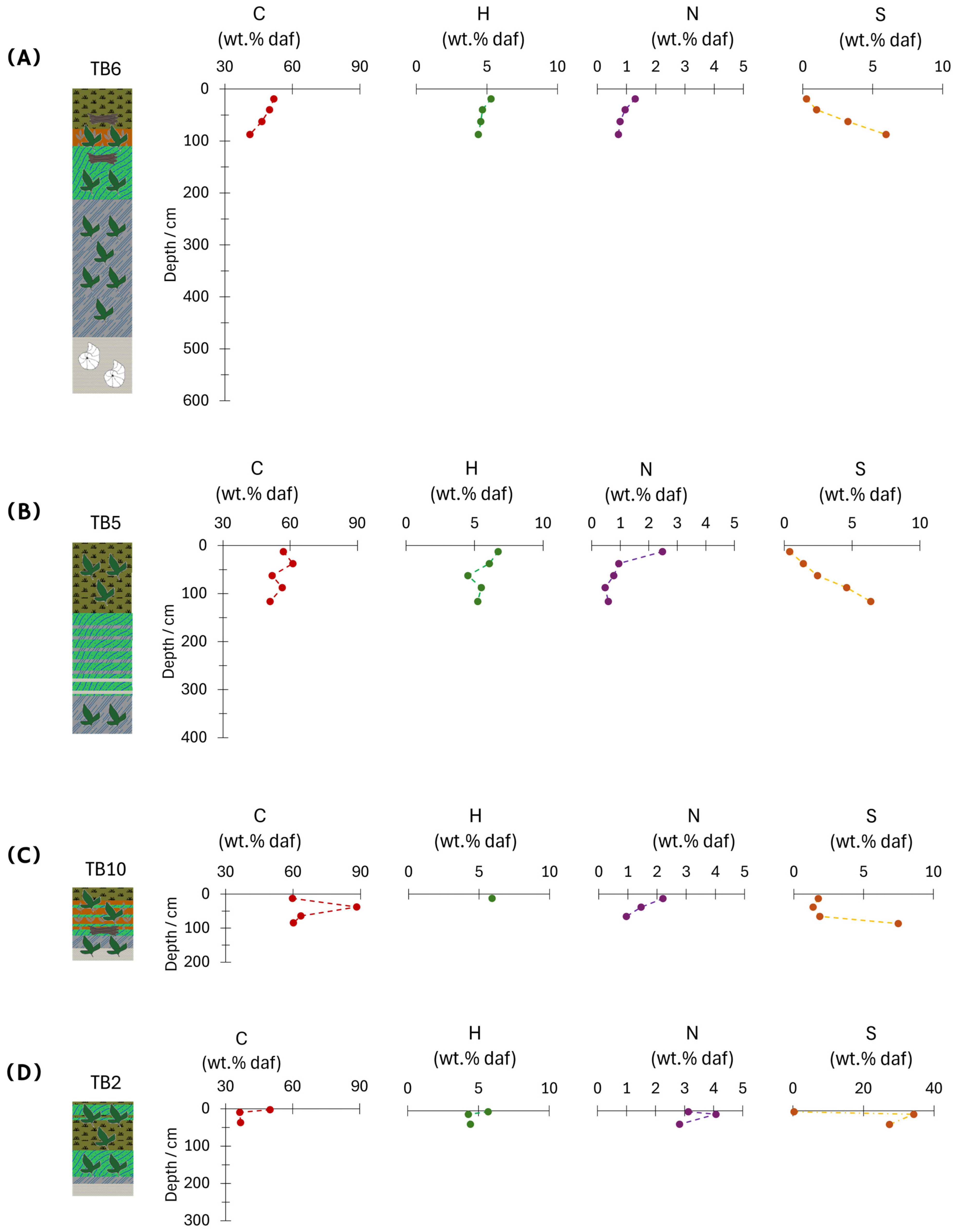

Figure 5. The C, H, N, and S contents along the (A) TB6, (B) TB5, (C) TB10, and (D) TB2 peat cores. Lithologies are the same as in Figure 2. Icons within the cores indicate the presence of plant remains, woody tissues, modern roots, and mollusc shells at their respective stratigraphic depths.

Figure 5. The C, H, N, and S contents along the (A) TB6, (B) TB5, (C) TB10, and (D) TB2 peat cores. Lithologies are the same as in Figure 2. Icons within the cores indicate the presence of plant remains, woody tissues, modern roots, and mollusc shells at their respective stratigraphic depths.

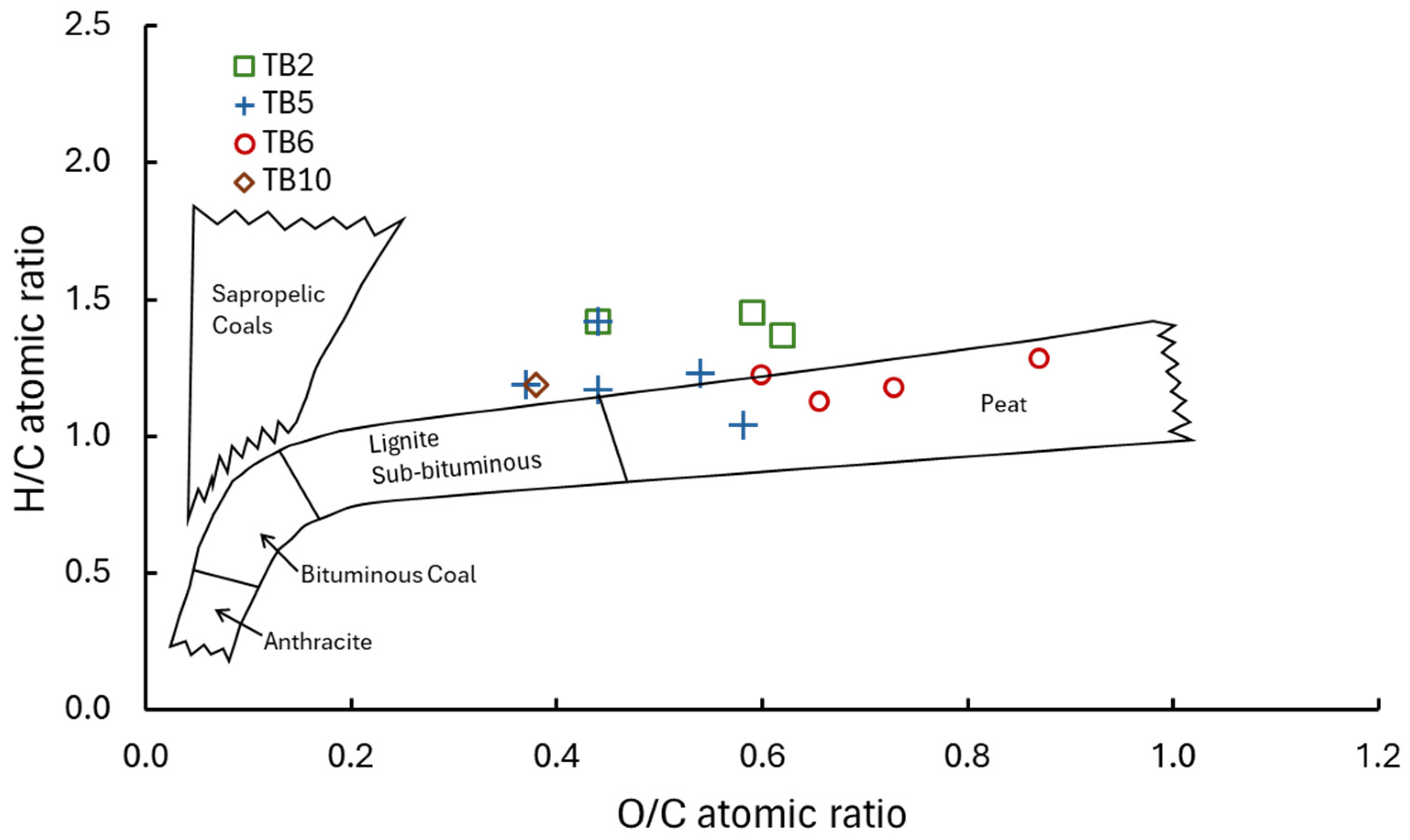

Figure 6. Van Krevelen [41] diagram plotting the atomic H/C ratio against the atomic O/C ratio for the Labu peat samples.

Figure 6. Van Krevelen [41] diagram plotting the atomic H/C ratio against the atomic O/C ratio for the Labu peat samples.

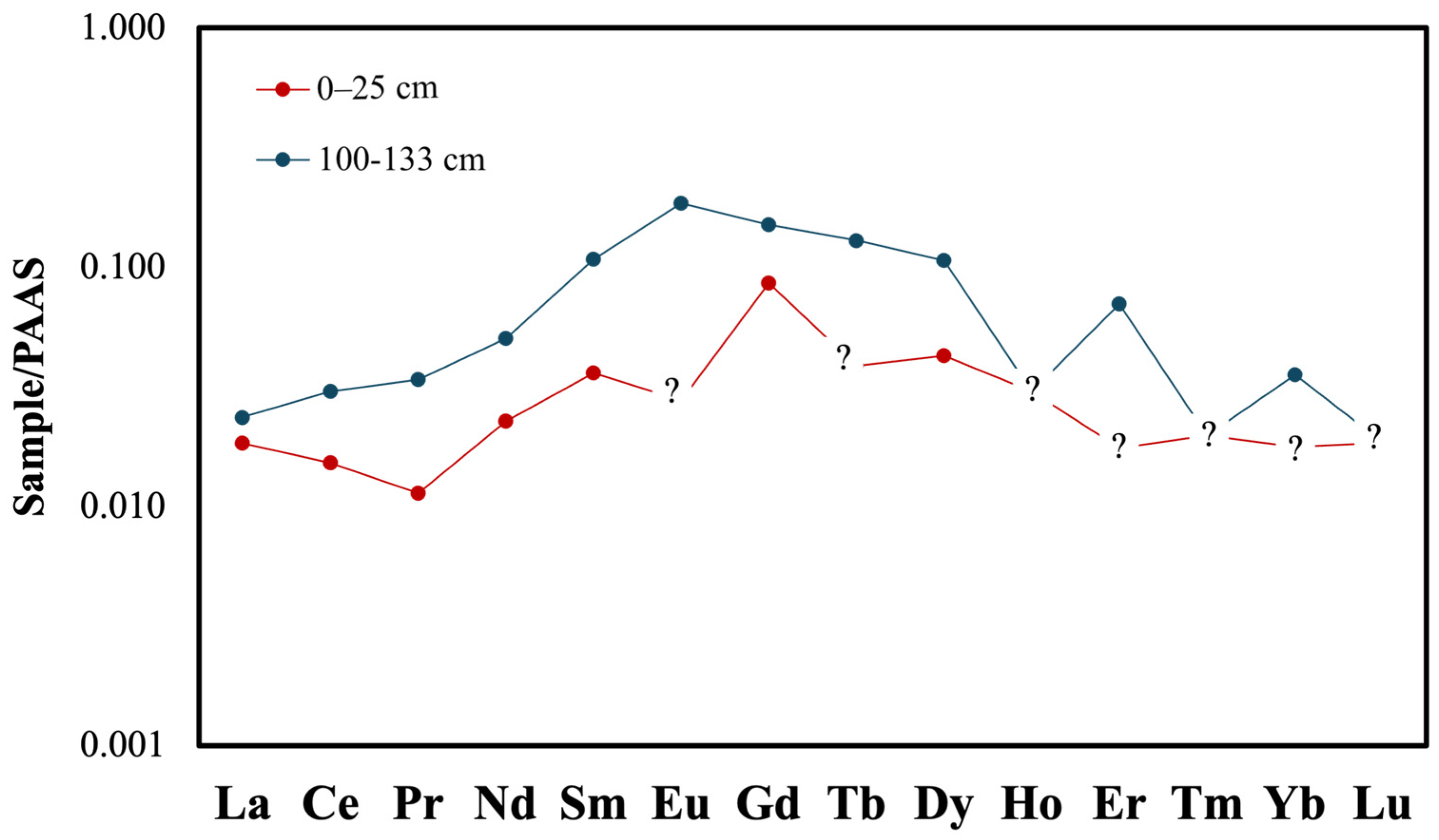

Figure 7. PAAS-normalised [47] REE profiles for two sediment samples from core TB5, collected at depths of 0–25 cm and 100–133 cm (? are values below the detection limits). The deeper sample (100–133 cm) exhibits higher total REE contents. Both profiles display MREE-enriched patterns, indicative of REE influence by organic matter.

Figure 7. PAAS-normalised [47] REE profiles for two sediment samples from core TB5, collected at depths of 0–25 cm and 100–133 cm (? are values below the detection limits). The deeper sample (100–133 cm) exhibits higher total REE contents. Both profiles display MREE-enriched patterns, indicative of REE influence by organic matter.

Table 3. Trace element contents (on a dry basis) of peat samples obtained from 0–25 cm and 100–133 cm depths from core TB5 (-: below the detection limit). The average composition of the upper continental crust was provided by McLennan [47] and Wedepohl [48]. Ce_anom: PAAS-normalised log₁₀[3Ce_N/(2La_N + Nd_N)].

Element	Unit	Detection Limit	0–25 cm	100–123 cm	McLennan (2001) [47]	Wedepohl (1995) [48]	Element	Unit	Detection Limit	0–25 cm	100–123 cm	McLennan (2001) [47]	Wedepohl (1995) [48]
Ti	wt.%	0.001	-	-	0.41	0.3117	Mo	ppm	0.01	0.17	5.7	1.5	1.4
Al	wt.%	0.01	0.31	0.81	8.04	7.7440	Nb	ppm	0.1	-	-	12	26
Fe	wt.%	0.01	0.32	1.46	3.50	3.0890	Nd	ppm	0.02	0.77	1.71	26	25.9
Mg	wt.%	0.01	0.05	0.11	1.33	1.3510	Ni	ppm	0.1	3.2	12.8	44	18.6
Ca	wt.%	0.01	0.2	0.07	3.00	2.9450	Pb	ppm	0.1	2.2	8.5	17	17
Na	wt.%	0.001	0.016	0.03	2.89	2.5670	Pr	ppm	0.1	0.1	0.3	7.1	6.3
K	wt.%	0.01	0.01	0.09	2.80	2.8650	Rb	ppm	0.1	0.6	7.9	112	110
P	wt.%	0.001	0.047	0.007	0.07	0.0665	Re	ppm	0.001	-	0.004	0.0004
S	wt.%	1	-	3		0.0953	Sb	ppm	0.02	-	0.15	0.2	0.31
Ag	ppm	0.002	0.021	0.028	0.05	0.055	Sc	ppm	0.1	-	1.8	13.6	7
As	ppm	0.1	0.7	3.1	1.5	2	Se	ppm	0.1	0.2	0.2	50	0.083
B	ppm	1	2	5	15	17	Sm	ppm	0.1	0.2	0.6	4.5	4.7
Ba	ppm	0.5	8.3	8.5	550	668	Sn	ppm	0.05	0.07	0.29	5.5	2.5
Be	ppm	0.1	0.1	0.2	3	3.1	Sr	ppm	0.5	21.9	13.3	350	316
Bi	ppm	0.02	-	0.15	0.127	0.123	Ta	ppm	0.05	-	-	1	1.5
Cd	ppm	0.01	0.02	0.05	0.098	0.102	Tb	ppm	0.1	-	0.1	0.64	0.5
Ce	ppm	0.01	1.21	2.41	64	65.7	Te	ppm	0.02	-	0.04
Co	ppm	0.1	0.8	5.6	17	11.6	Th	ppm	0.1	-	1.3	10.7	10.3
Cr	ppm	1	3	9	83	35	Tl	ppm	0.02	-	0.08	0.75	0.75
Cs	ppm	0.02	0.09	1.15	4.6	5.8	Tm	ppm	0.1	-	-	0.33
Cu	ppm	0.2	3.9	24.6	25	14.3	U	ppm	0.1	0.8	4.9	2.8	2.5
Dy	ppm	0.1	0.2	0.5	3.5	2.9	V	ppm	1	4	14	107	53
Er	ppm	0.1	-	0.2	2.3		W	ppm	0.1	-	-	2	1.4
Eu	ppm	0.1	-	0.2	0.88	0.95	Y	ppm	0.01	0.64	1.91	22	20.7
Ga	ppm	0.02	0.33	2.36	17	14	Yb	ppm	0.1	-	0.1	2.2	1.5
Gd	ppm	0.1	0.4	0.7	3.8	2.8	Zn	ppm	0.1	14.7	21.5	71	52
Ge	ppm	0.1	-	-	1.6	1.4	Zr	ppm	0.1	0.2	0.4	190	237
Hf	ppm	0.1	-	-	5.8	5.8	Au	ppb	0.5	3.3	6.2	1.8
Ho	ppm	0.1	-	-	0.8	0.62	Hg	ppb	10	330	50
In	ppm	0.02	-	-	0.05	0.061	Th/U			-	0.27
La	ppm	0.5	0.7	0.9	30	32.3	Sr/Ba			2.64	1.56
Li	ppm	0.1	0.3	7.5	20	22	Ceanom			−0.11	−0.03
Lu	ppm	0.1	-	-	0.32	0.27	(Cu + Mo)/Zn			0.28	1.41
Mn	ppm	1	17	22	600	527	Authigenic U			0.78	4.47

Table 3. Trace element contents (on a dry basis) of peat samples obtained from 0–25 cm and 100–133 cm depths from core TB5 (-: below the detection limit). The average composition of the upper continental crust was provided by McLennan [47] and Wedepohl [48]. Ce_anom: PAAS-normalised log₁₀[3Ce_N/(2La_N + Nd_N)].

Element	Unit	Detection Limit	0–25 cm	100–123 cm	McLennan (2001) [47]	Wedepohl (1995) [48]	Element	Unit	Detection Limit	0–25 cm	100–123 cm	McLennan (2001) [47]	Wedepohl (1995) [48]
Ti	wt.%	0.001	-	-	0.41	0.3117	Mo	ppm	0.01	0.17	5.7	1.5	1.4
Al	wt.%	0.01	0.31	0.81	8.04	7.7440	Nb	ppm	0.1	-	-	12	26
Fe	wt.%	0.01	0.32	1.46	3.50	3.0890	Nd	ppm	0.02	0.77	1.71	26	25.9
Mg	wt.%	0.01	0.05	0.11	1.33	1.3510	Ni	ppm	0.1	3.2	12.8	44	18.6
Ca	wt.%	0.01	0.2	0.07	3.00	2.9450	Pb	ppm	0.1	2.2	8.5	17	17
Na	wt.%	0.001	0.016	0.03	2.89	2.5670	Pr	ppm	0.1	0.1	0.3	7.1	6.3
K	wt.%	0.01	0.01	0.09	2.80	2.8650	Rb	ppm	0.1	0.6	7.9	112	110
P	wt.%	0.001	0.047	0.007	0.07	0.0665	Re	ppm	0.001	-	0.004	0.0004
S	wt.%	1	-	3		0.0953	Sb	ppm	0.02	-	0.15	0.2	0.31
Ag	ppm	0.002	0.021	0.028	0.05	0.055	Sc	ppm	0.1	-	1.8	13.6	7
As	ppm	0.1	0.7	3.1	1.5	2	Se	ppm	0.1	0.2	0.2	50	0.083
B	ppm	1	2	5	15	17	Sm	ppm	0.1	0.2	0.6	4.5	4.7
Ba	ppm	0.5	8.3	8.5	550	668	Sn	ppm	0.05	0.07	0.29	5.5	2.5
Be	ppm	0.1	0.1	0.2	3	3.1	Sr	ppm	0.5	21.9	13.3	350	316
Bi	ppm	0.02	-	0.15	0.127	0.123	Ta	ppm	0.05	-	-	1	1.5
Cd	ppm	0.01	0.02	0.05	0.098	0.102	Tb	ppm	0.1	-	0.1	0.64	0.5
Ce	ppm	0.01	1.21	2.41	64	65.7	Te	ppm	0.02	-	0.04
Co	ppm	0.1	0.8	5.6	17	11.6	Th	ppm	0.1	-	1.3	10.7	10.3
Cr	ppm	1	3	9	83	35	Tl	ppm	0.02	-	0.08	0.75	0.75
Cs	ppm	0.02	0.09	1.15	4.6	5.8	Tm	ppm	0.1	-	-	0.33
Cu	ppm	0.2	3.9	24.6	25	14.3	U	ppm	0.1	0.8	4.9	2.8	2.5
Dy	ppm	0.1	0.2	0.5	3.5	2.9	V	ppm	1	4	14	107	53
Er	ppm	0.1	-	0.2	2.3		W	ppm	0.1	-	-	2	1.4
Eu	ppm	0.1	-	0.2	0.88	0.95	Y	ppm	0.01	0.64	1.91	22	20.7
Ga	ppm	0.02	0.33	2.36	17	14	Yb	ppm	0.1	-	0.1	2.2	1.5
Gd	ppm	0.1	0.4	0.7	3.8	2.8	Zn	ppm	0.1	14.7	21.5	71	52
Ge	ppm	0.1	-	-	1.6	1.4	Zr	ppm	0.1	0.2	0.4	190	237
Hf	ppm	0.1	-	-	5.8	5.8	Au	ppb	0.5	3.3	6.2	1.8
Ho	ppm	0.1	-	-	0.8	0.62	Hg	ppb	10	330	50
In	ppm	0.02	-	-	0.05	0.061	Th/U			-	0.27
La	ppm	0.5	0.7	0.9	30	32.3	Sr/Ba			2.64	1.56
Li	ppm	0.1	0.3	7.5	20	22	Ceanom			−0.11	−0.03
Lu	ppm	0.1	-	-	0.32	0.27	(Cu + Mo)/Zn			0.28	1.41
Mn	ppm	1	17	22	600	527	Authigenic U			0.78	4.47

4.4. Mineralogical Composition

Mineralogical determinations were performed on six substrate samples from various depths in cores TB5, TB4, and TB2 using XRD (

Table 4. Summary of the mineral phases obtained from XRD analysis from the samples of the Labu cores.

Core	Depth (cm)	Lithology	Minerals
TB5	225–250	Clayey mud/Clay	Quartz, Muscovite/Illite, Pyrite
	300–320	Clay	Quartz, Muscovite/Illite, Pyrite
TB4	10–30	Clay	Quartz, Muscovite/Illite
	30–70	Clay	Quartz, Muscovite/Illite
TB2	100–127	Clayey mud	Quartz, Muscovite/Illite, Pyrite
	127–159	Clayey mud	Quartz, Muscovite/Illite, Pyrite

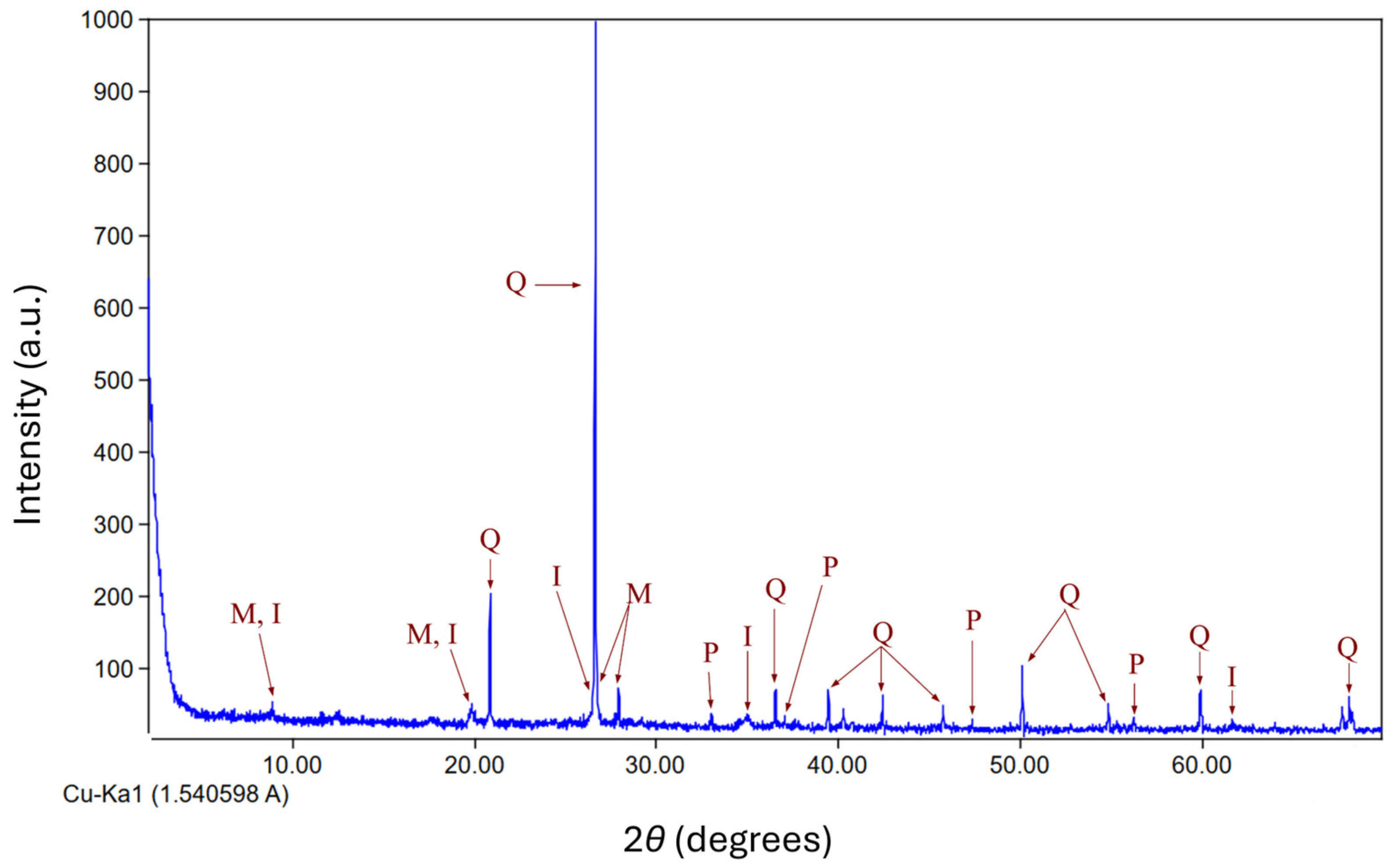

, Figure 8). Quartz is the dominant mineral phase, with subordinate muscovite and illite present in all carbonaceous and substrate sediments of the Labu Basin. Pyrite was identified in the clayey mud from TB5 and TB2, particularly in samples with elevated EC values. Mineral phases are consistent across cores and ages, indicating stability from past to present.

4.5. Radiocarbon Age of the Labu Peatland

Radiometric results from two samples, one from TB5 (123–133 cm) and one from TB10 (69–78 cm), are detailed in

Table 5. Radiocarbon dates for two peat samples collected from depths 123–133 cm in core TB5 and 69–78 cm in core TB10.

Core	Sample Type	Dated Material	Depth Interval (cm)	δ13C (‰)	Radiocarbon Date (Years BP)	Model Date (1σ cal BP)	Model Date (2σ cal BP)
TB5	Peat	Plant remains	123–133	−29.16	2454 ± 30	2698–2373	2704–2363
TB10	Peaty mud	Plant remains	69–78	−29.69	1807 ± 30	1736–1631	1818–1612

. The TB5 sample, from the lowest peat layer, yielded an age of 2534 ± 170 years cal BP (2σ), whereas the TB10 peaty mud sample yielded 1715 ± 103 years cal BP (2σ). It is reasonable to assume that approximately 1.20 m of carbonaceous material beneath the dated peat of TB5 began accumulating well before 2500–2600 years BP, and likely in the Middle Holocene (>4200 years ago). In contrast, the thinner organic layer beneath the dated layer at TB10 indicates later sediment accumulation, likely well into the Late Holocene.

4.6. Palaeontological and Palynological Observations

A few tens of foraminiferal taxon Elphidium craticulatum were recovered from core TB6, including several well-preserved individuals and others with poorly preserved, abraded shell surfaces (Figure 9).

A preliminary palynological study was conducted to support palaeonvironmental interpretations. Pollen analysis from the TB4 core yielded a total of 12 identifiable taxa. The assemblage comprised both pollen and spores, with preservation ranging from well-preserved specimens to poorly-preserved forms containing pyrite infills (Figure 10). Among the well-preserved taxa, Rhizophora-type pollen was the most common (six specimens), followed by Palaquium (four specimens), Durio (two specimens), and Pandanus (two specimens). Rare occurrences (fewer than one specimen each) included pollen from Chenopodiaceae, Leguminosae, Elaeocarpus, Phyllanthus, and Salix. Spores were consistently present throughout the samples, represented by Spore indet. 1, Spore indet. 2, and Lygodium spores.

5. Discussion

5.1. Peatland Type in Labu

Peat often begins accumulating in a topogenous mire (fen), thus being characterised by a relatively higher ash yield compared to ombrogenous (bog) peat [8,49]. In humid climates, an ombrogenous mire (bog) may subsequently develop over the fen peatland. As the bog is supplied solely by meteoric precipitation, the peat ash yield is lower and, consequently, the organic matter content (and, in turn, its carbon content) and moisture are higher compared to those in the fen peat. Globally, the transition from fen to bog peat is gradual, i.e., intermediate depositional conditions prevail between the topogenous and the ombrogenous stages, resulting in the accumulation of peat with transitional features (transitional mire).

Peat and other carbonaceous sediments in the coastal Labu Basin are sporadic, forming discontinuous isolated pockets within the surrounding Holocene inorganic sediments (Figure 1C and Figure 3). This interpretation aligns with our field observations and drilling data from the SOAS Bridge construction, which, despite some data gaps due to core losses, reveal peat layers intercalated with inorganic sediments, particularly along the bridge’s southern edge (Figure 1C). In all drilled peat pockets, organic matter deposition begins with clayey mud, occasionally followed by peaty mud, and is ultimately overlain by peat layers. The lower peat layers of TB6 and TB5, the thickest drilled sites, exhibit relatively high ash yields (31.2–50.0 wt.%), indicating substantial inorganic material influx; only the top 30 cm (in TB6) and 25 cm (in TB5) of the cores show a drastic decrease in ash yield (Figure 3). Higher sulphur contents in the lower levels of the peat are associated with the presence of pyrite (Table 4). The combination of high ash yield and elevated electrical conductivity (Table 1) supports the minerotrophic character of the mires, which developed on the clayey substrate dominated by fine-grained quartz, suggesting that the Labu peat pockets accumulated in several small, isolated topogenous mires. Organic sediment accumulation began at different times across the peat pockets, as evidenced by the varying initiation dates in TB5 and TB10, which are thought to represent distinct depositional sites. The general upward increase in carbon content, accompanied by a rapid decrease in ash yield and sulphur depletion, is consistent with the limited nutrient supply from minerals in TB5 and TB6 cores, the two thickest peat sections of the studied transect (Figure 5). This, along with a slight increase in pH in the topmost layers (Figure 4), supports the interpretation that a local transition to ombrogenous peatlands occurred only within the last 250–300 years BP. The observed upward increase in nitrogen is likely linked to biological fixation and atmospheric accumulation near the surface (Figure 4).

5.2. Holocene Dynamics

The Brunei Bay area receives substantial sediment input from the combined discharge of the modern Limbang, Temburong (including its tributary Labu), and Trusan Rivers, which, along with the Padas River, transport sediments into the Champion Delta in the bay [20]. The interplay of these river systems contributes to the dynamic sedimentary environment of Brunei Bay, shaping both coastal geomorphology and sediment distribution patterns. Organic sediment deposition was largely facilitated by the region’s gentle relief and minimal elevation variations in the Temburong area. The aquifer of the broader region is exposed in ephemeral ponds and rivers, and the region is frequently flooded by rainwater, leading to groundwater upwelling. Telmatic conditions and peat formation were apparently favoured in depressions where stagnant water persisted, forming the observed peat pockets.

Peatland formation in Labu began in various pockets between the Middle Holocene (TB5 at a depth of 280 cm) and the Late Holocene (TB10 at a depth of 100 cm). This timing aligns with the onset of most SEA peatlands between 3500 and 6000 years BP, following sea-level stabilisation [6,46,50]. Assuming nearly constant accumulation rates up to the surface, radiocarbon data (Table 5) allowed us to calculate consistent average accumulation rates of 0.51 mm/a for TB5 and 0.43 mm/a for TB10. These slow accumulation rates in the Labu Peatland are comparable to those reported from nearby synchronous topogenous peatlands in SEA, including Ulu Mendaram (2776 years BP; average accumulation rate 0.67 mm/a) in western Brunei Darussalam [9], Bacho Swamp (2400 years BP; average accumulation rate 0.83 mm/a) in Thailand [51], and Barambai Peatland (2350 years BP; average accumulation rate 0.43 mm/year) in South Kalimantan [52]. Several studies report a declining trend in peat accumulation rates across SEA from the Mid-to-Late Holocene, attributed to increased El Niño Southern Oscillation activity and a relatively drier climate [7,53].

Electrical conductivity values vary along the core depths in Labu, reflecting environmental shifts. EC values up to 400 μS/cm typically indicate freshwater sediments, whereas ranges between 400 to 1200 μS/cm and 1300 to 3000 μS/cm indicate brackish-water and marine sediments, respectively [54]. Core profiles show consistent trends, starting with low values at the base and increasing upward. The occurrence of foraminifera Elphidium craticulatum further supports the interpretation of a brackish palaeoenvironment, specifically within estuarine settings. Bottom environments of estuaries, lagoons, and bays are typically organic-rich and oxygen-depleted, conditions that are often reflected in the composition of their foraminiferal assemblages. In many estuaries, high primary productivity coupled with stratification between freshwater and saline waters enhances the organic enrichment of sediments and contains oxygen depletion in bottom waters, creating habitats favourable to tolerant benthic taxa [55]. The genus Elphidium (family Elphidiidae) is particularly characteristic of such environments and is associated with brackish to hypersaline conditions, where organic accumulation and low-oxygen conditions prevail [56]. In the TB6 core, the occurrence of abraded specimens of Elphidium craticulatum suggests transport or reworking in a high-energy environment, particularly associated with interconnected tidal channels or estuarine margins. Their presence beneath the peat horizon marks an earlier phase when the Labu Basin was still subject to marine influence, preceding the progressive infilling and hydrological shift that facilitated the transition to freshwater peatland development during the Middle Holocene.

However, the low EC values likely suggest that this environment was dominated by terrestrial sediment infill and hydrological isolation due to erosion. The onset of carbonaceous sedimentation in TB5 at 280 cm depth during the Middle Holocene coincides with a marked EC increase to 1693 μS/cm, indicating the emergence of a brackish environment. This is consistent with documented Middle Holocene sea level rise [57,58,59,60]. Maximum EC values (up to 2630 μS/cm) occur consistently at 80–130 cm depth in the cores (Figure 4), suggesting the persistence of this regime and the probable development of a coastal peatland. These depths correspond to a calculated age of approximately 2400–2600 years BP, based on radiocarbon dates and calculated accumulation rates (Table 5). Subsequently, EC declines again upwards, reaching low levels in the top 50–60 cm, which correspond to an age of approximately 1000–1300 years BP, consistent with the present-day river-dominated environment.

The diverse pollen assemblage supports a coastal or estuarine mangrove palaeoenvironment, adjacent to lowland tropical rainforest and possibly wetlands. Rhizophora sp. pollen in sandy silt sediments indicates a coastal mangrove setting [61,62,63], whereas Durio sp. and Palaquium sp. are associated with mire forests [61,63], suggesting proximity to a coastal mangrove region [61]. Additionally, Pandanus sp. indicates freshwater influence, further supporting this interpretation. Minor contributions from Dipterocarp pollen, such as Salix sp., Phyllanthus sp., and Elaeocarpus sp., imply influence from distant Dipterocarp forests, consistent with fossil records from Miocene deposits in the area [39]. The low pollen frequency and widespread abrasion marks, further support this interpretation, as river transport causes pollen abrasion.

5.3. Geochemical Signatures and Indices

Geochemical analyses were conducted on peat specimens from two depth intervals of core TB5: 0–25 cm (EC = 93 μS/cm) and 100–133 cm (EC = 2630 μS/cm). Both samples exhibit trace element values significantly lower than the average upper continental crust (Table 3). This is attributed to the low mineral matter in these organic sediments, which typically accommodate trace element abundances. In addition, the predominance of quartz in the ash yield significantly dilutes trace element concentrations. Trace elements are commonly used as indicators of environmental conditions in organic sediments. Elements such as As, B, Cd, Co, Cr, Cu, Mg, Mo, Na, Ni, Pb, Sb, U, V, Y, and Zn are particularly indicative of marine-influenced environments [64,65,66,67]. It has been proposed that Rb, Cs, Ga, Cr, Sc, Th, and possibly Nb are primarily controlled by detrital minerals. In contrast, V, Cu, U, Sn, Y, and Li generally exhibit concentrations above detrital levels and are thus influenced more by organic matter, making them more reliable indicators of the depositional conditions [66]. In our study, the 100–133 cm sample displays 2–30 times higher concentrations of all aforementioned index elements than the 0–25 cm sample (Table 3). However, interpretations based solely on individual trace element variations can be ambiguous due to their differential behaviour in brackish-water settings and the effects of sediment reworking and post-depositional processes, such as leaching and enrichment [68]. Moreover, the higher mineral matter in the 100–133 cm interval likely contributes to its elevated trace element concentrations. Therefore, we propose that element ratios may offer more reliable insights into the palaeoenvironment of Labu Peatland.

Several immobile elements under low temperatures, such as Th and Ga, are typically associated with terrestrial sediments and are easily enriched in clay minerals and/or organic matter. In contrast, U is highly mobile under near-surface conditions and can be readily oxidised and leached. All these elements are depleted in the near-surface peat sample (Th below detection limit, Ga = 0.33 ppm, U = 0.8 ppm) compared to the 100–133 cm peat sample (Th = 1.3 ppm, Ga = 2.36 ppm, U = 4.9 ppm). Under low pH conditions, Th becomes highly mobile, either as adsorbed species on organic ligands, as free Th⁴⁺ ions (predominant at pH < 3), or as hydroxo-complexes (predominant at a pH between 3 and 4.5), which explains its depletion in both samples, which have pH values of 3.8 and 2.3, respectively [69]. At surface conditions, uranium typically exists in its soluble, oxidised U⁶⁺ form, accounting for its depletion in the 0–25 cm sample. In contrast, the higher U concentration in the 100–133 cm sample suggests the presence of tetravalent U⁴⁺, which is relatively insoluble, indicating that reducing conditions prevailed during deposition.

The “authigenic uranium” (= total U − Th/3) content [70] has been proposed as an index of bottom-water anoxia in sedimentary sequences. The higher “authigenic uranium” value in the 100–133 cm sample further supports the establishment of anoxic conditions at that depth, around 2400–2600 years BP. Similarly, the (Cu + Mo)/Zn ratio is used to assess bottom-water oxygenation, with increasing values reflecting reducing conditions [71,72]. Under anoxic conditions and in the presence of H₂S, Cu precipitates more readily than Zn due to differences in the solubility products of their sulphides. Molybdenum is included in the numerator due to its abundance in sediments deposited under H₂S-bearing waters. The higher (Cu + Mo)/Zn ratio in the 100–133 cm sample (1.41) compared to the surface sample (0.28) aligns with the interpretation of anoxic conditions at the deeper level.

Because REEs are largely controlled by organic matter in the two specimens, they serve as reliable indicators in Labu peat. Fractionation of Ce relative to the rest REE has been documented as a proxy for environmental conditions and redox states in sedimentary regimes. Negative Ce anomalies are typically observed in marine and oxidising environments, where Ce³⁺ is converted to the less soluble Ce⁴⁺ [73,74]. The calculated Ce anomaly value (Ce_anom = log [3Ce_N/(2La_N + Nd_N)] PAAS-normalised [73] is more negative in the 0–25 cm sample (−0.11) than in the 100–133 cm sample (−0.03), reflecting oxidising conditions near the surface and anoxic-reducing conditions at depth (Table 3). Yu et al. [75] recommended that Ce_anom > −0.1 indicates an anoxic-reducing environment, whereas Ce_anom < −0.1 reflects Ce loss under oxidised conditions.

The Sr/Ba and Th/U ratios are effective tools for assessing palaeosalinity (e.g., [67,75]). Sr/Ba ratios < 0.6 indicate terrestrial freshwater deposition, whereas ratios > 1 suggest marine/brackish water deposition. The modern Labu Peatland lies essentially on the deltaic plain of the Temburong River and its tributary, the Labu River (Figure 1). Therefore, it is subject to regular tidal episodes and seawater intrusion. This explains the high Sr/Ba ratio (2.64) of the 0–25 cm sample. Likewise, the deeper 100–133 cm sample shows Sr/Ba = 1.56, also suggesting its brackish water influence. Studies of detrital shale environments suggest that Th/U ratios >7 indicate terrestrial freshwater deposition, values between 2 and 7 suggest brackish transitional facies, and Th/U <2 reflect marine/brackish water depositions [76,77]. The very low Th/U ratios in both samples support the interpretation of a brackish water influenced environment in Labu. In the 0–25 cm sample, Th is below the detection limit; however, a maximum Th/U ratio of 0.13 can be inferred by assuming the Th concentration equals its detection limit (0.1). This inferred ratio is even lower than the Th/U ratio observed in the 100–133 cm sample (Table 3).

5.4. Palaeoenvironmental Considerations

The high EC observed at the anoxic and reducing site of the 100–133 cm sample likely reflects elevated porewater salinity. The relative enrichments of Th and U in the 100–133 cm sample (Table 3) are consistent with these higher EC values and increased porewater salinity [78,79,80,81], as both elements are typically enriched in seawater due to their higher ionic strength [82,83,84]. The more anoxic and relatively more saline conditions at depth compared to the modern 0–25 cm specimen suggest a deeper regional environment during the Middle Holocene. In contrast, the shallow modern specimen reflects present-day conditions, oxidised, well-flushed, and characterized by lower dissolved ion concentrations (very low EC), consistent with aerobic conditions. These interpretations indicate that the 100–133 cm sample, dated 2400–2600 years BP, corresponds to a restricted estuarine regime, likely stagnant, and enriched in dissolved ions. This may reflect conditions typical of confined lagoonal settings or oxbow lakes within the lower delta of the river system.

However, boron values in this context are generally low and fall below the typical lower threshold of 50 ppm for brackish-water sediments [85]. Although B is often considered a reliable palaeosalinity indicator, similar deficiencies have been observed in other marine sediments, attributed to dilution by terrigenous materials transported by rivers [65]. The quartz-dominated composition of the inorganic mineral matter in the peat clearly indicates a terrestrial source, which may have diluted the boron signature. An alternative hypothesis suggests that boron typically adsorbs onto clay minerals. Given the limited presence of such minerals in our samples and the very low pH measured in Labu peat samples, it is plausible that boron was leached out [86].

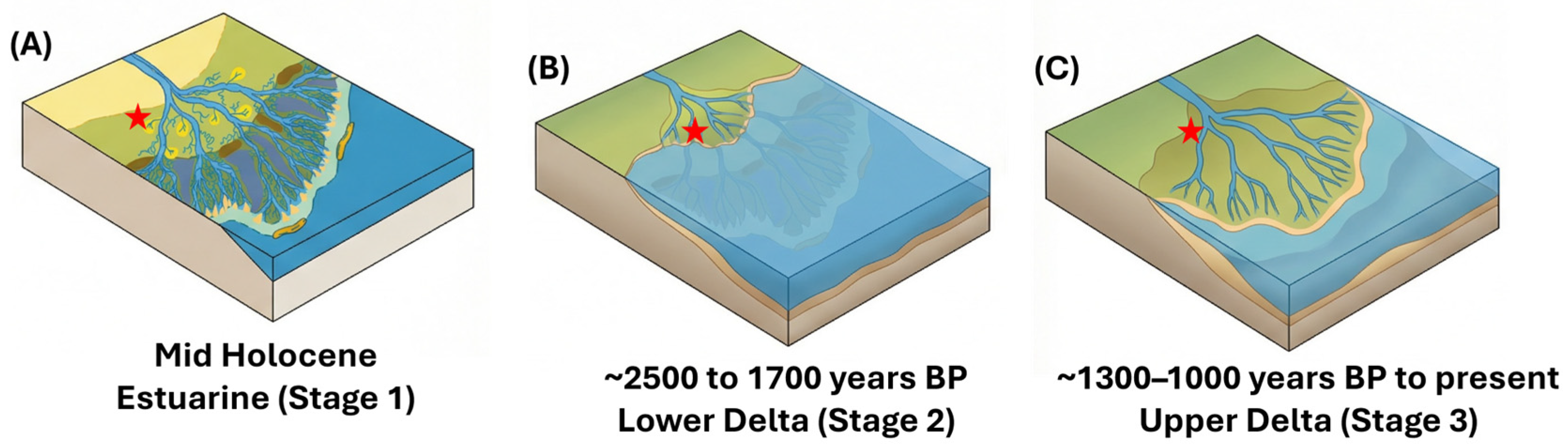

It is therefore postulated that rising sea levels likely triggered a transition from freshwater to brackish conditions in the Labu Basin during Middle Holocene (Figure 11). This transition is marked by the increase in EC from the bottom upwards in several boreholes (TB2, TB5, TB6, and TB10; Figure 4). During the Middle to early Late Holocene, Labu Peatland developed within a continuously evolving environment. High EC values support the hypothesis that from Middle Holocene to approximately 1000 years BP, Labu Peatland was evolving in a brackish-water setting, likely estuarine. We propose that a lower delta regime became established between ~2500 and 1700 years BP, aligning with earlier reports of sea-level rise during this period [87]. However, this interpretation conflicts with studies suggesting continuous sea regression following a maximum level reached (~4500–6000 years BP) [57,58,59,60]. This discrepancy underscores the urgent need to enhance the resolution of relative sea level records and palaeoclimatic proxies for the Late Holocene in the region. Subsequent seawater retreat (~1300–1000 years BP) enabled the development of a subaerial environment, likely representing an upper delta setting dominated by river floodplain processes around the Labu Peatland (Figure 11). This transition favoured an ombrogenous phase only within the last 250–320 years BP. The chronological constraints discussed earlier are based on two radiocarbon dates only and probably are subject to some uncertainty. The inferred ages for environmental changes and the fen-to-bog transition assume constant average accumulation rates within the Labu Peatland; however, this assumption may not hold true. Therefore, these estimated ages should be treated with care and regarded as approximate. The modern anastomosed river system observed today serves as a proxy for past conditions, where local disruptions in peatland formation resulted in the formation of isolated peat pockets.

5.5. Global Context and Climatic Influence

Globally, significant climatic fluctuations have influenced coastal environments and peatland development throughout geological time. The Holocene epoch, beginning approximately 11,700 years BP, was marked by elevated temperatures due to high solar radiation and melting ice sheets, resulting in higher sea levels than those observed today [60,88]. During the Early to Middle Holocene (ca. 10,000 to 5000 years BP), models suggest that maximum sea levels reached 2–5 m above present levels around 5000–6000 years ago [58,59,60]. These conditions likely facilitated the landward migration of mangrove mires and the evolution of coastal peatlands in SEA [17,53,61], including Ulu Mendaram in west Brunei Darussalam [9]. This warm period aligns well with our interpretation of Labu transitioning into an estuarine environment during the Middle Holocene (Figure 11A). Elevated temperatures and sea levels persisted during the Middle to Late Holocene, remaining approximately 2.5–3 m above current mean levels (see Figure 4 in [89] and Figure 5 in [8]). This supports our interpretation of Labu Peatland evolving into a lower delta environment between 2500 and 1700 years BP (Figure 11B). As sea levels gradually regressed, the environment transitioned to a freshwater-dominated, upper delta setting, similar to present-day conditions, around 1300–1000 years BP (Figure 11C). A typical ecological transition in SEA involves the replacement of mangrove forests by mire forests, exemplified on Borneo Island by the presence of Shorea albida [12,49,90].

As global temperatures declined, approximately between 1800 and 1600 years BP [91], climatic downturns led to reduced sea levels. During this period, sea levels fell to approximately 1.5–2 m above present levels [8,89]. The combination of relatively drier conditions and elevated sea levels contributed to the establishment of a brackish environment within Labu Peatland. To explain the retraction of seawater in Temburong and the shift towards a freshwater environment despite high sea levels, significant delta progradation must be considered. This shift occurred as river influence intensified and sediment input exceeded available accommodation space, resulting in a low accommodation-to-sediment supply ratio, rapid infilling, and basinward shoreline migration (Figure 11C). This phenomenon parallels findings in the Baram Delta west of Brunei Darussalam, where high sediment input rates led to outward delta extension, despite relatively high sea levels (1.5 to 2.5 m higher than present) around 3000 years BP [92,93], and in the older Kalang River system in Singapore between 9500 and 7200 years BP [94]. Such dynamics underscore the pivotal role of sedimentary processes in shaping the ecological landscape of Labu.

6. Conclusions

The study of Labu Peatland reveals a complex interplay between sediment dynamics, hydrological factors, and climatic factors, which affected the depositional environment. Characterised by deposition in discontinuous pockets, the Labu Peatland exhibits accumulation rates ranging from 0.43 to 0.50 mm/year, consistent with patterns observed in other synchronous Southeast Asian coastal peatlands. The evolution of Labu Peatland reflects significant environmental shifts from brackish conditions during Middle Holocene, to a lower delta environment approximately 2500 and 1700 years BP. A new transition around 1300 to 1000 years BP marks a shift to an upper delta environment, likely driven by enhanced delta progradation and changing sedimentary processes. Additionally, evolution indicates a transition from a topogenous to an ombrogenous stage approximately 250–320 years BP.

Overall, these findings suggest that Labu Peatland has undergone dynamic evolution influenced by geological processes and climatic variations. The inferred environmental shifts underscore the critical role of climatic conditions during the Holocene in shaping the peatland’s development. Consequently, Labu Peatland serves as a valuable palaeoclimatic archive, capturing the impacts of historical temperature fluctuations and sea-level changes. The insights gained from this study enhanced the understanding of mire and peatland formation and its responses to environmental changes, highlighting the importance of such ecosystems within global climate dynamics. As a critical piece of the geological puzzle in Borneo and Southeast Asia, Labu Peatland contributes to our understanding of tropical peatland dynamics in the region. This research enriches local knowledge and provides essential data that can inform regional conservation strategies aimed at preserving these irreplaceable ecosystems amidst ongoing environmental challenges.
