Group | Composition of an End Member | Inclusions | |
---|---|---|---|
Pyralspite | Pyrope | Mg3Al2(SiO4)3 | Apatite, ilmenite, rutile, undetermined fibrous minerals |
Pyrope-almandine | (Fe, Mg)3Al2(SiO4)3 | Zircon, monazite, apatite, rutile, mica, quartz, often very pure | |
Almandine | Fe3Al2(SiO4)3 | Zircon, rutile, mica, hornblende, apatite, spinel, quartz | |
Spessartine | Mn3Al2(SiO4)3 | Rarely present, growth lines – dark wavy feathers | |
Ugrandite | Andradite | Ca3Fe2(SiO4)3 | Chryzotile |
Grossular | Ca3Al2(SiO4)3 | Mostly no inclusions are found Tsavorite – zircon, fibrous minerals Hessonite – zircon, diopside, treacle and heat wave textures | |
Uvarovite | Ca3Cr2(SiO4)3 | Not determined |
Calligaro et al. [4] | Type I | Type II | - | Type III | Type IV | Type V |
---|---|---|---|---|---|---|
Gilg et al. [8] | Group B | Group A | Group C [10] | Group X | Group D | Group E |
Chemical Composition of Garnets | Almandines poor in Mg, Ca, Mn, also Cr and Y | Almandines rich in Mg, Mn, also Cr and Y | Almandines rich in Ca and Mg | Pyrope-almandines (rhodolite) | Pyropes poor in Cr | Pyropes rich in Cr |

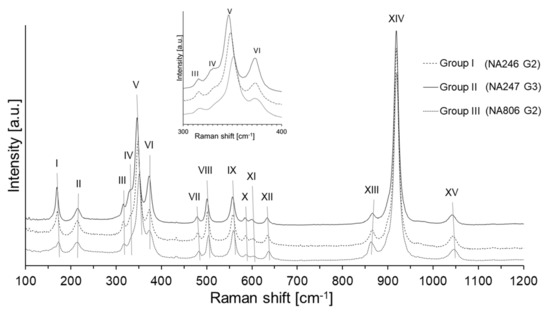

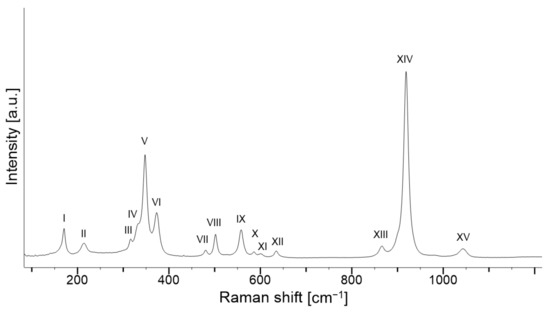

Assignment (mode) | Site Motion [22] | Band | S-fibulae | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NA246 | NA247 | NA401 | NA843 | NA806 | NA892 | ||||||||||||||||
G1 | G2 | G3 | G1 | G2 | G3 | G1 | G2 | G3 | G1 | G2 | G3 | G1 | G2 | G3 | G4 | G5 | G1 | G2 | |||

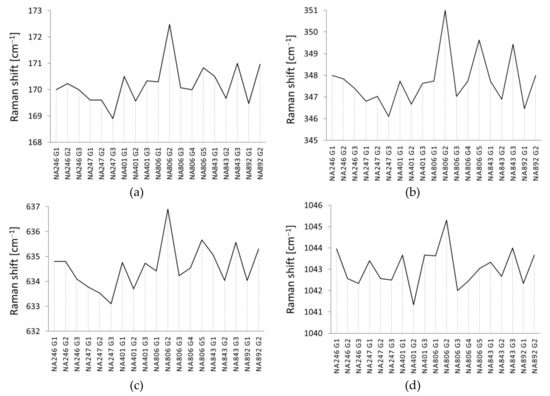

Translation of X cation | T(X2+) | I | 170.0 | 170.2 | 170.0 | 169.6 | 169.6 | 168.9 | 170.5 | 169.6 | 170.3 | 170.5 | 169.7 | 171.0 | 170.3 | 172.5 | 170.1 | 170.0 | 170.8 | 169.5 | 171.0 |
Translation of SiO4 | T(SiO4) | II | 214.4 | 214.2 | 213.5 | 215.0 | 215.0 | 215.0 | 214.2 | 215.6 | 214.5 | 213.9 | 215.2 | 214.0 | 214.3 | 213.2 | 215.5 | 214.4 | 213.7 | 215.9 | 214.2 |
Rotation of SiO4 | R(SiO4) | III | 316.2 | 315.7 | 315.8 | 315.9 | 316.0 | 315.6 | 316.4 | 315.9 | 316.1 | 316.5 | 316.6 | 316.6 | 316.3 | 317.1 | 315.9 | 315.9 | 316.6 | 315.7 | 316.3 |
T(SiO4) | IV | 330.8 | 330.8 | 331.5 | 330.8 | 330.9 | 330.3 | 332.3 | 331.9 | 333.0 | 332.9 | 331.9 | - | 331.9 | - | 330.6 | 330.8 | 333.6 | 330.3 | 333.5 | |
R(SiO4) | V | 348.0 | 347.8 | 347.4 | 346.8 | 347.0 | 346.1 | 347.7 | 346.7 | 347.6 | 347.7 | 346.9 | 349.4 | 347.7 | 351.0 | 347.0 | 347.7 | 349.6 | 346.5 | 348.0 | |
R(SiO4) | VI | 373.2 | 373.0 | 373.2 | 373.1 | 372.9 | 372.9 | 373.2 | 373.0 | 373.3 | 374.1 | 373.4 | 373.6 | 373.8 | 372.6 | 373.6 | 372.9 | 372.8 | 373.0 | 373.2 | |
Si–O bending | ν2 | VII | 481.0 | 479.7 | 479.7 | 479.7 | 479.5 | 478.9 | 480.3 | 479.8 | 480.1 | 480.4 | 479.7 | 481.2 | 480.1 | 482.0 | 480.2 | 480.6 | 481.0 | 479.6 | 480.4 |
ν4 | VIII | 501.8 | 501.8 | 501.4 | 501.4 | 501.1 | 500.9 | 501.9 | 501.0 | 501.8 | 501.9 | 501.3 | 502.7 | 502.1 | 503.7 | 501.6 | 502.2 | 502.7 | 501.0 | 502.0 | |
ν2 | IX | 557.7 | 557.9 | 557.7 | 557.8 | 557.6 | 556.9 | 558.0 | 557.5 | 558.0 | 558.1 | 557.6 | 558.4 | 558.0 | 559.0 | 558.3 | 558.0 | 558.1 | 557.7 | 558.3 | |
ν4 | X | 585.4 | 585.6 | 585.3 | 584.7 | 585.2 | 584.5 | 585.8 | 584.5 | 585.6 | 585.7 | 585.2 | 585.9 | 585.8 | 587.0 | 585.2 | 585.1 | 585.8 | 584.9 | 585.9 | |
ν4 | XI | 600.2 | 600.4 | 599.7 | 599.3 | 600.2 | 599.0 | 601.1 | 599.8 | 599.6 | 600.6 | 600.0 | 602.0 | 600.9 | 602.6 | 600.3 | 601.5 | 601.7 | 596.0 | 599.0 | |
ν4 | XII | 634.8 | 634.8 | 634.1 | 633.8 | 633.5 | 633.1 | 634.8 | 633.7 | 634.7 | 635.1 | 634.0 | 635.6 | 634.4 | 636.9 | 634.2 | 634.5 | 635.7 | 634.0 | 635.3 | |
Si–O stretching | ν3 | XIII | 866.4 | 865.4 | 866.1 | 866.0 | 865.8 | 866.0 | 865.6 | 865.3 | 865.7 | 866.4 | 866.3 | 864.3 | 865.5 | 864.6 | 866.5 | 864.9 | 862.9 | 865.6 | 866.7 |
ν1 | XIV | 919.3 | 918.8 | 918.8 | 919.2 | 919.2 | 918.5 | 918.9 | 918.4 | 918.8 | 919.1 | 918.7 | 918.3 | 919.2 | 919.0 | 919.2 | 918.3 | 917.4 | 918.4 | 919.5 | |
ν3 | XV | 1044.0 | 1042.6 | 1042.3 | 1043.4 | 1042.6 | 1042.5 | 1043.7 | 1041.3 | 1043.7 | 1043.3 | 1042.7 | 1044.0 | 1043.6 | 1045.3 | 1042.0 | 1042.5 | 1043.0 | 1042.3 | 1043.7 |
Type of Inclusion | Mineralogy and Chemical Formula | Artefact and Garnet |
---|---|---|
Quartz SiO2 | NA401 G3, NA806 G2, G4 and G5 | |

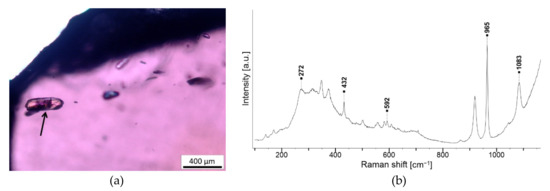

Transparent crystal | Apatite Ca5(PO4)3(Cl/F/OH) | All garnets of fibulae NA246, NA247, NA401, NA806 G1 and G4 |

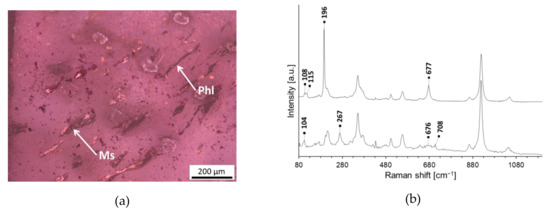

Mica (muscovite KAl2(AlSi3O10)(OH)2 or phlogopite KMg3(AlSi3O10)(OH)2) | NA401 G3, NA806 G2, G4 and G5 | |

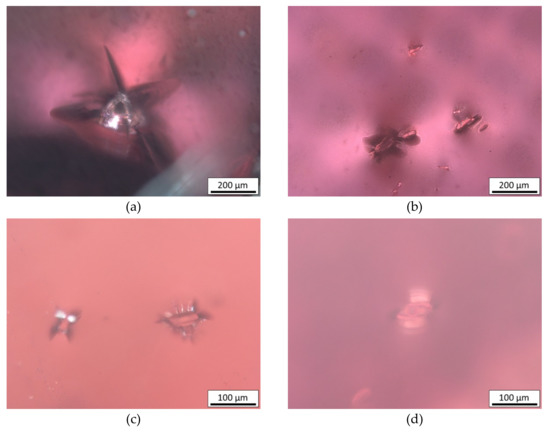

Crystal with radiation halo, pleochroic halo or tension fissures | Zircon Zr(SiO4) | NA246 G2, NA247 G2, NA401 G2, NA806 G2, 3 and 5, NA843 G2 |

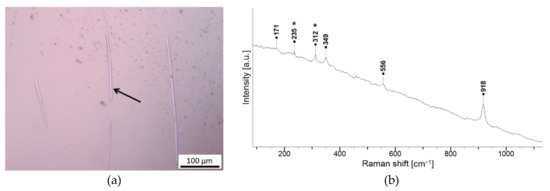

Transparent fibres | Sillimanite Al2(SiO4)O | NA806 G2 |

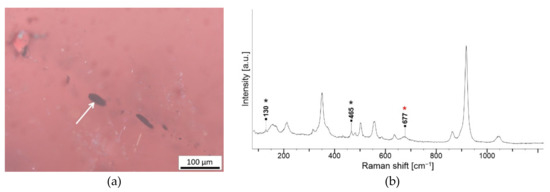

Opaque clusters | Magnetite (Fe2+,Fe3+)2O4, ilmenite Fe2+TiO3 | NA247 G1 and 2, NA401 G2 |

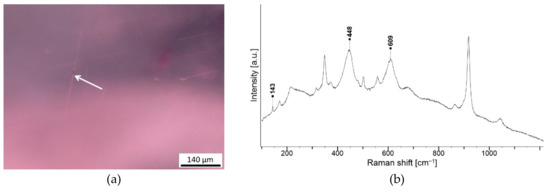

Opaque needles | Rutile α-TiO2 | NA806 G5, NA843 G3 |

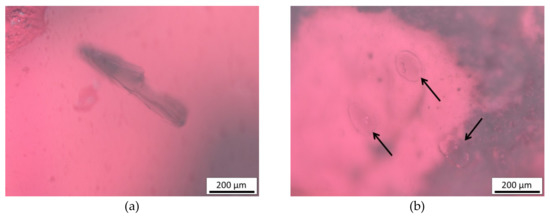

Brownish plate | Biotite K(Fe2+/Mg)2(Al/Fe3+/Mg)([Si/Al]Si2O10)(OH/F)2 or Xenotime (Y/Yb)(PO4) | NA892 G2 |
Spherical inclusions | unidentified (melt, fluid or gas) | NA843 G1, NA892 G2 |
