Equation of State of Highly Asymmetric Neutron Star Matter from Liquid Drop Model and Meson Polytropes

Abstract

We present a unified description of dense matter and neutron star structure based on simple but physically motivated models. Starting from the thermodynamics of degenerate Fermi gases, we construct an equation of state for cold, catalyzed matter by combining relativistic fermion statistics with the liquid drop model of nuclear binding. The internal stratification of matter in the outer crust is described by the $\beta$-equilibrium, neutron drip and a gradual transition to supranuclear matter. Short-range repulsive interactions inspired by Quantum Hadrodynamics are incorporated at high densities in order to ensure stability and causality. The resulting equation of state is used as input in the Tolman–Oppenheimer–Volkoff equations, yielding self-consistent neutron star models. We compute macroscopic stellar properties including the mass–radius relation, compactness and surface redshift that can be compared with recent observational data. Despite the simplicity of the underlying microphysics, the model produces neutron star masses and radii compatible with current observational constraints from X-ray timing and gravitational-wave measurements. This work demonstrates that physically transparent models can capture the essential features of neutron star structure and provide valuable insight into the connection between dense-matter physics and astrophysical observables; they can also be used as easy-to-handle models to test the impact of more complicated phenomena and variations in neutron stars.

1. Introduction

Compact stellar objects provide a unique natural laboratory for studying matter under extreme conditions [1,2,3]. In neutron stars, densities span over ten orders of magnitude, from the outer crustal layers to the supranuclear core, where the density exceeds that of an atomic nucleus. In this regime, quantum degeneracy, special relativity, nuclear interactions, and general relativity all become essential ingredients of a consistent physical description [4,5,6,7]. While these questions arise from fundamental physics, recent breakthroughs in neutron star measurements of masses and radii have allowed us to probe these theoretical predictions [8].

A detailed microscopic description of dense nuclear matter remains an open and challenging problem, with many-body calculations depending sensitively on complex nuclear interactions at high density, which are intensively researched [2]. Nevertheless, considerable physical insight can be gained from simpler, phenomenological models [9,10].

The inner structure of compact stars is determined by the balance between pressure and gravity, which in the relativistic regime is governed by Tolman–Oppenheimer–Volkoff equations [11,12]. Once an equation of state is specified, these equations uniquely determine the radial profiles of pressure, density and enclosed mass, as well as macroscopic observables such as the stellar mass and radius. Additional quantities like surface redshift and apparent radius provide direct links between microphysical models of dense matter and astrophysical observations.

The purpose of this work is to present a simple yet physically consistent framework for modeling neutron star structure across a wide range of densities. We begin by establishing the statistical mechanics of degenerate fermions, accounting for the Fermi pressure of electrons and neutrons in various density regimes. Next, we incorporate the liquid drop model (LDM) to describe nuclei in the crust, capturing the dominant volume, surface, Coulomb, and symmetry energy contributions. Using these building blocks, we construct phenomenological polytropic approximations of the pressure at high densities, which allow for a smooth transition from the crust to the core.

We then extend this approach with a relativistic mean-field (RMF) treatment of nuclear interactions, including scalar and vector meson contributions ($\sigma$, $\omega$, $\rho$), and account for the reduction in the effective neutron mass due to the scalar field. By calibrating the meson couplings and density-dependent scalar fractions, we obtain an equation of state that remains causal and stable up to supranuclear densities. Finally, the resulting EOS is confronted with observational constraints, including neutron star masses, radii, gravitational redshifts and waves, and apparent radii, providing a comprehensive yet computationally tractable model for neutron star structure [3,13,14].

The equation of state constructed here is explicitly phenomenological and is intended as a minimal, physically transparent baseline rather than a microscopic description of dense QCD matter. Our goal is not to model exotic degrees of freedom such as hyperons, deconfined quarks, or condensates, but to provide a unified framework in which the consequences of well-established physics—degeneracy pressure, $\beta$-equilibrium, saturation, and short-range repulsion—can be systematically explored. In this sense, the model serves as a testbed for assessing how macroscopic neutron star observables depend on the stiffness of the EOS, largely independent of detailed microphysics.

From the perspective of high-energy and nuclear physics, this phenomenological character reflects an effective, coarse-grained description in which microscopic QCD degrees of freedom are integrated out, leaving a small set of parameters constrained by symmetry, thermodynamic consistency, and observations. The model is therefore not intended as a first-principles treatment of dense QCD matter, but as a framework appropriate for neutron star interiors.

The structure of the paper is as follows. In Section 2, we derive the theoretical equations that describe the system from first principles. We present the results of the equations for neutron stars in Section 3. We conclude with Section 4.

2. Theoretical Background

Here, we provide a comprehensive discussion of the theoretical considerations that will be used to derive the equations for the system. Thus, we present the basic theoretical components that will be later used in the context of neutron stars.

2.1. Statistical Mechanics of Degenerate Matter

The thermodynamic properties of matter in compact stars are governed by fermion thermodynamics and statistical physics. The first law of thermodynamics reads

$$dU=TdS-PdV+\mu dN,$$

(1)

Here, U denotes the internal energy, S the entropy, T the temperature, P the pressure, V the volume, $\mu$ the chemical potential, and N the particle number of the system. At the densities of interest, the Fermi energy of the constituents is much larger than the thermal energy, and matter can be accurately described in the zero-temperature limit [15,16]. In this regime, it reduces to the following relation, with the energy and number density, u and n, respectively:

$$P=-u+\mu n.$$

(2)

The single-particle energy $ϵ$ of a relativistic fermion with mass m and momentum p is

$$ϵ\left(p\right)=\sqrt{p^2{c}^2+m^2{c}^4}=m{c}^2\sqrt{1+a^2},a={\displaystyle \frac{p}{mc}}.$$

(3)

The non-relativistic ($a\ll 1$) and ultra-relativistic ($a\gg 1$) limits recover the familiar expressions $ϵ\simeq m{c}^2+p^2/\left(2m\right)$ and $ϵ\simeq pc$, respectively.

For a system of free fermions occupying the same physical volume, each quantum state occupies a volume $h^3$ in momentum space. The number density is therefore given by

$$n={\displaystyle \frac{g}{h^3}}\int f_{\mathrm{FD}}\left(p\right)d^{3}p.$$

(4)

Here, g is the degeneracy factor and $f_{\mathrm{FD}}$ the Fermi–Dirac distribution function.

In the zero-temperature limit relevant for compact stars,

$$f_{\mathrm{FD}}\left(ϵ\right)=\left\{\begin{array}{cc}1,\hfill & 0<ϵ\le \mu ,\hfill \\ 0,\hfill & ϵ>\mu ,\hfill \end{array}\right.$$

(5)

and the chemical potential coincides with the Fermi energy, ${ϵ}_F$, the highest occupied energy state,

$$\mu ={ϵ}_F=\sqrt{p_F^2{c}^2+m^2{c}^4}.$$

(6)

where $p_F$ is the Fermi momentum.

Assuming spherical symmetry in momentum space,

$$n={\displaystyle \frac{g}{{(2\pi \hslash )}^3}}{\int }_0^{p_F}4\pi p^{2}dp={\displaystyle \frac{g{p}_F^3}{6{\pi }^2{\hslash }^3}},u={\displaystyle \frac{g}{{(2\pi \hslash )}^3}}{\int }_0^{p_F}4\pi ϵ\left(p\right)p^{2}dp.$$

(7)

Introducing the dimensionless Fermi momentum $x=p_F/\left(mc\right)$ and defining $E_0=m^4{c}^5/\left({\pi }^2{\hslash }^3\right)$ for spin $1/2$ fermions ($g=2$), one finds

$$u={\displaystyle \frac{E_0}{8}}g\left(x\right),g\left(x\right)=(2x^3+x)\sqrt{1+x^2}-arcsinh\left(x\right)$$

(8)

Using the thermodynamic identity Equation (2), the pressure can be written in compact form as

$$P={\displaystyle \frac{E_0}{24}}f\left(x\right),f\left(x\right)=(2x^3-3x)\sqrt{1+x^2}+3arcsinh\left(x\right).$$

(9)

In the non-relativistic limit ($x\ll 1$), the leading-order expressions are the following:

$$u_{\mathrm{NR}}=nm{c}^2+{\displaystyle \frac{3}{5}}{\displaystyle \frac{{\hslash }^2}{2m}}{\left(3{\pi }^2\right)}^{2/3}{n}^{5/3},P_{\mathrm{NR}}={\displaystyle \frac{{\hslash }^2}{5m}}{\left(3{\pi }^2\right)}^{2/3}{n}^{5/3}.$$

(10)

On the other hand, in the ultra-relativistic limit ($x\gg 1$), one obtains

$$u_{\mathrm{UR}}={\displaystyle \frac{3}{4}}\hslash c{\left(3{\pi }^2\right)}^{1/3}{n}^{4/3},P_{\mathrm{UR}}={\displaystyle \frac{\hslash c}{4}}{\left(3{\pi }^2\right)}^{1/3}{n}^{4/3}.$$

(11)

2.2. Liquid Drop Model

The liquid drop model, also known as the semi-empirical mass formula, provides a macroscopic description of nuclear binding energies and remains a useful tool for modeling nuclear matter in astrophysical environments. While the model neglects shell effects and therefore cannot reproduce magic numbers or detailed nuclear structure, it captures the dominant contributions to nuclear binding and is particularly well suited for describing nuclei with large mass numbers, as encountered in the crust of neutron stars [17].

In this semi-classical picture, the nucleus is treated as a droplet of incompressible nuclear fluid at approximately constant density ${\rho }_0\simeq 2.7\times {10}^{14}\mathrm{g}{\mathrm{cm}}^{-3}$, while the nuclear radius scales as $R\propto A^{1/3}$, where A is the mass number. Short-range strong interactions give rise to a bulk (volume) binding energy, while finite-size effects generate a surface correction. Long-range Coulomb repulsion between protons contributes an additional positive energy term. Kinetic effects associated with the Pauli principle are incorporated phenomenologically through the volume and asymmetry terms.

The total nuclear energy may be written schematically as [18,19]:

$$E=Z{m}_p{c}^2+N{m}_n{c}^2+E_{\mathrm{vol}}+E_{\mathrm{surf}}+E_{\mathrm{coul}}+E_{\mathrm{sym}}+E_{\mathrm{pair}}$$

(12)

where Z and N are the proton and neutron numbers, respectively, and of course $A=Z+N$. $E_{\mathrm{pair}}$ denotes the pairing correction that accounts for odd–even effects in nuclear binding and is typically small for large mass numbers; it is therefore neglected in the present work.

Introducing the proton fraction $Y_p=Z/A$, the nuclear energy per baryon can be written in the form

$$\begin{array}{cc}\hfill {\displaystyle \frac{E}{A}}=& m_n{c}^2+Y_p(m_p-m_n)c^2-E_u+E_{\sigma }{A}^{-1/3}+E_c{Y}_p^2{A}^{2/3}+E_s{(1-2Y_p)}^2\hfill \end{array}$$

(13)

Here, $E_u$ represents the bulk binding energy per nucleon arising primarily from the attractive strong interaction. The surface coefficient $E_{\sigma }$ accounts for the reduction in binding energy experienced by nucleons at the nuclear surface. The Coulomb coefficient $E_c$ quantifies the electrostatic repulsion between protons and increases with nuclear size. Finally, the symmetry energy coefficient $E_s$ encodes the energetic cost of neutron–proton asymmetry, reflecting both kinetic (Fermi energy) and interaction effects associated with isospin imbalance.

Using representative empirical values (in MeV) [20]

$$E_u=15.6,E_{\sigma }=17.1,E_c=0.71,E_s=23.4$$

(14)

Equilibrium nuclear compositions are obtained by minimizing the total energy with respect to A and $Y_p$, which reproduce the nuclear curve for stable nuclei.

2.3. Modeling Matter at High Densities

The structure of dense stellar matter is determined by the interplay between fermionic degeneracy, nuclear binding, and weak-interaction equilibrium. As density increases, matter undergoes a sequence of well-defined transitions, each characterized by different dominant degrees of freedom and equilibrium conditions. In this section we construct the equation of state by treating each density regime separately, while ensuring thermodynamic consistency across the transitions.

2.3.1. Ionized Matter and Electron Degeneracy

Near the surface of compact stars, matter is fully ionized due to high temperatures. At low densities, electrons behave as a classical ideal gas, while at higher densities they become degenerate. The electron number density is

$$n_e=Z{\displaystyle \frac{\rho }{m_{nuclei}}}={\displaystyle \frac{Y_p\rho }{m_u}}$$

(15)

where we used $m_{nuclei}=A{m}_u$ with $m_u$ the average nucleon mass.

2.3.2. Neutronization and $\beta$-Equilibrium

At the densities $\rho \simeq {10}^8\mathrm{g}{\mathrm{cm}}^{-3}$, the electron Fermi energy (in the UR limit) approaches the neutron–proton mass difference, allowing electron capture via the URCA process [21]

$$p+e{\displaystyle \to }n+{\nu }_e,n{\displaystyle \to }p+e+{\overline{\nu }}_e$$

(16)

Neutrinos escape the star, so their chemical potential is effectively zero.

Equilibrium is set by

$${\mu }_p+{\mu }_e={\mu }_n$$

(17)

where ${\mu }_p$, ${\mu }_e$, and ${\mu }_n$ are the chemical potentials of protons, electrons, and neutrons, respectively.

The total energy density in this regime is

$$u_{\mathrm{tot}}={\displaystyle \frac{\rho }{A{m}_u}}{E}_{\mathrm{nucl}}+{\displaystyle \frac{3}{4}}{n}_e{ϵ}_{Fe}={\displaystyle \frac{\rho }{m_u}}\left(u_{\mathrm{nucl}}+{\displaystyle \frac{3}{4}}{Y}_p{ϵ}_{Fe}\right)$$

(18)

Here, $u_{\mathrm{nucl}}$ is the nuclear energy per baryon, and ${ϵ}_{Fe}$ the electron Fermi energy.

Equilibrium nuclear configurations are obtained by minimizing $u_{\mathrm{tot}}$:

$${\left({\displaystyle \frac{\partial u_{\mathrm{tot}}}{\partial A}}\right)}_{Y_p}=0,{\left({\displaystyle \frac{\partial u_{\mathrm{tot}}}{\partial Y_p}}\right)}_A=0$$

(19)

This is equivalent to Equation (17) and charge neutrality, and it yields

$$A={\displaystyle \frac{E_{\sigma }}{2E_c{Y}_p^2}}$$

(20)

$$(m_n-m_p)c^2+4E_s(1-2Y_p)-{\left(2E_{\sigma }^2{E}_c\right)}^{1/3}{Y}_p^{-1/3}={ϵ}_{Fe}=\hslash c{\left(3{\pi }^2\right)}^{1/3}{\left({\displaystyle \frac{Y_p\rho }{m_u}}\right)}^{1/3}$$

(21)

From the above system, parameters A and $Y_p$ can be solved numerically, and for higher densities, A increases while $Y_p$ decreases. It is concluded that larger nuclei are formed while neutrons are favoured against protons.

2.3.3. Neutron Drip

At $\rho \simeq 4\times {10}^{11}\mathrm{g}{\mathrm{cm}}^{-3}$, the neutron chemical potential reaches $m_n{c}^2$ and neutrons become unbound [22,23], so we consider the following chemical equilibrium equations:

$$X_Z^A+e\leftrightarrow X_{Z-1}^A,X_Z^A\leftrightarrow X_Z^{A-1}+n$$

(22)

The first reaction corresponds to electron capture (URCA), while the second describes the emission of free neutrons from nuclei. We denote $Y_n$ as the fraction of free neutrons over nucleons. The total energy density is

$$u_{\mathrm{tot}}={\displaystyle \frac{\rho }{m_u}}\left((1-Y_n)u_{\mathrm{nucl}}+{\displaystyle \frac{3}{4}}(1-Y_n)Y_p{ϵ}_{Fe}+{\displaystyle \frac{3}{5}}{Y}_n{\overline{ϵ}}_{Fn}+Y_n{m}_n{c}^2\right)$$

(23)

with ${ϵ}_{Fn}$ being the Fermi energy for neutrons and ${\overline{ϵ}}_{Fn}={ϵ}_{Fn}-m_n{c}^2$ (electrons in UR and free neutrons in NR limits)

Equilibrium conditions require

$${\left({\displaystyle \frac{\partial u_{\mathrm{tot}}}{\partial A}}\right)}_{Y_p,Y_n}=0,{\left({\displaystyle \frac{\partial u_{\mathrm{tot}}}{\partial Y_p}}\right)}_{A,Y_n}=0,{\left({\displaystyle \frac{\partial u_{\mathrm{tot}}}{\partial Y_n}}\right)}_{A,Y_p}=0$$

(24)

which lead to

$$A={\displaystyle \frac{E_{\sigma }}{2E_c{Y}_p^2}}$$

(25)

$$(m_n-m_p)c^2+4E_s(1-2Y_p)-{\left(2E_{\sigma }^2{E}_c\right)}^{1/3}{Y}_p^{-1/3}=\hslash c{\left(3{\pi }^2\right)}^{1/3}{\left({\displaystyle \frac{(1-Y_n)Y_p\rho }{m_u}}\right)}^{1/3}$$

(26)

$$-E_u+E_s(1-4Y_p^2)+{\displaystyle \frac{Y_p^{2/3}}{2}}{\left(2E_{\sigma }^2{E}_c\right)}^{1/3}={\displaystyle \frac{{\hslash }^2}{2m_n}}{\left(3{\pi }^2\right)}^{2/3}{\left({\displaystyle \frac{Y_n\rho }{m_u}}\right)}^{2/3}$$

(27)

2.3.4. Matter at Supranuclear Densities

At $\rho \gtrsim 5\times {10}^{13}\mathrm{g}{\mathrm{cm}}^{-3}$, nuclear clusters begin to overlap and form complex non-spherical configurations (“nuclear pasta”), rendering the traditional surface and Coulomb energy contributions negligible [24].

The equilibrium conditions for $Y_p$ and $Y_n$ reduce to

$$(m_n-m_p)c^2+4E_s(1-2Y_p)+{\displaystyle \frac{16}{27}}{E}_s{(1-2Y_p)}^3={ϵ}_{Fe}$$

(28)

$$-E_u+E_s(1-4Y_p^2)=m_n{c}^2(\sqrt{1+y^2}-1)$$

(29)

where

$$y={\displaystyle \frac{p_{Fn}}{m_{n}c}}={\displaystyle \frac{\hslash }{m_{n}c}}{\left(3{\pi }^2\right)}^{1/3}{\left({\displaystyle \frac{Y_n\rho }{m_u}}\right)}^{1/3}$$

(30)

At densities approaching nuclear saturation, $\rho \sim {\rho }_0$, we assume that matter enters a saturation regime characteristic of bound nuclear matter. In this limit, we impose the effective condition

$$Y_n=1-{\displaystyle \frac{{\rho }_0}{\rho }}$$

(31)

which should be understood as an effective measure of the fraction of matter that actively contributes to pressure support. Near nuclear saturation density, a non-negligible portion of the baryonic content remains locked in correlated or clustered nuclear structures and therefore does not contribute to pressure support. This phenomenological prescription provides a minimal and thermodynamically consistent interpolation between the outer crust and higher-density regimes. Thus, the specific form adopted for the free neutron fraction $Y_n\left(\rho \right)$ is intended as a minimal effective parametrization capturing the onset and growth of neutron drip, rather than a microscopic nuclear calculation. Its role is to interpolate smoothly between the outer crust and higher-density regimes while preserving thermodynamic consistency. Moderate variations in the functional form and parameters of $Y_n$ will lead only to minor quantitative changes in the resulting equation of state and do not qualitatively affect the global neutron star properties discussed below. Namely, we experimented with more generic profiles of the form $Y_n=1-{\left({\rho }_0/\rho \right)}^{\delta }$, within the range $\delta \in [0.8,1.2]$. We found that the variations in the maximum mass for the extreme values of $\delta$ are within $5\%$ compared to the values reported here, corresponding to $\delta =1$.

The pressure arising solely from fermionic degeneracy is generally insufficient to ensure mechanical stability. It is therefore customary to supplement the equation of state with an additional polytropic pressure component.

Polytropic equations of state play a central role in astrophysics and have been extensively employed in the modeling of self-gravitating systems, including main-sequence stars, white dwarfs, neutron stars, and core collapse simulations [25,26]. Their widespread use stems from their ability to capture the essential macroscopic behaviour of matter under compression while remaining analytically and numerically tractable. The additional polytropic pressure is taken to be

$$P_{polytrop}=K{\left({\displaystyle \frac{Y_n\rho }{{\rho }_0}}\right)}^{\gamma }$$

(32)

where K is the polytropic constant and $\gamma$ denotes the adiabatic index.

Mesonic polytropes are the best candidates for a polytropic description of the equation of state at supranuclear densities, where short-range strong interactions between baryons become dominant and the free relativistic Fermi gas approximation must be extended. We adopt a Quantum Hadrodynamics (QHD) mean-field approximation (MFA) framework, in which nucleons interact via effective meson exchange [27,28].

The interaction Lagrangian is given by

$${\mathcal{L}}_{\mathrm{int}}=\overline{\psi }\left[-g_{\sigma }\sigma -g_{\omega }{\gamma }^{\mu }{\omega }_{\mu }-g_{\rho }{\gamma }^{\mu }\overrightarrow{\tau }·{\overrightarrow{\rho }}_{\mu }\right]\psi +{\mathcal{L}}_{\sigma }+{\mathcal{L}}_{\omega }+{\mathcal{L}}_{\rho }$$

(33)

where $g_i$,$m_i$ and ${\mathcal{L}}_i$ are the strength, the mass and the free Lagrangian of each meson. In uniform infinite matter, the meson fields are replaced by their mean-field expectation values (MFA). Neglecting nonlinear scalar self-interactions at this stage, the mesonic contribution to the pressure takes the form

$$P_{\mathrm{mes}}=-{\displaystyle \frac{1}{2}}{m}_{\sigma }^2{\sigma }^2+{\displaystyle \frac{1}{2}}{m}_{\omega }^2{\omega }_0^2+{\displaystyle \frac{1}{2}}{m}_{\rho }^2{\rho }_{0,3}^2$$

(34)

The scalar field $\sigma$ reduces the neutron effective mass

$$m_n^{*}=m_n-g_{\sigma }\sigma$$

(35)

In relativistic mean-field approaches, nonlinear self-interaction terms of the scalar $\sigma$ field are introduced phenomenologically to reproduce nuclear saturation properties. Such terms, however, are not required by underlying symmetries and mainly serve as effective parametrizations of many-body dynamics. In the present work, we adopt a minimal mean-field description in which the dominant nonlinear scalar effects are absorbed into a density-dependent effective nucleon mass. This choice preserves a particularly transparent structure for the mesonic pressure contributions, which remain quadratic in the relevant densities and naturally resemble a polytropic form. Thus, the effective mass is parametrized phenomenologically by a saturating form inspired by relativistic-mean-field calculations [29].

$${\displaystyle \frac{m_n^{*}}{m_n}}=m_{\infty }+{\displaystyle \frac{1-m_{\infty }}{1+C_s{\left(Y_n\rho /{\rho }_0\right)}^{2/3}}}$$

(36)

Here, $m_{\infty }$ denotes the finite asymptotic high-density limit of the effective nucleon mass, while $C_s$ controls the rate of scalar-density suppression. The exponent $2/3$ is motivated by Fermi-momentum scaling, $k_F\propto n^{1/3}$, such that ${(\rho /{\rho }_0)}^{2/3}$ effectively tracks a $k_F^2$-type density dependence, commonly appearing in relativistic mean-field and microscopic descriptions of dense Fermi systems. This form ensures the correct low-density limit, $m_n^{*}/m_n{\displaystyle \to }1$, as $\rho {\displaystyle \to }0$, while allowing for a smooth decrease in and the saturation of the effective mass at supranuclear densities. The values $m_{\infty }\simeq 0.45$–$0.55$, $C_s=2$ are consistent with those of standard RMF models for effective mass in nuclear densities and above [30,31].

The mean-field (Euler–Lagrange) equations yield

$${\sigma }_0={\displaystyle \frac{g_{\sigma }}{m_{\sigma }^2}}{n}_s,{\omega }_0={\displaystyle \frac{g_{\omega }}{m_{\omega }^2}}n,{\rho }_{0,3}={\displaystyle \frac{g_{\rho }}{m_{\rho }^2}}n,$$

(37)

where n is the number density of free neutrons and $n_s$ is the scalar number density; the scalar density is evaluated analytically using the relativistic Fermi integral,

$$n_s={\displaystyle \frac{m_n^{*3}{c}^3}{{\pi }^2{\hslash }^3}}\left[y\sqrt{1+y^2}-ln\left(y+\sqrt{1+y^2}\right)\right],y={\displaystyle \frac{p_F}{m_n^{*}c}}$$

(38)

Introducing the effective couplings $G_i$, the total mesonic pressure in the $\sigma \omega \rho$ model can be written as

$$P_{\mathrm{mes}}=-{\displaystyle \frac{1}{2}}{G}_{\sigma }{n}_s^2+{\displaystyle \frac{1}{2}}{G}_{\omega }{n}^2+{\displaystyle \frac{1}{2}}{G}_{\rho }{n}^2,G_i\equiv {\displaystyle \frac{g_i^2}{m_i^2}}$$

(39)

The total neutron pressure in the inner core is finally written as

$$P(\rho ,Y_n)=P_n^{*}(\rho ,Y_n)+P_{\mathrm{mes}}(\rho ,Y_n)$$

(40)

where $P_n^{*}$ denotes the full relativistic Fermi gas pressure evaluated with the density-dependent effective mass.

The effective couplings $G_i$ introduced above are not fundamental constants, but rather model-dependent parameters that encode both the meson masses and their corresponding interaction strengths.

For the vector mesons $\omega$ and $\rho$, the physical masses are well established experimentally. However, their effective coupling strengths $g_{\omega }$ and $g_{\rho }$ are determined phenomenologically and depend on the specific RMF parameterization employed (e.g., NL3, TM1, PK1, DD-ME2), leading to corresponding variations in $G_{\omega }$ and $G_{\rho }$ across different models.

The situation is more subtle for the scalar channel. The $\sigma$ field does not represent a well-defined physical particle, but rather an effective degree of freedom that parametrizes correlated two-pion exchange and intermediate-range attraction between nucleons. As a consequence, the scalar “mass” $m_{\sigma }$ is not uniquely defined, and both $g_{\sigma }$ and $m_{\sigma }$ should be regarded as effective parameters.

It follows that the couplings $G_i$ cannot be directly compared across different RMF models without accounting for differences in the treatment of scalar dynamics, effective masses, and density dependence. In the present work, the $G_i$ couplings are therefore interpreted as effective, renormalized couplings, calibrated within a given mean-field framework rather than as universal quantities.

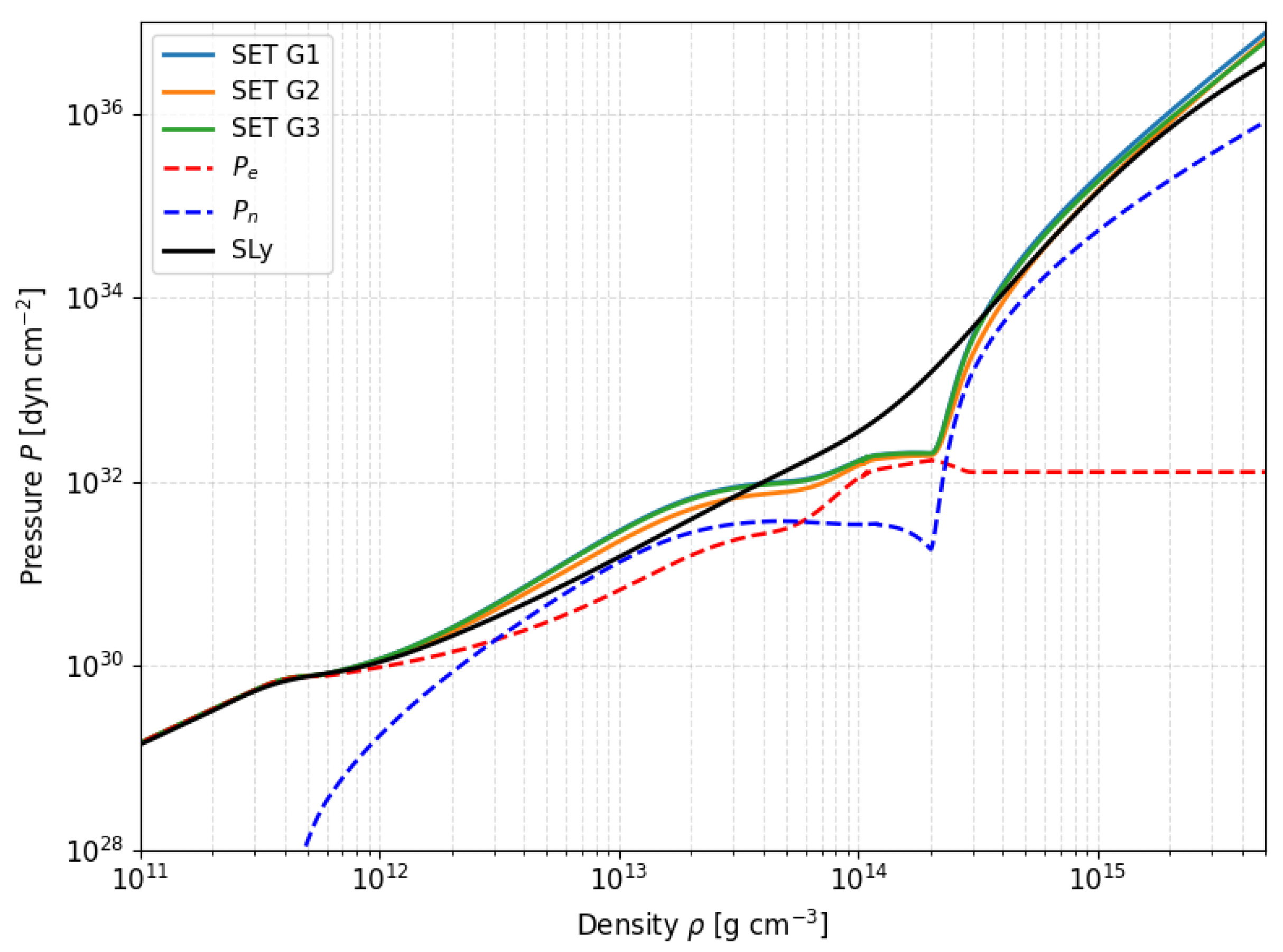

2.3.5. Summary of Pressure Contributions

Across all density regimes, the number densities of free fermions are

$$n_e=(1-Y_n)Y_p{\displaystyle \frac{\rho }{m_u}},n_n=Y_n{\displaystyle \frac{\rho }{m_u}}$$

(41)

and the dimensionless Fermi momenta are

$$x={\displaystyle \frac{p_{Fe}}{m_{e}c}}={\displaystyle \frac{\hslash }{m_{e}c}}{\left(3{\pi }^2\right)}^{1/3}{n}_e^{1/3},y={\displaystyle \frac{p_{Fn}}{m_n^{*}c}}={\displaystyle \frac{\hslash }{m_n^{*}c}}{\left(3{\pi }^2\right)}^{1/3}{n}_n^{1/3}$$

(42)

The total pressure is obtained from

$$P=\sum _i{\mu }_i{n}_i-u_{\mathrm{tot}}=P_e(\rho ,Y_p,Y_n)+P_n^{*}(\rho ,Y_n)+P_{mes}$$

(43)

The contributions depend on the dominant degrees of freedom in each density regime. At low densities, pressure is dominated by degenerate electrons; beyond neutron drip, free neutrons contribute a non-relativistic Fermi pressure. At supranuclear densities, P is mainly determined by the polytropic term or by the meson pressure in the RMF approximation.

At each transition between density regimes, the equation of state is constructed to ensure the continuity of the pressure and energy density. The matching procedure enforces smooth thermodynamic behaviour across the boundaries, so that no unphysical discontinuities are introduced in the stellar structure calculations.

2.4. Relativistic Hydrostatic Equilibrium

The global structure of a neutron star is determined by the balance between pressure gradients and gravity. In the relativistic regime relevant for compact objects, this balance is governed by Einstein’s field equations,

$${\mathcal{R}}_{\mu \nu }-{\displaystyle \frac{1}{2}}\mathcal{R}{g}_{\mu \nu }=-{\displaystyle \frac{8\pi G}{c^4}}{T}_{\mu \nu }.$$

(44)

Here, ${\mathcal{R}}_{\mu \nu }$ is the Ricci tensor, $\mathcal{R}$ the Ricci scalar, $g_{\mu \nu }$ the metric tensor, G the gravitational constant and $T_{\mu \nu }$ the energy–momentum tensor.

For a static, spherically symmetric configuration, matter is modelled as a perfect fluid:

$$T_{\mu \nu }=\left(\rho +{\displaystyle \frac{P}{c^2}}\right)u_{\mu }{u}_{\nu }-P{g}_{\mu \nu }.$$

(45)

Symbols $\rho$ and P denote the mass–energy density and pressure. The four-velocity $u^{\mu }$ satisfies the normalization condition $u^{\mu }{u}_{\mu }=c^2$, and in the local rest frame of the fluid, it has only a temporal component corresponding to a static configuration.

The enclosed gravitational mass within radius r is defined as

$$m\left(r\right)={\int }_0^{r}4\pi r^{\prime 2}\rho \left(r^{\prime }\right)d{r}^{\prime }.$$

(46)

The condition of hydrostatic equilibrium takes the form

$${\displaystyle \frac{dP}{dr}}=-{\displaystyle \frac{G}{r^2}}\left(\rho +{\displaystyle \frac{P}{c^2}}\right)\left(m\left(r\right)+{\displaystyle \frac{4\pi P{r}^3}{c^2}}\right){\left(1-{\displaystyle \frac{2Gm\left(r\right)}{c^{2}r}}\right)}^{-1}.$$

(47)

This is the Tolman–Oppenheimer–Volkoff (TOV) equation, describing the balance of forces in a relativistic star [11,12].

The TOV equation reduces to the familiar Newtonian hydrostatic equilibrium equation in the weak-field limit ($P\ll \rho c^2$, $2Gm/\left(c^{2}r\right)\ll 1$), but relativistic corrections are essential for neutron stars, strongly affecting the maximum mass and the mass–radius relation.

To construct a stellar model, the TOV equations are supplemented by an equation of state $P\left(\rho \right)$, a central pressure $P_c$, and the surface boundary condition $P\left(R\right)=0$, which defines the stellar radius R. Numerical integration from the center outward determines pressure, density, and enclosed mass, yielding the total gravitational mass

$$M=m\left(R\right).$$

(48)

Physical constraints impose additional limits. The adiabatic sound speed $c_s$ must be less than the speed of light to satisfy causality. For each equation of state considered, the adiabatic sound speed

$$\begin{array}{c}\hfill c_s=\sqrt{{\displaystyle \frac{\partial P}{\partial \rho }}}\end{array}$$

(49)

was evaluated numerically. Only EOSs satisfying the causality condition $c_s<c$, over the entire density range, were retained for the TOV integrations presented below. Moreover, the total gravitational mass M must increase with the increase in central pressure:

$${\displaystyle \frac{dM}{d{P}_c}}>0.$$

(50)

This is a necessary but not sufficient condition for the radial stability of the star [32]. From Bardeen–Thorne–Meltzer (BTM) criteria [33], it is concluded that configurations beyond the maximum of the M-R curve are unstable in our case.

Once a solution of the TOV equations is obtained, macroscopic quantities such as the stellar radius, gravitational binding energy, compactness, surface redshift, and moment of inertia can be extracted. These provide a direct link between microphysics encoded in the equation of state and observable neutron star properties.

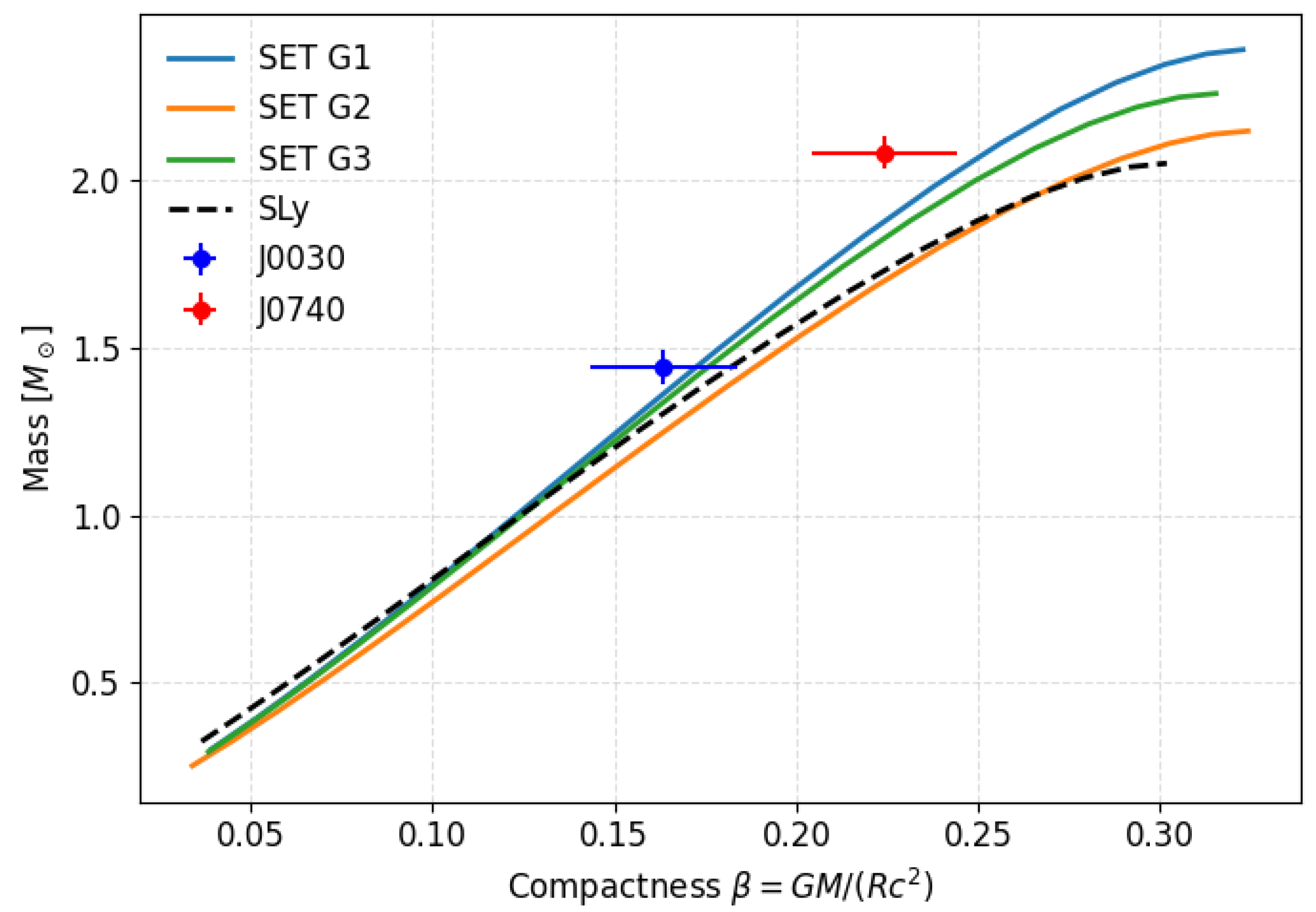

The compactness is defined as follows

$$\beta ={\displaystyle \frac{GM}{c^{2}R}}.$$

(51)

Two important measures of relativistic effects are the surface gravitational redshift z and the apparent radius $R_{\infty }$

$$1+z={(1-2\beta )}^{-1/2},R_{\infty }=(1+z)R,$$

(52)

where $R_{\infty }$ is essentially the radiation radius measured by a distant observer, which exceeds the physical circumferential radius due to spacetime curvature. This distinction is essential in interpreting thermal X-ray spectra, where observables involve $R_{\infty }$ rather than R.

3. Results for Neutron Stars

Using the equation of state constructed in the previous sections, the Tolman–Oppenheimer–Volkoff (TOV) equations were solved numerically for a wide range of central pressures. The integration was performed using a Runge–Kutta–Fehlberg (RKF 4/5) scheme, while the proton and neutron fractions, $Y_p$ and $Y_n$, were determined self-consistently at each density point via a Newton–Raphson iteration. Convergence was verified by varying the integration tolerance and step size, with global stellar properties changing by less than $1\%$. We note that the TOV solutions are highly sensitive to the adopted microscopic parameters (e.g., effective couplings and saturation inputs), and large deviations from physically motivated values may lead to nonphysical stellar configurations.

The stellar surface was defined by the standard condition $P\left(R\right)=0$, while the surface temperature was fixed to $T_{\mathrm{surf}}={10}^7\mathrm{K}$. Central pressures were scanned in the interval

$$P_c\in [{10}^{34},{10}^{36}]\mathrm{dyn}{\mathrm{cm}}^{-2},$$

(53)

and only stable solutions satisfying the condition $dM/d{P}_c>0$ were retained.

3.1. Observational Data

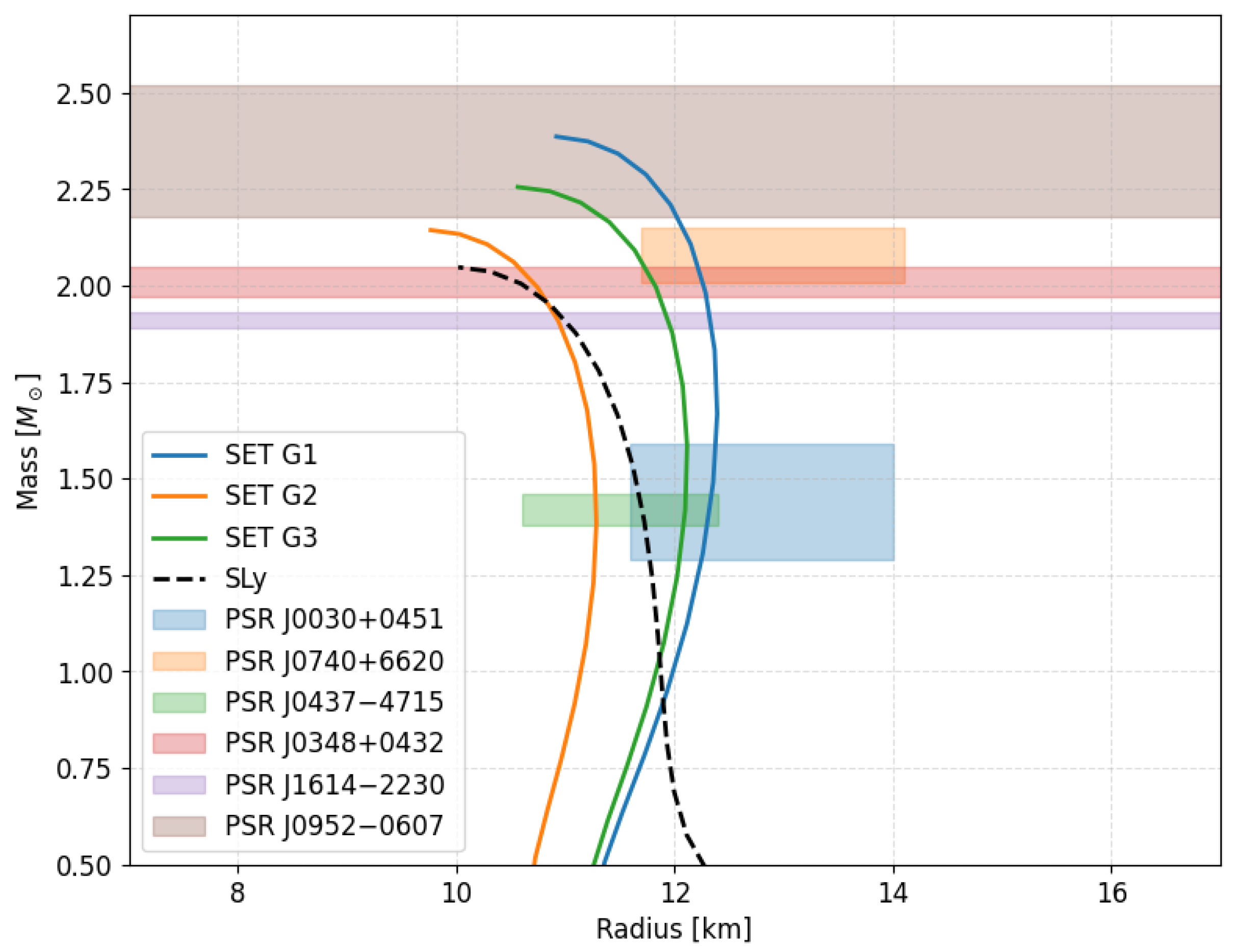

We will confront our theoretical results with a set of observational constraints derived from well-studied neutron stars. The most direct mass–radius measurements are provided by the NICER mission through X-ray pulse profile modeling. In particular, PSR J0030+0451 [34] and PSR J0740+6620 [35] yield simultaneous constraints on mass and radius, while the nearby millisecond pulsar PSR J0437–4715 [36] provides an additional high-quality radius measurement. These objects currently constitute the most reliable direct probes of the neutron star mass–radius relation.

Independent constraints on the maximum supported mass are obtained from radio timing observations of massive pulsars, notably PSR J0348+0432 [37], PSR J1614−2230 [38], and PSR J0952−0607 [39]; note, however that the latter is the fastest rotating known neutron star. However, our solutions are static and non-rotating. Although no radius information is available for these systems, their accurately measured masses above $2M_{\odot }$ impose strong lower bounds on the stiffness of the equation of state.

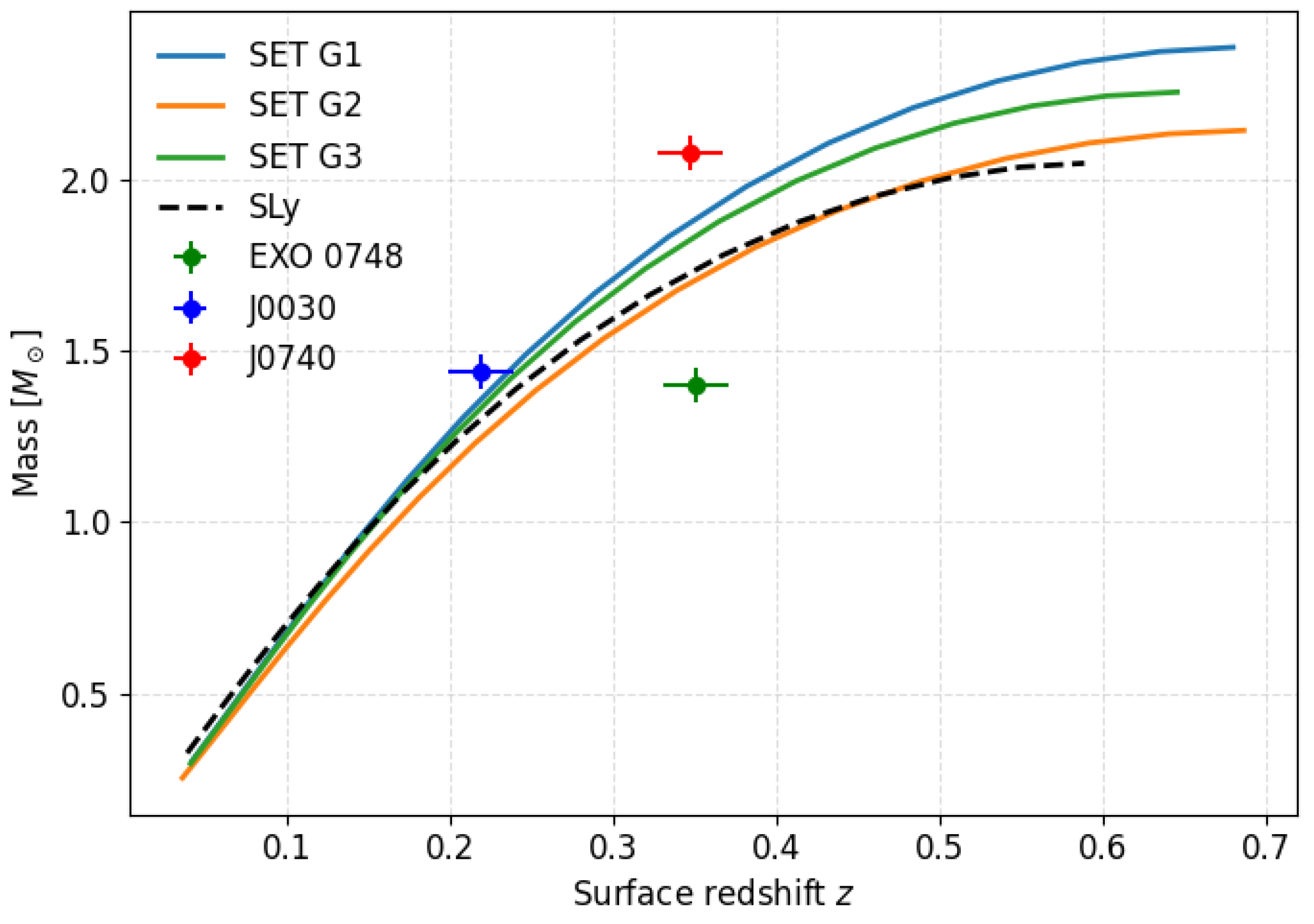

Additional information is available for the gravitational redshift and the apparent radius. A surface gravitational redshift $z\simeq 0.35$ has been reported for the low-mass X-ray binary EXO 0748–676 [40]. While this remains the only direct spectroscopic redshift measurement reported for a neutron star surface, its interpretation has been subject to debate and has not been independently confirmed.

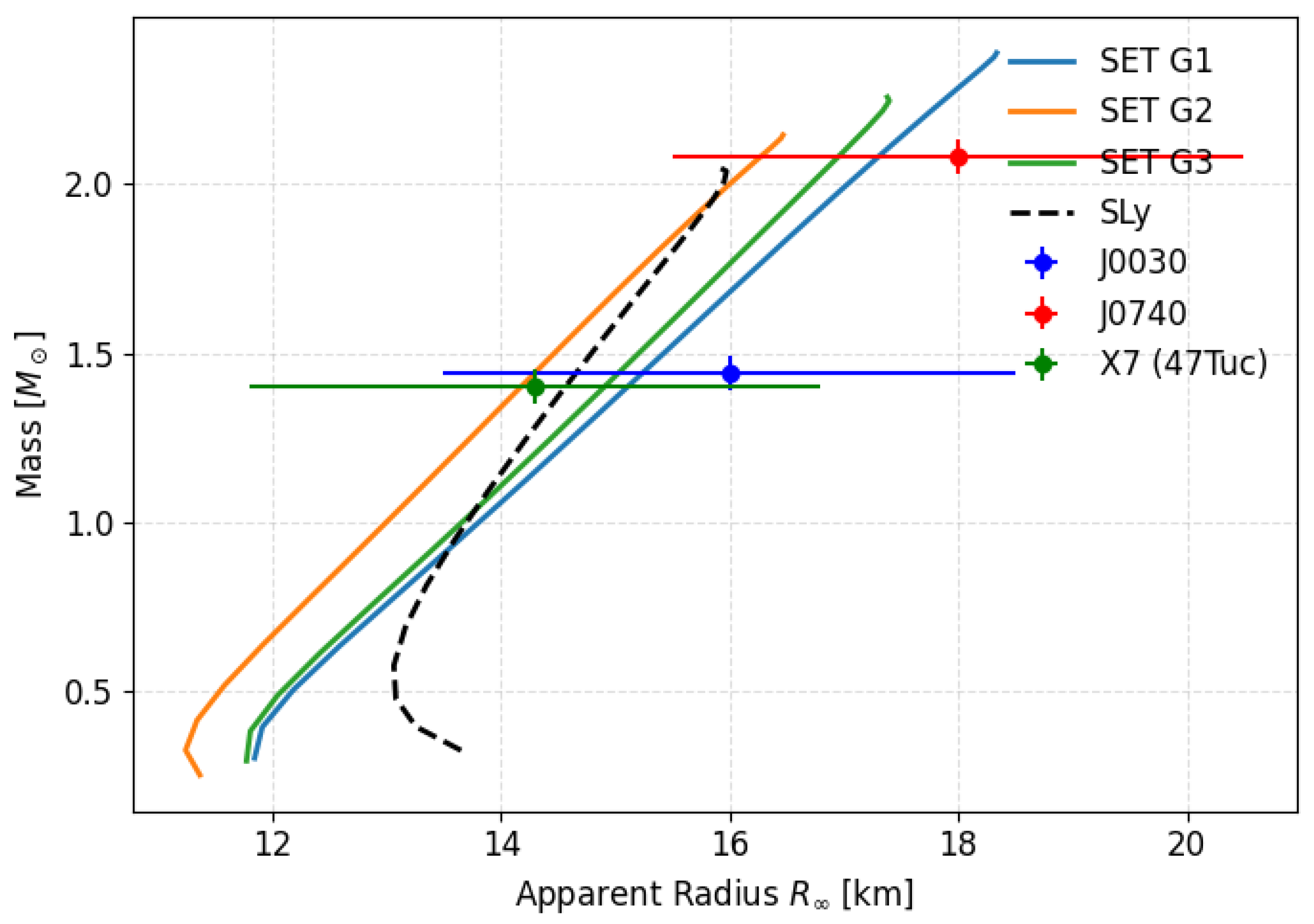

Apparent radii $R_{\infty }$ have been inferred for several neutron stars, including NICER pulsars and quiescent neutron stars in globular clusters, such as X7 in 47 Tuc [41,42]. These observational constraints are summarized in

Table 1. Summary of observational constraints used in this work.

Object	M [${\mathit{M}}_{\odot }$]	R [km]	z	${\mathit{R}}_{\mathit{\infty }}$ [km]
PSR J0030+0451	1.34–1.44	12.7–13.0	∼0.20	∼16
PSR J0740+6620	$2.08\pm 0.07$	12.9–13.7	∼0.35	∼18
PSR J0437−4715	$1.418\pm 0.037$	11.3–11.5	–	14–15
PSR J0348+0432	$2.01\pm 0.04$	–	–	–
PSR J1614−2230	$1.908\pm 0.016$	–	–	–
PSR J0952−0607	$2.35\pm 0.17$	–	–	–
EXO 0748−676	∼1.4	–	$0.35$	–
X7 (47 Tuc)	∼1.4	–	–	$14.3\pm 2.5$

and are used to assess the consistency of equations of state with current astrophysical data [1].

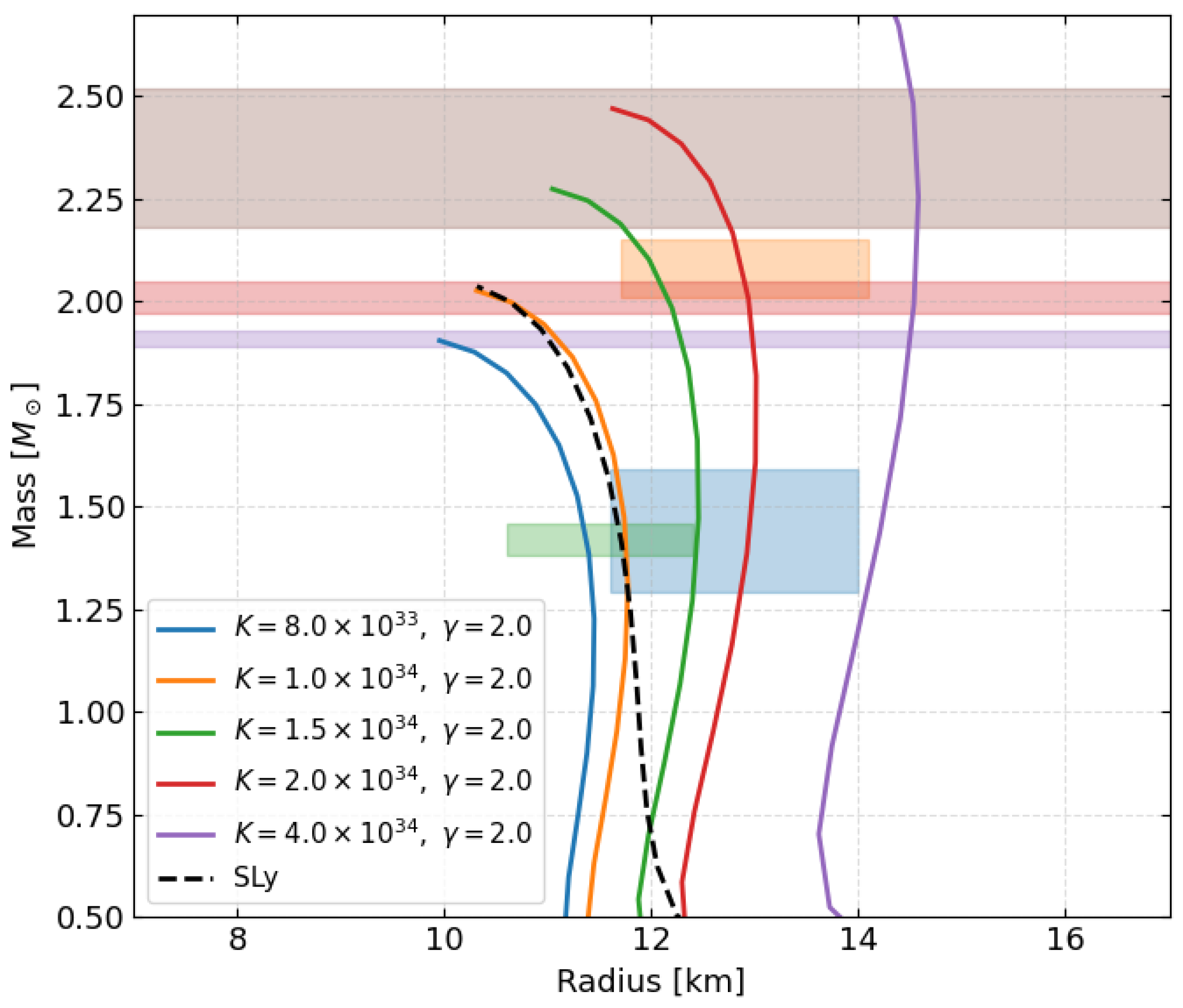

3.2. Single-Polytrope Analysis

The short-range repulsive interaction introduced at supranuclear densities should be interpreted as the effective manifestation of underlying QCD dynamics, rather than as an ad hoc addition. In phenomenological descriptions of dense matter, such repulsion is universally encoded through effective interactions, for example via vector meson exchange in relativistic mean-field models [5,6]. In the present framework, this repulsive component plays the minimal role required to ensure the stability and causality of matter at high densities, without introducing additional microscopic assumptions [13].

As a first step, we examined a single-polytrope parametrization of the high-density equation of state, using Equation (43) and scanning a wide range of polytropic constants K and polytropic indices $\gamma$. This exploratory analysis allows us to identify combinations of parameters capable of reproducing a realistic pressure–density relation. In Figure 1 and Figure 2, we compare neutron star masses and radii with those evaluated by Sly4 EoS [43]. The non-smooth behavior visible in some pressure–density curves reflects the exploratory nature of the single-polytrope scan and the matching to lower-density prescriptions, rather than a physical phase transition.

The resulting mass–radius sequences exhibit a well-defined maximum mass, typically in the range $M_{max}\simeq 1.5$–$3M_{\odot }$, depending on the stiffness of the equation of state. For each parameter set, the stable branch extends from $M\sim 1M_{\odot }$ up to the maximum mass, beyond which the sequence terminates abruptly, signalling the onset of relativistic instability, as dictated by the TOV equations.

It is evident that a large fraction of the explored parameter space does not yield neutron star configurations compatible with current observational constraints. Realistic solutions are found only for a narrow subset of parameters, characterized by a polytropic index $\gamma \simeq 2$ and stiffness values K close to ${10}^{34}$ in cgs units Figure 3.

3.3. Mapping Polytropes to Mesonic Couplings

Having constrained the acceptable range of K, we proceeded to relate the effective polytropic description to the mesonic mean-field framework. Assuming comparable scalar and baryon densities at high density, $n_s\simeq n=Y_n\rho /m_n$, the mesonic pressure contribution in Equation (43) can be approximated by

$${\displaystyle \frac{1}{2}}\left(-G_{\sigma }+G_{\omega }+G_{\rho }\right)n^2=K{\left({\displaystyle \frac{Y_n\rho }{{\rho }_0}}\right)}^2.$$

(54)

For representative values $K\simeq 1.5\times {10}^{34}$ in the cgs system, the above relation implies

$$-G_{\sigma }+G_{\omega }+G_{\rho }\simeq 1.1\times {10}^{-42}.$$

(55)

These scales are consistent with values commonly encountered in relativistic mean-field models, which typically yield effective couplings $G_i\sim {10}^{-42}$ [44,45]. Since the scalar contribution appears with a negative sign, relatively smaller values of $G_{\sigma }$ are favoured to ensure mechanical stability.

Rather than adopting a single parameter choice, in the present work, we explored three representative sets of coupling constants, denoted as G1, G2 and G3, which all satisfy the above constraint while spanning a reasonable range of repulsive and isovector contributions. The adopted values, expressed in cgs units, are summarized in

Table 2. Representative sets of effective RMF couplings explored in this work in ${10}^{-43}{\mathrm{cm}}^3{\mathrm{erg}}^{-1}$ values.

Set	${\mathit{G}}_{\mathit{\sigma }}$	${\mathit{G}}_{\mathit{\omega }}$	${\mathit{G}}_{\mathit{\rho }}$
SET G1	$2.0$	$10.0$	$9.0$
SET G2	$4.0$	$11.0$	$8.0$
SET G3	$1.0$	$7.0$	$7.0$

.

3.4. Mesonic Equation of State and Stellar Properties

We used this set of effective couplings and the full mesonic pressure contribution, constructed the complete equation of state and solved the TOV equations. The resulting pressure–density relation is shown in Figure 4.

The corresponding mass–radius relation is displayed in Figure 5.

Once a consistent solution of the TOV equations has been obtained for a given equation of state, additional macroscopic neutron star observables can be examined, as shown in Figure 6, Figure 7 and Figure 8. All the above figures include SLy4 as a reference for visual comparison.

4. Conclusions

In this work, we have developed a simple and physically transparent framework for modeling neutron star structure across a wide range of densities. By combining the statistical mechanics of degenerate fermions with the liquid drop model of nuclear binding, we constructed an equation of state that smoothly connects the outer crust, inner crust, and core of a neutron star. The inclusion of a phenomenological repulsive interaction at high density ensured stability and causality, and also enabled us to calibrate parameters for more realistic meson pressure terms, which were then used consistently in the Tolman–Oppenheimer–Volkoff equations.

A qualitative insight emerging from this study is that many macroscopic neutron star properties—such as masses, radii, compactness, and surface redshifts—are primarily sensitive to the overall stiffness of the equation of state, rather than to detailed microscopic composition. Within a minimal and physically consistent framework, current observational constraints largely probe effective thermodynamic properties of dense matter, while leaving significant degeneracy in the underlying QCD microphysics. This delineates both the power and the limitations of neutron star observations in constraining the behaviour of matter at supranuclear densities.

Despite the simplicity of the underlying microphysics, the resulting neutron star models reproduce key qualitative and quantitative features expected from more sophisticated approaches. The predicted mass–radius relation, maximum mass, surface redshift and apparent radius all fall within ranges compatible with current astrophysical constraints.

An important advantage of the present approach is its conceptual clarity and computational simplicity. The equation of state is constructed from a few physically motivated ingredients, making it straightforward to analyse and numerically stable to implement. This simplicity also facilitates systematic extensions of the model. Additional particle species, such as muons, can be included by introducing their corresponding energy density and pressure contributions, together with additional chemical potential and an equilibrium condition. More generally, new degrees of freedom or interaction terms can be incorporated in a controlled manner by extending the energy density and deriving the corresponding pressure self-consistently.

Such extensions provide a natural path toward more realistic descriptions of dense matter while retaining the transparency of the underlying physics. The framework presented here therefore serves not only as a useful and clear model, but also as a flexible baseline for exploring the impact of additional physical effects on neutron star structure. In this sense, simple models of dense matter remain a valuable tool for building intuition and for bridging the gap between microphysical assumptions and observable astrophysical phenomena.
