Elastic to Plastic Lattice Structure Homogenization via Finite Element Limit Analysis

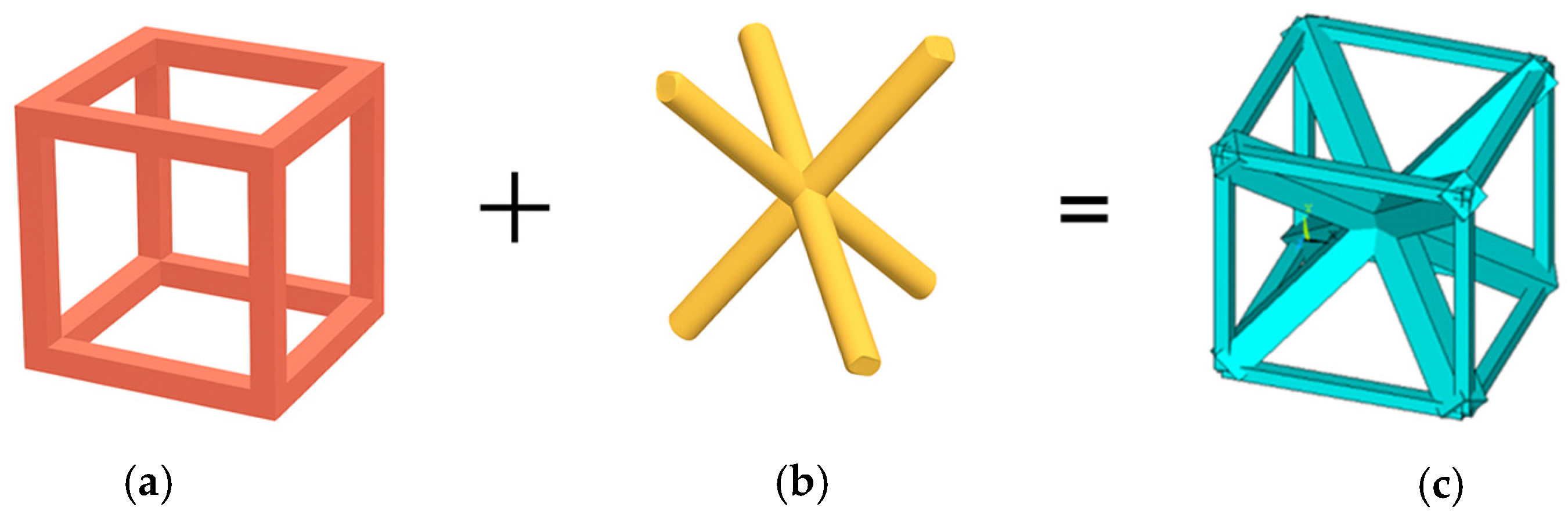

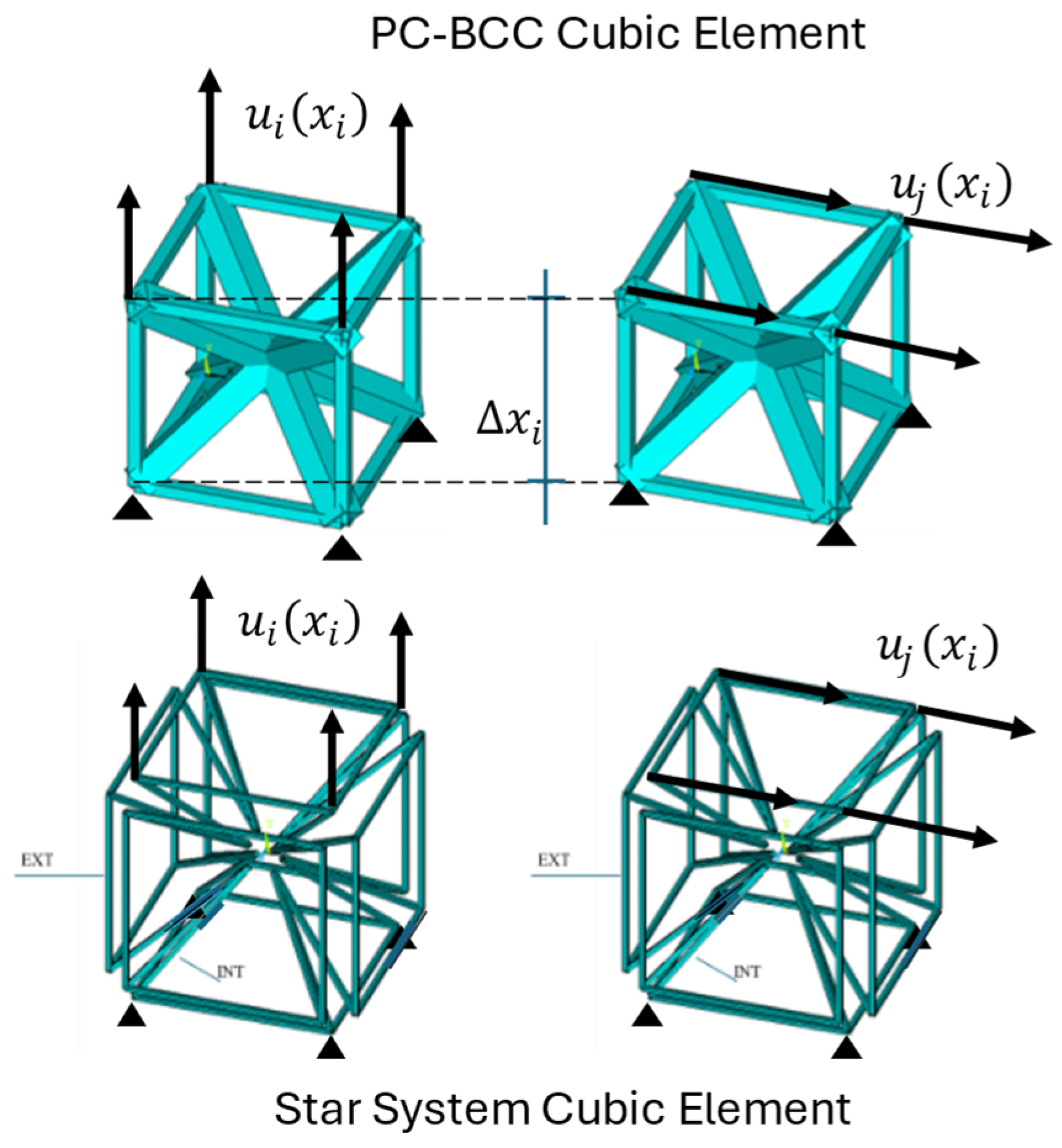

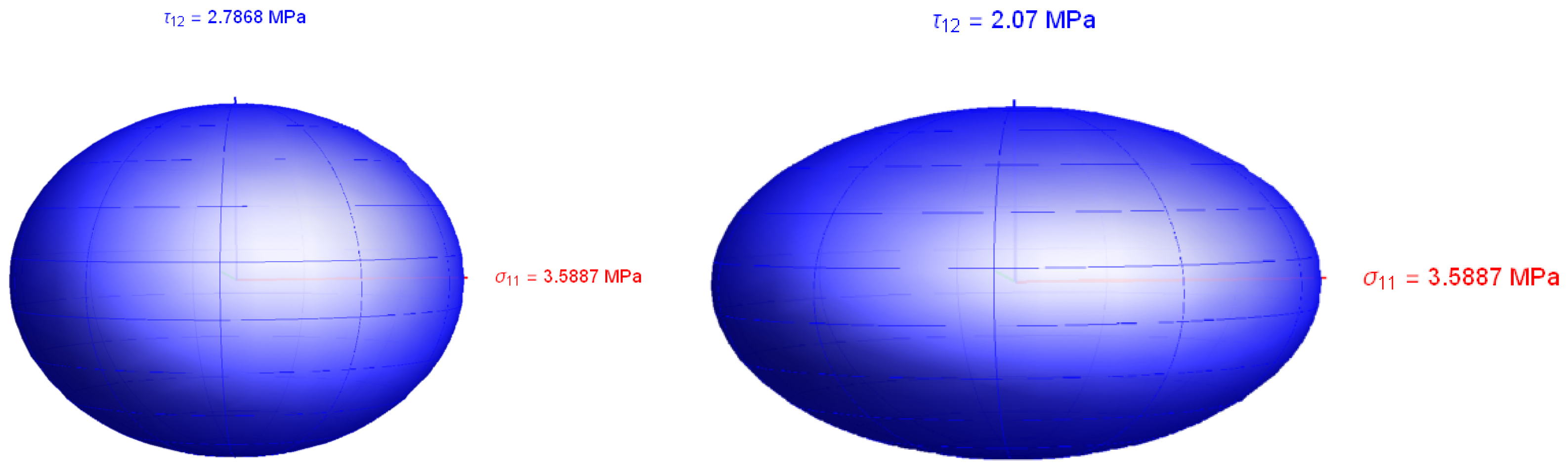

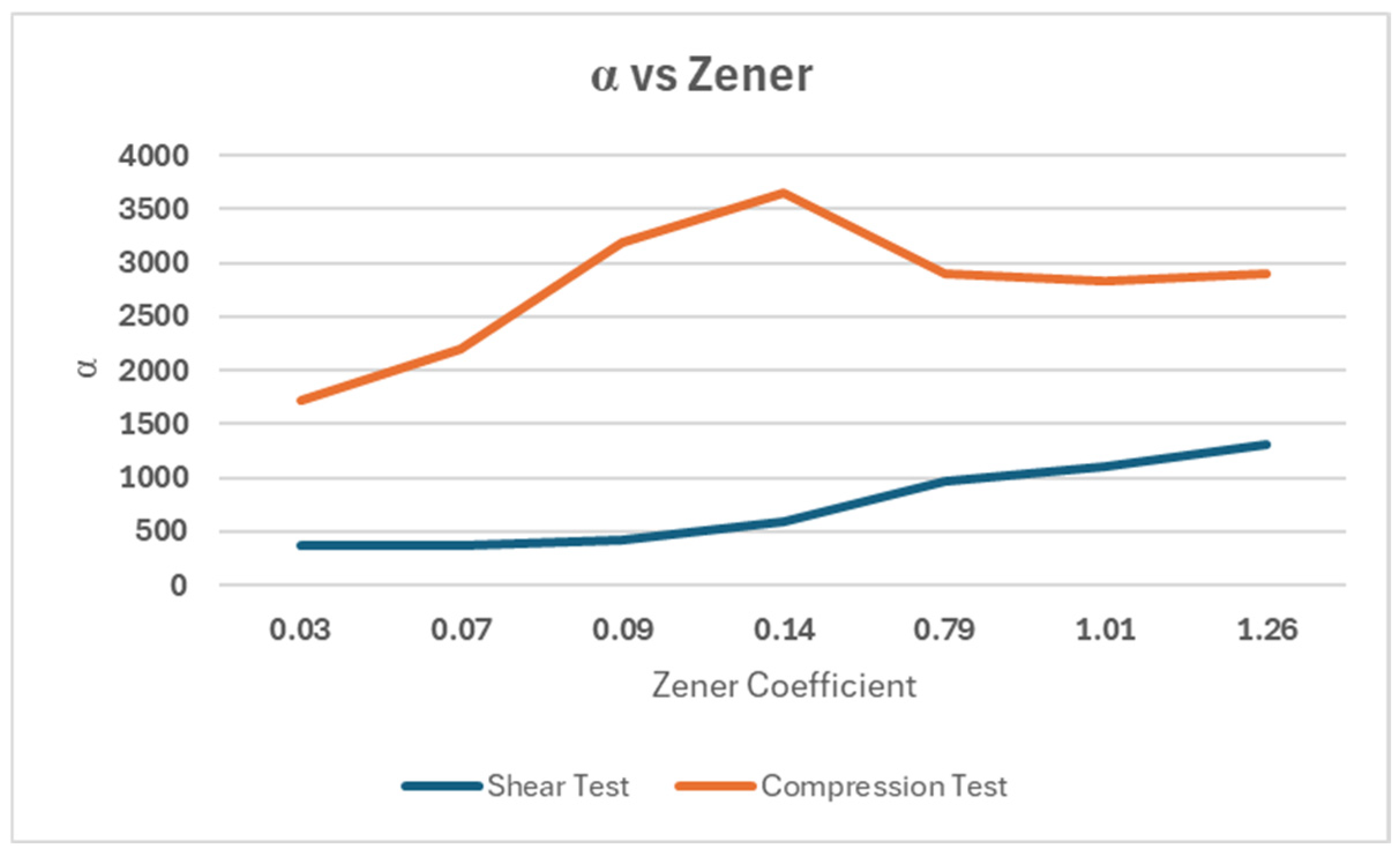

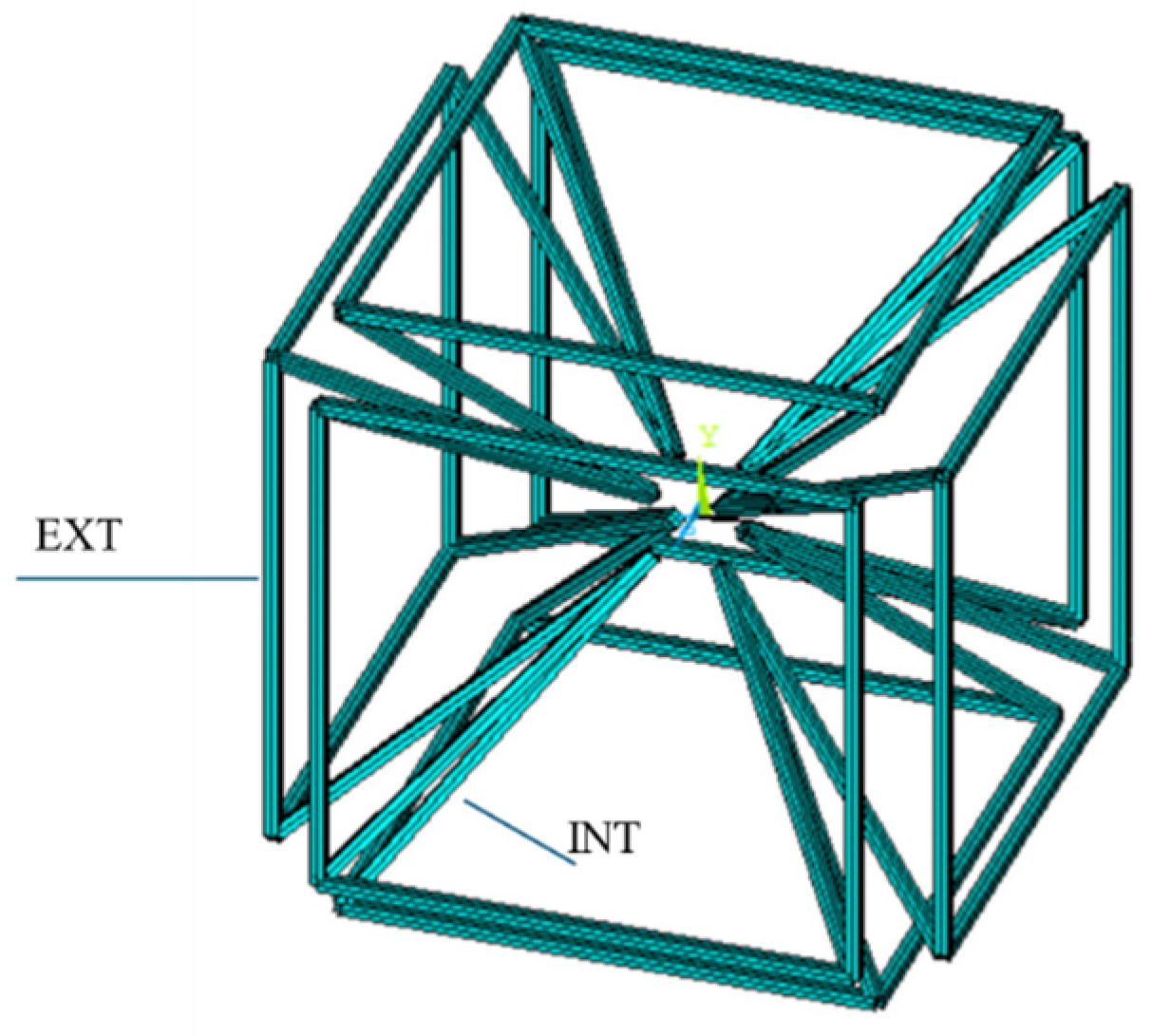

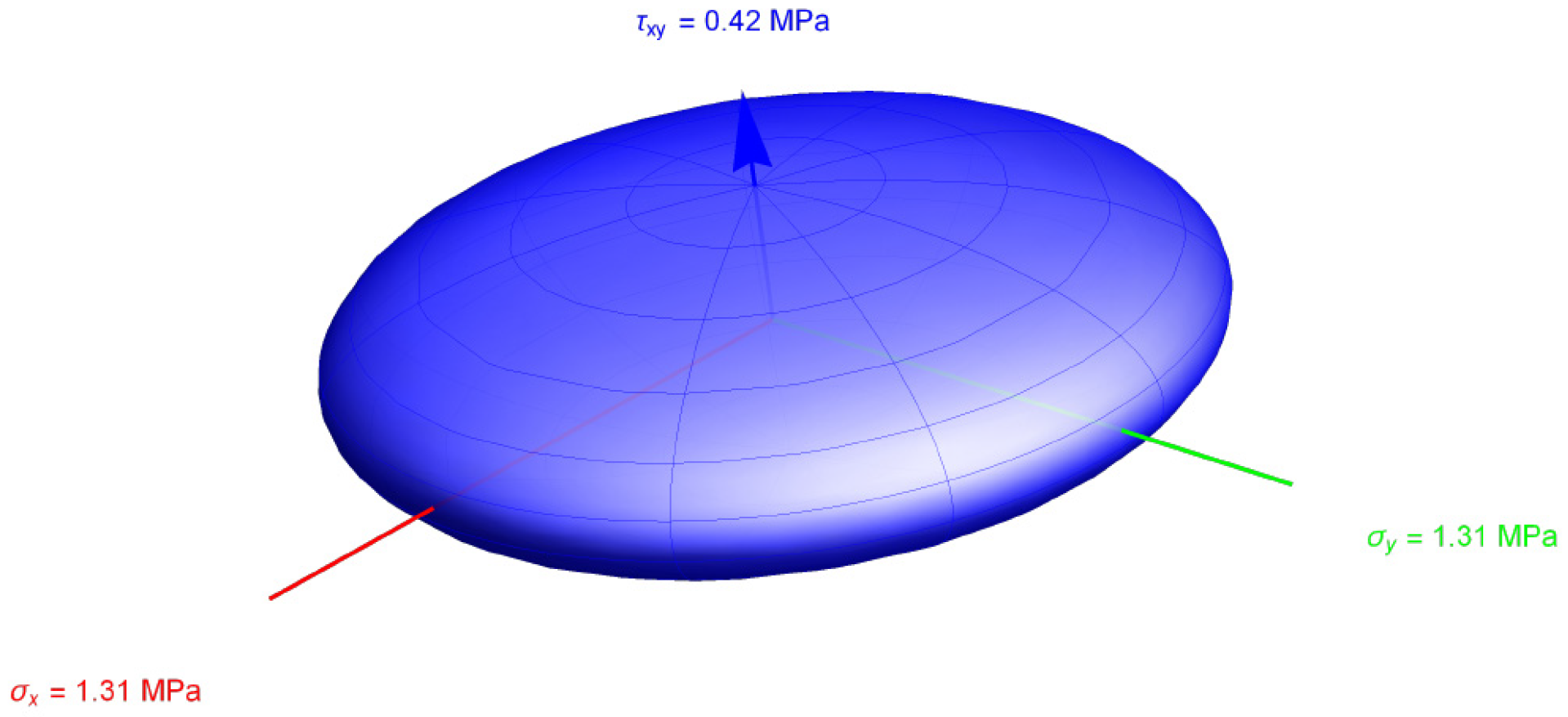

This work focuses on characterizing structured metamaterials by assessing their elastic law and ultimate strength using finite elements and limit analysis applied to a representative volume element. The elastic and plastic behavior of a reference geometry—the octet truss lattice—is obtained by calculating the response of the representative volume element subjected to prescribed tensor strain bases, namely pure normal strain and pure shear, along the cube symmetry directions. The geometry of the body centered cubic and pure cubic phases of the representative volume element has been analyzed, highlighting that the elastic isotropic behavior depends on the ratio between the stiffnesses of the two phases. The ultimate behavior of the structure has been analyzed through the direct application of the lower bound method of limit analysis. The method has been implemented in a direct finite element environment using the limit analysis procedure developed by the authors. The method was already used and described in previous publications and is briefly recalled. It is based on the identification of the linear operator linking the self-equilibrated stress set to a discrete parameter manifold, accounting for the piecewise continuous distribution of the permanent strain. In the paper, it is highlighted that for different aspect ratios between the body-centered cubic and the pure cubic phase geometry, different ratios between limit shear stress and normal stress arise, the isotropic one assumed to coincide with the von Mises result, where ${\displaystyle \frac{{\sigma }_0}{{\tau }_0}}=\sqrt{3}.$
