Top Quarks from Tevatron to the LHC

Abstract

Recent measurements in the top quark sector at the CERN Large Hadron Collider are discussed. This review discusses the most recent measurements of inclusive and differential top quark cross-sections in strong and electroweak production of top quarks and related measurements, such as top quark properties, as well as searches, including EFT approaches.

1. Introduction

The top quark, t, is the heaviest known elementary particle and was discovered at the Tevatron $p\overline{p}$ collider in 1995 by the CDF and DØ collaborations [1,2] with a mass around $173\mathrm{GeV}$. It was re-discovered at the Large Hadron Collider (LHC) at all center-of-mass energies the LHC operated at during Run 1 and Run 2: 7 [3,4], 8 [5,6], and 13 [7,8] TeV and even in proton-Pb collisions [9]. Most recently, the LHC has re-started operations at the highest energies of 13.6 TeV, which marks the official start of the Run 3 collider operations. The top quark plays a special role in the standard model (SM) and also in many extensions. Measurements of the top quark mass together with measurements of the W boson mass and the mass of the Higgs boson discovered in 2012 [10,11] provide now a strong self-consistency test of the SM [12,13,14,15,16]. The top quark has an extremely short lifetime of $\tau \approx {10}^{-25}$ s, which prevents the formation of top quark hadrons in general, while a small fraction might form short-lived bound top quark states, aka “toponium” [17]. The time-scale of depolarization of the top quarks is beyond $\tau \approx {10}^{-23}$, allowing us to uniquely observe bare quark properties by measuring the properties of the top quarks. One example is the access to the spin of top quarks, the extent of their correlation, and the top quarks’ polarization itself. Reconstructing the quantum spin state of top quarks allows accessing an elusive behavior of quantum mechanical particles: entanglement, where the wave functions of two originally entangled particles possess an inseparable component of the wave functions even when they are moving apart. Measurements in this area open up an exciting new probe into the inner workings of quantum mechanics at the fundamental level with far-reaching implications and related research prospects in quantum information science at colliders [18,19]. Additionally, its large Yukawa coupling gives the top quark a special role in the interplay with the Higgs boson and the Higgs field, which affects extensions of the SM and also the evolution of the SM to high scales, where e.g., the stability of the electroweak vacuum is critically affected by the interplay of the top quark mass and the Higgs boson mass [20,21,22,23].

At any of the LHC energies, the top quark is produced so copiously that the LHC is referred to as a “top quark factory”. Top quarks are produced either as top quark-antiquark pairs ($t\overline{t}$) via the strong interaction ($gg$/$q\overline{q}\to t\overline{t}$), providing a direct test of quantum chromodynamics (QCD), or as single top quarks via electroweak processes, testing the electroweak theory and providing a direct probe of the CKM matrix element $V_{tb}$. Three different channels contribute to the production of single top quarks: the t-channel $(q^{\prime }g\to tq\overline{b})$, the associated $tW$-channel $(gb\to tW)$, and the s-channel $(q{\overline{q}}^{\prime }\to t\overline{b})$. Owing to the proton–proton initial state, the latter has a very small production cross-section at the LHC with a low signal-to-background fraction, making any observation extremely challenging. Any and all production modes are employed for measurements of top quark properties, searches, and, more recently, constraints on (SM) effective field theory (EFT) operators [24,25,26,27].

In the SM, the branching fraction for top quarks decaying into Wb is essentially 100%, where the subsequent decay of the W into $\ell \nu$ or $q\overline{q}$’ is utilized to denote the decay channel. Namely, either the dileptonic ($\ell \ell$) final state, where ℓ can be an electron or a muon (including those that stem from $\tau$ decays), the lepton+jets ($\ell +$ jets) final state, or the all-hadronic final state into all-jets. Jets originating from a b quark are usually identified by means of multivariate discriminant techniques (“b-tagging”) built using the combination of variables describing the properties of secondary vertices and of tracks with large impact parameters relative to the primary vertex. Depending on the number of top quarks in the final state, there can be a single lepton or more, one or more jets, some of them b-tagged, and mixtures of leptons and jets. For example, in top quark pair production in the $\ell +$ jets final state, one of the two W bosons (stemming from the decay of the top quarks) decays leptonically, and the other W boson decays hadronically.

In this review, we selected a sample of measurements that highlight the current status of experimental top quark physics. The review begins with summarizing the evolution of analysis techniques over the past two decades in Section 2, before discussing measurements on inclusive and differential top quark and top-quark pair production cross-sections in Section 3. Measurements of top quark properties are summarized in Section 4, including measurements of angular correlations related to asymmetries in the production of top quarks, as well as measurements of the correlation of the spin of the top quark, all covered in Section 4.1. Section 4.2 outlines the current status of precision measurements of the mass of the top quark. Where available, combinations of ATLAS and CMS results are presented as well. This review focuses on measurements. Searches for beyond-the-SM physics contributions (BSM) are only briefly captured in Section 5, and otherwise discussed in more detail elsewhere in this special issue [28,29,30]. However, we include Section 5.1 to briefly discuss results involving EFT approaches, which are derived from cross-section measurements discussed in earlier Sections. Lastly, we conclude our review in Section 6. Any review is always a compromise on the level of measurement details provided and cannot do justice to the complexity of measurements in the top quark sector, and much more complete information can be found online on the publication lists of each experiment.

2. Techniques & Methods

Top quark physics has evolved from the first discovery back in 1995 to the precision frontier, translating to sub-percent level uncertainties based on millions of top quarks. This transition required a dramatic shift also in analysis techniques and methods. Back then, the analysis of statistically limited data sets at the Tevatron relied on parametric fits, ideogram, and likelihood techniques, all exploited for the discovery of the top quark [1,2,31,32,33]. Later on, the matrix element method [34] allowed for unprecedented precision of the early top quark mass measurements by means of squeezing out all statistical information available in the data on an event-by-event basis.

Once the LHC turned on and Run 1 data started to be analyzed using both ATLAS and CMS, results were less affected by statistics, while the systematic uncertainties were not yet significant nor a dominant fraction of total uncertainties. Clearly, this was the golden age allowing for a much larger set of measurements in all areas of top quark physics relying on more straightforward “brute force” applications of the Tevatron analysis strategies, such as simple cut-and-count methods. Hence, the incentive to develop a coherent larger long-term strategy on understanding systematic uncertainties was not yet strong but clearly growing. Some of the more sophisticated methods were being ported from the Tevatron environment to the LHC Run 1 analysis, e.g., various ideogram methods for measuring the mass [35]. The latter showed a large impact of modeling uncertainties, calling for the first dedicated measurements of those, such as the gap fraction measurements and the first efforts for tuning Monte Carlo (MC) inputs [36,37,38]. With the full LHC Run 1 data set and even more so in the transition to Run 2, systematic uncertainties became dominant for most measurements of cross-sections, mass, and other properties of the top quark. To cope with this changing situation the first full multi-dimensional likelihood fits with nuisance parameters were employed [39], which allowed to reduce of systematic uncertainties by a factor of two. The large sample of top quark data also allowed for increasing the depth and wealth of information provided. In addition, to the detector level and fully unfolded parton level, now also intermediate “particle level” results became available in a variety of phase spaces [36,40].

Finally, Run 2 provides such a vast sample of top quarks in basically all decay channels and even some of the associated production modes that many measurements became exposed to the higher-order statistic effects. Meaning the sample size of systematic variations is affecting the templates employed to extract the parameters of interest, e.g., Ref. [41], which is still causing concerns going into the future. Given the abundance of top quarks, profile-likelihood fits are essentially the gold standard for any measurement of single-valued and inclusive quantities [42,43,44,45], soon followed by full multi-dimensional inputs for likelihood unfolding of differential distributions [46,47], which again resulted in a factor two reduction of systematic uncertainties. To further progress in understanding model uncertainties, dedicated ancillary measurements become more important and urgently needed, e.g., Ref. [44]. The application of sophisticated statistical methods harvesting the wealth and power of the top quark data yields a larger power to constrain systematic uncertainties, but on the other hand, the results are increasingly more complex. Especially, correlations of modeling/theory uncertainties across the measured phase space are important and can not be neglected anymore for a consistent interpretation of the results. Here, interpretation means the comparison of results to theoretical predictions by a statistical quantifier and searches for contributions beyond the SM, either directly or indirectly, by means of effective field theory methods.

3. Inclusive and Differential Cross-Sections

Measurements of inclusive and differential cross-sections deepen our understanding of the theory of modeling the production of top quarks. In particular, measurements of $t\overline{t}$ pair production test perturbative QCD (pQCD) and provide important information that can improve the simulation of QCD processes. As noted earlier, single top quark production provides tests of the electroweak theory, and since new physics can change individual production channels, all production modes of single and pair top quark production are needed to check for possible contributions of new physics. Furthermore, many of what are herein called top quark properties are, in fact, differential top quark cross-sections of a particular kinematic quantity, for example, the top quark polarization and the charge asymmetry at the LHC (or forward-backward asymmetry at the Tevatron). To challenge the SM pQCD predictions and to identify evidence of new physics in their modeling, the distributions of these observables need to be tested as accurately as possible and improved where needed.

Theoretical predictions of the $t\overline{t}$ and single top production processes exist at various orders of perturbation in SM theory. The most recent prediction for $t\overline{t}$ production is a fully re-summed next-to-next-to-leading log (NNLL) at next-to-next-to-leading order (NNLO) pQCD calculation and includes electroweak (EW) correction up to next-to-leading order (NLO) as well; single top quark production cross-sections typically have NLO accuracy with the resummation of higher-order logarithms [48,49,50,51,52,53,54,55,56,57,58,59,60]. The total uncertainty from factorization and renormalization scale variations and uncertainties of the parton density distribution function (PDF) is approximately 4–5% for the LHC and evaluated by taking the envelope of the scale uncertainties added in quadrature to the envelope of the total uncertainty of the MSTW2008NNLO, CT10NNLO, and NNPDF2.3NNLO PDF sets [61,62,63,64,65] here.

Table 1. Theoretical predictions for total top quark production cross-sections and their uncertainties for various center-of-mass energies at the LHC [49,53,60,66,67,68,69].

$\sqrt{\mathit{s}}$ [TeV]	${\mathit{\sigma }}_{\mathbf{t}\overline{\mathbf{t}}}$ [pb]	${\mathit{\sigma }}_{\mathbf{s}-\mathbf{ch}.}$ [pb]	${\mathit{\sigma }}_{\mathbf{t}-\mathbf{ch}.}$ [pb]	${\mathit{\sigma }}_{\mathbf{tW}-\mathbf{ch}.}$ [pb]
1.96 ($p\overline{p}$)	$7.16$${}_{-0.23}^{+0.20}$	$1.05$${}_{-0.06}^{+0.06}$	$2.26$${}_{-0.12}^{+0.12}$	$0.30$${}_{-0.02}^{+0.02}$
7 ($pp$)	$177.3$${}_{-10.8}^{+10.1}$	$4.29$${}_{-0.17}^{+0.19}$	$63.9$${}_{-2.5}^{+2.9}$	$15.7$${}_{-1.2}^{+1.2}$
8 ($pp$)	$252.9$${}_{-14.5}^{+13.3}$	$5.24$${}_{-0.20}^{+0.22}$	$84.7$${}_{-3.2}^{+3.8}$	$22.4$${}_{-1.5}^{+1.5}$
13 ($pp$)	$833.9$${}_{-43.0}^{+37.3}$	$6.83$${}_{-0.36}^{+0.40}$	$217.0$${}_{-7.7}^{+9.0}$	$71.7$${}_{-3.8}^{+3.8}$
13.6 ($pp$)	$923.5$${}_{-47.0}^{+40.1}$	$7.25$${}_{-0.36}^{+0.40}$	$232.0$${}_{-2.9}^{+4.3}$	$87.9$${}_{-3.1}^{+3.1}$

summarizes the predictions for $t\overline{t}$ and single top quark production at the LHC (using $m_t=172.5$ GeV) and the Tevatron (using $m_t=173$ GeV, and the MSTW2008NNLO, only).

3.1. Precision Frontier

3.1.1. Measurements of Single Top Quark Production Cross-Sections

As introduced in Section 1, there are two dominant channels for producing single top quarks at the LHC: the t-channel $(q^{\prime }g\to tq\overline{b})$ and the associated $tW$-channel $(gb\to tW)$. The s-channel cross-section is only four times larger at the LHC compared to the Tevatron (see Table 1), which makes s-channel measurements at the Tevatron competitive. At the LHC, the predicted single top quark cross-sections in the t- and $tW$-channel are not much smaller compared to the $t\overline{t}$ pair production cross-section, hence allowing for similarly precise and detailed studies of the top quark in events containing only one top quark. Given the large available data sets already towards the end of Run 1 and even more so for Run 2, simple counting measurements are not competitive anymore in terms of total uncertainties. Instead, more sophisticated algorithms are widely used to further optimize individual analyses; for example, multivariate analysis techniques (MVA) or deep learning approaches [70,71,72] are utilized.

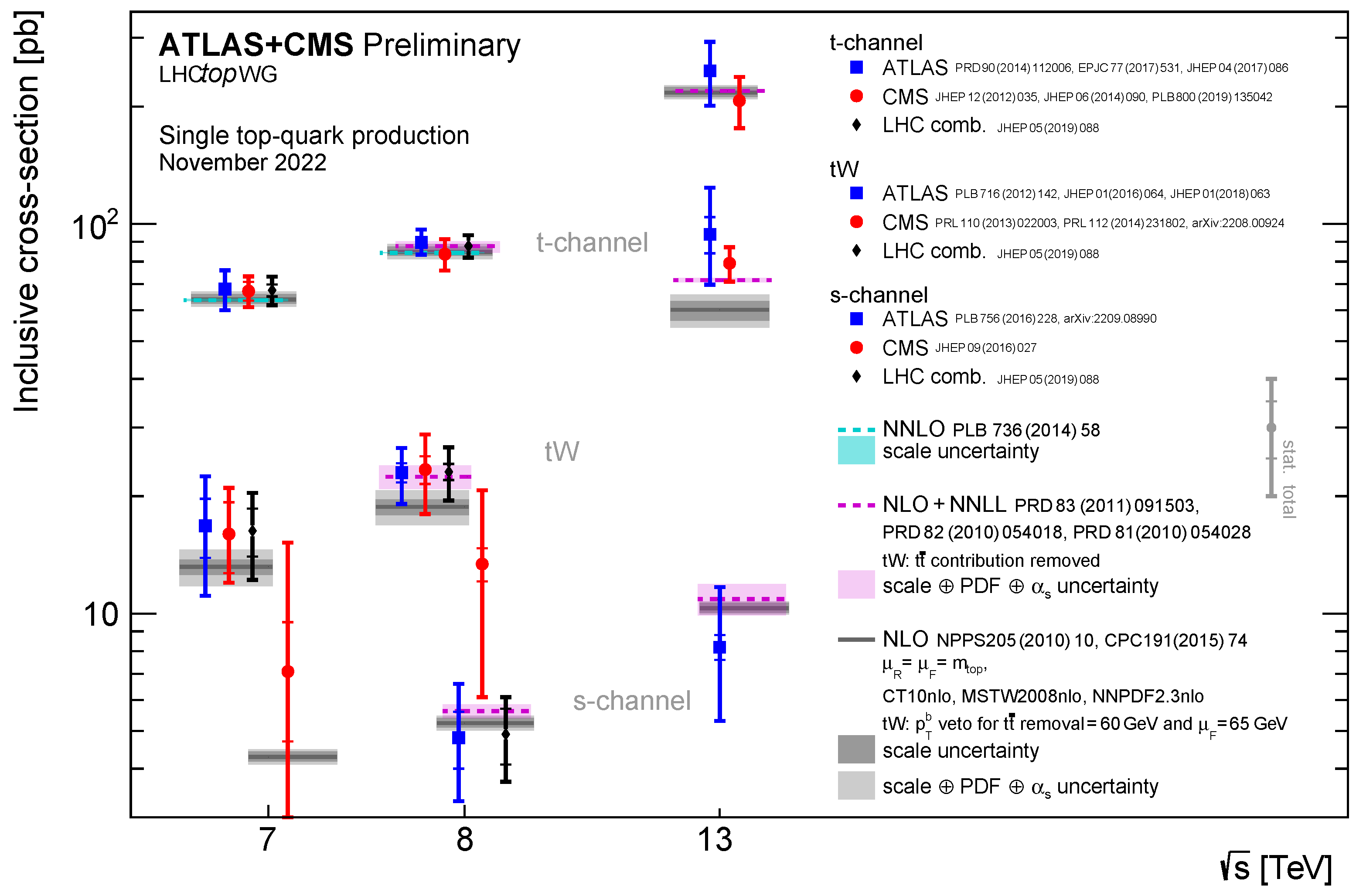

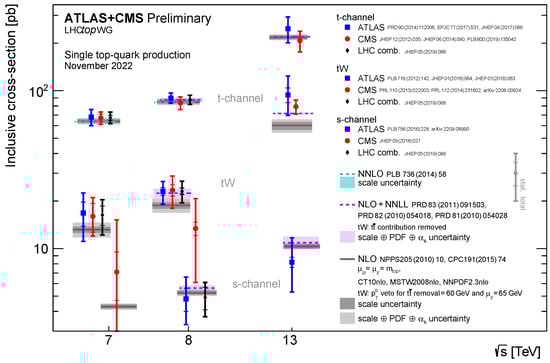

Highlights of results in the single top quark sector are precision measurements of production cross-sections, elements of the Cabbibo–Kobajashi–Maskawa (CKM) matrix related to the top quark, the polarization of single top quarks, as well as exploitation of single top quark events to constrain the proton structure with respect to the ratio of up and down quark content. The latter is possible with measurements of the ratio of t versus $\overline{t}$ quarks.

Historically, the single top quark production was first observed at the Tevatron in 2009 in the t-channel production mode [73,74] and the program culminated in a simultaneous measurement of the s- and t-channel electroweak single top-quark production cross-sections using three multivariate analyses to separate the signal from the background. At D0, these three methods were combined in order to measure the s-, t- and $s+t$-channel cross-sections in one analysis [75], which was later combined with CDF to form the legacy single top quark cross-section measurements at the Tevatron [76]. This includes the s-channel single top quark production, which has been observed in the combination of earlier results by CDF and D0 [76]. With the start of the operations of the LHC, it was certain that the LHC is not just a top quark factory based on $t\overline{t}$ pair production alone, but that it is also producing an abundance of events containing single top quark events. The larger production cross-section allowed for, at first, more straightforward techniques [77,78], with a selection mostly relying on two leptons, one from top-W boson decay, one from “direct” W boson decay, while lately, the application of MVA techniques in LHC measurements allows for one of the W bosons to decay hadronically, e.g., for a “single lepton” tW channel with decent signal-to-background fraction. The most up-to-date measurements at the LHC are by CMS in the t-channel using 13 TeV data and by ATLAS also in the t-channel but using 8 TeV data [45,79]. Figure 1 shows the current situation of measurements of the inclusive single top quark production cross-sections at the LHC [80,81,82,83,84] for all production channels, including combinations of ATLAS and CMS data. Most recently, ATLAS has seen evidence for the production of single top quarks in the s-channel [84]. However, as mentioned earlier the s-channel is challenging at the LHC and hence, is the least well-measured process in $pp$-collisions.

3.1.2. Measurements of $t\overline{t}$ Production Cross-Sections

The production of $t\overline{t}$ pairs is mediated via the QCD interaction of strongly interacting colored gluons and quarks. State-of-the-art theoretical predictions are currently at NNLO, including NNLL corrections, including electroweak corrections at NLO. Typical uncertainties of predictions are at the level of a relative 3.5% and include uncertainties due to renormalization and factorization scales, choice of PDF, and the value of the strong coupling constant (${\alpha }_S$). Measurements are competitive, and the most precise ones are at the level of around 3% relative total uncertainty. With the growing top quark sample collected over the various LHC operations, the analysis started to focus on the dilepton decay channel since it provides a more background-free sample, limiting uncertainties from the modeling of those background contributions. Since then, the most precise cross-section measurements utilize the dilepton decay channel, which has proven to be experimentally well understood, as demonstrated by Figure 2. Precise inclusive cross-section measurements are sensitive to the top quark mass, ${\alpha }_S$, and in particular also the high Björken x gluon contribution to the proton structure. Given the precision with which $t\overline{t}$ cross-sections are measured, results are also sensitive to contributions beyond the SM (BSM), which can potentially enhance the total cross-section. An example is supersymmetric (SUSY) extensions of the SM, where compressed and degenerate SUSY parameter choices lead to low mass splittings of top squarks and the lightest SUSY particle (LSP) that can escape more direct detection. An example of the prospects of a search for a top squark exploiting a top quark property via a measurement of differential cross-sections is discussed in Section 4.

Starting from the measurements of LHC Run 1, cut-and-count was replaced by techniques that exploit the expected event topology of $t\overline{t}$ decays, in particular the expected number of jets identified to originate from b quarks (“b-jets”) in the final state. The ATLAS Run 1 measurement uses the expected number of b jets to constrain the total b-jet identification and selection efficiency and thereby reduces the uncertainty significantly [6]. CMS went another way in using the same parametrization, expanding the visible phase space to zero b jets and performing a likelihood fit with nuisance parameters instead [39], leading to about a factor two improvement with reference to the more simple cut-and-count method utilized earlier. With the onset of Run 2 measurements at a center-of-mass energy of 13 TeV, both collaborations rely on applications of similar techniques to yield comparable precision in the dilepton decay channel [8,41]. Profile likelihood techniques are widely exploited to squeeze down uncertainties even further, e.g., in the $\ell +$ jets channel with ATLAS [86]. A summary of recent measurements of the inclusive $t\overline{t}$ production cross-section measurements covering all center-of-mass energies at the LHC is given in Figure 2. In particular, measurements of $t\overline{t}$ cross-sections using the heavy ion operation of the LHC are getting into the precision level, e.g., by CMS using 5 TeV data with less than 8% uncertainty [87,88].

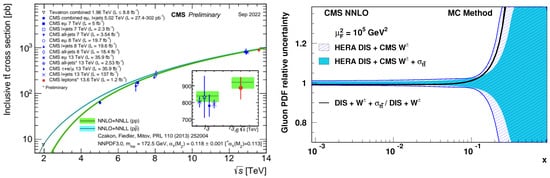

Figure 2. Left: Measured cross-sections at different centers of mass energies compared to the predicted dependence [85], including a result at 13.6 TeV [89]. Right: Improved constraints on the high$-x$ gluon PDF by including the $t\overline{t}$ cross-section measured at 5 TeV.

Figure 2. Left: Measured cross-sections at different centers of mass energies compared to the predicted dependence [85], including a result at 13.6 TeV [89]. Right: Improved constraints on the high$-x$ gluon PDF by including the $t\overline{t}$ cross-section measured at 5 TeV.

Different center-of-mass energies provide access to complementary physics reach, or even in collisions of nuclei where evidence for top quark production was reported by CMS [90]. Another example is the aforementioned inclusive $t\overline{t}$ cross-section measurement at 5 TeV [91]. The lower center-of-mass energy provides larger sensitivity to high x gluon PDFs through more centrally produced top quarks compared to higher center-of-mass energies. Figure 2 shows resulting constraints on the high x gluon contribution to the proton structure via the xFitter framework [92].

The first measurement of the $t\overline{t}$ production cross-section in proton–proton collisions at 13.6 TeV [89] was presented at the TOP22 conference by CMS employing a total integrated luminosity of $1.20\pm 0.07$ fb${}^{-1}$. This early measurement goes back to the concepts in the early days of top quark physics at the Tevatron, namely to constrain detector and object reconstruction efficiencies with data. A maximum likelihood fit is performed to event categories defined by the number and flavors of the leptons and the number of jets and b-jets. Ultimately, an inclusive $t\overline{t}$ production cross-section of $887{}_{-41}^{+43}$ (stat+syst) $\pm 53$ (lumi) pb is measured, which is in agreement with the standard model prediction of $921{}_{-37}^{+29}$ pb (see Table 1).

3.2. Differential Cross-Section Measurements in t, $t\overline{t}$, and $t\overline{t}$ $+X$ Production

Single and multi-differential cross-section measurements are the most powerful tool to challenge the SM and the intricacies of top quark modeling. In most general terms, a differential cross-section, $d{\sigma }_i/dX$, as a function of the variable X can be calculated by extracting the number of observed signal events in bin i, $N_i^{\mathrm{obs}}$, which needs to be corrected for effects of limited acceptance and efficiency of the detector, branching fraction, integrated luminosity, and finally the bin width ${\mathsf{\Delta }}_i$ of the particular variable X. Any measurement of a cross-section relies on MC samples to correct the data for the detector efficiency and also in order to extrapolate, if desired, from the fiducial phase space to the total phase space via acceptance corrections. For this purpose, all cross-section measurements rely on MC samples at leading-order or next-to-leading order pQCD. The process of correcting the data for detector effects is commonly called unfolding; various approaches to this stage of the analysis exist. They differ in complexity and range from un-regularized and regularized matrix unfolding [93] to likelihood techniques, as well as Bayesian full nuisance fit methods [94].

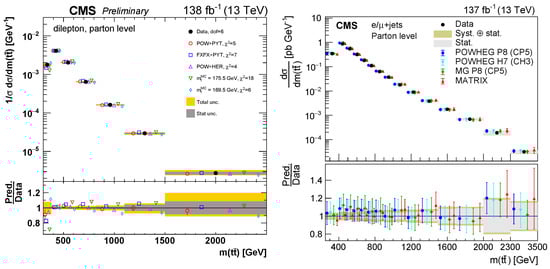

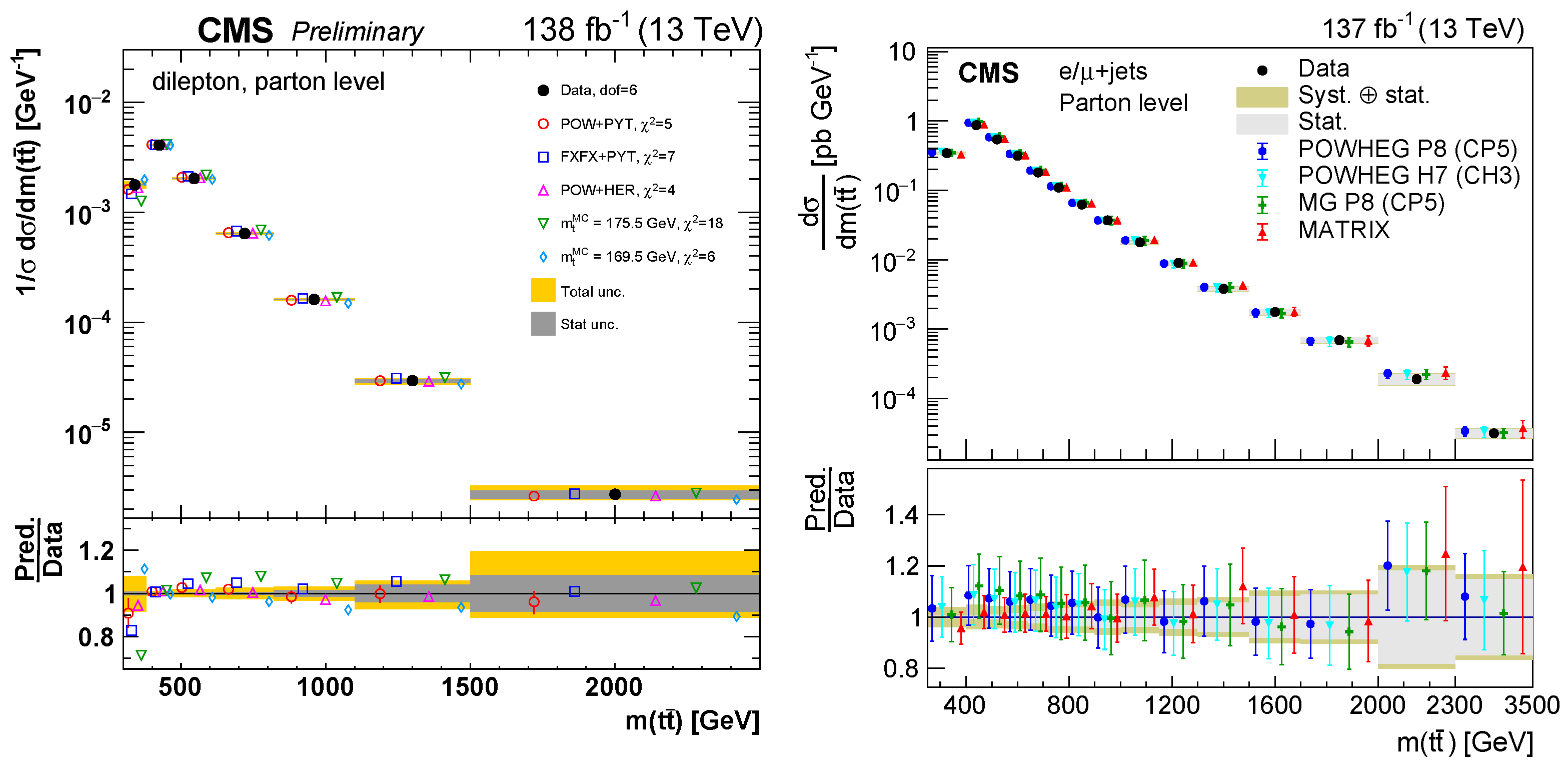

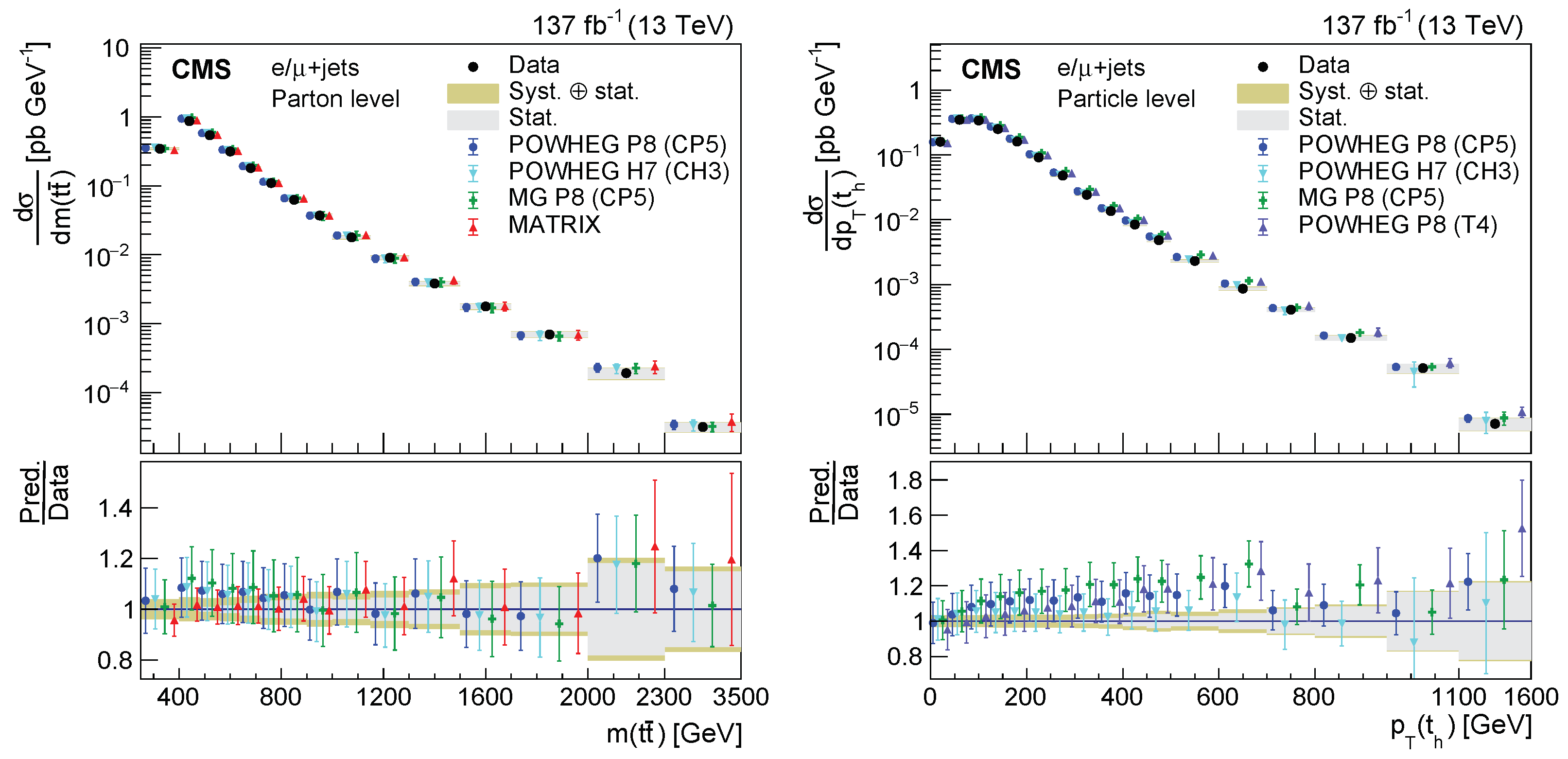

By now, a multitude of highly precise $t\overline{t}$ differential cross-section measurements is at our disposal to further challenge and test the SM and the modeling of the production and decay of $t\overline{t}$ events. Results by both ATLAS and CMS provide accurate measurements and stringent constraints on the top quark mass, PDFs, as well as ${\alpha }_S$. For example, Ref. [95] represents one of the first results exploiting top quark data to constrain all three quantities simultaneously. Figure 2(right) and Figure 3 show the outcome of these simultaneous fits to the early $t\overline{t}$ data at the LHC.

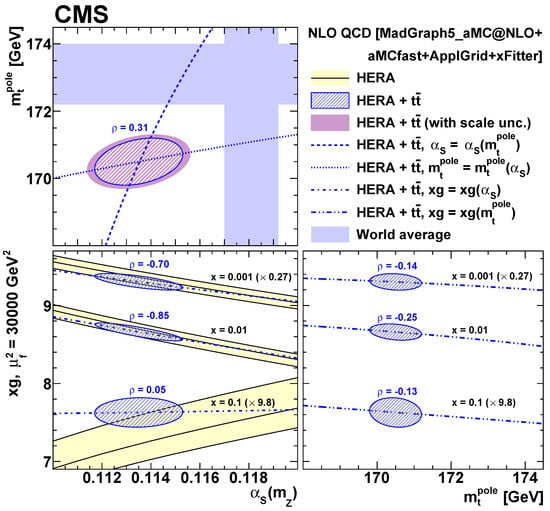

These techniques have been pioneered at the Tevatron but, owing to the limited amount of statistics, in a one-dimensional approach as a top quark pole mass extractions only, using NNLO+NNLL pQCD calculations [96]. Nowadays, double- and even triple-differential cross-section measurements at the LHC [95] in the dilepton and $\ell +$ jets decay channels (see Figure 4) provide excellent statistical power and (multi)differential information to constrain SM parameters and PDFs when compared to state-of-the-art predictions up to NNLO+NNLL [66,97]. In the context of the “TOP 2022 conference,” CMS has presented the first measurement of the $t\overline{t}$ production cross-section at 13.6 TeV [89].

In the future, the constraints on the high-x gluon content of the proton will become crucial for the physics program at the high-luminosity phase of the LHC (HL-LHC). In particular, to understand tails of gluon–gluon fusion-induced processes such as high transverse momentum Higgs boson production, which “lives” at the high-x domain of the proton content. Hence, the gluon-dominated $t\overline{t}$ production, in particular in the high $t\overline{t}$ rapidity regime, will provide valuable constraints on the high-x gluon content of the proton for global PDF fits [100].

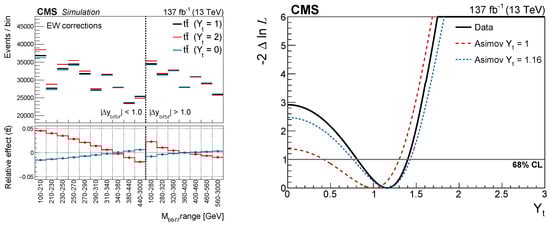

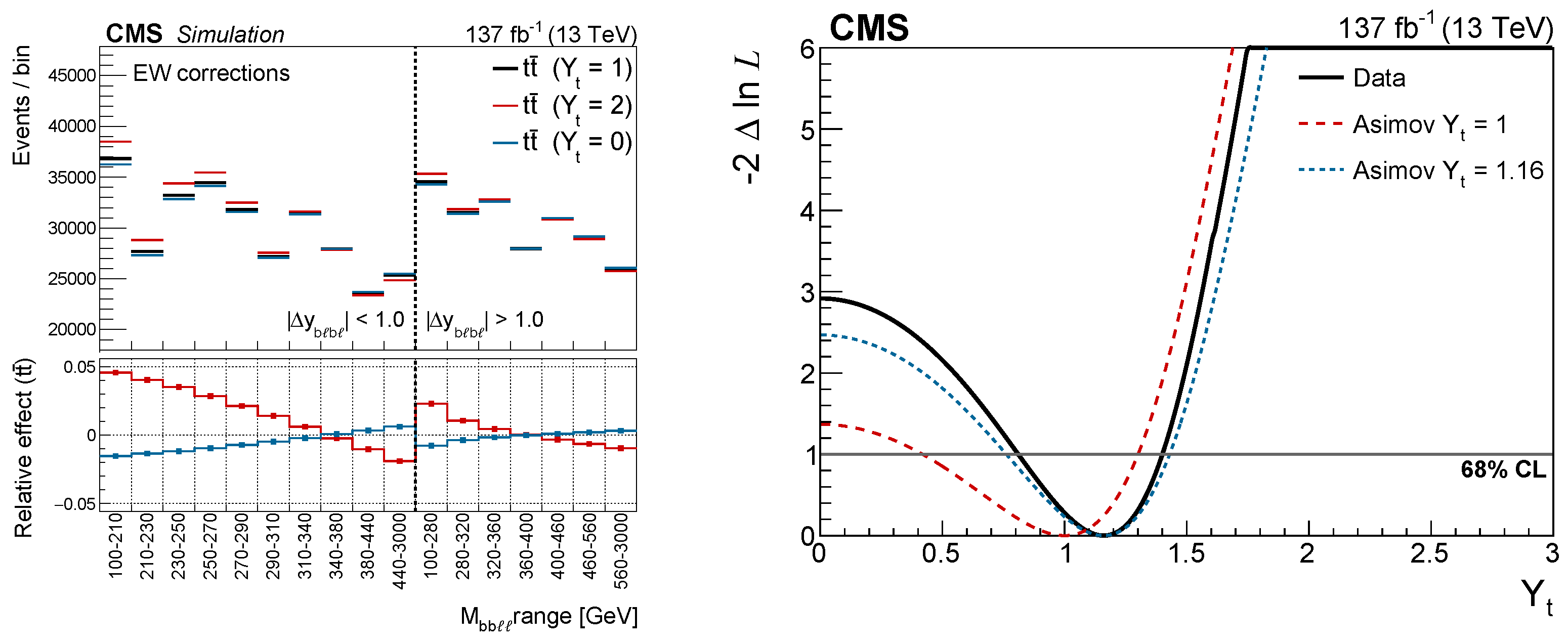

With the size of the available top quark sample at the LHC, there is a plethora of applications for parameter extractions. For example, the differential cross-section, in particular as a function of $m\left(t\overline{t}\right)$ can be used to extract the Yukawa coupling, $y_t$, of the top quark by investigating modifications of the $t\overline{t}$ cross-section at the production threshold. It is especially that region where virtual Higgs boson loop effects provide sensitivity to $y_t$. Results of this alternative approach to access $y_t$ are shown in Figure 5 for the $\ell +$ jets channel. While the method provides good constraints on $y_t$, it suffers from large systematic uncertainties and a precise understanding of the threshold regime, e.g., coming from possible bound-state effects.

3.3. Rare Cross-Section Frontier: Boosted Phase Space, Associated Productions, 4 Top Quark

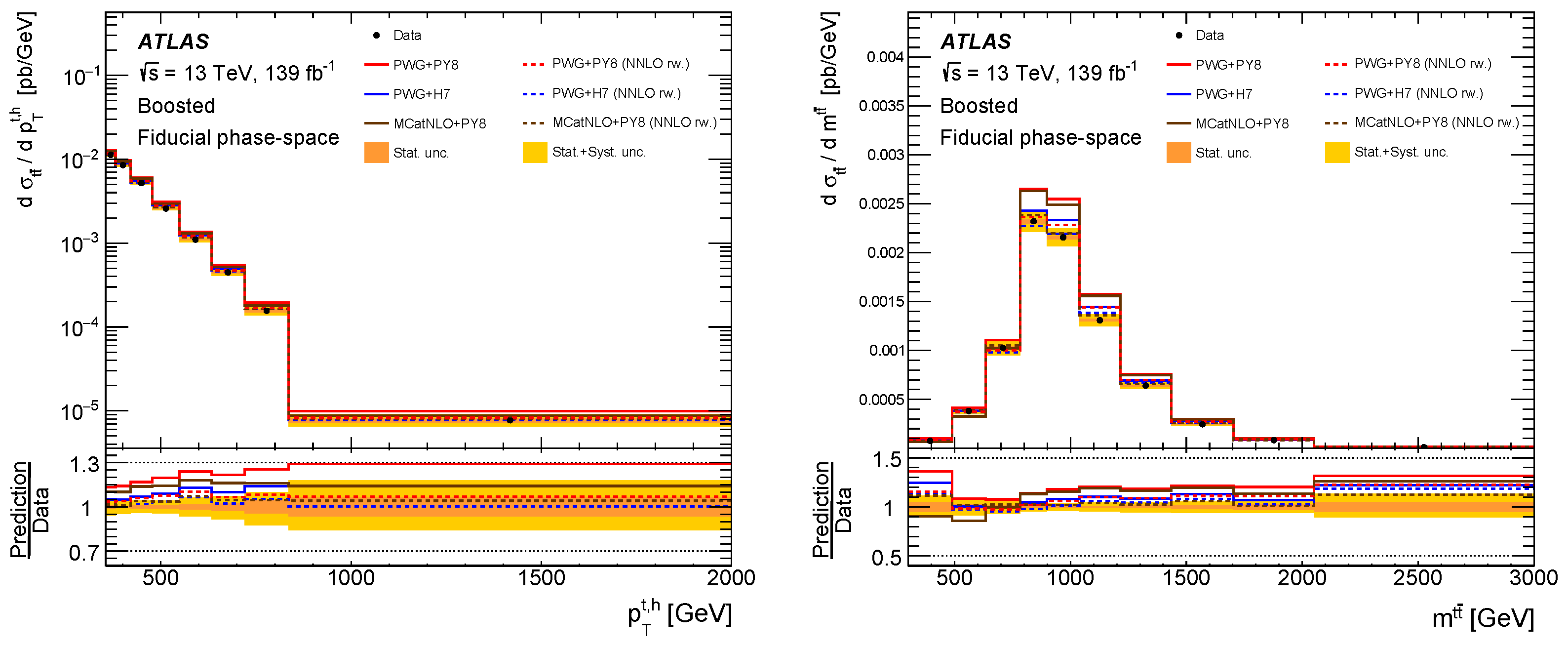

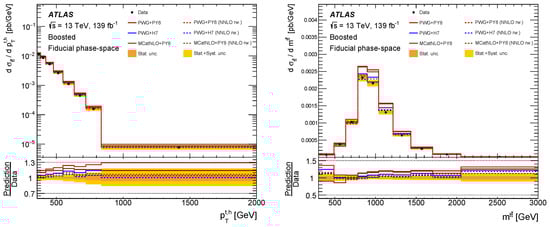

Measurements of $t\overline{t}$ production in the boosted regime give access to high-scale contributions, possibly affected more strongly by BSM processes through virtual or loop contributions. In addition, the boosted phase space can also give alternative access to SM quantities by comparing measurements with predictions and explicitly exploiting one of the features of boosted top quarks, with a lower contribution from threshold effects. Experimentally, boosted top quarks are challenging and require dedicated “top quark taggers” to retain reconstruction efficiency because these highly boosted top quarks result in collimated decay products that are either partially or fully merged. For example, boosted top quark events where the lepton (muon or electron) appears as non-isolated due to its proximity to the b-jet. Dedicated algorithms for jet and lepton cleaning at the trigger and analysis level allows reconstructing the decay products of $t\overline{t}$ events in the $\ell +$ jets channel even without requiring isolation for the leptons. The other top quark in those events decays hadronically, and the decay products have angular distances that are smaller than the jet clustering distance parameter. Hence, all those decay products are reconstructed into a single jet, or “boosted” topology. However, when the $t\overline{t}$ pair is produced near the production threshold, every decay product ends up in a single jet or “semi-resolved” topology, and with a rising boost, the hadronic W boson decay products get merged first, which represents the “semi-resolved” topology. The first step in extending measurements into the highly boosted phase space is dedicated measurements in the boosted phase space to establish reconstruction methods [101] (Figure 6).

Any differential cross-section can be exploited to search for BSM contributions via EFT approaches, but the boosted phase space is, of course, especially interesting since it is a “high scales” region of interest. ATLAS exploits, for example, the transverse momentum distribution of the top quark, $p_T^{t/\overline{t}}$, in all-hadronic decays to search for contributions from $C_{tG}$ and $C_{tq}^{\left(8\right)}$ via EFT approaches [101], which alter the couplings between gluons and quarks producing top quarks (see Section 5.1).

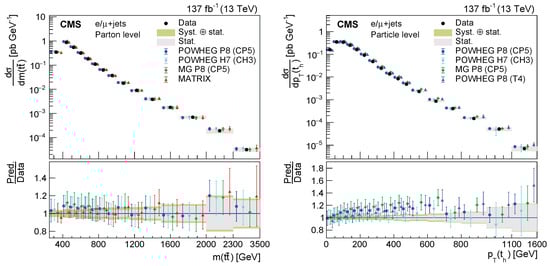

A recent measurement by the CMS collaboration, interpolating between the resolved and boosted regime, gives consistent access to full-spectrum differential cross-sections [99] in the resolved, semi-resolved, and boosted regime. This CMS analysis employs unfolding with nuisance parameters to combine the individual data-taking periods at $\sqrt{s}=13$ GeV. Figure 7 shows the $m\left(t\overline{t}\right)$ cross-section distribution starting at the production threshold and reaching all the way up to 3000 GeV—the highly boosted regime. The boosted regime is also accessible up to similar scales via the $p_T^{t/\overline{t}}$ reaching as high as 1500 GeV, also reached with ATLAS measurements.

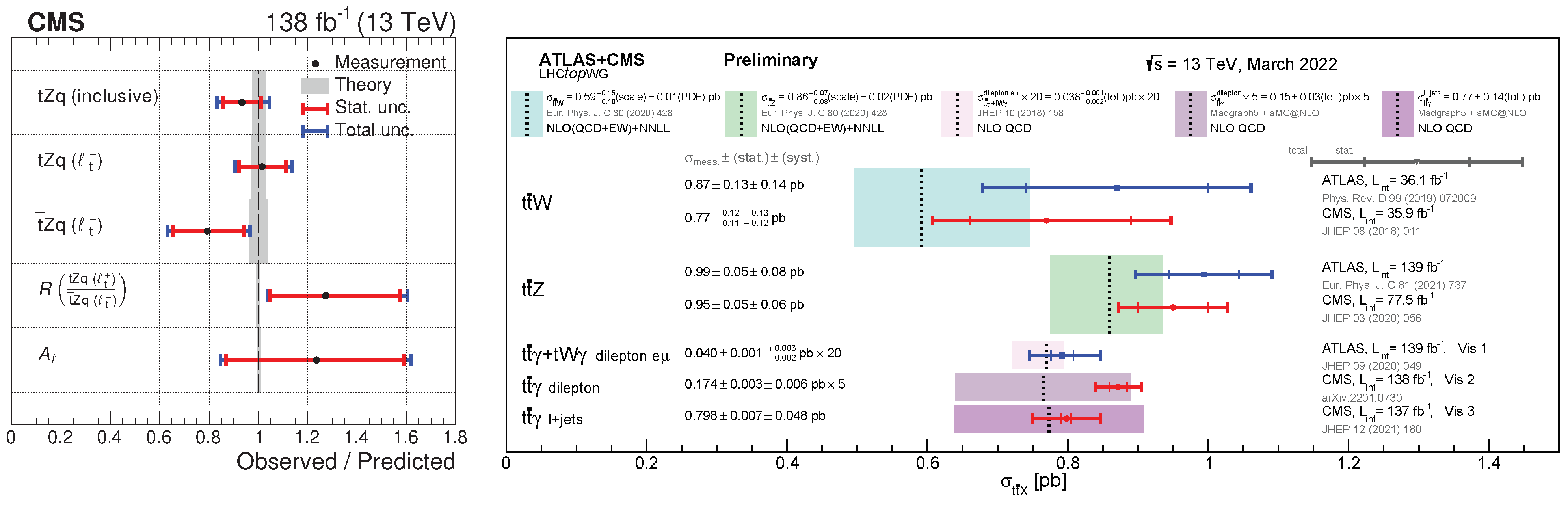

Precise measurements of the inclusive cross-sections of inclusive associated production of vector bosons with $t\overline{t}$ pairs have been carried out early on in Run 2. These processes are of particular interest because they can receive sizable contributions from BSM phenomena. Associated production of vector bosons allows accessing enhanced charge asymmetry in top production via production of $t\overline{t}$ + W, the coupling of the Z boson to $t\overline{t}$ pairs via $t\overline{t}$ + Z [102], and, of course, also the coupling to the photon which allows accessing the top quark electric charge. Any of the processes are, at times, also an important background to several searches for BSM phenomena, which is especially true for the associated production of additional $q\overline{q}$ pairs, e.g., $b\overline{b}$ pairs. The latter is a highly relevant process producing background contributions to the measurement of $t\overline{t}$ pairs in association with the Higgs boson.

More rare associated production channels are the production of single top quarks with a vector boson, such as producing a top quark, a Z boson, and a quark (jet): tZq events. This process has been observed using ATLAS [103] and is now also measured differentially by CMS [104]. The latter also allows to access the spin asymmetry, which is sensitive to the polarization of the top quark. Figure 8 shows summaries of the tZq and other associated vector boson production results. The ratio of the Zq to Z$\overline{q}$ rates gives access to the polarization of the top quark.

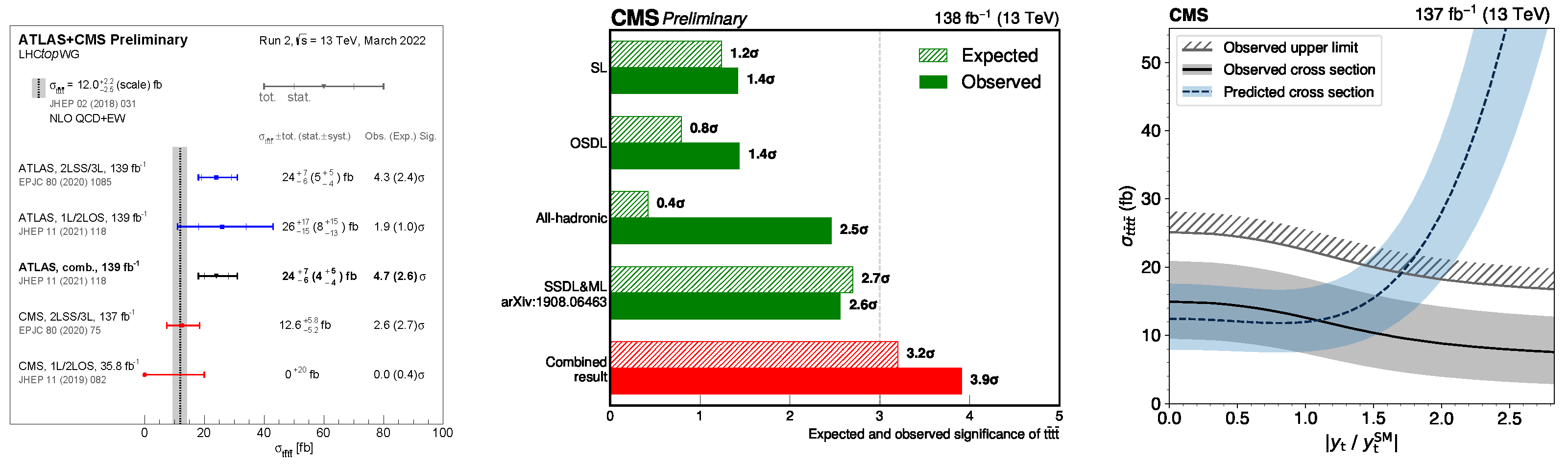

Searches for four-top production [105,106,107] are one of the most, if not the most exciting, processes yet to be measured at the LHC. The current limits are shown in Figure 9a with tantalizing hints for a cross-section enhancement when compared to the SM cross-section prediction of $\sigma (t\overline{t}+t\overline{t})=12$ fb [108]. The production of four top quarks provides also constraints on the top quark Yukawa coupling as shown in Figure 9. While the constraints are slightly weaker than from the direct measurement [43], these will gain in power with statistics and more precise calculations for four top productions, while the measurement from the production threshold, discussed earlier, is already limited by systematic uncertainties.

3.4. Implications

Ever more precise differential cross-section distributions of $t\overline{t}$ production offer unique ways to challenge the SM and call for further developments and a deeper understanding of the SM theory. Especially, the extremes of the production phase space of $t\overline{t}$ offer a unique window into the inner workings of $t\overline{t}$ production, such as highly boosted $t\overline{t}$ pairs. Any and all of these are currently limited by systematic uncertainties, i.e., normalized differential distributions offer the lowest uncertainties of around 5–6%,k limited by a variety of uncertainties. Any progress towards smaller uncertainties requires the concerted effort of the entire community, and progress on experimental and theoretical topics is happening via the LHC Top working group (LHCtopWG [85]). The next Section 4 provides an example for a top squark search which will exploit future measurements of differential distributions in $t\overline{t}$ production at the HL-LHC; typical systematic uncertainties are assumed to be lower by about a factor of two. Such improvements demonstrate the unprecedented power of the HL-LHC, which will produce around one billion top quark events. Even now, the LHC is a top quark factory, which also means that the associated production of $\gamma ,W,Z$ bosons enters the precision realm and offers entirely new tests of the SM, not just in differential precision tests of the SM but also in terms of the coupling of $t\overline{t}$ to these bosons. Overall, we conclude with a strong statement that differential measurements in $t\overline{t}$, associated production of bosons and pairs of semi-heavy $q\overline{q}$ pairs, and even the production of $t\overline{t}$ + $t\overline{t}$ pairs all provide ample ways of constraining models and sources of new physics.

4. Top Quark Properties

Measurements of top quark properties have been a highly sensitive probe as to whether the top quark is indeed the SM top quark. It all started at the Tevatron with measurements of the top quark mass, moving on to the charge of the top quark, spin correlations, and more.

4.1. Measurements of Angular Correlations

Angular correlations are sensitive probes to test the validity of the SM predictions, given the level of detail that needs to be modeled accurately in order to achieve a decent description of the data. A variety of measurements of angular correlations has been done over the years, such as charge or forward–backward asymmetries, as well as measurements of top quark spin correlations and polarization. The different initial state makes measurements of angular correlations in $t\overline{t}$ events, for example, forward–backward asymmetries, at the Tevatron complementary to those at the LHC. In general, the size of the $t\overline{t}$ asymmetries at the Tevatron or at the LHC is related to the relative weight of the quark anti-quark annihilation channel in $t\overline{t}$ pair production since events arising from $gg$ initial states are forward–backward symmetric. Consistently, this results in angular correlations being different quantities at the various center-of-mass energies of the LHC operation. The charge asymmetry $A_C$ at the LHC arises from the fact that quarks have, on average, a larger longitudinal momentum than anti-quarks, which in the case of a $pp$ collider leads to a wider rapidity distribution in the case of t production compared to the $\overline{t}$. At the Tevatron, the t and $\overline{t}$ rapidity distributions are shifted with respect to each other, allowing accessing $A_{FB}$ by a measurement of the difference in rapidity. The CDF and D0 combined experimental results [109], show indications for deviations from the SM predictions by about one to two standard deviations (s.d.), whereas the results from the LHC are not yet sensitive to the predicted level of the charge asymmetry in the SM. A variety of results at both ATLAS and CMS exist [47,110], including an ATLAS+CMS combination [111], and we only mention two results here briefly. ATLAS has evidence for the charge asymmetry being different from zero but not yet for the predicted SM value of $A_C$ [47], while CMS recently put out a measurement of $A_C$ in the highly boosted phase space of $m\left(t\overline{t}\right)=750$ GeV [110]. The latter measurement benefits from a binned maximum likelihood fit, which yields a reduced impact of systematic uncertainties on the result. In either case of these ATLAS and CMS results, the measured top quark charge asymmetry is in good agreement with the standard model prediction at NNLO in pQCD with electroweak corrections at NLO. Future prospects include measurements of the charge asymmetry in the associated production of W bosons and via different variables that are more sensitive to the charge asymmetry.

Angular distributions of leptons stemming from the decay of the top quark can be measured precisely and utilized to probe variables sensitive to the spin correlations and polarization of top quarks. Measurements at all center-of-mass energies of the LHC [112,113,114,115,116] and prior to that at the Tevatron [117], have established that the spins of top quarks are correlated as predicted by the SM.

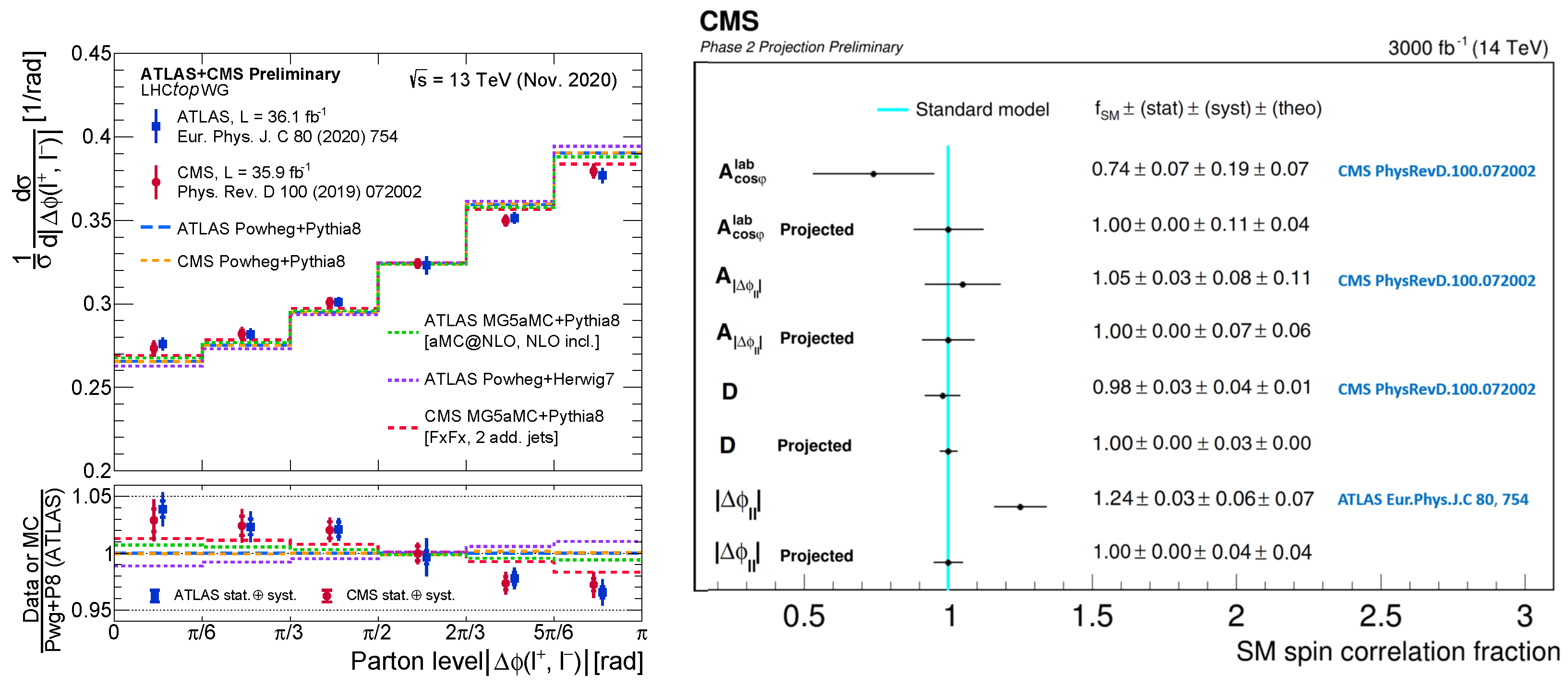

The latest measurements at ATLAS [116] and CMS [118] show good agreement with each other; see Figure 10. When comparing ATLAS and CMS data to the SM predictions a mild tension is observed that is reduced with higher order corrections at next-to-next-to-leading order (NNLO) [119], and through techniques that reduce the effect of theoretical uncertainties on the acceptance corrections [120].

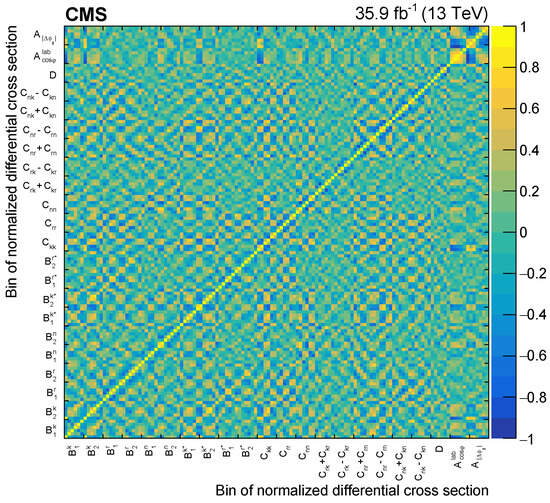

Current and future efforts at the LHC are focused on accessing the spin correlation and polarization information to an ever greater differential depth using full Run 2 data and beyond, hence, allowing us to understand better the clearly visible mis-modeling of the distribution of the opening angle of the decay leptons, $\mathsf{\Delta }\varphi \left(\ell \overline{\ell }\right)$, of the top quarks shown earlier. Recently, CMS has done a projection of how precise this and other angular distributions can be measured with the data collected during the HL-LHC [121]. An integrated luminosity of 3000 $f{b}^{-1}$ at $\sqrt{s}=14$ TeV provides a vast top quark data sample, which is unlimited in terms of statistical power. A generic future CMS detector simulation is employed via delphes to provide a first study of the performance of the expected precision of measurement of the strength of expected SM spin correlations. Unprecedented precision in measuring spin correlation variables is expected, with D the most accurate variable with a 3% total uncertainty. Figure 10 (right) shows the result of this study in comparison to existing measurements by ATLAS and CMS using partial Run 2 data. The metric for that comparison is by means of the strength of the top quark spin correlation relative to the SM prediction.

Second, as an application of utilizing these measured angular distributions and to study a specific model that predicts zero spin correlation, prospects for a search for supersymmetric partners of the top quark in the compressed SUSY model are studied as well. The reconstruction of the $t\overline{t}$ system allows for 19 spin correlation variables to be computed. These are used to form a discriminant between the background SM and the (hypothesized) signal SUSY processes through a Deep Neural Network (DNN), used in a binned likelihood fit. Prospects using 3000 $f{b}^{-1}$ of data at $\sqrt{s}=14$ TeV indicate that the top squark-LSP mass corridor up to the 1 TeV range should easily be able to discover a non-SM signal. In the absence of a discovery, this analysis can exclude top squarks up to masses of 600 GeV (see Figure 11) and push down existing limits, especially below top squark masses of 300 GeV, by about one order of magnitude [121].

4.2. Top Quark Mass

A large number of measurements of the top quark mass have been carried out at the LHC, and it is not possible to summarize all the details adequately in this review. Instead, we focus only on those demonstrating the latest status and that are most relevant to the current discussion in the top quark mass sector. Figure 12a shows the summary (March 2022) of top quark mass measurements accessing the mass via kinematic or “direct” methods. The typical uncertainties of the ATLAS [122] and CMS [123] combined top quark mass values are less than 0.5 GeV in absolute units or below 0.3% in relative uncertainty. Both experiments have measured the top quark mass in the dilepton, $\ell +$ jets, and all-hadronic decay channels and are preceded by a multitude of measurements at the Tevatron culminating in the latest Tevatron combination [124] and even a world-first combination documented in Ref. [125]. Individual Tevatron results have been combined with LHC results published up to 2014, and the world average is indicated in Figure 12a with the vertical grey band, providing a typical relative uncertainty of 0.5%. The degradation of precision stems from the lack of up-to-date LHC results in the world combination [125]. Most of these combinations have been performed using the BLUE method [126,127,128], but recent measurements using profile likelihood techniques have also triggered further developments of—in that case—a more accurate approximate likelihood method [129] that is now becoming standard for LHC top quark combinations.

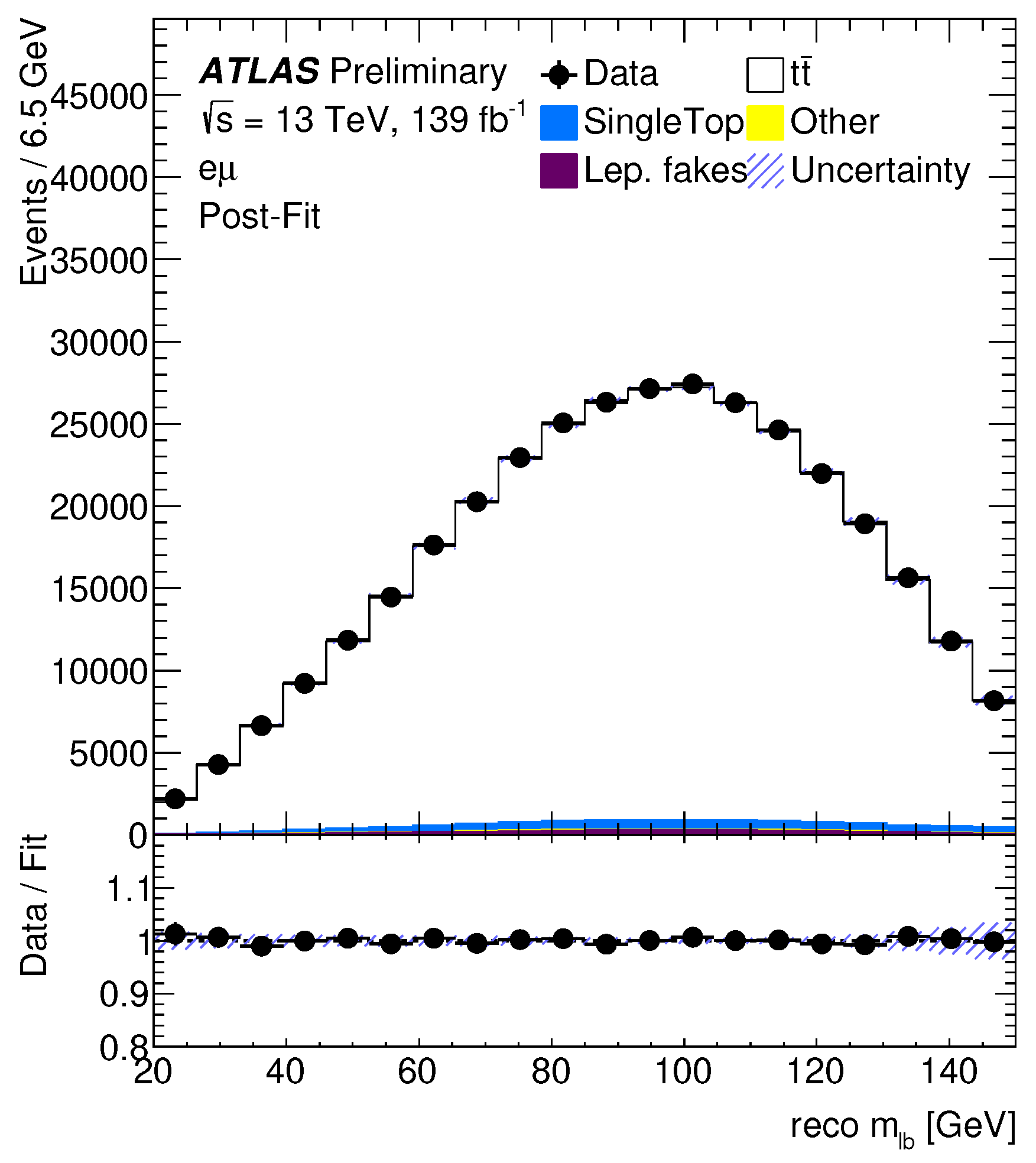

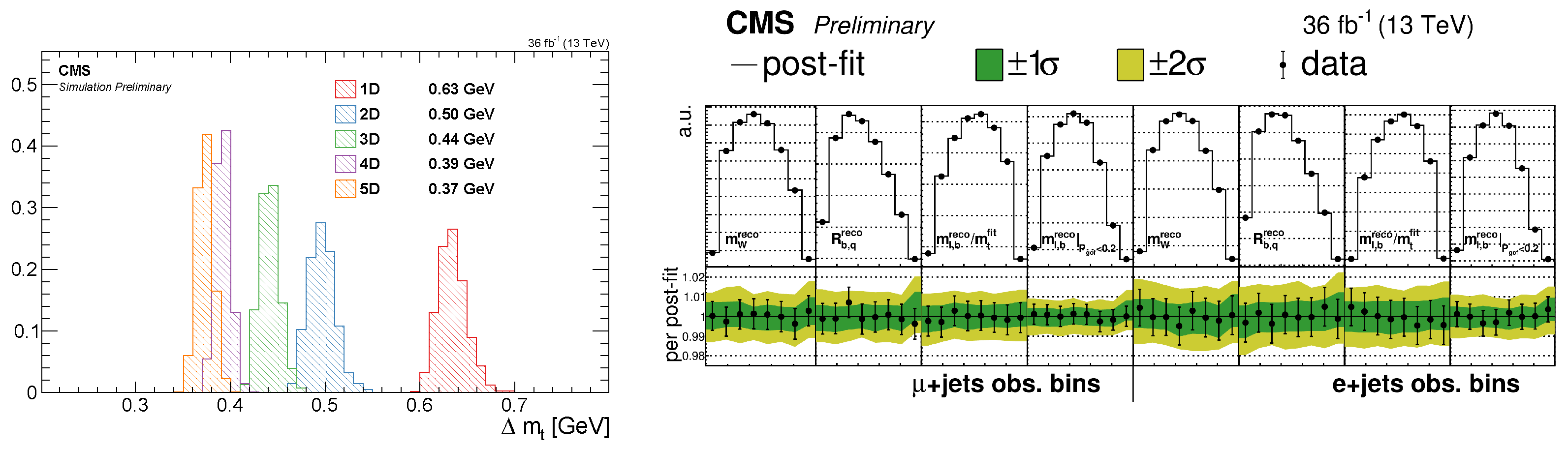

The latest measurements of the top quark mass at the LHC Run 2 showcase the potential of the top quark factory for precise determination of the top quark mass. An example is a CMS measurement employing profile likelihood methods with five observables [130]. Similar to previous measurements, the main estimator for the top quark mass is given by the invariant mass of the three jets originating from the same top quark: one b jet and two light jets from the W boson. For that purpose, the full $t\overline{t}$ system is reconstructed by minimizing a ${\chi }^2$, taking into account the expected resolutions on the objects and the combinatorics. In addition, observables are considered that provide the best constraint on the top quark mass and at the same time help to understand the dominant systematic uncertainties. Namely, those observables that are sensitive to the jet energy scale but can constrain it by e.g., leveraging the known W boson mass, and observables that give access to the difference in detector response between light and b-quark jets, as well as observables that help further constrain the top quark mass for events where the kinematic fit did not provide a high purity result. Figure 13 (left) shows how adding these observables, and with them, their constraining power, successively to the analysis improves the total precision of the extracted top quark mass. Additional observables, Figure 13 (right), are the input to the ML fit and their post-fit probability density functions. The green and yellow bands represent the 1 s.d. and 2 s.d. uncertainty bands. Another noteworthy detail of this analysis is that it includes a consistent treatment with respect to the effect of statistical fluctuations that affect the modeling of the systematic uncertainties directly in the likelihood. This is an issue that will become increasingly important with more data and when more subtle uncertainties need to be accounted for.

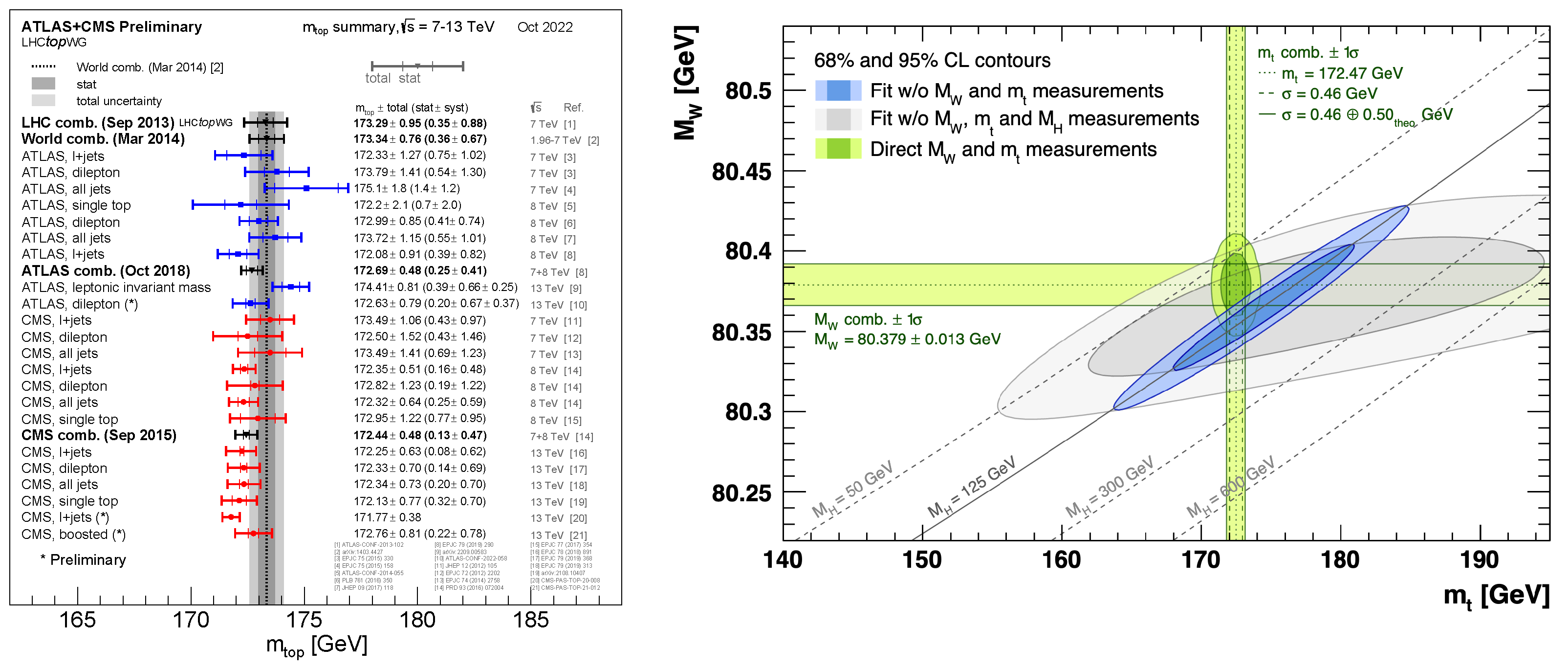

Figure 12 (right) shows the $m_t$ versus $m_W$ plane, where $m_t$ is obtained by the GFitter collaboration [16] via a combination of the individual combined results of ATLAS and CMS using direct methods—an updated result including latest measurements can be found at Ref. [131]. That combined $m_t$ and its uncertainty gets an additional theoretical uncertainty of 500 MeV assigned to account for a potential difference between the measured “MC mass” and the pole mass of the top quark. Historically, and surely since the early measurements at the Tevatron got reasonably precise, this MC-versus-pole-mass controversy has received lots of attention from the experimental and theoretical communities. Given the increasing precision of the LHC measurements beyond 0.3%, the topic receives renewed attention, asking for an accurate assessment of the differences and uncertainties related to this conversion, a recent overview article is provided in Ref. [132]. The value of $m_W$ is the world average of available $m_W$ measurements at the time of this fit. A recent update on the W boson mass measurement by CDF [133] is further away from the world average, and the result and its impact are currently being discussed in the community [131]. Together with the measurement of the mass of the Higgs boson [10,11] this is a strong self-consistency test of the SM with implications on the stability of the SM vacuum [20]. The current measurements and the theoretical extrapolation at NNLO of the SM seem to indicate that the vacuum is meta-stable or, maybe even more peculiar, sitting right at the boundary of stability and meta-stability.

In addition to the presented direct measurements, alternative measurements of the top quark mass have also been performed with the aim to either increase the precision by constructing the measurement such that the systematic uncertainties are complementary to direct measurements or with the aim to improve the understanding of the measured quantity in terms of well-defined renormalization schemes. The most common alternative top quark mass measurement technique is the extraction from the $t\overline{t}$ production cross-section. At the Tevatron, these techniques were limited by the available statistics to focus on the top quark mass only, while the larger statistics available at the LHC allow not only the use of inclusive but also more and more differential techniques. This wealth of information and data now permits simultaneous fits of the strong coupling constant ${\alpha }_S$ and the top quark mass, even measurements of $m_t$ in the boosted phase space by a “Jet mass” proxy [134] reach uncertainties of below 0.9 GeV.

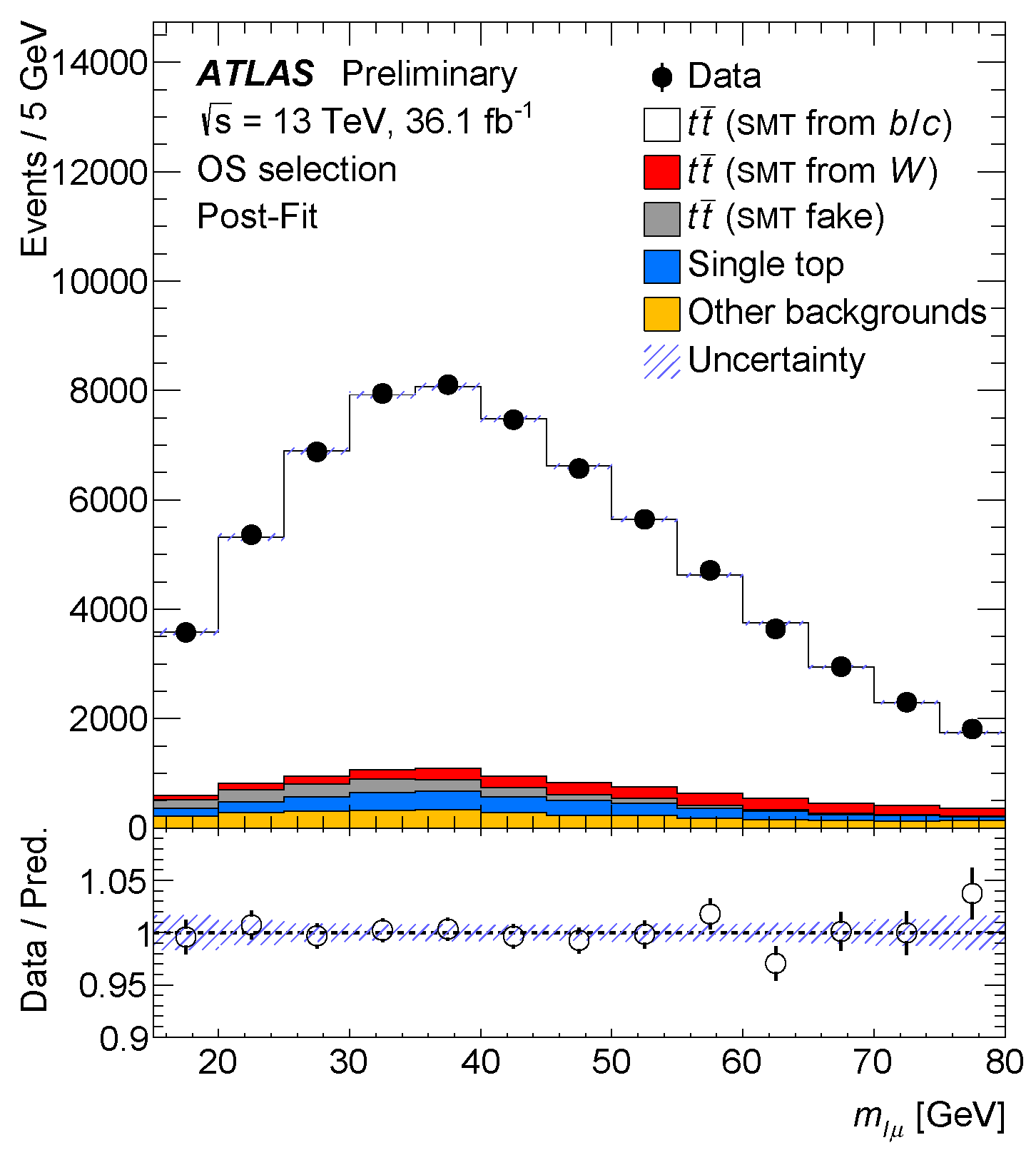

Even more orthogonal measurements using alternative approaches to measuring the top quark mass employ, for example, the invariant mass of the muon from the leptonic decay of the W boson together with a soft muon in the b jet as a top-mass sensitive observable [135]. Given the dependency on muons, this measurement approach is less sensitive to uncertainties and effects that arise from jet energy scale and top quark production modeling. However, since the soft muon comes from the decay of B hadrons, the uncertainty on $m_t$ is dominated by the knowledge of the B fragmentation and the B decay branching fractions. Figure 14 shows, as an example, the post-fit distribution selecting same-sign muon pairs to construct the top mass sensitive observable.

Once corrections beyond leading order enter calculations in pQCD, the couplings exhibit a scale dependence well known from e.g., the strong coupling. In the no-mass limit, this running described by renormalization group equations (RGE) even governs the dependence of observables on the physical scales. In certain renormalization schemes, the masses are also subject to this fundamental effect of QCD. Beyond proving this fundamental effect, measurements of the “running” of the top quark mass are sensitive to new physics affecting the RGEs. While these would also be reflected on final state distributions, a change in the RGEs from BSM contributions is often easier to access.

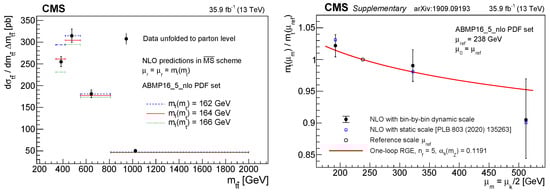

The first study of the scale dependence of the top quark mass was performed with the CMS collaboration [46] at NLO, finding good agreement with the SM RGEs when using the top-quark pair invariant mass as a proxy for the scale, as also shown in Figure 15. The sensitivity of the measurement to this subtle effect relies heavily on high dimensional likelihood unfolding with nuisance parameters discussed in Section 2, and on mitigating the dependence of the measurement on the MC mass-related acceptance corrections [136]. Recently, also an extension to state-of-the-art NNLO calculations has been presented, showing similarly good agreement with the SM while improving the accuracy of the results [137].

4.3. Top Quark Width

The top quark width can be calculated precisely in the SM [138,139], and deviations could hint at new physics. However, indirect measurements of the width assume SM couplings and are therefore not very suited for a more model-independent measurement. Direct top quark width measurements circumvent this problem and are solely based on width-sensitive final state distributions. These direct measurements have been pioneered at the Tevatron by the CDF and D0 experiments [140,141], and further improved at LHC with the Run I data set [142]. One of the latest examples of such a direct measurement is performed by the ATLAS collaboration [42]. It uses the invariant mass of the lepton and b-tagged jet, $m\left(lb\right)$, to harvest the power of differential distributions; see Figure 16. The result also exploits the invariant mass of the $b\overline{b}$ pair, $m\left(b\overline{b}\right)$, for constraining uncertainties arising from the jet energy scale. The measured width of the top quark is ${\mathsf{\Gamma }}_t=1.9\pm 0.5$ GeV, in agreement with the Standard Model prediction.

5. Searches in the Top Quark Sector: FCNC, SUSY, and EFT

There is a rich landscape of searches carried out in the top quark sector, but despite this section, we are not discussing those searches in more detail here since there is a separate review on, e.g., vector-like top quarks. Instead, we only mention the ones most specific to top quarks, namely a hypothetical flavor-changing neutral current (FCNC). Recent searches for the existence of such an FCNC in top quark production or decay [143,144] is evident in the transition of an up or charm quark to a top quark, latest results are shown in Figure 17.

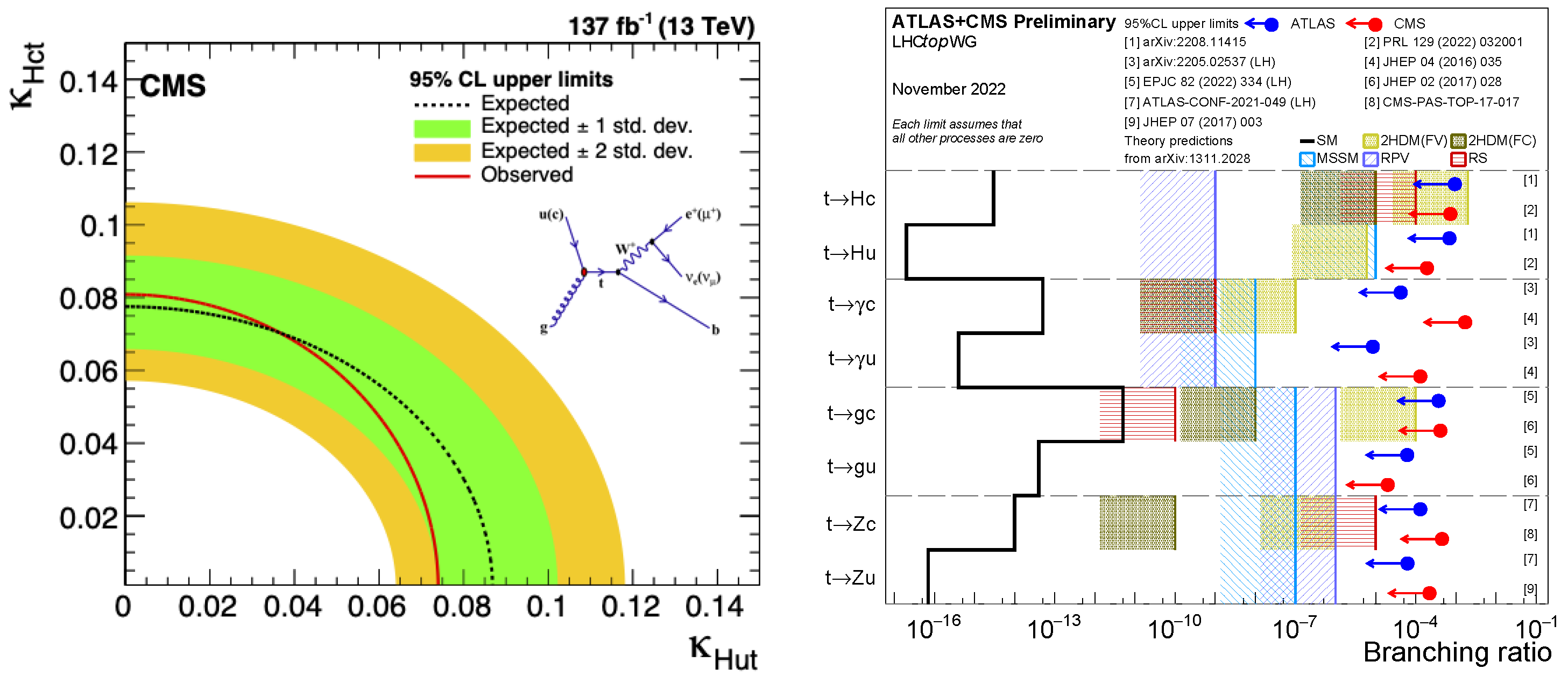

A summary of the best limits at the 95% confidence level observed limits on the branching ratios of the top quark decays via FCNC is shown in Figure 17 (right). Results using ATLAS and CMS include top quark decays to a quark (u or c) and a neutral boson ($g,Z,\gamma$ or H) and are compared to several new physics models.

5.1. EFT Methods

In the absence of direct experimental observation of contributions beyond the SM and new particles, direct searches aimed at single BSM models are more and more turned into global searches—an approach that is surely discussed in more detail in the separate review on searches for new physics. Instead, we focus on the more general and model-independent EFT approach highlighting three examples of how EFT techniques are leveraged in top quark physics to reveal new physics, namely by deriving EFT constraints by means of multi-process, property-based, or differential fully correlated measurements. The first example shows its strength in a regime where multiple processes cannot be disentangled easily; one can harvest the power of the data using multi-process analyses, i.e., for more global EFT constraints [145] on processes enhancing final states with multiple leptons. Figure 18 shows a recent result by CMS aimed at constraining BSM contributions that manifest themselves in multi-lepton final states. These multi-lepton stem from the decay of top quarks produced in association with gauge bosons: $t\overline{t}$ H, $t\overline{t}$ Z, $t\overline{t}$ W, tZq, and tHq. Such a combined fit of EFT parameters properly accounts for correlations between the different channels in terms of systematic uncertainties.

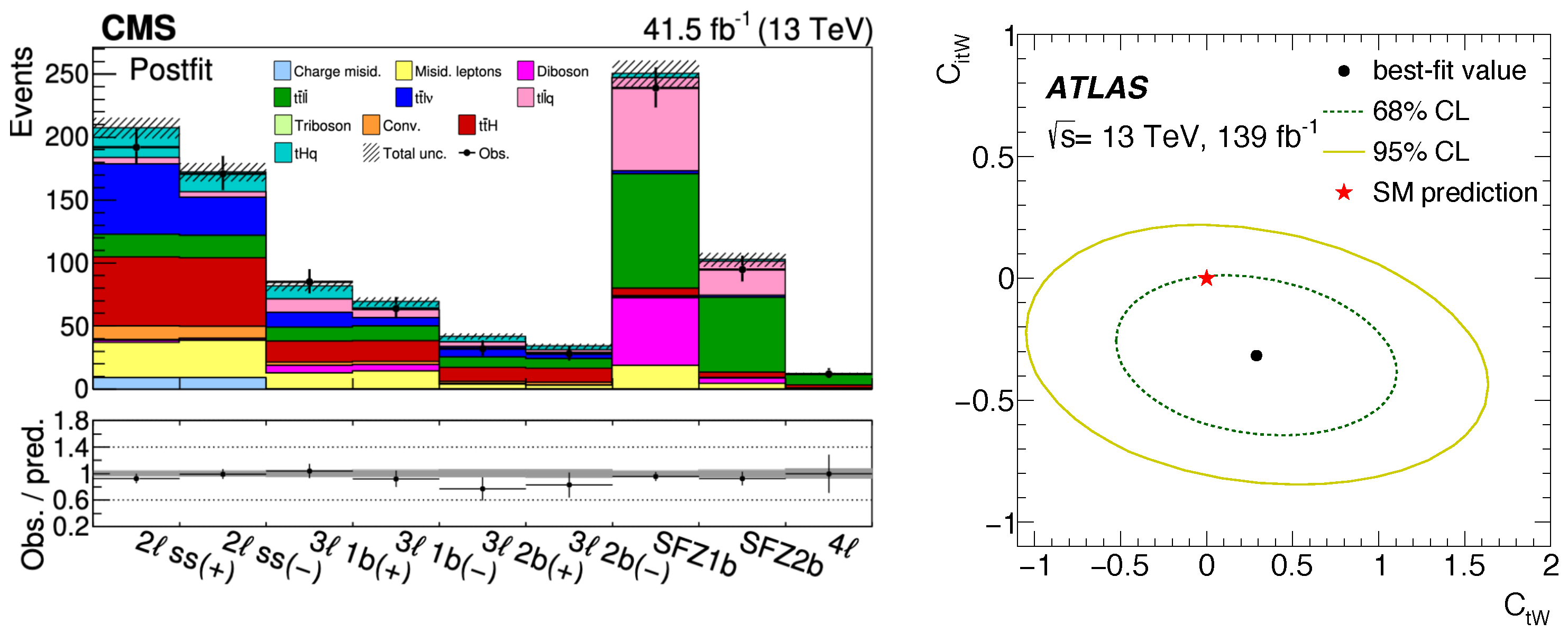

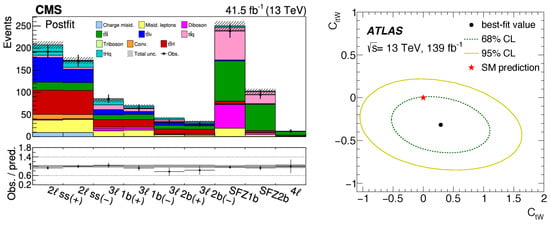

Even expanding on this multi-process EFT analysis is possible and allows gaining additional sensitivity to dimension-6 operators by exploiting machine learning and apply on control and signal regions to maximize the statistical power of the LHC data. An example at the LHC is published by CMS [147] and implements novel machine learning techniques to boost sensitivity to new physics.

In addition to new physics enhancing rare processes in a variety of final states, one can rely on the power of the LHC being a top quark factory. A second example of a typical EFT analysis is the one presented with ATLAS on utilizing a measurement of a top quark property, i.e., its polarization, to extract EFT constraints [146]. The SM predicts top quarks to be not polarized if produced in $t\overline{t}$ pair production. However, the production of single top quarks is mediated by the electroweak force and hence, produces highly polarized top quarks. ATLAS measured the polarization of top quarks and anti-top quarks from the distributions of the direction cosines of the charged-lepton momentum in the top-quark rest frame. The normalized differential cross-sections are corrected to a fiducial region at the stable-particle level and are utilized to search for new physics appearing in the complex Wilson coefficients, results shown in Figure 18 (right).

Any extraction of bounds on new physics in an EFT framework utilizing one or multiple differential cross-section distributions in n dimensions “suffers” from not properly accounting for correlations between bins of all the variables in terms of (a) statistical uncertainties and (b) any and all systematic uncertainties. Earlier in this review, we discussed a CMS result on the measurement of the full spin density production and polarization information in dilepton events [118]; see Section 4.1. This measurement is utilized in a subsequent analysis to constrain the phase space of new physics contributions via an EFT approach utilizing a total of 22 variables sensitive to spin correlations and polarization of the top quark. However, the measured distribution of a variable is obviously correlated to all others, and in addition, also systematic uncertainties are correlated between the bins of these variables. A powerful tool to determine correlations is commonly referred to as the “bootstrap method” [148], which, in essence, treats every single data event as a Poisson counting experiment with expectation value 1 and draws toys, e.g., 10,000 times and each time repeat the unfolding. This approach allows us to statistically correlate all measured single differential cross-section distributions in terms of their statistical uncertainties. Now, if this approach is expanded to also utilize MC samples implementing parameter variations (systematic uncertainties) one can finally obtain correlations of total systematic uncertainty. Figure 19 shows the correlations of systematic uncertainties in the CMS spin density analysis. Hence, the bootstrap method allows a simultaneous model-to-data ${\chi }^2$ fit properly, accounting for correlations of statistical and systematical uncertainty between variables. This method is, of course, also highly applicable when challenging the SM, an example using ATLAS can be found in Ref. [149]. In the case of CMS, the statistical and systematic covariance matrices consisting of 132 × 132 bins are provided for the set of all measured bins and are used in simultaneous fits to constrain the contributions from dimension-six effective EFT operators and, at the time, providing a significantly improved limit compared to other existing measurements.

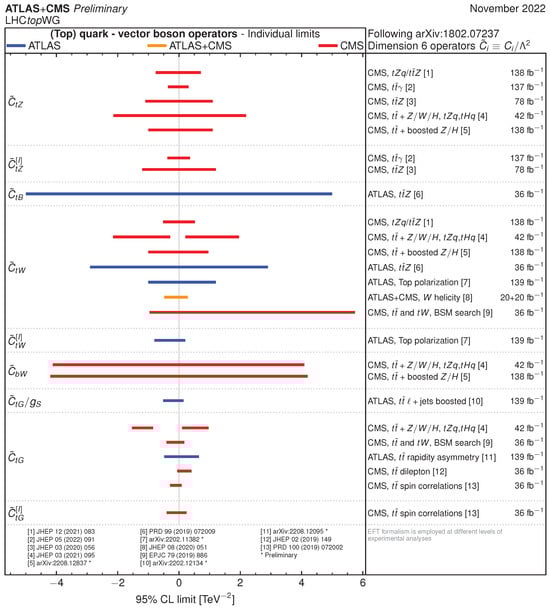

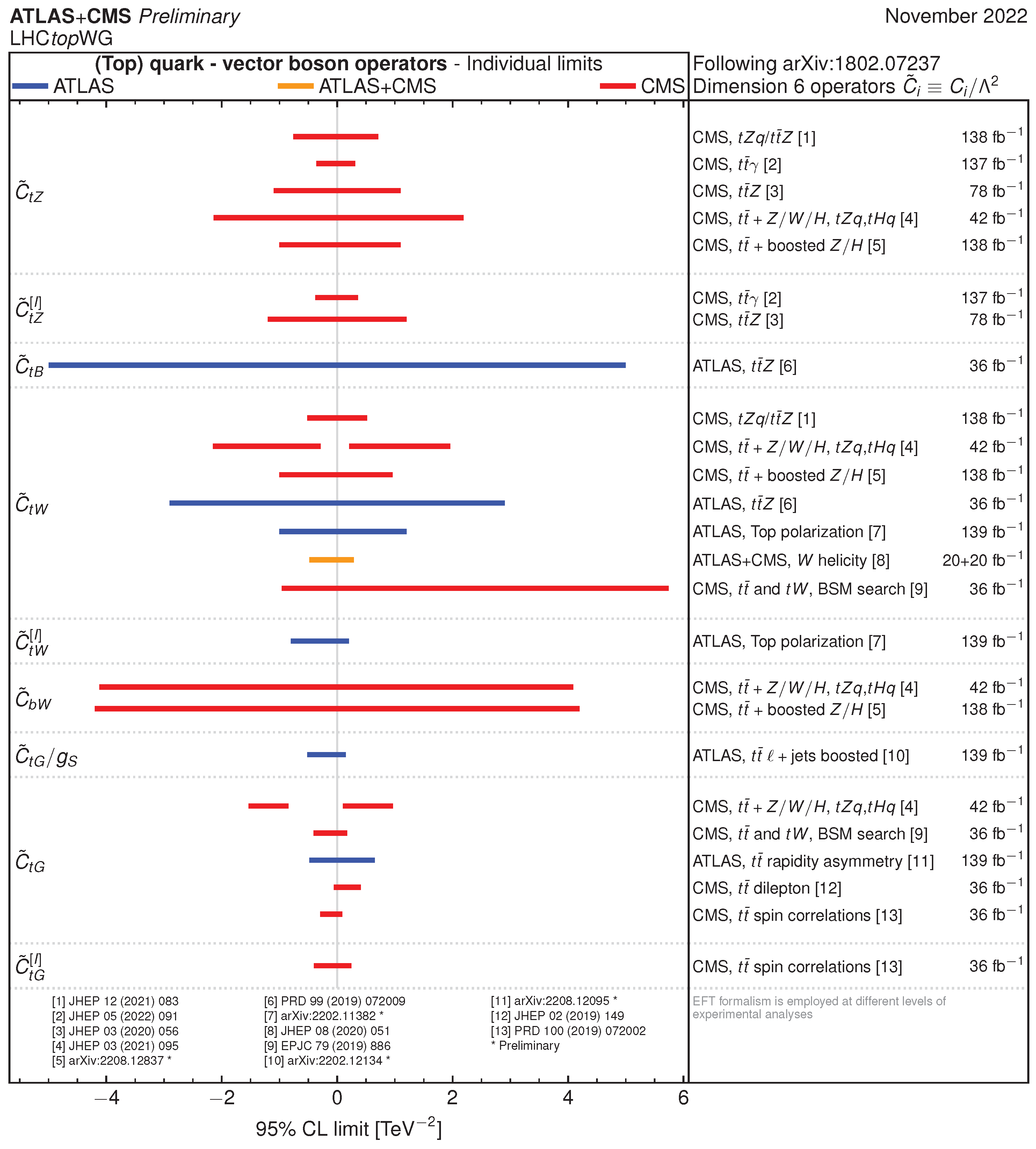

To conclude this very short overview of results using EFT techniques we provide the summary overview as obtained using the ATLAS and CMS Collaborations [85]. Figure 20 shows the 95% confidence level observed limits on the effective field theory Wilson coefficients of the dimension-6 operators related to top quark interactions with vector bosons. The results are reported as individual constraints assuming new physics contributions from one specific operator at a time.

6. Conclusions

The LHC experiments have provided a plethora of top quark results in the past decade that have superseded or complemented previous measurements at the Tevatron. Just recently, exciting new results were presented by the LHC collaborations, including a first measurement of the $t\overline{t}$ production cross-section using LHC Run 3 data at 13.6 TeV [89], cementing the role of top quark pair production as a standard-candle process. In consequence, precise studies of single- and multi-differential cross-sections for $t\overline{t}$ production, also in association with additional bosons and quark anti-quark pairs, can be performed. These offer unique ways to test the SM and call for further developments and a deeper understanding of the SM theory. Measurements of top quark properties at the LHC are challenging the currently best available theoretical predictions, e.g., the latest measurements of top quark spin correlations at ATLAS and CMS show good agreement with each other but reveal a mild tension to the SM that is reduced when higher order corrections (NNLO) are taken into consideration. Measurements of angular correlations, i.e., charge asymmetries, are not yet sensitive to the SM expectation, but ATLAS has shown evidence of the charge asymmetry being different from zero. The wealth of top quark mass measurements is now dominated by individual measurements with a smaller uncertainty than combinations of LHC or even world averages of existing top quark mass data.

The HL-LHC phase is on the horizon, and the available sample will exceed one billion top quarks at the end of the HL-LHC. Harvesting the potential of this data set requires a dedicated effort by the top quark community to improve and align the precision of experimental results and the predictions they are confronted with, i.e., by investigating novel variables that have a particularly precise predicted value or profiting from uncertainties canceling. The most dominant experimental systematic uncertainties currently arise from signal modeling, with efforts in the LHCtopWG [85] along the way to unify the treatment and provide a solid basis for comparison studies. Equally important is to aim the analysis strategies at regimes that are robust against these uncertainties, on the one hand, but on the other hand, also to perform ancillary studies that can improve our understanding of these effects. Finally, more multi-process analyses become possible and can be carried out to constrain and limit the impact of systematic uncertainties while resulting in a more global picture of the involved processes and their interplay. This will be in particular important for EFT interpretations but will need the effort to understand how such analyses can be optimized in a rigorous way, also considering the application of ML in EFT. Already the complexity and timeline of current LHC analyses pose a dire need for joined and more centralized technical development of tools and reconstruction setups so that there are fewer technical obstacles and maintenance (person power) costs for analyses in the future.

We conclude with excellent prospects for top quark physics challenging the SM at an unprecedented level, even opening an exciting new probe to study quantum information aspects and maximizing the discovery potential for new physics.
