# A Kinetic Theory Model of the Dynamics of Liquidity Profiles on Interbank Networks

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- The overall state of the system under consideration, a stylized financial market in the present paper, is described by a probability distribution over the micro-scale state of the active particles whose state includes, in addition to mechanical variables, a variable called activity, which describes the state of each individual entity. Hence, the said probability distribution is the dependent variable, while the activity is the micro-state. In the following we will specify what activity represents in our model, specifically referring to liquidity of assets.
- Interactions are modeled by mathematical tools of stochastic game theory. The output depends on the micro-state of the interacting entities and on the strategy they adopt to reach their pay-off, which is heterogeneously distributed over the active particles. In general, interactions are nonlocal and nonlinearly additive and that is the case of our model.
- The KTAP approach allows for transferring the interactions output into the dynamics, across time and space, of the dependent variable, accounting both for “rational” or even “irrational” strategies (see [1] for a detailed discussion on this point that is widely debated in the economic literature).

## 2. Liquidity Profile of Financial Institutions and Regulation Policies for Banks

#### 2.1. Banks’ Assets and Dynamics of Liquidity Profiles

#### 2.2. The Liquidity Coverage Ratio

## 3. The Model

#### 3.1. The Modelling Framework

#### 3.2. Modelling the Interactions

- Interaction between agents belonging to functional subsystems characterized by the same value for the dummy variable:(either ${D}_{LCR}^{r}={D}_{LCR}^{s}=0$ or ${D}_{LCR}^{r}={D}_{LCR}^{s}=1$):$${\mathcal{A}}_{hk}^{rs}(h\to i)\left(\mathbf{f}\right)={\delta}_{i,h}.$$
- Competitive interaction (${D}_{LCR}^{r}=0$, ${D}_{LCR}^{s}=1$):
- $h=\{2,\cdots ,n-1\}$:$$if\phantom{\rule{2.em}{0ex}}k\ge h\phantom{\rule{19.91684pt}{0ex}}{\mathcal{A}}_{hk}^{rs}(h\to i)\left(\mathbf{f}\right)=\alpha \left(t\right){\delta}_{i,h-1}+(1-\alpha \left(t\right)){\delta}_{i,h}$$$$if\phantom{\rule{2.em}{0ex}}k<h\phantom{\rule{19.91684pt}{0ex}}{\mathcal{A}}_{hk}^{rs}(h\to i)\left(\mathbf{f}\right)=\alpha \left(t\right){\delta}_{i,h+1}+(1-\alpha \left(t\right)){\delta}_{i,h}$$
- $h=\{0,n\}$:$${\mathcal{A}}_{hk}^{rs}(h\to i)\left(\mathbf{f}\right)={\delta}_{i,h},$$

- Cooperative interaction (${D}_{LCR}^{s}=0$, ${D}_{LCR}^{r}=1$),$$if\phantom{\rule{2.em}{0ex}}k\ge h\phantom{\rule{19.91684pt}{0ex}}{\mathcal{A}}_{hk}^{rs}(h\to i)\left(\mathbf{f}\right)=\alpha \left(t\right){\delta}_{i,h+1}+(1-\alpha \left(t\right)){\delta}_{i,h}$$$$if\phantom{\rule{2.em}{0ex}}k<h\phantom{\rule{19.91684pt}{0ex}}{\mathcal{A}}_{hk}^{rs}(h\to i)\left(\mathbf{f}\right)=\alpha \left(t\right){\delta}_{i,h-1}+(1-\alpha \left(t\right)){\delta}_{i,h}$$

- Functional subsystems, that is, the nodes of the network, characterized by the same value for the dummy variable: (either ${D}_{LCR}^{r}={D}_{LCR}^{s}=0$ or ${D}_{LCR}^{r}={D}_{LCR}^{s}=1$) are not linked:$${g}_{rs}=0;$$
- Functional subsystems such that competitive interactions between the agents take place (${D}_{LCR}^{r}=0$, ${D}_{LCR}^{s}=1$) are not linked if the interaction is such that
- $h=\{0,n\}$, i.e.,$${g}_{rs}=0$$
- $h=\{2,\cdots ,n-1\}$, i.e.,:$${g}_{rs}=1;$$

- Cooperative interaction (${D}_{LCR}^{s}=0$, ${D}_{LCR}^{r}=1$)$${g}_{rs}=1;$$

## 4. Numerical Experiment on Strategic Interbank Network Formation

#### Case Study II: Penalty for Excesses of Liquidity Reserves

## 5. Conclusions and Research Perspectives

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A. Equilibrium Conditions for the Distribution of High Quality Liquid Assets on the Network

## References

- Dolfin, M.; Leonida, L.; Outada, N. Modeling human behavior in economics and social science. Phys. Life Rev.
**2017**, 22, 1–21. [Google Scholar] [CrossRef] [Green Version] - Dolfin, M.; Knopoff, D.; Limosani, M.; Xibilia, M.G. Credit risk contagion and systemic risk on networks. Mathematics
**2019**, 7, 1055. [Google Scholar] [CrossRef] [Green Version] - Bellomo, N.; Bellouquid, A.; Gibelli, L.; Outada, N. A Quest Towards a Mathematical Theory of Living Systems; Birkhäuser; Springer: New York, NY, USA, 2017. [Google Scholar]
- Ajmone Marsan, G.; Bellomo, N.; Gibelli, L. Stochastic evolutionary differential games toward a systems theory of behavioral social dynamics. Math. Model. Methods Appl. Sci.
**2016**, 26, 1051–1093. [Google Scholar] [CrossRef] - Kwon, H.R.; Silva, E.A. Mapping the Landscape of Behavioral Theories: Systematic Literature Review. J. Plan. Lit.
**2019**, 1051–1093. [Google Scholar] [CrossRef] [Green Version] - Ball, P. Why Society Is a Complex Matter; Springer: Heidelberg, Germany, 2012. [Google Scholar]
- Burini, D.; De Lillo, S. On the complex interaction between collective learning and social dynamics. Symmetry
**2019**, 29, 967. [Google Scholar] [CrossRef] [Green Version] - Lachowicz, M.; Leszczyński, H.; Puźniakowska–Galuch, E. Diffusive and anti-diffusive behavior for kinetic models of opinion dynamics. Symmetry
**2019**, 11, 1024. [Google Scholar] [CrossRef] [Green Version] - Dolfin, D.; Leonida, L.; Muzzupappa, E. Forecasting Efficient Risk/Return Frontier for Equity Risk with a KTAP Approach: Case Study in Milan Stock Exchange. Symmetry
**2019**, 11, 1055. [Google Scholar] [CrossRef] [Green Version] - Eftimie, R.; Gibelli, L. A kinetic theory approach for modelling tumour and macrophages heterogeneity and plasticity during cancer progression. Math. Model. Methods Appl. Sci.
**2020**, 30, 659–683. [Google Scholar] [CrossRef] - Calvo, J.; Nieto, J.; Zagour, M. Kinetic Model for Vehicular Traffic with Continuum Velocity and Mean Field Interactions. Symmetry
**2019**, 11, 1093. [Google Scholar] [CrossRef] [Green Version] - Aylaj, B.; Bellomo, N.; Gibelli, L.; Reali, A. On a unified multiscale vision of behavioral crowds. Math. Model. Methods Appl. Sci.
**2020**, 30, 1–22. [Google Scholar] [CrossRef] - Bellomo, N.; Gibelli, L.; Outada, N. On the interplay between behavioral dynamics and social interactions in human crowds. Kinet. Relat. Mod.
**2019**, 12, 397–409. [Google Scholar] [CrossRef] [Green Version] - Elaiw, A.; Al-Turki, Y.; Alghamdi, M. A critical analysis of behavioural crowd dynamics: From a modelling strategy to kinetic theory methods. Symmetry
**2019**, 11, 851. [Google Scholar] [CrossRef] [Green Version] - Kim, D.; Quaini, A. A kinetic theory approach to model pedestrian dynamics in bounded domains with obstacles. Kinet. Relat. Mod.
**2019**, 12, 1273–1296. [Google Scholar] [CrossRef] [Green Version] - Knopoff, D.; Nieto, J.; Urrutia, L. Numerical simulation of a multiscale cell motility model based on the kinetic theory of active particles. Symmetry
**2019**, 11, 1003. [Google Scholar] [CrossRef] [Green Version] - Lachowicz, M.; Leszczyński, H. Modeling Asymmetric Interactions in Economy. Mathematics
**2020**, 8, 523. [Google Scholar] [CrossRef] [Green Version] - Burini, D.; Chouhad, N. A Multiscale view of nonlinear diffusion in biology: from cells to tissues. Math. Model. Methods Appl. Sci.
**2019**, 11, 967. [Google Scholar] [CrossRef] - Elaiw, A.; Al-Turki, Y. Particle methods simulations by kinetic theory models of human crowds accounting for stress conditions. Symmetry
**2019**, 12, 14. [Google Scholar] [CrossRef] [Green Version] - Ardekani, A.M.; Distinguin, I.; Tarazi, A. Do banks change their liquidity ratios based on network characteristics? Eur. J. Oper. Res.
**2020**, 285, 789–803. [Google Scholar] [CrossRef] - Bellomo, N.; Ha, S.-Y.; Outada, N. Towards a Mathematical Theory of Behavioral Swarms. ESAIM Control. Theory Var. Calc.
**2020**, 26, 125. [Google Scholar] [CrossRef] - Knopoff, D.; Terna, P.; Secchini, V.; Virgillito, M.E. Cherry picking: consumer choices in swarm dynamics, considering price and quality of goods. Symmetry
**2020**, 12, 1912. [Google Scholar] [CrossRef] - Pareschi, L.; Toscani, G. Interacting Multiagent Systems: Kinetic Equations and Monte Carlo Methods; Oxford University Press: Oxford, UK, 2013. [Google Scholar]
- Basel III: The Liquidity Coverage Ratio and Liquidity Risk Monitoring Tools; Bank for International Settlements: Basel, Switzerland, 2013.
- Principles for Sound Liquidity Risk Management and Supervision; Bank for International Settlements: Basel, Switzerland, 2008.
- Bai, J.; Krishnamurthy, A.; Weymuller, C.H. Measuring liquidity mismatch in the banking sector. J. Financ.
**2018**, LXXIII, 51–92. [Google Scholar] [CrossRef] - Berger, A.N.; Bouwman, C.H.S. Bank Liquidity Creation and Financial Crises; Academic Press: Amsterdam, The Netherlands, 2015. [Google Scholar]
- Iori, G.; De Masi, G.; Precup, O.V.; Gabbi, G.; Caldarelli, G. A network analysis of the Italian overnight money market. J. Econ. Dyn. Control
**2008**, 32, 259–278. [Google Scholar] [CrossRef] - Haldane, A. Rethinking the Financial Network, Speech by Mr Andrew G Haldane at at the Financial Student Association, Amsterdam, 28 April 2009. Available online: https://www.bis.org/review/r090505e.pdf (accessed on 26 November 2020).
- Stiglitz, J.E. The contributions of the economics of information to twentieth century economics. Q. J. Econ.
**2000**, 115, 1441–1478. [Google Scholar] [CrossRef] - Schweitzer, F.; Fagiolo, G.; Sornette, D.; Vega-Redondo, F.; Vespignani, A.; White, D.R. Economic networks: the New Challenges. Science
**2009**, 325, 422–425. [Google Scholar] [CrossRef] - Jackson, M.O. Social and Economic Networks; Princeton University Press: Princeton, NJ, USA; Oxford, UK, 2008. [Google Scholar]

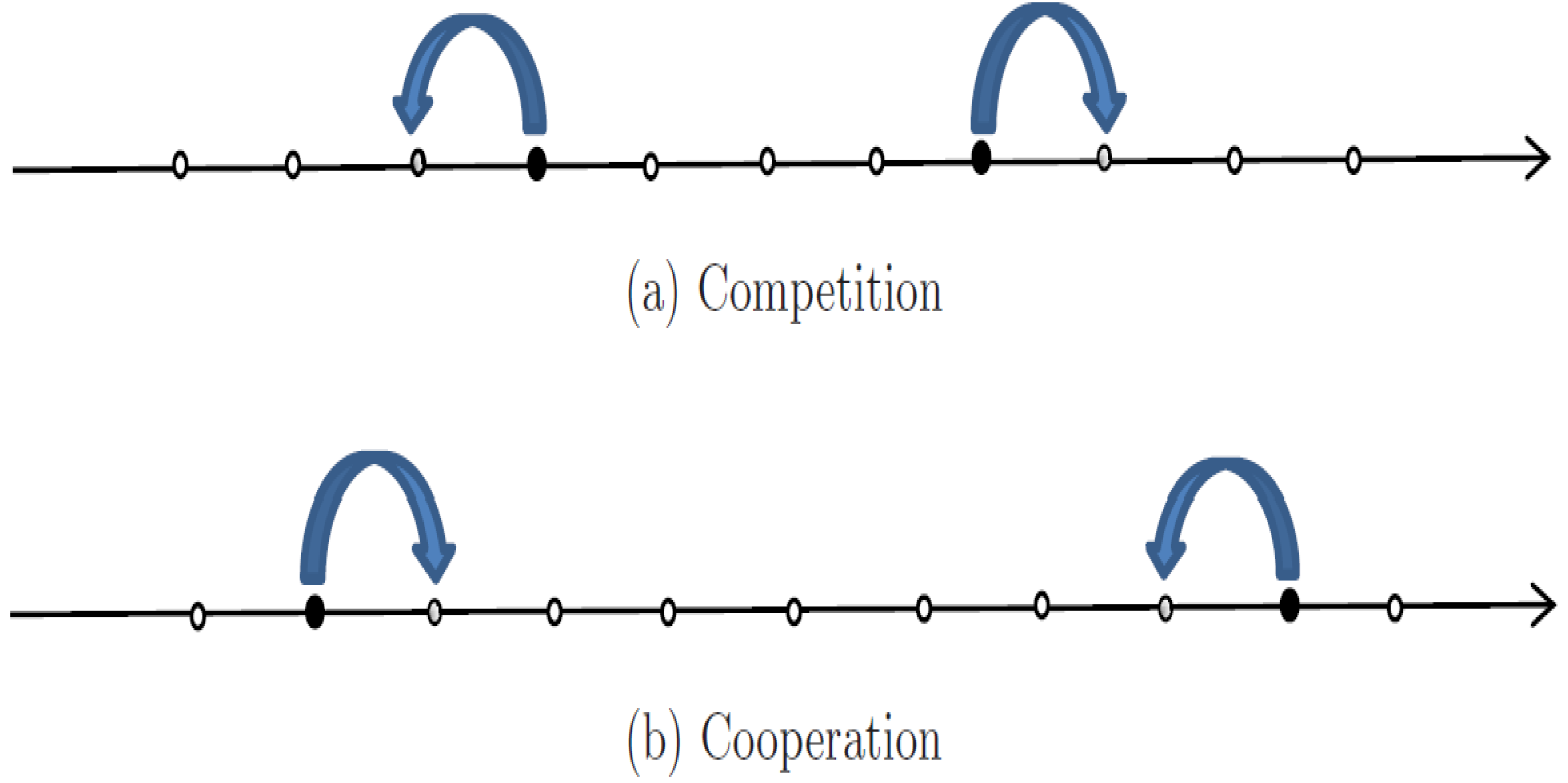

**Figure 2.**Pictorial representation of a dynamics of competition and a dynamics of cooperation, respectively.

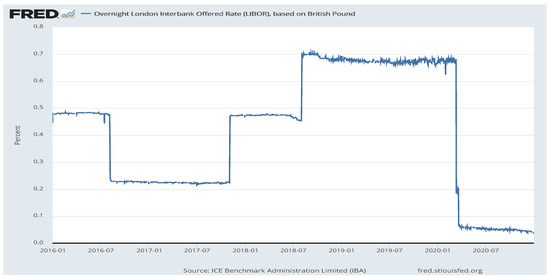

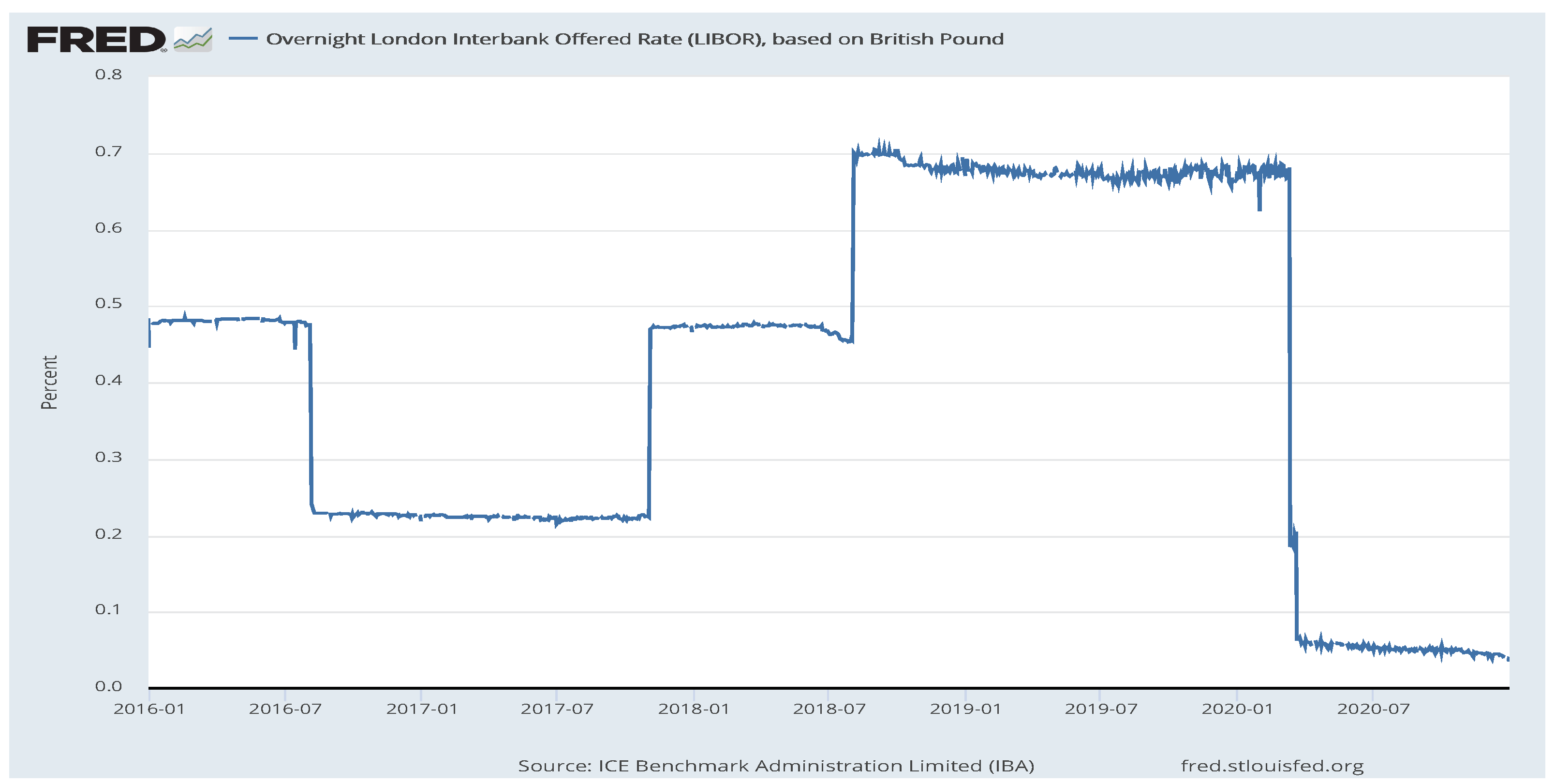

**Figure 3.**ICE Benchmark Administration Limited (IBA), Overnight London Interbank Offered Rate (LIBOR), based on British Pound [GBPONTD156N], retrieved from FRED, Federal Reserve Bank of St. Louis; https://fred.stlouisfed.org/series/GBPONTD156N, accessed on 6 January 2021.

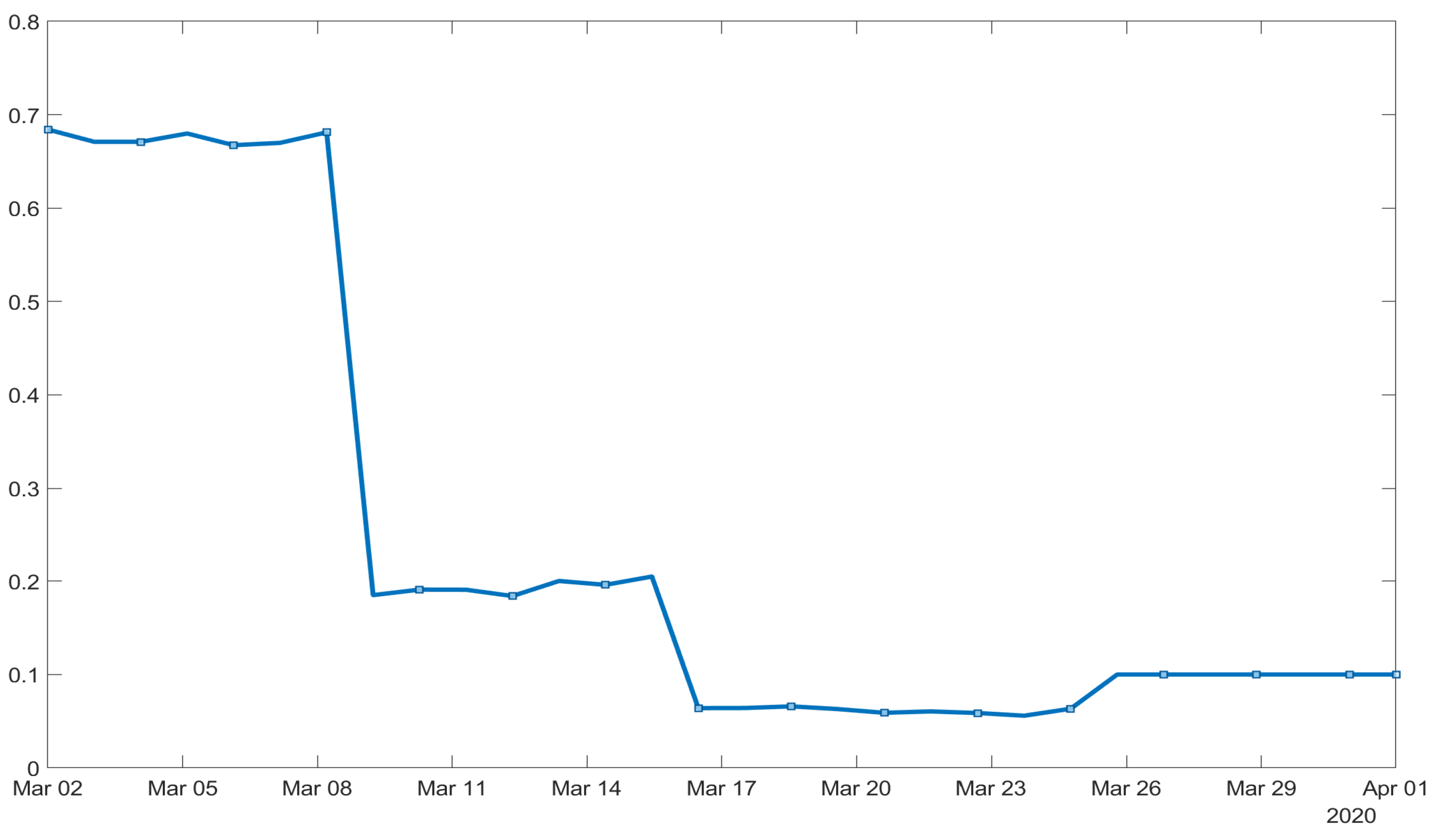

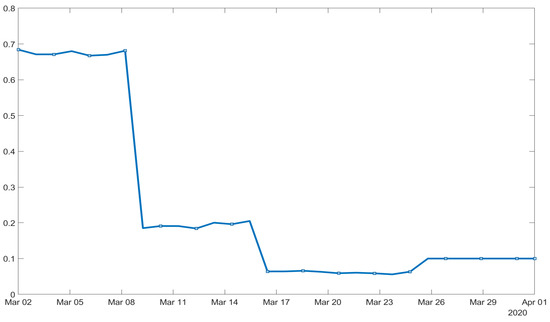

**Figure 5.**ICE Benchmark Administration Limited (IBA), Overnight London Interbank Offered Rate (LIBOR), based on British Pound [GBPONTD156N], retrieved from FRED, Federal Reserve Bank of St. Louis; https://fred.stlouisfed.org/series/GBPONTD156N, accessed on 6 January 2021.

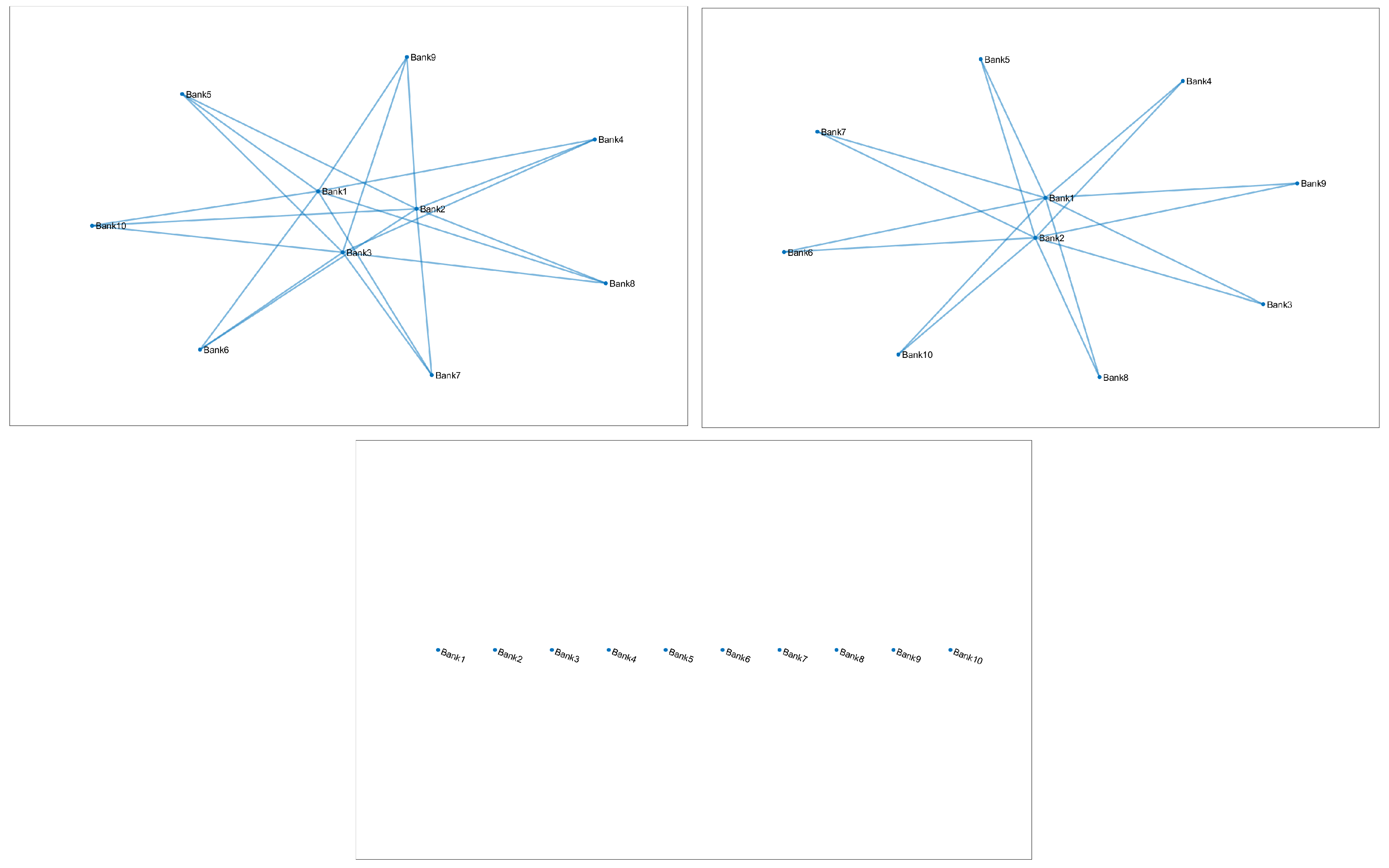

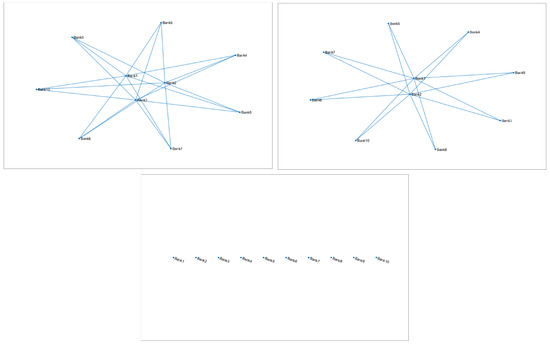

**Figure 7.**Time evolution of the network configuration up to the time horizon of the experiment (from left to right) and on the second row.

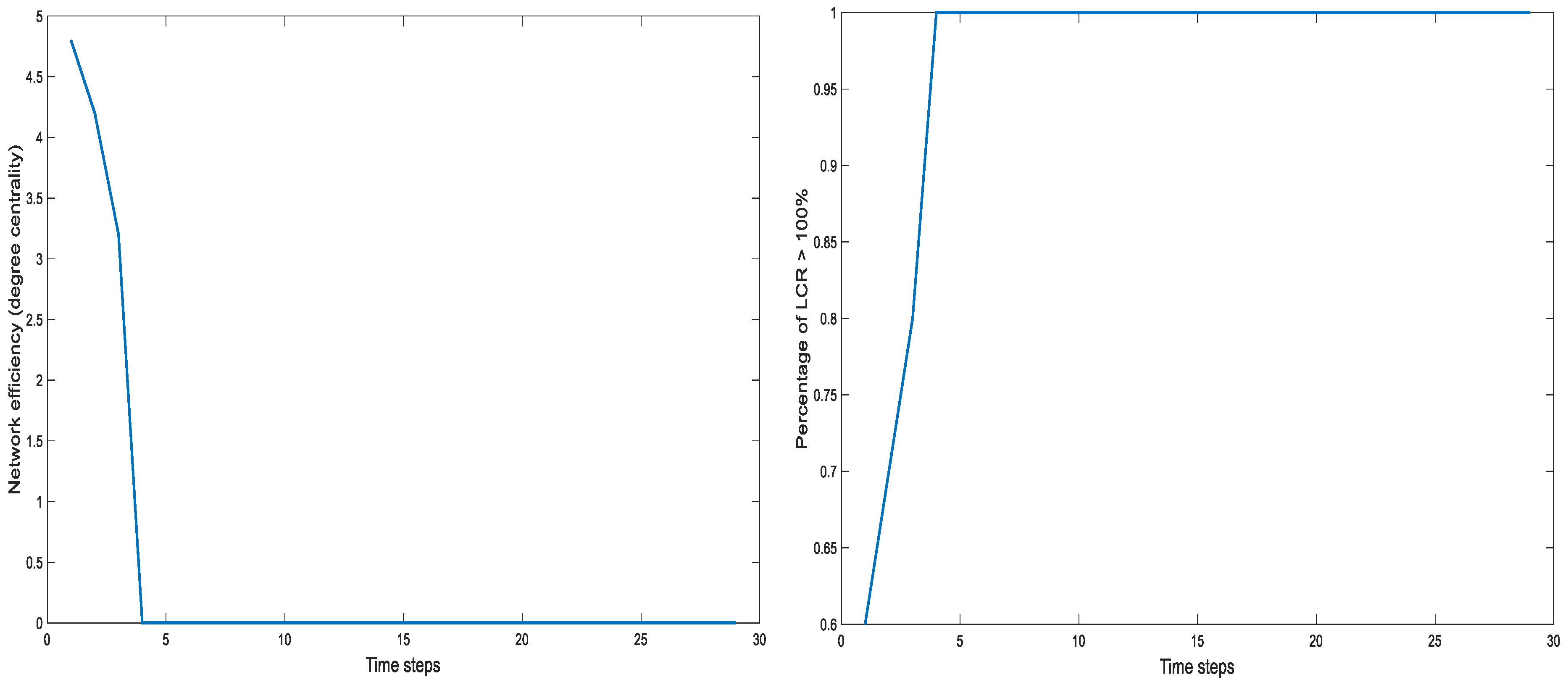

**Figure 8.**Diagnostic of network robustness: time evolution of the network efficiency measured on the basis of the aggregate degree centrality of nodes (

**left**) and of the percentage of nodes that satisfy the Liquidity Coverage Ratio (LCR) requirement (

**right**).

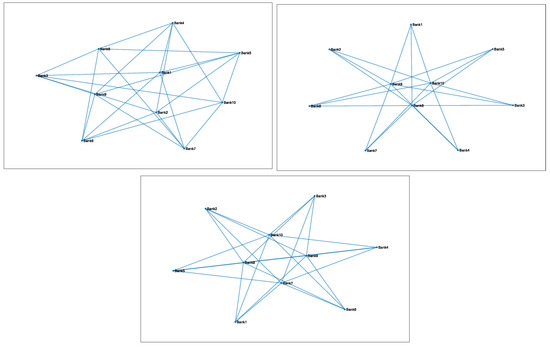

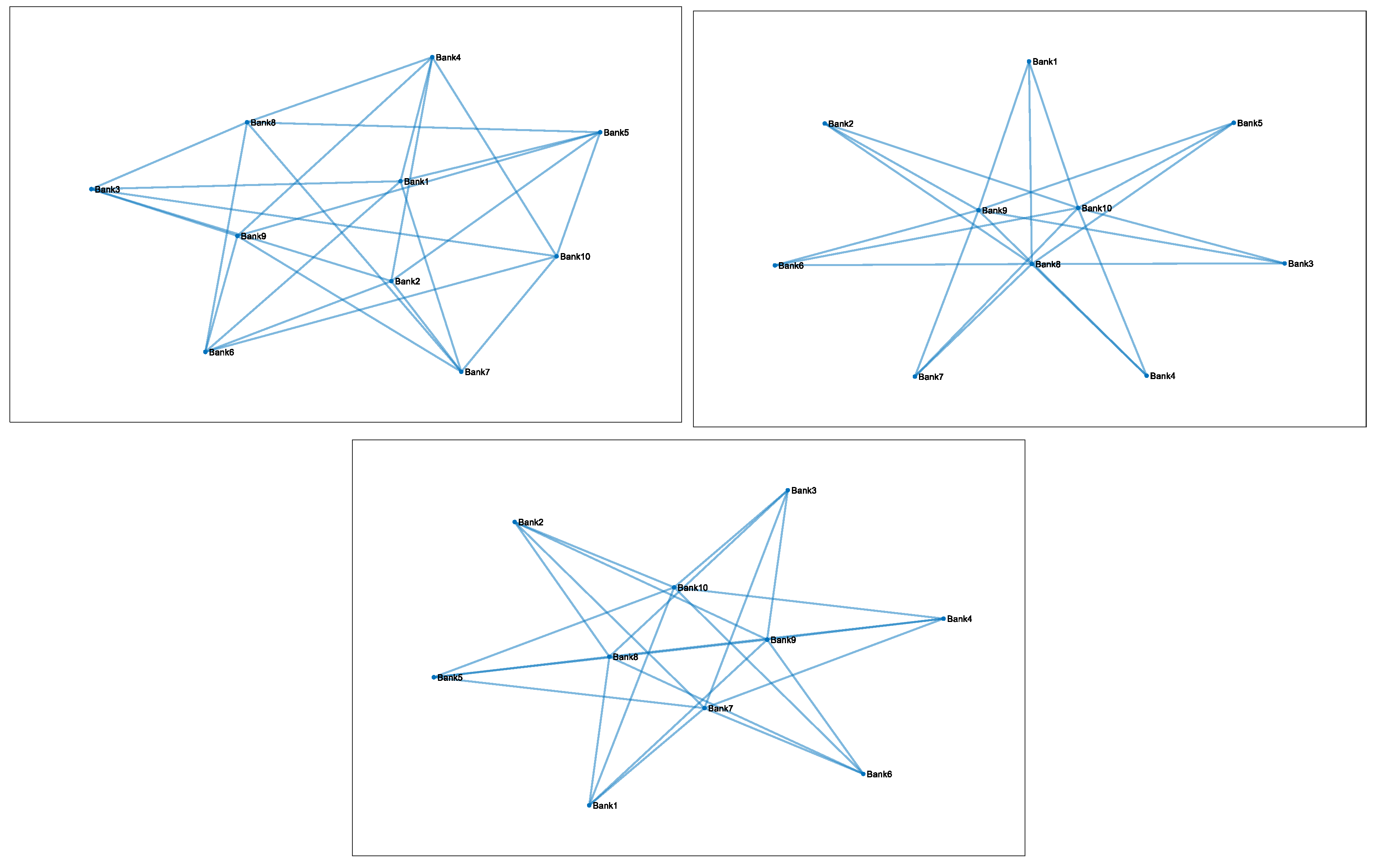

**Figure 9.**Time evolution of the network configuration up to the time horizon of the experiment (from left to right) and on the second row.

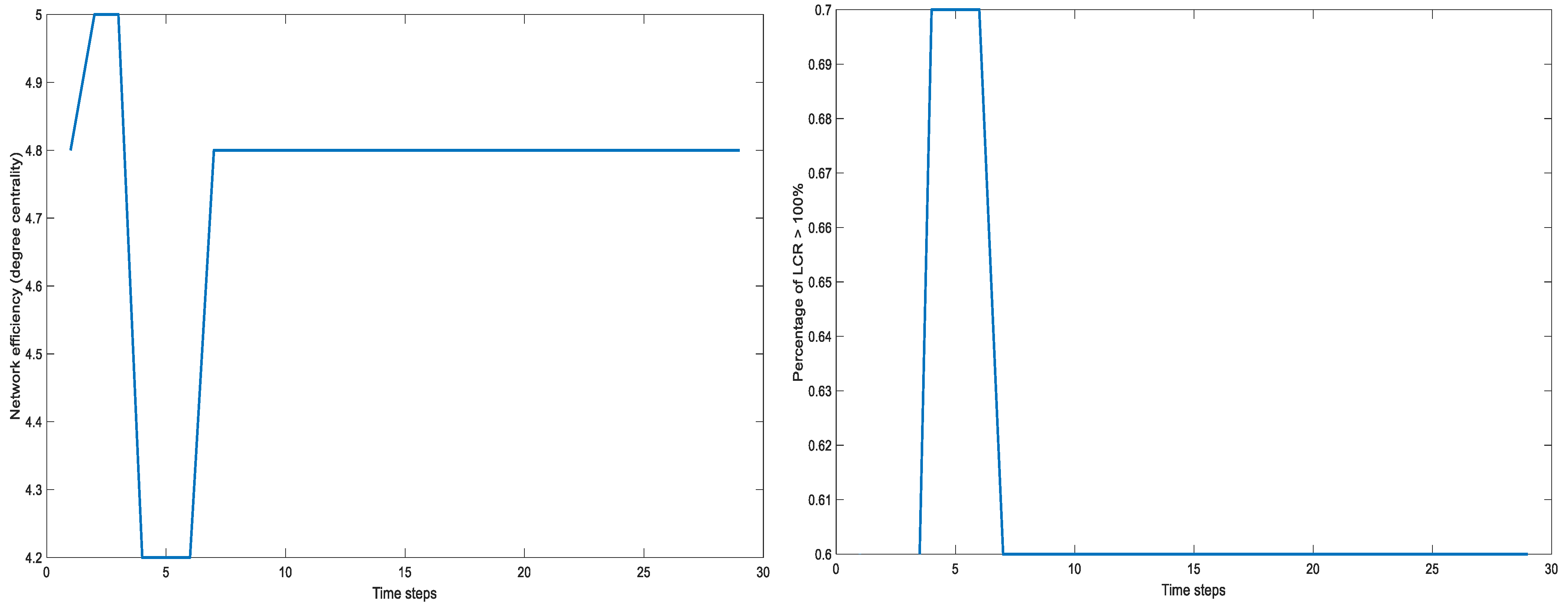

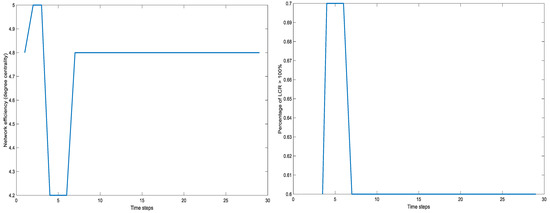

**Figure 10.**Diagnostic of network robustness for case study 2: time evolution of the network efficiency measured on the basis of the aggregate degree centrality of nodes (

**left**) and of the percentage of nodes that satisfy the Liquidity Coverage Ratio requirement (

**right**).
