Probing the Nuclear Equation of State from the Existence of a ∼2.6 M_⊙ Neutron Star: The GW190814 Puzzle

Abstract

On 14 August 2019, the LIGO/Virgo collaboration observed a compact object with mass $\sim {2.59}_{-0.09}^{+0.08}{M}_{\odot }$, as a component of a system where the main companion was a black hole with mass $\sim 23M_{\odot }$. A scientific debate initiated concerning the identification of the low mass component, as it falls into the neutron star–black hole mass gap. The understanding of the nature of GW190814 event will offer rich information concerning open issues, the speed of sound and the possible phase transition into other degrees of freedom. In the present work, we made an effort to probe the nuclear equation of state along with the GW190814 event. Firstly, we examine possible constraints on the nuclear equation of state inferred from the consideration that the low mass companion is a slow or rapidly rotating neutron star. In this case, the role of the upper bounds on the speed of sound is revealed, in connection with the dense nuclear matter properties. Secondly, we systematically study the tidal deformability of a possible high mass candidate existing as an individual star or as a component one in a binary neutron star system. As the tidal deformability and radius are quantities very sensitive on the neutron star equation of state, they are excellent counters on dense matter properties. We conjecture that similar isolated neutron stars or systems may exist in the universe and their possible future observation will shed light on the maximum neutron star mass problem.

1. Introduction

In Ref. [1] the authors reported the observation of a compact binary coalescence involving a 22.2–24.3$M_{\odot }$ black hole and a compact object with a mass of a 2.50–2.67 $M_{\odot }$ (all measurements quoted at the $90\%$ credible level). The announcement of the GW190814 event [1] triggered various theoretical studies concerning the equation of state (EoS) of dense nuclear matter, in order to explain the possibility of the second partner to be a very massive neutron star (NS). It is worth pointing out that the authors in Ref. [1] did not exclude the possibility that the second partner to be a NS or an exotic compact object, i.e., quark star, boson star or gravastar.

It is worth to point out the observation of the GW190814 event has some additional general benefits apart from the measurement of 2.6 $M_{\odot }$ of the second partner [1]. Firstly, this binary system has the most unequal mass ratio yet measured with gravitational waves close to the value of $0.112$. Secondly, the dimensionless of the spin of the primary black hole is constrained ≤0.07, where various tests of general relativity confirm this value, as well as its predictions of higher-multiple emission at high confidence interval. Moreover, the GW190814 event poses a challenge for the understanding of the population of merging compact binaries. It was found after systematic analysis that the merger rate density of GW190814-like binary system to be $7_{-6}^{+16}$ Gpc${}^{-3}$ year${}^{-1}$ [1]. More relevant to the present study, the observation of the GW190814 event led to the following conclusion: due to the source’s asymmetric masses, the lack of detection of an electromagnetic counterpart and of clear signature of tides or spin-induced quadrupole effect in the waveform of the gravitational waves we are not able to distinguish between a black hole-black hole and black hole-neutron star system [1]. In this case, one must count only to the comparison between the mass of the second partner with the estimation of maximum NSs mass $M_{\max }$ [2]. This is one of the subjects of the present work. It should be emphasized that the measurements of NSs mass can also inform us about a bound on the $M_{\max }$ independently of the assumptions of specific EoS. For example, Alsing et al. [3] fitting the known population of NSs in binaries to double-Gaussian mass distribution obtained the empirical constraint that $M_{\max }\le 2.6M_{\odot }$ (with $90\%$ confidence interval ). Moreover, Farr and Chatziionannou [4] updated the previous study including recent measurements. Their study constraint the maximum mass $M_{\max }={2.25}_{-0.26}^{+0.81}{M}_{\odot }$ leading to the conclusion that the posterior probability (for the mass of the second partner $m_2\le M_{\max }$) is around only $29\%$. However, the prediction of $M_{\max }$ is sensitive on the selection rules mass of NSs (not only on binary systems but also isolated) as well as on the discovery of new events and consequently remains an open problem. Finally, the conclusion of the recent GW190814 event in comparison with previous ones (for example the GW170817 event [5]) may shed light on the problem of the $M_{\max }$. For example, the spectral EoSs which are conditioned by the GW170817 event, are once more elaborated to include the possibility that of the prediction of $M_{\max }$ at least equal to $m_2$. This approach lead to significant constraints on the radius and tidal deformability of a NS with mass of $1.4M_{\odot }$ ($R_{1.4}={12.9}_{-0.7}^{+0.8}$ km and ${\mathsf{\Lambda }}_{1.4}={616}_{-158}^{+273}$ respectively [1]).

The consideration of a NS as the second partner has been studied in recent Refs. [6,7,8,9,10,11,12,13,14,15,16,17]. On the other hand, the case that the second partner is a quark or hybrid star has been explored in Refs. [18,19,20,21,22,23,24]. Finally, some modified theories of gravity have also been applied as possible solutions to the problem [25,26,27]. In particular, Tsokaros et al. [6] showed using viable equations that rapid uniform rotation is adequate to explain the existence of a stable $2.6M_{\odot }$ NS for moderately stiff EoSs but may not be adequate for soft ones. Huang et al. [7] concluded that using the density-dependent relativistic mean field model one cannot exclude the possibility of the secondary object to be a NS composed of hadronic matter. Zevin et al. [8] performing a systematic study led to the conclusion that the formation of GW190814-like systems at any measurable rate requires a supernova engine model that acts on longer timescales such that the proto-compact object can undergo substantial accretion immediately before the explosion. This conclusion hinds that if GW190814 is the result of a massive star binary evolution, the mass gap between NSs and black holes may be narrower or nonexistent. Fattoyev et al. [9] speculated that the maximum NS mass cannot be significantly higher than the existing observational limit and also the 2.6 $M_{\odot }$ compact object is likely to be the lightest black hole ever discovered. Essick and Landry [10] found that there is a ≤6% chance that GW190814 involved a slowly spinning NS, regardless of their assumed population model (considering no overlap between the NS and black hole mass distributions). Safarzadeh and Loeb [11] suggested that the secondary partner was born as a NS where a significant amount of the supernova ejecta mass from its formation remained bound to the binary due to the presence of the massive black hole companion. The bound mass forms a circumbinary accretion disk and its accretion onto the NS created a mass gap object. Godzieba et al. [12], showed how a lower limit on the maximum mass of NSs, in combination with upcoming measurements of NS radii by LIGO/Virgo and NICER, would constrain the EoS of dense matter and discussed the implications for the GW190814 event. Sedrakian et al. [13], allowing the hyperonization of dense matter, found that the maximal masses of hypernuclear stars, even for maximally rotating configurations, are inconsistent with a stellar nature interpretation of the light companion in GW190814. They concluded that the GW190814 event involved two black holes rather than a NS and a black hole. Biswas et al. [14] concluded that the odds of the secondary object in GW190814 being a NS improved by considering a stiff high-density EoS or a large rotation. Zhang and Li [15] showed that one possible explanation for GW190814’s secondary component is a super-fast pulsar spinning faster than 971 Hz. Most et al. [16] stated that based on our current understanding of the nuclear matter EoS, it can be a rapidly rotating NS that collapsed to a rotating black hole at some point before the merger. Tan et al. [17] constructed heavy NSs by introducing non-trivial structure in the speed of sound sourced by deconfined Quantum Chromodynamics (QCD) matter. Within this approach they can explain the high mass of the second partner.

Zhang and Mann [18] indicated a new possibility that the currently observed compact stars, including the recently reported GW190814’s secondary component can be quark stars composed of interacting up-down quark matter. Bombaci et al. [19] investigated the possibility that the low mass companion of the black hole in the source of GW190814 was a strange quark star. This possibility is viable within the so-called two-families scenario in which NSs and strange quark stars coexist. Demircik et al. [20] studied rapidly spinning compact stars with EoSs featuring a first-order phase transition between strongly coupled nuclear matter and deconfined quark matter and also compatible with the interpretation that the secondary component in GW190814 is an NS. Cao et al. [21] provided circumstantial evidence suggesting the recently reported GW190814’s secondary component could be an up-down quark star. Dexheimer et al. [22] showed that state-of-the-art relativistic mean field models can generate massive stars reaching ≥2.05 $M_{\odot }$, while being in good agreement with gravitational-wave events and x-ray pulsar observations when quark vector interactions and higher-order self-vector interactions are introduced. Roupas et al. [23] showed not only that a color-flavor locked quark star with this mass is viable, but also they calculated the range of the model parameters, namely the color superconducting gap $\Delta$ and the bag constant B, that satisfies the strict LIGO constraints on the EoS.

In the study of Moffat [25], the modified gravity (MOG) theory is applied to the gravitational wave binary merger GW190814. He demonstrated that the modified Tolman–Oppenheimer–Volkoff (TOV) equation for a NS can produce a mass $M=$ 2.5–2.7 $M_{\odot }$ allowing for the binary secondary component to be identified as a heavy NS in the hypothesized mass gap $M=$ 2.5–5 $M_{\odot }$. Astashenok et al. [26] showed that a NS with this observed mass can be consistently explained with the mass-radius relation obtained by extended theories of gravity. Nunes et al. [27] found that from an appropriate and reasonable combination of modified gravity, rotation effects, and realistic soft EoSs, it is possible to achieve high masses and explain GW190814 secondary component.

Another issue worth mentioning is the transition of hadron matter to unconfined quark matter at a sufficiently high density (a few times the saturation density, see previous discussion). Recently, Annala et al. [28] claimed that the recent observation of gravitational waves from NSs merger could shed light on the possibility of hadrons to quark phase transition. Moreover, the emergence of strange hadrons (hyperons, etc.) around twice the nuclear saturation density, leads to an appreciable softness of the EoS, and consequently, in most cases the observed values of high mass NSs never reached. As NSs provide a rich testing ground for microscopic theories of dense nuclear matter, combining this study with the experimental data from ultra-relativistic heavy ion collisions may help significantly to improve our knowledge on phase transition theory in hadronic matter. In particular, the so-called hyperon puzzle may be addressed (or even more solved) in NS studies. To be more specific, following the discussion of Ref. [29], the hyperon puzzle is related to the difficulty to reconcile the measured masses of NSs with the presence of hyperons in their interiors. The presence of hyperons in the interior of NSs is due to the fermionic nature of nucleons. The chemical potential of neutron and proton increasing rapidly, as a function of the density. When the chemical potential of neutrons becomes sufficiently large, the most energetic neutrons can decay via the weak interaction into $\mathsf{\Lambda }$ hyperons and form and new Fermi sea for this hadronic species. Other hyperons can be formed with similar weak processes [29]. However, the inclusion of hyperons in NS matter was found that leads to an appreciable decrease of maximum NS mass, incompatible with the recent observations. It is stated that this is a common feature of various hyperon star structure calculations (see Ref. [29] and reference therein). Thus, although the presence of hyperons in NSs seems unavailable, their presence leads to low values of NS mass, far from observation. This problem is briefly summarized as hyperon puzzle. Of course, there are other studies where the authors stated that hyperon consideration on the EoS is not in contradiction with the predictions of very high NS masses (see Ref. [13]). In the the present study, we do not consider the case of additional degrees of freedom (hyperons, quarks, etc.) in the interior of NSs. In any case, additional theoretical calculation in combination with specific observation may lead to the solution of the hyperon puzzle and the reveal of the existence of free quark matter in the interior of NSs.

In the present work we concentrate our study on the case where the EoS of NS matter is pure hadronic and the hydrostatic equilibrium is described by the general relativistic equations (TOV equations) [30,31,32,33,34]. Moreover, we focus on two possible cases, that the second partner to be a slow rotating NS and, in the extreme case, to be a very rapidly rotating one (even close to the Kepler limit). Firstly, we consider that the dense nuclear matter properties are described by the MDI-APR [35] (MDI: momentum dependent interaction, APR: Akmal, Pandharipande and Ravenhall) nuclear model. This model has recently been applied successfully in similar studies and, according to our opinion, is a robust guide for NS studies. However, since the behavior of dense nuclear matter at high densities remains uncertain, the parametrization of the EoS via the speed of sound is almost inevitable, at least in the framework of hadronic EoSs. To be more specific, we construct large number of EoSs where for low densities (concerning the NS crust), we employ well established results, but for the EoS concerning the core, we apply a twofold consideration. For the outer part we employ the EoS predicted by the MDI-APR model and for the inner one, a parametrization based on the speed of sound upper limits is applied. In this study, the transition density and the upper limit of the speed of sound are the two free parameters.

In the first part of our study we concentrate on the effect of the speed of sound and transition density on the bulk NS (non-rotating and rapidly rotating) properties including the maximum mass, the Kepler frequency, the Kerr parameter, and the maximum central density. We explore under which circumstances the prediction of the mass range 2.5–2.67 $M_{\odot }$ of the second partner is possible. More importantly, we provide the constraints which are inferred by the above consideration.

In the second part of the paper we systematically study the tidal deformability of NSs by employing the large set of EoSs. We mainly focus in the case of high mass candidates existing as an individual star or as a partner in binary NSs system. Until now, there are no observations of an individual, or as a partner of binary system, very massive NS (close to $2.5M_{\odot }$). However, we consider that it is worth to examine this possibility, by focusing on the predictions of the tidal deformability and the radius, quantities that are very sensitive on the NS EoS. These quantities are excellent counters on dense matter properties. In the present work, we provide predictions about both the individual and averaged tidal deformability of a hypothetical binary NS system where the most massive partner has a mass in the region 2.5–2.67 $M_{\odot }$.

The article is organized as follows: in Section 2, we present the MDI-APR nuclear model along with quantities at the rotating configuration while in Section 3, we present the speed of of sound parametrization of the EoS. In Section 4 we provide the basic formalism for the tidal deformability. The results and the discussion are provided in Section 5 while Section 6 includes the concluding remarks of the present study. Finally, Section 7 contains information about the rotating configuration code.

2. The MDI-APR Model and the Rapidly Rotating Neutron Star

The structure of the EoS and the properties of NSs are studied under the MDI model. In this model, the energy per particle is available through the form [36,37]

$$\begin{array}{ccc}\hfill E(n,I)& =& \frac{3}{10}{E}_F^0{u}^{2/3}\left[{(1+I)}^{5/3}+{(1-I)}^{5/3}\right]+\frac{1}{3}A\left[\frac{3}{2}-X_0{I}^2\right]u+\frac{\frac{2}{3}B\left[\frac{3}{2}-X_3{I}^2\right]u^{\sigma }}{1+\frac{2}{3}{B}^{\prime }\left[\frac{3}{2}-X_3{I}^2\right]u^{\sigma -1}}\hfill \\ & +& \frac{3}{2}\sum _{i=1,2}\left[C_i+\frac{C_i-8Z_i}{5}I\right]{\left(\frac{{\mathsf{\Lambda }}_i}{k_F^0}\right)}^3\left(\frac{{\left((1+I)u\right)}^{1/3}}{\frac{{\mathsf{\Lambda }}_i}{k_F^0}}-{tan}^{-1}\frac{{\left((1+I)u\right)}^{1/3}}{\frac{{\mathsf{\Lambda }}_i}{k_F^0}}\right)\hfill \\ & +& \frac{3}{2}\sum _{i=1,2}\left[C_i-\frac{C_i-8Z_i}{5}I\right]{\left(\frac{{\mathsf{\Lambda }}_i}{k_F^0}\right)}^3\left(\frac{{\left((1-I)u\right)}^{1/3}}{\frac{{\mathsf{\Lambda }}_i}{k_F^0}}-{tan}^{-1}\frac{{\left((1-I)u\right)}^{1/3}}{\frac{{\mathsf{\Lambda }}_i}{k_F^0}}\right),\hfill \end{array}$$

(1)

where $u=n/n_s$, with $n_s$ denoting the saturation density $(n_s=0.16{\mathrm{fm}}^{-3})$, $I=(n_n-n_p)/n$ is the asymmetry parameter, $X_0=x_0+1/2$, and $X_3=x_3+1/2$. The parameters A, B, $\sigma$, $C_1$, $C_2$, and $B^{\prime }$ appear in the description of symmetric nuclear matter (SNM) and are determined so that the relation $E(n_s,0)=-16\mathrm{MeV}$ holds. ${\mathsf{\Lambda }}_1$ and ${\mathsf{\Lambda }}_2$ are finite range parameters equal to $1.5k_F^0$ and $3k_F^0$, respectively, with $k_F^0$ being the Fermi momentum at the saturation density. The rest of the parameters, $x_0$, $x_3$, $Z_1$, and $Z_2$ appear in the description of asymmetric nuclear matter and, with a suitable parametrization, are used in order to obtain different forms for the density dependence of symmetry energy as well as the value of slope parameter L and the value of symmetry energy ${\mathrm{S}}_2$ at the saturation density, defined as [35]

$$L=3n_s\frac{d{S}_2\left(n\right)}{dn}{|}_{n_s}\mathrm{and}{S}_2\left(n\right)=\frac{1}{2}\frac{{\partial }^{2}E(n,I)}{\partial I^2}{|}_{I=0},$$

(2)

and as a consequence different parametrizations of the EoS stiffness. In fact, for a specific value of L, the density dependence of symmetry energy is adjusted so that the energy of pure neutron matter is comparable with those of the existing state-of-the-art calculations.

The MDI model, that combines both density and momentum dependent interaction among the nucleons, is suitable for studying NS matter at zero (present study) as well as at finite temperature. In particular, although it was introduced by Gale et al. [38,39] to examine the influence of momentum dependent interactions on the momentum flow of heavy-ion collisions, the model has been modified, elaborated, and applied also in the study of the properties of nuclear matter at NSs. The advantages of the MDI model are: (a) reproduces with high accuracy the properties of SNM at the saturation density, including isovector quantities, (b) reproduces the microscopic properties of the Chiral model for pure neutron matter and the results of state-of-the-art calculations of Akmal et al. [40], (c) predicts maximum NS mass higher than the observed ones [41,42,43], and (d) maintains the causal behavior of the EoS even at densities higher than the ones at the maximum mass configuration.

In this work we apply the EoS produced in Ref. [35], where for the construction of the EoS, the MDI model and data from Akmal et al. [40] had been used (for more details see Ref. [35]). This EoS not only has the mentioned advantages, but also reproduces the mass of the second component of GW190814 event.

In addition, as a possible scenario is the rotation, we apply rotating configuration in the EoS. In fact, we are interested about the Kepler frequency and the maximum mass of the NS at this configuration. This frequency is considered as the one where the star would shed matter at its equator and consequently is the maximum one (mass-shedding limit). An interesting quantity, which connects the gravitational mass with the angular momentum of the star, is the Kerr parameter defined as

$$\mathcal{K}=\frac{cJ}{G{M}^2},$$

(3)

where M and J are the gravitational mass and angular momentum, respectively. For the construction of the rotating equilibrium model we used the RNS code [44].

Furthermore, in Ref. [45] had been found an analytical relation which connects the Kerr parameter with the gravitational mass of the non-rotating case (TOV), expressed as

$$M_{\mathrm{rot}}=M_{\mathrm{TOV}}\left(1+a_1{\left(\frac{\mathcal{K}}{{\mathcal{K}}_{\max }}\right)}^2+a_2{\left(\frac{\mathcal{K}}{{\mathcal{K}}_{\max }}\right)}^4\right),$$

(4)

with $a_1=0.132$, $a_2=0.071$, and ${\mathcal{K}}_{\max }$ being the Kerr parameter at mass-shedding limit, which is used by the authors to imply constraints on the possible Kerr parameter of the second component, as well as the upper limit of a NS mass [16].

3. Speed of Sound Formalism and Stiffness of Equation of State

Another scenario that is followed to reproduce the mass of the second component is the possible stiffness of the EoS. This is achievable by studying the upper and lower limit on the speed of sound, as well as the possible transition density. In this consideration, we have parametrized the EoS, according to Refs. [3,46,47,48,49,50,51,52], as

$$\begin{array}{ccc}\hfill P\left(\mathcal{E}\right)& =& \left\{\begin{array}{cc}{P}_{\mathrm{crust}}\left(\mathcal{E}\right),\mathcal{E}\le {\mathcal{E}}_{\mathrm{c}-\mathrm{edge}}\hfill & \\ \\ P_{\mathrm{NM}}\left(\mathcal{E}\right),{\mathcal{E}}_{\mathrm{c}-\mathrm{edge}}\le \mathcal{E}\le {\mathcal{E}}_{\mathrm{tr}}\hfill & \\ \\ {\left(\frac{v_{\mathrm{s}}}{c}\right)}^2\left(\mathcal{E}-{\mathcal{E}}_{\mathrm{tr}}\right)+P_{\mathrm{NM}}\left({\mathcal{E}}_{\mathrm{tr}}\right),{\mathcal{E}}_{\mathrm{tr}}\le \mathcal{E},\hfill & \hfill \end{array}\right.\hfill \end{array}$$

(5)

where P and $\mathcal{E}$ denote the pressure and energy density, respectively, and ${\mathcal{E}}_{\mathrm{tr}}$ is the transition energy density. For the construction of the EoSs, we adopted the following: (a) in region $\mathcal{E}\le {\mathcal{E}}_{\mathrm{c}-\mathrm{edge}}$, we used the equation of Feynman et al. [53] and also of Baym et al. [54] for the crust and low densities of NS, (b) in the intermediate region, ${\mathcal{E}}_{\mathrm{c}-\mathrm{edge}}\le \mathcal{E}\le {\mathcal{E}}_{\mathrm{tr}}$, we employed a specific EoS based on the MDI model and data from Akmal et al. [40], and (c) for ${\mathcal{E}}_{\mathrm{tr}}\ge \mathcal{E}$ region, the EoS is maximally stiff with the speed of sound, defined as $v_s=c{\sqrt{\left(\partial P/\partial \mathcal{E}\right)}}_{\mathrm{S}}$ (where S is the entropy) fixed in the present work in the range $[c/\sqrt{3},c]$. The lowest allowed value of the speed of sound, that is ${(v_s/c)}^2=1/3$, is introduced in order to be consistent with the possibility of a phase transition in quark matter. In this case, all the theoretical predictions lead to this value as an upper bound of the speed of sound. The implementation of speed of sound values between the limited ones will lead to results well constrained by the two mentioned limits. Although the energy densities below the ${\mathcal{E}}_{\mathrm{c}-\mathrm{edge}}$ have negligible effects on the maximum mass configuration, we used them in calculations for the accurate estimation of the tidal deformability. The cases which took effect in this study can be divided into two categories based on the fiducial baryon transition density, $n_{\mathrm{tr}}=p{n}_{\mathrm{s}}$, and the speed of sound as: (a) the ones where p takes the values $[1.5,2,3,4,5]$, while the speed of sound is parametrized in the two limiting cases, ${(v_s/c)}^2=1/3$ and ${(v_s/c)}^2=1$ and (b) the ones where p takes the values $[1.5,2]$, while the speed of sound is parametrized in the range ${(v_s/c)}^2=[1/3,1]$. The predicted EoSs are functional of $n_{\mathrm{tr}}$ and $(v_s/c)$ and implemented to study the possibly existence of a NS with ∼2.6 $M_{\odot }$, either non-rotating or a rotating one.

In approach followed in Equation (5), while the continuity on the EoS is well ensured, the continuity in the speed of sound at the transition density, due to its artificial character, is not. Therefore, in order to ensure the continuity and a smooth phase transition, we employ a method presented in Ref. [55]. We proceeded with the matching of the EoSs on the transition density by considering that, above this value, the speed of sound is parametrized as follows (for more details see Ref. [55])

$$\frac{v_{\mathrm{s}}}{c}={\left(a-c_{1}exp\left[-\frac{{(n-c_2)}^2}{w^2}\right]\right)}^{1/2},a\in [1/3,1]$$

(6)

where the parameters $c_1$ and $c_2$ are fit to the speed of sound and its derivative at $n_{\mathrm{tr}}$, and also to the demands $v_{\mathrm{s}}\left(n_{\mathrm{tr}}\right)=[c/\sqrt{3},c]$ [46] according to the value of $\alpha$. The remaining parameter w controls the width of the curve, where in our case is equal to ${10}^{-3}{\mathrm{fm}}^{-3}$ in order to preserve the NS properties. Using Equation (6), the EoS for $n\ge n_{\mathrm{tr}}$ can be constructed with the help of the following recipe [55]

$${\mathcal{E}}_{i+1}={\mathcal{E}}_i+\Delta \mathcal{E},P_{i+1}=P_i+{\left(\frac{v_s}{c}\left(n_i\right)\right)}^2\Delta \mathcal{E},$$

(7)

$$\Delta \mathcal{E}=\Delta n\left(\frac{{\mathcal{E}}_i+P_i}{n_i}\right),$$

(8)

$$\Delta n=n_{i+1}-n_i.$$

(9)

The treatment with both discontinuity and continuity in the speed of sound is presented in Table V of Ref. [46]. The outline was that the two approaches converge and consequently the effects of the discontinuity are negligible.

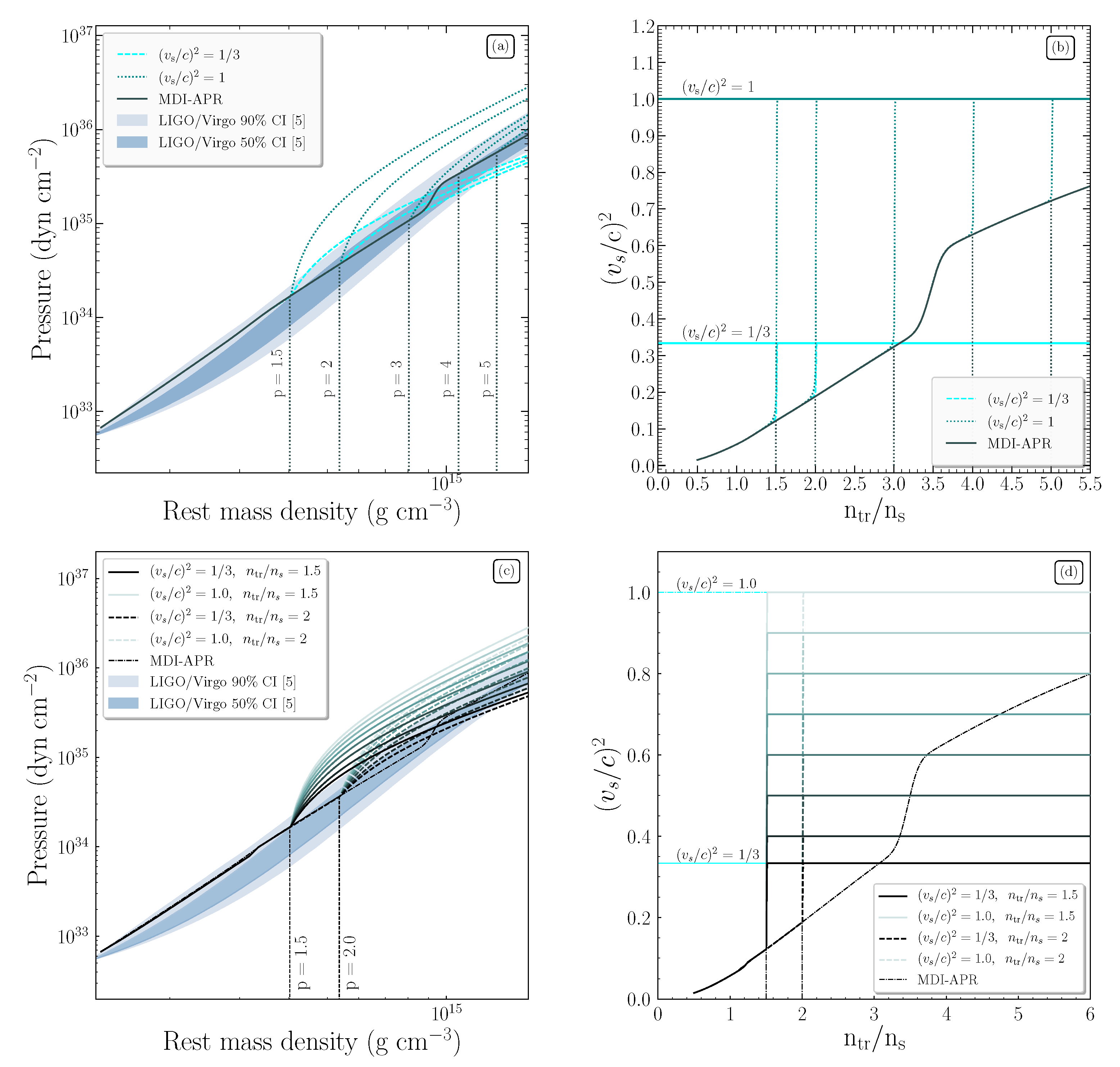

In Figure 1 we present the pressure as a function of the rest mass density (${\rho }_{\mathrm{rest}}=n_b{m}_n$) and the square speed of sound in units of speed of light as a function of the transition density for the EoSs constructed in cases (a) and (b). In addition, we display the credibility intervals proposed by Ref. [5] from LIGO/Virgo collaboration for the GW170817 event. It is clear from these figures that the pure MDI-APR EoS is well-defined in the proposed limits of LIGO/Virgo collaboration and also fulfills the speed of light limit at high densities.

4. Tidal Deformability

It has mentioned that the gravitational waves emitted from the final stages of an inspiraling binary NS system are one of the most important sources for the terrestrial gravitational waves detectors [56,57,58,59,60,61,62,63,64]. In such case, properties like the mass of the component stars can be measured. As Flanagan and Hinderer [58] articulated, the tidal effects can be measurable during this final stage of the inspiral.

The response of a NS to the presence of the tidal field, is described by a dimensionless tidal parameter, the tidal Love number $k_2$. This parameter depends on the NS structure; hence its mass and EoS. The tidal Love number $k_2$ is the coefficient of proportionality between the induced quadrupole moment $Q_{ij}$ and the applied tidal field $E_{ij}$ [58,65], given below

$$Q_{ij}=-\frac{2}{3}{k}_2\frac{R^5}{G}{E}_{ij}\equiv -\lambda E_{ij},$$

(10)

where R is the NS radius and $\lambda =2R^5{k}_2/3G$ is the other tidal parameter that we use in our study, the so-called tidal deformability. The tidal Love number $k_2$ is given by [58,59]

$$\begin{array}{ccc}\hfill k_2& =& \frac{8{\beta }^5}{5}{\left(1-2\beta \right)}^2\left[2-y_R+(y_R-1)2\beta \right]\times \left[\frac{}{}2\beta \left(6-3y_R+3\beta (5y_R-8)\right)\right.\hfill \\ & +& 4{\beta }^3\left(13-11y_R+\beta (3y_R-2)+2{\beta }^2(1+y_R)\right)\frac{}{}\hfill \\ & +& {\left.3{\left(1-2\beta \right)}^2\left[2-y_R+2\beta (y_R-1)\right]\ln \left(1-2\beta \right)\right]}^{-1},\hfill \end{array}$$

(11)

where $\beta =GM/R{c}^2$ is the compactness parameter of a NS. The quantity $y_R$ is determined by solving the following differential equation

$$r\frac{dy\left(r\right)}{dr}+y^2\left(r\right)+y\left(r\right)F\left(r\right)+r^{2}Q\left(r\right)=0,$$

(12)

with the initial condition $y\left(0\right)=2$ [61]. $F\left(r\right)$ and $Q\left(r\right)$ are functionals of $\mathcal{E}\left(r\right)$, $P\left(r\right)$ and $M\left(r\right)$ defined as [56,61]

$$F\left(r\right)=\left[1-\frac{4\pi r^{2}G}{c^4}\left(\mathcal{E}\left(r\right)-P\left(r\right)\right)\right]{\left(1-\frac{2M\left(r\right)G}{r{c}^2}\right)}^{-1},$$

(13)

and

$$\begin{array}{ccc}\hfill r^{2}Q\left(r\right)& =& \frac{4\pi r^{2}G}{c^4}\left[5\mathcal{E}\left(r\right)+9P\left(r\right)+\frac{\mathcal{E}\left(r\right)+P\left(r\right)}{\partial P\left(r\right)/\partial \mathcal{E}\left(r\right)}\right]\times {\left(1-\frac{2M\left(r\right)G}{r{c}^2}\right)}^{-1}\hfill \\ & -& 6{\left(1-\frac{2M\left(r\right)G}{r{c}^2}\right)}^{-1}-\frac{4M^2\left(r\right)G^2}{r^2{c}^4}{\left(1+\frac{4\pi r^{3}P\left(r\right)}{M\left(r\right)c^2}\right)}^2{\left(1-\frac{2M\left(r\right)G}{r{c}^2}\right)}^{-2}.\hfill \end{array}$$

(14)

The numerical solution requires that the Equation (12) must be integrated self consistently with the TOV equations using the boundary conditions $y\left(0\right)=2$, $P\left(0\right)=P_c$ and $M\left(0\right)=0$ [56,59]. From the solution of TOV equations the mass M and radius R of the NS can be extracted, while the corresponding solution of the differential Equation (12) provides the value of $y_R=y\left(R\right)$. This parameter along with the quantity $\beta$ are the basic ingredients of the tidal Love number $k_2$.

One parameter that is well constrained by the gravitational waves detectors is the chirp mass ${\mathcal{M}}_c$, which is a combination of the component masses of a binary NS system [66,67]

$${\mathcal{M}}_c=\frac{{\left(m_1{m}_2\right)}^{3/5}}{{(m_1+m_2)}^{1/5}}=m_1\frac{q^{3/5}}{{(1+q)}^{1/5}},$$

(15)

where $m_1$ is the mass of the heavier component star and $m_2$ is the lighter’s one. Hence, the binary mass ratio $q=m_2/m_1$ is within the range $0\le q\le 1$.

In addition, another binary parameter that can be measured from the analysis of the gravitational wave signal is the effective tidal deformability [66,67]

$$\tilde{\mathsf{\Lambda }}=\frac{16}{13}\frac{(12q+1){\mathsf{\Lambda }}_1+(12+q)q^4{\mathsf{\Lambda }}_2}{{(1+q)}^5},$$

(16)

where the key quantity q characterizes the mass asymmetry, and ${\mathsf{\Lambda }}_i$ is the dimensionless deformability defined as [66,67]

$${\mathsf{\Lambda }}_i=\frac{2}{3}{k}_2{\left(\frac{R_i{c}^2}{M_{i}G}\right)}^5\equiv \frac{2}{3}{k}_2{\beta }_i^{-5},i=1,2.$$

(17)

By combining Equations (17) and (11), one can find that ${\mathsf{\Lambda }}_i$ depends both on star’s compactness and the value of $y\left(R\right)$.

We notice that ${\mathsf{\Lambda }}_i$ depends directly on the stiffness of the EoS through the compactness $\beta$ and indirectly through the speed of sound which appears in Equation (14). The dependence of ${\mathsf{\Lambda }}_i$ on the behavior of $y\left(R\right)$ can lead to useful estimations or constraints on the tidal deformability itself. To be more specific, the applied EoS affects also the behavior of $\mathsf{\Lambda }$ regarding the NS’s mass M and radius R. In our study we use the secondary very massive component of GW190814 system (see Ref. [1]) to examine the tidal deformability and the behavior of dense nuclear matter in the extreme scenario of such a massive NS.

5. Results and Discussion

The merger of a very massive black hole (∼23 $M_{\odot }$) with a ∼2.6 $M_{\odot }$ compact object has recently been announced by the LIGO/Virgo collaboration, as the GW190814 event. The scenarios that follow the second merger component are that of (a) the lightest black hole, (b) the most compact NS, (c) a rapidly rotating NS, and (d) an exotic compact object. In the present work we studied only the second and third case scenarios, that is either a compact non-rotating NS or a rapidly rotating one.

5.1. Slow/Rapid Rotation: Implications to Neutron Star Properties

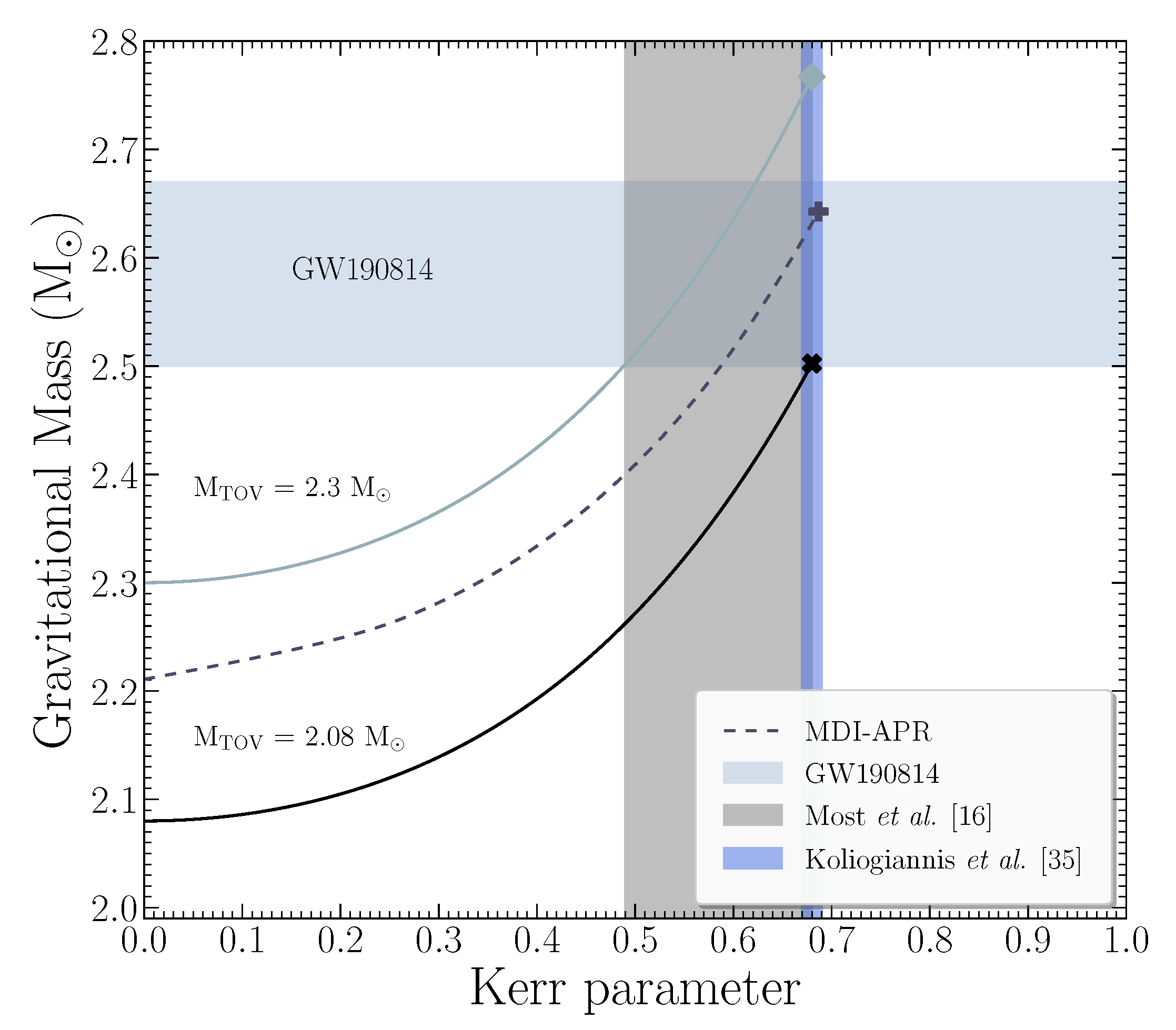

In Figure 2 we display the gravitational mass as a function of the Kerr parameter for the pure MDI-APR EoS. In addition, we note the universal relation Equation (4) for two limiting cases: (a) $M_{\mathrm{TOV}}=2.08M_{\odot }$ and (b) $M_{\mathrm{TOV}}=2.3M_{\odot }$ [16], and ${\mathcal{K}}_{\max }=0.68$. The limiting cases were the minimum and maximum possible mass, respectively, for a NS based on the calculations provided in Ref. [16]. In accordance, the maximum value of the Kerr parameter was also calculated in Ref. [16] with respect to the minimum possible mass. With regard to the pure MDI-APR EoS, the relevant dependence was constructed through the RNS code having as input the angular momentum of the star until it reached its mass-shedding limit. This figure represents the limited area where the compact object should lie. The area was marked by the intersection of the gravitational mass, $M={2.59}_{-0.09}^{+0.08}{M}_{\odot }$, with the Kerr parameter, $\mathcal{K}=[0.49,0.68]$ [16]. We note that the pure MDI-APR EoS was in the range of the described limits for the gravitational mass and Kerr parameter, as well as the ones introduced in Figure 1, being a suitable hadronic EoS to simulate the compact object of ∼2.6 $M_{\odot }$.

In addition, taking into consideration the limiting case that the compact object was rotating at its mass-shedding limit, then constraints on the maximum value of the Kerr parameter, the corresponding equatorial radius, and the central energy density were possible. In particular, firstly we employed the relation found in Ref. [35]

$${\mathcal{K}}_{\max }=0.488+0.074\left(\frac{M_{\max }}{M_{\odot }}\right),$$

(18)

for the observable gravitational mass. For the mass of the second component, the Kerr parameter lay in the range ${\mathcal{K}}_{\max }=[0.67,0.69]$, which is also noted in Figure 2. Secondly, using the derived relation from the recent Ref. [68], which connected the maximum value of Kerr parameter with the one of compactness parameter, as

$${\mathcal{K}}_{\max }=1.34\sqrt{{\beta }_{\max }}\mathrm{with}{\beta }_{\max }=\frac{G}{c^2}\frac{M_{\max }}{R_{\max }},$$

(19)

it was possible to extract a specific range for the corresponding equatorial radius. In this case, the corresponding equatorial radius lay in the range $R_{\max }=[14.77,14.87]\mathrm{km}$.

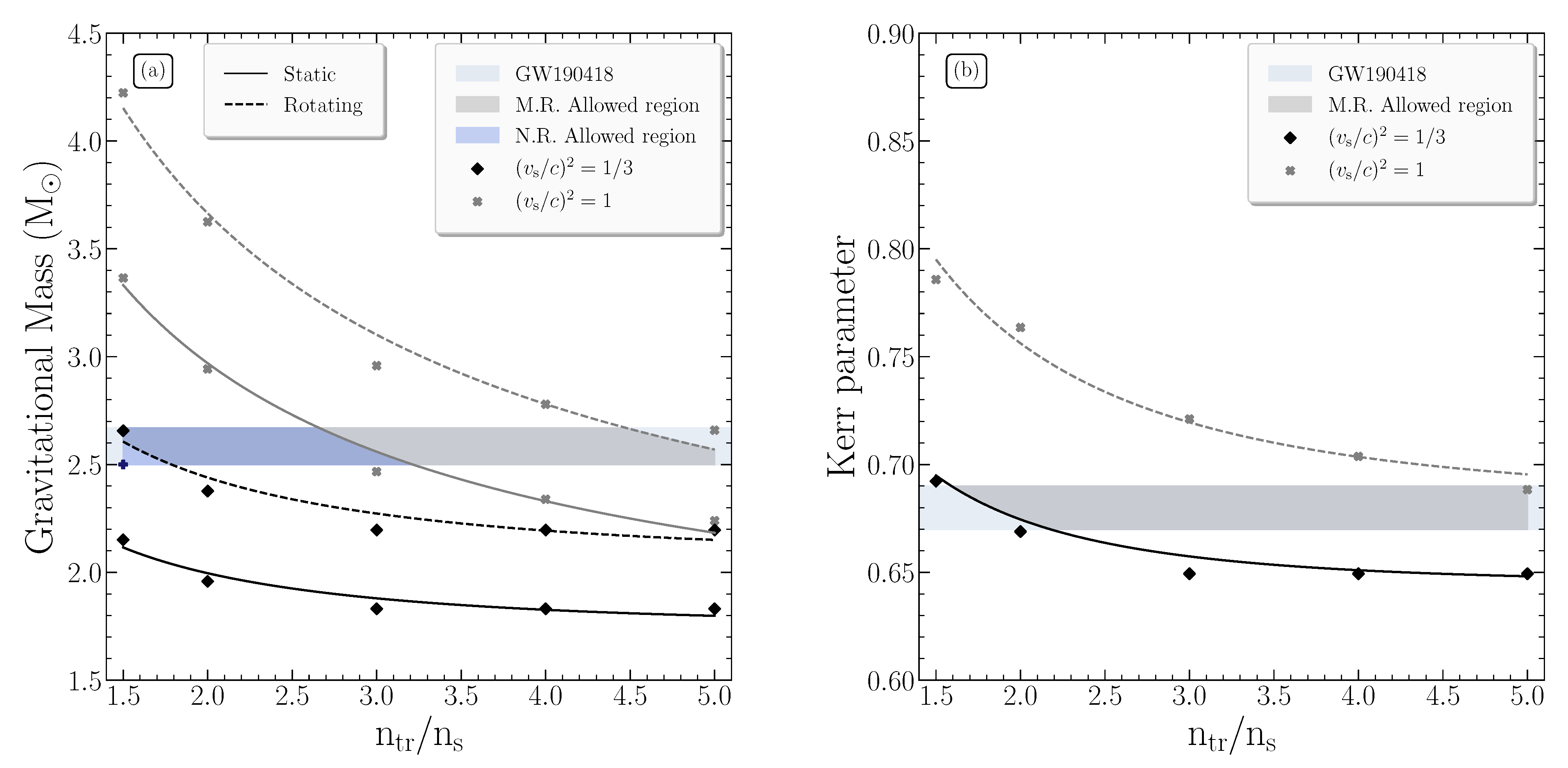

We concentrated now on the microscopic properties of the NS, the speed of sound and the transition density. In Figure 3 we display the gravitational mass and Kerr parameter as a function of the transition density for the two limiting cases of the speed of sound based on Ref. [46]. From Figure 3a, the intersection of GW190814 mass area with the extracted curves provided us two regions of the possible transition density with respect to the applied speed of sound. By employing the formula from Ref. [46]

$$\frac{M_{\max }}{M_{\odot }}={\alpha }_{1}coth\left[{\alpha }_2{\left(\frac{n_{\mathrm{tr}}}{n_s}\right)}^{1/2}\right],$$

(20)

where the coefficients $a_1$ and $a_2$ are given in

Table 1. Coefficients of Equations (20) and (21) for the two speed of sound bounds. The abbreviation “N.R.” corresponds to the non-rotating configuration and the “M.R.” to the maximally-rotating one.

Speed of Sound Bounds	${\mathit{\alpha }}_1$		${\mathit{\alpha }}_2$		${\mathit{\alpha }}_3$		${\mathit{\alpha }}_4$
	N.R.	M.R.	N.R.	M.R.	N.R.	M.R.	N.R.	M.R.
c	1.665	1.689	0.448	0.352	–	0.683	–	1.053
$c/\sqrt{3}$	1.751	2.069	0.964	0.883	–	0.645	–	1.348

, we were able to restrict the transition density with respect to the speed of sound. More precisely, we took under consideration two possible cases: (a) non-rotating and (b) maximally-rotating NS. In the first case, as Figure 3a shows, the possible transition density region was restricted between the two limiting cases of the speed of sound. However, as the lower limit in the speed of sound was not able to represent the gravitational mass of the low mass component, we found the lower possible speed of sound value that reproduced this mass at the specific value of the transition density. Consequently, the transition density was constrained in the range $n_{\mathrm{tr}}=[1.5,3.2]n_s$ and the speed of sound in the range ${(v_s/c)}^2=[0.45,1]$.

In the second case, the possible transition density could be constrained both from the gravitational mass and the Kerr parameter. From Figure 3a it is clear that the transition density could take all the values in the area under consideration. However, from Figure 3b the transition density was constrained from the lower limit of the speed of sound. According to the derived formula from Ref. [46]

$${\mathcal{K}}_{\max }={\alpha }_{3}coth\left[{\alpha }_4{\left(\frac{n_{\mathrm{tr}}}{n_s}\right)}^{1/2}\right],$$

(21)

where the coefficients $a_3$ and $a_4$ are given in Table 1, the rotating case allowed the existence of the low mass component at the whole range of speed of sound values and at transition densities in the range $n_{\mathrm{tr}}=[1.6,5]n_s$.

One more interesting property of NSs is the central energy density, as it is connected with the study of the time evolution of pulsars and the appearance of a possible phase transition. In Ref. [35] a relation was found describing the upper bound for the density of cold baryonic matter, as

$$\frac{M}{M_{\odot }}=4.25\sqrt{\frac{{10}^{15}\mathrm{gr}{\mathrm{cm}}^{-3}}{{\epsilon }_{\mathrm{c}}/c^2}}.$$

(22)

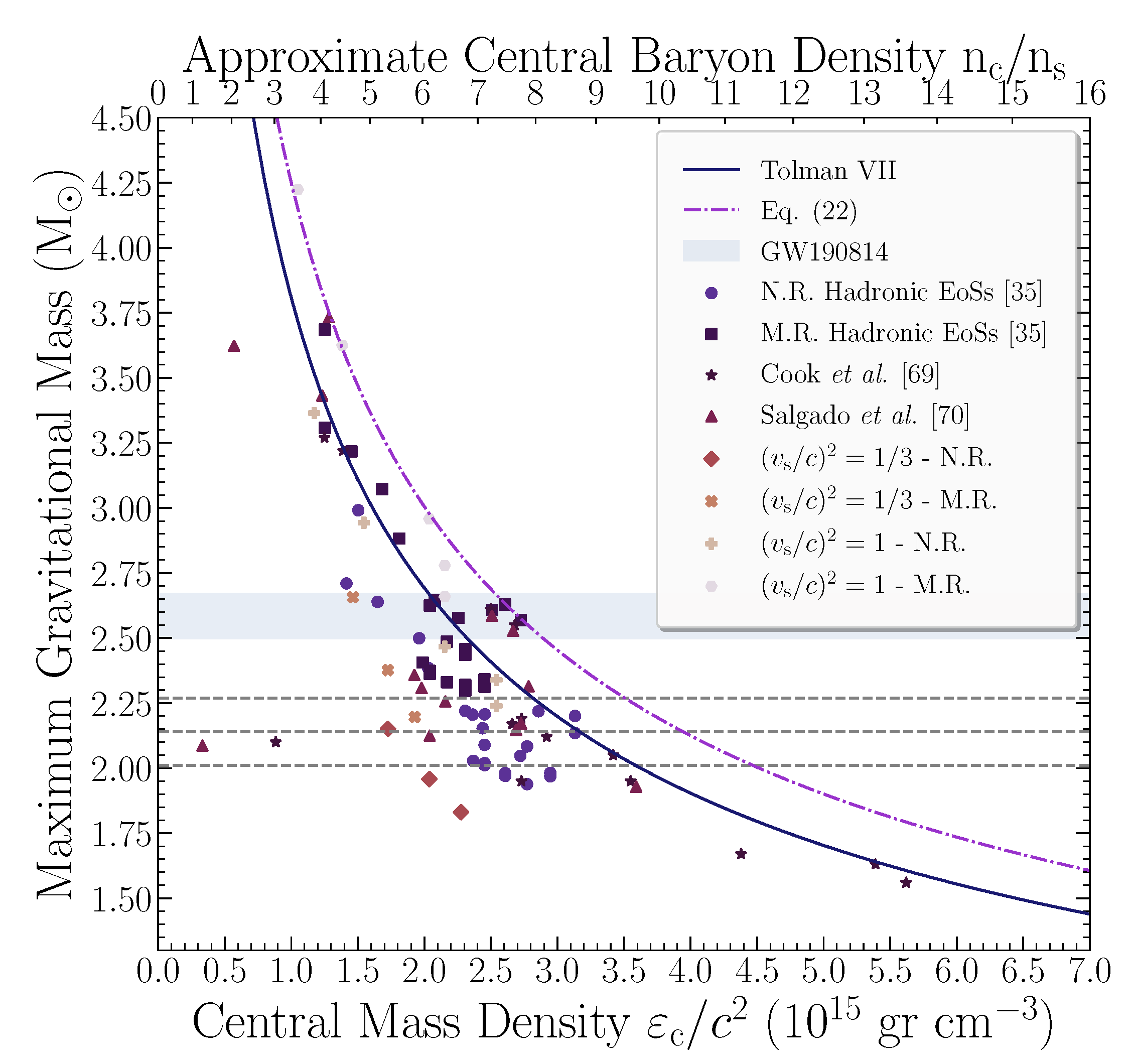

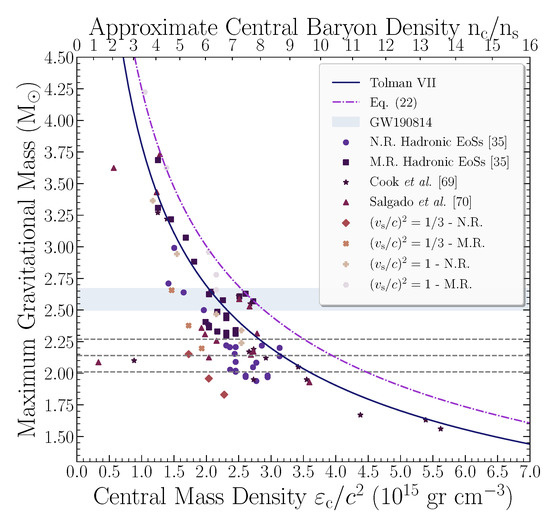

Figure 4 presents the maximum gravitational mass as a function both of the central energy density and the central baryon density. In particular, we present the results of 23 hadronic EoSs [35], for the non-rotating and maximally-rotating case, Tolman VII analytical solution, Equation (22), data from Cook et al. [69] and Salgado et al. [70], as well as the newly added data for the non-rotating and maximally-rotating case, both in ${(v_s/c)}^2=1/3$ and ${(v_s/c)}^2=1$, at the transition densities under consideration. Adopting the Equation (22) for the range of the gravitational mass of the low mass component in the GW190814 event, the central energy density could be constrained in the range ${\epsilon }_{\mathrm{c}}/c^2=[2.53,2.89]{10}^{15}\mathrm{gr}{\mathrm{cm}}^{-3}$, meaning that NSs with higher values of central energy density could not exist. Furthermore, from Figure 4, we could also extract the corresponding region for the central baryon density, that is $n_c=[7.27,8.09]n_s$. Finally, all the extracted EoSs met the limit for the central energy/baryon density as they are included in the region described under Equation (22).

5.2. Tidal Effects and Speed of Sound: A Very Massive Neutron Star Hypothesis

5.2.1. Isolated Non-Rotating Neutron Star

Firstly, we concentrated our study of tidal deformability on the isolated non-rotating NS case, by using two transition densities $n_{\mathrm{tr}}=[1.5,2]n_s$ and eight values of speed of sound bounds ${(v_s/c)}^2=[1/3,0.4,0.5,0.6,0.7,0.8,0.9,1]$. The values of transition density were taken to be close to the constraints of Ref. [71]. The numerical solution of TOV equations’ system, by using the previous bounds for sound speed, provided the mass-radius diagram presented in Figure 5.

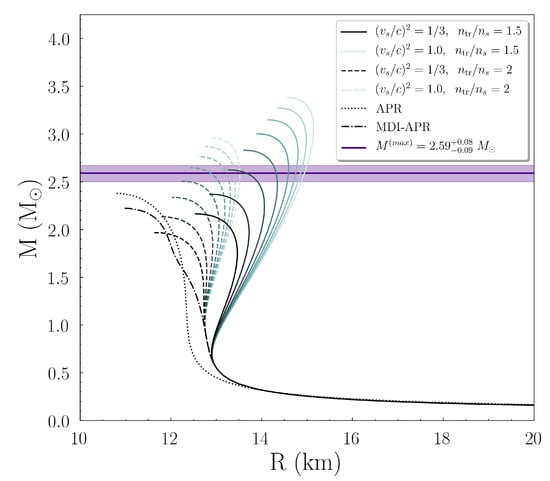

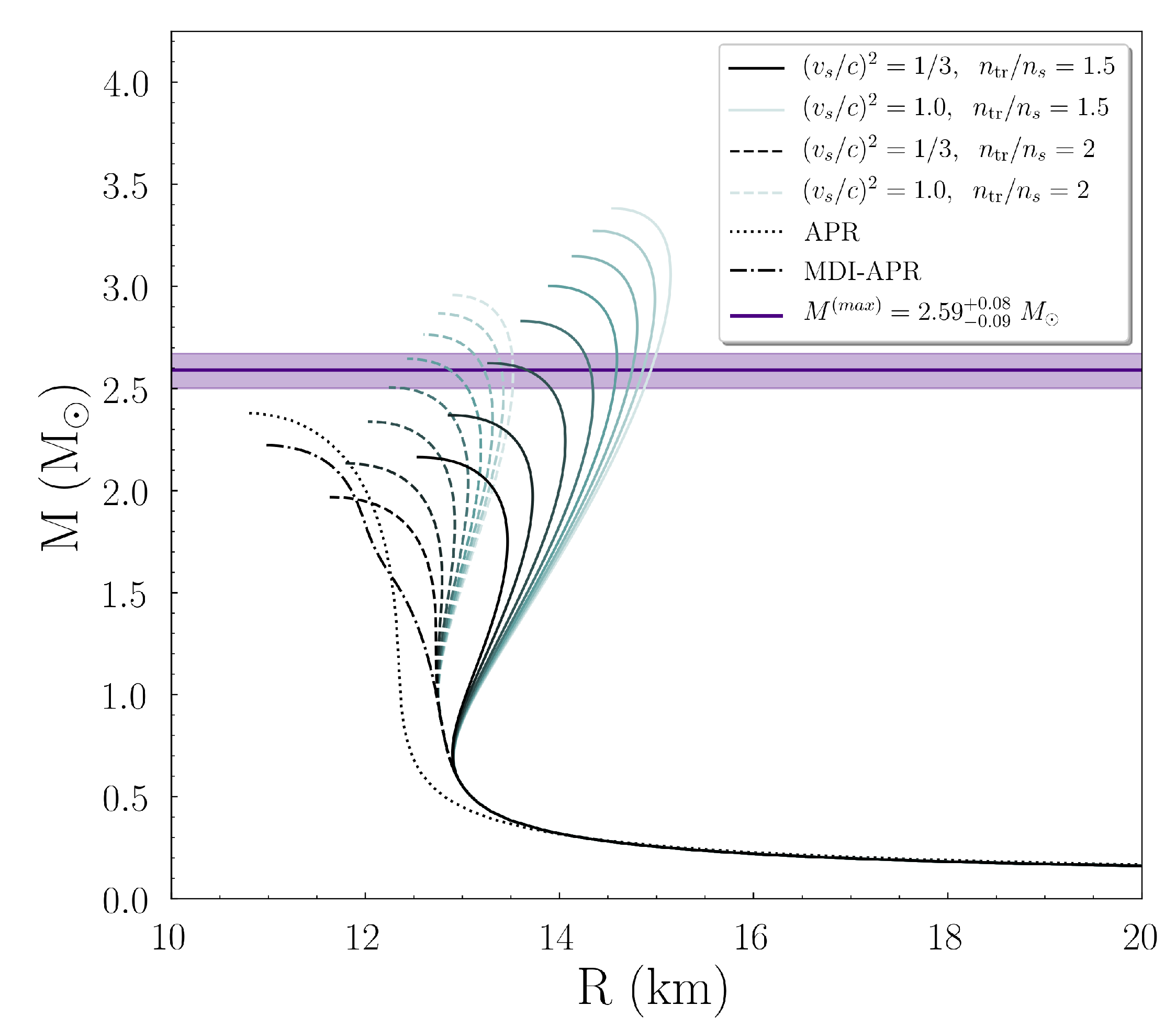

In Figure 5 one can observe two main branches, related to the transition density; the solid (dashed) curves correspond to the $n_{\mathrm{tr}}=1.5n_s$ ($n_{\mathrm{tr}}=2n_s$) case. In each branch, there are bifurcations in the families of EoSs, in analog to each speed of sound boundary condition. The higher the speed of sound, the lighter the representing color of the curves in the figure. The purple solid horizontal line, with the shaded region, indicates the estimation of the recently observed massive compact object of Ref. [1]. As Figure 5 shows, the branch of EoSs with $n_{\mathrm{tr}}=1.5n_s$ provides stiffer EoSs compare to the $n_{\mathrm{tr}}=2n_s$ branch. The EoSs of the $n_{\mathrm{tr}}=1.5n_s$ case are more likely to provide such a massive non-rotating NS, than the $n_{\mathrm{tr}}=2n_s$ case in which three EoSs of the total sum lay outside of the shaded region. Especially, between the same kind of transition density $n_{\mathrm{tr}}$ the EoSs with higher speed of sound bounds led to higher values of NS mass and radius, hence a high bound of the speed of sound (even more close to the causality as the transition density is getting higher) was needed for the description of such a massive compact object.

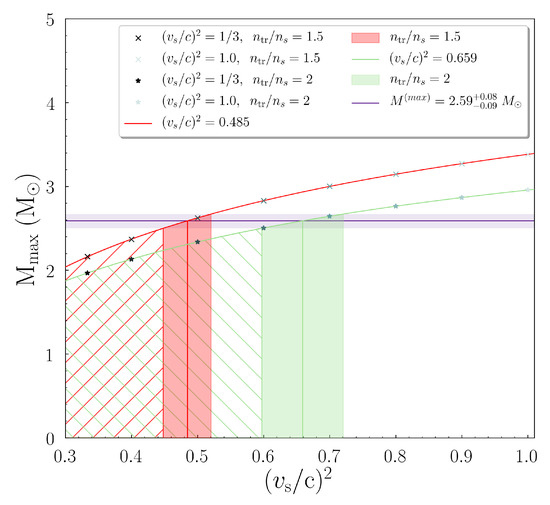

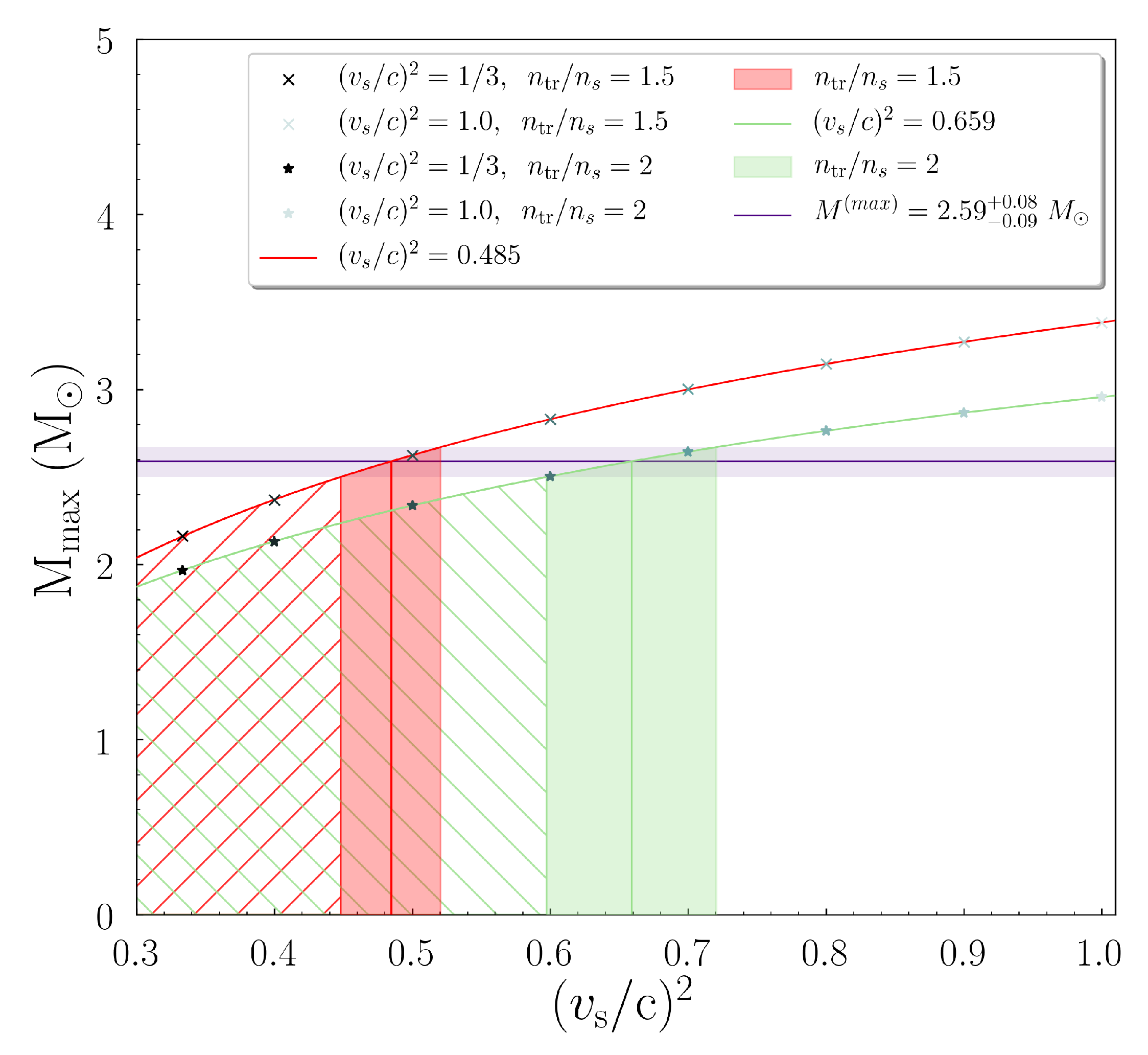

From the observation of Figure 5 a trend across the maximum masses contained in each branch of EoSs, characterized by the speed of sound bound, seemed to be inherent. Therefore, we constructed the appropriate diagram of Figure 6. The cross (star) marks represent the maximum masses of $n_{\mathrm{tr}}=1.5n_s$ ($n_{\mathrm{tr}}=2n_s$) case. As the speed of sound bound was getting higher, the marks’ color lightened. Similarly to the previous figure, the purple solid horizontal line, with the shaded region, indicates the estimation of the recently observed massive compact object of Ref. [1]. The red (green) curves represent the following fit formula for the $n_{\mathrm{tr}}=1.5n_s$ ($n_{\mathrm{tr}}=2n_s$) case, given below

$$M_{max}=c_1{d}^{c_2}+c_{3}d+c_4,$$

(23)

where $d={(v_s/c)}^2$. The coefficients are given in

Table 2. Parameters of the Equation (23) and bounds of speed of sound value of Figure 6. The parameters $c_1$, $c_3$, and $c_4$ are in solar mass units $M_{\odot }$.

${\mathit{n}}_{\mathbf{tr}}$	${\mathit{c}}_1$	${\mathit{c}}_2$	${\mathit{c}}_3$	${\mathit{c}}_4$	${({\mathit{v}}_{\mathit{s}}/\mathit{c})}_{\mathit{min}}^2$	${({\mathit{v}}_{\mathit{s}}/\mathit{c})}^2$	${({\mathit{v}}_{\mathit{s}}/\mathit{c})}_{\mathit{max}}^2$
$1.5n_s$	$-1.6033\times {10}^3$	$-7.56\times {10}^{-4}$	$-1.64\times {10}^{-1}$	$1.6068\times {10}^3$	0.448	0.485	0.52
$2n_s$	5.5754	0.2742	−0.6912	−1.9280	0.597	0.659	0.72

.

By using the mass estimation of the secondary component of GW190814 system, in combination with the fitting formulas mentioned above, we obtained estimations on the speed of sound values for each transition density $n_{\mathrm{tr}}$ scenario. In particular, for a non-rotating massive NS with $M=2.59M_{\odot }$ the value of the speed of sound must be (a) ${(v_s/c)}^2=0.485$ ($n_{\mathrm{tr}}=1.5n_s$), and (b) ${(v_s/c)}^2=0.659$ ($n_{\mathrm{tr}}=2n_s$). The exact values’ interval is given in Table 2. We observed that for higher values of transition density $n_{\mathrm{tr}}$ the fitted curve and marks were shifted downwards; hence the higher the point of the transition in density, the smaller the provided maximum mass. The higher values of speed of sound were more suitable to describe such massive NSs, until a specific boundary value of transition density $n_{\mathrm{tr}}$ in which even the causality would not be suitable. Therefore, a very massive non-rotating NS favored higher values of speed of sound than the $v_s=c/\sqrt{3}$ limit. We noticed that a lower bound on the transition density $n_{\mathrm{tr}}$ was needed to be able in the description of the observed NS mergers [71]. Therefore there was a contradiction since the transition density $n_{\mathrm{tr}}$ must be above a specific lower limit and not big enough to predict very massive masses. This kind of remark arose in the speed of sound value, respectively.

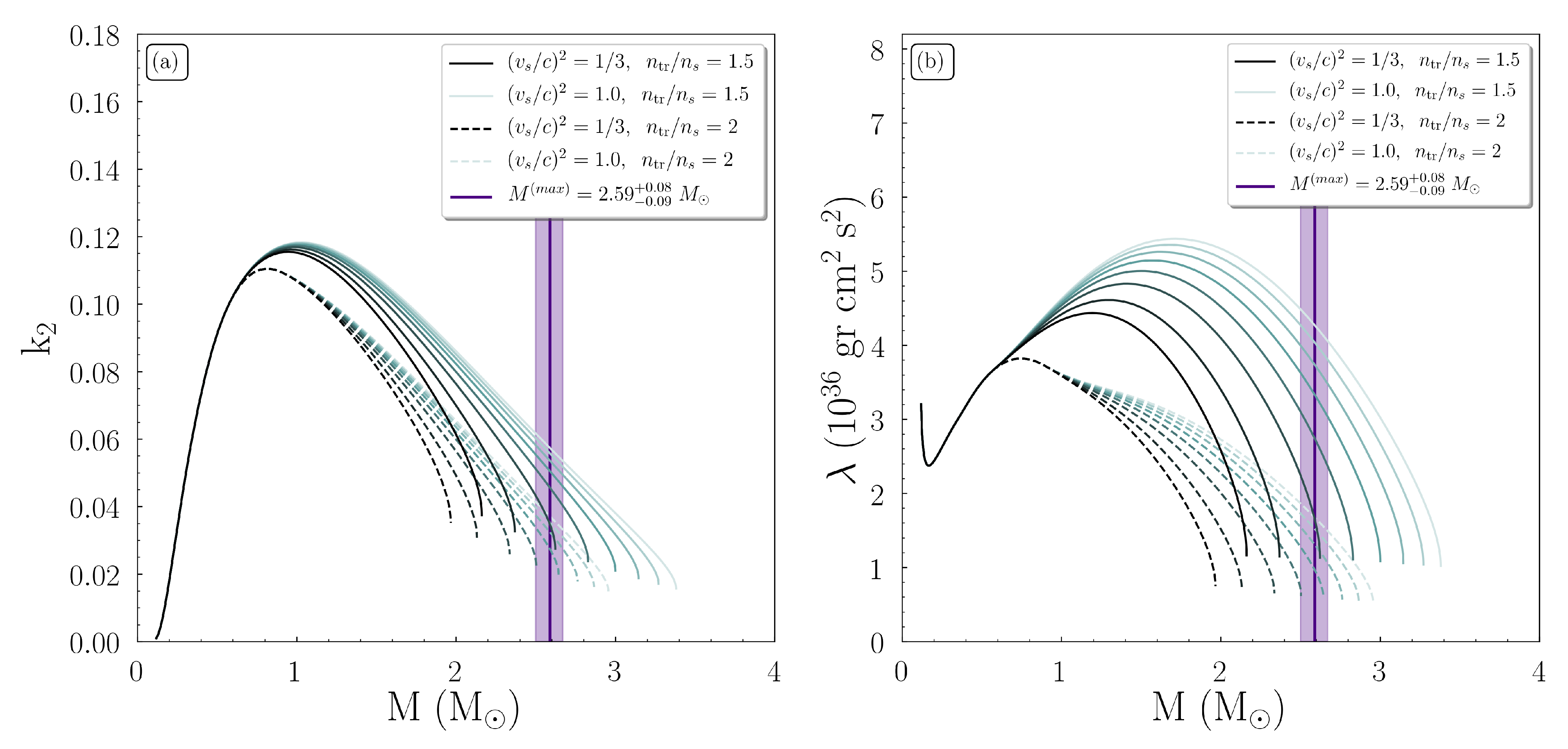

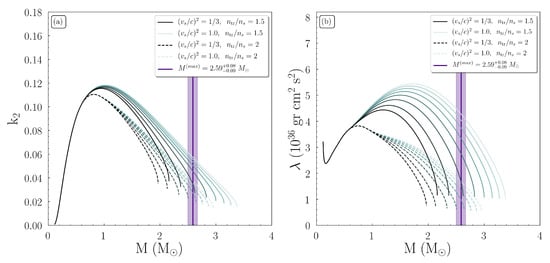

Moving on to the tidal parameters, we investigated the tidal Love number $k_2$ and the tidal deformability $\lambda$. In Figure 7 we display the two tidal parameters for the single NS case that we examined. In both diagrams, the vertical purple shaded region and line correspond to the GW190814 system’s secondary component compact object. There were two main families of EoSs, distinguished by the transition density $n_{\mathrm{tr}}$. In general, the EoSs with higher values of speed of sound bounds led to larger values on both tidal parameters. Therefore, a NS with a higher speed of sound more easily deformable, rather than a more compact star (smaller tidal deformation) with lower speed of sound. As Figure 7 shows, the EoSs with smaller transition density $n_{\mathrm{tr}}$ and higher ${(v_s/c)}^2$ values were more likely to predict a very massive NS of $M=2.59M_{\odot }$. We postulate that a further study with higher transition density $n_{\mathrm{tr}}$ would lead to smaller values of tidal parameters, therefore to more compact stars and more difficult to be deformed. In this case, a very high value of speed of sound, even close to the causal limit, would be necessary to predict such a massive non-rotating NS.

5.2.2. A Very Massive Neutron Star Component

Regarding the binary NS system case, we considered the scenario of a very heavy component NS, in agreement with the recent observation of GW190814 event [1]. Especially, we consider a heavy mass of $m_1=2.59M_{\odot }$ and we let the second star to fluctuate within the range $m_2\in (1,2.59)M_{\odot }$. By subtracting the component masses $m_1,m_2$ in Equation (15) we obtained the corresponding range for the values of ${\mathcal{M}}_c$. Since the masses were defined, from the Equations (16) and (17), the effective tidal deformability $\tilde{\mathsf{\Lambda }}$ could be determined.

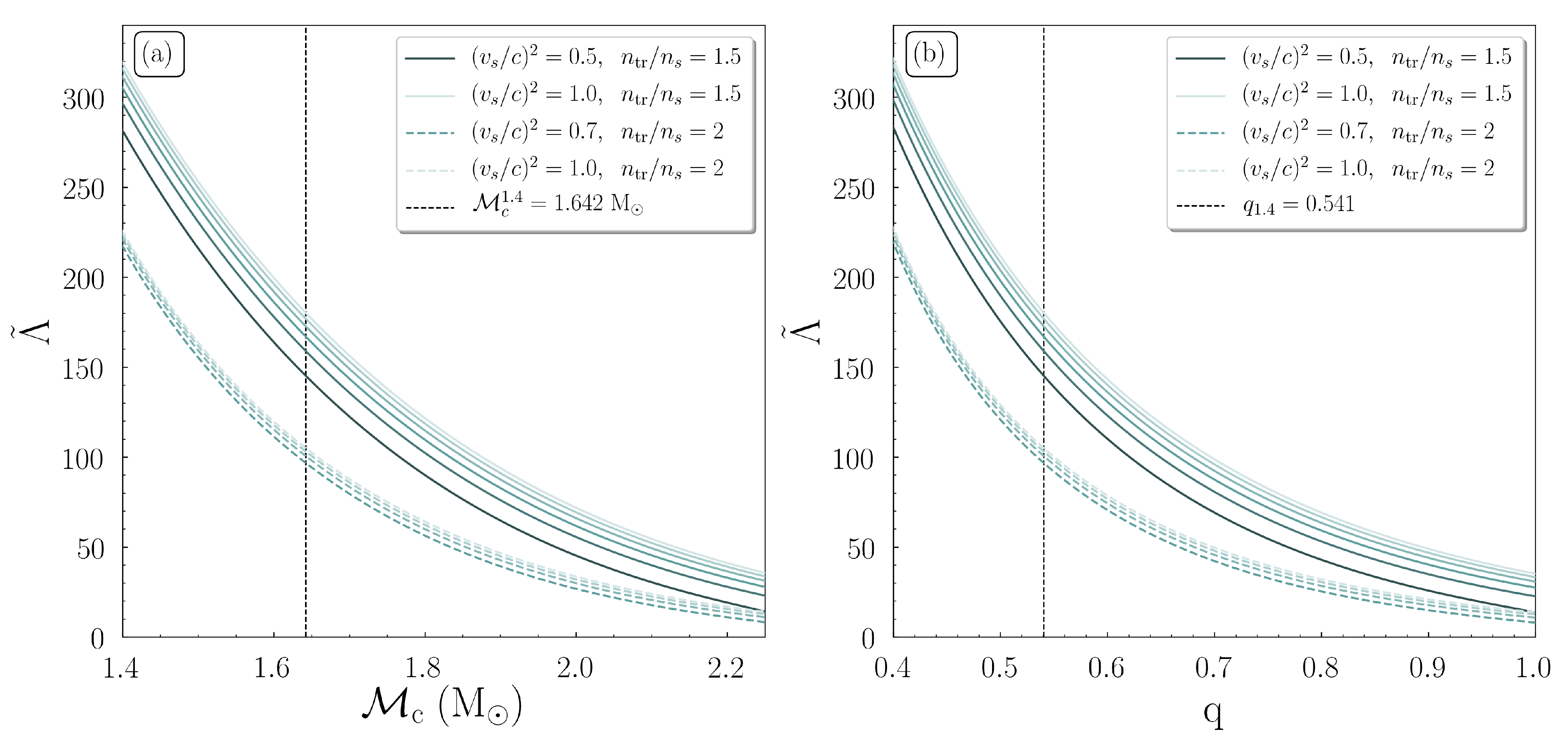

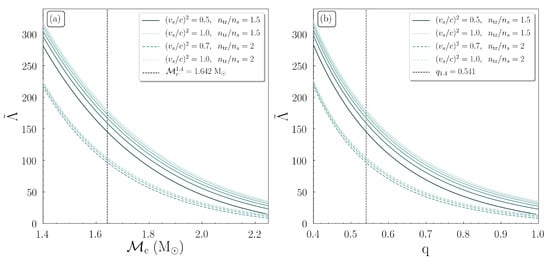

Figure 8a shows the effective tidal deformability $\tilde{\mathsf{\Lambda }}$ as a function of the chirp mass ${\mathcal{M}}_c$, for all the possible binary NS systems with such a massive NS component. We noticed that from the total sum of EoSs that we studied in the single NS case above, in the binary case we used only those who can predict a NS with $2.59M_{\odot }$ mass. In general, there were two families of EoSs, distinguished by the transition density $n_{\mathrm{tr}}$. Inside each family of EoSs, the EoSs with higher speed of sound value provided higher values of $\tilde{\mathsf{\Lambda }}$. We noticed that for a binary system with $m_1=2.59M_{\odot }$ and $m_2=1.4M_{\odot }$ the chirp mass was ${\mathcal{M}}_c=1.642M_{\odot }$. In addition, binary NS systems with both heavy components, therefore higher ${\mathcal{M}}_c$, led to smaller values of $\tilde{\mathsf{\Lambda }}$. In such cases, possible limits on the lower bound of $\tilde{\mathsf{\Lambda }}$ may be more suitable to extract constraints on the EoS.

In the same way, Figure 8b shows the dependence of $\tilde{\mathsf{\Lambda }}$ to the corresponding binary mass ratio q. We notice that this kind of $\tilde{\mathsf{\Lambda }}-q$ diagram is different from the usual ones (see in comparison Figure 3 of Ref. [71]) because the chirp mass ${\mathcal{M}}_c$ has not a unique value. To be more specific, ${\mathcal{M}}_c$ is a variable and each point of Figure 8b corresponds to a different binary NS system with the heavier component in all cases to be a very massive NS of $2.59M_{\odot }$. One can observe a similar behavior of the curves, in analogue to Figure 8a; two main families and the EoSs with higher speed of sound provide higher values of $\tilde{\mathsf{\Lambda }}$. As the binary NS systems were more symmetric ($q\to 1$), the binary tidal deformability got smaller. The highest values of $\tilde{\mathsf{\Lambda }}$ corresponded to the most asymmetric binary NS systems. We notice that for a binary system with $m_1=2.59M_{\odot }$ and $m_2=1.4M_{\odot }$ the asymmetry ratio was $q=0.541$.

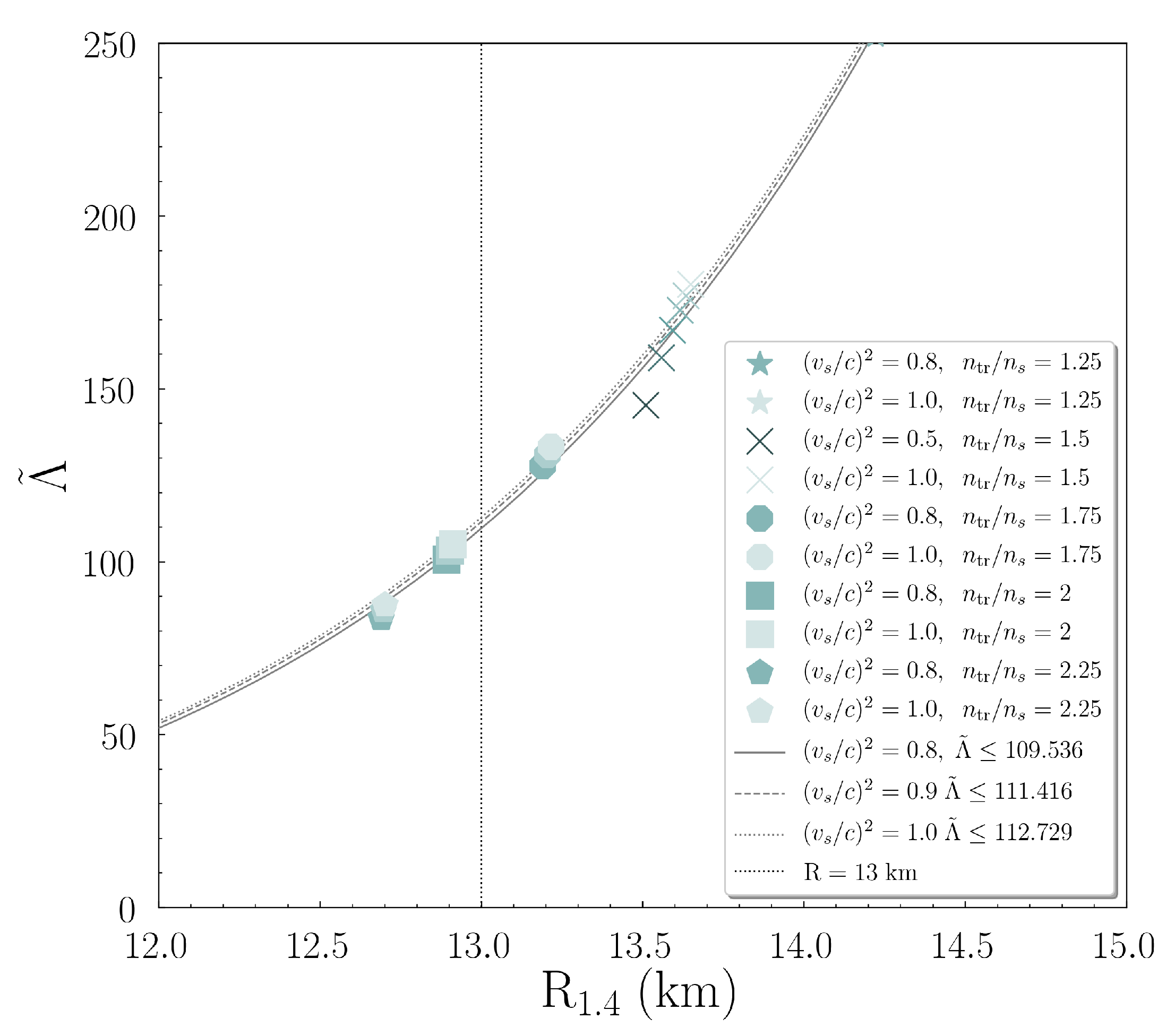

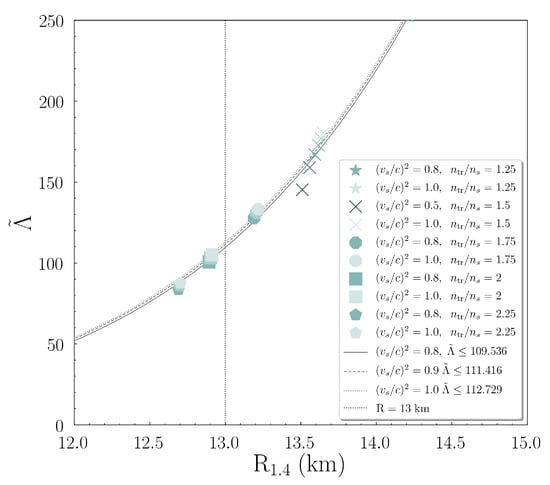

Beyond the general behavior of $\tilde{\mathsf{\Lambda }}$ that we studied above, it is in our interest to examine the radius and possible constraints that can be derived from it. Following the previous steps, we focused on the $R_{1.4}$ case of a $m_2=1.4M_{\odot }$ secondary component NS, as these values can be extracted from Figure 5. The heavier component NS is taken to be $m_1=2.59M_{\odot }$. By combining these values with Figure 7b and Equations (16) and (17), we obtained the $\tilde{\mathsf{\Lambda }}$. In Figure 9 we display this dependence; the EoSs were in five main groups, characterized by the transition density $n_{\mathrm{tr}}$. We noticed that we expanded our study to transition densities $n_{\mathrm{tr}}=[1.25,1.75,2.25]$ to be more accurate in calculations and study in more detail the curves’ behavior. The higher speed of sound values correspond to lighter marks’ color. In analog to the remarks of the previous Figure 8, the high speed of sound bounds lead to higher $\tilde{\mathsf{\Lambda }}$ and $R_{1.4}$. Moreover, we applied a fitting expression to the ${(v_s/c)}^2=[0.8,0.9,1]$ cases. The expression was taken to be in the kind of the proposed relations of Refs. [72,73].

$$\tilde{\mathsf{\Lambda }}=c_5{R}_{1.4}^{c_6},$$

(24)

where the coefficients for each case are given in

Table 3. Parameters of the Equation (24) and bounds of $\tilde{\mathsf{\Lambda }}$ of Figure 9.

${({\mathit{v}}_{\mathit{s}}/\mathit{c})}^2$	${\mathit{c}}_5$ (${\mathbf{km}}^{-1}$)	${\mathit{c}}_6$	$\tilde{\mathbf{\Lambda }}$
$0.8$	$4.1897\times {10}^{-9}$	$9.3518$	$109.536$
$0.9$	$5.3213\times {10}^{-9}$	$9.2652$	$111.416$
1	$6.1109\times {10}^{-9}$	$9.2159$	$112.729$

. A recent study suggested a similar power-law relation that connects the tidal deformability of a single NS to the $R_{1.4}$ [74]. The significance of the tidal deformability ${\mathsf{\Lambda }}_{1.4}$ and $R_{1.4}$ in order to extract information about microscopic quantities was studied in Ref. [75].

By applying an upper limit on $R_{1.4}$ one can obtain an upper limit on $\tilde{\mathsf{\Lambda }}$ for each case. We adopted the general limit of Ref. [76] that led us to the constraints of Table 3.

6. Concluding Remarks

The GW190814 puzzle and its nature through the nuclear EoS has been addressed in this study. In particular, an effort to explain the existence of a ∼2.6 $M_{\odot }$ NS, which falls into the NS - black hole mass gap, had been made both for non-rotating and maximally-rotating NSs. For this reason, the MDI-APR EoS and its parametrization for various values of sound speed and transition density in the ranges ${(v_s/c)}^2=[1/3,1]$ and $n_{\mathrm{tr}}=[1.5,5]n_s$, respectively, have been studied.

Firstly, we compare the MDI-APR EoS with the applicable range of the proposed Kerr parameter from Ref. [16], where the authors restraint it using an analytical relation connecting this property with the maximum mass of a non-rotating NS. The results shown that the MDI-APR EoS lies in the range of the gravitational mass of the low mass component, as well as the one for the Kerr parameter. In fact, the MDI-APR EoS proposes that the ∼2.6 $M_{\odot }$ compact star is a rapidly rotating NS, close to its mass-shedding limit.

By considering that the ∼2.6 $M_{\odot }$ compact star had been rotating at its mass-shedding limit, possible constraints can be extracted for the corresponding equatorial radius. The Kerr parameter at the mass-shedding limit can be expressed as a relation with the gravitational mass, and hereafter a region of ${\mathcal{K}}_{\max }=[0.67,0.69]$ is extracted. This region also includes the upper limit of the relevant region from Ref. [16] in a narrow range. In addition, using a relation that connects the Kerr parameter and the compactness parameter at its mass-shedding limit, a possible tight region for the equatorial radius of the star is implied as $R_{\max }=[14.77,14.87]\mathrm{km}$.

The upper limit on the central energy/baryon density is a very interesting property, as it is connected with the evolution of the NS and the possible appearance of a phase transition. From this analysis, the central energy density must be lower than the values in the range ${\epsilon }_{\mathrm{c}}/c^2=[2.53,2.89]{10}^{15}\mathrm{gr}{\mathrm{cm}}^{-3}$, while for the central baryon density, the corresponding range is $n_c=[7.27,8.09]n_s$. The latter can inform us about the stability of the NS, as a NS with higher values of central energy/baryon density cannot exist, as well as the appearance of the back-bending process.

The transition density, along with the speed of sound, can infer various structures for the EoS. Assuming that the NSs is a non-rotating one, the transition density is constrained in the region $n_{\mathrm{tr}}=[1.5,3.2]n_{\mathrm{s}}$ while the corresponding value of sound speed must be in the range ${(v_s/c)}^2=[0.45,1]$. Otherwise, if the NS is considered as a maximally-rotating one, although the speed of sound implies no constraints, the transition density must be higher than $1.6n_s$.

In the case of non-rotating NS, the construction of the M-R diagram showed at first glance the cases that can describe the extreme scenario of our study. Moving to a more detailed diagram of the mass vs. the speed of sound bounds, it was feasible to extract stringent constraints on the speed of sound bounds for each case of transition density $n_{\mathrm{tr}}$. For $n_{\mathrm{tr}}=1.5n_s$ this bound is ${(v_s/c)}^2\in [0.448,0.52]$ while for $n_{\mathrm{tr}}=2n_s$ is ${(v_s/c)}^2\in [0.597,0.72]$. We observe that the first lower bound is in agreement with the bound extracted above, which is a good validation of our result. We postulate that for higher transition densities $n_{\mathrm{tr}}$ it is more difficult to achieve such a massive non-rotating NS. As the transition density $n_{\mathrm{tr}}$ grows the speed of sound would need to be even close to the causal limit.

The study of the tidal parameters for a single non-rotating NS allowed us to examine the behavior of EoSs in each case. This lead to the general conclusion that the lower transition densities $n_{\mathrm{tr}}$ lead to higher tidal parameters. Therefore the transition density $n_{\mathrm{tr}}=2n_s$ corresponds to a more compact and less deformable NS. Among the same kind of transition density $n_{\mathrm{tr}}$, the EoSs with higher speed of sound values provide higher tidal parameters. Hence, in a second level across the same kind of $n_{\mathrm{tr}}$ EoSs, the higher speed of sound bound signifies that the tidal deformation is higher and the star is less compact.

Concerning the binary NS system case, the adoption of a very massive component with $m_1=2.59M_{\odot }$ allowed us to investigate a variety of possible binary NS systems with such a heavy component. We notice that as the binary NS system consists of both heavy component stars, therefore high chirp mass ${\mathcal{M}}_c$, the effective tidal deformability $\tilde{\mathsf{\Lambda }}$ is taking smaller values. Hence, the binary deformation is smaller in such systems. Similarly, the same behavior was noticed in the $\tilde{\mathsf{\Lambda }}-q$ diagram in which the increasing binary mass symmetric ratio q leads to smaller values of $\tilde{\mathsf{\Lambda }}$. In the case that the second component has a mass $m_2=1.4M_{\odot }$, the chirp mass of the system ${\mathcal{M}}_c$ and the ratio q are ${\mathcal{M}}_c=1.642M_{\odot }$ and $q=0.541$ respectively.

Lastly, we considered the case of a binary NS system with $m_1=2.59M_{\odot }$ with a secondary component $m_2=1.4M_{\odot }$. This selection permitted the study of the radius $R_{1.4}$ and the extraction of possible constraints. In general, the transition density $n_{\mathrm{tr}}=1.5n_s$ provides higher values of $R_{1.4}$ and $\tilde{\mathsf{\Lambda }}$ than the $n_{\mathrm{tr}}=2n_s$ case. The examination of other transition densities $n_{\mathrm{tr}}$ permitted us to confirm this behavior. In addition, the high values of speed of sound ${(v_s/c)}^2$ exhibits a similar behavior; high speed of sound bounds provide higher values on both referred parameters. The adoption of an upper limit on the radius, allowed us to extract some upper limits on $\tilde{\mathsf{\Lambda }}$ for each case of sound speed. Nevertheless the value of $n_{\mathrm{tr}}$, as the speed of sound bound is getting higher the upper limit on $\tilde{\mathsf{\Lambda }}$ performs an analogous course. We conclude that the existence of such a massive non-rotating NS would require a significant differentiation from all the so far known cases, consisting in any case a unique and very interesting challenge for physics.

7. Materials and Methods

The numerical integration of the equilibrium equations for NSs is under the publicly available RNS code [44] by Stergioulas and Friedman [77]. This code was developed based on the method of Komatsu, Eriguchi, and Hachisu (KEH) [78], while modifications were introduced by Cook, Shapiro, and Teukolsky [79]. The input of the code was the EoS in a tabulated form which included the energy density, the pressure, the enthalpy, and the baryon density.
