MTV-MFO: Multi-Trial Vector-Based Moth-Flame Optimization Algorithm
Abstract
:1. Introduction
- The canonical MFO is modified by substituting the transverse orientation of MFO with the MTV approach to enhance the performance of the original MFO.
- In the flag-guided trial vector producer (F-TVP), the flag flame is introduced with the aim of enhancing the exploration ability of the original MFO. Besides that, the best flame is employed to calculate the distance between moth and flames. Additionally, a new spiral function is used to model the flying path of moths.
- In the contingent trial vector producer (C-TVP), two new external archives are employed to increase exploratory capability and diversity. Additionally, the position of the best moth is considered as the base vector to change the moths’ positions with respect to the current best moth position.
- The proposed MTV-MFO algorithm concurrently executes three trial vector producers on the dedicated portion of the population based on the TVP’s improved rate. Experimental results demonstrate that the MTV-MFO performs better than the canonical MFO and other state-of-the-art nature-inspired algorithms.
2. Related Work
3. Moth Flame Optimization (MFO) Algorithm
4. Multi-Trial Vector-Based Moth-Flame Optimization (MTV-MFO) Algorithm
Algorithm 1. Moth-flame trial vector producer (MFO-TVP). | |
Input: MMFO-TVP | |
Output: CMFO-TVP | |
1: | Procedure MFO-TVP |
2: | For i = 1 to NMFO-TVP |
3: | |
4: | |
5: | End |
6: | Return produced vectors in CMFO-TVP |
7: | End procedure |
Algorithm 2. Flag-guided trial vector producer (F-TVP). | |
Input: MF-TVP | |
Output: CF-TVP | |
1: | Procedure F-TVP |
2: | For i = 1 to NF-TVP |
3: | |
4: | |
5: | End |
6: | Return produced vectors in CF-TVP |
7: | End procedure |
Algorithm 3. Contingent trial vector producer (C-TVP). | |
Input: MC-TVP, M, XInfSolution, XInfCandidate | |
Output: CC-TVP | |
1: | Procedure C-TVP |
2: | |
3: | For i = 1 to NC-TVP |
4: | ) |
5: | End |
6: | Return produced vectors in CC-TVP |
7: | End procedure |

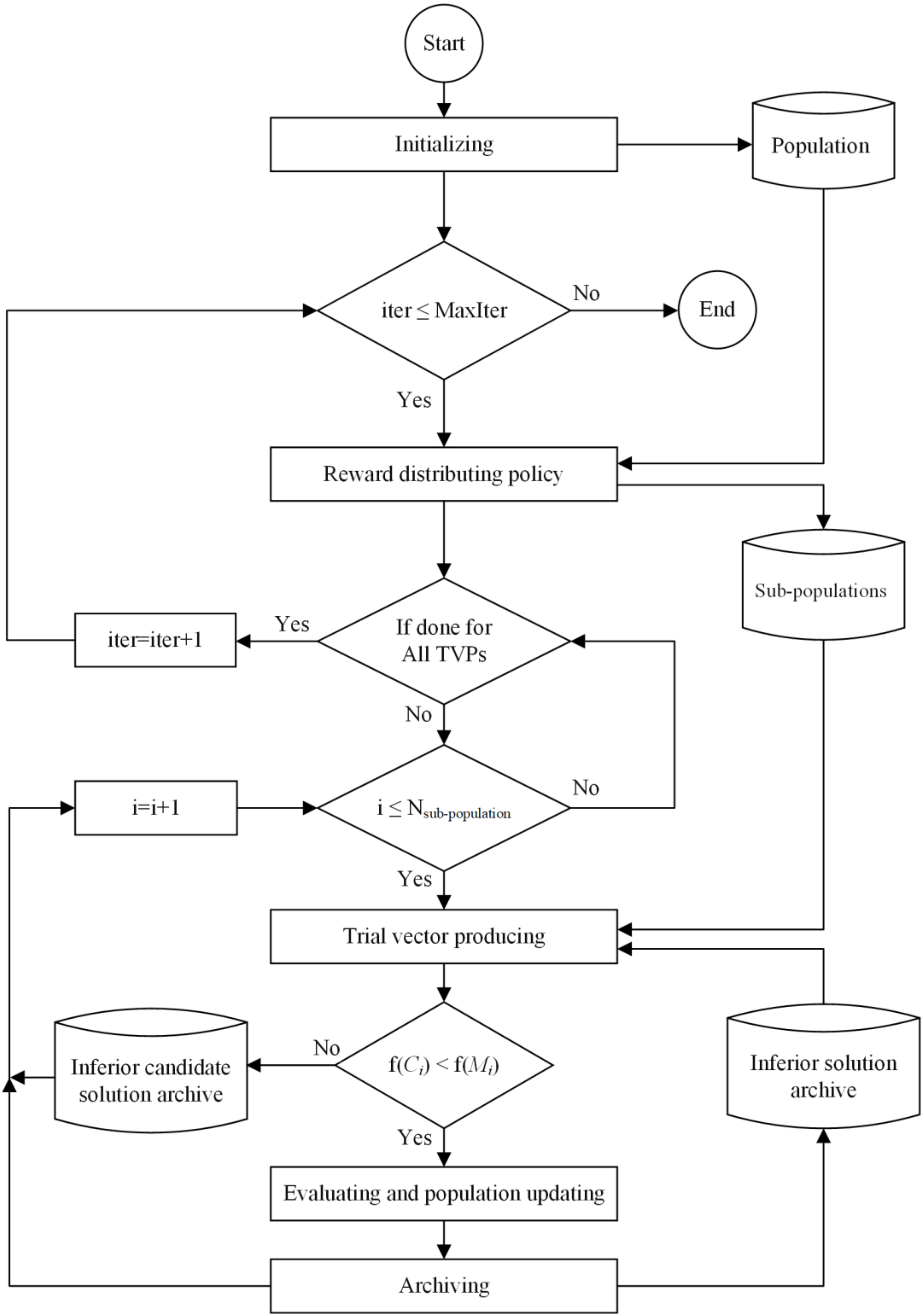

Algorithm 4. Multi-trial Vector-based Moth-Flame Optimization (MTV-MFO) Algorithm. | |
Input: N, Dim, MaxIter, nIter | |
Output: The global optimum (Fbest) | |
1: | Begin |
2: | iter = 1, Rewarded-TVP = MFO-TVP. |
3: | Randomly distribute N moths in the search space. |
4: | Evaluating fitness f(Mi) and set the Fbest. |
5: | While iter ≤ MaxIter |
6: | If mod (iter, nIter) == 0 |
7: | Determining ImpRateMFO-TVP, ImpRateF-TVP, and ImpRateC-TVP using Equation 5. |
8: | Calculating NMFO-TVP, NF-TVP, and NC-TVP using Equation 6. |
9: | End if |
10: | Distributing M into MMFO-TVP, MF-TVP, MC-TVP based on reward distributing policy. |
11: | Do for each TVP |
12: | For i = 1 to Nsub-pop |
13: | Multi-trial vector producing. |
14: | If f(Ci) < f(Mi) |
15: | Updating Mi by Ci and counting the improved moth. |
16: | End if |
17: | Archiving. |
18: | End for |
19: | End do |
20: | Updating Fbest. |
21: | iter = iter + 1. |
22: | End while |
23: | Return the global optimum (Fbest). |
24: | End |
5. Experimental Evaluation and Results
5.1. Benchmark Test Functions and Experimental Environment
5.2. Experimental Setup
5.3. Exploration and Exploitation Evaluation
5.4. Evaluation of Local Optima Avoidance

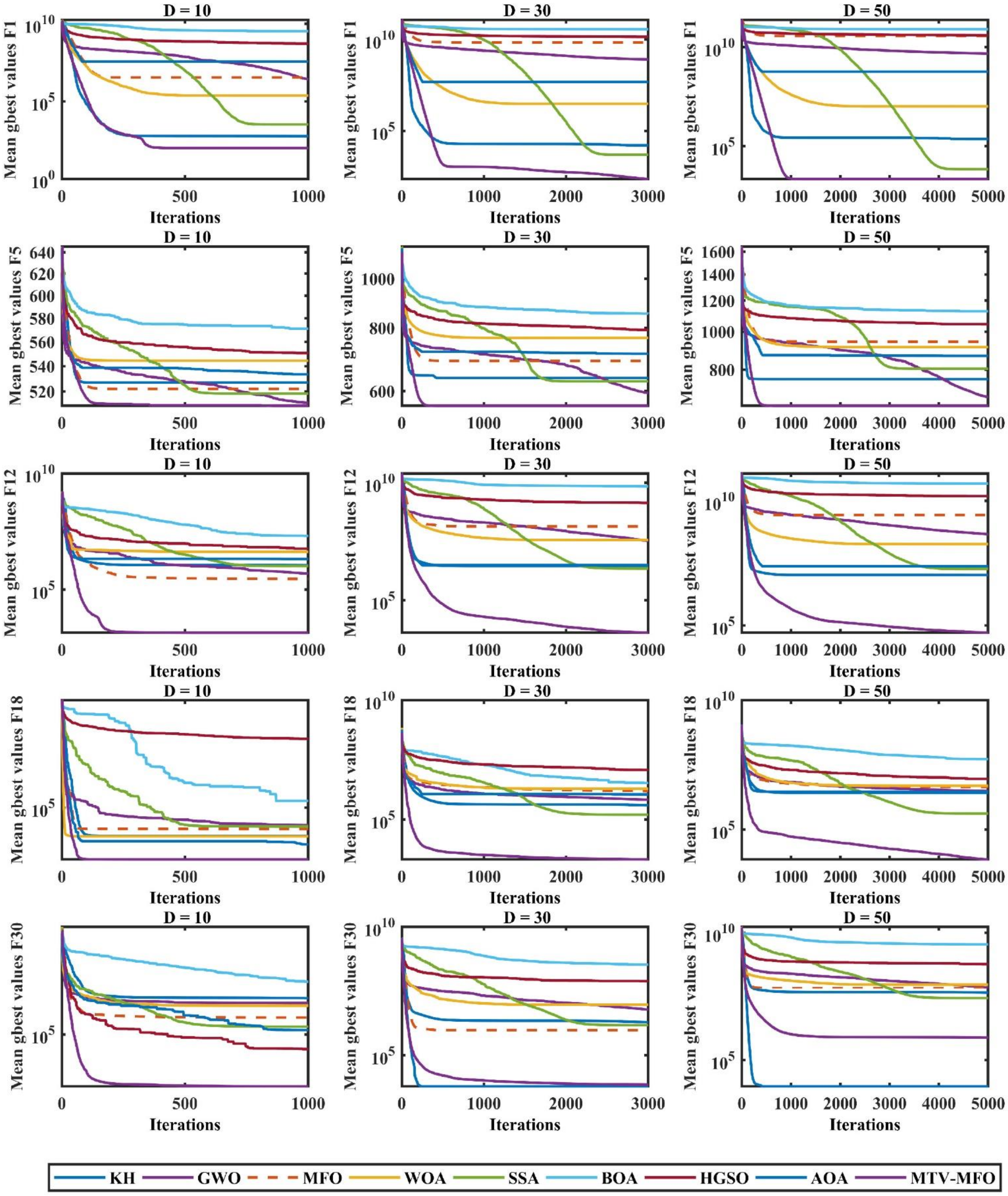

5.5. Convergence Evaluation
6. Statistical Analysis
6.1. Friedman Test
6.2. Student’s t-Test

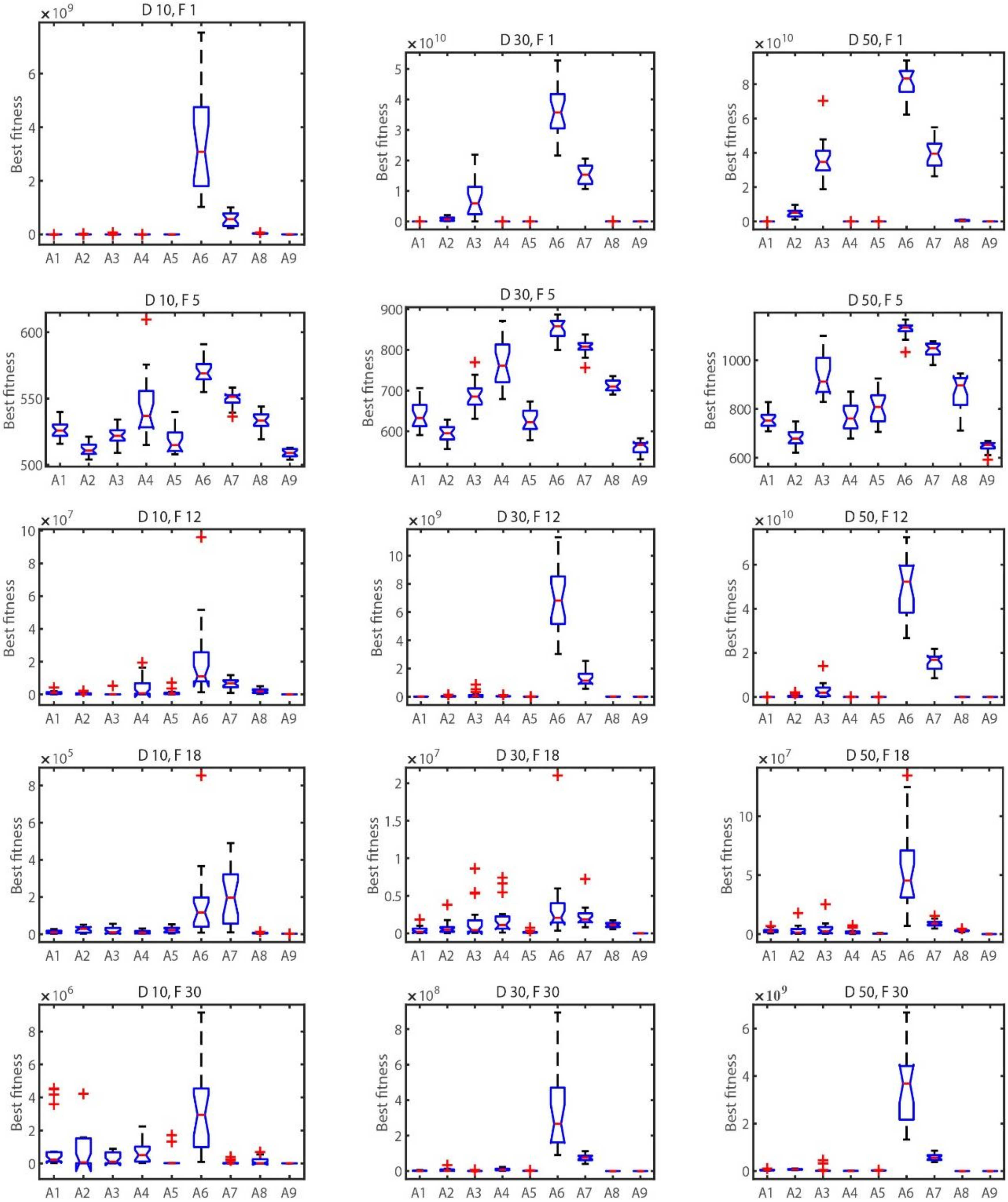

6.3. Box Plot Analysis
7. Conclusions and Future Works
- -
- The proposed F-TVP and C-TVP enhance exploitation and exploitation.
- -
- Cooperation of the proposed F-TVP and C-TVP with the canonical MFO-TVP enhances the balance between exploration and exploitation, which enables the MTV-MFO algorithm to escape from the local optima.
- -
- The results obtained from different experiments on diverse test functions with various characteristics and statistical tests verify the performance of the MTV-MFO algorithm in comparison to other, comparative algorithms.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
Function | Name and Formulation | Fi* = Fi(x*) |
---|---|---|
Func 1 | Shifted and Rotated Bent Cigar Function | 100 |
Func 3 | Shifted and Rotated Zakharov Function | 300 |
Func 4 | Shifted and Rotated Rosenbrock’s Function | 400 |
Func 5 | Shifted and Rotated Rastrigin’s Function | 500 |
Func 6 | Shifted and Rotated Expanded Scaffer’s F6 Function | 600 |
Func 7 | Shifted and Rotated Lunacek Bi_Rastrigin Function , , for i = 1,2,…,D | 700 |
Func 8 | Shifted and Rotated Non-Continuous Rastrigin’s Function for i = 1,2,…, D , i = 1,2,…,D. , for i=1,…,D | 800 |
Func 9 | Shifted and Rotated Levy Function | 900 |
Func 10 | Shifted and Rotated Schwefel’s Function | 1000 |
Func 11 | Hybrid Function 1 (N = 3) | 1100 |
Func 12 | Hybrid Function 2 (N = 3) | 1200 |
Func 13 | Hybrid Function 3 (N = 3) | 1300 |
Func 14 | Hybrid Function 4 (N = 4) | 1400 |
Func 15 | Hybrid Function 5 (N = 4) | 1500 |
Func 16 | Hybrid Function 6 (N = 4) | 1600 |
Func 17 | Hybrid Function 6 (N = 5) | 1700 |
Func 18 | Hybrid Function 6 (N = 5) | 1800 |
Func 19 | Hybrid Function 6 (N = 5) | 1900 |
Func 20 | Hybrid Function 6 (N = 6) | 2000 |
Func 21 | Composition Function 1 (N = 3) ’ | 2100 |
Func 22 | Composition Function 2 (N = 3) ’ | 2200 |
Func 23 | Composition Function 3 (N = 4) ’ | 2300 |
Func 24 | Composition Function 4 (N = 4) ’ | 2400 |
Func 25 | Composition Function 5 (N = 5) ’ | 2500 |
Func 26 | Composition Function 6 (N = 5) ’ | 2600 |
Func 27 | Composition Function 7 (N = 6) ’ | 2700 |
Func 28 | Composition Function 8 (N = 6) ’ | 2800 |
Func 29 | Composition Function 9 (N = 3) ’ | 2900 |
Func 30 | Composition Function 10 (N = 3) ’ | 3000 |
Appendix B
Func | Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO |
---|---|---|---|---|---|---|---|---|---|---|---|
Func 1 | 10 | Avg | 4.81 × 102 | 2.69 × 106 | 3.51 × 106 | 2.37 × 105 | 3.17 × 103 | 9.77 × 109 | 5.64 × 108 | 3.64 × 107 | 0 |
SD | 5.15 × 102 | 7.21 × 106 | 1.57 × 107 | 4.36 × 105 | 2.96 × 103 | 2.39 × 109 | 2.52 × 108 | 1.23 × 107 | 0 | ||
Min | 3.00 × 101 | 5.00 × 103 | 3.15 × 101 | 1.36 × 104 | 4.58 × 100 | 3.62 × 109 | 2.39 × 108 | 1.64 × 107 | 0 | ||
30 | Avg | 1.59 × 104 | 8.15 × 108 | 6.85 × 109 | 3.01 × 106 | 4.86 × 103 | 5.62 × 1010 | 1.52 × 1010 | 4.79 × 107 | 1.33 × 102 | |
SD | 1.44 × 104 | 6.24 × 108 | 5.86 × 109 | 2.24 × 106 | 5.76 × 103 | 5.04 × 109 | 3.24 × 109 | 2.37 × 107 | 1.43 × 102 | ||
Min | 2.86 × 103 | 1.60 × 108 | 5.49 × 103 | 7.79 × 105 | 5.58 × 101 | 4.75 × 1010 | 1.07 × 1010 | 1.72 × 107 | 3.53 × 10−2 | ||
50 | Avg | 2.31 × 105 | 4.74 × 109 | 3.64 × 1010 | 1.02 × 107 | 6.71 × 103 | 1.07 × 1011 | 3.95 × 1010 | 5.69 × 108 | 2.06 × 103 | |
SD | 1.70 × 105 | 2.11 × 109 | 1.10 × 1010 | 1.06 × 107 | 8.58 × 103 | 5.19 × 109 | 8.59 × 109 | 3.09 × 108 | 1.52 × 103 | ||
Min | 6.31 × 104 | 1.19 × 109 | 1.87 × 1010 | 2.86 × 106 | 9.38 × 100 | 9.43 × 1010 | 2.64 × 1010 | 2.29 × 108 | 8.40 × 100 | ||
Func 3 | 10 | Avg | 9.01 × 102 | 5.33 × 102 | 3.41 × 103 | 1.68 × 102 | 1.17 × 10−9 | 1.35 × 104 | 7.31 × 102 | 1.81 × 103 | 0 |
SD | 1.13 × 103 | 8.25 × 102 | 5.53 × 103 | 1.52 × 102 | 4.43 × 1010 | 2.86 × 103 | 3.07 × 102 | 1.02 × 103 | 0 | ||
Min | 2.85 × 101 | 2.52 × 101 | 0 | 3.79 × 100 | 3.37 × 1010 | 8.42 × 103 | 3.40 × 102 | 3.19 × 102 | 0 | ||
30 | Avg | 4.53 × 104 | 2.62 × 104 | 8.80 × 104 | 1.54 × 105 | 3.61 × 10−8 | 8.30 × 104 | 3.84 × 104 | 4.15 × 104 | 0 | |
SD | 1.41 × 104 | 7.06 × 103 | 4.64 × 104 | 7.27 × 104 | 1.10 × 10−8 | 8.16 × 103 | 7.17 × 103 | 1.01 × 104 | 0 | ||
Min | 2.66 × 104 | 9.68 × 103 | 1.18 × 104 | 4.94 × 104 | 2.49 × 10−8 | 6.44 × 104 | 2.11 × 104 | 2.15 × 104 | 0 | ||
50 | Avg | 1.15 × 105 | 6.76 × 104 | 1.89 × 105 | 6.98 × 104 | 1.96 × 10−7 | 2.35 × 105 | 1.39 × 105 | 1.01 × 105 | 0 | |
SD | 2.23 × 104 | 1.55 × 104 | 9.49 × 104 | 2.77 × 104 | 5.46 × 10−8 | 5.73 × 104 | 8.39 × 103 | 1.10 × 104 | 0 | ||
Min | 8.23 × 104 | 4.21 × 104 | 1.44 × 104 | 3.65 × 104 | 1.28 × 10−7 | 1.78 × 105 | 1.26 × 105 | 8.24 × 104 | 0 | ||
Rank | 10 | (w/l/t) | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 2/0/0 |
30 | (w/l/t) | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 2/0/0 | |
50 | (w/l/t) | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 2/0/0 |
Func | Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO |
---|---|---|---|---|---|---|---|---|---|---|---|
Func 4 | 10 | Avg | 5.91 × 100 | 7.85 × 100 | 5.48 × 100 | 4.01 × 101 | 3.97 × 100 | 1.24 × 103 | 4.65 × 101 | 1.80 × 101 | 0 |
SD | 2.42 × 100 | 2.76 × 100 | 2.67 × 100 | 4.52 × 101 | 1.55 × 100 | 3.21 × 102 | 1.28 × 101 | 1.42 × 101 | 0 | ||
Min | 1.18 × 10−1 | 6.17 × 100 | 1.15 × 100 | 3.05 × 100 | 8.81 × 10−3 | 6.26 × 102 | 2.33 × 101 | 7.86 × 100 | 0 | ||
30 | Avg | 9.87 × 101 | 1.59 × 102 | 5.10 × 102 | 1.58 × 102 | 8.71 × 101 | 2.12 × 104 | 1.63 × 103 | 1.28 × 102 | 7.42 × 10−1 | |
SD | 2.03 × 101 | 4.16 × 101 | 4.00 × 102 | 3.94 × 101 | 1.71 × 101 | 3.62 × 103 | 4.48 × 102 | 2.01 × 101 | 1.41 × 100 | ||
Min | 6.83 × 101 | 9.85 × 101 | 9.92 × 101 | 1.13 × 102 | 3.70 × 101 | 1.15 × 104 | 1.06 × 103 | 1.02 × 102 | 1.70 × 10−3 | ||
50 | Avg | 1.54 × 102 | 4.42 × 102 | 2.78 × 103 | 2.82 × 102 | 1.41 × 102 | 4.16 × 104 | 7.71 × 103 | 3.48 × 102 | 6.16 × 101 | |
SD | 5.06 × 101 | 1.86 × 102 | 2.48 × 103 | 6.46 × 101 | 5.08 × 101 | 5.30 × 103 | 1.78 × 103 | 7.15 × 101 | 3.82 × 101 | ||
Min | 7.32 × 101 | 2.08 × 102 | 4.46 × 102 | 2.10 × 102 | 3.25 × 101 | 3.24 × 104 | 4.51 × 103 | 2.00 × 102 | 5.74 × 10−2 | ||
Func 5 | 10 | Avg | 2.69 × 101 | 1.14 × 101 | 2.20 × 101 | 4.44 × 101 | 1.85 × 101 | 1.18 × 102 | 4.97 × 101 | 3.35 × 101 | 8.95 × 100 |
SD | 7.13 × 100 | 4.41 × 100 | 5.47 × 100 | 2.26 × 101 | 9.29 × 100 | 1.35 × 101 | 5.38 × 100 | 6.49 × 100 | 2.96 × 100 | ||
Min | 1.59 × 101 | 4.08 × 100 | 8.95 × 100 | 1.50 × 101 | 7.96 × 100 | 9.06 × 101 | 3.64 × 101 | 1.93 × 101 | 3.98 × 100 | ||
30 | Avg | 1.37 × 102 | 9.53 × 101 | 1.88 × 102 | 2.64 × 102 | 1.27 × 102 | 5.86 × 102 | 3.06 × 102 | 2.11 × 102 | 6.13 × 101 | |
SD | 3.14 × 101 | 2.03 × 101 | 3.29 × 101 | 5.56 × 101 | 2.96 × 101 | 4.66 × 101 | 1.71 × 101 | 1.45 × 101 | 1.51 × 101 | ||
Min | 9.06 × 101 | 5.58 × 101 | 1.31 × 102 | 1.79 × 102 | 7.76 × 101 | 5.05 × 102 | 2.56 × 102 | 1.90 × 102 | 3.08 × 101 | ||
50 | Avg | 2.56 × 102 | 1.81 × 102 | 4.43 × 102 | 4.13 × 102 | 3.04 × 102 | 9.51 × 102 | 5.45 × 102 | 3.68 × 102 | 1.47 × 102 | |
SD | 3.11 × 101 | 3.45 × 101 | 8.55 × 101 | 8.06 × 101 | 6.46 × 101 | 5.18 × 101 | 2.80 × 101 | 7.74 × 101 | 2.08 × 101 | ||
Min | 2.09 × 102 | 1.21 × 102 | 3.29 × 102 | 2.73 × 102 | 2.06 × 102 | 8.18 × 102 | 4.80 × 102 | 2.11 × 102 | 9.25 × 101 | ||
Func 6 | 10 | Avg | 5.40 × 100 | 1.19 × 100 | 4.21 × 10−1 | 3.15 × 101 | 6.38 × 100 | 6.51 × 101 | 2.43 × 101 | 9.41 × 10−1 | 0 |
SD | 6.81 × 100 | 1.52 × 100 | 7.00 × 10−1 | 1.28 × 101 | 7.55 × 100 | 1.38 × 101 | 4.30 × 100 | 4.36 × 10−1 | 0 | ||
Min | 3.86 × 10−5 | 2.51 × 10−2 | 0 | 1.28 × 101 | 2.72 × 10−2 | 4.37 × 101 | 1.60 × 101 | 2.70 × 10−1 | 0 | ||
30 | Avg | 3.55 × 101 | 5.24 × 100 | 2.82 × 101 | 6.93 × 101 | 3.12 × 101 | 1.17 × 102 | 6.48 × 101 | 8.75 × 100 | 1.34 × 10−1 | |
SD | 9.06 × 100 | 2.81 × 100 | 1.44 × 101 | 9.73 × 100 | 1.32 × 101 | 1.24 × 101 | 6.35 × 100 | 2.63 × 100 | 1.07 × 10−1 | ||
Min | 1.95 × 101 | 8.70 × 10−1 | 7.63 × 100 | 5.02 × 101 | 9.19 × 100 | 8.83 × 101 | 4.73 × 101 | 5.06 × 100 | 1.49 × 10−2 | ||
50 | Avg | 5.13 × 101 | 1.10 × 101 | 4.76 × 101 | 7.54 × 101 | 4.34 × 101 | 1.32 × 102 | 8.24 × 101 | 2.06 × 101 | 4.70 × 100 | |
SD | 6.46 × 100 | 3.96 × 100 | 6.44 × 100 | 9.30 × 100 | 9.48 × 100 | 7.76 × 100 | 4.74 × 100 | 4.14 × 100 | 2.41 × 100 | ||
Min | 3.74 × 101 | 5.12 × 100 | 3.66 × 101 | 6.58 × 101 | 2.40 × 101 | 1.18 × 102 | 7.14 × 101 | 1.46 × 101 | 6.24 × 10−1 | ||
Func 7 | 10 | Avg | 2.10 × 101 | 2.52 × 101 | 3.58 × 101 | 7.61 × 101 | 3.46 × 101 | 3.21 × 102 | 6.63 × 101 | 3.77 × 101 | 1.80 × 101 |
SD | 5.34 × 100 | 8.53 × 100 | 1.17 × 101 | 3.26 × 101 | 1.25 × 101 | 6.53 × 101 | 7.30 × 100 | 5.29 × 100 | 4.04 × 100 | ||
Min | 1.26 × 101 | 1.46 × 101 | 1.48 × 101 | 2.71 × 101 | 2.00 × 101 | 1.82 × 102 | 4.52 × 101 | 2.99 × 101 | 7.78 × 100 | ||
30 | Avg | 1.33 × 102 | 1.53 × 102 | 3.27 × 102 | 5.04 × 102 | 1.64 × 102 | 1.15 × 103 | 4.01 × 102 | 2.44 × 102 | 1.16 × 102 | |
SD | 2.64 × 101 | 4.96 × 101 | 1.22 × 102 | 1.01 × 102 | 3.09 × 101 | 1.17 × 102 | 3.32 × 101 | 1.37 × 101 | 1.30 × 101 | ||
Min | 8.34 × 101 | 9.08 × 101 | 1.56 × 102 | 3.35 × 102 | 1.11 × 102 | 9.01 × 102 | 3.24 × 102 | 2.15 × 102 | 9.23 × 101 | ||
50 | Avg | 3.62 × 102 | 3.38 × 102 | 9.72 × 102 | 1.01 × 103 | 3.36 × 102 | 1.86 × 103 | 8.29 × 102 | 5.15 × 102 | 2.82 × 102 | |
SD | 5.66 × 101 | 8.31 × 101 | 3.07 × 102 | 1.01 × 102 | 9.21 × 101 | 1.28 × 102 | 6.43 × 101 | 3.84 × 101 | 3.84 × 101 | ||
Min | 2.74 × 102 | 2.07 × 102 | 4.02 × 102 | 7.66 × 102 | 2.18 × 102 | 1.66 × 103 | 7.17 × 102 | 4.31 × 102 | 1.93 × 102 | ||
Func 8 | 10 | Avg | 1.63 × 101 | 1.04 × 101 | 2.48 × 101 | 4.05 × 101 | 1.73 × 101 | 1.04 × 102 | 3.21 × 101 | 2.34 × 101 | 1.02 × 101 |
SD | 6.96 × 100 | 3.67 × 100 | 1.12 × 101 | 1.58 × 101 | 9.37 × 100 | 1.32 × 101 | 3.30 × 100 | 5.24 × 100 | 3.41 × 100 | ||
Min | 7.96 × 100 | 5.97 × 100 | 4.97 × 100 | 2.09 × 101 | 4.97 × 100 | 7.63 × 101 | 2.67 × 101 | 1.36 × 101 | 1.99 × 100 | ||
30 | Avg | 1.09 × 102 | 7.73 × 101 | 1.67 × 102 | 2.16 × 102 | 1.19 × 102 | 4.82 × 102 | 2.53 × 102 | 1.89 × 102 | 7.27 × 101 | |
SD | 1.69 × 101 | 2.83 × 101 | 3.83 × 101 | 5.54 × 101 | 2.72 × 101 | 3.62 × 101 | 1.36 × 101 | 1.55 × 101 | 1.07 × 101 | ||
Min | 7.36 × 101 | 4.22 × 101 | 9.11 × 101 | 1.28 × 102 | 8.36 × 101 | 4.22 × 102 | 2.27 × 102 | 1.57 × 102 | 5.07 × 101 | ||
50 | Avg | 2.84 × 102 | 2.02 × 102 | 3.97 × 102 | 4.11 × 102 | 2.89 × 102 | 9.91 × 102 | 5.71 × 102 | 3.59 × 102 | 1.28 × 102 | |
SD | 4.77 × 101 | 3.18 × 101 | 7.78 × 101 | 7.29 × 101 | 8.11 × 101 | 5.42 × 101 | 2.75 × 101 | 9.00 × 101 | 2.10 × 101 | ||
Min | 2.09 × 102 | 1.36 × 102 | 2.69 × 102 | 2.93 × 102 | 1.93 × 102 | 8.76 × 102 | 5.03 × 102 | 2.18 × 102 | 8.16 × 101 | ||
Func 9 | 10 | Avg | 8.52 × 100 | 6.17 × 100 | 3.79 × 101 | 4.52 × 102 | 4.79 × 100 | 2.54 × 103 | 9.80 × 101 | 3.81 × 100 | 0 |
SD | 2.28 × 101 | 1.58 × 101 | 1.53 × 102 | 3.37 × 102 | 1.80 × 101 | 6.69 × 102 | 2.43 × 101 | 2.71 × 100 | 0 | ||
Min | 3.35 × 10−5 | 4.93 × 10−2 | 0 | 4.81 × 101 | 1.36 × 1010 | 1.13 × 103 | 4.46 × 101 | 1.02 × 100 | 0 | ||
30 | Avg | 2.31 × 103 | 5.29 × 102 | 4.68 × 103 | 6.42 × 103 | 2.23 × 103 | 2.69 × 104 | 4.98 × 103 | 9.96 × 102 | 1.50 × 102 | |
SD | 6.62 × 102 | 3.60 × 102 | 1.55 × 103 | 2.04 × 103 | 1.24 × 103 | 4.98 × 103 | 9.90 × 102 | 3.18 × 102 | 9.61 × 101 | ||
Min | 9.31 × 102 | 8.54 × 101 | 2.82 × 103 | 2.72 × 103 | 4.25 × 101 | 1.65 × 104 | 3.17 × 103 | 5.03 × 102 | 9.80 × 100 | ||
50 | Avg | 9.41 × 103 | 4.49 × 103 | 1.47 × 104 | 2.01 × 104 | 1.01 × 104 | 7.99 × 104 | 2.61 × 104 | 1.02 × 104 | 1.26 × 103 | |
SD | 1.36 × 103 | 3.26 × 103 | 3.08 × 103 | 6.78 × 103 | 2.22 × 103 | 5.95 × 103 | 2.02 × 103 | 1.93 × 103 | 4.98 × 102 | ||
Min | 7.64 × 103 | 1.51 × 103 | 7.99 × 103 | 1.24 × 104 | 6.49 × 103 | 6.85 × 104 | 2.05 × 104 | 7.01 × 103 | 4.15 × 102 | ||
Func 10 | 10 | Avg | 9.94 × 102 | 5.21 × 102 | 7.37 × 102 | 9.41 × 102 | 9.15 × 102 | 2.24 × 103 | 1.36 × 103 | 1.05 × 103 | 4.06 × 102 |
SD | 2.88 × 102 | 3.13 × 102 | 2.73 × 102 | 2.47 × 102 | 2.60 × 102 | 2.16 × 102 | 1.82 × 102 | 2.51 × 102 | 1.28 × 102 | ||
Min | 4.56 × 102 | 4.14 × 101 | 3.14 × 102 | 4.81 × 102 | 2.99 × 102 | 1.73 × 103 | 8.50 × 102 | 5.36 × 102 | 1.34 × 102 | ||
30 | Avg | 4.06 × 103 | 3.25 × 103 | 4.23 × 103 | 5.18 × 103 | 3.60 × 103 | 8.93 × 103 | 5.72 × 103 | 6.60 × 103 | 3.08 × 103 | |
SD | 4.36 × 102 | 9.30 × 102 | 7.04 × 102 | 7.27 × 102 | 5.51 × 102 | 3.18 × 102 | 3.44 × 102 | 4.75 × 102 | 5.31 × 102 | ||
Min | 3.37 × 103 | 1.77 × 103 | 2.98 × 103 | 3.83 × 103 | 2.75 × 103 | 8.24 × 103 | 5.10 × 103 | 5.61 × 103 | 1.97 × 103 | ||
50 | Avg | 6.65 × 103 | 5.45 × 103 | 7.32 × 103 | 8.87 × 103 | 6.47 × 103 | 1.56 × 104 | 1.17 × 104 | 1.32 × 104 | 5.36 × 103 | |
SD | 8.55 × 102 | 7.81 × 102 | 1.09 × 103 | 1.13 × 103 | 1.03 × 103 | 4.33 × 102 | 6.84 × 102 | 4.13 × 102 | 4.48 × 102 | ||
Min | 5.33 × 103 | 3.91 × 103 | 4.94 × 103 | 7.22 × 103 | 4.81 × 103 | 1.49 × 104 | 1.08 × 104 | 1.26 × 104 | 4.92 × 103 | ||
Rank | 10 | (w/l/t) | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 7/0/0 |
30 | (w/l/t) | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 7/0/0 | |
50 | (w/l/t) | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 7/0/0 |
Func | Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO |
---|---|---|---|---|---|---|---|---|---|---|---|
Func 11 | 10 | Avg | 4.09 × 101 | 1.97 × 101 | 4.13 × 101 | 8.50 × 101 | 9.43 × 101 | 1.70 × 103 | 1.30 × 102 | 2.11 × 102 | 4.30 × 100 |
SD | 2.30 × 101 | 9.59 × 100 | 4.78 × 101 | 5.71 × 101 | 7.99 × 101 | 1.34 × 103 | 4.43 × 101 | 1.05 × 102 | 1.79 × 100 | ||
Min | 2.67 × 100 | 6.26 × 100 | 3.48 × 100 | 3.02 × 101 | 1.36 × 101 | 2.55 × 102 | 6.00 × 101 | 7.94 × 101 | 9.95 × 10−1 | ||
30 | Avg | 4.02 × 102 | 2.30 × 102 | 1.92 × 103 | 3.52 × 102 | 1.66 × 102 | 7.00 × 103 | 1.44 × 103 | 8.34 × 102 | 9.20 × 101 | |
SD | 1.84 × 102 | 4.87 × 101 | 1.97 × 103 | 9.76 × 101 | 4.74 × 101 | 1.94 × 103 | 5.84 × 102 | 3.08 × 102 | 2.32 × 101 | ||
Min | 1.56 × 102 | 1.40 × 102 | 2.22 × 102 | 1.96 × 102 | 9.11 × 101 | 3.95 × 103 | 5.80 × 102 | 4.50 × 102 | 5.77 × 101 | ||
50 | Avg | 3.56 × 103 | 1.34 × 103 | 7.81 × 103 | 4.69 × 102 | 2.77 × 102 | 2.45 × 104 | 4.89 × 103 | 9.76 × 103 | 1.59 × 102 | |
SD | 1.69 × 103 | 1.09 × 103 | 9.73 × 103 | 1.04 × 102 | 7.45 × 101 | 2.95 × 103 | 1.25 × 103 | 1.63 × 103 | 3.40 × 101 | ||
Min | 1.29 × 103 | 3.63 × 102 | 5.38 × 102 | 3.31 × 102 | 1.46 × 102 | 1.70 × 104 | 2.51 × 103 | 6.82 × 103 | 1.11 × 102 | ||
Func 12 | 10 | Avg | 1.10 × 106 | 4.87 × 105 | 2.82 × 105 | 4.21 × 106 | 1.03 × 106 | 4.12 × 108 | 6.48 × 106 | 2.07 × 106 | 1.91 × 102 |
SD | 9.36 × 105 | 7.19 × 105 | 1.17 × 106 | 5.96 × 106 | 1.66 × 106 | 1.88 × 108 | 2.96 × 106 | 1.32 × 106 | 8.94 × 101 | ||
Min | 7.29 × 104 | 2.04 × 104 | 1.13 × 103 | 4.17 × 104 | 1.95 × 104 | 3.51 × 107 | 9.12 × 105 | 3.40 × 105 | 1.14 × 101 | ||
30 | Avg | 2.83 × 106 | 3.40 × 107 | 1.38 × 108 | 3.69 × 107 | 2.26 × 106 | 1.55 × 1010 | 1.27 × 109 | 3.07 × 106 | 2.99 × 103 | |
SD | 1.77 × 106 | 3.93 × 107 | 2.37 × 108 | 2.80 × 107 | 2.55 × 106 | 2.67 × 109 | 5.32 × 108 | 1.32 × 106 | 1.23 × 103 | ||
Min | 3.07 × 105 | 7.71 × 105 | 4.42 × 105 | 1.17 × 107 | 2.23 × 105 | 1.04 × 1010 | 5.61 × 108 | 1.57 × 106 | 9.78 × 102 | ||
50 | Avg | 1.06 × 107 | 4.62 × 108 | 2.75 × 109 | 1.85 × 108 | 1.87 × 107 | 8.30 × 1010 | 1.57 × 1010 | 2.38 × 107 | 5.00 × 104 | |
SD | 9.25 × 106 | 6.18 × 108 | 3.33 × 109 | 9.28 × 107 | 1.17 × 107 | 9.33 × 109 | 3.89 × 109 | 1.05 × 107 | 1.96 × 104 | ||
Min | 1.93 × 106 | 2.77 × 107 | 7.25 × 107 | 4.84 × 107 | 4.33 × 106 | 6.93 × 1010 | 8.50 × 109 | 7.26 × 106 | 1.44 × 104 | ||
Func 13 | 10 | Avg | 9.77 × 103 | 7.93 × 103 | 1.09 × 104 | 1.52 × 104 | 1.21 × 104 | 4.79 × 106 | 1.67 × 104 | 1.06 × 104 | 6.65 × 100 |
SD | 6.47 × 103 | 6.70 × 103 | 1.27 × 104 | 1.04 × 104 | 1.10 × 104 | 5.68 × 106 | 8.32 × 103 | 2.46 × 103 | 2.91 × 100 | ||
Min | 2.47 × 103 | 7.16 × 102 | 1.38 × 102 | 3.50 × 103 | 1.01 × 103 | 1.64 × 105 | 4.36 × 103 | 6.38 × 103 | 9.95 × 10−1 | ||
30 | Avg | 3.74 × 104 | 1.01 × 107 | 5.38 × 105 | 1.21 × 105 | 1.19 × 105 | 1.38 × 1010 | 4.36 × 108 | 3.65 × 104 | 9.99 × 102 | |
SD | 1.80 × 104 | 3.02 × 107 | 1.36 × 106 | 6.24 × 104 | 7.87 × 104 | 3.45 × 109 | 1.37 × 108 | 2.77 × 104 | 4.50 × 102 | ||
Min | 1.49 × 104 | 2.54 × 104 | 1.58 × 104 | 3.64 × 104 | 2.93 × 104 | 4.94 × 109 | 2.27 × 108 | 2.51 × 103 | 1.07 × 102 | ||
50 | Avg | 4.80 × 104 | 7.92 × 107 | 5.58 × 108 | 1.54 × 105 | 1.15 × 105 | 5.04 × 1010 | 2.36 × 109 | 1.40 × 104 | 3.54 × 103 | |
SD | 2.29 × 104 | 1.02 × 108 | 1.32 × 109 | 7.49 × 104 | 6.10 × 104 | 1.05 × 1010 | 9.74 × 108 | 7.73 × 103 | 2.58 × 103 | ||
Min | 2.22 × 104 | 5.08 × 104 | 8.46 × 104 | 4.18 × 104 | 3.36 × 104 | 3.16 × 1010 | 9.55 × 108 | 5.51 × 103 | 1.48 × 102 | ||
Func 14 | 10 | Avg | 8.02 × 102 | 9.30 × 102 | 5.82 × 102 | 3.38 × 102 | 8.59 × 101 | 4.17 × 103 | 5.39 × 102 | 2.00 × 102 | 1.88 × 101 |
SD | 1.42 × 103 | 1.53 × 103 | 6.04 × 102 | 6.49 × 102 | 2.75 × 101 | 4.71 × 103 | 5.42 × 102 | 2.27 × 102 | 9.20 × 100 | ||
Min | 6.46 × 101 | 5.75 × 101 | 5.62 × 101 | 4.93 × 101 | 4.16 × 101 | 1.69 × 102 | 1.15 × 102 | 4.05 × 101 | 1.99 × 100 | ||
30 | Avg | 3.45 × 105 | 1.09 × 105 | 8.86 × 104 | 9.55 × 105 | 5.67 × 103 | 4.99 × 106 | 4.46 × 105 | 5.25 × 105 | 1.22 × 102 | |
SD | 4.58 × 105 | 2.06 × 105 | 1.13 × 105 | 1.52 × 106 | 4.59 × 103 | 2.61 × 106 | 2.21 × 105 | 3.23 × 105 | 2.96 × 101 | ||
Min | 1.47 × 104 | 1.37 × 103 | 9.32 × 103 | 3.39 × 104 | 5.03 × 102 | 1.55 × 106 | 4.05 × 104 | 3.91 × 104 | 6.42 × 101 | ||
50 | Avg | 3.55 × 105 | 4.55 × 105 | 7.81 × 105 | 5.52 × 105 | 5.29 × 104 | 1.53 × 108 | 3.40 × 106 | 4.72 × 106 | 2.77 × 102 | |
SD | 3.41 × 105 | 7.11 × 105 | 1.28 × 106 | 4.01 × 105 | 3.87 × 104 | 8.75 × 107 | 1.28 × 106 | 8.69 × 105 | 4.31 × 101 | ||
Min | 2.14 × 104 | 2.08 × 104 | 2.06 × 103 | 1.44 × 105 | 1.24 × 104 | 2.83 × 107 | 1.69 × 106 | 3.08 × 106 | 1.89 × 102 | ||
Func 15 | 10 | Avg | 2.97 × 103 | 1.34 × 103 | 1.74 × 103 | 2.36 × 103 | 5.23 × 102 | 1.89 × 104 | 2.33 × 103 | 7.88 × 102 | 2.92 × 100 |
SD | 3.48 × 103 | 1.52 × 103 | 1.79 × 103 | 2.78 × 103 | 5.39 × 102 | 1.20 × 104 | 1.23 × 103 | 7.55 × 102 | 1.69 × 100 | ||
Min | 2.54 × 102 | 4.24 × 101 | 1.12 × 102 | 1.29 × 102 | 4.22 × 101 | 6.99 × 103 | 2.37 × 102 | 2.18 × 102 | 1.04 × 100 | ||
30 | Avg | 1.64 × 104 | 1.34 × 105 | 3.98 × 104 | 8.84 × 104 | 4.55 × 104 | 1.10 × 109 | 3.28 × 106 | 5.90 × 102 | 1.33 × 102 | |
SD | 6.40 × 103 | 4.53 × 105 | 4.35 × 104 | 4.71 × 104 | 2.85 × 104 | 3.63 × 108 | 1.64 × 106 | 3.60 × 102 | 5.11 × 101 | ||
Min | 7.88 × 103 | 6.09 × 103 | 9.05 × 102 | 5.19 × 103 | 9.34 × 103 | 6.06 × 108 | 6.91 × 105 | 2.01 × 102 | 1.61 × 101 | ||
50 | Avg | 2.12 × 104 | 4.81 × 106 | 3.17 × 107 | 7.74 × 104 | 4.50 × 104 | 9.58 × 109 | 2.31 × 108 | 1.72 × 104 | 5.82 × 102 | |
SD | 7.14 × 103 | 8.72 × 106 | 9.46 × 107 | 6.32 × 104 | 3.02 × 104 | 2.47 × 109 | 5.50 × 107 | 4.31 × 103 | 2.68 × 102 | ||
Min | 1.10 × 104 | 2.78 × 104 | 3.70 × 104 | 1.59 × 104 | 1.27 × 104 | 5.52 × 109 | 1.18 × 108 | 9.09 × 103 | 2.30 × 102 | ||
Func 16 | 10 | Avg | 3.18 × 102 | 8.05 × 101 | 1.03 × 102 | 1.77 × 102 | 9.00 × 101 | 7.36 × 102 | 2.13 × 102 | 1.19 × 102 | 6.62 × 10−1 |
SD | 1.22 × 102 | 7.56 × 101 | 8.98 × 101 | 1.29 × 102 | 9.35 × 101 | 1.78 × 102 | 6.25 × 101 | 7.38 × 101 | 4.12 × 10−1 | ||
Min | 2.24 × 101 | 4.11 × 100 | 4.53 × 100 | 1.69 × 101 | 2.80 × 100 | 3.22 × 102 | 4.79 × 101 | 3.69 × 101 | 2.57 × 10−2 | ||
30 | Avg | 1.16 × 103 | 6.53 × 102 | 1.46 × 103 | 1.89 × 103 | 9.85 × 102 | 4.94 × 103 | 2.10 × 103 | 1.60 × 103 | 7.64 × 102 | |
SD | 2.81 × 102 | 2.82 × 102 | 3.89 × 102 | 4.90 × 102 | 2.35 × 102 | 7.24 × 102 | 1.35 × 102 | 2.00 × 102 | 1.40 × 102 | ||
Min | 8.12 × 102 | 1.83 × 102 | 3.65 × 102 | 1.01 × 103 | 4.62 × 102 | 3.71 × 103 | 1.81 × 103 | 1.20 × 103 | 5.43 × 102 | ||
50 | Avg | 1.74 × 103 | 1.30 × 103 | 2.55 × 103 | 3.06 × 103 | 1.58 × 103 | 9.84 × 103 | 2.97 × 103 | 1.69 × 103 | 1.16 × 103 | |
SD | 3.13 × 102 | 3.05 × 102 | 5.22 × 102 | 7.24 × 102 | 4.20 × 102 | 1.37 × 103 | 4.24 × 102 | 7.00 × 102 | 2.23 × 102 | ||
Min | 1.12 × 103 | 8.21 × 102 | 1.47 × 103 | 1.71 × 103 | 8.63 × 102 | 7.14 × 103 | 1.90 × 103 | 5.47 × 102 | 1.10 × 103 | ||
Func 17 | 10 | Avg | 5.71 × 101 | 5.38 × 101 | 4.53 × 101 | 9.74 × 101 | 5.52 × 101 | 3.34 × 102 | 7.30 × 101 | 6.59 × 101 | 9.82 × 100 |
SD | 1.60 × 101 | 3.07 × 101 | 1.67 × 101 | 6.20 × 101 | 1.63 × 101 | 1.09 × 102 | 7.04 × 100 | 1.12 × 101 | 7.42 × 100 | ||
Min | 1.74 × 101 | 2.44 × 101 | 2.20 × 101 | 4.11 × 101 | 2.37 × 101 | 1.29 × 102 | 5.76 × 101 | 3.99 × 101 | 1.31 × 100 | ||
30 | Avg | 4.62 × 102 | 2.53 × 102 | 7.26 × 102 | 7.29 × 102 | 3.50 × 102 | 3.86 × 103 | 8.08 × 102 | 4.27 × 102 | 1.96 × 102 | |
SD | 2.13 × 102 | 1.33 × 102 | 2.78 × 102 | 2.17 × 102 | 1.67 × 102 | 1.73 × 103 | 1.29 × 102 | 1.05 × 102 | 9.83 × 101 | ||
Min | 9.94 × 101 | 6.81 × 101 | 1.16 × 102 | 3.83 × 102 | 1.23 × 102 | 1.94 × 103 | 5.23 × 102 | 2.74 × 102 | 3.82 × 101 | ||
50 | Avg | 1.64 × 103 | 9.90 × 102 | 2.08 × 103 | 2.35 × 103 | 1.40 × 103 | 1.71 × 104 | 2.11 × 103 | 1.67 × 103 | 1.02 × 103 | |
SD | 2.82 × 102 | 2.55 × 102 | 3.89 × 102 | 3.43 × 102 | 2.33 × 102 | 8.10 × 103 | 2.29 × 102 | 2.01 × 102 | 2.39 × 102 | ||
Min | 9.95 × 102 | 4.41 × 102 | 1.50 × 103 | 1.63 × 103 | 1.05 × 103 | 7.15 × 103 | 1.54 × 103 | 1.35 × 103 | 3.60 × 102 | ||
Func 18 | 10 | Avg | 9.37 × 103 | 2.38 × 104 | 1.74 × 104 | 9.12 × 103 | 2.14 × 104 | 6.45 × 107 | 2.07 × 105 | 4.02 × 103 | 1.79 × 101 |
SD | 7.83 × 103 | 1.65 × 104 | 1.75 × 104 | 8.10 × 103 | 1.47 × 104 | 7.19 × 107 | 1.61 × 105 | 2.81 × 103 | 7.55 × 100 | ||
Min | 4.41 × 102 | 1.05 × 103 | 1.55 × 103 | 9.68 × 102 | 2.17 × 103 | 8.98 × 105 | 7.91 × 103 | 4.14 × 102 | 1.40 × 100 | ||
30 | Avg | 3.94 × 105 | 6.73 × 105 | 1.55 × 106 | 1.93 × 106 | 1.57 × 105 | 1.05 × 108 | 2.23 × 106 | 1.11 × 106 | 3.06 × 102 | |
SD | 4.45 × 105 | 8.50 × 105 | 2.30 × 106 | 2.12 × 106 | 1.55 × 105 | 7.39 × 107 | 1.40 × 106 | 3.49 × 105 | 1.24 × 102 | ||
Min | 2.94 × 104 | 3.79 × 104 | 5.76 × 104 | 1.10 × 105 | 4.88 × 104 | 1.54 × 107 | 8.23 × 105 | 5.48 × 105 | 9.16 × 101 | ||
50 | Avg | 2.62 × 106 | 3.06 × 106 | 4.38 × 106 | 4.93 × 106 | 4.16 × 105 | 2.50 × 108 | 9.12 × 106 | 2.89 × 106 | 5.23 × 103 | |
SD | 1.58 × 106 | 4.06 × 106 | 5.78 × 106 | 5.17 × 106 | 2.14 × 105 | 9.00 × 107 | 2.60 × 106 | 6.07 × 105 | 2.97 × 103 | ||
Min | 6.76 × 105 | 1.64 × 105 | 1.78 × 105 | 6.09 × 105 | 1.66 × 105 | 4.32 × 107 | 4.74 × 106 | 1.62 × 106 | 1.16 × 103 | ||
Func 19 | 10 | Avg | 1.25 × 103 | 4.16 × 103 | 7.45 × 103 | 1.27 × 104 | 8.09 × 102 | 1.07 × 105 | 4.18 × 103 | 1.34 × 103 | 3.30 × 100 |
SD | 2.09 × 103 | 5.58 × 103 | 1.13 × 104 | 1.16 × 104 | 1.68 × 103 | 1.16 × 105 | 3.54 × 103 | 7.88 × 102 | 1.17 × 100 | ||
Min | 5.03 × 101 | 2.31 × 101 | 1.07 × 102 | 6.90 × 101 | 1.42 × 101 | 8.63 × 103 | 2.16 × 102 | 3.51 × 102 | 8.15 × 10−1 | ||
30 | Avg | 1.20 × 105 | 3.54 × 105 | 1.29 × 105 | 2.65 × 106 | 3.98 × 105 | 1.05 × 109 | 9.34 × 106 | 3.38 × 103 | 8.86 × 101 | |
SD | 1.28 × 105 | 4.69 × 105 | 1.79 × 105 | 2.77 × 106 | 2.51 × 105 | 4.92 × 108 | 3.32 × 106 | 1.25 × 103 | 2.79 × 101 | ||
Min | 5.38 × 103 | 4.48 × 103 | 1.56 × 103 | 2.58 × 105 | 1.45 × 104 | 4.34 × 107 | 3.00 × 106 | 1.33 × 103 | 5.03 × 101 | ||
50 | Avg | 1.66 × 105 | 3.21 × 106 | 3.62 × 106 | 2.31 × 106 | 6.52 × 105 | 4.74 × 109 | 1.67 × 108 | 1.90 × 104 | 5.01 × 102 | |
SD | 1.18 × 105 | 7.31 × 106 | 3.67 × 106 | 2.07 × 106 | 3.52 × 105 | 1.38 × 109 | 6.29 × 107 | 3.01 × 103 | 2.60 × 102 | ||
Min | 1.99 × 104 | 3.79 × 104 | 1.30 × 104 | 2.67 × 104 | 4.39 × 104 | 1.87 × 109 | 5.75 × 107 | 1.39 × 104 | 1.97 × 102 | ||
Func 20 | 10 | Avg | 1.37 × 102 | 7.69 × 101 | 5.86 × 101 | 1.32 × 102 | 7.33 × 101 | 2.75 × 102 | 1.15 × 102 | 5.49 × 101 | 3.44 × 100 |
SD | 7.09 × 101 | 6.15 × 101 | 4.86 × 101 | 5.77 × 101 | 4.72 × 101 | 8.17 × 101 | 3.57 × 101 | 1.53 × 101 | 4.84 × 100 | ||
Min | 4.87 × 101 | 2.30 × 101 | 6.24 × 10−1 | 6.06 × 101 | 2.58 × 101 | 1.13 × 102 | 5.67 × 101 | 3.32 × 101 | 0 | ||
30 | Avg | 5.76 × 102 | 4.19 × 102 | 5.90 × 102 | 6.72 × 102 | 4.84 × 102 | 1.41 × 103 | 5.91 × 102 | 5.40 × 102 | 1.97 × 102 | |
SD | 2.17 × 102 | 1.32 × 102 | 2.41 × 102 | 1.82 × 102 | 1.40 × 102 | 1.54 × 102 | 6.82 × 101 | 1.02 × 102 | 1.13 × 102 | ||
Min | 2.88 × 102 | 2.39 × 102 | 8.86 × 101 | 3.88 × 102 | 2.86 × 102 | 1.03 × 103 | 4.80 × 102 | 3.57 × 102 | 3.02 × 101 | ||
50 | Avg | 1.33 × 103 | 7.59 × 102 | 1.46 × 103 | 1.68 × 103 | 1.00 × 103 | 2.88 × 103 | 1.40 × 103 | 1.44 × 103 | 7.13 × 102 | |
SD | 3.25 × 102 | 2.09 × 102 | 3.58 × 102 | 2.58 × 102 | 2.79 × 102 | 3.78 × 102 | 2.14 × 102 | 1.69 × 102 | 1.81 × 102 | ||
Min | 4.85 × 102 | 4.58 × 102 | 5.58 × 102 | 1.34 × 103 | 3.65 × 102 | 1.87 × 103 | 1.02 × 103 | 9.59 × 102 | 6.28 × 102 | ||
Rank | 10 | (w/l/t) | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 10/0/0 |
30 | (w/l/t) | 0/10/0 | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 9/1/0 | |
50 | (w/l/t) | 0/10/0 | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 9/1/0 |
Func | Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO |
---|---|---|---|---|---|---|---|---|---|---|---|
Func 21 | 10 | Avg | 1.28 × 102 | 1.96 × 102 | 1.89 × 102 | 2.35 × 102 | 1.31 × 102 | 2.85 × 102 | 1.52 × 102 | 1.54 × 102 | 1.33 × 102 |
SD | 4.69 × 101 | 4.12 × 101 | 6.00 × 101 | 4.85 × 101 | 5.09 × 101 | 4.92 × 101 | 3.81 × 101 | 3.05 × 101 | 5.20 × 101 | ||
Min | 1.01 × 102 | 1.01 × 102 | 1.00 × 102 | 1.05 × 102 | 1.00 × 102 | 1.54 × 102 | 1.12 × 102 | 1.12 × 102 | 1.00 × 102 | ||
30 | Avg | 3.12 × 102 | 2.81 × 102 | 3.73 × 102 | 4.52 × 102 | 3.16 × 102 | 7.18 × 102 | 4.67 × 102 | 3.88 × 102 | 2.65 × 102 | |
SD | 2.18 × 101 | 1.64 × 101 | 3.93 × 101 | 7.32 × 101 | 2.95 × 101 | 5.18 × 101 | 2.50 × 101 | 1.53 × 101 | 1.78 × 101 | ||
Min | 2.69 × 102 | 2.61 × 102 | 2.89 × 102 | 3.38 × 102 | 2.61 × 102 | 6.41 × 102 | 3.98 × 102 | 3.36 × 102 | 2.35 × 102 | ||
50 | Avg | 4.39 × 102 | 3.75 × 102 | 6.27 × 102 | 7.47 × 102 | 4.30 × 102 | 1.27 × 103 | 8.20 × 102 | 4.60 × 102 | 3.25 × 102 | |
SD | 3.34 × 101 | 3.03 × 101 | 5.49 × 101 | 9.57 × 101 | 4.76 × 101 | 6.05 × 101 | 3.33 × 101 | 9.51 × 101 | 2.02 × 101 | ||
Min | 3.66 × 102 | 3.24 × 102 | 5.11 × 102 | 6.04 × 102 | 3.65 × 102 | 1.12 × 103 | 7.44 × 102 | 3.22 × 102 | 2.75 × 102 | ||
Func 22 | 10 | Avg | 9.44 × 101 | 1.06 × 102 | 9.73 × 101 | 1.34 × 102 | 8.82 × 101 | 1.08 × 103 | 1.83 × 102 | 1.35 × 102 | 9.03 × 101 |
SD | 2.30 × 101 | 7.39 × 100 | 2.68 × 101 | 1.01 × 102 | 3.27 × 101 | 2.63 × 102 | 3.56 × 101 | 2.95 × 101 | 2.68 × 101 | ||
Min | 2.03 × 101 | 1.01 × 102 | 3.43 × 101 | 3.16 × 101 | 2.24 × 10−5 | 5.84 × 102 | 9.47 × 101 | 1.08 × 102 | 2.44 × 101 | ||
30 | Avg | 1.00 × 102 | 2.05 × 103 | 2.82 × 103 | 3.64 × 103 | 1.49 × 103 | 8.62 × 103 | 1.72 × 103 | 5.79 × 103 | 1.01 × 102 | |
SD | 5.08 × 10−1 | 1.55 × 103 | 1.91 × 103 | 2.37 × 103 | 2.00 × 103 | 7.63 × 102 | 3.65 × 102 | 1.12 × 103 | 1.15 × 100 | ||
Min | 1.00 × 102 | 2.43 × 102 | 2.16 × 102 | 1.12 × 102 | 1.00 × 102 | 7.01 × 103 | 9.08 × 102 | 2.95 × 103 | 1.00 × 102 | ||
50 | Avg | 8.21 × 103 | 6.15 × 103 | 8.23 × 103 | 9.35 × 103 | 7.05 × 103 | 1.60 × 104 | 9.30 × 103 | 1.34 × 104 | 6.07 × 103 | |
SD | 9.28 × 102 | 7.59 × 102 | 7.07 × 102 | 1.25 × 103 | 1.58 × 103 | 5.51 × 102 | 2.48 × 103 | 7.32 × 102 | 5.91 × 102 | ||
Min | 6.04 × 103 | 4.79 × 103 | 7.29 × 103 | 6.69 × 103 | 5.10 × 103 | 1.51 × 104 | 5.41 × 103 | 1.15 × 104 | 4.51 × 103 | ||
Func 23 | 10 | Avg | 3.33 × 102 | 3.13 × 102 | 3.24 × 102 | 3.42 × 102 | 3.18 × 102 | 4.79 × 102 | 3.68 × 102 | 3.36 × 102 | 3.09 × 102 |
SD | 1.04 × 101 | 8.44 × 100 | 7.97 × 100 | 1.37 × 101 | 8.66 × 100 | 4.84 × 101 | 1.05 × 101 | 5.64 × 100 | 2.12 × 100 | ||
Min | 3.12 × 102 | 3.04 × 102 | 3.12 × 102 | 3.19 × 102 | 3.04 × 102 | 3.98 × 102 | 3.47 × 102 | 3.26 × 102 | 3.05 × 102 | ||
30 | Avg | 5.90 × 102 | 4.31 × 102 | 5.01 × 102 | 7.02 × 102 | 4.53 × 102 | 1.37 × 103 | 7.85 × 102 | 5.73 × 102 | 4.19 × 102 | |
SD | 5.56 × 101 | 3.57 × 101 | 3.29 × 101 | 6.65 × 101 | 3.26 × 101 | 1.56 × 102 | 4.75 × 101 | 3.13 × 101 | 1.50 × 101 | ||
Min | 4.87 × 102 | 3.94 × 102 | 4.38 × 102 | 5.70 × 102 | 3.97 × 102 | 1.05 × 103 | 6.96 × 102 | 4.79 × 102 | 3.87 × 102 | ||
50 | Avg | 1.06 × 103 | 6.10 × 102 | 8.18 × 102 | 1.30 × 103 | 6.56 × 102 | 2.63 × 103 | 1.35 × 103 | 7.81 × 102 | 5.78 × 102 | |
SD | 1.02 × 102 | 3.56 × 101 | 5.94 × 101 | 1.53 × 102 | 5.69 × 101 | 1.58 × 102 | 1.27 × 102 | 1.07 × 102 | 2.24 × 101 | ||
Min | 8.62 × 102 | 5.39 × 102 | 7.29 × 102 | 1.04 × 103 | 5.43 × 102 | 2.36 × 103 | 1.07 × 103 | 6.43 × 102 | 5.30 × 102 | ||
Func 24 | 10 | Avg | 2.61 × 102 | 3.44 × 102 | 3.61 × 102 | 3.57 × 102 | 3.10 × 102 | 5.09 × 102 | 1.65 × 102 | 2.94 × 102 | 2.91 × 102 |
SD | 1.22 × 102 | 9.49 × 100 | 1.01 × 101 | 9.78 × 101 | 9.11 × 101 | 4.69 × 101 | 5.18 × 101 | 7.80 × 101 | 9.80 × 101 | ||
Min | 1.00 × 102 | 3.32 × 102 | 3.43 × 102 | 5.49 × 101 | 1.00 × 102 | 4.19 × 102 | 1.32 × 102 | 1.70 × 102 | 1.00 × 102 | ||
30 | Avg | 6.99 × 102 | 5.34 × 102 | 5.72 × 102 | 7.69 × 102 | 5.12 × 102 | 1.59 × 103 | 8.66 × 102 | 6.22 × 102 | 4.81 × 102 | |
SD | 7.24 × 101 | 6.84 × 101 | 2.46 × 101 | 9.04 × 101 | 2.59 × 101 | 1.96 × 102 | 6.21 × 101 | 4.43 × 101 | 1.23 × 101 | ||
Min | 5.79 × 102 | 4.64 × 102 | 5.35 × 102 | 6.06 × 102 | 4.63 × 102 | 1.21 × 103 | 7.66 × 102 | 5.23 × 102 | 4.55 × 102 | ||
50 | Avg | 1.23 × 103 | 6.90 × 102 | 8.06 × 102 | 1.27 × 103 | 7.09 × 102 | 2.87 × 103 | 1.53 × 103 | 1.02 × 103 | 6.49 × 102 | |
SD | 1.45 × 102 | 8.60 × 101 | 4.80 × 101 | 1.51 × 102 | 5.37 × 101 | 2.84 × 102 | 1.18 × 102 | 5.64 × 101 | 2.59 × 101 | ||
Min | 1.04 × 103 | 6.07 × 102 | 7.36 × 102 | 1.03 × 103 | 6.16 × 102 | 2.12 × 103 | 1.26 × 103 | 8.81 × 102 | 5.87 × 102 | ||
Func 25 | 10 | Avg | 4.29 × 102 | 4.34 × 102 | 4.39 × 102 | 4.45 × 102 | 4.22 × 102 | 1.09 × 103 | 4.50 × 102 | 4.52 × 102 | 4.03 × 102 |
SD | 2.26 × 101 | 2.08 × 101 | 2.50 × 101 | 2.01 × 101 | 2.38 × 101 | 1.50 × 102 | 1.14 × 101 | 2.67 × 100 | 1.39 × 101 | ||
Min | 3.98 × 102 | 3.98 × 102 | 3.98 × 102 | 3.99 × 102 | 3.98 × 102 | 7.41 × 102 | 4.24 × 102 | 4.46 × 102 | 3.98 × 102 | ||
30 | Avg | 4.20 × 102 | 4.49 × 102 | 7.07 × 102 | 4.46 × 102 | 4.06 × 102 | 3.56 × 103 | 8.20 × 102 | 5.02 × 102 | 3.87 × 102 | |
SD | 2.08 × 101 | 2.59 × 101 | 2.90 × 102 | 2.70 × 101 | 2.20 × 101 | 5.12 × 102 | 6.48 × 101 | 1.46 × 101 | 1.37 × 100 | ||
Min | 3.89 × 102 | 4.06 × 102 | 3.89 × 102 | 3.94 × 102 | 3.83 × 102 | 2.79 × 103 | 7.08 × 102 | 4.63 × 102 | 3.83 × 102 | ||
50 | Avg | 5.91 × 102 | 8.83 × 102 | 2.16 × 103 | 6.22 × 102 | 5.25 × 102 | 1.46 × 104 | 3.94 × 103 | 8.21 × 102 | 5.06 × 102 | |
SD | 2.42 × 101 | 1.88 × 102 | 1.38 × 103 | 4.54 × 101 | 3.86 × 101 | 1.42 × 103 | 5.48 × 102 | 5.54 × 101 | 3.79 × 101 | ||
Min | 5.36 × 102 | 7.03 × 102 | 5.52 × 102 | 5.26 × 102 | 4.60 × 102 | 1.19 × 104 | 2.80 × 103 | 7.56 × 102 | 4.59 × 102 | ||
Func 26 | 10 | Avg | 4.13 × 102 | 3.24 × 102 | 3.73 × 102 | 7.44 × 102 | 2.95 × 102 | 1.63 × 103 | 5.54 × 102 | 5.66 × 102 | 3.00 × 102 |
SD | 2.84 × 102 | 5.97 × 101 | 4.49 × 101 | 4.51 × 102 | 7.38 × 101 | 3.64 × 102 | 6.25 × 101 | 1.14 × 102 | 0 | ||
Min | 4.90 × 10−3 | 3.00 × 102 | 3.00 × 102 | 2.03 × 102 | 3.37 × 10−4 | 8.94 × 102 | 4.48 × 102 | 3.24 × 102 | 3.00 × 102 | ||
30 | Avg | 3.28 × 103 | 1.77 × 103 | 2.81 × 103 | 4.95 × 103 | 1.58 × 103 | 1.04 × 104 | 4.44 × 103 | 3.62 × 103 | 1.91 × 103 | |
SD | 1.39 × 103 | 2.25 × 102 | 4.01 × 102 | 1.15 × 103 | 1.08 × 103 | 9.77 × 102 | 3.72 × 102 | 5.22 × 102 | 2.31 × 102 | ||
Min | 2.00 × 102 | 1.45 × 103 | 2.22 × 103 | 1.63 × 103 | 2.00 × 102 | 8.13 × 103 | 3.73 × 103 | 2.83 × 103 | 1.44 × 103 | ||
50 | Avg | 7.40 × 103 | 3.27 × 103 | 5.34 × 103 | 1.09 × 104 | 2.08 × 103 | 1.61 × 104 | 8.64 × 103 | 6.53 × 103 | 2.95 × 103 | |
SD | 8.69 × 102 | 5.35 × 102 | 5.75 × 102 | 1.51 × 103 | 1.88 × 103 | 7.06 × 102 | 1.11 × 103 | 9.53 × 102 | 3.20 × 102 | ||
Min | 5.58 × 103 | 2.71 × 103 | 4.61 × 103 | 7.89 × 103 | 3.00 × 102 | 1.47 × 104 | 7.24 × 103 | 4.23 × 103 | 2.36 × 103 | ||
Func 27 | 10 | Avg | 4.27 × 102 | 3.95 × 102 | 3.93 × 102 | 4.24 × 102 | 3.95 × 102 | 5.72 × 102 | 4.22 × 102 | 4.15 × 102 | 3.92 × 102 |
SD | 2.64 × 101 | 4.00 × 100 | 2.30 × 100 | 3.57 × 101 | 1.55 × 101 | 5.52 × 101 | 1.26 × 101 | 1.89 × 101 | 2.20 × 100 | ||
Min | 3.95 × 102 | 3.90 × 102 | 3.90 × 102 | 3.94 × 102 | 3.89 × 102 | 4.69 × 102 | 4.06 × 102 | 3.96 × 102 | 3.89 × 102 | ||
30 | Avg | 7.05 × 102 | 5.30 × 102 | 5.37 × 102 | 6.40 × 102 | 5.33 × 102 | 2.12 × 103 | 5.00 × 102 | 5.00 × 102 | 5.13 × 102 | |
SD | 8.40 × 101 | 1.32 × 101 | 2.02 × 101 | 7.23 × 101 | 1.21 × 101 | 3.77 × 102 | 8.23 × 10−5 | 1.72 × 10−4 | 1.00 × 101 | ||
Min | 5.75 × 102 | 5.09 × 102 | 5.10 × 102 | 5.40 × 102 | 5.12 × 102 | 1.49 × 103 | 5.00 × 102 | 5.00 × 102 | 4.89 × 102 | ||
50 | Avg | 1.70 × 103 | 7.93 × 102 | 8.26 × 102 | 1.40 × 103 | 6.94 × 102 | 5.14 × 103 | 5.00 × 102 | 5.00 × 102 | 7.15 × 102 | |
SD | 2.96 × 102 | 7.05 × 101 | 1.05 × 102 | 2.37 × 102 | 7.10 × 101 | 5.76 × 102 | 1.60 × 10−4 | 2.29 × 10−4 | 5.11 × 101 | ||
Min | 1.30 × 103 | 6.32 × 102 | 6.46 × 102 | 9.83 × 102 | 5.84 × 102 | 4.02 × 103 | 5.00 × 102 | 5.00 × 102 | 6.18 × 102 | ||
Func 28 | 10 | Avg | 4.60 × 102 | 5.37 × 102 | 5.06 × 102 | 4.79 × 102 | 4.91 × 102 | 9.94 × 102 | 4.77 × 102 | 4.94 × 102 | 3.00 × 102 |
SD | 1.43 × 102 | 9.79 × 101 | 9.75 × 101 | 1.08 × 102 | 1.62 × 102 | 1.47 × 102 | 5.30 × 101 | 7.03 × 100 | 0 | ||
Min | 3.00 × 102 | 3.68 × 102 | 3.69 × 102 | 3.01 × 102 | 3.00 × 102 | 7.45 × 102 | 3.99 × 102 | 4.82 × 102 | 3.00 × 102 | ||
30 | Avg | 4.47 × 102 | 5.38 × 102 | 1.30 × 103 | 4.94 × 102 | 4.09 × 102 | 5.32 × 103 | 9.19 × 102 | 5.00 × 102 | 3.15 × 102 | |
SD | 2.66 × 101 | 6.17 × 101 | 7.91 × 102 | 2.63 × 101 | 3.35 × 101 | 7.82 × 102 | 4.56 × 102 | 1.94 × 10−4 | 3.78 × 101 | ||
Min | 3.95 × 102 | 4.65 × 102 | 5.70 × 102 | 4.38 × 102 | 3.10 × 102 | 3.25 × 103 | 5.00 × 102 | 5.00 × 102 | 3.00 × 102 | ||
50 | Avg | 5.40 × 102 | 1.15 × 103 | 4.94 × 103 | 6.38 × 102 | 4.89 × 102 | 1.17 × 104 | 3.46 × 103 | 1.20 × 103 | 4.77 × 102 | |
SD | 3.87 × 101 | 3.54 × 102 | 1.43 × 103 | 6.42 × 101 | 2.05 × 101 | 1.38 × 103 | 1.60 × 103 | 4.34 × 102 | 1.85 × 101 | ||
Min | 4.81 × 102 | 6.53 × 102 | 7.90 × 102 | 5.70 × 102 | 4.61 × 102 | 7.14 × 103 | 5.00 × 102 | 5.00 × 102 | 4.53 × 102 | ||
Func 29 | 10 | Avg | 3.26 × 102 | 2.72 × 102 | 2.96 × 102 | 4.23 × 102 | 2.69 × 102 | 6.86 × 102 | 3.44 × 102 | 3.34 × 102 | 2.51 × 102 |
SD | 5.02 × 101 | 1.74 × 101 | 5.04 × 101 | 7.65 × 101 | 3.01 × 101 | 1.30 × 102 | 2.14 × 101 | 2.03 × 101 | 1.25 × 101 | ||
Min | 2.64 × 102 | 2.50 × 102 | 2.37 × 102 | 3.16 × 102 | 2.40 × 102 | 3.94 × 102 | 2.99 × 102 | 2.92 × 102 | 2.31 × 102 | ||
30 | Avg | 1.28 × 103 | 7.57 × 102 | 1.11 × 103 | 1.88 × 103 | 1.09 × 103 | 6.13 × 103 | 1.37 × 103 | 7.43 × 102 | 7.52 × 102 | |
SD | 2.81 × 102 | 1.40 × 102 | 2.65 × 102 | 2.93 × 102 | 1.76 × 102 | 2.51 × 103 | 2.62 × 102 | 1.88 × 102 | 1.24 × 102 | ||
Min | 6.77 × 102 | 5.61 × 102 | 7.23 × 102 | 1.35 × 103 | 7.77 × 102 | 2.69 × 103 | 1.02 × 103 | 4.45 × 102 | 5.31 × 102 | ||
50 | Avg | 2.40 × 103 | 1.33 × 103 | 2.20 × 103 | 4.02 × 103 | 1.80 × 103 | 1.30 × 105 | 3.84 × 103 | 1.26 × 103 | 1.13 × 103 | |
SD | 5.31 × 102 | 2.91 × 102 | 2.89 × 102 | 7.43 × 102 | 2.33 × 102 | 8.23 × 104 | 1.10 × 103 | 4.41 × 102 | 2.16 × 102 | ||
Min | 1.62 × 103 | 7.63 × 102 | 1.69 × 103 | 2.35 × 103 | 1.30 × 103 | 3.08 × 104 | 2.22 × 103 | 6.05 × 102 | 6.21 × 102 | ||
Func 30 | 10 | Avg | 1.04 × 106 | 7.62 × 105 | 2.95 × 105 | 6.44 × 105 | 1.64 × 105 | 3.99 × 107 | 5.53 × 104 | 1.31 × 105 | 5.04 × 102 |
SD | 1.64 × 106 | 1.06 × 106 | 3.66 × 105 | 6.32 × 105 | 4.66 × 105 | 3.03 × 107 | 1.10 × 105 | 2.21 × 105 | 8.47 × 101 | ||
Min | 1.40 × 104 | 4.39 × 103 | 1.46 × 103 | 1.81 × 104 | 3.87 × 103 | 1.60 × 106 | 2.92 × 102 | 2.85 × 102 | 3.95 × 102 | ||
30 | Avg | 1.91 × 106 | 6.01 × 106 | 9.35 × 105 | 9.31 × 106 | 1.47 × 106 | 1.62 × 109 | 7.45 × 107 | 3.13 × 103 | 4.09 × 103 | |
SD | 1.49 × 106 | 7.61 × 106 | 1.76 × 106 | 6.55 × 106 | 1.06 × 106 | 8.17 × 108 | 1.98 × 107 | 1.86 × 103 | 1.15 × 103 | ||
Min | 1.72 × 105 | 3.18 × 105 | 1.28 × 104 | 1.05 × 106 | 4.04 × 105 | 5.62 × 108 | 4.06 × 107 | 2.99 × 102 | 2.44 × 103 | ||
50 | Avg | 4.48 × 107 | 6.99 × 107 | 6.59 × 107 | 9.07 × 107 | 2.71 × 107 | 8.72 × 109 | 5.84 × 108 | 6.34 × 103 | 7.58 × 105 | |
SD | 2.13 × 107 | 1.99 × 107 | 1.33 × 108 | 3.26 × 107 | 5.80 × 106 | 2.12 × 109 | 1.37 × 108 | 2.70 × 103 | 1.07 × 105 | ||
Min | 1.87 × 107 | 3.55 × 107 | 4.99 × 106 | 3.51 × 107 | 1.94 × 107 | 5.31 × 109 | 3.74 × 108 | 1.86 × 103 | 6.18 × 105 | ||
Rank | 10 | (w/l/t) | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 2/8/0 | 0/10/0 | 1/9/0 | 0/10/0 | 6/4/0 |
30 | (w/l/t) | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 1/9/0 | 0/10/0 | 0/9/1 | 2/7/1 | 5/4/1 | |
50 | (w/l/t) | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 1/9/0 | 0/10/0 | 0/9/1 | 1/8/1 | 7/3/0 |
References
- Du, K.-L.; Swamy, M. Search and optimization by metaheuristics. In Techniques and Algorithms Inspired by Nature; Birkhäuser: Cham, Switzerland, 2016; pp. 1–10. [Google Scholar]
- Talbi, E.-G. Metaheuristics: From Design to Implementation; John Wiley & Sons: Hoboken, NJ, USA, 2009; Volume 74, pp. 21–30. [Google Scholar]
- Yang, X.-S. Nature-inspired optimization algorithms: Challenges and open problems. J. Comput. Sci. 2020, 46, 101104. [Google Scholar] [CrossRef] [Green Version]
- Wolpert, D.H.; Macready, W.G. No free lunch theorems for optimization. IEEE Trans. Evol. Comput. 1997, 1, 67–82. [Google Scholar] [CrossRef] [Green Version]
- Eberhart, R.; Kennedy, J. A new optimizer using particle swarm theory. In Proceedings of the MHS’95 Sixth International Symposium on Micro Machine and Human Science, Nagoya, Japan, 4–6 October 1995; pp. 39–43. [Google Scholar]
- Goldberg, D.E.; Holland, J.H. Genetic algorithms and machine learning. Mach. Learn. 1988, 3, 95–99. [Google Scholar] [CrossRef]
- Mirjalili, S.; Lewis, A. The whale optimization algorithm. Adv. Eng. Softw. 2016, 95, 51–67. [Google Scholar] [CrossRef]
- Połap, D. Polar bear optimization algorithm: Meta-heuristic with fast population movement and dynamic birth and death mechanism. Symmetry 2017, 9, 203. [Google Scholar] [CrossRef] [Green Version]
- Mirjalili, S.; Gandomi, A.H.; Mirjalili, S.Z.; Saremi, S.; Faris, H.; Mirjalili, S.M. Salp Swarm Algorithm: A bio-inspired optimizer for engineering design problems. Adv. Eng. Softw. 2017, 114, 163–191. [Google Scholar] [CrossRef]
- Połap, D.; Woźniak, M. Red fox optimization algorithm. Expert Syst. Appl. 2021, 166, 114107. [Google Scholar] [CrossRef]
- Zamani, H.; Nadimi-Shahraki, M.H.; Gandomi, A.H. QANA: Quantum-based avian navigation optimizer algorithm. Eng. Appl. Artif. Intell. 2021, 104, 104314. [Google Scholar] [CrossRef]
- Zeybek, S.; Pham, D.T.; Koç, E.; Seçer, A. An Improved Bees Algorithm for Training Deep Recurrent Networks for Sentiment Classification. Symmetry 2021, 13, 1347. [Google Scholar] [CrossRef]
- Dey, N.; Rajinikanth, V.; Ashour, A.S.; Tavares, J.M.R. Social group optimization supported segmentation and evaluation of skin melanoma images. Symmetry 2018, 10, 51. [Google Scholar] [CrossRef] [Green Version]
- Ghasemi, M.R.; Varaee, H. Enhanced IGMM optimization algorithm based on vibration for numerical and engineering problems. Eng. Comput. 2018, 34, 91–116. [Google Scholar] [CrossRef]
- Shen, Y.; Liang, Z.; Kang, H.; Sun, X.; Chen, Q. A Modified jSO Algorithm for Solving Constrained Engineering Problems. Symmetry 2021, 13, 63. [Google Scholar] [CrossRef]
- Meng, A.; Zeng, C.; Wang, P.; Chen, D.; Zhou, T.; Zheng, X.; Yin, H. A high-performance crisscross search based grey wolf optimizer for solving optimal power flow problem. Energy 2021, 225, 120211. [Google Scholar] [CrossRef]
- Rahnema, N.; Gharehchopogh, F.S. An improved artificial bee colony algorithm based on whale optimization algorithm for data clustering. Multimed. Tools Appl. 2020, 79, 32169–32194. [Google Scholar] [CrossRef]
- Houssein, E.H.; Helmy, B.E.-D.; Elngar, A.A.; Abdelminaam, D.S.; Shaban, H. An improved tunicate swarm algorithm for global optimization and image segmentation. IEEE Access 2021, 9, 56066–56092. [Google Scholar] [CrossRef]
- Zamani, H.; Nadimi-Shahraki, M.H.; Gandomi, A.H. CCSA: Conscious Neighborhood-based Crow Search Algorithm for Solving Global Optimization Problems. Appl. Soft Comput. 2019, 85, 105583. [Google Scholar] [CrossRef]
- Yang, X.; Gong, W. Opposition-based JAYA with population reduction for parameter estimation of photovoltaic solar cells and modules. Appl. Soft Comput. 2021, 104, 107218. [Google Scholar] [CrossRef]
- Gupta, S.; Deep, K. A hybrid self-adaptive sine cosine algorithm with opposition based learning. Expert Syst. Appl. 2019, 119, 210–230. [Google Scholar] [CrossRef]
- Haklı, H.; Uğuz, H. A novel particle swarm optimization algorithm with Levy flight. Appl. Soft Comput. 2014, 23, 333–345. [Google Scholar] [CrossRef]
- Zhang, X.; Fu, Z.; Chen, H.; Mao, W.; Liu, S.; Liu, G. Levy flight shuffle frog leaping algorithm based on differential perturbation and quasi-Newton search. IEEE Access 2019, 7, 116078–116093. [Google Scholar] [CrossRef]
- Xu, Y.; Chen, H.; Luo, J.; Zhang, Q.; Jiao, S.; Zhang, X. Enhanced Moth-flame optimizer with mutation strategy for global optimization. Inf. Sci. 2019, 492, 181–203. [Google Scholar] [CrossRef]
- Lyu, S.; Li, Z.; Huang, Y.; Wang, J.; Hu, J. Improved self-adaptive bat algorithm with step-control and mutation mechanisms. J. Comput. Sci. 2019, 30, 65–78. [Google Scholar] [CrossRef]
- Hassanien, A.E.; Gaber, T.; Mokhtar, U.; Hefny, H. An improved moth flame optimization algorithm based on rough sets for tomato diseases detection. Comput. Electron. Agric. 2017, 136, 86–96. [Google Scholar] [CrossRef]
- Wang, X.; Yang, J.; Teng, X.; Xia, W.; Jensen, R. Feature selection based on rough sets and particle swarm optimization. Pattern Recognit. Lett. 2007, 28, 459–471. [Google Scholar] [CrossRef] [Green Version]
- Saxena, A.; Kumar, R.; Das, S. β-chaotic map enabled grey wolf optimizer. Appl. Soft Comput. 2019, 75, 84–105. [Google Scholar] [CrossRef]
- Wang, M.; Chen, H.; Yang, B.; Zhao, X.; Hu, L.; Cai, Z.; Huang, H.; Tong, C. Toward an optimal kernel extreme learning machine using a chaotic moth-flame optimization strategy with applications in medical diagnoses. Neurocomputing 2017, 267, 69–84. [Google Scholar] [CrossRef]
- Mirjalili, S. Moth-flame optimization algorithm: A novel nature-inspired heuristic paradigm. Knowl.-Based Syst. 2015, 89, 228–249. [Google Scholar] [CrossRef]
- Li, Y.; Zhu, X.; Liu, J. An improved moth-flame optimization algorithm for engineering problems. Symmetry 2020, 12, 1234. [Google Scholar] [CrossRef]
- Nadimi-Shahraki, M.H.; Banaie-Dezfouli, M.; Zamani, H.; Taghian, S.; Mirjalili, S. B-MFO: A Binary Moth-Flame Optimization for Feature Selection from Medical Datasets. Computers 2021, 10, 136. [Google Scholar] [CrossRef]
- Zhang, X.; Zhang, C.; Wei, Z. Carbon price forecasting based on multi-resolution singular value decomposition and extreme learning machine optimized by the moth–flame optimization algorithm considering energy and economic factors. Energies 2019, 12, 4283. [Google Scholar] [CrossRef] [Green Version]
- Sheng, H.; Li, C.; Wang, H.; Yan, Z.; Xiong, Y.; Cao, Z.; Kuang, Q. Parameters extraction of photovoltaic models using an improved moth-flame optimization. Energies 2019, 12, 3527. [Google Scholar] [CrossRef] [Green Version]
- Kamalapathi, K.; Priyadarshi, N.; Padmanaban, S.; Holm-Nielsen, J.B.; Azam, F.; Umayal, C.; Ramachandaramurthy, V.K. A hybrid moth-flame fuzzy logic controller based integrated cuk converter fed brushless DC motor for power factor correction. Electronics 2018, 7, 288. [Google Scholar] [CrossRef] [Green Version]
- Raju, K.; Madurai Elavarasan, R.; Mihet-Popa, L. An assessment of onshore and offshore wind energy potential in India using moth flame optimization. Energies 2020, 13, 3063. [Google Scholar]
- Khan, B.S.; Raja, M.A.Z.; Qamar, A.; Chaudhary, N.I. Design of moth flame optimization heuristics for integrated power plant system containing stochastic wind. Appl. Soft Comput. 2021, 104, 107193. [Google Scholar] [CrossRef]
- Li, Z.; Zeng, J.; Chen, Y.; Ma, G.; Liu, G. Death mechanism-based moth–flame optimization with improved flame generation mechanism for global optimization tasks. Expert Syst. Appl. 2021, 183, 115436. [Google Scholar] [CrossRef]
- Elsakaan, A.A.; El-Sehiemy, R.A.; Kaddah, S.S.; Elsaid, M.I. An enhanced moth-flame optimizer for solving non-smooth economic dispatch problems with emissions. Energy 2018, 157, 1063–1078. [Google Scholar] [CrossRef]
- Nadimi-Shahraki, M.H.; Taghian, S.; Mirjalili, S.; Faris, H. MTDE: An effective multi-trial vector-based differential evolution algorithm and its applications for engineering design problems. Appl. Soft Comput. 2020, 97, 106761. [Google Scholar] [CrossRef]
- Awad, N.; Ali, M.; Liang, J.; Qu, B.; Suganthan, P. Problem Definitions and Evaluation Criteria for the cec 2017 Special Sessionand Competition on Single Objective Real-Parameter Numerical Optimization; Technical Report; Nanyang Technological University: Singapore, 2016. [Google Scholar]
- Gandomi, A.H.; Alavi, A.H. Krill herd: A new bio-inspired optimization algorithm. Commun. Nonlinear Sci. Numer. Simul. 2012, 17, 4831–4845. [Google Scholar] [CrossRef]
- Mirjalili, S.; Mirjalili, S.M.; Lewis, A. Grey wolf optimizer. Adv. Eng. Softw. 2014, 69, 46–61. [Google Scholar] [CrossRef] [Green Version]
- Arora, S.; Singh, S. Butterfly optimization algorithm: A novel approach for global optimization. Soft Comput. 2019, 23, 715–734. [Google Scholar] [CrossRef]
- Hashim, F.A.; Houssein, E.H.; Mabrouk, M.S.; Al-Atabany, W.; Mirjalili, S. Henry gas solubility optimization: A novel physics-based algorithm. Future Gener. Comput. Syst. 2019, 101, 646–667. [Google Scholar] [CrossRef]
- Hashim, F.A.; Hussain, K.; Houssein, E.H.; Mabrouk, M.S.; Al-Atabany, W. Archimedes optimization algorithm: A new metaheuristic algorithm for solving optimization problems. Appl. Intell. 2021, 51, 1531–1551. [Google Scholar] [CrossRef]
- Gandomi, A.H.; Yang, X.-S.; Talatahari, S.; Alavi, A.H. Metaheuristic algorithms in modeling and optimization. In Metaheuristic Applications in Structures and Infrastructures; Elsevier Oxford: Oxford, UK, 2013; pp. 1–24. [Google Scholar]
- Storn, R.; Price, K. Differential evolution–a simple and efficient heuristic for global optimization over continuous spaces. J. Glob. Optim. 1997, 11, 341–359. [Google Scholar] [CrossRef]
- Rechenberg, I. Evolution Strategy: Optimization of Technical systems by means of biological evolution. Rechenberg I. Evolution Strategy: Optimization of Technical Systems by Means of Biological Evolution; Fromman-Holzboog: Stuttgart, Germany, 1973; Volume 104, pp. 15–16. [Google Scholar]
- Yao, X.; Liu, Y.; Lin, G. Evolutionary programming made faster. IEEE Trans. Evol. Comput. 1999, 3, 82–102. [Google Scholar] [CrossRef] [Green Version]
- Karaboga, D.; Basturk, B. A powerful and efficient algorithm for numerical function optimization: Artificial bee colony (ABC) algorithm. J. Glob. Optim. 2007, 39, 459–471. [Google Scholar] [CrossRef]
- Cuevas, E.; Cienfuegos, M.; Zaldívar, D.; Pérez-Cisneros, M. A swarm optimization algorithm inspired in the behavior of the social-spider. Expert Syst. Appl. 2013, 40, 6374–6384. [Google Scholar] [CrossRef] [Green Version]
- Abualigah, L.; Yousri, D.; Abd Elaziz, M.; Ewees, A.A.; Al-qaness, M.A.; Gandomi, A.H. Aquila Optimizer: A novel meta-heuristic optimization Algorithm. Comput. Ind. Eng. 2021, 157, 107250. [Google Scholar] [CrossRef]
- Kirkpatrick, S.; Gelatt, C.D.; Vecchi, M.P. Optimization by simulated annealing. Science 1983, 220, 671–680. [Google Scholar] [CrossRef]
- Formato, R.A. Central force optimization. Prog. Electromagn. Res. 2007, 77, 425–491. [Google Scholar] [CrossRef] [Green Version]
- Zhao, W.; Wang, L.; Zhang, Z. Atom search optimization and its application to solve a hydrogeologic parameter estimation problem. Knowl.-Based Syst. 2019, 163, 283–304. [Google Scholar] [CrossRef]
- Pereira, J.L.J.; Francisco, M.B.; Diniz, C.A.; Oliver, G.A.; Cunha Jr, S.S.; Gomes, G.F. Lichtenberg algorithm: A novel hybrid physics-based meta-heuristic for global optimization. Expert Syst. Appl. 2021, 170, 114522. [Google Scholar] [CrossRef]
- Pichai, S.; Sunat, K.; Chiewchanwattana, S. An asymmetric chaotic competitive swarm optimization algorithm for feature selection in high-dimensional data. Symmetry 2020, 12, 1782. [Google Scholar] [CrossRef]
- Mohammadzadeh, H.; Gharehchopogh, F.S. Feature Selection with Binary Symbiotic Organisms Search Algorithm for Email Spam Detection. Int. J. Inf. Technol. Decis. Mak. 2021, 20, 469–515. [Google Scholar] [CrossRef]
- Gharehchopogh, F.S.; Maleki, I.; Dizaji, Z.A. Chaotic vortex search algorithm: Metaheuristic algorithm for feature selection. Evol. Intell. 2021, 1–32, In press. [Google Scholar] [CrossRef]
- Mohmmadzadeh, H.; Gharehchopogh, F.S. An efficient binary chaotic symbiotic organisms search algorithm approaches for feature selection problems. J. Supercomput. 2021, 77, 9102–9144. [Google Scholar] [CrossRef]
- Sayarshad, H.R. Using bees algorithm for material handling equipment planning in manufacturing systems. Int. J. Adv. Manuf. Technol. 2010, 48, 1009–1018. [Google Scholar] [CrossRef]
- Oliva, D.; Hinojosa, S.; Cuevas, E.; Pajares, G.; Avalos, O.; Gálvez, J. Cross entropy based thresholding for magnetic resonance brain images using Crow Search Algorithm. Expert Syst. Appl. 2017, 79, 164–180. [Google Scholar] [CrossRef]
- Li, G.; Shuang, F.; Zhao, P.; Le, C. An improved butterfly optimization algorithm for engineering design problems using the cross-entropy method. Symmetry 2019, 11, 1049. [Google Scholar] [CrossRef] [Green Version]
- Oliva, D.; Cuevas, E.; Pajares, G. Parameter identification of solar cells using artificial bee colony optimization. Energy 2014, 72, 93–102. [Google Scholar] [CrossRef]
- Oliva, D.; Abd El Aziz, M.; Hassanien, A.E. Parameter estimation of photovoltaic cells using an improved chaotic whale optimization algorithm. Appl. Energy 2017, 200, 141–154. [Google Scholar] [CrossRef]
- Yang, W.; Peng, Z.; Yang, Z.; Guo, Y.; Chen, X. An enhanced exploratory whale optimization algorithm for dynamic economic dispatch. Energy Rep. 2021, 7, 7015–7029. [Google Scholar] [CrossRef]
- Ghasemi, M.R.; Varaee, H. A fast multi-objective optimization using an efficient ideal gas molecular movement algorithm. Eng. Comput. 2017, 33, 477–496. [Google Scholar] [CrossRef]
- Gharehchopogh, F.S.; Gholizadeh, H. A comprehensive survey: Whale Optimization Algorithm and its applications. Swarm Evol. Comput. 2019, 48, 1–24. [Google Scholar] [CrossRef]
- Yang, W.; Xia, K.; Li, T.; Xie, M.; Zhao, Y. An Improved Transient Search Optimization with Neighborhood Dimensional Learning for Global Optimization Problems. Symmetry 2021, 13, 244. [Google Scholar] [CrossRef]
- Pizzuti, C. A multi-objective genetic algorithm for community detection in networks. In Proceedings of the 2009 21st IEEE International Conference on Tools with Artificial Intelligence, Newark, NJ, USA, 2–4 November 2009; pp. 379–386. [Google Scholar]
- Li, Y.-H.; Wang, J.-Q.; Wang, X.-J.; Zhao, Y.-L.; Lu, X.-H.; Liu, D.-L. Community detection based on differential evolution using social spider optimization. Symmetry 2017, 9, 183. [Google Scholar] [CrossRef] [Green Version]
- Nadimi-Shahraki, M.H.; Moeini, E.; Taghian, S.; Mirjalili, S. DMFO-CD: A Discrete Moth-Flame Optimization Algorithm for Community Detection. Algorithms 2021, 14, 314. [Google Scholar] [CrossRef]
- Cai, J.; Pan, W.D. On fast and accurate block-based motion estimation algorithms using particle swarm optimization. Inf. Sci. 2012, 197, 53–64. [Google Scholar] [CrossRef]
- Cuevas, E.; Zaldivar, D.; Pérez-Cisneros, M.; Oliva, D. Block-matching algorithm based on differential evolution for motion estimation. Eng. Appl. Artif. Intell. 2013, 26, 488–498. [Google Scholar] [CrossRef] [Green Version]
- Yamany, W.; Fawzy, M.; Tharwat, A.; Hassanien, A.E. Moth-flame optimization for training multi-layer perceptrons. In Proceedings of the 2015 11th International Computer Engineering Conference (ICENCO), Cairo, Egypt, 29–30 December 2015; pp. 267–272. [Google Scholar]
- Mei, R.N.S.; Sulaiman, M.H.; Mustaffa, Z.; Daniyal, H. Optimal reactive power dispatch solution by loss minimization using moth-flame optimization technique. Appl. Soft Comput. 2017, 59, 210–222. [Google Scholar]
- Soliman, G.; Khorshid, M.; Abou-El-Enien, T. Modified moth-flame optimization algorithms for terrorism prediction. Int. J. Appl. Or Innov. Eng. Manag. 2016, 5, 47–58. [Google Scholar]
- Singh, P.; Prakash, S. Optical network unit placement in Fiber-Wireless (FiWi) access network by Moth-Flame optimization algorithm. Opt. Fiber Technol. 2017, 36, 403–411. [Google Scholar] [CrossRef]
- Mohseni, S.; Brent, A.C.; Burmester, D. A demand response-centred approach to the long-term equipment capacity planning of grid-independent micro-grids optimized by the moth-flame optimization algorithm. Energy Convers. Manag. 2019, 200, 112105. [Google Scholar] [CrossRef]
- Ebrahim, M.A.; Becherif, M.; Abdelaziz, A.Y. Dynamic performance enhancement for wind energy conversion system using Moth-Flame Optimization based blade pitch controller. Sustain. Energy Technol. Assess. 2018, 27, 206–212. [Google Scholar] [CrossRef]
- Du, W.; Li, B. Multi-strategy ensemble particle swarm optimization for dynamic optimization. Inf. Sci. 2008, 178, 3096–3109. [Google Scholar] [CrossRef]
- Tang, K.; Li, Z.; Luo, L.; Liu, B. Multi-strategy adaptive particle swarm optimization for numerical optimization. Eng. Appl. Artif. Intell. 2015, 37, 9–19. [Google Scholar] [CrossRef]
- Qin, Q.; Cheng, S.; Zhang, Q.; Wei, Y.; Shi, Y. Multiple strategies based orthogonal design particle swarm optimizer for numerical optimization. Comput. Oper. Res. 2015, 60, 91–110. [Google Scholar] [CrossRef]
- Wang, S.; Liu, G.; Gao, M.; Cao, S.; Guo, A.; Wang, J. Heterogeneous comprehensive learning and dynamic multi-swarm particle swarm optimizer with two mutation operators. Inf. Sci. 2020, 540, 175–201. [Google Scholar] [CrossRef]
- Gao, W.-F.; Liu, S.-Y.; Huang, L.-L. Enhancing artificial bee colony algorithm using more information-based search equations. Inf. Sci. 2014, 270, 112–133. [Google Scholar] [CrossRef]
- Tu, Q.; Chen, X.; Liu, X. Multi-strategy ensemble grey wolf optimizer and its application to feature selection. Appl. Soft Comput. 2019, 76, 16–30. [Google Scholar] [CrossRef]
- Nadimi-Shahraki, M.H.; Taghian, S.; Mirjalili, S. An improved grey wolf optimizer for solving engineering problems. Expert Syst. Appl. 2021, 166, 113917. [Google Scholar] [CrossRef]
- Zhang, H.; Cai, Z.; Ye, X.; Wang, M.; Kuang, F.; Chen, H.; Li, C.; Li, Y. A multi-strategy enhanced salp swarm algorithm for global optimization. Eng. Comput. 2020, 10, 1–27. [Google Scholar] [CrossRef]
- Qin, A.K.; Huang, V.L.; Suganthan, P.N. Differential evolution algorithm with strategy adaptation for global numerical optimization. IEEE Trans. Evol. Comput. 2008, 13, 398–417. [Google Scholar] [CrossRef]
- Wang, Y.; Cai, Z.; Zhang, Q. Differential evolution with composite trial vector generation strategies and control parameters. IEEE Trans. Evol. Comput. 2011, 15, 55–66. [Google Scholar] [CrossRef]
- Wang, X.; Tang, L. An adaptive multi-population differential evolution algorithm for continuous multi-objective optimization. Inf. Sci. 2016, 348, 124–141. [Google Scholar] [CrossRef]
- Cordeschi, R. The Discovery of the Artificial: Behavior, Mind and Machines before and beyond Cybernetics; Springer: Berlin/Heidelberg, Germany, 2002; Volume 28, p. 312. [Google Scholar]
- Derrac, J.; García, S.; Molina, D.; Herrera, F. A practical tutorial on the use of nonparametric statistical tests as a methodology for comparing evolutionary and swarm intelligence algorithms. Swarm Evol. Comput. 2011, 1, 3–18. [Google Scholar] [CrossRef]
Parameter | Description |
---|---|
M, F | The moths and flames’ position matrixes |
ImpRateMFO-TVP, ImpRateF-TVP, ImpRateC-TVP | The improved rate of MFO-TVP, F-TVP, and C-TVP |
NMFO-TVP, NF-TVP, NC-TVP | The portion size of MFO-TVP, F-TVP, and C-TVP |
MMFO-TVP, MF-TVP, MC-TVP | The sub-population of each TVP |
XInfSolution, XInfCandidate | The archive of inferior and candidate solutions |
XAll | The union population of XInfSolution, XInfCandidate, and M |
Algorithms | Parameters Values |
---|---|
KH | Vf = 0.02, Dmax = 0.005, Nmax = 0.01 |
GWO, WOA | a = [2 0] |
SSA | c2,c3 = random numbers in [0, 1] |
BOA | p = 0.8, a = [0.1 0.3], c = 0.01 |
HGSO | Cluster number = 5, M1 = 0.1, M2 = 0.2, α =β = K = 1, l1 = 0.005, l2 = 100, l3 = 0.01 β |
AOA | u = 0.9, l = 0.1, C1 = 2, C2 = 6, C3 = 1, C4 = 2 |
MTV-MFO | nIter = 20 |
Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO | |
---|---|---|---|---|---|---|---|---|---|---|---|
Overall results | 10 | (w/l/t) | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 2/0/0 |
30 | (w/l/t) | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 2/0/0 | |
50 | (w/l/t) | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 0/2/0 | 2/0/0 |
Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO | |
---|---|---|---|---|---|---|---|---|---|---|---|
Overall results | 10 | (w/l/t) | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 7/0/0 |
30 | (w/l/t) | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 7/0/0 | |
50 | (w/l/t) | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 0/7/0 | 7/0/0 |
Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA (2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO | |
---|---|---|---|---|---|---|---|---|---|---|---|
Overall results | 10 | (w/l/t) | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 10/0/0 |
30 | (w/l/t) | 0/10/0 | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 9/1/0 | |
50 | (w/l/t) | 0/10/0 | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 9/1/0 |
Dim | Metric | KH (2012) | GWO (2014) | MFO (2015) | WOA 2016) | SSA (2017) | BOA (2019) | HGSO (2019) | AOA (2020) | MTV-MFO | |
---|---|---|---|---|---|---|---|---|---|---|---|
Overall results | 10 | (w/l/t) | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 2/8/0 | 0/10/0 | 1/9/0 | 0/10/0 | 6/4/0 |
30 | (w/l/t) | 1/9/0 | 0/10/0 | 0/10/0 | 0/10/0 | 1/9/0 | 0/10/0 | 0/9/1 | 2/7/1 | 5/4/1 | |
50 | (w/l/t) | 0/10/0 | 0/10/0 | 0/10/0 | 0/10/0 | 1/9/0 | 0/10/0 | 0/9/1 | 1/8/1 | 7/3/0 |
KH | GWO | MFO | WOA | SSA | BOA | HGSO | AOA | MTV-MFO | |
---|---|---|---|---|---|---|---|---|---|
Dim = 10 | 1/28/0 | 0/29/0 | 0/29/0 | 0/29/0 | 2/27/0 | 0/29/0 | 1/28/0 | 0/29/0 | 25/4/0 |
Dim = 30 | 1/28/0 | 1/28/0 | 0/29/0 | 0/29/0 | 1/28/0 | 0/29/0 | 0/28/1 | 2/26/3 | 23/5/1 |
Dim = 50 | 0/29/0 | 1/28/0 | 0/29/0 | 0/29/0 | 1/28/0 | 0/29/0 | 0/28/1 | 1/27/1 | 25/4/0 |
Total (w/l/t) | 2/85/0 | 2/85/0 | 0/87/0 | 0/87/0 | 4/83/0 | 0/87/0 | 1/84/2 | 3/82/4 | 73/13/1 |
OE | 2.29% | 2.29% | 0% | 0% | 4.59% | 0% | 3.44% | 5.74% | 85.05% |
Algorithm | Dim | F1 | F3 | F4 | F5 | F6 | F7 | F8 | F9 | F10 | F11 | F12 | F13 | F14 | F15 | F16 | F17 |
KH | 10 | 2.35 | 5.60 | 4.00 | 5.00 | 4.95 | 2.10 | 3.50 | 3.45 | 5.00 | 3.85 | 5.10 | 4.90 | 5.40 | 6.35 | 8.00 | 4.55 |
30 | 2.85 | 5.85 | 2.80 | 3.70 | 5.40 | 2.45 | 3.15 | 4.80 | 4.00 | 4.45 | 3.40 | 2.90 | 5.95 | 3.60 | 3.95 | 4.15 | |
50 | 3.00 | 5.35 | 3.25 | 3.90 | 5.65 | 3.20 | 4.60 | 4.55 | 4.50 | 5.50 | 2.45 | 3.25 | 4.50 | 2.90 | 4.20 | 5.55 | |
GWO | 10 | 5.10 | 4.75 | 4.75 | 2.05 | 3.70 | 3.05 | 2.10 | 4.45 | 2.35 | 2.65 | 3.65 | 3.90 | 4.60 | 4.35 | 3.50 | 3.90 |
30 | 6.10 | 3.55 | 5.15 | 2.25 | 2.25 | 2.90 | 1.65 | 2.15 | 2.25 | 3.10 | 5.60 | 5.45 | 4.10 | 4.90 | 1.75 | 2.25 | |
50 | 6.00 | 3.40 | 5.70 | 2.25 | 1.95 | 2.80 | 2.60 | 2.50 | 2.25 | 4.10 | 6.15 | 5.85 | 4.40 | 5.80 | 2.10 | 2.35 | |
MFO | 10 | 3.90 | 5.03 | 3.65 | 4.05 | 2.50 | 4.55 | 5.25 | 3.38 | 3.55 | 3.60 | 2.30 | 4.60 | 6.25 | 4.95 | 3.95 | 3.55 |
30 | 6.85 | 7.20 | 6.70 | 5.10 | 4.75 | 5.75 | 5.35 | 6.50 | 4.40 | 7.00 | 5.55 | 4.65 | 4.40 | 4.65 | 5.05 | 6.35 | |
50 | 7.45 | 7.35 | 7.00 | 6.75 | 4.75 | 7.90 | 6.35 | 6.60 | 5.00 | 6.40 | 6.75 | 6.55 | 4.50 | 6.15 | 6.65 | 7.20 | |
WOA | 10 | 5.65 | 4.00 | 5.75 | 6.50 | 8.25 | 7.65 | 7.65 | 8.55 | 5.10 | 5.60 | 5.80 | 5.85 | 5.25 | 5.90 | 5.65 | 6.50 |
30 | 4.10 | 8.45 | 5.60 | 7.15 | 8.20 | 7.80 | 6.60 | 7.75 | 5.75 | 4.50 | 6.05 | 5.55 | 6.70 | 6.40 | 6.55 | 6.55 | |
50 | 4.00 | 6.55 | 3.05 | 3.80 | 7.20 | 5.20 | 3.20 | 3.20 | 2.10 | 2.60 | 4.35 | 4.80 | 4.55 | 5.50 | 4.85 | 1.45 | |
SSA | 10 | 3.05 | 2.40 | 2.70 | 3.50 | 5.10 | 4.65 | 3.60 | 3.35 | 5.15 | 5.40 | 4.70 | 5.00 | 3.45 | 3.55 | 3.95 | 4.50 |
30 | 2.20 | 2.00 | 2.55 | 3.25 | 4.85 | 3.45 | 3.75 | 4.30 | 3.10 | 2.20 | 2.95 | 5.25 | 2.25 | 5.45 | 3.30 | 3.30 | |
50 | 1.60 | 2.00 | 2.70 | 4.60 | 4.65 | 2.75 | 4.40 | 5.15 | 4.25 | 2.25 | 3.50 | 4.65 | 2.40 | 4.25 | 3.45 | 4.25 | |
BOA | 10 | 9.00 | 8.90 | 9.00 | 8.85 | 8.20 | 8.50 | 8.65 | 8.15 | 8.55 | 8.00 | 8.65 | 8.10 | 8.20 | 8.55 | 7.50 | 8.30 |
30 | 9.00 | 6.90 | 9.00 | 8.90 | 8.15 | 8.90 | 8.90 | 8.60 | 8.95 | 8.55 | 9.00 | 9.00 | 5.95 | 8.95 | 9.00 | 9.00 | |
50 | 9.00 | 8.05 | 9.00 | 8.95 | 8.50 | 8.55 | 9.00 | 8.95 | 8.70 | 8.85 | 9.00 | 9.00 | 8.60 | 9.00 | 9.00 | 9.00 | |
HGSO | 10 | 8.00 | 6.00 | 7.65 | 7.70 | 7.35 | 7.65 | 6.95 | 7.15 | 7.75 | 6.70 | 7.65 | 6.45 | 6.60 | 6.45 | 6.75 | 6.80 |
30 | 7.80 | 4.80 | 7.90 | 7.75 | 7.60 | 6.95 | 7.70 | 6.70 | 6.70 | 7.70 | 8.00 | 8.00 | 7.25 | 8.05 | 7.60 | 7.10 | |
50 | 7.55 | 6.60 | 7.95 | 7.85 | 8.25 | 7.40 | 7.95 | 8.05 | 7.05 | 6.35 | 8.00 | 7.90 | 7.10 | 7.95 | 7.65 | 7.30 | |
AOA | 10 | 6.95 | 7.30 | 6.50 | 5.95 | 3.80 | 5.00 | 4.90 | 5.25 | 5.85 | 8.15 | 6.15 | 5.20 | 4.25 | 3.90 | 4.70 | 5.85 |
30 | 5.10 | 5.25 | 4.30 | 5.85 | 2.80 | 5.25 | 6.20 | 3.05 | 7.95 | 6.40 | 3.45 | 3.20 | 7.40 | 2.00 | 5.90 | 4.40 | |
50 | 5.00 | 4.70 | 5.25 | 5.70 | 2.95 | 5.55 | 5.80 | 5.00 | 8.25 | 7.75 | 3.80 | 2.00 | 7.95 | 2.45 | 3.90 | 5.40 | |
MTV-MFO | 10 | 1.00 | 1.02 | 1.00 | 1.40 | 1.15 | 1.85 | 2.40 | 1.27 | 1.70 | 1.05 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.05 |
30 | 1.00 | 1.00 | 1.00 | 1.05 | 1.00 | 1.55 | 1.70 | 1.15 | 1.90 | 1.10 | 1.00 | 1.00 | 1.00 | 1.00 | 1.90 | 1.90 | |
50 | 1.40 | 1.00 | 1.10 | 1.20 | 1.10 | 1.65 | 1.10 | 1.00 | 2.90 | 1.20 | 1.00 | 1.00 | 1.00 | 1.00 | 3.20 | 2.50 | |
Algorithm | Dim | F18 | F19 | F20 | F21 | F22 | F23 | F24 | F25 | F26 | F27 | F28 | F29 | F30 | Avg. Rank | Overall Rank | |
KH | 10 | 4.15 | 4.30 | 6.85 | 3.65 | 2.50 | 5.30 | 4.30 | 3.25 | 4.20 | 7.25 | 4.60 | 5.45 | 6.45 | 4.70 | 5 | |
30 | 3.70 | 4.10 | 5.15 | 4.15 | 2.25 | 5.60 | 6.25 | 3.20 | 5.30 | 7.90 | 3.00 | 5.65 | 4.65 | 4.29 | 4 | ||
50 | 5.00 | 3.25 | 5.80 | 4.35 | 5.80 | 7.00 | 7.15 | 4.00 | 7.00 | 8.00 | 4.10 | 6.25 | 5.60 | 4.82 | 5 | ||
GWO | 10 | 5.95 | 4.20 | 4.55 | 6.15 | 4.15 | 2.05 | 5.45 | 3.85 | 4.10 | 3.35 | 6.40 | 2.80 | 5.85 | 4.06 | 3 | |
30 | 4.60 | 4.60 | 3.15 | 2.80 | 5.40 | 1.75 | 2.75 | 4.65 | 1.90 | 4.80 | 5.55 | 2.25 | 5.60 | 3.63 | 3 | ||
50 | 5.00 | 5.25 | 2.40 | 2.60 | 3.10 | 2.25 | 2.40 | 5.65 | 2.45 | 6.15 | 5.80 | 2.55 | 6.70 | 3.88 | 4 | ||
MFO | 10 | 5.00 | 5.90 | 3.65 | 6.28 | 3.60 | 3.95 | 7.50 | 5.10 | 4.10 | 2.45 | 5.65 | 4.05 | 5.20 | 4.40 | 4 | |
30 | 5.35 | 4.10 | 5.70 | 6.10 | 6.35 | 3.75 | 3.95 | 6.60 | 4.20 | 5.05 | 7.75 | 4.80 | 3.60 | 5.43 | 6 | ||
50 | 5.10 | 5.70 | 6.35 | 7.20 | 6.00 | 5.50 | 4.45 | 6.80 | 4.60 | 6.05 | 7.75 | 6.00 | 4.15 | 6.17 | 7 | ||
WOA | 10 | 4.10 | 7.30 | 7.10 | 8.20 | 6.25 | 6.50 | 7.75 | 6.25 | 7.10 | 6.45 | 5.05 | 8.35 | 6.70 | 6.44 | 7 | |
30 | 6.30 | 7.00 | 6.50 | 7.95 | 6.90 | 7.05 | 6.80 | 4.10 | 7.20 | 7.10 | 4.90 | 7.90 | 6.65 | 6.55 | 7 | ||
50 | 4.25 | 5.95 | 1.90 | 4.50 | 1.20 | 3.85 | 3.65 | 1.05 | 4.45 | 3.65 | 2.60 | 5.00 | 3.45 | 3.86 | 3 | ||
SSA | 10 | 5.70 | 3.40 | 4.60 | 3.70 | 3.60 | 3.35 | 5.40 | 3.50 | 2.90 | 2.35 | 4.65 | 2.70 | 4.40 | 3.94 | 2 | |
30 | 2.65 | 5.35 | 4.05 | 4.10 | 3.50 | 2.90 | 2.45 | 2.15 | 2.30 | 4.85 | 2.15 | 4.80 | 4.50 | 3.44 | 2 | ||
50 | 2.35 | 4.75 | 3.65 | 4.05 | 4.20 | 3.25 | 2.95 | 2.75 | 2.00 | 4.30 | 2.40 | 4.40 | 5.10 | 3.55 | 2 | ||
BOA | 10 | 7.80 | 7.65 | 6.85 | 3.55 | 7.50 | 7.95 | 2.55 | 9.00 | 6.15 | 7.25 | 7.55 | 7.70 | 8.25 | 7.75 | 9 | |
30 | 7.50 | 8.95 | 8.40 | 2.25 | 4.65 | 8.60 | 9.00 | 9.00 | 8.95 | 8.95 | 9.00 | 9.00 | 9.00 | 8.28 | 9 | ||
50 | 8.85 | 8.95 | 8.95 | 8.00 | 6.65 | 8.85 | 9.00 | 9.00 | 9.00 | 9.00 | 9.00 | 9.00 | 9.00 | 8.77 | 9 | ||
HGSO | 10 | 8.10 | 6.10 | 6.60 | 5.45 | 8.35 | 8.75 | 2.25 | 6.05 | 7.50 | 7.15 | 4.65 | 6.30 | 3.45 | 6.70 | 8 | |
30 | 7.75 | 7.85 | 5.90 | 8.60 | 5.80 | 8.15 | 7.70 | 7.75 | 7.10 | 1.80 | 6.60 | 6.20 | 8.00 | 7.13 | 8 | ||
50 | 7.75 | 8.05 | 6.30 | 8.60 | 6.15 | 8.15 | 7.85 | 7.90 | 7.65 | 1.65 | 6.35 | 7.85 | 8.00 | 7.35 | 8 | ||
AOA | 10 | 3.20 | 5.15 | 3.75 | 5.50 | 6.95 | 5.65 | 5.85 | 6.50 | 7.65 | 6.50 | 5.45 | 6.05 | 3.25 | 5.56 | 6 | |
30 | 6.15 | 2.05 | 4.90 | 6.80 | 8.60 | 5.50 | 4.80 | 6.15 | 5.55 | 1.30 | 4.95 | 2.15 | 1.50 | 4.79 | 5 | ||
50 | 5.70 | 2.10 | 6.65 | 4.40 | 8.65 | 4.80 | 6.00 | 5.55 | 6.05 | 1.35 | 5.25 | 2.15 | 1.00 | 4.87 | 6 | ||
MTV-MFO | 10 | 1.00 | 1.00 | 1.05 | 2.52 | 2.10 | 1.50 | 3.95 | 1.50 | 1.30 | 2.25 | 1.00 | 1.60 | 1.45 | 1.45 | 1 | |
30 | 1.00 | 1.00 | 1.25 | 2.25 | 1.55 | 1.70 | 1.30 | 1.40 | 2.50 | 3.25 | 1.10 | 2.25 | 1.50 | 1.46 | 1 | ||
50 | 1.00 | 1.00 | 3.00 | 1.30 | 3.25 | 1.35 | 1.55 | 2.30 | 1.80 | 4.85 | 1.75 | 1.80 | 2.00 | 1.73 | 1 |
Algorithm | Dim | F1 | F3 | F4 | F5 | F6 | F7 | F8 | F9 | F10 | F11 | F12 | F13 | F14 | F15 |
KH | 10 | 4.18 | 3.55 | 10.90 | 9.85 | 3.55 | 1.95 | 3.39 | 1.67 | 8.94 | 7.19 | 5.24 | 6.75 | 2.47 | 3.81 |
30 | 4.91 | 14.40 | 21.20 | 10.10 | 17.40 | 2.93 | 7.40 | 14.00 | 4.94 | 7.82 | 7.16 | 9.09 | 3.37 | 11.40 | |
50 | 6.00 | 23.10 | 6.13 | 14.70 | 28.80 | 5.50 | 14.20 | 24.70 | 5.00 | 8.99 | 5.12 | 8.56 | 4.65 | 12.80 | |
GWO | 10 | 1.67 | 2.89 | 12.70 | 2.31 | 3.50 | 3.09 | −0.17 | 1.74 | 1.46 | 6.96 | 3.03 | 5.29 | 2.66 | 3.93 |
30 | 5.84 | 16.60 | 17.20 | 6.91 | 8.05 | 2.90 | 0.61 | 5.07 | 0.65 | 10.70 | 3.87 | 1.50 | 2.37 | 1.33 | |
50 | 10.10 | 19.60 | 9.64 | 3.79 | 6.07 | 2.83 | 7.47 | 4.51 | −1.85 | 4.86 | 3.34 | 3.48 | 2.86 | 2.47 | |
MFO | 10 | 1.00 | 2.75 | 9.18 | 13.30 | 2.69 | 6.18 | 5.09 | 1.11 | 5.34 | 3.49 | 1.07 | 3.85 | 4.14 | 4.33 |
30 | 5.22 | 8.49 | 5.69 | 18.60 | 8.65 | 7.50 | 11.10 | 13.10 | 5.75 | 4.14 | 2.60 | 1.77 | 3.51 | 4.08 | |
50 | 14.80 | 8.90 | 4.91 | 16.00 | 27.40 | 9.69 | 14.40 | 19.40 | 5.60 | 3.52 | 3.69 | 1.89 | 2.73 | 1.50 | |
WOA | 10 | 2.43 | 4.93 | 3.97 | 6.89 | 11.00 | 8.17 | 7.84 | 5.99 | 9.22 | 6.24 | 3.16 | 6.56 | 2.20 | 3.80 |
30 | 6.00 | 9.50 | 18.00 | 15.40 | 31.70 | 16.70 | 11.30 | 13.50 | 11.20 | 11.30 | 5.89 | 8.59 | 2.81 | 8.39 | |
50 | 6.00 | 9.50 | 7.99 | 9.20 | 27.20 | 8.96 | 6.56 | 10.40 | −3.12 | 8.04 | 5.89 | 8.40 | 2.81 | 8.35 | |
SSA | 10 | 4.80 | 11.80 | 11.50 | 4.15 | 3.78 | 5.66 | 2.83 | 1.19 | 7.29 | 5.06 | 2.79 | 4.95 | 9.82 | 4.32 |
30 | 3.65 | 14.60 | 22.50 | 8.94 | 10.50 | 6.94 | 6.62 | 7.50 | 3.57 | 6.40 | 3.95 | 6.69 | 5.42 | 7.13 | |
50 | 2.33 | 16.00 | 5.14 | 9.72 | 16.90 | 2.25 | 8.81 | 18.50 | 3.12 | 5.38 | 7.13 | 8.16 | 6.08 | 6.59 | |
BOA | 10 | 8.42 | 19.60 | 10.80 | 25.40 | 18.60 | 30.00 | 20.80 | 9.84 | 21.80 | 8.91 | 4.13 | 4.84 | 8.11 | 10.80 |
30 | 18.10 | 25.30 | 24.30 | 44.90 | 42.20 | 52.70 | 60.00 | 33.40 | 32.10 | 18.50 | 14.30 | 7.32 | 10.80 | 3.95 | |
50 | 43.00 | 48.70 | 42.80 | 57.50 | 46.90 | 38.20 | 66.50 | 48.90 | 57.10 | 44.40 | 15.90 | 12.60 | 4.39 | 9.11 | |
HGSO | 10 | 10.00 | 10.60 | 16.30 | 25.60 | 25.20 | 29.90 | 18.20 | 18.00 | 15.70 | 12.80 | 9.78 | 8.97 | 4.31 | 8.46 |
30 | 21.00 | 24.00 | 16.20 | 55.10 | 45.30 | 35.90 | 49.60 | 21.10 | 16.70 | 10.30 | 10.70 | 14.20 | 9.03 | 8.96 | |
50 | 20.60 | 73.90 | 19.00 | 48.30 | 63.00 | 30.10 | 58.40 | 50.90 | 34.30 | 16.80 | 18.00 | 10.80 | 11.90 | 18.80 | |
AOA | 10 | 13.20 | 7.92 | 5.68 | 15.20 | 9.66 | 13.30 | 9.88 | 6.28 | 9.69 | 8.79 | 6.98 | 19.30 | 3.50 | 4.65 |
30 | 9.02 | 18.50 | 28.40 | 34.50 | 14.70 | 27.30 | 36.30 | 11.00 | 18.20 | 10.70 | 10.40 | 5.75 | 7.27 | 5.51 | |
50 | 8.24 | 41.00 | 16.30 | 13.00 | 18.50 | 17.10 | 10.70 | 19.80 | 60.40 | 26.50 | 10.10 | 6.13 | 24.30 | 17.10 | |
Algorithm | Dim | F17 | F18 | F19 | F20 | F21 | F22 | F23 | F24 | F25 | F26 | F27 | F28 | F29 | F30 |
KH | 10 | 10.40 | 5.34 | 2.67 | 8.20 | −0.40 | 0.48 | 10.10 | −0.95 | 4.88 | 1.79 | 5.78 | 5.03 | 6.61 | 2.84 |
30 | 5.15 | 3.96 | 4.20 | 6.92 | 7.95 | −1.17 | 13.50 | 13.40 | 7.12 | 4.33 | 10.40 | 13.60 | 7.25 | 5.73 | |
50 | 8.30 | 7.40 | 6.28 | 5.56 | 14.60 | 8.35 | 19.80 | 16.40 | 8.92 | 22.50 | 14.20 | 7.07 | 10.40 | 9.26 | |
GWO | 10 | 6.19 | 6.47 | 3.33 | 5.24 | 4.15 | 2.47 | 2.00 | 2.36 | 4.49 | 1.83 | 2.76 | 10.80 | 4.34 | 3.20 |
30 | 1.47 | 3.54 | 3.38 | 5.04 | 2.92 | 5.61 | 1.34 | 3.54 | 10.80 | −1.92 | 4.16 | 14.50 | 0.12 | 3.53 | |
50 | −0.31 | 3.36 | 1.96 | −2.42 | 5.97 | −0.61 | 3.75 | 1.90 | 8.98 | 2.52 | 4.45 | 8.43 | 2.38 | 15.60 | |
MFO | 10 | 9.53 | 4.44 | 2.95 | 5.00 | 3.54 | 0.79 | 7.80 | 3.17 | 6.50 | 7.32 | 0.75 | 9.43 | 3.79 | 3.60 |
30 | 8.06 | 3.02 | 3.22 | 8.69 | 11.10 | 6.37 | 10.50 | 17.70 | 4.94 | 9.38 | 5.19 | 5.48 | 5.12 | 2.36 | |
50 | 10.20 | 3.39 | 4.41 | 5.99 | 23.30 | 9.76 | 18.00 | 13.50 | 5.33 | 16.60 | 4.16 | 14.00 | 10.80 | 2.19 | |
WOA | 10 | 6.24 | 5.02 | 4.92 | 9.74 | 6.24 | 1.89 | 11.10 | 2.03 | 8.09 | 4.41 | 4.09 | 7.40 | 9.66 | 4.56 |
30 | 9.87 | 4.06 | 4.28 | 9.37 | 9.88 | 6.69 | 19.60 | 14.20 | 9.97 | 11.00 | 7.83 | 17.40 | 15.40 | 6.35 | |
50 | −3.66 | 4.05 | 4.28 | −3.92 | 6.51 | −4.68 | 8.55 | 5.88 | −6.31 | 7.06 | −3.71 | 2.32 | 8.76 | 5.85 | |
SSA | 10 | 12.00 | 6.51 | 2.14 | 7.06 | −0.20 | −0.27 | 4.66 | 0.70 | 3.63 | −0.33 | 0.71 | 5.27 | 2.98 | 1.57 |
30 | 3.55 | 4.52 | 7.08 | 6.35 | 6.71 | 3.11 | 4.60 | 5.36 | 3.84 | −1.43 | 5.84 | 6.62 | 7.21 | 6.17 | |
50 | 4.64 | 8.57 | 8.29 | 1.00 | 8.51 | 2.16 | 6.04 | 4.00 | 1.64 | −1.92 | −1.17 | 1.73 | 9.66 | 20.30 | |
BOA | 10 | 27.20 | 3.76 | 2.53 | 19.20 | −1.96 | 6.35 | 19.70 | −5.31 | 13.90 | 7.66 | 8.10 | 7.76 | 15.50 | 5.73 |
30 | 5.54 | 3.38 | 5.53 | 18.20 | −0.19 | 10.00 | 22.30 | 18.00 | 22.70 | 21.40 | 15.00 | 40.90 | 8.16 | 6.19 | |
50 | 8.95 | 7.12 | 7.04 | 24.60 | 12.50 | 4.49 | 28.50 | 36.40 | 74.70 | 57.30 | 21.80 | 40.90 | 6.70 | 10.00 | |
HGSO | 10 | 25.60 | 5.74 | 5.27 | 13.30 | 1.22 | 8.37 | 24.20 | −4.28 | 13.20 | 18.20 | 10.80 | 14.90 | 16.30 | 2.23 |
30 | 15.70 | 7.14 | 12.60 | 15.70 | 31.50 | 19.90 | 33.40 | 27.00 | 29.90 | 28.60 | −5.88 | 6.07 | 9.06 | 16.90 | |
50 | 13.00 | 15.70 | 11.90 | 7.20 | 51.00 | 4.80 | 24.90 | 35.50 | 27.20 | 21.10 | −18.80 | 8.33 | 10.80 | 19.00 | |
AOA | 10 | 21.20 | 6.38 | 7.58 | 14.90 | 1.77 | 6.01 | 21.00 | 0.12 | 15.50 | 10.50 | 5.12 | 123.00 | 15.20 | 2.64 |
30 | 8.00 | 14.20 | 11.80 | 10.80 | 23.50 | 22.70 | 18.60 | 13.20 | 35.00 | 14.90 | −5.88 | 21.80 | −0.18 | −1.92 | |
50 | 8.21 | 21.30 | 27.80 | 9.26 | 6.50 | 40.70 | 7.78 | 26.80 | 19.60 | 15.60 | −18.80 | 7.51 | 1.03 | −31.30 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Nadimi-Shahraki, M.H.; Taghian, S.; Mirjalili, S.; Ewees, A.A.; Abualigah, L.; Abd Elaziz, M. MTV-MFO: Multi-Trial Vector-Based Moth-Flame Optimization Algorithm. Symmetry 2021, 13, 2388. https://doi.org/10.3390/sym13122388
Nadimi-Shahraki MH, Taghian S, Mirjalili S, Ewees AA, Abualigah L, Abd Elaziz M. MTV-MFO: Multi-Trial Vector-Based Moth-Flame Optimization Algorithm. Symmetry. 2021; 13(12):2388. https://doi.org/10.3390/sym13122388
Chicago/Turabian StyleNadimi-Shahraki, Mohammad H., Shokooh Taghian, Seyedali Mirjalili, Ahmed A. Ewees, Laith Abualigah, and Mohamed Abd Elaziz. 2021. "MTV-MFO: Multi-Trial Vector-Based Moth-Flame Optimization Algorithm" Symmetry 13, no. 12: 2388. https://doi.org/10.3390/sym13122388
APA StyleNadimi-Shahraki, M. H., Taghian, S., Mirjalili, S., Ewees, A. A., Abualigah, L., & Abd Elaziz, M. (2021). MTV-MFO: Multi-Trial Vector-Based Moth-Flame Optimization Algorithm. Symmetry, 13(12), 2388. https://doi.org/10.3390/sym13122388
