Article

Photo-Tunable Azobenzene-Anthraquinone Schiff Base Copper Complexes as Mediators for Laccase in Biofuel Cell Cathode

by
Kazuto Kajiwara
1,
Sayantan Pradhan
2,
Tomoyuki Haraguchi
1,
Chittaranjan Sinha
2,
Rakesh Parida
3,
Santanab Giri
4,
Gourisankar Roymahaptra
4 and
Takashiro Akitsu
1,*
1
Department of Chemistry, Faculty of Science, Tokyo University of Science, 1-3 Kagurazaka, Shinjuku-ku, Tokyo 162-8601, Japan
2
Department of Chemistry, Jadavpur University, Kolkata, West Bengal 700032, India
3
Department of Chemistry, National Institute of Technology, Rourkela, Odisha 769008, India
4
Department of Applied Sciences, Haldia Institute of Technology, Haldia, West Bengal 721657, India
*
Author to whom correspondence should be addressed.
Symmetry 2020, 12(5), 797; https://doi.org/10.3390/sym12050797
Submission received: 13 April 2020 / Revised: 30 April 2020 / Accepted: 6 May 2020 / Published: 11 May 2020
(This article belongs to the Special Issue Symmetry in Biomolecules or Related Chiral Molecules)
Browse Figures
Review Reports Versions Notes

Abstract

:
Induced chirality (achiral target in chiral matrix such as proteins) sometimes play a useful role in evaluating supramolecular systems involving biomolecules. Enzymatic fuel cells, which generate electricity via enzymatic redox reactions at electrodes hold a significant potential for sustainable power. Bacterial laccase, a multi-copper oxidase, was used in the cathodic compartment of the enzymatic biofuel cells because of its low redox potential. Three new salen Cu(II) complexes were designed and investigated as mediators. The Schiff base ligands consisted of both a redox-active (anthraquinone) and a photochromic (azobenzene) moiety. The interaction between laccase and a mediator was examined with induced circular dichroism (CD) and the docking tool to observe in which of the laccase domains the mediators bind as well as study the photo-induced tuning of both the cis-trans photoisomerization and orientation by the Weigert effect. Both the electrochemical and photochromic properties are also discussed and compared using density functional theory (DFT), time-dependent (TD)-DFT, and docking simulations.

1. Introduction

Laccase is an enzyme that catalyzes the four-electron reduction of oxygen to water through four copper atoms. A protein that includes copper atoms is referred to as multicopper oxidase [1,2,3]. The four copper atoms that are the active sites of the laccase are divided into three types (T1–T3) and T2 copper and the two T3 copper form triple nuclear clusters. T1 copper first receives electrons from the substrate and oxidizes the substrate, which is followed by a four-electron reduction at the T2 and T3 sites (Figure 1). Multicopper oxidase such as laccase is used as an enzyme on the cathode side of the enzyme-type biofuel cell [4,5,6,7]. Because biofuel cells use bio-based catalysts, they have the advantage to generate electricity at room temperature and low environmental load [8,9,10]. However, there is also a drawback that enzyme stability is lacking, and the electric power is smaller than that of other fuel cells. The following ways will be explored to solve the disadvantage of low power. A mediator that assists the donation and reception of the electron has been used for electron transfer between the electrode and laccase [11,12,13]. A mediator is a substance that assists donating and receiving electrons and is sandwiched between an electrode and an enzyme [13].
To improve this electron transfer between the electrode and laccase, several types of metal complexes were investigated as mediators [14,15,16,17,18,19,20]. Molecular docking of suitable compounds (both ligands and complexes) to the hydrophobic pocket of laccase is useful to predict the distance or path of electron transfer and their effectivity in biofuel cells. For such hydrophobic weak interactions, induced chirality (namely characteristic CD bands) from chiral (asymmetric) protein matrix proteins sometimes play a useful role in evaluating a supramolecular interaction even for achiral guests. The presence of a noncoordinating, non-innocent substituent in the ligand backbone of the metal ligand or complex may be induced by the polarized UV-light to control the rate of redox processes [16,17]. In particular, the azobenzene moiety exhibits not only cis-trans photoisomerization but also the Weigert effect (molecular alignment induced by polarized UV light) [21], while controlling the molecular orientation for a suitable fitting. Herein, we designed new salen Cu(II) complexes as mediators. Generally, (chiral) salen metal complexes have been employed as (asymmetric) catalysis because of their advantage of stereochemical tuning (with respect to chirality) and redox properties with proper metal ions [22]. The Schiff base consisted of a redox-active (anthraquinone) [23,24,25,26] and photochromic (azobenzene) moiety [26,27,28]. Molecular docking [29] was conducted to investigate in which hydrophobic domain of the laccase the salen Cu(II) complexes are bound (Figure 2). Both electrochemical and photochromic properties were examined and compared with the density functional theory (DFT)/ time-dependent (TD)-DFT computed functions.

2. Materials and Methods

2.1. General Procedure

All chemicals of the highest commercial grade available (solvents from Kanto Chemical, Tokyo, Japan), organic compounds (Tokyo Chemical Industry, Tokyo, Japan), and metal sources and laccase (from Trametes versicolor) from Wako (Osaka, Japan) were used as received without further purification.

2.2. Preparations

2-Hydroxy-3-methoxy-5-phenyldiazobenzaldehyde, 2-hydroxy-5-phenyldiazobenzaldehyde, and 2,6-dichlorophenyl-2-hydroxy-5-phenyldiazobenzaldehyde (as precursors of 1–3, respectively) were prepared according to the literature procedure using the corresponding precursor aldehydes [14]. The key reaction to form Schiff base is condensation of amine and aldehyde found by Hugo classically. Each of them (0.26 g, 1 mmoL) was added to a methanol solution (80 mL) of 1,2-diaminoanthraquinon (0.12 g, 0.5 mmoL) and stirred for 2 h at 318 K. Then Cu(CH3COO)2 (0.1 g, 0.5 mmoL) was added and stirred for 2 h at 318 K. A green crude product was obtained by filtration after evaporation and the product was recrystallized from hexane (less than 10 mL) and dried to yield 1–3, respectively. Mass spectra could not be tried because of the lack of suitable solvents. Infrared (IR) and electronic (UV-vis) spectra are below.
  • 1: Yield 48%. IR 1598 cm−1 s (C=N). UV-vis (DMSO) 280, 390, 450 nm, (reflectance) 460, 610 nm.
  • 2: Yield 65%. IR 1586 cm−1 s (C=N). UV-vis (DMSO) 280, 390, 450 nm, (reflectance) 460, 610 nm.
  • 3: Yield 11%. IR 1613 cm−1 s (C=N). UV-vis (DMSO) 270, 350, 540 nm, (reflectance) 460, 610 nm.

2.3. Physical Measurements

Infrared (IR) spectra were measured on a JASCO (Tokyo, Japan) FT-IR 4200 spectrophotometer in the range of 4000–400 cm−1 at 298 K. (Polarized or normal) electronic (UV-vis) spectra were measured on a JASCO (Tokyo, Japan) V—650 spectrophotometer equipped with a polarizer in the range of 800–220 nm at 298 K. Circular dichroism (CD) spectra were recorded on a JASCO (Tokyo, Japan) J—725 spectropolarimeter in the range of 800–200 nm at 298 K. Electrochemical cyclic voltammetry (CV) were performed with a BAS (Tokyo, Japan) SEC2000—UV/vis and ALS2323 system with Ag/AgCl electrodes in the range of −0.50 to 0.80 V vs. Ag/Ag+. Photo-illumination of linearly polarized UV light was carried out using a lamp (1.0 Mw·cm−2) by Hayashi Tokei (Tokyo, Japan) with optical filters (UV, λ = 200–400 nm) by using optical fibers and a polarizer through optical filters (Sigma Koki, Tokyo, Japan).

2.4. X-ray Crystallography

Powder X-ray diffraction patterns of 1–3 were measured at 298 K using a CuKα source (about 0.154 nm) with Rigaku Smart Lab (Tokyo, Japan). The Rietveld analysis was carried out with a commercially available program package Rigaku PDXL2 ver.2.2.1.0 (Tokyo, Japan), by the following procedures: (measurement), indexing, cell and space group determination, input composition, and an initial structural model from DFT results, direct space method, addition of (isotoropic) displacement parameters for non-hydrogen atoms, and refinement with hydrogen atoms under restraint. Although powder analysis generally may exhibit relatively high Rwp values, the purpose of crystal structures in this paper was not a closely quantitative discussion of bond distances nor angles but merely confirming newly prepared compounds mentioning overall structures.
Crystallographic data of 1: C42H28CuN6O6, Mw = 776.25, T = 298 K, Triclinic, P-1(#2), Z = 2, a = 11.756(18), b = 16.051(19), c = 11.189(13) Å, α = 81.22(8), β = 83.61(7), γ = 78.40(6)°, V = 2037(5) Å3, D = 1.266 g·cm−3, F(000) = 798, S = 6.8694, Rwp = 5.45%.
Crystallographic data of 2: C40H24CuN6O4, Mw = 716.20, T = 298 K, Triclinic, P-1(#2), Z = 2, a = 12.619(19), b = 16.003(17), c = 11.28(2) Å, α = 101.41(10), β = 98.25(13), γ = 110.70(8)°, V = 2128(6) Å3, D = 1.118 g·cm−3, F(000) = 734, S = 10.7396, Rwp = 7.63%.
Crystallographic data of 3: C40H20Cl4CuN6O4, Mw = 853.97, T = 298 K, Triclinic, P-1(#2), Z = 2, a = 14.025(6), b = 12.056(4), c = 18.103(9) Å, α = 98.63(2), β = 99.663(16), γ = 102.33(2)°, V = 2893(2) Å3, D = 0.980 g·cm−3, F(000) = 862, S = 9.63, Rwp = 10.53%.

2.5. Computational Methods

Within the density functional theory framework, the B3LYP level of theory with an SDD basis set was used to optimize all the studied complexes. A vibrational frequency analysis was also performed to ensure the local minimum of the complexes. All the optimizations were done using the Gaussian 09W software Revision D.02 (Gaussian, Inc., Wallingford, CT, USA) [30]. To know the orbital information of the optimized structures, the TDDFT methodology, which is implemented in G09W, was used. Gaussian software was applied to calculate the density of the state (DOS) and partial DOS (PDOS). The solvent medium was incorporated with the polarizable continuum model (PCM). Docking of metal complexes was carried out with AutoDock 4.2.6 [31] on a Windows 10 platform with 8 GB RAM (random access memory) and Intel I 5 processor.

3. Results and Discussion

3.1. Structural Characterization of Complexes

All complexes 1–3 displayed a four-coordinated slightly distorted square planar trans-[N2O2] coordination geometry (which is in agreement with EPR of 2 and 3 in the solid state as S = 1/2 in the Supporting Information) and all atoms are located approximately within a plane, which suggests an extended conjugate system in the ligands. Figure 3, Figure 4 and Figure 5 depict the crystal structures of 1–3, respectively. Within the precision of the powder analysis, geometries of the organic ligand moiety exhibited normal values for the related compounds [17,32,33,34]. Overall structures (for example, around azo groups) were also similar to the density functional theory (DFT) optimized structures mentioned before. However, DFT optimized structures were not a complete square planar geometry but were somewhat distorted. Despite the photoisomerization of the azo groups, the salen skeleton and the organic ligands kept rigid structures. As the crystal structures indicate, the coordination in solutions of solvents is possible. Empty apical sites may potentially accept them in an axial position [35].

3.2. Spectral Characterization of Complexes

IR spectra for 1–3 exhibited characteristic and strong imine C = N bands around 1600 cm−1 for the Schiff base metal complexes. Slight shifts of these bands may be attributed to electronic aspects of the ligand of the complexes because the coordination geometries of the complexes are similar to each other [17,36].
Electronic, UV-vis (ultraviolet-visible) spectra for 1–3 in DMSO solutions displayed two π-π* bands around 250–350 nm and a n-π* band due to anthraquinone at about 480 nm. This is because the first absorption band (n-π* transition) of anthraquinone, which usually appears around 400 nm, experiences a shift to longer wavelength if it contains an electron donating substituent. The salen skeleton is formed or the metal includes an electron donating function [17]. Only 3 exhibited a considerable shift to longer wavelength. The qualitative assignments for 1 and 2 were also supported by DFT calculations (Table S1 and Figure 6). Obtaining agreeable data for 3 was difficult due to electron-withdrawing Cl-groups. The calculated DFT data for 1 for doublet ground states were as follows: energy = −2593.588 a.u., alpha HOMO = −0.371 a.u., LUMO = −0.357 a.u., beta HOMO = −0.371 a.u., and LUMO = −0.356 a.u. For 2, on the other hand, the calculated data were as follows: energy = −2364.606 a.u., alpha HOMO = −0.398 a.u., LUMO = −0.335 a.u., beta HOMO = −0.397 a.u., and LUMO = −0.335 a.u.
To obtain the bonding pattern of the complexes, we generated density of state (DOS) and partial DOS (PDOS). The corresponding graphs are provided in Figure S2. The PDOS generated the frontier molecular orbitals of these complexes from the contribution of the meal and ligand orbitals. From Figure 6, it is evident that the HOMO (highest occupied molecular orbital) and LUMO (lowest unoccupied molecular orbital) for complex 1 are created by the mixture of Cu and ligand orbitals. Whereas, for complex 2, the contribution is mainly related to the ligand. The metal contribution for complex 2 corresponds to higher unoccupied molecular orbitals like LUMO+3, LUMO+4, etc.
Figure 7 exhibits the change of UV-vis spectra due to the trans- to cis-photoisomerization of azobenzene moiety of 1, which displays a shift of π-π* bands to a shorter wavelength [37]. The stable trans-form was converted to the cis-form by a metal-to-ligand charge transfer (MLCT) transition, whereby electrons move to the ligand (Figure 6), as well as other transitions, when irradiated by natural, namely unpolarized UV light [32,33]. Slow photoisomerization resulted in overlap of red and blue lines in Figure 7. Moreover, the reversible cis-trans photoisomerization, which converts the cis- to the trans-form by visible light irradiation, was observed for all complexes. However, the photoisomerization for 3 did not occur as smoothly when compared to that of 1 or 2. Azobenzene dyes ending with electron-withdrawing or donor groups were reported to shift absorption or emission wavelengths and even affect photoisomerization [37,38]. Therefore, 1, which exhibited the most efficient cis-trans photoisomerization, will mainly be discussed from here on.
For a measurement of the angle-dependent polarized UV-vis absorption spectra at 320 nm, cast films were prepared by mixing a 5 wt% polymethyl methacrylate (PMMA) in DMF solution (PMMA: complex = 2:1). To evaluate the Weigert effect, we employed the R parameter to describe the degree of the photo-induced optical anisotropy [39,40,41,42].
R = A 0 A 90
where A90 and A0 denote the absorbance values measured with the measuring polarizer perpendicular or parallel to the direction of the electric vector of the irradiation of linearly polarized light. For polarized UV-vis spectra, completely isotropic chromophores are indicated by R = 1. Hence, the R parameter changes as the dichroism by alignment increases. The molecules in PMMA films were anisotropically oriented in the order of 2 (R = 0.94) > 1 (R = 0.95) > 3 (R = 1.01).

3.3. Spectra of Docking Cu Complex 1 and Laccase

Figure 8a shows UV-vis spectra (phosphate buffer at pH 7.3) of laccase, complex 1, and spectral changes when laccase was added in 0.5, 1, 1.5, 2.0 equivalents to 1, respectively. Pure laccase exhibited different spectrum than complexes excess ones, which may depend on associating features of two components resulting in induced CD. Adding laccase, an increase in the laccase-derived peak near 230 nm was observed. The most appropriate ratio of 1: laccase according to Figure 8a was 1:1. As a result of the corresponding CD measurements (Figure 8b), a change was observed in the band at about 230 nm attributed to the α-helix helical structure, using a 1:1 ratio of 1:laccase (their amounts were 6.0 × 10−6 mol) [16,19]. The CD spectrum of laccase agrees with analogous spectra reported for various types of laccase. Although no CD signals were expected for the achiral 1, isolated (excess) 1 also exhibited a CD spectrum. The induced CD signals of 1 derived from chiral laccase molecules may be ascribed to a different spectrum [43,44,45].

3.4. Computational Docking of Cu Complex 1 and Laccase

The protein structure of Trametes versicolor laccase was retrieved from the protein data bank (PDB ID: 1GYC) [46]. The A chain of laccase was modified by removing the alternate structure, water, and bound ligand. Missing amino acids were checked and hydrogen atoms (polar) were added to the protein structure. Center Grid box x:16.895, y:21.372, z:37.151 and number of points in x, y, z dimensions were considered as 30 × 30 × 30 points, respectively. The grid spacing applied was 0.3750 Å. The three-dimensional structures of the complexes, which are essential for docking were obtained from the optimized structure using DFT results. Autodock Tools modified the protein (laccase) and ligand (the Cu complexes) structures. Ligands were prepared by adding Gasteiger charges, detecting root, and choosing torsions from the torsion tree of the Autodock Tools panel. The docking procedure was carried out using the Lamarckian genetic algorithm. The best-fit ligand conformations were selected based on their minimum binding energies. Complex 1 showed the highest docking score, i.e., −10.5 kcal/mol (−8.6 and −9.9 kcal/mol for 2 and 3, respectively). It formed some bonds with laccase (Figure 9, Table 1, and Table S2).
The docking results showed that three salen derivatives of Cu(II) complexes are bound to the domain three of laccase binding hydrophobic pockets with close vicinity to T1 copper of laccase [14]. The interaction were not only predominantly hydrogen bonds but also hydrophobic or electrostatic ones, as mentioned in Table 1 and Table S2. The ligand of 1 has formed eight hydrogen bonds ranging from 1.10 Å to 2.91 Å, eleven hydrophobic bonds ranging from 2.05 Å to 5.24 Å, and an Electrostatic bond. Ligand 2 has formed three hydrogen bonds ranging from 2.20 Å to 2.36 Å, 17 hydrophobic bonds ranging from 3.58 Å to 5.44 Å, and two Electrostatic bonds ranging from 3.33 Å to 3.49 Å. Ligand3 has formed six hydrogen bonds from a range of 1.06 Å to 2.94 Å, 13 hydrophobic bonds ranging from 2.05 Å to 5.45 Å, and two Electrostatic bonds ranging from 3.33 Å to 3.49 Å. The amino acids surrounding T1 are Histidine 395, Cysteine 453, and Histidine 458, which play an essential role during the catalytic action (Figure S3 and Figure 9). Aspartic acid (Asp 206), near the His 458 of the T1 copper site, located at the bottom of the domain contributes to substrate stabilization and orientation (through O–H interactions) at the T1 copper site for a catalytic function through the participation of a fully conserved His 458. Asp 206 acts as an essential mechanistic element, which promotes the electron subtraction and transfer from the substrate (namely donor molecules) to the T1 copper ion (Cu2+ → Cu1+) through a direct interaction with His 458 at the T1 copper site (Figure 10). As the ligands (mediators) are bound in domain three close to T1 copper and Asp 206 of laccase, it is expected that they support the transfer of electrons from the cathode to laccase.

3.5. Electrochemical Measurements for Docking Materials of Cu Complexes and Laccase

Electron transfer from mediator to copper sites are shown in Figure 10 in which redox properties of each metal site are important. Figure 11 shows the results of the cyclic voltammetry (CV) for 1–3. A glassy carbon (GC) electrode was used as a working electrode. The working electrode was prepared with respect to the following procedure. First, 5 mg of the complex was placed in 2 mL of acetone, mixed well with an ultrasonic cleaner, and then 40 μL dropped on the glassy carbon electrode and air-dried. The elution of the complex into the buffer solution was stopped by applying 10 μL of a 5 wt% Nafion® aliphatic alcohol-containing aqueous solution containing 45% of a conductive film (acetate buffer pH 5.0, 200 mM. scan 0.05 V/s) [14,16]. The oxidation potential derived from the central metal (copper) was observed in the range of 0 V, 0.1 to 0.2 V. For each complex, a significant current increase was confirmed after irradiation with linearly polarized UV light, which was attributed to changes in the electronic states of the complexes, switching from the trans-form to the cis-form.
A laccase solution was prepared by dissolving 5 mg of laccase in 1 mL of ultrapure water and applied to 20 μL of the electrode. Then the electrode was dried. The elution of laccase into the buffer solution was stopped by applying 10 μL of a 5 wt% Nafion® aliphatic alcohol-containing aqueous solution containing 45% of a conductive film (acetate buffer pH 5.0, 200 mM, scan 0.05 V/s). In the case of CV using solely laccase (Figure 12 [top graphs]), laccase exhibited catalytic oxygen reduction under an oxygen purge. Furthermore, CV measurements were also performed for laccase and 1–3 as mediators (Figure 12 [bottom graphs]). In order to confirm the four-electron reduction of oxygen by laccase including mediators, CV measurements and comparisons were performed using an oxygen purge. For each of the complexes with inclusion of the mediator, an increase in the oxygen reduction peak was observed. The potential was positively shifted for 2 and 3, and the current was increased for 1 and 2.
When unpolarized UV light was irradiated onto the hybrid materials of laccase and complexes 1–3 (Figure 13 (top), CV changes occurred because of the differences in the electronic states of the trans-form and cis-form of the complexes induced by photoisomerization, as indicated in Figure 11. The differences in the complexes also affected the mediator performance. On the other hand, when irradiated with linearly polarized UV light (Figure 13 (bottom), CV differences not only resulted from the trans-cis photoisomerization but also from irradiation with the non-polarized natural UV light. The latter difference could be attributed to the molecular orientation of the mediator complexes caused mainly by the Weigert effect. It was observed that the electron transfer between mediator to laccase can be controlled not only by the electronic states of the mediators but also by steric factors (spatial orientation and molecular docking). However, the path (through space or through bonds) and mechanism of the electron transfer is not clear because reaction rates [47,48,49] and spatial structures (such as chiral recognition) [50] could not be reliably explained with the present systems.
The cathode reduction rate of biofuel cells depends on the efficiency of the long-range electron transfer process. To improve this electron transfer, several types of metal complexes were investigated as mediators between the electrode and laccase. The four copper atoms that are the active centers of the laccase are divided into three types (T1, T2, and T3) (α and β). The T2 copper and the two T3 copper form triple nuclear clusters. The T1 copper first receives electrons from the substrate and oxidizes the substrate, e.g., acting as a mediator in this case, which is followed by a four-electron reduction at T2 and T3 sites. A mediator is a substance sandwiched between an electrode and an enzyme that assists in donating and receiving electrons. Proposed docking sites were elucidated by computational simulation even though experiments exhibited changes of CV by irradiation of UV light, which occurred as both electronic changes and steric changes. Although intramolecular paths in laccase of electron transfer and electrochemical features of metal complexes were clear, the mechanism of electron transfer between metal complexes to laccase should be further understood.
The photochromic azobenzene moiety improves both the electronic structure and the steric orientation. Moreover, quinones (anthraquinone) and metal (Cu(II/I)) in the complexes can potentially be used as a mediator. Metalloproteins such as laccase can be regarded as metal complexes but have a complicated structure and complex ligands. In the case of phenolate, thiolate, oxo, sulfide, and N-heterocyclic chelates, the metal complex shows a very strong low-energy charge-transfer absorption band, which exhibited highly covalent ligand-metal bonds. These complexes are unique compared to the smaller copper complexes and exhibit spectral features derived from geometric and electronic structures of the metal ions resulting from the interaction with the protein biopolymers. Molecular docking of suitable compounds (both ligands and complexes) inside or on the surface of an enzyme with appropriate steric formation of the hydrophobic laccase pocket may be useful to predict their redox activity and suitability as biofuel cells. The present study suggested an experimental fact of salen-type mediator’s molecular orientation dependence of electron transfer for the first time. Previous Mn paper [14] did not exhibit photo tuning of molecular orientation but effects due to photoisomerization.
These factors (electronic, steric, or spatial factors) contribute considerably to the electronic structure of the active site, which affected the geometry of the metal site, the orientation of the ligand-metal bond, and the conformation of the protein. Since the mediator not only influences the reaction rate of the enzyme but also the electron transfer rate, the selection of the optimum mediator and its better docking features is still one of the most important future research subjects.

4. Conclusions

In enzymatic fuel cells, the transfer of electrons between the enzyme and the electrode is an important issue to overcome and challenging to crate and detection of hybrid materials. In this work, azo-anthraquinone salen Cu complexes were tested as a mediator for laccase. It was concluded from experiments that photo-tuning of electronic states and molecular orientation of the mediators resulted in differences of the electron transfer performance to laccase. Docking of achiral mediators to the surface of laccase (chiral protein) was confirmed and induced CD due to chiral environment. Docking simulation discussed the supramolecular interactions such as hydrogen bond and hydrophobic interaction.
There are several methods to directly deliver electrons into biofuel cells, such as using mediators or metal nanoparticles (having the advantage in spatial distance), or metal complexes (such as ferrocene and [Fe(CN)6]3-/4-) [20] and organic molecules bound to the surface of protein molecules (having an advantage in current amounts). Besides these types of potential mediators or common organic mediators, the present azo-anthraquinone salen Cu complexes were confirmed to have advantage of photo-tuning their electronic states and spatial orientation. Among three complexes, 1 without disturbing substituent groups of electronic effects was comprehensively suitable for this purpose.
Even the theoretical studies can investigate electronic structures of photo-isomers at a molecular level. Experimental results herein also suggested that the electron transfer was related not only to electronic states but also reasonably to the molecular orientation [51,52]. Further studies are required to specify the electron transfer mechanism and the electron path using appropriate experimental systems such as a modified electrode of laccase-mediator systems connected via enantiomers of oligopeptides.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-8994/12/5/797/s1, Figure S1: EPR spectra for powder samples of 2 and 3 at 300 K., Figure S2: PDOS with orbital contribution for 1 and 2, Figure S3: Comprehensive laccase receptor and copper complex interaction after docking. The copper complex is docked at the active site of the laccase receptor. The secondary structure of the laccase receptor is represented by the ribbon model, and the copper complex is represented by the stick model. Interactions of copper complex ligands (pink) with laccase receptor amino acids (sky blue) omitting the laccase receptor. The ligands surrounded by amino acids are represented in a three letter code marked in dark blue. a, b represents ligand 1, c, d represents ligand 2 and e, f represents ligand 3, Table S1: Summary of the results of DFT calculations for 1 and 2, Table S2: Bond distances and type between laccase receptor and Complex 2(L2) and Complex 3(L3).

Author Contributions

Conceptualization, T.A. Supervision, C.S. Experiments, K.K. Computation, S.P., R.P., S.G., and G.R. Writing Paper, S.P., T.H., and T.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The XRD work was partly conducted at the Advanced Characterization Nanotechnology Platform of the University of Tokyo, and supported by the Nanotechnology Platform of the Ministry of Education, Culture, Sports, Science and Technology (MEXT), Japan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Solomon, E.I.; Szilagyi, R.K.; DeBeer George, S.; Basumallick, L. Electronic structures of metal sites in proteins and models: Contributions to function in blue copper proteins. Chem. Rev. 2004, 104, 419–458. [Google Scholar] [CrossRef] [PubMed]
  2. Quintanar, L.; Stoj, C.; Taylor, A.B.; Hart, P.J.; Kosman, D.J.; Solomon, E.I. Shall We Dance? How A Multicopper Oxidase Chooses Its Electron Transfer Partner. Chem. Rev. 2007, 40, 445–452. [Google Scholar]
  3. Mate, D.M.; Alcalde, M. Laccase: A multi-purpose biocatalyst at the forefront of biotechnology. Miorobial Bioteh. 2017, 10, 1457–1467. [Google Scholar] [CrossRef] [PubMed]
  4. Mano, N.; de Poulpiquet, A. O2 Reduction in Enzymatic Biofuel Cells. Chem. Rev. 2018, 118, 2392–2468. [Google Scholar] [CrossRef] [Green Version]
  5. Goff, A.; Holzinger, M.; Cosnier, S. Recent progress in oxygen-reducing laccase biocathodes for enzymatic biofuel cells. Cell. Mol. Life Sci. 2015, 72, 941–952. [Google Scholar] [CrossRef]
  6. Moehlenbrock, M.J.; Minteer, S.D. Extended lifetime biofuel cells. Chem. Soc. Rev. 2008, 37, 1188–1196. [Google Scholar] [CrossRef]
  7. Xiao, X.; Xia, H.-Q.; Wu, R.; Bai, L.; Yan, L.; Magner, E.; Cosnier, S.; Lojou, E.; Zhu, Z.; Liu, A. Tackling the Challenges of Enzymatic (Bio)Fuel Cells. Chem. Rev. 2019, 119, 9509–9558. [Google Scholar] [CrossRef]
  8. Mehra, R.; Muschiol, J.; Meyer, A.S.; Kepp, K.P. A structural-chemical explanation of fungal laccase activity. Sci. Rep. 2018, 8, 17285. [Google Scholar] [CrossRef]
  9. Morozova, O.V.; Shumakovich, G.P.; Shleev, S.V.; Yaropolov, Y.I. Laccase-Mediator Systems and Their Applications: A Review. Appl. Biochem. Microbiol. 2007, 43, 523–535. [Google Scholar] [CrossRef]
  10. Sakai, H.; Mita, H.; Sugiyama, T.; Tokita, Y.; Shirai, S.; Kano, K. Construction of a Multi-stacked Sheet-type Enzymatic Biofuel Cell. Electrochemistry 2014, 82, 156–161. [Google Scholar] [CrossRef] [Green Version]
  11. Hitaishi, V.P.; Clément, R.; Quattrocchi, L.; Parent, P.; Duché, D.; Zuily, L.; Ilbert, M.; Lojou, E.; Mazurenko, I. Interplay between Orientation at Electrodes and Copper Activation of Thermus thermophilus Laccase for O2 Reduction. J. Am. Chem. Soc. 2020, 142, 1394–1405. [Google Scholar] [CrossRef] [PubMed]
  12. Agbo, P.; Heath, J.R.; Gray, H.B. Modeling Dioxigen Reduction at Multicopper Oxidase Cathodes. J. Am. Chem. Soc. 2014, 136, 13882–13887. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Cheng, C.-Y.; Liao, C.-I.; Lin, S.-F. Borate-fructose complex: A novel mediator for laccase and its new function for fructose determination. FEBS Lett. 2015, 589, 3107–3112. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kajiwara, K.; Yamane, S.; Haraguchi, T.; Pradhan, S.; Sinha, C.; Parida, R.; Giri, S.; Roymahaptra, G.; Moon, D.; Akitsu, T. Computational Design of Azo-anthraquinone Schiff Base Mn Complexes as Mediators for Biofuel Cell Cathode. J. Chem. Chem. Eng. 2019, 13, 23–33. [Google Scholar] [CrossRef]
  15. Sano, A.; Yagi, S.; Haraguchi, T.; Akitsu, T. Synthesis of Mn (II) and, Cu (II) complexes including azobenzene and its application to mediators of laccase for biofuel cells. J. Indian Chem. Soc. 2018, 95, 487–494. [Google Scholar]
  16. Kunitake, F.; Kim, J.-Y.; Yagi, S.; Yamazaki, S.; Haraguchi, T.; Akitsu, T. Chiral recognition of azo-Schiff base ligands, their Cu(II) complexes and their docking to laccase as mediators. Symmetry 2019, 11, 666. [Google Scholar] [CrossRef] [Green Version]
  17. Mitsumoto, Y.; Sunaga, N.; Akitsu, T. Polarized light induced molecular orientation in laccase for chiral azosalen Mn(II), Co(II), Ni(II), Cu(II), Zn(II) mediators toward application for biofuel cell. SciFed J. Chem. Res. 2017, 1, 1. [Google Scholar]
  18. Takeuchi, Y.; Akitsu, T. Anthraquinone Derivative Chiral Schiff Base Copper(II) Complexes for Enzyme Type Bio-Fuel Cell Mediators. J. Electr. Eng. 2016, 4, 189–195. [Google Scholar] [CrossRef] [Green Version]
  19. Takeuchi, Y.; Sunaga, N.; Akitsu, T. Anthraquinone and L-amino Acid Derivatives Schiff Base Cu(II) Complexes as a Mediator between Cathode of Biofuel Cell and Oxygen-reducing Laccase. Trend Green Chem. 2017, 3, 1–8. [Google Scholar] [CrossRef] [Green Version]
  20. Kurosawa, Y.; Tsuda, E.; Takase, M.; Yoshida, N.; Takeuchi, Y.; Mitsumoto, Y.; Akitsu, T. Spectroscopic and Electrochemical Studies on Metalloprotein (Laccase) and Cu(II) Complex Mediators As Model Systems for Biofuel Cell Cathodes. In Threonine: Food Sources, Functions and Health Benefits; Nova Science Publishers: Hauppauge, NY, USA, 2015; Chapter 4; pp. 73–86. [Google Scholar]
  21. Natansohn, A.; Rochon, P. Photoinduced Motions in Azo-Containing Polymers. Chem. Rev. 2002, 102, 4139–4175. [Google Scholar] [CrossRef]
  22. Shaw, S.; White, J.D. Asymmetric Catalysis Using Chiral Salen-Metal Complexes: Recent Advances. Chem. Rev. 2019, 119, 9381–9426. [Google Scholar] [CrossRef] [PubMed]
  23. Routier, S.; Cotelle, N.; Catteau, J.-P.; Bernier, J.-L.; Waring, M.J.; Riou, J.-F.; Bailly, C. Salen-Anthraquinone Conjugates. Synthesis, DNA-Binding and Cleaving Properties, Effects on Topoisomerases and Cytotoxicity. Bioorg. Med. Chem. 1996, 4, 1185–1196. [Google Scholar] [CrossRef]
  24. Roy, S.; Mondal, P.; Sengupta, P.S.; Dhak, D.; Santra, R.C.; Das, S.; Guin, P.S. Spectroscopic, computational and electrochemical studies on the formation of the copper complex of 1-amino-4-hydroxy-9,10-anthraquinone and effect of it on superoxide formation by NADH dehydrogenase. Dalton Trans. 2015, 44, 5428–5440. [Google Scholar] [CrossRef] [PubMed]
  25. Kou, J.-F.; Qian, C.; Wang, J.-Q.; Chen, X.; Wang, L.-L.; Chao, H.; Ji, L.-N. Chiral ruthenium(II) anthraquinone complexes as dual inhibitors of topoisomerases I and II. J. Biol. Inorg. Chem. 2012, 17, 81–96. [Google Scholar] [CrossRef]
  26. Yildiz, E.; Keles, M.; Kaya, A.; Dincer, S. Mononuclear Fe(III), Cr(III), Co(II) Metal Complexes Based on Azo-Anthraquinone Moieties: Synthesis, Characterizations and Antibacterial Activities. Chem. Sci. Trans. 2013, 2, 547–555. [Google Scholar] [CrossRef] [Green Version]
  27. Kume, S.; Murata, M.; Ozeki, T.; Nishihara, H. Reversible Photoelectronic Signal Conversion Based on Photoisomerization-Controlled Coordination Change of Azobenzene-bipyridine Ligands to Copper. J. Am. Chem. Soc. 2005, 127, 490–491. [Google Scholar] [CrossRef]
  28. Tylkowski, B.; Trojanowska, A.; Marturano, V.; Nowak, M.; Marciniak, L.; Giamberini, M.; Ambrogi, V.; Cerruti, P. Power of light–Functional complexes based on azobenzene molecules. Coord. Chem. Rev. 2017, 351, 205–217. [Google Scholar] [CrossRef]
  29. Cárdenas-Moreno, Y.; Espinosa, L.A.; Vieyto, J.C.; González-Durruthy, M.; del Monte-Martinez, A.; Guerra-Rivera, G.; López, M.I.S. Theoretical study on binding interactions of laccase-enzyme from Ganoderma weberianum with multiples ligand substrates with environmental impact. Ann. Proteom. Bioinform. 2019, 3, 001–009. [Google Scholar]
  30. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  31. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. Autodock4 and AutoDockTools4: Automated docking with selective receptor flexiblity. J. Comput. Chem. 2009, 16, 2785–2791. [Google Scholar] [CrossRef] [Green Version]
  32. Sato, H.; Beppu, I.; Haraguchi, T.; Akitsu, T.; Parida, R.; Giri, S.; Roymahapatra, G.; Joe, I.H. Optical properties of chiral Schiff base Mn(II), Co(II), Ni(II) complexes having azobenzene. J. Indian Chem. Soc. 2018, 95, 1487–1495. [Google Scholar]
  33. Tanaka, S.; Sato, H.; Ishida, Y.; Deng, Y.; Haraguchi, T.; Akitsu, T.; Sugiyama, M.; Hara, M.; Moon, D. Photo-control of adsorption of dye metal complexes incorporating chiral Schiff base ligands containing azo-groups on TiO2. J. Korean Chem. Soc. 2018, 62, 328–332. [Google Scholar]
  34. Tsutsumi, Y.; Sunaga, N.; Haraguchi, T.; Akitsu, T. Induced CD from chiral Schiff base metal complexes involving azo-dye groups to gold nanoparticles. J. Indian Chem. Soc. 2017, 94, 1163–1172. [Google Scholar]
  35. Yamaguchi, M.; Tsunoda, Y.; Tanaka, S.; Haraguchi, T.; Sugiyama, M.; Noor, S.; Akitsu, T. Molecular design through orbital and molecular design of new naphthyl-salen type transition metal complexes toward DSSC dyes. J. Indian Chem. Soc. 2007, 94, 761–772. [Google Scholar]
  36. Onami, Y.; Kawasaki, T.; Aizawa, H.; Haraguchi, T.; Akitsu, T.; Tsukiyama, K.; Palafox, M.A. Degradation of human serum albumin by infrared free electron laser enhanced by inclusion of a salen-type Schiff base Zn (II) complex. Int. J. Mol. Sci. 2020, 21, 874. [Google Scholar] [CrossRef] [Green Version]
  37. Akitsu, T.; Itoh, T. Polarized spectroscopy of hybrid materials of chiral Schiff base cobalt(II), nickel(II), copper(II), and zinc(II) complexes and photochromic azobenzenes in PMMA films. Polyhedron 2010, 29, 477–487. [Google Scholar] [CrossRef]
  38. Diana, R.; Panunzi, B.; Shikler, R.; Nabha, S.; Caruso, U. A symmetrical azo-based fluorophore and the derived salen multipurpose framework for emissive layers. Inorg. Chem. Commun. 2019, 104, 186–189. [Google Scholar] [CrossRef]
  39. Diana, R.; Caruso, U.; Piotto, S.; Concilio, S.; Shikler, R.; Panunzi, B. Spectroscopic Behaviour of Two Novel Azobenzene Fluorescent Dyes and Their Polymeric Blends. Molecules 2020, 25, 1368. [Google Scholar] [CrossRef] [Green Version]
  40. Kominato, C.; Akitsu, T. Photoinduced molecular orientation of catalytic-like chiral azo-Schiff base complexes in PMMA or laccase matrices. Lett. Appl. Nanobiosci. 2015, 2, 264–270. [Google Scholar]
  41. Ito, M.; Akitsu, T.; Palafox, M.A. Theoretical interpretation of polarized light-induced supramolecular orientation on the basis of normal mode analysis of azobenzene as hybrid materials in PMMA with chiral Schiff base Ni(II), Cu(II), and Zn(II) complexes. J. Appl. Solut. Chem. Model. 2016, 5, 30–47. [Google Scholar]
  42. Yamazaki, A.; Akitsu, T. Polarized spectroscopy and polarized UV light-induced molecular orientation of chiral diphenyl Schiff base Ni(II) and Cu(II) complexes and azobenzene in a PMMA film. RSC Adv. 2012, 2, 2975–2980. [Google Scholar] [CrossRef]
  43. Kominato, C.; Akitsu, T. Computational Study on UV-Vis and CD Spectra of Chiral Schiff Base Ni(II), Cu(II), and Zn(II) Complexes for Discussion of Induced CD. J. Chem. Chem. Eng. 2012, 6, 199–208. [Google Scholar]
  44. Akitsu, T.; Uchida, N.; Aritake, Y.; Yamaguchi, J. Induced d-d Bands in CD Spectra due to Chiral Transfer from Chiral Nickel(II) Complexes to Achiral Copper(II) Complexes and Application for Structural Estimation. Trends Inorg. Chem. 2018, 10, 41–49. [Google Scholar]
  45. Akitsu, T.; Uchida, N. Induced d-d bands in CD spectra of solution of chiral Schiff base nickel(II) complex and ferrocene. Asian Chem. Lett. 2010, 14, 21–28. [Google Scholar]
  46. Piontek, K.; Antorini, M.; Choinowski, T. Crystal Structure of a Laccase from the FungusTrametes versicolor at 1.90-Å Resolution Containing a Full Complement of Coppers. J. Biol. Chem. 2002, 277, 37663–37669. [Google Scholar] [CrossRef] [Green Version]
  47. Lappin, A.G.; Segal, M.G.; Weatherburn, D.C.; Sykes, A.G. Kinetic Studies on 1:1 Electron-Transfer Reactions Involving Blue Copper Proteins. 2. Protonation Effects and Different Binding Sites in the Oxidation of Parsley Plastocyanin with Co(4,7-DPSphen)33+, Fe(CN)63-, and Co(phen)33+. J. Am. Chem. Soc. 1979, 101, 2298–2301. [Google Scholar] [CrossRef]
  48. Chapman, S.K.; Knox, C.V.; Sykes, A.G. Kinetic studies on 1:1 electron-transfer reactions involving blue copper proteins. Part 10. The assignment of binding sites in the reactions of plastocyanin (and azurin) with non-physiological protein redox partners. J. Chem. Soc. Dalton Trans. 1984, 2775–2780. [Google Scholar] [CrossRef]
  49. Effects, Protein-Complex Association, and Binding Sites in Reactions of Pseudomonas aeruginosa Azurin with Co(phen)33+, Co(4,7-DPSphen)33-, and Fe(CN)63- (Oxidants) and Fe(CN)64- (Reductant). J. Am. Chem. Soc. 1979, 101, 2302–2306. [CrossRef]
  50. Nazmutdinov, R.R.; Bronshtein, M.D.; Zinkicheva, T.T.; Hansen, N.S.; Zhang, J.; Ulstrup, J. Chiral Selectivity in Inter-reactant Recognition and Electron Transfer of the Oxidation of Horse Heart Cytochrome c by Trioxalatocobaltate(III). Inorg. Chem. 2016, 55, 9335–9345. [Google Scholar] [CrossRef]
  51. Siders, P.; Cave, R.J.; Marcus, R.A. A model for orientation effects in electrontransfer Reactions. J. Chem. Phys. 1984, 81, 5613–5624. [Google Scholar] [CrossRef] [Green Version]
  52. Domingue, R.P.; Fayer, M.D. Influence of Orientational Fluctuations on Electron Transfer in Systems of Donor-Acceptor Pairs. J. Phys. Chem. 1986, 90, 5141–5146. [Google Scholar] [CrossRef]
Symmetry 12 00797 g001 550

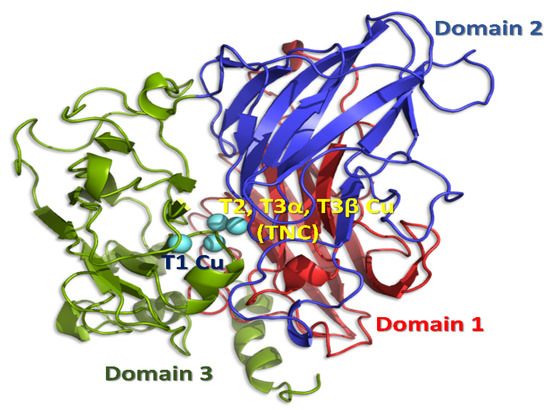

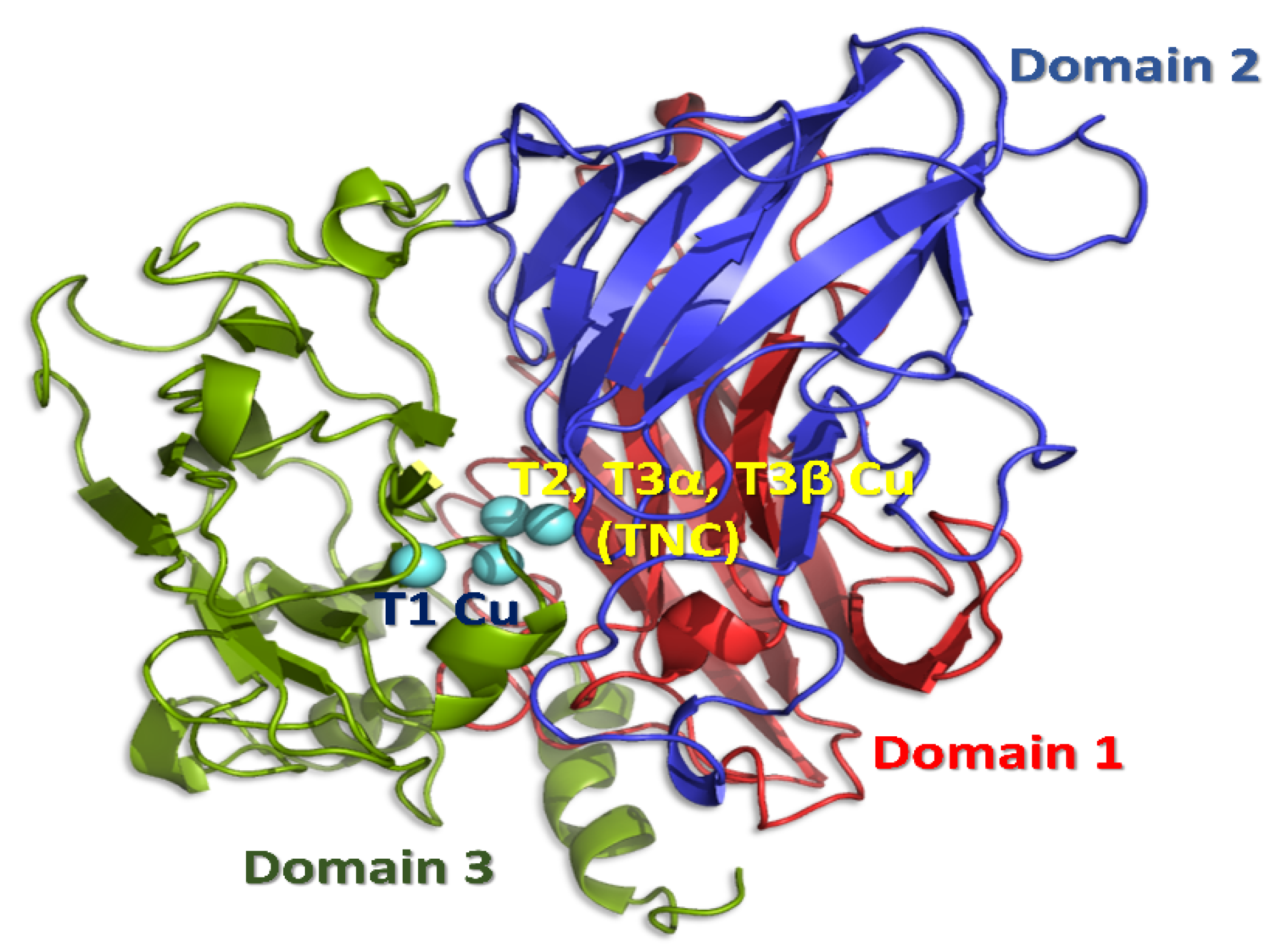

Figure 1. Structure of the enzyme, Trametes versicolor laccase (PDB ID: 1GYC), showing the three domains and the T1, T2, and T3 copper sites. Though laccase may form trimer assembly of three domains, each laccase molecule has one binding pocket.
Figure 1. Structure of the enzyme, Trametes versicolor laccase (PDB ID: 1GYC), showing the three domains and the T1, T2, and T3 copper sites. Though laccase may form trimer assembly of three domains, each laccase molecule has one binding pocket.
Symmetry 12 00797 g001
Symmetry 12 00797 g002 550

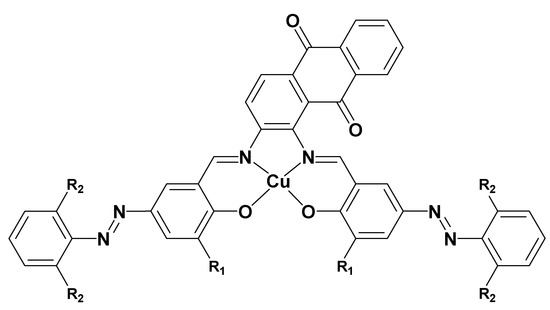

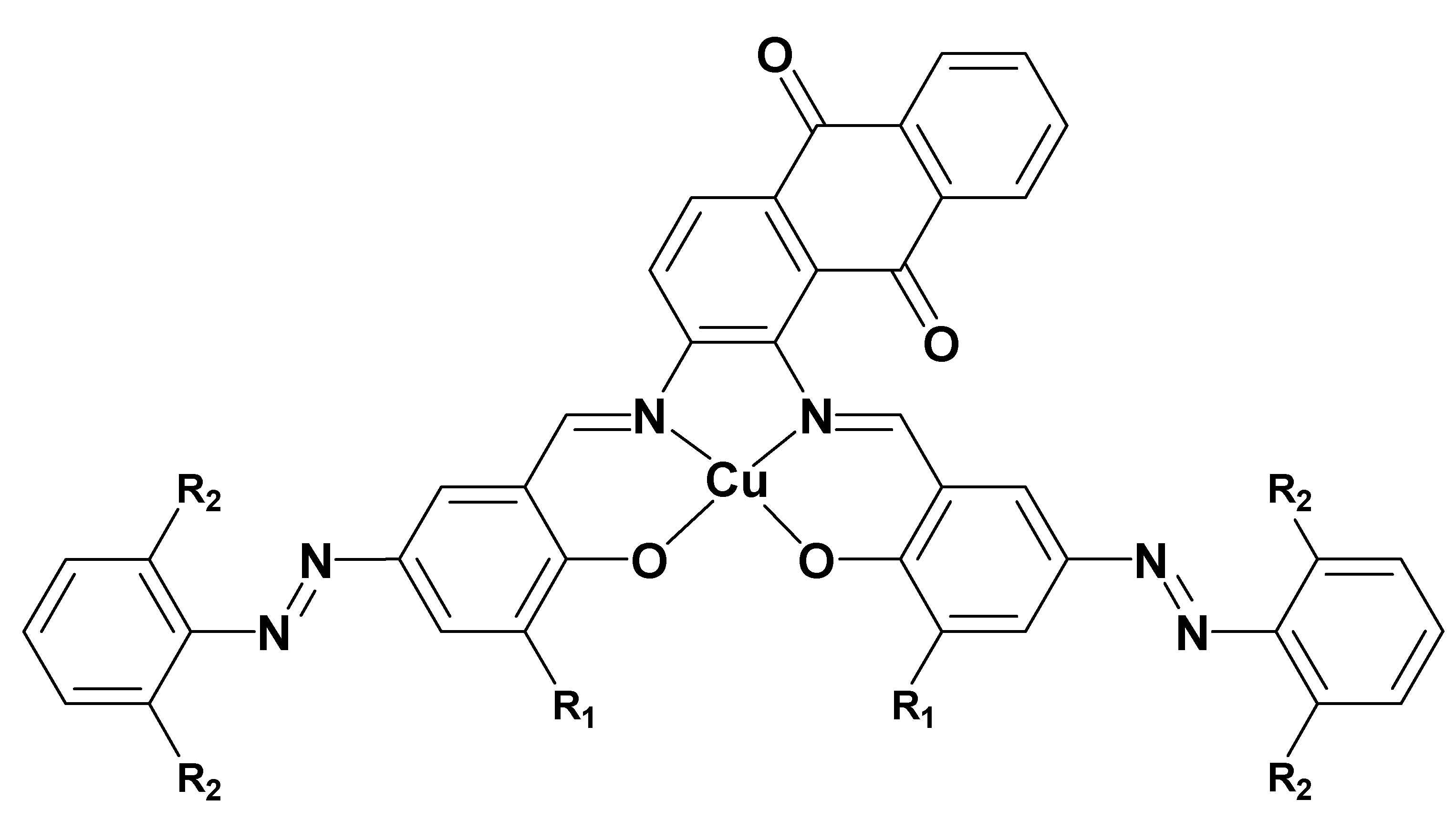

Figure 2. Structures of Cu(II) complexes 1-3. (1) R1 = OCH3, R2 = H, (2) R1 = H, R2 = H, and (3) R1 = H, R2 = Cl.
Figure 2. Structures of Cu(II) complexes 1-3. (1) R1 = OCH3, R2 = H, (2) R1 = H, R2 = H, and (3) R1 = H, R2 = Cl.
Symmetry 12 00797 g002
Symmetry 12 00797 g003 550

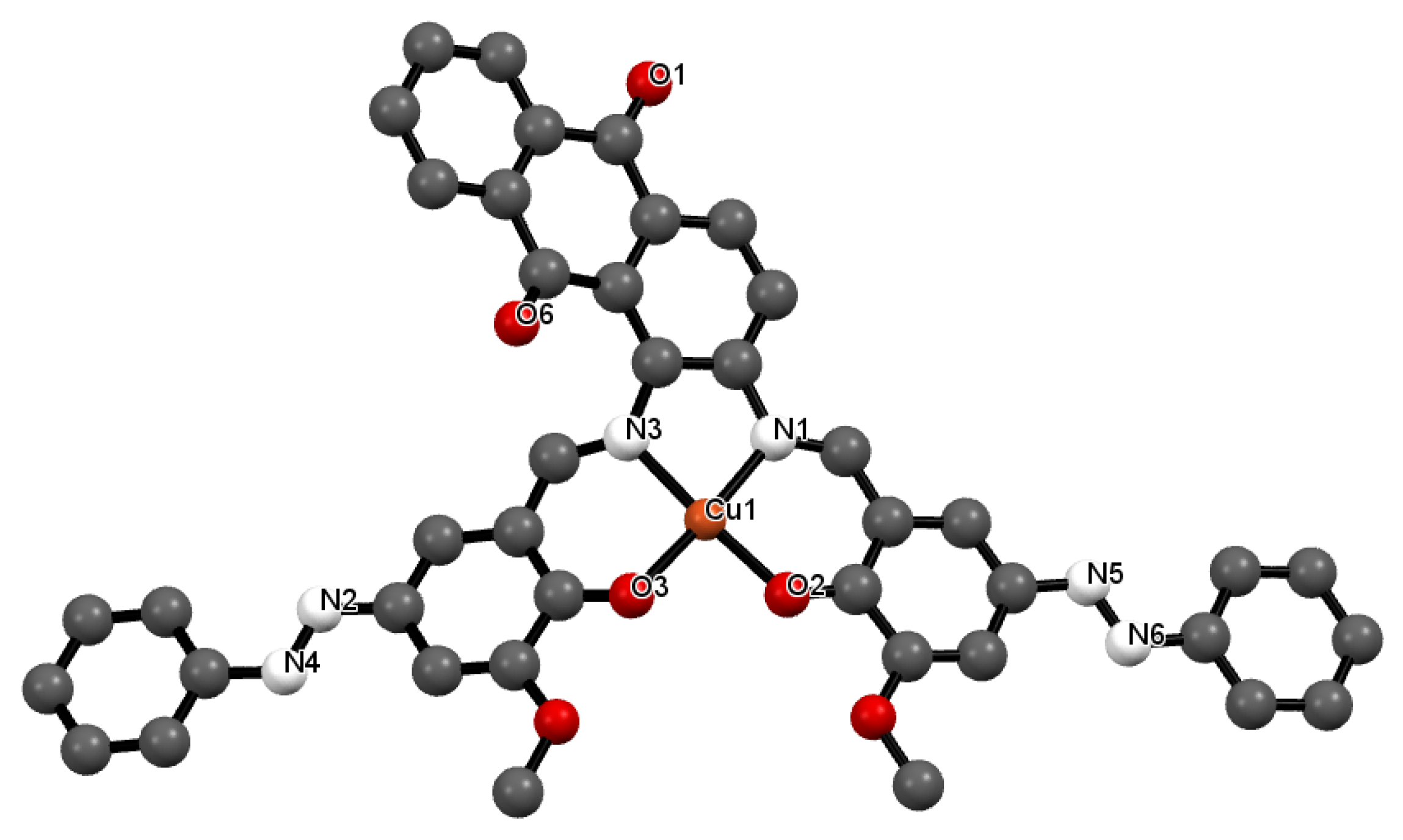

Figure 3. Crystal structure of 1 showing a selected atom labeling scheme. Selected bond lengths [Å] and angles [°] are as follows: Cu1-O2 = 1.854(2), Cu1-O3 = 1.885(3), Cu1-N1 = 1.957(3), Cu1-N3 = 1.913(2), N2-N4 = 1.2542(18), N5-N6 = 1.2352(14), Cu1-O2-C40 = 126.02(7), Cu1-O3-C1 = 125.24(8), Cu1-N1-C5 = 115.18(7), Cu1-N3-C3 = 119.16(8), Cu1-N3-C4 = 115.71(7), O2-Cu1-O3 = 88.66(7), O2-Cu1-N1 = 95.68(7), O2-Cu1-N3 = 175.080(8), O3-Cu1-N1 = 174.206(11), O3-Cu1-N3 = 95.81(7), N1-Cu1-N3 = 79.72(7), Cu1-N1-C31 = 122.66(8).
Figure 3. Crystal structure of 1 showing a selected atom labeling scheme. Selected bond lengths [Å] and angles [°] are as follows: Cu1-O2 = 1.854(2), Cu1-O3 = 1.885(3), Cu1-N1 = 1.957(3), Cu1-N3 = 1.913(2), N2-N4 = 1.2542(18), N5-N6 = 1.2352(14), Cu1-O2-C40 = 126.02(7), Cu1-O3-C1 = 125.24(8), Cu1-N1-C5 = 115.18(7), Cu1-N3-C3 = 119.16(8), Cu1-N3-C4 = 115.71(7), O2-Cu1-O3 = 88.66(7), O2-Cu1-N1 = 95.68(7), O2-Cu1-N3 = 175.080(8), O3-Cu1-N1 = 174.206(11), O3-Cu1-N3 = 95.81(7), N1-Cu1-N3 = 79.72(7), Cu1-N1-C31 = 122.66(8).
Symmetry 12 00797 g003
Symmetry 12 00797 g004 550

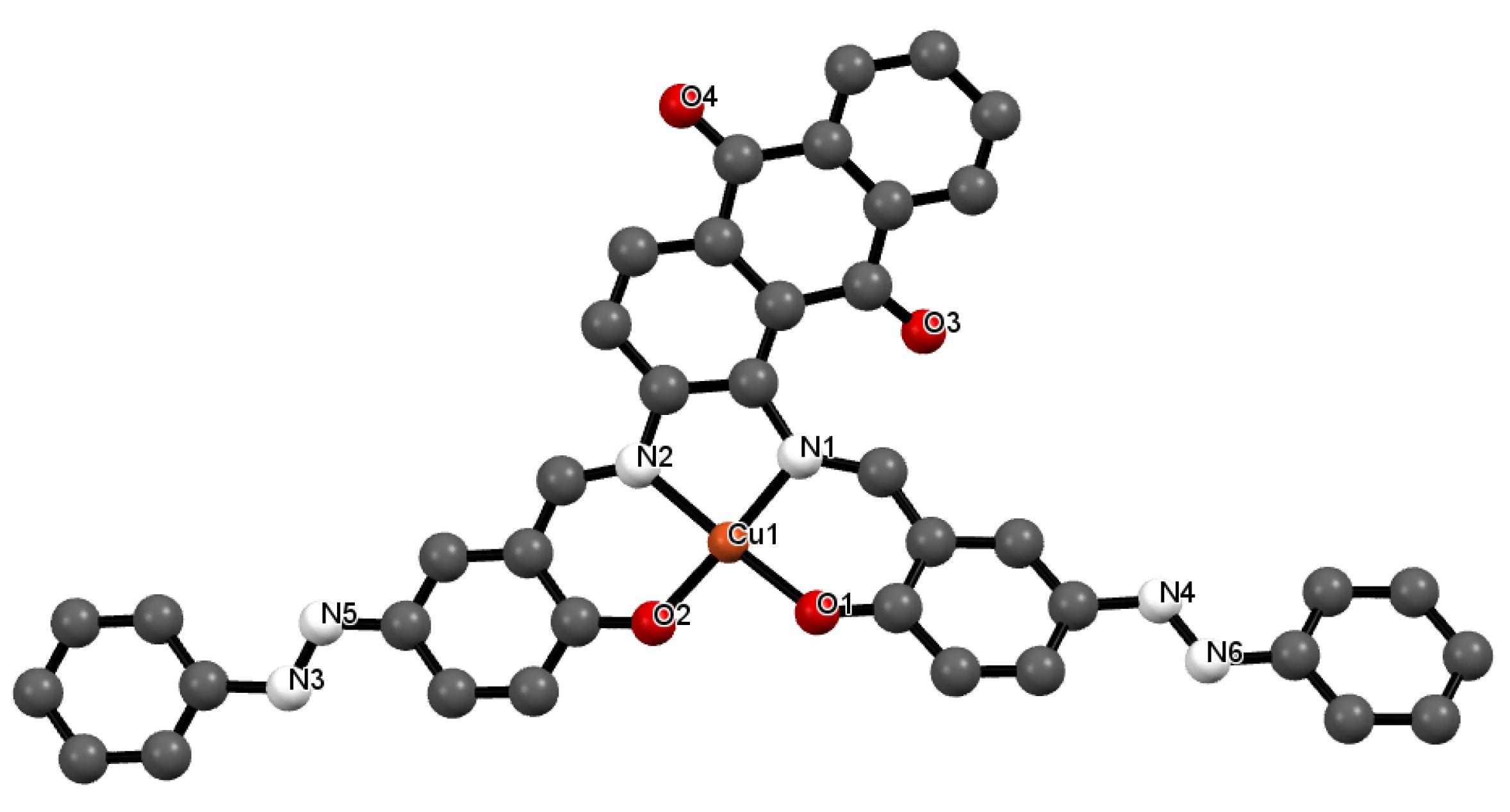

Figure 4. Crystal structure of 2 showing a selected atom labeling scheme. Selected bond lengths [Å] and angles [°] are as follows: Cu1-O1 = 1.975(3), Cu1-O2 = 1.855(3), Cu1-N1 = 1.929(3), Cu1-N2 = 2.040(4), N3-N5 = 1.237(2), N4-N6 = 1.336(2), Cu1-O1-C32 = 132.03(9), Cu1-O2-C40 = 128.92(11), Cu1-N2-C2 = 129.49(10), Cu1-N1-C5 = 108.02(12), Cu1-N2-C4 = 111.01(13), O1-Cu1-O2 = 93.35(13), O1-Cu1-N1 = 91.60(13), O1-Cu1-N2 = 175.792(9), O2-Cu1-N1 = 171.321(17), O2-Cu1-N2 = 88.64(13), N1-Cu1-N2 = 86.90(13), Cu1-N1-C3 = 119.52(11).
Figure 4. Crystal structure of 2 showing a selected atom labeling scheme. Selected bond lengths [Å] and angles [°] are as follows: Cu1-O1 = 1.975(3), Cu1-O2 = 1.855(3), Cu1-N1 = 1.929(3), Cu1-N2 = 2.040(4), N3-N5 = 1.237(2), N4-N6 = 1.336(2), Cu1-O1-C32 = 132.03(9), Cu1-O2-C40 = 128.92(11), Cu1-N2-C2 = 129.49(10), Cu1-N1-C5 = 108.02(12), Cu1-N2-C4 = 111.01(13), O1-Cu1-O2 = 93.35(13), O1-Cu1-N1 = 91.60(13), O1-Cu1-N2 = 175.792(9), O2-Cu1-N1 = 171.321(17), O2-Cu1-N2 = 88.64(13), N1-Cu1-N2 = 86.90(13), Cu1-N1-C3 = 119.52(11).
Symmetry 12 00797 g004
Symmetry 12 00797 g005 550

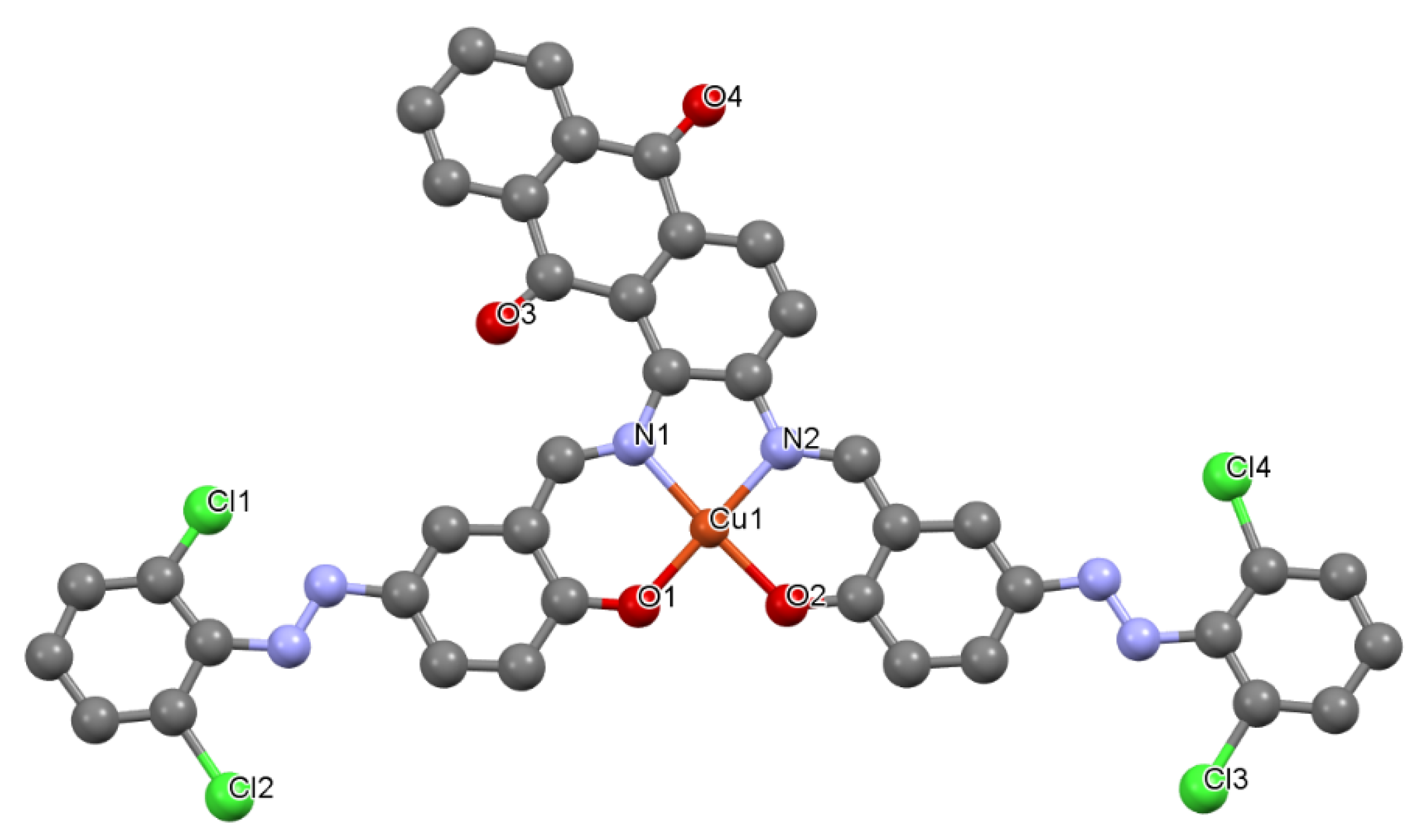

Figure 5. Crystal structure of 3 showing a selected atom labeling scheme. Selected bond lengths [Å] and angles [°] are as follows: Cu1-O1 = 1.9057(7), Cu1-O2 = 1.9386(8), Cu1-N1 = 1.9574(8), Cu1-N2 = 2.0150(8), N3-N3 = 1.2798(5), N5-N6 = 1.2794(5), Cu1-O1-C36 = 126.37(3), Cu1-O2-C35 = 128.31(2), Cu1-N2-C10 = 111.81(2), Cu1-N1-C27 = 124.98(3), Cu1-N2-C38 = 118.92(2), O1-Cu1-O2 = 93.35(13), O1-Cu1-N1 = 176.590(2), O1-Cu1-N2 = 94.63(3), O2-Cu1-N1 = 92.35(3), O2-Cu1-N2 = 171.250(4), N1-Cu1-N2 = 82.30(3), Cu1-N2-C39 = 112.58(3).
Figure 5. Crystal structure of 3 showing a selected atom labeling scheme. Selected bond lengths [Å] and angles [°] are as follows: Cu1-O1 = 1.9057(7), Cu1-O2 = 1.9386(8), Cu1-N1 = 1.9574(8), Cu1-N2 = 2.0150(8), N3-N3 = 1.2798(5), N5-N6 = 1.2794(5), Cu1-O1-C36 = 126.37(3), Cu1-O2-C35 = 128.31(2), Cu1-N2-C10 = 111.81(2), Cu1-N1-C27 = 124.98(3), Cu1-N2-C38 = 118.92(2), O1-Cu1-O2 = 93.35(13), O1-Cu1-N1 = 176.590(2), O1-Cu1-N2 = 94.63(3), O2-Cu1-N1 = 92.35(3), O2-Cu1-N2 = 171.250(4), N1-Cu1-N2 = 82.30(3), Cu1-N2-C39 = 112.58(3).
Symmetry 12 00797 g005
Symmetry 12 00797 g006 550

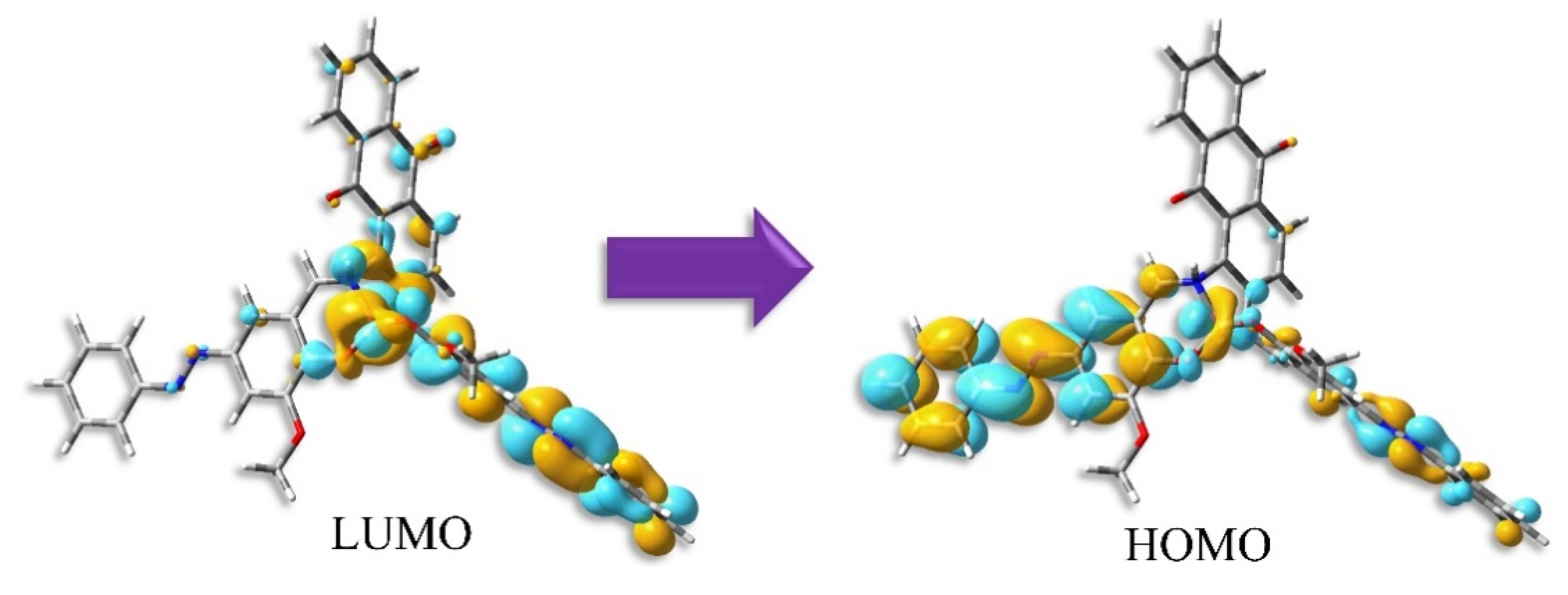

Figure 6. Distribution of HOMO and LUMO for trans-form of 1 by TD-DFT calculations.
Figure 6. Distribution of HOMO and LUMO for trans-form of 1 by TD-DFT calculations.
Symmetry 12 00797 g006
Symmetry 12 00797 g007 550

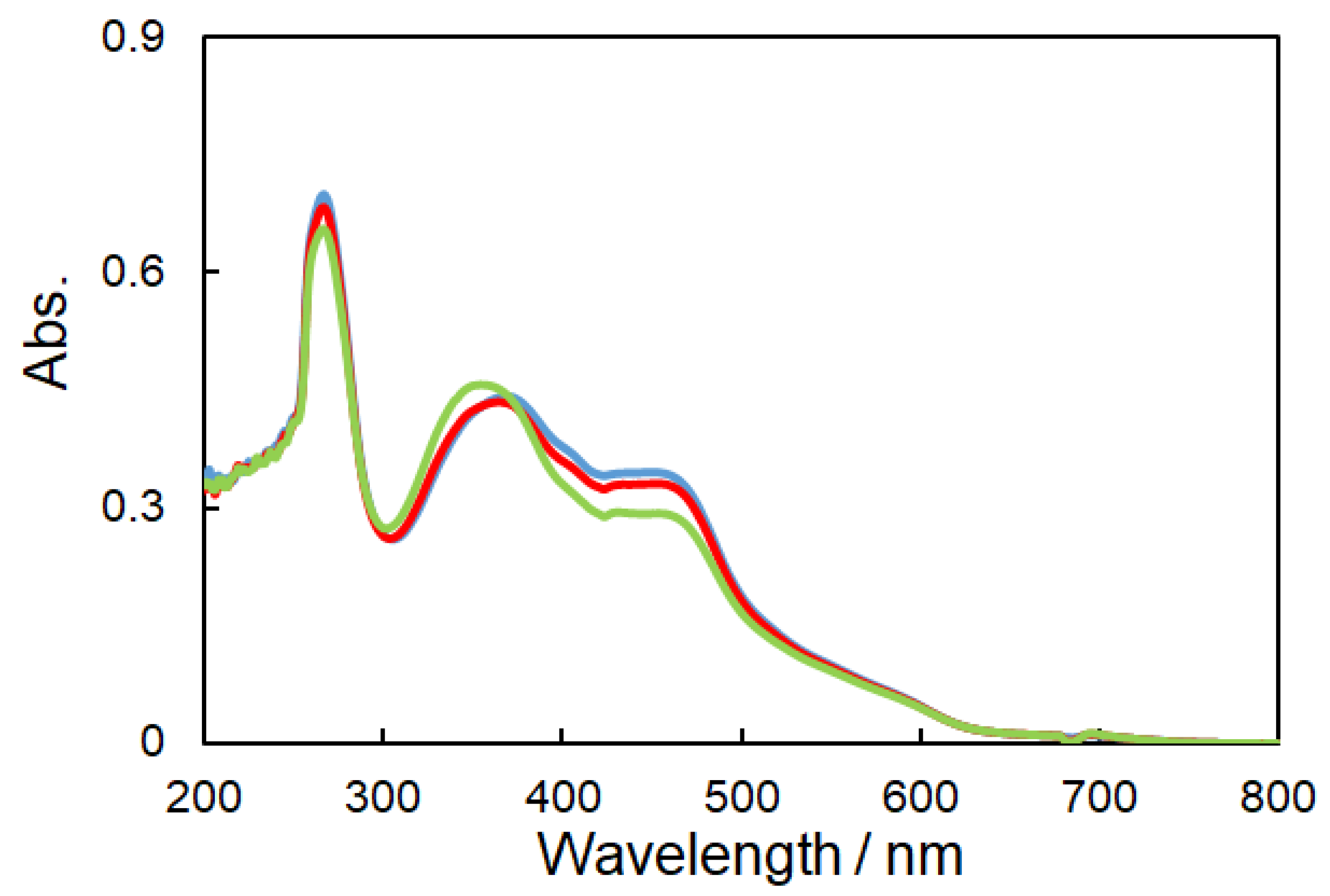

Figure 7. UV-vis spectra (DMSO solution) of 1 after UV light irradiation to yield the cis-form (Blue: 0 min, Red: 10 min, and Green: 20 min).
Figure 7. UV-vis spectra (DMSO solution) of 1 after UV light irradiation to yield the cis-form (Blue: 0 min, Red: 10 min, and Green: 20 min).
Symmetry 12 00797 g007
Symmetry 12 00797 g008 550

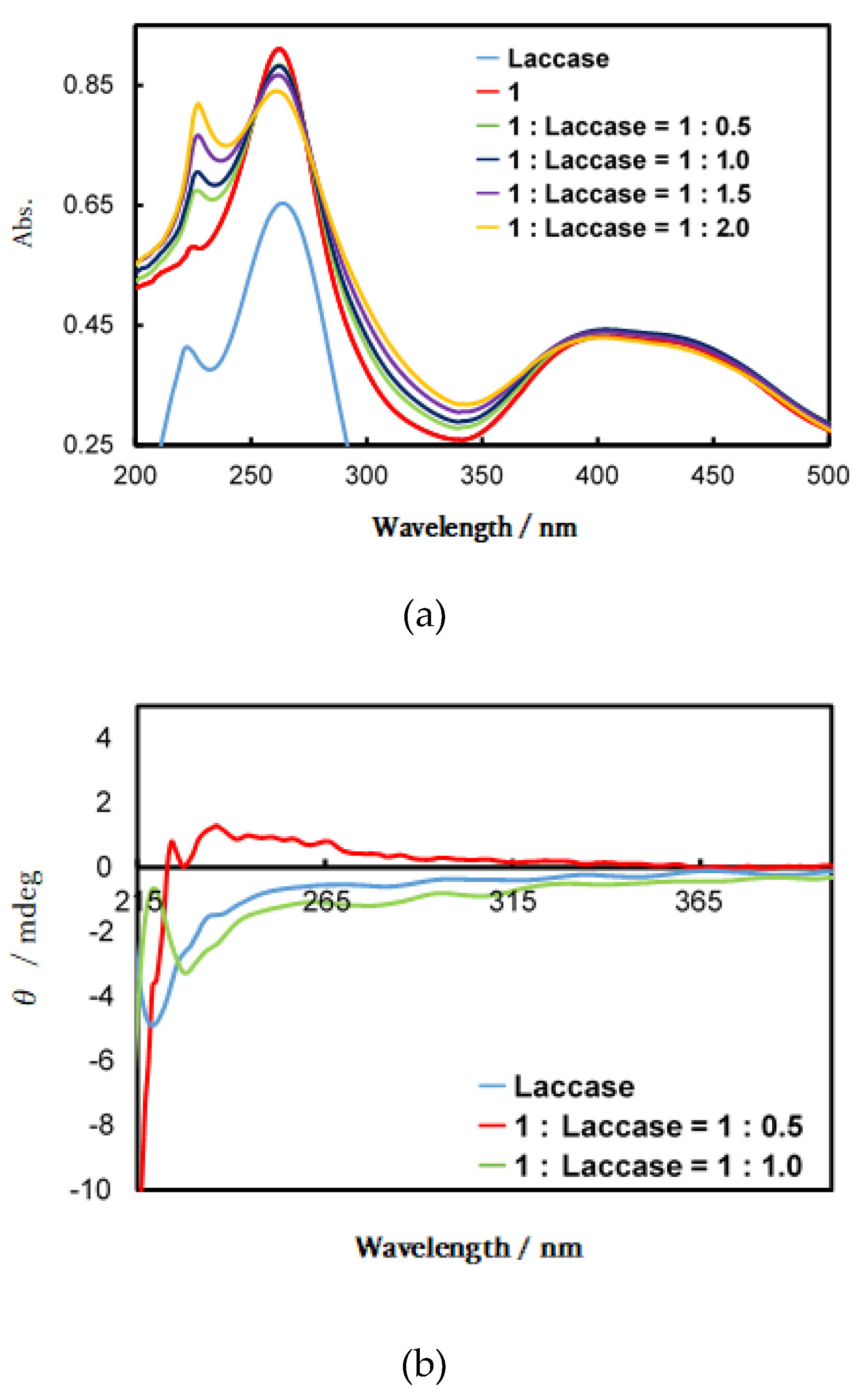

Figure 8. (a) Ultraviolet (UV)-vis and (b) circular dichroism (CD) spectra of variable ratios of laccase and 1 in a phosphate buffer.
Figure 8. (a) Ultraviolet (UV)-vis and (b) circular dichroism (CD) spectra of variable ratios of laccase and 1 in a phosphate buffer.
Symmetry 12 00797 g008
Symmetry 12 00797 g009 550

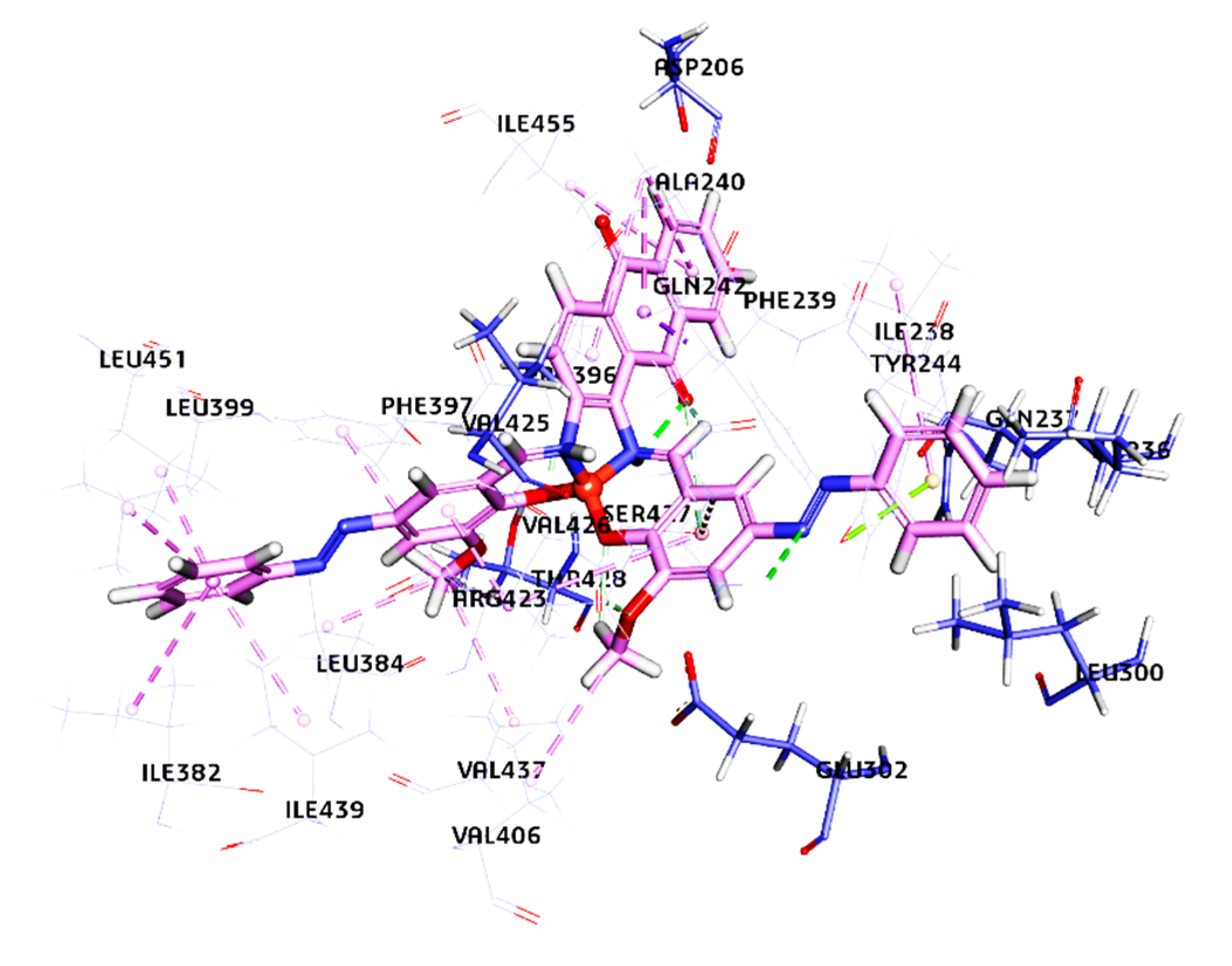

Figure 9. Comprehensive laccase receptor and copper complex interaction after docking. The copper complex is docked at the active site of the laccase receptor. The secondary structure of the laccase receptor is represented by the line model, and the copper complex is represented by the stick model. It depicts details around docking sites and a Cu complex.
Figure 9. Comprehensive laccase receptor and copper complex interaction after docking. The copper complex is docked at the active site of the laccase receptor. The secondary structure of the laccase receptor is represented by the line model, and the copper complex is represented by the stick model. It depicts details around docking sites and a Cu complex.
Symmetry 12 00797 g009
Symmetry 12 00797 g010 550

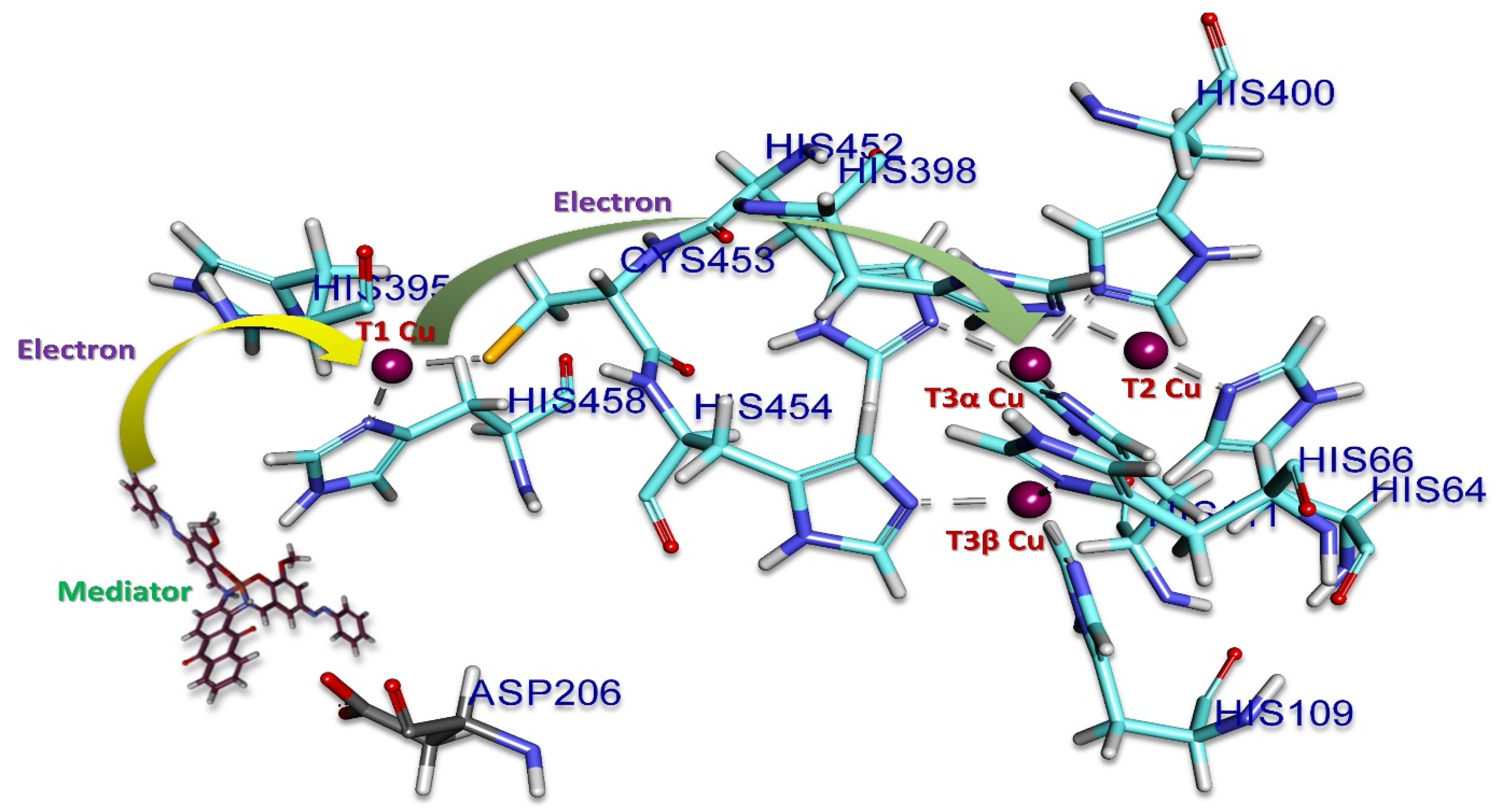

Figure 10. Representation of the mechanism on the active site of laccase. Copper (in violet) is involved in the electron transfer, stabilization, and orientation of the mediators. The surrounding amino acids are represented in sky blue. The mediator is in black and aspartic acid (206) is in grey.
Figure 10. Representation of the mechanism on the active site of laccase. Copper (in violet) is involved in the electron transfer, stabilization, and orientation of the mediators. The surrounding amino acids are represented in sky blue. The mediator is in black and aspartic acid (206) is in grey.
Symmetry 12 00797 g010
Symmetry 12 00797 g011 550

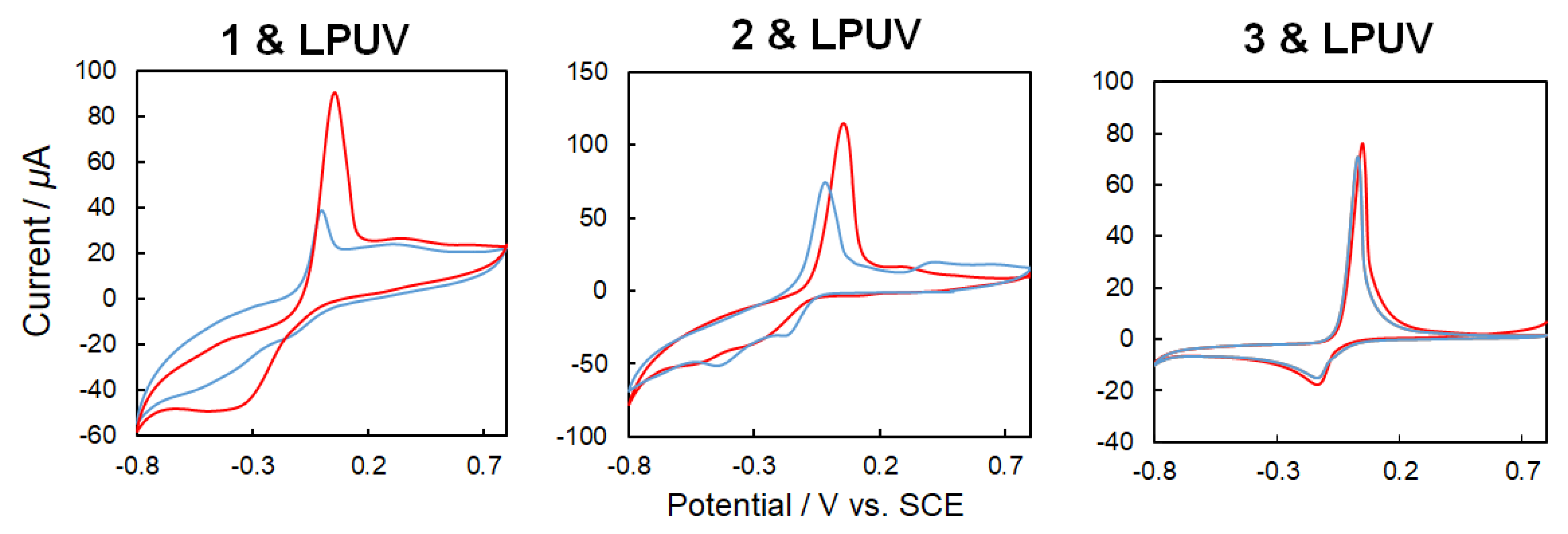

Figure 11. Cyclic voltammetry (CV) (50 mV/s, 200 mM acetate buffer, pH 5.0) for 1–3 (blue: trans-form, red, cis-form) before and after linearly polarized UV light irradiation for 3 min.
Figure 11. Cyclic voltammetry (CV) (50 mV/s, 200 mM acetate buffer, pH 5.0) for 1–3 (blue: trans-form, red, cis-form) before and after linearly polarized UV light irradiation for 3 min.
Symmetry 12 00797 g011
Symmetry 12 00797 g012a 550Symmetry 12 00797 g012b 550

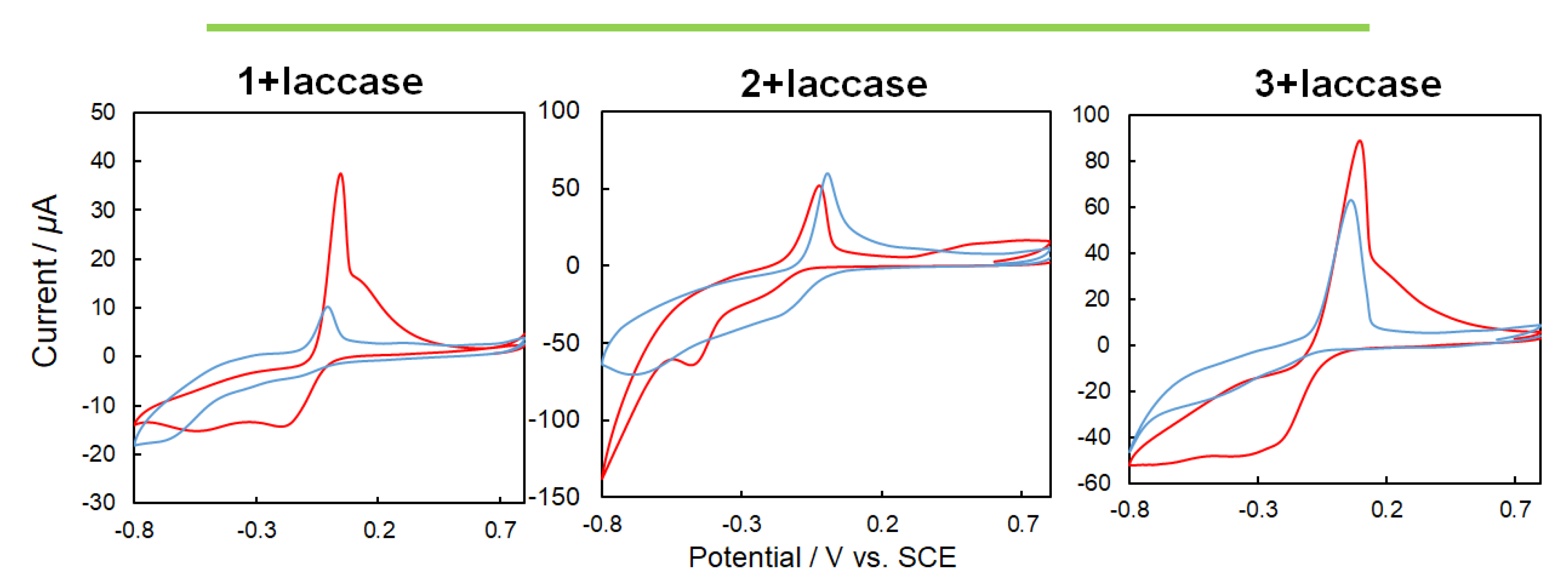

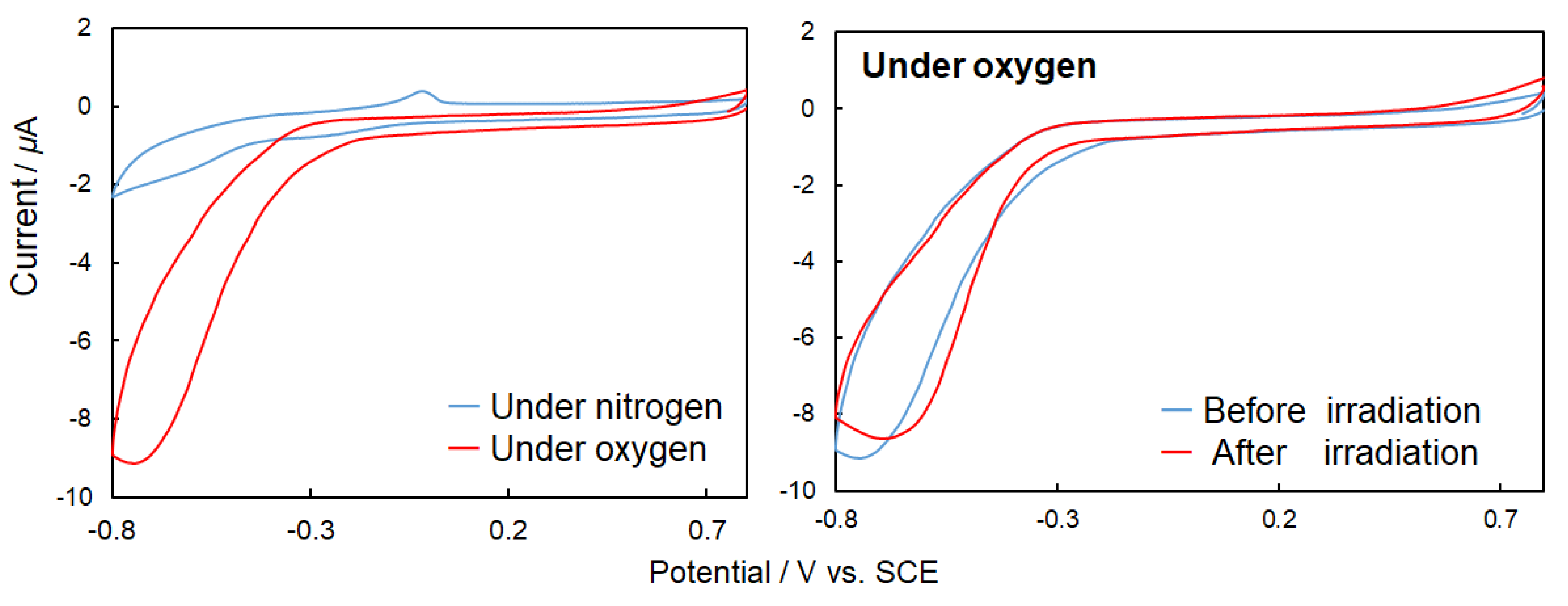

Figure 12. [Top graphs] Cyclic voltammetry (CV) (50 mV/s, 200 mM acetate buffer, pH 5.0) {right graph} for only laccase under nitrogen (blue) and oxygen purge (red) without ultraviolet (UV) light irradiation, {left graph} for laccase under oxygen purge before (blue) and after (red) natural UV light irradiation for 3 min. [Bottom graphs] CV (50 mV/s, 200 mM acetate buffer, pH 5.0) 1, 2 or 3 + laccase under nitrogen (blue) and oxygen purge (red) without UV light irradiation.
Figure 12. [Top graphs] Cyclic voltammetry (CV) (50 mV/s, 200 mM acetate buffer, pH 5.0) {right graph} for only laccase under nitrogen (blue) and oxygen purge (red) without ultraviolet (UV) light irradiation, {left graph} for laccase under oxygen purge before (blue) and after (red) natural UV light irradiation for 3 min. [Bottom graphs] CV (50 mV/s, 200 mM acetate buffer, pH 5.0) 1, 2 or 3 + laccase under nitrogen (blue) and oxygen purge (red) without UV light irradiation.
Symmetry 12 00797 g012aSymmetry 12 00797 g012b
Symmetry 12 00797 g013 550

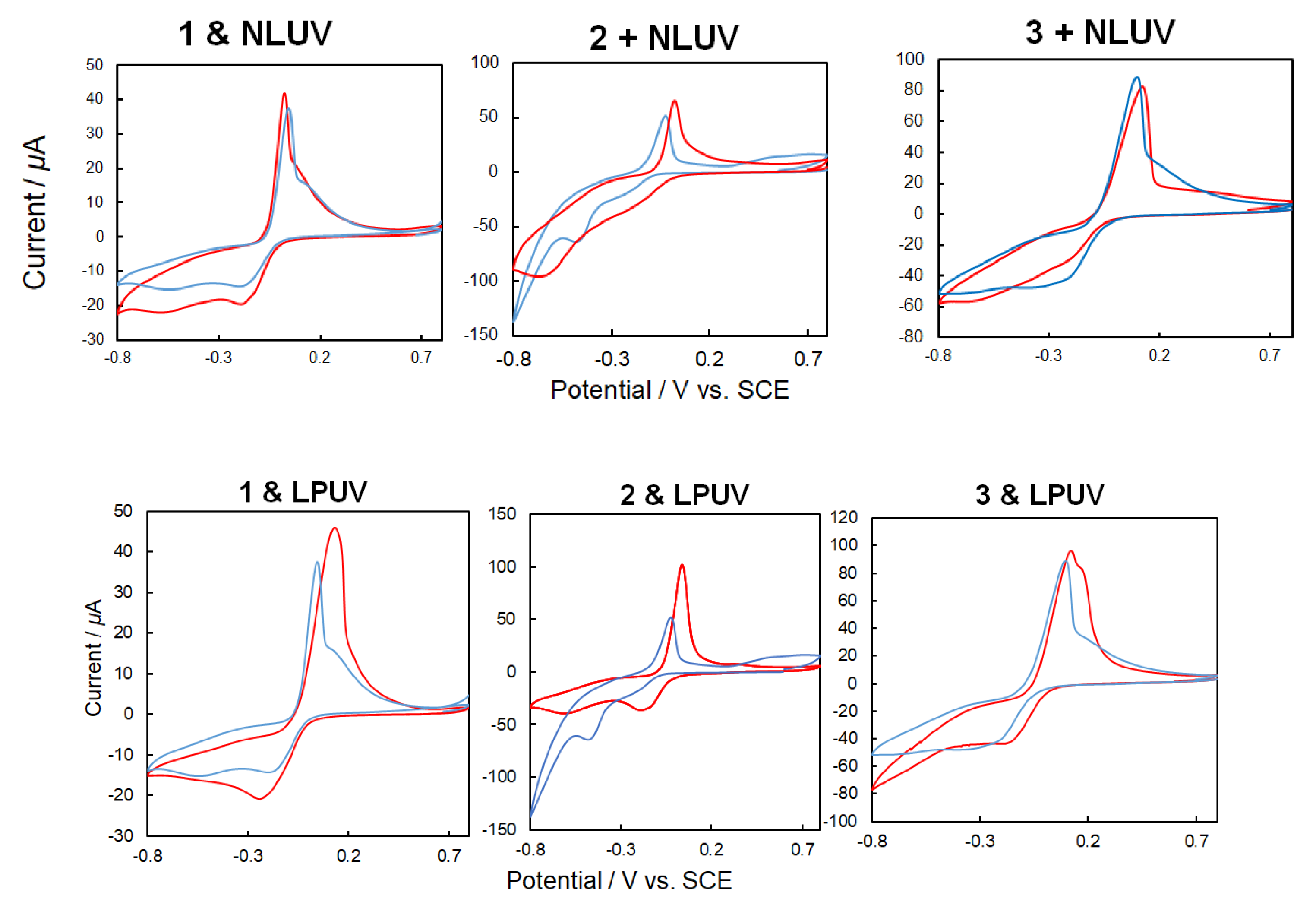

Figure 13. [Top] CV (50 mV/s, 200 mM acetate buffer, pH 5.0) of 1, 2 or 3 + laccase under oxygen purge before (blue) and after (red) natural UV light irradiation for 3 min. [Bottom] CV (50 mV/s, 200 mM acetate buffer, pH 5.0) of 1, 2 or 3 + laccase under oxygen purge before (blue) and after (red) linearly polarized UV light irradiation for 3 min.
Figure 13. [Top] CV (50 mV/s, 200 mM acetate buffer, pH 5.0) of 1, 2 or 3 + laccase under oxygen purge before (blue) and after (red) natural UV light irradiation for 3 min. [Bottom] CV (50 mV/s, 200 mM acetate buffer, pH 5.0) of 1, 2 or 3 + laccase under oxygen purge before (blue) and after (red) linearly polarized UV light irradiation for 3 min.
Symmetry 12 00797 g013
Table
Table 1. Bond distances and type between the laccase receptor and Complex 1.
Table 1. Bond distances and type between the laccase receptor and Complex 1.
Complex 1
A:GLN242:HE22 - P:L11.10Hydrogen BondPi-Donor Hydrogen Bond
A:PRO396:HA - P:L1:O41.87Hydrogen BondCarbon Hydrogen Bond
A:PHE239:HB1 - P:L12.05HydrophobicPi-Sigma
P:L1:H15 - P:L1:O12.21Hydrogen BondConventional Hydrogen Bond
A:ARG423:HD1 - P:L1:O62.24Hydrogen BondCarbon Hydrogen Bond
P:L1:H18 - P:L1:O52.31Hydrogen BondCarbon Hydrogen Bond
P:L1:H14 - P:L1:O12.35Hydrogen BondCarbon Hydrogen Bond
A:ARG423:HH12 - P:L1:N32.87Hydrogen BondConventional Hydrogen Bond
A:SER427:HB2 - P:L1:O12.91Hydrogen BondCarbon Hydrogen Bond
A:TYR244:OH - P:L12.93OtherPi-Lone Pair
P:L1 - A:VAL4263.11HydrophobicPi-Alkyl
P:L1 - A:LEU4513.63HydrophobicPi-Alkyl
P:L1 - A:ALA2403.98HydrophobicPi-Alkyl
P:L1 - A:LEU3994.01HydrophobicPi-Alkyl
P:L1 - A:ILE4394.20HydrophobicPi-Alkyl
P:L1 - A:ALA2404.48HydrophobicPi-Alkyl
P:L1 - A:ILE4554.60HydrophobicPi-Alkyl
A:ARG423:NH2 - P:L14.65ElectrostaticPi-Cation
P:L1 - A:ILE3824.76HydrophobicPi-Alkyl
P:L1 - A:ILE2384.78HydrophobicPi-Alkyl
P:L1 - A:ALA2404.90HydrophobicPi-Alkyl
P:L1 - A:VAL4265.24HydrophobicPi-Alkyl

Share and Cite

MDPI and ACS Style

Kajiwara, K.; Pradhan, S.; Haraguchi, T.; Sinha, C.; Parida, R.; Giri, S.; Roymahaptra, G.; Akitsu, T. Photo-Tunable Azobenzene-Anthraquinone Schiff Base Copper Complexes as Mediators for Laccase in Biofuel Cell Cathode. Symmetry 2020, 12, 797. https://doi.org/10.3390/sym12050797

AMA Style

Kajiwara K, Pradhan S, Haraguchi T, Sinha C, Parida R, Giri S, Roymahaptra G, Akitsu T. Photo-Tunable Azobenzene-Anthraquinone Schiff Base Copper Complexes as Mediators for Laccase in Biofuel Cell Cathode. Symmetry. 2020; 12(5):797. https://doi.org/10.3390/sym12050797

Chicago/Turabian Style

Kajiwara, Kazuto, Sayantan Pradhan, Tomoyuki Haraguchi, Chittaranjan Sinha, Rakesh Parida, Santanab Giri, Gourisankar Roymahaptra, and Takashiro Akitsu. 2020. "Photo-Tunable Azobenzene-Anthraquinone Schiff Base Copper Complexes as Mediators for Laccase in Biofuel Cell Cathode" Symmetry 12, no. 5: 797. https://doi.org/10.3390/sym12050797

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
