# New Design Procedure of Transtibial ProsthesisBed Stump Using Topological Optimization Method

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

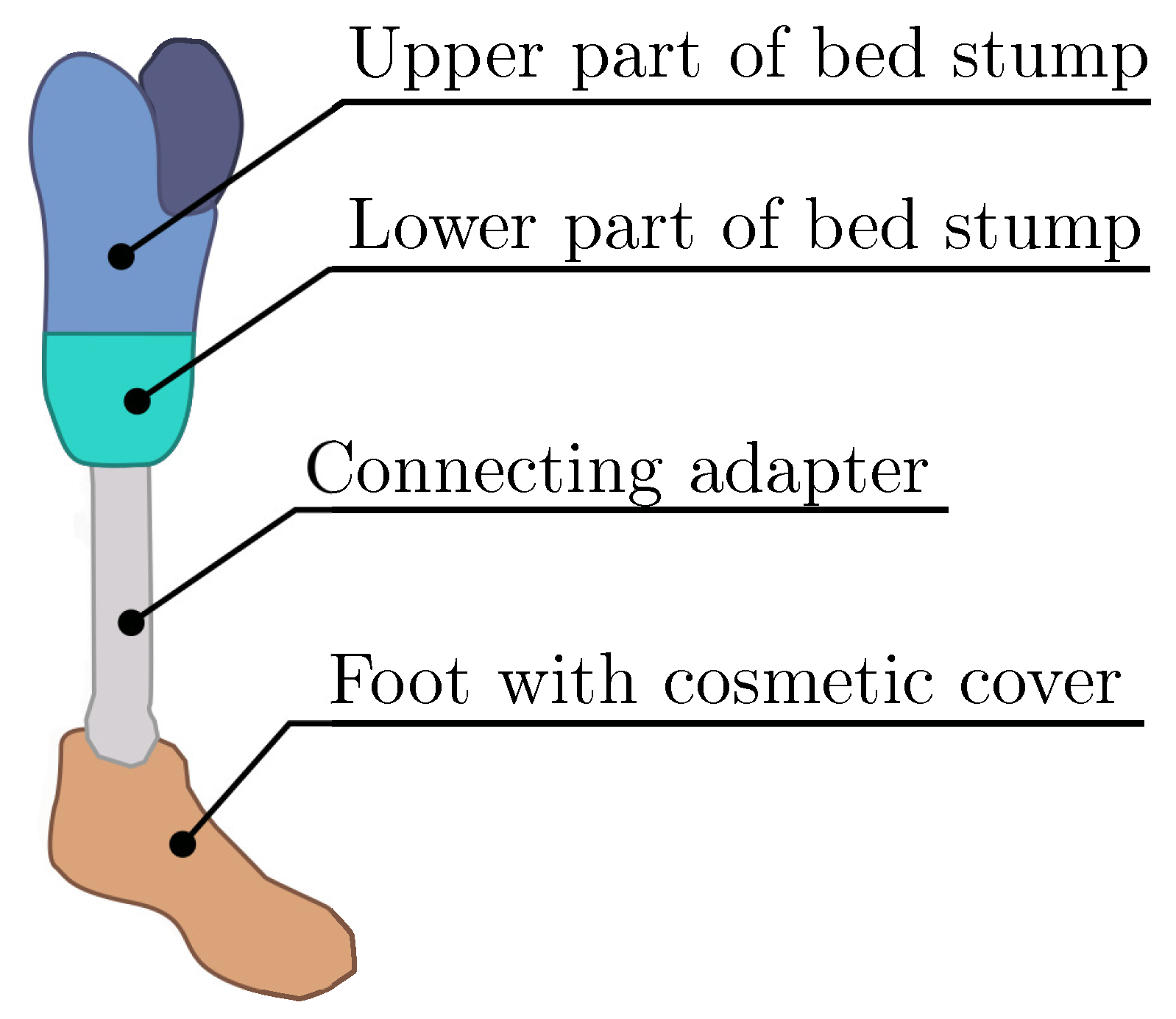

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Description of Walking Stages

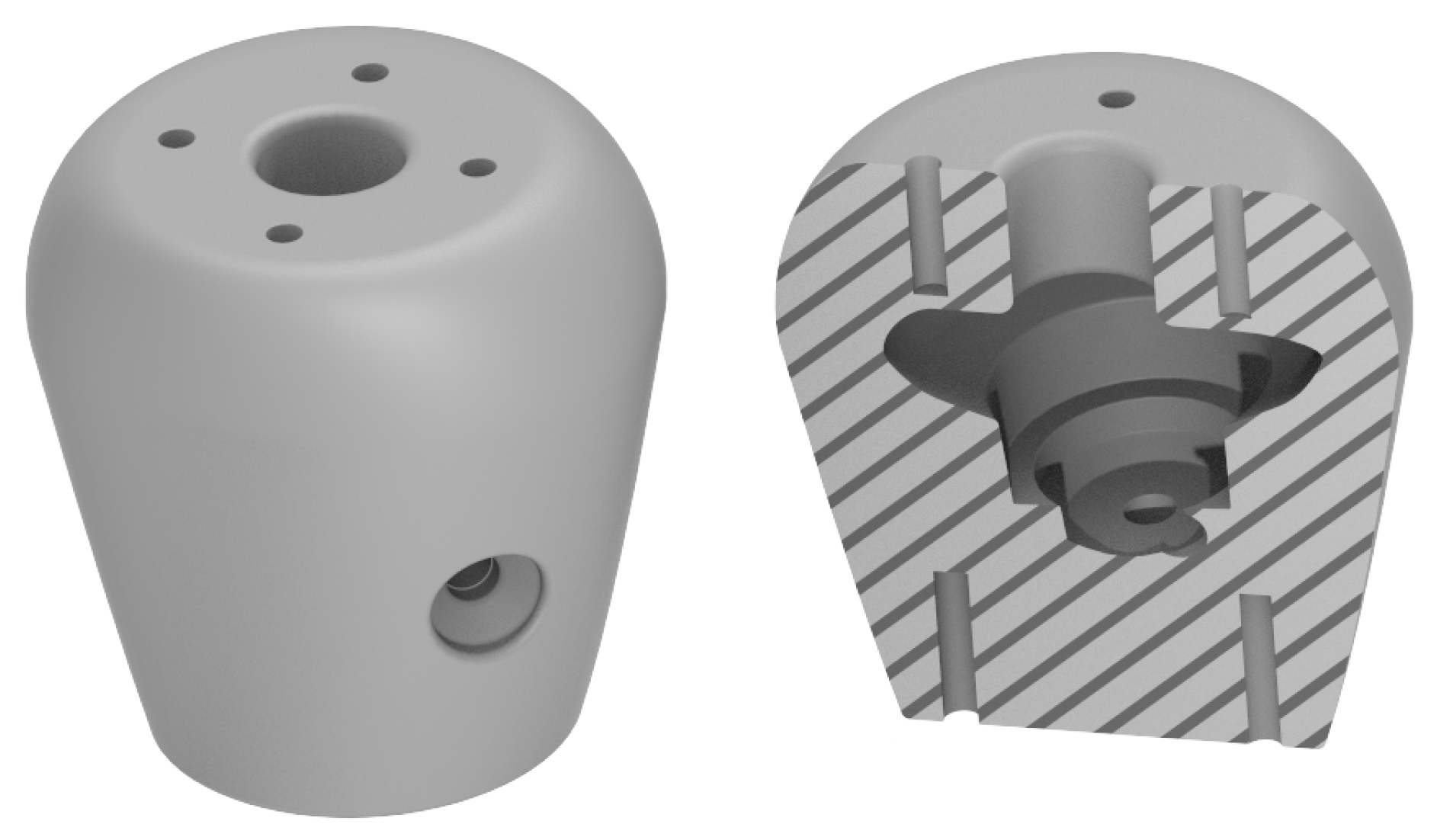

#### 2.2. BST Material

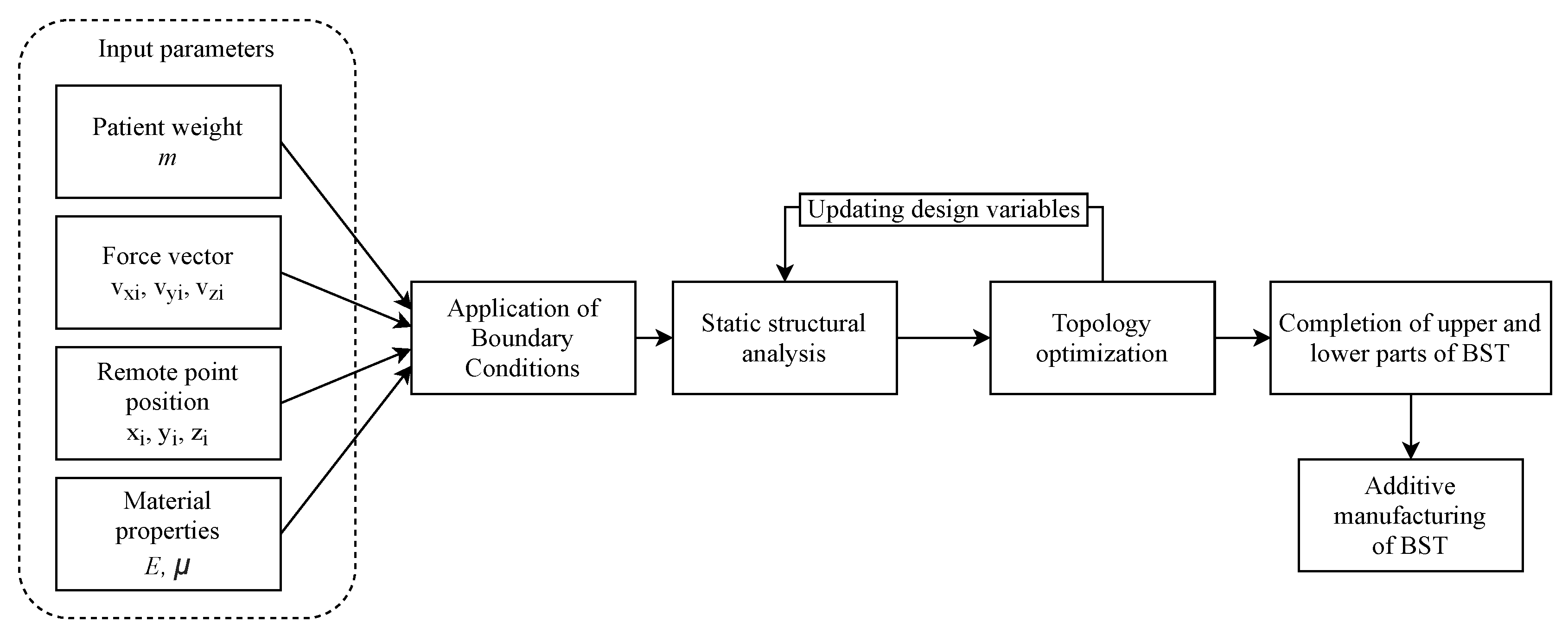

#### 2.3. Design of Computational Model

#### 2.4. Topology Optimization of Designed Model

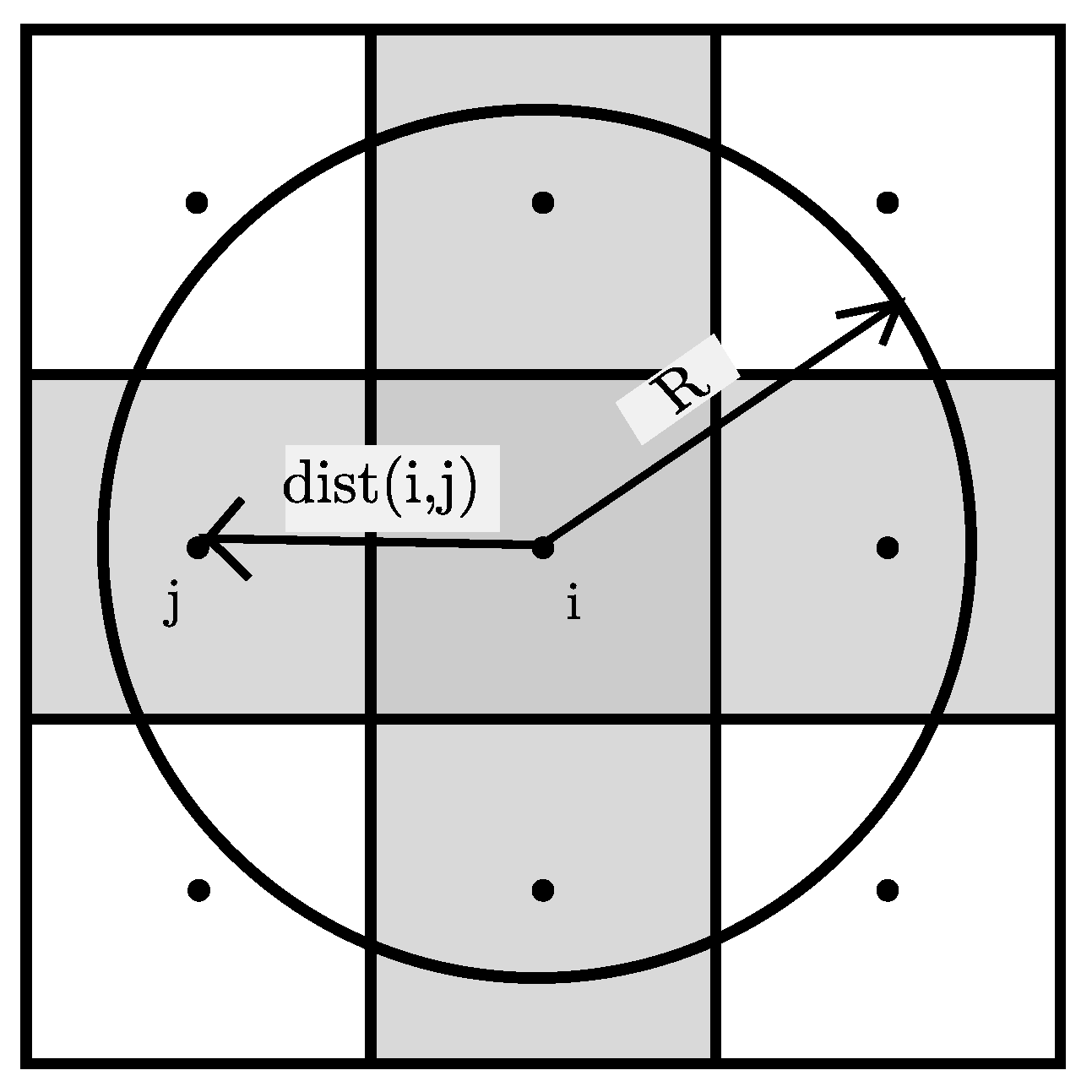

#### 2.5. Filtering Method

## 3. Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

3D | Three-dimensional |

TRP | Transtibial Prosthesis |

BST | Bed Stump |

AM | Additive Manufacturing |

TOP | Topology Optimization |

SLS | Selective Laser Sintering |

MJF | Multi-Jet Fusion |

CAD | Computer Aided Design |

FEM | Finite Element Method |

PA12 | Polyamide 12 |

SLM | Selective Laser Melting |

STL | Standart Traingle Language |

FDM | Fused Deposite Modelling |

PLA | Polylactic Acid |

SIMP | Solid Isotropic Material with Penalty |

KKT | Karush-Kuhn-Tucker |

## References

- Setiawan, J.D.; Ariyanto, M.; Munadi, M.; Mutoha, M.; Glowacz, A.; Caesarendra, W. Grasp Posture Control of Wearable Extra Robotic Fingers with Flex Sensors Based on Neural Network. Electronics
**2020**, 9, 905. [Google Scholar] [CrossRef] - Crowe, C.S.; Impastato, K.A.; Donaghy, A.C.; Earl, C.; Friedly, J.L.; Keys, K.A. Prosthetic and orthotic options for lower extremity amputation and reconstruction. Plast. Aesthetic Res.
**2019**, 6, 4. [Google Scholar] [CrossRef] [Green Version] - Lower Extremity Prosthetics. Human Technology: Prosthetics and Orthotics. 2020. Available online: https://humantechpando.com/prosthetic-products-lower/ (accessed on 12 August 2020).
- Manufacturing Guidelines: Trans-Tibial Prosthesis. 2006. Available online: https://www.icrc.org/en/doc/assets/files/other/eng-transtibial.pdf (accessed on 25 September 2020).
- Faustini, M.C.; Neptune, R.R.; Crawford, R.H.; Rogers, W.E.; Bosker, G. An Experimental and Theoretical Framework for Manufacturing Prosthetic Sockets for Transtibial Amputees. IEEE Trans. Neural Syst. Rehabil. Eng.
**2006**, 14, 304–310. [Google Scholar] [CrossRef] - Hussain, G.; Khan, W.A.; Ashraf, H.A.; Ahmad, H.; Ahmed, H.; Imran, A.; Ahmad, I.; Rehman, K.; Abbas, G. Design and development of a lightweight SLS 3D printer with a controlled heating mechanism. Int. J. Lightweight Mater. Manuf.
**2019**, 2, 373–378. [Google Scholar] [CrossRef] - Jiang, J.; Xu, X.; Stringer, J. Support Structures for Additive Manufacturing. J. Manuf. Mater. Process.
**2018**, 2, 64. [Google Scholar] [CrossRef] [Green Version] - Ligon, S.C.; Liska, R.; Stampfl, J.; Gurr, M.; Mülhaupt, R. Polymers for 3D Printing and Customized Additive Manufacturing. Chem. Rev.
**2017**, 117, 10212–10290. [Google Scholar] [CrossRef] [Green Version] - Hsu, L.H.; Huang, G.F.; Lu, C.T.; Hong, D.Y.; Liu, S.H. The Development of a Rapid Prototyping Prosthetic Socket Coated with a Resin Layer for Transtibial Amputees. Prosthetics Orthot. Int.
**2010**, 34, 37–45. [Google Scholar] [CrossRef] [Green Version] - Marsalek, P.; Grygar, A.; Karasek, T.; Brzobohaty, T. Virtual prototyping of 3D printed cranial orthoses by finite element analysis. Cent. Eur. Symp. Thermophys.
**2019**, 2116, 320010. [Google Scholar] [CrossRef] - Jancar, L.; Pagac, M.; Mesicek, J.; Stefek, P. Design Procedure of a Topologically Optimized Scooter Frame Part. Symmetry
**2020**, 12, 755. [Google Scholar] [CrossRef] - Hunar, M.; Jancar, L.; Krzikalla, D.; Kaprinay, D.; Srnicek, D. Comprehensive View on Racing Car Upright Design and Manufacturing. Symmetry
**2020**, 12, 1020. [Google Scholar] [CrossRef] - Lammens, N.; De Baere, I.; Van Paepegem, W. On the orthotropic elasto-plastic material response of additively manufactured polyamide 12. In Proceedings of the 7th Bi-Annual International Conference of Polymers & Moulds Innovations, Ghent, Belgium, 21–23 September 2016; p. 6. [Google Scholar]
- Campbell, L.; Lau, A.; Pousett, B.; Janzen, E.; Raschke, S.U. How infill percentage affects the ultimate strength of 3d-printed transtibial sockets during initial contact. Can. Prosthetics Orthot. J.
**2018**, 1. [Google Scholar] [CrossRef] [Green Version] - Stevens, P.M.; DePalma, R.R.; Wurdeman, S.R. Transtibial Socket Design, Interface, and Suspension. J. Prosthetics Orthot.
**2019**, 31, 172–178. [Google Scholar] [CrossRef] - Dillingham, T.R.; Pezzin, L.E.; MacKenzie, E.J.; Burgess, A.R. Use and Satisfaction with Prosthetic Devices Among Persons with Trauma-Related Amputations. Am. J. Phys. Med. Rehabil.
**2001**, 80, 563–571. [Google Scholar] [CrossRef] [PubMed] - Chin, P.Y.Y.; Cheok, Q.; Glowacz, A.; Caesarendra, W. A Review of In-Vivo and In-Vitro Real-Time Corrosion Monitoring Systems of Biodegradable Metal Implants. Appl. Sci.
**2020**, 10, 3141. [Google Scholar] [CrossRef] - Kibushi, B.; Hagio, S.; Moritani, T.; Kouzaki, M. Speed-Dependent Modulation of Muscle Activity Based on Muscle Synergies during Treadmill Walking. Front. Hum. Neurosci.
**2018**, 12, 1–3. [Google Scholar] [CrossRef] [PubMed] - Quintero-Quiroz, C.; Pérez, V.Z. Materials for lower limb prosthetic and orthotic interfaces and sockets. Rev. Fac. Med.
**2019**, 67, 117–125. [Google Scholar] [CrossRef] - Tappa, K.; Jammalamadaka, U. Novel Biomaterials Used in Medical 3D Printing Techniques. J. Funct. Biomater.
**2018**, 9, 17. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dadbakhsh, S.; Verbelen, L.; Verkinderen, O.; Strobbe, D.; Puyvelde, P.V.; Kruth, J.P. Effect of PA12 powder reuse on coalescence behaviour and microstructure of SLS parts. Eur. Polym. J.
**2017**, 92, 250–262. [Google Scholar] [CrossRef] - Faes, M.; Wang, Y.; Lava, P.; Moens, D. Variability in the mechanical properties of Laser Sintered PA-12 Components. In Proceedings of the 26th Annual International Solid Freeform Fabrication Symposium—An Additive Manufacturing Conference, Austin, TX, USA, 10–12 August 2015. [Google Scholar]
- Bhatti, M.A. Advanced Topics in Finite Element Analysis of Structures, 2nd ed.; John Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Bhatti, M.A. Fundamental Finite Element Analysis and Applications; John Wiley: Hoboken, NJ, USA, 2005. [Google Scholar]
- Lesnak, M.; Marsalek, P.; Horyl, P.; Pistora, J. Load-bearing capacity modelling and testing of single-stranded wire rope. Acta Montan. Slovaca
**2020**, 25, 192–200. [Google Scholar] - Horyl, P.; Snupárek, R.; Marsalek, P.; Poruba, Z.; Paczesniowski, K. Parametric studies of total load-bearing capacity of steel arch supports. Acta Montan. Slovaca
**2019**, 24, 213–222. [Google Scholar] - Marsalek, P.; Horyl, P. Modelling of bolted connection with flexible yokes used in mining industry. In Proceedings of the AIP Conference Proceedings, Thessaloniki, Greece, 25–30 September 2017; Volume 1863. [Google Scholar]
- Bathe, K.J. Finite Element Procedures, 1st ed.; Prentice Hall: Englewood Cliffs, NJ, USA, 2006. [Google Scholar]
- Klemenc, M.; Markopoulos, A.; Marsalek, P. Analysing of critical force effects of aircraft seat belt using truss elements. In Proceedings of the AIP Conference Proceedings, Thessaloniki, Greece, 25–30 September 2017; Volume 1863. [Google Scholar]
- Hughes, T.J.R. The Finite Element Method, 1st ed.; Prentice Hall: Upper Saddle River, NJ, USA, 1987. [Google Scholar]
- Fryar, C.; Kruszon-Moran, D.; Gu, Q.; Ogden, C. Mean Body Weight, Height, Waist Circumference, and Body Mass Index Among Adults: United States, 1999–2000 through 2015–2016. Natl. Health Stat. Rep.
**2018**, 2018, 1–16. [Google Scholar] - Ravindran, A.; Reklaitis, G.V.; Ragsdell, K.M. Engineering Optimization, 2nd ed.; John Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Orme, M.; Madera, I.; Gschweitl, M.; Ferrari, M. Topology Optimization for Additive Manufacturing as an Enabler for Light Weight Flight Hardware. Designs
**2018**, 2, 51. [Google Scholar] [CrossRef] [Green Version] - Bendsøe, M.P.; Sigmund, O. Topology Optimization, 3rd ed.; Springer: Berlin, Germany, 2004. [Google Scholar]
- Bendsøe, M.P.; Sigmund, O. Material interpolation schemes in topology optimization. Arch. Appl. Mech.
**1999**, 69, 635–654. [Google Scholar] [CrossRef] - Liu, K.; Tovar, A. An efficient 3D topology optimization code written in Matlab. Struct. Multidiscip. Optim.
**2014**, 50, 1175–1196. [Google Scholar] [CrossRef] [Green Version] - Sigmund, O. A 99 line topology optimization code written in Matlab. Struct. Multidiscip. Optim.
**2001**, 21, 120–127. [Google Scholar] [CrossRef] - Sigmund, O. Morphology-based black and white filters for topology optimization. Struct. Multidiscip. Optim.
**2007**, 33, 401–424. [Google Scholar] [CrossRef] [Green Version] - Groenwold, A.A.; Etman, L.F.P. A simple heuristic for gray-scale suppression in optimality criterion-based topology optimization. Struct. Multidiscip. Optim.
**2009**, 39, 217–225. [Google Scholar] [CrossRef] - Hunter, W. Predominatly Solid-Void Three-Dimensional Topology Optimization Using Open Source Software. Master’s Thesis, University of Stellenbosch, Stellenbosch, South Africa, 2009. Available online: https://scholar.sun.ac.za/handle/10019.1/2648 (accessed on 2 March 2020).
- Markopoulos, A.; Hapla, V.; Cermak, M.; Fusek, M. Massively parallel solution of elastoplasticity problems with tens of millions of unknowns using PermonCube and FLLOP packages. Appl. Math. Comput.
**2015**, 267, 698–710. [Google Scholar] [CrossRef]

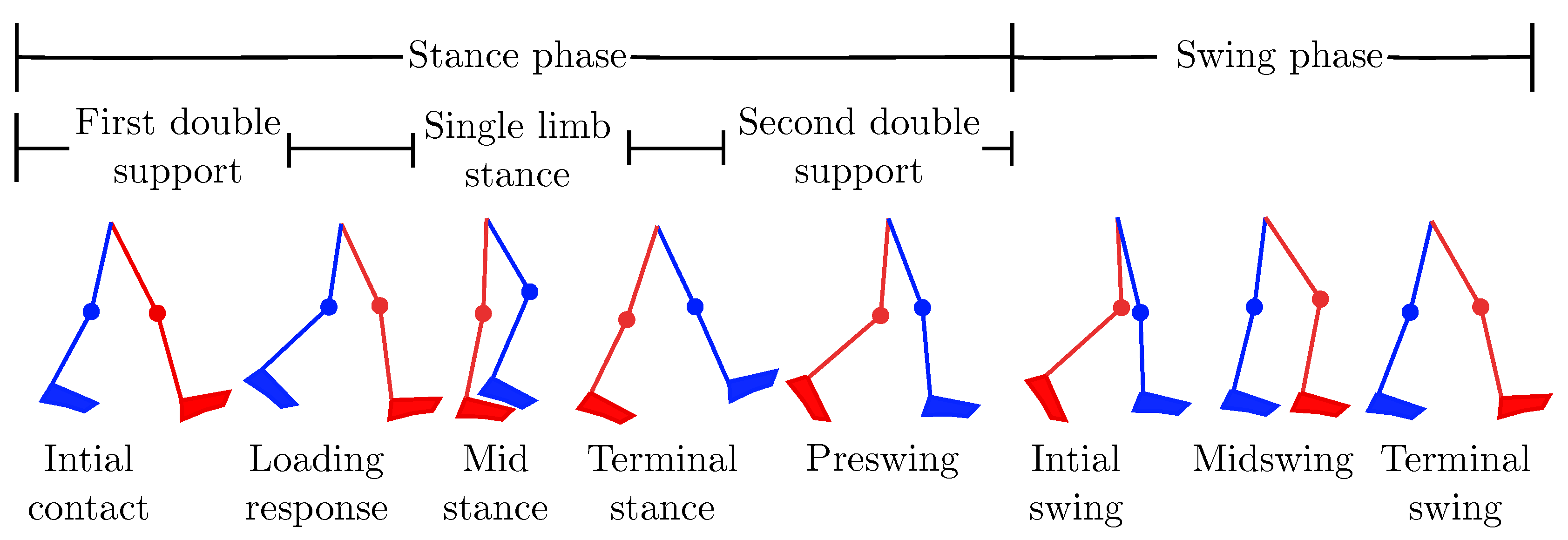

**Figure 4.**Stages of walking [18].

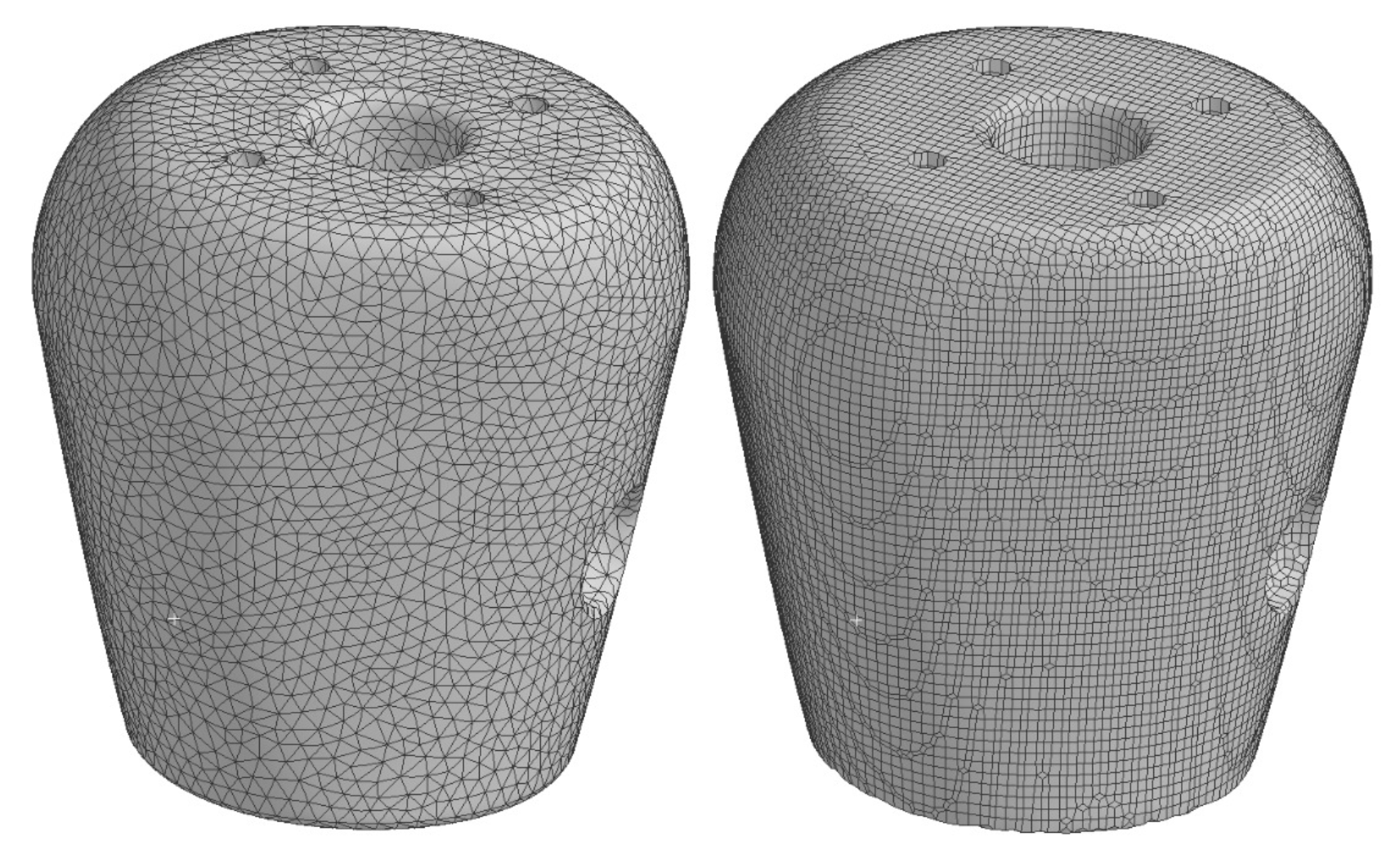

**Figure 5.**Finite element meshes used for description of the BST lower parts, tetrahedral (

**left**) and hexahedral (

**right**) elements.

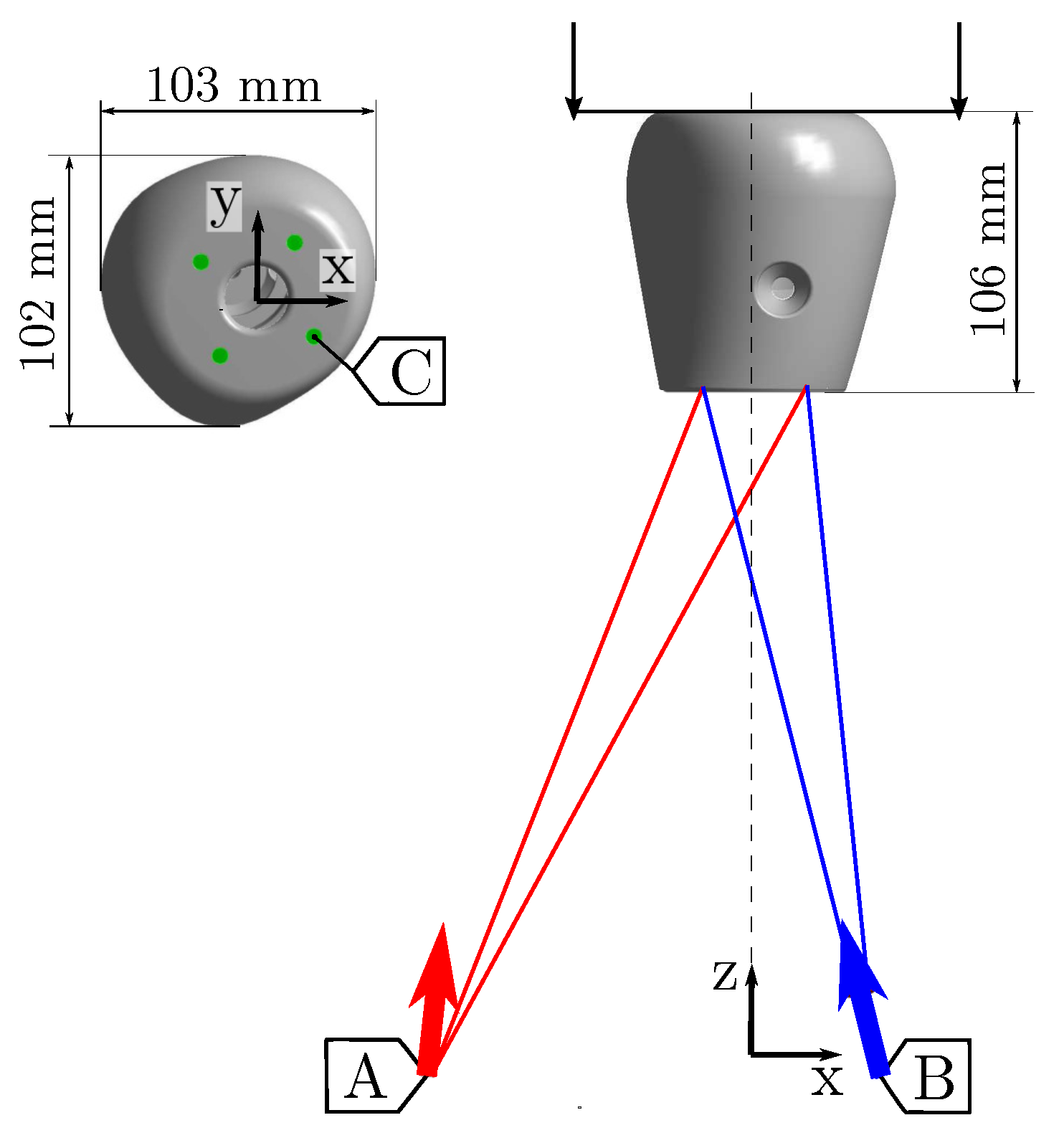

**Figure 6.**Boundary conditions of the BST lower part, A—force from toe, B—force from heel, and C—fixture in holes.

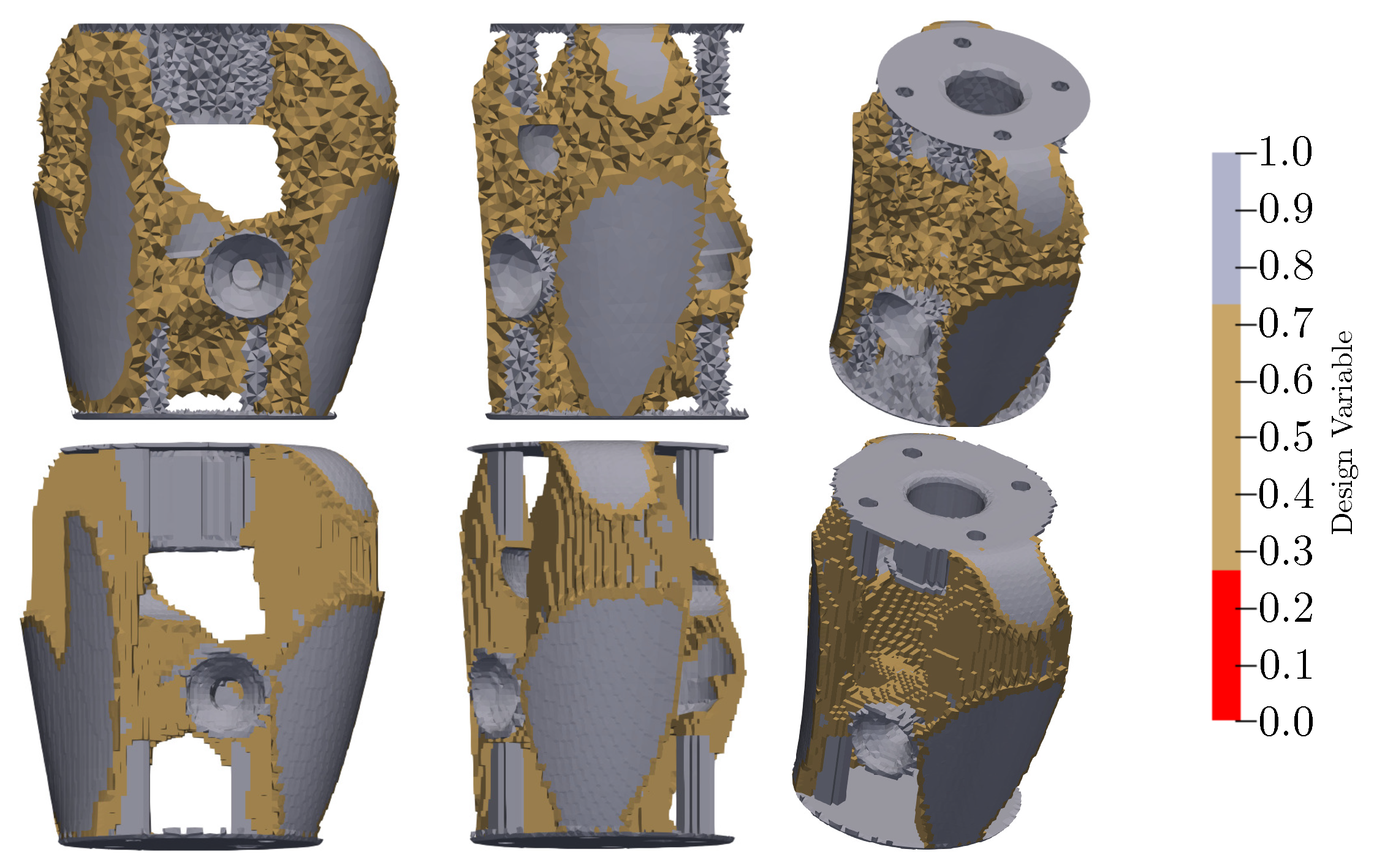

**Figure 8.**Comparison of the optimized shape using tetrahedral (

**top**) and hexahedral elements (

**bottom**).

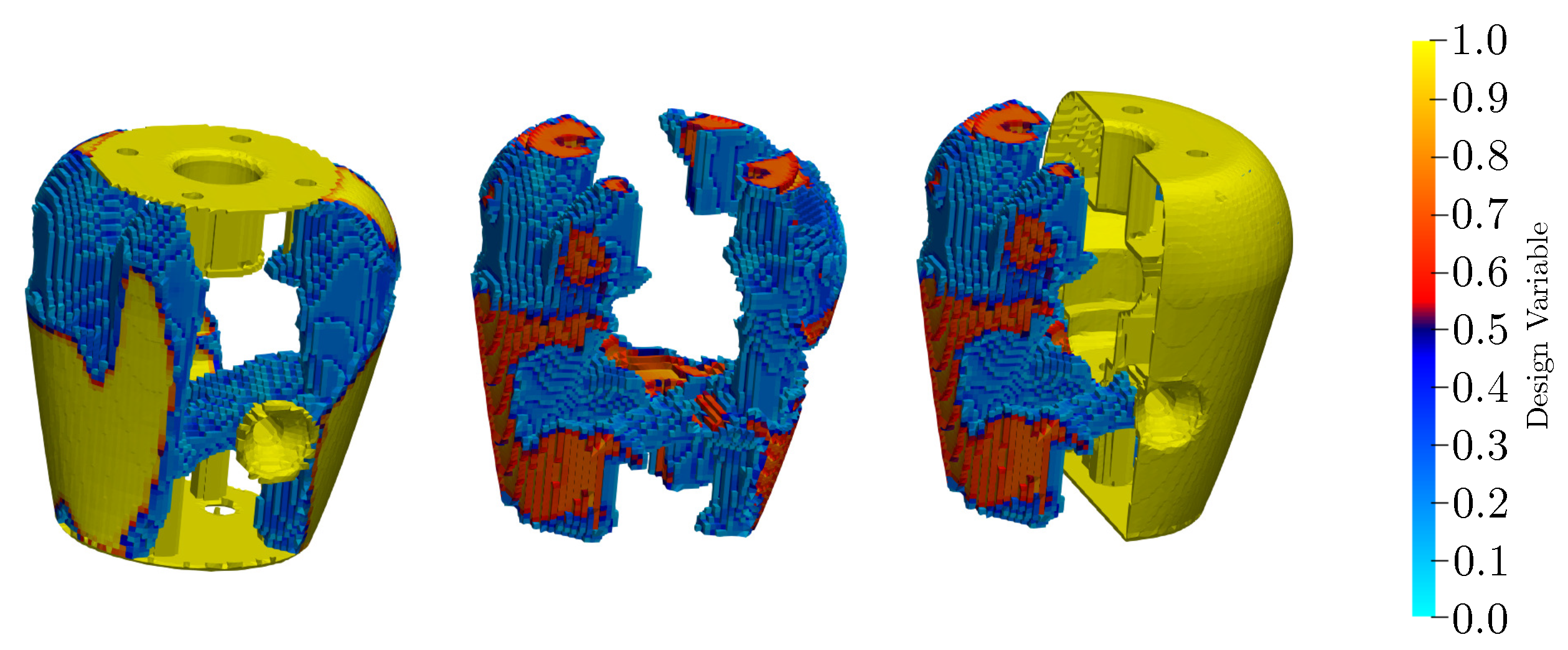

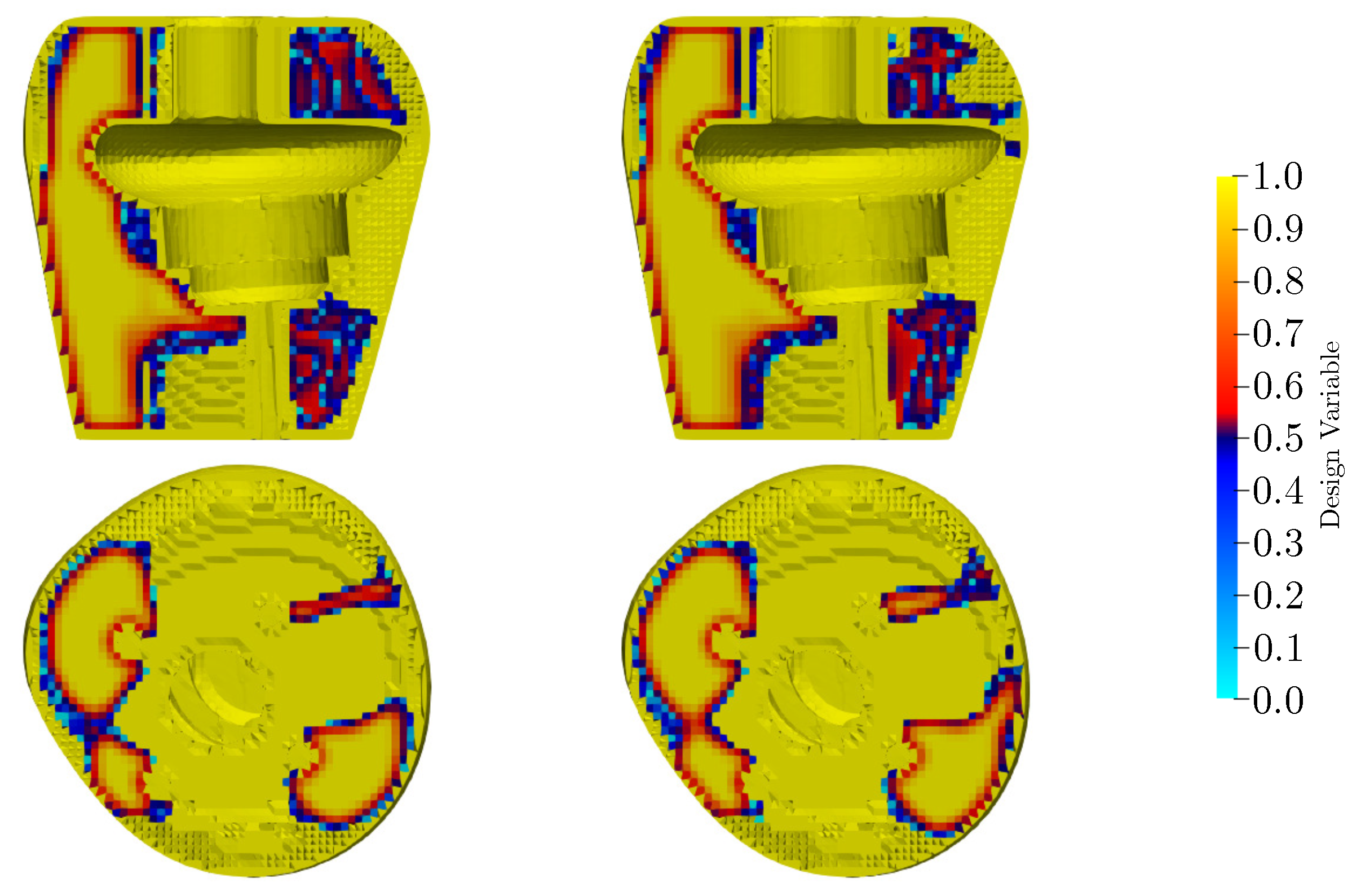

**Figure 9.**Optimized shape presentation: the shape without external surface (

**left**), the final core shape (

**middle**), BST in section with highlighted core (

**right**).

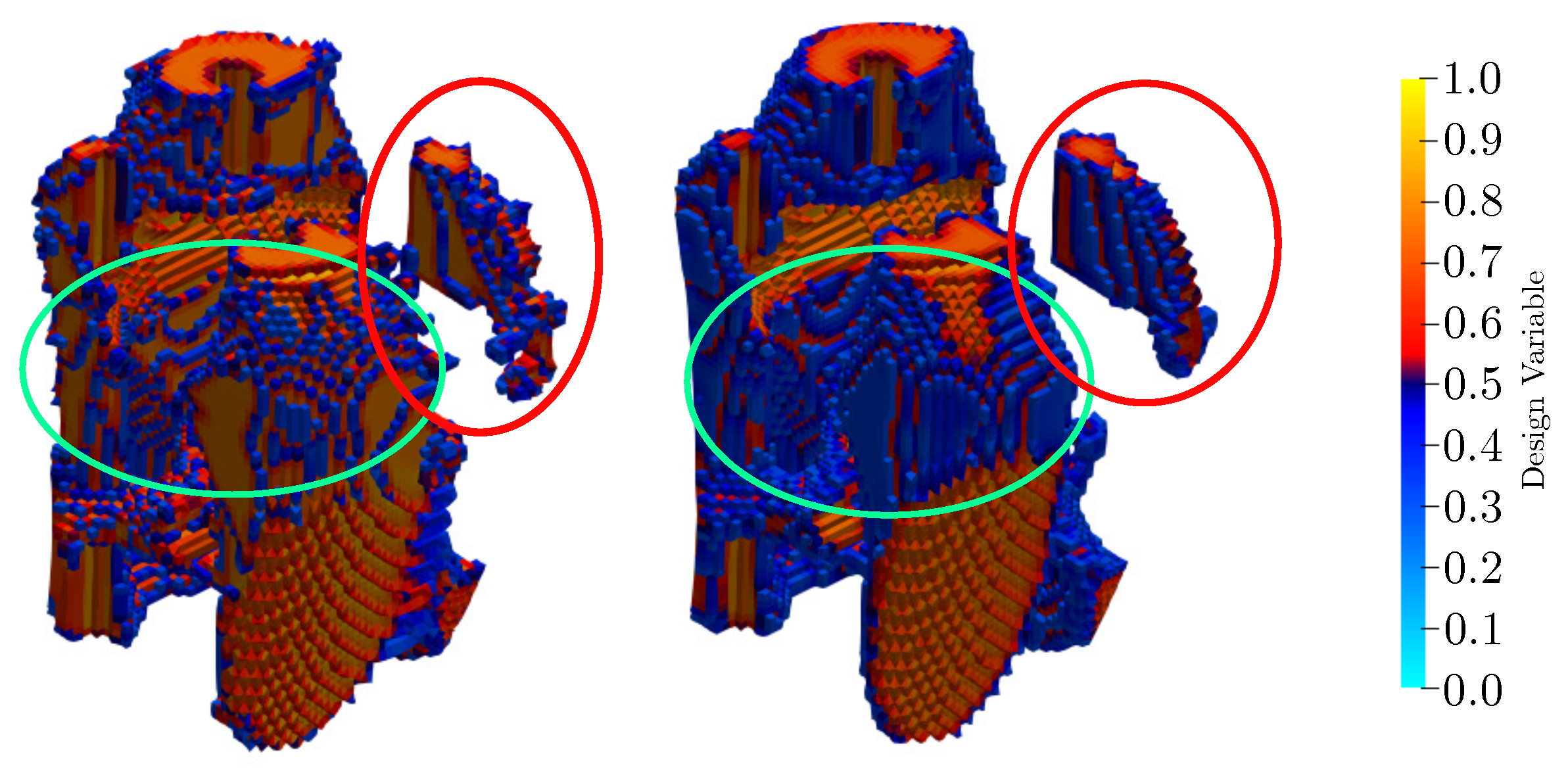

**Figure 11.**The BST core for different patient weights m (hexahedral elements),

**left**core is loaded by force F = 2296 N,

**right**core is loaded by force F = 2885 N.

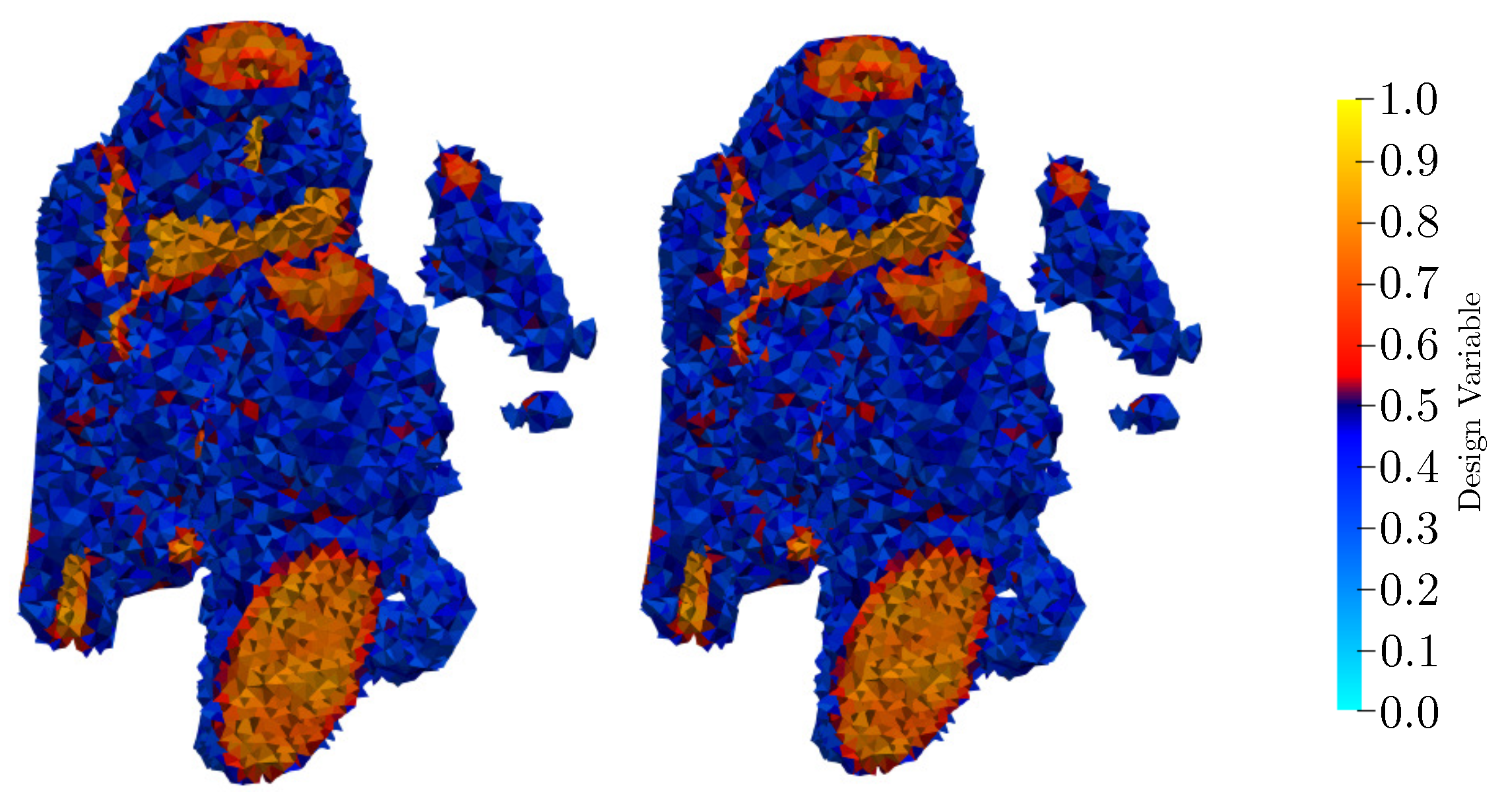

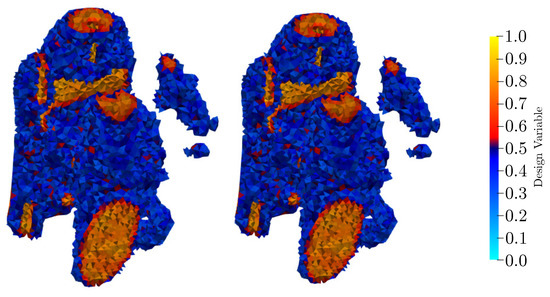

**Figure 12.**The BST core for different patient weights m (tetrahedral elements),
