# Magnetohydrodynamic and Nanoparticle Effects in Vertical Annular Subcooled Flow Boiling

^{1}

^{2}

## Abstract

**:**

## 1. Introduction

## 2. Geometry and Physical Condition

_{in}(beneath the immersion saturation) and constant inlet normal speed (283.1 kg/m

^{2}s) and there is an overlap of 3.64 cm

^{2}despite the fact that its weight at the exit pressure is fixed as given in Table 1. The annular entry of liquid stream (inward cylinder breadth 12.7 mm, external cylinder width, 25.4 mm, and 114.6 cm length is somewhat homogeneously warmed between the height of 34 cm and 64.6 cm. The magnetic conditions presented in Table 2 are utilized to calculate the force liquid stream in opposition to the vertical motion. To simplify the calculations the issue is broken up in the current examination by the 1D perspective and the pressure-driven measurement (0.123 cm) is not exactly longitudinal size (1.146 cm). No channel surfaces have warmth scattering properties (adiabatic). In CFD, the usual delta speed is recommended and the exit pressure is zero. To force the fluid in a vertical direction, the liquids are guided either through a weight slope (Pin and Pout required) or through a gulf speed with a surge circumstance, or, intermittently, in an elective region. This is common standard where weight angles are concerned.

## 3. Governing Equations

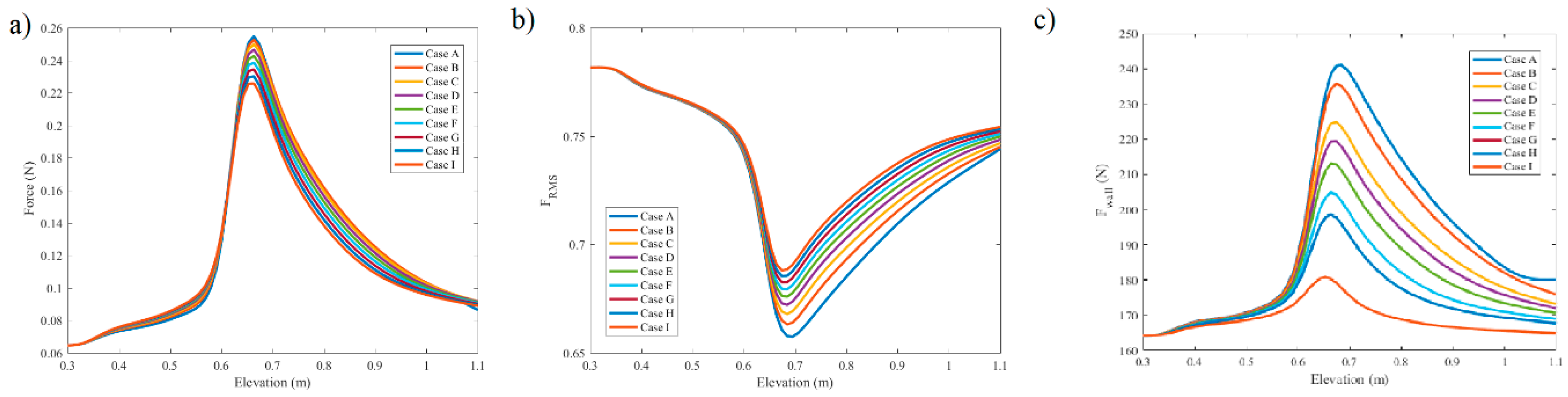

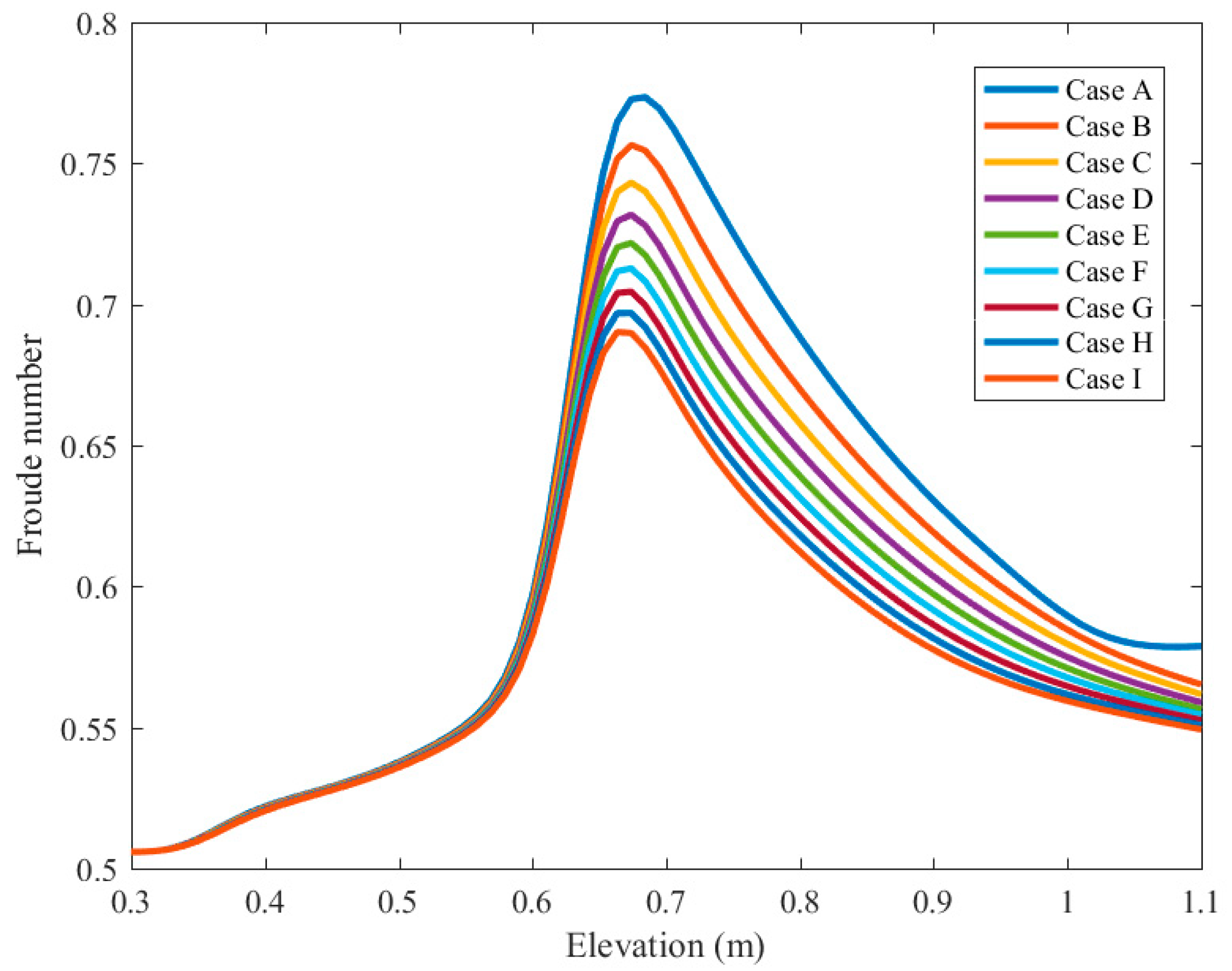

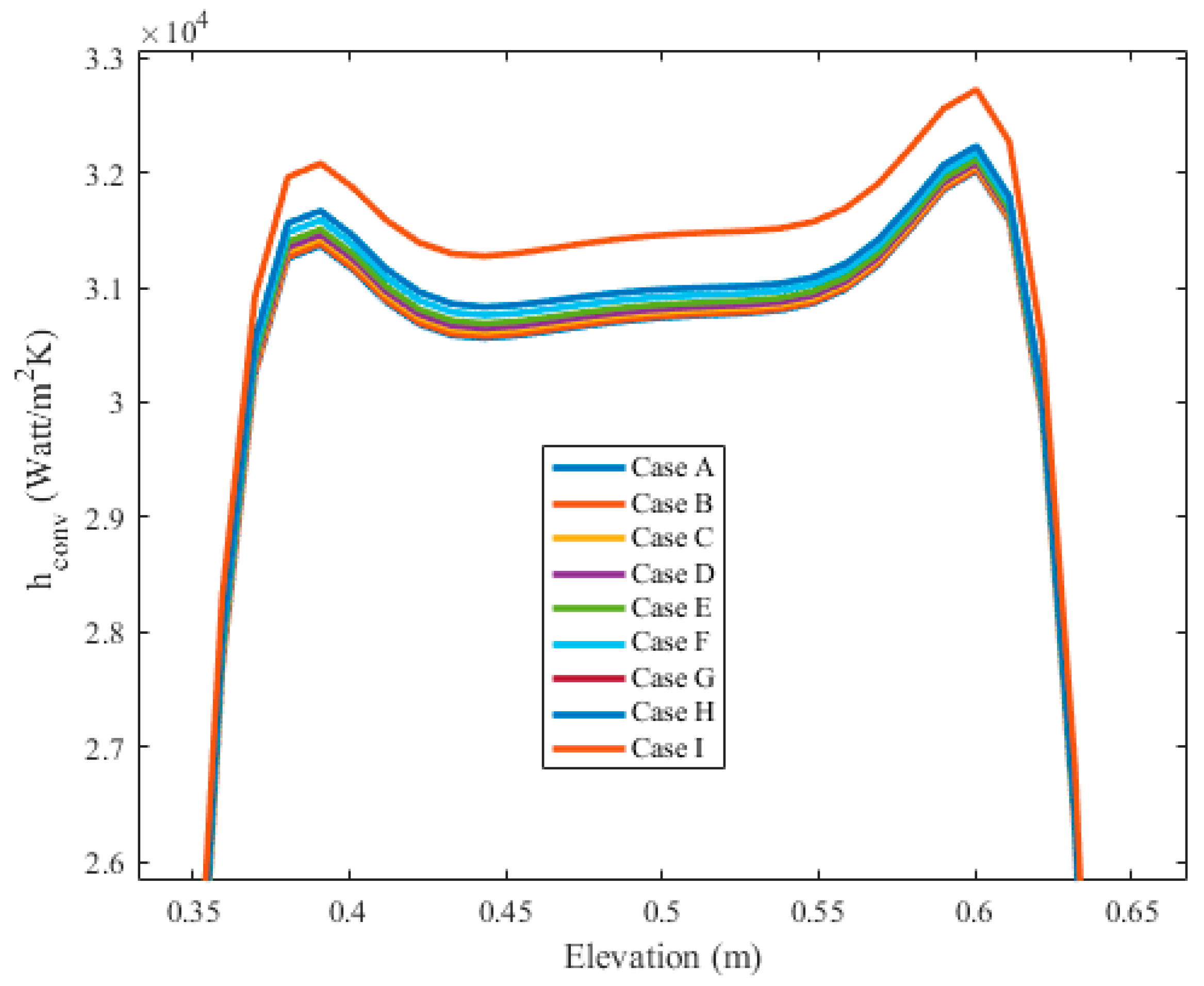

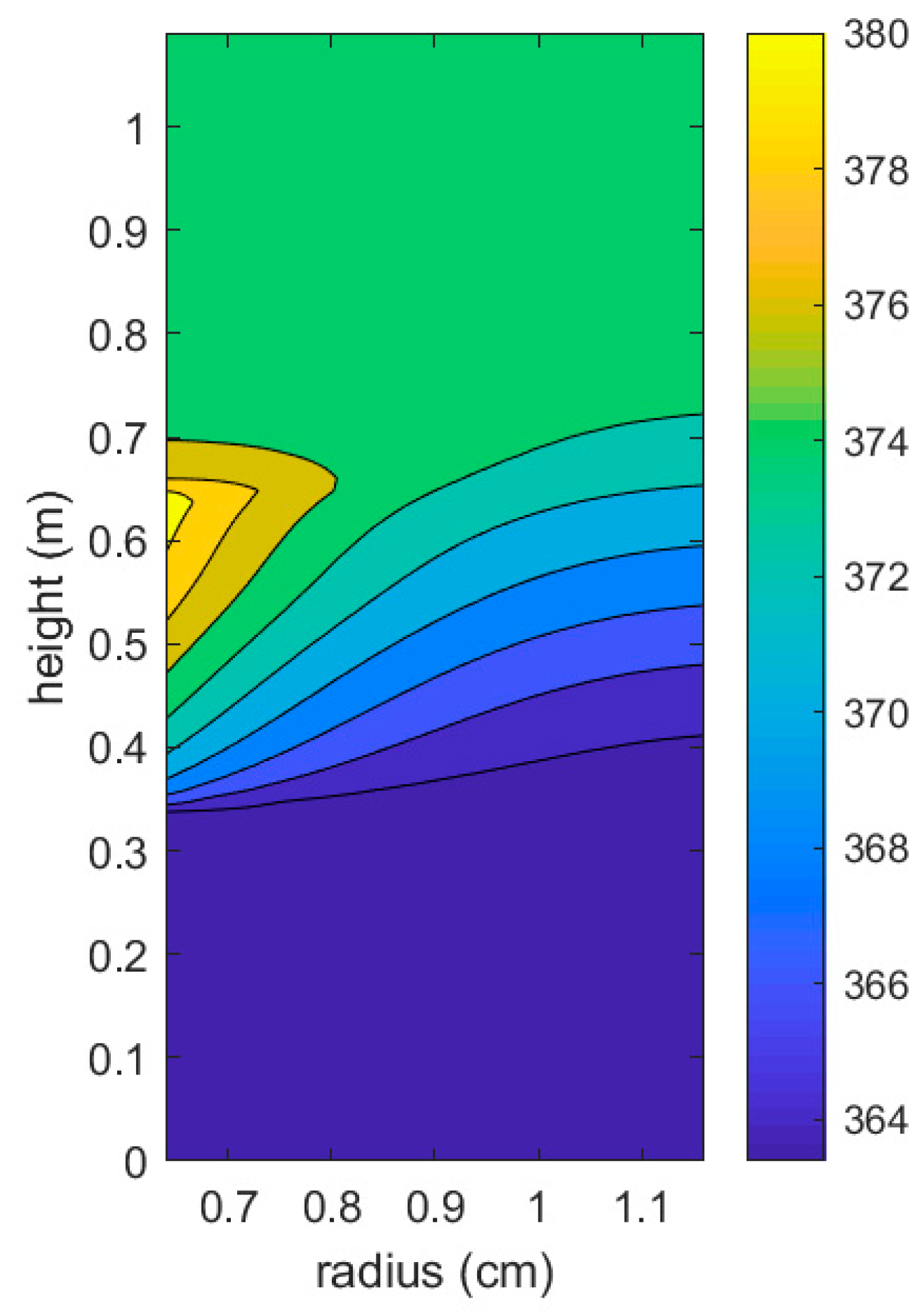

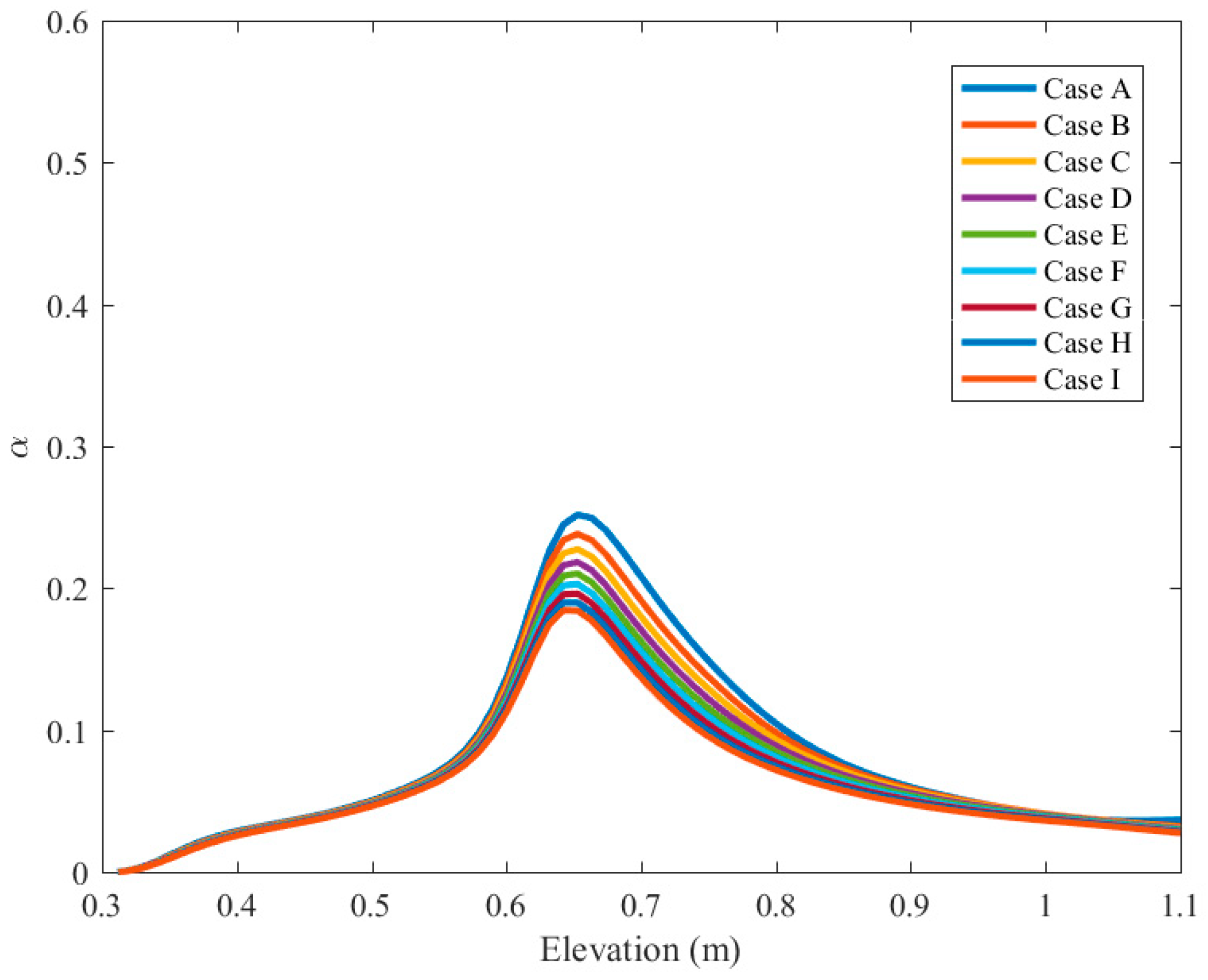

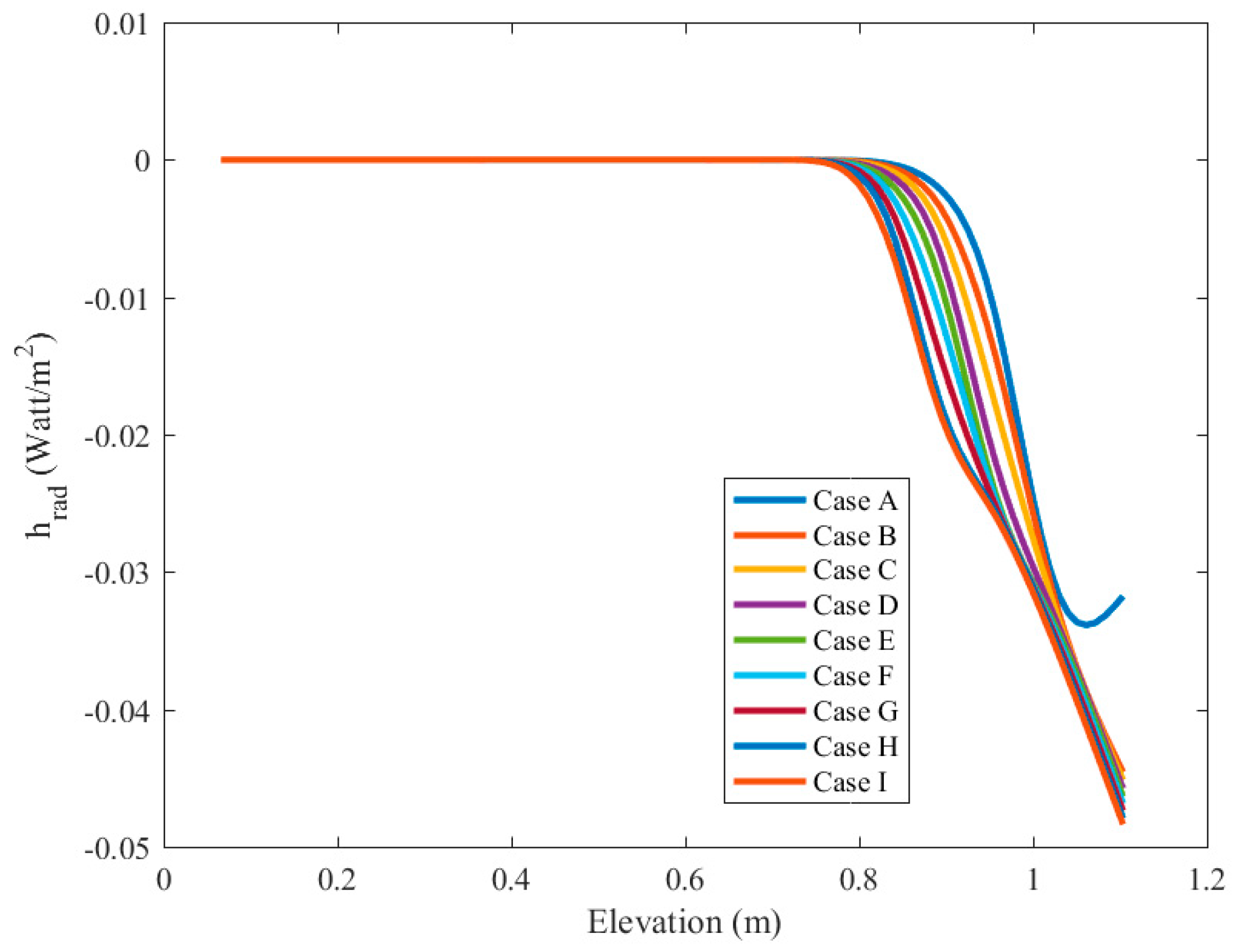

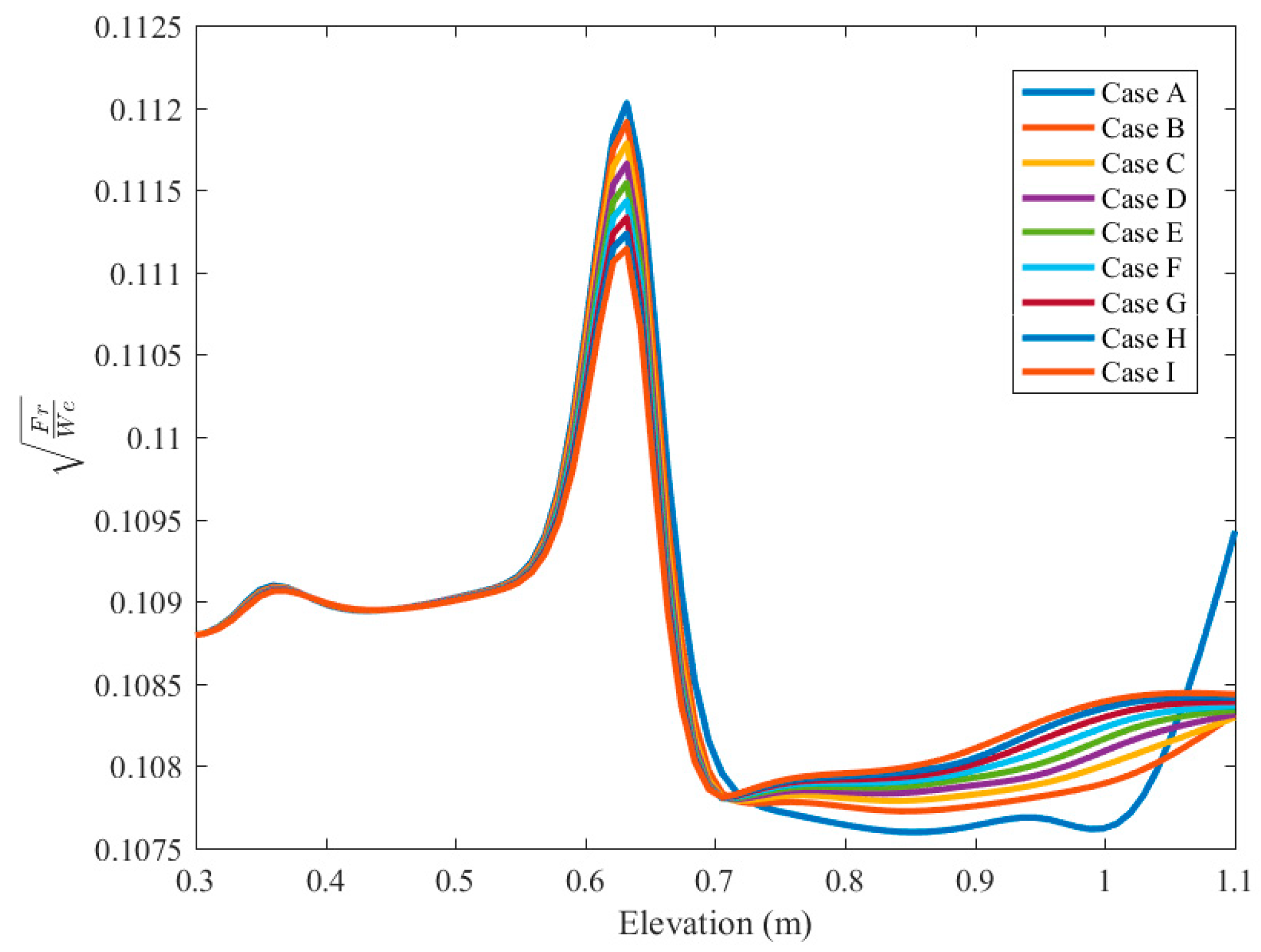

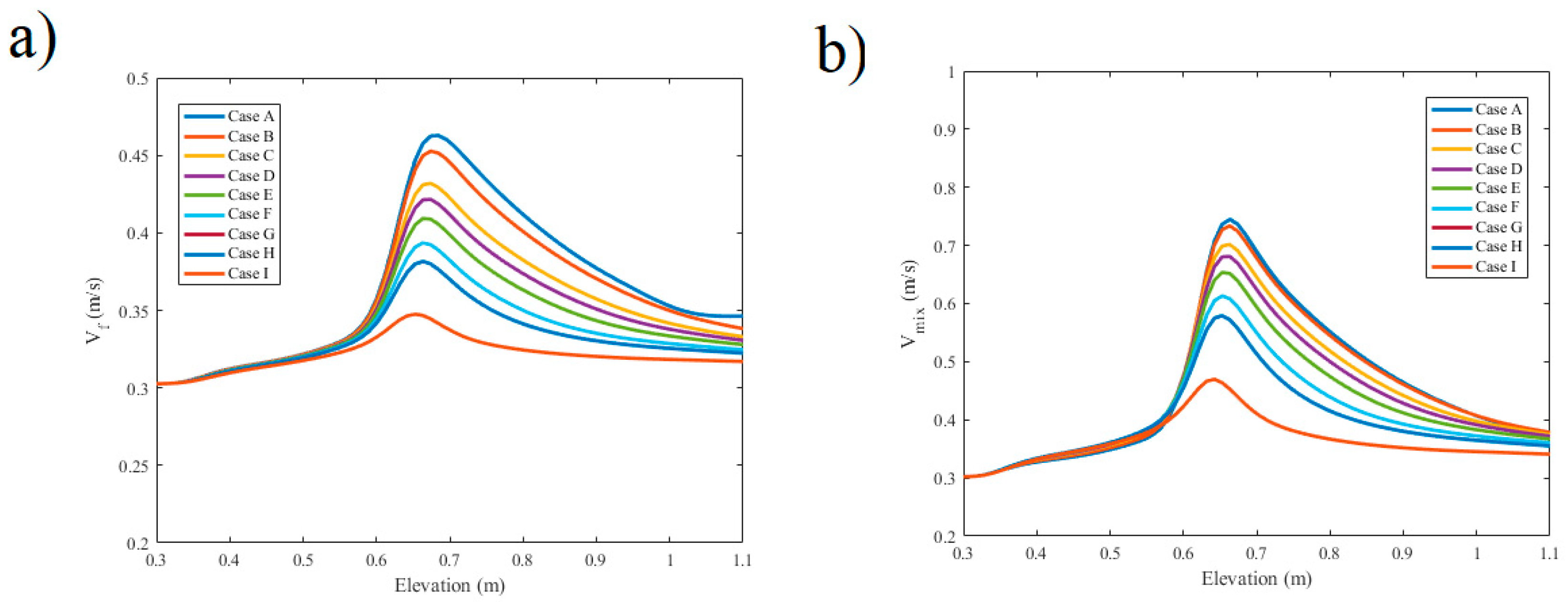

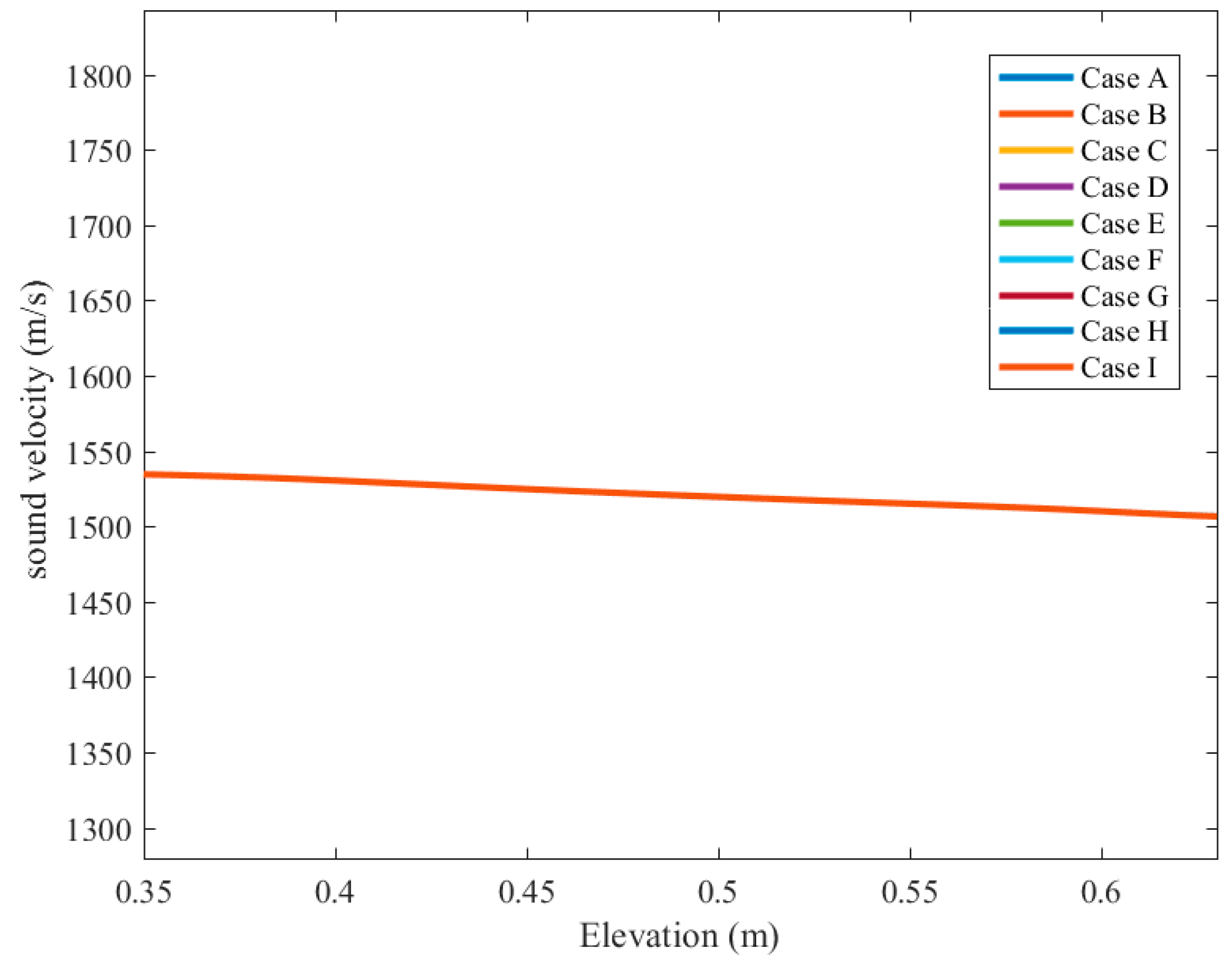

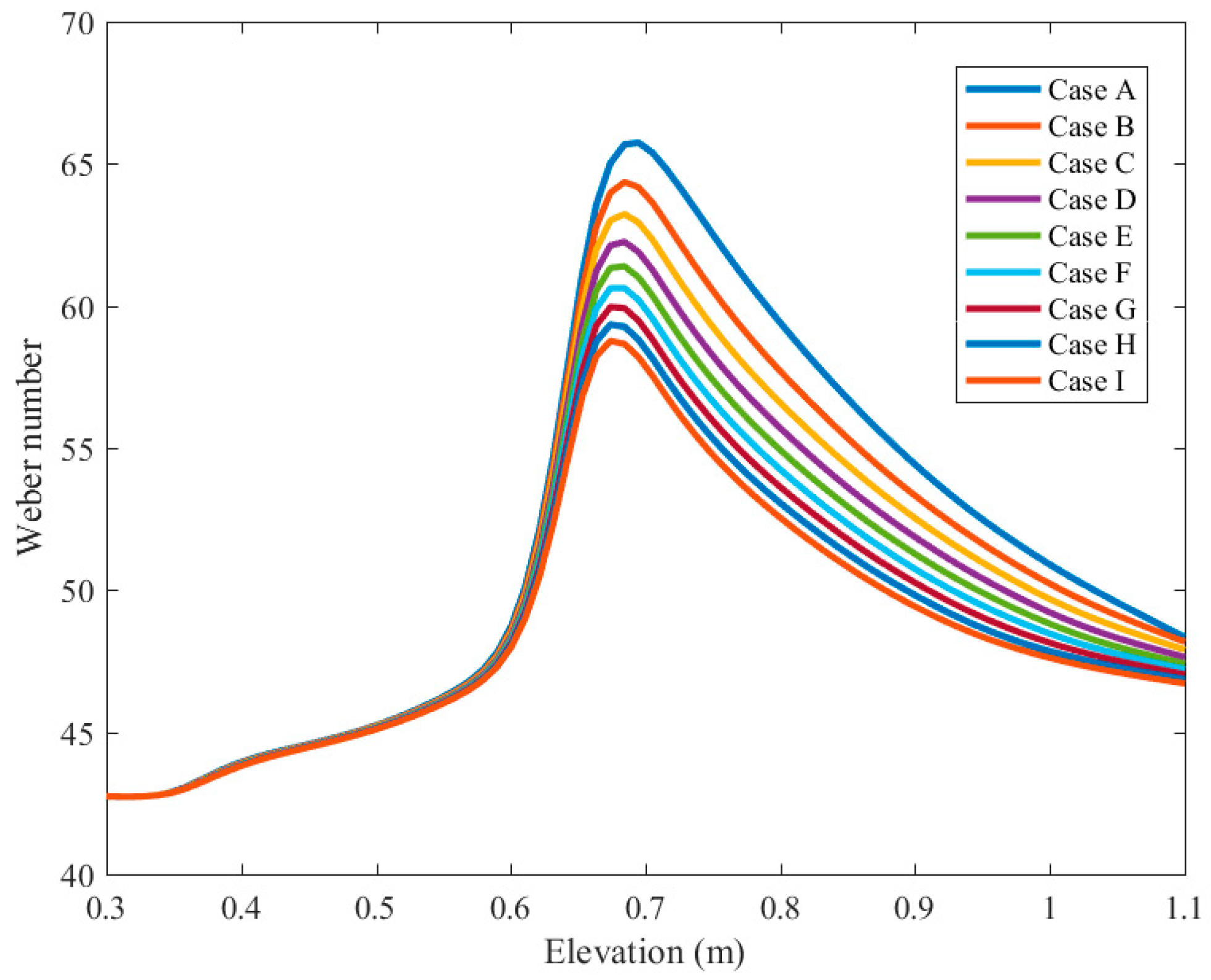

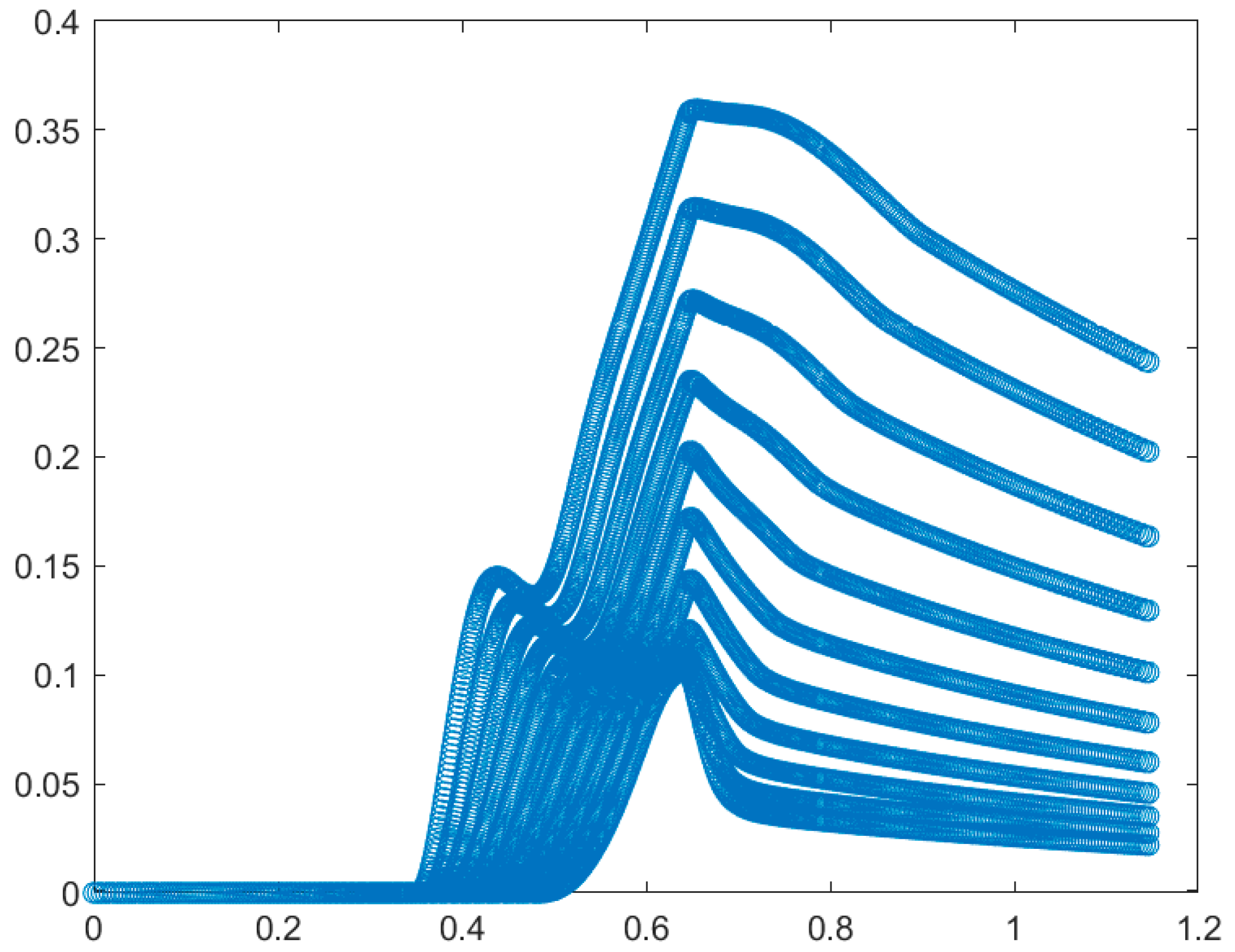

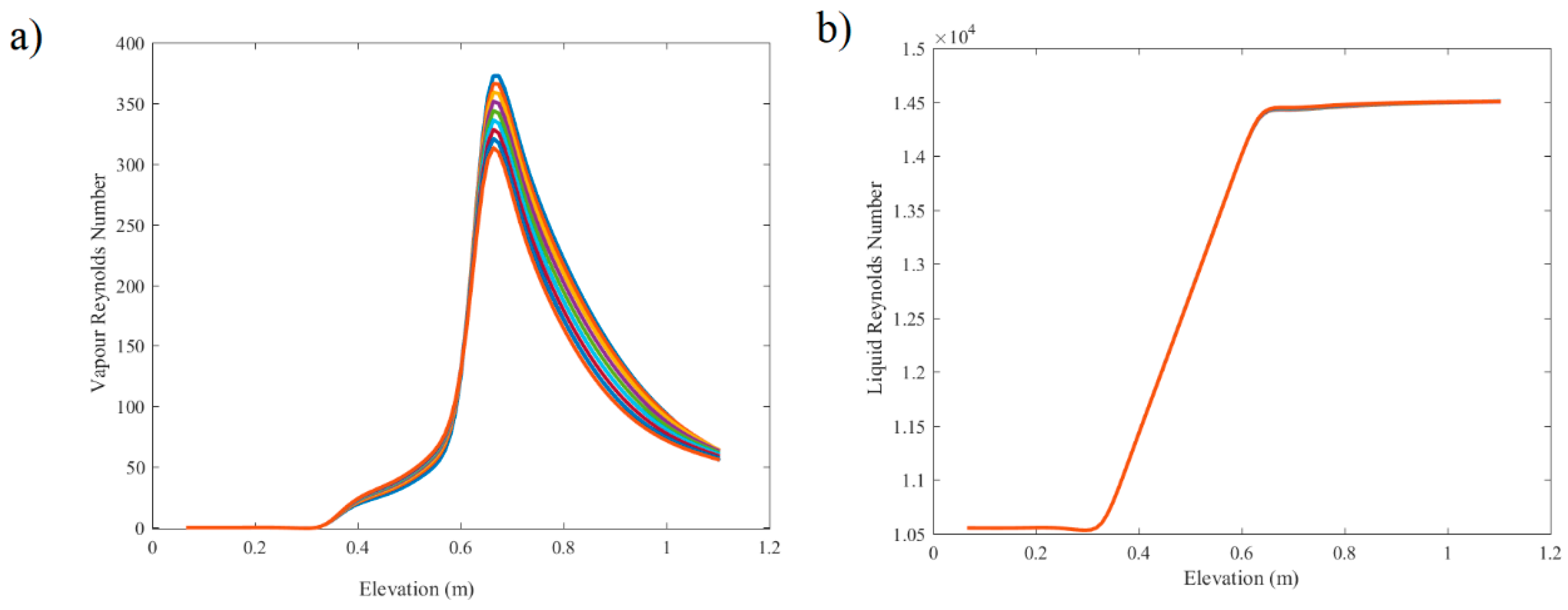

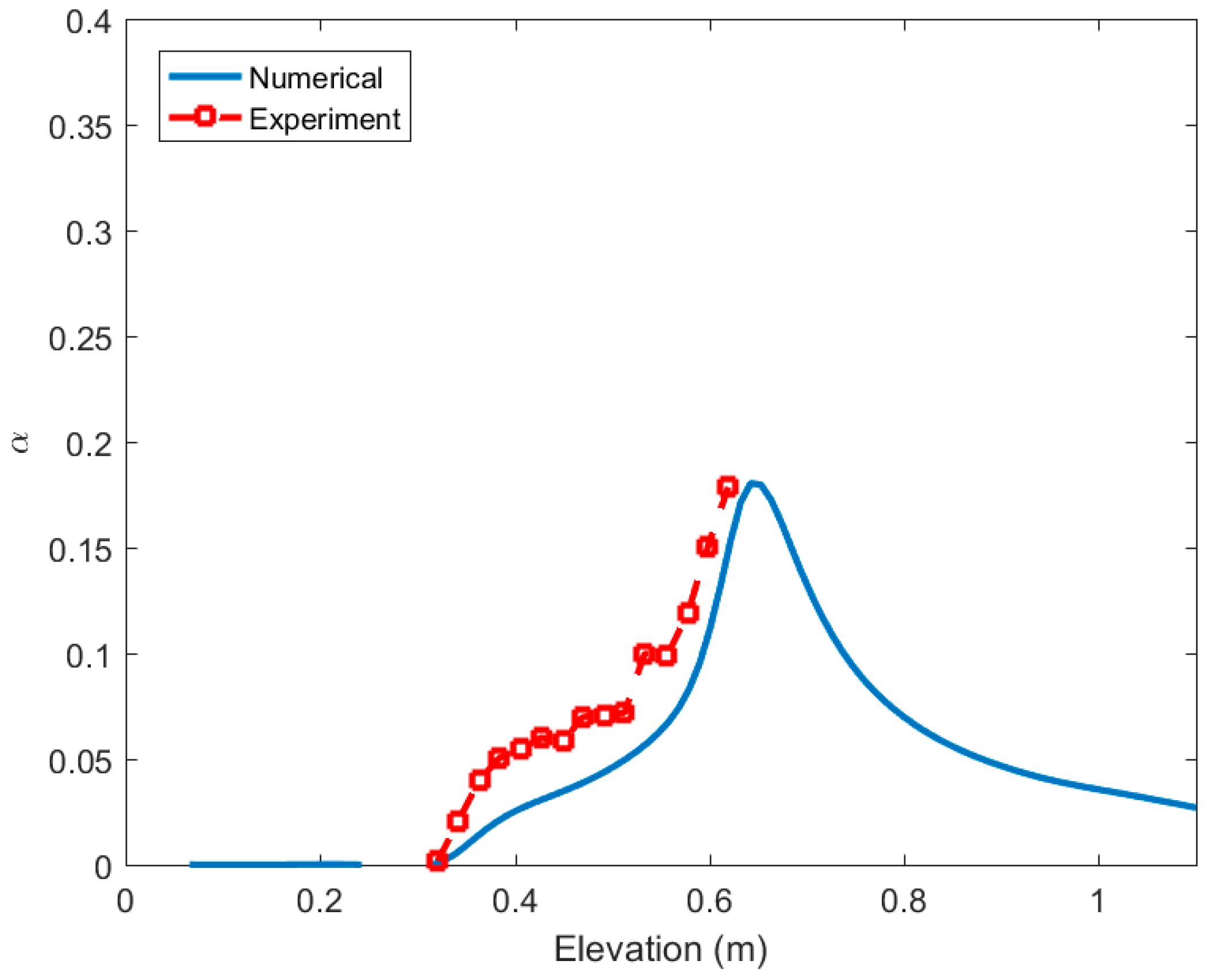

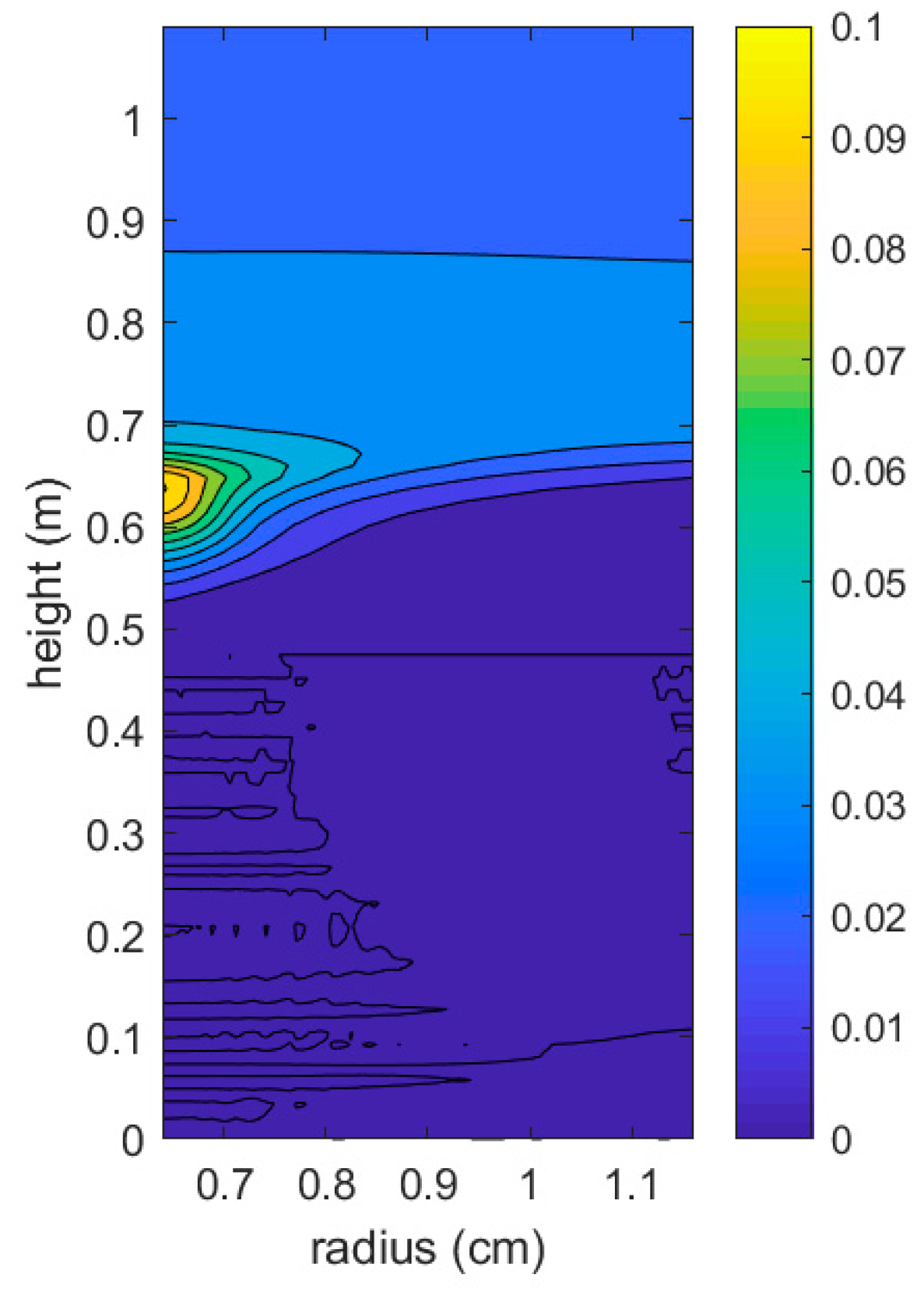

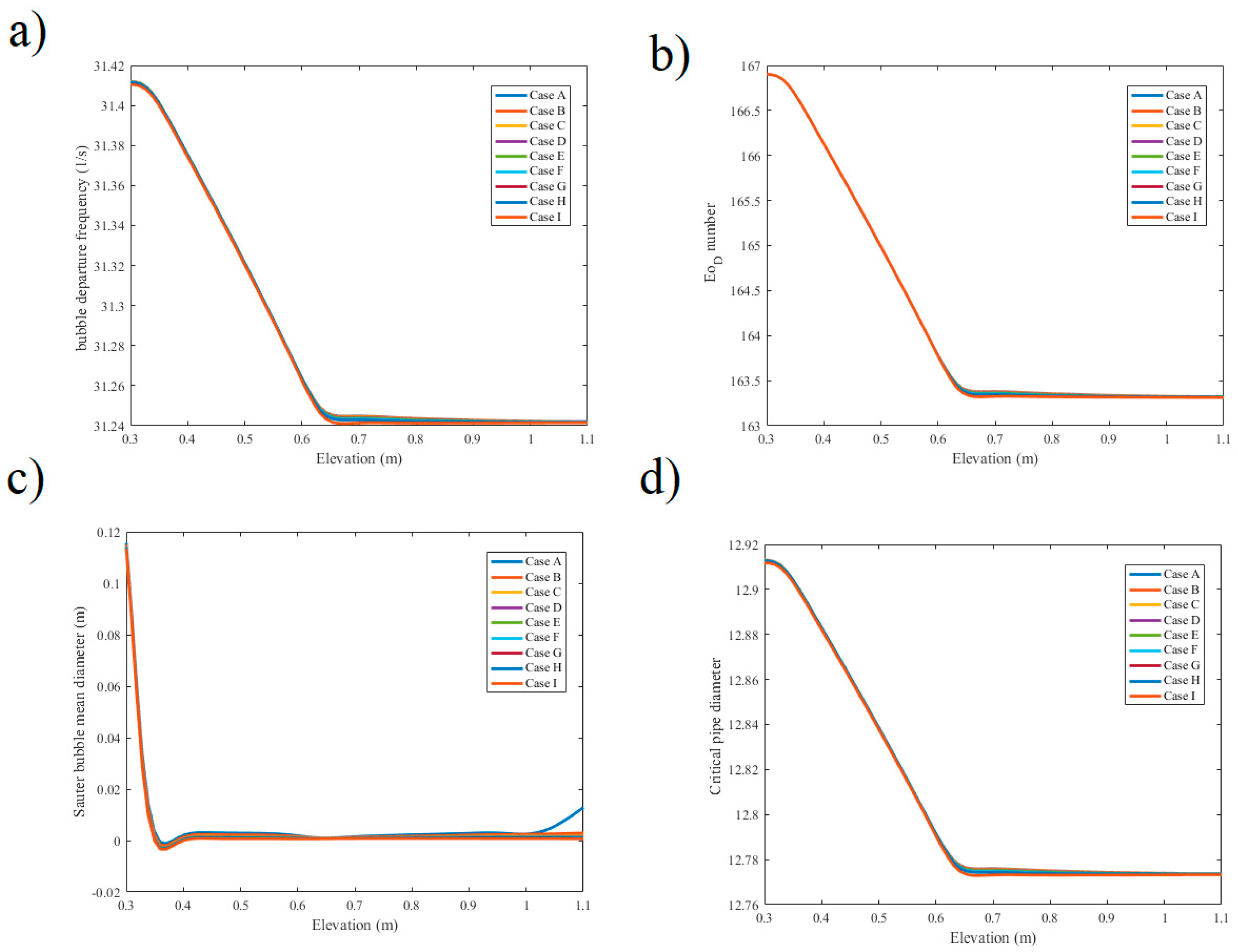

## 4. Result and Discussion

## 5. Conclusions and Recommendation

## Funding

## Conflicts of Interest

## Nomenclature

A | area cross-section (m^{2}) |

B | magnetic flux (T) |

C_{p} | heat capacity, J/(kg_K) |

f′_{i} | friction coefficient at wall on phase i |

f′_{I,i} | interfacial drag force coefficient on phase i |

g | gravitational acceleration (m/s^{2}) |

G | mass velocity (kg/m^{2}s), $\dot{m}$/A |

$\dot{m}$ | mass flow rate (kg/s) |

m′ | mass flow rate between phases (kg/s) |

P | pressure (Pa) |

q_{r} | radiation heat flux (J/m^{2}s) |

q″ | wall heat transfer (J/m^{2}s) |

q_{i,j}″ | heat transfer between phases (J/m^{2}s) |

T | temperature (K) |

u | specific internal energy (J/kg) |

v | velocity (m/s) |

W | external work applied on the volume (J/m^{3}) |

x | coordinate system along the magnetic field (m) |

y | coordinate system along the tube (m) |

z | coordinate system along the electric field (m) |

Greek symbols | |

α | void fraction (m^{2}/s) |

ρ | density (kg/m^{3}) |

μ | viscosity (kg/(m s)) |

σ | electric conductivity (S/m) |

${\tau}_{yy}$ | shear stress in boundary layer (Pa), |

## References

- Abbas, T.; Bhatti, M.M.; Ayub, M. Aiding and opposing of mixed convection Casson nanofluid flow with chemical reactions through a porous Riga plate. Proc. Inst. Mech. Eng. Part E
**2017**. [Google Scholar] [CrossRef] - Abdollahzadeh Jamalabadi, M.Y. A review on one-dimensional two-phase model for critical flow boiling in microchannels. Int. J. Eng. Appl. Sci.
**2015**, 7, 1–21. [Google Scholar] - Collier, J.G.; Thome, J.R. Convective Boiling and Condensation, 3rd ed.; Oxford Engineering Science Series; Oxford University Press: New York, NY, USA, 1996. [Google Scholar]
- Jamalabadi, M. Joule heating in low-voltage electroosmotic with electrolyte containing nano-bubble mixtures through microchannel rectangular orifice. Chem. Eng. Res. Des.
**2015**, 102, 407–415. [Google Scholar] [CrossRef] - Jamalabadi, M. MD simulation of brownian motion of buckminsterfullerene trapping in nano-optical tweezers. Int. J. Opt. Appl.
**2015**, 5, 161–167. [Google Scholar] - Zeitoun, O.; Shoukri, M. Axial void fraction profile in low pressure subcooled flow boiling. Int. J. Heat Mass Transf.
**1997**, 40, 867–879. [Google Scholar] [CrossRef] - Bhatti, M.M.; Zeeshan, A.; Ellahi, R.; Ijaz, N. Heat and mass transfer of two-phase flow with Electric double layer effects induced due to peristaltic propulsion in the presence of transverse magnetic field. J. Mol. Liq.
**2017**, 230, 237–246. [Google Scholar] [CrossRef] - Chen, S.; Hibiki, T.; Ishii, M.; Mori, M.; Watanabed, F. Experimental investigation of void fraction variation in subcooled boiling flow under horizontal forced vibrations. Int. J. Heat Mass Transf.
**2017**, 115, 954–968. [Google Scholar] [CrossRef] - Cotton, J.; Robinson, A.; Shoukri, M.; Chang, J. A two-phase flow pattern map for annular channels under a DC applied voltage and the application to electrohydrodynamic convective boiling analysis. Int. J. Heat Mass Transf.
**2005**, 48, 5563–5579. [Google Scholar] [CrossRef] - Cotton, J.; Robinson, A.; Shoukri, M.; Chang, J. AC voltage induced electrohydrodynamic two-phase convective boiling heat transfer in horizontal annular channels. Exp. Therm. Fluid Sci.
**2012**, 41, 31–42. [Google Scholar] [CrossRef] - Končar, B.; Kljenak, I.; Mavko, B. Modelling of local two-phase flow parameters in upward sub-cooled flow boiling at low pressure. Int. J. Heat Mass Transf.
**2004**, 47, 1499–1513. [Google Scholar] [CrossRef] - Sheikholeslami, M.; Bhatti, M.M. Active method for nanofluid heat transfer enhancement by means of EHD. Int. J. Heat Mass Transf.
**2017**, 109, 115–122. [Google Scholar] [CrossRef] - Choi, Y.J.; Kam, D.H.; Jeong, Y.H. Analysis of CHF enhancement by magnetite nanoparticle deposition in the subcooled flow boiling region. Int. J. Heat Mass Transf.
**2017**, 109, 1191–1199. [Google Scholar] [CrossRef] - Karimzadehkhouei, M.; Sezen, M.; Şendur, K.; Mengüç, M.P.; Koşar, A. Subcooled flow boiling heat transfer of γ-Al2O3/water nanofluids in horizontal microtubes and the effect of surface characteristics and nanoparticle deposition. Appl. Therm. Eng.
**2017**, 127, 536–546. [Google Scholar] [CrossRef] - Abedini, E.; Zarei, T.; Rajabnia, H.; Kalbasi, R.; Afrand, M. Numerical investigation of vapor volume fraction in subcooled flow boiling of a nanofluid. J. Mol. Liq.
**2017**, 238, 281–289. [Google Scholar] [CrossRef] - Abdollahzadeh Jamalabadi, M.Y. EMHD effects on subcooled boiling in a Vertical annulus. Multiph. Sci. Technol.
**2018**, 30, 333–349. [Google Scholar] [CrossRef] - Mirzaee, M.; Hooshiar, P.; Ahmed, H.; Balotaki, H.K.; KhakRah, H.; Abdollahzadeh Jamalabadi, M.Y. Electro-Magneto-Hydro-Dynamics effects on Steam Bubbles Formation in Vertical Heated Upward Flow. Energies
**2016**, 9, 657. [Google Scholar] [CrossRef] - Abdollahzadeh Jamalabadi, M.Y. Electromagnetohydrodynamic two-phase flow-induced vibrations in vertical heated upward flow. J. Comput. Des. Eng.
**2019**, 6, 92–104. [Google Scholar] [CrossRef] - Shadloo, M.S.; Oger, G.; Le Touze, D. Smoothed Particle Hydrodynamics Method for Fluid Flows, Towards Industrial Applications: Motivations, Current state, and Challenges. Comput. Fluids
**2016**, 136, 11–34. [Google Scholar] [CrossRef] - Shadloo, M.S. Numerical Simulation of Compressible Flows by Lattice Boltzmann Method. Numer. Heat Transf. Part A
**2019**, 75, 167–182. [Google Scholar] [CrossRef] - Hopp-Hirschler, M.; Shadloo, M.S.; Nieken, U. Viscous Fingering Phenomena in the Early Stage of Polymer Membrane Formation. J. Fluid Mech.
**2019**, 864, 97–140. [Google Scholar] [CrossRef] - Hopp-Hirschler, M.; Shadloo, M.S.; Nieken, U. A Smoothed Particle Hydrodynamics Approach for Thermo-Capillary Flows. Comput. Fluids
**2018**, 176, 1–19. [Google Scholar] [CrossRef] - Sadeghi, R.; Shadloo, M.S.; Hopp-Hirschler, M.; Hadjadj, A.; Nieken, U. Three-dimensional lattice Boltzmann simulations of high density ratio two-phase flows in porous media. Comput. Math. Appl.
**2018**, 75, 2445–2465. [Google Scholar] [CrossRef] - Sadeghi, R.; Shadloo, M.S. Three-dimensional Numerical Investigation of Film Boiling by Lattice Boltzmann Method. Numer. Heat Transf. Part A Appl.
**2017**, 71, 374–385. [Google Scholar] [CrossRef] - Nguyen, M.Q.; Shadloo, M.S.; Hadjadj, A.; Lebon, B.; Peixinho, J. Perturbation threshold and hysteresis associated with the transition to turbulence in sudden expansion pipe flow. Int. J. Heat Fluid Flow
**2019**, 76, 187–196. [Google Scholar] [CrossRef] [Green Version] - Lebon, B.; Nguyen, M.Q.; Peixinho, J.; Shadloo, M.S.; Hadjadj, A. A new mechanism for the periodic bursting of the recirculation region of the flow through a sudden expansion in a circular pipe. Phys. Fluids
**2018**, 30, 031701. [Google Scholar] [CrossRef] - Mendez-Gonzlez, M.; Shadloo, M.S.; Hadjadj, A.; Ducoin, A. Boundary Layer Transition over a Concave Plate Caused by Centrifugal Instabilities. Comput. Fluids
**2018**, 171, 135–153. [Google Scholar] [CrossRef] - Toghyani, S.; Afshari, E.; Baniasadi, E.; Shadloo, M.S. Energy and exergy analyses of a nanofluid based solar cooling and hydrogen production combined system. Renew. Energy
**2019**, 141, 1013–1025. [Google Scholar] [CrossRef] - Nasiri, H.; Jamalabadi, M.Y.A.; Sadeghi, R.; Safaei, M.R.; Shadloo, M.S. A Smoothed Particle Hydrodynamics Approach for Numerical Simulation of Nano-Fluid Flows: Application to Forced Convection Heat Transfer over a Horizontal Cylinder. J. Therm. Anal. Calorim.
**2018**. [Google Scholar] [CrossRef] - Rashidi, M.M.; Nasiri, M.; Shadloo, M.S.; Yang, Z. Entropy generation in a circular tube heat exchanger using nanofluids: Effects of different modeling approaches. Heat Transf. Eng.
**2017**, 38, 853–866. [Google Scholar] [CrossRef]

**Table 1.**Subcooling and physical condition of the experimental rig presented in [6].

Parameter | Value | Unit |
---|---|---|

T_{sat} − T_{in} | 19.7 | (°C) |

q | 478.5 | (kW/m^{2}) |

V_{in} | 0.292 | (m/s) |

p_{outlet} | 1.23 | (bar) |

G | 283.1 | (kg/m^{2}s) |

Case | B (T) |
---|---|

A | 3.16 |

B | 3 |

C | 2.83 |

D | 2.65 |

E | 2.45 |

F | 2 |

G | 1.73 |

H | 1.41 |

I | 1 |

Conservation of | Equation |
---|---|

mass | $\frac{\partial}{\partial t}({\alpha}_{i}{\rho}_{i})+\frac{\partial}{\partial y}({\alpha}_{i}{\rho}_{i}{\upsilon}_{i})={\mathsf{\Gamma}}_{i}=\frac{{m}_{i}^{\prime}}{A},$ |

momentum | $\begin{array}{l}\frac{\partial}{\partial t}({\alpha}_{i}{\rho}_{i}{\upsilon}_{i})+\frac{\partial}{\partial y}({\alpha}_{i}{\rho}_{i}{\upsilon}_{i}^{2})=\frac{{m}_{i}^{\prime}}{A}{\upsilon}_{I}-{\alpha}_{i}{\rho}_{i}g-\frac{\partial}{\partial y}({\alpha}_{i}P)\\ +\frac{\partial}{\partial y}({\alpha}_{i}{\tau}_{i.yy})-{f}_{I,i}^{\prime}({\upsilon}_{i}-{\upsilon}_{j})-{f}_{i}^{\prime}{\upsilon}_{i}-{\sigma}_{i}{\upsilon}_{i}{B}^{2},\end{array}$ |

energy | $\begin{array}{l}\frac{\partial}{\partial t}\left({\alpha}_{i}{\rho}_{i}\left({u}_{i}+\frac{{\upsilon}_{i}^{2}}{2}\right)\right)+\frac{\partial}{\partial y}\left({\alpha}_{i}{\rho}_{i}\left({u}_{i}+\frac{{\upsilon}_{i}^{2}}{2}\right){\upsilon}_{i}\right)=\\ \frac{{m}_{i}^{\prime}}{A}\left({u}_{I}+\frac{{\upsilon}_{I}^{2}}{2}\right)-{\alpha}_{i}{\rho}_{i}{\upsilon}_{i}g-\frac{\partial}{\partial y}({\alpha}_{i}P{\upsilon}_{i})+\\ \frac{\partial}{\partial y}({\alpha}_{i}{\tau}_{i,yy}{\upsilon}_{i})-{q}_{i,j}^{\u2034}+{W}_{i}+{q}_{i}^{\u2033}+{q}_{r},\end{array}$ |

Material Property | Nanofluid | Nanoparticle |
---|---|---|

density | ${\rho}_{nf}=(1-\phi ){\rho}_{bf}+\phi {\rho}_{np}$ | ${\rho}_{np}=3965\text{}\mathrm{kg}\text{}{\mathrm{m}}^{-3}$ |

viscosity | ${\mu}_{nf}={\mu}_{bf}(1+2.5\phi )$ | - |

specific heat capacity | ${C}_{p,nf}=(1-\phi ){C}_{p,bf}+\phi .{C}_{p,np}$ | ${C}_{p,np}=0.795\text{}\mathrm{kJ}\text{}{\mathrm{kg}}^{-1}\text{}{\mathrm{K}}^{-1}$ |

ΔX | Δr | % |
---|---|---|

0.1 | 0.001 | 23.68 |

0.05 | 0.001 | 14.09 |

0.02 | 0.001 | 5.47 |

0.01 | 0.0005 | 0.46 |

0.005 | 0.0005 | 0.0 |
