Open AccessArticle
Symmetry 2018, 10(4), 83;

Multimedia System for Real-Time Photorealistic Nonground Modeling of 3D Dynamic Environment for Remote Control System

Department of Multimedia Engineering, Dongguk University-Seoul, 30, Pildongro-1-gil, Jung-gu, Seoul 04620, Korea
2nd R&D Institute, Agency for Defense Development, P.O. Box 35, Yuseong-gu, Daejeon 34186, Korea
Author to whom correspondence should be addressed.
Received: 31 January 2018 / Revised: 8 March 2018 / Accepted: 26 March 2018 / Published: 28 March 2018
(This article belongs to the Special Issue Advanced in Artificial Intelligence and Cloud Computing)
Full-Text   |   PDF [44060 KB, uploaded 3 May 2018]   |


Nowadays, unmanned ground vehicles (UGVs) are widely used for many applications. UGVs have sensors including multi-channel laser sensors, two-dimensional (2D) cameras, Global Positioning System receivers, and inertial measurement units (GPS–IMU). Multi-channel laser sensors and 2D cameras are installed to collect information regarding the environment surrounding the vehicle. Moreover, the GPS–IMU system is used to determine the position, acceleration, and velocity of the vehicle. This paper proposes a fast and effective method for modeling nonground scenes using multiple types of sensor data captured through a remote-controlled robot. The multi-channel laser sensor returns a point cloud in each frame. We separated the point clouds into ground and nonground areas before modeling the three-dimensional (3D) scenes. The ground part was used to create a dynamic triangular mesh based on the height map and vehicle position. The modeling of nonground parts in dynamic environments including moving objects is more challenging than modeling of ground parts. In the first step, we applied our object segmentation algorithm to divide nonground points into separate objects. Next, an object tracking algorithm was implemented to detect dynamic objects. Subsequently, nonground objects other than large dynamic ones, such as cars, were separated into two groups: surface objects and non-surface objects. We employed colored particles to model the non-surface objects. To model the surface and large dynamic objects, we used two dynamic projection panels to generate 3D meshes. In addition, we applied two processes to optimize the modeling result. First, we removed any trace of the moving objects, and collected the points on the dynamic objects in previous frames. Next, these points were merged with the nonground points in the current frame. We also applied slide window and near point projection techniques to fill the holes in the meshes. Finally, we applied texture mapping using 2D images captured using three cameras installed in the front of the robot. The results of the experiments prove that our nonground modeling method can be used to model photorealistic and real-time 3D scenes around a remote-controlled robot. View Full-Text
Keywords: multimedia; modeling; dynamic environment; remote-controlled system multimedia; modeling; dynamic environment; remote-controlled system

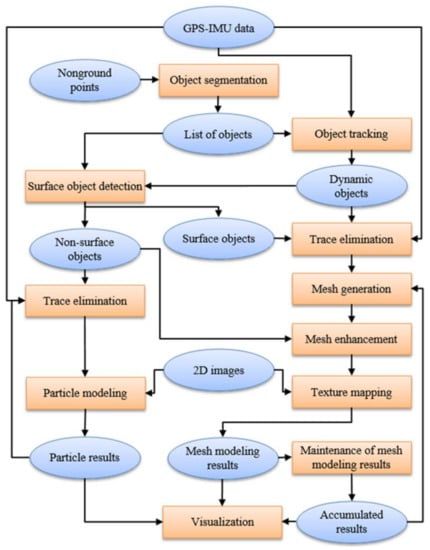

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
