PyLM: A Python Implementation for Landscape Mosaic Analysis

Abstract

Landscape ecology is the study of how different land uses and natural areas are arranged across a region, and how these spatial patterns affect biodiversity, ecosystem health, and human impacts. To measure and track these patterns, ecologists are using a range of tools and metrics that capture features such as connectivity, fragmentation, and the balance between natural and developed land. One such method is the Landscape Mosaic (LM) approach which classifies land into categories based on the mix of agriculture, natural habitats, and developed areas (e.g., urban), providing an integrated view of how humans are influencing ecosystems. Until recently, LM was only available through a specialized software package (i.e., GuidosToolbox), which limits its flexibility, interaction with other tools, and integration in scientific workflows. To address this, we present PyLM, a Python-based implementation of the LM model, making it easier for researchers, planners, and conservationists to analyze land use/cover (LUC) maps, generate statistics, and embed results into broader environmental workflows. The applicability of PyLM is demonstrated through a use case based on a LUC dataset for Switzerland. This new implementation enhances accessibility, supports sustainability assessments, and strengthens the ability to monitor landscapes over time.

1. Introduction

Landscapes are defined as mosaics of different land cover, land use, habitats, and ecosystems. Landscape ecology is a field of ecology that specifically examines the spatial patterns of ecosystems and the processes that shape them across heterogeneous environments [1]. It emphasizes the relationships between spatial configuration (e.g., size, shape, distribution) and ecological dynamics including species’ movement, biodiversity, and ecosystem functioning [2]. To quantify these spatial patterns, a variety of metrics are available to account for characteristics such as patch area, diversity, density, connectivity and fragmentation [1,3,4]. These metrics serve as essential tools for conservation planning, habitat management, and sustainability research by providing a standardized way to analyze landscape structure, detect changes over time, and assess the impacts of natural disturbances or human activities, like urbanization, agriculture, and deforestation [5].

To identify and assess spatial patterns, different methods are available to help monitor the evolution of landscapes and link them to specific ecological processes [6]. The Landscape Mosaic (LM) approach provides a framework for quantifying spatial heterogeneity through a tri-polar classification scheme, meaning that landscapes are classified based on their position along three dominant land use/cover (LUC) classes (i.e., Agriculture, Natural, and Developed) according to their relative abundance within a surrounding neighborhood [2]. The method applies a moving window to quantify the relative proportions of the three classes within each focal grid cell. These proportions are subsequently assigned to 1 of 103 classes and aggregated into 19 mosaic categories, determined by threshold criteria that capture the dominance, presence, or absence of each class. The LM approach is designed to characterize the spatial juxtaposition of anthropogenic (i.e., developed and agricultural areas) relative to natural land covers. By simultaneously evaluating these three dominant land cover types, the approach captures landscape composition, connectivity, and heterogeneity, thereby providing an integrated measure of human influence on landscapes. The indicator assigns each location to a category based on the relative proportions of Agriculture, Natural, and Developed land within its surrounding neighborhood [2,7]. This classification supports the quantification and spatial assessment of landscape capacities to sustainably supply ecosystem services [8]. The Landscape Mosaic provides a framework for assessing the state, pressures, and temporal dynamics of landscapes, including the intensity of land use across agricultural, urban, and natural ecosystems, as well as their complex interactions under changing environmental and socioeconomic conditions [7,9].

Based on a comprehensive search of both the literature and online repositories, we found that the LM approach is currently implemented only in the GuidosToolbox (Graphical User Interface for the Description of Image Objects and Their Shapes, GTB), with no evidence of alternative implementations in Python, Java, or any other programming languages, as well as common geospatial software such as R, ArcGIS, or GRASS GIS [10]. GTB is free and open-source software with a set of customized and thematically grouped raster image processing routines mostly used in environmental, ecological, forestry, land cover/land use, and landscape ecology contexts. It is available through a desktop application, for Windows, Mac, and Linux, as well as a command-line Linux server application for mass processing (GuidosToolbox Workbench GWB). Despite the fact that the LM model is available as a single tool within GTB/GWB, its interaction with other software/models is limited; therefore, there is a need for a version that could be available (1) as a standalone tool, (2) that could be executed both on a desktop computer or a server, (3) that could be easily embedded in processing chains/workflows or integrated in other analytical framework like LivingEarth [11], (4) or based on common data science programming language such as Python.

Although the LM approach could be implemented within established GIS platforms, such as ArcGIS or GRASS GIS, the present work prioritizes a Python implementation in a Jupyter Notebook environment to better support methodological transparency, flexibility, and reproducibility. Jupyter Notebooks allow the entire analytical workflow, from data preparation and parameterization to execution, visualization, and interpretation, to be explicitly documented and interactively explored in a single, self-contained framework. This data science-oriented approach facilitates systematic analyses across various scales and parameters, seamless integration with scientific Python libraries, and reproducible research practices that are more difficult to achieve in tightly coupled GIS environments. As a result, the Jupyter-based implementation is particularly well-suited for methodological development and experimentation, while remaining complementary to future integrations into operational GIS platforms.

Following these considerations, PyLM provides a Python implementation of the Landscape Mosaic model that enables users to process any land cover map and generate the different stratification layers as well as any relevant statistics (e.g., class frequency distribution). PyLM offers increased accessibility, flexibility, and computational power for landscape ecology, allowing for easier analysis, customization, and integration with other open-source tools for research, conservation, and planning. PyLM could be executed either as a standalone Python script, within a Jupyter Notebook 7.5 environment, and ultimately could be easily embedded in any processing workflow. Overall, PyLM simplifies the production of key landscape metrics necessary for environmental monitoring. The remainder of the paper is organized as follows: Section 2 describes the Landscape Mosaic classification framework and details its implementation as a Python-based tool; Section 3 evaluates the implementation using a LUC map of Switzerland and compares the results with those produced with GTB; and finally, Section 4 discusses the main benefits and limitations of the proposed approach, concluding with a synthesis of the main findings and directions for future research.

2. Materials and Methods

2.1. LM Classification Framework

The Landscape Mosaic (LM) is a tri-polar classification framework that characterizes each spatial location by the relative contributions of three dominant land cover types: Agriculture, Natural, and Developed. This framework quantifies anthropogenic influence, represented by agricultural and developed (i.e., urban) land cover classes, in relation to natural landscapes following earlier methodological developments [2,6,8,10]. The classification scheme separates a triangular domain into 19 mosaic classes using threshold values of 10%, 60%, and 100%, which indicate the presence, dominance, or uniqueness of each land cover class. Mosaic class labels encode the proportional contribution of each cover class: lower-case letters (a, n, and d) indicate presence (≥10% and <60%), upper-case letters (A, N, and D) indicate dominance (≥60% and <100%), and exclusive composition (100%) is represented by the corner classes AA, NN, and DD. This notation distinguishes Dominance (upper-case), Interface Zones (mixed upper- and lower-case), and Mixture classes (lower-case only), while mosaic colors correspond to proportional intensities of blue (Agriculture), green (Natural), and red (Developed) [7,8,9].

Each pixel in an LM map carries a triplet of proportional values for the three land cover types and can therefore be uniquely positioned within the triangular classification space. The 19 mosaic classes are derived from color-coded subsections of this triangle, as shown in the LM legend, and represent specific combinations of presence, dominance, and uniqueness [9]. To facilitate computational efficiency and interpretability, pixel distributions are aggregated into 100 sub-triangles defined by 10% intervals along each axis, supplemented by three additional classes corresponding to the pure land cover corners, yielding 103 total occurrence classes [7]. Mapping each pixel into this discretized triangular space produces a heatmap (point-cloud distribution), where the frequency of pixel occurrence reflects the prevalence of specific landscape compositions. Empty sub-spaces indicate unrepresented combinations, while the most frequent combinations are highlighted with a black background [8].

In terms of input, the only required data is a LUC map that should be reclassified to no more than the three target classes, encoded as follows: 1 (Agriculture), 2 (Natural), and 3 (Developed). In addition, a class value of 0 could be included to mask pixels representing missing or no-data values (Figure 1). Once the LM analysis is completed, the outputs are as follows: (1) a single three-band raster layer representing the proportion on a per-pixel basis of the 3 classes; (2) a raster layer showing all 103 mosaic classes; (3) an aggregated raster layer at 19 classes; (4) the six stratification layers (i.e., background, agriculture, developed, natural, anthropic intensity, and diversity); and (5) a comma-separated value (CSV) file showing the occurrence values (i.e., class frequency distribution) (Figure 2).

2.2. Implementation

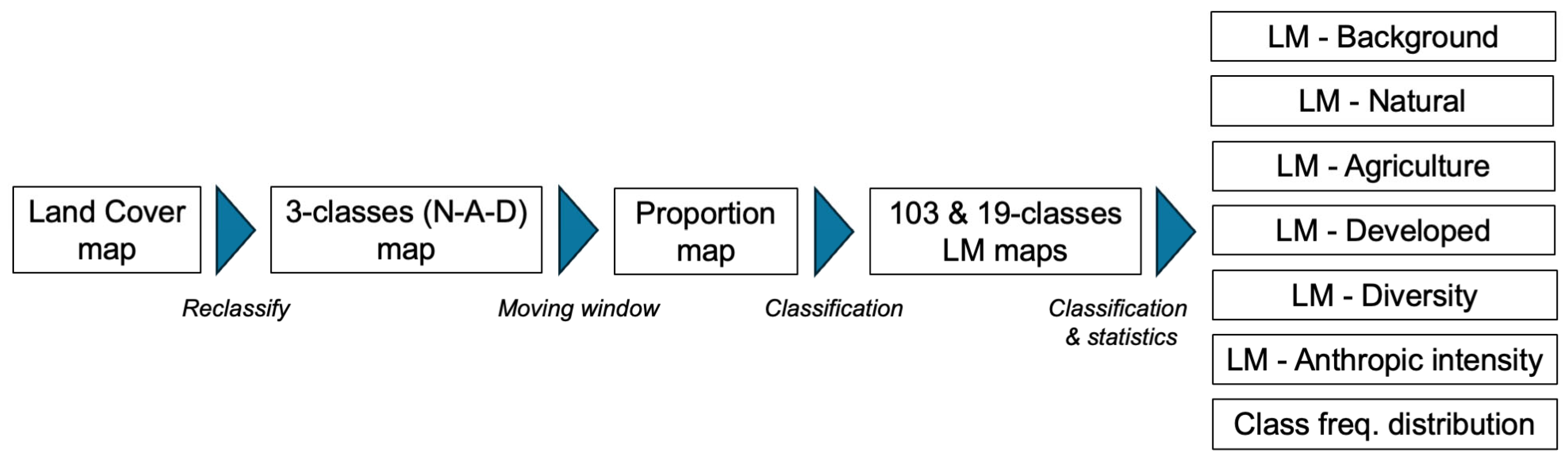

To implement the general processing workflow of the LM model (Figure 1), we used Python as the programming language through Jupyter Notebook [12]. This choice was made because Python is a widely used language in the geospatial community and Jupyter Notebook allows for the combination of executable code cells with narrative text to iteratively write, run, and refine the model, offering benefits such as interactive development, immediate visualization of results, transparent documentation of analytical steps, and an intuitive environment for experimentation and reproducibility [13].

All the code and documentation are available at: https://github.com/ggiuliani/PyLM (accessed on 17 October 2025). The package requires Python 3.10 or its later versions and JupyterLab (server or desktop) to be installed prior to executing PyLM. It also requires the following packages: rasterio, numpy, scipy, matplotlib, and csv. These dependencies are automatically verified (and installed) within the initialization module. Once the release has been downloaded and the zip file extracted, users can edit the Python file (or the Jupyter Notebook file) to define the input (i.e., where the input LUC map in geotiff format is stored—inputFolder) and output (i.e., where all produced layers will be stored—outputFolder) folders. In addition, users can also edit the filename of the LUC map in the l3 variable. Users can then simply execute the command python PyLM.py and all layers are available in the output folder once processed. Alternatively, users can execute the Jupyter Notebook provided in the release.

The implemented analytical workflow follows a linear architecture, in which the output of each module constitutes the input for the subsequent module. Hereafter, we present the main modules and their respective tasks and output files:

• Initialization: This module first tests if the necessary libraries are installed before users can then define both input and output folders.
• Input data: Users are required to use any LUC map as an input raster map that will be subsequently reclassified (in the module Map conversion) into the 3 target classes A-N-D (1 Byte—Agriculture, 2 Byte—Natural, 3 Byte—Developed), plus an optional class value of 0 Byte which is reserved for masking missing/no-data pixels.
• Map conversion: Depending on the LUC used, this module allows the flexibility to reclassify any LUC map to the 3-class raster map required by the LM model. The output file is: l3_reclass.tif.
  LM Analysis: This is the main module that first computes the proportion of A-N-D per pixel, then produces the 103 classes and regroups them into the 19 classes [7], and finally generates all the stratification layers.
• Moving window—103 classes–19 classes: This sub-module computes the proportion of A-N-D classes on a per-pixel basis using a moving window of 10 × 10 pixels (output: lmCount.tif), further computes the 103 classes (output: lm103class.tif), and then aggregates them into the 19 classes (output: lm19class.tif).
• LM Background: This summarizes the LM into the 4 classes of Natural, Agriculture, Developed, and Mixed, showing the dominant presence of each LUC class (output: lmBackground.tif).
• LM Diversity: This summarizes the LM into 4 classes to account for the increasing degree of LUC diversity from Uniform, Dual, Triple, to Intermixed LUC, reporting on the degree of spatial heterogeneity (output: lmDiversity.tif).
• LM Agriculture: This summarizes the LM into 3 classes showing where agricultural LUC is dominant (≥60%), subdominant, or minor (<10%), thereby enabling the determination of the anthropogenic impact from agriculture (output: lmAgriculture.tif).
• LM Natural: This summarizes the LM into 3 classes showing where natural LUC is dominant (≥60%), subdominant, or minor (<10%), allowing users to determine the dominant natural classes not impacted by anthropogenic activities (output: lmNatural.tif).
• LM Developed: This summarizes the LM into 3 classes showing where developed LUC is dominant (≥60%), subdominant, or minor (<10%), allowing users to determine the anthropogenic impact from urbanization (output: lmDeveloped.tif).
• LM Anthropic intensity: This summarizes the anthropic intensity into 6 classes from Very Low, Low, Medium, High, Very High, to Extreme, accounting for the anthropogenic impacts from agriculture and urbanization (output: lmAnthropicIntensity.tif).
• Class frequency distribution: This summarizes the statistics for the frequency distribution of the 103 classes within the ternary diagram (output: heatmap.csv).

In addition, in the output folder, all raster layers have a colorized version which follow the color scheme defined in [7,8,9]. They are identified with _rgb in the file name.

3. Results

Hereafter, we present some of the relevant outputs with the application of PyLM based on land cover maps of Switzerland.

3.1. PyLM Analysis at 10 m Resolution of Switzerland

As part of the effort to build a Digital Twin of the Environment [14,15], land cover maps at 10 m resolution using Sentinel-2 data were produced using the Swiss Data Cube [16,17] together with Living Earth [11,18] and SITS [19,20]. We executed PyLM using the 8-class FAO Land Cover Classification System (LCCS) compliant land cover map of Switzerland from 2018 (

Table 1. Vegetation classes with corresponding area, proportion of Valais territory, and altitude mean.

LCCS Description	LCCS Code	LM Description	LM Code
Cultivated Terrestrial Vegetated	111	Agriculture	1
Natural Terrestrial Vegetated	112	Natural	2
Cultivated Aquatic Vegetated	123	Agriculture	1
Natural Aquatic Vegetated	124	Natural	2
Artificial Surface	215	Developed	3
Bare Surface	216	Natural	2
Artificial Water	227	Developed	3
Natural Water	228	Natural	2

), processing approximately 410 million pixels in less than 10 min on a single laptop computer.

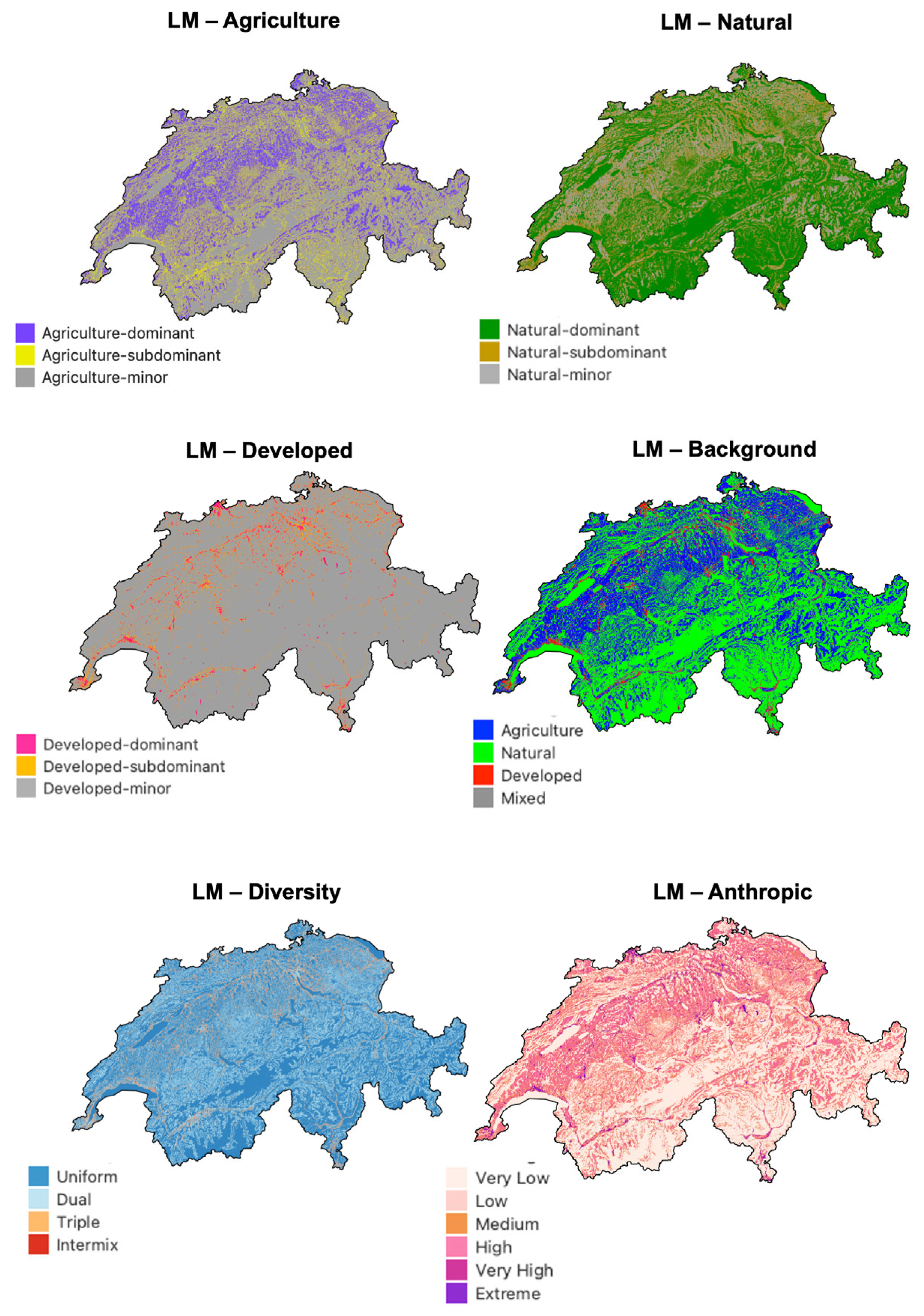

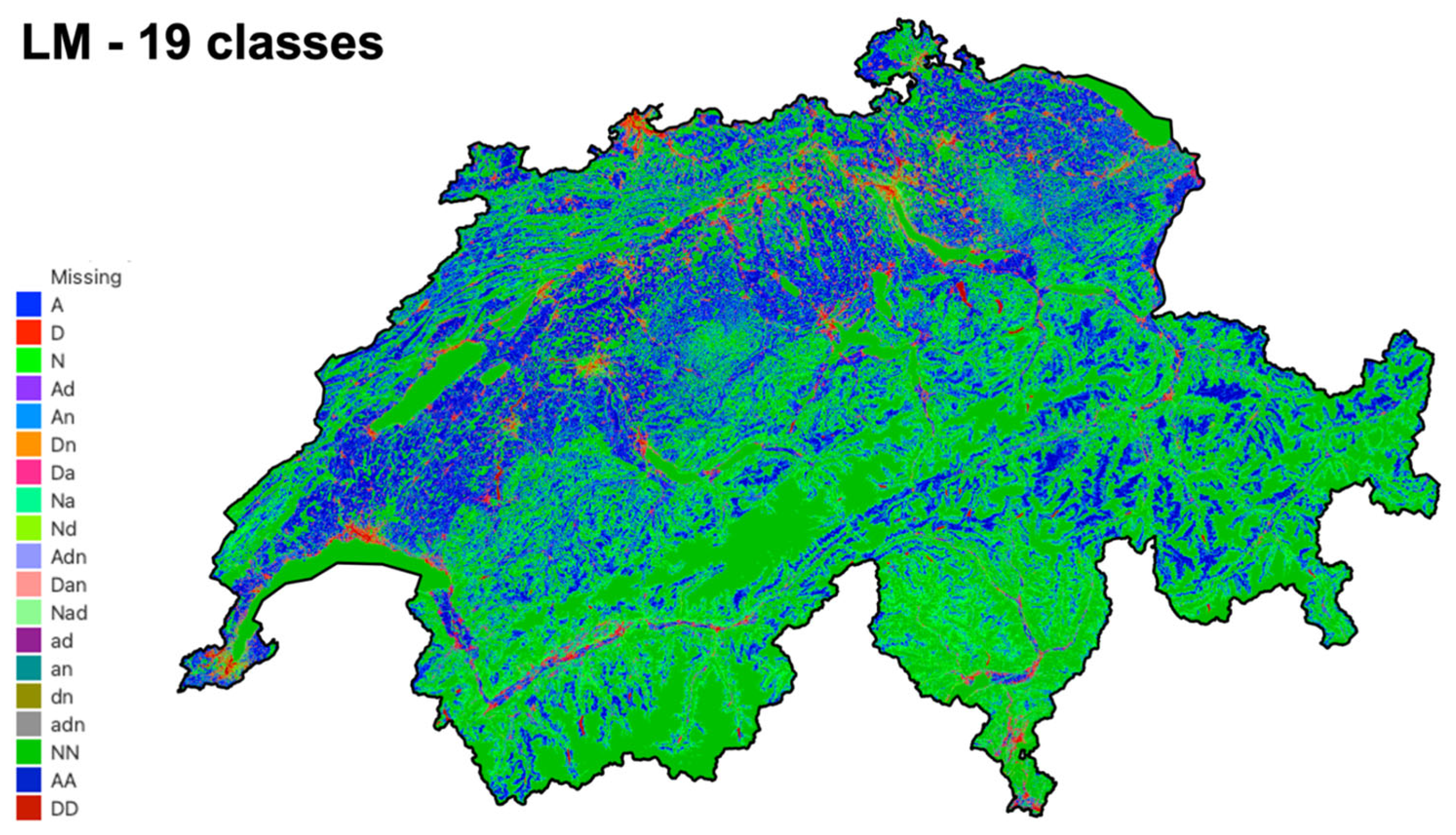

It produced the 19 classes of Landscape Mosaic (Figure 3) together with the different stratification layers (Figure 4).

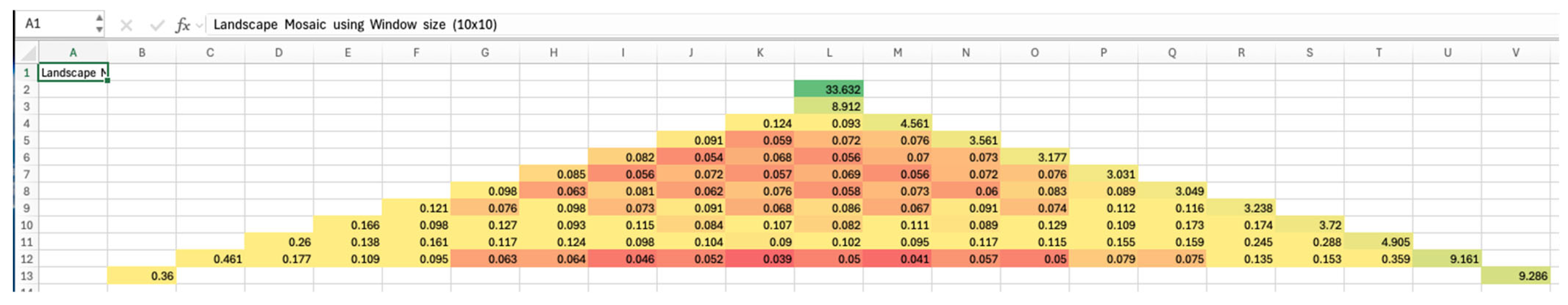

The tabular output (i.e., statistics) of the pixel occurrence frequency of the map in Figure 3 shows that the Swiss landscape is dominated by natural classes, whereas agriculture classes have had a larger anthropogenic impact than other developed areas (Figure 5). Because the occurrence frequencies are expressed as percentages, the class frequency distribution provides a scale-independent basis for: (1) comparing landscape composition across images of differing spatial extent; (2) analyzing temporal sequences at a consistent observational scale; and (3) assessing changes in land cover prevalence across multiple spatial scales.

3.2. Comparison with GTB Output

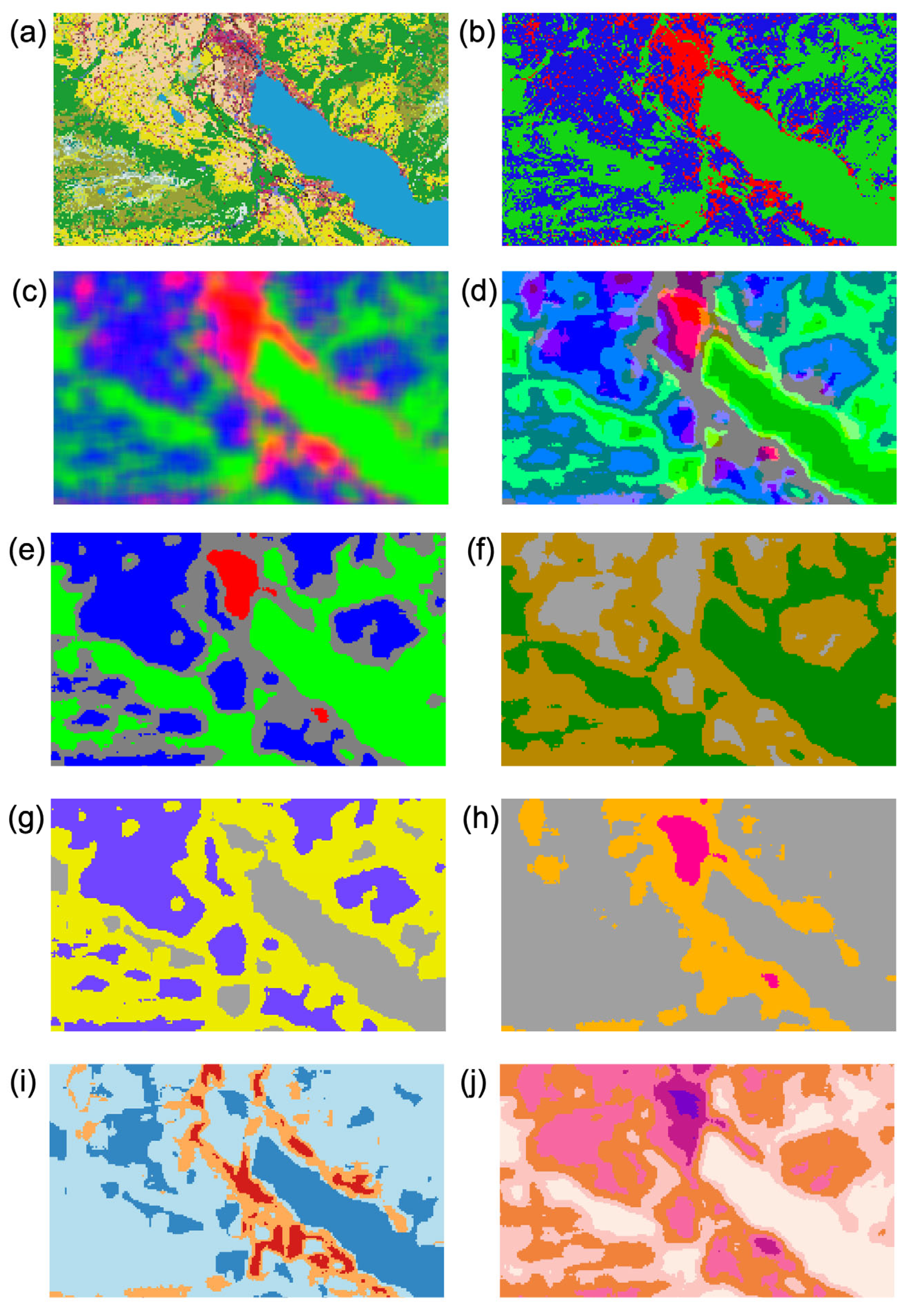

To validate that the model has been adequately implemented and is producing results that are similar to those provided by the reference implementation (i.e., GTB), we used the same land cover map as before and executed the same analysis as in the previous section using the Landscape Mosaic module of GTB [10]. The 19-class map (Figure 6) looks very similar visually to the output of PyLM, indicating that the PyLM version has been properly implemented. This observation has been reinforced by computing the difference between the two 19-class raster outputs (i.e., PyLM–GTB) and validating that less than 0.2% of the pixels are different between the two implementations. This difference is probably due to different approaches in computing the class proportions close to the borders (e.g., a moving window that has no data).

3.3. Comparison with the Reference Land Cover Map of Switzerland

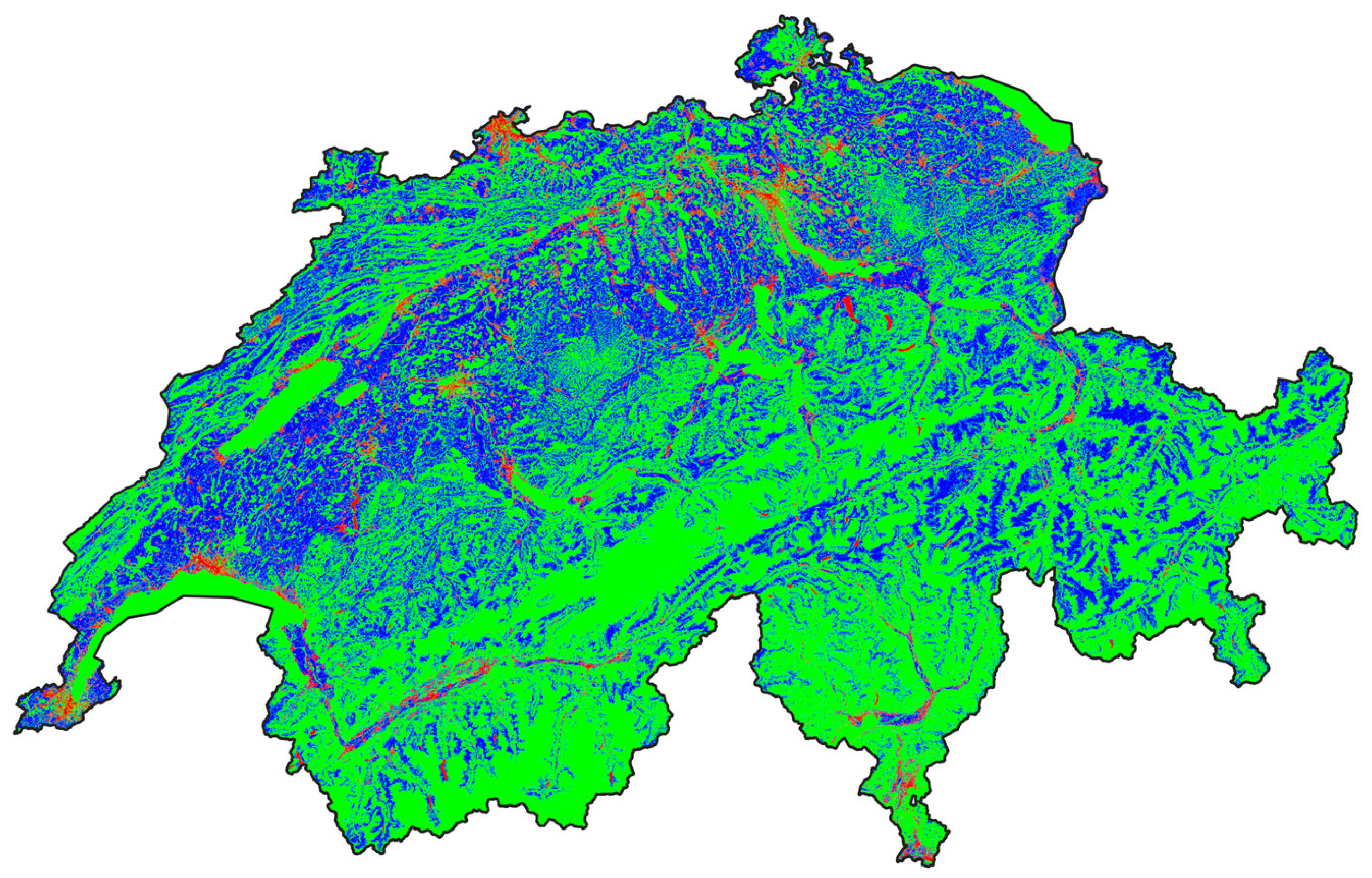

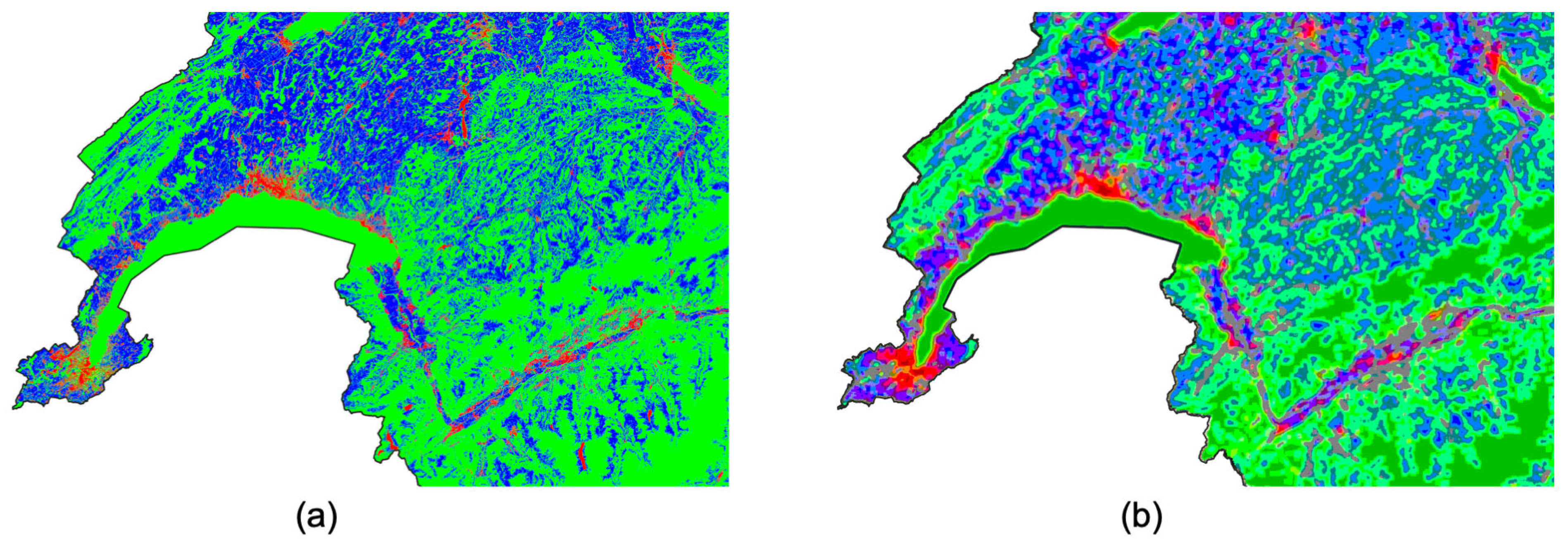

To better understand the effect of spatial resolution on the landscape metrics produced with PyLM, we compared the previously obtained 19-class LM map at 10 m resolution with the official land cover map, known as the ArealStatistik, produced by the Federal Statistical Office (FSO) every 6 years at 100 m spatial resolution [21,22]. Interestingly, the general patterns of the landscape are similar, but the 10 m resolution version is providing finer details, especially with mixed classes (e.g., Ad, An, Na, Nd, Da, and Dn) (Figure 7). This could potentially be useful for identifying more subtle changes in the natural/anthropic interface.

This highlights the importance of carefully considering the spatial scale of analysis, (as well as spatial resolution and neighborhood size) as it strongly influences LM analysis because classes and metrics are derived from the relative proportions of LUC classes within a moving window. At finer spatial resolutions, small and heterogeneous patches are preserved, leading to an increased mixed of mosaic classes, higher variability in LM metrics, and a stronger expression of local heterogeneity. In contrast, at coarser resolutions or with larger neighborhoods, spatial detail becomes smoothed, dominant LUC classes prevail, mixed mosaics are reduced, and LM metrics tend to indicate greater homogeneity and aggregation. Consequently, LM metrics are scale-dependent, and changes in resolution or analysis window can alter both the magnitude and spatial patterns of mosaic classes, affecting cross-study comparisons and interpretation unless scale is explicitly considered or standardized.

3.4. Different Time Periods

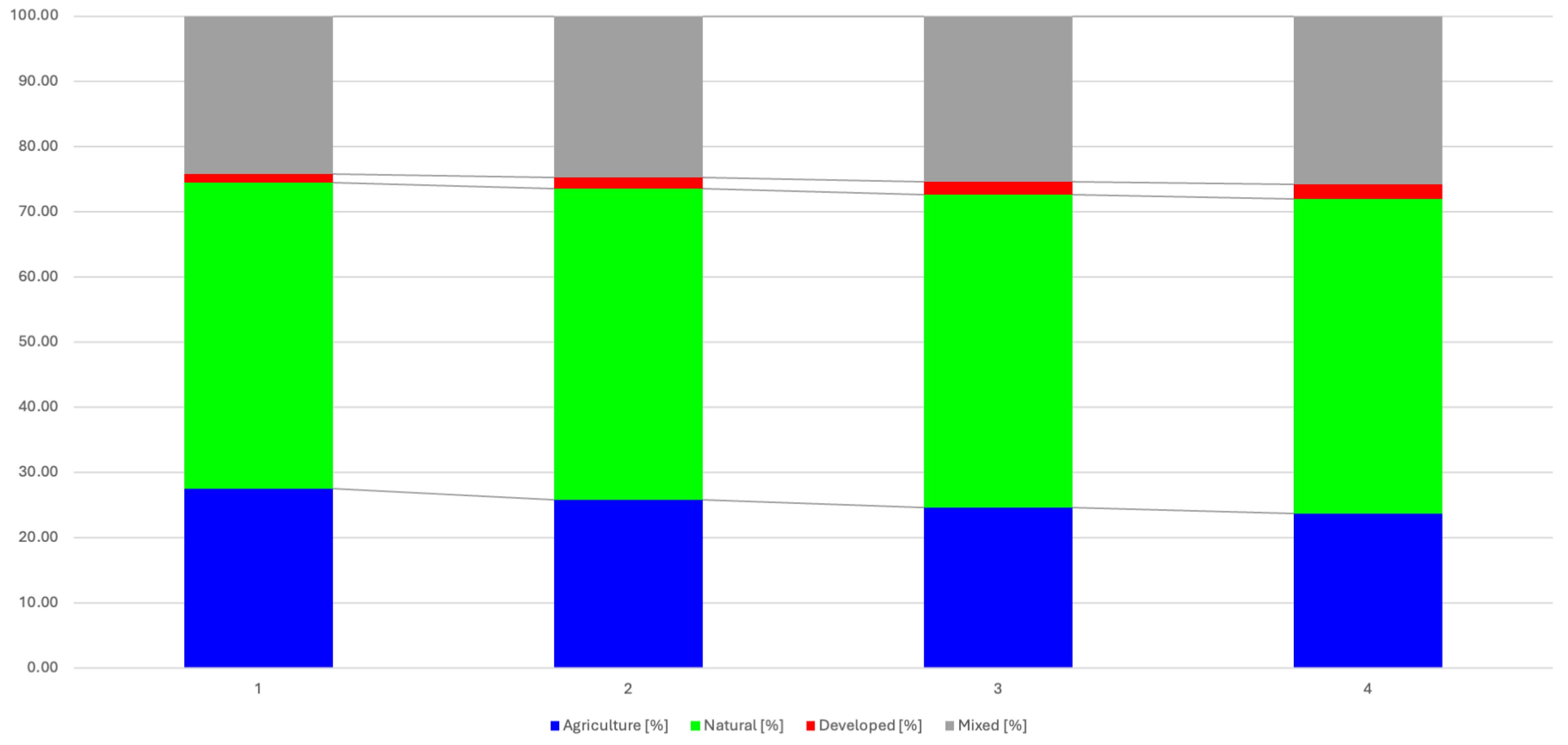

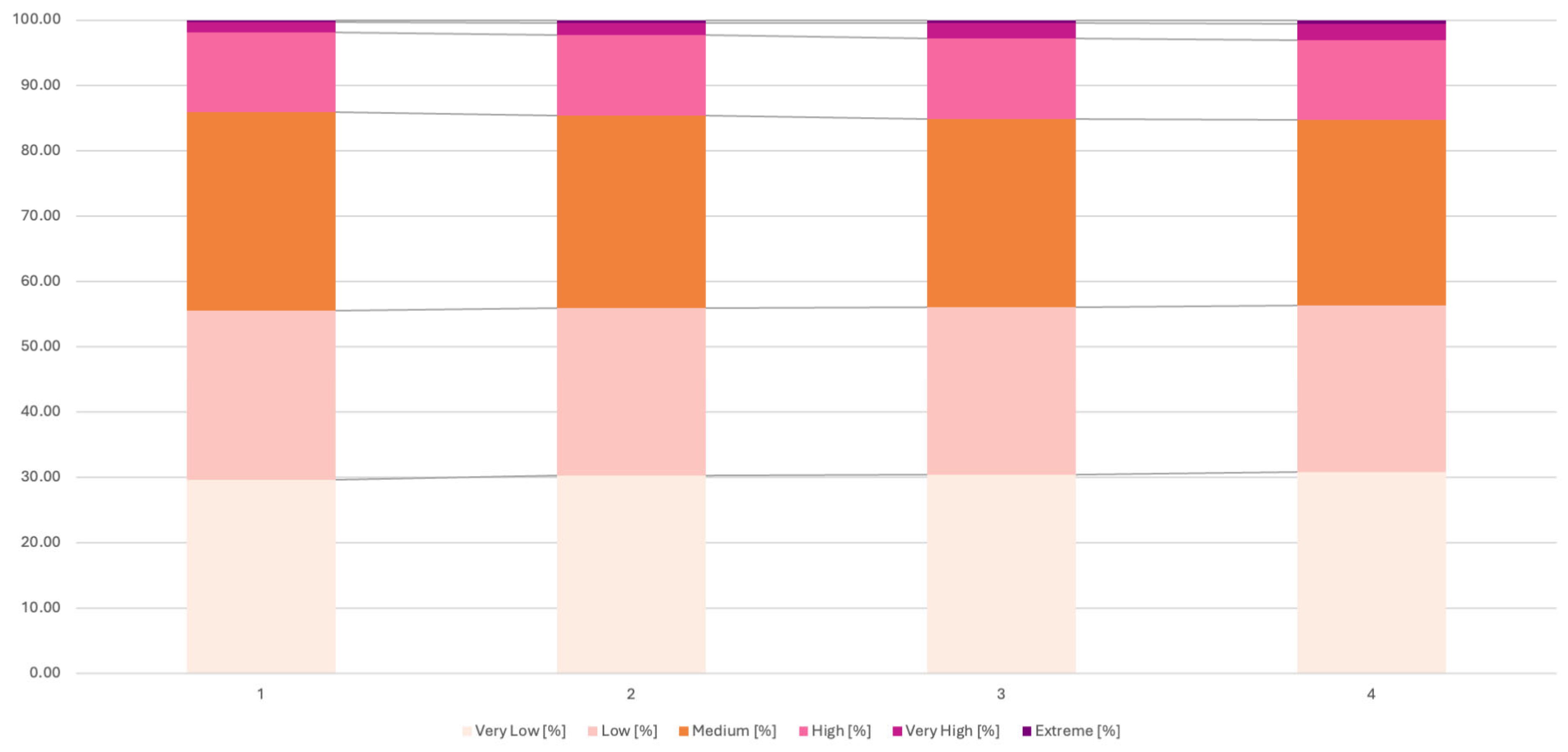

Finally, we tested PyLM on different time periods of the Switzerland’s Land Use Statistics, ArealStatistik, provided by the Federal Office for Statistics (i.e., 1979–1985, 1992–1997, 2004–2009, and 2013–2018): https://www.bfs.admin.ch/bfs/en/home/services/geostat/swiss-federal-statistics-geodata/land-use-cover-suitability/swiss-land-use-statistics.html (accessed on 17 October 2025) to see how the dominant LM classes (Figure 8) and the anthropic intensity evolved over time (Figure 9).

These initial results show that agriculture has slightly decreased over the last four decades at the expense of developed and mixed classes, indicating that urbanization is gaining ground compared to the other classes and that the landscape is also becoming more fragmented (e.g., increase in mixed class). This observation is confirmed by the increase in proportion of the “Very High” and “Extreme” classes of the anthropic intensity.

4. Discussion

The aim of this technical note was to present the Python-based implementation of the Landscape Mosaic model using some examples based on Swiss land cover maps. These findings suggest that the implementation of the LM approach is satisfactory, as it produces similar results to the reference software. The results demonstrate that the capability of PyLM enables users to process any LUC map to derive their stratification layers and associated summaries of statistics. In this context, PyLM enhances accessibility, flexibility, and computational efficiency for landscape ecological analyses, facilitating data processing, customization, and integration with other open-source tools used in research, conservation, and planning. The tool can be deployed as a standalone Python script, within a Jupyter Notebook environment, or seamlessly embedded into broader analytical workflows. Together, these features streamline the production of essential landscape metrics and provide a practical foundation for different types of environmental analysis and accounting [5].

In particular, the availability of a Python-based implementation of the LM approach could enable straightforward integration into existing GIS and geospatial analysis workflows. Python is natively supported and extensible in widely used GIS platforms such as QGIS, ArcGIS Pro, and GRASS GIS; therefore, the code of PyLM could be potentially incorporated as a custom processing tool or script, allowing users to apply LM analysis directly to raster LUC datasets within their favorite GIS environments. In addition, the Python implementation facilitates interoperability with scientific computing libraries (e.g., NumPy, SciPy, rasterio, and xarray) and workflow management systems, supporting automated, reproducible, and scalable analyses, including batch processing and integration into model chains. This flexibility also enables the coupling of LM outputs with downstream spatial statistics, landscape metrics, or machine-learning frameworks, thereby broadening the applicability of the Landscape Mosaic approach across research, planning, and decision-making contexts.

Beyond integration with existing GIS platforms, a Python-based LM approach offers several additional benefits that enhance its scientific and practical value. Open and transparent source code improves reproducibility and methodological scrutiny, allowing users to inspect, validate, and adapt the implementation to specific research questions or data characteristics. The flexibility of Python also facilitates rapid methodological extensions, such as experimenting with alternative neighborhood definitions, scale parameters, or classification thresholds, and supports high-performance computing through parallelization and cloud-based processing for large-area or high-resolution datasets. Furthermore, the broad adoption of Python in the geospatial and data science communities lowers barriers to use, promotes community-driven development, and encourages integration with open-data ecosystems, thereby increasing the accessibility, extensibility, and long-term sustainability of the Landscape Mosaic framework.

While the LM approach could, in principle, be further developed within GTB, the motivation for introducing a Python-based implementation lies in complementing, rather than replacing, this mature and well-established software. GTB is primarily designed for interactive Graphical User Interface (GUI)-driven analyses, whereas a Python implementation enables transparent, scriptable, and fully reproducible workflows that are better aligned with current data science practices. Implementing LM in Python facilitates capabilities that are difficult to achieve within a GUI-centered architecture, such as automation; systematic sensitivity and scale analyses; integration with statistical and machine-learning frameworks; and execution in high-performance or cloud-based environments. Moreover, by relying on widely adopted open-source Python libraries, the approach supports long-term sustainability, community-driven development, and interoperability. In this context, the Python implementation promotes open science and Findable-Accessible-Interoperable-Reusable (FAIR) principles [23,24] by making the methodology explicitly accessible, reusable, and adaptable across platforms, while remaining complementary to GTB and potentially serving as a modular foundation for future integration into existing GIS or toolbox-based environments.

Despite its broad applicability and benefits as previously mentioned, the LM approach is subject to several limitations that should be considered when interpreting these results. The method is inherently sensitive to the quality, spatial resolution, and classification accuracy in the underlying LUC data [25,26]; errors or inconsistencies in these inputs can propagate through the different outputs of the model and ultimately influence the identification of structural classes [7,8]. Because the approach relies on only three broad classes, it may oversimplify complex ecological gradients and processes, particularly in heterogeneous or transitional environments where boundaries are diffused [27,28]. Furthermore, while the LM approach captures structural patterns, it does not directly incorporate ecological processes (e.g., habitats), which could limit its ability to fully represent ecosystem dynamics without the use of additional complementary data [29]. Temporal analyses may also be challenging when input LUC data differ in methodology or classification schemes, making it difficult to disentangle methodological issues from real landscape change [30]. Finally, while this approach is computationally efficient, its usefulness for decision-making depends on how it integrates socioeconomic, ecological, and management information, an aspect that remains underdeveloped and may significantly influence the direct translation of structural patterns into actionable policy or conservation strategies [31,32,33].

The LM approach supports environmental monitoring by characterizing changes in habitat structure and configuration across space and time. In the European Commission (EC)-funded LandShift project (https://landshift.eu), PyLM allows for the classification of landscapes into its structural components, enables the detection of fragmentation, connectivity shifts, and landscape degradation, and supports biodiversity assessments, ecosystem condition reporting, and land use planning, including the identification of conservation or restoration priorities [34]. Finally, in the Swiss National Science Foundation that funded the DynamicLand project, PyLM could be applied to a time-series of LUC data to facilitate the evaluation of long-term trends driven by climate pressures, natural disturbances, or human expansion [35,36,37]. Overall, LM provides a robust and reproducible framework for interpreting the ecological implications of land cover change and possibly informing the development of monitoring strategies from local to national levels [8,38].

Given the increasing global relevance of land degradation [39,40,41,42,43], a core research interest is the potential benefits the LM approach has with degradation assessments based on indicators such as SDG 15.3.1 [44,45,46] and MEDALUS/ESAI [47,48,49]. In the EC-funded MONALISA project (https://monalisa4land.eu), PyLM could be used to link Landscape Mosaic structures with these indicators to improve understanding in how natural- and human-driven processes interact across heterogeneous landscapes, and help identify highly degraded patches where intervention is the most urgent. The analysis of patch interconnections may further reveal how degradation propagates spatially, enhancing the ability to anticipate cascading effects. As mosaics respond to both abrupt disturbances and gradual pressures, incorporating temporal dynamics is also critical in order to support adaptive management and early-warning systems. Assessing how degradation within structural classes affects ecosystem service provision can also guide restoration toward areas of greatest functional loss. Finally, integrating socioeconomic and human activity data with LM-based assessments can help identify context-specific drivers and inform more effective and sustainable land management strategies [50,51,52].
