Integrated Approach to Assess Simulated Rainfall Uniformity and Energy-Related Parameters for Erosion Studies

Abstract

Rainfall simulators are crucial devices in erosion research, enabling the controlled reproduction of precipitation characteristics for both laboratory and field investigations. This study presents a comprehensive characterization of a rainfall simulator originally designed to assess the erosive effects of precipitation on heritage surfaces. The simulator, installed at the University of León, was evaluated using volumetric methods and disdrometric techniques, employing a Parsivel² optical disdrometer. Simulations were conducted with a falling height of 10 m and high-intensity rainfalls. Spatial uniformity was assessed through thematic mapping and the Christiansen Uniformity (CU) coefficient, revealing limited uniformity across the full wetted area, but an improved performance within the central zone (CU up to 80%). Disdrometric data provided detailed insights into drop size and velocity distributions, enabling the estimation of rainfall intensity, kinetic energy, and momentum, as well as the spatial uniformity of the energetic parameters. Empirical models to estimate the raindrop’s fall velocity were tested against disdrometric measurements, confirming the simulator’s ability to generate rainfall with velocity characteristics comparable to those of natural precipitation. Moreover, the findings underscore the importance of integrating multiple measurement approaches to enhance the reliability and accuracy of rainfall simulator characterization.

1. Introduction

The importance of rainfall simulators in erosion research lies in their capacity to reproduce key precipitation characteristics, such as rainfall intensity, kinetic energy, and momentum, in a rapid and controlled manner while eliminating the variability inherent to natural rainfall [1,2,3,4]. Due to these advantages, rainfall simulators have been used as a systematic approach for both laboratory and field studies [5,6,7].

Over time, a wide range of simulators has been designed [8], each adapted to specific research topics, including soil erosion [9,10,11,12], hydrology [13,14], water infiltration [15,16], runoff and sediment transport [17,18,19], heritage surfaces erosion [20,21], soil texture [22,23], the roles of runoff and splash erosion in soil degradation and landform development [24,25,26,27], or the assessment of environmental impacts [28,29,30].

Nevertheless, the development of high-fidelity rainfall simulators remains a considerable challenge [31]. Moreover, despite their widespread use, the lack of standardized protocols and the heterogeneity of research goals represent additional limitations [32,33,34,35,36], constraining the comparison of research results [8,37]. Indeed, devices range from simple drip systems with capillary tubes [38] to pressurized nozzles/sprinklers [31] and aspersion mechanisms [20]; some operate under highly controlled laboratory conditions, while others are deployed in full-scale field plots; rainfalls can be applied from microplots [39] to large field plots [40].

Few recognized protocols provide standardized procedures for rainfall simulator calibration, testing configuration, and data collection and analysis. As an example, the American Society for Testing and Materials (ASTM) developed the ASTM D6459 and the ASTM D7101 protocols for rolled erosion control [41,42,43,44,45]; both aim to ensure the reproducibility and comparability of erosion-related experiments, promoting consistent evaluation of hydraulic performance under simulated rainfall conditions.

Common approaches for characterizing rainfall simulators typically include the use of rain collectors to quantify rainfall intensity, photographic techniques to determine raindrop fall velocity, and disdrometers to evaluate the size and velocity distribution of simulated raindrops [46,47,48]. However, the choice of a particular characterization method can significantly influence the measured rainfall parameters [37,49,50,51], potentially introducing variability into the results and highlighting the need for standardized protocols to ensure comparability across studies [52,53,54].

Green and Pattison [55] stated that the number, spatial arrangement, and physical characteristics of rainfall collectors, such as their size and shape, directly affect the representation of rainfall distribution over a plot surface. According to the authors, these factors influence the assessment of uniformity, which is usually quantified using the Christiansen Uniformity (CU) coefficient:

$$CU=100\left(1-{\displaystyle \frac{\sum _{i=1}^{n_c}\left|I_i-I_S\right|}{I_S{n}_c}}\right)$$

(1)

in which I_i is the rainfall intensity of a single rain collector, I_S is the mean rainfall intensity, and n_c (−) is the number of rainfall collectors. Thus, as the CU value approaches 100%, the rainfall pattern becomes increasingly uniform.

In other words, the CU method is susceptible to the sampling resolution and the layout of collectors, resulting in differences in a rainfall simulator characterization when different experimental setups are employed. As a consequence, the CU reflects both the performance of the applied testing procedure and the simulator’s actual performance. However, the CU coefficient remains one of the most widely applied methods due to its simplicity, widespread acceptance, and long-standing use as a standard metric for comparing rainfall simulator performance across different studies [55].

In previous literature, various thresholds of the CU coefficient have been proposed to evaluate the spatial uniformity of rainfall simulators. A classification, originally developed by the American Society of Agricultural and Biological Engineers (ASABE) [56] for irrigation systems, also adopted in rainfall simulation research as a benchmark for experimental reliability [12,20], defines drippers and nozzles as follows: unacceptable (CU < 60%), poor (60% ≤ CU < 70%), fair (70% ≤ CU < 80%), good (80% ≤ CU < 90%), and excellent (CU ≥ 90%). Other authors [10,11,57,58] consider rainfall to be uniform when CU exceeds 80%, especially in small-scale experiments. For large plot areas, a threshold of 70% or less has been accepted in some studies [26,59].

Regarding the use of photographic methods for estimating the fall velocity of raindrops, although these techniques have proven reliable, particularly in drip-type rainfall simulators [49,50], their application in pressurized or other complex devices faces several practical limitations. Manual procedures are time-consuming and labor-intensive; in addition, results depend on the operator, and errors can occur in the estimated kinetic energy of up to ±28% compared with the results obtained using automated methods [60]. Additional limitations arise from drop deformation during free fall, which tends to flatten drops, affecting velocity estimation [61]. Furthermore, drops located too close or too far from the camera calibration plane appear enlarged or reduced, respectively, requiring the filtering of out-of-focus data [61]. Finally, in multi-nozzle simulators with high drop densities, drop overlap in the image plane can lead to identification and sizing errors [61].

Currently, disdrometers represent the last advancement in the field, enabling a comprehensive characterization of precipitation. Specifically, these devices provide detailed measurements of the rainfall Particle Size and Velocity Distribution (PSVD), which is crucial for a more reliable estimation of the rainfall kinetic energy, P_n (J/m²/s), and momentum, M (N/m²). These are two key parameters to define rainfall erosivity [62] and play a central role in soil detachment and splash erosion processes [8,63], infiltration and runoff dynamics [64], and rainfall-induced deterioration of cultural heritage surfaces [20].

Most disdrometers use a laser optical technology, such as the Eigenbrodt ODM 470 [65,66], the Laser Precipitation Monitor (LPM) [67], the Multi-Angle Snowflake Camera [68], the Particle Size Velocity (Parsivel) [69] and its integrated version (Parsivel²) [70], and the two-dimensional video disdrometer [71,72].

Among the various disdrometers available, the Parsivel² (OTT Hydromet GmbH, Kempten, Germany) and the LPM (Thies Clima, Göttingen, Germany) are particularly prevalent in the field of rainfall simulator characterization [8,73,74,75,76,77,78].

Research on natural precipitation using Parsivel² and LPM disdrometers [79] has demonstrated that both instruments systematically tend to underestimate raindrop fall velocity and exhibit substantial discrepancies in the measured PSVD, with these differences becoming more pronounced at higher rainfall intensities. According to the authors [79], such differences and underestimations may arise from both hardware- and software-related factors, including geometric variations in the laser configuration.

Further potential biases intrinsic to optical disdrometers include the nonuniform power distribution across the laser beam, the misinterpretation of multiple particles as a single drop, and the occurrence of margin fallers, i.e., drops that only partially intersect the beam and are therefore not fully detected [80]. Although the manufacturers state that these devices incorporate corrections for margin fallers and multiple particles, the specific methodologies employed to address these sources of error remain undisclosed [79].

Therefore, due to the widespread tendency of optical disdrometers to underestimate fall velocity, several studies [72,79,81,82,83,84,85,86,87,88] have avoided the use of measured velocity distributions, opting instead for empirical relationships [88,89,90,91] calibrated on natural rainfall data, which relate terminal velocity, defined as the equilibrium speed at which gravitational and aerodynamic drag forces are balanced [92], to raindrop diameter.

Based on the experimental data of Gunn and Kinzer [88], Atlas et al. [89] and Atlas and Ulbrich [90] adopted the following empirical relationship to estimate the terminal velocity of raindrops, V_(D) (m/s), as a function of their diameter D (mm):

$$V_{\left(D\right)}=9.65-10.3{\mathrm{e}}^{-0.6\mathrm{D}}$$

(2)

Beard [91] did not propose a closed equation for estimating fall velocity but developed a physically based model in which environmental variables (such as altitude, latitude, temperature, relative humidity, air pressure) are considered. Therefore, this parametric model uses several fit curves to represent the terminal velocity over specific diameter ranges and atmospheric conditions.

Another formulation used in literature [93,94], also to estimate raindrop terminal velocity in disdrometers that do not provide direct velocity measurement [92,95,96], is that of Ferro [97], who used measurements from several studies [88,91,98,99,100,101] to propose the following relationship:

$$V_{\left(D\right)}=V_h\left[1-\mathrm{e}\mathrm{x}\mathrm{p}\left(-a_{h}D\right)\right]$$

(3)

in which D is expressed in cm, while the coefficients V_h (m/s) and a_h (cm) vary with the falling height, assuming values, respectively, equal to 9.5 m/s and 6 cm for natural precipitations.

However, previous empirical formulations are not commonly applied in simulated rainfall experiments, since the limited drop falling height under laboratory conditions often prevents raindrops from reaching their terminal velocity.

An alternative approach is to apply empirical relationships validated under laboratory conditions to estimate the fall velocity of raindrops, in which V_(D) is explicitly expressed as a function not only of the raindrop diameter but also of the drop falling height set during the experiment. Recently, after having analyzed fall velocity measurements in literature in the falling height range of 0.5 m to 20 m [98], Serio et al. [49] proposed the following relationship:

$$V_{\left(D\right)}={\displaystyle \frac{11.50}{1+\frac{1.65}{h^{0.8}}}}\left[1-e^{-11.43h^{-0.24}D}\right]$$

(4)

in which D is expressed in cm and h (m) is the falling height, i.e., the distance from the sprinkler’s outlet of the rainfall simulator to the disdrometer measuring surface. The reliability of Equation (4) was positively verified using both experimental fall velocity measurements, up to 1.3 m, obtained with a drip-type rainfall simulator [49] and literature data up to 13 m [99].

In this context, the primary contribution of this study is the comprehensive characterization of a laboratory rainfall simulator, which is currently being employed in studies on heritage erosion. This characterization is performed by comparing different approaches, i.e., a volumetric method using rain collectors and a disdrometric one employing a Parsivel² disdrometer, and highlighting the discrepancies that can arise depending on the method chosen.

This is critical because erosion studies require the quantification of not only rainfall intensity but also crucial erosivity parameters such as rainfall kinetic energy and momentum, and their spatial uniformity across the tested surface.

The results presented here will deepen our understanding of the simulated rainfall’s characteristics, enabling us to adapt the current configuration to different events, thereby enhancing the simulator’s applicability to a variety of different situations focused on soil and heritage erosion.

In addition, disdrometric data and raindrop velocity distribution collected with an optical disdrometer are analyzed to evaluate the simulator’s ability to reproduce raindrop velocities comparable to those observed in natural rainfall.

2. Materials and Methods

2.1. Experimental Setup

In the present study, the rainfall simulator (RS) recently proposed by Fernández-Raga et al. [20] is used; this RS was originally designed for studies on stone-based heritage erosion [20,102]. The device is located at the Department of Chemistry and Applied Physics, Industrial Engineering School, University of León. The characterization of the RS was performed using rain collectors for the volumetric calibration and an optical disdrometer (OTT Hydromet GmbH, model Parsivel², Kempten, Germany) for the disdrometric one. The falling height, defined as the distance from the RS to the optical disdrometer sampling surface, was set to 10 m.

2.1.1. Rainfall Simulator Design

The RS is suspended and anchored by tensioned steel cables to the walls of an internal courtyard (Figure 1), whose vertical walls reduce the wind influence and prevent droplet drift.

Tap water was avoided to supply the RS as its mineral content could, over time, compromise the hydraulic efficiency of the system by depositing calcium, especially in the smallest parts of the system (microsprinklers). Moreover, deionized water better represents natural rain from a physical/chemical point of view since the presence of salts modifies the water surface tension [103]. Therefore, using a purification system (Wasserlab, model DE7003, Barbatáin, Navarra, Spain), deionized water was continuously supplied to a 100 L tank equipped with a submersible pump (LISTA, Ehlis S.A., model Hidrosub AS-216, Illescas, Toledo, Spain).

Water was then conveyed to the main supply line using a surface pump (Hidrobex model EH-125, Parets del Vallés, Barcelona, Spain), which delivered it to the top of the internal courtyard. A constant pressure was selected for the present work. In particular, since weathering and erosion processes on stone-based cultural heritage occur over large temporal scales, an appropriate methodology already established for these scenarios [20,102,104] was followed, resulting in rainfall intensity values higher than those observed under natural precipitation conditions.

Still, since the surface pump loses power over time [20], its functioning was automated with an Arduino program. Therefore, after a continuous and constant run of 55 s, the program stops the pump for 5 s, thereby allowing for a constant mean flow rate over time. The cycle can be programmed for the desired time. For this investigation, a total rainfall cycle of 5 min was chosen.

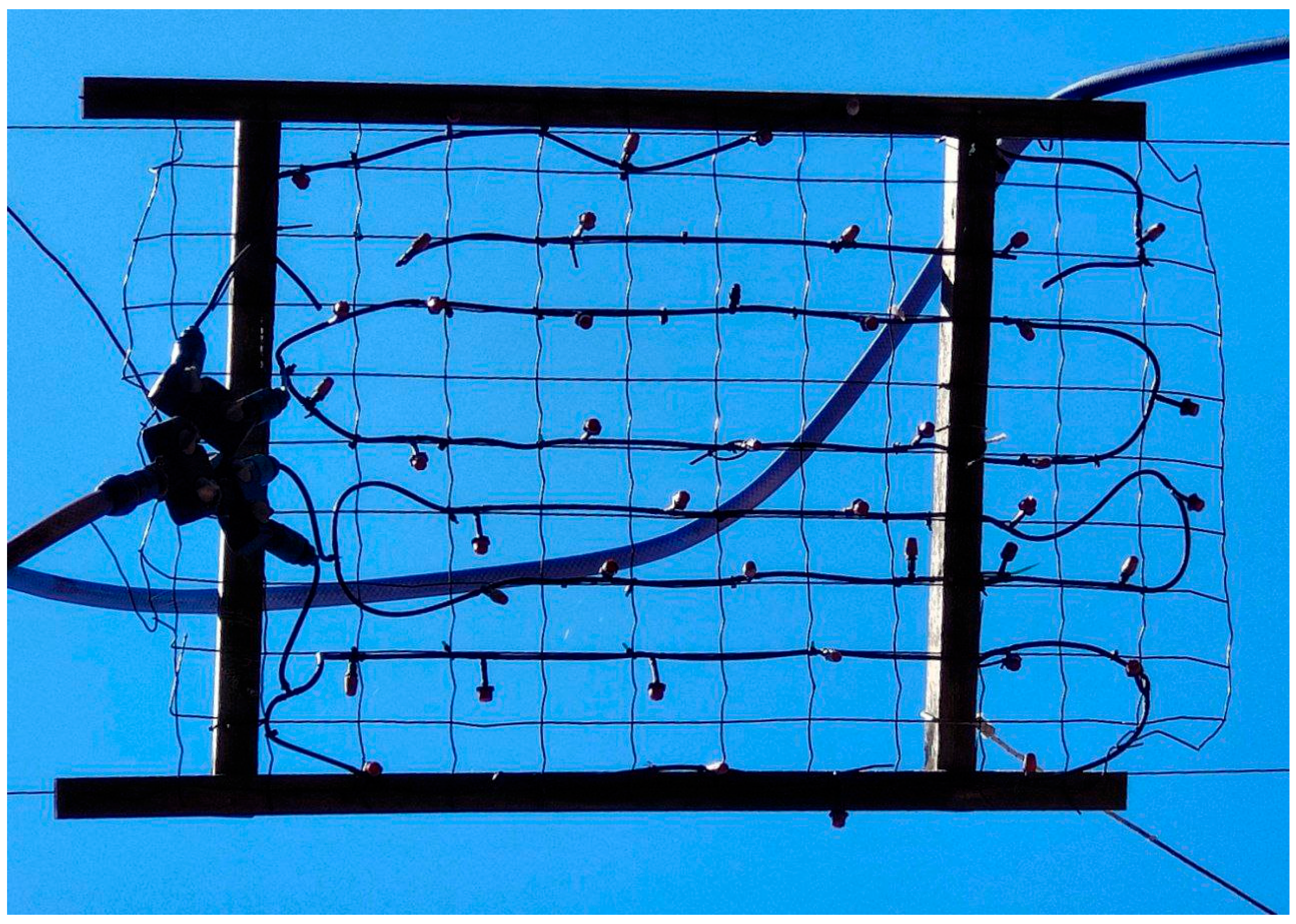

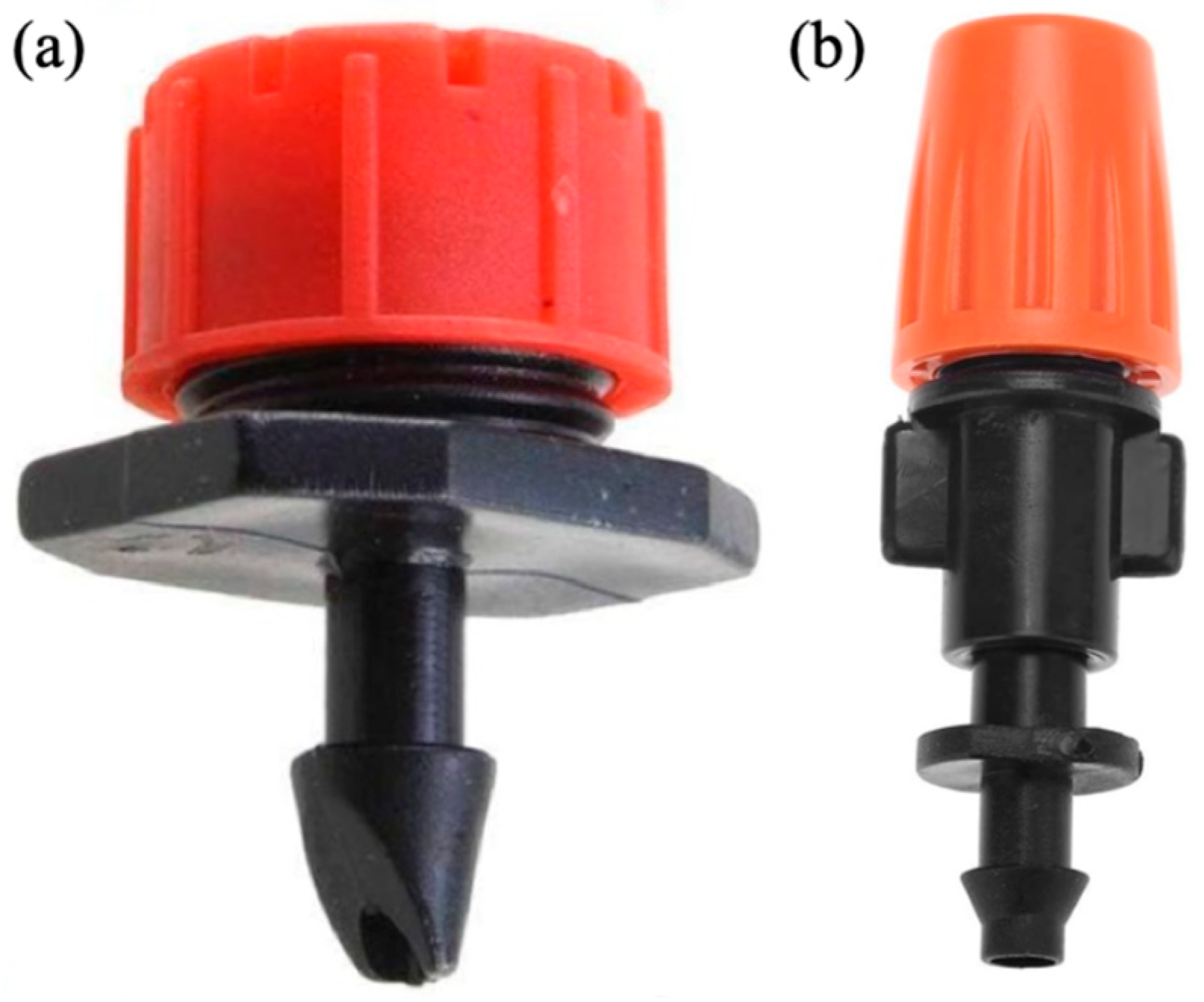

Once water reaches the upper part of the hydraulic system, the main pipeline feeds the RS structure (Figure 1), which consists of a metal frame supporting four independent pipes equipped with 46 emitters with a flow rate that can range from 1 to 70 L/h (Figure 2). Specifically, two emitter models commonly employed in gardening applications were selected: 26 drippers releasing droplets in eight peripheral directions (Figure 2a), and 20 minisprinklers with a single central outlet for drop release, which can generate a spray radius of 0–0.5 m (Figure 2b).

Both emitter models allow a fine regulation of the outlet pressure by screwing/unscrewing, thus impacting the size of simulated raindrops. Consequently, to generate simulated rainfalls with the widest possible drop size variability, both the positioning and the opening of the drippers and the minisprinklers were set randomly.

2.1.2. Optical Disdrometer

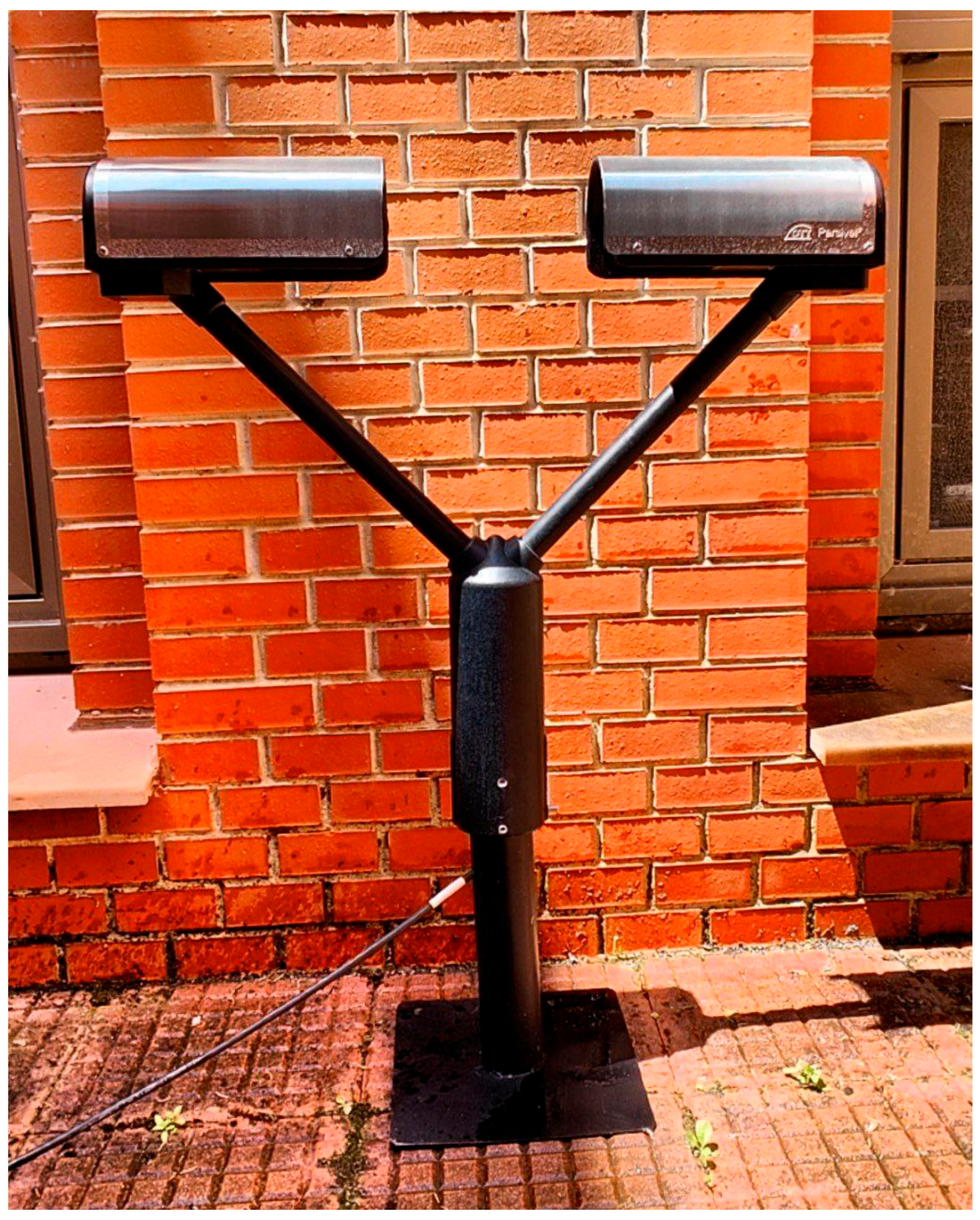

The disdrometric calibration was performed using a Parsivel² disdrometer (Figure 3).

This optical device is widely employed in both simulated and natural rainfall studies. It measures the diameter and fall velocity of individual raindrops, classifying them into 1024 possible size–velocity combinations: 32 diameter classes ranging from 0.2 mm to 25 mm, with class widths progressively increasing from 0.125 mm to 3 mm, and 32 velocity classes ranging from 0.2 m/s to 20 m/s, with class widths increasing from 0.1 m/s to 3.2 m/s. The assignment of each drop to a specific combination is governed by an undisclosed internal algorithm [84].

2.2. Laboratory Protocol for the Rainfall Simulator Characterization

2.2.1. Volumetric Characterization

The volumetric calibration was focused on a rectangular sampling area of 1.8 m × 1.8 m (Figure 4).

Since the floor is composed of regular square tiles measuring 0.3 × 0.3 m, the characterization was performed by placing rain collectors at the center of each of the 36 tiles. Moreover, given the simulator’s configuration, characterized by a great falling height and high simulated rainfall intensities, concerns arose around the droplet impact potentially inducing splash phenomena. This could lead to water losses from within the collectors or, conversely, to additional inflow caused by droplets rebounding off the floor, thereby compromising the accuracy of volumetric measurements.

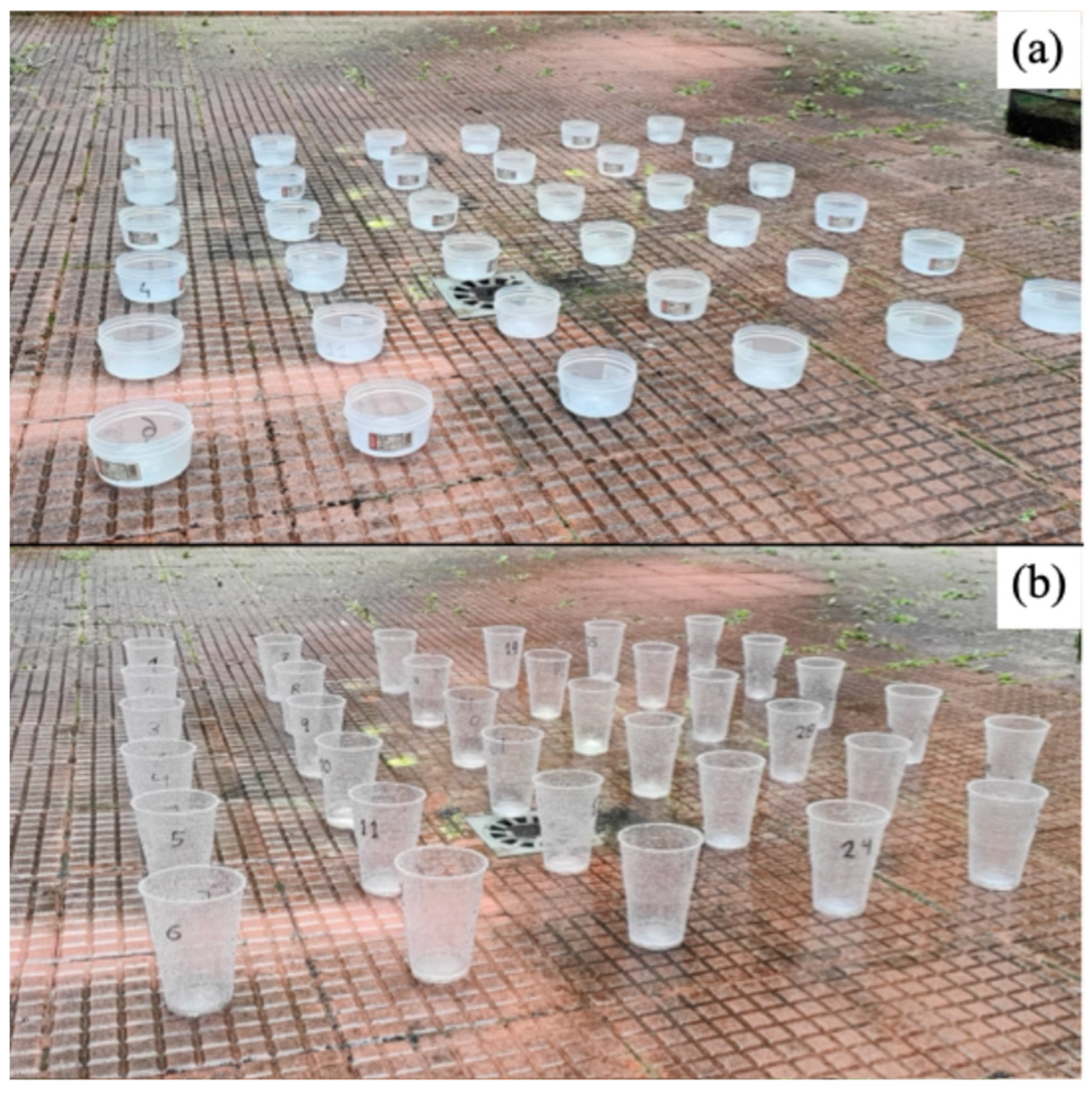

To address this issue, short plastic vessels (p_v), with a capacity of 0.5 L and a sampling surface of 9.607 × 10⁻³ m² (Figure 5a), and tall plastic cups (p_c), with a capacity of 1 L and a sampling surface of 9.276 × 10⁻³ m² (Figure 5b), were tested. For both rainfall collector types, the larger upper diameter was used to determine the effective sampling surface.

The two distinct collector designs were employed to experimentally evaluate and quantify the potential error introduced by droplet splash (splash-in/splash-out), ensuring the robustness of the volumetric calibration.

In addition, a third calibration dataset was obtained using p_cs across two successive rainfall simulation cycles to verify the temporal consistency of the simulator performance.

In other words, three different treatments (T) were employed: p_v for 5 min (T1), p_c for 5 min (T2), and p_c for 10 min (T3). Due to their limited capacity, p_vs could not be used for the 10 min simulation.

Before each rainfall simulation, p_v and p_c were calibrated using a digital scale. After the simulation, their outer surfaces were dried, and the collected water volume (Vol, L) was weighed. Knowing the volume collected by each collector, their sampling area (A, m²), and the simulation time (t_S, h), the simulated rainfall intensity (I_s, mm/h) was calculated as:

$$I_S={\displaystyle \frac{Vol}{A t_S}}$$

(5)

For each treatment, three repetitions were performed, leading to a total of 324 rainfall intensity measurements. To evaluate the rainfall spatial distribution of T1, T2, and T3, the mean value of the three repetitions was considered to determine the CU coefficient according to Equation (1).

Moreover, the I_S spatial distribution was also graphically evaluated using a geographic information system (GIS) software (QGIS, version 3.34.14-Prizren) by creating thematic maps, one for each treatment. To allow direct visual comparison among treatments, a fixed graduated color scale was applied, ranging from light yellow to dark red, to represent increasing rainfall intensity.

To determine whether the observed differences in terms of simulated rainfall intensity were statistically significant, a two-way analysis of variance (ANOVA) with replication was performed. The analysis considered two factors: treatment (T1, T2, T3), which reflects variations in both collector type and simulated rainfall duration, and collector position within the simulator. That is, the ANOVA test determines whether the considered factors, either individually or through their interaction, are responsible for any statistically significant differences in terms of simulated rainfall intensity. Specifically, F-values and corresponding p-values were calculated for each main effect and for the interaction term, and these were compared against the critical F-values to assess significance. The analysis was conducted using a significance threshold of α = 0.05.

2.2.2. Disdrometric Characterization

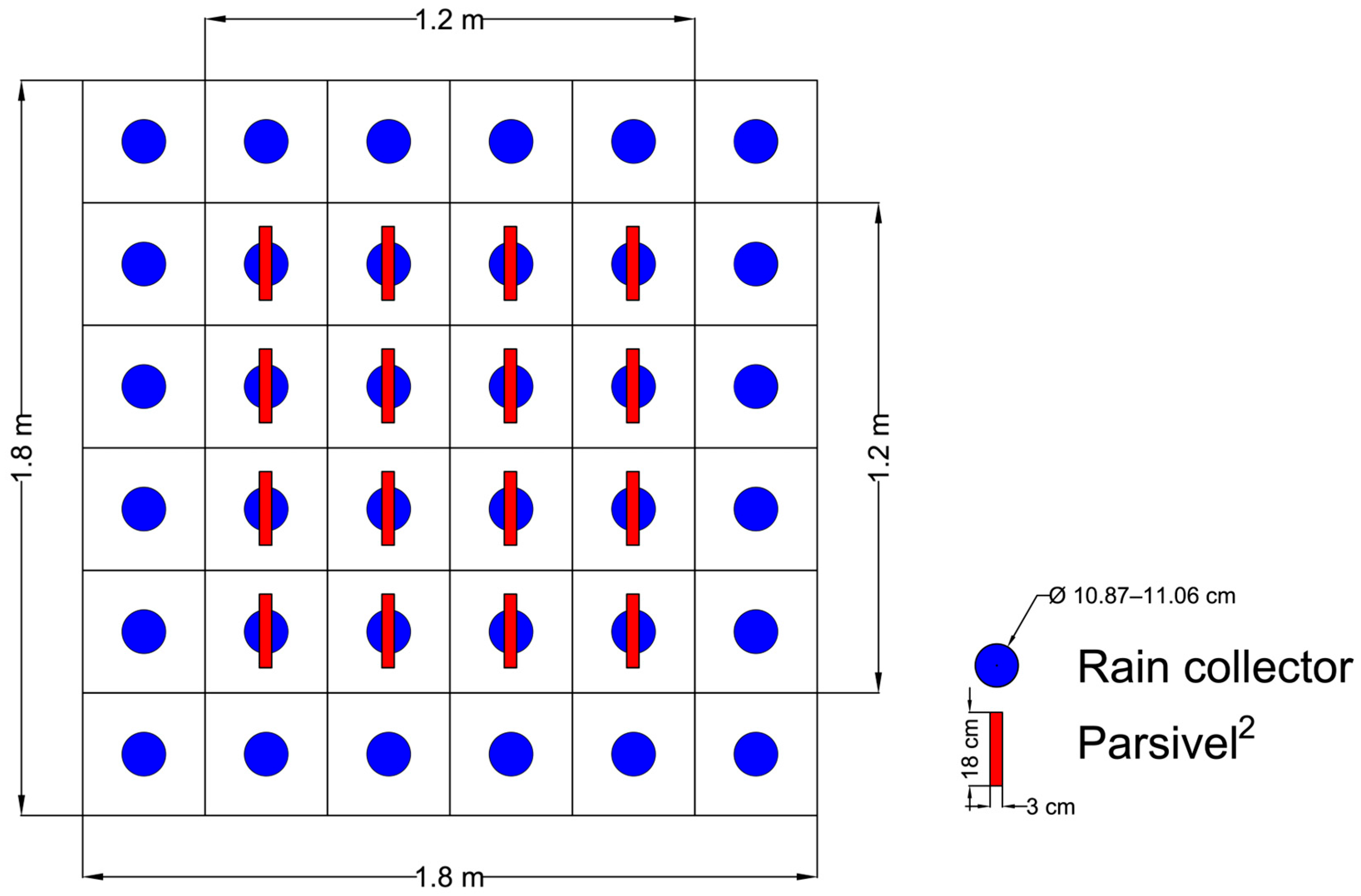

Regarding the disdrometric characterization, a 1.2 m × 1.2 m wetted area was considered (Figure 4). This focus was selected because the previous volumetric calibration suggested that the central 1.2 m × 1.2 m plot provided the most consistent and uniform rainfall distribution. Thus, the Parsivel² disdrometer was placed at the center of each of the resulting 16 tiles (Figure 4).

For each position, three 5 min rainfall cycle repetitions were performed, resulting in a total of 240 1 min raw PSVD.

For each minute, rain intensity was determined using the following relationship:

$$I_P={\displaystyle \frac{\pi }{6}}{\displaystyle \frac{t}{3600}}\sum _{i=1}^{32}{\displaystyle \frac{D_i^3 n_i}{{\sigma }_{eff,}}}$$

(6)

in which t (s) is the sampling time, equal to 60 s for the present investigation, D_i (mm) is the mean diameter of the i-th diameter class, n_i (−) is the number of drops recorded in the i-th class, and σ_eff (mm²) is the effective sampling area that accounts for the margin faller effect. This means that, to account for the undercounting of drops falling near the laser-beam edges, a correction was applied to the nominal Parsivel² sampling area (5400 mm²), according to the following relationship [79,84,105,106]:

$${\sigma }_{eff}=L\left(W-{\displaystyle \frac{n_i}{N}}{\displaystyle \frac{D_i}{2}}\right)$$

(7)

where L (mm) and W (mm) are the Parsivel² laser beam length and width, respectively, which are equal to 180 mm and 30 mm, and N (−) is the total number of drops recorded during the 1 min interval.

Regarding the rainfall kinetic power and momentum, each raw PSVD was processed as follows for their determination:

$$P_n={\displaystyle \frac{1}{2}}{\displaystyle \frac{\rho \pi }{6t}}\sum _{i=1}^{32}\sum _{j=i}^{32}{\displaystyle \frac{{\left(\frac{D_i}{1000}\right)}^3{v}_j^2 n_{ij}}{{\sigma }_{eff}}}$$

(8)

$$M={\displaystyle \frac{\rho \pi }{6t}}\sum _{i=1}^{32}\sum _{j=i}^{32}{\displaystyle \frac{{\left(\frac{D_i}{1000}\right)}^3{v}_j n_{ij}}{{\sigma }_{eff}}}$$

(9)

in which ρ (kg/m³) is the water density, equal to 1000 kg/m³, v_j (m/s) is the mean fall velocity of the j-th velocity class, and n_ij is the number of drops recorded in the i-th and j-th class.

The mean I_P, P_n, and M values of each position were employed to determine the spatial uniformity of the measured variables, according to Equation (1). Also, similarly to what was described in Section 2.2.1, the same procedure using a GIS software was followed to obtain thematic maps of the I_P, P_n, and M spatial distributions.

The rainfall intensity values obtained from the volumetric characterization using rain collectors were compared with those derived from the disdrometric calibration. As the previous two-way ANOVA with replication (Section 2.2.1) revealed no significant differences among the volumetric treatments (T1, T2, and T3), their mean value, denoted as I_T (mm/h), was used to represent the volumetric rainfall intensity.

To evaluate whether the RS was capable of generating raindrops resembling the terminal velocity of natural ones, an analysis of the measured fall velocity using the Parsivel² disdrometer was conducted.

Specifically, at first, for each i-th diameter class of the Parsivel² disdrometer, the weighted mean raindrop fall velocity measured with the Parsivel² disdrometer, v_P (m/s), relative to the entire dataset and thus independently of the sampled positions was obtained as follows:

$$v_P={\displaystyle \frac{\sum _{j=i}^{32}{v}_j n_i}{n_i}}$$

(10)

Then, the resulting v_P values were compared with the calculated fall velocities, V_(D), derived from Equations (2)–(4).

3. Results and Discussion

3.1. Rainfall Intensity Spatial Distribution: Volumetric and Disdrometric Differences

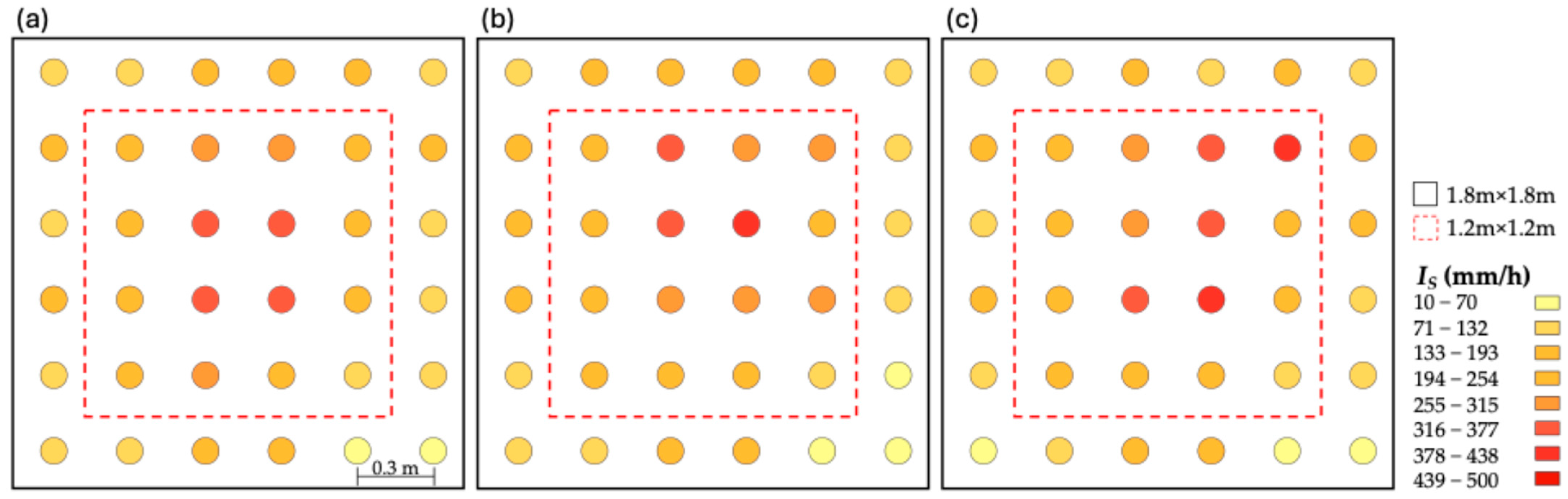

Figure 6 shows the spatial distribution of the rainfall intensity (I_S) obtained from the three volumetric characterization treatments: T1 (Figure 6a), T2 (Figure 6b), and T3 (Figure 6c). Each circle represents the average rainfall intensity recorded at a specific sampling position, calculated from three repetitions per treatment.

The thematic maps reveal a certain degree of variability in rainfall intensity, with lower values observed in the peripheral zones and higher values concentrated in the central area. When comparing the full sampling area (1.8 m × 1.8 m) with a slightly reduced central portion (1.2 m × 1.2 m), the latter, despite exhibiting higher intensity values, shows improved spatial homogeneity.

This central concentration may be attributed to the simulator’s configuration: the 46 emitters, randomly oriented and alternately screwed in to reproduce a complex rainfall spectrum, may contribute more significantly to the central area, where drops from multiple emitters overlap, while the peripheral zones receive input from fewer emitters. As a result, the volumetric distribution is not perfectly uniform in the full sampling area.

These observations are supported by the data presented in

Table 1. Mean rainfall intensity (I_S), standard deviation, and Christiansen uniformity (CU) coefficient (CU) for the three characterization treatments (T) employed in this investigation, evaluated in both the 1.8 m × 1.8 m and the 1.2 m × 1.2 m sampling surfaces.

Treatment	Mean IS (mm/h)	Standard Deviation	CU (%)	Mean IS (mm/h)	Standard Deviation	CU (%)
	1.8 m × 1.8 m Wetted Area			1.2 m × 1.2 m Wetted Area
T1: pv, 5 min	183.1	87.2	61.7	256.9	66.6	79.5
T2: pc, 5 min	181.8	91.0	59.9	252.9	71.0	77.6
T3: pc, 10 min	182.9	108.3	55.9	257.6	98.1	68.4

, which reports, for each treatment, the mean I_S value, standard deviation, and CU coefficient calculated according to Equation (1), for both the full and reduced sampling areas.

The analysis reveals that the simulator delivers, on average, a nearly constant rainfall intensity across treatments (Table 1), considering both the full and reduced sampling areas. However, the RS shows noticeable spatial differences within the full sampling area (CU from 56% to 62%), but improved uniformity across the 1.2 m × 1.2 m one (CU from 68% to 80%).

These results indicate that, within the full wetted area, the RS exhibits poor uniformity according to ASABE standards [56]. However, when considering only the central portion (Figure 6), the simulator reaches a 70% threshold across all treatments (mean CU equal to 75.16%) and even approaches 80% in T1 and T2, a threshold commonly adopted as a benchmark for uniformity in small-scale experiments [10,11,57,58] (Table 1).

Although measuring two rainfall cycles might intuitively seem to reduce variability, T3 shows the highest variability (Figure 6c), the lowest CU values, and the highest standard deviations (Table 1), indicating the presence of more extreme intensity values. This is likely not due to manual interventions (the system runs continuously under Arduino control), but rather to nonstationary effects inherent to the simulator during its operation.

To further investigate whether significant statistical differences exist between the employed treatments (effect 1) and the position of the rain collectors (effect 2, accounting for the spatial distribution), a two-factor ANOVA was performed. The results in terms of sum of squares (SQ), degrees of freedom (df), mean squares (MQ), F-value, p-value, and F-critical are presented in

Table 2. Two-factor ANOVA investigating whether significant statistical differences exist between the three employed characterization treatments and the rain collector positions.

Source of Variation	SQ	df	MQ	F-Value	p-Value	F-Critical
Rain collector position	2,496,505.58	35	71,328.73	59.14	6.40 × 10−92	1.48
Treatments	107.17	2	53.59	0.04	0.96	3.04
Interaction	197,798.09	70	2825.69	2.34	1.43 × 10−6	1.36
Intragroup	260,497.13	216	1206.01	—	—	—
Total	2,954,907.96	323	—	—	—	—

.

The results of the two-factor ANOVA show highly significant differences due to rain collector position (F-value > F-critical; p < 0.001), demonstrating spatial heterogeneity to represent the primary source of variability in rainfall intensity. In contrast, treatment effect, assessing differences due to collector type and simulation duration, is not statistically significant (F-value < F-critical; p = 0.96), indicating that rainfall intensity does not change appreciably among treatments.

Considering the previous results, rainfall intensity at each position can be expressed as a single representative value, I_T, obtained by averaging the results from the three different treatments.

Furthermore, to exclude positions less relevant from an erosive point of view, thus characterized by lower rainfall intensity values, and to characterize a more uniform pattern of the simulator from a disdrometric standpoint, the outer positions of the 1.8 m × 1.8 m pattern were excluded from subsequent analyses. Thus, only the central 1.2 m × 1.2 m wetted area was considered (Figure 6). For each of the 15 1 min PSVD measurements recorded using the Parsivel² disdrometer, Equation (6) was applied to compute the corresponding rainfall intensity value, and the mean I_P value was then obtained by averaging these 15 values.

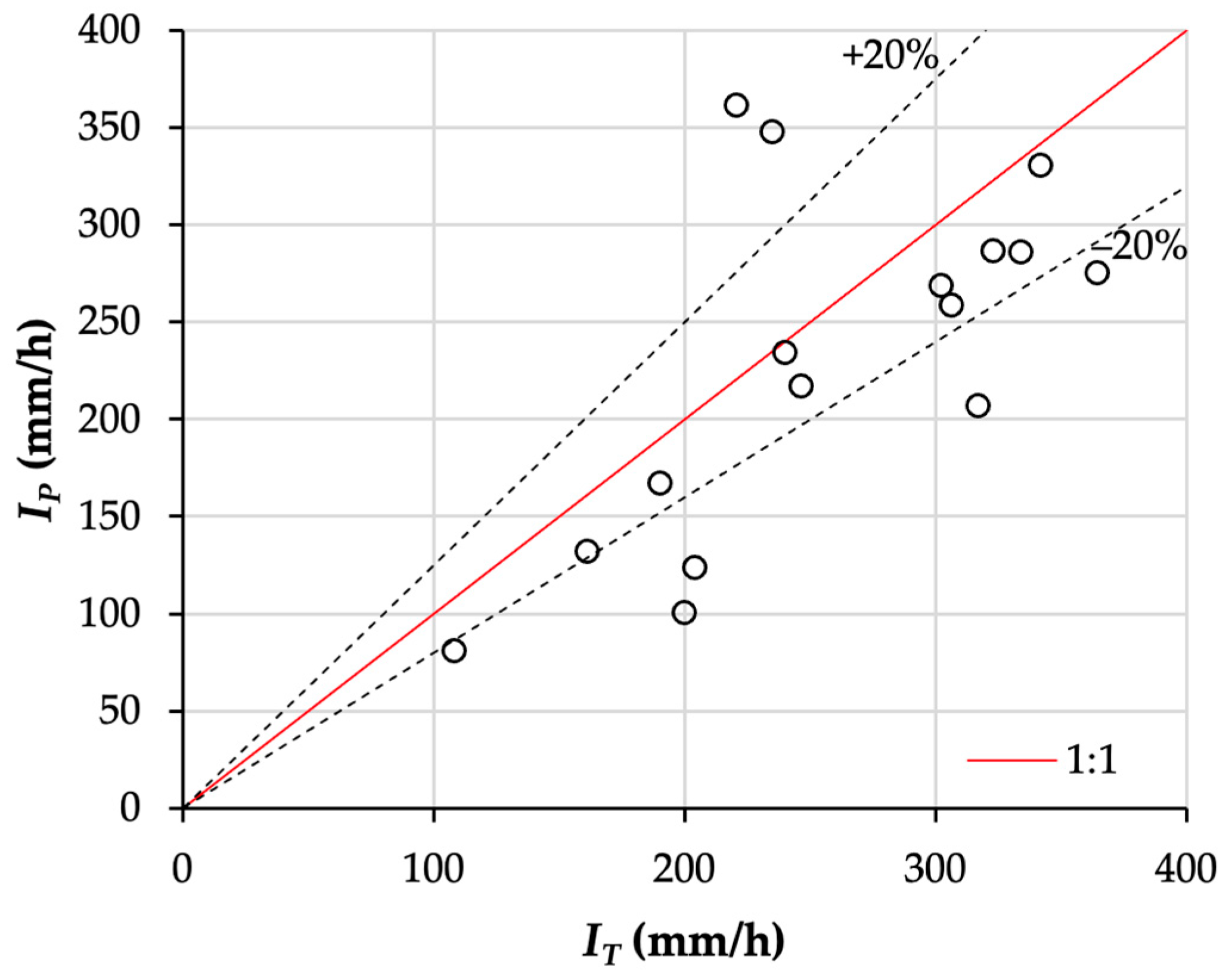

To assess the agreement between the two measurement methods, the (I_T, I_P) pairs corresponding to each fixed sampling position were plotted in Figure 7, in which the solid line indicates the perfect agreement (1:1), while the dashed lines indicate the ±20% error boundaries.

Overall, the Parsivel² disdrometer appears to underestimate rainfall intensity compared with the rain collectors. Indeed, 87.5% of the measures lie below the 1:1 line (Figure 7), and 43.75% of the points exhibit errors greater than or equal to 20%. This result is consistent with those found in literature [81], where a general underestimation of rainfall intensity using the Parsivel² is detected and variance between identical Parsivel² devices increases significantly with precipitation intensity. Furthermore, many authors [79,84,105,106,107] have reported that underestimation in rainfall intensity can be attributed to instrumental errors, including margin fallers—raindrops pass only partially through the sensor’s laser beam and are thus misclassified as smaller drops—and double detection—a single large drop is erroneously registered as two or more separate smaller drops.

However, it is important to note that the measurement surfaces are not identical: the disdrometer measures intensity over a rectangular area of 54 cm², whereas the rain collectors cover circular areas of 92.76 cm² (p_v) and 96.07 cm² (p_c).

Therefore, the observed discrepancies between I_T and I_P can be explained by the expected underestimation under extreme rainfall intensity conditions, the differences in the real measurement surfaces, and the fair spatial uniformity exhibited by the simulator.

To further deepen the analysis on the differences between the two measurement methods, spatial distribution of rainfall intensity obtained using both rain collectors (I_T) and a Parsivel² (I_P) is shown in Figure 8.

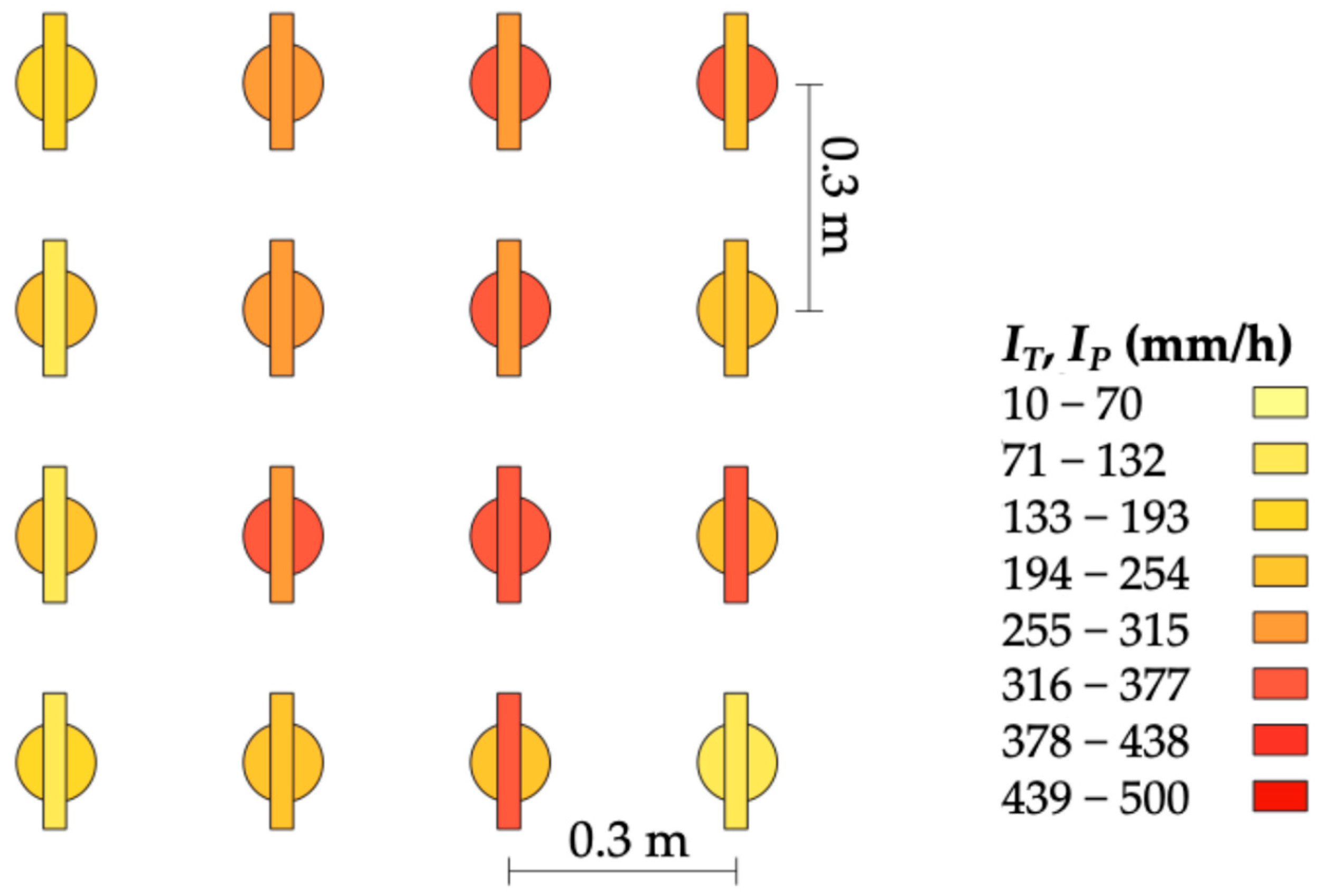

The coherent spatial overlay of the position of the rain collectors and the disdrometer, combined with consistent color coding, enables immediate visual comparison between the two measurement methods. This facilitates the identification of areas with similar rainfall intensities, the detection of extreme events, and a first evaluation of the spatial distribution captured by the disdrometer. Specifically, similar rainfall intensity values were recorded in only a few positions and, compared with the rain collector data, the intensities measured with the disdrometer appear less uniformly distributed.

To quantitatively assess the uniformity of the simulated rainfall based on the full dataset from both rain collectors and disdrometric measurements, the CU coefficient was calculated using Equation (1). Notwithstanding similar mean rainfall intensities, equal to 255.8 mm/h (rain collectors) and 229.6 mm/h (disdrometer), the volumetric method yielded a CU of 75.7%, while the disdrometric method resulted in a lower CU of 61.1%.

According to the ASABE classification [56], the RS in the 1.2 m × 1.2 m surface would be rated as fair (70% < CU < 80%) when evaluated using rain collectors and poor (60% < CU < 70%) when evaluated using the disdrometer.

These discrepancies are consistent with findings reported in literature, which highlight that the number, spatial arrangement, and physical characteristics of rainfall collectors, such as their size and shape, directly influence the representation of rainfall distribution over a plot surface [55].

3.2. Rainfall Kinetic Power and Momentum Spatial Distribution

To evaluate the uniformity of the rainfall energy-related parameters, i.e., the rainfall kinetic power (P_n) and momentum (M), derived by applying Equations (8) and (9) to the disdrometer raw PSVD, their spatial distribution was analyzed. Figure 9 shows, for each sampled position, the mean P_n and M values of fifteen 1 min PSVD.

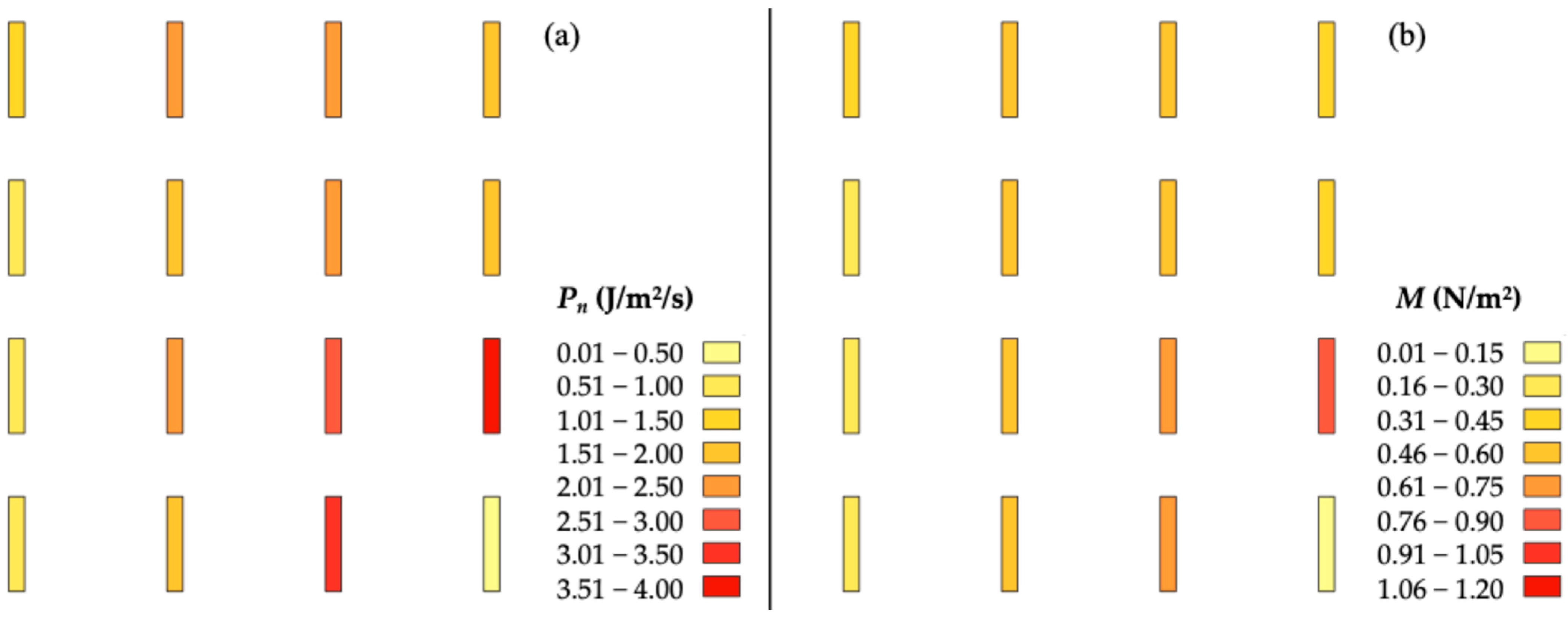

Overall, the distribution of energetic parameters (Figure 9) mirrors the pattern previously observed for rainfall intensity (Figure 8), displaying a non-uniform spatial distribution within the wetted area of 1.2 m × 1.2 m. The rainfall momentum exhibits a higher degree of spatial uniformity compared to kinetic power, likely due to the quadratic dependence of the latter on fall velocity. Indeed, the uneven distribution of rainfall intensity reflects the non-uniform spatial pattern of the drop size distribution and the associated fall velocities. Thus, this variability in raindrop fall velocity is further amplified in the calculation of kinetic power.

Specifically, the RS discharges a mean P_n of 1.54 J/m²/s and a mean M of 0.39 N/m² in the 1.2 m x 1.2 m sampled area, registering a CU coefficient, respectively, equal to 61.5% and 65.0%. These values reflect a level of spatial variability comparable to that observed for rainfall intensity (I_P) (CU = 61.1%). Therefore, when assessed through disdrometric methods, the simulator exhibits poor uniformity [56] across the three metrics (I_P, P_n, M).

3.3. Raindrop Fall Velocity

Given the 10 m drop falling height of the employed RS, raindrops are expected to reach terminal velocities comparable to those observed under natural precipitation conditions. To verify this, the weighted mean fall velocity for each diameter class, v_P, measured with the Parsivel² disdrometer was compared with the velocities V_(D) calculated using empirical relationships from literature. Specifically, Equations (2) [89,90] and Equation (3) [97] represent typical fall velocities under natural rainfall conditions, while Equation (4) [49] was developed to estimate drop velocities in laboratory settings.

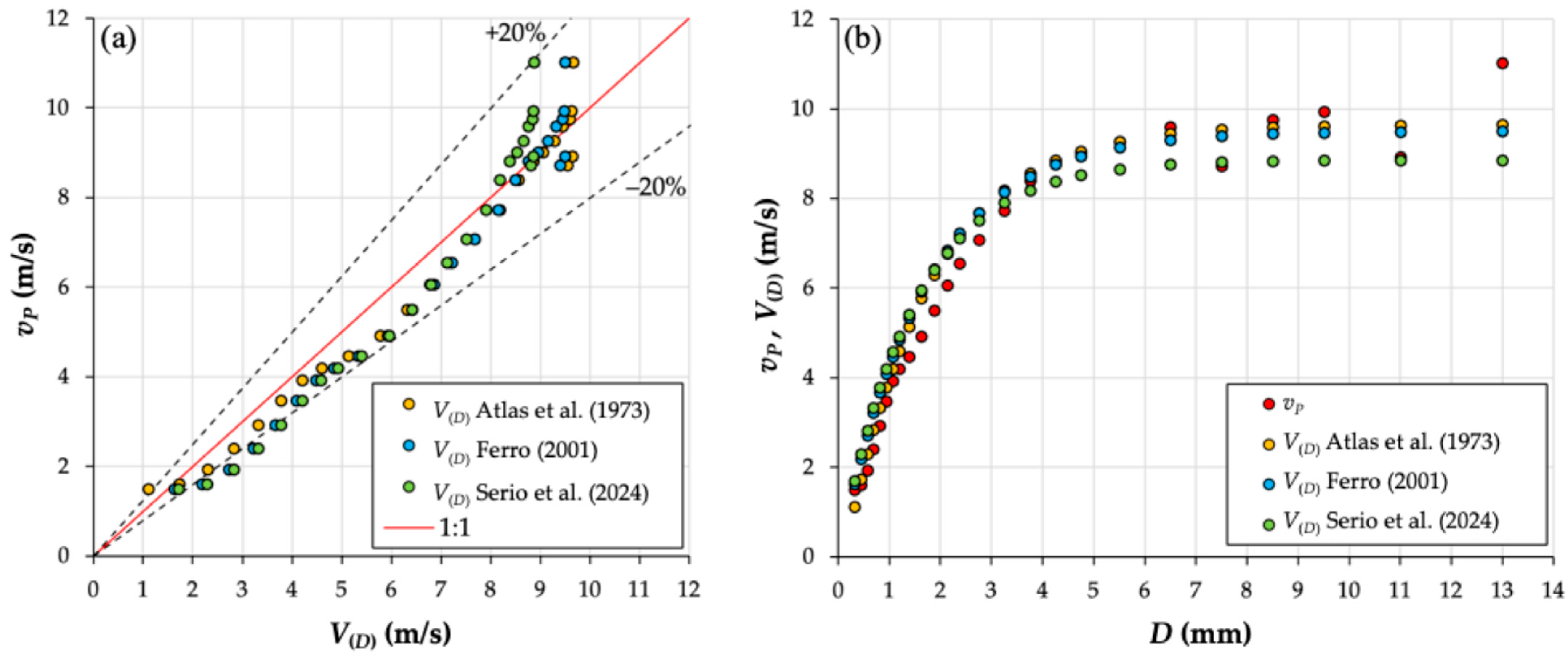

Figure 10 shows the comparison between the measured v_P, derived from raw PSVDs using Equation (10), and the calculated V_(D) relationships. In particular, Figure 10a displays v_P versus V_(D), with a 1:1 reference line and ±20% deviation bands, allowing visual assessment of the agreement between measured and predicted velocities. Figure 10b illustrates the variation in both v_P and V_(D) as a function of drop diameter.

Generally, the agreement between experimental measurements and empirical relationships demonstrates the

Effectiveness of the RS system in generating drops that fall at velocities consistent with terminal conditions, as evidenced by the close alignment between measured and predicted values (Figure 10a,b). However, the Parsivel² tends to underestimate fall velocities compared with all the tested empirical relationships, consistently with what has been observed in natural precipitation events [79].

Moreover, Equation (4) results applicable for predicting the fall velocity of simulated raindrops under the present experimental conditions, despite having been previously validated only for drip-type simulators with limited drop heights [49] (Figure 10a,b). The points of Atlas et al. [89] fall entirely within the ±20% error band, while those of Ferro [99] and Serio et al. [49] show greater errors, between 2 m/s and 4 m/s (Figure 10a).

Furthermore, for smaller diameters (D < 3 mm), the Parsivel² shows a general tendency to slightly underestimate the fall velocity compared with the values calculated using literature-based relationships. Conversely, for larger diameters (D > 3 mm), all the empirical models accurately describe the velocity of the simulated raindrops (Figure 10b), with greater uncertainty for diameter values above 6 mm. These results are consistent with the findings by Luo et al. [108], who reported that the Parsivel² exhibited a slight negative bias in mean fall velocity for the 1.375–2.75 mm diameter range, while showing a positive bias for drops exceeding 5.5 mm in diameter.

It is worth noticing also that the empirical relationships tend toward an asymptotic value of approximately 9–10 m/s (Figure 10a,b), which is consistent with the maximum velocities observed in nature for drops of around 6–8 mm. In contrast, the Parsivel² disdrometer recorded both unrealistically large drop diameters (up to 13 mm) and a maximum weighted mean fall velocity of 11.02 m/s (Figure 10a,b). These outliers may be attributed to coalescence phenomena induced by the simulation system, instrumental errors such as overlapping drops within the laser beam being interpreted as a single drop, or the limited fall height, which may prevent the onset of breakup processes typically observed in larger natural raindrops [109].

It is also important to consider that the velocity comparison in Figure 10 is presented per fixed diameter class, without accounting for the relative abundance of drops within each class, as the goal was to assess whether the agreement between measured and calculated velocities holds consistently across the full range of drop sizes. However, such an evaluation must be weighted by the actual frequency of occurrence of each diameter class. Specifically, in the present dataset, approximately 99.9% of all simulated raindrops fall within the diameter range of 0.31 mm to 6.50 mm. Consequently, discrepancies observed at larger diameters may have limited practical relevance, given their negligible contribution to the overall drop population.

3.4. Broader Implications and Future Applications

The RS characterized here is being currently applied to investigate the erosive effects of precipitation on stone-based heritage surfaces [20,102]. Nevertheless, the comprehensive characterization presented in this study using volumetric methods and disdrometric technics extends its potential far beyond this specific research field. Indeed, the detailed assessment of rainfall intensity, kinetic energy, and momentum, as well as their spatial distribution and the information regarding fall velocity provide a complete description of the simulated rainfall regime, therefore allowing the use of this simulator for a wide range of hydrological and erosive research topics.

Specifically, we recommend the 1.2 m × 1.2 m as the maximum sample size for experiments requiring the highest level of accuracy and fully controlled rainfall parameters. When testing samples that exceed this size, the characteristics for the area beyond this 1.2 m × 1.2 m plot must be evaluated relying only on the calibration data derived from the rain collectors, which cover the larger area, or spatially interpolating the disdrometer data to the unmeasured zones, while acknowledging the associated uncertainties that this estimation process introduces.

Moreover, since the selected sampling procedure can substantially influence the results of the simulator characterization, standardization of sampling procedures is of paramount importance and must combine different characterization methodologies for a more robust and comprehensive analysis.

However, in light of the results presented in this work, future research should aim to enhance the spatial uniformity of simulated rainfall and to standardize the protocol for a more robust and reliable comparison between events, thereby enhancing the overall reproducibility and applicability of the simulator for comparative studies.

4. Conclusions

This study provides a comprehensive characterization of a laboratory RS originally designed to reproduce the erosive effects of high-intensity rainfall on heritage materials. The integrated use of volumetric and disdrometric techniques allowed for a detailed evaluation of the simulator’s hydrological and energetic performance, confirming its ability to realistically simulate the erosive effects of precipitation by achieving natural-like drop velocities and, therefore, kinetic energy and momentum.

The volumetric calibration, performed using different collector types and sampling durations, demonstrated that the simulator delivers consistent average rainfall intensities, but exhibits marked spatial variability over the entire wetted area. However, the CU coefficient improved up to nearly 80% within the central area.

Conversely, the analysis of the spatial distribution of rainfall intensity, kinetic power, and momentum obtained with a Parsivel² disdrometer within the same central area revealed poor uniformity.

Disdrometric measurements also confirmed the simulator’s ability to generate raindrops able to achieve velocities comparable to those predicted by empirical relationships for natural rainfall, confirming its reliability in reproducing realistic fall dynamics even under limited falling height conditions.

Future research should aim to enhance the spatial uniformity of simulated rainfall and provide deeper insight into the physical realism of simulated precipitation, verifying whether the measured drop size distribution fits commonly used probabilistic functions such as gamma, Weibull, or lognormal.
