Multiple Recent Colonizations of the Australian Region by the Chydorus sphaericus Group (Crustacea: Cladocera)

Dmitry P. Karabanov
Eugeniya I. Bekker
Petr G. Garibian
Russell J. Shiel
Tsuyoshi Kobayashi
Derek J. Taylor
6 and
Alexey A. Kotov
A.N. Severtsov Institute of Ecology and Evolution, 119071 Moscow, Russia
Papanin Institute of the Biology of Inland Waters, Borok, 152742 Yaroslavl, Russia
Environment Institute, School of Biological Sciences, University of Adelaide, Adelaide, SA 5005, Australia
Science, Economics and Insights Division, Department of Planning and Environment, Sydney, NSW 1825, Australia
Institute for Land, Water and Society, Charles Sturt University, Albury, NSW 2640, Australia
Department of Biological Science, The State University of New York at Buffalo, Buffalo, NY 14260, USA
Author to whom correspondence should be addressed.
Water 2022, 14(4), 594;
Submission received: 12 January 2022 / Revised: 8 February 2022 / Accepted: 9 February 2022 / Published: 15 February 2022
(This article belongs to the Special Issue Species Richness and Diversity of Aquatic Ecosystems)


Biotic introductions are an ongoing disruption for many ecosystems. For passively dispersed freshwater zooplankton, transcontinental introductions have been common but are poorly studied in the southern hemisphere. Here we assess the hypothesis of recent introduction for populations of the Chydorus sphaericus group (Crustacea: Cladocera) in Australia. We analyzed 254 sequences (63 original sequences) from the cytochrome oxidase I region of mitochondrial DNA of Chydorus sp., which included global representation. Three Australian populations were connected with separate clades in the northern hemisphere, suggesting multiple colonization events for Australia. The timescale of the divergences was consistent with recent (Quaternary) dispersal. As Australian populations are exposed to migrating birds from the northern hemisphere, both avian and anthropogenic sources are candidates for dispersal vectors. We concluded that recent cross-hemisphere dispersal in the Chydorus sphaericus group is more common than previously believed.

1. Introduction

The rise of phylogeographic methods brought about a paradigm shift in biogeography that deemphasized population genetics while spawning tree-based approaches such as coalescent modeling [1,2]. These approaches permitted advances in reconstructing the history of dispersal at a regional scale [3,4] or more rarely a global scale [5,6]. Large-scale phylogeography was bolstered by a desire to better understand the “peopling” of Earth [7].
The Cladocera (Crustacea: Branchiopoda) played an important role in recent phylogeographic investigations of freshwater microfauna. Cladocerans are a relatively large group containing more than 850 known species belonging to more than 100 genera, most of them belonging to the order Anomopoda Sars [8]. Anomopod diversity is greatly underestimated [9]. It is an intensively studied group, but the majority of recent authors deal with a single genus Daphnia Müller which is regarded as a very important model for genetics, evolutionary biology, and toxicology [10,11]. Many examples of the “continental endemism” in the Cladocera were detected by morphology-based taxonomists [12,13,14,15,16]. These conclusions were greatly reinforced by studies with molecular markers [17,18,19,20,21]. Several papers were published on trans-Eurasian and trans-Holarctic phylogeography [22,23,24,25,26,27], but truly global phylogeographic reconstructions remain rare [19,28,29,30].
It is now widely accepted that cladocerans are a very old group. At least some “recent” genera (and even the subgenera of Daphnia) were already differentiated by the Jurassic/Cretaceous boundary [31], or, most probably, even earlier [32,33]. However, there may have been near cosmopolitan distributions for some taxa before continental drift sundered the supercontinents. At the same time, some preliminary investigations using mitochondrial genes revealed modest differentiation between multiple species from different continents and some transcontinental dispersal scenarios in cladoceran biogeography [34].
Recent anthropogenic introductions have altered ecosystems and have threatened biodiversity. Thousands of scientific publications have demonstrated their harmful economic effect and destructive consequences for terrestrial, marine, and freshwater ecosystems [35,36,37,38,39]. Many intergovernmental documents, such as the Convention on Biological Diversity, warn of biological invasions and their consequences. It is obvious that biological invasions and the mixing of faunas are international problems, as the invasive species do not recognize international borders [38,40]. Some of these introductions are “cryptic”, defined as “the introduction and spread of non-native lineages within the species’ native range (intra-specific cryptic invasion) or the invasion of non-native species that goes unnoticed due to misidentification as a native or another invasive species (inter-specific cryptic invasion)” [41]. Cryptic invasions are often thought to be less harmful to local ecosystems and are often poorly studied [41,42].
Most recorded invasions of cladocerans are less conspicuous than those of large organisms. However, even among cladocerans, some invasions are more conspicuous than others. For example, cladocerans with conspicuous defensive morphology such as Bythotrephes longimanus, Cercopagis pengoi, Daphnia lumholtzi, and Bosmina coregoni [43,44,45,46,47] are among the best-studied cladoceran invasions. Invasive D. curvirostris is less well studied, in part because it is difficult to distinguish by nonexperts from the native fauna. Other invasions in the Cladocera are even more cryptic because a native taxon was replaced by a closely related congener [48,49,50]. Finally, long-distance introductions below the species level have been revealed in some studies with molecular markers (i.e., in the D. galeata, D. curvirostris, D. pulex, and D. magna groups) [20,26,51,52,53]. So far, few studies of nonindigenous populations have been made for anomopod cladocerans beyond the genus Daphnia [54,55,56]. The underrepresentation of non-Daphnia species applies to genetic and morphological investigations [57]. The dearth of studies does not appear to be based on a lack of potential for introduced anomopod populations [29,58]. The increasing records of mitochondrial DNA from cladocerans in public databases such as BOLD and GenBank have accelerated the discovery of introductions in this group [59].
Cladocerans are well-known for passive dispersal of the resting egg stage. Gamogenetic females of the Anomopoda produce ephippia–modified molting exuviae containing resting eggs. Ephippia are well-protected against unfavorable environments and are dispersed readily by wind, water currents, and other natural vectors [60]. Waterbirds, however, represent the main vector of natural dispersal of cladocerans and other microscopic invertebrates [61,62]. The ability of waterbirds to carry and transfer the resting stages of different microscopic animals was the main justification for Darwin’s [63] dispersalist paradigm. Recently, however, humans have become important vectors of resting eggs [46,49,61].
The anomopod, Chydorus sphaericus O.F. Müller, has often been regarded as a cosmopolitan taxon [64], but after the rejection of the “cosmopolitanism” concept [12], a series of taxa, earlier regarded as belonging to this group, were separated [13,65]. Even after these revisions, sphaericus-like populations were found to be very common in different regions of the Holarctic and beyond. Chydorus sphaericus is still rare in the tropics and subtropics of the eastern hemisphere, where other species of the genus are dominant [66,67]. In the eastern hemisphere, the C. sphaericus group has a bipolar distribution: it is the dominant taxon in North Eurasia and relatively common in North China, Korea, and Japan [25,68,69], but remains undetected by recent authors in South China [70], SE Asia [71,72,73], and the Malay Archipelago [74,75]. Chydorus sphaericus-like populations are very rare in the Oriental Zone; previous records of this group mostly belong to other taxa [74]. They are also rare in tropical North Australia, while disjunct populations are common in South Australia and Tasmania [66,76].
C. sphaericus was first reported from Australia in the 19th century. King [77] described two species of the genus Chydorus from Australia: C. angustus King and C. leonardi King. Sars [78] concluded that C. angustus was “related perhaps to the European species C. globosus Baird”. However, C. globosus now belongs to another genus, Pseudochydorus Fryer, [60,75]. Sars also stated that C. leonardi was “very near to the well-known European species C. sphaericus (Müller)”. However, the resolution of species identification was very low at that time, and almost all representatives of the genus Chydorus were assigned to C. sphaericus until David Frey [13,79] and Nikolai Smirnov [64,80]. The monograph of Smirnov & Timms [66] verified the presence of C. sphaericus in Australia. Moreover, the species was found to be common and abundant in the southern portion of this continent (including Tasmania) while very rare in tropical Australia. However, molecular methods have shown that even the well-studied Holarctic populations of C. sphaericus can represent a group of several species with local distributions [22,25,81]. Diagnostic morphological characters have been proposed for these regional taxa [22,65]. Sharma & Kotov [82] noticed that the mtCOI sequences obtained from two reservoirs in South Australia were very similar to those obtained from Iceland and Greenland. They concluded that Australian populations were established as a result of an anthropogenic introduction, most probably associated with the mass stocking of fishes from Europe. However, the endemicity status and clade associations of other populations of C. sphaericus in Australia remain unstudied.
In this study, we analyze populations of the Chydorus sphaericus group from Pacific Asia, SE Asia, and Australia with the aim of testing the question of indigenous/nonindigenous status and reconstructing the history of colonization of Australia. We note that a taxonomic revision of the C. sphaericus complex is due but beyond the scope of the present study.

2. Materials and Methods

2.1. Field Collection and Preliminary Morphological Analysis

Samples were collected by plankton nets with a diameter of 0.20–0.4 m and a mesh size of 30–250 µm and immediately preserved in 70–96% alcohol in the field (90–96% alcohol after laboratory sorting). Before the start of genetic studies, a few specimens of Chydorus from each locality were preliminarily identified by morphological characters. Only members of the C. sphaericus group were incorporated into this study. They were identified based on the following characters of the parthenogenetic females: (1) subglobular shape of body; (2) elongated labral keel with an acute tip; (3) absence of denticles at posteroventral portion of valve; (4) aesthetascs located only terminally on tip of antenna I; (5) sensory seta of antenna I located in its middle; (6) antenna II with setal formula: 0–0–3/0–1–3; (7) inner distal lobe of limb I bearing the largest seta additionally chitinised (Figure 1).

2.2. Genetic Analysis

DNA extraction was performed from the specimens accurately identified by morphological characters. Genomic DNA was extracted from single adult parthenogenetic females using the Wizard Genomic DNA Purification Kit (Promega Corp., Madison, WI, USA). We used as a genetic marker the 5′-fragment of the first subunit of mitochondrial cytochrome oxidase (COI)—a protein-coding marker widely used in routine DNA barcoding [83] and monitoring of biological invasions [84]. Amplification was performed using general primers Chy_COI-F1 5′-AAT GTA ATT GTC ACT GCA CAY GC-3′ and Chy_COI-R1 5′-AAA AGT ATG GTA ATA GCY CCT GC-3′, with a PCR-product size of about 0.5 kbp. For partially degraded (i.e., improperly fixed and kept in collections for extended periods) samples, we used the internal primers for a conservative portion of the COI fragment: Chy_COI-Fin 5′-GCK GGY ACA GGT TGA ACT GTT TA-3′ and Chy_COI-Rin 5′-RAT CAA CTG AAG CTC CTG AAT GA-3′ designed specifically for the C. sphaericus group [25]. A combination of Fin+R1 and F1+Rin primers gave two PCR products of about 0.3 kbp length each, with an overlap zone of about 70 bp. Polymerase chain reactions (PCR) were carried out in a total volume of 20 μL, consisting of 4 μL of genomic DNA solution, 1 μL of each primer (10 mM), 4 μL of double-distilled H2O, and 10 μL of ready to use PCR Master Mix 2X solution (Promega Corp., Madison, WI, USA). PCR products were visualized in a 1.5% agarose gel stained with ethidium bromide and purified by diaGene Spin Columns (Dia-M Co., Moscow, Russia) according to the manufacturer’s protocol. The PCR program included a preheating of 3 min at 94 °С; 40 cycles (initial denaturation of 30 s at 94 °С, annealing of 40 s at 52 °С, an extension of 60 s at 72 °С) and a final extension of 5 min at 72 °С. Each PCR product was sequenced bidirectionally on the ABI 3730 DNA Analyzer (Applied Biosystems, Waltham, MA, USA) using the ABI PRISM BigDye Terminator v.3.1 kit at the Syntol Company, Moscow, Russia. Initial analysis of the chromatograms, formation of contigs and their subsequent editing was performed with the Sanger Reads Editor in Unipro uGENE v.37 [85]. The authenticity of the sequences was verified by BLASTn comparisons with published cladoceran sequences in NCBI BLAST nr/nt database [86].
The alignment was carried out using the MAFFT v.7 algorithm [87] on the server of the Computational Biology Research Center, Tokyo, Japan [88], and the FFT-NS-i strategy. An open reading frame was verified by translation. Substitution models (partitioned by codon position) were selected using ModelFinder v.1.6 [89] at the Center for Integrative Bioinformatics Vienna web-portal, Vienna, Austria [90,91]. Substitution models were selected based on minimal values of Bayesian information criterion, BIC [92]. All selected models demonstrated convergence according to the BIC and AICc information criteria, providing additional evidence for model fit [92].
To reduce the influence of population structure on our results, we a priori subdivided all specimens into large population groups (clades) following Belyaeva & Taylor [22], Kotov et al. [25], and Wang et al. [81]. Nucleotide diversity analysis [93], as well as neutrality tests Fs [94] and Tajima’s D [95], were carried out using DnaSP v.6.12 [96]. Genetic distances were calculated in MEGA-X v.10.2 [97], using the recommended p-distances for barcoding purposes [98]. Standard error estimates were obtained by a bootstrap procedure (100 replicates). Analyses were conducted using the maximum composite likelihood model [99]. This analysis involved 254 nucleotide sequences. All ambiguous positions were removed for each sequence pair (pairwise deletion option). There was a total of 453 positions in the final dataset. Testing of the “isolation-by-distance” model using a Mantel test with 1000 permutations was performed in PASSaGE v.2.0 [100], as this test is found to be useful for detecting nonindigenous specimens in a general pool [58]. A matrix of p-distances for this test was formed in MEGA-X, while a matrix of geographic distances was made in PASSaGE.
Phylogenetic reconstructions based on the maximum likelihood (ML) and Bayesian (BI) methods were made based on “unlinked” data on each nucleotide position in the codon. ML analysis was conducted using IQ-TREE v.2.1 [101] with support calculated using 10k replicas of the bootstrap test in UFboot2 [102]. A Bayesian phylogeny was reconstructed in BEAST2 v.2.6 [103], with all of the parameters of the substitution model determined using BEAUti [104]. In each analysis, we conducted four independent runs of Markov chain monte carlo (MCMC, 50M generations, with selection of each 10k generation), with effectiveness control in Tracer v.1.7 [105]. A consensus tree based on the maximum clade credibility (MCC) was obtained in TreeAnnotator (part of BEAST2) with a burn-in of 25%. Posterior probabilities were used as support values [106]. Because the main clades for BI and ML were congruent, we presented the BI trees, with branch support for key nodes.
For COI clade delimitation, we used the divergence threshold optimizing and clustering approach—locMin [107]. All calculations were performed using the algorithm of [108] in “Microsoft R-Open and MKL” 64-bit v.3.5 [109], as it gives good results for single locus studies. The use of parameter-rich models and many loci has been applied to more complicated species complexes [20].
The general mixed Yule-coalescent (GMYC) model was made to assign individuals to species according to ultrametric time trees derived from single-locus data [110]. We used the Bayesian GMYC model in the ‘bGMYC’ package for “R” [111] to discover species in the MCMC trees. Given that bGMYC is prone to over-split trees containing identical alleles (i.e., zero-length branches) into species [111], we dropped zero-length tips from the MCMC tree before the analysis, then ran ‘bGMYC’ using the multiple-threshold models in the ‘bGMYC’ package with sequences of Chydorus pubescens Sars, 1901, as outgroups. Ultrametric trees for each locus were evaluated in BEAST2 using substitution models, (see the phylogenetic analysis above), a strict clock model, and a Yule process. We sampled 20 million MCMC generations with retention of one tree every 10k generations and a 20% burn-in parameter. For the bGMYC analysis, we randomly selected 100 ultrametric trees after burn-in from BEAST2 trees-file. For each of the 100 trees selected, the analyses consisted of 200k generations with a burn-in of 20%. We set the threshold parameter priors, t1 and t2, to 2 and 100, respectively, and the starting parameter value was set at 100. The results were accepted as statistically significant at a modified p > 0.99 level. This p-value should significantly reduce the likelihood of excessive ‘fragmentation’ in the designation of taxonomic structure.
A single COI gene tree was analyzed applying the multirate Poisson Tree Processes algorithm (mPTP). This software has been shown to be the most accurate method for genetic species delimitations (better than previous PTP and popular distance-based methods) because the mPTP allows each species to have different evolutionary rates. We evaluated species limits with mPTP using the IQ-TREE COI gene tree as input. This analysis was performed on a web server at the Heidelberg Institute for Theoretical Studies, Germany [112]. For the data set, we performed 10 different runs. The convergence of the independent runs was assessed through the average standard deviation of delimitation support values and the overall support for the ML estimate calculated computing the mean of the average support values over the 10 runs, following [113].
For estimation of possible divergence age of different clades, we used the molecular clocks with paleontological calibration [114]. To test the fit of our data to molecular clock models, we used a maximum likelihood test in MEGA-X [97,115]. Nucleotide substitution parameters (using a maximum likelihood substitution model statistical method) were also made in MEGA-X based on lowest BIC (Bayesian information criterion) scores. The null hypothesis of equal evolutionary rate throughout the tree was not rejected at a 5% significance level.
For determination of the relative rate of substitutions, we used both paleontological information [116] and points based on molecular phylogenetic data [32,117]. As calibration points (with 15% standard deviations), we used the following estimates: Triops/all groups 340 MYA, Daphnia/Simocephalus 145 MYA, Cyclestheria groups 120-70 MYA; plus an additional calibration point within the outgroups: Lepidurus/Triops 122 MYA [32,116,118]. The age of lineage differentiation according to a strict molecular clock model was estimated in BEAST2 with the optimized relaxed clock model in ‘ORC’ package for BEAST2 [119] with a Yule process as most properly describing our dataset [120]. Four independent runs of 50M generations were completed, with each 100k trees sampled. Further analysis was conducted following the recommendations of Barido-Sottani et al. [121].
A MP haplotype network was constructed in popART v.1.7 [122] using new ultrafast TNT v.1.5 [123] for reconstructing initial most parsimonious nine trees.
For a preliminary testing of the phylogeographic models for the clade A3, we analyzed aligned sequences in BioGeoBEARS [124] with the integrated package “R” in the RASP v.4.2 [125]. Program limitations allowed us to take into the analysis 40 sequences from 9 large geographic regions. For this analysis, we separately reconstructed a phylogeny of this clade only in BEAST2 using sequence JN233874 (clade B5) as the outgroup and running four independent MCMC chains of 10M generations with the retention of each thousandth tree. For RASP files, 100 trees were randomly selected from the BEAST2 set through the script in “R” package [126], with the outgroup removed. A condensed tree was obtained with 50% burn-in in BEAST2. Six biogeographic models (standard dispersion-vicariant models and those with a correction to the speciation events (+J)) were evaluated according to the Akaike information criterion, AICc_wt [127]. A DIVALIKE+J model, which permitted new lineage formation as a result of direct colonization by a founder without a transitional widely distributed ancestor [128] had the best fit to our dataset. We reconstructed the clade history based on the DIVALIKE+J model in RASP4 with three possible distribution ranges and no a-priori hypotheses of species structure. We used the RASP v.4b module of the Bayesian inference for discrete areas—BayArea [129] as an alternative and accurate stochastic approach for the description of the distribution-range evolution as a continuous process. All input files and localities for this analysis were the same as for DIVALIKE+J. We performed 10M MCMC generations, selecting each 10k tree, with a burn-in of 20% of the first generations. Four independent runs of BayArea were made to increase the effective sample size; the results of runs were combined and visualized through the “Combine result” tool in RASP4. The results of DIVALIKE+J and BayArea analyses were identical.

3. Results

In total, 254 COI sequences (63 original sequences and 191 from GenBank) of Chydorus sp. were analyzed (Supplementary Materials, Table S1). Among them, 251 sequences belonged to the C. sphaericus complex (clades A+B of [22,25], and three sequences belonged to other species (С. pubescens and C. sp.). The C. sphaericus complex was represented by 228 sequences belonging to the C. sphaericus-group (clade A of [22]) with 23 sequences being assigned to the C. brevilabris-linguilabris group (clade B of [22]) (Figure 2).
Here we describe in detail only the major clade A, namely the C. sphaericus group (Figure 3). It consisted of four large subclades:
A1 which is found in Europe, Greenland, western Siberia, with a single population in Australia;
A2 which is present in northern Europe, Greenland, Siberia, northern Far East, and Tibet;
A3 which has a wide distribution area, from eastern Siberia to northern and southern Far East and northern North America, having some populations in Australia; and
A4 which is present in northern North America (and is not discussed below as it was represented in our analysis by few populations and is not known from Australia).

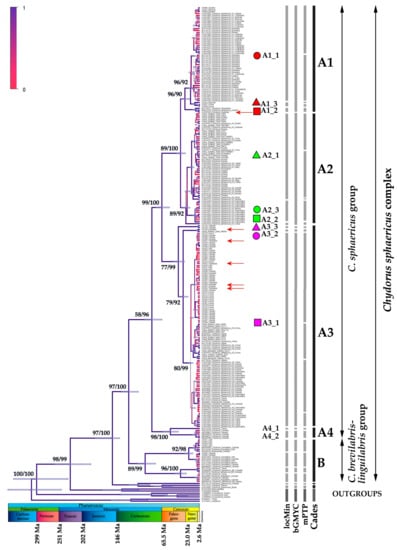

Figure 3. Phylogenetic ultrametric tree for Chydorus sphaericus group. Major clades are marked as A and B (black bars), internal subclades separated by locMin, bGMYC, and mPTP algorithms are marked by grey bars. Sequences from Australia are marked by red arrows. All shapes marking subclades are as in Figure 2. Phylogenetic analysis of the mitochondrial data set with relaxed molecular clock estimates based on fossil calibration points. The bars depict the 95% highest probability density (HPD) interval of the estimated divergence times. Statistic support of branches is coded by the color gradient from pink (low) to violet (high). Node supports for key points are: UFboot2 (ML) and posterior probabilities (BI) for first and second digits.
Figure 3. Phylogenetic ultrametric tree for Chydorus sphaericus group. Major clades are marked as A and B (black bars), internal subclades separated by locMin, bGMYC, and mPTP algorithms are marked by grey bars. Sequences from Australia are marked by red arrows. All shapes marking subclades are as in Figure 2. Phylogenetic analysis of the mitochondrial data set with relaxed molecular clock estimates based on fossil calibration points. The bars depict the 95% highest probability density (HPD) interval of the estimated divergence times. Statistic support of branches is coded by the color gradient from pink (low) to violet (high). Node supports for key points are: UFboot2 (ML) and posterior probabilities (BI) for first and second digits.
Water 14 00594 g003
Each clade A1–A3 was represented by several subclades, including widely (A1_1, A2_1, A3_1) and locally distributed ones. A1_2 is present only in Greenland, Iceland, and Australia. A1_3 is represented by a single population in Korea and a single population in European Russia. A2_2 is present in Yakutia only. A2_3 is found in Kamchatka and Bering Island. A3_2 is present in the Eastern Plain in China (a single sequence is analyzed there, but the subclade was found in two localities by Wang et al. [81]) and a single locality in Australia. A3_3 is represented by a single population in Vietnam.
Therefore, sequences from Australia and neighboring islands belong to the subclades A1_2 and A3 (within the latter, we detected isolated haplotypes belonging to the subclades A3_1 and A3_2). Polymorphism metrics for major clades of the C. sphaericus group are represented in Table 1. Evolutionary divergence estimates are represented in Supplementary Materials, Table S2. A Mantel test rejected the “isolation-by-distance” model (p < 0.05) for both whole major clade A, and subclades A1 and A3.

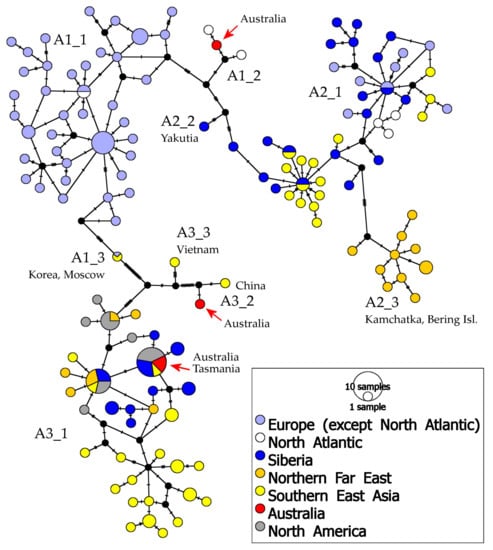

The MP network for COI haplotype groups (Figure 4) agreed with the close associations of Australian populations to northern populations found by the ML and BI trees. Widely distributed subclades of the major clades A1, A2, A3, namely A1_1, A2_1, and A3_1 are represented by star-shape patterns, which may suggest recent population connections (see discussion by Kotov et al. [25]). All smaller clades (A1_2, A1_3, A2_2, A2_3, A3_2, and A3_3) are well-differentiated in the network.
Our molecular clocks suggested a Late Mesozoic differentiation of the genus Chydorus, Late Mesozoic-Earlier Caenozoic differentiation of the C. sphaericus complex (major clades A + B) and clade A and a Mid-Caenozoic differentiation of the subclades A1, A2, A3 and A4. Note that some Australian sequences are not identical to those from the northern hemisphere. Their appearance in Australia most probably had a Quaternary origin. At the same time, additional estimates based on fixed mutation rates (Supplementary Materials, Table S3) suggest significantly younger clade differentiation, i.e., c.a. 16MYA for A/B separation, c.a. 10 MYA for A1/A2/A3 separation, 0.2–2 MYA for the subclades, and very recent separation of the Australian populations. A similar time of phylogeographic split between Europe and western Asia vs. eastern Asia is known for other cladoceran species [24,26].
Phylogeographic reconstruction for clade A3 of the С. sphaericus group based on an unrooted tree is represented in Supplementary Materials, Figure S1. The result of RASP4 analysis suggested a complicated biogeographic history with a combination of dispersal and vicariant events. Both Bay Area and DIVALIKE analyses are consistent with the origin of Australian populations as dispersal events.

4. Discussion

Our results indicate that cases of intercontinental dispersion of C. sphaericus are more numerous than previously believed, and these cases are recent or relatively recent. The consequences of such invasion for ecosystems are unknown and need to be studied in detail: there is a chance that C. sphaericus replaced some native taxa (as it is very common in the temperate portion of Australia now). Both human and avian vectors may play a role in these connections. Common migratory flyways run approximately north–south, and “bird-mediated transport to tropical islands from tropical latitudes is expected to be less common than dispersal from boreal or temperate regions” [132]. The distribution area of the A3 clade is strongly congruent with zone of “the East Asian-Australasian Flyway (EAAF)” of bird’s migrations [133,134] (see, also Supplementary Materials, Figure S1d, lower panel). Many of the migratory birds make long-distance trips from Pacific Eurasia to Australia and represent potential vectors of the invertebrate resting stage introduction [135,136,137]. In particular, the EAAF migratory wader (or shorebird) species such as the Bar-tailed Godwit (Limosa lapponica), Eastern Curlew (Numenius madagascariensis), and Japanese or Latham’s Snipe (Gallinago hardwickii) [138,139,140] have been recorded on Lord Howe Island [141,142]. Although avian migration is ancient, most recent migratory routes are of “geologically recent origin”, with Pleistocene glaciation promoting their formation [143].
Calibrated molecular clocks suggest a Late Mesozoic-Earlier Caenozoic differentiation of the C. sphaericus complex (major clades A+B) and clade A (C. sphaericus group). Moreover, we can hypothesize a Laurasian origin of the major clades based on the DIVALIKE+J and BayArea analyses. Such a conclusion agrees with the antiquity hypothesis suggested by many recent investigators of the Cladocera [12,116,144] and large branchiopods [145].
Several unusual distribution ranges are revealed among the subclades in this study: Greenland + Iceland + South Australia (A1_2) (like [82]), Pacific Region + South Australia + Tasmania (A3_1), and China Eastern Plain + Lord Howe Island (A3_2). Interpretation of such distribution areas as a result of vicariant events within each subclade could be regarded as technically impossible as the molecular clock calculations suggest a recent (Quaternary) age of such divergences. However, during the Late Caenozoic, Australia was separated from Eurasia and North America for tens of millions of years or more. Therefore, the aforementioned pattern is a result of a series of at least three separate dispersal events in relatively recent times. As such, recent dispersal is the favored hypothesis for the origin of Australian populations by DIVALIKE+J and BayArea analyses.
The “standard” rate for crustaceans and other arthropods usually suggests ~1–2% mutations per million years [146]. Thus, most divergences would have occurred much more recently (~2–4 million years for the major clades A1–A3, and younger age of the subclades, see Supplementary Materials, Table S3), somewhere in the Holarctic. However, this rate differs substantially among animals [26,84,147], and calibrated molecular clocks are perhaps more informative for estimating clade ages. In any case, the molecular clocks yield approximate estimates (see the very wide bars in Figure 3). Note that in each case for the Australian population, the error bars include 0 years, and very recent (human-mediated) colonization of Australia could not be excluded. Indeed, both types of molecular clock agree on this aspect.
Studied populations of the C. sphaericus group exhibited a high level of genetic polymorphism, i.e., a high nucleotide diversity together with a relatively high haplotype diversity (Table 1). At the same time, strong differences between Pi and Theta values suggest the absence of a panmixia together with an imbalance between mutation level and genetic drift [93]. Strong differences between Tajima’s D and Fu’s Fs values could be explained by a strong population heterogeneity. Negative values of the neutrality test point to a high probability of expansion processes, although this may be a feature of this group as well as for other animals [148]. Based on the concept of expansion processes, however, it is easy to explain the negative result of the Mantel test (p < 0.05) for the whole major clade A and subclades A1 and A3 containing Australian sequences. Such a pattern could not have originated as a result of “isolation-by-distance”. We hypothesize that some long-term dispersal events took place in the past in the history of A1 and A3 clades.
Similar conclusions could be made based on a comparison of differentiation levels within the major clade A, including sequences from Australia (Supplementary Materials, Table S3). Apparently, representatives of clades A1 and A3 have colonized Australia independently. The first group (represented by single sequence KC020624 [82]) belongs to the northeastern subclade A1_2. The Australian sequence is relatively well-differentiated (more than 2%) from other sequences from this subclade. In any case, the time of the subclade A1_2 differentiation excludes a vicariant pattern in the appearance of an Australian population. It apparently appears as a result of a dispersal event. All other Australian sequences belong to A3 clade. Most of them belong to a central group of haplotypes of the subclade A3_1 widely distributed in Beringian region. A single sequence belongs to the subclade A3_3 being endemic in China, with minimal differences from a Chinese population (less than 1% difference). Representatives of these two subclades apparently have appeared in Australia relatively recently and independently. However, is their penetration connected with human activity? A final conclusion on this topic requires further study.
We agree with Sharma & Kotov [82] that such an anthropogenic scenario seems to be preferable for the Australian populations from clade A1_2. Indeed, the chance of a natural colonization of Australia by the North Atlantic invaders is minimal [34,82]. The Australian sequence is definitively nested within the cluster of European sequences in the phylogenetic tree. Australian populations of this group demonstrate a relatively low divergence level from the Eurasian populations (Supplementary Materials, Table S2). Moreover, some haplotypes both in Australia and in the North Atlantic could be missed in our study. At the same time, the Pacific Region is relatively well-studied, and we are confident that representatives of the A1_2 clade are rare or absent there. It is difficult to propose a vector of such invasion rather than an anthropogenic one. At the same time, we cannot exclude dispersal of this clade via birds (even earlier than in A3) and subsequent accumulation of unique mutations.
The A1_3 subclade (Moscow + South Korea) is a candidate for recent (anthropogenic) introduction within Eurasia. The exact direction of this invasion is unknown; this is a rare clade represented by a single population in each of two different, well-studied regions. We hypothesize that Korea was a donor of this invasion because the population in Moscow is found in the pond in the Botanical Garden of M.V. Lomonosov Moscow State University. Botanical gardens are frequently populated by invasive species. For example, Daphnia ambigua was described initially from the lake at Kew Gardens in London [149] and then found to be an invader from North America [150].
All southern hemisphere sequences from the A3_1 subclade belong to the Pacific Eurasian-North American haplotype group., Moreover, most Australia-Tasmanian sequences belong to a central haplotype of this subclade (Figure 4). Genetic distances between Australia-Tasmanian and Palaearctic populations of the A3 clade are also small. A haplotype that has been introduced by humans is often a common widely distributed haplotype, as in case of A3_1. Ultimately, the revealed pattern could have both an anthropogenic or an older than anthropogenic = natural (bird-mediated Pleistocene?) origin, although such a scenario was ignored by Sharma & Kotov [82]. The South Australian reservoirs, Hindmarsh Island, and Tasmania are sites where introduced fish and macrophyte taxa are recorded [82,151,152], but no invasive fishes have been found on Lord Howe Island to date [153]; direct anthropogenic invasion in its freshwater seems unlikely.
In the case of the C. sphaericus group, we favor a series of long-distance dispersal events over the “isolation-by-distance” model. However, using the COI dataset, we are unable to determine an exact age of the A3 pattern revealed here. Very recent anthropogenic and natural Pleistocene dispersal events are similar in some aspects. Moreover, the consequences of recent anthropogenic disturbance and the collapse of freshwater communities are similar to those due to the climatic changes in the Pleistocene (cooling, aridification). Previously, several cases of the appearance in the Australian Region of nonindigenous microcrustaceans were interpreted as anthropogenic invasions [154,155,156,157]. As some of these taxa are common in the Pacific Region or the northern hemisphere (on Eurasian or/and North American Pacific Coast), we also cannot be fully certain that such colonization is strictly anthropogenic: dispersal by avian vectors remains a viable hypothesis [158].

5. Conclusions

Our results indicate that Quaternary and even pre-Quaternary movement between Holarctic and Australian populations of C. sphaericus has been more prevalent than previously believed. Introductions can be facilitated by both natural dispersal and anthropogenic processes [159]. For example, the formation of eutrophic ponds, reservoirs, and embayments by humans has almost certainly aided in the dispersal of “weedy” cladocerans [160]. Indeed, C. sphaericus has often been associated with eutrophic habitats [161,162]. As freshwater ecosystems are increasingly threatened, it remains important to understand the sources of recent biotic change and what diversity is lost by introductions. As some cladoceran groups leave a sediment record (and in some cases an ancient resting egg bank), we expect that the challenge of distinguishing anthropogenic from recent passive dispersal will be aided by paleolimnological investigation and high-resolution genetic studies.

Supplementary Materials

The following supporting information can be downloaded at:, Table S1. Sequences used in this study, Table S2. Pairwise estimates of evolutionary divergence (the number of base differences per locus from averaging overall sequence pairs between groups are shown below the diagonal; standard error estimates are shown above the diagonal and were obtained by a bootstrap procedure (100 replicates); the estimates of average evolutionary divergence over sequence pairs within groups are shown on the diagonal), Table S3. Genetic distances between main clades of Chydorus sphaericus and probable divergence time (Probable time of divergence between clades (in Myr) based on the rate of substitutions of 1.8% per Myr; below the diagonal—divergence time, in MYA), Figure S1. Phylogeographic reconstruction for clade A3 of C. sphaericus group with topology of unrooted tree: (a) Ancestral areas reconstructed by RASP4 analysis (DIVALIKE+J and BayArea combined); color codes reflect the reconstructed distribution areas of possible ancestors; (b) Individual distribution areas; (c) Most probable ancestral distribution areas; (d) East Asian-Australasian Flyway of migratory birds, courtesy from: BirdLife International (, accessed on 10 December 2021) [163].

Author Contributions

D.P.K., D.J.T. and A.A.K. conceived and designed the study; D.P.K., P.G.G., R.J.S. and T.K. collected the data; E.I.B. and P.G.G. made laboratory works and illustrations; D.P.K., D.J.T. and A.A.K. analyzed the sequences; D.P.K., D.J.T. and A.A.K. wrote the manuscript; all other authors provided editorial advice. All authors have read and agreed to the published version of the manuscript.


The study is supported by the Russian Science Foundation, grant NO. 18-14-00325.

Data Availability Statement

The dataset supporting the conclusions of this article is available in the GenBank (NCBI) at, accessed on 25 December 2021 (sequence accession numbers MW621365–MW621427).


Many thanks to M. Belyaeva, S.J. Connelly, I. Crowns, H.J. Dumont, M.A. Gololobova, L.V. Holvind, H.G. Jeong, T. Karanovic, Y.A. Malinina, and S. Wedderburn for samples with Chydorus. A.A.K. thanks the National Institute of Biological Resources of Korea for support of sampling in South Korea. Many thanks for the BirdLife International for permission to reproduce the map of East Asia-Australasia Flyway. Thanks are due to Ian Hutton of the Lord Howe Island Museum and John Porter of the NSW DPE for useful advice. The view and conclusions expressed in this study are those of the authors and do not necessarily represent the official policy, either expressed or implied, of the respective organizations.

Conflicts of Interest

Authors declare that there are no competing financial or nonfinancial interests in relation to the work described. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.


  1. Avise, J.C.; Arnold, J.; Ball, R.M.; Bermingham, E.; Lamb, T.; Neigel, J.E.; Reeb, C.A.; Saunders, N.C. Intraspecific phylogeography: The mitochondrial DNA bridge between population genetics and systematics. Annu. Rev. Ecol. Syst. 1987, 18, 489–522. [Google Scholar] [CrossRef]
  2. Avise, J.C. Phylogeography: The History and Formation of Species; Harvard University Press: Cambridge, UK; London, UK, 2000; ISBN 0674666380. [Google Scholar]
  3. Hewitt, G.M. The genetic legacy of the Quaternary ice ages. Nature 2000, 405, 907–913. [Google Scholar] [CrossRef] [PubMed]
  4. Hewitt, G.M. The structure of biodiversity—Insights from molecular phylogeography. Front. Zool. 2004, 1, 4. [Google Scholar] [CrossRef] [Green Version]
  5. Lessios, H.A.; Kessing, B.D.; Pearse, J.S. Population structure and speciation in tropical seas: Global phylogeography of the sea urchin diadema. Evolution 2001, 55, 955–975. [Google Scholar] [CrossRef]
  6. Duncan, K.M.; Martin, A.P.; Bowen, B.W.; de Couet, H.G. Global phylogeography of the scalloped hammerhead shark (Sphyrna lewini). Mol. Ecol. 2006, 15, 2239–2251. [Google Scholar] [CrossRef] [PubMed]
  7. Underhill, P.A.; Passarino, G.; Lin, A.A.; Shen, P.; Lahr, M.M.; Foley, R.A.; Oefner, P.J.; Cavalli-Sforza, L.L. The phylogeography of Y chromosome binary haplotypes and the origins of modern human populations. Ann. Hum. Genet. 2001, 65, 43–62. [Google Scholar] [CrossRef] [PubMed]
  8. Kotov, A.A. Morphology and Phylogeny of the Anomopoda (Crustacea: Cladocera); KMK Scientific Press Ltd.: Moscow, Russia, 2013; ISBN 9785873179237. [Google Scholar]
  9. Adamowicz, S.J.; Purvis, A. How many branchiopod crustacean species are there? Quantifying the components of underestimation. Glob. Ecol. Biogeogr. 2005, 14, 455–468. [Google Scholar] [CrossRef]
  10. Lampert, W. Daphnia: Development of a Model Organism in Ecology and Evolution; International Ecology Institute: Oldendorf/Luhe, Germany, 2011; ISBN 978-3-946729-21-1. [Google Scholar]
  11. Smirnov, N.N. Physiology of the Cladocer, 2nd ed.; Academic Press: Cambridge, MA, USA, 2017; ISBN 9780128051948. [Google Scholar]
  12. Frey, D.G. Questions concerning cosmopolitanism in Cladocera. Arch. Hydrobiol. 1982, 93, 484–502. [Google Scholar]
  13. Frey, D.G. A new species of the Chydorus sphaericus Group (Cladocera, Chydoridae) from Western Montana. Int. Rev. Gesamten Hydrobiol. Hydrogr. 1985, 70, 1–20. [Google Scholar] [CrossRef]
  14. Van Damme, K.; Sinev, A.Y.; Dumont, H.J. Separation of Anthalona gen.n. from Alona Baird, 1843 (Branchiopoda: Cladocera: Anomopoda): Morphology and evolution of scraping stenothermic alonines. Zootaxa 2011, 2875, 1–64. [Google Scholar] [CrossRef]
  15. Neretina, A.N.; Kotov, A.A. Diversity and distribution of the Macrothrix paulensis species group (Crustacea: Cladocera: Macrothricidae) in the tropics: What can we learn from the morphological data. Ann. Limnol. Int. J. Limnol. 2017, 53, 425–465. [Google Scholar] [CrossRef]
  16. Korovchinsky, N.M. Cladocera: Ctenopoda: Families Sididae, Holopediidae & Pseudopenilidae (Branchiopoda: Cladocera); Backhuys Publishers; Margraf Publishers GmbH: Weikersheim, Germany, 2018; ISBN 978-3-8236-1756-3. [Google Scholar]
  17. Taylor, D.J.; Finston, T.L.; Hebert, P.D.N. Biogeography of a widespread freshwater crustacean: Pseudocongruence and cryptic endemism in the North American Daphnia laevis complex. Evolution 1998, 52, 1648–1670. [Google Scholar] [CrossRef] [PubMed]
  18. Mergeay, J.; Aguilera, X.; Declerck, S.; Petrusek, A.; Huyse, T.; de Meester, L. The genetic legacy of polyploid Bolivian Daphnia: The tropical Andes as a source for the North and South American D. pulicaria complex. Mol. Ecol. 2008, 17, 1789–1800. [Google Scholar] [CrossRef] [PubMed]
  19. Adamowicz, S.J.; Petrusek, A.; Colbourne, J.K.; Hebert, P.D.; Witt, J.D. The scale of divergence: A phylogenetic appraisal of intercontinental allopatric speciation in a passively dispersed freshwater zooplankton genus. Mol. Phylogenet. Evol. 2009, 50, 423–436. [Google Scholar] [CrossRef] [PubMed]
  20. Kotov, A.A.; Garibian, P.G.; Bekker, E.I.; Taylor, D.J.; Karabanov, D.P. A new species group from the Daphnia curvirostris species complex (Cladocera: Anomopoda) from the eastern Palaearctic: Taxonomy, phylogeny and phylogeography. Zool. J. Linn. Soc. 2020, 191, 772–822. [Google Scholar] [CrossRef]
  21. Sinev, A.Y.; Karabanov, D.P.; Kotov, A.A. A new North Eurasian species of the Alona affinis complex (Cladocera: Chydoridae). Zootaxa 2020, 4767, 115–137. [Google Scholar] [CrossRef]
  22. Belyaeva, M.; Taylor, D.J. Cryptic species within the Chydorus sphaericus species complex (Crustacea: Cladocera) revealed by molecular markers and sexual stage morphology. Mol. Phylogenet. Evol. 2009, 50, 534–546. [Google Scholar] [CrossRef]
  23. Xu, S.; Hebert, P.D.N.; Kotov, A.A.; Cristescu, M.E. The noncosmopolitanism paradigm of freshwater zooplankton: Insights from the global phylogeography of the predatory cladoceran Polyphemus pediculus (Linnaeus, 1761) (Crustacea, Onychopoda). Mol. Ecol. 2009, 18, 5161–5179. [Google Scholar] [CrossRef]
  24. Millette, K.; Xu, S.; Witt, J.D.S.; Cristescu, M.E. Pleistocene-driven diversification in freshwater zooplankton: Genetic patterns of refugial isolation and postglacial recolonization in Leptodora kindtii (Crustacea, Cladocera). Limnol. Oceanogr. 2011, 56, 1725–1736. [Google Scholar] [CrossRef]
  25. Kotov, A.A.; Karabanov, D.P.; Bekker, E.I.; Neretina, T.V.; Taylor, D.J. Phylogeography of the Chydorus sphaericus group (Cladocera: Chydoridae) in the Northern Palearctic. PLoS ONE 2016, 11, e0168711. [Google Scholar] [CrossRef] [Green Version]
  26. Bekker, E.I.; Karabanov, D.P.; Galimov, Y.R.; Haag, C.R.; Neretina, T.V.; Kotov, A.A. Phylogeography of Daphnia magna Straus (Crustacea: Cladocera) in Northern Eurasia: Evidence for a deep longitudinal split between mitochondrial lineages. PLoS ONE 2018, 13, e0194045. [Google Scholar] [CrossRef] [PubMed]
  27. Neretina, A.N.; Karabanov, D.P.; Sacherova, V.; Kotov, A.A. Unexpected mitochondrial lineage diversity within the genus Alonella Sars, 1862 (Crustacea: Cladocera) across the Northern Hemisphere. PeerJ 2021, 9, e10804. [Google Scholar] [CrossRef] [PubMed]
  28. Crease, T.J.; Omilian, A.R.; Costanzo, K.S.; Taylor, D.J. Transcontinental phylogeography of the Daphnia pulex species complex. PLoS ONE 2012, 7, e46620. [Google Scholar] [CrossRef] [Green Version]
  29. Taylor, D.J.; Connelly, S.J.; Kotov, A. The Intercontinental phylogeography of neustonic daphniids. Sci. Rep. 2020, 10, 1818. [Google Scholar] [CrossRef] [PubMed]
  30. Garibian, P.G.; Karabanov, D.P.; Neretina, A.N.; Taylor, D.J.; Kotov, A.A. Bosminopsis deitersi (Crustacea: Cladocera) as an ancient species group: A revision. PeerJ 2021, 9, e11310. [Google Scholar] [CrossRef] [PubMed]
  31. Smirnov, N.N. Mesozoic Anomopoda (Crustacea) from Mongolia. Zool. J. Linn. Soc. 1992, 104, 97–116. [Google Scholar] [CrossRef]
  32. Schwentner, M.; Clavier, S.; Fritsch, M.; Olesen, J.; Padhye, S.; Timms, B.V.; Richter, S. Cyclestheria hislopi (Crustacea: Branchiopoda): A group of morphologically cryptic species with origins in the Cretaceous. Mol. Phylogenet. Evol. 2012, 66, 800–810. [Google Scholar] [CrossRef]
  33. Van Damme, K.; Kotov, A.A. The fossil record of the Cladocera (Crustacea: Branchiopoda): Evidence and hypotheses. Earth-Sci. Rev. 2016, 163, 162–189. [Google Scholar] [CrossRef]
  34. Sharma, P.; Kotov, A.A. Molecular approach to identify sibling species of the Ceriodaphnia cornuta complex (Cladocera: Daphniidae) from Australia with notes on the continental endemism of this group. Zootaxa 2013, 3702, 79–89. [Google Scholar] [CrossRef] [Green Version]
  35. Bollens, S.M.; Cordell, J.R.; Avent, S.; Hooff, R. Zooplankton invasions: A brief review, plus two case studies from the northeast Pacific Ocean. Hydrobiologia 2002, 480, 87–110. [Google Scholar] [CrossRef]
  36. Ricciardi, A. Are modern biological invasions an unprecedented form of Global Change. Conserv. Biol. 2007, 21, 329–336. [Google Scholar] [CrossRef] [PubMed]
  37. Pyšek, P.; Richardson, D.M. Invasive Species, environmental change and management, and health. Annu. Rev. Environ. Resour. 2010, 35, 25–55. [Google Scholar] [CrossRef] [Green Version]
  38. Dgebuadze, Y.Y. Invasions of alien species in Holarctic: Some results and perspective of investigations. Russ. J. Biol. Invasions 2014, 5, 61–64. [Google Scholar] [CrossRef]
  39. Dexter, E.; Bollens, S.M. Zooplankton invasions in the early 21st century: A global survey of recent studies and recommendations for future research. Hydrobiologia 2019, 847, 309–319. [Google Scholar] [CrossRef] [PubMed]
  40. Perrings, C.; Dehnen-Schmutz, K.; Touza, J.; Williamson, M. How to manage biological invasions under globalization. Trends Ecol. Evol. 2005, 20, 212–215. [Google Scholar] [CrossRef]
  41. Morais, P.; Reichard, M. Cryptic invasions: A review. Sci. Total Environ. 2018, 613–614, 1438–1448. [Google Scholar] [CrossRef]
  42. Petit, R.J. Biological invasions at the gene level. Divers. Distrib. 2004, 10, 159–165. [Google Scholar] [CrossRef]
  43. Wells, L. Effects of alewife predation on zooplankton populations in Lake Michigan. Limnol. Oceanogr. 1970, 15, 556–565. [Google Scholar] [CrossRef]
  44. MacIsaac, H.J.; Grigorovich, I.A.; Hoyle, J.A.; Yan, N.D.; Panov, V.E. Invasion of Lake Ontario by the Ponto–Caspian predatory cladoceran Cercopagis pengoi. Can. J. Fish. Aquat. Sci. 1999, 56, 1–5. [Google Scholar] [CrossRef]
  45. Havel, J.E.; Hebert, P. Daphnia lumholtzi in North America: Another exotic zooplankter. Limnol. Oceanogr. 1993, 38, 1823–1827. [Google Scholar] [CrossRef]
  46. Havel, J.E.; Colbourne, J.K.; Hebert, P. Reconstructing the history of intercontinental dispersal in Daphnia lumholtzi by use of genetic markers. Limnol. Oceanogr. 2000, 45, 1414–1419. [Google Scholar] [CrossRef]
  47. Kotov, A.A.; Taylor, D.J. Daphnia lumholtzi Sars, 1885 (Cladocera: Daphniidae) invades Argentina. J. Limnol. 2014, 73. [Google Scholar] [CrossRef] [Green Version]
  48. Urabe, J.; Ishida, S.; Nishimoto, M.; Weider, L.J. Daphnia pulicaria, a zooplankton species that suddenly appeared in 1999 in the offshore zone of Lake Biwa. Limnology 2003, 4, 35–41. [Google Scholar] [CrossRef]
  49. Mergeay, J.; Verschuren, D.; de Meester, L. Cryptic invasion and dispersal of an American Daphnia in East Africa. Limnol. Oceanogr. 2005, 50, 1278–1283. [Google Scholar] [CrossRef]
  50. So, M.; Ohtsuki, H.; Makino, W.; Ishida, S.; Kumagai, H.; Yamaki, K.G.; Urabe, J. Invasion and molecular evolution of Daphnia pulex in Japan. Limnol. Oceanogr. 2015, 60, 1129–1138. [Google Scholar] [CrossRef]
  51. Hebert, P.; Witt, J.D.S.; Adamowicz, S.J. Phylogeographical patterning in Daphnia ambigua: Regional divergence and intercontinental cohesion. Limnol. Oceanogr. 2003, 48, 261–268. [Google Scholar] [CrossRef] [Green Version]
  52. Ishida, S.; Taylor, D.J. Quaternary diversification in a sexual Holarctic zooplankter, Daphnia galeata. Mol. Ecol. 2006, 16, 569–582. [Google Scholar] [CrossRef]
  53. Kotov, A.A.; Taylor, D.J. Contrasting endemism in pond-dwelling cyclic parthenogens: The Daphnia curvirostris species group (Crustacea: Cladocera). Sci. Rep. 2019, 9, 1–10. [Google Scholar] [CrossRef] [Green Version]
  54. Lieder, U. The Bosmina kessleri-like morphotype of Eubosmina in Lake Muskoka, Ontario, Canada, as putative interspecific hybrids. Hydrobiologia 1991, 225, 71–80. [Google Scholar] [CrossRef]
  55. Haney, R.A.; Taylor, D.J. Testing paleolimnological predictions with molecular data: The origins of Holarctic Eubosmina. J. Evol. Biol. 2003, 16, 871–882. [Google Scholar] [CrossRef] [Green Version]
  56. Karabanov, D.P.; Garibian, P.G.; Bekker, E.I.; Sabitova, R.Z.; Kotov, A.A. Genetic Signature of a Past Anthropogenic Transportation of a Far-Eastern Endemic Cladoceran (Crustacea: Daphniidae) to the Volga Basin. Water 2021, 13, 2589. [Google Scholar] [CrossRef]
  57. Korovchinsky, N.M. The Cladocera (Crustacea: Branchiopoda) as a relict group. Zool. J. Linn. Soc. 2006, 147, 109–124. [Google Scholar] [CrossRef] [Green Version]
  58. Karabanov, D.P.; Bekker, E.I.; Kotov, A.A. Underestimated consequences of biological invasions in phylogeographic reconstructions as seen in Daphnia magna (Crustacea, Cladocera). Zool. Zh. 2020, 99, 1232–1241. [Google Scholar] [CrossRef]
  59. Ratnasingham, S.; Hebert, P. A DNA-Based Registry for All Animal Species: The Barcode Index Number (BIN) System. PLoS ONE 2013, 8, e66213. [Google Scholar] [CrossRef] [Green Version]
  60. Dumont, H.J.; Negrea, S. Introduction to the Class Branchiopoda; Backhuys: Leiden, The Netherlands, 2002; ISBN 9057821125. [Google Scholar]
  61. Figuerola, J.; Green, A.J. Dispersal of aquatic organisms by waterbirds: A review of past research and priorities for future studies. Freshw. Biol. 2002, 47, 483–494. [Google Scholar] [CrossRef] [Green Version]
  62. Fontaneto, D. Long-distance passive dispersal in microscopic aquatic animals. Mov. Ecol. 2019, 7, 1–10. [Google Scholar] [CrossRef] [Green Version]
  63. Darwin, C. On the Dispersal of Freshwater Bivalves. Nature 1882, 25, 529–530. [Google Scholar] [CrossRef] [Green Version]
  64. Smirnov, N.N. Chydoridae Fauni Mira. Fauna SSSR. Rakoobraznie. [Chydoridae of the World’s Fauna. Fauna of USSR. Crustacea]; Nauka: Leningrad, Russia, 1971. [Google Scholar]
  65. Klimovsky, A.I.; Kotov, A.A. Cladocera (Crustacea, Branchiopoda) of Central Yakutia 3. Taxa from the Chydorus sphaericus s. l. species group (Anomopoda, Chydoridae). Zool. Zh. 2015, 94, 1257–1267. [Google Scholar] [CrossRef]
  66. Smirnov, N.N.; Timms, B.V. A revision of the Australian Cladocera (Crustacea). Rec. Aust. Mus. Suppl. 1983, 1, 1–132. [Google Scholar] [CrossRef]
  67. Korinek, V. A Guide to Limnetic Species of Cladocera of African Inland Waters (Crustacea, Branchiopoda)—Using the Morphology of Parthenogenetic Females; The International Association of Theoretical and Applied Liminology: Geneva, Switzerland, 1999; ISBN 9789988003166. [Google Scholar]
  68. Ueno, M. Order Branchiopoda (Class Crustacea). Fauna Nippon. 1937, 9, 1–135. [Google Scholar]
  69. Ji, G.-H.; Xiang, X.-F.; Chen, S.-Z.; Yu, G.-L.; Kotov, A.A.; Dumont, H.J. Annotated Checklist of Chinese Cladocera (Crustacea: Branchiopoda). Part II. Order Anomopoda (families Macrotrichidae, Eurycercidae and Chydoridae). Zootaxa 2015, 4044, 241–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Sinev, A.Y.; Gu, Y.; Han, B.-P. Cladocera of Hainan Island, China. Zootaxa 2015, 4006, 569–585. [Google Scholar] [CrossRef] [PubMed]
  71. Tanaka, S.; Ohtaka, A. Freshwater Cladocera (Crustacea, Branchiopoda) in Lake Tonle Sap and its adjacent waters in Cambodia. Limnology 2009, 11, 171–178. [Google Scholar] [CrossRef]
  72. Sinev, A.Y.; Korovchinsky, N.M. Cladocera (Crustacea: Branchiopoda) of Cat Tien National Park, South Vietnam. J. Limnol. 2013, 72, 125–141. [Google Scholar] [CrossRef] [Green Version]
  73. Van Damme, K.; Maiphae, S.; Sa-Ardrit, P. Inland swamps in South East Asia harbour hidden cladoceran diversities: Species richness and the description of new paludal Chydoridae (Crustacea: Branchiopoda: Cladocera) from Southern Thailand. J. Limnol. 2013, 72. [Google Scholar] [CrossRef] [Green Version]
  74. Smirnov, N.N.; de Meester, L. Contributions to the Cladocera fauna from Papua New Guinea. Hydrobiologia 1996, 317, 65–68. [Google Scholar] [CrossRef]
  75. Sinev, A.Y.; Yusoff, F.M. Cladocera (Crustacea: Branchiopoda) of Sabah state in Borneo Island, Malaysia. Zootaxa 2015, 4000, 581–591. [Google Scholar] [CrossRef]
  76. Smirnov, N.N. Check-list of the Australian Cladocera (Crustacea). Arthropoda Sel. 1995, 4, 3–6. [Google Scholar]
  77. King, R.L. On Australian Entomostracans—In continuation. Pap. Proc. R. Soc. Tasman. 1853, 2, 253–263. [Google Scholar]
  78. Sars, G.O. Additional Notes on Australian Cladocera, Raised from Dried Mud; A.W. Brogger, Printer: Copenhagen, Denmark, 1888. [Google Scholar]
  79. Frey, D.G. On the plurality of Chydorus sphaericus (O. F. Müller) (Cladocera, Chydoridae), and designation of a neotype from Sjaelsø, Denmark. Hydrobiologia 1980, 69, 83–123. [Google Scholar] [CrossRef]
  80. Smirnov, N.N. Cladocera: The Chydorinae and Sayciinae (Chydoridae) of the World; SPB Academic Publishing: Amsterdam, The Netherlands, 1996. [Google Scholar]
  81. Wang, J.; Ni, Y.; Hu, W.; Yin, M. Lineage diversity and gene introgression in freshwater cladoceran crustaceans of the Chydorus sphaericus species complex. Limnol. Oceanogr. 2020, 66, 95–107. [Google Scholar] [CrossRef]
  82. Sharma, P.; Kotov, A.A. Establishment of Chydorus sphaericus (O.F. Muller, 1785) (Crustacea: Cladocera) in Australia: Consequences of mass fish stocking from Northern Europe. J. Limnol. 2014, 73, 225–233. [Google Scholar] [CrossRef] [Green Version]
  83. Hebert, P.D.N.; Cywinska, A.; Ball, S.L.; Dewaard, J.R. Biological identifications through DNA barcodes. Proc. R. Soc. Lond. Ser. B Biol. Sci. 2003, 270, 313–321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Hebert, P.D.; Cristescu, M.E. Genetic perspectives on invasions: The case of the Cladocera. Can. J. Fish. Aquat. Sci. 2002, 59, 1229–1234. [Google Scholar] [CrossRef] [Green Version]
  85. Okonechnikov, K.; Golosova, O.; Fursov, M. Unipro Ugene: A unified bioinformatics toolkit. Bioinformatics 2012, 28, 1166–1167. [Google Scholar] [CrossRef] [Green Version]
  86. Sayers, E.W.; Beck, J.; Brister, J.R.; Bolton, E.E.; Canese, K.; Comeau, D.C.; Funk, K.; Ketter, A.; Kim, S.; Kimchi, A.; et al. Database resources of the National Center for Biotechnology Information. Nucleic Acids Res. 2020, 48, D9–D16. [Google Scholar] [CrossRef] [Green Version]
  87. Katoh, K.; Rozewicki, J.; Yamada, K.D. MAFFT online service: Multiple sequence alignment, interactive sequence choice and visualization. Brief. Bioinform. 2017, 20, 1160–1166. [Google Scholar] [CrossRef] [Green Version]
  88. MAFFT Version 7. Multiple Alignment Program for Amino Acid or Nucleotide Sequences. Available online: (accessed on 25 August 2011).
  89. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.F.; von Haeseler, A.; Jermiin, L.S. Model Finder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [Green Version]
  90. Trifinopoulos, J.; Nguyen, L.-T.; von Haeseler, A.; Minh, B.Q. W-IQ-TREE: A fast online phylogenetic tool for maximum likelihood analysis. Nucleic Acids Res. 2016, 44, W232–W235. [Google Scholar] [CrossRef] [Green Version]
  91. IQ-TREE Web Server. Available online: (accessed on 20 September 2021).
  92. Posada, D.; Buckley, T.R. Model Selection and Model Averaging in Phylogenetics: Advantages of Akaike Information Criterion and Bayesian Approaches over Likelihood Ratio Tests. Syst. Biol. 2004, 53, 793–808. [Google Scholar] [CrossRef]
  93. Nei, M.; Kumar, S. Molecular Evolution and Phylogenetics; Oxford University Press: New York, NY, USA, 2000; ISBN 0195135857. [Google Scholar]
  94. Fu, Y.-X. Statistical Tests of Neutrality of Mutations against Population Growth, Hitchhiking and Background Selection. Genetics 1997, 147, 915–925. [Google Scholar] [CrossRef] [PubMed]
  95. Tajima, F. Statistical method for testing the neutral mutation hypothesis by DNA polymorphism. Genetics 1989, 123, 585–595. [Google Scholar] [CrossRef] [PubMed]
  96. Rozas, J.; Ferrer-Mata, A.; Sánchez-DelBarrio, J.C.; Guirao-Rico, S.; Librado, P.; Ramos-Onsins, S.E.; Sánchez-Gracia, A. DnaSP 6: DNA Sequence Polymorphism Analysis of Large Data Sets. Mol. Biol. Evol. 2017, 34, 3299–3302. [Google Scholar] [CrossRef] [PubMed]
  97. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  98. Collins, R.A.; Boykin, L.M.; Cruickshank, R.H.; Armstrong, K.F. Barcoding’s next top model: An evaluation of nucleotide substitution models for specimen identification. Methods Ecol. Evol. 2012, 3, 457–465. [Google Scholar] [CrossRef]
  99. Tamura, K.; Nei, M.; Kumar, S. Prospects for inferring very large phylogenies by using the neighbor-joining method. Proc. Natl. Acad. Sci. USA 2004, 101, 11030–11035. [Google Scholar] [CrossRef] [Green Version]
  100. Rosenberg, M.; Anderson, C.D. PASSaGE: Pattern Analysis, Spatial Statistics and Geographic Exegesis. Version 2. Methods Ecol. Evol. 2010, 2, 229–232. [Google Scholar] [CrossRef]
  101. Minh, B.Q.; Schmidt, H.A.; Chernomor, O.; Schrempf, D.; Woodhams, M.D.; von Haeseler, A.; Lanfear, R. IQ-TREE 2: New Models and Efficient Methods for Phylogenetic Inference in the Genomic Era. Mol. Biol. Evol. 2020, 37, 1530–1534. [Google Scholar] [CrossRef] [Green Version]
  102. Hoang, D.T.; Chernomor, O.; von Haeseler, A.; Minh, B.Q.; Vinh, L.S. UFBoot2: Improving the Ultrafast Bootstrap Approximation. Mol. Biol. Evol. 2018, 35, 518–522. [Google Scholar] [CrossRef]
  103. Bouckaert, R.; Vaughan, T.G.; Barido-Sottani, J.; Duchêne, S.; Fourment, M.; Gavryushkina, A.; Heled, J.; Jones, G.; Kühnert, D.; De Maio, N.; et al. BEAST 2.5: An advanced software platform for Bayesian evolutionary analysis. PLoS Comput. Biol. 2019, 15, e1006650. [Google Scholar] [CrossRef] [Green Version]
  104. Drummond, A.J.; Suchard, M.A.; Xie, D.; Rambaut, A. Bayesian Phylogenetics with BEAUti and the BEAST 1.7. Mol. Biol. Evol. 2012, 29, 1969–1973. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Rambaut, A.; Drummond, A.J.; Xie, D.; Baele, G.; Suchard, M.A. Posterior Summarization in Bayesian Phylogenetics Using Tracer 1.7. Syst. Biol. 2018, 67, 901–904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Drummond, A.J.; Bouckaert, R.R. Bayesian Evolutionary Analysis with BEAST2; Cambridge University Press: Cambridge, UK, 2015; ISBN 978-1-107-01965-2. [Google Scholar]
  107. Brown, S.D.J.; Collins, R.A.; Boyer, S.; Lefort, M.-C.; Malumbres-Olarte, J.; Vink, C.J.; Cruickshank, R.H. Spider: An R package for the analysis of species identity and evolution, with particular reference to DNA barcoding. Mol. Ecol. Resour. 2012, 12, 562–565. [Google Scholar] [CrossRef] [PubMed]
  108. Rangel-Medrano, J.D.; Ortega-Lara, A.; Márquez, E.J. Ancient genetic divergence in bumblebee catfish of the genus Pseudopimelodus (Pseudopimelodidae: Siluriformes) from northwestern South America. PeerJ 2020, 8, e9028. [Google Scholar] [CrossRef]
  109. Microsoft R Open Application Network. Available online: (accessed on 20 May 2021).
  110. Pons, J.; Barraclough, T.; Gómez-Zurita, J.; Cardoso, A.; Duran, D.P.; Hazell, S.; Kamoun, S.; Sumlin, W.D.; Vogler, A.P. Sequence-based species delimitation for the DNA taxonomy of undescribed insects. Syst. Biol. 2006, 55, 595–609. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Reid, N.M.; Carstens, B.C. Phylogenetic estimation error can decrease the accuracy of species delimitation: A Bayesian implementation of the general mixed Yule-coalescent model. BMC Evol. Biol. 2012, 12, 196. [Google Scholar] [CrossRef] [Green Version]
  112. mPTP Web Server. Available online: (accessed on 20 September 2021).
  113. Kapli, P.; Lutteropp, S.; Zhang, J.; Kobert, K.; Pavlidis, P.; Stamatakis, A.; Flouri, T. Multi-rate Poisson Tree Processes for single-locus species delimitation under Maximum Likelihood and Markov Chain Monte Carlo. Bioinformatics 2017, 33, 1630–1638. [Google Scholar] [CrossRef] [Green Version]
  114. Parham, J.F.; Donoghue, P.C.J.; Bell, C.J.; Calway, T.D.; Head, J.J.; Holroyd, P.A.; Inoue, J.G.; Irmis, R.B.; Joyce, W.G.; Ksepka, D.T.; et al. Best Practices for Justifying Fossil Calibrations. Syst. Biol. 2012, 61, 346–359. [Google Scholar] [CrossRef]
  115. Takezaki, N.; Rzhetsky, A.; Nei, M. Phylogenetic test of the molecular clock and linearized trees. Mol. Biol. Evol. 1995, 12, 823–833. [Google Scholar] [CrossRef] [Green Version]
  116. Kotov, A.A.; Taylor, D.J. Mesozoic fossils (>145 Mya) suggest the antiquity of the subgenera of Daphnia and their coevolution with chaoborid predators. BMC Evol. Biol. 2011, 11, 129. [Google Scholar] [CrossRef] [Green Version]
  117. Luchetti, A.; Forni, G.; Skaist, A.M.; Wheelan, S.J.; Mantovani, B. Mitochondrial genome diversity and evolution in Branchiopoda (Crustacea). Zool. Lett. 2019, 5, 15. [Google Scholar] [CrossRef] [PubMed]
  118. Wolfe, J.M.; Daley, A.C.; Legg, D.A.; Edgecombe, G.D. Fossil calibrations for the arthropod Tree of Life. Earth-Sci. Rev. 2016, 160, 43–110. [Google Scholar] [CrossRef]
  119. Douglas, J.; Zhang, R.; Bouckaert, R. Adaptive dating and fast proposals: Revisiting the phylogenetic relaxed clock model. PLOS Comput. Biol. 2021, 17, e1008322. [Google Scholar] [CrossRef] [PubMed]
  120. Gernhard, T. The conditioned reconstructed process. J. Theor. Biol. 2008, 253, 769–778. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  121. Barido-Sottani, J.; Bošková, V.; du Plessis, L.; Kühnert, D.; Magnus, C.; Mitov, V.; Müller, N.F.; PečErska, J.; Rasmussen, D.A.; Zhang, C.; et al. Taming the BEAST—A Community Teaching Material Resource for BEAST 2. Syst. Biol. 2017, 67, 170–174. [Google Scholar] [CrossRef] [PubMed]
  122. Leigh, J.W.; Bryant, D.; Nakagawa, S. Popart: Full-feature software for haplotype network construction. Methods Ecol. Evol. 2015, 6, 1110–1116. [Google Scholar] [CrossRef]
  123. Goloboff, P.A.; Catalano, S.A. TNT version 1.5, including a full implementation of phylogenetic morphometrics. Cladistics 2016, 32, 221–238. [Google Scholar] [CrossRef]
  124. Matzke, N.J. Probabilistic historical biogeography: New models for founder-event speciation, imperfect detection, and fossils allow improved accuracy and model-testing. Front. Biogeogr. 2013, 5, 242–248. [Google Scholar] [CrossRef] [Green Version]
  125. Yu, Y.; Harris, A.; Blair, C.; He, X. RASP (Reconstruct Ancestral State in Phylogenies): A tool for historical biogeography. Mol. Phylogenet. Evol. 2015, 87, 46–49. [Google Scholar] [CrossRef]
  126. Sweet, A.D.; Boyd, B.M.; Allen, J.M.; Villa, S.M.; Valim, M.P.; Rivera-Parra, J.L.; Wilson, R.E.; Johnson, K.P. Integrating phylogenomic and population genomic patterns in avian lice provides a more complete picture of parasite evolution. Evolution 2017, 72, 95–112. [Google Scholar] [CrossRef]
  127. Matzke, N.J. Model Selection in Historical Biogeography Reveals that Founder-Event Speciation Is a Crucial Process in Island Clades. Syst. Biol. 2014, 63, 951–970. [Google Scholar] [CrossRef] [PubMed]
  128. Clark, J.R.; Ree, R.H.; Alfaro, M.E.; King, M.G.; Wagner, W.L.; Roalson, E.H. A Comparative Study in Ancestral Range Reconstruction Methods: Retracing the Uncertain Histories of Insular Lineages. Syst. Biol. 2008, 57, 693–707. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  129. Landis, M.J.; Matzke, N.J.; Moore, B.R.; Huelsenbeck, J.P. Bayesian Analysis of Biogeography when the Number of Areas is Large. Syst. Biol. 2013, 62, 789–804. [Google Scholar] [CrossRef] [Green Version]
  130. DIVA-GIS Software. Available online: (accessed on 20 May 2021).
  131. Natural Earth Dataset. Available online: (accessed on 20 May 2021).
  132. Gillespie, R.G.; Baldwin, B.G.; Waters, J.; Fraser, C.; Nikula, R.; Roderick, G. Long-distance dispersal: A framework for hypothesis testing. Trends Ecol. Evol. 2012, 27, 47–56. [Google Scholar] [CrossRef] [PubMed]
  133. Chan, K. Partial migration in Australian landbirds: A review. Emu-Austral Ornithol. 2001, 101, 281–292. [Google Scholar] [CrossRef]
  134. E Gill, R.; Tibbitts, T.L.; Douglas, D.C.; Handel, C.M.; Mulcahy, D.M.; Gottschalck, J.C.; Warnock, N.; McCaffery, B.J.; Battley, P.F.; Piersma, T. Extreme endurance flights by landbirds crossing the Pacific Ocean: Ecological corridor rather than barrier. Proc. R. Soc. B Biol. Sci. 2008, 276, 447–457. [Google Scholar] [CrossRef] [Green Version]
  135. Kobayashi, T.; Shiel, R.J.; Segers, H. First record of the rotifer Lecane shieli Segers & Sanoamuang, 1994 from Australia. Aust. Zool. 2007, 34, 181–183. [Google Scholar] [CrossRef]
  136. Green, A.J.; Jenkins, K.M.; A Bell, D.; Morris, P.J.; Kingsford, R. The potential role of waterbirds in dispersing invertebrates and plants in arid Australia. Freshw. Biol. 2007, 53, 380–392. [Google Scholar] [CrossRef]
  137. Growns, I.; Ryder, D.; Kobayashi, T.; Garcia, A. Freshwater macroinvertebrates of Lord Howe Island. Ann. Mag. Nat. Hist. 2014, 48, 2675–2687. [Google Scholar] [CrossRef]
  138. Driscoll, P.V.; Ueta, M. The migration route and behaviour of Eastern Curlews Numenius madagascariensis. Ibis 2002, 144, E119–E130. [Google Scholar] [CrossRef]
  139. Wilson, J.R.; Nebel, S.; Minton, C.D.T. Migration ecology and morphometries of two Bar-tailed Godwit populations in Australia. Emu-Austral Ornithol. 2007, 107, 262–274. [Google Scholar] [CrossRef]
  140. Minton, C.L.; Wahl, J.O.; Gibbs, H.E.; Jessop, R.O.; Hassell, C.H.; Boyle, A.D. Recoveries and flag sightings of waders which spend the non-breeding season in Australia. Stilt 2011, 59, 17–43. [Google Scholar]
  141. McAllan, I.; Curtis, B.; Hutton, I.; Cooper, R.M. The birds of the Lord Howe Island Group: A review of records. Austral. Field Ornithol. 2016, 21, 1–82. [Google Scholar]
  142. Hutton, I. A Field Guide to the Birds of Lord Howe Island, 7th ed.; Ian Hutton: Lord Howe Island, Australia, 2021; ISBN 0-9581286-2-6. [Google Scholar]
  143. Dingle, H. Migration: The Biology of Life on the Move, 7th ed.; Oxford University Press: Oxford, UK, 2014; ISBN 9780199640386. [Google Scholar]
  144. Cornetti, L.; Fields, P.D.; Van Damme, K.; Ebert, D. A fossil-calibrated phylogenomic analysis of Daphnia and the Daphniidae. Mol. Phylogenet. Evol. 2019, 137, 250–262. [Google Scholar] [CrossRef] [PubMed]
  145. Schwentner, M.; Rabet, N.; Richter, S.; Giribet, G.; Padhye, S.; Cart, J.-F.; Bonillo, C.; Rogers, D.C. Phylogeny and biogeography of Spinicaudata (Crustacea: Branchiopoda). Zool. Stud. 2020, 59, e44. [Google Scholar]
  146. Lynch, M.; Jarrell, P.E. A method for calibrating molecular clocks and its application to animal mitochondrial DNA. Genetics 1993, 135, 1197–1208. [Google Scholar] [CrossRef]
  147. Bolotov, I.N.; Aksenova, O.; Bespalaya, Y.; Gofarov, M.; Kondakov, A.; Paltser, I.S.; Stefansson, A.; Travina, O.; Vinarski, M. Origin of a divergent mtDNA lineage of a freshwater snail species, Radix balthica, in Iceland: Cryptic glacial refugia or a postglacial founder event. Hydrobiologia 2016, 787, 73–98. [Google Scholar] [CrossRef]
  148. Wares, J.P. Natural distributions of mitochondrial sequence diversity support new null hypotheses. Evolution 2009, 64, 1136–1142. [Google Scholar] [CrossRef]
  149. Scourfield, D.J. A short-spined Daphnia presumably belonging to the ‘longispina’ group—D. ambigua sp.n. J. Quekett Microsc. Club 1947, 4, 127–131. [Google Scholar]
  150. Brooks, J.L. The Systematics of North American Daphnia; Connecticut Academy of Arts & Sciences: New Haven, CT, USA, 1957; ISBN 978-1258657659. [Google Scholar]
  151. Wedderburn, S.; Barnes, T.; Shiel, R. Ecological Responses to Managed Lake Water Levels Coinciding with Restocking of Yarra Pygmy Perch. In Report to the Living Murray Initiative and the South Australian Department for Environment, Water and Natural Resources; The University of Adelaide, Department of Environment, Water and Natural Resources: Adelaide, Australia, 2016. [Google Scholar]
  152. Department of Natural Resources and Environment Tasmania. Invasive Freshwater Species. Available online: (accessed on 10 October 2021).
  153. Reader, S.E.; Hay, A.C.; McGrouther, M.A. The Australian Museum Lord Howe Island Expedition 2017—Freshwater fishes. Tech. Rep. Aust. Mus. Online 2018, 26, 69–76. [Google Scholar] [CrossRef] [Green Version]
  154. Duggan, I.C.; Green, J.D.; Burger, D.F. First New Zealand records of three non-indigenous zooplankton species: Skistodiaptomus pallidus, Sinodiaptomus valkanovi, and Daphnia dentifera. N. Z. J. Mar. Freshw. Res. 2006, 40, 561–569. [Google Scholar] [CrossRef]
  155. Duggan, I.; Robinson, K.; Burns, C.; Banks, J.; Hogg, I.D. Identifying invertebrate invasions using morphological and molecular analyses: North American Daphniapulex’ in New Zealand fresh waters. Aquat. Invasions 2012, 7, 585–590. [Google Scholar] [CrossRef] [Green Version]
  156. Karabanov, D.P.; Bekker, E.I.; Shiel, R.J.; Kotov, A.A. Invasion of a Holarctic planktonic cladoceran Daphnia galeata Sars (Crustacea: Cladocera) in the Lower Lakes of South Australia. Zootaxa 2018, 4402, 136–148. [Google Scholar] [CrossRef] [PubMed]
  157. Ye, Z.; Williams, E.; Zhao, C.; Burns, C.W.; Lynch, M. The rapid, mass invasion of New Zealand by North American Daphniapulex”. Limnol. Oceanogr. 2021, in press. [Google Scholar] [CrossRef]
  158. Green, A.J. The importance of waterbirds as an overlooked pathway of invasion for alien species. Divers. Distrib. 2015, 22, 239–247. [Google Scholar] [CrossRef] [Green Version]
  159. Byers, J.E. Impact of non-indigenous species on natives enhanced by anthropogenic alteration of selection regimes. Oikos 2002, 97, 449–458. [Google Scholar] [CrossRef]
  160. Suchy, K.D.; Salki, A.; Hann, B.J. Investigating the invasion of the nonindigenous zooplankter, Eubosmina coregoni, in Lake Winnipeg, Manitoba, Canada. J. Great Lakes Res. 2010, 36, 159–166. [Google Scholar] [CrossRef]
  161. Vijverberg, J.; Boersma, M. Long-term dynamics of small-bodied and large-bodied cladocerans during the eutrophication of a shallow reservoir, with special attention for Chydorus sphaericus. Hydrobiologia 1997, 360, 233–242. [Google Scholar] [CrossRef]
  162. Basińska, A.M.; Antczak, M.; Świdnicki, K.; Jassey, V.E.J.; Kuczyńska-Kippen, N. Habitat type as strongest predictor of the body size distribution of Chydorus sphaericus (O. F. Müller) in small water bodies. Int. Rev. Hydrobiol. 2014, 99, 382–392. [Google Scholar] [CrossRef]
  163. BirdLife International. Available online: (accessed on 24 October 2020).

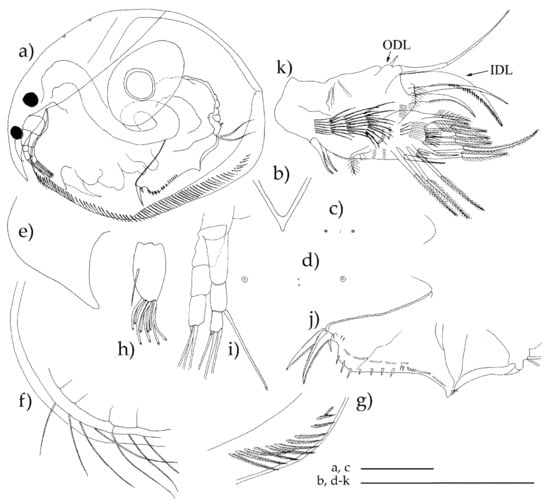

Figure 1. Morphology of Chydorus sphaericus found in Australian region (a rivulet in Brushy Park, Buckland, Tasmania): (a) large parthenogenetic female, lateral view; (b) tip of rostrum; (c,d) dorsal head pores; (e) labral keel; (f) antero-ventral valve portion; (g) postero-ventral valve portion; (h) antenna I; (i) antenna II; (j) postabdomen; (k) limb I. Scale bars: 0.1 mm. High-resolution figures are available in additional files.
Figure 1. Morphology of Chydorus sphaericus found in Australian region (a rivulet in Brushy Park, Buckland, Tasmania): (a) large parthenogenetic female, lateral view; (b) tip of rostrum; (c,d) dorsal head pores; (e) labral keel; (f) antero-ventral valve portion; (g) postero-ventral valve portion; (h) antenna I; (i) antenna II; (j) postabdomen; (k) limb I. Scale bars: 0.1 mm. High-resolution figures are available in additional files.
Water 14 00594 g001
Figure 2. Distribution of studied populations of the Chydorus sphaericus (major clade A) group belonging to three clades A1, A2, A3: A1_1 (red circles); A1_2 (red squares); A1_3 (red triangles); A2_1 (green triangles), A2_2 (green squares), A2_3 (green circles); A3_1 (pink squares), A3_2 (pink circles); A3_3 (pink triangles). Visualization of the localities was made in free software DIVA-GIS7.5.0 ( accessed on 15 December 2021 [130] using open access spatial GIS data from, accessed on 15 December 2021 [131] as the layers.
Figure 2. Distribution of studied populations of the Chydorus sphaericus (major clade A) group belonging to three clades A1, A2, A3: A1_1 (red circles); A1_2 (red squares); A1_3 (red triangles); A2_1 (green triangles), A2_2 (green squares), A2_3 (green circles); A3_1 (pink squares), A3_2 (pink circles); A3_3 (pink triangles). Visualization of the localities was made in free software DIVA-GIS7.5.0 ( accessed on 15 December 2021 [130] using open access spatial GIS data from, accessed on 15 December 2021 [131] as the layers.
Water 14 00594 g002
Figure 4. MP-networks for the groups of haplotypes of COI gene in the clades A1, A2, and A3 of Chydorus sphaericus group. Median vectors are indicated by small black circles. Sequences from Australia are marked by red arrows.
Figure 4. MP-networks for the groups of haplotypes of COI gene in the clades A1, A2, and A3 of Chydorus sphaericus group. Median vectors are indicated by small black circles. Sequences from Australia are marked by red arrows.
Water 14 00594 g004
Table 1. Polymorphism of COI gene in Chydorus major clades and subclades of the clade A.
Table 1. Polymorphism of COI gene in Chydorus major clades and subclades of the clade A.
A1565235430.9770.0146.340.024−1.498 *−38.5
A2595327530.9960.0178.050.025−1.086 *−56.84
A31072722210.7110.0092.510.021−1.692 *−8.55
A46452610.03515.930.046−1.446 *−0.29
A total2286854920.9310.06316.310.0430.548−34.65
B total2611591170.9510.11138.950.107−0.1623.09
N—number of sequences; S—number of segregating (polymorphic) sites; p—number of parsimony informative sites; Hd—haplotype diversity; h—number of haplotypes; Pi—nucleotide diversity per site; k—average number of nucleotide differences; theta—parameter of nucleotide diversity by (ps/a1), see [93]; Fs—Fu’s neutrality statistic [94]; D—Tajima’s D neutrality test [95], the one star-sign is indicated statistical significance p < 0.10.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Karabanov, D.P.; Bekker, E.I.; Garibian, P.G.; Shiel, R.J.; Kobayashi, T.; Taylor, D.J.; Kotov, A.A. Multiple Recent Colonizations of the Australian Region by the Chydorus sphaericus Group (Crustacea: Cladocera). Water 2022, 14, 594.

AMA Style

Karabanov DP, Bekker EI, Garibian PG, Shiel RJ, Kobayashi T, Taylor DJ, Kotov AA. Multiple Recent Colonizations of the Australian Region by the Chydorus sphaericus Group (Crustacea: Cladocera). Water. 2022; 14(4):594.

Chicago/Turabian Style

Karabanov, Dmitry P., Eugeniya I. Bekker, Petr G. Garibian, Russell J. Shiel, Tsuyoshi Kobayashi, Derek J. Taylor, and Alexey A. Kotov. 2022. "Multiple Recent Colonizations of the Australian Region by the Chydorus sphaericus Group (Crustacea: Cladocera)" Water 14, no. 4: 594.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
