# Relative Performance of 1-D Versus 3-D Hydrodynamic, Water-Quality Models for Predicting Water Temperature and Oxygen in a Shallow, Eutrophic, Managed Reservoir

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Study Methods

#### 2.1. Study Sites and Artificial Mixing Systems

#### 2.2. The 1-D Model

#### 2.3. The 3-D Model

## 3. Numerical Tests

## 4. Results and Discussion

#### 4.1. Year 2014 and 2015 Simulations

_{field}and v

_{sim}are respectively the field measurement and simulated data of the variable of interest, and n is the total number of field data points.

#### 4.2. Qualitative Comparison of Simulated Temperature and DO Profiles of 2014 and 2015

#### 4.3. Quantitative Comparison of Simulated Temperature and DO Profiles of Year 2014 and 2015

#### 4.4. Quantitative Analysis of the Predicted Thermal Structures

#### 4.5. Comparison of GLM-AED2 and Si3D-AED2 with EM

#### 4.6. Performance of Si3D-AED2

## 5. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Patterson, J.C.; Imberger, J. Simulation of bubble plume destratification systems in reservoirs. Aquat. Sci.
**1989**, 51, 3–18. [Google Scholar] [CrossRef] - Stepanenko, V.M.; Martynov, A.; Joehnk, K.D.; Subin, Z.M.; Perroud, M.; Fang, X.; Beyrich, F.; Mironov, D.; Goyette, S. A one-dimensional model intercomparison study of thermal regime of a shallow, turbid midlatitude lake. Geosci. Model Dev.
**2013**, 6, 1337–1352. [Google Scholar] [CrossRef] [Green Version] - Gal, G.; Imberger, J.; Zohary, T.; Antenucci, J.; Anis, A.; Rosenberg, T. Simulating the thermal dynamics of Lake Kinneret. Ecol. Model.
**2003**, 162, 69–86. [Google Scholar] [CrossRef] - Hamilton, D.P.; Schladow, S. Prediction of water quality in lakes and reservoirs. Part I—Model description. Ecol. Model.
**1997**, 96, 91–110. [Google Scholar] [CrossRef] - Hu, F.; Bolding, K.; Bruggeman, J.; Jeppesen, E.; Flindt, M.R.; Van Gerven, L.P.A.; Janse, J.H.; Janssen, A.B.G.; Kuiper, J.J.; Mooij, W.M.; et al. FABM-PCLake—Linking aquatic ecology with hydrodynamics. Geosci. Model Dev.
**2016**, 9, 2271–2278. [Google Scholar] [CrossRef] [Green Version] - Peeters, F.; Traile, D.I.S.; Orke, A.L.; Ivingstone, D.M.L. Earlier onset of the spring phytoplankton bloom in lakes of the temperate zone in a warmer climate. Glob. Chang. Biol.
**2007**, 13, 1898–1909. [Google Scholar] [CrossRef] [Green Version] - Perroud, M.; Goyette, S.; Martynov, A.; Beniston, M.; Annevillec, O. Simulation of multiannual thermal profiles in deep Lake Geneva: A comparison of one-dimensional lake models. Limnol. Oceanogr.
**2009**, 54, 1574–1594. [Google Scholar] [CrossRef] [Green Version] - Farrell, K.J.; Ward, N.K.; Krinos, A.I.; Hanson, P.C.; Daneshmand, V.; Figueiredo, R.J.; Carey, C.C. Ecosystem-scale nutrient cycling responses to increasing air temperatures vary with lake trophic state. Ecol. Model.
**2020**, 430, 109134. [Google Scholar] [CrossRef] - Snortheim, C.A.; Hanson, P.C.; McMahon, K.D.; Read, J.S.; Carey, C.C.; Dugan, H.A. Meteorological drivers of hypo-limnetic anoxia in a eutrophic, north temperate lake. Ecol. Model.
**2017**, 343, 39–53. [Google Scholar] [CrossRef] [Green Version] - Ward, N.K.; Steele, B.G.; Weathers, K.C.; Cottingham, K.L.; Ewing, H.A.; Hanson, P.C.; Carey, C.C. Differential Responses of Maximum Versus Median Chlorophyll- a to Air Temperature and Nutrient Loads in an Oligotrophic Lake Over 31 Years. Water Resour. Res.
**2020**, 56. [Google Scholar] [CrossRef] - McKinley, G.; Follows, M.J.; Marshall, J. Mechanisms of air-sea CO2flux variability in the equatorial Pacific and the North Atlantic. Glob. Biogeochem. Cycles
**2004**, 18, 2011. [Google Scholar] [CrossRef] - Singleton, V.L.; Gantzer, P.; Little, J.C. Linear bubble plume model for hypolimnetic oxygenation: Full-scale validation and sensitivity analysis. Water Resour. Res.
**2007**, 43. [Google Scholar] [CrossRef] [Green Version] - Six, K.D.; Maier-Reimer, E. Effects of plankton dynamics on seasonal carbon fluxes in an ocean general circulation model. Glob. Biogeochem. Cycles
**1996**, 10, 559–583. [Google Scholar] [CrossRef] - Cerco, C.F.; Cole, T. Three-Dimensional Eutrophication Model of Chesapeake Bay. J. Environ. Eng.
**1993**, 119, 1006–1025. [Google Scholar] [CrossRef] - Follows, M.J.; Dutkiewicz, S.; Grant, S.; Chisholm, S.W. Emergent Biogeography of Microbial Communities in a Model Ocean. Science
**2007**, 315, 1843–1846. [Google Scholar] [CrossRef] [Green Version] - Hoyer, A.B.; Wittmann, M.E.; Chandra, S.; Schladow, S.G.; Rueda, F.J. A 3D individual-based aquatic transport model for the assessment of the potential dispersal of planktonic larvae of an invasive bivalve. J. Environ. Manag.
**2014**, 145, 330–340. [Google Scholar] [CrossRef] - Acosta, M.; Anguita, M.; Fernández-Baldomero, F.J.; Ramón, C.L.; Schladow, S.G.; Rueda, F.J. Evaluation of a nested-grid implementation for 3D finite-difference semi-implicit hydrodynamic models. Environ. Model. Softw.
**2015**, 64, 241–262. [Google Scholar] [CrossRef] - Preece, E.P.; Moore, B.C.; Skinner, M.M.; Child, A.; Dent, S. A review of the biological and chemical effects of hypo-limnetic oxygenation. Lake Reserv. Manag.
**2019**, 35, 229–246. [Google Scholar] [CrossRef] - Singleton, V.L.; Little, J.C. Designing Hypolimnetic Aeration and Oxygenation Systems—A Review. Environ. Sci. Technol.
**2006**, 40, 7512–7520. [Google Scholar] [CrossRef] - Chen, S.; Little, J.C.; Carey, C.C.; McClure, R.P.; Lofton, M.E.; Lei, C. Three-Dimensional Effects of Artificial Mixing in a Shallow Drinking-Water Reservoir. Water Resour. Res.
**2018**, 54, 425–441. [Google Scholar] [CrossRef] - Fleischmann, A.S.; Paiva, R.C.D.; Collischonn, W.; Siqueira, V.A.; Paris, A.; Moreira, D.M.; Papa, F.; Bitar, A.A.; Parrens, M.; Aires, F.; et al. Trade-Offs Between 1-D and 2-D Regional River Hydrodynamic Models. Water Resour. Res.
**2020**, 56, e2019WR026812. [Google Scholar] [CrossRef] - Romero, J.; Antenucci, J.; Imberger, J. One- and three-dimensional biogeochemical simulations of two differing reservoirs. Ecol. Model.
**2004**, 174, 143–160. [Google Scholar] [CrossRef] - Saloranta, T.M.; Andersen, T. MyLake—A multi-year lake simulation model code suitable for uncertainty and sensitivity analysis simulations. Ecol. Model.
**2007**, 207, 45–60. [Google Scholar] [CrossRef] - Alobaid, F.; Baraki, N.; Epple, B. Investigation into improving the efficiency and accuracy of CFD/DEM simulations. Particuology
**2014**, 16, 41–53. [Google Scholar] [CrossRef] - Andersson, A.G.; Hellström, J.G.I.; Andreasson, P.; Lundström, T.S. Effect of Spatial Resolution of Rough Surfaces on Numerically Computed Flow Fields with Application to Hydraulic Engineering. Eng. Appl. Comput. Fluid Mech.
**2014**, 8, 373–381. [Google Scholar] [CrossRef] [Green Version] - Gerling, A.B.; Munger, Z.W.; Doubek, J.P.; Hamre, K.D.; Gantzer, P.A.; Little, J.C.; Carey, C.C. Whole-Catchment Manipulations of Internal and External Loading Reveal the Sensitivity of a Century-Old Reservoir to Hypoxia. Ecosystems
**2016**, 19, 555–571. [Google Scholar] [CrossRef] - Munger, Z.W.; Carey, C.C.; Gerling, A.B.; Doubek, J.P.; Hamre, K.D.; McClure, R.P.; Schreiber, M.E. Oxygenation and hydrologic controls on iron and manganese mass budgets in a drinking-water reservoir. Lake Reserv. Manag.
**2019**, 35, 277–291. [Google Scholar] [CrossRef] - Gerling, A.B.; Browne, R.G.; Gantzer, P.A.; Mobley, M.H.; Little, J.C.; Carey, C.C. First report of the successful operation of a side stream supersaturation hypolimnetic oxygenation system in a eutrophic, shallow reservoir. Water Res.
**2014**, 67, 129–143. [Google Scholar] [CrossRef] - Chen, S.; Carey, C.C.; Little, J.C.; Lofton, M.E.; McClure, R.P.; Lei, C. Effectiveness of a bubble-plume mixing system for managing phytoplankton in lakes and reservoirs. Ecol. Eng.
**2018**, 113, 43–51. [Google Scholar] [CrossRef] - Hamre, K.D.; Lofton, M.E.; McClure, R.P.; Munger, Z.W.; Doubek, J.P.; Gerling, A.B.; Schreiber, M.E.; Carey, C.C. In situ fluorometry reveals a persistent, perennial hypolimnetic cyanobacterial bloom in a seasonally anoxic reservoir. Freshw. Sci.
**2018**, 37, 483–495. [Google Scholar] [CrossRef] - Hanson, P.C.; Weathers, K.C.; Kratz, T.K. Networked lake science: How the Global Lake Ecological Observatory Network (GLEON) works to understand, predict, and communicate lake ecosystem response to global change. Inland Waters
**2016**, 6, 543–554. [Google Scholar] [CrossRef] - Hipsey, M.R.; Bruce, L.C.; Boon, C.; Busch, B.; Carey, C.C.; Hamilton, D.P.; Hanson, P.C.; Read, J.S.; De Sousa, E.; Weber, M.; et al. A General Lake Model (GLM 3.0) for linking with high-frequency sensor data from the Global Lake Ecological Observatory Network (GLEON). Geosci. Model Dev.
**2019**, 12, 473–523. [Google Scholar] [CrossRef] [Green Version] - Bruce, L.C.; Frassl, M.A.; Arhonditsis, G.B.; Gal, G.; Hamilton, D.P.; Hanson, P.C.; Hetherington, A.L.; Melack, J.M.; Read, J.S.; Rinke, K.; et al. A multi-lake comparative analysis of the General Lake Model (GLM): Stress-testing across a global observatory network. Environ. Model. Softw.
**2018**, 102, 274–291. [Google Scholar] [CrossRef] [Green Version] - Read, J.S.; Winslow, L.A.; Hansen, G.J.; Hoek, J.V.D.; Hanson, P.C.; Bruce, L.C.; Markfort, C.D. Simulating 2368 temperate lakes reveals weak coherence in stratification phenology. Ecol. Model.
**2014**, 291, 142–150. [Google Scholar] [CrossRef] [Green Version] - Hamilton, D.P.; Carey, C.C.; Arvola, L.; Arzberger, P.; Brewer, C.; Cole, J.J.; Gaiser, E.; Hanson, P.C.; Ibelings, B.W.; Jennings, E.; et al. A Global Lake Ecological Observatory Network (GLEON) for synthesising high–frequency sensor data for validation of deterministic ecological models. Inland Waters
**2015**, 5, 49–56. [Google Scholar] [CrossRef] [Green Version] - Read, J.S.; Hamilton, D.P.; Jones, I.D.; Muraoka, K.; Winslow, L.A.; Kroiss, R.; Wu, C.H.; Gaiser, E. Derivation of lake mixing and stratification indices from high-resolution lake buoy data. Environ. Model. Softw.
**2011**, 26, 1325–1336. [Google Scholar] [CrossRef] - Chung, E.G.; Schladow, S.G.; Pérez-Losada, J.; Robertson, D.M. A linked hydrodynamic and water quality model for the Salton Sea. Hydrobiologia
**2008**, 604, 57–75. [Google Scholar] [CrossRef] - Weinstock, J. Vertical turbulence diffusivity for weak or strong stable stratification. J. Geophys. Res. Space Phys.
**1981**, 86, 9925. [Google Scholar] [CrossRef] - Wüest, A.; Brooks, N.H.; Imboden, D.M. Bubble plume modeling for lake restoration. Water Resour. Res.
**1992**, 28, 3235–3250. [Google Scholar] [CrossRef] - Haario, H.; Laine, M.; Mira, A.; Saksman, E. DRAM: Efficient adaptive MCMC. Stat. Comput.
**2006**, 16, 339–354. [Google Scholar] [CrossRef] - Hansen, N.; Müller, S.D.; Koumoutsakos, P. Reducing the Time Complexity of the Derandomized Evolution Strategy with Covariance Matrix Adaptation (CMA-ES). Evol. Comput.
**2003**, 11, 1–18. [Google Scholar] [CrossRef] [PubMed] - Smith, P.E. A Semi-Implicit, Three-Dimensional Model for Estuarine Circulation. In Open-File Report; U.S. Geological Survey: Reston, VA, USA, 2006. [Google Scholar]
- Rueda, F.; Singleton, V.; Stewart, M.; Little, J.; Lawrence, G. Modeling the fate of oxygen artificially injected in the hypolimnion of a lake with multiple basins: Amisk Lake revisited, paper presented at Environmental Hydraulics. In Proceedings of the 6th International Symposium on Environmental Hydraulics, Athens, Greece, 23–25 June 2010; Volume 1, pp. 379–384. [Google Scholar] [CrossRef]
- Bruggeman, J.; Bolding, K. A general framework for aquatic biogeochemical models. Environ. Model. Softw.
**2014**, 61, 249–265. [Google Scholar] [CrossRef] [Green Version] - Courant, R.; Friedrichs, K.; Lewy, H. On the Partial Difference Equations of Mathematical Physics. IBM J. Res. Dev.
**1967**, 11, 215–234. [Google Scholar] [CrossRef] - McClure, R.P.; Hamre, K.D.; Niederlehner, B.; Munger, Z.W.; Chen, S.; Lofton, M.E.; Schreiber, M.E.; Carey, C.C. Metalimnetic oxygen minima alter the vertical profiles of carbon dioxide and methane in a managed freshwater reservoir. Sci. Total. Environ.
**2018**, 636, 610–620. [Google Scholar] [CrossRef] - Ladwig, R.; Hanson, P.C.; Dugan, H.A.; Carey, C.C.; Zhang, Y.; Shu, L.; Duffy, C.J.; Cobourn, K.M. Lake thermal structure drives inter-annual variability in summer anoxia dynamics in a eutrophic lake over 37 years. Hydrol. Earth Syst. Sci. Discuss
**2020**. in review. [Google Scholar] [CrossRef] - Biddanda, B.A.; Weinke, A.D.; Kendall, S.T.; Gereaux, L.C.; Holcomb, T.M.; Snider, M.J.; Dila, D.K.; Long, S.A.; Vandenberg, C.; Knapp, K.; et al. Chronicles of hypoxia: Time-series buoy observations reveal annually recurring seasonal basin-wide hypoxia in Muskegon Lake—A Great Lakes estuary. J. Great Lakes Res.
**2018**, 44, 219–229. [Google Scholar] [CrossRef] - Kara, E.L.; Hanson, P.C.; Hamilton, D.P.; Hipsey, M.R.; McMahon, K.D.; Read, J.S.; Winslow, L.A.; Dedrick, J.; Rose, K.; Carey, C.C.; et al. Time-scale dependence in numerical simulations: Assessment of physical, chemical, and biological predictions in a stratified lake at temporal scales of hours to months. Environ. Model. Softw.
**2012**, 35, 104–121. [Google Scholar] [CrossRef] - McDonald, C.P.; Bennington, V.; Urban, N.R.; McKinley, G.A. 1-D test-bed calibration of a 3-D Lake Superior biogeo-chemical model. Ecol. Model.
**2012**, 225, 115–126. [Google Scholar] [CrossRef] - Toffolon, M.; Serafini, M. Effects of artificial hypolimnetic oxygenation in a shallow lake. Part 2: Numerical modelling. J. Environ. Manag.
**2013**, 114, 530–539. [Google Scholar] [CrossRef]

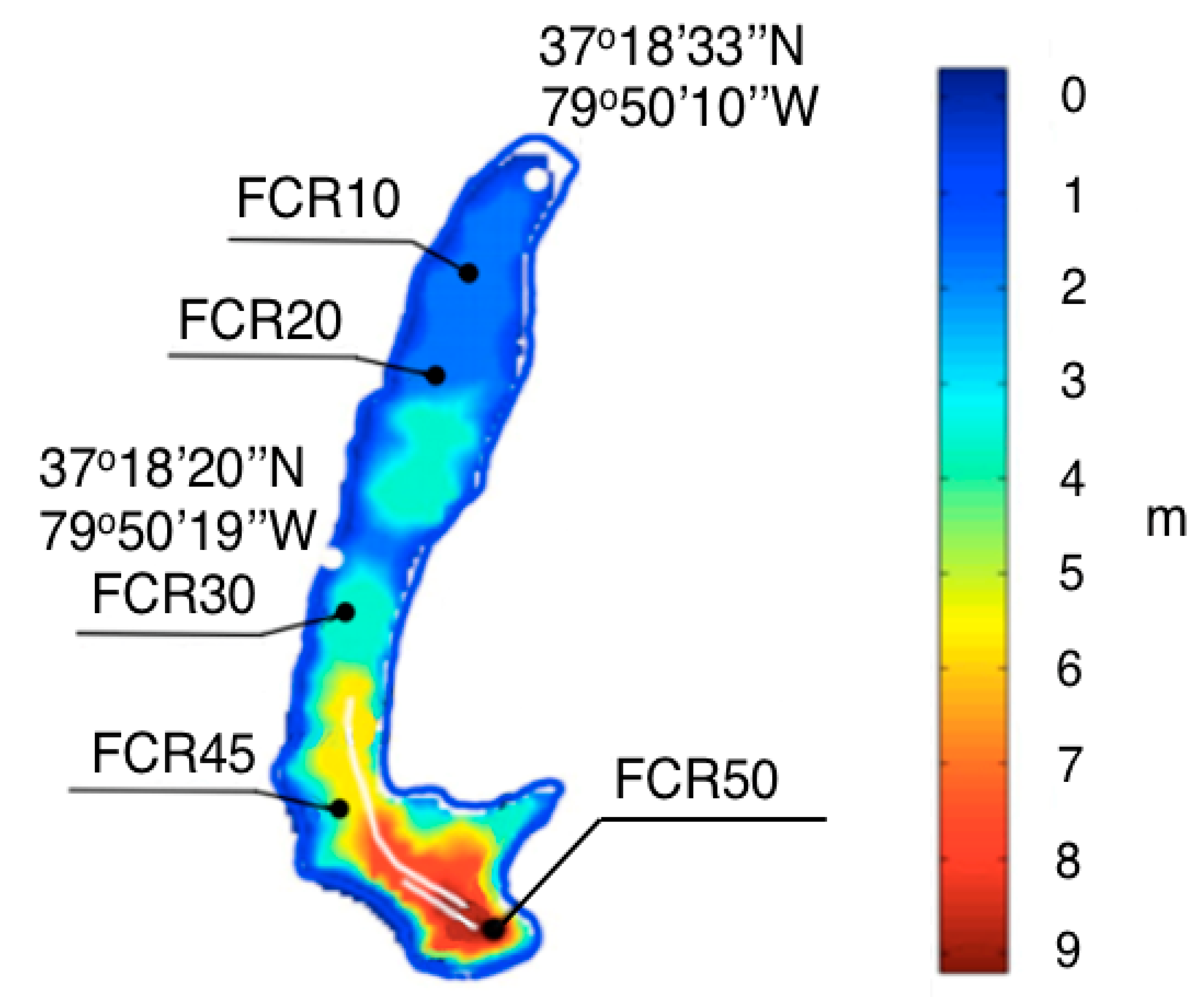

**Figure 1.**Bathymetry contours of Falling Creek Reservoir (FCR) and field data collection sites. The locations of the side stream supersaturation (SSS) system (short white line) and the epilimnion mixing (EM) system (long white line) are also shown.

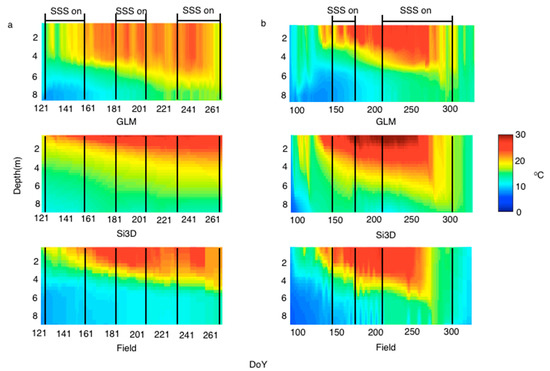

**Figure 2.**Comparisons of the one-dimensional (1-D, sediment module on, top row) and three dimensional (3-D) model temperature results (middle row) with field data (bottom row). (

**a**) Temperature plot of 2014. (

**b**) Temperature plot of 2015.

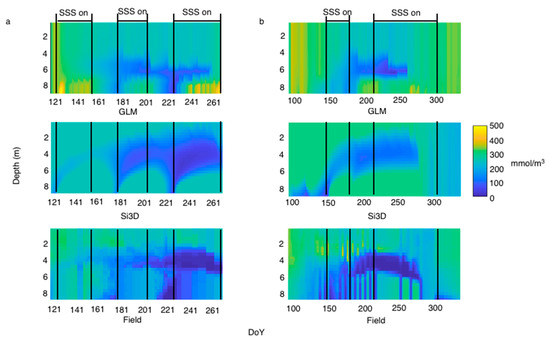

**Figure 3.**Comparisons of the 1-D (sediment module on, top row) and 3-D model DO results (middle row) with field data (bottom row). (

**a**) Dissolved oxygen (DO) plot of 2014. (

**b**) DO plot of 2015.

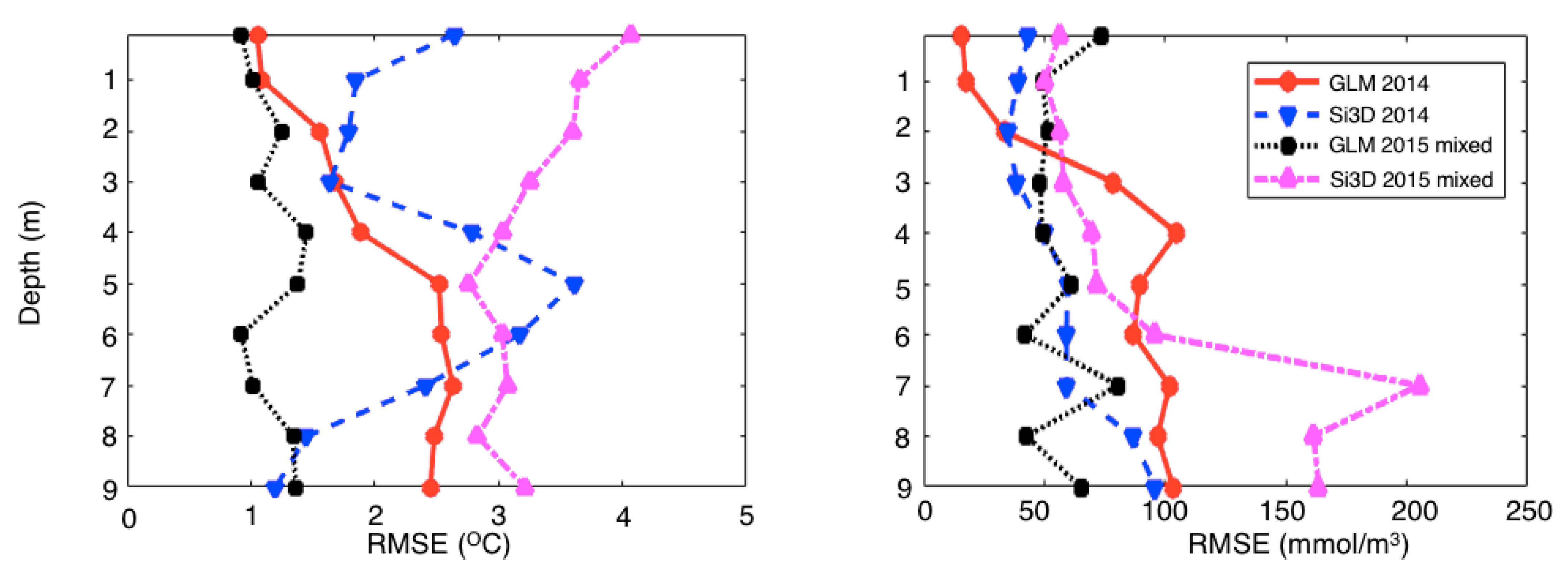

**Figure 4.**Profiles of the RMSEs of the temperature (left) and DO (right) RMSEs of the 1-D and 3-D models for 2014 and the mixed period of 2015.

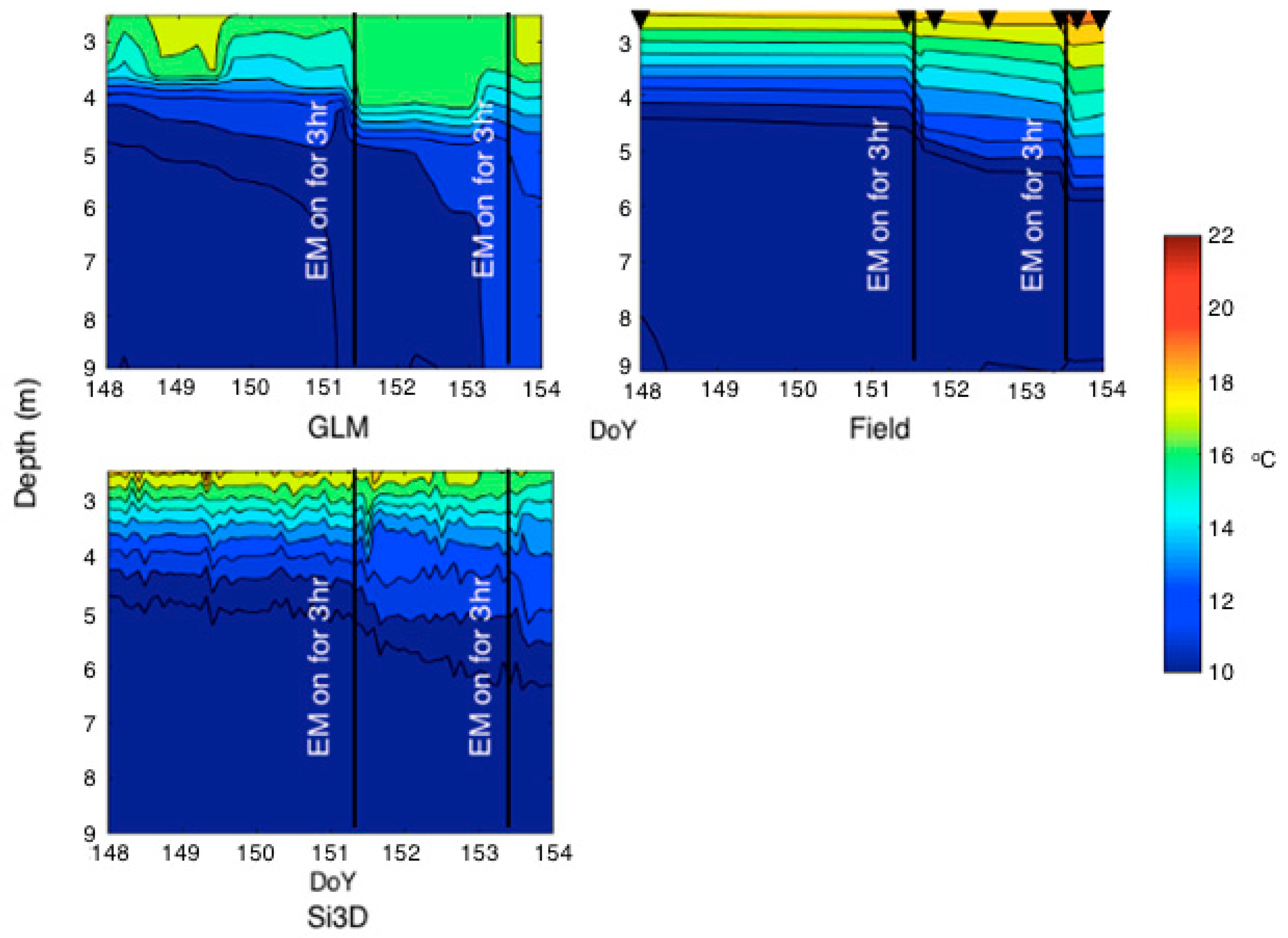

**Figure 5.**Comparison of the simulated temperature and field data for EM15 at FCR50 (year 2015). The time of the field data collection is indicated by black inverse triangles on the plot of the field data.

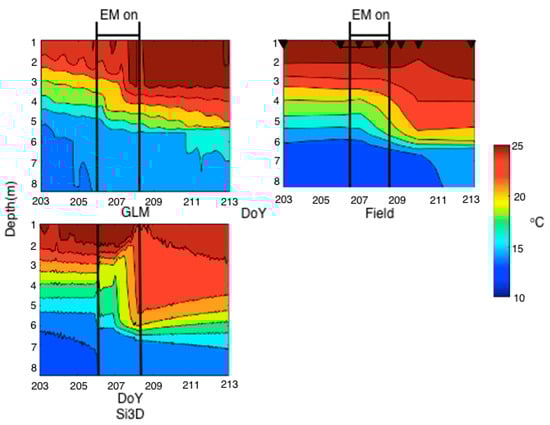

**Figure 6.**Comparison of the simulated temperature and field data for EM16–3 at FCR50. The time of the field data collection is indicated by black inverse triangles on the plot of the field data.

**Table 1.**Information about the operation of the oxygenation system in the years 2014 and 2015 and the corresponding simulation periods.

Year | Field Campaign DoY | Oxygenation Settings | Simulation Period (DoY) | ||
---|---|---|---|---|---|

DoY | Oxygen Flow Rate (kg/day) | Water Flow Rate (L/min) | |||

2014 | 121–310 | 126–154 | 20 | 208 | 121–273 |

180–210 | 20 | ||||

230–273 | 25 | ||||

2015 | 90–331 | 125–152 | 15 | 90–331 |

**Table 2.**The Si3D-AED2 and GLM-AED2 simulation dates, the EM operation periods and the corresponding flow rates in the years 2015 and 2016.

Year | Name | Simulation DoY | EM Period DoY | Time | Flow Rate (L/min) |
---|---|---|---|---|---|

2015 | EM15 | 146–154 | 151 | 12:00–15:00 | 708 |

153 | 12:00–15:00 | ||||

2016 | EM16–1 | 147–153 | 150 | 12:00–18:00 | 708 |

EM16–2 | 172–183 | 178 | 12:00–19:00 | 425 | |

19:00–24:00 | 283 | ||||

179 | 0:00–12:00 | ||||

EM16–3 | 202–213 | 206 | 12:00–17:00 | 227 | |

17:00–24:00 | 708 | ||||

207 | 0:00–12:00 | ||||

12:00–24:00 | 340 | ||||

208 | 0:00–12:00 |

**Table 3.**The root mean square errors (RMSEs) of the predicted temperatures (in °C) at different depths for 2014 and 2015. The lower RMSEs between the 1-D and 3-D model results for both stratified and mixed conditions are shown in bold.

1-D | 3-D | |||||
---|---|---|---|---|---|---|

2014 * | 2015 | 2014 * | 2015 | |||

Stratified | Mixed | Stratified | Mixed | |||

0.1 m | 1.05 | 1.18 | 0.92 | 2.64 | 3.40 | 4.07 |

3.0 m | 1.68 | 2.39 | 1.06 | 1.64 | 1.64 | 3.25 |

6.0 m | 2.54 | 3.12 | 0.92 | 3.17 | 4.54 | 3.03 |

9.0 m | 2.45 | 1.42 | 1.36 | 1.20 | 3.84 | 3.21 |

Whole lake ** | 1.99 | 1.98 | 1.17 | 2.28 | 3.14 | 3.25 |

**Table 4.**The RMSEs of the predicted DO (in mmol/m

^{3}) at different depths for 2014 and 2015. Lower RMSEs between the 1-D and 3-D model results are shown in bold.

1-D | 3-D | |||||
---|---|---|---|---|---|---|

2014 * | 2015 | 2014 * | 2015 | |||

Stratified | Mixed | Stratified | Mixed | |||

0.1 m | 15.87 | 36.29 | 73.63 | 43.36 | 51.63 | 56.24 |

3.0 m | 78.71 | 130.04 | 48.34 | 38.51 | 70.42 | 57.91 |

6.0 m | 86.88 | 59.80 | 42.02 | 59.23 | 88.37 | 95.42 |

9.0 m | 103.25 | 143.63 | 64.93 | 95.95 | 153.58 | 163.59 |

Whole lake ** | 72.84 | 96.50 | 56.31 | 56.59 | 89.44 | 98.79 |

1-D | 3-D | Literature Range | |||||
---|---|---|---|---|---|---|---|

2014 * | 2015 | 2014 * | 2015 | ||||

Stratified | Mixed | Stratified | Mixed | ||||

Temperature | 0.072 | 0.081 | 0.11 | 0.084 | 0.12 | 0.12 | 0.037–0.12 |

DO | 0.29 | 0.29 | 0.18 | 0.24 | 0.23 | 0.32 | 0.054–0.33 |

**Table 6.**The RMSEs of the predicted thermocline depths and the metalimnion bottom depths for the entire stratified period of 2014 and 2015 from Si3D and GLM-AED2 simulations. The relatively lower RMSEs between the 1-D and 3-D model results are shown in bold.

Si3D-AED2 | GLM-AED2 | |||
---|---|---|---|---|

Year | 2014 | 2015 | 2014 | 2015 |

RMSE of the thermocline depth (m) | 1.7 | 1.2 | 1.7 | 3.0 |

RMSE of the metalimnion bottom depth (m) | 2.4 | 0.92 | 2.3 | 2.2 |

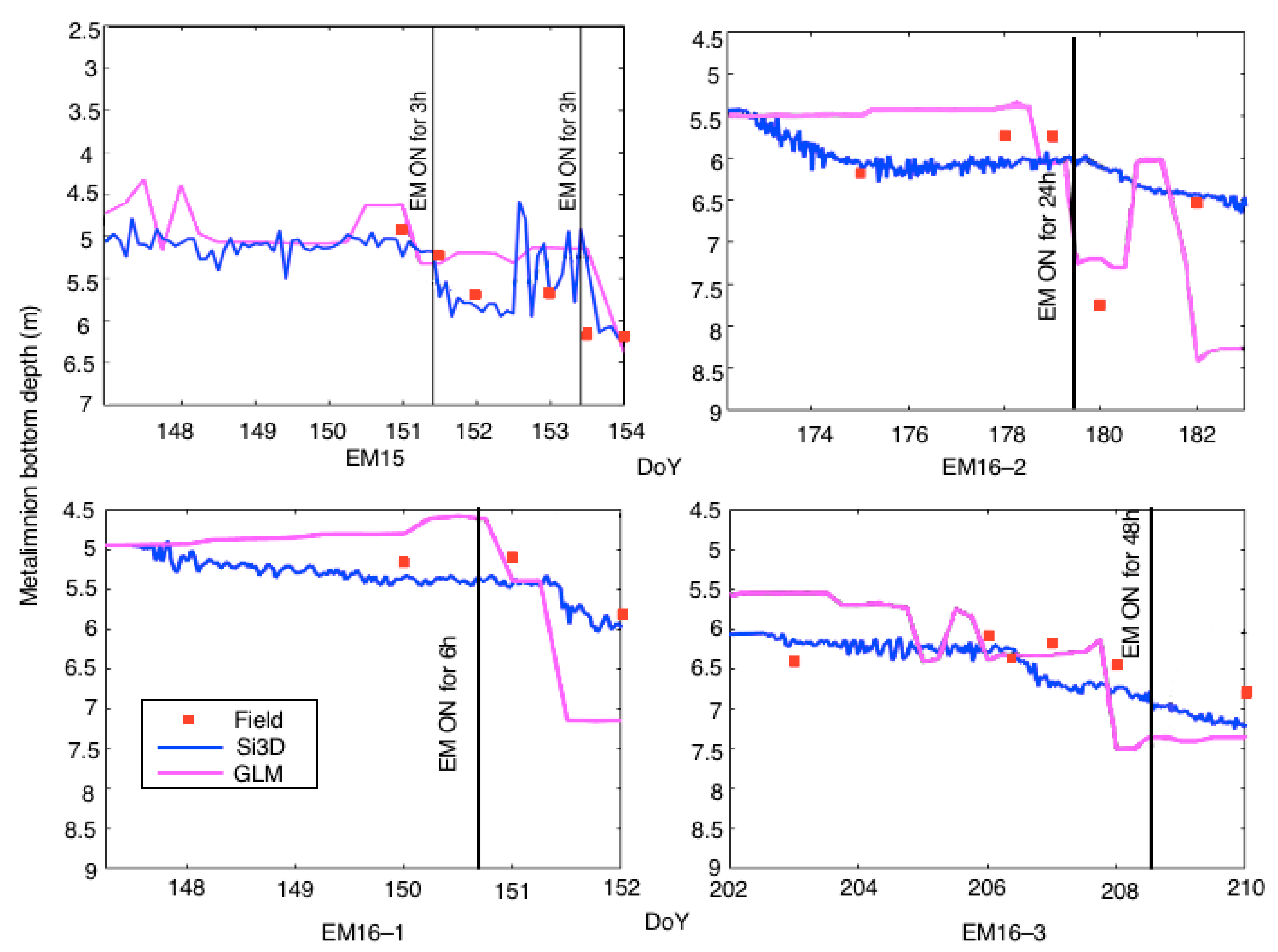

**Table 7.**RMSEs (in m) of simulated metalimnion bottom depths during the EM periods of 2015 and 2016.

EM15 | EM16–1 | EM16–2 | EM16–3 | Weighted Average | |
---|---|---|---|---|---|

GLM | 0.6 | 0.6 | 1 | 0.7 | 0.7 |

Si3D | 0.5 | 0.2 | 0.8 | 0.3 | 0.5 |

**Table 8.**The NMAEs of the temperature and DO of the 3-D model at FCR20, FCR30 and FCR45 for the 2014 simulation.

FCR20 | FCR30 | FCR45 | Average | |
---|---|---|---|---|

Temperature | 0.077 | 0.077 | 0.085 | 0.080 |

DO | 0.17 | 0.16 | 0.20 | 0.18 |
