2D Numerical Modeling on the Transformation Mechanism of the Braided Channel

Abstract

This paper investigates the transformation mechanism between different channel patterns. A developed 2D depth-averaged numerical model is improved to take into account a bank vegetation stress term in the momentum conservation equation of flow. Then, the extended 2D model is applied to duplicate the evolution of channel pattern with variations in flow discharge, sediment supply and bank vegetation. Complex interaction among the flow discharge, sediment supply and bank vegetation leads to a transition from the braided pattern to the meandering one. Analysis of the simulation process indicates that (1) a decrease in the flow discharge and sediment supply can lead to the transition and (2) the riparian vegetation helps stabilize the cut bank and bar surface, but is not a key in the transition. The results are in agreement with the criterion proposed in the previous research, confirming the 2D numerical model’s potential in predicting the transition between different channel patterns and improving understanding of the fluvial process.

1. Introduction

Channel pattern refers to the limited reaches of the river that can be defined as straight, meandering or braided. While long, straight rivers seldom occur in nature; meandering and braided rivers are common [1]. The transformation of channel patterns take place in response to variations in different variables, which can be grouped into four categories: (i) Dynamic flow, (ii) shape and characteristics of the channel, (iii) sediment load and (iv) bed and bank material [2]. A sound understanding of the relationship between the control variables and channel pattern is fundamental to the development of improved management strategies in braided rivers [3]. The laboratory flume experiments have shed much light on the dynamic behavior of a wide braided river to a single-thread channel [4,5,6,7,8,9,10]. Various criteria have been proposed on the response of channel morphology to control variables [11,12,13,14]. Quantitative inconsistencies in both the coefficients and exponents of discriminant functions have resulted from the use of different measures of slope and discharge, as well as differences in the definitions of the transition between channel patterns [15,16,17].

With the rapid developments of numerical and mathematics methods in fluid mechanics, multiple-mathematics models have become important tools for investigating dynamic interactions in evolving braid units. The development of physically based theories, which attempt to relate pattern and process in a predictive manner, offer improved insight into the primary variables controlling channel pattern. Models based on linearized physics-based equations [18,19,20,21] and 2D nonlinear physics-based morphological models [22,23,24,25] have been established to simulate the braided channel evolution. Cellular models [26,27,28,29], 2D and 3D flow-sediment numerical models [30,31,32,33,34,35] have been developed to model braided rivers. Although various computational studies on the formation of braided rivers are available, few preliminary numerical studies of the transformation process from the braided to meandering pattern are offered [36], to discuss the interactions of multiple factors, such as flow conditions, sediment characteristics and bank stability.

The primary objective of this study is to investigate the dynamic process of the transformation between different channel patterns with different control variables. The original 2D numerical model takes the vegetation term into the flow momentum equation, and is verified in the middle section of the Yangtze River. Subsequently, a conceptual braided channel is established in the numerical experiment, control factors as flow discharge, sediment supply and bank vegetation are considered in the simulation of the transition from the braided to the meandering channel. The proposed criteria were applied to discuss the transition process between the braided and meandering channel, the results agree well with the previous research. It demonstrates that the 2D numerical model can be applied to improve understanding of patterning processes under different scenarios.

2. Numerical Model

2.1. Model Description

The 2D numerical model incorporates the hydrodynamic, sediment transport and river morphological adjustment sub-model. It is solved in the orthogonal curvilinear grid system by using the Beam and Warming alternating-direction implicit (ADI) scheme. The sediment transport submodel includes the influence of non-uniform sediment with bed surface armoring and a correction for the direction of bed-load transport due to secondary flow and transverse bed slope. The bank erosion submodel incorporates a simple simulation method for updating bank geometry during either degradational or aggradational bed evolution. The details of the developed 2D model can be found in Xiao et al. [37], and verified in the physical meandering channel and the upstream of the Yangtze River [38].

2.2. Consideration of the Riparian Vegetation Influence

The significance of riparian vegetation as a control of river form and process is increasingly being recognized in fluvial research. In this study, the hydrodynamic portion of the 2D numerical model was upgraded to incorporate the effects of riparian vegetation.

The equilibrium equation for the riparian vegetation zones herein can be introduced by Ikeda and Izumi [39] in the form:

$$\frac{\tau }{\cos \theta }=\rho gHS-D_r+\frac{d}{dy}{\displaystyle {\int }_0^H\left(-\rho \overline{u^{\prime }{v}^{\prime }}\right)}dz,$$

(1)

where $\tau$ is the total shear stress near the river bank (Pa); D_r is the vegetation stress term (Pa); $v^{\prime }$, $u^{\prime }$ are the fluctuating velocity in the longitudinal and transverse direction (m/s), respectively; S is the slope, H is the averaged water depth (m) and $\theta$ is the inclination of the location, often $\theta \approx 0$, Equation (1) can be reduced to:

$$\begin{gathered} \tau =\rho gHS-D_r+\frac{d}{dy}{\displaystyle {\int }_0^H\left(-\rho \overline{u^{\prime }{v}^{\prime }}\right)}dz \\ {D}_r=\frac{1}{2}\rho C_D\overline{u}{}^2\frac{aH}{\cos \theta } \\ \tau ={\tau }_j^L+{\tau }_{}^T-D_r. \end{gathered}$$

(2)

Let $p^v=D_r$, substitute it to the momentum conservation equation of flow in the Cartesian coordinate system as:

$$\frac{\partial }{\partial t}(\rho u_i)+\frac{\partial }{\partial x_j}(\rho u_i{u}_j)=\rho f_i-\frac{\partial p}{\partial x_i}+\frac{\partial {\tau }_{ij}}{\partial x_j}-\frac{\partial p^v}{\partial x_i},$$

(3)

$$\frac{\partial p^v}{\partial x_i}=\frac{\partial \left(\frac{1}{2}\rho C_D\overline{u}{}^2\frac{aH}{\cos \theta }\right)}{\partial x_i}=\frac{1}{2}\rho C_D\frac{aH}{\cos \theta }\overline{u}{u}_{i}i=1,2,$$

(4)

$$\overline{u}=\sqrt{{\displaystyle \sum _i{u}_i^2}}i=1,2$$

(5)

where $p^v$ should satisfy the additional condition in all directions as: $p^v={\displaystyle \sum _{i=1}^2{\left(\frac{\partial p^v}{\partial x_i}\right)}^2}$; $\overline{u}$ is the depth-averaged flow velocity (m/s); $u_i$ is the flow velocity in the i-direction (m/s); a is the vegetation density (m⁻¹), defined as $a=d/\left(l_x{l}_y\right)$, d is the radius of the vegetation (m) and l_x and l_y are the distance of vegetation in the longitudinal and transverse directions (m).

C_D is the drag coefficient of vegetation. Consider the influence range of the vegetation coefficient, let C_D = 1.5 when the vegetation zones near the river bank [39]; if the zones of vegetation are in the river channel, we assumed the influence of vegetation was proportionate to the distance from the channel center in the form:

$$\begin{array}{l}{C}_D=0x=l\\ C_D=1.5-1.5x/l0<x<l\\ C_D=1.5x=0\end{array}$$

(6)

where l is the distance from the river bank to the channel center (m); x is the distance from the computed point to the river bank (m).

In this study, we substituted Equations (4) and (5) to the 2D depth-averaged momentum conservation equation of flow in the orthogonal curvilinear coordinate system as follows:

$$\begin{array}{l}\frac{\partial q}{\partial t}+\beta (\frac{1}{J}\frac{\partial (h_{2}qU)}{\partial \xi }+\frac{1}{J}\frac{\partial (h_{1}pU)}{\partial \eta }-\frac{pV}{J}\frac{\partial h_2}{\partial \xi }+\frac{qV}{J}\frac{\partial h_1}{\partial \eta })-fp+\frac{gH}{h_1}\frac{\partial Z}{\partial \xi }+\frac{qg\left|\overline{q}\right|}{{(CH)}^2}=\frac{{\nu }_{e}H}{h_1}\frac{\partial E}{\partial \xi }-\frac{{\nu }_{e}H}{h_2}\frac{\partial F}{\partial \eta }+\frac{1}{J}\frac{\partial \left(h_2{D}_{11}\right)}{\partial \xi }\\ +\frac{1}{J}\frac{\partial \left(h_1{D}_{12}\right)}{\partial \eta }+\frac{1}{J}\frac{\partial h_1}{\partial \eta }{D}_{12}-\frac{1}{J}\frac{\partial h_2}{\partial \xi }{D}_{22}-\frac{1}{2}\rho C_D\frac{aH}{\cos \theta }\sqrt{U^2+V^2}\frac{y_{\eta }{h}_{1}U-y_{\xi }{h}_{2}V}{J}\\ \frac{\partial p}{\partial t}+\beta (\frac{1}{J}\frac{\partial (h_{2}qV)}{\partial \xi }+\frac{1}{J}\frac{\partial (h_{1}pV)}{\partial \eta }+\frac{pU}{J}\frac{\partial h_2}{\partial \xi }-\frac{qU}{J}\frac{\partial h_1}{\partial \eta })+fq+\frac{gH}{h_2}\frac{\partial Z}{\partial \eta }+\frac{pg\left|\overline{q}\right|}{{(CH)}^2}=\frac{{\nu }_{e}H}{h_2}\frac{\partial E}{\partial \eta }+\frac{{\nu }_{e}H}{h_1}\frac{\partial F}{\partial \xi }+\frac{1}{J}\frac{\partial \left(h_2{D}_{12}\right)}{\partial \xi }\\ +\frac{1}{J}\frac{\partial \left(h_1{D}_{22}\right)}{\partial \eta }-\frac{1}{J}\frac{\partial h_1}{\partial \eta }{D}_{11}+\frac{1}{J}\frac{\partial h_2}{\partial \xi }{D}_{12}-\frac{1}{2}\rho C_D\frac{aH}{\cos \theta }\sqrt{U^2+V^2}\frac{x_{\xi }{h}_{2}V-x_{\eta }{h}_{1}U}{J}\end{array}$$

(7)

where h₁ and h₂ are the lame coefficients in the $\xi$ and $\eta$ direction, respectively; U and V are the depth-averaged flow velocity components in the $\xi$ and $\eta$ direction; the unit discharge vector is $\overline{q}=(q,p)=(UH,VH)$; z is the water level relative to the reference plane; $\beta$ is the correction factor for non-uniformity of the vertical velocity profile; f is the Coriolis parameter, which was neglected in this study; g is the gravitational acceleration; C is the Chezy coefficient; ${\nu }_e$ is the depth mean effective vortex viscosity, $z_s$ and $z_b$ are the dependent water levels at the water surface and channel bed, respectively.

2.3. Verification

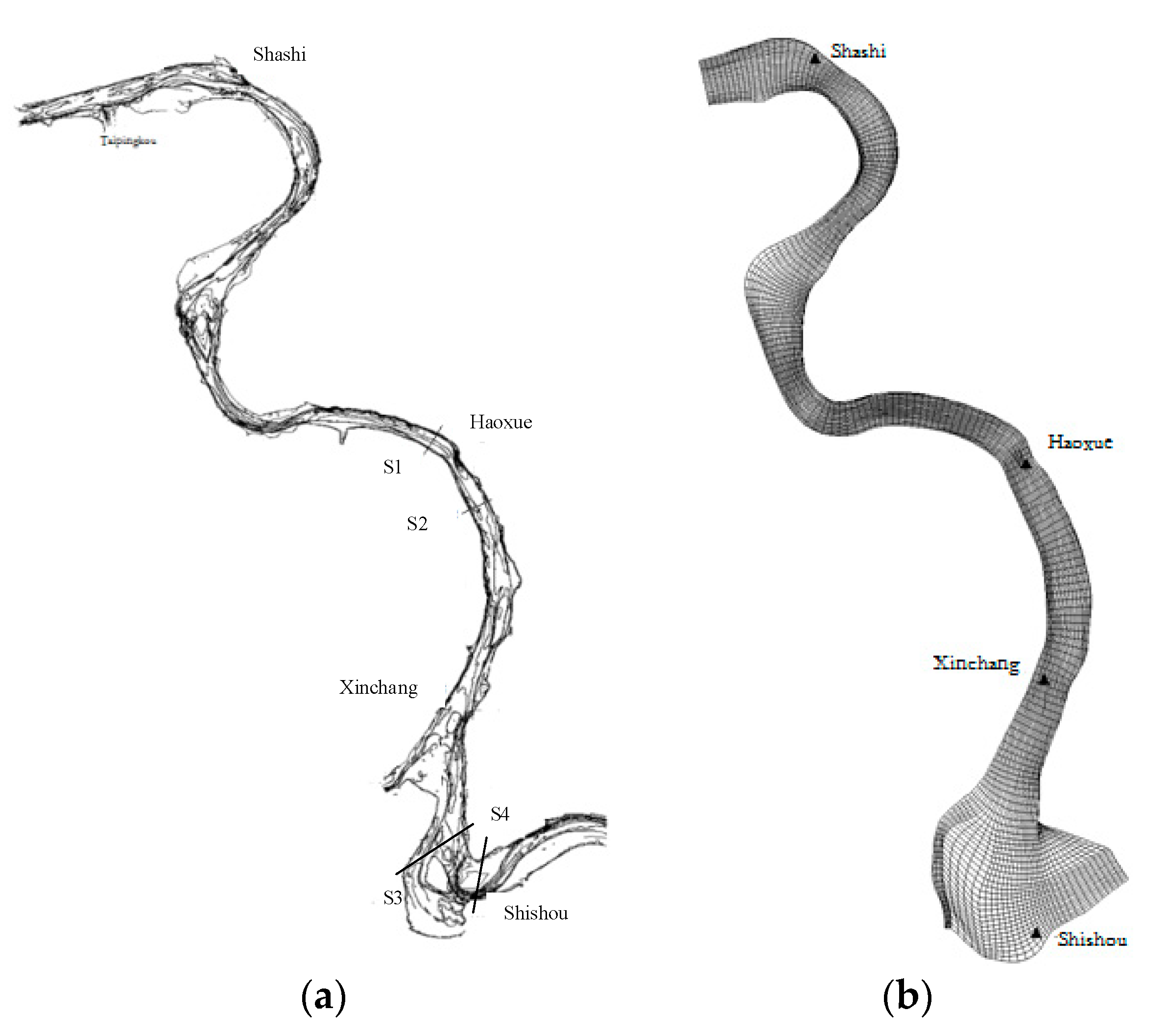

The extended 2D numerical model was applied to a 102 km long, ‘S’ shaped channel section in the middle Yangtze River, and the bank along the river from Shashi to Shishou is protected by the riparian vegetation. An orthogonal curvilinear coordinate system was applied with a total of 600 × 115 grids in the computational domain and a time interval of t = 8 s (Figure 1). The angles between the ξ and η grid lines were 88° and −92°, except for some grids close to the banks. The grid spacing was 100–180 m in the ξ direction and 35–45 m in the η direction. Observed daily water discharge and sediment load at the inlet were used as boundary conditions and bed contour maps dated September 2002 was the initial topography [40]. Calculation of suspended load was divided to eight group ranging from 0.005 to 1 mm in diameter (

Table 1. The fraction of suspended load being simulated.

No.	1	2	3	4	5	6	7	8
Size (mm)	0.004	0.008	0.016	0.031	0.062	0.125	0.25	0.5
Proportion	30	12.7	13.4	14.6	13.1	8.2	6.5	1.5

). The sediment gradation in bed materials (

Table 2. The fraction of bed material.

No.	Group Percentage of Bed Materials									D50 (mm)	Year
	0.004	0.008	0.016	0.03	0.062	0.125	0.25	0.5	1
%	0	0	0	0.1	1.1	13.2	55.3	30	0.3	0.193	2002

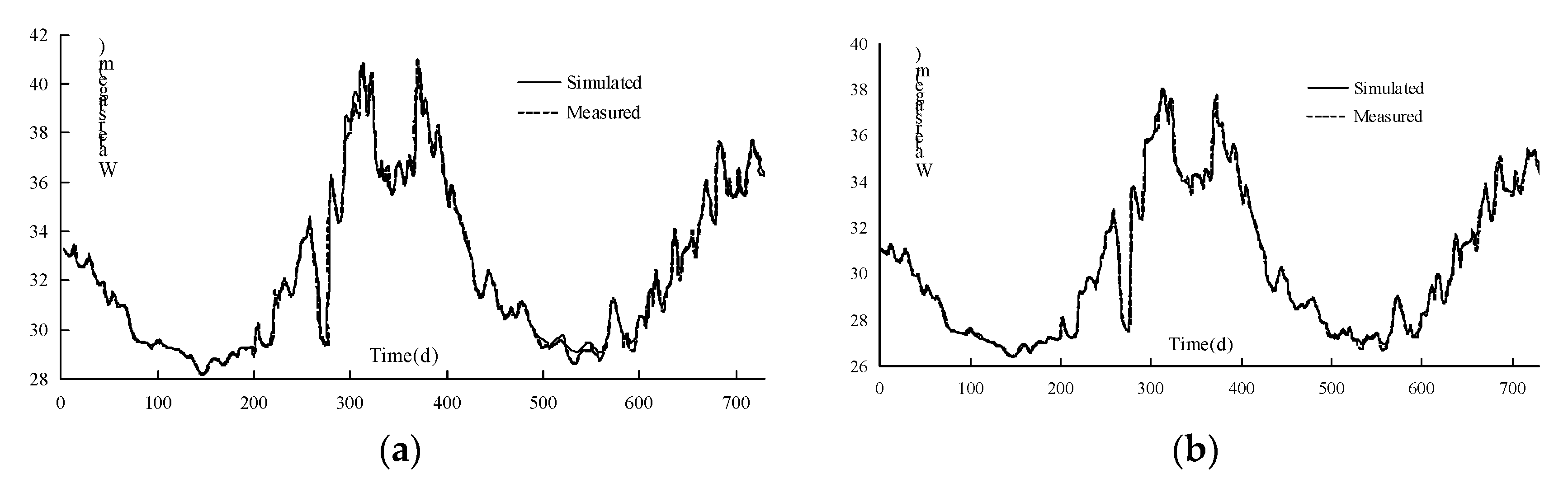

), transport capacity for various size groups, and river topography were adjusted every 24 h. The thickness of active layers were L_a = 15 m. A real time period of two years was simulated, and the calculated results of flow velocity, water stage and morphological changes were compared with the measured data.

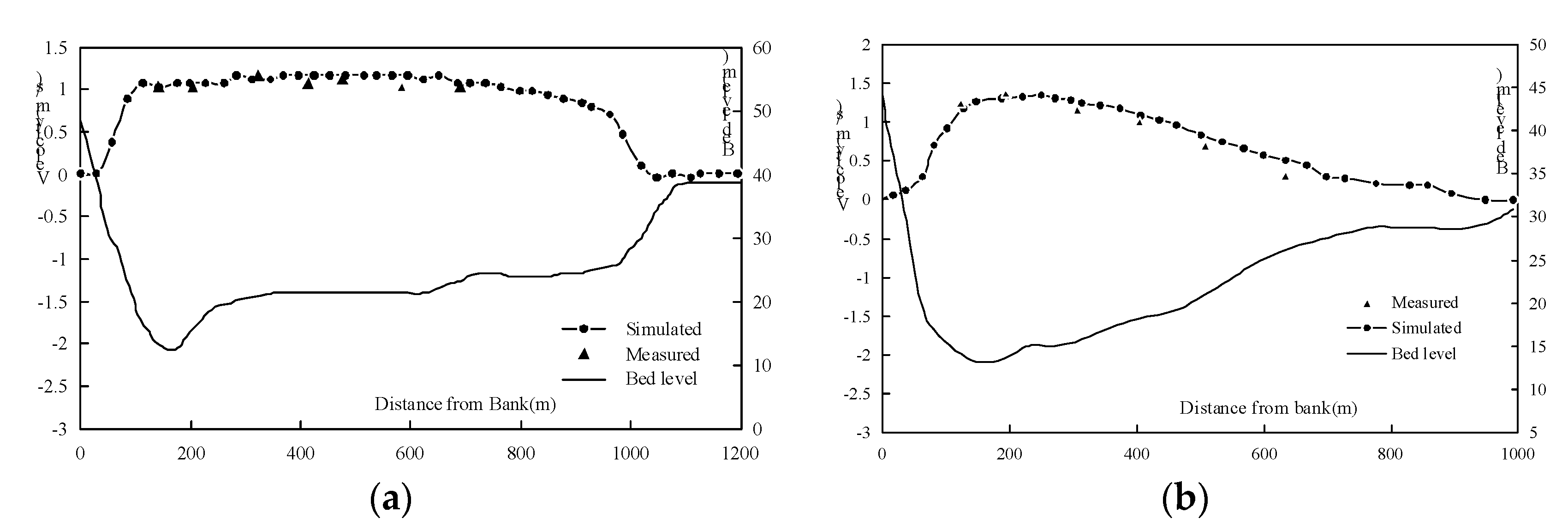

Comparison of observed and calculated cross-sectional profile of depth averaged stream-wise velocity for various discharges in November 2003 is shown in Figure 2, calculated depth-averaged velocities were consistent with the observed asymmetrical velocity patterns, and the relative error near the bank vegetation area was below 6%. Figure 3 shows the comparison of the measured and calculated water stages at two hydrometric stations during September 2002–July 2004, which indicate good agreements between simulations and measurements.

Table 3. Measured and calculated volumes of deposition (+) or scour (−).

River Section	Total Distance (km)	Section Length (km)	Measured (106 m3)	Calculated (106 m3)
Taipingkou-Shashi	8.47	8.47	−827.26	−1185.91
Shashi-Haoxue	58.65	50.19	−1705.39	−1730.82
Haoxue-Xinchang	73.62	14.96	−1353.62	−924.21
Xinchang-Shishou	93.38	19.76	−1508.87	−1719.86

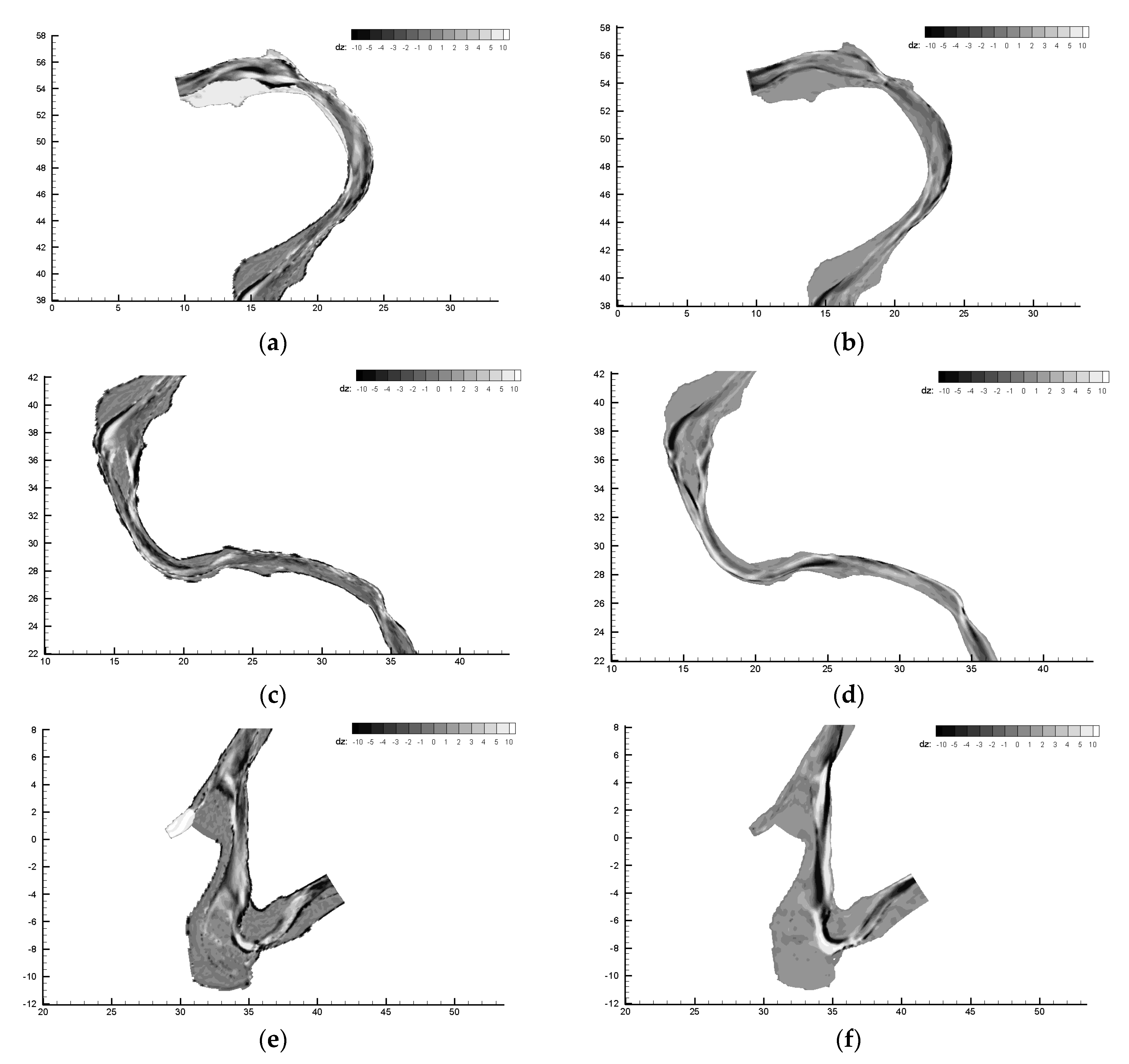

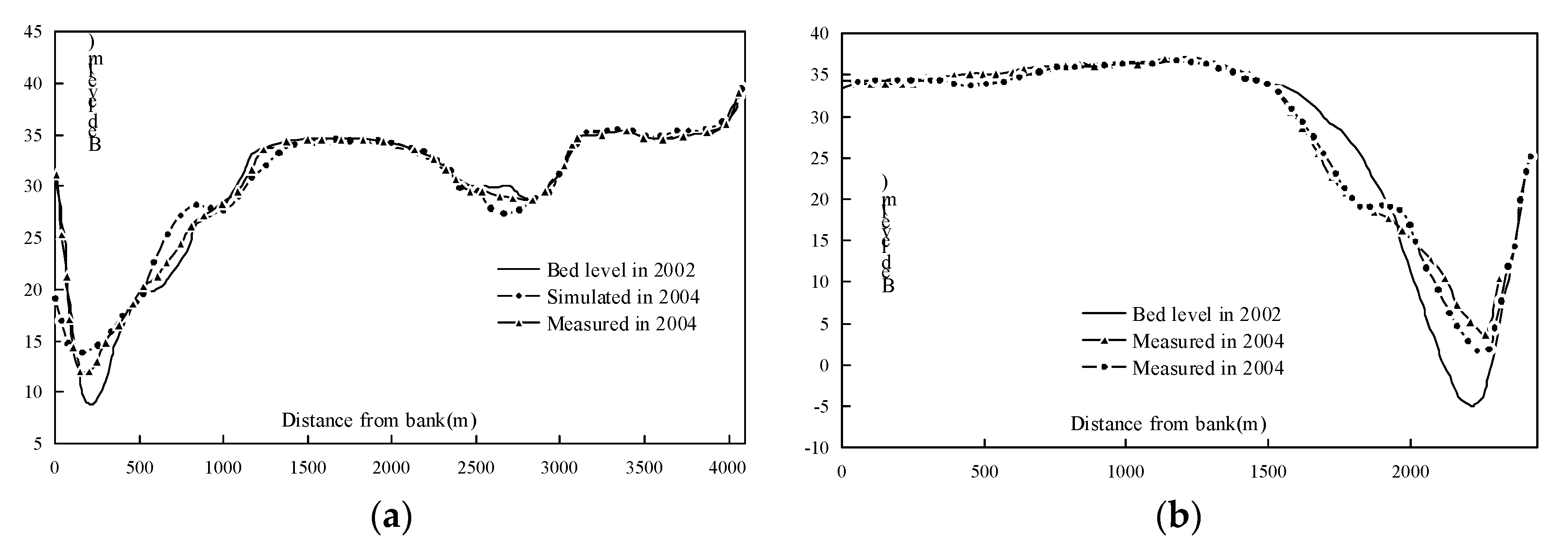

lists the measured and calculated total amount of deposition or scour. It indicates that the largest discrepancy between observed and calculated of results was found in the entrance section from Taipingkou-shashi, possibly due to the uncertainties introduced by the initial and boundary conditions. Figure 4 is a comparison between the calculated and measured scour and deposition depths. It can be seen that except the entrance section, the predicted pattern of scour and deposition agreed well with observations if reliable information of bank material, riparian vegetation and bed material size could be obtained. A comparison of changes of the bed level at the typical cross sections shows that as time progressed, the pattern of the cross sections tended to the measurements with acceptable ranges of error (Figure 5).

3. Numerical Modeling on the Transformation of Braided and Meandering Channel

3.1. Formation of the Braided Channel

The conceptual channel was 10,000 m long and 300 m wide, and the grid system of 400 × 80 nodes was generated. The initial bed was flat with a 0.4% slope, the medium grain size of the sediment supply and the bed material was 0.1 mm. The inlet water discharge and sediment feed rate are provided in

Table 4. The experimental conditions.

Time Period	Time (d)	Discharge (m3/s)	The Medium Grain Size (mm)	Sediment Supply (kg/m3)
1	360	150	0.1	1
2	360	300	0.1	5

, and the outlet water level was constant during the simulation, the repose of the sediment φ′ = 14, and the lateral erosion coefficient of the bank as C = 0.011. The computational time interval Δt = 6 s, and the simulation time period was 720 days.

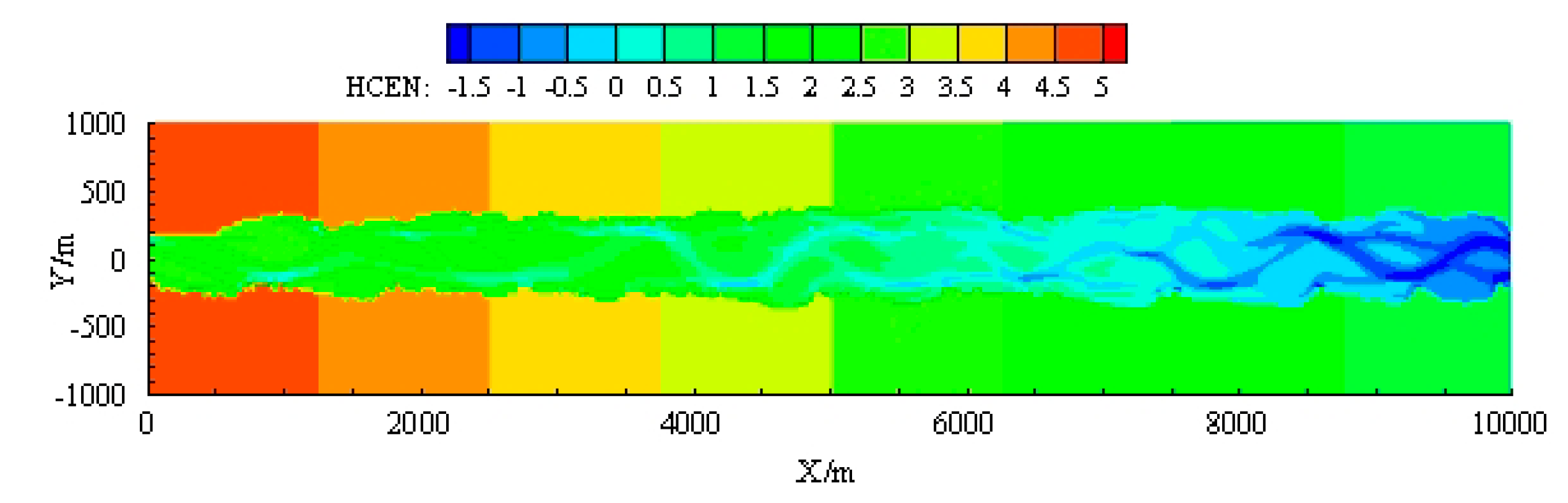

Figure 6 depicts an unstable braided river pattern after 720 days. Two control factors contributed to the formation of the braided channel: Large and sudden variation in discharge resulted in broadened channel cross-sections; large sediment supply led to aggradation up and down in the upper section of the stream and the initially symmetric inflow became almost asymmetrical and formed point bars or migrating central bars. It illustrated that a fluctuation in the controls would induce changes of the braided channel pattern to another pattern.

3.2. The Transformation of the Braided Channel under Control Variables

Based on the simulated braided river, four numerical experiments were performed including the effect of water discharge, sediment supply and bank vegetation. The experimental conditions can be seen in

Table 5. The experimental conditions.

No.	Flow Discharge (m3/s)	Sediment Supply (kg/m3)	Bank Vegetation	Time (d)
1	150	5	Yes	600
2	300	1	No	600
3	300	5	No	600
4	150	1	Yes	600

.

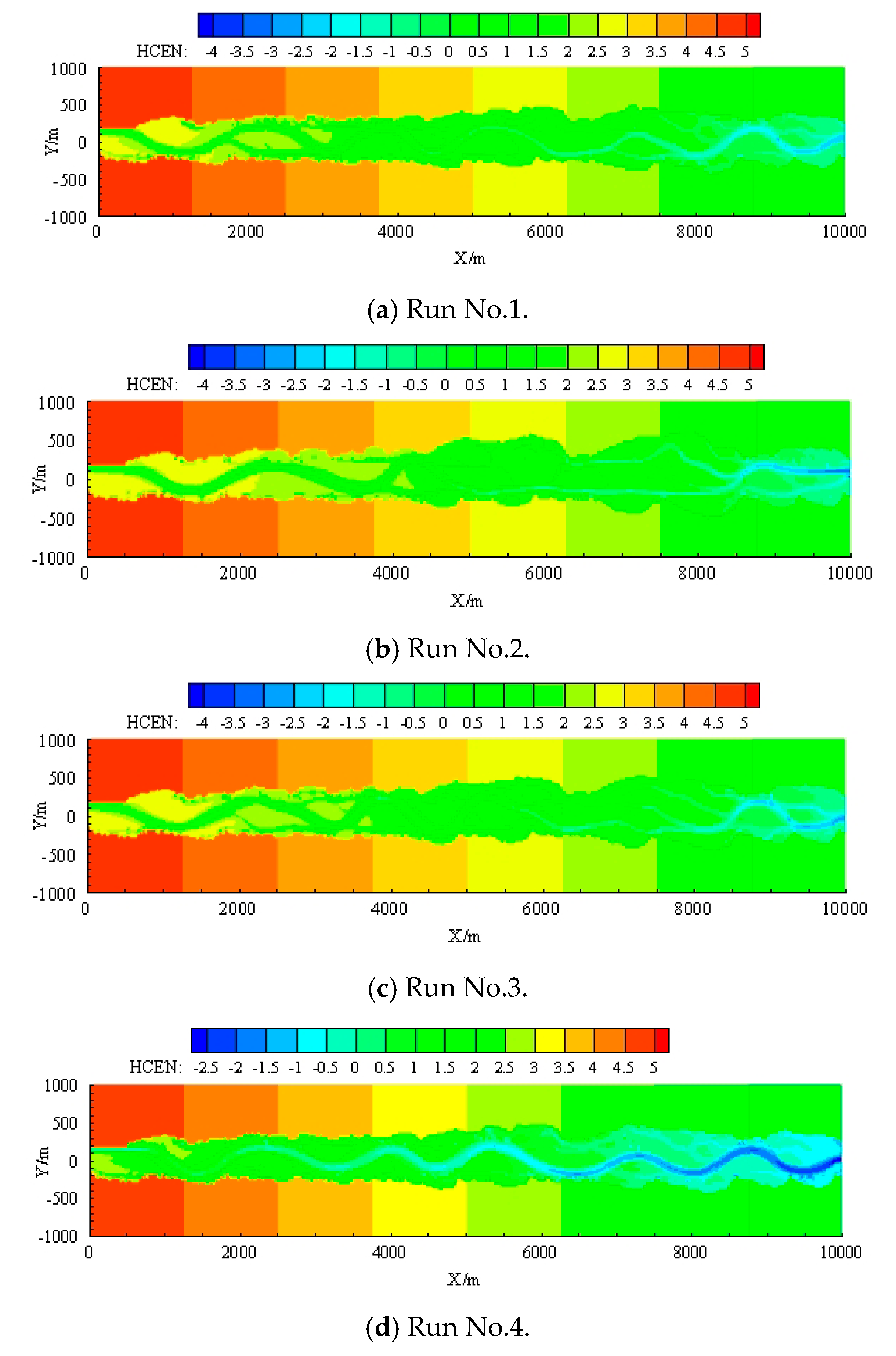

Figure 7 depicts the final planform of the braided river for runs No. 1, 2 and 3. In run No. 1, reduction of the discharge led to a weak sediment transport capacity, sedimentation took place in the branch channel and a new main channel was formed in the upper section. With time processes, aggradation resulted in higher bed elevations above the initial bed profile in the upstream, led to an increase of the stream power in the downstream and a broad, island braided channel was formed (Figure 7a). The braided channel in run No. 2 also transferred to a meandering channel in the upstream with different mechanisms compared with run No. 1: A reduction of sediment load resulted in less aggradation and bed scour in the upper part, and might be a key factor in the formation of a straight channel pattern with no island-bars in the downstream (Figure 7b). Figure 7c shows that bank vegetation enhanced the strength of banks, stabilized the channel, held on the sediment and the plan view seemed like that of run No. 2. As shown in Figure 7d, the planform of run No. 4 was obtained by the contribution of the influence of discharge, sediment supply and bank vegetation. It can be seen that the channel transformed to a single thread channel pattern differing from the other three numerical experiments, especially in the downstream; the reach downstream was sketched, where the wetted and active branches were marked off.

4. Discussion

4.1. The Cross Section Change

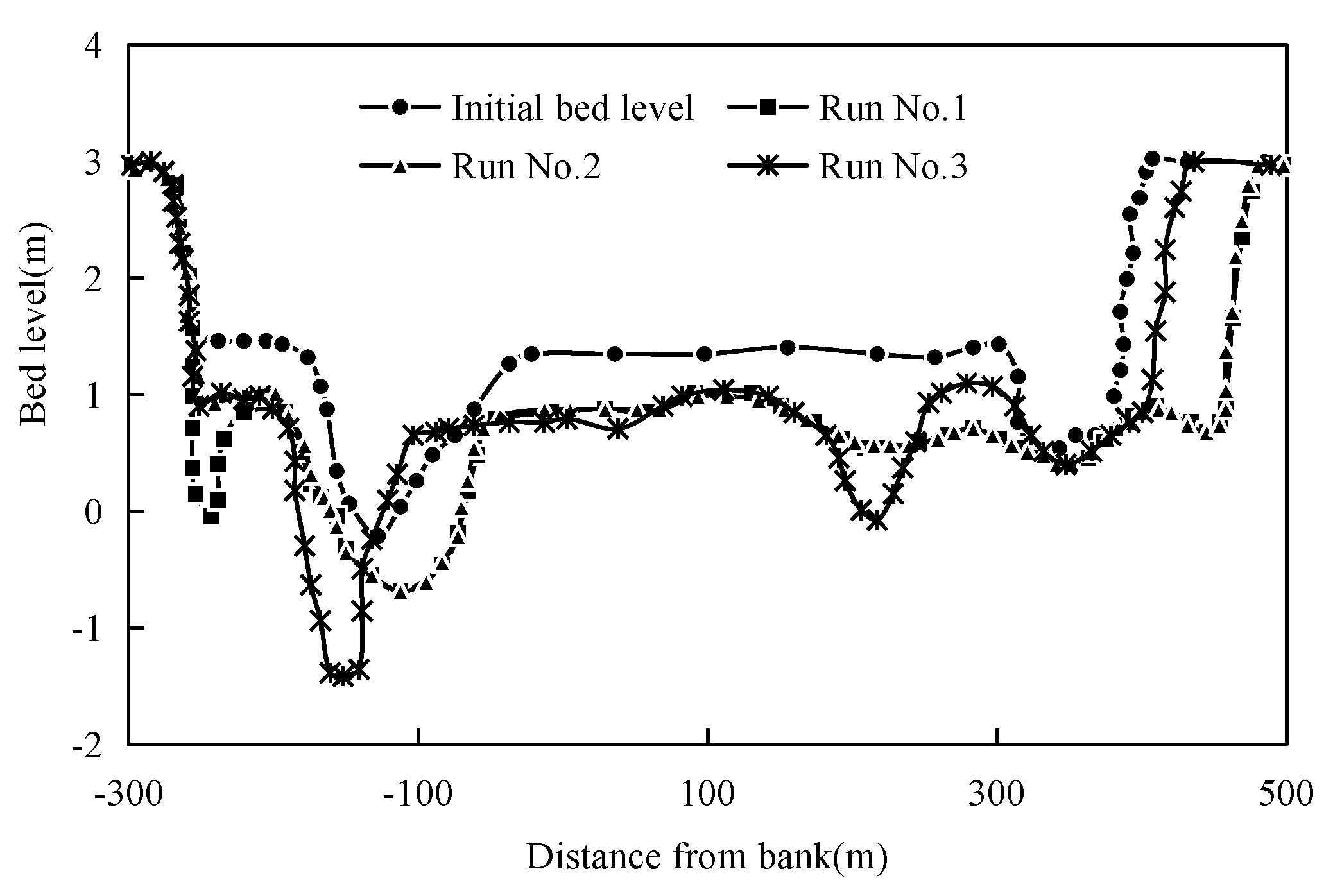

Figure 8 shows the comparison of the bed deformations between runs No. 1–3 and the initial braided river at the 6000 m cross section. As decreasing the discharge and sediment load respectively in run No.1 and 2, the main channel shifted to the right bank as the sand bars growing at the left bank; the shape of the cross section transit from “W” to “U”; the width ratio was lower and the depth of the channel in run No. 3 was deeper than that of run No. 1–2, it illustrated that the vegetation could increase tensile and shear strength, gave adequate time and conditions for development, such stabilization allows the existence of relatively steep cut banks, and might hinder the lateral migration of channels [41].

4.2. The Channel Planform Change

The quantified parameters characterizing run No. 1–4 were obtained in Table 3. “Braided -channel ratio” B was used to describe the development of multiple channels from a channel belt as follows [42]:

$$B=L_{ctot}/L_{c\max },$$

(8)

where L_ctot is the sum of the mid-channel lengths of all the segments of primary channels in a reach and L_cmax is the mid-channel length of the same channel.

Table 6. The parameters of the braided reach.

No.	Number of Breaches	Braided-Channel Ratio (B)	Sinuosity (P)
Run No. 1	6	2.11	1.06
Run No. 2	5	1.9	1.00
Run No. 3	4	1.97	1.01
Run No. 4	2	1.22	1.35

shows the braiding and meandering parameters for run No. 1–4. Due to the similar plan view in run No. 2 and run No. 3, one could see the values of the sinuosity (P) and braided-channel ratio (B) tended to correlate negatively with the reduction of breaches. Figure 9 presents the sketch of the braided reach for the initial and run 1, 2 and 4. Theoretically, if a reach has only a single channel, with no braids, the braided-channel ratio (B) would approach 1 as the sinuosity (P) of the river section has the minimum value of unity.

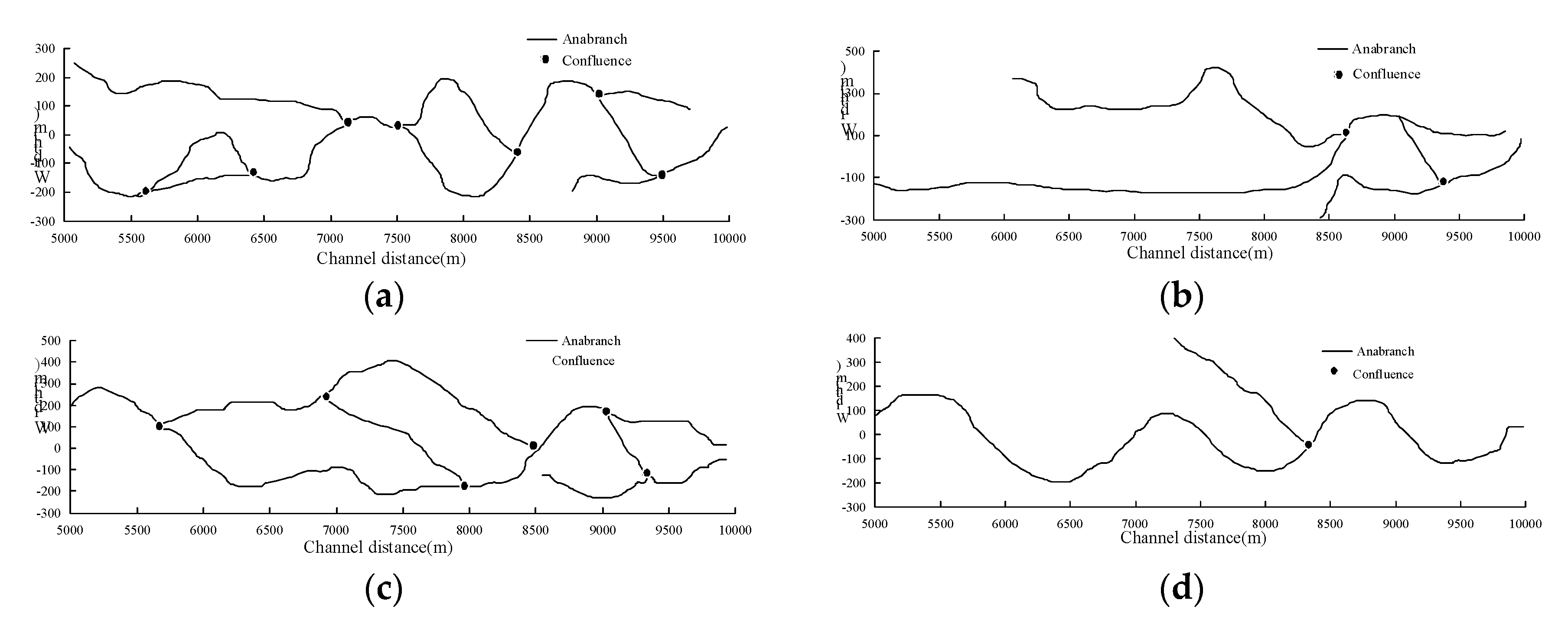

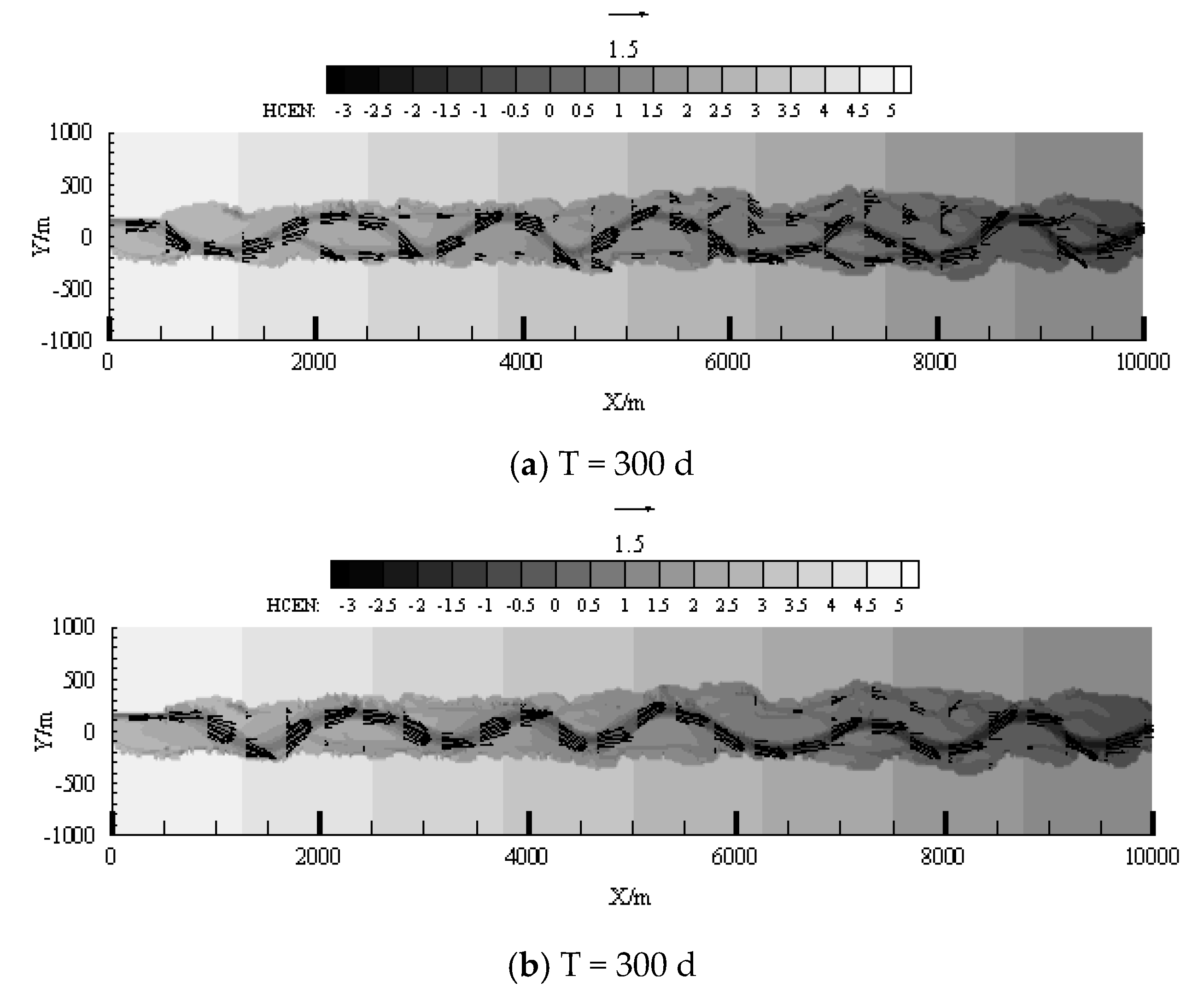

A large portion of branches exhibited morphological activity, with seven branches in initial reach as shown in Figure 9a, the number of branches was reduced to two in run No. 4 while the channel pattern became the meandering (Figure 9d). The results reflected that the value of P would decrease with the channel belts intersect each other, and the channel belts developing along the single-channel, meandering arm had higher sinuosity. The flow field of run No. 4 was plotted in Figure 10, including the velocity and bed elevation; it can be seen that reduction of the inlet discharge and sediment supply led to a meandering flow path. The results demonstrate that the discharge and sediment supply played a significant role in the transformation mechanism of channel patterns, which agreed qualitatively with the previous work on this topic [10].

4.3. Comparison with the Empirical Dimensionless Braiding Criterion

Just over 50 years ago Leopold and Wolman [4] published their classic analysis of alluvial river patterns. The number of channel classification schemes increased rapidly in the following decades. The single most cited component of Leopold and Wolman is the empirical expression for the meandering-braiding threshold slope, S^*:

$$S^{*}=0.0125\times Q^{-0.44},$$

(9)

where Q is the bankfull discharge (m³/s). Channel pattern is determined at least in part by both the rate and mode of sediment transport, an obvious shortcoming of Equation (9) is the absence of bed material size. Henderson [43] reanalyzed the Leopold and Wolman data and derived an equivalent expression:

$$S^{*}=0.52\cdot D_{50}^{1.14}\times Q^{0.44},$$

(10)

where D₅₀ is the median bed surface grain size (m). Equation (10) can be expressed using the dimensionless discharge defined by Parker [44]. The dimensionless discharge, Q^*, is given by:

$$Q^{*}=\frac{Q}{D_{50}^2\sqrt{(\mathrm{s}-1)g{D}_{50}}},$$

(11)

where s is the specific gravity of the sediment grains. Millar [45] found that for channels where the relative bank strength does not change appreciably with the channel size, and then combined regime theory with a linear stability model to generate a morphodynamic power functions that describe the threshold slope as a function of Q:

$$S^{*}=0.00957{\mu }^{\prime }{Q}^{*-0.25},$$

(12)

where μ′ is the dimensionless relative bank strength given by the ratio of the critical shear stress for entrainment of the channel banks to the critical shear stress for the channel bed.

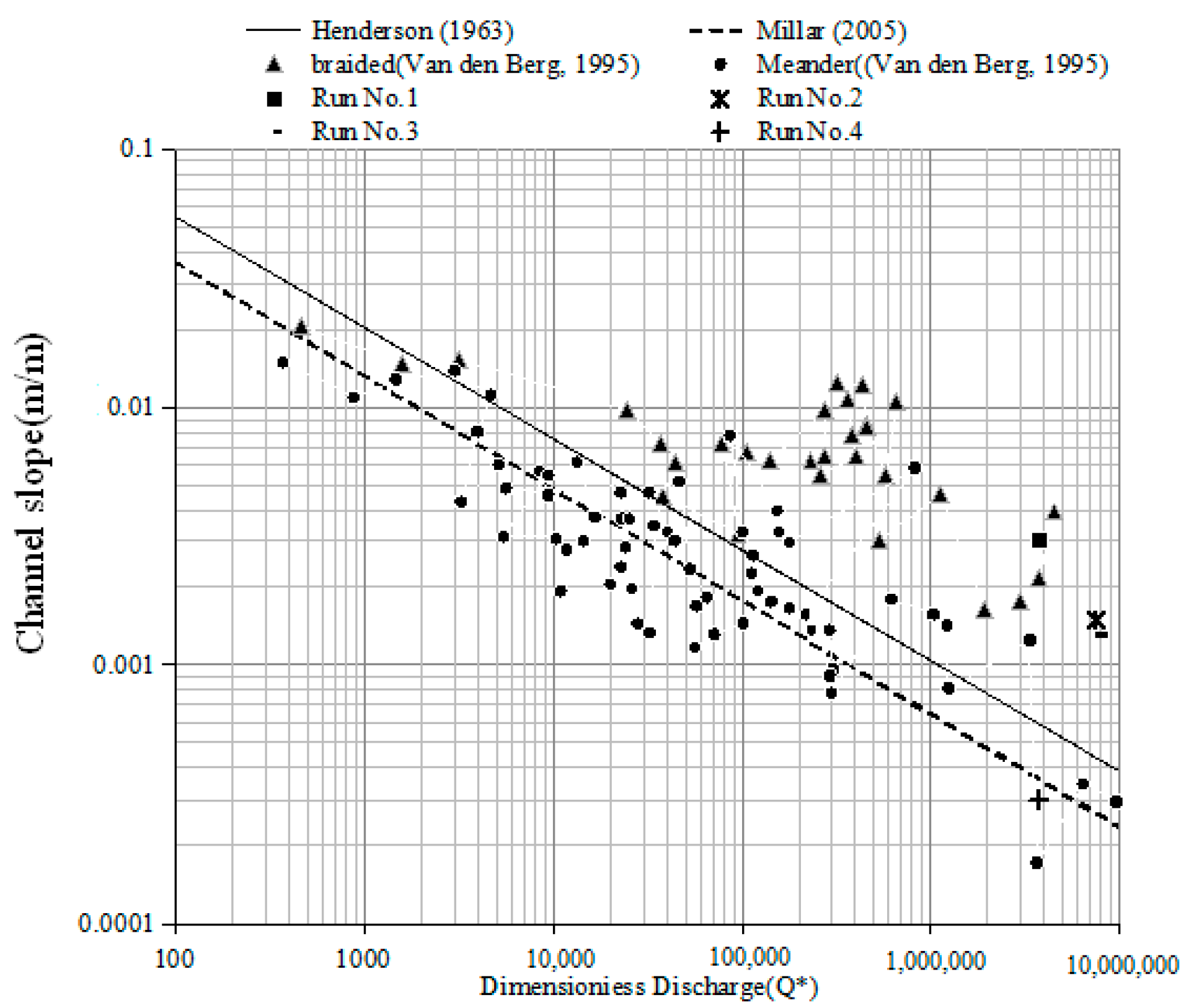

Figure 11 shows the temporal changes of the braiding criterion under four different simulation conditions. It can been seen that the data of run No. 1–3 were located in the upper bound for the braided channels, and run No. 4 data was in the lower bound for braided stream. It indicates that the relative bank strength strongly influenced channel geometry, and so for channels where the banks were more resistant than the bed, because of vegetation, we could expect a single-thread channel to persist in a region where braiding would otherwise be expected to occur [46].

5. Conclusions

This paper presented research on the transformation mechanisms from a braided to meandering pattern by a numerical approach. A 2D depth-averaged hydrodynamic model for hydrodynamic, sediment transport and river morphological adjustment was applied in the numerical experiment. A conceptual braided channel and its transformation with different control factors were simulated to study the mechanics of fluvial process. It demonstrated that the tendency of the research on the mechanisms of fluvial processes might be regarded as a combination of the theoretical study with numerical models in future. Further studies are needed to research the fundamental equation that governs the evolution of alluvial river, which has not been fully understood to ensure the availability of the numerical model.
