Characteristics and Source Apportionment of Black Carbon (BC) in a Suburban Area of Klang Valley, Malaysia

Abstract

Black carbon (BC) is of concern due to its contribution to poor air quality and its adverse effects human health. We carried out the first real-time monitoring of BC in Malaysia using an AE33 Aethalometer. Measurements were conducted between 1 January and 31 May 2020 in a university area in a suburban location of the Klang Valley. The measurement period coincided with the implementation of a movement control order (MCO) in response to COVID-19. The mean concentration of BC before the MCO was 2.34 µg/m³ which decreased by 38% to 1.45 µg/m³ during the MCO. The BC is dominated by fossil-fuel sources (mean proportion BC_ff = 79%). During the MCO, the BC_ff concentration decreased by more than the BC_bb concentration derived from biomass burning. BC and BC_ff show very strong diurnal cycles, which also show some weekday–weekend differences, with maxima during the night and just before noon, and minima in the afternoon. These patterns indicate strong influences on concentrations from both traffic emissions and boundary layer depth. BC was strongly correlated with NO₂ (R = 0.71), another marker of traffic emission, but less strongly with PM_2.5 (R = 0.52). The BC absorption Ångström exponent (AAE) ranged between 1.1 and 1.6. We observed pronounced diurnal cycles of lower AAE in daytime, corresponding to BC_ff contributions from traffic. Average AAE also showed a pronounced increase during the MCO. Our data provides a new reference for BC in suburban Malaysia for the public and policy-makers, and a baseline for future measurements.

1. Introduction

The rapid development of economies in middle–upper income countries has resulted in expanded transport, industrial and agricultural activities, and consequently to increased levels of air pollutants. Black carbon (BC) is a critical light-absorbing carbonaceous aerosol component in the atmosphere [1,2] with impacts on air pollution haze [3,4], human health [5] and radiative forcing [6]. BC can penetrate the lungs because of its small size (<100 nm) and thereby increase the risk of cardiovascular and respiratory diseases [7]. It is also a carrier of co-emitted harmful organic compounds (e.g., polycyclic aromatic hydrocarbons (PAHs) and their derivatives) [7,8,9,10]. BC sources in urban areas are dominated by combustion processes, such as transportation, industry, and residential combustion [1,11]. It has been assessed that, globally, 24% and 60% of anthropogenic BC emissions are from transportation and residential combustion fuels, respectively in sub-urban areas [12].

Many countries worldwide use criteria pollutants such as particulate matter (PM), carbon monoxide (CO), nitrogen dioxide (NO₂), sulphur dioxide (SO₂), and ozone (O₃) to provide information regarding on air quality status. However, carbonaceous particles, such as BC, currently lack ambient quality standards and monitoring, especially in emerging economic countries [13,14]. Southeast Asia is a significant source of BC due to a large population (approximately 650 million) and associated anthropogenic activities in the region, as well as biomass burning emissions (wild forest, transboundary haze pollution and peat fires, crop residue open burning and indoor cooking using biofuels) [15,16,17]. There has been growing interest in measuring BC in Southeast Asian countries, including to investigating diurnal effects in Bangkok [18], personal exposure assessment in Singapore [19], emissions from the busiest street in Manila [20], and evaluation of local sources contribution in Jakarta [21]. However, such measurements are still lacking in Malaysia. Given the dynamic physical and social conditions of Malaysia’s urban and rural environments, understanding the carbonaceous particle profiles and their distribution is a pressing challenge to address. This study set out to measure BC in the Klang Valley, south of Kuala Lumpur, in the Southern Peninsula of Malaysia. Malaysia has been experiencing local traffic air pollution [22]. The metropolitan area in the Klang Valley had a high growth rate of transportation per year, which estimated the number of private vehicles to reach 7 million by the year 2020 [23]. It was also estimated that public and private transportation on the roads completed between 1.24 and 6 million trips per day.

BC is defined through measurement by optical absorption techniques [24,25,26]. The spectral dependence of BC emitted from fossil fuel and biomass burning sources has made methods utilizing multi-wavelength light absorption instruments a useful approach to apportioning BC from these source categories. For example, the multi-wavelength Aethalometer measures aerosol light absorption in the wavelength range of 370–950 nm and has been used to assess the contribution of BC from fossil fuel and biomass burning sources [27,28,29,30]. The optical methods also provide very high time resolution that can be used to explore sub-diurnal patterns and high temporal correlations.

The aim of this work was to characterize concentrations and diurnal profiles of BC and its source apportionment in a suburban area of Klang Valley (Malaysia) from January to May 2020. By chance, our study coincided with the implementation on 18 March of a movement control order (MCO) for COVID-19, which remained in place for the rest of the measurements reported here. We explored the concentrations and contributing fractions to BC, and their diurnal variations, before and during the MCO. We also investigated associations of BC with other air pollutants (NO₂ and PM_2.5), traffic mobility data and meteorological variables. To our knowledge, this is the first study of BC and its source apportionment in Malaysia.

2. Materials and Methods

2.1. Monitoring Site

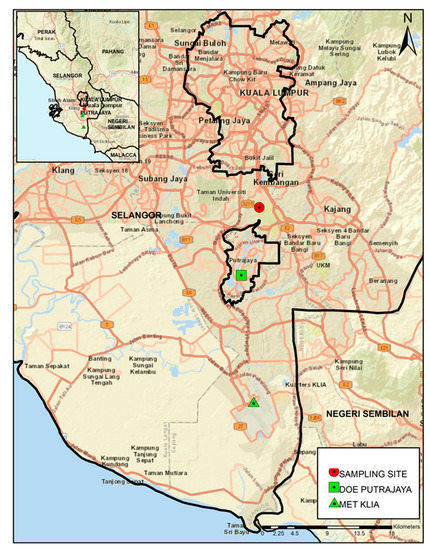

The BC measurements were carried out at the campus of the Faculty of Medicine and Health Science, Universiti Putra Malaysia (UPM) (2.9998° N, 101.7121° E) from 1 January to 31 May 2020. This campus is located at a suburban site in the Serdang town of Klang Valley (Figure 1). It is surrounded by private forest property of UPM, agriculture park and a hospital. There are also commercial buildings such as malls, hotels, offices, and research institutes nearby. Local background activities that are a source of BC include road traffic and may include burning garden waste from the agriculture park. The campus is located 500 m to the west of the South Klang Valley Expressway (SKVE) via Hospital Serdang interchanges. The campus sampling site is located approximately 28 km southeast from the Kuala Lumpur City Centre. Another highway, the Maju Expressway E20/16, is located 6 km northwest of the campus, and carries a greater annual vehicle flow of trucks, cars, and two-wheelers. Serdang is regarded as the southern gateway into Kuala Lumpur for motorists traveling from southern Selangor, Negeri Sembilan, Malacca, or Johor. The Expressways will be major sources of BC. The Klang Valley experiences a tropical climate characterized by relatively uniform high temperatures (22–34 °C), high relative humidity (60–90%), high annual rainfall (2500 mm), and moderate monthly average wind speeds (2.7 m/s) throughout the year.

2.2. Determination of BC Concentrations

Concentrations of BC were measured using the AE33 7-wavelength Aethalometer (Magee Scientific, Berkeley, CA, USA). The AE33 instrument has been widely used to measure light-absorbing aerosols in city, industrial, rural, and remote areas, globally [29,31,32]. The AE33 in our study was set to operate at a flow rate of 5 L/min with a sampling time base of 1 min.

The AE33 instrument collects two aerosol samples simultaneously with differing accumulation rates combined to eliminate nonlinearity. The BC concentration is calculated from optical attenuation (absorption) changes at the near-infrared 880 nm wavelength and the corresponding mass absorption cross-section of 7.77 m²/g [33]. To evaluate the contributions of BC from fossil fuel (BC_ff) and biomass burning (BC_bb) we used the source apportionment model developed by Sandradewi et al. [29]. This is based on different sources of BC aerosols absorbing differently at different wavelengths [34]; specifically, that aerosols from biomass burning absorb effectively in the UV-blue region whilst those from traffic emissions (fossil fuel) do not [33]. In the model, total sample light absorption b_abs(BCtotal) is the sum of the absorptions by particles from fossil fuel (ff) and biomass burning (bb) (Equation (1)).

b_abs(BCtotal) = b_abs(BCff) + b_abs(BCbb).

(1)

The wavelength dependence of the absorption is expressed through the absorption Ångström exponent (AAE) (Equation (2)),

AAE = ln(b_abs1/b_abs2)/ln(_λ1/λ2),

(2)

where b_abs1, b_abs2 are the absorption coefficients at wavelengths _λ1 and _λ2, respectively. Although the AAE can be derived from fitting an exponential curve through the absorption coefficients at several wavelengths, in practice, it is usually determined using two absorptions at 950 nm and 470 nm [33]. We followed the practice of determining AAE as the negative slope of a double logarithmic plot of Equation (2) [34]. The absorption coefficients b_abs are determined from compensated BC values at the two distinct wavelengths via Equation (3),

$$b_{\mathrm{abs}}(\mathrm{M}/\mathrm{m})=\mathrm{BC} (\mathrm{ng}/{\mathrm{m}}^3)\times \sigma ({\mathrm{m}}^2/\mathrm{g})/1000$$

(3)

where σ, the specific mass absorption coefficient, has the values 14.54 m²/g and 7.19 m²/g at 470 nm and 950 nm, respectively. The AE33 instrument’s in-built ‘Aethalometer model’ computes the concentrations of the BC_ff and BC_bb components using default AAE values of 1.0 for the former and 2.0 for the latter [33,35]. The percent biomass burning (BB%) is computed via Equation (4) [29,35].

BB% = b_{abs(950 nm)(BB)}/b_{abs(950 nm).}

(4)

2.3. Data Processing and Analysis

The AE33 instrument used in this study was factory-calibrated and used directly when received from the manufacturer [35]. Previous studies have shown that the Aethalometer is subject to errors associated with scattering and shadowing effects of particles embedded in the filter. These artifacts lead to uncertainties in light-absorbing aerosol mass concentration measurements [36,37] and have been estimated to be ±20%, overall [31,32,38]. In this study, the AE33 filter strip was changed every month to avoid dysfunction in the in-built compensation process for filter-loading effects [35]. All raw measurement data were checked for anomalous values. Negative and zero values were regarded as invalid and discarded, as were occasional single extreme values.

Statistical analyses were performed using the R software [39] and the Openair R package [40,41].

2.4. PM_2.5, NO₂, Meteorological and Mobility Data

Hourly mean PM_2.5 and NO₂ concentrations were obtained from the nearest govern-ment monitoring station, located in Putrajaya, 12 km from the BC monitoring site (these data were available for 1 February to 16 May 2020). The private company, Transwater API Sdn Bhd (Selangor Darul Ehsan, Malaysia), operates a Thermo Scientific TEOM 1405-DF and Thermo Scientific Models 42i for the Department of Environment Malaysia, which maintains the readings of PM_2.5 and NO₂ respectively. Hourly mean temperature, relative humidity, precipitation, and wind speed were obtained from the Department of Meteorology for Kuala Lumpur International Airport (KLIA), situated 20 km away (Figure 1). Both the pollutant and meteorological data are collected under national or international data assurance procedures for these sorts of measurements. Monthly calibration was performed on each instrument to ensure the accuracy and precision. Every data point has gone through pre-processing treatment, which includes the detection of errors and missing values.

We also obtained Apple’s mobility data, which is based on counting number of direction requests by Apple Maps users and is classified into driving, walking, and public transit [42,43]. The mobility parameter from public transit was selected due to its potential impact on outdoor air quality. The mobility trend is expressed as a relative percentage.

3. Results and Discussion

3.1. Summary and Time Series of BC Concentrations

Table 1. Summary of the mean (± standard deviation), 5th and 95th percentiles, and maximum (max) concentrations of 1-min BC (i.e., total BC), BC_ff (fossil-fuel BC) and BC_bb, (biomass burning BC), and of percentage biomass burning (BB%), between 1 January 2020 and 31 May 2020 (150 days, 216,000 min). Summary data are also subdivided into measurements before the Movement Control Order (MCO) and during the MCO that was imposed on 18 March 2020.

Pollutants	Mean ± S.D.	5th Percentie	95th Percentile	Max ***
Entire period:
BC (μg/m3)	1.90 ± 0.70	0.97	3.56	37.6
BCff (μg/m3)	1.52 ± 0.32	1.08	2.09	33.6
BCbb (μg/m3)	0.38 ± 0.06	0.29	0.48	9.75
BB (%)	20.9 ± 9.9	15.1	24.2	99.9
Before MCO:
BC (μg/m3)	2.34 ± 0.18	1.28	3.11	14.4
BCff (μg/m3)	1.90 ± 0.10	1.02	2.52	7.71
BCbb (μg/m3)	0.43 ± 0.02	0.22	0.58	9.75
BB (%)	18.6 ± 4.8	14.6	21.6	98.7
During MCO:
BC (μg/m3)	1.45 ± 0.52	0.84	1.84	37.6
BCff (μg/m3)	1.13 ± 0.21	0.64	1.40	33.6
BCbb (μg/m3)	0.32 ± 0.05	1.16	0.41	8.15
BB (%)	22.9 ± 4.0	15.9	27.0	99.9

*** All minimum values are ≤ 0.1.

summarizes the distributions of the measured concentrations of BC and its BC_ff and BC_bb components. The mean (±1 standard deviation of 1-min values) BC for the full period 1 January to 31 May 2020 was 1.90 ± 0.70 μg/m³ (5th to 95th percentile range 0.84–3.56 μg/m³). The mean concentrations from biomass burning (BC_bb) and fossil fuels (BC_ff) were 0.38 ± 0.06 μg/m³ and 1.52 ± 0.32 μg/m³, respectively. The mean percentage of biomass burning (BB%) was 20.9 ± 9.9, but 1-min values of BB% ranged from 0.1% (completely fossil fuel) to 99.9% (completely biomass burning. The source apportionment shows that BC in the Klang Valley is dominated by fossil-fuel sources, which other evidence presented indicates is associated with traffic.

The data in Table 1 show that mean BC concentrations and BB% were significantly different before and during the movement control order (MCO) imposed for COVID-19 lockdown in Malaysia. Mean BC concentrations before and during the MCO were 2.34 ± 0.18 and 1.45 ± 0.52 μg/m³, respectively, which is a decline in BC of 38% following the introduction of the MCO. The mean proportion of biomass in the BC during the MCO period increased to 22.9 ± 4.0% from its pre-MCO proportion of 18.6 ± 4.8%, which is a 23% increase in the proportion of BC derived from biomass burning.

In the Supplementary Material, Table S1 we compare our measurements of BC concentrations in Malaysia with a selection of BC studies in other suburban areas globally from the last five years. The mean BC concentration in this study is similar to those reported in Italy [44], India [45], Nanjing [46], Beijing (when not in a haze period) [47] and Xianghe (noting that this is an older study) [26], but greater than those in Londrina, Brazil [48]; the latter location is, however, a much smaller urban area than the Klang Valley Malaysia. As in our study, it has been reported that fossil-fuel combustion activities are the predominant sources of BC, which mainly include transportation sources, coal combustion in power plants and cooking sources; for example in the suburban areas of Beijing and Milan. In rural areas of India, however, the dominant source of BC was agricultural stubble burning.

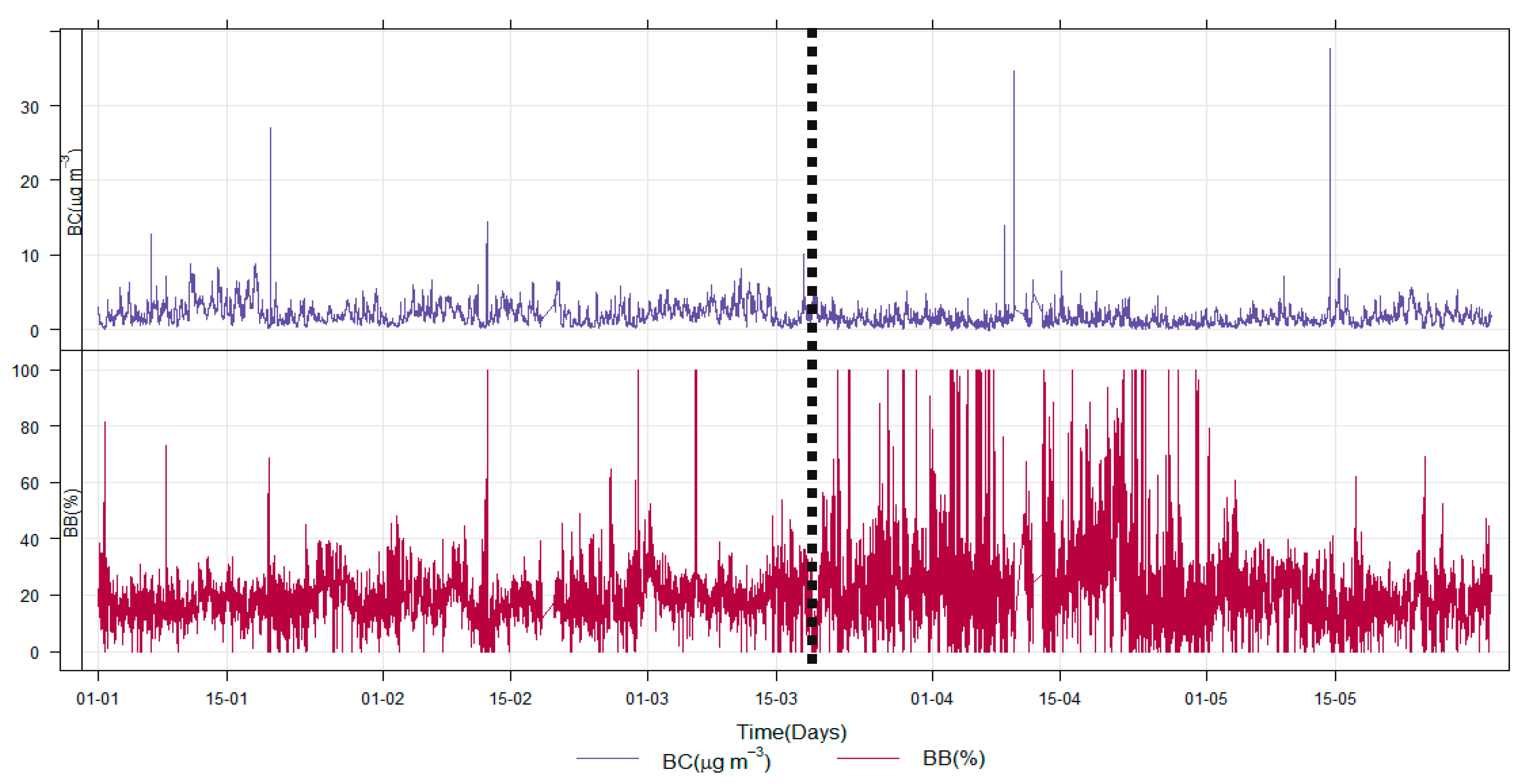

Figure 2 shows the 1-min temporal variations of equivalent BC and BB% for the full period January to May 2020. The 1-min BC concentrations ranged from 0.02 to 37.6 μg/m³, with a mean of 1.90 μg/m³ as presented in Table 1. The 1-min average BC concentrations apportioned to fossil fuels varied from zero to 33.6 μg/m³, with a mean of 1.52 μg/m³. The biomass burning BC_bb varied from zero to 9.75 μg/m³, with a mean of 0.38 μg/m³. As Table 1 shows, all of BC, BC_ff and B_bb concentrations were, on average, greater in January to March, before the MCO, and lower during April and May. Since the MCO had focus on reducing movement, and hence traffic flow, it is not surprising to observe that fossil-fuel derived BC decreased relatively more than the biomass-burning BC, by 41% for BC_ff and by 26% for BC_bb. The increase in BB% at the end of April was affected by local burning activities from the nearby agricultural park (https://www.maeps.com.my/, accessed on 3 June 2021).

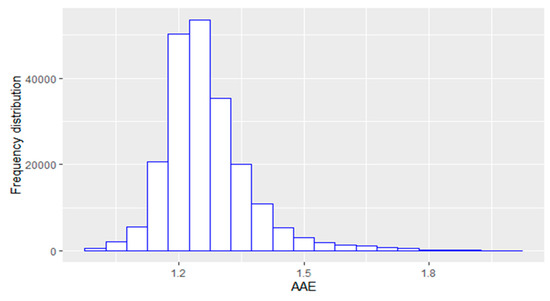

The nature of the variability in the BC at our monitoring site is captured in the frequency histogram of the AAE values presented in Figure 3. The AAE for 470 and 950 nm is commonly used for evaluating the BC source [49,50,51]. It is regarded that AAE in the range 0.8 to 1.3 shows fossil fuel-related aerosols from traffic emissions and domestic/industrial fuel combustion [49,52]. An AAE of 1.8–3.5 suggests the contributions of light-absorbing particles from wood and agricultural waste burning [51,53,54]. In our study, we observed AAE predominantly within the range 1.1–1.6, indicating the predominance of soot-like BC from traffic and other fossil-fuel emissions, mixed to a lesser or greater difference with biomass-burning particles which can include proportions of both BC and UV-absorbing brown carbon [55].

3.2. Diurnal Variations of BC Concentrations and AAE

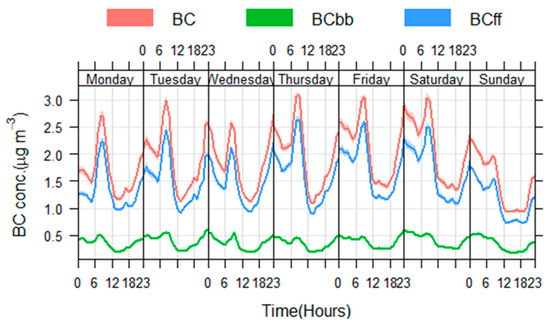

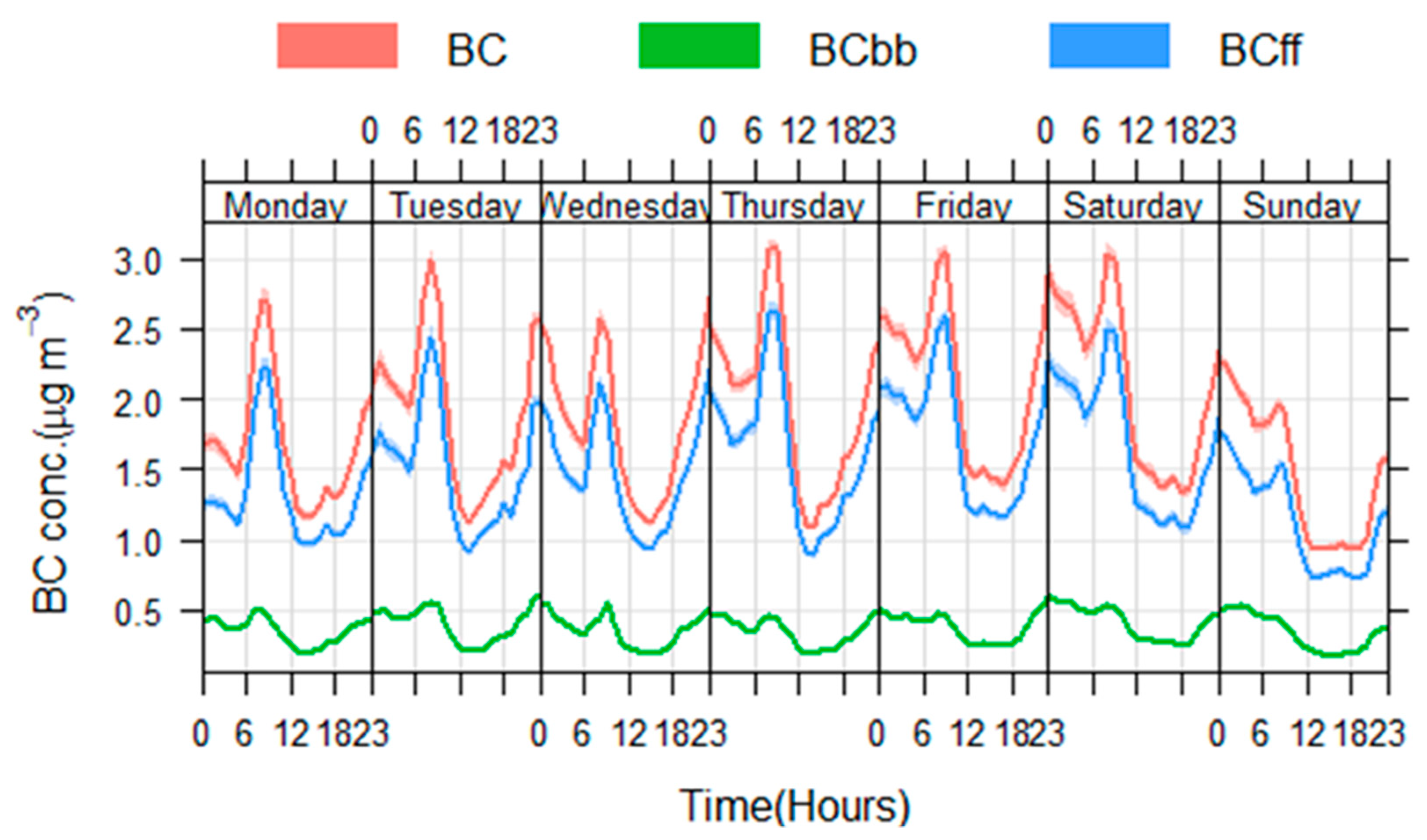

The concentrations of BC and of its BC_bb and BC_ff components have substantial diurnal variations, as revealed in Figure 4. Each day of the week has a similar diurnal cycle in BC concentrations with two maxima, one around 03:00 and the other around 11:00, and a minimum for a few hours at around 13:00 to 15:00. The diurnal pattern in BC_ff follows the same relative trend, driven by the finding noted above, that BC_ff is the dominant component of BC.

On most days the maximum that occurs before noon is the greatest of the two maxima in BC and BC_ff concentrations. This is due to more BC emitted into the air during the daytime because of enhanced fossil-fuel combustion activities (particularly vehicle emissions) [56]. On Sundays, the daytime peak is substantially lower than the daytime peak on the other days, again reflecting that traffic is the dominant source of BC_ff and BC at this location and that traffic activity, particularly of diesel-fuelled trucks, is lower on Sundays than the other days. This is supported by the fact that both BC and BC_ff are also lower throughout the whole diurnal cycle on Sunday than on the other days of the week. Furthermore, we can observe that the reduced BC emissions from traffic at the weekend also lead to slightly lower BC and BC_ff concentrations on Mondays compared with the other weekdays, particularly for the early part of Mondays. The reason that BC and BC_ff are still high on Saturdays, even though traffic (particularly truck traffic) is also lower on a Saturday compared with weekdays, is because emissions from the end of the ‘working’ week still persist within the boundary layer overnight into Saturday.

The range in the diurnal variation of BC is large, at around 1.7 µg/m³. The average diurnal maximum in BC concentration is around 3.0 µg/m³, whilst the diurnal minimum in BC concentration is around 1.3 µg/m³. The consequence is that the concentrations of BC, and hence human exposure to it, vary by more than a factor 2 on average each day. The average diurnal maximum and minimum concentrations of BC_ff are around 2.5 µg/m³ and 1.0 µg/m³, respectively, meaning a slightly greater diurnal factor range for BC_ff than for total BC. The diurnal trend for BC_bb does not show the dominance of a peak around noon. As a broad pattern, BC_bb is highest between midnight and noon, falling to a minimum at around 18:00 before rising again in the late evening. It is also relevant to note that the BC_bb concentrations do not show strong weekday versus weekend differences in magnitude, in contrast to the BC and BC_ff concentrations that are strongly influenced by the weekday versus weekend differences in their sources.

The diurnal patterns in BC are driven by the combination of emissions and boundary layer depth. The substantial diurnal range in BC indicates substantial sensitivity to meteorology [57]. Overnight, the boundary layer becomes shallower than during the day so the concentration of pollutants remaining in the boundary layer increases, particularly for non-reactive pollutants such as BC. Lower dispersion at night is also caused by lower wind speed at night. A similar observation of higher PM_2.5 levels in the morning in southern Peninsular Malaysia was found by Dahari et al. [58].

In the equatorial region of this study location, sunrise (and sunset) are rapid and the strong insolation leads to the rapid increase in boundary layer height at sunrise. This leads to the decrease in BC concentrations in the earliest part of the morning. However, since most BC is derived from anthropogenic activities, from traffic in particular, the initial decline in BC during the day from increasing boundary layer depth is more than offset by the increased BC emissions in the morning. The boundary layer height, and boundary layer ventilation, reach a maximum during the early afternoon, which explains the rapid decrease in BC concentrations at this time. At sunset, the boundary layer decreases, and atmospheric stability increases, so BC concentrations increase again. The BC_bb component is less impacted by diurnal cycles in its emissions than the BC_ff component, so the diurnal pattern of BC_bb is even more strongly coupled to the diurnal pattern in boundary layer depth than BC_ff and BC. The biomass burning BC_bb concentration is consistently in the range 0.21–0.49 μg/m³ on all seven days.

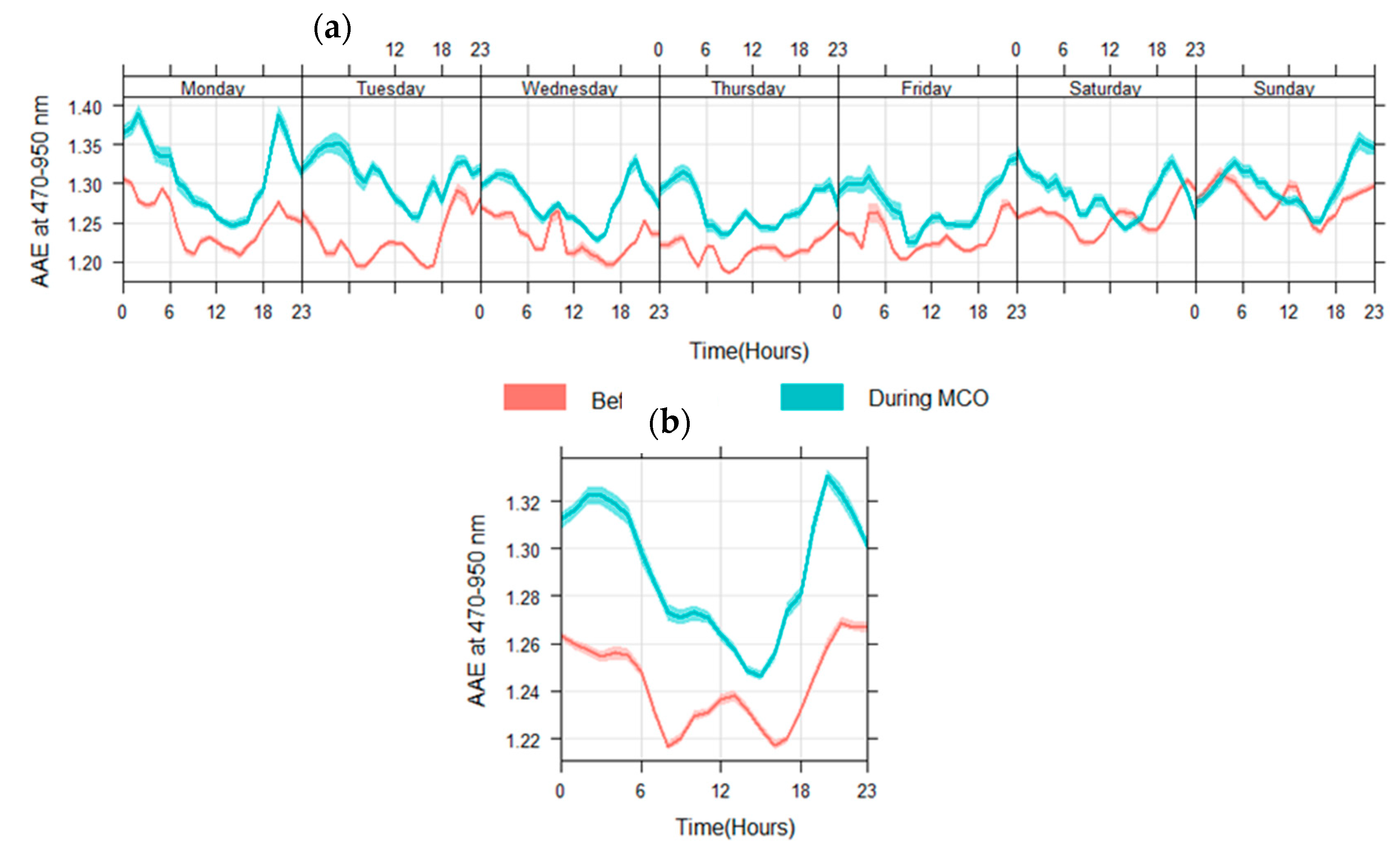

Figure 5 shows the diurnal variation of AAE values before and during MCO by day of week, and for all days together. Some striking observations emerge. Both before and during the MCO the AAE is lower during the daytime and higher during the night-time. For the pre-MCO period the AAE decreases from about 1.26 at night to 1.22 during the day. Since AAE is independent of concentration (and hence of boundary layer depth) this further supports the interpretation above that emissions of fossil-fuel derived BC, which has lower AAE than biomass burning BC, are greater during the day than at night. The highest AAE peak (~1.27) occurs at 21:00 to 03:00, coinciding with the least traffic on the Expressways and elsewhere. The AAE values decrease sharply at about 06:00 and then increase sharply again at 18:00, corresponding to the start and end of the major traffic periods. This interpretation is also consistent with the slightly higher AAE values on Sundays compared with other days of the week, reflecting the somewhat lower contribution of traffic-derived fossil-fuel BC on Sundays, compared with weekdays.

Another clear feature of Figure 5 is the persistently higher AAE values during the MCO compared with before. This confirms that BC during the MCO was less influenced by traffic-related fossil-fuel combustion BC and consequently more influenced by biomass-burning BC than before. The AAE during MCO is higher, on average, by about 0.04–0.05. This finding is in line with recent studies on the impact of Athens lockdown on carbonaceous particle concentrations [59]. Interestingly, the difference in AAE during MCO compared with before MCO is least on Sunday. This is because traffic was already a less important source on Sundays pre-MCO so the implementation of the MCO has lowest relative impact on Sundays thereafter.

3.3. Relationship with Mobility Data, NO₂, PM_2.5 and Meteorological Variables

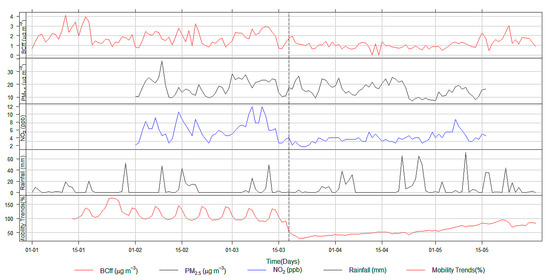

The daily concentrations of BC_ff, NO₂, PM_2.5 and mobility trend (%) are shown in Figure 6. During this study, an increase of 30–50% in mobility on the road is associated with an increase of 0.3 μg/m³ BC_ff concentrations, 8–10 μg/m³ PM_2.5 concentrations and 2.5 ppb NO₂ mixing ratio before the MCO, and a reduction of 40–50% in mobility during the MCO is associated with a decrease of 1.2 μg/m³ BC_ff concentrations, 6–9 μg/m³ PM_2.5 concentrations and a 3.25 ppb NO₂ mixing ratio. The transit on the Klang Valley roads was drastically reduced during MCO and the changes in the air pollutant concentrations indicate the influence of vehicle emissions. The results are in line with similar observations made by Cárcel-Carrasco et al. (2021) in a number of European countries during their lockdown periods [60]. Their study also utilized Apple’s mobility data [43] to illustrate the vehicle movements and the reduction of PM_2.5. It is noted that different vehicles have different engine types and exhibit varying BC emission factors, so changes in mobility trends have to be viewed as an indirect measure of changes in BC concentrations.

Concentrations of BC were positively correlated with NO₂ (R = 0.71) and PM_2.5 (R = 0.52). The full correlation matrix is shown in SI Figure S1. The stronger correlation of BC with NO₂ than with PM_2.5 is consistent with combustion, and particularly traffic emissions, being a common source for these two pollutants. Whilst a proportion of PM_2.5 also derives from primary anthropogenic emissions (and BC is itself a component of PM_2.5), the secondary components of PM_2.5 will not be linked so strongly to the same primary sources of combustion emission which explains the somewhat weaker correlation of BC (and NO₂) with PM_2.5.

Some correlation between the air pollutants is also driven by the strong effect of diurnal boundary layer depth on pollutant concentrations (as discussed above) and synoptic-scale meteorology. The pollutants are, however, only very weakly correlated, if at all, with the meteorological variables. Although there is a low correlation between BC concentration and amount of rainfall (R = 0.04), precipitation can contribute to the washing process on particulate matter, which includes BC. There are small, negative correlations with wind speed (R in the range −0.08 to −0.20). Whilst higher wind speed enhances dilution of air pollutants [61], the moderate range of wind speed at this tropical monitor location means the wind effect is not strong. The general lack of correlation with all meteorological variables similarly reflects the relatively moderate range of variation in these variables in the tropics.

4. Conclusions

We present the first time series of continuous measurements of black carbon (BC) for Malaysia. Our measurements coincided with the implementation of a Movement Control Order (MCO) in Malaysia in response to COVID-19, providing us with an unexpected opportunity to analyze the impact of the MCO on BC.

The mean concentration of BC before the MCO was 2.34 µg/m³ which decreased by 38% to 1.45 µg/m³ during the MCO. From analysis of the absorption Ångström exponent (AAE) we show that BC at our suburban location in the Klang Valley near Kuala Lumpur is dominated by fossil-fuel BC, which, supporting evidence suggests, is associated with traffic. The BC and BC_ff show very strong diurnal cycles, which also show some weekday-weekend differences, with maxima during the night and just before noon and minima in the afternoon. These patterns indicate strong influences from both traffic emissions and boundary layer depth on the concentrations. The BC was strongly correlated with NO₂ (R = 0.71), another marker of traffic emission, but less strongly with PM_2.5 (R = 0.52). The diurnal range in BC concentration exceeded 1.5 µg/m³ or approximately a factor of 2 range in exposure to BC. Although BC was correlated with other air pollutants, pollutants were not strongly correlated with standard meteorological variables (a weak positive and negative association with precipitation and wind speed respectively).

During the MCO the concentration of BC_ff decreased by more than the concentration derived from biomass burning (BC_bb). Before the MCO the average proportion BC_bb was 18.6% (0.43 µg/m³), whilst during the MCO the proportion increased to 22.9% (0.32 µg/m³).

The AAE values ranged from 1.1 to 1.6. Pronounced diurnal variations of AAE values were observed, with higher values during night-time and rapid decreases/increases at around 06:00/18:00, respectively, corresponding to emissions of BC from traffic during the day which has lower AAE. The average AAE also showed pronounced increase during the MCO compared with before, again emphasizing the lower contribution from fossil fuel (traffic) in the latter period.

Although measurements were made at only one site, these first measurements of light-absorbing carbon concentration in Malaysia act as a baseline reference against which future studies can be compared. The knowledge gained from characterizing BC sources in our study will provide tools for better decision-making, such as source emission restrictions, particularly from vehicles, and will aid in better planning for low-carbon city projects in Malaysia. Given that BC emissions are linked to nearby anthropogenic activities, future research should focus on how spatial and temporal variations from combustion-related emissions (traffic and biomass burning) can cause health effects.
