Genome-Wide Identification and Expression Analysis of the Metacaspase Gene Family in Gossypium Species

by
Senmiao Fan
1,†,
Aiying Liu
1,†,
Zhen Zhang
1,
Xianyan Zou
1,
Xiao Jiang
1,
Jinyong Huang
2,
Liqiang Fan
1,
Zhibin Zhang
1,
Xiaoying Deng
1,
Qun Ge
1,
Wankui Gong
1,
Junwen Li
1,
Juwu Gong
1,
Yuzhen Shi
1,
Kang Lei
1,
Shuya Zhang
1,
Tingting Jia
1,
Lipeng Zhang
1,
Youlu Yuan
1,2,* and
Haihong Shang
1,2,*
1
State Key Laboratory of Cotton Biology, Key Laboratory of Biological and Genetic Breeding of Cotton, The Ministry of Agriculture, Institute of Cotton Research, Chinese Academy of Agricultural Sciences, Anyang 455000, China
2
School of Agricultural Sciences, Zhengzhou University, Zhengzhou 450000, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2019, 10(7), 527; https://doi.org/10.3390/genes10070527
Submission received: 9 April 2019 / Revised: 22 May 2019 / Accepted: 7 July 2019 / Published: 12 July 2019
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Metacaspases (MCs) are cysteine proteases that are important for programmed cell death (PCD) in plants. In this study, we identified 89 MC genes in the genomes of four Gossypium species (Gossypium raimondii, Gossypium barbadense, Gossypium hirsutum, and Gossypium arboreum), and classified them as type-I or type-II genes. All of the type-I and type-II MC genes contain a sequence encoding the peptidase C14 domain. During developmentally regulated PCD, type-II MC genes may play an important role related to fiber elongation, while type-I genes may affect the thickening of the secondary wall. Additionally, 13 genes were observed to be differentially expressed between two cotton lines with differing fiber strengths, and four genes (GhMC02, GhMC04, GhMC07, and GhMC08) were predominantly expressed in cotton fibers at 5–30 days post-anthesis (DPA). During environmentally induced PCD, the expression levels of four genes were affected in the root, stem, and leaf tissues within 6 h of an abiotic stress treatment. In general, the MC gene family affects the development of cotton fibers, including fiber elongation and fiber thickening while four prominent fiber- expressed genes were identified. The effects of the abiotic stress and hormone treatments imply that the cotton MC gene family may be important for fiber development. The data presented herein may form the foundation for future investigations of the MC gene family in Gossypium species.

1. Introduction

Programmed cell death (PCD) is an important factor affecting developmental biology and the maintenance of the steady state in continuously renewing tissues [1]. It is also essential for plant growth and development, survival following a pathogen invasion, and resistance against environmental stresses. There are two broad PCD categories in plants, namely developmentally regulated PCD (dPCD) and environmentally induced PCD (ePCD) [2]. A previous study revealed that the transcriptional signatures of dPCD are largely distinct from those of ePCD [3]. Despite the importance of PCD in plants, the underlying molecular mechanisms remain largely uncharacterized [4]. In contrast, the molecular mechanisms regulating PCD in animals have been elucidated based on analyses of the model system Caenorhabditis elegans [5]. In animal cells, caspases (aspartate-specific cysteine proteases) play a central role in PCD, including in the related signal transduction [6]. However, in plants, there have been few published studies regarding caspase genes, with the metacaspase (MC) gene family the only known plant caspase-like gene family [7]. Although MCs are similar to caspases regarding amino acid sequences and protein structures, they cannot be defined as caspases because they lack aspartate-specific proteolytic activity [8]. The MC gene family reportedly can be divided into two subfamilies [8], namely type I and type II, based on their sequences and structural similarities, with AtMC1–3 representing type-I MC genes, and AtMC4–9 categorized as type-II MC genes [8,9]. Both types of MCs have a putative conserved caspase-like catalytic domain composed of p10 and p20 subunits, which contain conserved catalytic histidine/cysteine residues [9,10]. Members of the MC gene family have been identified in a few model plant species and important crops. For example, in rice, eight OsMC genes were identified based on protein sequence alignments and were subsequently divided into two subtypes. An analysis of gene expression in different tissues revealed OsMC genes are specifically expressed in mature rice tissues, implying they may influence aging. Moreover, the expression levels of four OsMC genes are apparently upregulated by infections by Magnaporthe oryzae and insect pests as well as by drought and cold conditions, suggesting that these OsMC genes may contribute to plant defense responses [11,12]. In cucumber, five CsMC genes were identified according to aligned protein sequences, after which they were divided into two subtypes, type I (four or seven introns) and type II (one intron). The CsMC expression levels vary depending on the tissue as well as the developmental stage. An earlier investigation involving an abiotic stress treatment indicated that CsMC genes are involved in plant stress responses [13]. Arabidopsis thaliana consists of nine MC genes, of which AtMC2 and AtMC5 are specifically expressed in the roots and flowers; AtMC1, AtMC3, and AtMC4 are expressed in all tested tissues; AtMC8 is expressed at low levels in all tissues; AtMC6 and AtMC7 are highly expressed in the roots; and AtMC9 is abundantly expressed in young leaves [14]. Of the six grape MC genes (VvMC1–6), VvMC1, and VvMC2 are expressed in all examined tissues, whereas VvMC3–6 exhibits tissue-specific expression [15]. In maize, MC-mediated proteolysis is a crucial part of leaf responses to both O3 and age-mediated senescence [16]. In tomato, researchers cloned a type-II MC gene, LeMCA1, from cDNA prepared from tomato leaves and suspension-cultured cells. An examination of genetic material from tomato leaves revealed that LeMCA1 and several genes linked with PCD are located close together in suspension-cultured tomato cells, LeMCA1 expression is not upregulated during chemical-induced PCD [17]. In pepper, the amino acid sequence of CaMC9, which is a positive regulator of pathogen-induced cell death, is 54% identical to AtMC9, and 40% consistent with plant type-II MCs [18]. In wheat, the expression of a type-II MC gene, TaMCA4, which was cloned from ‘Suwon11’ wheat, reportedly induces PCD via the expression of the mouse bax gene or a candidate Puccinia striiformis f. sp. tritici effector gene. Moreover, TaMCA4 expression is upregulated in wheat leaves [19]. To date, there have been no published reports describing research on the cotton MC gene family.
Cotton is an important economic crop worldwide. We previously detected single nucleotide polymorphisms (SNP) in several candidate MC genes identified in stable quantitative trait loci, including GhMC03 (Gh_A06G1522) and GhMC20 (Gh_A06G1524) in qFS-chr6-8, implying the MC gene family may influence fiber strength [20]. In the current study, we systematically and comprehensively analyzed the MC family of Gossypium species regarding several factors, including chromosomal location, structure, and phylogeny. We also focused on the expression of these genes during responses to abiotic stress and fiber development.

2. Methods

2.1. Identification of Cotton MC Family Members

To identify homologs of A. thaliana MC genes [6], we applied the Hidden Markov Model of the HMMER 3.0 program [21] to search for the caspase-like domain (PF00656) in the following species: Carica papaya L. [22] (http://www.phytozome.net), Theobroma cacao [23], Gossypium raimondii [24] (http://www.phytozome.net), Oryza sativa [25] (http://www.mbkbase.org/R498/), A. thaliana [26] (http://www.arabidopsis.org), Gossypium barbadense [27] (http://database.chgc.sh.cn/cotton/index.html), Gossypium hirsutum [28,29] (http://mascotton.njau.edu.cn), and Gossypium arboreum [30] (ftp://bioinfo.ayit.edu.cn/downloads/) (Supplementary file 1). The BLASTp program was used to verify sequences, with AtMC sequences as queries (e-value of 1e-5), after which incomplete sequences were manually removed. The remaining sequences were included in a multiple sequence alignment with the ClustalW program [31].

2.2. Phylogenetic Tree Construction, Gene Structure Analysis, and Conserved Motif Prediction

A multiple sequence alignment with the MEGA (version 6.06) program (http://www.megasoftware.net) [32] was used to construct a phylogenetic tree according to the neighbor-joining method, with 1000 bootstrap replicates. To examine the MC gene structures in Gossypium species, information regarding the exons and introns of the MC gene family members was retrieved from GFF3 files, and exon/intron structures were visualized with the Gene Structure Display Server 2.0 [33]. Conserved domains were predicted with the conserved domain database (http://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi) [34]. Motifs were analyzed with the MEME program (http://meme.nbcr.net/meme) [35], with the following parameters: maximum number of motifs, 20; minimum motif width, 6; and maximum motif width, 50.

2.3. Chromosomal Localization and Promoter Region Analysis

The chromosomal distribution of MC genes, which was determined based on genomic annotations, was visualized with the MapChart 2.2 program [36]. The 2,000-bp sequences upstream of the start codon of MC genes were extracted from the G. hirsutum genome sequences. The cis-acting elements were analyzed with the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html) [37].

2.4. Analysis of Repetitive Elements in MC Genes

To determine whether the MC gene family expanded through segmental duplication or tandem duplication events, a collinear analysis was completed with an all-to-all BLAST array (e-value of 1e-5) in the MCScan program [38].

2.5. Plant Materials and Treatments

To examine whether MC genes are differentially expressed in the fibers that vary in strength from two recombinant inbred lines, upland cotton lines 69307 (high fiber strength) and 69362 (relatively low fiber strength) [39,40] were grown under standard field conditions in Anyang, China. The flowering date was recorded as 0 days post-anthesis (DPA), and cotton bolls were collected in the morning every 5 days from 0 to 30 DPA. The fibers were isolated from bolls with a sterile knife. To investigate whether MC gene expression is affected by abiotic stresses, G. hirsutum cv. ‘0-153′, which is one of the parents of cotton line 69307, was grown in Hoagland nutrient solution [41] for 2 weeks before being exposed to simulated drought (20% PEG 6000) [42] or high salt (200 µM NaCl) [43] conditions or treated with the following phytohormones: 100 µM ABA, 100 µM naphthylacetic acid (NAA) [44], 100 µM salicylic acid (SA) [45], and 100 µM methyl jasmonate (MeJA) [46]. Three biological replicates of root, leaf, and stem tissues were collected at 0, 1, 6, 24, and 48 h after treatments. All samples were frozen in liquid nitrogen and stored at −80 °C.

2.6. Transcriptome Analyses and Quantitative Real-Time PCR

Transcriptome data were downloaded from the Sequence Read Archive (SRA) of the NCBI database (https://www.ncbi.nlm.nih.gov/) [47]. The SRA data for G. barbadense (PRJNA251673) [27], G. hirsutum (PRJNA248163) [29], G. arboreum (PRJNA179447) [30], and G. raimondii (PRJNA79005) [24] were converted to fastq data with the SRA Toolkit, after which the fastq reads were analyzed and filtered with the FASTX-Toolkit (http://hannonlab.cshl.edu/fastx_toolkit/index.html). The TopHat2 program [48] was used to map the clean data to the index genomes that were built with the Bowtie2 program [49], with the library-type and fr-unstranded parameters. The expression levels of the annotated genes in the reference genome were then calculated with the Cufflinks program [50]. To analyze the MC expression patterns in Gossypium species and determine whether they are tissue specific, the gene expression levels were visualized with the homogenized method involving log2(FPKM + 1) in the pheatmap program (https://CRAN.R-project.org/package=pheatmap). We designed GhMC gene-specific primers for a quantitative real-time polymerase chain reaction (qRT- PCR) assay (Table S3), which was completed with the LightCycler® 480 II Real-time PCR instrument (Roche, Basel, Switzerland). Gene expression levels were calculated according to the 2−ΔΔCt method, with three biological replicates and three independent PCR amplifications [51]. Significant differences (p <0.05) between the treated and untreated samples were determined with Student’s t-test in the SPSS 22.0 program. We set the 0 h time-point for the abiotic stress analysis and the line 69,307 fiber at 5 DPA as the controls.

3. Results

3.1. Identification of Cotton MC Genes

A bioinformatics analysis involving the Pfam database revealed that all deduced proteins had a caspase-like domain (PF00656), implying the corresponding genes belong to the MC family [52]. To characterize the MC genes in Gossypium species, 122 MC genes from eight species were identified (Supplementary file 1), including 89 genes from the following cotton species: G. hirsutum (26 genes), G. barbadense (30 genes), G. arboreum (17 genes), and G. raimondii (16 genes). The MC coding regions were 633–2028 bp long, and the encoded proteins comprised 210–675 amino acids. Moreover, 61 MC genes were <3000 bp long, 21 MC genes were 3000–7000 bp long, and 7 MC genes exceeded 7000 bp (Table S1).

3.2. Classification and Phylogenetic Analysis of the Cotton MC Gene Family

On the basis of phylogenetic relationships in the MC gene family, we confirmed the evolutionary relationships among eight species with a published sequenced genome. A multiple sequence alignment of 122 MC genes revealed two types of genes in these species (Supplementary file 2, Figure 1a). Of the MC genes in the four analyzed cotton species, 42 are type-I MC genes, while the others are type-II MC genes (Figure 1b). Additionally, we detected 34, 2, 7, 6, and 41 homologs of AtMC1, AtMC2, AtMC3, AtMC4, and AtMC9, respectively, including 9, 1, 2, 2, and 12 G. hirsutum genes, respectively (Table S1).

3.3. Conserved Motifs and MC Gene Structures

To clarify the structural diversity of the cotton MC genes, we analyzed the domains of the encoded MC protein sequences (Figure 2). On the basis of the predicted structures and relationships with A. thaliana genes, two types of MC genes were identified. There were 42 type-I MC genes and 47 type-II MC genes. Additionally, we determined that all of the type-I and type-II MC genes contain a sequence encoding the peptidase C14 domain. We also used the MEME program to identify the conserved motifs in the MC proteins from the four analyzed cotton species. A total of 20 motifs were detected (Figure 2c), motif 1, motif 3, and motif 5 were conserved motifs in all the MC genes in cotton, and motif 10 only in type-II MCs, yet motif 11, motif 14, motif 17 were merely in type-I MCs, with the type-I MCs carrying an N-terminal domain containing a proline-rich repeat motif as well as a zinc finger motif. In contrast, the type-II MCs lack such a domain, but harbor a linker region between the putative large (p20) and small (p10) subunits (Figure S1).

3.4. Analysis of Collinearity and Repetitive Elements in MC Genes

The evolutionary relationships between the MC gene families of tetraploid and diploid cotton species were assessed based on the similarity between family members, coverage, and chromosomal distances, which resulted in the identification of tandem repeats. The genes in the same chromosomal block (with an e-value <1e-5) were considered to be derived from tandem duplications, whereas those on different chromosomes resulted from segmental duplications. According to our MCScan analysis, GaMC01 and GaMC13 as well as GaMC16 and GaMC17 were tandem repeats in G. arboreum, and were located on chromosomes 06 and 03, respectively. In G. hirsutum, GhMC09 and GhMC18 were located on Dt chromosome 06. Additionally, in G. raimondii, GrMC04 and GrMC06, GrMC09, and GrMC12, as well as GrMC11 and GrMC16 resulted from tandem duplication events, and were located on chromosome 10. Furthermore, GaMC02, GrMC04, GhMC02, and GhMC04 were identified as orthologous genes, as were GaMC05, GrMC05, GhMC07, and GhMC08 (Figure 3).

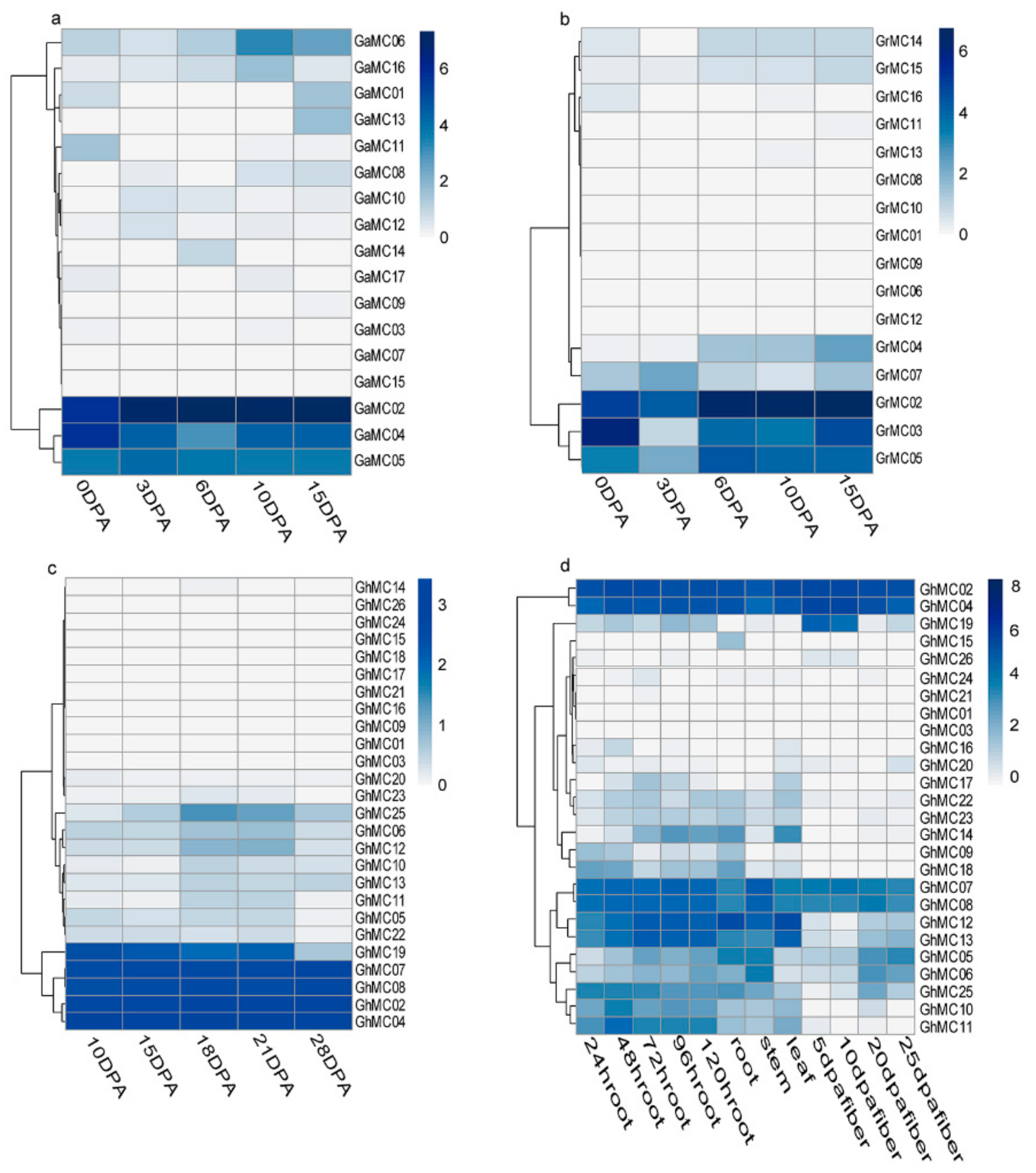

3.5. Analysis of MC Expression Patterns

To characterize the cotton MC expression patterns, transcriptome data were downloaded and re-analyzed. Specifically, an analysis of the MC genes expressed during the fiber development period in diploid cotton (0–15 DPA) and tetraploid cotton (10–28 DPA) (Figure 4a–d) revealed 3 of 17 G. arboreum genes, 3 of 16 G. raimondii, 3 of 30 G. barbadense genes, and 5 of 26 G. hirsutum genes, with standardized FPKM values >2 (Table S2). Moreover, the homologous genes GhMC02 and GhMC04 as well as GhMC07 and GhMC08 were prominently expressed in the tetraploid cotton fiber(Table S2) The average FPKM values of the four genes are the highest according to sheet 5 in Table S2 and combined with the data in sheet4 of Table S2, the FPKM values of the four genes are expressed in the fiber expression of 10–28 DPA (Figure 4d), which are all greater than 10. It can thus be considered as a dominant expression gene, and GhMC19 was specifically expressed during the early fiber development stage (Figure 4d,e).
On the basis of the above results, we speculated that some GhMC genes may be important for the development of cotton fibers. As we known, the development of cotton fiber is −3–50 days after anthesis, including fiber development initiation, fiber elongation, secondary wall thickening, and maturity period, of which 5–30 DPA is a critical period for fiber development and fiber quality formation [53].
We subsequently completed a qRT-PCR assay to verify the expression of all GhMC genes in two upland cotton recombinant inbred lines, namely 69307 (high fiber strength) and 69362 (relatively low fiber strength). We observed that 75% and 83.3% of the type-I MC genes tended to exhibit upregulated expression in the late period (20–25 DPA) in lines 69,307 and 69362, respectively (Figure S2a). In contrast, the expression levels of 85.7% and 78.5% of the type-II MC genes were upregulated in the early stage (10–20 DPA) in lines 69307 and 69362, respectively (Figure S2b). The 20 DPA time-point corresponds to the period in which cotton fibers elongate and the secondary wall thickens [52]. In the current study, our data suggested that the 20 DPA time-point represents the period in which both type-I and type-II MC genes are expressed in developing cotton fibers.
Two pairs of homologous genes (GhMC02 and GhMC04 as well as GhMC07 and GhMC08) were determined to be predominantly expressed in cotton fibers based on transcriptome data and a transcriptional analysis during fiber development. Additionally, GhMC02 and GhMC04 are type-II genes that were most highly expressed at 10 DPA in lines 69307 and 69362, whereas GhMC07 and GhMC08 are type-I genes whose expression levels were highest at 20 and 10 DPA, respectively, in line 69307, and at 5 and 20 DPA, respectively, in line 69362 (Figure S2). Among the 26 GhMC genes, the following 13 genes were differentially expressed in the two analyzed lines: type-I genes: GhMC06, GhMC07, GhMC08, GhMC21, GhMC22, GhMC24, and GhMC25; type-II genes: GhMC01, GhMC03, GhMC15, GhMC16, GhMC18, and GhMC20.
We observed that GhMC07, GhMC14, and GhMC22, which are type-I genes, were more highly expressed in line 69307 (high fiber strength). Meanwhile, GhMC05, GhMC13, and GhMC21 (type-I genes) as well as GhMC01, GhMC02, GhMC04, GhMC09, GhMC10, GhMC15, GhMC16, and GhMC18 (type-II genes) were expressed at lower levels in line 69307. During the fiber development stage in line 69307, GhMC25 and GhMC03 were expressed at relatively low levels in the early stage but exhibited upregulated expression in the later stage. The GhMC08 expression level was high in the early stage but was subsequently downregulated in the later stage. Furthermore, GhMC12 expression levels varied considerably between 20 and 25 DPA.
The strengthening of cotton fibers involves a complex process [53], and the period in which fibers elongate and the secondary wall thickens (around 20 DPA) may be important for this process. The various types of MC genes may be differentially expressed in the cotton fibers of different species. Future studies will need to comprehensively evaluate this possibility.

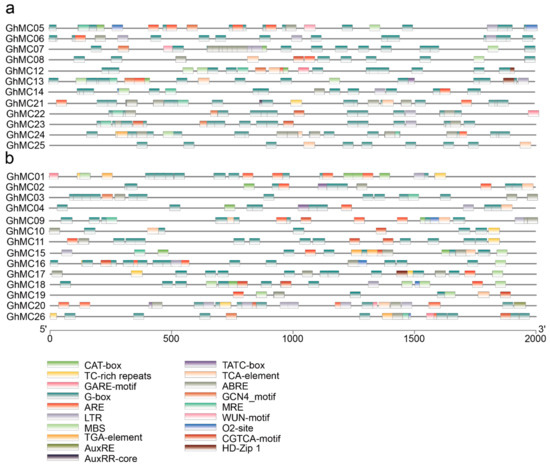

3.6. Cis-Element Analysis in the Promoter Regions of MC Genes

On the basis of the difference between the transcriptome data and qRT-PCR results, we analyzed the cis-elements in the promoter regions of the above two types of GhMC genes (Figure 5). The following three types of cis-elements were identified: inducible, constitutive, and tissue-specific [54]. Specifically, the ABRE element (ACGTG) affects the responsiveness to abscisic acid (ABA) [55]. The LTR (long terminal repeat) element (CCGAAA) influences the responsiveness to low temperatures. The ARE (antioxidant response element) (AAACCA) is related to the anaerobic environment, whereas the TCA element (CCATCTTTTT) is related to the responsiveness to salicylic acid (SA) [56]. Meanwhile, the TGA-box (AACGAC) is an auxin-responsive element [57]. The two types of GhMC genes differed regarding the presence of a CGTCA-motif or TGACG-motif in the promoter, both of these elements contribute to the responsiveness to MeJA [58]. Furthermore, the TATC-box (TATCCCA) is associated with the responsiveness to gibberellin (GA) [59]. We analyzed the four genes predominantly expressed in fibers (GhMC02, GhMC04, GhMC07, and GhMC08). The cis-element associated with induction was responsive to GA, SA, and abscisic acid (ABA) for GhMC02, and SA and GA for GhMC04. Additionally, the cis-element related to drought was responsive to MeJA and ABA for GhMC07 and GhMC08, and there were SA response-related components in GhMC08, but not in GhMC07. These observations indicated the analyzed genes vary regarding their cis-acting elements, even among the homologous genes.

3.7. Expression Analysis of Prominent Fiber-Expressed Genes under Abiotic Stress Conditions

Previous studies confirmed that MC genes are important regulators of PCD during stress responses in plants [9,15]. Moreover, PCD influences the aging process at all stages in plants. The GhMC expression levels in root, stem, and leaf tissues under abiotic stress conditions, including those induced by NaCl and PEG treatments, were analyzed by qRT-PCR (Figure 6). In response to the PEG treatment, the GhMC expression level rapidly increased, and peaked at 1 and 6 h, for all four examined MC genes in the root, stem, and leaf tissues. Similar expression trends were observed following the NaCl treatment (Figure 6b), with the highest expression levels in the root and stem tissues detected at 6 h. Drought stress induction is reportedly related to the ABA response pathway [60]. The GhMC02, GhMC07, and GhMC08 promoters all include an ABA-responsive cis-element, while the GhMC08 promoter also has an element related to drought (Figure 5). These results suggested that the two pairs of homologous genes analyzed in this study are responsive in various tissues soon after an exposure to abiotic stress.

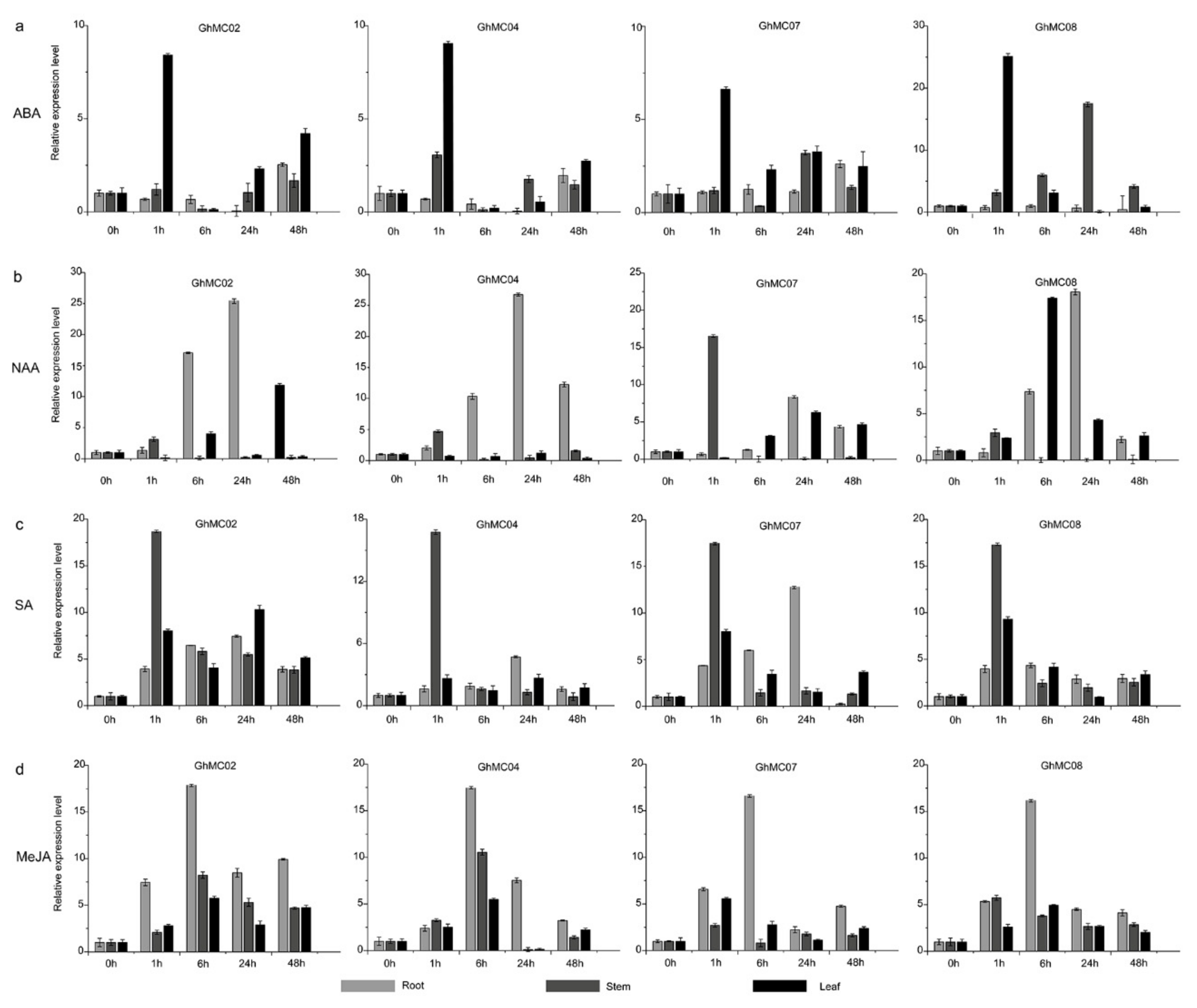

3.8. Expression Analysis of Prominent Fiber-Expressed Genes Following Phytohormone Treatments

For a more in-depth study of GhMC expression levels induced by abiotic stress, the expression patterns of four GhMC genes after ABA, naphthylacetic acid (NAA), SA, and MeJA treatments were analyzed by qRT-PCR. Published research suggests that type-II MCs are not directly responsible for the earlier reported caspase-like activities in plants, but they are important for ePCD [61]. On the basis of the analyses of the promoter elements (Figure 5), we examined the effects of various hormones on the expression of GhMC genes. We observed that the relative expression levels for the four genes were rapidly upregulated 1 h after the ABA treatment and stayed at that level until the 48-h time-point. However, these genes were differentially responsive to ABA, and the responses in the leaves were greater than those in the stems and roots. The NAA treatment upregulated the relative GhMC02, GhMC04, and GhMC08 expression levels in the roots in 24 h (Figure 7b), and GhMC07 and GhMC08 were relatively highly expressed in the stem and leaf tissues, respectively. In response to SA, the peak relative expression levels of the four examined genes occurred at 1 h in the stems. However, the expression of the four genes responded differently in the root tissue, with peak GhMC02, GhMC04, and GhMC07 transcript levels detected at 24 h. Regarding the leaves, the highest expression levels of the homologous genes GhMC02 and GhMC04 were observed 24 h after the hormone treatment, whereas the peak expression levels of the other pair of homologous genes occurred at 1 h (Figure 7c). For the Me-JA treatment, the expression levels of the four genes increased rapidly at 6 h in the roots. The maximum relative expression levels in the stem tissue were observed at 6 h for GhMC02 and GhMC04, and at 1 h for GhMC07 and GhMC08. In leaves, GhMC02, GhMC04, and GhMC08 were relatively highly expressed at 6 h (Figure 7d). These results implied that following various hormone treatments, the analyzed genes had diverse response times in the root, stem, and leaf tissues.

4. Discussion

4.1. Number of Cotton MC Genes

Metacaspases are cysteine proteases that are widely distributed among Viridiplantae species, from algae to vascular plants [62]. However, there have been no systematic analyses of cotton MCs. In this study, we completed a genome-wide identification and expression analysis of the cotton MC gene family. We identified 89 MC genes in the following four cotton species: G. hirsutum (26 genes), G. barbadense (30 genes), G. arboreum (17 genes), and G. raimondii (16 genes). Additionally, 42 and 47 of these genes were type-I and type-II MC genes, respectively. A comparison of the MC genes from 42 plant species revealed there are more than twice as many type-I MC genes than type-II MC genes, indicating that most plant species have more type-I MCs than type-II MCs [9]. However, in this study, the numbers of type-I and type-II MCs were similar, possibly because only AtMC4 and AtMC9 homologs were detected as type-II MC genes in the four examined cotton species.
Previous studies determined that MC genes are differentially expressed in various tissues [62,63]. In grape, type-I MC genes are highly expressed in the stem [14]. In rubber trees, HbMC8 is highly expressed in all examined tissues, while HbMC5 and HbMC6 are most highly expressed in the leaves [62]. In rice, eight OsMC genes, which were identified based on a protein sequence alignment, were subsequently divided into two subtypes. An analysis of the expression profiles of these eight genes in various tissues revealed specific expression patterns in mature rice tissues [11,12]. Additionally, five CsMC genes were identified and classified into two subtypes, with 4–7 introns in the type-I CsMC genes, and only one intron in the type-II CsMC genes [13].

4.2. Metacaspase Genes and Fiber Development in Gossypium hirsutum L.

The data presented herein indicate that different types of MC genes may have variable expression patterns in diverse cotton fibers. We previously determined single nucleotide polymorphism locations on a genetic map, thereby identifying stable quantitative trait loci for cotton fiber quality [64,65]. Moreover, some candidate genes reportedly belong to the MC gene family, including GhMC03 and GhMC20 in qFS-chr6-8 [20]. These observations suggest that the MC gene family may have important effects on fiber strength traits. On the basis of the process underlying cotton fiber cell development, we speculated that MC genes are differentially expressed during fiber development, specifically during the strengthening of the fibers. Cotton fiber develops from a single cell, with stages corresponding to initiation, elongation, thickening, and maturity; these stages are associated with cell development, maturation, and senescence [53]. Additionally, the MC genes are reportedly important for cell senescence and apoptosis [66]. Thus, we speculated that the strengthening of cotton fibers is also regulated by this process. Through the data analysis of the transcriptome, the level of the MC gene family does not seem to be highly expressed, but by analyzing the expression level of two RIL (Recombinant Inbred Lines) materials (69307 and 69362) screened for many years, we found some genes with an up-regulation trend during fiber development (5-30DPA). For example, the expression level of GhMC05, GhMC06 GhMC23 are up-regulated on 20-25DPA, GhMC21 is up-regulated on 30 DPA for 69362. These results provide a variety of possibilities for subsequent multi-angle studies of the MC gene.
Fiber strength is the key factor influencing cotton fiber quality, and the key fiber development period during which fiber cells lengthen and thicken occurs between 10 and 25 DPA [53]. Regarding the two types of GhMC genes, more than 90% of these genes are maximally expressed at 10–25 DPA. Moreover, the type-II MC genes are crucial for fiber elongation, whereas the type-I MC genes contribute to secondary wall thickening. Our transcriptome analysis indicated the FPKM of GhMC02, GhMC04, GhMC07, and GhMC08 exceeded 10 (Table S2). Furthermore, GhMC07 and GhMC08, which are type-I genes, are homologs of AtMC1. During dPCD, AtMC1 is expressed in parallel pathways, both positively regulating the hypersensitive response (HR)-mediated cell death in young plants when the functions are not masked by the cumulative stresses of aging, and negatively regulating senescence in older plants [67]. The GhMC02 and GhMC04 type-II genes are homologs of AtMC4, which encodes a positive regulator of biotic and abiotic stress-induced PCD, similar to animal caspases [68]. Because AtMC4 appears to be ubiquitously expressed in all organs, the AtMC4 protein might also regulate many other biological processes in A. thaliana [69]. Therefore, our results imply that the MC gene family may have crucial effects on cotton fiber quality.

4.3. Effects of Abiotic Stresses and Hormones on the Metacaspase Gene Family

Because of genetic redundancy, PCD is rarely observed in A. thaliana MC knockout lines. However, AtMC1 and AtMC2 can enhance as well as inhibit PCD, with AtMC1 positively regulating cell death, and AtMC2 exhibiting the opposite effect [70]. Moreover, the expression of AtMC4 reportedly accelerates cell death in response to biotic and abiotic stresses [71]. In cucumber, the peak CsMC1 expression level occurs at 3 h after a NaCl treatment and is maintained until 12 h. In contrast, CsMC2–4 expression is gradually downregulated until 6 h, and then slightly upregulated at 12 h. Following a PEG treatment, the CsMC1–5 expression levels are similar to those induced by NaCl [13].
Plant hormones affect all stages of the aging process. Additionally, exogenous ABA can promote leaf detachment. During leaf senescence, the expression levels of a 9-cis-epoxycarotenoid dioxygenase gene (NECD) and two ABA aldehyde oxidase genes (AAO1 and AAO3) are upregulated. These enzymes are critical for ABA synthesis. Meanwhile, the expression of the gene encoding an ABA-induced receptor kinase (RPK1) is upregulated, and the resulting enzyme accelerates leaf senescence, as does ABA-induced H2O2 [72]. Regarding GhMC02, in response to an ABA treatment, the peak expression level occurred at 1 h in leaves, while the expression levels in the root and stem tissues remained upregulated until 48 h. These results suggest that the ABA response occurs after other types of induction in the roots and stem, although this possibility will need to be experimentally verified. Therefore, the cis-acting element differed among the analyzed genes, even between homologous genes. In A. thaliana, increases in the jasmonate (JA) content activate JA-biosynthesis enzymes to varying extents and induce the expression of SAG genes related to senescence, ultimately resulting in leaves exhibiting the characteristics of aging [73]. Our analysis of promoter elements indicated there are no MeJA-responsive elements in the promoters of GhMC02 and GhMC04, but the response time of these genes in various tissues was 6 h following a MeJA treatment, implying that a regulatory pathway induced by an unknown mechanism is involved. Salicylic acid affects the hypersensitive response PCD, and cell death occurring during plant disease-resistant HR is a type of PCD [74]. Additionally, in A. thaliana, the SA concentration is 4-times higher in senescing leaves than in non-senescing leaves, suggesting that this hormone contributes to aging and cell death. The mechanism underlying SA-regulated leaf senescence is very similar to that mediating the natural aging process of leaves [75,76]. The GhMC07 promoter lacks an SA-responsive element, but the application of exogenous SA induced the expression of this gene in 1 h in the stem and leaf tissues, but in 24 h in the roots. Increased auxin (IAA) levels due to the upregulated expression of genes in the IAA biosynthesis pathway, such as TSA1 (tryptophan synthase), AO1 (indoleacetate oxidase), and NIT1–3 (acetonitrile hydrolases), led to delayed leaf senescence [77]. In the current study, auxin- associated cis-elements were not detected in GhMC02, GhMC04, GhMC07, and GhMC08. Nevertheless, following an NAA treatment, the response time was 24 h and 1 h in the root and stem tissues, respectively. Moreover, GhMC04 expression in leaves was unaffected by NAA.

5. Conclusions

In this study, we comprehensively characterized the cotton MC genes by analyzing their phylogenetic relationships, conserved motifs, gene structures, promoter sequences, and expression profiles in cotton lines with varying fiber strength. We also assessed the effects of abiotic stress and hormone treatments. This study represents a thorough bioinformatics- and gene expression-based investigation of the MC gene family. The data presented herein provide the foundation for future studies on gene functions during cotton fiber development.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/7/527/s1, Supplementay file 1: Multiple sequence alignment involving 122 sequences from the genomes of the following eight species: Gossypium hirsutum, Gossypium arboreum, Gossypium barbadense, Gossypium raimondii, Arabidopsis thaliana, Oryza sativa, Carica papaya, and Theobroma cacao, Supplementay file 2: Neighbor-joining phylogenetic tree (nwk file) with 122 metacaspase genes from eight genomes, Supplementay file 3: Neighbor-joining phylogenetic tree (nwk file) with 89 cotton metacaspase genes, Table S1. Chromosomal locus ID and length of the encoded metacaspase proteins in cotton, Table S2. The FPKM value of metacaspase genes in tetraploid and diploid cotton species, Table S3. Details regarding the primers used for quantitative real-time PCR, Figure S1. Logos of 20 motifs for four cotton species according to the MEME suite, Figure S2. Analysis of GhMC expression levels in various fiber developmental stages (5–30 DPA) of two upland cotton lines (69307 and 69362) according to a qRT-PCR assay. a: Type-I GhMC genes; b: Type-II GhMC genes.

Author Contributions

Y.Y. and H.S. conceived and managed the project. S.F. coordinated the overall project and wrote the manuscript. A.L. and Z.Z. (Zhen Zhang) prepared plant materials, extracted RNA., and completed the qRT-PCR assay. X.J., J.H., and L.F. contributed to the multiple sequence alignments and the phylogenetic analysis. Z.Z. (Zhibin Zhang), X.D., and Q.G. helped analyze the data. X.Z. and W.G. analyzed domains and predicted the promoters. J.L. and J.G. wrote the scripts. S.Z. and K.L. contributed to the chromosomal localization and gene structural analysis. Y.S., T.J., and L.Z. discussed the results and commented on the manuscript. All authors read, edited, and approved the current version of the manuscript.

Funding

This research was financially supported by the Natural Science Foundation of China (31471538, 31371668, and 31621005) and the central level of the scientific research institutes for basic R & D special fund business (161012018017). The funder has no role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.

Acknowledgments

We thank Liwen Bianji, Edanz Editing China (www.liwenbianji.cn/ac) for editing the English text of a draft of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gunawardena, A.H. Programmed Cell Death and Tissue Remodeling in Plants. J. Exp. Bot. 2007, 59, 445–451. [Google Scholar] [CrossRef] [PubMed]
  2. Lam, E. Programmed Cell Death in Plants: Orchestrating an Intrinsic Suicide Program within Walls. Crit. Rev. Plant Sci. 2008, 27, 413–423. [Google Scholar] [CrossRef]
  3. Olvera-Carrillo, Y.; Van Bel, M.; Van Hautegem, T.; Fendrych, M.; Huysmans, M.; Simaskova, M.; Van Durme, M.; Buscaill, P.; Rivas, S.; Coppens, F.; et al. A Conserved Core of PCD Indicator Genes Discriminates Developmentally and Environmentally Induced Programmed Cell Death in Plants. Plant Physiol. 2015, 169, 769. [Google Scholar] [CrossRef] [PubMed]
  4. Greenberg, J.T. Programmed Cell Death: A Way of Life for Plants. Proc. Natl. Acad. Sci. USA 1996, 93, 12094–12097. [Google Scholar] [CrossRef] [PubMed]
  5. Lord, C.E.N.; Gunawardena, A.H. Programmed Cell Death in C. Elegans, Mammals and Plants. Eur. J. Cell Biol. 2012, 91, 603–613. [Google Scholar] [CrossRef] [PubMed]
  6. Grütter, M.G. Caspases: Key Players in Programmed Cell Death. Curr. Opin. Struct. Biol. 2000, 10, 649–655. [Google Scholar] [CrossRef]
  7. Uren, A.G.; O Rourke, K.; Aravind, L.; Pisabarro, M.; Seshagiri, S.; Koonin, E.; Dixit, V. Identification of Paracaspases and Metacaspases: Two anCient Families of Caspase-Like Proteins, One of Which Plays a Key Role in MALT Lymphoma. Mol. Cell 2000, 6, 961–967. [Google Scholar] [CrossRef]
  8. Tsiatsiani, L.; Van Breusegem, F.; Gallois, P.; Gallois, P.; Zavialov, A.; Lam, E.; Bozhkov, P.V. Metacaspases. Cell Death Differ. 2011, 18, 1279–1288. [Google Scholar] [CrossRef]
  9. Fagundes, D.; Bohn, B.; Cabreira, C.; Leipelt, F.; Dias, N.; Bodanese-Zanettini, M.H.; Cagliari, A. Caspases in Plants: Metacaspase Gene Family in Plant Stress Responses. Funct. Integr. Genom. 2015, 15, 639–649. [Google Scholar] [CrossRef]
  10. Vercammen, D.; Declercq, W.; Vandenabeele, P.; Van Breusegem, F. Are Metacaspases Caspases? J. Cell Biol. 2007, 179, 375–380. [Google Scholar] [CrossRef]
  11. Wang, L.; Zhang, H. Genomewide Survey and Characterization of Metacaspase Gene Family in Rice (Oryza Sativa). J. Genet. 2014, 93, 93–102. [Google Scholar] [CrossRef] [PubMed]
  12. Huang, L.; Zhang, H.; Hong, Y.; Liu, S.; Li, D.; Song, F. Stress-Responsive Expression, Subcellular Localization and Protein–Protein Interactions of the Rice Metacaspase Family. Int. J. Mol. Sci. 2015, 16, 16216–16241. [Google Scholar]
  13. Zhou, Y.; Hu, L.; Jiang, L.; Liu, S. Genome-Wide Identification, Characterization, and Transcriptional analysis of the Metacaspase Gene Family in Cucumber (Cucumis Sativus). Genome 2018, 61, 187–194. [Google Scholar] [CrossRef] [PubMed]
  14. Kwon, S.I.; Hwang, D.J. Expression Analysis of the Metacaspase Gene Family in Arabidopsis. J. Plant Biol. 2013, 56, 391–398. [Google Scholar] [CrossRef]
  15. Zhang, C.; Gong, P.; Wei, R.; Li, S.; Zhang, X.; Yu, Y.; Wang, Y. The Metacaspase Gene Family of Vitis Vinifera L.: Characterization and Differential Expression During Ovule Abortion in Stenospermocarpic Seedless Grapes. Gene 2013, 528, 267–276. [Google Scholar] [CrossRef] [PubMed]
  16. Ahmad, R.; Zuily-Fodil, Y.; Passaquet, C.; Bethenod, O.; Roche, R.; Repellin, A. Ozone and Aging Up-Regulate Type II Metacaspase Gene Expression and Global Metacaspase Activity in the Leaves of Field-Grown Maize (Zea Mays L.) Plants. Chemosphere 2012, 87, 789–795. [Google Scholar] [CrossRef] [PubMed]
  17. Hoeberichts, F.A.; Ten Have, A.; Woltering, E.J. A Tomato Metacaspase Gene is Upregulated During Programmed Cell Death in Botrytis Cinerea-Infected Leaves. Planta 2003, 217, 517–522. [Google Scholar] [CrossRef] [PubMed]
  18. Kim, S.M.; Bae, C.; Oh, S.K.; Choi, D. A Pepper (Capsicum Annuum L.) Metacaspase 9 (Camc9) Plays a Role in Pathogen-Induced Cell Death in Plants. Mol. Plant Pathol. 2013, 14, 557–566. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, X.; Wang, X.; Feng, H.; Tang, C.; Bai, P.; Wei, G.; Huang, L.; Kang, Z. TaMCA4, a Novel Wheat Metacaspase Gene Functions in Programmed Cell Death Induced by the Fungal Pathogen Puccinia Striiformis F. SP. Tritici. Mol. Plant-Microbe Interact. 2012, 25, 755–764. [Google Scholar] [CrossRef]
  20. Zhang, Z.; Ge, Q.; Liu, A.; Li, J.; Gong, J.; Shang, H.; Shi, Y.; Chen, T.; Wang, Y.; Palanga, K.K.; et al. Construction of a High-Density Genetic Map and its Application to QTL Identification for Fiber Strength in Upland Cotton. Crop Sci. 2017, 57, 774. [Google Scholar] [CrossRef]
  21. Finn, R.D.; Clements, J.; Eddy, S.R. HMMER Web Server: Interactive Sequence Similarity Searching. Nucleic Acids Res. 2011, 39 (Suppl. 2), 29–37. [Google Scholar] [CrossRef]
  22. Ming, R.; Hou, S.; Feng, Y.; Yu, Q.; Dionne-Laporte, A.; Saw, J.H.; Senin, P.; Wang, W.; Ly, B.V.; Lewis, K.L.; et al. The draft genome of the transgenic tropical fruit tree papaya (Carica papaya Linnaeus). Nature 2008, 452, 991–996. [Google Scholar] [CrossRef] [PubMed]
  23. Argout, X.; Salse, J.; Aury, J.M.; Guiltinan, M.J.; Droc, G.; Gouzy, J.; Allegre, M.; Chaparro, C.; Legavre, T.; Maximova, S.N.; et al. The Genome of Theobroma Cacao. Nat. Genet. 2011, 43, 101. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, K.; Wang, Z.; Li, F.; Ye, W.; Wang, J.; Song, G.; Yue, Z.; Cong, L.; Shang, H.; Zhu, S.; et al. The Draft Genome of a Diploid Cotton Gossypium Raimondii. Nat. Genet. 2012, 44, 1098. [Google Scholar] [CrossRef] [PubMed]
  25. Du, H.; Yu, Y.; Ma, Y.; Gao, Q.; Cao, Y.; Chen, Z.; Ma, B.; Qi, M.; Li, Y.; Zhao, X.; et al. Sequencing and De novo Assembly of a Near Complete Indica Rice Genome. Nat. Commun. 2017, 8, 15324. [Google Scholar] [CrossRef] [PubMed]
  26. Cao, J.; Schneeberger, K.; Ossowski, S.; Günther, T.; Bender, S.; Fitz, J.; Koenig, D.; Lanz, C.; Stegle, O.; Lippert, C.; et al. Whole-Genome Sequencing of Multiple Arabidopsis Thaliana Populations. Nat. Genet. 2011, 43, 956. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, X.; Zhao, B.; Zheng, H.J.; Hu, Y.; Lu, G.; Yang, C.Q.; Chen, J.D.; Chen, J.J.; Chen, D.Y.; Zhang, L.; et al. Gossypium Barbadense Genome Sequence Provides Insight into the Evolution of Extra-Long Staple Fiber and Specialized Metabolites. Sci Rep. 2015, 5, 14139. [Google Scholar] [CrossRef]
  28. Li, F.; Fan, G.; Lu, C.; Xiao, G.; Zou, C.; Kohel, R.J.; Ma, Z.; Shang, H.; Ma, X.; Wu, J.; et al. Genome Sequence of Cultivated Upland Cotton (Gossypium Hirsutum TM-1) Provides Insights into Genome Evolution. Nat. Biotechnol. 2015, 33, 524. [Google Scholar] [CrossRef]
  29. Zhang, T.; Hu, Y.; Jiang, W.; Fang, L.; Guan, X.; Chen, J.; Zhang, J.; Saski, C.A.; Scheffler, B.E.; Stelly, D.M.; et al. Sequencing of Allotetraploid Cotton (Gossypium Hirsutum L. Acc. TM-1) Provides a Resource for Fiber Improvement. Nat. Biotechnol. 2015, 33, 531. [Google Scholar] [CrossRef]
  30. Du, X.; Huang, G.; He, S.; Yang, Z.; Sun, G.; Ma, X.; Li, N.; Zhang, X.; Sun, J.; Liu, M.; et al. Resequencing of 243 Diploid Cotton Accessions Based on an Updated a Genome Identifies the Genetic Basis of Key Agronomic Traits. Nat. Genet. 2018, 50, 796. [Google Scholar] [CrossRef]
  31. Thompson, J.D.; Gibson, T.J.; Higgins, D.G. Multiple Sequence Alignment Using ClustalW and ClustalX. Curr. Protoc. Bioinform. 2002, 2, 2–3. [Google Scholar] [CrossRef]
  32. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  33. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An Upgraded Gene Feature Visualization Server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed]
  34. Marchler-Bauer, A.; Lu, S.; Anderson, J.B.; Chitsaz, F.; Derbyshire, M.K.; DeWeese-Scott, C.; Fong, J.H.; Geer, L.Y.; Geer, R.C.; Gonzales, N.R.; et al. CDD: A Conserved Domain Database for the Functional Annotation of Proteins. Nucleic Acids Res. 2011, 39 (Suppl. 1), 225–229. [Google Scholar] [CrossRef] [PubMed]
  35. Bailey, T.L.; Williams, N.; Misleh, C.; Li, W.W. MEME: Discovering and Analyzing DNA and Protein Sequence Motifs. Nucleic Acids Res. 2006, 34 (Suppl. 2), 369–373. [Google Scholar] [CrossRef] [PubMed]
  36. Voorrips, R.E. MapChart: Software for the Graphical Presentation of Linkage Maps and QTLs. J. Hered. 2002, 93, 77–78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Lescot, M.; Dehais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouze, P.; Rombauts, S. PlantCARE, a Database of Plant Cis-Acting reguLatory Elements and a Portal to Tools for in Silico Analysis of Promoter Sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, Y.; Tang, H.; DeBarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.H.; Jin, H.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [PubMed]
  39. Sun, F.D.; Zhang, J.H.; Wang, S.F.; Gong, W.K.; Shi, Y.Z.; Liu, A.Y.; Li, J.W.; Gong, J.W.; Shang, H.H.; Yuan, Y.L. QTL Mapping for Fiber Quality Traits Across Multiple Generations and Environments in Upland Cotton. Mol. Breed. 2012, 30, 569–582. [Google Scholar] [CrossRef]
  40. Tuttle, J.R.; Nah, G.; Duke, M.V.; Alexander, D.C.; Guan, X.; Song, Q.; Chen, Z.J.; Scheffler, B.E.; Haigler, C.H. Metabolomic and Transcriptomic Insights into How Cotton Fiber Transitions to Secondary Wall Synthesis, Represses Lignification, and Prolongs Elongation. BMC Genom. 2015, 16, 477. [Google Scholar] [CrossRef]
  41. Hoagland, D.R.; Arnon, D.I. The Water-Culture Method for Growing Plants without Soil. Calif. Agr. Expt. Sta. Circ. 1950, 347, 32. [Google Scholar]
  42. Huang, J. Cloning and Functional Analysis of Abiotic Stree-Related Zinc Finger Protein Genes from Rice (Oryza sativa, L.). Ph.D. Thesis, Nanjing Agricultural University, Nanjing, China, 2005. [Google Scholar]
  43. Fu, Z.Y.; Zhang, Z.B.; Hu, X.J.; Shao, H.B.; Ping, X. Cloning, Identification, Expression Analysis and Phylogenetic Relevance of Two NADP-Dependent Malic Enzyme Genes from Hexaploid Wheat. Comptes Rendus Biol. 2009, 332, 591–602. [Google Scholar] [CrossRef] [PubMed]
  44. Song, Y.; Wang, L.; Xiong, L. Comprehensive Expression Profiling Analysis of OsIAA Gene Family in Developmental Processes and in Response to Phytohormone and Stress Treatments. Planta 2009, 229, 577–591. [Google Scholar] [CrossRef]
  45. Agrawal, G.K.; Jwa, N.S.; Rakwal, R. A Novel Rice (Oryza Sativa L.) Acidic PR1 Gene Highly Responsive to Cut, Phytohormones, and Protein Phosphatase Inhibitors. Biochem. Biophys. Res. Commun. 2000, 274, 157–165. [Google Scholar] [CrossRef] [PubMed]
  46. Huguet-Robert, V.; Sulpice, R.; Lefort, C.; Maerskalck, V.; Emery, N.; Larher, F.R. The suppreSsion of Osmoinduced Proline Response of Brassica Napus L. Var Oleifera Leaf Discs by Polyunsaturated Fatty Acids and Methyl-Jasmonate. Plant Sci. 2003, 164, 119–127. [Google Scholar] [CrossRef]
  47. Paterson, A.H.; Wendel, J.F.; Gundlach, H.; Guo, H.; Jenkins, J.; Jin, D.; Llewellyn, D.; Showmaker, K.C.; Shu, S.; Udall, J.; et al. Repeated Polyploidization of Gossypium Genomes and the Evolution of Spinnable Cotton Fibres. Nature 2012, 492, 423. [Google Scholar] [CrossRef] [PubMed]
  48. Kim, D.; Pertea, G.; Trapnell, C.; Pimentel, H.; Kelley, R.; Salzberg, S.L. TopHat2: Accurate Alignment of Transcriptomes in the Presence of Insertions, Deletions and Gene Fusions. Genome Biol. 2013, 14, 36. [Google Scholar] [CrossRef] [PubMed]
  49. Langmead, B.; Salzberg, S.L. Fast Gapped-Read Alignment with Bowtie 2. Nat. Methods 2012, 9, 357. [Google Scholar] [CrossRef] [PubMed]
  50. Trapnell, C.; Williams, B.A.; Pertea, G.; Mortazavi, A.; Kwan, G.; Van Baren, M.J.; Salzberg, S.L.; Wold, B.J.; Pachter, L. Transcript Assembly and Quantification by RNA-Seq Reveals Unannotated Transcripts and Isoform Switching During Cell Differentiation. Nat. Biotechnol. 2010, 28, 511–515. [Google Scholar] [CrossRef]
  51. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  52. Pei, J.; Grishin, N.V. Prediction of a Caspase-Like Fold in Tannerella Forsythia Virulence Factor PrtH. Cell Cycle 2009, 8, 1453–1455. [Google Scholar] [CrossRef]
  53. Fan, S. The Relationship Between the Cellulose Synthesis and Cotton Fiber Quality. M.D. Thesis, Henan University, Kaifeng, China, 2013. [Google Scholar]
  54. Xu, Y.; Wang, Y.; Mattson, N.; Yang, L.; Jin, Q. Genome-Wide Analysis of the Solanum Tuberosum (Potato) Trehalose-6-Phosphate Synthase (TPS) Gene Family: Evolution and Differential Expression During Development and Stress. BMC Genom. 2017, 18, 926. [Google Scholar] [CrossRef] [PubMed]
  55. Mishra, S.; Shukla, A.; Upadhyay, S.; Sharma, P.; Singh, S.; Phukan, U.J.; Meena, A.; Khan, F.; Tripathi, V.; Shukla, R.K.; et al. Identification, Occurrence, and Validation of DRE and ABRE Cis-Regulatory Motifs in the Promoter Regions of Genes of Arabidopsis Thaliana. J. Integr. Plant Biol. 2014, 56, 388–399. [Google Scholar] [CrossRef] [PubMed]
  56. Chen, J.; Piao, Y.; Liu, Y.; Li, X.; Piao, Z. Genome-Wide Identification and Expression Analysis of Chitinase Gene Family in Brassica Rapa Reveals its Role in Clubroot Resistance. Plant Sci. 2018, 270, 257–267. [Google Scholar] [CrossRef] [PubMed]
  57. Herrera-Vásquez, A.; Salinas, P.; Holuigue, L. Salicylic Acid and Reactive Oxygen Species Interplay in the Transcriptional Control of Defense Genes Expression. Front. Plant Sci. 2015, 6, 171. [Google Scholar] [CrossRef] [PubMed]
  58. Basyuni, M.; Wati, R.; Sulistiyono, N.; Oku, H.; Baba, S.; Sagami, H. Isolation and Analysis of a Multifunctional Triterpene Synthase KcMS Promoter Region from Mangrove Plant Kandelia Candel. IOP Conf. Ser. Earth Environ. Sci. 2018, 130, 12013. [Google Scholar] [CrossRef]
  59. Xu, X.; Liu, M.; Lu, L.; He, M.; Qu, W.; Xu, Q.; Qi, X.; Chen, X. Genome-Wide Analysis and Expression of the Calcium-Dependent Protein Kinase Gene faMily in Cucumber. Mol. Genet. Genom. 2015, 290, 1403–1414. [Google Scholar] [CrossRef] [PubMed]
  60. Kuromori, T.; Seo, M.; Shinozaki, K. ABA Transport and Plant Water Stress Responses. Trends Plant Sci. 2018, 23, 513–522. [Google Scholar] [CrossRef] [PubMed]
  61. Vercammen, D.; Van De Cotte, B.; De Jaeger, G.; Eeckhout, D.; Casteels, P.; Vandepoele, K.; Vandenberghe, I.; Van Beeumen, J.; Inzé, D.; Van Breusegem, F. Type II Metacaspases Atmc4 and Atmc9 of Arabidopsis Thaliana Cleave Substrates after Arginine and Lysine. J. Biol. Chem. 2004, 279, 45329–45336. [Google Scholar] [CrossRef]
  62. Liu, H.; Deng, Z.; Chen, J.; Wang, S.; Hao, L.; Li, D. Genome-Wide Identification and Expression Analysis of the Metacaspase Gene Family in Hevea Brasiliensis. Plant Physiol. Biochem. 2016, 105, 90–101. [Google Scholar] [CrossRef]
  63. Liu, H.; Liu, J.; Wei, Y. Identification and Analysis of the Metacaspase Gene Family in Tomato. Biochem. Biophys. Res. Commun. 2016, 479, 523–529. [Google Scholar] [CrossRef]
  64. Qi, H.; Wang, N.; Qiao, W.; Xu, Q.; Zhou, H.; Shi, J.; Yan, G.; Huang, Q. Construction of a High-Density Genetic Map Using Genotyping by Sequencing (GBS) for Quantitative Trait Loci (QTL) Analysis of Three Plant Morphological Traits in Upland Cotton (Gossypium Hirsutum L.). Euphytica 2017, 213, 83. [Google Scholar] [CrossRef]
  65. Wang, H.; Jin, X.; Zhang, B.; Shen, C.; Lin, Z. Enrichment of an Intraspecific Genetic Map of Upland Cotton by Developing Markers Using Parental RAD Sequencing. DNA Res. Int. J. Rapid Publ. Rep. Genes Genomes 2015, 22, 147–160. [Google Scholar] [CrossRef] [PubMed]
  66. King, S.D.; Gray, C.F.; Song, L.; Nechushtai, R.; Gumienny, T.L.; Mittler, R.; Padilla, P.A. The cisd gene family regulates physiological germline apoptosis through ced-13 and the canonical cell death pathway in Caenorhabditis elegans. Cell Death Differ. 2018, 26, 162–178. [Google Scholar] [CrossRef] [PubMed]
  67. Coll, N.S.; Smidler, A.; Puigvert, M.; Popa, C.; Valls, M.; Dangl, J.L. The plant metacaspase AtMC1 in pathogen-triggered programmed cell death and aging: Functional linkage with autophagy. Cell Death Differ. 2014, 21, 1399. [Google Scholar] [CrossRef] [PubMed]
  68. Watanabe, N.; Lam, E. Arabidopsis metacaspase 2d is a positive mediator of cell death induced during biotic and abiotic stresses. Plant J. 2011, 66, 969–982. [Google Scholar] [CrossRef]
  69. Huang, Y.; Cui, Y.; Hou, X.; Huang, T. The AtMC4 regulates the stem cell homeostasis in Arabidopsis by catalyzing the cleavage of AtLa1 protein in response to environmental hazards. Plant Sci. 2018, 266, 64–75. [Google Scholar] [CrossRef] [PubMed]
  70. Coll, N.S.; Vercammen, D.; Smidler, A.; Clover, C.; Van Breusegem, F.; Dangl, J.L.; Epple, P. Arabidopsis type I metacaspases control cell death. Science 2010, 330, 1393–1397. [Google Scholar] [CrossRef]
  71. Watanabe, N.; Lam, E. Two Arabidopsis metacaspases AtMCP1b and AtMCP2b are arginine/lysine-specific cysteine proteases and activate apoptosislike cell death in yeast. J. Biol. Chem. 2005, 208, 14691–14699. [Google Scholar] [CrossRef]
  72. Bright, J.; Desikan, R.; Hancock, J.T.; Weir, I.S.; Neill, S.J. ABA-induced NO generation and stomatal closure in Arabidopsis are dependent on H2O2 synthesis. Plant J. 2006, 45, 113–122. [Google Scholar] [CrossRef]
  73. Vander Graaff, E.; Schwacke, R.; Schneider, A.; Desimone, M.; Flügge, U.I.; Kunze, R. Transcription analysis of Arabidopsis membrane transporters and hormone pathway sduring development-taland induced leaf senescence. Plant Physiol. 2006, 141, 776–792. [Google Scholar] [CrossRef]
  74. Heath, M.C. Hypersensitive response-related death. In Programmed Cell Death in Higher Plants; Springer: Dordrecht, The Netherlands, 2000; pp. 77–90. [Google Scholar]
  75. Jiang, Y.; Liang, G.; Yang, S.; Yu, D. Arabidopsis WRKY57 functions as a node of convergence for jasmonic acid–and auxin-mediated signaling in jasmonic acid–induced leaf senescence. Plant Cell 2014, 26, 230–245. [Google Scholar] [CrossRef] [PubMed]
  76. Vogelmann, K.; Drechsel, G.; Bergler, J.; Subert, C.; Philippar, K.; Soll, J.; Engelmann, J.C.; Engelsdorf, T.; Voll, L.M.; Hoth, S. Early senescence and cell death in Arabidopsis saul1 mutants involves the PAD4-dependent salicylic acid pathway. Plant Physiol. 2012, 159, 1477–1487. [Google Scholar] [CrossRef] [PubMed]
  77. Morris, K.; Mackerness, S.A.H.; Page, T.; John, C.F.; Murphy, A.M.; Carr, J.P.; Buchanan-Wollaston, V. Salicylic acid has a role in regulating gene expression during leaf senescence. Plant J. 2000, 23, 677–685. [Google Scholar] [CrossRef] [PubMed]
Genes 10 00527 g001 550

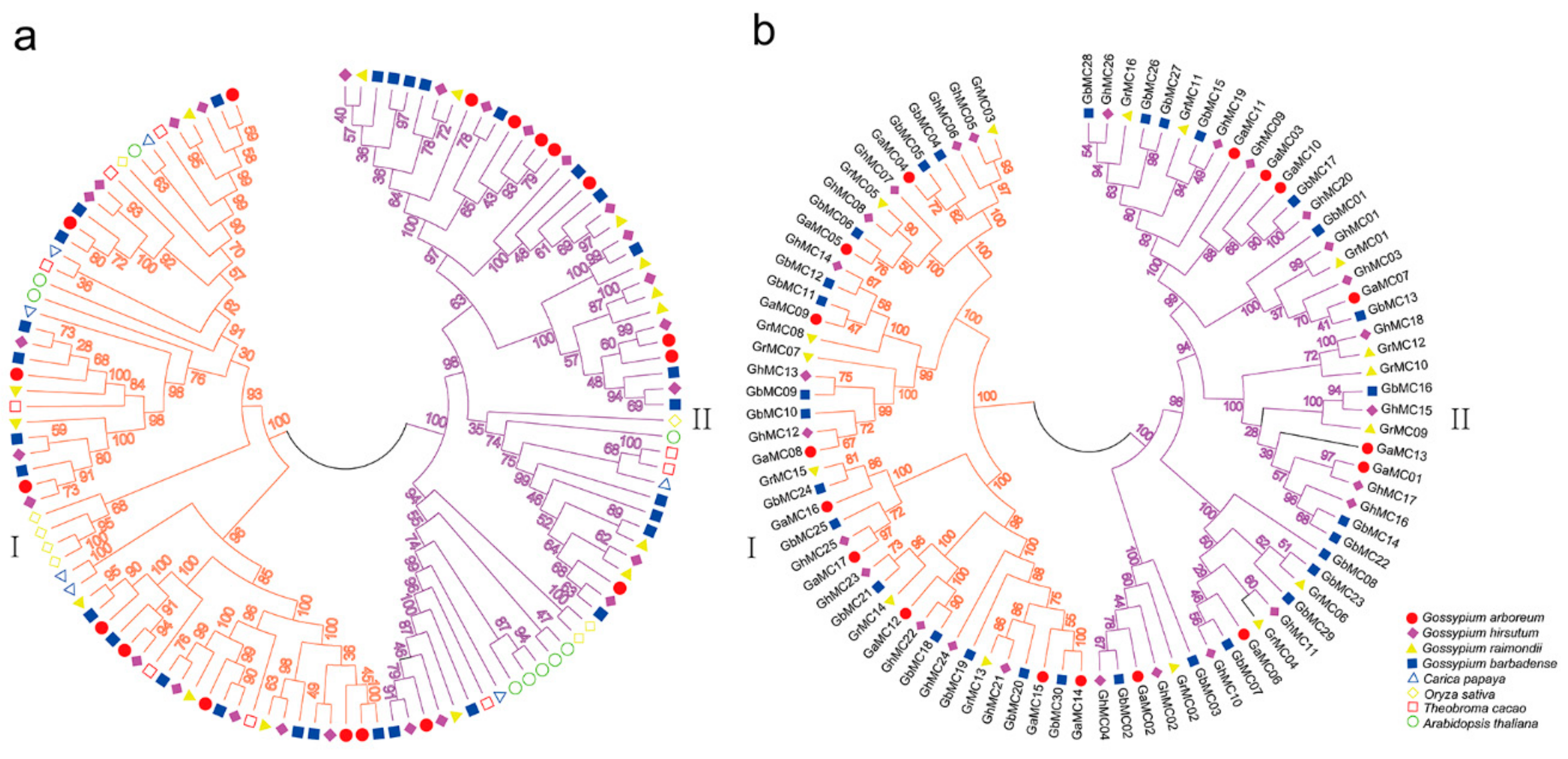

Figure 1. Phylogenetic tree of the metacaspase gene family. (a) Neighbor-joining phylogenetic tree of metacaspase genes from eight species. (b) Neighbor-joining phylogenetic tree of the cotton metacaspase gene family.
Figure 1. Phylogenetic tree of the metacaspase gene family. (a) Neighbor-joining phylogenetic tree of metacaspase genes from eight species. (b) Neighbor-joining phylogenetic tree of the cotton metacaspase gene family.
Genes 10 00527 g001
Genes 10 00527 g002 550

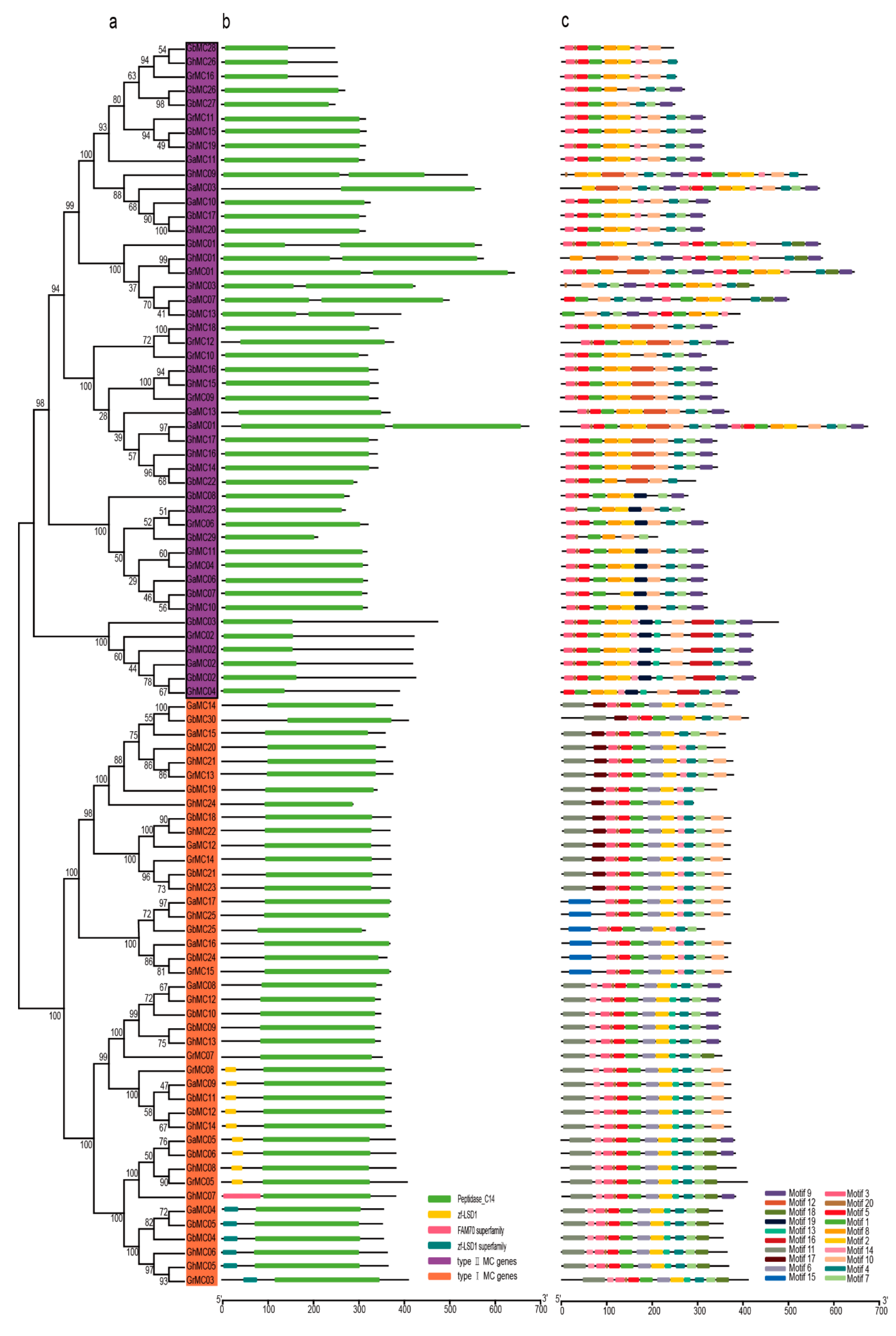

Figure 2. The stucture analysis of metacaspase gene family. (a) Phylogenetic tree of the metacaspase (MC) gene family. (b) Analysis of the protein sequences of the MC gene family domains. (c) Analysis of the protein sequences of the MC gene family motifs.
Figure 2. The stucture analysis of metacaspase gene family. (a) Phylogenetic tree of the metacaspase (MC) gene family. (b) Analysis of the protein sequences of the MC gene family domains. (c) Analysis of the protein sequences of the MC gene family motifs.
Genes 10 00527 g002
Genes 10 00527 g003 550

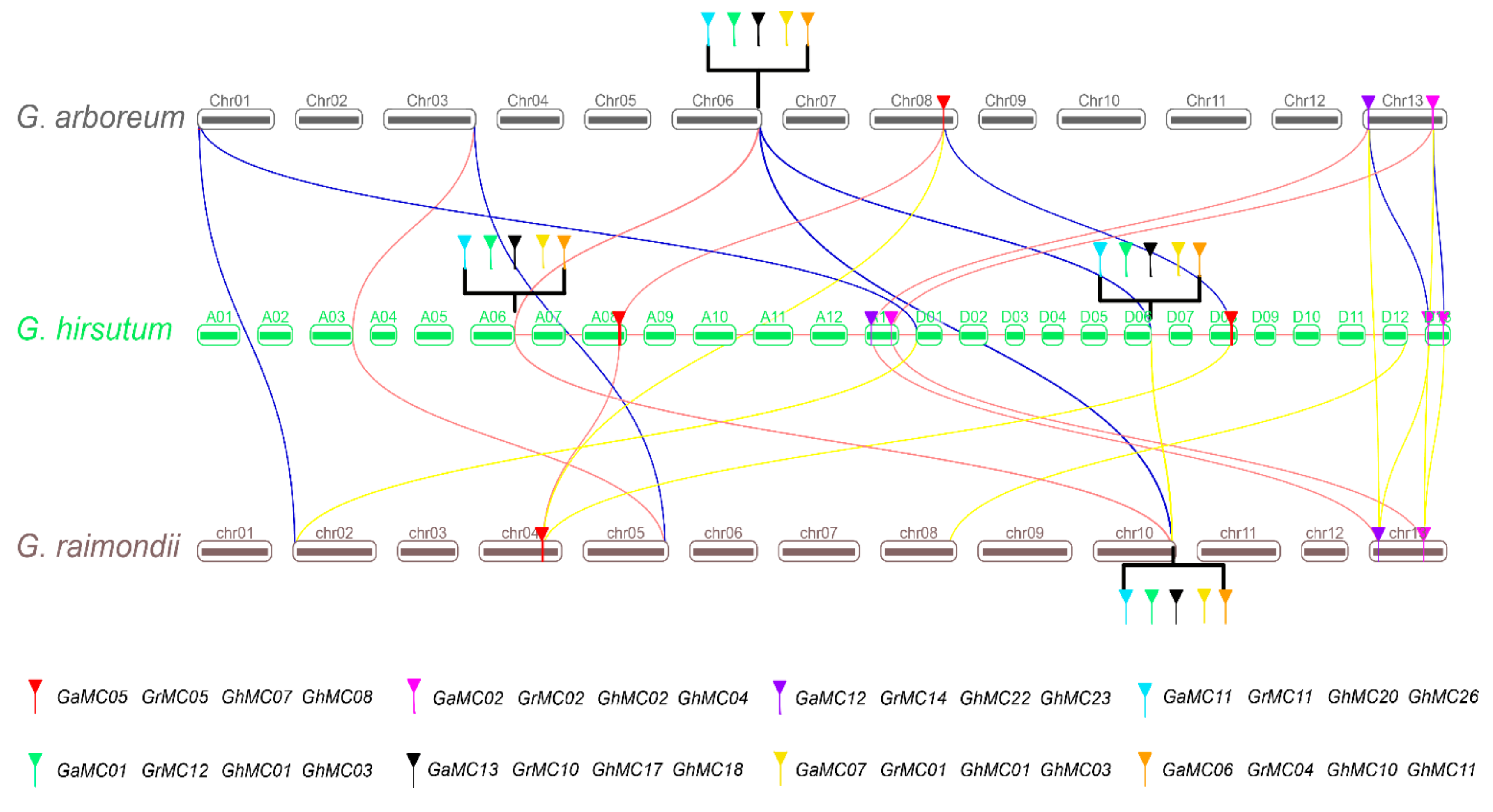

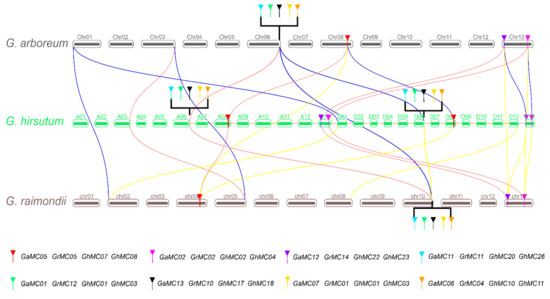

Figure 3. Collinearity of metacaspase genes in tetraploid and diploid cotton species.
Figure 3. Collinearity of metacaspase genes in tetraploid and diploid cotton species.
Genes 10 00527 g003
Genes 10 00527 g004 550
Figure 4. Heatmap presenting the metacaspase gene expression levels based on a transcriptome analysis of log2(FPKM+1). (a) Metacaspase gene expression levels during fiber development in Gossypium arboreum (0–15 DPA). (b) Metacaspase gene expression levels during fiber development in Gossypium raimondii (0–15 DPA). (c) Metacaspase gene expression levels during fiber development in Gossypium barbadense (10–28 DPA). (d) Metacaspase gene expression levels during fiber development in Gossypium hirsutum (10–28 DPA). (e) Metacaspase gene expression levels in the root, stem, leaf, and fiber tissues from G. hirsutum.
Figure 4. Heatmap presenting the metacaspase gene expression levels based on a transcriptome analysis of log2(FPKM+1). (a) Metacaspase gene expression levels during fiber development in Gossypium arboreum (0–15 DPA). (b) Metacaspase gene expression levels during fiber development in Gossypium raimondii (0–15 DPA). (c) Metacaspase gene expression levels during fiber development in Gossypium barbadense (10–28 DPA). (d) Metacaspase gene expression levels during fiber development in Gossypium hirsutum (10–28 DPA). (e) Metacaspase gene expression levels in the root, stem, leaf, and fiber tissues from G. hirsutum.
Genes 10 00527 g004
Genes 10 00527 g005 550
Figure 5. Analysis of cis-elements in GhMC genes. (a) Type-I GhMC genes; (b). Type-II GhMC genes.
Figure 5. Analysis of cis-elements in GhMC genes. (a) Type-I GhMC genes; (b). Type-II GhMC genes.
Genes 10 00527 g005
Genes 10 00527 g006 550
Figure 6. Analysis of GhMC expression levels following abiotic stress treatments according to a qRT- PCR assay. (a) 20% PEG 6000 treatment; (b) 200 µM NaCl treatment.
Figure 6. Analysis of GhMC expression levels following abiotic stress treatments according to a qRT- PCR assay. (a) 20% PEG 6000 treatment; (b) 200 µM NaCl treatment.
Genes 10 00527 g006
Genes 10 00527 g007 550
Figure 7. Analysis of GhMC expression levels following phytohormone treatments according to a qRT-PCR assay. (a) 100 µM ABA (abscisic acid) treatment; (b) 100 µM NAA (naphthylacetic acid) treatment; (c) 100 µM SA (salicylic acid) treatment; (d) 100 µM MeJA (methyl jasmonate) treatment.
Figure 7. Analysis of GhMC expression levels following phytohormone treatments according to a qRT-PCR assay. (a) 100 µM ABA (abscisic acid) treatment; (b) 100 µM NAA (naphthylacetic acid) treatment; (c) 100 µM SA (salicylic acid) treatment; (d) 100 µM MeJA (methyl jasmonate) treatment.
Genes 10 00527 g007

Share and Cite

MDPI and ACS Style

Fan, S.; Liu, A.; Zhang, Z.; Zou, X.; Jiang, X.; Huang, J.; Fan, L.; Zhang, Z.; Deng, X.; Ge, Q.; et al. Genome-Wide Identification and Expression Analysis of the Metacaspase Gene Family in Gossypium Species. Genes 2019, 10, 527. https://doi.org/10.3390/genes10070527

AMA Style

Fan S, Liu A, Zhang Z, Zou X, Jiang X, Huang J, Fan L, Zhang Z, Deng X, Ge Q, et al. Genome-Wide Identification and Expression Analysis of the Metacaspase Gene Family in Gossypium Species. Genes. 2019; 10(7):527. https://doi.org/10.3390/genes10070527

Chicago/Turabian Style

Fan, Senmiao, Aiying Liu, Zhen Zhang, Xianyan Zou, Xiao Jiang, Jinyong Huang, Liqiang Fan, Zhibin Zhang, Xiaoying Deng, Qun Ge, and et al. 2019. "Genome-Wide Identification and Expression Analysis of the Metacaspase Gene Family in Gossypium Species" Genes 10, no. 7: 527. https://doi.org/10.3390/genes10070527

APA Style

Fan, S., Liu, A., Zhang, Z., Zou, X., Jiang, X., Huang, J., Fan, L., Zhang, Z., Deng, X., Ge, Q., Gong, W., Li, J., Gong, J., Shi, Y., Lei, K., Zhang, S., Jia, T., Zhang, L., Yuan, Y., & Shang, H. (2019). Genome-Wide Identification and Expression Analysis of the Metacaspase Gene Family in Gossypium Species. Genes, 10(7), 527. https://doi.org/10.3390/genes10070527

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
