miR403a and SA Are Involved in NbAGO2 Mediated Antiviral Defenses Against TMV Infection in Nicotiana benthamiana

by
Pengfei Diao
†,
Qimeng Zhang
†,
Hongyu Sun
,
Wenjie Ma
,
Aiping Cao
,
Ruonan Yu
,
Jiaojiao Wang
,
Yiding Niu
* and
Hada Wuriyanghan
*
Key Laboratory of Forage and Endemic Crop Biotechnology, Ministry of Education, School of Life Sciences, Inner Mongolia University, Hohhot 010070, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2019, 10(7), 526; https://doi.org/10.3390/genes10070526
Submission received: 17 June 2019 / Revised: 6 July 2019 / Accepted: 9 July 2019 / Published: 12 July 2019
(This article belongs to the Special Issue Plant miRNA Mediated Defense Response)
Browse Figures
Review Reports Versions Notes

Abstract

:
RNAi (RNA interference) is an important defense response against virus infection in plants. The core machinery of the RNAi pathway in plants include DCL (Dicer Like), AGO (Argonaute) and RdRp (RNA dependent RNA polymerase). Although involvement of these RNAi components in virus infection responses was demonstrated in Arabidopsis thaliana, their contribution to antiviral immunity in Nicotiana benthamiana, a model plant for plant-pathogen interaction studies, is not well understood. In this study, we investigated the role of N. benthamiana NbAGO2 gene against TMV (Tomato mosaic virus) infection. Silencing of NbAGO2 by transient expression of an hpRNA construct recovered GFP (Green fluorescent protein) expression in GFP-silenced plant, demonstrating that NbAGO2 participated in RNAi process in N. benthamiana. Expression of NbAGO2 was transcriptionally induced by both MeSA (Methylsalicylate acid) treatment and TMV infection. Down-regulation of NbAGO2 gene by amiR-NbAGO2 transient expression compromised plant resistance against TMV infection. Inhibition of endogenous miR403a, a predicted regulatory microRNA of NbAGO2, reduced TMV infection. Our study provides evidence for the antiviral role of NbAGO2 against a Tobamovirus family virus TMV in N. benthamiana, and SA (Salicylic acid) mediates this by induction of NbAGO2 expression upon TMV infection. Our data also highlighted that miR403a was involved in TMV defense by regulation of target NbAGO2 gene in N. Benthamiana.

1. Introduction

Virus diseases threaten crop production and agriculture globally. Plant evolved and developed sophisticated mechanisms to defend against virus infections. RNA interference (RNAi) is an antiviral defense mechanism in plants. The history of our understanding of RNAi for viral defense can be traced back to 1928, when Wingard reported the recovery of virus infected plant from later virus infection [1]. RNAi phenomenon was then reported in petunia in 1990 and was termed as “co-suppression” and later as post transcriptional gene silencing (PTGS) [2]. In 1993, Lindbo et al. suggested a working mechanism for RNAi while studying gene silencing phenomena in transgenic plants [3]. In 1998, Fire et al. silenced endogenous gene expression in Caenorhabditis elegans by injection of double-stranded RNA (dsRNA), which was therefore identified as the molecule mediating sequence specific inhibitory effects during RNAi process [4]. In 1999, Hamilton and Baulcombe found that 25-nucleotide antisense RNA served as the intermediate for RNAi [5]. RNAi was also found in fungus and virus infected plant, and was coined as quelling and virus-induced gene silencing (VIGS) respectively [6,7,8]. Briefly, RNAi mechanism is as follows: dsRNA of different sources are excised by the RNase III family endoribonuclease Dicer/DCL (Dicer-like) to generate small interfering RNA (siRNA) with the length of approximately 21–24 nucleotides. The guide strand, which is complementary to target RNA, is incorporated into the RNA-induced silencing complex (RISC), the main component of which is the PIWI family Argonaute (AGO) protein. RISC-incorporated siRNA then finds the target RNA by base-pairing and degrades it by the activity of AGO protein. RNA dependent RNA polymerase (RdRp, RDR) amplifies the silencing signal via the synthesis of secondary siRNAs from primary single-stranded siRNAs [9].
Although both AGO and Dicer/DCL proteins are involved in RNAi process, their functions are diverged in defense responses against different viruses. Furthermore, there are many AGO and DCL members in plants and they showed specialized roles against different pathogens. In model system Arabidopsis thaliana, the functions of these two family proteins were heavily investigated. AGO1 plays key role against viruses like turnip crinckle virus (TCV, Tombusvirus) [10], cucumber mosaic virus (CMV, Cucumovirus) [11], potato virus X (PVX, Potexvirus) [12] and turnip mosaic virus (TuMV, Potyvirus) [13]. AGO2 is involved in antiviral role against TuMV [14], TCV, CMV [15] and PVX [16]. AGO4 functions against PVX [17], CMV [18], beet curly top virus (BCTV, Geminivirus) [19] and Plantago asiatica mosaic virus (PlAMV, Potexvirus) [20]. DCL1 is involved in antiviral role against nuclear DNA viruses like cauliflower mosaic virus (CaMV, Caulimovirus) [21], while DCL2 plays role against TuMV [22] and TCV [23]. RDR1 is involved in antiviral role against tobacco rattle virus (TRV, Tobravirus) [24], TuMV [22] and CMV [25]. RDR2 contributes to plant responses to TRV [24] and TuMV [22]. In other plant species, RDR1 plays antiviral role against sugarcane mosaic virus (SCMV, Potyvirus) in maize [26] and against PVX and tobacco mosaic virus (TMV, Tobamovirus) in tobacco [27]. In rice, RDR1 and RDR6 functions against brome mosaic virus (BMV, Bromovirus) and rice stripe virus (RSV, Tenuivirus), but not wheat dwarf geminivirus (WDV, Geminivirus) [28]. In virological model species Nicotiana benthamiana (N. benthamiana, Nb), several but limited studies were reported on antiviral role of AGO and DCL family proteins. NbDCL4 plays key role against zucchini yellow mosaic virus (ZYMV, Potyvirus) in N. benthamiana [29]. Although NbRDR1 is involved in antiviral rsponses in both tobacco and Arabidopsis thaliana, but is not functional in N. benthamiana [30]. NbRDR6 plays role against TCV, PVX and TMV in N. benthamiana [30]. NbRDR6 is also involved in plant responses to potato virus Y (PVY, Potyvirus) and the Y satellite of CMV but not TRV or CMV alone [31]. AGO proteins are key players in RNA interference pathway and RNAi-mediated antiviral mechanisms. Higher plants encode many AGOs, but their functions are not fully known. The role of NbAGO2 was broadly investigated in Arabidopsis thaliana, and its antiviral role in N. benthamiana was also reported for TBSV (Tombusvirus), PVX (Potexvirus), TuMV (Potyvirus) and TCV (Tombusvirus) [32,33]. Therefore, we investigated the role of NbAGO2 in RNAi-mediated antiviral role against infection by TMV, a virus belonging to Tobamoviridae. From its first use in Arabidopsis thaliana in 1996, Artificial microRNA (amiRNA) has been applied in many model and monocot species including Oryza sativa and Brachypodium distachyon [34,35,36]. Virus-based expression vector was also developed for amiRNA expression [37]. We used amiRNA technology to silence NbAGO2 expression and investigated its role for TMV responses. Our results showed that NbAGO2 played key roles in antiviral responses against TMV in N. benthamiana, and miR403a and SA was implicated in these responses.

2. Materials and Methods

2.1. Plant Cultivation and Treatment

Wild type and 16c GFP (Green fluorescent protein)-transgenic (GFP16c) N. benthamiana plants were used. Wild type N. benthamiana was provided by Prof. Xiaohan Mo from the Yunnan Tobacco Research Institute (Kunming, China) and the GFP16c line was provided by Prof. Feng Li from Huazhong Agricultural University (Wuhan, China). N. benthamiana seeds were cultured in sterilized nutrient soil and vermiculite (1:1) at growth temperature of 22–25 °C with photoperiod of 14:10 (light:dark) and 70% relative humidity. Three-leaf stage seedlings were used for following experiments. 0.5 mM MeSA (Methylsalicylic acid) in water solution was sprayed on the leaves and the leaves were collected one day after treatment. Water solution was sprayed as mock treatment. For GFP visualization, TMV-GFP infected plants were illuminated with a hand-held UV lamp at 320 nm or under Nikon SMZ18 microscope (Nikon, Tokyo, Japan).

2.2. SA Content Measurement

The content of endogenous salicylic acid (SA) was determined by UV Vis Spectrophotometry. A set of standard solutions, containing 5, 10, 20, 30, and 40 μg/mL of SA, were prepared in 60% ethanol solution and one of the standard solution was used for measuring maximum absorption wavelength within a 280–320 nm wavelength range (5 nm interval), which was used as a subsequent detection wavelength. The maximum absorption wavelength was 310 nm and the linear regression equation according to the absorbance of five standard solutions was deduced. N. benthamiana leaves infected with TMV and mock solution were collected and frozen in liquid nitrogen after five hours. The collected leaves were ground in liquid nitrogen and soaked with 5 mL 60% ethanol, and the supernatant after centrifugation was used to detect absorbance at 310 nm, which was then converted to SA concentration according to the standard curve [38].

2.3. Vector Construction

2.3.1. Construction of hpGFP Vector

For silencing of GFP gene, GFP interfering sequences were amplified by Forward primer
5′-TGCGGGATATCGGACGACGGGAACTACAAGA-3′
and reverse primer
5′-TGCGGGATATCAAAGGGCAGATTGTGTGGAC-3′
from genomic DNA of GFP16c line. The fragment was cloned into pQBV3 entry vector by EcoRV and then was subcloned into binary vector pCB2004B to produce hairpin construct for insert GFP fragment.

2.3.2. Construction of amiR Based Silencing Vector for NbAGO2 Gene

For construction of viral pCV (CaLCuV)-based (cabbage leaf-curl virus) amiR vector, following oligonucleotides were designed by amiR design function in www.benthgenome.com website.
amiR1:
5′-GGATCTAGATTGATCTGAAGGAGCTGAGTTGGAGGGTTTAGCAGGGTGAAGTAAAG-3′
5′-GGAGGTACCTTGATCTGAAGTCGCTGAGTAGAAGAGTGAAGCCATTAAAGGG-3′
amiR2:
5′-GGATCTAGAAAGCTAGGTGGGATAAGTCGTGGAGGGTTTAGCAGGGTGAAGTAAAG-3′
5′-GGAGGTACCAAGCTAGGTGGTCTAAGTCGAGAAGAGTGAAGCCATTAAAGGG-3′
amiR3:
5′-GGATCTAGAGACCACAGGACGCAGAAGATTGGAGGGTTTAGCAGGGTGAAGTAAAG-3′
5′-GGAGGTACCGACCACAGGACTGAGAAGATAGAAGAGTGAAGCCATTAAAGGG-3′.
The above primers were used to amplify amiR fragment using Arabidopsis thaliana miR159b as template backbone and the amplicons were cloned into pCVA vector by XbaI/KpnI sites. The same amplicons were cloned into pBI121 vector by XbaI/KpnI sites to produce non-viral binary vector based amiR constructs.

2.3.3. Construction of NbAGO2 Overexpression Vector (Ox-NbAGO2)

To overexpress NbAGO2 gene, open reading frame (ORF) region of NbAGO2 was amplified by the primers
5′-TACGGATCCATGGATCGTGGAAATTACCG-3′
and
5′-TCAGAGCTCTCAGACAAAGAACATTTTGAAC-3′
from cDNA of N. benthamiana and the amplicon was cloned into pBI121 vector by BamHI/SacI sites.

2.3.4. Construction of STTM-Based Inhibitory Vectors for Endogenous microRNAs

For development of STTM (Short tandem target mimic) constructs for miR390a, miR393a and miR403a, the following sequences and their complementary sequences were designed and synthesized. miR390a, 5′-ctcgagGGTGCTATCCCCTATCCTGAGCTTGTTGTTGTTGTTATGGTCTAATTTAAATATGGTCTAAAGAAGAAGAATGGTGCTATCCCCTATCCTGAGCTTgaattc-3′; miR393a, 5′-ctcgagCCAAAGGGCTAATAGCATGATGTTGTTGTTGTTATGGTCTAATTTAAATATGGTCTAAAGAAGAAGAATCCAAAGGGCTAATAGCATGATgaattc-3′; and miR403, 5′-ctcgagAGTTTGTGCCTAGTGAATCTAAGTTGTTGTTGTTATGGTCTAATTTAAATATGGTCTAAAGAAGAAGAATAGTTTGTGCCTAGTGAATCTAAgaattc-3′. The restriction endonuclease sites are shown in lower-case letter, and the STTM spacer sequences were underlined. The oligonucleotides and complementary sequences were annealed to produce dsDNA and this dsDNA was then ligated into the pGreen-GUS-Competitor vector by XhoI and EcoRI respectively.

2.4. Plant Inoculation, Gene Silencing and Virus Infection

The above constructs were transformed into Agrobacterium tumefaciens GV3101 competent cells. The transformants were grown to optical density OD600 = 1 at 28 °C, cells were collected by centrifugation and resuspended in inoculation buffer (10 mM 2-(N-Morpholino)ethanesulfonic acid (MES), 10 mM MgCl2, 200 μM acetosyringone). OD600 values of agrobacterium inoculation solution were all adjusted to 1.0 unless stated otherwise. The inoculation solution was leaf-infiltrated into three-leaf stage N. benthamiana by needleless syringe. For pCV-based silencing experiment, pCVB was simultaneously transformed and co-infiltrated with recombinant pCVA vectors. For virus infection, infectious clone of TMV expressing green fluorescent protein (TMV-GFP), pJL24, was infected as the same way. For pJL24, OD600 value of Agrobacterium inoculation solution was 0.1. In all experiments, inoculation buffer with empty vector was used as mock treatment.

2.5. Total RNA Extraction and cDNA Preparation

Leaf tissues were grounded in liquid nitrogen by using mortar and pestle. The powder was homogenized in Trizol reagent (CWBio, Beijing, China) and extracted following manufacturer’s protocols. DNase was used to remove contaminated genomic DNA. Total RNA quality was confirmed by measurement of OD260/OD280 using NanoDrop2000 Spectrophotometer (ThermoFisher Scientific, Waltham, MA, USA) and agarose gel electrophoresis. One µg of total RNA was used as template and cDNA was synthesized by random hexamer using GoScript Reverse Transcription System (Promega Corporation, Madison, WI, USA).

2.6. Assessment of NbAGO2 Expression by qRT-PCR Experiment and Semi-Quantitative RT-PCR

The cDNAs were subjected to PCR experiment. The PCR reaction was run on qTOWER 2.2 (Analytik Jena AG, Jena, Germany) equipment. Fast SYBR Green Master Mix (ThermoFisher Scientific, Waltham, MA, USA) was used for evaluation of NbAGO2 level by qRT-PCR. The primer sets 5′-ATGTGAAATGGTACGGGCTGAA-3′ and 5′-CAACAAGGTTCCACTGGCATTT-3′ were used for NbAGO2. As an internal control, steady state level of N. benthamiana GAPDH gene was evaluated by primer set 5′-CTGACAAGGACAAGGCTGCT-3′ and 5′-AAGCAGCTCTTCCACCTCTC-3′. The ratio of mRNA level between treatment and mock samples was determined by the 2−ΔΔCT method. At least three biological replicates with two technical replications were carried out, and the differences were evaluated by t-test.

2.7. Northern Hybridization Experiment

Ten µg of total RNA was resolved by agarose gel electrophoresis. RNAs were transferred from the gel to nylon membrane (Amersham Hybond-N+, positively charged) (GE Healthcare Life Sciences, Pittsburgh, PA, USA) by an electrokinetic capillary apparatus. 32P or digoxigenin-labelled probes were prepared by the methods described as previously, and hybridization and signal visualization were performed as per the literatures [39,40]. For N. benthamiana NbPR1a gene, a contig sequence with transcript ID of JN247448 from N. benthamiana sequence database (www.benthgenome.com) was used and the primer pairs 5′-GGATGCCCATAACACAGCTC-3′ and 5′-CCTAGCACATCCAACACGAA-3′ were used for amplification of 313bp probe sequence. For N. benthamiana β-actin gene, a partial cDNA sequence (JQ256516.1) was used and the primer pairs 5′-CCCAAAGGCTAATCGTGAAA-3′ and 5′-GCAGCTTCCATTCCAATCAT-3′ were used for amplification of 483bp probe sequence. For TMV detection, nucleotide encoding capsid protein was used and the primer pairs 5′-CAAGCTCGAACTGTCGTTCA-3′ and 5′-GACCAGAGGTCCAAACCAAA-3′ were used for amplification of 352bp probe sequence.

3. Results

3.1. Transient Silencing of NbAGO2 in N. benthamiana by amiR-NbAGO2

Artificial miRNA recently emerged as a newly developed technology for gene silencing. NbAGO2 amiR sequences were designed in www.benthgenome.com website and were used to amplify amiR fragment using Arabidopsis thaliana miR159b as template backbone (Figure 1A, Supplementary Figure S1). An overexpression vector for amiR-NbAGO2 was constructed in CaLCuV (cabbage leaf-curl virus, Geminivirus) -based vector pCVA under 35S promoter [37]. The pCVA-amiR-NbAGO2 was transformed into Agrobacterium tumefaciens strain GV3101 and agro-infiltrated into N. benthamiana leaves together with pCVB. We used three different regions of NbAGO2 for amiR targeting, and named them amiR-NbAGO2-1, amiR-NbAGO2-2 and amiR-NbAGO2-3 respectively (Figure 1B). Three days later, silencing effects on NbAGO2 expression were determined by qRT-PCR experiment. As shown in Figure 1C, overexpression of amiR-NbAGO2 significantly down-regulated the level of NbAGO2 by 53–74%. The most pronounced effect was observed for amiR-NbAGO2-2. The results demonstrated the efficacy of amiR constructs for knockdown of NbAGO2 expression, and different amiR varied as regards to silencing efficacy. Therefore, we used amiR-NbAGO2-2 for following experiments. As inoculation of pCV interfere with subsequent infection of other viruses like TMV-GFP (Supplementary Figure S2), we then used pBI121-based binary vector to overexpress amiR. Time course experiment showed that silencing efficiency of pBI121-amiR was most evident at 6 DPI (days post infection) (Figure 2). In the following experiments, we used pBI121-amiR-NbAGO2-2 for NbAGO2 silencing experiments. To verify the effectiveness of amiRNAs on NbAGO2 expression, another internal control, GAPDH, was used and the results were similar to the results from NbActin as internal control (Supplementary Figure S3).

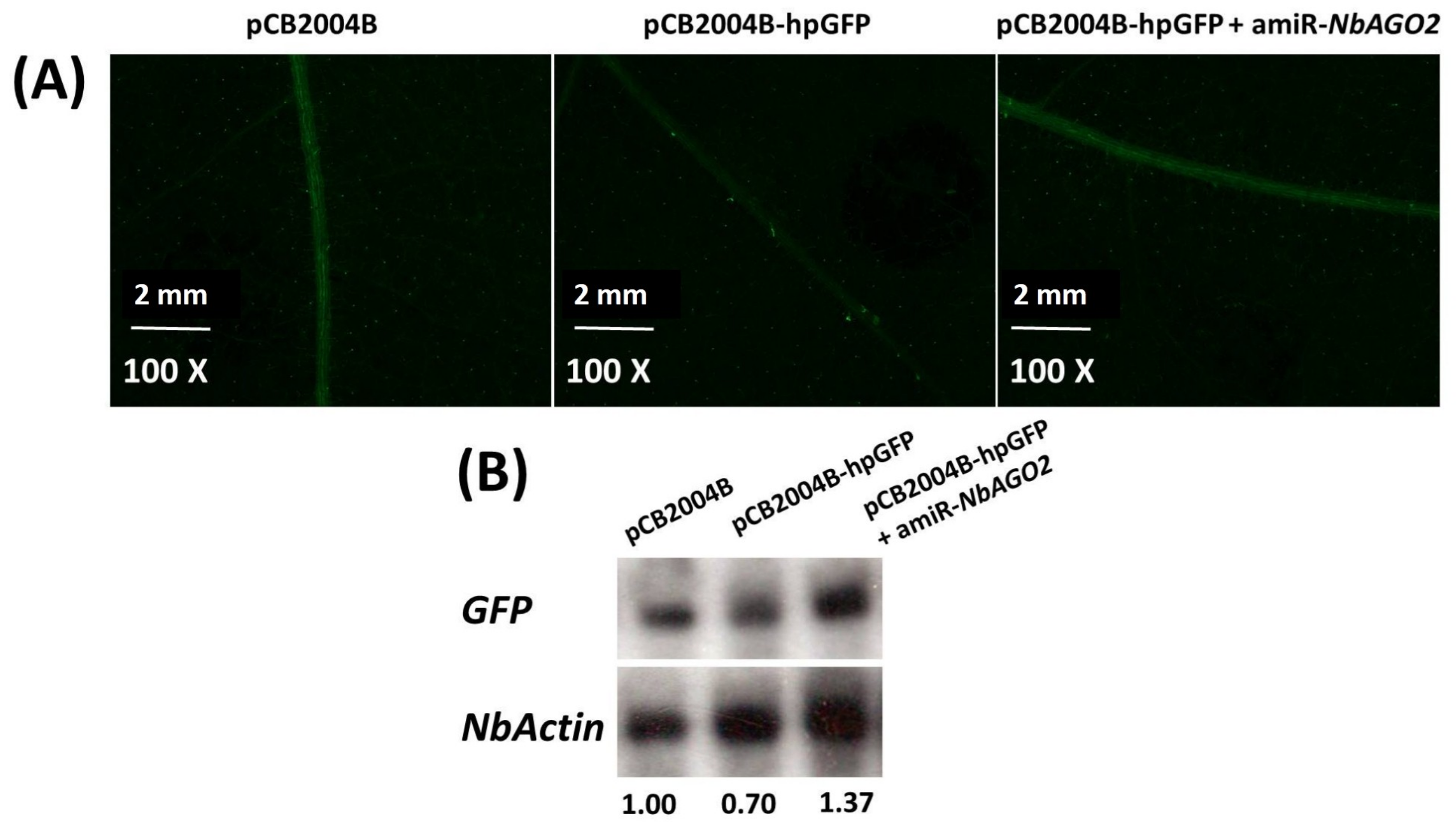

3.2. Silencing of NbAGO2 Compromised dsRNA-Mediated Gene Silencing in N. benthamiana

To confirm that NbAGO2 is functionally involved in RNAi process, a GFP16c N. benthamiana line which overexpresses green fluorescent protein (GFP) was used. First, we used pCB2004B-hpGFP to transiently silence GFP expression in GFP16c plant. The result showed that GFP expression was largely silenced by transient overexpression of hpGFP by agroinfiltration, and both GFP fluorescence and GFP mRNA levels decreased by hpGFP expression. One should note that GFP signal in GFP16c plant was mostly localized in vascular tissue. Next, we used this system to investigate the involvement of NbAGO2 in RNA silencing. Down-regulation of NbAGO2 by amiR-NbAGO2 recovered both the GFP fluorescence and GFP mRNA levels in the hpGFP expressed GFP16c plant, while in the control plant GFP was significantly silenced (Figure 3A,B). The loss of silencing by NbAGO2 knockdown via amiR-NbAGO2 transient expression verified the participation of NbAGO2 in RNAi process.

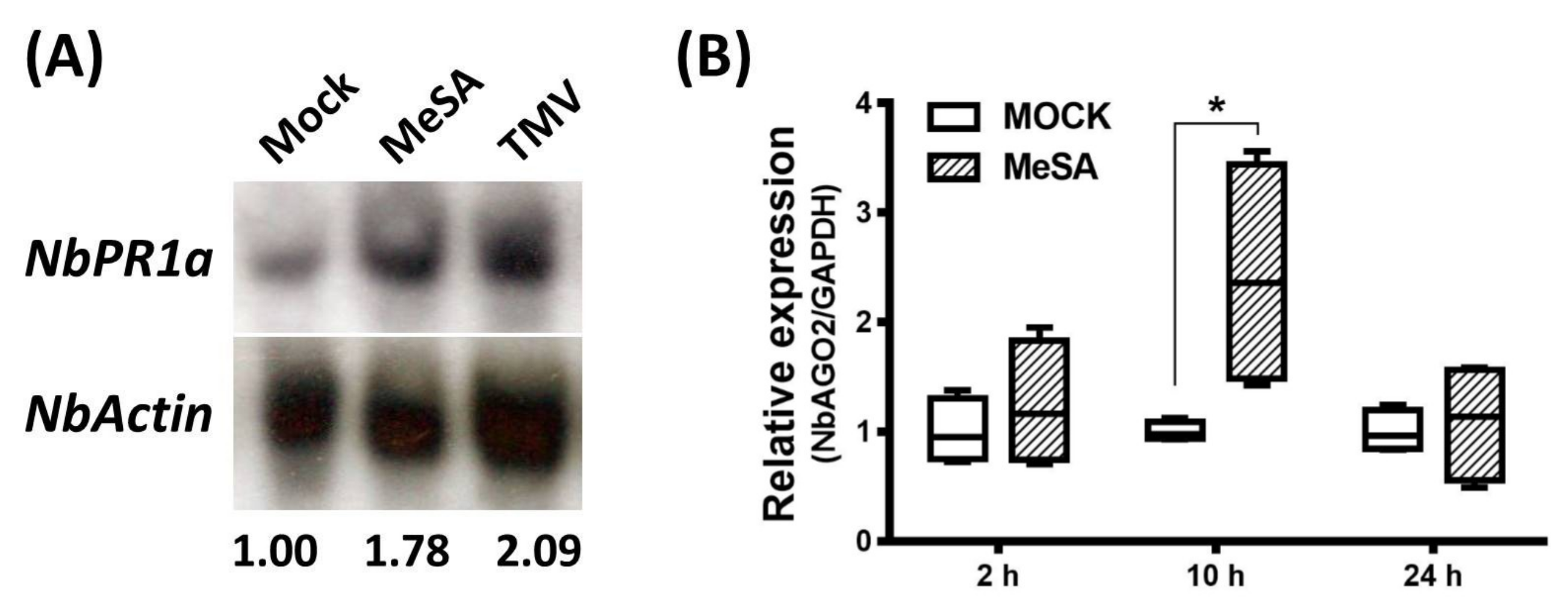

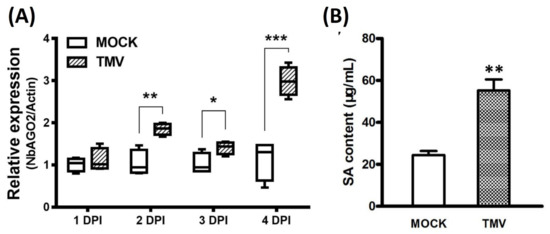

3.3. Expression of NbAGO2 was Induced by Both MeSA Treatment and TMV Infection

Salicylic acid (SA) is reported to be broadly engaged in virus infection and defense response. We also investigated the involvement of SA in the TMV infection process in N. benthamiana. Exogenous MeSA was sprayed on three-leaf stage N. benthamiana seedlings and the seedlings were collected 2, 10 and 24 h post spray. To verify the effectiveness of SA treatment, expression of SA marker gene NbPR1a was determined by Northern blot experiment. As shown in Figure 4A, NbPR1a was strongly induced by MeSA treatment after 10 h, demonstrating that foliar application of MeSA is effective in N. benthamiana. Quantitative real-time PCR was performed to determine the mRNA level of NbAGO2. Under MeSA treatment, transcript level of NbAGO2 was shortly elevated at 10 h by 2.4-fold and then declined to basal level by 24 h (Figure 4B). We then evaluated the expression of NbAGO2 in response to TMV infection. NbAGO2 was significantly induced by TMV infection during 1–4 DPI (Figure 5A). In tobacco, SA was responsible for plant resistance to virus infection, especially of TMV. Our data showed that SA level was significantly elevated by TMV infection (Figure 5B), and NbPR1a was also induced by TMV infection in N. benthamiana (Figure 4A).

3.4. Down-Regulation of NbAGO2 Promoted TMV Infection

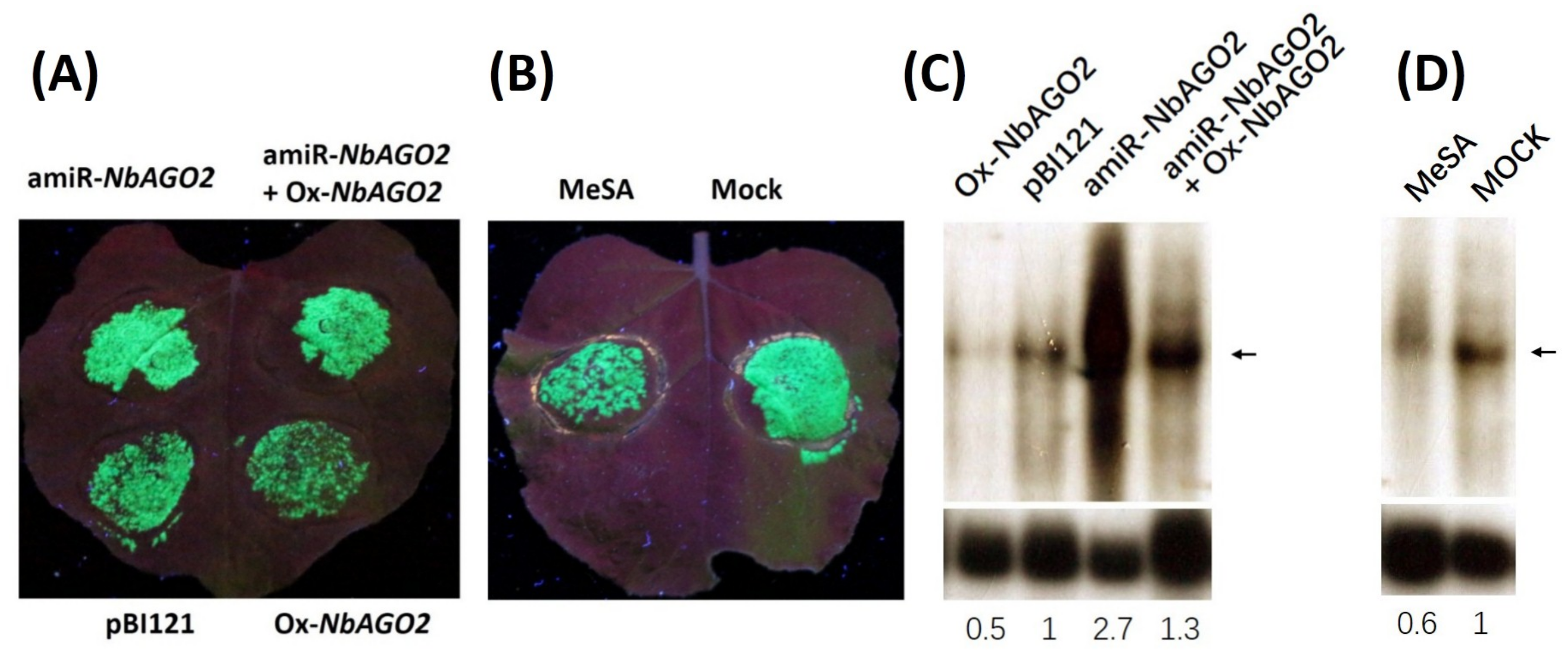

As shown above, NbAGO2 was responsive to TMV infection and MeSA treatment. Involvement of NbAGO2 in TMV infection was further investigated as follows. NbAGO2 was first silenced by pBI121-amiR-NbAGO2 agroinfiltration, and after one day the same leaf region was agroinfiltrated with TMV-GFP, an infectious TMV engineered to express green fluorescent protein, which was retained in the infiltrated area for at least 6 days. The inoculated leaves were monitored daily for the appearance of GFP fluorescence. As shown in Figure 6A, silencing of NbAGO2 caused stronger accumulation of virus (GFP fluorescence) as compared to control empty vector (pBI121) inoculated leaves. In accordance with this, overexpression of NbAGO2 (Ox-NbAGO2) resulted in weaker virus accumulation, and this effect was abolished by simultaneous amiR-NbAGO2 expression. In addition, virus spread was reduced by treatment with MeSA (Figure 6B). TMV RNA level was also determined by Northern blot experiment with CP (Capsid protein) region-specific probe, and the result was consistent with GFP fluorescence data (Figure 6C,D). Taken together, we concluded that NbAGO2 was an antiviral factor effective against TMV, and SA was implicated in this process by inducing NbAGO2 expression, at least to some extent.

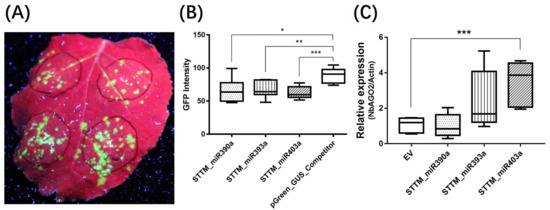

3.5. STTM_miR403a Suppressed TMV Infection

As a core element in RISC formation, AGO2 plays an important role in RNAi-mediated disease resistance response. We therefore hypothesized that some miRNA, especially which participate in RNAi, may have an effect in the process. We chose three miRNAs to further verify this. Among them, miRNA390a and miRNA393a were reported to influence the activity of AGO2 by binding to it [41], while miRNA403a was reported to mitigate AGO2 expression by posttranscriptional regulation [42]. Short tandem target mimic (STTM) is a complementary RNA which blocks small RNA functions in plants by sponge activity. Therefore, we designed an STTM inhibitory vector for each miRNA to examine functions of these miRNAs in virus defense according to the methods described by Tang et al. [43]. After co-inoculation with STTM constructs and TMV-GFP via agroinfiltration in N. benthamiana plants, the GFP fluorescence was observably weakened in STTM_miR390a, STTM_miR393a, and STTM_miR403a co-infected area at 6 DPI compared to pGreen_GUS_competitor, which served as the control construct (Figure 7A). Subsequently, fluorescence intensity was quantified, and the GFP intensity of STTM co-expressed groups, especially that of STTM_miR403a, showed statistical differences compared with the control (Figure 7B). In the subsequent analysis, we found that miR403a had a target site in 3′ UTR of NbAGO2 transcript (Supplementary Figure S4). STTM_miR403a expression reduced NbAGO2 mRNA level (Figure 7C), while STTM_miR390a, STTM_miR393a expression did not alter NbAGO2 mRNA level. Our data showed the regulatory role of miR403a on the expression of NbAGO2 as well as its role in antiviral response.

4. Discussion

SA-mediated defenses were involved in plant response against a variety of pathogen types including viruses, bacteria and fungi [44]. Involvement of SA in plant response against virus infection was first established for the well-known interaction between TMV and its resistance gene N from tobacco [45]. Furthermore, SA was reported to be inductively accumulated after virus infection, highlighting the importance of this plant hormone in compatible plant–virus interactions [46,47]. Both RNA viruses and DNA viruses were reported to trigger SA signaling pathway [48,49]. In fact, accumulation of SA after pathogen attack and induction of hallmark PR genes were commonly observed [50,51]. Infection of a diverse range of plant pathogens activated SA signaling pathway and subsequent hypersensitive reaction (HR) or systemic acquired resistance (SAR) [51]. RNAi is a well-known antiviral defense mechanism in plants. Cross-talk of RNA silencing and SA triggered defense responses were manifested by several reports. First, N. benthamiana AGO4 protein was involved in translational repression and was indispensable for SA-mediated defense response by N gene [17]. Second, silencing suppressor proteins encoded by virus genome influence both RNAi and SA-induced plant defenses against viruses [52,53,54]. Third, expression of some RNA silencing component genes are influenced by SA treatment. For example, among plant RNA silencing components, activity or expression level of RdRp1 from a variety of plant species including Arabidopsis thaliana, N. benthamiana, maize, cotton, potato and tobacco were elicited by SA or virus infection, as led to activation of antiviral defense responses [26,27,55,56,57,58,59]. Our data showed that foliar application of MeSA induced NbAGO2 expression and activated defense against TMV, as is consistent with results from other studies [60,61]. We used TMV infectious clone pJL24 and it was retained in the infiltrated area within our detection time. Induction of NbAGO2 expression by SA indicated that cross-talk of RNA silencing and SA-mediated antiviral defenses were mediated by RdRp or AGO2 in some plant species like N. benthamiana [62]. As for the TMV defense reaction, NbRdRp1 was reported to function in systemic leaves but not on directly-inoculated leaves [27,55,63], while NbAGO2 played TMV defense role in inoculated leaves in our results.
Induction of RNAi pathway component genes by corresponding pathogens were reported in several manuscripts. In Arabidopsis thaliana, AGO2 was induced by bacterial pathogen Pseudomonas syringae, virus pathogens TCV, CMV and also by virus silencing suppressor proteins [41,53,64]. RdRp1 expression was induced by TMV infection [55]. Expression of DRB4 was induced by infection of viruses such as tobacco yellow mosaic virus (TYMV, Tymovirus), TCV, CaMV [65] and TCV [66,67]. In rice, RSV infection induced expression of AGO18 and AGO2, while RDV infection induced expression of several OsRDR genes but not OsAGO genes [68]. Here, we showed that expression of NbAGO2 was induced by TMV infection in virological model species N. benthamiana. NbAGO2 was shown to be involved in both RNAi and virus defense responses here. NbAGO2 was reported to mediate defense against tomato bushy stunt virus (TBSV, Tombusvirus) [32]. CRISPR/Cas9 mediated inactivation of NbAGO2 compromise defenses against PVX, TuMV and TCV, but not Tombusvirus and CMV infections [33]. Transgenic approach showed that AGO2 defends against TBSV, TMV and PVX, but not foxtail mosaic virus (FoMV, Potexvirus) [69]. Our data add weight to the present evidence that AGO2 is a broad spectrum antiviral gene whose activity is achieved by RNAi mechanism. Artificial miRNA was shown to be effective to silence variety of genes in a diversity of plant species including N. benthamiana [70], Arabidopsis thaliana [71], N. tabacum [72], Oryza sativa [35], Glycine max [73], Solanum melongena [74], Medicago truncutula [75], Triticum aestivum [76], Vitis vinifera [77], Solanum tuberosum [78] and Solanum lycopersicum [79]. Here, we also showed that artificial miRNA was an effective way to silence N. benthamiana AGO family genes via transient expression from both virus vector and binary vector. As infection of virus vector (pCV) hindered subsequent TMV infection, we used pBI121 for expression of amiRNA and its effects on TMV infection. It is interesting to note that AGO2 itself is targeted by miR403a in plants [80], and here we showed for the first time that attenuation of miR403a inhibition on NbAGO2 by STTM technology influenced TMV infection. As for the miR390a and miR393a, both of them were reported to bind to NbAGO2 protein competitively [41], therefore we speculated that this is the reason that they play similar role with miR403a in our experiments. Paudel et al. reported that NbAGO2 expression was induced by tomato ringspot virus (ToRSV; Secoviridae) isolates ToRSV-Rasp1 or ToRSV-GYV, and silencing of NbAGO2 elevated ToRSV accumulation [81]. This indicated that NbAGO2 was involved in plant responses toward different families of viruses.

5. Conclusions

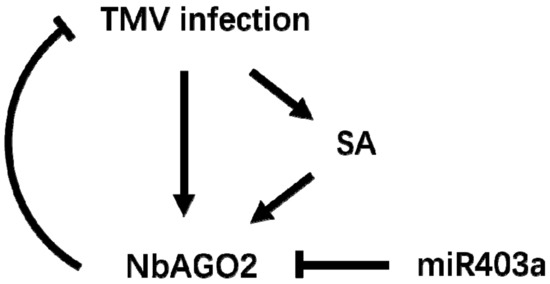

The role of NbAGO2 gene against TMV infection was investigated in N. benthamiana. NbAGO2 was demonstrated to be involved in RNAi process in N. benthamiana. NbAGO2 mRNA level was elevated by both TMV infection and MeSA treatment. Suppression of NbAGO2 gene by amiR technology compromised plant resistance against TMV infection. Inhibition of endogenous miR403a, a predicted regulatory microRNA of NbAGO2, reduced TMV infection. Taken all this together, we conclude that SA participates in NbAGO2 mediated TMV response and miR403a is also involved in this response by post-transcriptionally regulating NbAGO2 expression (Figure 8).

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/7/526/s1, Figure S1: NbAGO2 (Unigene No. Nbv3K585706870, retrieved from www.benthgenome.com) was aligned with Arabidopsis thaliana NbAGO2 (Accession No. NM_102866.3), Nicotiana tabacum NtAGO2 (Accession No. XM_016619080.1), Solanum lycopersicum SlyAGO2 (Accession No. NM_001279306.2), and Glycine max GmAGO2 (Accession No. XM_006605460.3) by DNAMAN software (Version 6.0.3.99, Lynnon Biosoft, San Ramon, CA, USA). The sequences for amiR target sites were shown on top by lines with different colors, Figure S2: N. benthamiana leaves were first inoculated with pCV (both pCVA and pCVB), and then were infected with TMV-GFP (pJL24) one day later. As a control, pCambia1301, the backbone of pCV infectious clone used here, was inoculated. The result showed that first inoculation of pCV impeded TMV-GFP infections, Figure S3: The experiments in (A) and (B) were performed the same as Figure 1 and Figure 2, respectively. The only difference is Actin gene was used as internal control here instead of GAPDH in Figure 1 and Figure 2, Figure S4: Sequence alignment between miR403a and target NbAGO2 gene from 17Wt Nicotiana Benthamiana. “|” indicates perfect match, while gap shows mismatches.

Author Contributions

Conceptualization, Y.N. and H.W.; Formal analysis, P.D. and Q.Z.; Funding acquisition, Y.N. and H.W.; Investigation, P.D., Q.Z., H.S., W.M., A.C., R.Y. and J.W.; Methodology, P.D. and Q.Z.; Project administration, Y.N. and H.W.; Supervision, H.W.; Validation, H.S.; Visualization, P.D.; Writing–original draft, Y.N. and H.W. All authors read and approved the final manuscript.

Funding

This research was funded by National Natural Science Foundation of China (31460036, 31570142), National Foundation for College Students (201710126039) and Inner Mongolia Innovation Project for College Students (201614262).

Acknowledgments

We are grateful to Yule Liu (Tsinghua University), Feng Li (Huazhong Agricultural University), Xiaohan Mo (Yunnan Tobacco Research Institute) and Bryce W. Falk (University of California, Davis) for providing vectors or plant seeds.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wingard, S.A. Hosts and symptoms of ring spot, a virus disease of plants. J. Agric. Res. 1928, 37, 127–153. [Google Scholar]
  2. Napoli, C.; Lemieux, C.; Jorgensen, R. Introduction of a Chimeric Chalcone Synthase Gene into Petunia Results in Reversible Co-Suppression of Homologous Genes in trans. Plant Cell 1990, 2, 279–289. [Google Scholar] [CrossRef] [PubMed]
  3. Lindbo, J.A.; Silva-Rosales, L.; Proebsting, W.M.; Dougherty, W.G. Induction of a higly specific antiviral state in transgenic plants: Implications for regulation of gene expression and virus resistance. Plant Cell 1993, 5, 1749–1759. [Google Scholar] [CrossRef] [PubMed]
  4. Fire, A.; Xu, S.Q.; Montgomery, M.K.; Kostas, S.A.; Driver, S.E.; Mello, C.C. Potent and specific genetic interference by double-stranded RNA in Caenorhabditis elegans. Nature 1998, 391, 806–811. [Google Scholar] [CrossRef] [PubMed]
  5. Hamilton, A.J.; Baulcombe, D.C. A species of small antisense RNA in posttranscriptional gene silencing in plants. Science 1999, 286, 950–952. [Google Scholar] [CrossRef] [PubMed]
  6. Romano, N.; Macino, G. Quelling: Transient inactivation of gene expression in Neurospora crassa by transformation with homologous sequences. Mol. Microbiol. 1992, 6, 3343–3353. [Google Scholar] [CrossRef] [PubMed]
  7. Noad, R.J.; Turner, D.S.; Covey, S.C. Expression of functional elements inserted into the 35S promoter region of infectious cauliflower mosaic virus replicons. Nucleic Acids Res. 1997, 25, 1123–1129. [Google Scholar] [CrossRef] [Green Version]
  8. Ratcliff, F.; Harrison, B.D.; Baulcombe, D.C. A similarity between viral defense and gene silencing in plants. Science 1997, 276, 1558–1560. [Google Scholar] [CrossRef]
  9. Meister, G.; Tuschl, T. Mechanisms of gene silencing by double-stranded RNA. Nature 2004, 431, 343–349. [Google Scholar] [CrossRef]
  10. Azevedo, J.; Garcia, D.; Pontier, D.; Ohnesorge, S.; Yu, A.; Garcia, S.; Braun, L.; Bergdoll, M.; Hakimi, M.A.; Lagrange, T.; et al. Argonaute quenching and global changes in Dicer homeostasis caused by a pathogen-encoded GW repeat protein. Genes Dev. 2010, 24, 904–915. [Google Scholar] [CrossRef] [Green Version]
  11. Duan, C.-G.; Fang, Y.-Y.; Zhou, B.-J.; Zhao, J.-H.; Hou, W.-N.; Zhu, H.; Ding, S.-W.; Guo, H.-S. Suppression of Arabidopsis ARGONAUTE1-Mediated Slicing, Transgene-Induced RNA Silencing, and DNA Methylation by Distinct Domains of the Cucumber mosaic virus 2b Protein. Plant Cell 2012, 24, 259–274. [Google Scholar] [CrossRef]
  12. Garcia, D.; Garcia, S.; Pontier, D.; Marchais, A.; Renou, J.P.; Lagrange, T.; Voinnet, O. Ago Hook and RNA Helicase Motifs Underpin Dual Roles for SDE3 in Antiviral Defense and Silencing of Nonconserved Intergenic Regions. Mol. Cell 2012, 48, 109–120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Garcia-Ruiz, H.; Carbonell, A.; Hoyer, J.S.; Fahlgren, N.; Gilbert, K.B.; Takeda, A.; Giampetruzzi, A.; Ruiz, M.T.G.; McGinn, M.G.; Lowery, N.; et al. Roles and Programming of Arabidopsis ARGONAUTE Proteins during Turnip Mosaic Virus Infection. PLoS Pathog. 2015, 11, e1004755. [Google Scholar] [CrossRef] [PubMed]
  14. Carbonell, A.; Fahlgren, N.; Garcia-Ruiz, H.; Gilbert, K.B.; Montgomery, T.A.; Nguyen, T.; Cuperus, J.T.; Carrington, J.C. Functional Analysis of Three Arabidopsis ARGONAUTES Using Slicer-Defective Mutants. Plant Cell 2012, 24, 3613–3629. [Google Scholar] [CrossRef] [PubMed]
  15. Harvey, J.J.W.; Lewsey, M.G.; Patel, K.; Westwood, J.; Heimstaedt, S.; Carr, J.P.; Baulcombe, D.C. An Antiviral Defense Role of AGO2 in Plants. PLoS ONE 2011, 6, e14639. [Google Scholar] [CrossRef] [PubMed]
  16. Jaubert, M.; Bhattacharjee, S.; Mello, A.F.S.; Perry, K.L.; Moffett, P. ARGONAUTE2 Mediates RNA-Silencing Antiviral Defenses against Potato virus X in Arabidopsis. Plant Physiol. 2011, 156, 1556–1564. [Google Scholar] [CrossRef]
  17. Bhattacharjee, S.; Zamora, A.; Azhar, M.T.; Sacco, M.A.; Lambert, L.H.; Moffett, P. Virus resistance induced by NB-LRR proteins involves Argonaute4-dependent translational control. Plant J. 2009, 58, 940–951. [Google Scholar] [CrossRef] [PubMed]
  18. Hamera, S.; Song, X.; Su, L.; Chen, X.; Fang, R. Cucumber mosaic virus suppressor 2b binds to AGO4-related small RNAs and impairs AGO4 activities. Plant J. 2012, 69, 104–115. [Google Scholar] [CrossRef]
  19. Raja, P.; Sanville, B.C.; Buchmann, R.C.; Bisaro, D.M. Viral genome methylation as an epigenetic defense against geminiviruses. J. Virol. 2008, 82, 8997–9007. [Google Scholar] [CrossRef]
  20. Brosseau, C.; El Oirdi, M.; Adurogbangba, A.; Ma, X.; Moffett, P. Antiviral Defense Involves AGO4 in an Arabidopsis-Potexvirus Interaction. Mol. Plant-Microbe Interact. 2016, 29, 878–888. [Google Scholar] [CrossRef]
  21. Blevins, T.; Rajeswaran, R.; Shivaprasad, P.V.; Beknazariants, D.; Si-Ammour, A.; Park, H.-S.; Vazquez, F.; Robertson, D.; Meins, F., Jr.; Hohn, T.; et al. Four plant Dicers mediate viral small RNA biogenesis and DNA virus induced silencing. Nucleic Acids Res. 2006, 34, 6233–6246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Garcia-Ruiz, H.; Takeda, A.; Chapman, E.J.; Sullivan, C.M.; Fahlgren, N.; Brempelis, K.J.; Carrington, J.C. Arabidopsis RNA-Dependent RNA Polymerases and Dicer-Like Proteins in Antiviral Defense and Small Interfering RNA Biogenesis during Turnip Mosaic Virus Infection. Plant Cell 2010, 22, 481–496. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, X.; Zhang, X.; Singh, J.; Li, D.; Qu, F. Temperature-Dependent Survival of Turnip Crinkle Virus-Infected Arabidopsis Plants Relies on an RNA Silencing-Based Defense That Requires DCL2, AGO2, and HEN1. J. Virol. 2012, 86, 6847–6854. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Donaire, L.; Barajas, D.; Martinez-Garcia, B.; Martinez-Priego, L.; Pagan, I.; Llave, C. Structural and genetic requirements for the biogenesis of tobacco rattle virus-derived small interfering RNAs. J. Virol. 2008, 82, 5167–5177. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, X.-B.; Wu, Q.; Ito, T.; Cillo, F.; Li, W.-X.; Chen, X.; Yu, J.-L.; Ding, S.-W. RNAi-mediated viral immunity requires amplification of virus-derived siRNAs in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2010, 107, 484–489. [Google Scholar] [CrossRef] [PubMed]
  26. He, J.; Dong, Z.; Jia, Z.; Wang, J.; Wang, G. Isolation, expression and functional analysis of a putative RNA-dependent RNA polymerase gene from maize (Zea mays L.). Mol. Biol. Rep. 2010, 37, 865–874. [Google Scholar] [CrossRef] [PubMed]
  27. Xie, Z.X.; Fan, B.F.; Chen, C.H.; Chen, Z.X. An important role of an inducible RNA-dependent RNA polymerase in plant antiviral defense. Proc. Natl. Acad. Sci. USA 2001, 98, 6516–6521. [Google Scholar] [CrossRef] [Green Version]
  28. Jiang, L.; Qian, D.; Zheng, H.; Meng, L.-Y.; Chen, J.; Le, W.-J.; Zhou, T.; Zhou, Y.-J.; Wei, C.-H.; Li, Y. RNA-dependent RNA polymerase 6 of rice (Oryza sativa) plays role in host defense against negative-strand RNA virus, Rice stripe virus. Virus Res. 2012, 163, 512–519. [Google Scholar] [CrossRef]
  29. Cordero, T.; Cerdan, L.; Carbonell, A.; Katsarou, K.; Kalantidis, K.; Daros, J.-A. Dicer-Like 4 Is Involved in Restricting the Systemic Movement of Zucchini yellow mosaic virus in Nicotiana benthamiana. Mol. Plant-Microbe Interact. 2017, 30, 63–71. [Google Scholar] [CrossRef]
  30. Qu, F.; Ye, X.H.; Hou, G.C.; Sato, S.; Clemente, T.E.; Morris, T.J. RDR6 has a broad-spectrum but temperature-dependent antiviral defense role in Nicotiana benthamiana. J. Virol. 2005, 79, 15209–15217. [Google Scholar] [CrossRef]
  31. Schwach, F.; Vaistij, F.E.; Jones, L.; Baulcombe, D.C. An RNA-dependent RNA polymerase prevents meristem invasion by potato virus X and is required for the activity but not the production of a systemic silencing signal. Plant Physiol. 2005, 138, 1842–1852. [Google Scholar] [CrossRef] [PubMed]
  32. Scholthof, H.B.; Alvarado, V.Y.; Vega-Arreguin, J.C.; Ciomperlik, J.; Odokonyero, D.; Brosseau, C.; Jaubert, M.; Zamora, A.; Moffett, P. Identification of an ARGONAUTE for Antiviral RNA Silencing in Nicotiana benthamiana. Plant Physiol. 2011, 156, 1548–1555. [Google Scholar] [CrossRef] [PubMed]
  33. Ludman, M.; Burgyan, J.; Fatyol, K. Crispr/Cas9 Mediated Inactivation of Argonaute 2 Reveals its Differential Involvement in Antiviral Responses. Sci. Rep. 2017, 7, 1010. [Google Scholar] [CrossRef] [PubMed]
  34. Schwab, R.; Ossowski, S.; Riester, M.; Warthmann, N.; Weigel, D. Highly specific gene silencing by artificial microRNAs in Arabidopsis. Plant Cell 2006, 18, 1121–1133. [Google Scholar] [CrossRef] [PubMed]
  35. Warthmann, N.; Chen, H.; Ossowski, S.; Weigel, D.; Herve, P. Highly Specific Gene Silencing by Artificial miRNAs in Rice. PLoS ONE 2008, 3, e1829. [Google Scholar] [CrossRef] [PubMed]
  36. Carbonell, A.; Fahlgren, N.; Mitchell, S.; Cox, K.L., Jr.; Reilly, K.C.; Mockler, T.C.; Carrington, J.C. Highly specific gene silencing in a monocot species by artificial microRNAs derived from chimeric miRNA precursors. Plant J. Cell Mol. Biol. 2015, 82, 1061–1075. [Google Scholar] [CrossRef] [PubMed]
  37. Tang, Y.; Wang, F.; Zhao, J.; Xie, K.; Hong, Y.; Liu, Y. Virus-Based MicroRNA Expression for Gene Functional Analysis in Plants. Plant Physiol. 2010, 153, 632–641. [Google Scholar] [CrossRef] [Green Version]
  38. He, X.F.; Xia, P.F.; Wang, A.G.; Liu, D.; Zhao, L.M. Determination methods for the content of methyl salicylate-2-O-beta-D-galactopyranoside (1-4)-beta-D-glucopyranoside. Acta Pharm. Sinica 2012, 47, 966–968. [Google Scholar]
  39. Wuriyanghan, H.; Falk, B.W. RNA Interference towards the Potato Psyllid, Bactericera cockerelli, Is Induced in Plants Infected with Recombinant Tobacco mosaic virus (TMV). PLoS ONE 2013, 8, e66050. [Google Scholar] [CrossRef]
  40. Ganbaatar, O.; Cao, B.; Zhang, Y.; Bao, D.; Bao, W.; Wuriyanghan, H. Knockdown of Mythimna separata chitinase genes via bacterial expression and oral delivery of RNAi effectors. BMC Biotechnol. 2017, 17, 17–19. [Google Scholar] [CrossRef]
  41. Zhang, X.; Zhao, H.; Gao, S.; Wang, W.-C.; Katiyar-Agarwal, S.; Huang, H.-D.; Raikhel, N.; Jin, H. Arabidopsis Argonaute 2 Regulates Innate Immunity via miRNA393*-Mediated Silencing of a Golgi-Localized SNARE Gene, MEMB12. Mol. Cell 2011, 42, 356–366. [Google Scholar] [CrossRef] [PubMed]
  42. Allen, E.; Xie, Z.X.; Gustafson, A.M.; Carrington, J.C. microRNA-directed phasing during trans-acting siRNA biogenesis in plants. Cell 2005, 121, 207–221. [Google Scholar] [CrossRef] [PubMed]
  43. Tang, G.; Yan, J.; Gu, Y.; Qiao, M.; Fan, R.; Mao, Y.; Tang, X. Construction of short tandem target mimic (STTM) to block the functions of plant and animal microRNAs. Methods 2012, 58, 118–125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Delaney, T.P.; Uknes, S.; Vernooij, B.; Friedrich, L.; Weymann, K.; Negrotto, D.; Gaffney, T.; Gut-Rella, M.; Kessmann, H.; Ward, E.; et al. A central role of salicylic acid in plant disease resistance. Science 1994, 266, 1247–1250. [Google Scholar] [CrossRef] [PubMed]
  45. Gaffney, T.; Friedrich, L.; Vernooij, B.; Negrotto, D.; Nye, G.; Uknes, S.; Ward, E.; Kessmann, H.; Ryals, J. Requirement of salicylic acid for the induction systemic acquired resistance. Science 1993, 261, 754–756. [Google Scholar] [CrossRef] [PubMed]
  46. Love, A.J.; Yun, B.W.; Laval, V.; Loake, G.J.; Milner, J.J. Cauliflower mosaic virus, a compatible pathogen of Arabidopsis, engages three distinct defense-signaling pathways and activates rapid systemic generation of reactive oxygen species. Plant Physiol. 2005, 139, 935–948. [Google Scholar] [CrossRef] [PubMed]
  47. Whitham, S.A.; Quan, S.; Chang, H.S.; Cooper, B.; Estes, B.; Zhu, T.; Wang, X.; Hou, Y.M. Diverse RNA viruses elicit the expression of common sets of genes in susceptible Arabidopsis thaliana plants. Plant J. 2003, 33, 271–283. [Google Scholar] [CrossRef] [PubMed]
  48. Whitham, S.A.; Yang, C.; Goodin, M.M. Global impact: Elucidating plant responses to viral infection. Mol. Plant-Microbe Interact. 2006, 19, 1207–1215. [Google Scholar] [CrossRef]
  49. Ascencio-Ibanez, J.T.; Sozzani, R.; Lee, T.-J.; Chu, T.-M.; Wolfinger, R.D.; Cella, R.; Hanley-Bowdoin, L. Global analysis of Arabidopsis gene expression uncovers a complex array of changes impacting pathogen response and cell cycle during Geminivirus infection. Plant Physiol. 2008, 148, 436–454. [Google Scholar] [CrossRef]
  50. Uknes, S.; Dincher, S.; Friedrich, L.; Negrotto, D.; Williams, S.; Thompson-Taylor, H.; Potter, S.; Ward, E.; Ryals, J. Regulation of pathogenesis-related protein-1a gene expression in tobacco. Plant Cell 1993, 5, 159–169. [Google Scholar] [CrossRef]
  51. Chen, H.; Zhang, Z.; Teng, K.; Lai, J.; Zhang, Y.; Huang, Y.; Li, Y.; Liang, L.; Wang, Y.; Chu, C.; et al. Up-regulation of LSB1/GDU3 affects Geminivirus infection by activating the salicylic acid pathway. Plant J. 2010, 62, 12–23. [Google Scholar] [CrossRef] [PubMed]
  52. Ji, L.H.; Ding, S.W. The suppressor of transgene RNA silencing encoded by Cucumber mosaic virus interferes with salicylic acid-mediated virus resistance. Mol. Plant-Microbe Interact. 2001, 14, 715–724. [Google Scholar] [CrossRef] [PubMed]
  53. Lewsey, M.G.; Murphy, A.M.; MacLean, D.; Dalchau, N.; Westwood, J.H.; Macaulay, K.; Bennett, M.H.; Moulin, M.; Hanke, D.E.; Powell, G.; et al. Disruption of Two Defensive Signaling Pathways by a Viral RNA Silencing Suppressor. Mol. Plant-Microbe Interact. 2010, 23, 835–845. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Wang, X.; Goregaoker, S.P.; Culver, J.N. Interaction of the Tobacco Mosaic Virus Replicase Protein with a NAC Domain Transcription Factor Is Associated with the Suppression of Systemic Host Defenses. J. Virol. 2009, 83, 9720–9730. [Google Scholar] [CrossRef] [PubMed]
  55. Yu, D.Q.; Fan, B.F.; MacFarlane, S.A.; Chen, Z.X. Analysis of the involvement of an inducible Arabidopsis RNA-dependent RNA polymerase in antiviral defense. Mol. Plant-Microbe Interact. 2003, 16, 206–216. [Google Scholar] [CrossRef]
  56. Liu, Y.; Gao, Q.; Wu, B.; Ai, T.; Guo, X. NgRDR1, an RNA-dependent RNA polymerase isolated from Nicotiana glutinosa, was involved in biotic and abiotic stresses. Plant Physiol. Biochem. 2009, 47, 359–368. [Google Scholar] [CrossRef]
  57. Gao, Q.; Liu, Y.; Wang, M.; Zhang, J.; Gai, Y.; Zhu, C.; Guo, X. Molecular cloning and characterization of an inducible RNA-dependent RNA polymerase gene, GhRdRP, from cotton (Gossypium hirsutum L.). Mol. Biol. Rep. 2009, 36, 47–56. [Google Scholar] [CrossRef]
  58. Hunter, L.J.R.; Brockington, S.F.; Murphy, A.M.; Pate, A.E.; Gruden, K.; MacFarlane, S.A.; Palukaitis, P.; Carr, J.P. RNA-dependent RNA polymerase 1 in potato (Solanum tuberosum) and its relationship to other plant RNA-dependent RNA polymerases. Sci. Rep. 2016, 6, 23082. [Google Scholar] [CrossRef]
  59. Yang, S.J.; Carter, S.A.; Cole, A.B.; Cheng, N.H.; Nelson, R.S. A natural variant of a host RNA-dependent RNA polymerase is associated with increased susceptibility to viruses by Nicotiana benthamiana. Proc. Natl. Acad. Sci. USA 2004, 101, 6297–6302. [Google Scholar] [CrossRef]
  60. Shang, J.; Xi, D.-H.; Xu, F.; Wang, S.-D.; Cao, S.; Xu, M.-Y.; Zhao, P.-P.; Wang, J.-H.; Jia, S.-D.; Zhang, Z.-W.; et al. A broad-spectrum, efficient and nontransgenic approach to control plant viruses by application of salicylic acid and jasmonic acid. Planta 2011, 233, 299–308. [Google Scholar] [CrossRef]
  61. Zhu, F.; Xi, D.-H.; Yuan, S.; Xu, F.; Zhang, D.-W.; Lin, H.-H. Salicylic Acid and Jasmonic Acid Are Essential for Systemic Resistance Against Tobacco mosaic virus in Nicotiana benthamiana. Mol. Plant-Microbe Interact. 2014, 27, 567–577. [Google Scholar] [CrossRef] [PubMed]
  62. Naylor, M.; Murphy, A.M.; Berry, J.O.; Carr, J.P. Salicylic acid can induce resistance to plant virus movement. Mol. Plant-Microbe Interact. 1998, 11, 860–868. [Google Scholar] [CrossRef]
  63. Lee, W.-S.; Fu, S.-F.; Verchot-Lubicz, J.; Carr, J.P. Genetic modification of alternative respiration in Nicotiana benthamiana affects basal and salicylic acid-induced resistance to potato virus X. BMC Plant Biol. 2011, 11, 1–10. [Google Scholar] [CrossRef] [PubMed]
  64. Endres, M.W.; Gregory, B.D.; Gao, Z.; Foreman, A.W.; Mlotshwa, S.; Ge, X.; Pruss, G.J.; Ecker, J.R.; Bowman, L.H.; Vance, V. Two Plant Viral Suppressors of Silencing Require the Ethylene-Inducible Host Transcription Factor RAV2 to Block RNA Silencing. PLoS Pathog. 2010, 6, e1000729. [Google Scholar] [CrossRef] [PubMed]
  65. Jakubiec, A.; Yang, S.W.; Chua, N.-H. Arabidopsis DRB4 protein in antiviral defense against Turnip yellow mosaic virus infection. Plant J. 2012, 69, 14–25. [Google Scholar] [CrossRef] [PubMed]
  66. Qu, F.; Ye, X.; Morris, T.J. Arabidopsis DRB4, AGO1, AGO7, and RDR6 participate in a DCL4-initiated antiviral RNA silencing pathway negatively regulated by DCL1. Proc. Natl. Acad. Sci. USA 2008, 105, 14732–14737. [Google Scholar] [CrossRef] [PubMed]
  67. Haas, G.; Azevedo, J.; Moissiard, G.; Geldreich, A.; Himber, C.; Bureau, M.; Fukuhara, T.; Keller, M.; Voinnet, O. Nuclear import of CaMV P6 is required for infection and suppression of the RNA silencing factor DRB4. EMBO J. 2008, 27, 2102–2112. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Du, P.; Wu, J.; Zhang, J.; Zhao, S.; Zheng, H.; Gao, G.; Wei, L.; Li, Y. Viral Infection Induces Expression of Novel Phased MicroRNAs from Conserved Cellular MicroRNA Precursors. PLoS Pathog. 2011, 7, e1002176. [Google Scholar] [CrossRef]
  69. Odokonyero, D.; Mendoza, M.R.; Alvarado, V.Y.; Zhang, J.; Wang, X.; Scholthof, H.B. Transgenic down-regulation of ARGONAUTE2 expression in Nicotiana benthamiana interferes with several layers of antiviral defenses. Virology 2015, 486, 209–218. [Google Scholar] [CrossRef]
  70. Qu, J.; Ye, J.; Fang, R. Artificial microRNA-mediated virus resistance in plants. J. Virol. 2007, 81, 6690–6699. [Google Scholar] [CrossRef]
  71. Niu, Q.-W.; Lin, S.-S.; Reyes, J.L.; Chen, K.-C.; Wu, H.-W.; Yeh, S.-D.; Chua, N.-H. Expression of artificial microRNAs in transgenic Arabidopsis thaliana confers virus resistance. Nat. Biotechnol. 2006, 24, 1420–1428. [Google Scholar] [CrossRef] [PubMed]
  72. Simon-Mateo, C.; Garcia, J.A. MicroRNA-Guided processing impairs Plum pox virus replication, but the virus readily evolves to escape this silencing mechanism. J. Virol. 2006, 80, 2429–2436. [Google Scholar] [CrossRef] [PubMed]
  73. Melito, S.; Heuberger, A.L.; Cook, D.; Diers, B.W.; MacGuidwin, A.E.; Bent, A.F. A nematode demographics assay in transgenic roots reveals no significant impacts of the Rhg1 locus LRR-Kinase on soybean cyst nematode resistance. BMC Plant Biol. 2010, 10, 104. [Google Scholar] [CrossRef] [PubMed]
  74. Toppino, L.; Kooiker, M.; Lindner, M.; Dreni, L.; Rotino, G.L.; Kater, M.M. Reversible male sterility in eggplant (Solanum melongena L.) by artificial microRNA-mediated silencing of general transcription factor genes. Plant Biotechnol. J. 2011, 9, 684–692. [Google Scholar] [CrossRef] [PubMed]
  75. Haney, C.H.; Long, S.R. Plant flotillins are required for infection by nitrogen-fixing bacteria. Proc. Natl. Acad. Sci. USA 2010, 107, 478–483. [Google Scholar] [CrossRef]
  76. Fahim, M.; Millar, A.A.; Wood, C.C.; Larkin, P.J. Resistance to Wheat streak mosaic virus generated by expression of an artificial polycistronic microRNA in wheat. Plant Biotechnol. J. 2012, 10, 150–163. [Google Scholar] [CrossRef] [PubMed]
  77. Jelly, N.S.; Schellenbaum, P.; Walter, B.; Maillot, P. Transient expression of artificial microRNAs targeting Grapevine fanleaf virus and evidence for RNA silencing in grapevine somatic embryos. Transgenic Res. 2012, 21, 1319–1327. [Google Scholar] [CrossRef] [PubMed]
  78. Pieczynski, M.; Marczewski, W.; Hennig, J.; Dolata, J.; Bielewicz, D.; Piontek, P.; Wyrzykowska, A.; Krusiewicz, D.; Strzelczyk-Zyta, D.; Konopka-Postupolska, D.; et al. Down-regulation of CBP80 gene expression as a strategy to engineer a drought-tolerant potato. Plant Biotechnol. J. 2013, 11, 459–469. [Google Scholar] [CrossRef]
  79. Zhang, X.; Li, H.; Zhang, J.; Zhang, C.; Gong, P.; Ziaf, K.; Xiao, F.; Ye, Z. Expression of artificial microRNAs in tomato confers efficient and stable virus resistance in a cell-autonomous manner. Transgenic Res. 2011, 20, 569–581. [Google Scholar] [CrossRef]
  80. Arenas-Huertero, C.; Perez, B.; Rabanal, F.; Blanco-Melo, D.; De la Rosa, C.; Estrada-Navarrete, G.; Sanchez, F.; Alicia Covarrubias, A.; Luis Reyes, J. Conserved and novel miRNAs in the legume Phaseolus vulgaris in response to stress. Plant Mol. Biol. 2009, 70, 385–401. [Google Scholar] [CrossRef]
  81. Paudel, D.B.; Ghoshal, B.; Jossey, S.; Ludman, M.; Fatyol, K.; Sanfaçon, H. Expression and antiviral function of ARGONAUTE 2 in Nicotiana benthamiana plants infected with two isolates of tomato ringspot virus with varying degrees of virulence. Virology 2018, 524, 127–139. [Google Scholar] [CrossRef] [PubMed]
Genes 10 00526 g001 550

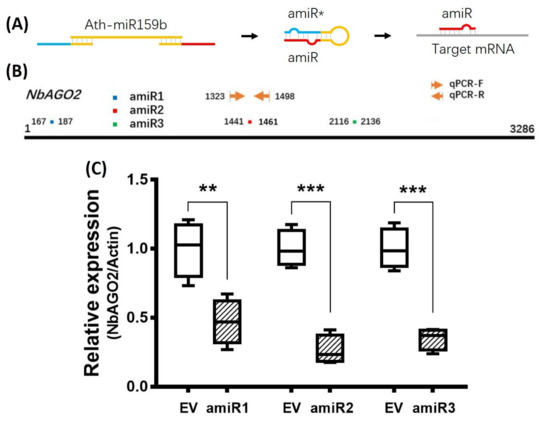

Figure 1. Silencing of NbAGO2 via transient expression of different amiRs from pCV-based vector. (A) Oligonucleotides for amiR was designed, and the sequences were used as primers to amplify Arabidopsis thaliana miR159b to produce amiR construct. After transcription and processing, mature amiR binds to complementary site at target mRNA. amiR* denotes amiR star strand. (B) The positions of amiR target sequences on NbAGO2 were shown with different colors, and qPCR primers for detection of NbAGO2 expression were shown with arrowhead. The numbers indicated the positions of amiR target sites and qPCR primers. (C) Different amiR constructs cloned in pCVA vector were transiently expressed in N. benthamiana leaves by agroinfiltration. At 3 DPI, plants were harvested and were assayed for NbAGO2 expression by quantitative real-time PCR. Plants inoculated with empty pCV vector (EV) served as control treatment, and NbAGO2 expression in control group was arbitrarily designated as 1. N. benthamiana NbActin gene served as the internal control. Significant differences between control and treatment groups were calculated by Student’s t-test. Double and three asterisks indicated significant difference at p < 0.01 and p < 0.001, respectively.
Figure 1. Silencing of NbAGO2 via transient expression of different amiRs from pCV-based vector. (A) Oligonucleotides for amiR was designed, and the sequences were used as primers to amplify Arabidopsis thaliana miR159b to produce amiR construct. After transcription and processing, mature amiR binds to complementary site at target mRNA. amiR* denotes amiR star strand. (B) The positions of amiR target sequences on NbAGO2 were shown with different colors, and qPCR primers for detection of NbAGO2 expression were shown with arrowhead. The numbers indicated the positions of amiR target sites and qPCR primers. (C) Different amiR constructs cloned in pCVA vector were transiently expressed in N. benthamiana leaves by agroinfiltration. At 3 DPI, plants were harvested and were assayed for NbAGO2 expression by quantitative real-time PCR. Plants inoculated with empty pCV vector (EV) served as control treatment, and NbAGO2 expression in control group was arbitrarily designated as 1. N. benthamiana NbActin gene served as the internal control. Significant differences between control and treatment groups were calculated by Student’s t-test. Double and three asterisks indicated significant difference at p < 0.01 and p < 0.001, respectively.
Genes 10 00526 g001
Genes 10 00526 g002 550

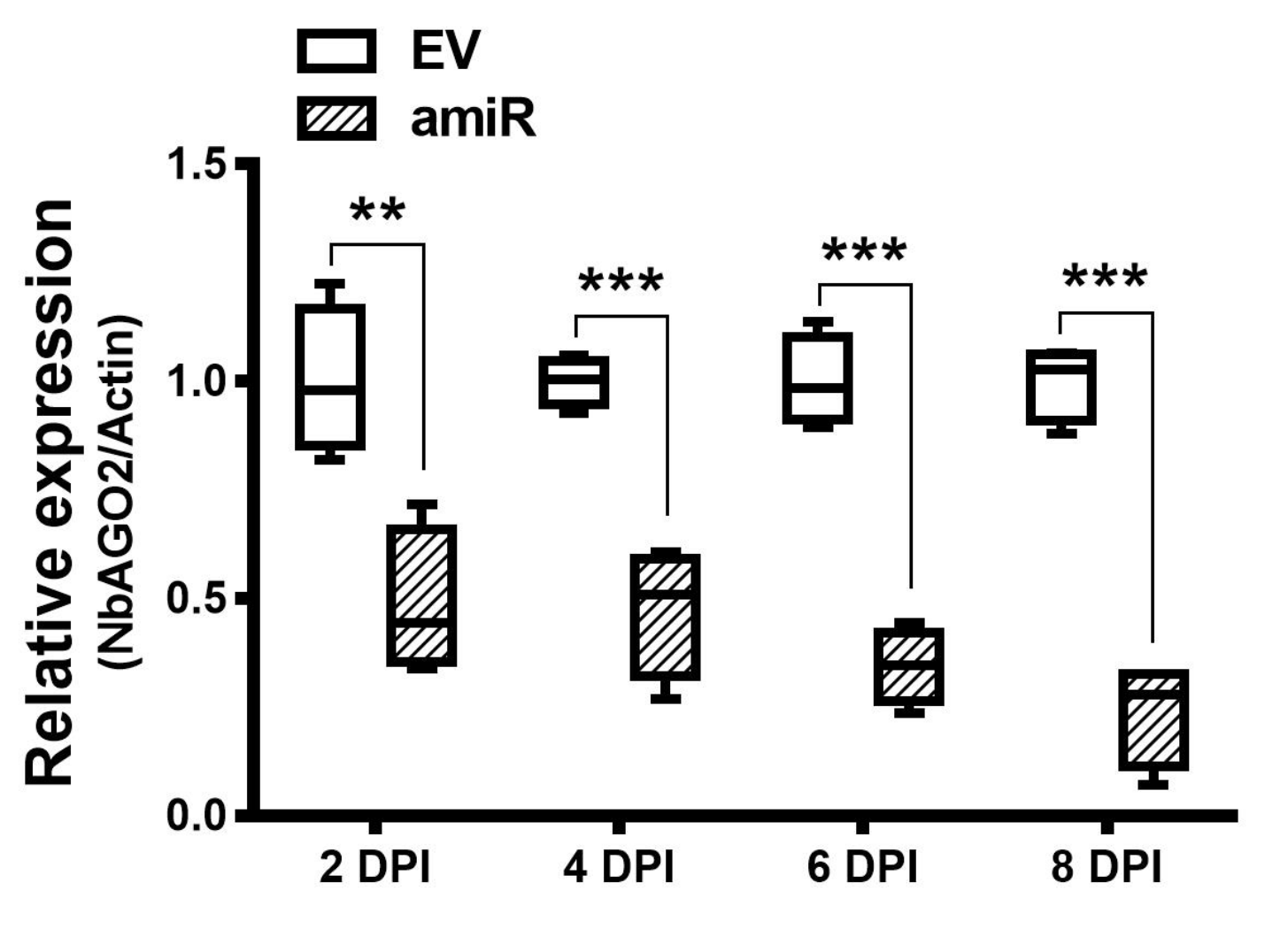

Figure 2. Silencing of NbAGO2 via transient expression of amiR2 from PBI121-based vector. pBI121-amiR2 construct was transformed into GV3101, infiltrated on N. benthamiana leaves, and the leaves were collected at different DPI. NbAGO2 expression was determined by quantitative real-time PCR. Plants inoculated with empty pBI121 vector (EV) served as control treatment. NbAGO2 expression in control was arbitrarily designated as 1. NbActin gene served as the internal control. Significant differences between control and treatment groups were calculated by Student’s t-test. Double and three asterisks indicated significant difference at p < 0.01 and p < 0.001, respectively.
Figure 2. Silencing of NbAGO2 via transient expression of amiR2 from PBI121-based vector. pBI121-amiR2 construct was transformed into GV3101, infiltrated on N. benthamiana leaves, and the leaves were collected at different DPI. NbAGO2 expression was determined by quantitative real-time PCR. Plants inoculated with empty pBI121 vector (EV) served as control treatment. NbAGO2 expression in control was arbitrarily designated as 1. NbActin gene served as the internal control. Significant differences between control and treatment groups were calculated by Student’s t-test. Double and three asterisks indicated significant difference at p < 0.01 and p < 0.001, respectively.
Genes 10 00526 g002
Genes 10 00526 g003 550
Figure 3. Silencing of NbAGO2 compromised hairpin induced RNAi in N. benthamiana. (A) Three-leaf stage GFP16c transgenic plants were inoculated with different combinations of vector constructs. GFP fluorescence was visualized under Nikon SMZ18 microscope at 3 DPI. (B) The infiltrated leaf tissues were harvested, total RNAs were extracted, and GFP mRNA levels were determined by Northern blot experiment. Expression of N. benthamiana β-actin served as internal control. The number below the panel indicates the ratio of the blot band intensity between GFP and NbActin, in which the ratio in first lane was arbitrarily designated as 1.
Figure 3. Silencing of NbAGO2 compromised hairpin induced RNAi in N. benthamiana. (A) Three-leaf stage GFP16c transgenic plants were inoculated with different combinations of vector constructs. GFP fluorescence was visualized under Nikon SMZ18 microscope at 3 DPI. (B) The infiltrated leaf tissues were harvested, total RNAs were extracted, and GFP mRNA levels were determined by Northern blot experiment. Expression of N. benthamiana β-actin served as internal control. The number below the panel indicates the ratio of the blot band intensity between GFP and NbActin, in which the ratio in first lane was arbitrarily designated as 1.
Genes 10 00526 g003
Genes 10 00526 g004 550
Figure 4. Exogenous spray of MeSA induced NbAGO2 expression. (A) 500 µM of MeSA was sprayed on N. benthamiana leaves and the leaves were collected at 10 h post spray. Total RNAs were isolated and NbPR1a level was determined by Northern blot experiment using NbPR1a sequence specific probe. The same blot also includes the TMV infected leaf sample after 10 h of infection. NbActin served as internal control and its mRNA level was evaluated by same way using NbActin specific probe. The number below the panel indicates the ratio of the blot band intensity between NbPR1a and NbActin, in which the ratio in first lane was arbitrarily defined as 1. (B) The same leaf tissues treated by MeSA were collected at different time points and NbAGO2 expression was determined by quantitative real-time PCR. Plants sprayed with water solution served as control treatment. NbAGO2 expression in control was arbitrarily designated as 1. N. benthamiana GAPDH gene served as the internal control. Significant differences between groups were calculated by Student’s t-test. Single asterisk indicated significant difference at p < 0.05.
Figure 4. Exogenous spray of MeSA induced NbAGO2 expression. (A) 500 µM of MeSA was sprayed on N. benthamiana leaves and the leaves were collected at 10 h post spray. Total RNAs were isolated and NbPR1a level was determined by Northern blot experiment using NbPR1a sequence specific probe. The same blot also includes the TMV infected leaf sample after 10 h of infection. NbActin served as internal control and its mRNA level was evaluated by same way using NbActin specific probe. The number below the panel indicates the ratio of the blot band intensity between NbPR1a and NbActin, in which the ratio in first lane was arbitrarily defined as 1. (B) The same leaf tissues treated by MeSA were collected at different time points and NbAGO2 expression was determined by quantitative real-time PCR. Plants sprayed with water solution served as control treatment. NbAGO2 expression in control was arbitrarily designated as 1. N. benthamiana GAPDH gene served as the internal control. Significant differences between groups were calculated by Student’s t-test. Single asterisk indicated significant difference at p < 0.05.
Genes 10 00526 g004
Genes 10 00526 g005 550
Figure 5. TMV infection elevated NbAGO2 expression and endogenous SA level. (A) Three-leaf stage N. benthamiana was infected with TMV, and the leaves were collected at different DPI. NbAGO2 expression was determined by quantitative real-time PCR. Plants inoculated with inoculation buffer containing empty vector expression GV3101 served as control treatment. NbAGO2 expression in control was arbitrarily designated as 1. NbActin gene served as the internal control. (B) Three-leaf stage N. benthamiana was infected with TMV, and the leaves were collected 5 h post infection. SA level was determined by UV Vis Spectrophotometry at 310 nm. Significant differences between mock and infected groups were calculated by Student’s t-test. Single, double, and three asterisks indicated significant difference at p < 0.05, p < 0.01, and p < 0.001, respectively.
Figure 5. TMV infection elevated NbAGO2 expression and endogenous SA level. (A) Three-leaf stage N. benthamiana was infected with TMV, and the leaves were collected at different DPI. NbAGO2 expression was determined by quantitative real-time PCR. Plants inoculated with inoculation buffer containing empty vector expression GV3101 served as control treatment. NbAGO2 expression in control was arbitrarily designated as 1. NbActin gene served as the internal control. (B) Three-leaf stage N. benthamiana was infected with TMV, and the leaves were collected 5 h post infection. SA level was determined by UV Vis Spectrophotometry at 310 nm. Significant differences between mock and infected groups were calculated by Student’s t-test. Single, double, and three asterisks indicated significant difference at p < 0.05, p < 0.01, and p < 0.001, respectively.
Genes 10 00526 g005
Genes 10 00526 g006 550
Figure 6. NbAGO2 contributed to TMV defense in N. benthamiana. (A) N. benthamiana plants were first inoculated with different combinations of vector constructs by agroinfiltration, and infected with TMV-GFP after one day of inoculation. GFP fluorescence was visualized by hand-held UV lamp at 320 nm, and the photographs were taken five days post TMV infection. pBI121, empty pBI121 vector; amiR-NbAGO2, amiR-NbAGO2 construct in pBI121 vector; Ox-NbAGO2, NbAGO2 overexpression construct in pBI121. (B) N. benthamiana plants were sprayed with 500 µM MeSA daily, and infected with TMV-GFP after the first spray. GFP fluorescence was visualized by hand-held UV lamp at 320 nm, and the photographs were taken five days post TMV infection. (C,D) Detection of TMV genomic RNA by Northern blot experiment. The same treated samples from above were subjected to detection of TMV RNA. Total RNAs were isolated and TMV RNA level was determined by Northern blot experiment using capsid protein sequence specific probe labelled with 32P. NbActin served as internal control and the mRNA level of NbActin was evaluated in the same way using 32P labelled NbActin specific probe (lower panel). The band corresponding to TMV genomic DNA was indicated by the arrowhead. The number below the panel indicates the ratio of the blot band intensity between TMV and NbActin, in which the ratio in control lane was arbitrarily designated as 1.
Figure 6. NbAGO2 contributed to TMV defense in N. benthamiana. (A) N. benthamiana plants were first inoculated with different combinations of vector constructs by agroinfiltration, and infected with TMV-GFP after one day of inoculation. GFP fluorescence was visualized by hand-held UV lamp at 320 nm, and the photographs were taken five days post TMV infection. pBI121, empty pBI121 vector; amiR-NbAGO2, amiR-NbAGO2 construct in pBI121 vector; Ox-NbAGO2, NbAGO2 overexpression construct in pBI121. (B) N. benthamiana plants were sprayed with 500 µM MeSA daily, and infected with TMV-GFP after the first spray. GFP fluorescence was visualized by hand-held UV lamp at 320 nm, and the photographs were taken five days post TMV infection. (C,D) Detection of TMV genomic RNA by Northern blot experiment. The same treated samples from above were subjected to detection of TMV RNA. Total RNAs were isolated and TMV RNA level was determined by Northern blot experiment using capsid protein sequence specific probe labelled with 32P. NbActin served as internal control and the mRNA level of NbActin was evaluated in the same way using 32P labelled NbActin specific probe (lower panel). The band corresponding to TMV genomic DNA was indicated by the arrowhead. The number below the panel indicates the ratio of the blot band intensity between TMV and NbActin, in which the ratio in control lane was arbitrarily designated as 1.
Genes 10 00526 g006
Genes 10 00526 g007 550
Figure 7. STTM_miR403a suppressed TMV infection. (A) N. benthamiana plants were co-inoculated with vector constructs and TMV-GFP by agroinfiltration. GFP fluorescence was visualized by hand-held UV lamp at 320 nm, and the photographs were taken at 6 DPI. STTM_miR390a, STTM_miR393a, and STTM_miR403a constructs were cloned in pGreen_GUS_Competitor vector. (B) The GFP fluorescence of infection area in (A) was converted into gray density by Gel-Pro Analyzer software (V4.0, Media Cybernetics, Inc., Rockville, USA), Dunnett’s multiple comparisons test was used for comparison of GFP intensity value of seven infected leaves. (C) Total RNAs were extracted from the same leaf regions from above experiments, and NbAGO2 expression was determined by qRT-PCR experiment using NbActin mRNA level as internal control. Single, double, and three asterisks indicated significant difference at p < 0.05, p < 0.01, and p < 0.001, respectively.
Figure 7. STTM_miR403a suppressed TMV infection. (A) N. benthamiana plants were co-inoculated with vector constructs and TMV-GFP by agroinfiltration. GFP fluorescence was visualized by hand-held UV lamp at 320 nm, and the photographs were taken at 6 DPI. STTM_miR390a, STTM_miR393a, and STTM_miR403a constructs were cloned in pGreen_GUS_Competitor vector. (B) The GFP fluorescence of infection area in (A) was converted into gray density by Gel-Pro Analyzer software (V4.0, Media Cybernetics, Inc., Rockville, USA), Dunnett’s multiple comparisons test was used for comparison of GFP intensity value of seven infected leaves. (C) Total RNAs were extracted from the same leaf regions from above experiments, and NbAGO2 expression was determined by qRT-PCR experiment using NbActin mRNA level as internal control. Single, double, and three asterisks indicated significant difference at p < 0.05, p < 0.01, and p < 0.001, respectively.
Genes 10 00526 g007
Genes 10 00526 g008 550
Figure 8. Model for NbAGO2 mediated antiviral defenses against TMV infection in Nicotiana benthamiana.
Figure 8. Model for NbAGO2 mediated antiviral defenses against TMV infection in Nicotiana benthamiana.
Genes 10 00526 g008

Share and Cite

MDPI and ACS Style

Diao, P.; Zhang, Q.; Sun, H.; Ma, W.; Cao, A.; Yu, R.; Wang, J.; Niu, Y.; Wuriyanghan, H. miR403a and SA Are Involved in NbAGO2 Mediated Antiviral Defenses Against TMV Infection in Nicotiana benthamiana. Genes 2019, 10, 526. https://doi.org/10.3390/genes10070526

AMA Style

Diao P, Zhang Q, Sun H, Ma W, Cao A, Yu R, Wang J, Niu Y, Wuriyanghan H. miR403a and SA Are Involved in NbAGO2 Mediated Antiviral Defenses Against TMV Infection in Nicotiana benthamiana. Genes. 2019; 10(7):526. https://doi.org/10.3390/genes10070526

Chicago/Turabian Style

Diao, Pengfei, Qimeng Zhang, Hongyu Sun, Wenjie Ma, Aiping Cao, Ruonan Yu, Jiaojiao Wang, Yiding Niu, and Hada Wuriyanghan. 2019. "miR403a and SA Are Involved in NbAGO2 Mediated Antiviral Defenses Against TMV Infection in Nicotiana benthamiana" Genes 10, no. 7: 526. https://doi.org/10.3390/genes10070526

APA Style

Diao, P., Zhang, Q., Sun, H., Ma, W., Cao, A., Yu, R., Wang, J., Niu, Y., & Wuriyanghan, H. (2019). miR403a and SA Are Involved in NbAGO2 Mediated Antiviral Defenses Against TMV Infection in Nicotiana benthamiana. Genes, 10(7), 526. https://doi.org/10.3390/genes10070526

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
