Review

Visualising Silicon in Plants: Histochemistry, Silica Sculptures and Elemental Imaging

1
Environmental Research and Innovation (ERIN) Department, Luxembourg Institute of Science and Technology, 5, rue Bommel, Z.A.E. Robert Steichen, L-4940 Hautcharage, Luxembourg
2
The Birchall Centre, Lennard-Jones Laboratories, Keele University, Keele ST5 5BG, Staffordshire, UK
3
Material Research and Technology (MRT) Department, Luxembourg Institute of Science and Technology, 41 rue du Brill, L-4422 Belvaux, Luxembourg
*
Authors to whom correspondence should be addressed.
Cells 2020, 9(4), 1066; https://doi.org/10.3390/cells9041066
Submission received: 19 March 2020 / Revised: 15 April 2020 / Accepted: 22 April 2020 / Published: 24 April 2020
(This article belongs to the Section Plant, Algae and Fungi Cell Biology)

Abstract

:
Silicon is a non-essential element for plants and is available in biota as silicic acid. Its presence has been associated with a general improvement of plant vigour and response to exogenous stresses. Plants accumulate silicon in their tissues as amorphous silica and cell walls are preferential sites. While several papers have been published on the mitigatory effects that silicon has on plants under stress, there has been less research on imaging silicon in plant tissues. Imaging offers important complementary results to molecular data, since it provides spatial information. Herein, the focus is on histochemistry coupled to optical microscopy, fluorescence and scanning electron microscopy of microwave acid extracted plant silica, techniques based on particle-induced X-ray emission, X-ray fluorescence spectrometry and mass spectrometry imaging (NanoSIMS). Sample preparation procedures will not be discussed in detail, as several reviews have already treated this subject extensively. We focus instead on the information that each technique provides by offering, for each imaging approach, examples from both silicifiers (giant horsetail and rice) and non-accumulators (Cannabis sativa L.).

1. Introduction

Silicon (Si) is the second most abundant element on Earth after oxygen and it is considered non-essential for plant growth and development [1]. Si is beneficial and, when provided to plants, it increases vigour, resistance to environmental stresses and mechanical strength of aerial organs [2,3]. The form of Si that is taken up by plants is silicic acid-Si(OH)4, a very weak acid with pKa of ca. 9.5. The entry route from the soil follows water [4] and additionally uses channels of the aquaporin family (Nod26-like intrinsic proteins, NIPs) [5]. Members of this family of channels have been discovered in several plants [6,7], among them the fibre crops flax and hemp [8,9].
With respect to Si accumulation, plants are distinguished into excluders (Si <0.5% in dry weight), accumulators (Si > 1% in dry weight) and intermediate types (Si between 0.5 and 1% in dry weight) [10,11,12]: among the accumulators are Equisetales, Cyperales and Poales, while tomato and other members of the nightshade family are Si-excluders [13]. Si associates with plant tissues as amorphous hydrated opaline silica (SiO2 × nH2O) and the process of biogenic silica precipitation is referred to as silicification.
It is known that silica associates with the cell wall and that specific macromolecules can template its deposition [2]. Cellulosic, non-cellulosic polysaccharides and the aromatic macromolecule lignin were shown to be associated with silica deposition [14,15,16,17]. A clear proof of the role of another cell wall polysaccharide, i.e., callose, in templating silica deposition is found in the study by Law and Exley [18], where the authors showed, both in vitro (using an undersaturated solution of silicic acid) and in vivo, that silicification in Equisetum arvense follows callose deposition. Indeed, horsetail silica is found intimately associated with callose in different cell types [19]. The role of callose in silicification has been further confirmed in other species, namely rice [20] and Arabidopsis thaliana [21], where plants lacking the callose synthase gene POWDERY MILDEW RESISTANT 4-PMR4 accumulated significantly less silica, as compared to wild-type and overexpressing plants [22]. The cell wall templating mechanism may be passive and supported by the gel-like nature of specific cell wall components (like callose), which trap silicic acid in a microenvironment favourable for auto-condensation into silica [18]. Yet, it is not known whether silicification ‘prefers’ specific cell wall macromolecules or if the process can be triggered by any type of cell wall macromolecule.
The study of metal(loid) uptake and accumulation in plants has received much interest in the last years [23,24,25,26], as they affect important physiological processes in plants, impact yield and, in the case of crops used for food and feed, can raise health-related issues. The study of metal(loid) accumulation in plants needs imaging to gain information on the sites of accumulation, on distribution and translocation routes. The development of tools coupling spatial resolution to the analysis of speciation is needed for a complete understanding of their metabolism [27]. In addition, techniques enabling in vivo detection in plants add information in real-time, which eliminate the bias caused by sample preparation.
In this review, imaging techniques to study plant silicification are discussed with an emphasis on their advantages and drawbacks. Classical histochemistry with known stains/fluorophores is discussed together with techniques implying the extraction of plant silica and subsequent scanning electron microscopy (SEM), X-ray emission spectrometry (micro-PIXE microbeam particle-induced X-ray emission, LEXRF low-energy X-ray fluorescence) and mass spectrometry (SIMS-secondary ion mass spectrometry nano-analysis). Although other analytical techniques like Raman microscopy or micro computed tomography (MicroCT) have already shown their suitability to study the distribution of Si in plants, we have confined our investigations to histochemistry, SEM, X-ray emission spectroscopy and mass spectrometry imaging. More details about the use of Raman imaging applied to plant research can be found in [28]. MicroCT is more effective for the analysis of large phytoliths [29] and used in archaeobotanical studies [30], while Raman is useful to combine spatial information with chemical composition.
A summary of the techniques surveyed is provided in Table 1. Examples of their utility in studying plant silicification are provided by case studies on both heavy silicifiers (such as rice and horsetail) and low silica accumulators (textile hemp).

2. Dyes and Fluorophores to Visualize Plant Silica

Plant silica can be observed with light microscopy after staining with methyl red (MR), crystal violet lactone (CVL) and silver-amine chromate (SAC) [36]. Amorphous silica adsorbs MR and CVL from non-polar solvents which then confer red and blue/violet colour, respectively. The azo dye MR is normally used to measure surface polarity and provides an indication of residual silanol groups [37]. The dye (usually the acid form which stains more intensively than the sodium salt or the hydrochloride [36]) dissolved in dilute benzene is orange in colour and turns red upon adsorption to acidic groups, such as silanols. Although fast green (staining in green cellulose and the cytoplasm) can be used as counterstain for MR, both lignin and silica will be red when visualised under the light microscope [38]. This is a drawback when studying lignified and silicified tissues, as there is no possibility to distinguish them.
CVL (usually 0.1% w/v in benzene [36,39]) stains silica via the formation of hydrogen bonds between the carboxylic group of the dye and the silanols. This staining is used to visualize the silicified cells of rice [39] and to study Si uptake in mutants [40]. Safranin can be used as a counterstain, but as discussed for MR, there is a lack of specificity, since lignin is also stained violet [38].
MR and CVL give variability in staining; indeed, for specific cell types, like bulliform and silica cells, staining will not be visible, unless etching is done (the process of treating the samples with an acid, hydrofluoric acid-HF for example, to free the silicified structures from the organic material [36]).
It was suggested that the outer layer of these cells may be packed with silica and have tight surface pore sizes hindering the penetration of the dye [36]. The reactivity of these dyes depends on the accessible silanol groups; not all silanol groups within silica may be accessible due to steric hindrance or may be buried within the silica layer.
SAC (prepared by mixing AgNO3 with K2CrO4, then washing the precipitate in hot water at 50–60 °C and dissolving it in 3% v/v NH4OH, followed by filtering) gives a brown colour upon adsorption to amorphous silica due to the removal of ammonia and the unmasking of silver chromate [36]. This staining was used to observe silicified cells, such as bulliform cells of rice [36] and venuloid idioblasts from Pteris [41]. Treatment in H2SO4 prior to SAC incubation enhances the intensity of the staining because of the partial digestion of neighbouring cells which facilitates penetration of the solution; however, excess acids may cause unspecific precipitation of SAC [36]. After SAC staining, washing and dehydration in an alcohol series can be performed to increase the contrast of the stained cells which turn from red-brown to black [36]. Histochemical staining of plant silica, despite being relatively easy to perform and relying on instruments that are accessible in any laboratory, requires invasive treatments, namely tissue fixation and, eventually, etching. The resolution is quite low and not selective enough to discriminate for example lignified tissues.
Being able to distinguish silicified and lignified tissues is essential to understand the role(s) of lignin and silica in different plant species and/or under different growth conditions. For example, silica and lignin are two compounds expected to play a mechanical role of support in plant tissues. Silica is however a cheaper alternative to lignin [42,43], requiring a lower energetic investment as compared to the C-based macromolecule lignin; therefore, plants relying on silica for structural support should theoretically be able to shunt more energy toward primary production than plants synthesizing lignin. Understanding the relationship between silica/lignin accumulation and primary productivity in plants is an important topic in ecology; hence, it is necessary to distinguish between lignified and silicified tissues in plant specimens.
Biosilicification can be visualised using a fluorescence microscope and the fluorophore 2-(4-pyridyl)-5-((4-(2-dimethylaminoethylaminocarbamoyl)methoxy)phenyl)oxazole (PDMPO). PDMPO is a silica tracer used to monitor pH changes within acidic organelles [44]. The fluorophore has been extensively used to monitor silicification in diatoms [45], as well as to analyse the fine details of extracted plant silica [9,18,19,20,22] and analyse it in planta [29].
For example, we have used PDMPO staining of silica extracted after removal of organic material to study the fine cellular details of the silicified cell replicas in both Si accumulators and non-accumulators (Figure 1 and Figure 2).
Microwave acid digestion proved to be a suitable method to free inorganic silica deposits from organic plant material [9,18,19,20,22]. PDMPO staining of live tissues can provide complementary information to the one obtained from extracted silica. The specificity of the signal in different cell types with, e.g., different degrees of lignification needs to be checked. Pierantoni and colleagues (2017) showed the suitability of using PDMPO in okra leaves and revealed the presence of small particles which are normally lost during phytoliths’ extraction [29].
During acid digestion, the plant sample is exposed to a cocktail of highly corrosive acids (HNO3 and H2SO4) within sealed containers. These containers are then subjected to a microwave digestion program (180 °C for 15 minutes and maintained at 180 °C for 30 minutes) which breaks down the sample matrix leaving behind its component elements in solution. It was demonstrated that, although this procedure successfully digests all organic plant tissue, the inorganic silica structures are left intact [18]. Silica can thereafter be collected after filtering through a 0.2 μm filter (this step may cause loss of smaller particles, such as those described in Pierantoni et al. [29]) and several washes in ultrapure water and either be stained with PDMPO or observed with SEM (see next section).
The silica extracted from giant horsetail (Figure 1A,B) shows extremely fine details of papillae, pores and stomata (both sunken and not, Figure 1C–E and insets), as well as the undulating cell walls of the epidermal cells of the stem (Figure 1D,F).
Likewise, in rice, details of the silicified warts (Figure 2A), whiskers on the surface of the husks (Figure 2B) and the sinuate pattern of the walls of epidermal cells showing a mosaic-like structure can also be clearly observed (Figure 2C). Isolated silica and bulliform cells (Figure 2D) are abundant in silica extracted from rice tissues.
PDMPO staining of extracted silica was also recently used in non-accumulators. Textile hemp does not accumulate the same levels of silica as horsetail or rice; nevertheless, when grown in the presence of sodium metasilicate, silicified trichomes and leaf epidermal cells are visible [9] (Figure 2E,F). The same richness in details described above for horsetail and rice is present in hemp silica: particularly detailed are the trichome structures, where the wrinkles on the waxy surface of basal cells are perfectly replicated as silica (Figure 2F; [9]).
PDMPO staining was also recently applied to the observation of fresh okra leaves by confocal microscopy [29]. The fluorophore was infiltrated in the leaves by immersing sections in the solution containing PDMPO and by applying a vacuum for 30 minutes. It would be useful to study silicification in the leaves of mutants impaired in the synthesis of cell wall components, such as callose, cellulose, non-hemicellulosic polysaccharides, or pectin. In this respect, the wide collection of thale cress mutants is an important resource and would allow a rapid screening after PDMPO infiltration. Arabidopsis was indeed shown to accumulate Si when grown in the presence of the metalloid [22] and a comparative study of the different cell wall mutants available would provide insights into which cell wall component is capable of templating silica deposition.

3. Micromorphology: Scanning Electron Microscopy of Extracted Plant Silica

High-resolution microscopy, such as SEM, can be used to image plant silica and estimate the extent of silicification by observing tissue and cell types at the nanometer scale. From the observation of silicified cell types, it is possible to infer the functional role of silica. The high resolution of SEM allows analysis of micromorphology at the cell level and of the surface microstructure in silicified tissues. Silicified ‘microsculptures’ from horsetail were already imaged with SEM almost three decades ago [46]: it was possible to show the intimate relationship of biosilicification with the secondary cell walls and the incredible heterogeneity of silicified structures. The removal of organic material present, e.g., on the epidermal surface unmasks the fine details of the surface texture and provides a higher definition [46].
By using microwave acid digestion followed by SEM observations (both a benchtop SEM designed for ease of use and minimal sample preparation and a conventional one providing higher resolution), a staggering heterogeneity of silicified cell types can be observed in giant horsetail (Figure 3).
The interdigitated lobes of the epidermal cells of the stem are perfectly replicated, together with recesses running all along the undulating margins (Figure 3A); in some extracted samples, it is possible to observe the microstructure reminiscent of a porous rock (Figure 3B). The stomata, sunken or not, covering the stem are replicated in even the smallest structural detail (Figure 3C): the radiating ribs are clearly visible and, in some extracted silica, the super-adjacent guard and subsidiary cells [47] unmask the underlying pore opening, thereby revealing the silicified projections protruding in the stomatal pore. SEM is particularly useful to reveal the rich diversity of horsetail stomata typologies (Figure 4). In some observations, a silicified layer seems to cover a stoma devoid of radiating ribs (or the image may refer to stomata viewed from opposite sides; Figure 4A). In others, it is possible to observe a transversal view cutting a stoma in half (and unveiling the inner structure of overlapping cells; Figure 4B), isolated or pairs of sunken stomata surrounded by silicified papillae, or naked pores apparently distorted probably because they are formed by two adjacent stomata (Figure 4D).
The extracted silica shows that epidermal cells appear as silicified scales with thick margins (Figure 3E), while parenchymatic cells are larger and have thinner cell walls (Figure 3F). As to whether these features are also observed in vivo needs further proof.
Microwave acid digestion of rice leaves followed by SEM provided a richness of structural details (Stokes, 2015). Besides known silicified cells, namely bulliform and silica cells (Figure 5A–D), multicellular structures likely corresponding to the silicified pedestal of a trichome were also observed (Figure 5E,F). The extracted silica also revealed less common silicified structures, namely a xylem vessel (Figure 6): in the literature, silicified xylem vessels were reported in one work on oat [48] and barley [49]. Samples observed at the SEM after gold-plating revealed the fine silicified granules covering the ladder-like thickenings of the xylem vessel (Figure 6E,F) and the surface sandy texture of the silica cell (Figure 5D).
The difference in image quality between a benchtop SEM (resolution between 5–30 nm, depending on the model) and a conventional instrument is noteworthy (Figure 3, Figure 4, Figure 5 and Figure 6), but expected given the difference in spatial resolution between the two devices. Benchtop SEM has two main advantages, i.e., both ease of use and ease of sample preparation for insulating samples. Silica is merely mounted on a sticky tab attached to a stub, fixed within the analysis chamber, sealed and then imaged. Since the measurements are carried out in a low vacuum, the build-up of charge on silica surface can be avoided without adding a conductive layer. By comparison, insulating samples, such as silica, must be gold- or carbon-plated before being imaged using a conventional SEM and the procedure for actually using it is more complicated (higher magnification attainable with a resolution up to 1.5 nm) and requires the assistance of a trained staff member.
The two different approaches to SEM imaging can complement each other: samples which have been imaged using a benchtop SEM are compatible with the conventional electron microscope. The easy to handle benchtop instrument can be used to quickly scan over multiple samples, identifying structures of interest which can then later be gold-plated and analysed using the higher resolution SEM. By combining the two instruments, the ease and simplicity of the benchtop SEM can be used to analyse large quantities of digested silica, whilst the higher resolution and better image quality of the conventional SEM can be used to image specific structures.

4. Imaging Plant Silica Through Particle Induced X-ray Emission with Focused Beam and Micro-X-Ray Fluorescence Spectrometry

The imaging of elements using X-ray-based techniques improves lateral resolution (down to the sub-micron under vacuum) and sensitivity [50]. Micro-PIXE is a variant of the standard particle-induced X-ray emission (PIXE) technique which accelerates protons or helium ions towards the sample and detects X-rays of characteristic energy unique to each element that are emitted when the sample is hit by the micro-focused ion beam (microprobe) [51]. The technique is non-destructive and versatile, since it allows to image also live specimens by using an external beam [52,53]. However, the use of external or in-air beam is not suitable to detect Si, since the low energy fluorescence signal (1.74 keV) from plant tissues is completely absorbed in air. For this reason, imaging of Si with PIXE requires vacuum conditions, making sample preparation challenging. Under vacuum conditions, only dehydrated plant samples can be measured, or the microprobe should be equipped with cryo-stage enabling measurements on frozen-hydrated tissues. Since only a few microprobes are equipped with cryo-stage [54], the most appropriate way to preserve the distribution, speciation and concentration of elements in a state as close as possible to the native one is via the use of cryotechniques (e.g., cryofixation, followed by cryosectioning and freeze-drying; [55]).
Micro-PIXE has been used extensively to map element distribution in plant tissues, especially hyperaccumulators that can accumulate high concentrations of metal(loid)s [52]. For example, in Thlaspi praecox, a known Cd and Zn accumulator, a study analysed the distribution of Cd, Zn and Pb in leaves [56,57] and seeds and revealed a preferential storage of Zn and Pb in metabolically less active parts of the leaves (epidermis), while Cd is localised in leaf mesophyll. In the embryonic axis Cd and Zn were localised in cotyledons [58].
PIXE was previously used to detect Si in plant tissues challenged by pathogens: the metalloid accumulated at sites of necrotic lesions in Lagenaria sphaerica (a member of Cucurbitaceae), where it probably has a role in containing the hypersensitive lesions [59].
Micro-PIXE can be successfully used to detect Si distribution in the leaves of accumulators such as rice, after cryofixation, cryosectioning and freeze-drying [60]. A faint but consistent Si signal can be detected at both the upper and lower epidermis, consistently reading at 3% weight (Figure 7A). Strong Si signals are clear both above and below the vascular bundle peaking at 25% weight, indicative of silica cells (Figure 7A). Si accumulation on the abaxial and adaxial sides was already proven in rice using SEM coupled to energy dispersive X-ray analysis (EDX), which allows a comparison of Si abundance among samples receiving different treatments [61]. Recently, PDMPO staining of microwave acid digested samples also showed accumulation of Si on the epidermis of rice leaves [20].
XRF has a higher resolution and better sensitivity as compared to PIXE and also allows analysis in vivo [62], which is, in case of Si, once again challenging due to the low energy of Si Kα X-ray fluorescence line.
Si distribution was studied via XRF in the grasses Phragmites australis, Phalaris arundinacea, Molinia caerulea, Deschampsia cespitosa and in the sedge Carex elata, in combination with the analysis of the leaf optical properties [63]. Grasses were shown to contain Si for >1% of the dry mass, while sedges contained 0.4%. Structures like prickle-hairs and epidermal tissues that were highly encrusted with Si significantly affected light transmittance. Both benchtop and synchrotron-based XRF microscopy exist; however, the latter, despite the limitation due to the access to synchrotron facilities, is faster, because of much brighter excitation beams, an important parameter when imaging hydrated plant tissues [62]. It should however be noted that the drawback of using such brighter beams is the damage to the samples due to the radiation, which is particularly prominent in the low energy range. These damages, while not affecting substantially the morphology of the samples, affect the biochemical profile by causing biomolecules’ ionization [64]. The possibility of using low-energy XRF provides higher sensitivity for elements with lower atomic number like C, O, N, Si and Al: a study on tea plants used low-energy X-ray fluorescence (LEXRF) to image Al and low atomic number elements within leaves [65]. Evidence for the colocalization of Si and Al was also observed in Sorghum root tissues using LEXRF, thereby indicating a role for Si in Al detoxification [66].
By using LEXRF, we successfully detected Si within the leaves of rice [60]. A strong signal peaking at around 180 mg·g−1 was found above the vascular bundle. The location and dumbbell appearance suggest that the element observed is a silica cell (Figure 8D).

5. Mass Spectrometry Imaging of Si: SIMS Nano-Analysis

SIMS nano-analysis is a chemical imaging technique characterised by a high spatial resolution (down to 50 nm; [34]) and a high sensitivity (below one part per million; for more details, please refer to Sangely et al. [35]). It is based on the detection of secondary ions generated after having bombarded and eroded the specimen’s surface with a high energy primary ion-beam (16keV, Cs+ or O). The secondary ions are analysed by a mass spectrometer. The measurement is carried out under ultra-high vacuum conditions. During sputtering, the acquisition of successive images also allows to obtain a subsequent reconstruction of the volume sputtered (3D imaging).
SIMS already proved to be a good complementary imaging technique for determining the distribution of elements in plant tissue [34,68]. Sample preparation is a crucial step to achieve a representative distribution of elements in samples and involves cryofixation. The challenge lies in the fact that it is necessary to remove water from the sample, while keeping an intact structure and preventing the redistribution of mobile elements [69].
SIMS was used on rice to map Si distribution [70] in wild-type and lsi2 mutants: the metalloid was found to accumulate at higher levels in the proximal side of the root endodermis, in a region of the cell wall coinciding with the presence of a dark layer as imaged by transmission electron microscope (TEM). SIMS was also used to map the distribution of Si and germanium (Ge) in the roots and leaves of the grasses Poa annua and Dactylis glomerata [71]: the signal overlapped in the endodermal cells, close to the suberized Casparian strip, while in the leaves germanium was barely present.
SIMS nano-analysis was recently used to map Si in the accumulator horsetail [19]. The presence of a Si double layer was detected on the outer leaf side and in regions close to stem furrows, while a single continuous layer was present on the inner epidermis of the leaf side facing the stem node [19]. SIMS nano-analysis revealed that the regions showing the double Si layer contained organic material in-between. Interestingly, a single layer of Si was detected in a probable non-epidermal internal cell layer.
High-resolution SIMS imaging was also used recently to map Si distribution in the stem tissues of textile hemp [9]. A signal was observed in the cell walls of xylem vessels in samples prepared from plantlets grown in the presence of sodium metasilicate 1 mM and in the cell walls of bast fibers too, preferentially on the side facing the stem cortex (Figure 9). The accumulation of Si seems to be associated within a region of the gelatinous layer closest to the fibre lumen. The linescan of the 12C14N signal indicates the gelatinous organic layer which overlaps with the 28Si linescan (Figure 9F). This suggests a mechanical role of Si and opens up the way to future investigations aimed at understanding where exactly in the gelatinous layer silica is deposited.

6. Future Perspectives

Our understanding of plant silicification is still partial and many open questions remain, especially in relation to which macromolecules can template silica deposition. The majority of the studies available in the recent literature have focused on the identification and functional characterisation of the membrane channels mediating the entry of silicic acid. Only a handful of studies, some of which date back to the early 80s, have analysed the spectacular silicified structures of plants. Molecular approaches can be used together with fluorescence microscopy after PDMPO staining, elemental imaging or electron microscopy following microwave acid digestion to infer the role of candidate genes in plant silicification: databases providing a collection of mutants of known silicifiers, such as rice [72] or Sorghum [73], will be useful resources. For example, plant cell mutants can provide important insights into the relationship between specific cell wall macromolecules and silica accumulation.

Author Contributions

Conceptualization, G.G. and C.E.; Methodology, I.S., N.V. and C.E.; Formal analysis, G.G., I.S., J.-F.H., N.V., and C.E.; Investigation, G.G., I.S., J.-F.H., N.V., and C.E.; Resources, G.G., J.-F.H., N.V., and C.E.; Data curation, G.G., I.S., N.V., and C.E.; Writing—Original draft preparation, G.G., I.S., N.V. and C.E.; Writing—Review and editing, G.G., I.S., J.-F.H., N.V., and C.E.; Project administration, J.-F.H., N.V., and C.E.; Funding acquisition, J.-F.H., N.V., and C.E., All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

I.S. was in receipt of a NERC studentship. The sample preparation and acquisition of the micro-PIXE image was part of a project funded by the European Community in the framework of an Integrating Activity—SPIRIT (Support of Public and Industrial Research Using Ion Beam Technology) under EC contract No. 227012. Synchrotron Elettra is acknowledged for provision of the beamtime (project number 20130375). For his assistance with the hydroponic growth and PDMPO staining of developing rice seedlings, William Mackveley is acknowledged. The authors also thank Karen Walker for the assistance with tissue fixation, microtome and SEM operation. Esther Lentzen is acknowledged for the sample preparation and imaging with NanoSIMS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Epstein, E. The anomaly of silicon in plant biology. Proc. Natl. Acad. Sci. USA 1994, 91, 11–17. [Google Scholar] [CrossRef] [Green Version]
  2. Guerriero, G.; Hausman, J.-F.; Legay, S. Silicon and the plant extracellular matrix. Front. Plant Sci. 2016, 7, 463. [Google Scholar] [CrossRef] [Green Version]
  3. Luyckx, M.; Hausman, J.-F.; Lutts, S.; Guerriero, G. Silicon and plants: Current knowledge and technological perspectives. Front. Plant Sci. 2017, 8, 411. [Google Scholar] [CrossRef] [Green Version]
  4. Exley, C. A possible mechanism of biological silicification in plants. Front. Plant Sci. 2015, 6, 853. [Google Scholar] [CrossRef] [Green Version]
  5. Ma, J.F.; Tamai, K.; Yamaji, N.; Mitani, N.; Konishi, S.; Katsuhara, M.; Ishiguro, M.; Murata, Y.; Yano, M. A silicon transporter in rice. Nature 2006, 440, 688–691. [Google Scholar] [CrossRef]
  6. Chiba, Y.; Mitani, N.; Yamaji, N.; Ma, J.F. HvLsi1 is a silicon influx transporter in barley. Plant J. 2009, 57, 810–818. [Google Scholar] [CrossRef]
  7. Grégoire, C.; Rémus-Borel, W.; Vivancos, J.; Labbé, C.; Belzile, F.; Bélanger, R.R. Discovery of a multigene family of aquaporin silicon transporters in the primitive plant Equisetum arvense. Plant J. 2012, 72, 320–330. [Google Scholar] [CrossRef]
  8. Shivaraj, S.M.; Deshmukh, R.K.; Rai, R.; Bélanger, R.; Agrawal, P.K.; Dash, P.K. Genome-wide identification, characterization, and expression profile of aquaporin gene family in flax (Linum usitatissimum). Sci. Rep. 2017, 7, 46137. [Google Scholar] [CrossRef] [Green Version]
  9. Guerriero, G.; Deshmukh, R.; Sonah, H.; Sergeant, K.; Hausman, J.-F.; Lentzen, E.; Valle, N.; Siddiqui, K.S.; Exley, C. Identification of the aquaporin gene family in Cannabis sativa and evidence for the accumulation of silicon in its tissues. Plant Sci. 2019, 287, 110167. [Google Scholar] [CrossRef]
  10. Mitani, N.; Ma, J.F. Uptake system of silicon in different plant species. J. Exp. Bot. 2005, 56, 1255–1261. [Google Scholar] [CrossRef] [Green Version]
  11. Takahashi, E.; Ma, J.F.; Miyake, Y. The possibility of silicon as an essential element for higher plants. Comments Agric. Food Chem. 1990, 2, 99–102. [Google Scholar]
  12. Laane, H.-M. The effects of foliar sprays with different silicon compounds. Plants 2018, 7, 45. [Google Scholar] [CrossRef] [Green Version]
  13. Shi, Y.; Zhang, Y.; Yao, H.; Wu, J.; Sun, H.; Gong, H. Silicon improves seed germination and alleviates oxidative stress of bud seedlings in tomato under water deficit stress. Plant Physiol. Biochem. 2014, 78, 27–36. [Google Scholar] [CrossRef]
  14. Fry, S.C.; Nesselrode, B.H.W.A.; Miller, J.G.; Mewburn, B.R. Mixed-linkage (1→3,1→4)-β-d-glucan is a major hemicellulose of Equisetum (horsetail) cell walls. New Phytol. 2008, 179, 104–115. [Google Scholar] [CrossRef]
  15. He, C.; Wang, L.; Liu, J.; Liu, X.; Li, X.; Ma, J.; Lin, Y.; Xu, F. Evidence for “silicon” within the cell walls of suspension-cultured rice cells. New Phytol. 2013, 200, 700–709. [Google Scholar] [CrossRef]
  16. He, C.; Ma, J.; Wang, L. A hemicellulose-bound form of silicon with potential to improve the mechanical properties and regeneration of the cell wall of rice. New Phytol. 2015, 206, 1051–1062. [Google Scholar] [CrossRef]
  17. Kido, N.; Yokoyama, R.; Yamamoto, T.; Furukawa, J.; Iwai, H.; Satoh, S.; Nishitani, K. The matrix polysaccharide (1;3,1;4)-β-d-glucan is involved in silicon-dependent strengthening of rice cell wall. Plant Cell Physiol. 2015, 56, 268–276. [Google Scholar] [CrossRef] [Green Version]
  18. Law, C.; Exley, C. New insight into silica deposition in horsetail (Equisetum arvense). BMC Plant Biol. 2011, 11, 112. [Google Scholar] [CrossRef] [Green Version]
  19. Guerriero, G.; Law, C.; Stokes, I.; Moore, K.L.; Exley, C. Rough and tough. How does silicic acid protect horsetail from fungal infection? J. Trace Elem. Med. Biol. 2018, 47, 45–52. [Google Scholar] [CrossRef]
  20. Guerriero, G.; Stokes, I.; Exley, C. Is callose required for silicification in plants? Biol. Lett. 2018, 14, 20180338. [Google Scholar] [CrossRef] [Green Version]
  21. Kulich, I.; Vojtíková, Z.; Sabol, P.; Ortmannová, J.; Neděla, V.; Tihlaříková, E.; Žárský, V. Exocyst subunit EXO70H4 has a specific role in callose synthase secretion and silica accumulation. Plant Physiol. 2018, 176, 2040–2051. [Google Scholar] [CrossRef] [Green Version]
  22. Brugiére, T.; Exley, C. Callose-associated silica deposition in Arabidopsis. J. Trace Elem. Med. Biol. 2017, 39, 86–90. [Google Scholar] [CrossRef]
  23. Kroukamp, E.M.; Wondimu, T.; Forbes, P.B.C. Metal and metalloid speciation in plants: Overview, instrumentation, approaches and commonly assessed elements. TrAC Trends Anal. Chem. 2016, 77, 87–99. [Google Scholar] [CrossRef] [Green Version]
  24. Tran, T.H.M.; Nguyen, K.G. Metal and metalloid concentrations in soil, surface water, and vegetables and the potential ecological and human health risks in the northeastern area of Hanoi, Vietnam. Environ. Monit. Assess. 2018, 190, 624. [Google Scholar] [CrossRef]
  25. Khan, Z.I.; Ugulu, I.; Ahmad, K.; Yasmeen, S.; Noorka, I.R.; Mehmood, N.; Sher, M. Assessment of trace metal and metalloid accumulation and human health risk from vegetables consumption through spinach and coriander specimens irrigated with wastewater. Bull. Environ. Contam. Toxicol. 2018, 101, 787–795. [Google Scholar] [CrossRef]
  26. Alam, M.Z.; Hoque, M.A.; Ahammed, G.J.; McGee, R.; Carpenter-Boggs, L. Arsenic accumulation in lentil (Lens culinaris) genotypes and risk associated with the consumption of grains. Sci. Rep. 2019, 9, 9431. [Google Scholar] [CrossRef] [Green Version]
  27. Lombi, E.; Scheckel, K.G.; Kempson, I.M. In situ analysis of metal(loid)s in plants: State of the art and artefacts. Environ. Exp. Bot. 2011, 72, 3–17. [Google Scholar] [CrossRef]
  28. Gierlinger, N.; Schwanninger, M. The potential of Raman microscopy and Raman imaging in plant research. Spectroscopy 2007, 21, 69–89. [Google Scholar] [CrossRef] [Green Version]
  29. Pierantoni, M.; Tenne, R.; Brumfeld, V.; Kiss, V.; Oron, D.; Addadi, L.; Weiner, S. Plants and light manipulation: The integrated mineral system in okra leaves. Adv. Sci. 2017, 4, 1600416. [Google Scholar] [CrossRef]
  30. Barron, A.; Turner, M.; Beeching, L.; Bellwood, P.; Piper, P.; Grono, E.; Jones, R.; Oxenham, M.; Kien, N.K.T.; Senden, T.; et al. MicroCT reveals domesticated rice (Oryza sativa) within pottery sherds from early Neolithic sites (4150–3265 cal BP) in Southeast Asia. Sci. Rep. 2017, 7, 1–5. [Google Scholar] [CrossRef] [Green Version]
  31. Cremer, C.; Masters, B.R. Resolution enhancement techniques in microscopy. Eur. Phys. J. H 2013, 38, 281–344. [Google Scholar] [CrossRef] [Green Version]
  32. Fouquet, C.; Gilles, J.-F.; Heck, N.; Dos Santos, M.; Schwartzmann, R.; Cannaya, V.; Morel, M.-P.; Davidson, R.S.; Trembleau, A.; Bolte, S. Improving axial resolution in confocal microscopy with new high refractive index mounting media. PLoS ONE 2015, 10, e0121096. [Google Scholar] [CrossRef]
  33. Gianoncelli, A.; Kourousias, G.; Stolfa, A.; Kaulich, B. Recent developments at the TwinMic beamline at ELETTRA: An 8 SDD detector setup for low energy X-ray Fluorescence. J. Phys. Conf. Ser. 2013, 425, 182001. [Google Scholar] [CrossRef]
  34. Moore, K.L.; Chen, Y.; van de Meene, A.M.; Hughes, L.; Liu, W.; Geraki, T.; Mosselmans, F.; McGrath, S.P.; Grovenor, C.; Zhao, F.-J. Combined NanoSIMS and synchrotron X-ray fluorescence reveal distinct cellular and subcellular distribution patterns of trace elements in rice tissues. New Phytol. 2014, 201, 104–115. [Google Scholar] [CrossRef]
  35. Sangely, L.; Boyer, B.; de Chambost, E.; Valle, N.; Audinot, J.-N.; Ireland, T.; Wiedenbeck, M.; Aléon, J.; Jungnickel, H.; Barnes, J.-P.; et al. CHAPTER 15: Secondary ion mass spectrometry. In Sector Field Mass Spectrometry for Elemental and Isotopic Analysis; Royal Society of Chemistry: London, UK, 2014; pp. 439–499. [Google Scholar]
  36. Dayanandan, P.; Kaufman, P.B.; Franklin, C.I. Detection of silica in plants. Am. J. Bot. 1983, 70, 1079–1084. [Google Scholar] [CrossRef]
  37. Nondek, L.; Buszewski, B.; Berek, D. Retention of pyridine and 2,6-dimethylpyridine on silanized silica: A simple test on residual silanols? J. Chromatogr. A 1986, 360, 241–246. [Google Scholar] [CrossRef]
  38. Blecher, I.C.; Seidel, R.; Thomann, R.; Speck, T. Comparison of different methods for the detection of silica inclusions in plant tissues. Int. J. Plant Sci. 2012, 173, 229–238. [Google Scholar] [CrossRef]
  39. Yokoyama, R.; Kido, N.; Yamamoto, T.; Furukawa, J.; Iwai, H.; Satoh, S.; Nishitani, K. Histochemical staining of silica body in rice leaf blades. Bio Protocol 2015, 5. [Google Scholar] [CrossRef]
  40. Isa, M.; Bai, S.; Yokoyama, T.; Ma, J.F.; Ishibashi, Y.; Yuasa, T.; Iwaya-Inoue, M. Silicon enhances growth independent of silica deposition in a low-silica rice mutant, lsi1. Plant Soil 2010, 331, 361–375. [Google Scholar] [CrossRef]
  41. Kao, T.-T.; Chen, S.-J.; Chiou, W.; Chuang, Y.-C.; Kuo-Huang, L.-L. Various microscopic methods for investigating the venuloid idioblasts of Pteris grevilleana wall. Taiwania 2008, 53, 394–400. [Google Scholar] [CrossRef]
  42. Raven, J.A. The transport and function of silicon in plants. Biol. Rev. 1983, 58, 179–207. [Google Scholar] [CrossRef]
  43. Strömberg, C.A.E.; Stilio, V.S.D.; Song, Z. Functions of phytoliths in vascular plants: An evolutionary perspective. Funct. Ecol. 2016, 30, 1286–1297. [Google Scholar] [CrossRef] [Green Version]
  44. Diwu, Z.; Chen, C.S.; Zhang, C.; Klaubert, D.H.; Haugland, R.P. A novel acidotropic pH indicator and its potential application in labeling acidic organelles of live cells. Chem. Biol. 1999, 6, 411–418. [Google Scholar] [CrossRef] [Green Version]
  45. Shimizu, K.; Del Amo, Y.; Brzezinski, M.A.; Stucky, G.D.; Morse, D.E. A novel fluorescent silica tracer for biological silicification studies. Chem. Biol. 2001, 8, 1051–1060. [Google Scholar] [CrossRef] [Green Version]
  46. Perry, C.C.; Fraser, M.A. Silica deposition and ultrastructure in the cell wall of Equisetum arvense: The importance of cell wall structures and flow control in biosilicification? Philos. Trans. Biol. Sci. 1991, 334, 149–157. [Google Scholar]
  47. Cullen, E.; Rudall, P.J. The remarkable stomata of horsetails (Equisetum): Patterning, ultrastructure and development. Ann. Bot. 2016, 118, 207–218. [Google Scholar] [CrossRef]
  48. Jones, L.H.P.; Milne, A.A.; Wadham, S.M. Studies of silica in the oat plant. Plant Soil 1963, 18, 358–371. [Google Scholar] [CrossRef]
  49. Hayward, D.M.; Parry, D.W. Scanning electron microscopy of silica deposition in the leaves of barley (Hordeum sativum L.). Ann. Bot. 1975, 39, 1003–1009. [Google Scholar] [CrossRef]
  50. Vogel-Mikuš, K.; Pongrac, P.; Pelicon, P. Micro-PIXE elemental mapping for ionome studies of crop plants. Int. J. PIXE 2014, 24, 217–233. [Google Scholar] [CrossRef]
  51. Ortega, R.; Devès, G.; Carmona, A. Bio-metals imaging and speciation in cells using proton and synchrotron radiation X-ray microspectroscopy. J. R. Soc. Interface 2009, 6, S649–S658. [Google Scholar] [CrossRef] [Green Version]
  52. Van der Ent, A.; Przybyłowicz, W.J.; de Jonge, M.D.; Harris, H.H.; Ryan, C.G.; Tylko, G.; Paterson, D.J.; Barnabas, A.D.; Kopittke, P.M.; Mesjasz-Przybyłowicz, J. X-ray elemental mapping techniques for elucidating the ecophysiology of hyperaccumulator plants. New Phytol. 2018, 218, 432–452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Cloete, K.J.; Šmit, Ž.; Minnis-Ndimba, R.; Vavpetič, P.; du Plessis, A.; le Roux, S.G.; Pelicon, P. Physico-elemental analysis of roasted organic coffee beans from Ethiopia, Colombia, Honduras, and Mexico using X-ray micro-computed tomography and external beam particle induced X-ray emission. Food Chem. X 2019, 2, 100032. [Google Scholar] [CrossRef] [PubMed]
  54. Vavpetič, P.; Vogel-Mikuš, K.; Jeromel, L.; Ogrinc Potočnik, N.; Pongrac, P.; Drobne, D.; Pipan Tkalec, Ž.; Novak, S.; Kos, M.; Koren, Š.; et al. Elemental distribution and sample integrity comparison of freeze-dried and frozen-hydrated biological tissue samples with nuclear microprobe. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2015, 348, 147–151. [Google Scholar] [CrossRef]
  55. Vogel-Mikuš, K.; Pongrac, P.; Pelicon, P.; Vavpetič, P.; Povh, B.; Bothe, H.; Regvar, M. Micro-PIXE analysis for localization and quantification of elements in roots of mycorrhizal metal-tolerant plants. In Symbiotic Fungi: Principles and Practice; Varma, A., Kharkwal, A.C., Eds.; Soil Biology; Springer: Berlin/Heidelberg, Germany, 2009; pp. 227–242. ISBN 978-3-540-95894-9. [Google Scholar]
  56. Vogel-Mikus, K.; Regvar, M.; Mesjasz-Przybyłowicz, J.; Przybyłowicz, W.J.; Simcic, J.; Pelicon, P.; Budnar, M. Spatial distribution of cadmium in leaves of metal hyperaccumulating Thlaspi praecox using micro-PIXE. New Phytol. 2008, 179, 712–721. [Google Scholar] [CrossRef] [PubMed]
  57. Vogel-Mikus, K.; Simcic, J.; Pelicon, P.; Budnar, M.; Kump, P.; Necemer, M.; Mesjasz-Przybyłowicz, J.; Przybyłowicz, W.J.; Regvar, M. Comparison of essential and non-essential element distribution in leaves of the Cd/Zn hyperaccumulator Thlaspi praecox as revealed by micro-PIXE. Plant Cell Environ. 2008, 31, 1484–1496. [Google Scholar] [CrossRef]
  58. Vogel-Mikuš, K.; Pongrac, P.; Kump, P.; Nečemer, M.; Simčič, J.; Pelicon, P.; Budnar, M.; Povh, B.; Regvar, M. Localisation and quantification of elements within seeds of Cd/Zn hyperaccumulator Thlaspi praecox by micro-PIXE. Environ. Pollut. 2007, 147, 50–59. [Google Scholar] [CrossRef]
  59. Weiersbye-Witkowski, I.M.; Przybylowicz, W.J.; Straker, C.J.; Mesjasz-Przybylowicz, J. Elemental micro-PIXE mapping of hypersensitive lesions in Lagenaria sphaerica (Cucurbitaceae) resistant to Sphaerotheca fuliginea (powdery mildew). Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 1997, 130, 388–395. [Google Scholar] [CrossRef]
  60. Stokes, I. Biosilicification in Oryza Sativa and Other Plants. Ph.D. Thesis, Keele University, Keele, UK, 2016. [Google Scholar]
  61. Dorairaj, D.; Ismail, M.R. Distribution of silicified microstructures, regulation of cinnamyl alcohol dehydrogenase and lodging resistance in silicon and paclobutrazol mediated Oryza sativa. Front. Physiol. 2017, 8, 491. [Google Scholar] [CrossRef]
  62. Kopittke, P.M.; Punshon, T.; Paterson, D.J.; Tappero, R.V.; Wang, P.; Blamey, F.P.C.; van der Ent, A.; Lombi, E. Synchrotron-based X-ray fluorescence microscopy as a technique for imaging of elements in plants. Plant Physiol. 2018, 178, 507–523. [Google Scholar] [CrossRef] [Green Version]
  63. Klančnik, K.; Vogel-Mikuš, K.; Gaberščik, A. Silicified structures affect leaf optical properties in grasses and sedge. J. Photochem. Photobiol. B Biol. 2014, 130, 1–10. [Google Scholar] [CrossRef]
  64. Gianoncelli, A.; Vaccari, L.; Kourousias, G.; Cassese, D.; Bedolla, D.E.; Kenig, S.; Storici, P.; Lazzarino, M.; Kiskinova, M. Soft X-ray microscopy radiation damage on fixed cells investigated with synchrotron radiation FTIR microscopy. Sci. Rep. 2015, 5, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Tolrà, R.; Vogel-Mikuš, K.; Hajiboland, R.; Kump, P.; Pongrac, P.; Kaulich, B.; Gianoncelli, A.; Babin, V.; Barceló, J.; Regvar, M.; et al. Localization of aluminium in tea (Camellia sinensis) leaves using low energy X-ray fluorescence spectro-microscopy. J. Plant Res. 2011, 124, 165–172. [Google Scholar] [CrossRef] [PubMed]
  66. Kopittke, P.M.; Gianoncelli, A.; Kourousias, G.; Green, K.; McKenna, B.A. Alleviation of Al toxicity by Si is associated with the formation of Al–Si complexes in root tissues of sorghum. Front. Plant Sci. 2017, 8, 2189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Kump, P.; Vogel-Mikuš, K. Quantification of 2D elemental distribution maps of intermediate-thick biological sections by low energy synchrotron µ-X-ray fluorescence spectrometry. J. Instrum. 2018, 13, C05014. [Google Scholar] [CrossRef]
  68. Migeon, A.; Audinot, J.-N.; Eybe, T.; Richaud, P.; Damien, B.; Migeon, H.-N.; Chalot, M. Cadmium and zinc localization by SIMS in leaves of Populus deltoides (cv. Lena) grown in a metal polluted soil. Surf. Interface Anal. 2011, 43, 367–369. [Google Scholar] [CrossRef]
  69. Chandra, S.; Smith, D.R.; Morrison, G.H. Subcellular imaging by dynamic SIMS ion microscopy. Anal. Chem. 2000, 72, 104A–114A. [Google Scholar] [CrossRef] [Green Version]
  70. Moore, K.L.; Schröder, M.; Wu, Z.; Martin, B.G.H.; Hawes, C.R.; McGrath, S.P.; Hawkesford, M.J.; Ma, J.F.; Zhao, F.-J.; Grovenor, C.R.M. High-resolution secondary ion mass spectrometry reveals the contrasting subcellular distribution of arsenic and silicon in rice roots. Plant Physiol. 2011, 156, 913–924. [Google Scholar] [CrossRef] [Green Version]
  71. Sparks, J.P.; Chandra, S.; Derry, L.A.; Parthasarathy, M.V.; Daugherty, C.S.; Griffin, R. Subcellular localization of silicon and germanium in grass root and leaf tissues by SIMS: Evidence for differential and active transport. Biogeochemistry 2011, 104, 237–249. [Google Scholar] [CrossRef]
  72. Zhang, J.; Li, C.; Wu, C.; Xiong, L.; Chen, G.; Zhang, Q.; Wang, S. RMD: A rice mutant database for functional analysis of the rice genome. Nucleic Acids Res. 2006, 34, D745–D748. [Google Scholar] [CrossRef] [Green Version]
  73. Jiao, Y.; Burke, J.; Chopra, R.; Burow, G.; Chen, J.; Wang, B.; Hayes, C.; Emendack, Y.; Ware, D.; Xin, Z. A sorghum mutant resource as an efficient platform for gene discovery in grasses. Plant Cell 2016, 28, 1551–1562. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Heavily silicified giant horsetail (Equisetum myriochaetum L.). (A,B) Giant horsetail growing in the wild (Peruvian Amazon). (C) Biogenic silica in giant horsetail’s stem following acid extraction and fluorescence imaging with 2-(4-pyridyl)-5-((4-(2-dimethylaminoethylaminocarbamoyl)methoxy)phenyl)oxazole (PDMPO). Holes corresponding to sunken stomata are visible. Inset: heavily silicified stomata with fine details of radiating ribs in the guard cells. (D) Undulating silicified cell walls of the epidermal cells on the stem. (E,F) Differential interference contrast images of (C) and (D). Images were taken using an Olympus BX50 fluorescence microscope (Southend-on-Sea, UK).
Figure 1. Heavily silicified giant horsetail (Equisetum myriochaetum L.). (A,B) Giant horsetail growing in the wild (Peruvian Amazon). (C) Biogenic silica in giant horsetail’s stem following acid extraction and fluorescence imaging with 2-(4-pyridyl)-5-((4-(2-dimethylaminoethylaminocarbamoyl)methoxy)phenyl)oxazole (PDMPO). Holes corresponding to sunken stomata are visible. Inset: heavily silicified stomata with fine details of radiating ribs in the guard cells. (D) Undulating silicified cell walls of the epidermal cells on the stem. (E,F) Differential interference contrast images of (C) and (D). Images were taken using an Olympus BX50 fluorescence microscope (Southend-on-Sea, UK).
Cells 09 01066 g001
Figure 2. Silica extracted from a silicifier (Oryza sativa L.) and non-silicifier (Cannabis sativa L.) (A) Silica stained with PDMPO and extracted from rice seedlings at the 4th leaf stage. Punctate silicified warts are present on the surface. (B) Silica stained with PDMPO and extracted from rice seedlings at the 3rd leaf stage. The feathery elements are likely whiskers on the surface of husks. (C) Silica from rice leaf epidermis showing silicified papillae, nodules and interlocking sinuate pattern of the epidermal cell walls. (D) Silica and bulliform cells from rice leaf epidermis. (E) PDMPO staining of silica collected following acid and microwave digestion of hemp leaves and showing trichomes with/without basal cells. Inset: differential interference contrast image. (F) Differential interference contrast image of silica extracted from hemp leaves and showing a group of epidermal cells with details of the waxy wrinkles on the surface. Images were taken using an Olympus BX50 fluorescence microscope.
Figure 2. Silica extracted from a silicifier (Oryza sativa L.) and non-silicifier (Cannabis sativa L.) (A) Silica stained with PDMPO and extracted from rice seedlings at the 4th leaf stage. Punctate silicified warts are present on the surface. (B) Silica stained with PDMPO and extracted from rice seedlings at the 3rd leaf stage. The feathery elements are likely whiskers on the surface of husks. (C) Silica from rice leaf epidermis showing silicified papillae, nodules and interlocking sinuate pattern of the epidermal cell walls. (D) Silica and bulliform cells from rice leaf epidermis. (E) PDMPO staining of silica collected following acid and microwave digestion of hemp leaves and showing trichomes with/without basal cells. Inset: differential interference contrast image. (F) Differential interference contrast image of silica extracted from hemp leaves and showing a group of epidermal cells with details of the waxy wrinkles on the surface. Images were taken using an Olympus BX50 fluorescence microscope.
Cells 09 01066 g002
Figure 3. SEM images (topographic contrast) of silica extracted from giant horsetail’s stem. (A) Jigsaw-puzzle-like epidermal cells with interdigitated lobes. (B) Epidermal cells with undulating walls showing a porous siliceous structure. Inset: detail of the porous texture of the extracted silica. (C) Stomata with very fine cellular details of the radiating ribs and sunken stomata among silicified papillae on the stem surface. (D) Fine siliceous replica of stomata pores, with details of silicified projections of the outer ledge. (E) Epidermal cells and fibrous material extracted from giant horsetail’s stem. (F) Probable parenchyma cells. Images were taken using a HITACHI TM3000 TableTop scanning electron microscope.
Figure 3. SEM images (topographic contrast) of silica extracted from giant horsetail’s stem. (A) Jigsaw-puzzle-like epidermal cells with interdigitated lobes. (B) Epidermal cells with undulating walls showing a porous siliceous structure. Inset: detail of the porous texture of the extracted silica. (C) Stomata with very fine cellular details of the radiating ribs and sunken stomata among silicified papillae on the stem surface. (D) Fine siliceous replica of stomata pores, with details of silicified projections of the outer ledge. (E) Epidermal cells and fibrous material extracted from giant horsetail’s stem. (F) Probable parenchyma cells. Images were taken using a HITACHI TM3000 TableTop scanning electron microscope.
Cells 09 01066 g003
Figure 4. SEM images (topographic contrast) of different typologies of stomata on the stem of giant horsetail. (A) Two stomata possibly at different developmental stages (the one on the left is covered by a layer and is devoid of radiating ribs, while the stomata on the right is mature). (B) Transversal view of an adult stomata cut in half with details of the radiating ribs and neighbouring epidermal cells. (C) Sunken stomata interspersed among silicified papillae. (D) Naked and/or partially covered stomatal pores. Inset: detail of a bigger distorted stomatal pore with silicified projections. Images were taken using a HITACHI TM3000 TableTop scanning electron microscope.
Figure 4. SEM images (topographic contrast) of different typologies of stomata on the stem of giant horsetail. (A) Two stomata possibly at different developmental stages (the one on the left is covered by a layer and is devoid of radiating ribs, while the stomata on the right is mature). (B) Transversal view of an adult stomata cut in half with details of the radiating ribs and neighbouring epidermal cells. (C) Sunken stomata interspersed among silicified papillae. (D) Naked and/or partially covered stomatal pores. Inset: detail of a bigger distorted stomatal pore with silicified projections. Images were taken using a HITACHI TM3000 TableTop scanning electron microscope.
Cells 09 01066 g004
Figure 5. SEM (topographic contrast) and fluorescence microscopy images of the silica extracted from rice leaf. (A) Bulliform cells with silicified fibrous material. (B) Bulliform cell and silica cells stained with PDMPO. (C) Dual-layer of silica cells. (D) Fine detail of the silicified granules present on the surface of a silica cell. (E,F) Probable multicellular silicified pedestal of a rice trichome. Images (A,C,E,F) were taken using a HITACHI TM3000 TableTop SEM. Images (B) and (D) were taken using an Olympus BX50 fluorescence microscope and a Hitachi S-4500 SEM, respectively.
Figure 5. SEM (topographic contrast) and fluorescence microscopy images of the silica extracted from rice leaf. (A) Bulliform cells with silicified fibrous material. (B) Bulliform cell and silica cells stained with PDMPO. (C) Dual-layer of silica cells. (D) Fine detail of the silicified granules present on the surface of a silica cell. (E,F) Probable multicellular silicified pedestal of a rice trichome. Images (A,C,E,F) were taken using a HITACHI TM3000 TableTop SEM. Images (B) and (D) were taken using an Olympus BX50 fluorescence microscope and a Hitachi S-4500 SEM, respectively.
Cells 09 01066 g005
Figure 6. Silicified xylem vessel from rice stem. (A) Differential interference contrast and (B) fluorescence microscopy after PDMPO staining of silica extracted from rice stem. A xylem vessel is present among silica cells. (C) SEM image (topographic contrast) of a rice silicified xylem vessel. (D) Details of helical cell wall thickenings. (E) Helical thickening of the silicified xylem vessel in (D). Inset: fine details of the granular material present on the surface of the thickenings in (D). (F) Detail of the granular material forming the silicified cell walls of the xylem vessel in (D). Images (DF) were taken using a Hitachi S-4500 SEM. Images (A,B) were taken using an Olympus BX50 fluorescence microscope and image (C) with a HITACHI TM3000 TableTop SEM.
Figure 6. Silicified xylem vessel from rice stem. (A) Differential interference contrast and (B) fluorescence microscopy after PDMPO staining of silica extracted from rice stem. A xylem vessel is present among silica cells. (C) SEM image (topographic contrast) of a rice silicified xylem vessel. (D) Details of helical cell wall thickenings. (E) Helical thickening of the silicified xylem vessel in (D). Inset: fine details of the granular material present on the surface of the thickenings in (D). (F) Detail of the granular material forming the silicified cell walls of the xylem vessel in (D). Images (DF) were taken using a Hitachi S-4500 SEM. Images (A,B) were taken using an Olympus BX50 fluorescence microscope and image (C) with a HITACHI TM3000 TableTop SEM.
Cells 09 01066 g006

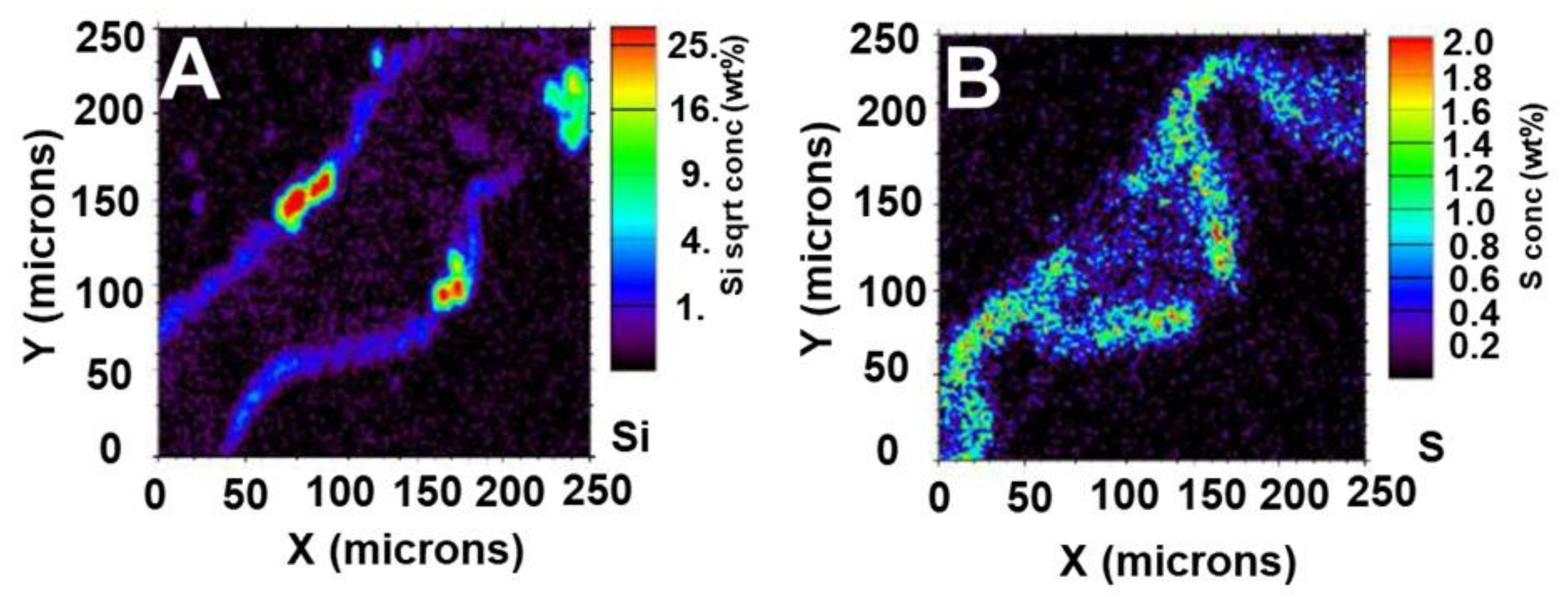

Figure 7. Micro-PIXE images in rice leaf tissue grown with 1 mM silicic acid. (A) Silicon detection coinciding with silica cells above and below the vascular bundle. (B) Sulphur map. The colour scale on the right side of each image shows the percentage weight detection of each element in that region of the sample. Micro-PIXE analysis was performed at the Jožef Stefan Institute in Slovenia.
Figure 7. Micro-PIXE images in rice leaf tissue grown with 1 mM silicic acid. (A) Silicon detection coinciding with silica cells above and below the vascular bundle. (B) Sulphur map. The colour scale on the right side of each image shows the percentage weight detection of each element in that region of the sample. Micro-PIXE analysis was performed at the Jožef Stefan Institute in Slovenia.
Cells 09 01066 g007
Figure 8. Light microscope and low-energy X-ray fluorescence (LEXRF) imaging of rice leaf tissue grown with 1 mM silicic acid. (A) Light microscope image showing the rice leaf sample; the white box highlights LEXRF imaging area. (B) Areal density image (µg·cm−2) of sample. (C) LEXRF detection of oxygen (µg·g−1) providing an overview of the plant tissue. (D) LEXRF detection of silicon (µg·g−1) above the vascular bundle and coinciding with silica cells. LEXRF images show the amount of the relevant element (oxygen or silicon) in μg·cm−2. The colour scale on the right side of each image is a scale of intensity of each element in that region of the sample. The LEXRF measurements were performed using the TwinMic X-ray fluorescence spectro-microscope at the Elettra Synchrotron Radiation Facility in Trieste. Quantification was performed according to Kump and Vogel-Mikuš [67]. X-axis is in µm.
Figure 8. Light microscope and low-energy X-ray fluorescence (LEXRF) imaging of rice leaf tissue grown with 1 mM silicic acid. (A) Light microscope image showing the rice leaf sample; the white box highlights LEXRF imaging area. (B) Areal density image (µg·cm−2) of sample. (C) LEXRF detection of oxygen (µg·g−1) providing an overview of the plant tissue. (D) LEXRF detection of silicon (µg·g−1) above the vascular bundle and coinciding with silica cells. LEXRF images show the amount of the relevant element (oxygen or silicon) in μg·cm−2. The colour scale on the right side of each image is a scale of intensity of each element in that region of the sample. The LEXRF measurements were performed using the TwinMic X-ray fluorescence spectro-microscope at the Elettra Synchrotron Radiation Facility in Trieste. Quantification was performed according to Kump and Vogel-Mikuš [67]. X-axis is in µm.
Cells 09 01066 g008
Figure 9. NanoSIMS images of hemp hypocotyl. (A) and (B) Distribution of 12C14N in the bast fibres of textile hemp grown for 15 days on 1mM sodium metasilicate. (C) and (D) 28Si in the bast fibres of textile hemp grown for 15 days on 1mM sodium metasilicate. (E) Zoomed image of the white box in (D). (F) Linescans of the 12C14N and 28Si in (E) (relative to the region marked with the white dotted arrow). The colour scale goes from black to red with increasing intensity. The scale bars are 5 µm in panels (AD) and 2 µm in panel (E). Images were taken using a CAMECA NanoSIMS 50 instrument (Gennevilliers, France).
Figure 9. NanoSIMS images of hemp hypocotyl. (A) and (B) Distribution of 12C14N in the bast fibres of textile hemp grown for 15 days on 1mM sodium metasilicate. (C) and (D) 28Si in the bast fibres of textile hemp grown for 15 days on 1mM sodium metasilicate. (E) Zoomed image of the white box in (D). (F) Linescans of the 12C14N and 28Si in (E) (relative to the region marked with the white dotted arrow). The colour scale goes from black to red with increasing intensity. The scale bars are 5 µm in panels (AD) and 2 µm in panel (E). Images were taken using a CAMECA NanoSIMS 50 instrument (Gennevilliers, France).
Cells 09 01066 g009
Table 1. Summary of the techniques surveyed in the present review for the study of plant silicification. Details of the information provided, advantages/drawbacks and spatial resolution are schematically given.
Table 1. Summary of the techniques surveyed in the present review for the study of plant silicification. Details of the information provided, advantages/drawbacks and spatial resolution are schematically given.
TechniqueInformationAdvantagesDrawbacksSpatial Resolution
Optical microscopy (dyes)Tissue distributionInstrument accessible in any laboratoryInvasive (tissue fixation) and slicing;
etching; lack of discrimination between lignin and silica
200 nm lateral
600 nm axial
[31]
Confocal microscopyTissues distributionThick samplesBackground fluorescence of chloroplasts180 nm lateral
500 nm axial
[32]
Tabletop scanning electron microscopy (SEM) (on extracted silica)Secondary electron images (SE): structureEasy to use, rapidity;no sample preparationLower resolution than conventional SEM5–30 nm (depending on the model)
Conventional SEM (on extracted silica)SE images: very thin structureHigh resolutionLengthy procedure for sample preparation with the use of hazardous chemicals1 nm
Micro-PIXE (microbeam particle-induced X-ray emission)Quantitative elemental mappingQuantificationLimit in the analysis of some light element (F, Li, B); time devoted to cryotechniques to preserve a state as close as possible to the native one1 µm
LEXRF (low-energy X-ray fluorescence)Quantitative elemental mappingQuantificationLimited access to synchrotron facilities; time devoted to cryotechniques for analysis of plant tissues100 nm
[33]
NanoSIMSElemental mappingHigh sensitivityHigh lateral resolution3D imagingSample preparation (removal of water without causing diffusion of element and damage of the sample structure)50 nm
[34,35]

Share and Cite

MDPI and ACS Style

Guerriero, G.; Stokes, I.; Valle, N.; Hausman, J.-F.; Exley, C. Visualising Silicon in Plants: Histochemistry, Silica Sculptures and Elemental Imaging. Cells 2020, 9, 1066. https://doi.org/10.3390/cells9041066

AMA Style

Guerriero G, Stokes I, Valle N, Hausman J-F, Exley C. Visualising Silicon in Plants: Histochemistry, Silica Sculptures and Elemental Imaging. Cells. 2020; 9(4):1066. https://doi.org/10.3390/cells9041066

Chicago/Turabian Style

Guerriero, Gea, Ian Stokes, Nathalie Valle, Jean-Francois Hausman, and Christopher Exley. 2020. "Visualising Silicon in Plants: Histochemistry, Silica Sculptures and Elemental Imaging" Cells 9, no. 4: 1066. https://doi.org/10.3390/cells9041066

APA Style

Guerriero, G., Stokes, I., Valle, N., Hausman, J. -F., & Exley, C. (2020). Visualising Silicon in Plants: Histochemistry, Silica Sculptures and Elemental Imaging. Cells, 9(4), 1066. https://doi.org/10.3390/cells9041066

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
