Structures, Biosynthesis, and Physiological Functions of (1,3;1,4)-β-d-Glucans

Shu-Chieh Chang
Rebecka Karmakar Saldivar
Pi-Hui Liang
3,4 and
Yves S. Y. Hsieh
Division of Glycoscience, Department of Chemistry, School of Engineering Sciences in Chemistry, Biotechnology and Health, Royal Institute of Technology (KTH), AlbaNova University Centre, SE-106 91 Stockholm, Sweden
School of Pharmacy, College of Pharmacy, Taipei Medical University, Taipei 110, Taiwan
School of Pharmacy, College of Medicine, National Taiwan University, Taipei 100, Taiwan
Genomics Research Center, Academia Sinica, Taipei 115, Taiwan
Author to whom correspondence should be addressed.
Cells 2021, 10(3), 510;
Submission received: 26 January 2021 / Revised: 18 February 2021 / Accepted: 22 February 2021 / Published: 27 February 2021
(This article belongs to the Special Issue Research on Plant Cell Wall Biology)


(1,3;1,4)-β-d-Glucans, also named as mixed-linkage glucans, are unbranched non-cellulosic polysaccharides containing both (1,3)- and (1,4)-β-linkages. The linkage ratio varies depending upon species origin and has a significant impact on the physicochemical properties of the (1,3;1,4)-β-d-glucans. (1,3;1,4)-β-d-Glucans were thought to be unique in the grasses family (Poaceae); however, evidence has shown that (1,3;1,4)-β-d-glucans are also synthesized in other taxa, including horsetail fern Equisetum, algae, lichens, and fungi, and more recently, bacteria. The enzyme involved in (1,3;1,4)-β-d-glucan biosynthesis has been well studied in grasses and cereal. However, how this enzyme is able to assemble the two different linkages remains a matter of debate. Additionally, the presence of (1,3;1,4)-β-d-glucan across the species evolutionarily distant from Poaceae but absence in some evolutionarily closely related species suggest that the synthesis is either highly conserved or has arisen twice as a result of convergent evolution. Here, we compare the structure of (1,3;1,4)-β-d-glucans present across various taxonomic groups and provide up-to-date information on how (1,3;1,4)-β-d-glucans are synthesized and their functions.

1. Introduction

β-Glucans have been found to be highly abundant in plants, algae, fungi, and bacteria as one of the fundamental fibers in the cell walls. The polysaccharides are composed of D-glucopyranosyl units (Glcp) as building blocks. Depending on the glycosidic bonds between the glucose monomers, β-glucans can be classified into two sub-groups, cereal and non-cereal β-glucans. For example, the yeast and fungi β-glucans contain mainly 1,3 and branching 1,6 linkages, whereas cereal β-glucans have linear glucan chain composed of 1,3 and 1,4 glycosidic linkages. (1,3;1,4)-β-d-Glucans, or mixed-linkage glucans (MLGs), have been found rich in rice, wheat, cereal grains and oats, serving as important dietary fibers for our daily consumption, and also impact our metabolic activities by decreasing cholesterol and blood glucose [1].
Structurally, the (1,3;1,4)-β-d-glucan is a linear polymer, primarily containing (1,4)-linked β-d-glucose residues interspersed with a single (1,3)-β-linkage. The ratio of (1,3)- to (1,4)-β-linkages is a good indicator to the fine structure of (1,3;1,4)-β-d-glucan and determines its solubility and physiochemical properties [2]. The polysaccharide can be broken down by the specific polysaccharide hydrolase, the lichenase (EC, which cleaves at a (1,4)-β-d-glucopyranosyl linkage immediately adjacent to a (1,3)-β-d-glucopyranosyl residue, yielding oligosaccharides with distinctive structures such as the cellotriose Glcp-β-1,4-Glcp-β-1,3-Glcp (G4G4G3GR, with degree of polymerization of three, namely DP3) and cellotetraose Glcp-β-1,4-Glcp-β-1,4-Glcp-β-1,3-Glcp (G4G4G4G3GR, DP4) (Figure 1) [3]. Since this discovery, the lichenase has been essential in the structural profiling of (1,3;1,4)-β-d-glucans. For example, the enzymatic digestion of (1,3;1,4)-β-d-glucans of cereal and grasses (family Poaceae), such as barley, results in a higher proportion of DP3 compared to DP4, with a ratio of 1.5–4.5 [4,5,6], whereas the (1,3;1,4)-β-d-glucans of horsetail (Equisetum spp.) of a monilophyte family Equisetaceae sensu stricto releases predominantly DP4 after lichenase digestion (Figure 1 and Table 1) [3,7,8]. The structure of (1,3;1,4)-β-d-glucans of the brown algae Ectocarpus sp. has been recently reported to have only DP3 repeating units (Table 1) [9]. In contrast, Glcp-β-1,3-Glcp (DP2) and DP3 are the most abundant oligomers in (1,3;1,4)-β-d-glucans from Sinorhizobium meliloti and Sarcina ventriculi, respectively [3,10]. Structural surveys reveal (1,3;1,4)-β-d-glucans display heterogeneous structures between different taxonomic groups (Table 1), which suggests differential functions in the cell walls of the different organisms.
(1,3;1,4)-β-d-Glucans have been widely accepted as functional and bioactive ingredients in dietary fibers [14]. The polysaccharides are known to enhance viscosity of the solution and form a matrix-like gel under suitable conditions [14,15,16]. Hence, (1,3;1,4)-β-d-glucans have been utilized in industry as thickening agents for gravies, ice cream formulations, etc. [17], or as fat mimetics in low-calorie food [18]. Additionally, (1,3;1,4)-β-d-glucans extracted from human dietary fiber have been identified that can lower serum cholesterol, reduce the risk of type II diabetes and obesity, and provide other healthful benefits [19,20,21,22], sometimes they can also function as a source of metabolizable energy [23]. It is also observed that some bacteria contain MLG utilization loci (MLGULs), encoding genes that allowing the bacteria to utilize MLGs as energy sources. Therefore, the MLGULs can serve as genetic markers for (1,3;1,4)-β-d-glucan catabolism in commensal gut bacteria [24].

2. Variation of (1,3;1,4)-β-d-Glucans in Different Taxa

2.1. Viridiplantae

(1,3;1,4)-β-d-Glucans have been found in the cell walls of the grasses and cereal family, also known as Poaceae, which consist of commercially important cereals. During the plant growth and development, the amount of (1,3;1,4)-β-d-glucans in the wall is found to increase proportionally to the cell elongation rate, reaching its maximum during the most rapid phase of cell growth, and is completely hydrolyzed when growth ceases. Not only functioning as structural elements, the (1,3;1,4)-β-d-glucans are present in high abundance in the walls of aleurone layer surrounding the barley, rye, and oats starchy endosperms. These (1,3;1,4)-β-d-glucans are hydrolyzed by specific enzymes, the (1,3;1,4)-β-d-glucanases, when germination occurs, allowing mobilization of endosperm cell walls and also providing an extra carbon source that facilitates the germination process [25,26].
By enzymatic profiling and linkage analysis, the ratio of (1,4)- to (1,3)-β-linkages is defined within the range of 2.2–2.6:1 in (1,3;1,4)-β-d-glucans of cereals, and this translates to a ratio of DP3:DP4 units ranges from approximately 1.5:1 to 4.5:1, with the occasional occurrence of longer oligosaccharide units of up to DP > 13 [6,27,28]. So far, similar oligomeric distributions have been found within related species, which indicates that the (1,3)- and (1,4)-β-linkages are not randomly generated. On the other hand, whether the differences in ordered combinations of DP3 and DP4 constitutive blocks is species-dependent is yet to be solved. Among vascular plants, Equisetum species, also known as horsetails, are reported to have (1,3;1,4)-β-d-glucans in their cell walls with significant lower DP3:DP4 ratio (0.05–0.1:1). Higher abundance of the DP4 repeat units may facilitate stronger interaction with the cellulosic microfibrils [3,7].
Chlorophyte green algae Ulva lactuca and the Bryophyte liverwort Lophocolea bidentata are reported to have (1,3;1,4)-β-d-glucan-like polysaccharides, but unlike the homopolymeric (1,3;1,4)-β-d-glucans in barley, their glucans tend to include xylose and arabinose, with a higher degree of polymerization in the latter [29]. (1,3;1,4)-β-d-arabinoglucan is a recently discovered polysaccharide in the walls of moss Physcomitrella patens [30]. It is a linear glucan-related polysaccharide with a structure similar to the (1,3;1,4)-β-d-glucan, except the three-linked Glcp is substituted with three-linked Araf residues. These studies showed that the non-vascular plants could also produce structurally related glucans. The function of (1,3;1,4)-β-d-arabinoglucan remains for further investigation.
(1,3;1,4)-β-d-Glucans are found in the walls of red algae and brown algae, and both are evolutionarily more distant to land plants. A sulfated (1,3;1,4)-β-d-glucan has been isolated from the red algae Kappaphycus alvarezii. This sulfated glucan has only 180 residues, with 64% sulfation on the (1,4)-β-linkages only and the remaining (1,4)-β-linkages were sparse and unlikely to be in long sequences after one and another. The sulfated (1,4)-β-linkages likely link to the fibrillar cell wall polymers by their incompatible extraction behavior. It is also speculated that the sulfation helps control construction and positioning of cellulose [31].
In recent years, the presence of (1,3;1,4)-β-d-glucans in algae species is further supported by their initial discovery in brown algae. Remarkably, a study by Salmeán et al. on brown algae, including six clades of main orders and contains 34 species in total, showed (1,3;1,4)-β-d-glucans were present in all as detected by antibody-based glycan array analysis. Even more astonishing is that, unlike the (1,3;1,4)-β-d-glucan in other species which is commonly composed of both DP3 and DP4 at different proportions, the (1,3;1,4)-β-d-glucan extracted from brown algae is exclusively built by DP3 as repeating units, as observed by high performance anion-exchange chromatography with pulsed-amperometric detection (HPAEC-PAD) [9]. Other unusual fresh water algae, like Monodus subterraneus in Xanthophyceae and dinoflagellate Peridinium gatunense, have also been reported to have (1,3;1,4)-β-d-glucans, but the distribution DP3 and DP4 requires further investigation [32,33].
The presence of (1,3;1,4)-β-d-glucan in the cell walls of Equisetum arvense, Phaeophyceae (brown algae) in phylum of Stramenopiles that is not closely related to any land plants and green algae, the non-conserved structural characteristics across lineages and the absence of (1,3;1,4)-β-d-glucans in some closely related families of grasses and cereal, suggest synthesis could be highly conserved, or a convergence-independent evolution of (1,3;1,4)-β-d-glucan synthase genes.

2.1.1. Biosynthesis of (1,3;1,4)-β-d-Glucan in Viridiplantae

The cellulose synthase-like (Csl) gene superfamily is responsible for the biosynthesis of non-cellulosic polysaccharides in plant cell walls, including mannans, glucoxylans, xyloglucans, and (1,3;1,4)-β-d-glucans. These Csl genes superfamily encoded transmembrane proteins with up to eight membrane-spanning domains and a highly conserved D,D,D,QxxRW motif in their catalytic sites for substrate binding and catalysis [34]. Within the Csl family, CslF and CslH have been implicated in the biosynthesis of (1,3;1,4)-β-d-glucans in grasses and cereals [35]. To better understand where the biosynthesis of (1,3;1,4)-β-d-glucans takes place, the cellular location of the CslH protein has been investigated, using immunogold-labeled antibodies that target CslH epitopes. In transgenic lines of Arabidopsis, CslH proteins were localized in the Golgi vesicles and endoplasmic reticulum (ER), and unexpectedly no labeling was found on the plasma membrane [36]. This finding leads to the assumption that biosynthesis of (1,3;1,4)-β-d-glucans could take place in the Golgi. Biochemical studies of tracking newly synthesized (1,3;1,4)-β-d-glucan incorporated [14C]-glucose from UDP-[14C] glucose suggested that the synthase activity was found only in Golgi [37]. However, Meikle et al. developed a monoclonal antibody against (1,3;1,4)-β-d-glucan and showed no labelling in the Golgi, but strong labelling of (1,3;1,4)-β-d-glucans at the plasma membrane [38,39]. Due to this discrepancy, a hypothesis called “two-phase process” is proposed. It is hypothesized that the synthesis of (1,3;1,4)-β-d-glucan begins in the Golgi with either CslF or CslH enzymes operating the assembly of oligosaccharides to create smaller building blocks, perhaps (1,4)-linked cellodextrins. These building blocks may not be detectable by the (1,3;1,4)-β-d-glucan-specific antibodies and may be transported from the Golgi by carrier molecules, such as an intermediate cellodextrin-lipid, to the plasma membrane [4]. Subsequently, the smaller building blocks are (1,3)-linked assembled and attached to the cell wall possibly by another glycosyltransferase [2].
Another proposed biosynthetic route is that CslF and CslH could catalyze the two different linkages independently with only one catalytic subunit. Since then, studies have found CslF6 to be the gene primarily responsible for the biosynthesis of (1,3;1,4)-β-d-glucans as it is highly expressed in many tissues especially in the developing endosperm; additionally, downregulation of (1,3;1,4)-β-d-glucan synthesis was observed when the CslF6 gene was knockdown, knockout or partially loss-of-function [40,41,42,43,44]. Furthermore, CslF6 expressed into tobacco cells and Pichia was reported to be able to synthesize both (1,3)- and (1,4)-β-linkages of (1,3;1,4)-β-d-glucans. The (1,3;1,4)-β-d-glucans produced by CslF6 at the Golgi were subsequently observed to be channeled through the secretory pathway to the plasma membrane [45,46]. A recent study revealed that the fine structure of (1,3;1,4)-β-d-glucan can be altered by changing a single amino acid in the active site of CslF6, altering the position and flexibility of the TED motif [47].

2.1.2. Physiological Function of (1,3;1,4)-β-d-Glucan in Viridiplantae

The (1,3;1,4)-β-d-glucans in plants provide structural roles, such as strength, flexibility and elasticity. They are also important in the transport by providing porosity during active growth, and the exchange of water, nutrients and other small molecules, such as phytohormones between adjacent cells [48]. In Poaceae, (1,3;1,4)-β-d-glucan is associated with the elongating cells differentiating from the meristematic cells, and is largely absent in the meristematic cells and the mature tissues where growth has ceased [49,50,51]. Additionally, in the Poaceae (1,3;1,4)-β-d-glucan, around 30% are β-1,3-glycosidic linkages, and these primarily consist of DP3s and DP4s, with only 10% of the oligosaccharides being larger than DP4s. With no consecutive (1,3)-β-bonds existing, (1,3;1,4)-β-d-glucan is linear with “kinks”, caused by the single (1,3)-β-linkage inserted within β-1,4 oligosaccharides, which makes it more flexible and soluble [52]. One could see it as a cis-double bond in lipids, which are harder to stack due to it being folded. It is possible that the irregularity of the (1,3;1,4)-β-d-glucan “kinks” makes the (1,3;1,4)-β-d-glucans unable to lay neatly on each other. (1,3;1,4)-β-d-Glucan is found in abundance in the aleurone layer and endosperm of various grains (like barely or oats), reaching the highest concentrations at the highest rate of growth in the grains. Interestingly, the action of (1,3;1,4)-β-d-glucanase facilitates cell wall turnover, and (1,3;1,4)-β-d-glucan ceases to exist once the cells have completed the expansions, suggesting this is an important component in cell expansion and the early stages of germination. Furthermore, in a study by Vega-Sánchez et al. in 2012, (1,3;1,4)-β-d-glucan was found in the secondary cell wall of the mature stems of rice plants with CslF6 highly expressed in the young tissue at a greater rate [44]. In addition, the CslF6 knockout mutant rice had reduced in height by 1/3 and seed production after pollination, also known as seed set, was halved compared to the wild type [44]. The reduction of seed set was most likely the result of deformed male reproductive tissues. The CslF6 is suggested to play an important role in the growth of the rice plants, but it is uncertain if this is due to a lack of (1,3;1,4)-β-d-glucans or some other possible mechanism that the CslF6 might take part in.
Thus far, very little is known about the function of (1,3;1,4)-β-d-glucans in algae. A recent study suggests that (1,3;1,4)-β-d-glucans in brown algae appeared to bond tightly to the cell walls. Their insolubility in water with consistent conformation suggests the structural functions [9].

2.2. Fungi and Lichens

Lichens are a combination of fungi and algae or cyanobacteria living in symbiosis, where fungi are recognized as the mycobiont and different algae or cyanobacteria as the photobiont in lichens. (1,3;1,4)-β-d-Glucans have been found in abundance in Parmeliaceae lichens, such as Cetraria, Evernia, Newropogon, Parmelia, Parmotrema, Rimelia and Usnea [53]. These (1,3;1,4)-β-d-glucans isolated from lichen species from family Parmeliaceae are also known as lichenin or lichenan. Specifically, the (1,3;1,4)-β-d-glucans extracted from the mycobiont cell wall of Cetraria islandica (Iceland moss) gave a higher ratio of DP3 to DP4 (20.2–24.6:1) compared barley and oats (1,3;1,4)-β-d-glucan (1.8–3.5:1) [54]. However, the ratio of (1,4)- to (1,3)-β-linkages in lichenin varies significantly among the lichens, ranging from 2.3:1 found in C. islandica, to 0.3:1 in oak moss Evernia prunastri [54]. The high proportion of three-linked Glcp in E. prunastri glucans raised a question of whether both linkages came from two separate glucans.
Besides the lichens, a non-lichen fungus, Aspergillus fumigatus, was found to have (1,3;1,4)-β-d-glucans in an alkali-insoluble fraction from its cell wall, which is suggested to be related to fungal cell wall rigidity [55]. The (1,3;1,4)-β-d-glucan was also detected in the cell wall of Neurospora crassa with monoclonal antibody [56]. A high percentage of (1,4)-linked glucose was reported in the glycosyl composition and linkage analysis of fungal cell wall from a filamentous fungus N. crassa [57]. It is highly likely that the occurrence of (1,3;1,4)-β-d-glucans is not restricted in the A. fumigatus and N. crassa. How the particular variation in the structures of (1,3;1,4)-β-d-glucans found may be related to their function is largely unknown. Other β-glucans, for example, the (1,3;1,6)-β-d-glucan, is a common β-glucan found in the cell walls of various fungal species, and has shown to possess immunomodulatory activities in reducing SARS-CoV-2-induced cytokine storm in the infected patients [58]. Further β-glucan structural survey of taxa in other lichen and fungal families would be interesting to provide evidence in understanding structure–function relationships between β-glucan structures and their functions, and their potential implications for pharmaceutical research and development.

2.2.1. Biosynthesis of (1,3;1,4)-β-d-Glucan in Fungi and Lichens

In 2015, the first fungal (1,3;1,4)-β-d-glucan synthase, Three-four passes 1 (Tft1), was reported in A. fumigatus [59]. Although the protein sequence of Tft1 shows only 30% homology to the plant (1,3;1,4)-β-d-glucan synthases, CslF and CslH, the homology was confined strictly within the CesL (Cellulose synthase-like) domain at the active site of the Csl glycosyltransferases. Additionally, the A. fumigatus tft1Δ strain lost the ability to produce (1,3;1,4)-β-d-glucans, suggesting the Tft1 is an essential gene that could encode the (1,3;1,4)-β-d-glucan synthase. To investigate whether orthologs exist in other fungal organisms, the Tft1 was blasted against the NCBI. Interestingly, the result showed several fungal organisms to contain close orthologs with 75% to 90% identity. In addition, the (1,3;1,4)-β-d-glucan synthase of Aspergillus nidulans was reported. This synthase is encoded by celA, which is distantly related to plant Csl and orthologous to the Tft1 [60]. Two candidate GT2 enzymes, CPS-1 and NCU03240, are most likely responsible for the synthesis of (1,3;1,4)-β-d-glucans in another fungus N. crassa, as both of these genes, cps-1/ncu00911 and ncu03240, are highly expressed in the vegetative hyphae, where (1,3;1,4)-β-d-glucan was found in the cell wall [61]. All studies suggest there could be many other fungal species containing (1,3;1,4)-β-d-glucans that are yet to be identified.

2.2.2. Physiological Function of (1,3;1,4)-β-d-Glucan in Fungi and Lichens

As one of the components constituting the fungal cell wall, lichenin is believed to contribute to cell wall rigidity in A. fumigatus. However, even as 10% of all the cell wall glucans, (1,3;1,4)-β-d-glucan still seems to be dispensable for the cell growth and fitness of A. fumigatus, as no phenotypic differences were observed compared to the wildtype when (1,3;1,4)-β-d-glucan synthase, Tft1, was deleted or two-fold overexpressed in in vitro growth. Meanwhile, (1,3;1,4)-β-d-glucan is suggested to be relevant in spore formation and enhances β-1,3 glucan synthesis of A. fumigatus, but it would require further studying to confirm if these functions are affected directly by (1,3;1,4)-β-d-glucans [59]. In contrast, in A. nidulans, the deletion of the CelA gene could cause a “balloon” phenotype, which indicates a weakened cell wall. In addition to the changed morphology, the CelA gene-deleted strain showed decreased sensitivity to the drugs against the cell wall, Congo red and dichlobenil. These observations strongly implicate (1,3;1,4)-β-d-glucan in cell wall-related progression of A. nidulans. In another study, an orthologous gene to CelA was found in the pathogenic fungus Drechslera teres, which may be responsible for the production of (1,3;1,4)-β-d-glucans on the cell wall of D. teres, the fungal species known to cause diseases such as net blotch in barleys and have a severe economic impact [62]. Whether (1,3;1,4)-β-d-glucan here plays any role could be up for discussion, as the cell wall of various pathogenic species are often relevant for attachment and pathogenicity. Moreover, in N. crassa, lichenins contribute to 25% of the vegetative cell wall mass and are thought to cross-link glycoproteins to the cell wall [58].

2.3. Bacteria

The presence of (1,3;1,4)-β-d-glucan in bacteria cell walls has been overlooked for many years until the recent discovery of (1,3;1,4)-β-d-glucans in the walls of Gram-negative bacteria Sinorhizobium meliloti [10]. Occurrence of (1,3;1,4)-β-d-glucans in the walls of microorganisms such as bacteria confirms that the (1,3;1,4)-β-d-glucan is not unique to planta and fungi, but further questions remain as to how the bacterial (1,3;1,4)-β-d-glucans structure and biosynthesis differ to the planta and fungal (1,3;1,4)-β-d-glucans.
Bacterial cell wall is a complex multilayered structure that protects the bacteria from an unpredictable and often hostile environment. Most bacteria, except mycoplasmas, have a complex cell wall composed of a mixture of polymers made of carbohydrates and amino acids. These are the peptidoglycan polymers that can provide cell rigidity and act as a physical barrier between the cell and its surrounding. In response to the different environment, some species of Gram-positive bacteria and Gram-negative bacteria secrete high concentration of the exopolysaccharides (EXPs) deposited onto the bacterial surface (Figure 2). Their roles include basic functions such as maintaining structural integrity and preventing desiccation, to more complex activities of facilitating the interaction within bacterial communities. The bacterial EXPs have been found in many pathogenic bacteria and have a direct impact on human health because of their ability to form multicellular conglomerates called biofilms.
A recent study reported that the structure of (1,3;1,4)-β-d-glucan in Gram-negative bacteria S. meliloti is distinctive to the (1,3;1,4)-β-d-glucans of land plants and fungi, for its entire structure is composed of disaccharide repeating units Glcp-β-1,3-Glcp (DP2s) [10]. Methylation analysis showed that the partially methylated alditol acetates (PMAAs) derived from (1,3;1,4)-β-d-glucans of S. meliloti corresponded to (1,3)- and (1,4)-linked glucopyranosyl residues in a 1:1 ratio. Further structural investigation of (1,3;1,4)-β-d-glucans, using two-dimensional Nuclear Magnetic Resonance with Rotating-frame nuclear Overhauser Effect Spectroscopy (2D-NMR ROESY) spectrum, revealed the cross-peaks between H1 of (1,4)-linked Glcp and H3 of (1,3)-linked Glcp, and between H1 of (1,3)-linked Glcp and H4 of (1,4)-linked Glcp, corresponded to a -3)-β-d-Glcp-(1,4)-β-d-Glcp(1- repetitive polymeric structure. Lichenase digestion only releases DP2, confirming the presence of a novel (1,3;1,4)-β-d-glucan in S. meliloti.
Following the discovery of (1,3;1,4)-β-d-glucan in S. meliloti, we began to look into bacterial (1,3;1,4)-β-d-glucans that may have been overlooked in early literature. Gram-positive bacteria Sarcina ventriculi, a highly robust mesotrophic bacterial species commonly found in the soil and occasionally in human gastrointestinal tracts, can secrete and subsequently deposit an additional thick layer of EXPs onto the bacterial cellular surface [63]. Early X-ray diffraction study showed Sarcina EXPs to have similar diffraction pattern to the (1,3;1,4)-β-d-glucans in grasses and cereals. Studies using lichenase digest have confirmed that the (1,3;1,4)-β-d-glucan of S. ventriculi is composed of DP3 G4G3GR, of which the oligosaccharide profiles are similar to the (1,3;1,4)-β-d-glucan recently isolated from the brown algae Ectocarpus sp. [9].

2.3.1. Biosynthesis of (1,3;1,4)-β-d-Glucan in Bacteria

The biosynthesis of bacterial exopolysaccharides is known to share some common characteristics to that in plants. For example, the polysaccharide synthases involved in the bacterial cellulose, alginate and poly-β-d-N-acetylglucosamine production have similar structural motifs, such as the transmembrane-spanning domain, a catalytic D,D,D,QxxRW motif, and a PilZ domain [64]. These motifs are essential for substrate binding and to catalyze the biosynthesis of bacterial exopolysaccharides. Specifically, the PilZ domain is known to involve in the binding to the secondary messenger cyclic diguanylate (c-di-GMP). Two putative genes bgsA and bgsB are proposed to be involved in the biosynthesis of S. meliloti (1,3;1,4)-β-d-glucan. In silico study suggests that the BgsA protein has seven-transmembrane spanning domains and a catalytic D,D,D,QxxRW motif, whereas the PilZ domain is absent. Biochemical study of heterologously expressed BgsA C-terminal domain consisting of 139 amino acids suggests that this unknown domain is also involved in the binding of c-di-GMP, but the lack of PilZ suggests that the activation mechanism of BgsA for the production of (1,3;1,4)-β-d-glucans could be different to the biosynthesis of other exopolysaccharides. A recent study showed that putative (1,3;1,4)-β-d-glucan synthase, the bgsA and bgsB operons, have been identified in the genomes of Rhizobium, Agrobacterium and Methylobacterium, all within the order Rhizobiales [10], suggesting that the occurrence of (1,3;1,4)-β-d-glucan in bacteria maybe more frequent than we have previously expected.

2.3.2. Physiological Function of (1,3;1,4)-β-d-Glucan in Bacteria

As (1,3;1,4)-β-d-glucans in bacterial species are quite a novel finding, there are few studies investigating the functional properties of bacterial (1,3;1,4)-β-d-glucans. However, in the Gram-negative bacterium S. meliloti, where the (1,3;1,4)-β-d-glucan is found exterior to the outer membrane and consists exclusively of DP2 as repeat units, a conclusion has been made that this water-insoluble (1,3;1,4)-β-d-glucan with high production rate promotes the accessibility of aggregation and biofilm production. As both of these processes occur around plant roots, the study suggests that the S. meliloti (1,3;1,4)-β-d-glucan could be important for bacteria adherence to plant surfaces [10].

3. Conclusions

(1,3;1,4)-β-d-Glucans are found most commonly in higher plants such as grasses and cereals, and less commonly in the walls of monilophyte Equisetum, some bryophytes, algae, lichens, fungus, a chromalveolate, and two bacterial species. Except for a few taxa, structural variation of (1,3;1,4)-β-d-glucans across lineage is particularly apparent, but little is known about their physicochemical properties and their biosynthesis [10]. This information is needed to understand the evolution of the important cell wall polysaccharides, the (1,3;1,4)-β-d-glucans, as well as for the possibility of greater utilization of the glucans in food and beverage, and biotechnology industries.

Author Contributions

All the authors provided critical feedbacks and contributed the writing of manuscript. All authors have read and agreed to the published version of the manuscript.


We’d like to thank financial support from KTH Royal Institute of Technology, and Ministry of Science and Technology, Taiwan (MOST109-2636-M-07-001).


We’d like to thank Ann C.Y Wong for critical reading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Murphy, E.J.; Rezoagli, E.; Major, I.; Rowan, N.J.; Laffey, J.G. β-Glucan metabolic and immunomodulatory properties and potential for clinical application. J. Fungi 2020, 6, 356. [Google Scholar] [CrossRef]
  2. Burton, R.A.; Gidley, M.J.; Fincher, G.B. Heterogeneity in the chemistry, structure and function of plant cell walls. Nat. Chem. Biol. 2010, 6, 724–732. [Google Scholar] [CrossRef]
  3. Sørensen, I.; Pettolino, F.A.; Wilson, S.M.; Doblin, M.S.; Johansen, B.; Bacic, A.; Willats, W.G.T. Mixed-linkage (1→3),(1→4)-β-d-glucan is not unique to the Poales and is an abundant component of Equisetum arvense cell walls. Plant J. 2008, 54, 510–521. [Google Scholar] [CrossRef] [PubMed]
  4. Burton, R.A.; Fincher, G.B. (1,3;1,4)-β-d-glucans in cell walls of the poaceae, lower plants, and fungi: A tale of two linkages. Mol. Plant 2009, 2, 873–882. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Burton, R.A.; Fincher, G.B. Evolution and development of cell walls in cereal grains. Front. Plant Sci. 2014, 5, 456. [Google Scholar] [CrossRef] [Green Version]
  6. Lazaridou, A.; Biliaderis, C.G. Molecular aspects of cereal β-glucan functionality: Physical properties, technological applications and physiological effects. J. Cereal Sci. 2007, 46, 101–118. [Google Scholar] [CrossRef]
  7. Fry, S.C.; Nesselrode, B.H.W.A.; Miller, J.G.; Mewburn, B.R. Mixed-linkage (1→3,1→4)-β-d-glucan is a major hemicellulose of Equisetum (horsetail) cell walls. New Phytol. 2008, 179. [Google Scholar] [CrossRef]
  8. Xue, X.; Fry, S.C. Evolution of mixed-linkage (1→3,1→4)-β-d-glucan (MLG) and xyloglucan in Equisetum (horsetails) and other monilophytes. Ann. Bot. 2012, 109, 873–886. [Google Scholar] [CrossRef] [Green Version]
  9. Salmeán, A.A.; Duffieux, D.; Harholt, J.; Qin, F.; Michel, G.; Czjzek, M.; Willats, W.G.T.; Hervé, C. Insoluble (1→3),(1→4)-β-d-glucan is a component of cell walls in brown algae (Phaeophyceae) and is masked by alginates in tissues. Sci. Rep. 2017, 7. [Google Scholar] [CrossRef]
  10. Pérez-Mendoza, D.; Rodríguez-Carvajal, M.Á.; Romero-Jiménez, L.; De Araujo Farias, G.; Lloret, J.; Gallegos, M.T.; Sanjuán, J. Novel mixed-linkage β-glucan activated by c-di-GMP in Sinorhizobium Meliloti. Proc. Natl. Acad. Sci. USA 2015, 112, E757–E765. [Google Scholar] [CrossRef] [Green Version]
  11. Wood, P.J.; Weisz, J.; Blackwell, B.A. Molecular characterization of cereal beta-d-glucans. Structural analysis of oat beta-d-glucan and rapid structural evaluation of beta-d-glucans from different sources by high-performance liquid chromatography of oligosaccharides released by lichenase. Cereal Chem. 1991, 68, 31–39. [Google Scholar]
  12. Wood, P.J.; Braaten, J.T.; Scott, F.W.; Riedel, K.D.; Wolynetz, M.S.; Collins, M.W. Effect of dose and modification of viscous properties of oat gum on plasma glucose and insulin following an oral glucose load. Br. J. Nutr. 1994, 72, 731–743. [Google Scholar] [CrossRef]
  13. Lee, J.; Hollingsworth, R.I. Oligosaccharide β-glucans with unusual linkages from Sarcina ventriculi. Carbohydr. Res. 1997, 304, 133–141. [Google Scholar] [CrossRef]
  14. Cui, W.; Wood, P.J. Relationships between structural features, molecular weight and rheological properties of cereal β-d-glucans. Hydrocolloids 2000. [Google Scholar] [CrossRef]
  15. Bohm, N.; Kulicke, W.M. Rheological studies of barley (1→3)(1→4)-β-glucan in concentrated solution: Mechanistic and kinetic investigation of the gel formation. Carbohydr. Res. 1999, 315, 302–331. [Google Scholar] [CrossRef]
  16. Lazaridou, A.; Biliaderis, C.G.; Izydorczyk, M.S. Molecular size effects on rheological properties of oat β-glucans in solution and gels. Food Hydrocoll. 2003, 17, 693–712. [Google Scholar] [CrossRef]
  17. Wood, P.J. Oat Beta-Glucan: Structure, Location, and Properties; American Association of Cereal Chemists, Inc.: St. Paul, MN, USA, 1986; pp. 121–152. [Google Scholar]
  18. Inglett, G.E. Hypocholesterolemic β-glucan-amylodextrins from oats as dietary fat-replacements. In ACS Book of Abstracts from 199th National Meeting; ACS publications: Washington, DC, USA, 1990. [Google Scholar]
  19. Morgan, K.R. Cereal β-glucans. In Handbook of Hydrocolloids; Philips, G., Williams, P., Eds.; Woodhead Publishing & CRC Press: Cambridge, UK, 2000. [Google Scholar]
  20. Brennan, C.S.; Cleary, L.J. The potential use of cereal (1→3,1→4)-β-d-glucans as functional food ingredients. J. Cereal Sci. 2005, 42, 1–13. [Google Scholar] [CrossRef]
  21. Harris, P.J.; Smith, B.G. Plant cell walls and cell-wall polysaccharides: Structures, properties and uses in food products. Int. J. Food Sci. Technol. 2006, 41, 129–143. [Google Scholar] [CrossRef]
  22. Othman, R.A.; Moghadasian, M.H.; Jones, P.J.H. Cholesterol-lowering effects of oat β-glucan. Nutr. Rev. 2011, 69, 299–309. [Google Scholar] [CrossRef] [PubMed]
  23. Harris, P.J.; Fincher, G.B. Distribution, fine structure and function of (1,3;1,4)-β-Glucans in the grasses and other taxa. In Chemistry, Biochemistry, and Biology of 1-3 Beta Glucans and Related Polysaccharides; Elsevier Science Publishing Co. Inc.: San Diego, CA, USA, 2009. [Google Scholar] [CrossRef]
  24. Tamura, K.; Hemsworth, G.R.; Déjean, G.; Rogers, T.E.; Pudlo, N.A.; Urs, K.; Jain, N.; Davies, G.J.; Martens, E.C.; Brumer, H. Molecular mechanism by which prominent human gut bacteroidetes utilize mixed-linkage beta-glucans, major health-promoting cereal polysaccharides. Cell Rep. 2017, 21, 417–430. [Google Scholar] [CrossRef] [Green Version]
  25. Meier, H.; Reid, J.S.G. Reserve polysaccharides other than starch in higher plants. In Plant Carbohydrates I. Intracellular Carbohydrates; Springer Science & Business Media: Berlin, Germany, 1982. [Google Scholar]
  26. Kim, J.B.; Olek, A.T.; Carpita, N.C. Cell wall and membrane-associated exo-β-d-glucanases from developing maize seedlings. Plant Physiol. 2000, 123, 471–485. [Google Scholar] [CrossRef] [Green Version]
  27. Fincher, G.B.; Stone, B.A. CEREALS|Chemistry of Nonstarch Polysaccharides. In Encyclopedia of Grain Science; Wrigley, C., Ed.; Elsevier: Amsterdam, The Netherlands, 2004; pp. 206–223. [Google Scholar] [CrossRef]
  28. Li, W.; Cui, S.W.; Kakuda, Y. Extraction, fractionation, structural and physical characterization of wheat β-d-glucans. Carbohydr. Polym. 2006, 63, 408–416. [Google Scholar] [CrossRef]
  29. Popper, Z.A.; Fry, S.C. Primary cell wall composition of bryophytes and charophytes. Ann. Bot. 2003, 91, 1–12. [Google Scholar] [CrossRef] [Green Version]
  30. Eder, M.; Tenhaken, R.; Driouich, A.; Lütz-Meindl, U. Occurrence and characterization of arabinogalactan-like proteins and hemicelluloses in Micrasterias (Streptophyta). J. Phycol. 2008, 44, 1221–1234. [Google Scholar] [CrossRef]
  31. Lechat, H.; Amat, M.; Mazoyer, J.; Buléon, A.; Lahaye, M. Structure and distribution of glucomannan and sulfated glucan in the cell walls of the red alga Kappaphycus alvarezii (Gigartinales, Rhodophyta). J. Phycol. 2000, 36, 891–902. [Google Scholar] [CrossRef]
  32. Ford, C.W.; Percival, E. 551. Polysaccharides synthesised by Monodus subterraneus. Part II. The cell-wall glucan. J. Chem. Soc. 1965. [Google Scholar] [CrossRef]
  33. Nevo, Z.; Sharon, N. The cell wall of Peridinium westii, a non cellulosic glucan. BBA Biomembr. 1969, 173, 161–175. [Google Scholar] [CrossRef]
  34. Doblin, M.S.; Kurek, I.; Jacob-Wilk, D.; Delmer, D.P. Cellulose biosynthesis in plants: From genes to rosettes. Plant Cell Physiol. 2002, 43, 1407–1420. [Google Scholar] [CrossRef]
  35. Burton, R.A.; Wilson, S.M.; Hrmova, M.; Harvey, A.J.; Shirley, N.J.; Medhurst, A.; Stone, B.A.; Newbigin, E.J.; Bacic, A.; Fincher, G.B. Cellulose synthase-like CslF genes mediate the synthesis of cell wall (1,3;1,4)-β-d-glucans. Science 2006, 311, 1940–1942. [Google Scholar] [CrossRef]
  36. Doblin, M.S.; Pettolino, F.A.; Wilson, S.M.; Campbell, R.; Burton, R.A.; Fincher, G.B.; Newbigin, E.; Bacic, A. A barley cellulose synthase-like CSLH gene mediates (1,3;1,4)-β-d-glucan synthesis in transgenic Arabidopsis. Proc. Natl. Acad. Sci. USA 2009. [Google Scholar] [CrossRef] [Green Version]
  37. Carpita, N.C.; Gibeaut, D.M. Structural models of primary cell walls in flowering plants: Consistency of molecular structure with the physical properties of the walls during growth. Plant J. 1993, 3, 1–30. [Google Scholar] [CrossRef]
  38. Meikle, P.J.; Hoogenraad, N.J.; Bonig, I.; Clarke, A.E.; Stone, B.A. A (1→3,1→4)-β-glucan-specific monoclonal antibody and its use in the quantitation and immunocytochemical location of (1→3,1→4)-β-glucans. Plant J. 1994, 5, 1–9. [Google Scholar] [CrossRef]
  39. Wilson, S.M.; Burton, R.A.; Doblin, M.S.; Stone, B.A.; Newbigin, E.J.; Fincher, G.B.; Bacic, A. Temporal and spatial appearance of wall polysaccharides during cellularization of barley (Hordeum vulgare) endosperm. Planta 2006, 224, 655–667. [Google Scholar] [CrossRef]
  40. Tonooka, T.; Aoki, E.; Yoshioka, T.; Taketa, S. A novel mutant gene for (1-3, 1-4)-β-d-glucanless grain on barley (Hordeum vulgare L.) chromosome 7H. Breed. Sci. 2009, 59, 47–54. [Google Scholar] [CrossRef] [Green Version]
  41. Nemeth, C.; Freeman, J.; Jones, H.D.; Sparks, C.; Pellny, T.K.; Wilkinson, M.D.; Dunwell, J.; Andersson, A.A.M.; Åman, P.; Guillon, F.; et al. Down-regulation of the CSLF6 gene results in decreased (1,3;1,4)-β-d-glucan in endosperm of wheat. Plant Physiol. 2010, 152, 1209–1218. [Google Scholar] [CrossRef] [Green Version]
  42. Hu, G.; Burton, C.; Hong, Z.; Jackson, E. A mutation of the cellulose-synthase-like (CslF6) gene in barley (Hordeum vulgare L.) partially affects the β-glucan content in grains. J. Cereal Sci. 2014, 59, 189–195. [Google Scholar] [CrossRef]
  43. Taketa, S.; Yuo, T.; Tonooka, T.; Tsumuraya, Y.; Inagaki, Y.; Haruyama, N.; Larroque, O.; Jobling, S.A. Functional characterization of barley betaglucanless mutants demonstrates a unique role for CslF6 in (1,3;1,4)-β-d-glucan biosynthesis. J. Exp. Bot. 2012, 63, 381–392. [Google Scholar] [CrossRef] [Green Version]
  44. Vega-Sánchez, M.E.; Verhertbruggen, Y.; Christensen, U.; Chen, X.; Sharma, V.; Varanasi, P.; Jobling, S.A.; Talbot, M.; White, R.G.; Joo, M.; et al. Loss of cellulose synthase-like F6 function affects mixed-linkage glucan deposition, cell wall mechanical properties, and defense responses in vegetative tissues of rice. Plant Physiol. 2012, 159, 56–69. [Google Scholar] [CrossRef] [Green Version]
  45. Kim, S.J.; Zemelis, S.; Keegstra, K.; Brandizzi, F. The cytoplasmic localization of the catalytic site of CSLF6 supports a channeling model for the biosynthesis of mixed-linkage glucan. Plant J. 2015, 81, 537–547. [Google Scholar] [CrossRef] [Green Version]
  46. Kim, S.J.; Zemelis-Durfee, S.; Jensen, J.K.; Wilkerson, C.G.; Keegstra, K.; Brandizzi, F. In the grass species Brachypodium distachyon, the production of mixed-linkage (1,3;1,4)-β-glucan (MLG) occurs in the Golgi apparatus. Plant J. 2018, 93, 1062–1075. [Google Scholar] [CrossRef] [Green Version]
  47. Dimitroff, G.; Little, A.; Lahnstein, J.; Schwerdt, J.G.; Srivastava, V.; Bulone, V.; Burton, R.A.; Fincher, G.B. (1,3;1,4)-β-glucan biosynthesis by the CSLF6 enzyme: Position and flexibility of catalytic residues influence product fine structure. Biochemistry 2016, 55, 2054–2061. [Google Scholar] [CrossRef] [PubMed]
  48. Lazaridou, A.; Biliaderis, C.G.; Micha-Screttas, M.; Steele, B.R. A comparative study on structure-function relations of mixed-linkage (1→3), (1→4) linear β-d-glucans. Food Hydrocoll. 2004, 18, 837–855. [Google Scholar] [CrossRef]
  49. Buckeridge, M.S.; Rayon, C.; Urbanowicz, B.; Tiné, M.A.S.; Carpita, N.C. Mixed linkage (1→3),(1→4)-β-d-glucans of grasses. Cereal Chem. 2004, 81, 115–127. [Google Scholar] [CrossRef]
  50. Carpita, N.C.; Defernez, M.; Findlay, K.; Wells, B.; Shoue, D.A.; Catchpole, G.; Wilson, R.H.; McCann, M.C. Cell wall architecture of the elongating maize coleoptile. Plant Physiol. 2001, 127, 551–565. [Google Scholar] [CrossRef]
  51. Gibeaut, D.M.; Pauly, M.; Bacic, A.; Fincher, G.B. Changes in cell wall polysaccharides in developing barley (Hordeum vulgare) coleoptiles. Planta 2005, 221, 729–738. [Google Scholar] [CrossRef] [PubMed]
  52. Kiemle, S.N.; Zhang, X.; Esker, A.R.; Toriz, G.; Gatenholm, P.; Cosgrove, D.J. Role of (1,3)(1,4)-β-glucan in cell walls: Interaction with cellulose. Biomacromolecules 2014, 15, 1727–1736. [Google Scholar] [CrossRef]
  53. Olafsdottir, E.S.; Ingólfsdottir, K. Polysaccharides from lichens: Structural characteristics and biological activity. Planta Med. 2001, 67, 199–208. [Google Scholar] [CrossRef] [Green Version]
  54. Honegger, R.; Haisch, A. Immunocytochemical location of the (1→3) (1→4)-β-glucan lichenin in the lichen-forming ascomycete Cetraria islandica (Icelandic moss). New Phytol. 2001, 150, 739–746. [Google Scholar] [CrossRef]
  55. Fontaine, T.; Simenel, C.; Dubreucq, G.; Adam, O.; Delepierre, M.; Lemoine, J.; Vorgias, C.E.; Diaquin, M.; Latgé, J.P. Molecular organization of the alkali-insoluble fraction of Aspergillus fumigatus cell wall. J. Biol. Chem. 2000, 275, 27594–27607. [Google Scholar] [CrossRef] [Green Version]
  56. Ao, J.; Free, S.J. Genetic and biochemical characterization of the GH72 family of cell wall transglycosylases in Neurospora Crassa. Fungal Genet. Biol. 2017, 101, 46–54. [Google Scholar] [CrossRef] [Green Version]
  57. Maddi, A.; Free, S.J. α-1,6-mannosylation of N-linked oligosaccharide present on cell wall proteins is required for their incorporation into the cell wall in the filamentous fungus Neurospora crassa. Eukaryot. Cell 2010, 9, 1766–1775. [Google Scholar] [CrossRef] [Green Version]
  58. Murphy, E.J.; Masterson, C.; Rezoagli, E.; O’Toole, D.; Major, I.; Stack, G.D.; Lynch, M.; Laffey, J.G.; Rowan, N.J. β-Glucan extracts from the same edible shiitake mushroom Lentinus edodes produce differential in-vitro immunomodulatory and pulmonary cytoprotective effects—Implications for coronavirus disease (COVID-19) immunotherapies. Sci. Total Environ. 2020, 732, 139330. [Google Scholar] [CrossRef] [PubMed]
  59. Samar, D.; Kieler, J.B.; Klutts, J.S. Identification and deletion of Tft1, α predicted glycosyltransferase necessary for cell wall β-1,3;1,4-glucan synthesis in Aspergillus fumigatus. PLoS ONE 2015, 10. [Google Scholar] [CrossRef] [Green Version]
  60. Guerriero, G.; Silvestrini, L.; Legay, S.; Maixner, F.; Sulyok, M.; Hausman, J.F.; Strauss, J. Deletion of the celA gene in Aspergillus nidulans triggers overexpression of secondary metabolite biosynthetic genes. Sci. Rep. 2017, 7. [Google Scholar] [CrossRef] [Green Version]
  61. Liu, H.; Li, Y.; Chen, D.; Qi, Z.; Wang, Q.; Wang, J.; Jiang, C.; Xu, J.R. A-to-I RNA editing is developmentally regulated and generally adaptive for sexual reproduction in Neurospora crassa. Proc. Natl. Acad. Sci. USA 2017, 114, E7756–E7765. [Google Scholar] [CrossRef] [Green Version]
  62. Backes, A.; Hausman, J.F.; Renaut, J.; Barka, E.A.; Jacquard, C.; Guerriero, G. Expression analysis of cell wall-related genes in the plant pathogenic fungus Drechslera teres. Genes 2020, 11, 300. [Google Scholar] [CrossRef] [Green Version]
  63. Canale-Parola, E. Biology of the sugar-fermenting Sarcinae. Bacteriol. Rev. 1970, 34, 82–97. [Google Scholar] [CrossRef]
  64. Whitney, J.C.; Howell, P.L. Synthase-dependent exopolysaccharide secretion in Gram-negative bacteria. Trends Microbiol. 2013, 21, 63–72. [Google Scholar] [CrossRef] [Green Version]

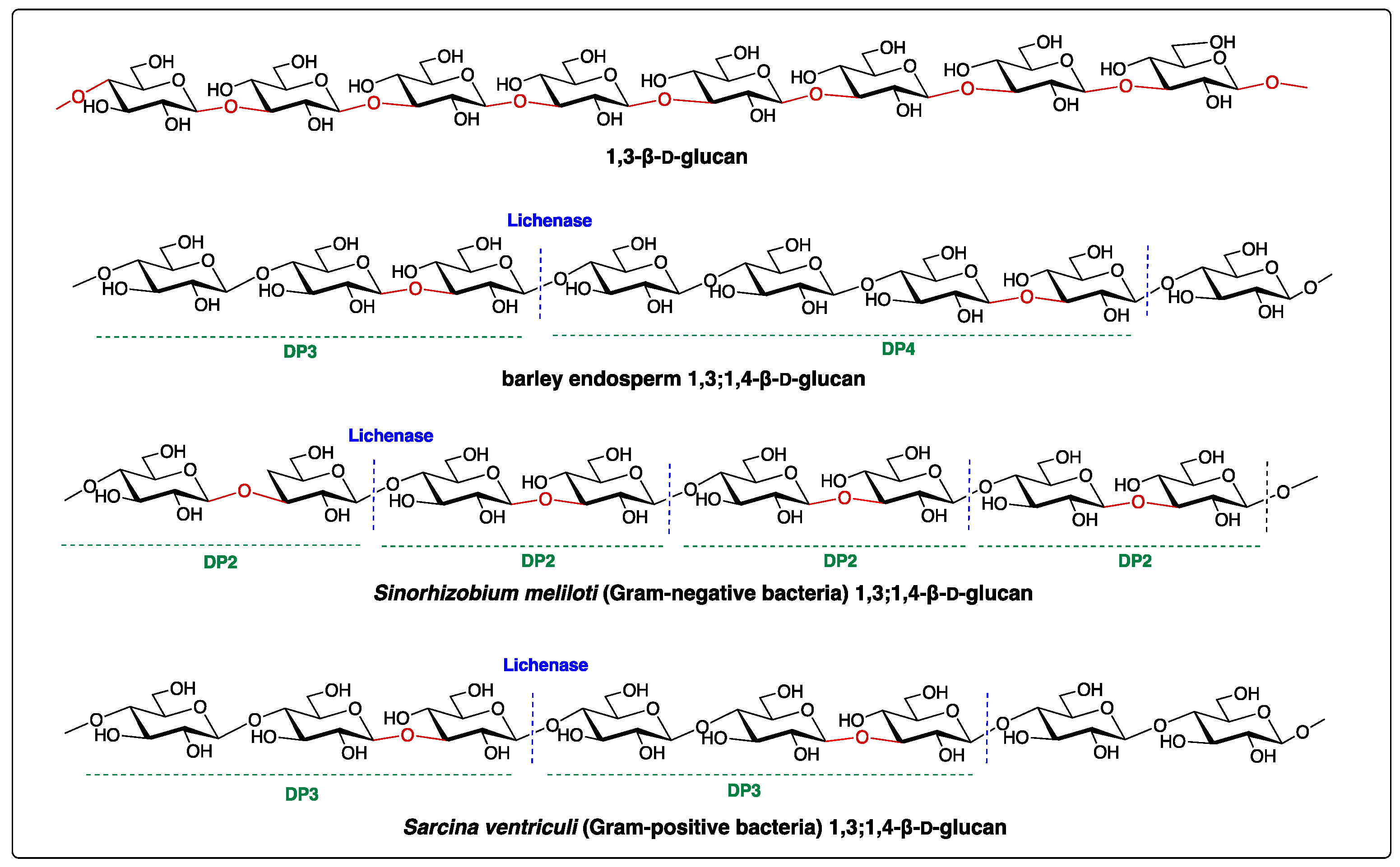

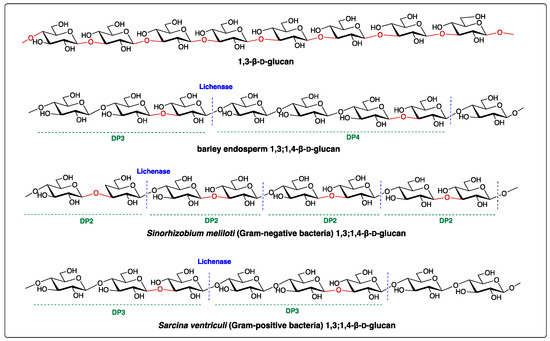

Figure 1. Structures of 1,3-β-d-glucan and (1,3;1,4)-β-d-glucans. Lichenase is an endo-hydrolase that hydrolyses the (1,3;1,4)-β-d-glucans into smaller oligomers, such as degree of polymerization 2 (DP2), DP3 and DP4 shown above. The blue dash lines represent the enzymatic cleavage sites. Oligosaccharide profiles in DPs vary depending on the taxonomic origin of (1,3;1,4)-β-d-glucans.
Figure 1. Structures of 1,3-β-d-glucan and (1,3;1,4)-β-d-glucans. Lichenase is an endo-hydrolase that hydrolyses the (1,3;1,4)-β-d-glucans into smaller oligomers, such as degree of polymerization 2 (DP2), DP3 and DP4 shown above. The blue dash lines represent the enzymatic cleavage sites. Oligosaccharide profiles in DPs vary depending on the taxonomic origin of (1,3;1,4)-β-d-glucans.
Cells 10 00510 g001

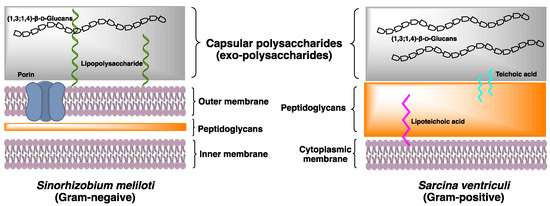

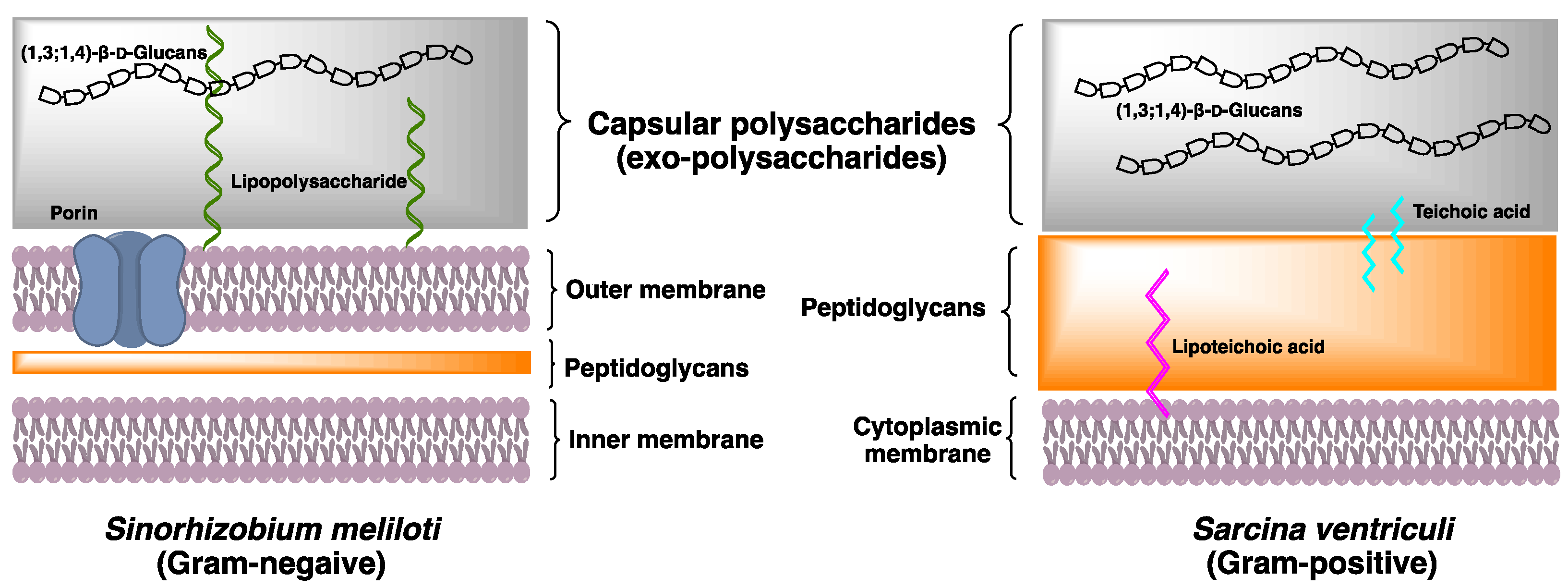

Figure 2. Cell wall architecture of Gram-negative bacteria Sarcina ventriculi and Gram-negative bacteria Sinohizobium meliloti. Both species have unique capsular polysaccharide (1,3;1,4)-β-d-glucans deposited on the surface of bacteria.
Figure 2. Cell wall architecture of Gram-negative bacteria Sarcina ventriculi and Gram-negative bacteria Sinohizobium meliloti. Both species have unique capsular polysaccharide (1,3;1,4)-β-d-glucans deposited on the surface of bacteria.
Cells 10 00510 g002
Table 1. Ratio of mixed-linkage glucan (MLG) oligosaccharides produced from different species after lichenase digestion.
Table 1. Ratio of mixed-linkage glucan (MLG) oligosaccharides produced from different species after lichenase digestion.
Hordeum vulgare01.8–3.51[6]
Triticum aestivum03.0–4.51[11,12]
Avena sativa01.5–2.31[6]
Secale cereale01.9–31[6]
Equisetum arvense00.05–0.11[3]
Equisetum fluviatile00.11[7]
Cetraria islandica020.2–24.61[6]
Sinorhizobium meliloti100[10]
Sarcina ventriculi010[13]
Ectocarpus sp.010[9]
