Soil Profile Heterogeneity Strongly Affects Productivity in Young Almond Scion–Rootstock Combinations Grown in Unfertilized Mediterranean Soil

by
Catalina Cabot
1,*,
Rafael Bosch
1,
Antònia Romero-Munar
1,
Maria Cañellas
1,
Joan Miquel Durán
2,
Pilar Roca
3 and
Jaume Vadell
1
1
Department of Biology, University of the Balearic Islands, 07122 Palma, Balearic Islands, Spain
2
Higher Polytechnic School, University of the Balearic Islands, 07122 Palma, Balearic Islands, Spain
3
Department of Biochemistry, University of the Balearic Islands, 07122 Palma, Balearic Islands, Spain
*
Author to whom correspondence should be addressed.
Agronomy 2026, 16(4), 441; https://doi.org/10.3390/agronomy16040441
Submission received: 31 December 2025 / Revised: 4 February 2026 / Accepted: 10 February 2026 / Published: 13 February 2026
(This article belongs to the Special Issue Effects of Rootstocks to Improve Fruit Yield, Quality, and Resilience to Climatic Changes)
Browse Figures
Versions Notes

Abstract

Spatial variability within soil profiles can substantially influence plant growth and productivity by modifying soil water and nutrient availability. In this study, we evaluated the relationship between soil physicochemical properties and productivity in a young almond orchard established on a Calcaric Solimovic Regosol under Mediterranean conditions. The soil profile comprised three horizons showing marked variability in depth and texture. Based on these differences, the experimental plot was divided into two zones: Zone A, characterized by a thicker upper horizon and a lower proportion of sand in the subsoil, and Zone B, with a thinner topsoil and higher sand content in the buried horizon. Within each zone, the almond cultivars ‘Marta’ and ‘Marinada’ were planted in a balanced design using two rootstocks: INRA GF-677 and GARNEM®. Almond productivity was the parameter most strongly affected by soil heterogeneity, showing pronounced differences among soil zones and rootstock–cultivar combinations. Almond productivity followed the sequence Marta > Marinada/GF-677 > Marinada/GARNEM®, and was reduced in Zone B by 37%, 68%, and 72%, respectively, compared with Zone A. In contrast, soil zones had no significant effect on leaf and kernel mineral nutrient concentrations, which varied mainly according to cultivar.

1. Introduction

Almond (Prunus dulcis (Mill.) D.A. Webb) is one of the most important tree nut crops worldwide. The United States is currently the leading producer, followed by Mediterranean countries such as Spain and Italy [1]. In the Mediterranean region, almond cultivation has traditionally relied on rainfed orchards characterized by wide tree spacing, low external inputs, and the integration of winter cover crops and sheep grazing. However, during recent decades, the traditional production system has been severely challenged. Climate change has increased the frequency and intensity of drought events, particularly affecting rainfed agriculture [2], while the emergence and spread of new diseases, such as leaf scorch caused by Xylella fastidiosa, have further threatened orchard viability [3]. These pressures, combined with the market-driven intensification of agricultural systems, have led to the widespread replacement of traditional almond orchards with intensive and super-intensive plantations that require high inputs of water and other natural resources [4]. Under current and projected climate change scenarios, such production models face serious limitations, especially regarding water availability and soil health. Consequently, almond cultivation in Mediterranean environments urgently requires more sustainable soil and water management strategies capable of balancing crop productivity with the preservation of natural resources [5].
Agricultural soils are a finite and non-renewable resource that underpins food production. Inappropriate management practices can lead to soil degradation, including salinization and groundwater contamination, often driven by excessive fertilization [6]. Understanding soil properties and their interactions with vegetation and environmental factors is therefore essential to improve sustainable production practices, as soil characteristics directly influence water retention, nutrient availability, and root development [7]. Among these characteristics, within-field soil heterogeneity plays a crucial role in determining spatial variability in crop growth and productivity. Such heterogeneity often necessitates site-specific irrigation and fertilization strategies to achieve consistent productivity while minimizing environmental impacts such as nutrient leaching and soil erosion [7,8]. Soil texture is a key determinant of crop performance because it governs water-holding capacity, aeration, drainage, and nutrient retention. The relative proportions of sand, silt, and clay define the physicochemical and biological properties of soils, thereby influencing water and nutrient dynamics within the root zone [9]. In heterogeneous soils, uniform management practices can exacerbate water percolation and nutrient leaching, ultimately compromising groundwater quality and resource-use efficiency [10].
Although the effects of soil heterogeneity on crop production have been investigated in annual cropping systems, mainly focusing on variability within the topsoil [11,12], comparatively little attention has been given to perennial fruit crops. In tree orchards, root systems explore deeper soil layers, making the properties of buried horizons potentially as important as those of the topsoil [13]. Variations in horizon depth, texture, and chemical composition may therefore have long-term implications for tree growth, yield, and nutrient uptake, particularly in young orchards where root systems are still developing. On this basis, in this field study, we evaluated the impact of soil profile heterogeneity on vegetative growth, productivity, and mineral nutrition in a young almond orchard established under Mediterranean conditions. Specifically, we examined the response of three rootstock–cultivar combinations to spatial variation in soil horizons. The objectives of this study were to: (1) assess the relationship between soil physicochemical properties and almond growth, productivity, and quality; and (2) compare the responses of different almond rootstock–cultivar combinations to within-field soil heterogeneity.

2. Materials and Methods

2.1. Experimental Site and Environmental Conditions

The study was conducted from January 2021 to October 2025 at the experimental station of the University of the Balearic Islands (Balearic Islands, Spain; 39°38′17″ N, 2°38′53″ E). The experimental plot covered an area of 1500 m2 (30 m × 50 m). The regional climate is Mediterranean, characterized by a mean annual precipitation of approximately 450 mm, concentrated mainly in autumn and winter. October and November are typically the wettest months, whereas rainfall is scarce or absent from June to August. Summers are hot, with daily maximum temperatures frequently exceeding 30 °C, while winters are mild, with minimum temperatures rarely dropping below 1 °C.

2.2. Soil Physicochemical Characterization

Preliminary observations of soil characteristics were carried out in 2020, when a 50 m long trench was mechanically excavated alongside the experimental plot to install a row of trees in large containers. The trench, approximately 1 m deep, allowed direct visualization of the soil profile and revealed marked heterogeneity, indicating that the plot could be subdivided into two distinct zones. This observation provided the basis for the present study. Detailed soil mapping was subsequently performed by manually excavating 4 soil pits, 2 in each zone to a depth of approximately 100 cm. Soil horizons were identified and described in the field according to the World Reference Base for Soil Resources [14], and two samples per horizon were taken for physicochemical and biological analyses as follows.
Soil texture was determined using the Bouyoucos hydrometer method [15]. Field capacity (FC) and permanent wilting point (PWP) were measured using a pressure plate apparatus after equilibration at −33 kPa and −1500 kPa, respectively [16]. Soil bulk density (BD) was calculated from intact core samples as the ratio of oven-dried soil mass to total core volume. Soil organic carbon (SOC) was determined using the Walkley–Black method [17]. Available phosphorus (P Olsen) was measured following the Olsen method [18]. Calcium carbonate equivalent (CCE) was determined using the Bernard calcimeter method [19], while active calcium carbonate (ACC) was quantified using the ammonium oxalate procedure [20]. Cation exchange capacity (CEC) was determined by cation displacement with 1 N ammonium acetate buffered at pH 7.0 [21]. Soil electrical conductivity (EC) and pH were measured in 1:5 and 1:2.5 soil-to-water suspensions, respectively. Total microbial activity was assessed in samples from the upper horizon using the fluorescein diacetate (FDA) hydrolysis assay [22]. Exchangeable K, Ca, Mg, and Na were extracted using ammonium acetate (pH 7.0), whereas Fe, Zn, Mn, and Cu were extracted using EDTA as a chelating agent. All elements were quantified by inductively coupled plasma optical emission spectroscopy (ICP-OES; Perkin-Elmer Plasma-2000, Perkin-Elmer Inc., Norwalk, CA, USA).

2.3. Experimental Design and Almond Orchard Management Practices

Based on key soil profile characteristics likely to influence crop performance, specifically the depth of the upper horizon and the proportion of sand within the profile, the experimental plot was divided into two zones, designated Zone A and Zone B. Each zone occupied approximately half of the total plot area. In order to control soil heterogeneity in Zones A and B, trees of different scion–rootstock combinations were symmetrically planted using a balanced experimental design, ensuring unbiased comparisons between treatment groups (Figure 1).
In February 2021, a total of 288 almond trees (Prunus dulcis (Mill.) D.A. Webb) were planted. Ninety-six trees corresponding to the high-vigor cultivar ‘Marta’ were grafted onto the INRA GF-677 rootstock. The remaining 192 trees were of the medium–low-vigor cultivar ‘Marinada’, with half grafted onto INRA GF-677 and half onto the GARNEM® rootstock. All scion–rootstock combinations started fruiting period in 2024.
Trees were arranged in six rows, with 48 trees per row, spaced 1 m apart within rows and 4 m between rows (Figure 1D). Trees were planted in groups of four of the same scion–rootstock combination. Rows 1 and 6 served as border rows and were excluded from sampling. Within each group of four trees, only the two central trees were included in the study, marked with a red star in Figure 1D, to minimize potential root overlap effects between different scion–rootstock combinations. A maximum of 12 trees per rootstock–cultivar combination were sampled in each soil zone.
Spontaneous inter-row vegetation was allowed to grow from autumn to spring and was incorporated into the soil before the onset of the dry season to minimize competition for water. To clearly assess the influence of soil properties on tree performance, no fertilization was applied throughout the experimental period. The same supplemental irrigation was provided by drip irrigation during the dry season in both zones, using recommended irrigation rates for almonds grown in sandy soils to ensure adequate water supply across the heterogeneous soil conditions. The tree water status was monitored using stomatal conductance values (see Section 2.3.). Pruning was carried out each January, after leaf fall, to control canopy growth.

2.4. Almond Tree Physiological Parameters, Growth, and Almond Productivity

Tree growth was assessed by measuring trunk diameter at mid-height between the soil surface and the first main branch using a digital caliper. This non-destructive measurement has been shown to correlate positively with tree biomass in fruit trees [23].
Physiological measurements were conducted in May, July, and September on 12 trees per rootstock–cultivar combination and soil zone. Measurements were taken on fully expanded leaves located on current-year shoots that did not bear fruit. The total leaf chlorophyll content was estimated using a chlorophyll content meter (Model CI-01, Hansatech Instruments, Norfolk, UK), and stomatal conductance was measured using an SC-1 leaf porometer (METER Group, Inc., San Francisco, CA, USA). All measurements were performed on clear, sunny days between 11:00 and 13:00 h using leaves fully exposed to sunlight.
In 2024 and 2025, almonds were manually harvested during the third week of September. Fruits from each tree were counted and weighed after hull removal. Kernels were obtained by manual shelling and subsequently weighed to determine kernel yield.

2.5. Leaf and Almond Ionome Analysis

Leaf ionome from samples collected in July are shown. This period was reported as optimal for assessing the mineral nutrient status in almond leaves due to the stabilization of nutrient concentrations [24]. After physiological measurements, leaves were harvested, washed three times with distilled water, and oven-dried at 70 °C for 12 h.
Representative almond samples from each rootstock–cultivar combination and soil zone were washed three times with distilled water. After removing excess surface water, skins and blanched kernels were separated and oven-dried at 100 °C for 24 h to determine the water content and mineral nutrient concentrations.
Finely ground, oven-dried leaf, skin, and blanched kernel samples (0.05 g) were digested in a mixture of H2O2:HNO3:HClO4 (1:0.4:0.1, v/v/v) at 90 °C for 3 h. After cooling, digests were brought to a final volume of 10 mL with Milli-Q water and filtered through hydrophilic PVDF syringe filters (25 mm diameter, 0.45 µm pore size; Phenomenex) prior to analysis by ICP-OES.

2.6. Statistical Analysis

Statistical analyses were performed using SPSS Statistics software version 28.0.1.1. Data normality and homogeneity of variances were assessed using the Shapiro–Wilk and Levene’s tests, respectively. Differences among treatments were analyzed by analysis of variance (ANOVA), followed by Duncan’s multiple range test when significant effects were detected. Correlation heat maps were generated based on Pearson correlation coefficients to evaluate relationships between soil physicochemical properties and almond productivity.

3. Results

3.1. Soil Physicochemical and Biological Properties

The orchard soil was classified as a Calcaric Solimovic Regosol according to the World Reference Base for Soil Resources [14]. The soil profile consisted of three horizons exhibiting marked spatial variability, which justified the subdivision of the experimental plot into two distinct zones, Zone A and Zone B (Figure 1D).
The upper horizon (Aαp) was deeper in Zone A (35 cm) than in Zone B (30 cm) and displayed a loamy texture in both zones, with a higher silt content in Zone A (Table 1).
Although field capacity showed similar values in both zones, the permanent wilting point was lower in Zone A. Key fertility-related parameters, including soil organic carbon (SOC), C/N ratio, and cation exchange capacity (CEC), were higher in Zone A, whereas growth-limiting factors such as calcium carbonate equivalent (CCE), active calcium carbonate (ACC), and soil pH were lower in this zone (Table 1). The buried horizon (2Aαb) was thicker in Zone B (40 cm) than in Zone A (25 cm). Texture differed markedly between zones, being loamy in Zone A and sandy loam in Zone B, with the latter showing a substantially higher sand content. This difference was associated with lower SOC and CEC and higher CCE and pH in Zone B compared with Zone A (Table 1). The parent material horizon (2Cα) exhibited a clay loam texture in Zone A and a loam texture in Zone B, with generally similar physicochemical properties in both zones. Olsen-extractable P was consistently very low (<5 mg kg−1) across all horizons in both zones (Table 1).
Among macronutrients, exchangeable K and Mg concentrations were higher in the upper horizon than in deeper layers, with no significant differences between zones. In the buried horizon, however, both K and Mg were higher in Zone A than in Zone B (Table 1). Exchangeable Na also showed higher concentrations in the upper horizon, without significant differences between zones. Regarding EDTA-extractable micronutrients, Fe concentrations were similar between the upper and buried horizons but were consistently higher in Zone A than in Zone B (Table 1). Manganese concentrations were higher in the upper horizon, whereas Zn and Cu showed no significant differences among horizons or between zones.
Total microbial activity, assessed using the fluorescein diacetate (FDA) hydrolysis assay, was measured in July 2025 in soil samples collected from the almond rhizosphere and bulk soil. No significant differences between the rhizosphere and bulk soil were observed in Zone A (Figure 2). In contrast, FDA activity in Zone B was significantly higher in the rhizosphere than in the bulk soil. While rhizosphere FDA activity did not differ significantly between zones, bulk soil activity was higher in Zone B than in Zone A (Figure 2).

3.2. Almond Physiological Parameters, Growth and Productivity

Tree growth, assessed by trunk diameter in 2024 and 2025, differed significantly among scions, rootstocks, and soil zones (Figure 3). The cultivar ‘Marta’ consistently exhibited greater trunk diameter than ‘Marinada’ in both zones. Within ‘Marinada’, trees grafted onto INRA GF-677 showed higher growth than those grafted onto GARNEM® in Zone A, whereas no significant differences between rootstocks were observed in Zone B (Figure 3). In Zone A, all scion–rootstock combinations showed a significant increase in trunk diameter from 2024 to 2025. In Zone B, trunk growth increased in ‘Marta’ and ‘Marinada’/GF-677, while no significant year-to-year increase was observed in ‘Marinada’/GARNEM® (Figure 3). For both years, the trunk diameter of ‘Marinada’ grafted onto INRA GF-677 was significantly greater than that of trees grafted onto GARNEM® in Zone A, whereas rootstock effects were not significant in Zone B. Overall, trunk diameter was consistently higher in Zone A than in Zone B for all scion–rootstock combinations (Figure 3).
The leaf chlorophyll content differed significantly among cultivars and soil zones (Figure 4A). ‘Marta’ exhibited higher chlorophyll values than ‘Marinada’ grafted onto either rootstock in both zones. Moreover, the chlorophyll content in ‘Marta’ was higher in Zone A than in Zone B, whereas ‘Marinada’ showed similar values in both zones. In contrast, stomatal conductance did not differ significantly among scion–rootstock combinations or between soil zones (Figure 4B).
Almond productivity was the tree parameter most strongly affected by soil heterogeneity. Cumulative yield over the 2024 and 2025 seasons varied markedly according to soil zone, cultivar, and rootstock (Figure 5). All scion–rootstock combinations exhibited significantly higher productivity in Zone A than in Zone B. Among cultivars, ‘Marta’ showed higher productivity than ‘Marinada’, and within ‘Marinada’, trees grafted onto INRA GF-677 outperformed those grafted onto GARNEM® (Figure 5). Kernel proportion (kernel weight as a percentage of total nut weight) did not differ significantly among scion–rootstock combinations or between soil zones, with average values ranging from 25.1% to 27.4%.
Correlation heat maps illustrating relationships between soil physicochemical properties and almond productivity for the upper and buried horizons are presented in Figure 6. In the upper horizon, the sand content, permanent wilting point, CCE, and pH were negatively correlated with productivity, whereas the silt content, bulk density, SOC, and CEC showed positive correlations, particularly for ‘Marinada’/GARNEM® (Figure 6). In the buried horizon, the sand content, CCE, and pH were strongly negatively correlated with almond productivity, while the silt and clay content, FC, PWP, BD, SOC, C/N ratio, CEC, and EC showed positive correlations (Figure 6).

3.3. Leaf and Almond Ionome

Leaf mineral nutrient concentrations of fully expanded leaves collected in July 2025 are presented in Table 2. Leaf K, S, Fe, Mn, and Cu did not differ significantly among soil zones or rootstock–cultivar combinations. In contrast, leaf Ca and Mg concentrations were higher in ‘Marinada’ grafted onto GARNEM® than in ‘Marinada’/GF-677 and ‘Marta’, with no significant zone effects. Leaf Na and B concentrations were higher in ‘Marta’ than in ‘Marinada’, irrespective of soil zone. Leaf P concentrations were higher in ‘Marinada’, with a tendency toward higher values in Zone B, while leaf Zn also tended to be higher in ‘Marinada’ in Zone B (Table 2).
Macronutrient and micronutrient concentrations in almond skins and blanched kernels that differed among treatments are shown in Figure 7 and Figure 8, respectively. Potassium concentrations were similar between skins and blanched kernels in ‘Marta’, whereas in ‘Marinada’ K concentrations were higher in blanched kernels than in skins. Skin K concentrations were significantly higher in ‘Marta’ than in ‘Marinada’, with no significant differences between soil zones (Figure 7A,D). Calcium concentrations were approximately twofold higher in skins than in kernels (Figure 7B,E). Kernel Ca was significantly higher in ‘Marta’ than in ‘Marinada’, whereas skin Ca did not differ significantly among scion–rootstock combinations or soil zones. Magnesium concentrations in blanched kernels and skins showed no significant differences among cultivars or zones, with values ranging from 2.3 ± 0.16 to 2.5 ± 0.17 mg g−1 DW in blanched kernels and from 1.95 ± 0.26 to 2.31 ± 0.22 mg g−1 DW in skins. Sulfur concentrations in both skins and blanched kernels were lower in ‘Marinada’ than in ‘Marta’, with no significant zone effects (Figure 7C,F). Phosphorus concentrations in blanched kernels and skins showed no significant differences among cultivars or zones, with values ranging from 4.75 ± 0.28 to 5.11 ± 0.15 mg g−1 DW in blanched kernels and from 1.78 ± 0.28 to 1.98 ± 0.19 mg g−1 DW in skins.
Micronutrient concentrations were generally higher in skins than in blanched kernels (Figure 8). Blanched kernel Fe concentrations were higher in ‘Marta’ than in ‘Marinada’, with a similar trend observed in skins (Figure 8A). In contrast, blanched kernel Mn and Zn concentrations were higher in ‘Marinada’ than in ‘Marta’, with a comparable trend for skin Mn (Figure 8B,C,E). Skin Zn concentrations did not differ between cultivars in Zone A; however, in Zone B, ‘Marta’ exhibited higher values than in Zone A.

4. Discussion

Sustainable agricultural practices are increasingly required to maintain almond production in Mediterranean regions, where natural resources, particularly water, are limited and climate variability is intensifying. Achieving a balance between crop productivity and the preservation of soil and water resources is therefore a major challenge for almond cultivation under these conditions [5]. In this context, improving resource-use efficiency is essential, and soils represent one of the most critical yet heterogeneous components of agricultural systems [26]
Agricultural soils are inherently variable, often exhibiting pronounced differences in physicochemical and biological properties over short spatial scales.
In the present study, we investigated how spatial variation in soil profile characteristics affected vegetative growth, productivity, and mineral nutrition in a young almond orchard established under Mediterranean conditions. The experimental plot was located on a gentle alluvial slope, where soil-forming processes produced contrasting horizon characteristics over a relatively small area. Specifically, the sand content in the buried horizon increased from west to east, while the depth of the upper horizon decreased in the same direction. This pattern likely reflects the origin of the upper loamy horizon from upslope materials, which progressively thinned downslope. Based on these characteristics, the plot was divided into two zones with contrasting soil profiles that remained largely undisturbed by past agricultural practices.
The soil was classified as a Calcaric Solimovic Regosol, a soil type commonly found in xeric environments where limited leaching promotes the accumulation of carbonates and results in high pH values. Although such soils can be highly productive when adequately supplied with water and nutrients, their high carbonate content and alkalinity strongly limit the availability of key nutrients such as phosphorus and micronutrients, particularly Fe, Zn, and Cu [27]. In this study, rainfall was insufficient to establish the orchard and was therefore supplemented with drip irrigation. However, no fertilization was applied in order to assess the intrinsic capacity of the soil to support tree growth and productivity, as well as potential differences in nutrient-use efficiency among rootstock–cultivar combinations.
As hypothesized, trees growing in Zone A, characterized by a thicker upper horizon and a lower sand content in the buried horizon, exhibited greater vegetative growth and, more notably, substantially higher almond productivity than those in Zone B. Among the soil attributes contributing to these differences, the depth of the upper horizon emerged as a key factor. Increased topsoil depth has been reported to enhance crop productivity and nutrient-use efficiency, particularly under high planting density conditions [28,29]. In the present orchard, the narrow in-row spacing (1 m) likely intensified competition for water and nutrients, an effect further exacerbated by the absence of fertilization. Under these conditions, a deeper and more fertile upper horizon in Zone A provided a greater reservoir of resources to support tree growth and productivity.
In addition to topsoil depth, the higher sand content in the buried horizon of Zone B played a critical role in limiting almond performance. Sandy soils typically exhibit lower field capacity and cation exchange capacity, reducing their ability to retain water and nutrients. These limitations are particularly restrictive in arid and semiarid environments, where water availability is already constrained [30]. The strong negative correlations observed between the sand content in the buried horizon and almond productivity highlight the importance of subsoil properties in perennial cropping systems, where roots increasingly explore deeper layers as trees mature.
Tree responses to soil heterogeneity varied among scion–rootstock combinations. Both ‘Marinada’ rootstock combinations showed reduced growth in Zone B, and the superior performance of ‘Marinada’ grafted onto INRA GF-677 observed in Zone A was not maintained under the poorer soil conditions of Zone B, where no significant differences between rootstocks were detected. These results suggest that rootstock advantages may be strongly context-dependent and diminish under restrictive soil conditions.
Cultivar-related differences in growth were consistent with known vigor characteristics. ‘Marta’, a high-vigor cultivar, exhibited greater trunk growth than ‘Marinada’, a moderate-vigor cultivar, across both soil zones [31]. Trunk diameter was used as a proxy for tree size, a metric widely reported to correlate with biomass and productivity potential in fruit trees [32,33]. In young almond orchards, reductions in productivity have frequently been linked to limited vegetative growth [34]. However, in the present study, productivity was proportionally more affected by soil limitations than vegetative growth. For example, yield reductions in Zone B were substantially greater than reductions in trunk growth, particularly for ‘Marinada’ grafted onto GARNEM®. This disproportionate reduction in productivity suggests a potential trade-off between vegetative growth and reproductive output in young trees under resource-limited conditions. When soil resources are scarce, trees may prioritize vegetative development, such as root and canopy expansion, to secure future productivity, at the expense of current productivity [35]. Similar negative relationships between vegetative growth and fruit productivity have been reported in young olive trees [36], and this trade-off may be more pronounced in cultivars with lower vigor due to their higher reproductive sink strength [37]. Interestingly, despite its lower vigor, ‘Marinada’ consistently had lower almond production than ‘Marta’ in both soil zones. This contrasts with findings by Llompart et al. (2024) [38], who reported higher kernel yields for ‘Marinada’ than for ‘Marta’ when grown in more fertile clay loam soils in Mallorca. The superior performance of ‘Marta’ observed here suggests a more efficient interaction between this cultivar and the rootstocks under the edaphic constraints of the present study [39]. The higher chlorophyll content in ‘Marta’ may partly explain this advantage, as chlorophyll concentration is closely linked to photosynthetic capacity and biomass production [40]. The absence of differences in stomatal conductance among treatments indicates that photosynthetic limitations in ‘Marinada’ were unlikely to be driven by water stress, a conclusion supported by stomatal conductance values consistent with those reported for well-watered almond trees [41].
Despite the pronounced effects of soil heterogeneity on growth and productivity, no significant impact was observed on leaf or kernel mineral nutrient composition. Both cultivars maintained an adequate nutritional status in leaves and kernels, even under conditions of low soil P and Fe availability. This may partly reflect the role of soil microbial activity, which showed comparable or even higher values in Zone B. Previous studies have reported positive relationships between microbial activity and soil properties such as SOC and CEC [42], which may enhance nutrient mobilization in low-fertility soils.
Leaf nutrient concentrations were consistent with reference values reported for July, the period during which leaf mineral concentrations are most stable in almonds [24]. In contrast to studies reporting strong rootstock effects on mineral nutrition in other fruit species [43], the variation in leaf and kernel ionome in this study was primarily driven by the cultivar rather than the rootstock or soil zone. Particularly noteworthy was the adequate leaf P concentration despite very low soil P availability, highlighting the capacity of almond trees to activate efficient P acquisition strategies [44]. Both rootstocks used, INRA GF-677 and GARNEM®, are known for their tolerance to calcareous and alkaline soils and for their efficiency under low-fertility and water-limited conditions [43]. Recent evidence suggests that the tolerance of INRA GF-677 to calcareous soils may be linked to the enhanced expression of genes involved in Fe transport and stress defense mechanisms [45].
The variation in kernel mineral nutrient composition was mainly cultivar-dependent and remained largely unaffected by soil heterogeneity [46]. Blanched kernels and skins contained mineral concentrations comparable to those previously reported for almonds grown in Mediterranean environments [47,48]. Notably, the skin contributed a substantial proportion of Ca, P, Fe, Mn, and Zn, emphasizing its nutritional relevance.
Overall, these findings indicate that in young almond orchards, a reduced upper-horizon depth and increased sand content in the buried horizon have a much stronger negative impact on productivity than on vegetative growth or kernel mineral composition, and that responses vary among scion–rootstocks combinations. These results underscore the importance of accounting for within-field soil heterogeneity when designing sustainable management strategies aimed at optimizing productivity without compromising soil and water resources.

5. Conclusions

This study demonstrates that within-field soil profile heterogeneity strongly conditions the productivity of young almond orchards grown under Mediterranean conditions. Differences in the upper-horizon depth and sand content in the buried horizon generated marked contrasts in tree performance over a relatively small spatial scale, highlighting the importance of soil profile properties beyond the surface layer in perennial cropping systems.
Almond productivity was substantially higher in the zone characterized by a thicker topsoil and lower sand content, indicating that soil’s physical constraints play a dominant role in limiting orchard performance under unfertilized conditions. Productivity responses varied among scion–rootstock combinations, with the high-vigor cultivar ‘Marta’ showing greater tolerance to restrictive soil profiles, while productivity advantages associated with specific rootstocks were reduced under less favorable soil conditions. These results confirm that rootstock performance is strongly context-dependent and closely linked to soil’s physical characteristics.
Despite large differences in productivity, soil heterogeneity had little effect on leaf and kernel mineral composition, suggesting that almond trees are able to maintain nutritional homeostasis even under edaphic constraints and low nutrient inputs. Overall, the findings emphasize that detailed soil profile characterization should be considered a key factor in orchard planning and management. Accounting for within-field soil heterogeneity can support the selection of appropriate scion–rootstock combinations and contribute to more sustainable and resilient almond production systems in Mediterranean environments.

Author Contributions

Conceptualization and methodology, J.V., C.C. and R.B.; almond orchard establishment and management, J.M.D., C.C., A.R.-M. and M.C.; sample preparation, soil and plant analysis, M.C., A.R.-M., C.C., R.B. and J.V.; writing—original draft preparation, C.C.; writing—review and editing, C.C., J.V., P.R. and A.R.-M. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been partially sponsored by the Comunitat Autònoma de les Illes Balears through the Direcció General de Política Universitària i Recerca with funds from the Tourist Stay Tax Law (PDR2018/46—ITS2017-006) (2020–2023).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

We are grateful to Bàrbara Maria Quetglas and Pere Antoni Gost for their help starting the almond orchard. We acknowledge the support from José González at the Scientific Technical Services of the University of the Balearic Islands for his expertise in ICP-OES.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Food and Agriculture Organization of the United States. FAOSTAT Database. Available online: http://www.fao.org/faostat/en/#data (accessed on 15 November 2025).
  2. Freitas, T.R.; Santos, J.A.; Silva, A.P.; Fraga, H. Reviewing the adverse climate change impacts and adaptation measures on almond trees. Agriculture 2023, 13, 1423. [Google Scholar] [CrossRef]
  3. Marco-Noales, E.; Barbé, S.; Monterde, A.; Navarro-Herrero, I.; Ferrer, A.; Dalmau, V.; Aure, C.M.; Domingo-Calap, M.L.; Landa, B.B.; Roselló, M. Evidence that Xylella fastidiosa is the causal agent of Almond Leaf Scorch Disease in Alicante, mainland Spain (Iberian Peninsula). Plant Dis. 2021, 105, 3349–3352. [Google Scholar] [CrossRef]
  4. Fulton, J.; Norton, M.; Shilling, F. Water-indexed benefits and impacts of California almonds. Ecol. Indic. 2019, 96, 711–717. [Google Scholar] [CrossRef]
  5. García-Tejero, I.F.; Herencia, J.F.; Cárceles, B.; Rubio-Casal, A.E.; Gálvez, B.; Durán-Zuazo, V.H. Chapter 8-Redesigning soil-water management with sustainable resilience strategies in almond orchards in a Mediterranean environment. In Sustainable Agriculture Under Drought Stress: Integrated Soil, Water and Nutrient Management; Etesami, H., Chen, Y., Eds.; Academic Press: London, UK, 2025; pp. 89–104. [Google Scholar]
  6. Kopittke, P.M.; Harper, S.M.; Asio, L.G.; Asio, V.B.; Batalon, J.T.; Batuigas, A.M.T.; Gonzaga, A.B., Jr.; Gonzaga, N.R.; De Guzman, M.T.L.; Lumanao, D.M.; et al. Soil degradation: An integrated model of the causes and drivers. Int. Soil Water Conser. Res. 2025, 13, 744–755. [Google Scholar] [CrossRef]
  7. Wang, X.; Cheng, L.; Xiong, C.; Whalley, W.R.; Miller, A.J.; Rengel, Z.; Zhang, F.; Shen, J. Understanding plant-soil interactions underpins enhanced sustainability of crop production. Trends Plant Sci. 2024, 29, 1181–1190. [Google Scholar] [CrossRef] [PubMed]
  8. Kintl, A.; Smeringai, J.; Losák, T.; Huñady, I.; Sobotková, J.; Hrusovsky, T.; Varga, L.; Vejrazka, K.; Elbl, J. The effect of soil heterogeneity on the content of macronutrients and micronutrients in the chickpea (Cicer arietinum L.). Soil Syst. 2024, 8, 75. [Google Scholar] [CrossRef]
  9. Mishra, R.; Singh, D. Role of soil texture and structure in water retention and crop productivity. Int. J. Creat. Res. Thoughts 2025, 13, 2320–2882. [Google Scholar]
  10. Chen, S.; Du, T.; Wang, S.; Parsons, D.; Wu, D.; Guo, X.; Li, D. Evaluation and simulation of spatial variability of soil property effects on deep percolation and nitrate leaching within a large-scale field in arid Northwest China. Sci. Total Environ. 2020, 732, 139324. [Google Scholar] [CrossRef]
  11. Yao, R.-J.; Yang, J.-S.; Zhang, T.-J.; Gao, P.; Wang, X.-P.; Hong, L.-Z.; Wang, M.-W. Determination of site-specific management zones using soil physico-chemical properties and crop productivitys in coastal reclaimed farmland. Geoderma 2014, 232–234, 381–393. [Google Scholar] [CrossRef]
  12. Habib-ur-Rahman, M.; Raza, A.; Ahrends, H.E.; Hüging, H.; Gaiser, T. Impact of in-field soil heterogeneity on biomass and productivity of winter triticale in an intensively cropped hummocky landscape under temperate climate conditions. BMC Agric. 2022, 23, 912–938. [Google Scholar]
  13. Thorup-Kristensen, K.; Halberg, N.; Nicolaisen, M.; Olesen, J.E.; Crews, T.E.; Hisinger, P.; Kirkegaard, J.; Pierret, A.; Dresbøll, D.B. Digging deeper for agricultural resources, the value of deep rooting. Trends Plant Sci. 2020, 25, 406–417. [Google Scholar] [CrossRef]
  14. IUSS Working Group WRB. World reference base for soil resources. In International Soil Classification System for Naming Soils and Creating Legends for Soil Maps, 4th ed.; International Union of Soil Sciences (IUSS): Vienna, Austria, 2022; p. 236. [Google Scholar]
  15. Bouyoucos, G.J. Hydrometer method improved for making particle size analysis of soils. Agron. J. 1962, 54, 464–465. [Google Scholar] [CrossRef]
  16. Richards, L.A.; Fireman, M. Pressure-plate apparatus for measuring moisture sorption and transmission by soils. Soil Sci. 1943, 56, 395–404. [Google Scholar] [CrossRef]
  17. Nelson, D.A.; Sommers, L. Total carbon, organic carbon and organic matter. In Methods of Soil Analysis, Part 2: Chemical and Microbiological Properties; Page, A.L., Ed.; American Society of Agronomy and Soil Science Society of America: Madison, WI, USA, 1982; pp. 539–579. [Google Scholar]
  18. Olsen, S.R.; Sommers, L.E. Phosphorus. In Methods of Soil Analysis, Part 2: Chemical and Microbiological Properties; Page, A.L., Ed.; American Society of Agronomy and Soil Science Society of America: Madison, WI, USA, 1982; pp. 403–430. [Google Scholar]
  19. Muller, G.; Gatsner, M. Chemical analysis. Neu. Jb. Mineral. Mh. 1971, 10, 466–469. [Google Scholar]
  20. Drouineau, G. Dosage rapide du calcaire actif de sols. Nouvelles donnees sur la reportation de la nature des fractions calcaires. Ann. Agron. 1942, 12, 441–450. [Google Scholar]
  21. Rhoades, J.D. Cation exchange capacity. In Methods of Soil Analysis, Part 2: Chemical and Microbiological Properties; Page, A.L., Ed.; American Society of Agronomy and Soil Science Society of America: Madison, WI, USA, 1982; pp. 149–152. [Google Scholar]
  22. Adam, G.; Duncan, H. Development of a sensitive and rapid method for the measurement of total microbial activity using fluorescein diacetate (FDA) in a range of soils. Soil Biol. Biochem. 2001, 33, 943–951. [Google Scholar] [CrossRef]
  23. Deist, J.; Eksteen, G.J.; Visser, C.J.; Zyl, E.J. Can we determine the size of a tree? Deciduous Fruit Grow. 1973, 23, 93–97. [Google Scholar]
  24. Fernández-Cámara, M.; Martínez-Nicolás, J.J.; Alfosea-Simón, M.; Cámara-Zapata, J.M.; Melgarejo-Moreno, P.; García-Sánchez, F. Techniques of interpretation of the foliar analysis of the almond tree in Spain. In Prime Archives in Agricultural Research: Volume 2; eBook; Silva, J., Ed.; Vide Leaf: Telangana, India, 2024. [Google Scholar]
  25. Yada, S.; Huang, G.; Lapsley, K. Natural variability in the nutrient composition of California-grown almonds. J. Food Compos. Anal. 2013, 30, 80–85. [Google Scholar] [CrossRef]
  26. Hernandez-Ochoa, I.; Gaiser, T.; Grahmann, K.; Engels, A.M.; Ewert, F. Within-field temporal and spatial variability in crop productivity for diverse crops—A 30-year model-based assessment. Agronomy 2025, 15, 661. [Google Scholar] [CrossRef]
  27. Bolan, N.; Srivastava, P.; Rao, C.S.; Satyanaraya, P.V.; Anderson, G.C.; Bolan, S.; Nortjé, G.P.; Kronenberg, R.; Bardhan, S.; Abbott, L.K.; et al. Chapter two—Distribution, characteristics and management of calcareous soils. Adv. Agron. 2023, 182, 81–130. [Google Scholar]
  28. Zhang, X.; Lv, Y.; Dai, H.; Kong, Y.; Wang, Y.; Liu, K. Increasing topsoil depth improves productivity and nitrogen fertilizer use efficiency in maize. Agronomy 2025, 15, 2160. [Google Scholar] [CrossRef]
  29. Zhang, X.; Kong, Y.; Lv, Y.; Yao, F.; Cao, Y.; Shiao, X.; Geng, Y.; Wang, L.; Wang, Y. Increased topsoil depth required to support increased grain productivity production in high density maize. Field Crops Res. 2024, 308, 109282. [Google Scholar] [CrossRef]
  30. Musei, S.K.; Kuyah, S.; Nyawira, S.; Ng’ang’a, S.K.; Karugu, W.N.; Smucker, A.; Nkurunziza, L. Sandy soil reclamation technologies to improve crop productivity and soil health: A review. Front. Soil Sci. 2024, 4, 1345895. [Google Scholar] [CrossRef]
  31. Egea, G.; Nortes, P.A.; González-Real, M.M.; Baille, A. Agronomic response and water productivity of almond trees under contrasted deficit irrigation regimes. Agric. Water Manag. 2010, 97, 171–181. [Google Scholar] [CrossRef]
  32. Westwood, M.N.; Roberts, A.N. The relationship between trunk cross-sectional area and weight of apple trees. J. Amer. Soc. Hort. Sci. 1970, 95, 28–30. [Google Scholar] [CrossRef]
  33. Hill, S.J.; Stephenson, D.W.; Taylor, B.K. Almond productivity in relation to tree size. Sci. Horticult. 1987, 33, 97–111. [Google Scholar] [CrossRef]
  34. Calderón-Pavón, A.; García-Tejero, I.V.; Noguera-Artiaga, L.; Lipan, L.; Sendra, E.; Hernández, F.; Herencia-Galán, J.F.; Carbonell-Barrachina, A.A.; Durán, V.H. Linking almond productivity and quality to the production system and irrigation strategy considering the plantation age in a mediterranean semiarid environment. Agronomy 2025, 15, 1448. [Google Scholar] [CrossRef]
  35. Lehnebach, R.; Beyer, R.; Letort, V.; Heuret, P. The pipe model theory half a century on: A review. Ann. Bot. 2018, 121, 773–795. [Google Scholar] [CrossRef]
  36. Rosati, A.; Paoletti, A.; Al Hariri, R.; Morelli, A.; Famiani, F. Resource investment in reproductive growth proportionally limits investments in vegetative growth in young olive trees with varying crop loads. Tree Physiol. 2018, 38, 1267–1277. [Google Scholar] [CrossRef] [PubMed]
  37. Plavcová, L.; Mészáros, M.; Silhán, K.; Jupa, R. Relationship between trunk radial growth and fruit productivity in apple and pear trees on size-controlling rootstocks. Ann. Bot. 2022, 130, 477–489. [Google Scholar] [CrossRef]
  38. Llompart, M.; Barceló, M.; Pou, J.; Luna, J.M.; Miarnau, X.; Garau, C. Adaptation of almond cultivars in Majorca Island: Agronomical, productive and fruit quality characteristics. Agronomy 2024, 14, 1927. [Google Scholar] [CrossRef]
  39. Shivran, M.; Sharma, N.; Dubey, A.K.; Singh, S.K.; Sharma, N.; Sharma, R.M.; Singh, N.; Singh, R. Scion-rootstock relationship: Molecular mechanism and quality fruit production. Agriculture 2022, 12, 2036. [Google Scholar] [CrossRef]
  40. Croft, H.; Chen, J.M.; Luo, X.; Bartlett, P.; Chen, B.; Staebler, R.M. Leaf chlorophyll content as a proxy for leaf photosynthetic capacity. Glob. Chang. Biol. 2017, 23, 3513–3524. [Google Scholar] [CrossRef]
  41. Sperling, O.; Gardi, I.; Ben-Gal, A.; Kamai, T. Deficit irrigation limits almond trees’ photosynthetic productivity and compromises productivity. Agric. Water Manag. 2023, 289, 108562. [Google Scholar] [CrossRef]
  42. Tao, K.; Tian, H.; Fan, J.; Li, D.; Liu, D.; Megharaj, M.; Li, H.; Hu, M.; Jia, H.; He, W. Kinetics and catalytic efficiency of soil fluorescein diacetate hydrolase under the pesticide parathion stress. Sci. Total Environ. 2021, 771, 144835. [Google Scholar] [CrossRef]
  43. Reig, G.; Garanto, X.; Mas, N.; Iglesias, I. Long-term agronomical performance and iron chlorosis susceptibility of several Prunus rootstocks grown under loamy and calcareous soil conditions. Sci. Hortic. 2020, 262, 109035. [Google Scholar] [CrossRef]
  44. Lambers, H. Phosphorus acquisition and utilization in plants. Ann. Rev. Plant Biol. 2022, 73, 17–42. [Google Scholar] [CrossRef]
  45. Sun, S.; Li, J.; Song, H.; Chen, D.; Tu, M.; Chen, Q.; Jiang, G.; Zhou, Z. Comparative transcriptome and physiological analyses reveal key factors in the tolerance of peach rootstocks to iron deficiency chlorosis. 3 Biotech. 2022, 12, 38. [Google Scholar] [CrossRef] [PubMed]
  46. Prats-Moya, S.; Grané-Teruel, N.; Berenguer-Navarro, K.; Martín-Carratalá, M.L. Inductively coupled plasma application for the classification of 19 almond cultivars using inorganic element composition. J. Agric. Food Chem. 1997, 45, 2093–2097. [Google Scholar] [CrossRef]
  47. Muhammad, S.; Sanden, B.L.; Lampinen, B.D.; Saa, S.; Siddiqui, M.I.; Smart, D.R.; Olivos, A.; Shackel, K.A.; Dejong, T.; Brown, P.H. Seasonal changes in nutrient content and concentrations in a mature deciduous tree species: Studies in almond (Prunus dulcis (Mill.) D.A. Webb). Eur. J. Agron. 2015, 65, 52–68. [Google Scholar] [CrossRef]
  48. El Bernoussi, S.; Boujemaa, I.; El Guezzane, C.; Bou-Ouzoukni, Y.; Nounah, I.; Bouyahya, A.; Ullah, R.; Iqbal, Z.; Maggi, F.; Caprioli, G.; et al. Comparative analysis of nutritional value and antioxidant activity in sweet and bitter almonds. LWT 2024, 206, 116587. [Google Scholar] [CrossRef]
Agronomy 16 00441 g001

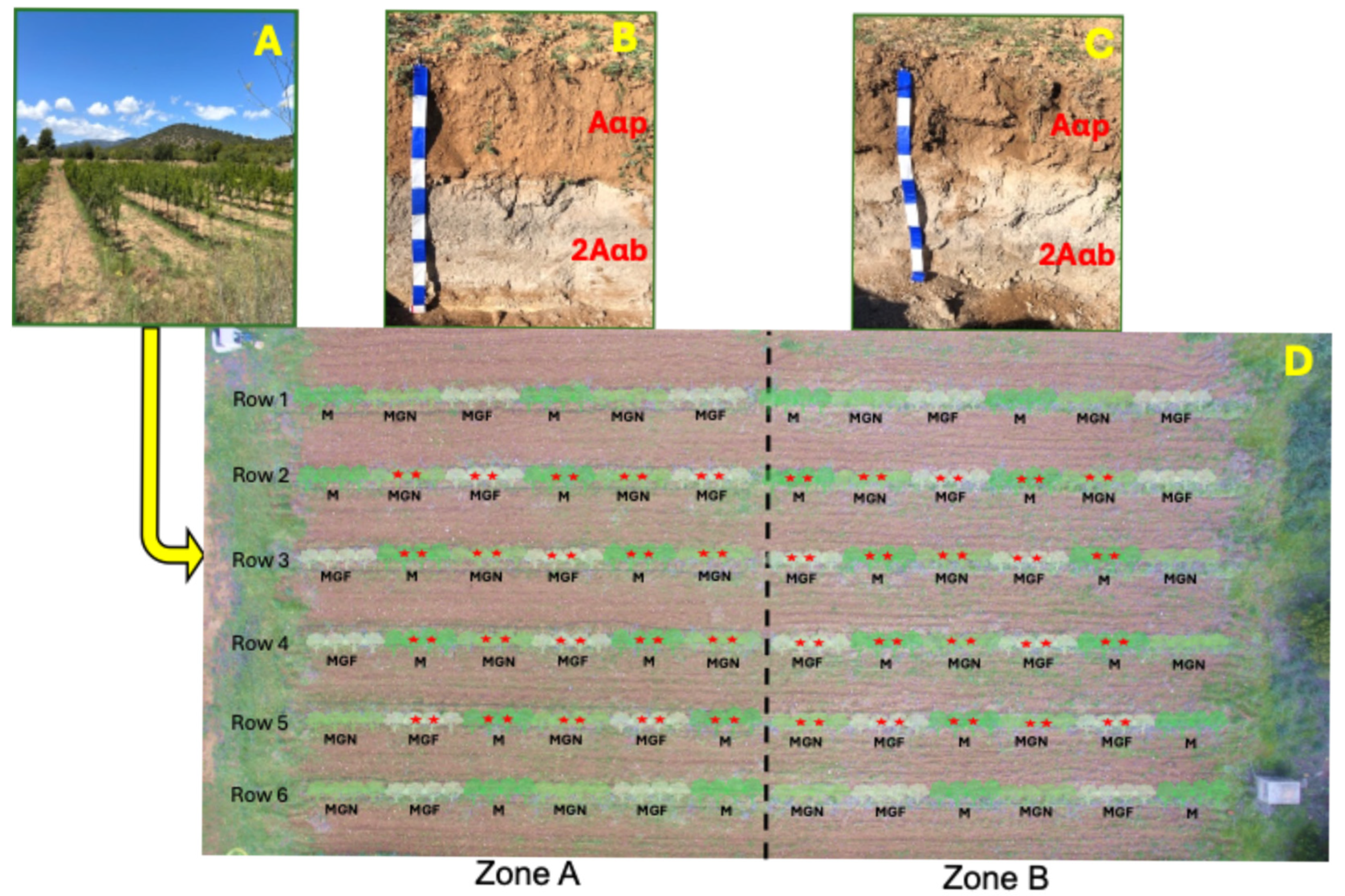

Figure 1. Overview of the almond orchard (A). Soil profile for Zone A (B) and Zone B (C). Top view of the experimental site subdivided into two zones (D). Trees were planted in 6 rows, leaving a space of 4 m between rows. In each row, 48 trees were planted with 1 m spacing between trees. Rows 1 and 6 (borderlines) were not sampled, nor were the first and last group of 4 trees in rows 2, 3, 4 and 5. The trees were planted in groups of 4, alternating scion–rootstock. In each group of four, the two middle trees were sampled to diminish any root overlapping effect among different rootstock–cultivar (red stars). M, ‘Marta’; MGF, ‘Marinada’ grafted onto INRA GF-677; MGN, ‘Marinada’ grafted onto GARNEM®.
Figure 1. Overview of the almond orchard (A). Soil profile for Zone A (B) and Zone B (C). Top view of the experimental site subdivided into two zones (D). Trees were planted in 6 rows, leaving a space of 4 m between rows. In each row, 48 trees were planted with 1 m spacing between trees. Rows 1 and 6 (borderlines) were not sampled, nor were the first and last group of 4 trees in rows 2, 3, 4 and 5. The trees were planted in groups of 4, alternating scion–rootstock. In each group of four, the two middle trees were sampled to diminish any root overlapping effect among different rootstock–cultivar (red stars). M, ‘Marta’; MGF, ‘Marinada’ grafted onto INRA GF-677; MGN, ‘Marinada’ grafted onto GARNEM®.
Agronomy 16 00441 g001
Agronomy 16 00441 g002

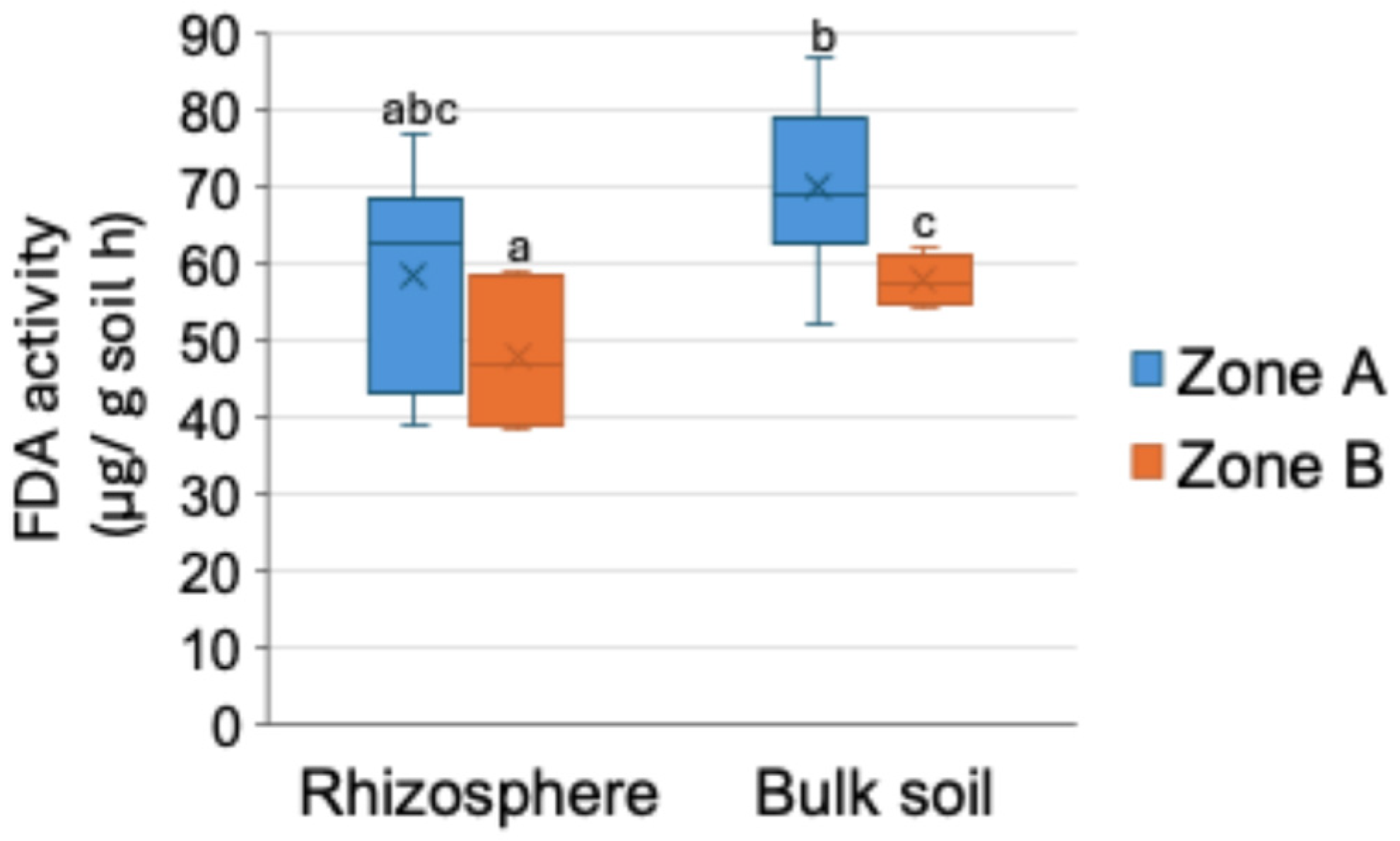

Figure 2. Fluorescein diacetate (FDA) activity in the almond rhizosphere and bulk soil in Zone A and Zone B (n = 8). Different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test).
Figure 2. Fluorescein diacetate (FDA) activity in the almond rhizosphere and bulk soil in Zone A and Zone B (n = 8). Different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test).
Agronomy 16 00441 g002
Agronomy 16 00441 g003

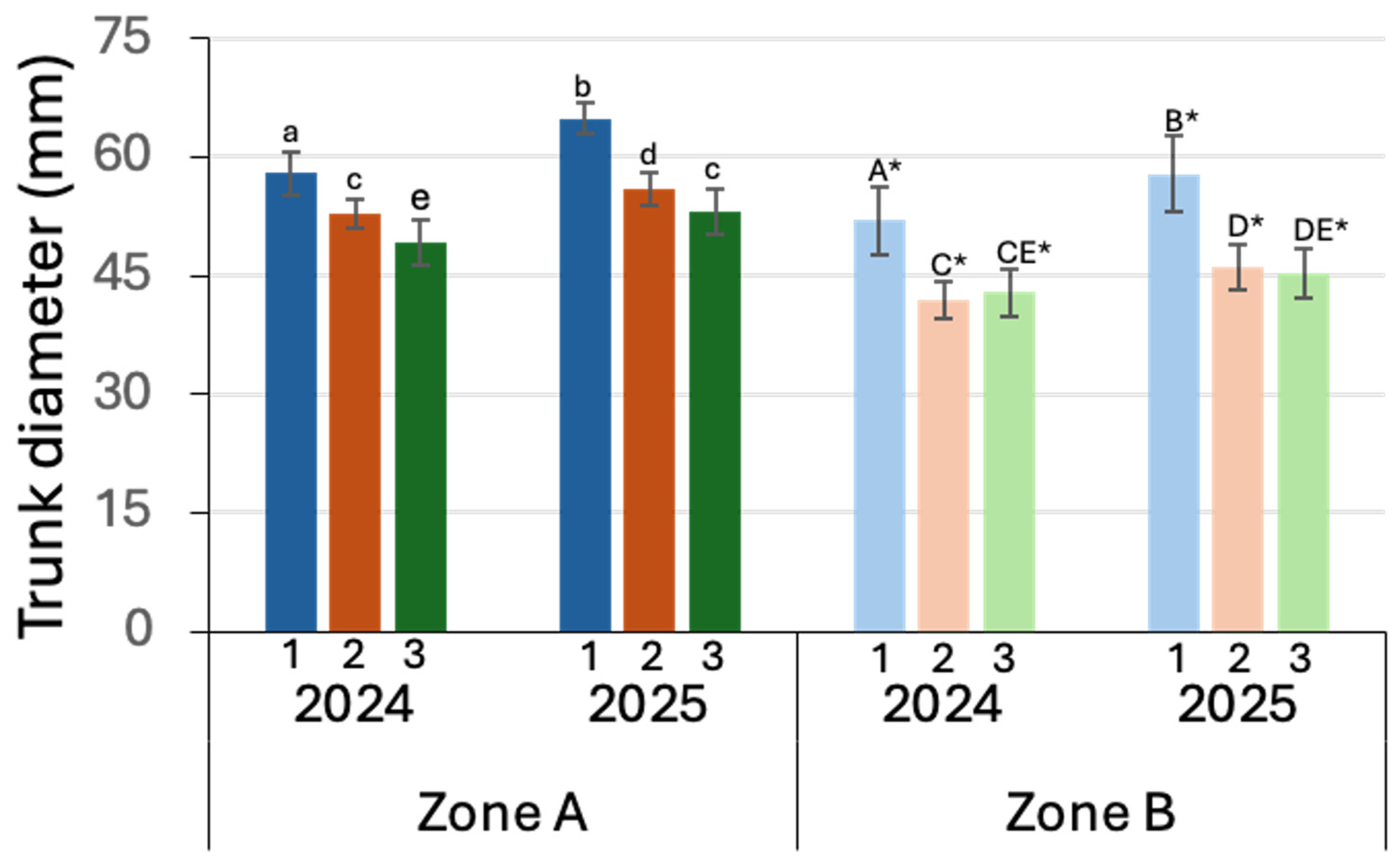

Figure 3. Trunk diameter measured at 1 m from the soil surface. Means of 12 replicates ± SD. Different lowercase letters above the bars indicate significant differences among scion–rootstocks in Zone A; different uppercase letters above the bars indicate significant differences among scion–rootstocks in Zone B; and asterisks above the bars indicate a significant difference in the cultivar between zones at p < 0.05 level (Duncan’s multiple comparison test). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Figure 3. Trunk diameter measured at 1 m from the soil surface. Means of 12 replicates ± SD. Different lowercase letters above the bars indicate significant differences among scion–rootstocks in Zone A; different uppercase letters above the bars indicate significant differences among scion–rootstocks in Zone B; and asterisks above the bars indicate a significant difference in the cultivar between zones at p < 0.05 level (Duncan’s multiple comparison test). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Agronomy 16 00441 g003
Agronomy 16 00441 g004

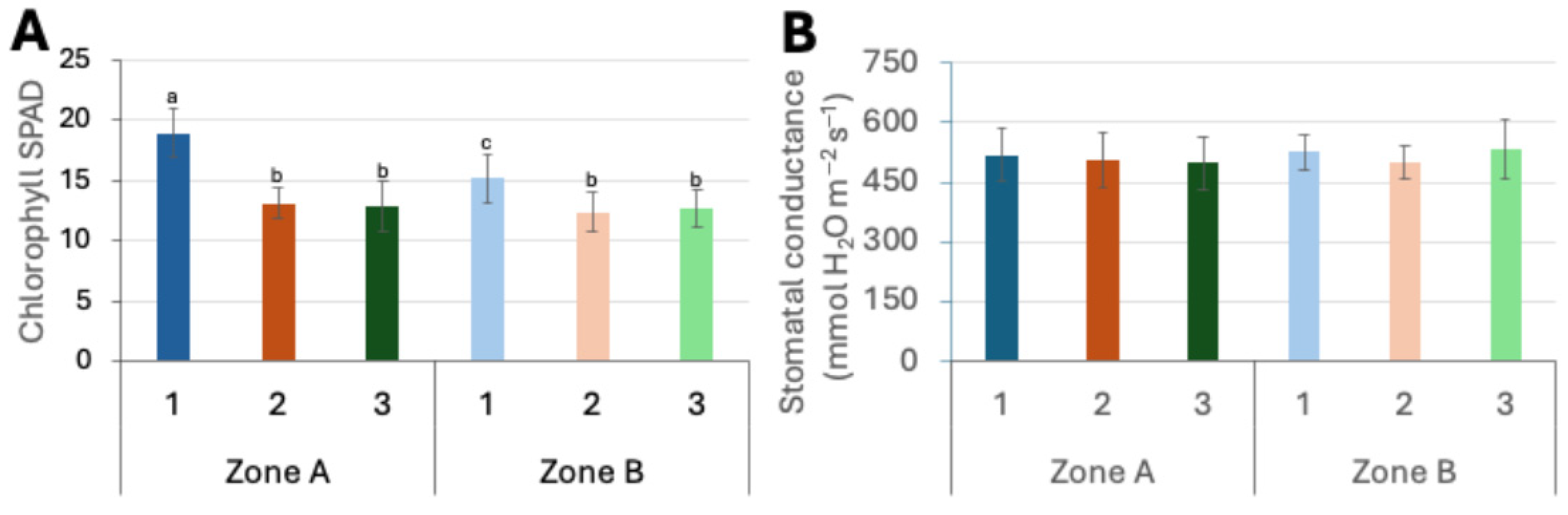

Figure 4. Chlorophyll SPAD (A) and stomatal conductance (B). Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Figure 4. Chlorophyll SPAD (A) and stomatal conductance (B). Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Agronomy 16 00441 g004
Agronomy 16 00441 g005

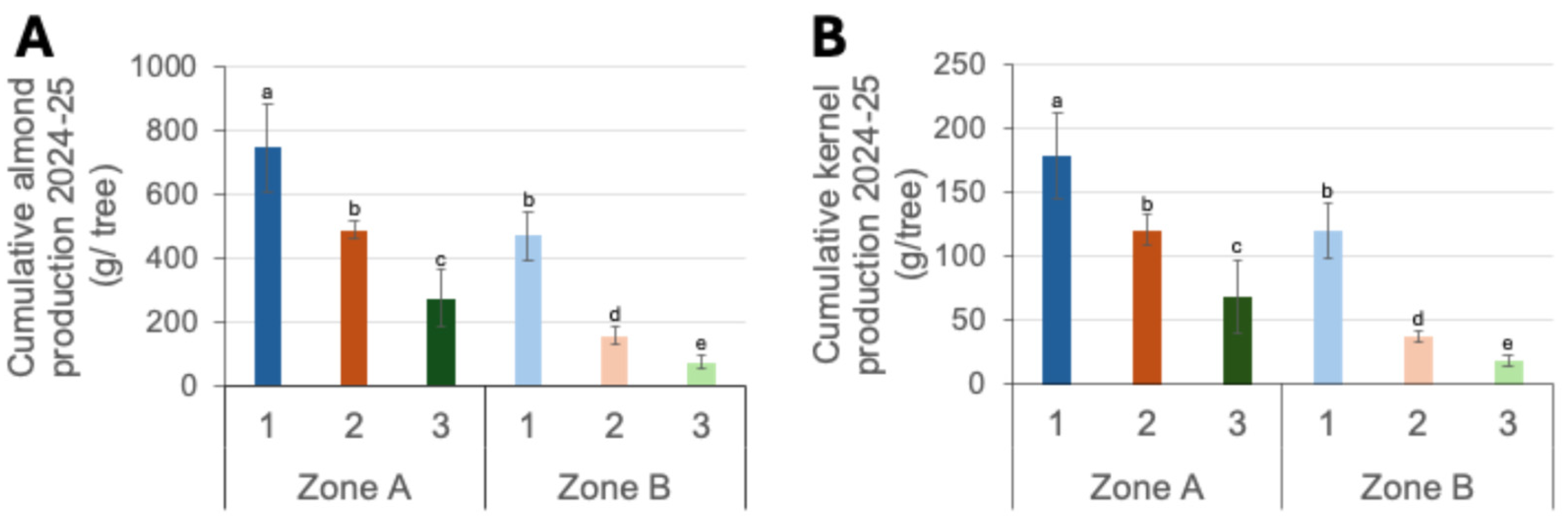

Figure 5. Cumulative almond (A) and kernel yields (B) of 2024 and 2025. Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Figure 5. Cumulative almond (A) and kernel yields (B) of 2024 and 2025. Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Agronomy 16 00441 g005
Agronomy 16 00441 g006

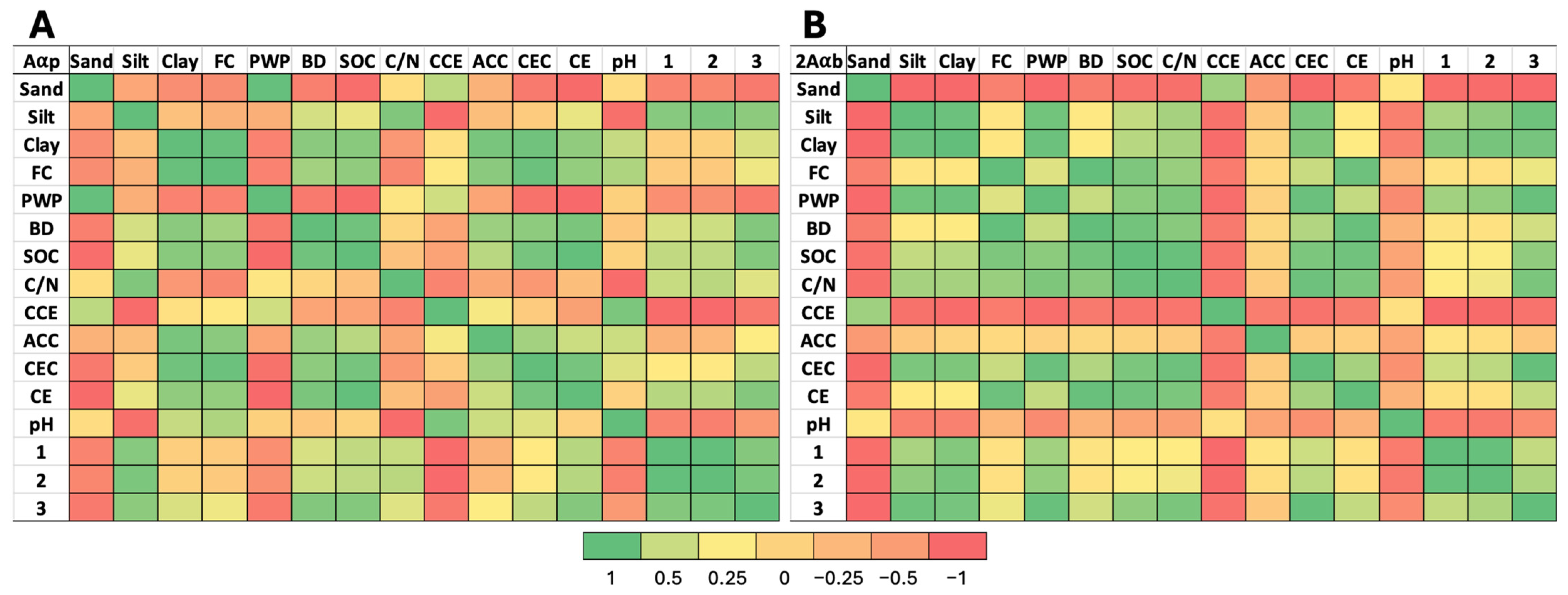

Figure 6. Qualitative correlation color map of the upper horizon (A) and the buried horizon’s (B) physicochemical parameters that presented differences between Zone A and Zone B and almond productivity in these two zones. Colors represent the correlation coefficients, and their intensity the strength of correlation, with deeper green and red representing stronger positive and negative relationships, respectively. SOC, soil organic carbon; CEC, cation exchange capacity; CCE, calcium carbonate equivalent; ACC, active calcium carbonate; CE, electrical conductivity; 1, almond production of ‘Marta’; 2, almond production of ‘Marinada’ grafted onto INRA GF-677; 3, almond production of ‘Marinada’ grafted onto GARNEM®.
Figure 6. Qualitative correlation color map of the upper horizon (A) and the buried horizon’s (B) physicochemical parameters that presented differences between Zone A and Zone B and almond productivity in these two zones. Colors represent the correlation coefficients, and their intensity the strength of correlation, with deeper green and red representing stronger positive and negative relationships, respectively. SOC, soil organic carbon; CEC, cation exchange capacity; CCE, calcium carbonate equivalent; ACC, active calcium carbonate; CE, electrical conductivity; 1, almond production of ‘Marta’; 2, almond production of ‘Marinada’ grafted onto INRA GF-677; 3, almond production of ‘Marinada’ grafted onto GARNEM®.
Agronomy 16 00441 g006
Agronomy 16 00441 g007
Figure 7. Potassium, Ca and P concentrations in blanched kernels (A–C) and skins (D–F) in mg/g dry weight. Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). Reference values from seven major California varieties [25]: K (5.4–9); Ca (1.98–3.7); Mg (22–30). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Figure 7. Potassium, Ca and P concentrations in blanched kernels (A–C) and skins (D–F) in mg/g dry weight. Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). Reference values from seven major California varieties [25]: K (5.4–9); Ca (1.98–3.7); Mg (22–30). In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Agronomy 16 00441 g007
Agronomy 16 00441 g008

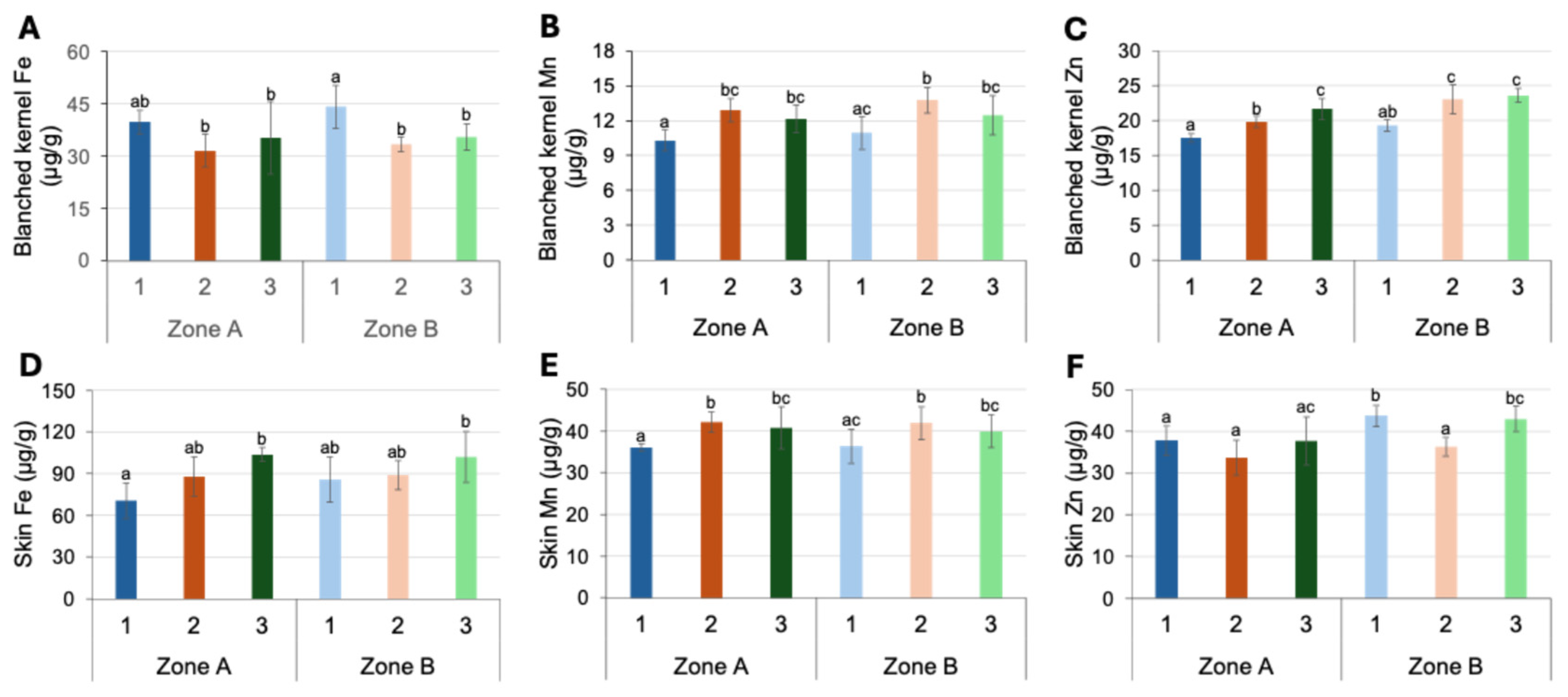

Figure 8. Iron, Mn and Zn concentrations in blanched kernels (A–C) and skins (D–F) in µg/g dry weight. Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). Reference values from seven major California varieties [25]: Fe (26–45); Mn (13–40); Zn (20–40). M, ‘Marta’; MGF, ‘Marinada’ grafted onto INRA GF-677; MGN, ‘Marinada’ grafted onto GARNEM®. In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Figure 8. Iron, Mn and Zn concentrations in blanched kernels (A–C) and skins (D–F) in µg/g dry weight. Means of 12 replicates ± SD; different lowercase letters above the bars indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). Reference values from seven major California varieties [25]: Fe (26–45); Mn (13–40); Zn (20–40). M, ‘Marta’; MGF, ‘Marinada’ grafted onto INRA GF-677; MGN, ‘Marinada’ grafted onto GARNEM®. In the x-axis, numbers 1, 2 and 3 correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Agronomy 16 00441 g008
Table 1. Physicochemical soil profile parameters of the two zones. FC, field capacity; PWP, permanent wilting point; BD, bulk density; SOC, soil organic carbon; C/N, carbon/nitrogen ratio; P, phosphorus; CCE, calcium carbonate equivalent; ACC, active calcium carbonate; CEC, cation exchange capacity; EC, electrical conductivity.
Table 1. Physicochemical soil profile parameters of the two zones. FC, field capacity; PWP, permanent wilting point; BD, bulk density; SOC, soil organic carbon; C/N, carbon/nitrogen ratio; P, phosphorus; CCE, calcium carbonate equivalent; ACC, active calcium carbonate; CEC, cation exchange capacity; EC, electrical conductivity.
Physicochemical Parameters ZONE A ZONE B
A⍺p2A⍺b2C⍺A⍺p2A⍺b2C⍺
TextureLoamLoamClay loamLoamSandy loamLoam
Depth (cm)0–3535–60>600–3030–70>70
Sand (%)40.634.344.546.673.934.3
Silt (%)42.14037.835.719.640
Clay (%)17.225.717.717.86.525.7
FC (%)22.7431.84ND22.9130.13ND
PWP (%)8.5113.41ND9.846.6ND
BD (g/cm3)1.321.25ND1.281.11ND
SOC (%)1.991.511.51.640.731.51
C/N9.210.710.28.810.311.4
P Olsen (mg/kg)<5<5<5<5<5<5
CCE (%)52.567.553.959.079.364.0
ACC (%)12.0342713.02431
CEC (cmol(+)/kg)11.510.411.310.73.29.8
EC 1:5 (µS/cm)200.0150150190.0140150
pH H2O 1:2.58.08.38.48.18.48.3
K (cmol(+)/kg)29469742081755
Ca (cmol(+)/kg)626370727255628359867000
Mg (cmol(+)/kg)12611215111256110
Na (cmol(+)/kg)2610.710.22810.310.4
Fe (mg/kg)5153ND4849ND
Mn (mg/kg)3911ND2813ND
Zn (mg/kg)32ND22ND
Cu (mg/kg)3.43.5ND4.32.9ND
Table 2. Leaf mineral nutrient composition. Means of 12 replicates ± SD; different letters indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). The number 1, 2 and 3 in the second row correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Table 2. Leaf mineral nutrient composition. Means of 12 replicates ± SD; different letters indicate a significant difference at p < 0.05 level (Duncan’s multiple comparison test). The number 1, 2 and 3 in the second row correspond with ‘Marta’, ‘Marinada’ grafted onto INRA GF-677, and ‘Marinada’ grafted onto GARNEM®, respectively.
Zone AZone B
Nutrient (Unit)123123
K (mg)13.2 ± 3.0 a12.1 ± 1.9 a11.5 ± 1.2 a13.9 ± 1.6 a11.9 ± 2.0 a11.2 ± 1.5 Ba
Ca (mg)14.6 ± 3.2 ab14.0 ± 2.9 ab16.6 ± 2.3 ab11.5 ± 2.4 a11.7 ± 2.2 a16.9 ± 3.1 b
Mg (mg)2.6 ± 0.4 ab2.9 ± 0.6 b3.7 ± 0.4 c2.4 ± 0.3 a2.7 ± 0.3 b3.6 ± 0.6 c
P (mg)1.4 ± 0.2 a1.7 ± 0.2 b1.5 ± 0.1 a1.5 ± 0.04 a1.9 ± 0.3 b1.7 ± 0.2 b
S (mg)1.2 ± 0.2 a1.3 ± 0.2 a1.2 ± 0.2 a1.1 ± 0.1 a1.3 ± 0.2 a1.3 ± 0.1 a
Na (mg)0.67 ± 0.2 a0.40 ± 0.1 b0.48 ± 0.2 b0.52 ± 0.1 a0.39 ± 0.1 b0.40 ± 0.1 b
Fe (µg)34.7 ± 5.2 a37.7 ± 8.1 a37.0 ± 7.1 a34.1 ± 3.8 a36.2 ± 5.7 a35.1 ± 2.8 a
Mn (µg)35.2 ± 12.5 a33.9 ± 11.6 a27.3 ± 4.0 a27.5 ± 5.5 a26.1 ± 5.0 a30.8 ± 11.9 a
Zn (µg)28.2 ± 6.7 ab31.8 ± 4.4 a25.9 ± 4.3 b25.7 ± 3.2 b33.9 ± 6.6 a29.5 ± 4.9 ab
B (µg)27.0 ± 2.8 a23.9 ± 2.2 b24.5 ± 2.2 b28.7 ± 3.0 a24.6 ± 2.2 b26.3 ± 2.3 ab
Cu (µg)5.5 ± 1.2 a6.2 ± 1.1 a5.0 ± 1.2 a6.0 ± 1.4 a6.1 ± 1.1 a6.0 ± 1.0 a
Unit () varietal nutrient contents (/g leaf, dry weight).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cabot, C.; Bosch, R.; Romero-Munar, A.; Cañellas, M.; Durán, J.M.; Roca, P.; Vadell, J. Soil Profile Heterogeneity Strongly Affects Productivity in Young Almond Scion–Rootstock Combinations Grown in Unfertilized Mediterranean Soil. Agronomy 2026, 16, 441. https://doi.org/10.3390/agronomy16040441

AMA Style

Cabot C, Bosch R, Romero-Munar A, Cañellas M, Durán JM, Roca P, Vadell J. Soil Profile Heterogeneity Strongly Affects Productivity in Young Almond Scion–Rootstock Combinations Grown in Unfertilized Mediterranean Soil. Agronomy. 2026; 16(4):441. https://doi.org/10.3390/agronomy16040441

Chicago/Turabian Style

Cabot, Catalina, Rafael Bosch, Antònia Romero-Munar, Maria Cañellas, Joan Miquel Durán, Pilar Roca, and Jaume Vadell. 2026. "Soil Profile Heterogeneity Strongly Affects Productivity in Young Almond Scion–Rootstock Combinations Grown in Unfertilized Mediterranean Soil" Agronomy 16, no. 4: 441. https://doi.org/10.3390/agronomy16040441

APA Style

Cabot, C., Bosch, R., Romero-Munar, A., Cañellas, M., Durán, J. M., Roca, P., & Vadell, J. (2026). Soil Profile Heterogeneity Strongly Affects Productivity in Young Almond Scion–Rootstock Combinations Grown in Unfertilized Mediterranean Soil. Agronomy, 16(4), 441. https://doi.org/10.3390/agronomy16040441

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
