Breeding of Black Soybean with Green Cotyledon and Four Recessive Alleles for Lipoxygenase, Kunitz Trypsin Inhibitor, Lectin, and Stachyose

by
Sang Woo Choi
,
Jae Eun Kang
,
Seong Kyeong Lee
,
Sarath Ly
and
Jong Il Chung
*
Department of Agronomy, Gyeongsang National University, JinJu 52828, Korea
*
Author to whom correspondence should be addressed.
Agronomy 2021, 11(2), 309; https://doi.org/10.3390/agronomy11020309
Submission received: 13 January 2021 / Revised: 2 February 2021 / Accepted: 3 February 2021 / Published: 10 February 2021
Browse Figures
Versions Notes

Abstract

:
Anthocyanins from the black soybean seed coat are known to have many pharmaceutical effects. However, black soybean seed contains antinutritional factors such as lipoxygenase, Kunitz trypsin inhibitor (KTI), lectin, and stachyose. The genetic removal of these components will improve the nutritional value of black soybean seed. The objective of this research was to breed a soybean strain with the black seed coat color, green cotyledon color, and tetra recessive allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) for lipoxygenase, KTI, lectin, and stachyose components. Eight parents were used to breed the tetra null strain. Analysis of lipoxygenase, KTI, lectin, and stachyose components in mature seeds was conducted by SDS-PAGE, Western blot, and HPLC. The soybean line with the black seed coat color, the green cotyledon color, a large seed size, and tetra recessive alleles has purple flowers, a determinate growth habit, and brown pods at maturity. The stem height of the breeding line was 52.3 cm. The 100-seed weight of the breeding line was 35.2 g and the yield (Ton/ha) was 2.50. The stachyose content of the breeding line was 3.30 g/kg. This is the first soybean strain with the black seed coat color, the green cotyledon color, a large seed size, and tetra null alleles (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2, low content of stachyose, free of lipoxygenase, KTI, and lectin proteins).

1. Introduction

Black soybean (Glycine max (L.) Merr.) has been widely cultivated in Korea, China, and Japan for about 5000 years. Black soybean with green cotyledon has been known as a medicinal food by the health-promoting benefits. Anthocyanins are abundant in the seed coat of black soybean. Anthocyanins are known to have many health-promoting effects such as antioxidant effects, reduction in the risk of coronary heart disease, regulation of adhesion molecules, and protection from ischemia and reperfusion heart injury [1,2,3]. However, lipoxygenase protein, Kunitz trypsin inhibitor (KTI) protein, lectin protein, and stachyose components exist in the seed of black soybean. These components are mainly responsible for reducing the nutritional value of unprocessed soybeans.
Mature soybean seeds contain lipoxygenase protein, which accounts for approximately 1~2% of the total protein. Lipoxygenases can be isolated as three isoenzymatic forms and catalyze the hydroperoxidation of polyunsaturated fatty acids, such as linoleic (18:2) and linolenic (18:3) acids. Lipoxygenases play a role in the production of undesirable grassy and beany aromas and flavors in foods containing soybean. Three lipoxygenases (Lox1, Lox2, and Lox3) exist in mature soybean seeds [4]. Soybean strains free of Lox1 [5,6], Lox2 [7,8], and Lox3 [9] have been identified, and the inheritance of the activity of each of the enzymes was studied. The absence of each enzyme is under the control of three null alleles, lox1, lox2, and lox3, which are inherited as simple recessive alleles. Genetic studies demonstrated that the Lox1 and Lox2 loci were found to be in a tight genetic linkage on chromosome 13, with lox1 and lox2 mutant alleles being in the repulsion phase since they were identified in an independent germplasm [6,7,8]. The Lox3 locus, on chromosome 15, segregates independently of Lox1 and Lox2 [7,8,10]. Extra costs are needed to inactivate lipoxygenase activity by heat at the industrial level, and soybean cultivars that are lipoxygenase-free are better accepted. A few lipoxygenase-free soybean cultivars have been developed [11].
Kunitz trypsin inhibitor (KTI) protein from soybean seeds was first isolated and crystallized in [12]. KTI protein is a small and non-glycosylated protein containing 181 amino acid residues with 21.5 kDa and strongly inhibits trypsin, thus reducing the food intake by diminishing digestion and absorption. Two soybean accessions (PI157440 and PI196168) lacking the KTI protein from the United States Department of Agriculture (USDA) Soybean Germplasm Collection have been identified [13]. Different forms of Tia, Tib, Tic, and Tid have been identified at a single locus with a codominant multiple allelic series [13,14,15]. Orf and Hymowitz [13] have identified a recessive allele designated ti that lacks soybean KTI protein. Crude protein from the titi genotype had a 30% to 50% reduction in trypsin inhibitor activity compared with the TiTi genotype. The Ti gene was found to be on chromosome 8.
Soybean lectin protein, consisting of four similar subunits that each have a molecular weight of 30 kDa, is a glycoprotein that specifically binds galactose or N-acetylgalactosamine. The concentration of soybean lectin protein ranges from about 1%~2% on seed dry mass [16]. Soybean lectin protein with 120 kDa molecular weight is a major antinutritional element and can strongly inhibit degradation by proteases under in vitro and in vivo conditions [17]. The biological activity of soybean lectin protein can be reduced by proper heating, but considerable biological activity is found after heating. This residual soybean lectin protein causes the negative effects on the nutritional quality of the soybean protein, such as the digestion and absorption of nutrients [18]. Orf et al. [19] identified that soybean seed lectin was controlled by a single gene designated Le (le) and the lele genotype, resulting in the lack of lectin in mature seed. The Ti gene was found to be on chromosome 2. Independent inheritance between Le and Ti loci was identified [13,20,21]. Triple null recessive genotypes (ti/ti-le/le-p34/p34) in soybeans were developed [22].
Stachyose is the primary carbohydrate in soybean seed. Content of stachyose ranges from 14 to 41 g/kg on a dry-weight basis and is environmentally stable but genotypically dependent [23,24]. Because stachyose is not readily digestible and causes flatulence or diarrhea for non-ruminant animals, stachyose is considered as an undesirable sugar in soybean seed [25]. Skoneczka et al. [26] identified that stachyose content was controlled by a single gene or a major Quantitative Trait Loci (QTL). The raffinose synthase 2 gene (RS2, Glyma06g18890) is the key in raffinose and stachyose biosynthesis. The rs2 allele (containing three-bp deletions in the RS2 gene) results in low raffinose and stachyose in soybean line PI200508 [27]. The RS2 locus is located in chromosome 6. No negative effects on traits of field emergence, seed yield, maturity, height, and fatty acid content between lines derived from PI200508 containing the reduced stachyose content and wild types were reported [28]. A heat treatment is required to reduce the activity of lipoxygenase, KTI, and lectin proteins that exist in mature raw black seeds. Additionally, this step may require energy costs as well as lower amino acid availability, and it alters the physical properties of soybean proteins. The genetic removal of these components could be an alternative to this problem. So far, only a few articles about soybean breeding in the line with the black seed coat color, the green cotyledon color, and free of both antinutritional and allergenic factors have been published. A soybean cultivar ‘Gaechuck#1’ that has the traits of black seed coat color, green cotyledon color, lipoxygenase-2,3-free, and KTI proteins-free was developed [11]. The genotype of ‘Gaechuck#1’ was Lox1lox2lox3/Lox1lox2lox3-ti/ti. A soybean strain with the black seed coat color, the green cotyledon color, KTI protein-free, and lectin protein-free was developed [29]. A soybean possessing a yellow seed coat color and triple recessive alleles (ti/ti- le/le-p34/p34) for KTI, lectin, and P34 proteins was developed [22]. The objective of this research was to breed a new black soybean line with green cotyledon and tetra recessive alleles (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) for lipoxygenase, KTI, lectin, and stachyose components.

2. Materials and Methods

2.1. Breeding Materials

Eight parents were used to breed a new black soybean line with green cotyledon and tetra recessive alleles. ‘Seoritae’ (landrace variety) was used as a parent for traits of large seed size, black seed coat color, and green cotyledon color. The PI506592 parent was used to introduce the traits for black seed coat color and large seed size into a tetra null strain. PI408251 (lox1 allele), PI86023 (lox2 allele), and PI417458 (lox3 allele) parents were used for the lipoxygenase protein-free breeding line. For the breeding line without KTI and lectin proteins, PI157440 (ti allele) and PI548392 (le allele) parents were used, respectively. The PI200508 (rs2 allele) parent was used for the breeding line with a low stachyose content. Phenotypes of eight parents for these four components, seed coat, and cotyledon are presented in Table 1.

2.2. Breeding Scheme

Recessive alleles for lox1, lox2, and lox3 were determined by identifying absence of lipoxygenase- 1, 2, and 3 protein using SDS electrophoresis. Recessive alleles of ti and le were determined by confirming the absence of KTI and lectin proteins using the Western blot technique. The rs2 allele, which determines the low stachyose content, was identified by examining the content of stachyose by the HPLC method. The genotype of lox1/lox1-lox2/lox2 (lipoxygenase-1,2 protein-free) was selected from the population derived from the cross of PI408251 and PI86023. The lox1/lox1-lox2/lox2-lox3/lox3 genotype (lipoxygenase-1,2,3 protein-free) was developed from the cross of the lox1/lox1-lox2/lox2 genotype and PI417458. From a cross of the ‘Seoritae’ cultivar and the lox1lox2lox3/lox1lox2lox3 genotype, a strain possessing the lox1lox2lox3/lox1lox2lox3 genotype, a black seed coat, and green cotyledon was developed. A lox1lox2lox3/lox1lox2lox3 plant with a black seed coat and cotyledon was crossed to the PI200508 parent (rs2/rs2 genotype) to select a strain with a black seed coat, green cotyledon, lipoxygenase-free, and low content of stachyose (lox1lox2lox3/lox1lox2lox3-rs2/rs2 genotype, lipoxygenase protein-free, and low content of stachyose). The genotype of ti/ti-le/le (KTI-free and lectin proteins-free) was developed from the cross of PI157440 and PI548392 parents. From a cross of the ‘Seoritae’ cultivar and the ti/ti-le/le genotype, a strain with a black seed coat, green cotyledon, and the ti/ti-le/le genotype was developed. The strain with a black seed coat, green cotyledon, a large seed size, and the ti/ti-le/le genotype was developed from the cross of a strain with a black seed coat, green cotyledon, and the ti/ti-le/le genotype and PI506592. A triple null genotype (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le, free of lipoxygenase, KTI, and lectin proteins) with a black seed coat, green cotyledon, and a large seed size was developed from the cross of the lox1lox2lox3/lox1lox2lox3 genotype (black seed coat and green cotyledon) and the ti/ti-le/le genotype (black seed coat, green cotyledon, and large seed size). During the summer of 2016, F1 pollinations were made between the lox1lox2lox3/lox1lox2lox3-rs2/rs2 genotype (black seed coat and green cotyledon) and the lox1lox2lox3/lox1lox2lox3-ti/ti-le/le genotype (black seed coat, green cotyledon, and large seed size) to produce seeds with a tetra null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2, low content of stachyose, and free of lipoxygenase, KTI, and lectin proteins), a black seed coat, green cotyledon, and a large seed size. F1 seeds obtained were planted on 20 February 2017 in the greenhouse and all F1 plants were individually harvested and bulked. A total of 92 F2 seeds were obtained. Each seed was analyzed to screen for the genotype with a triple recessive allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le (absence of lipoxygenase, KTI, and lectin proteins)). Among 92 F2 seeds, 9 F2 seeds possessing the triple null allele (lox1lox2lox3/lox1lox2lox3- ti/ti-le/le) were obtained and were planted on 10 July 2018 in the University field. Nine F2 plants were individually harvested. Random F3 seeds of each F2 plant harvested were analyzed to select the rs2rs2 genotype (low content of stachyose). Three F2 plant strains (F3 seed) with the tetra null genotype (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) were selected. A random sample of 50 F3 seeds per strain were planted on 6 July 2019 in University field. One F3 plant strain was chosen based on plant type, maturing date, stem height, seed coat color, cotyledon color, seed quality, and seed weight. After harvesting, random F4 seeds were used to confirm recessive genotypes (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) for lipoxygenase, KTI, lectin, and stachyose components. The scheme for breeding of the tetra null genotype (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) with a black seed coat and green cotyledon is presented in Figure 1.

2.3. Agricultural Traits of Tetra Null Genotype

A random 150 F4 seeds were planted on 9 July 2020 in University field. The experimental field design was a completely randomized design with three replications. The plots were two rows 3 m long spaced 0.65 m apart within the plot. The seeding rate was 25 seeds per row. Soil type was a silty clay loam. Soil K, Ca, Mg, and Na averaged 0.46, 8.84, 2.83, and 0.28 cmolc/kg, respectively. Soil pH was 6.8. Agronomic traits such as maturing date, stem height (cm), 100-seed weight (g), yield for breeding line (tetra null genotype), and check cultivar (‘Chungja#3’, Lox1Lox2Lox3/Lox1Lox2Lox3-Ti/Ti-Le/Le-RS2/RS2, black seed coat, and green cotyledon) were recorded on the F4 plant generation. Mean values of stem height, 100-seed weight, and yield were compared by Duncan’s multiple range test at the 5% level.

2.4. Determination of Lipoxygenase Protein by SDS-PAGE

Crude protein from random seeds of the check cultivar (‘Chungja#3’) and breeding line was obtained to identify the presence (‘+’) or absence (‘−’) of lipoxygenase protein. The fine powder samples of two materials were incubated for 30 min in 1 ml of Tris-HCl, pH 8.0, and 1.56% v/v β-mercaptoethanol. Fifty microliters (50 μl) of the supernatant through centrifugation was added to an equivalent amount of 5X sample buffer containing 1 M Tris-HCl, pH 6.8, 50% v/v glycerol, 1.96% v/v β-mercaptoethanol, and 10% w/v sodium dodecyl sulfate (SDS). The sample obtained was boiled at 97 °C for 5 min and the sample was centrifuged. Two microliters (2 μl) of the supernatant was loaded on a 12% acrylamide SDS polyacrylamide gel in electrophoresis medium gels (Owl Separation Systems Inc., Model: P9DS, Portsmouth, NH, USA). After electrophoresis at 120 V for 7 h, gels were stained. For several hours, the gels were destained in destaining solution. Protein marker (Sigma Marker, Product Code: M4038, St. Louis, MO, USA) was used to identify the presence or absence of lipoxygenase protein (97 kDa).

2.5. Determination of KTI and Lectin Protein by Western Blot Analysis

Proteins obtained from each F2 seed, check cultivar (‘Chungja#3’), and breeding line were separated by 10% or 12% SDS-PAGE and transferred onto an Immobilon-P membrane (PVDF, Millipore, Merck, Kenilwork, NJ, USA). After blocking for 2 h in TBS buffer containing 0.1% Tween 20, 20 mM Tris (pH 7.5), 150 mM NaCl, and 5% nonfat dried milk (Cell Signaling Technology, Danvers, MA, USA), the membrane was incubated with an antibody of KTI and lectin protein for 1 h. The blot was incubated with a horseradish peroxidase conjugated secondary antibody after washing in TBS buffer. Using an enhanced chemiluminescence kit (Amersham, Buckinghamshire, UK), the complex was visualized. Presence or absence of KTI (21.5 kDa) and lectin (120 kDa) proteins was determined visually. The ratio of segregation for presence or absence of KTI and lectin proteins was determined by Chi-square analysis.

2.6. Stachyose Analysis

Stachyose content was determined by a High-Performance Liquid Chromatograph (HPLC) method. Each seed sample from a single F2 plant (F3 seed), the check cultivar (‘Chungja#3’), and the breeding line was ground into powder for HPLC analysis. Two hundred milligrams (200 mg) of ground seed sample was extracted with 3 mL of acetone in a water bath for 2 h at 60 °C. The mixture was centrifuged for 5 min at 2000 rpm to remove the fat. We added 1.9 mL of double distilled H2O to the defatted extract in a water bath for 2 h at 60 °C. After the water bath treatment, 0.1 mL of 1 M 5-sulfosalicylic acid (5-SSA) was added to the mixture and it was placed overnight at 4 °C. The mixture was centrifuged for 5 min at 3000 rpm. The supernatant was added to 0.8 mL of ddH2O and was centrifuged for 10 min at 12,000 rpm. After centrifugation, the supernatant was filtered through a 0.2 μm membrane filter and stored at 4 °C prior to the HPLC analysis. Stachyose was analyzed using an Agilent 1100 series HPLC (Agilent Technologies, Waldbronn, Germany), an R1 Refractive Index Detector, and a Supelcogel 610-H-column (30cm × 7.8mm ID column, 9 μm, Supelco, Bellefonte, PA, 16823-0048 USA). The eluent solvent of 0.1% H3PO3 was used, and HPLC conditions were a 10 μL injection volume and a 0.6 mL/min flow rate.

3. Results

3.1. Inheritance of KTI and Lectin Proteins

KTI protein of 21.5 kDa and lectin protein of 120 kDa were segregated in the 92 F2 seed generation (Table 2).
Among the 92 F2 seeds, 63 F2 seeds showed KTI protein and 29 F2 seeds did not show KTI protein. Lectin protein existed in 65 F2 seeds and 27 F2 seeds did not show lectin protein. The segregation ratio for the presence or absence of KTI and lectin proteins in the F2 seed generation was fitted to an expected 3:1 ratio (χ2 = 2.09 for KTI and 0.93 for lectin proteins). Between KTI protein and lectin protein, the segregation ratios of 45 Ti_Le_: 18 Ti_lele: 20 titiLe_: 9 titilele were observed (χ2 = 3.13, p = 0.5–0.1).

3.2. Content of Stachyose for F2 Plants with Triple Null Allele

Stachyose content for nine F2 plants was obtained using random F3 seeds of each F2 plant harvested (Table 3).
The stachyose content of the nine F2 plants was 3.17–14.33 g/kg. Three F2 plants showed a low stachyose content of 3.26, 3.17, and 3.53 g/kg. One F3 plant strain from three F2 plants was chosen based on agronomical traits.

3.3. Confirmation of Tetra Null Line

Random F5 seeds were used to confirm the absence of lipoxygenase, KTI, and lectin proteins (Figure 2).
Proteins of lipoxygenase, KTI, and lectin were not observed in the mature F5 seed of the breeding line (BL). However, these three proteins were observed in the seed of the ‘Chungja#3’ (Lox1Lox2Lox3/Lox1Lox2Lox3-Ti/Ti-Le/Le-RS2/RS2) cultivar.

3.4. Agronomic Traits of Tetra Null Line

Some agronomic traits of the breeding line are shown in Table 4.
The breeding line developed in this study has purple flowers, a determinate growth habit, and brown pods at maturity. The breeding line matured on October 16, which is 2 days earlier than ‘Chungja#3’. The stem height of the breeding line was 52.3 cm, while that of the check cultivar was 50.7 cm. The 100-seed weight of the breeding line was 35.2 g larger than that of ‘Chungja#3’ (33.3 g). The stachyose content of the breeding line was 3.30 g/kg, which was much less than the 12.64 of ‘Chungja#3’. The yield of the breeding line was 2.50 Ton/ha—much higher than that of ‘Chungja#3’ (2.10 Ton/ha). The plant type harvested and seeds of the tetra null strain (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) are shown in Figure 3.
The seed of the breeding line has a black hilum and a black seed coat color. The cotyledon color of mature seeds is green.

4. Discussion

In Asia, soybean cultivars with a black seed coat, green cotyledon, and large seed size have been cultivated for a long time. Anthocyanins that are abundant in the seed coat of black soybean are known to have many pharmacological effects. Lipoxygenase, Kunitz trypsin inhibitor (KTI), lectin, and stachyose components that exist in the raw mature seeds of black soybean have been considered as antinutritional and allergenic factors [30,31]. The genetic removal of these factors is needed to modify the food processing properties and to improve the nutritional values of soybeans. Moreover, the variety of the tetra recessive allele (absence of lipoxygenase, KTI, and lectin proteins, low content of the stachyose component) enhances the utilization of soybean foods. To obtain seeds possessing the tetra null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2), two parents (the lox1lox2lox3/lox1lox2lox3-rs2/rs2 genotype and the lox1lox2lox3/lox1lox2lox3-ti/ti-le/le genotype) were developed using eight parents (Table 1, Figure 1). A total of 92 F2 seeds were obtained from the cross of these two parents. KTI and lectin proteins were segregated in the F2 seed generation (Table 2). The segregation ratio for the presence or absence of KTI and lectin proteins was fitted to an expected 3:1 ratio (χ2 = 2.09 for KTI and 0.93 for lectin proteins). This result substantiates previous results that the presence or absence of KTI and lectin proteins is controlled by a single gene [13,19]. Independent inheritance between KTI protein and lectin protein was observed (χ2 = 3.13). This result was found to be consistent with previous results, which show that both Ti and Le alleles were inherited independently [13,20,21,29]. The Le allele that was inherited independently with the Ti allele in the F2 population consisted of 24 plants [21]. The Ti and Le alleles were inherited independently in the F2 population with 96 plants [13]. Lee et al. [20] reported that the Ti and Le alleles were independently inherited in a 173 F2 seed generation. Additionally, Choi et al. [29] observed that Ti and Le alleles were independently inherited in an F2 seed generation consisting of 179 seeds. Among nine F2 plants with the triple null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le), three F2 plants showed a low stachyose content (rs2rs2 genotype). The stachyose content of three F2 plants was 3.17–3.53 g/kg (Table 3). This result suggests that stachyose content was controlled by a single recessive gene [26]. Three F2 plants possessing a triple null allele (ti/ti-le/le-rs2/rs2) were selected. In previous research, two F2 seeds possessing a triple null allele (ti/ti-le/le-p34/p34) were selected from 150 F2 seeds [22]. Absence of lipoxygenase, KTI, and lectin proteins in F5 seeds of the tetra null line (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2 genotype) developed in this study was confirmed (Figure 2).
Agricultural traits of the tetra null soybean line are shown in Table 4. In spite of low content of stachyose and the absence of lipoxygenase, KTI, and lectin proteins, the tetra null soybean line germinated, grew, flowered, and reproduced normally under field conditions when compared with cultivar ‘Chungja#3’. Seeds with the lox1lox2lox3/lox1lox2lox3 genotype (free of lipoxygenase protein) have been demonstrated to develop into normal plants without defects [10]. Schmidt et al. [22] observed that plants possessing triple null alleles (ti/ti-le/le-p34/p34) flowered and produced seeds without any overt differences in comparison to the standard ‘Williams 82’ cultivar. Significant differences were observed for seed weight (g/100 seeds), content of stachyose (g/kg), and yield (Ton/ha) between the tetra null soybean line and ‘Chungja#3’ cultivar. These results indicate that the tetra null soybean line with a black seed coat, green cotyledon, and large seed size had no impact on these agronomic traits (Figure 3). These results suggest that accumulation of recessive alleles for the Lox1, Lox2, Lox3, Ti, Le, and RS2 genes result in a soybean cultivar with significantly reduced allergy and antinutritional factors. In this study, quantitative traits such as yield, stem height, and seed weight for the tetra null line were obtained in a single location with three replications (Table 4). However, it is considered that field experiments with years and locations should be carried out for accurate evaluation in the future. For the breeding line, generation advancement should be conducted and qualitative traits like flower color, pubescence color, and pod color should be checked. Additionally, repeated experiments on quantitative traits such as maturing date, stem height, seed weight, stachyose content, protein content, oil content, and yield should be further conducted. Studies on the quality and functionality of foods made from seeds of the tetra null line should be conducted and the level of allergens present in foods must be investigated. The newly improved strain in this research will be used to develop a new soybean cultivar with a black seed coat, green cotyledon, high quality, and function.

5. Conclusions

Eight parents were used to breed a new soybean strain with a black seed coat color, a green cotyledon color, and tetra recessive alleles (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) for lipoxygenase, KTI, lectin, and stachyose components. From segregation for KTI and lectin proteins in an F2 seed generation, a ratio of 45 Ti_Le_: 18 Ti_lele: 20 titiLe_: 9 titilele was observed (χ2 = 3.13, p = 0.5–0.1). Nine F2 seeds possessing a triple null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le) were obtained. Three F2 plants showed a low stachyose content of 3.26, 3.17, and 3.53 g/kg. One F3 strain with proper agronomical traits was selected. Proteins of lipoxygenase, KTI, and lectin were not observed in the mature F5 seeds of the tetra null line. The soybean line with a black seed coat, green cotyledon, large seed size, and tetra recessive allele has purple flowers, a determinate growth habit, and brown pods at maturity. The breeding line matured in October 16, which is 2 days earlier than ‘Chungja#3’. The stem height of the breeding line was 52.3 cm, while that of the check cultivar was 50.7 cm. The 100-seed weight of the breeding line was 35.2 g, larger than that of ‘Chungja#3’ (33.3 g). The stachyose content of the breeding line was 3.30 g/kg, which was much less than the 12.64 of ‘Chungja#3’. The yield of the breeding line was 2.50 Ton/ha—much higher than that of ‘Chungja#3’ (2.10 Ton/ha).

Author Contributions

S.W.C., J.E.K., S.K.L., S.L., and J.I.C. were involved in the experimental design, crossing, protein analysis, planting, harvesting, data collection, and interpretation as well as the write-up of this research. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF- 2018R1D1A1B07045483) and the Korea Institute of Planning and Evaluation for Technology in Food, Agriculture and Forestry (Research number: 119011-3).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that there is no competing interest.

References

  1. Burns, J.; Gardner, P.T.; O’Neil, J.; Crawford, S.; Morecroft, I.; McPhail, D.B.; Lister, C.; Matthews, D.; MacLean, M.R.; Lean, M.E.; et al. Relationship among antioxidant activity, vasodilation capacity and phenolic contents of red wines. J. Agric. Food Chem. 2000, 48, 220–230. [Google Scholar] [CrossRef]
  2. Kim, H.J.; Tsoy, I.; Park, J.M.; Chung, J.I.; Shin, S.C.; Chang, K.C. Anthocyanins from soybean seed coat inhibit the expression of TNF-a-induced genes associated with ischemia/reperfusion in endothelial cell by NF-jB-dependent pathway and reduce rat myocardial damages incurred by ischemia and reperfusion in vivo. FEBS Lett. 2006, 580, 1391–1397. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kamei, H.; Kojima, T.; Hasegawa, M.; Koide, T.; Umeda, T.; Yukawa, T.; Terabe, K. Suppression of tumor cell growth by anthocyanins in vitro. Cancer Investig. 1995, 13, 590–594. [Google Scholar] [CrossRef] [PubMed]
  4. Axelrod, B.; Cheesbrough, T.; Laakso, S. Lipoxygenase from soybeans. Methods Enzymol. 1981, 71, 441–451. [Google Scholar]
  5. Hildebrand, D.F.; Hymowitz, T. Two soybean genotypes lacking lipoxygenase-1. J. Am. Oil Chem. Soc. 1981, 58, 583–586. [Google Scholar] [CrossRef]
  6. Hildebrand, D.F.; Hymowitz, T. Inheritance of Lipoxygenase-1 Activity in Soybean Seeds. Crop Sci. 1982, 22, 851–853. [Google Scholar] [CrossRef]
  7. Davies, C.S.; Nielsen, N.C. Genetic Analysis of a Null-Allele for Lipoxygenase-2 in Soybean. Crop. Sci. 1986, 26, 460–463. [Google Scholar] [CrossRef]
  8. Kitamura, K.; Kumagai, T.; Kikuchi, A. Inheritance of lipoxygenase-2 and genetic relationships among genes for lipoxygenase-1, -2 and -3 isozymes in soybean seeds. Jpn. J. Breed. 1985, 35, 413–420. [Google Scholar] [CrossRef] [Green Version]
  9. Kitamura, K.; Davies, C.S.; Kaizuma, N.; Nielsen, N.C. Genetic analysis of a null-allele for lipoxygenase-3 in soybean seeds. Crop Sci. 1983, 23, 924–927. [Google Scholar] [CrossRef]
  10. Hajika, M.; Kitamura, K.; Igita, K.; Nakazawa, Y. Genetic relationships among the genes for lipoxygenase-1, -2 and -3 isozymes in soybean [Glycine max (L.) Merrill] seed. Jpn. J. Breed. 1992, 42, 787–792. [Google Scholar] [CrossRef] [Green Version]
  11. Chung, J.I. A new cultivar “Gaechuck#1”: Black soybean cultivar with lipoxygenase2,3-free, Kunitz trypsin inhibitor-free and green cotyledon. Korean J. Breed. Sci. 2009, 41, 603–606. [Google Scholar]
  12. Kunitz, M. Crystallization of a soybean trypsin inhibitor from soybean. Science 1945, 101, 668–669. [Google Scholar] [CrossRef] [PubMed]
  13. Orf, J.H.; Hymowitz, T. Inheritance of the absence of the Kunitz trypsin inhibitor in seed protein of soybeans. Crop Sci. 1979, 19, 107–109. [Google Scholar] [CrossRef]
  14. Hymowitz, T.; Hadley, H.H. Inheritance of a trypsin inhibitor variant in seed protein of soybeans. Crop Sci. 1972, 12, 197–198. [Google Scholar] [CrossRef]
  15. Singh, L.; Wilson, C.M.; Hadley, H.H. Genetic differences in soybean trypsin inhibitors separated by disc electrophoresis. Crop Sci. 1969, 9, 489–491. [Google Scholar] [CrossRef]
  16. George, M.; Bhide, S.; Thengane, R.; Hosseini, G.; Manjaya, J. Identification of low lectin mutants in soybean. Plant Breed. 2008, 127, 150–153. [Google Scholar] [CrossRef]
  17. Pull, S.P.; Pueppke, S.G.; Hymowitz, T.; Orf, J.H. Soybean lines lacking the 120,000 daltons seed lectin. Science 1978, 200, 1277–1279. [Google Scholar] [CrossRef]
  18. Schulze, H.; Saini, H.S.; Huisman, J.; Hessing, M.; Berg, W.; Verstegen, M.W.A. Increased nitrogen secretion by inclusion of soya lectin in the diets of pigs. J. Sci. Food Agric. 1995, 69, 501–510. [Google Scholar] [CrossRef]
  19. Orf, J.H.; Hymowitz, T.; Pull, S.P.; Pueppke, S.G. Inheritance of a soybean seed lectin. Crop Sci. 1978, 18, 899–900. [Google Scholar] [CrossRef]
  20. Lee, K.J.; Park, M.S.; Sung, M.K.; Kim, M.S.; Chung, J.I. Inheritance between Le gene and Ti gene in soybean (Glycine max L.). Korean J. Breed. Sci. 2008, 40, 97–100. [Google Scholar]
  21. Moraes, R.M.A.; Soares, T.C.B.; Colombo, L.R.; Salla, M.F.S.; Barros, J.G.A.; Piovesan, N.D.; Barros, E.G.; Moreira, M.A. Assisted selection by specific DNA markers for genetic elimination of the kunitz trypsin inhibitor and lectin in soybean seeds. Euphytica 2006, 149, 221–226. [Google Scholar] [CrossRef]
  22. Schmidt, M.A.; Hymowitz, T.; Herman, E.M. Breeding and characterrization of soybean triple null; a stack of recessive alleles of Kunitz trypsin inhibitor, soybean agglutinin, and P34 allergen nulls. Plant Breed. 2015, 134, 310–315. [Google Scholar] [CrossRef]
  23. Geater, C.W.; Fehr, W.R.; Wilson, L.A. Association of soy-bean seed traits with physical properties of natto. Crop Sci. 2000, 40, 1529–1534. [Google Scholar] [CrossRef]
  24. Hymowitz, T.; Collins, F.I.; Panezner, J.; Walker, W.M. Relationship between the content of oil, protein, and sugar in soybean seed. Agron. J. 1972, 64, 613–616. [Google Scholar] [CrossRef]
  25. Hata, Y.; Yamamoto, M.; Nakajima, K. Effects of soybean oligosaccharides on human digestive organs: Estimation of fifty percent effective dose and maximum non- effective dose based on diarrhea. J. Clin. Biochem. Nutr. 1991, 10, 135–144. [Google Scholar] [CrossRef]
  26. Skoneczka, J.A.; Saghai Maroof, M.A.; Shang, C.; Buss, G.R. Identification of candidate gene mutation associated with low stachyose phenotype in soybean lines PI200508. Crop Sci. 2009, 49, 247–255. [Google Scholar] [CrossRef]
  27. Dierking, E.C.; Bilyeu, K.D. Association of a soybean raffinose synthase gene with low raffinose and stachyose seed Phenotype. Plant Genome. 2008, 1, 135–145. [Google Scholar] [CrossRef] [Green Version]
  28. Neus, J.D.; Fehr, W.R.; Schnebly, S.R. Agronomic and seed characteristics of soybean with reduced raffinose and stachyose. Crop Sci. 2005, 45, 589–592. [Google Scholar] [CrossRef]
  29. Choi, S.W.; Han, S.J.; Sung, M.K.; Chung, J.I. Breeding of black soybean line with ti and le allele. Plant Breed. Biotech. 2016, 4, 170–175. [Google Scholar] [CrossRef] [Green Version]
  30. Liener, I.E. Possible adverse effects of soybean anticarcinogens. J. Nutr. 1995, 125, 744–750. [Google Scholar]
  31. Robinson, D.S.; Wu, Z.; Domoney, C.; Casey, R. Lipoxygenases and the quality of foods. Food Chem. 1995, 54, 33–43. [Google Scholar] [CrossRef]
Agronomy 11 00309 g001 550

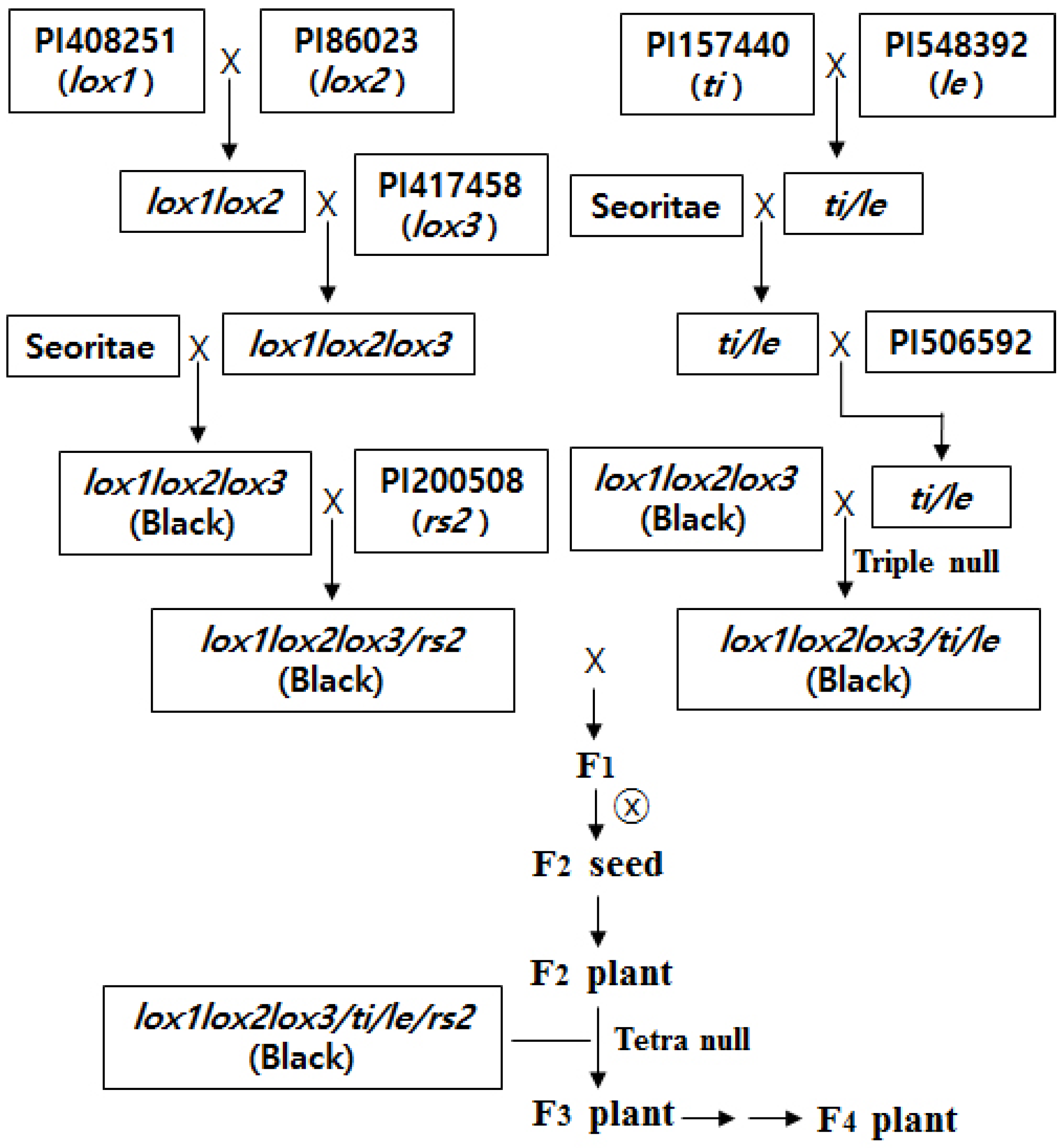

Figure 1. Scheme for development of a tetra null genotype (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) with a black seed coat and green cotyledon using eight soybean parents.
Figure 1. Scheme for development of a tetra null genotype (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2) with a black seed coat and green cotyledon using eight soybean parents.
Agronomy 11 00309 g001
Agronomy 11 00309 g002 550

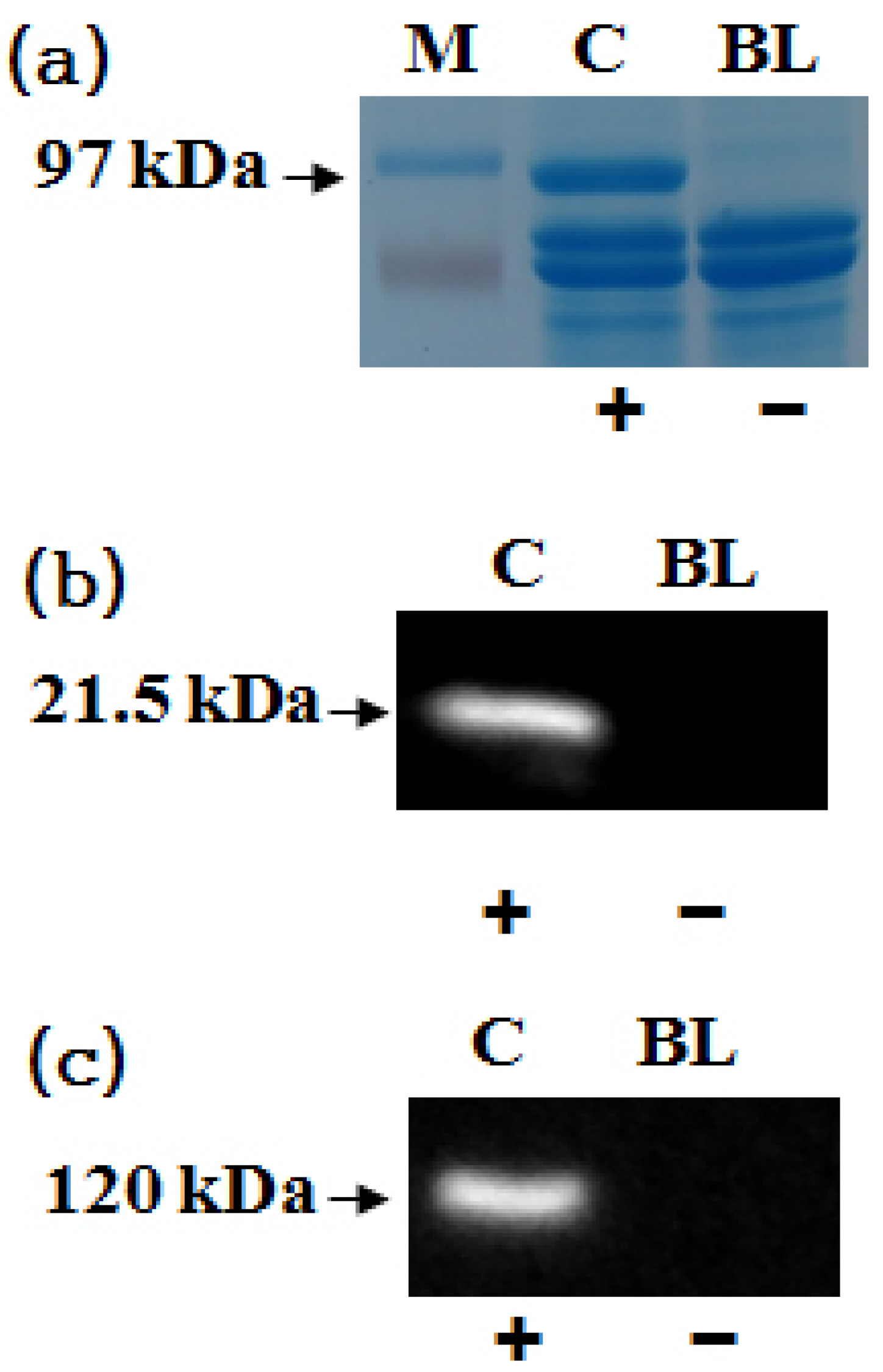

Figure 2. Determination of lipoxygenase protein (a), Kunitz trypsin inhibitor (KTI) protein (b), and lectin protein (c). M, marker; C, ‘Chungja#3’ (Lox1Lox2Lox3/Lox1Lox2Lox3-Ti/Ti-Le/Le-RS2/RS2); BL, tetra null line (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2). +, −: presence and absence of lipoxygenase, KTI, and lectin proteins, respectively.
Figure 2. Determination of lipoxygenase protein (a), Kunitz trypsin inhibitor (KTI) protein (b), and lectin protein (c). M, marker; C, ‘Chungja#3’ (Lox1Lox2Lox3/Lox1Lox2Lox3-Ti/Ti-Le/Le-RS2/RS2); BL, tetra null line (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2). +, −: presence and absence of lipoxygenase, KTI, and lectin proteins, respectively.
Agronomy 11 00309 g002
Agronomy 11 00309 g003 550
Figure 3. Appearance of the F4 plant and F5 seeds with the tetra null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2), a black seed coat, and green cotyledon.
Figure 3. Appearance of the F4 plant and F5 seeds with the tetra null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-rs2/rs2), a black seed coat, and green cotyledon.
Agronomy 11 00309 g003
Table
Table 1. Phenotypes of the eight parents used in this experiment for lipoxygenase, Kunitz trypsin inhibitor (KTI), lectin, stachyose, seed coat, and cotyledon (Bold letter: recessive trait).
Table 1. Phenotypes of the eight parents used in this experiment for lipoxygenase, Kunitz trypsin inhibitor (KTI), lectin, stachyose, seed coat, and cotyledon (Bold letter: recessive trait).
Cultivar/GermplasmLipoxygenaseKTILectinStachyoseSeed coatCotyledon
123
SeoritaePresentPresentPresentPresentPresentNormalBlackGreen
PI408251AbsentPresentPresentPresentPresentNormalBlackYellow
PI86023PresentAbsentPresentPresentPresentNormalGreenYellow
PI417458PresentPresentAbsentPresentPresentNormalYellowYellow
PI157440PresentPresentPresentAbsentPresentNormalYellowYellow
PI548392PresentPresentPresentPresentAbsentNormalBlackYellow
PI200508PresentPresentPresentPresentPresentLowYellowYellow
PI506592PresentPresentPresentPresentPresentNormalBlackYellow
Table
Table 2. Segregation for presence or absence of Kunitz trypsin inhibitor (KTI) and lectin proteins in the F2 seed generation derived from the cross of the lox1lox2lox3/lox1lox2lox3-Ti/Ti-Le/Le-rs2/rs2 parent and the lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-RS2/RS2 parent.
Table 2. Segregation for presence or absence of Kunitz trypsin inhibitor (KTI) and lectin proteins in the F2 seed generation derived from the cross of the lox1lox2lox3/lox1lox2lox3-Ti/Ti-Le/Le-rs2/rs2 parent and the lox1lox2lox3/lox1lox2lox3-ti/ti-le/le-RS2/RS2 parent.
KTILectinNumber of Seedsχ2 Value
(9:3:3:1)		p
ObservedExpected
PresentPresent4551.753.130.5–0.1
PresentAbsent1817.25
AbsentPresent2017.25
AbsentAbsent95.79
Table
Table 3. Content of stachyose for nine F2 plants (F3 seeds) with the triple null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le).
Table 3. Content of stachyose for nine F2 plants (F3 seeds) with the triple null allele (lox1lox2lox3/lox1lox2lox3-ti/ti-le/le).
Number of F2 PlantsStachyose (g/kg)Genotype Expected
112.71RS2_
213.14RS2_
33.26rs2rs2
412.83RS2_
53.17rs2rs2
63.53rs2rs2
714.33RS2_
813.91RS2_
912.51RS2_
Table
Table 4. Agronomic performance of cultivar ‘Chungja#3’ and the breeding line under field conditions during 2020.
Table 4. Agronomic performance of cultivar ‘Chungja#3’ and the breeding line under field conditions during 2020.
Cultivar/Breeding LinePlanting DateMaturing DateStem Height
(cm)		Seed Weight
(g/100 Seeds)		Stachyose
(g/kg)		Yield
(Ton/ha)
‘Chungja#3’9 June18 October50.7 a 133.3 a12.64 a2.10 a
Breeding Line9 June16 October52.3 a35.2 b3.30 b2.50 b
1 Same letters in the column are not significant at the 5% significance level by Duncan’s multiple range tests.
