Catalysts 2019, 9(4), 336; https://doi.org/10.3390/catal9040336

Article
Comparative Study of the Characteristics and Activities of Pd/γ-Al2O3 Catalysts Prepared by Vortex and Incipient Wetness Methods
1
Department of Chemistry, Columbus State University, Columbus, GA 31907, USA
2
School of Chemical & Biomolecular Engineering, Georgia Institute of Technology, Atlanta, GA 30332, USA
3
Department of Geosciences, Auburn University, Auburn, AL 36849, USA
*
Correspondence: [email protected]; Tel.: +1-706-569-3030
Co-first authors.
Received: 19 February 2019 / Accepted: 1 April 2019 / Published: 4 April 2019

Abstract

:
5 wt% Pd/γ-Al2O3 catalysts were prepared by a modified Vortex Method (5-Pd-VM) and Incipient Wetness Method (5-Pd-IWM), and characterized by various techniques (Inductively coupled plasma atomic emission spectroscopy (ICP-AES), N2-physisorption, pulse CO chemisorption, temperature programmed reduction (TPR), X-ray photoelectron spectroscopy (XPS), scanning transmission electron microscopy (STEM), and X-ray diffraction (XRD)) under identical conditions. Both catalysts had similar particle sizes and dispersions; the 5-Pd-VM catalyst had 0.5 wt% more Pd loading (4.6 wt%). The surfaces of both catalysts contained PdO and PdOx with about 7% more PdOx in 5-Pd-VM. High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) and scanning electron microscope (SEM) images indicated presence of PdO/PdOx nanocrystals (8–10 nm) on the surface of the support. Size distribution by STEM showed presence of smaller nanoparticles (2–5 nm) in 5-Pd-VM. This catalyst was more active in the lower temperature range of 275–325 °C and converted 90% methane at 325 °C. The 5-Pd-VM catalyst was also very stable after 72-hour stability test at 350 °C showing 100% methane conversion, and was relatively resistant to steam deactivation. Hydrogen TPR of 5-Pd-VM gave a reduction peak at 325 °C indicating weaker interactions of the oxidized Pd species with the support. It is hypothesized that smaller particle sizes, uniform particle distribution, and weaker PdO/PdOx interactions with the support may contribute to the higher activity in 5-Pd-VM.
Keywords:
methane combustion; PdO-PdOx/γ-Al2O3 catalyst; vortex method; catalytic activity; steam deactivation; 72-h stability test, metal-support interaction

1. Introduction

Catalytic combustion of methane at low temperatures has been a challenging issue both academically and industrially. Since 2010 more than 5000 articles have been published each year on methane combustion [1]. Heterogeneous catalysts including noble metal-based catalysts on various supports have been found to be an effective route for methane oxidation [1,2]. Two recent reviews reported several articles claiming success with palladium catalysts on various supports [1,3]. Among the supported palladium catalysts, gamma alumina (γ-Al2O3) has received more attention [4,5,6,7,8,9]. Banerjee et al. [4] developed a PdO-PdOx/γ-Al2O3 catalyst by a novel Vortex Method which showed high activity with methane conversion of 90–94% at 300–320 °C. A Pd catalyst on phosphorous-doped mesoporous γ-Al2O3 support achieved total methane combustion at 345 °C [5]. Gorte et al. [6] prepared a catalyst with ZrO2 coating on Pd/γ-Al2O3 by atomic layer adsorption which exhibited high activity at 212 °C. Several researchers [7,8,9] reported Pd/γ-Al2O3 catalysts with methane conversion of 30–90% at 320–400 °C.
Several Pd catalysts have also been developed using other supports. Liu et al [10] developed a rice husk derived porous silica support for a Pd-CeO2 catalyst for low temperature combustion of methane with 90% conversion at 325 °C. A monolithic Pd/Al2O3/Fe-Ni catalyst with metal foam as matrix in a microcombustor improved methane conversion to more than 99% [11]. Cargnello et al. [12] developed a novel [email protected]2/hydrophobic-Al2O3 core-shell catalyst that had methane conversions of 50% and 100% at 325 °C and 400 °C respectively. A Pd/Ceria nanocatalyst on Al2O3 support was prepared by solution combustion method with 90% methane conversion at 400 °C [13]. A nanozeolite silicalite-1 coated cordierite catalyst and a nitrogen-modified perovskite-type composite catalyst eliminated 90% methane at 350 °C [14,15]. A Pd/Co3O4 catalyst on ZrO2 open cell foam converted about 90% methane at 325 °C and 100% at 400 °C [16]. Zhang et al. [17] prepared a Pd catalyst on Al2O3-CeO2 support that converted 80% methane at 320 °C and 100% at 400 °C. A 1 wt% Pd catalyst with 10 wt% TiO2 on mesoporous silica support converted almost 100% methane at 350 °C [18]. Liotta et al. [19] prepared a mesoporous silica supported Pd (1 wt%)/LaMn0.4Fe0.6O3 catalyst that exhibited 60% conversion in the presence of 10 ppm SO2. Ma et al. [20] developed a Pd/CeO2 catalyst by impregnation method with hydrazine hydrate reduction; the catalyst eliminated 90% methane at 336 °C. Martin et al. [21] reported the development of a Pd/Co3O4 catalyst with 100% methane conversion at 360 °C in a gas feed of 1% CH4, 18% O2, and balance N2.
The activity and stability of Pd catalysts depend on preparation methods, particle size distribution, morphology, oxidation states, structure, and support interactions [1,3,22]. Additional concerns with Pd/Al2O3 catalysts have been deactivation by water and long-term stability [7,12,22] We previously reported the development of a PdO-PdOx/γ-Al2O3 catalyst by vortex method [4] and the catalyst showed low-temperature activity for methane combustion. As a continuation of this project, we modified the procedure of catalyst preparation by vortex method and planned to compare the properties and activity of the modified catalyst with a Pd/γ-Al2O3 catalyst prepared by Incipient Wetness Method [23] under identical experimental conditions. We also conducted long-term stability tests and effect of water and nitrogen in the gas feed with both catalysts to test their performance.

2. Results

2.1. Catalyst Preparation

Catalysts were prepared by a modified Vortex Method (VM) [4] and Incipient Wetness Method (IWM) [5,23] assuming a 5.0 wt% Pd loading on γ-Al2O3 support. The total mixing time in the original Vortex Method [4] was modified to match with the Incipient Wetness method. The details of the methods of preparation are given in the methods section. In this research article the catalysts prepared by VM and IWM are designated as 5-Pd-VM and 5-Pd-IWM respectively. Since the preparation method was modified, the properties, and characterization data by X-ray photoelectron spectroscopy (XPS) and scanning transmission electron microscopy (STEM) of the 5-Pd-VM catalyst differ from the original catalyst reported earlier [4] probably due to changes in preparation methods, crystallite size, particle size distribution, morphology, oxidation states, structure, and support interactions [1,3,5,6,22]. While the properties of the original catalyst changed, the activity for methane combustion remained almost the same. We do not fully understand at this stage why and how some of the catalyst properties of the original VM catalyst changed even though the activity remained almost the same.

2.2. Catalyst Characterization

2.2.1. Pulse CO Chemisorption

CO pulse chemisorption experiments provided measures of the dispersion and particle size (crystallite size) of the catalyst. The calculations were done based on actual Pd weight percent measured by Inductively Coupled Plasma Atomic Emission Spectrometry (ICP-AES) and assuming a 1:1 ratio of CO to Pd on the surface. The 5-Pd-VM catalyst had a slightly lower dispersion and a larger metal nanoparticle diameter compared to the 5-Pd-IWM catalyst. Both catalysts were made of nanoparticles in the range of 8.6–8.9 nm. However, 5-Pd-VM appeared to have a higher metallic surface area, although this could be attributed to having a slightly higher Pd wt%. The dispersion and particle sizes of the catalysts were similar to the data reported in the literature for Pd/γ-Al2O3 catalysts [8,9].

2.2.2. Inductively Coupled Plasma Atomic Emission Spectrometry (ICP-AES)

Although both catalysts had a target of 5.0 wt% Pd loading on γ-Al2O3 support, it appears there was slightly more Pd in 5-Pd-VM (4.58 wt% Pd) compared to 5-Pd-IWM (4.06 wt% Pd). This indicates that vortex mixing was a relatively better method in retaining Pd in the sample. Table 1 summarizes the physical and chemical properties of the catalysts. The properties were similar in both catalysts.

2.2.3. X-ray Photoelectron Spectroscopy (XPS)

Ex-situ XPS was used to identify near-surface species and compositions of the catalysts 5-Pd-VM and 5-Pd-IWM pre- and post-reaction. The results are shown in Figure 1 and Figure 2 and Table 2. Survey spectra obtained in the Pd 3d, O 1s, and Al 2p regions confirmed the relative presence and oxidation states of each element. Pd 3d spectra suggested that the nanoparticles in both catalysts were in oxidized states, with deconvoluted Pd 3d5/2 binding energy (BE) peaks at 335.8 and 336.9 eV representing PdOx (palladium native oxide PdNtv or palladium nonstoichiometric oxide) and PdO species, respectively [24]. Deconvolution of these surface species showed that 5-Pd-VM had about ~7% more of PdOx and ~7% less PdO compared to the catalyst 5-Pd-IWM. XPS data also confirmed the absence of metallic Pd (BE, 335.3 eV) in both catalysts [24,25]. The absence of metallic Pd in both catalysts is due to lower calcination temperature of 500 °C and decomposition temperature of PdO is higher than 700 °C [25]. Our results are contrary to previous studies which report the presence of Pd in such catalysts [23,26,27,28]. XPS data were also collected for the two catalysts after reaction with 1% methane, 4% oxygen and balance helium at 450 °C for 24 h. There was no significant change in the relative amounts of PdO and PdOx after reaction (Figure 1b,d).

2.2.4. Scanning Transmission Electron Microscopy (STEM)

High-angle annular dark field scanning transmission electron microscopy (HAADF-STEM) images (Figure 3 and Figure 4) identified PdO/PdOx in nanoparticle sizes. Both catalysts contained nanoparticles with an average PdO/PdOx crystallite size of 8.5 nm in 5-Pd-VM and 9.8 nm in 5-Pd-IWM catalysts. The average particle sizes of our nanocatalysts (~10 nm) are similar to the data reported by other researchers [8,29].
Figure 5 shows the particle size distribution in the two catalysts based on HAADF-STEM data. The size distributions are somewhat different in the two catalysts:
(i)
The crystallite sizes are 3–13 nm in 5-Pd-VM and 3–17 nm in 5-Pd-IWM;
(ii)
The catalyst 5-Pd-VM contains more smaller particles 3–5 nm than 5-Pd-IWM;
(iii)
The catalyst 5-Pd-IWM contains bigger particles 15–17 nm and these are absent in 5-Pd-VM;
(iv)
The particle size distribution was narrower (2–14 nm) in 5-Pd-VM than 5-Pd-IWM (2–18 nm).
In order to determine whether the metal oxide nanoparticles were on the surface of the support or embedded, the HAADF-STEM and scanning electron microscopy (SEM) images were analyzed further. Figure 6 gives the HAADF and SEM images for the two catalysts. The bright particles of PdO/PdOx are on the surface of the support and not embedded in the support as shown in the SEM images.

2.2.5. Temperature Programmed Reduction

Hydrogen temperature programmed reduction (TPR) results are shown in Figure 7. The 5-Pd-IWM catalyst prepared by IWM showed hydrogen consumption at 215–675 °C with a peak at 375 °C. The catalyst 5-Pd-VM had hydrogen consumption at 190–625 °C with a peak at 325 °C. This indicates that the oxidized species (PdO/PdOx) in 5-Pd-VM tends to be reduced at slightly lower temperatures than the same catalyst prepared by IWM. In the TPR experiment, the last step in the pretreatment involved cooling the catalyst to below 50 °C in a flow of H2/He; during this pretreatment, it was possible for some of the PdO/PdOx species on the surface to be reduced by hydrogen to produce metallic Pd which then adsorbed hydrogen. The negative endothermic peak at around 70 °C was due to desorption of hydrogen on the metallic surface of Pd that was adsorbed at room temperature [30] or due to decomposition of palladium hydride [23]. CH4-TPR of Pd catalysts on Al2O3, MgO, and ZrO2 supports showed a peak at 500 °C for the Pd/Al2O3 catalyst and the peak temperature was slightly lower compared to the other two catalysts. This indicated that the PdO oxidized species were more reactive on the Al2O3 support due to less metal-support interactions [9]. Chen et al. [5] did hydrogen TPR of a Pd catalyst on phosphorous-doped mesoporous alumina and observed a broad peak at 250–560 °C that was assigned to the reduction of the PdO species that strongly interacted with the support. It appears from the TPR data that the PdO species had less interaction with the support in the 5-Pd-VM catalyst and that could have contributed to the higher activity compared to the 5-Pd-IWM catalyst.

2.2.6. X-ray Diffraction

The X-ray diffraction (XRD) data of the catalysts 5-Pd-VM and 5-Pd-IWM, γ-Al2O3 and PdO are given in Figure 8.
The strong peaks for γ-Al2O3 are at 46° and 67.4° and the identifying peak for PdO is a strong peak at 34.1°. Both catalysts produced three main peaks at 34.1°, 46° and 67.4°, confirming the presence of PdO and γ-Al2O3 and no Pd metal (XRD peaks 39°, 49°, 82°). The XRD data confirmed that PdO and γ-Al2O3 in both catalysts were crystalline [5]. Our XRD data were similar to those reported in the literature [8,9].

2.3. Activity Studies

2.3.1. Conversion of Methane in 1–2% Methane, 4% Oxygen, Balance Helium Gas Feed

The gas hourly space velocity (GHSV) is one factor that affects methane conversion [5]. To assess the effect of GHSV on conversion, runs were conducted at five flow rates in the range 50–200 cc/min at laboratory ambient temperature and pressure and using 0.2 g 5-Pd-VM catalyst, reaction bed temperature 265 °C and reaction period of 20 min. The GHSV was 15,000–60,000 cc.g.cat-1.h−1. The conversions remained constant at 25% in the GHSV range, 37,000–60,000 cc.g.cat−1.h−1. Under these conditions, the catalytic reaction was kinetically controlled and not diffusion controlled. Hence, for all subsequent activity runs a GHSV of 45,000 cc.g.cat−1.h−1 was selected. Each activity run was conducted in a fixed bed differential flow reactor at a fixed temperature for a period of 20 min with 0.2 g catalyst in the fixed bed and a flow rate of 150 cc/min. The activities of the two catalysts (5-Pd-VM and 5-Pd-IWM) were measured by calculating conversions of methane at different temperatures in the range 250–350 °C. A pre-mixed gas of 1% methane, 4% oxygen, and balance helium was used in the feed to represent a “lean-burn” condition (oxygen rich); a second gas mixture of 2% methane, 4% oxygen and balance helium was used to represent an ideal stoichiometric ratio for the catalytic combustion. Figure 9 gives the conversions of methane by the two catalysts at different temperatures.
The conversion-temperature data provided some important conclusions about the activities of two catalysts:
(i)
The catalyst 5-Pd-VM showed higher activity at 275 °C compared to the catalyst 5-Pd-IWM which gave very low activity at this temperature with both 1% and 2% methane in the feed; the trends were similar at 300 °C, with 85% conversion by 5-Pd-VM and about 50% by 5-Pd-IWM.
(ii)
Catalyst 5-Pd-VM produced a high conversion of 90% methane at 325 °C for both 1% and 2% methane in the gas feed, while the conversions at this temperature for 5-Pd-IWM were much lower (67%) with 1% methane and about 88% with the 2% methane in the gas feed.
(iii)
Both catalysts converted 100% methane at 350 °C under both lean and stoichiometric conditions.
The catalyst reported in a previous publication [4] showed a decreasing trend in conversion in the temperature range of 330–400 °C and GHSV of 300,000 cc.g.cat−1.h−1 (0.2 g catalyst bed and flow rate of 1000 cc/min of mixed gas at normal laboratory temperature). However, in the present study we did not see this trend and the conversion increased and reached 100% at 350 °C with the GHSV maintained at 45,000 cc.g.cat−1.h−1 (0.2 g catalyst bed and flow rate of 150 cc/min of mixed gas at room temperature). It appears that a seven-fold decrease in GHSV and thereby a seven-time increase in the contact time was a major factor for the increase in conversion. However, the reaction was not diffusion-controlled in this range of space velocity and particles size of the activity experiments. Similar trends on the increase of catalytic activity with decrease in GHSV have also been reported [5,31,32].
The Pd/γ-Al2O3 catalysts reported by previous researchers exhibited low activities (30–50%) for methane combustion at 325 °C [7,8,9]. However, our catalyst 5-Pd-VM showed much higher activity at this temperature. These activity results indicate that the Vortex Method (VM) is a better technique for catalyst preparation than IWM. The high activities exhibited by the Pd/γ-Al2O3 catalyst prepared by Vortex method are similar to catalysts developed by other techniques [12,14,16,31,33,34].

2.3.2. Conversion of Methane in 1% Methane, 4% Oxygen, and Balance Nitrogen Gas Feed

The activities of the catalysts 5-Pd-VM and 5-Pd-IWM were determined experimentally by passing 150 cc of a mixed gas containing 1% methane, 4% oxygen and balance nitrogen over a 0.2 g catalyst bed for 20 min at 275–325 °C. Table 3 gives the conversion of methane at different temperatures for the two catalysts. A comparison of the activities (Figure 9 and Table 3) shows that both catalysts improved performance in the presence nitrogen compared to the mixed gas containing helium. However, at lower temperatures 250–275 °C the catalyst 5-Pd-VM exhibited much higher activity than 5-Pd-IWM; but catalyst 5-Pd-IWM had a significant improvement in activity at 300 °C. Simplicio et al. [8] reported similar low catalytic activities for Pd/γ-Al2O3 catalysts prepared by Incipient Wetness Method (IWM) in the presence of 0.5% CH4, 2% O2 and balance N2.
The combustion of methane in both mixed gases (1.0% methane, 4.0% oxygen, balance helium and 1.0% methane, 4.0% oxygen and balance nitrogen) produced carbon dioxide and water as the products. We did not find carbon monoxide in the product gas mixtures in any of the runs. The mol % of carbon dioxide produced matched with the mol % CH4 converted and this accounted for the carbon balance. We do not know why nitrogen in the gas feed improved the catalytic activities of both catalysts and particularly for the 5-Pd-VM catalyst at the lower temperature range.

2.4. Long-Term Stability Test of the Catalysts

Both catalysts were subjected to long-term stability tests by passing a mixed gas feed of 1.0% methane, 4.0% oxygen and balance helium over the catalysts separately in a fixed bed catalytic reactor at a selected temperature and GHSV of 45,000 cc.g.cat−1.h−1. The temperatures (T25 and T100) corresponding to 25% and 100 % conversions for the two catalysts as shown in Figure 9 were selected for the stability tests. The T25 temperatures for 5-Pd-VM and 5-Pd-IWM catalyst were 265 °C and 288 °C respectively; the corresponding value for T100 were 350 °C for both catalysts. The conversions of methane were calculated after 24 h, 48 h and 72 h for each catalyst. The data are given in Table 4. The methane conversions for 5-Pd-VM catalyst remained almost constant at 265 °C and 350 °C after 72 h. However, the activities of the catalyst 5-Pd-IWM decreased significantly at both T25 and T100 during 24–72 h stability tests. The results showed that the catalyst 5-Pd-VM was stable even after reaction with the gas feed for 72 h [5]. Similar long-term stability was displayed by Pd catalyst on other supports [16,21]. However, the catalyst 5-Pd-IWM deactivated after 24 h as reported by other researchers.

2.5. Effect of Steam

The conversions with catalyst 5-Pd-VM in the presence of steam were 89% after 2 h and 87% after 4 h at 350 °C. Under similar conditions, the conversions with catalyst 5-Pd-IWM were 78% and 71% respectively for 2 h and 4 h runs. The conversion of methane in the absence of steam in the feed for the catalyst 5-Pd-VM after a 4 h run at 350 °C was 100%. This indicated that the catalyst 5-Pd-VM was relatively stable in the presence of steam after reaction for 4 h. Deactivation by steam has been reported as a major issue for supported Pd catalysts [12,22,32,35,36,37] particularly at temperatures above 325 °C. Steam deactivation in Pd/γ-Al2O3 catalysts has been attributed to the reaction of PdO by steam to produce hydroxides [36,37]. However, our results show that the catalyst 5-Pd-VM prepared by Vortex method was comparatively stable in the presence of steam. A Pd catalyst on phosphorous-doped mesoporous γ-Al2O3 support showed good resistance to steam deactivation [5]. Some researchers also found Pt/Pd bimetallic catalysts to be resistant to steam during methane combustion due to diminished presence of surface hydroxyl groups [7,37].

2.6. Active Phases and Tentative Mechanism

The active phases of catalysts in methane combustion is still under dispute. Several authors had suggested PdO to be the active phase [2,7,12,33,38], while some suggested Pd to be the active phase [26,27,38]. Some researchers [2,4,7,29,39,40] have provided evidences for the existence of PdOx as an active phase during the catalytic combustion of methane. Both catalysts contain PdOx and PdO on the surface and no metallic Pd. Hence, it appears PdO/PdOx may be the active phase in these two catalysts for methane combustion.
Both catalysts have similar dispersions and nanoparticle sizes; catalyst 5-Pd-VM had about 7% more PdOx on the surface and about 0.5% more Pd content compared to 5-Pd-IWM catalyst. However, these properties alone cannot explain the higher activity of 5-Pd-VM catalyst. The catalyst 5-Pd-VM showed some unique characteristics compared to the 5-Pd-IWM catalyst:
(i)
The catalyst 5-Pd-VM contains more smaller particles 3–5 nm than 5-Pd-IWM (Figure 5).
(ii)
The particle size distribution was narrower (2–14 nm) in 5-Pd-VM than 5-Pd-IWM (2–18 nm) as shown in (Figure 5).
(iii)
PdO/PdOx in 5-Pd-VM tends to be reduced at lower temperatures indicating the interaction between PdO species and the support was comparatively weaker (TPR results in Figure 7).
It seems these characteristics along with slightly higher Pd content and PdOx may be contributing for the higher catalytic activity of the catalyst 5-Pd-VM. This explanation is supported by several recent publications [5,6,22]. Jiang et al. [5] argued that PdO support interactions was a major factor for the catalytic activity in methane combustion; Gorte et al. [6] found that the methane oxidation rate was dependent on Pd crystallite size and presence of hydroxyl groups on the surface of γ-Al2O3; Lundgren et al. [22] suggested that the activity of supported Pd nanocatalysts was sensitive to morphology, support, and pretreatment. The support alumina could also stabilize the PdO/PdOx species and facilitate oxygen migration on the surface and from the bulk [23,29]. It is still not clear why the activity of the 5-Pd-VM catalyst prepared by Vortex Method is higher. Detailed investigations of the support before and after the catalytic reaction using small and wide angle XRD, STEM, BET, pore-volume and pore-size distribution [5], and in-situ X-ray absorption near edge structure (XANES) and extended X-ray absorption fine structure (EXAFS) [22] experiments would provide further evidence to elucidate the mechanism of catalytic combustion reaction of methane.

3. Materials and Methods

3.1. Catalyst Synthesis

The catalyst 5-Pd-IWM was prepared by Incipient Wetness Method (IWM). The precursor, an aqueous solution of palladium nitrate hydrate (Sigma-Aldrich, MO, USA) was added in 20-μL installments to the solid support, γ-Al2O3 (Sigma-Aldrich, MO, USA) taken in a beaker and the mixture was stirred slowly until a dough-like consistency was formed. The total time for adding the precursor solution and mixing was 1 h. The catalyst was dried in an oven at 103 °C overnight and then calcined at 500 °C for 6 h. The calcined catalyst was powdered and then sieved. The particles between 63–75 μm were selected for characterization and activity experiments.
The catalyst 5-Pd-VM was prepared by a modified Vortex Method described in a previous publication [4]. The total mixing time in the modified method was reduced to 1 h in order to be consistent with the IWM total mixing time. In the original Vortex method, vortexing was continued for additional 2 h after the precursor solution was completely transferred to the support. This modification was done to ensure that the only difference in the two methods was the mixing technique. The vortexing equipment consisted of a single tube holder and analog vortex mixer (Fisher Scientific; Catalog number 02-215-430, Asheville, NC, USA). The precursor, an aqueous solution of palladium nitrate hydrate (Sigma-Aldrich, MO, USA) was added in 20 μL installments to the solid support, γ-Al2O3 (Sigma-Aldrich, MO, USA) taken in a vortex tube attached to the tube holder. The mixture of the precursor solution and support was mixed by vortexing at 900 rpm in the vortex mixer for a total time of 1 h. The catalyst was dried in an oven at 103 °C overnight and then calcinated at 500 °C for 6 h. The calcined catalyst was powdered and then sieved. The particles between 63–75 μm were selected for characterization and activity experiments.

3.2. Catalyst Characterization

3.2.1. ICP-AES

Elemental analysis of Pd was conducted at Galbraith Laboratories, Inc., utilizing inductively coupled plasma atomic emission spectrometry (ICP-AES) by Perkin Elmer 5300V (Akron, OH, USA) after the samples were acidified or digested.

3.2.2. XPS

X-ray photoelectron spectroscopy (XPS) analysis was conducted using a Thermo K-Alpha spectrometer (ThermoFisher Scientific, Waltham, MA, USA) employing a monochromatic Al Kα source with a double-focusing hemispherical analyzer. High-resolution spectra were taken of Pd2p, O1s, and C1s at a 0.1 eV step size, 50 ms dwell time, 50 eV pass energy, and a 400-μm spot size. The pressure inside the analytical chamber was approximately 5 × 10−8 torr. Charge referencing was done against adventitious carbon (C1s 284.8 eV).

3.2.3. Chemisorption and Physisorption

Chemisorption experiments including temperature programmed reduction (TPR) and pulse CO chemisorption were conducted in Micromeritics AutoChem II 2920 (Micromeritics Corporation, Norcross, GA, USA) [41]. Pd dispersion and metal particle size were measured with pulse chemisorption using CO as the probe gas. The catalyst (50 mg) was first pretreated in 20 mL/min of He (Airgas, PA, USA) at 200 °C for 2 h to remove preadsorbed species. The sample was then cooled to 50 °C and 20 mL/min of 10% H2/He was passed over the sample. Next, the catalyst was reduced under a flow of 10% H2/He and 450 °C at 5 °C/min and held for 1 h. The sample was then cooled to 300 °C in He flow for 30 min to remove adsorbed species. Afterwards, the sample was cooled to 30 °C to begin pulse CO testing. Doses of 10% CO/He (Airgas, PA, USA) were passed over the sample and analyzed in the TCD. Once saturation was reached, He was flowed over the sample for 60 min to remove physisorbed species. Finally, a second round of pulses was conducted to verify if there were any physisorbed species adsorbed. Dispersion and particle size (crystallite size) of the catalysts were calculated from the CO uptake, wt% of Pd from ICP analysis, and assuming a 1:1 ratio between the CO-adsorbed and Pd-active site.
For H2-TPR, the catalyst (50 mg) was pretreated in 20 mL/min of He (UHP, Airgas, PA, USA) at 200 °C for 2 h, and then cooled to 50 °C in a 20 mL/min flow of 10% H2/He. Next, the catalyst was reduced by ramping the furnace to 800 °C at a ramp rate of 5 °C/min under a flow of 10% H2/He. After passing through a liquid acetone/nitrogen trap, the gas flow was fed through a thermal conductivity detector (TCD) to determine hydrogen uptake.
Nitrogen physisorption was performed in a Quantachrome Quadrasorb SI volumetric analyzer (Quantachrome Instruments, Boynton Beach, FL, USA) at 77 K after the sample (50–100 mg) was pretreated at 110 °C under vacuum for 12 h. The surface area was estimated using the BET method following criteria outlined by Walton et al. [42] in the relative pressure range (P/P0) of 0.005−0.03.

3.2.4. STEM

Scanning transmission electron microscopy (STEM) imaging was carried out on samples prepared on a lacey carbon-coated Au grid. HAADF-STEM images were collected in an aberration-corrected Hitachi HD2700 (Hitachi Ltd., Tokyo, Japan).

3.2.5. XRD

XRD data were collected at 25 °C by Bruker D2 Phaser Table top diffractometer (Bruker, Madison, WI, USA) using Cu-Kα radiation 30 kV and 10 mA with step size 0.02 (2Ɵ), step size 0.5 sec. between 10–90° (2Ɵ).

3.3. Activity Measurements

Activity studies were conducted in a temperature-controlled horizontal tubular fixed-bed quartz reactor (internal diameter 12 mm). Catalyst (0.2 g) was packed in the fixed bed, supported by quartz wool and quartz beads to control the bed temperature of the exothermic combustion reaction. Particles between 63–75 μm were used in the activity experiments. Helium gas (150 cc/min) was passed through the catalyst bed and the reactor was heated by a temperature-controlled tubular furnace until a desired and constant temperature was achieved. The flow of helium was stopped and a certified gas mixture (Airgas, PA, USA) containing methane, oxygen, and balance helium or nitrogen was passed through an automatic mass flow controller (Aalborg, Orangeburg, NY, USA) and then to the catalyst bed. The effluent gas mixture (carbon dioxide, water vapor, unreacted methane, oxygen, and helium/nitrogen) was dried by passing through a moisture trap and then collected in a gas-tight syringe. A 1.0 cc sample of the sampled effluent gas mixture was injected into a gas chromatograph (GC Model 310, SRI Instruments, Torrance, CA, USA) fitted with a 6 ft. ShinCarbon (Restek Corporation, Bellefonte, PA, USA) packed column and a Thermal Conductivity Detector (TCD). The GC data was analyzed using PeakSimple software (SRI Instruments, Torrance, CA, USA) to calculate % by volume of methane and carbon dioxide.
The conversion of methane (v/v %) was calculated using the following equation:
Conversion   ( v / v   % ) = [ CH 4 ] in [ CH 4 ] out [ CH 4 ] in × 100 %
[CH4]in = Volume % of methane at 1 atm and 25 °C in the gas feed entering the reactor.
[CH4]out = Volume % methane at 1 atm and 25 °C in the gas mixture exiting the reactor.
For activity experiments, catalyst particle sizes of 63–75 μm, and gas flow rate of 150 cc/min at laboratory temperature of 25 °C and 1 atm were used. The GHSV was 45,000 cc.g.cat−1.h−1 at 25 °C and 1 atm. Activity runs were repeated and only runs with deviations below 2–3% were accepted. The gas feed composition was in volume % at 25 °C and 1 atm.

3.4. Effect of Steam

The effect of steam in the mixed gas feed was determined by passing a mixed gas (flow rate 150 cc/min) of 2% methane, 4% oxygen, and balance helium through a water bubbler. The percent of water vapor in the feed was 4.5%. The mixed gas (1.9% methane, 3.8% oxygen, 4.5% water vapor and balance helium 1 atm and 25 °C) was passed through the catalyst bed separately at 350 °C and space velocity of 45,000 cc.g.cat−1.h−1 for a period of 2 and 4 h.

3.5. Stability Test of the Catalysts

The long term stability test of the catalysts were conducted in a fixed-bed catalytic reactor, A mixed gas feed (1% methane, 4% oxygen, balance helium) with a flow rate of 150 cc/min, GHSV of 45,000 cc.g.cat−1.h−1 at 25 °C and 1 atm., was passed over the catalyst bed at 350 °C. The effluent gas samples were drawn and analyzed in the GC at intervals of 24 h, 48 h and 72 h for both catalysts. The temperatures (T25 and T100) corresponding to 25% and 100% conversions were selected for the stability tests for each catalyst.

4. Conclusions

Pd/γ-Al2O3 catalysts were synthesized by Vortex Method (VM) and Incipient Wetness Method (IWM) and characterized by various techniques (ICP-AES, Pulse CO Chemisorption, BET, TPR, XPS, XRD and STEM,) under identical conditions. From CO-pulse chemisorption, both catalysts had similar nanoparticle diameter (8.6–8.9 nm) and dispersions (12.6–13.1% Pd). XPS showed that surfaces of both catalysts contained PdO and PdOx with about slightly more PdOx in the 5-Pd-VM catalyst. HAADF-STEM images provided evidence for PdO/PdOx nanocrystals (8–10 nm); the 5-Pd-VM catalyst had smaller nanoparticles and narrower particle size distribution compared to the 5-Pd-IWM catalyst. Although the 5-Pd-VM catalyst was more active in the lower temperature range of 275–325 °C, both catalysts achieved 100% conversion at 350 °C. The 5-Pd-VM catalyst displayed long-term stability and relative resistance to water deactivation. It is hypothesized that smaller metal nanoparticles with a narrower distribution and weaker PdO/PdOx metal-support interaction may contribute to the higher activity in 5-Pd-VM catalyst.

Author Contributions

A.C.B. provided the concept and guidance for this research, contributed to data analysis and interpretation and much of the writing as the corresponding author; K.W.G. is co-first author based on her contributions: she contributed to characterization and interpretations, and also writing and editing of the manuscript; M.A.H. prepared the catalysts and did the activity studies; M.Z.B. did the XRD.

Funding

This research received no external funding.

Acknowledgments

This research was partly funded by Columbus State University Research Grants to A.B. and SRACE grants to M.A.H. Thanks to Yong Ding, Materials Characterization Facility at Georgia Institute of Technology for HAADF STEM and SEM imaging, particle size distribution and interpretations. This work was performed in part at the Georgia Tech Institute for Electronics and Nanotechnology, a member of the National Nanotechnology Coordinated Infrastructure, which is supported by the National Science Foundation (Grant ECCS-1542174).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, J.; Arandiyan, H.; Gao, X.; Li, J. Recent Advances in Catalysts for Methane Combustion. Catal. Surv. Asia 2015, 19, 140–171. [Google Scholar] [CrossRef]
  2. Gélin, P.; Primet, M. Complete oxidation of methane at low temperature over noble metal based catalysts: A review. Appl. Catal. B Environ. 2002, 39, 1–37. [Google Scholar] [CrossRef]
  3. Monai, M.; Montini, T.; Gorte, R.J.; Fornasiero, P. Catalytic Oxidation of Methane: Pd and Beyond. Eur. J. Inorg. Chem. 2018, 2018, 2884–2893. [Google Scholar] [CrossRef]
  4. Banerjee, A.; McGuire, J.; Lawnick, O.; Bozack, M. Low-Temperature Activity and PdO-PdOx Transition in Methane Combustion by a PdO-PdOx/γ-Al2O3 Catalyst. Catalysts 2018, 8, 266. [Google Scholar] [CrossRef]
  5. Jiang, L.; Zheng, Y.; Chen, X.; Xiao, Y.; Cai, G.; Zheng, Y.; Zhang, Y.; Huang, F. Catalytic Activity and Stability over Nanorod-Like Ordered Mesoporous Phosphorus-Doped Alumina Supported Palladium Catalysts for Methane Combustion. ACS Catal. 2018, 8, 11016–11028. [Google Scholar]
  6. Gorte, R.J.; Arroyo-Ramirez, L.; Chung, Y.-C.; Zhang, S.; Graham, G.W.; Onn, T.M.; Pan, X. Improved Thermal Stability and Methane-Oxidation Activity of Pd/Al2O3 Catalysts by Atomic Layer Deposition of ZrO2. ACS Catal. 2015, 5, 5696–5701. [Google Scholar]
  7. Goodman, E.D.; Dai, S.; Yang, A.C.; Wrasman, C.J.; Gallo, A.; Bare, S.R.; Hoffman, A.S.; Jaramillo, T.F.; Graham, G.W.; Pan, X.; et al. Uniform Pt/Pd Bimetallic Nanocrystals Demonstrate Platinum Effect on Palladium Methane Combustion Activity and Stability. ACS Catal. 2017, 7, 4372–4380. [Google Scholar] [CrossRef]
  8. Simplício, L.M.T.; Brandão, S.T.; Sales, E.A.; Lietti, L.; Bozon-Verduraz, F. Methane combustion over PdO-alumina catalysts: The effect of palladium precursors. Appl. Catal. B Environ. 2006, 63, 9–14. [Google Scholar] [CrossRef]
  9. Yoshida, H.; Nakajima, T.; Yazawa, Y.; Hattori, T. Support effect on methane combustion over palladium catalysts. Appl. Catal. B Environ. 2007, 71, 70–79. [Google Scholar] [CrossRef]
  10. Liu, D.; Seeburg, D.; Kreft, S.; Bindig, R.; Hartmann, I.; Schneider, D.; Enke, D.; Wohlrab, S. Rice Husk Derived Porous Silica as Support for Pd and CeO2 for Low Temperature Catalytic Methane Combustion. Catalysts 2019, 9, 26. [Google Scholar] [CrossRef]
  11. Li, Y.; Luo, C.; Liu, Z.; Lin, F. Experimental Study on Catalytic Combustion of Methane in a Microcombustor with Metal Foam Monolithic Catalyst. Catalysts 2018, 8, 536. [Google Scholar] [CrossRef]
  12. Cargnello, M.; Jaén, J.J.D.; Garrido, J.C.H.; Bakhmutsky, K.; Montini, T.; Gámez, J.J.C.; Gorte, R.J.; Fornasiero, P. Exceptional Activity for Methane Combustion over Modular [email protected]2 Subunits on Functionalized Al2O3. Science 2012, 337, 713–718. [Google Scholar] [CrossRef] [PubMed]
  13. Khader, M.; Al-Marri, M.; Ali, S.; Abdelmoneim, A. Active and Stable Methane Oxidation Nano-Catalyst with Highly-Ionized Palladium Species Prepared by Solution Combustion Synthesis. Catalysts 2018, 8, 66. [Google Scholar] [CrossRef]
  14. Xiao, C.; Yang, Y.; Meng, D.; Dong, L.; Luo, L.; Tan, Z. Stable and active monolithic palladium catalyst for catalytic oxidation of methane using nanozeolite silicalite-1 coating on cordierite. Appl. Catal. A Gen. 2017, 531, 197–202. [Google Scholar] [CrossRef]
  15. Li, M.; Gui, P.; Zheng, L.; Li, J.; Xue, G.; Liang, J. Active Component Migration and Catalytic Properties of Nitrogen Modified Composite Catalytic Materials. Catalysts 2018, 8, 125. [Google Scholar] [CrossRef]
  16. Ercolino, G.; Stelmachowski, P.; Specchia, S. Catalytic Performance of Pd/Co3O4 on SiC and ZrO2 Open Cell Foams for Process Intensification of Methane Combustion in Lean Conditions. Ind. Eng. Chem. Res. 2017, 56, 6625–6636. [Google Scholar] [CrossRef]
  17. Zhang, X.; Long, E.; Li, Y.; Zhang, L.; Guo, J.; Gong, M.; Chen, Y. The effect of CeO2 and BaO on Pd catalysts used for lean-burn natural gas vehicles. J. Mol. Catal. A Chem. 2009, 308, 73–78. [Google Scholar] [CrossRef]
  18. Pantaleo, G.; Liotta, L.F.; Venezia, A.M.; Kantcheva, M.; Di Carlo, G. Effect of Ti(IV) loading on CH4 oxidation activity and SO2 tolerance of Pd catalysts supported on silica SBA-15 and HMS. Appl. Catal. B Environ. 2011, 106, 529–539. [Google Scholar]
  19. Liotta, L.F.; Di Carlo, G.; Pantaleo, G.; Garrido, J.C.H.; Venezia, A.M. Pd (1 wt%)/LaMn0.4Fe0.6O3 catalysts supported over silica SBA-15: Effect of perovskite loading and support morphology on methane oxidation activity and SO2 tolerance. Top. Catal. 2012, 55, 782–791. [Google Scholar] [CrossRef]
  20. Ma, J.; Lou, Y.; Cai, Y.; Zhao, Z.; Wang, L.; Zhan, W.; Guo, Y.; Guo, Y. The relationship between the chemical state of Pd species and the catalytic activity for methane combustion on Pd/CeO2. Catal. Sci. Technol. 2018, 8, 2567–2577. [Google Scholar] [CrossRef]
  21. Martin, A.; Liu, D.; Atia, H.; Schneider, M.; Wohlrab, S.; Pohl, M.-M.; Radnik, J.; Seeburg, D. Structural Changes of Highly Active Pd/MeOx (Me = Fe, Co, Ni) during Catalytic Methane Combustion. Catalysts 2018, 8, 42. [Google Scholar]
  22. Lundgren, E.; Nilsson, J.; Gustafson, J.; Grönbeck, H.; Skoglundh, M.; Newton, M.A.; Fouladvand, S.; Carlsson, P.-A.; Martin, N.M. Chemistry of Supported Palladium Nanoparticles during Methane Oxidation. ACS Catal. 2015, 5, 2481–2489. [Google Scholar]
  23. Miller, J.B.; Malatpure, M. Pd catalysts for total oxidation of methane: Support effects. Appl. Catal. A Gen. 2015, 495, 54–62. [Google Scholar] [CrossRef]
  24. Christ, B.V. Handbook of Monochromatic Xps Spectra. The Elements of Native Oxides; Wiley-VCH: Weinheim, Germany, 2000; p. 49265. ISBN 0-471-49265-5. [Google Scholar]
  25. Gil, S.; Retailleau, L.; Garcia-Vargas, J.; Ousmane, M.; Pantaleo, G.; Giroir-Fendler, A.; Liotta, L. Catalytic Oxidation of Propene over Pd Catalysts Supported on CeO2, TiO2, Al2O3 and M/Al2O3 Oxides (M = Ce, Ti, Fe, Mn). Catalysts 2015, 5, 671–689. [Google Scholar] [CrossRef]
  26. Sadokhina, N.; Ghasempour, F.; Auvray, X.; Smedler, G.; Nylén, U.; Olofsson, M.; Olsson, L. An Experimental and Kinetic Modelling Study for Methane Oxidation over Pd-based Catalyst: Inhibition by Water. Catal. Lett. 2017, 147, 2360–2371. [Google Scholar] [CrossRef]
  27. Bychkov, V.Y.; Tyulenin, Y.P.; Gorenberg, A.Y.; Sokolov, S.; Korchak, V.N. Evolution of Pd catalyst structure and activity during catalytic oxidation of methane and ethane. Appl. Catal. A Gen. 2014, 485, 1–9. [Google Scholar] [CrossRef]
  28. Xiong, H.; Wiebenga, M.H.; Carrillo, C.; Gaudet, J.R.; Pham, H.N.; Kunwar, D.; Oh, S.H.; Qi, G.; Kim, C.H.; Datye, A.K. Design considerations for low-temperature hydrocarbon oxidation reactions on Pd based catalysts. Appl. Catal. B Environ. 2018, 236, 436–444. [Google Scholar] [CrossRef]
  29. Schwartz, W.R.; Pfefferle, L.D. Combustion of methane over palladium-based catalysts: Support interactions. J. Phys. Chem. C 2012, 116, 8571–8578. [Google Scholar] [CrossRef]
  30. Di, L.; Xu, W.; Zhan, Z.; Zhang, X. Synthesis of alumina supported Pd-Cu alloy nanoparticles for CO oxidation via a fast and facile method. RSC Adv. 2015, 5, 71854–71858. [Google Scholar] [CrossRef]
  31. Ercolino, G.; Karimi, S.; Stelmachowski, P.; Specchia, S. Catalytic combustion of residual methane on alumina monoliths and open cell foams coated with Pd/Co3O4. Chem. Eng. J. 2017, 326, 339–349. [Google Scholar] [CrossRef]
  32. Van Giezen, J.C.; Van Den Berg, F.R.; Kleinen, J.L.; Van Dillen, A.J.; Geus, J.W. The effect of water on the activity of supported palladium catalysts in the catalytic combustion of methane. Catal. Today 1999, 47, 287–293. [Google Scholar] [CrossRef]
  33. Stefanov, P.; Todorova, S.; Naydenov, A.; Tzaneva, B.; Kolev, H.; Atanasova, G.; Stoyanova, D.; Karakirova, Y.; Aleksieva, K. On the development of active and stable Pd-Co/γ-Al2O3 catalyst for complete oxidation of methane. Chem. Eng. J. 2015, 266, 329–338. [Google Scholar] [CrossRef]
  34. Ercolino, G.; Stelmachowski, P.; Grzybek, G.; Kotarba, A.; Specchia, S. Optimization of Pd catalysts supported on Co3O4 for low-temperature lean combustion of residual methane. Appl. Catal. B Environ. 2017, 206, 712–725. [Google Scholar] [CrossRef]
  35. Burch, R.; Urbano, F.J.; Loader, P.K. Methane combustion over palladium catalysts: The effect of carbon dioxide and water on activity. Appl. Catal. A Gen. 1995, 123, 173–184. [Google Scholar] [CrossRef]
  36. Ciuparu, D.; Pfefferle, L. Support and water effects on palladium based methane combustion catalysts. Appl. Catal. A Gen. 2001, 209, 415–428. [Google Scholar] [CrossRef]
  37. Persson, K.; Pfefferle, L.D.; Schwartz, W.; Ersson, A.; Järås, S.G. Stability of palladium-based catalysts during catalytic combustion of methane: The influence of water. Appl. Catal. B Environ. 2007, 74, 242–250. [Google Scholar] [CrossRef]
  38. Huang, F.; Chen, J.; Hu, W.; Li, G.; Wu, Y.; Yuan, S.; Zhong, L.; Chen, Y. Pd or PdO: Catalytic active site of methane oxidation operated close to stoichiometric air-to-fuel for natural gas vehicles. Appl. Catal. B Environ. 2017, 219, 73–81. [Google Scholar] [CrossRef]
  39. Forzatti, P. Status and perspectives of catalytic combustion for gas turbines. Catal. Today 2003, 83, 3–18. [Google Scholar] [CrossRef]
  40. Gholami, R.; Smith, K.J. Activity of PdO/SiO2 catalysts for CH4 oxidation following thermal treatments. Appl. Catal. B Environ. 2015, 168–169, 156–163. [Google Scholar] [CrossRef]
  41. Sulmonetti, T.P.; Pang, S.H.; Claure, M.T.; Lee, S.; Cullen, D.A.; Agrawal, P.K.; Jones, C.W. Vapor phase hydrogenation of furfural over nickel mixed metal oxide catalysts derived from layered double hydroxides. Appl. Catal. A Gen. 2016, 517, 187–195. [Google Scholar] [CrossRef]
  42. Walton, K.S.; Snurr, R.Q. Applicability of the BET method for determining surface areas of microporous metal-organic frameworks. J. Am. Chem. Soc. 2007, 129, 8552–8556. [Google Scholar] [CrossRef]

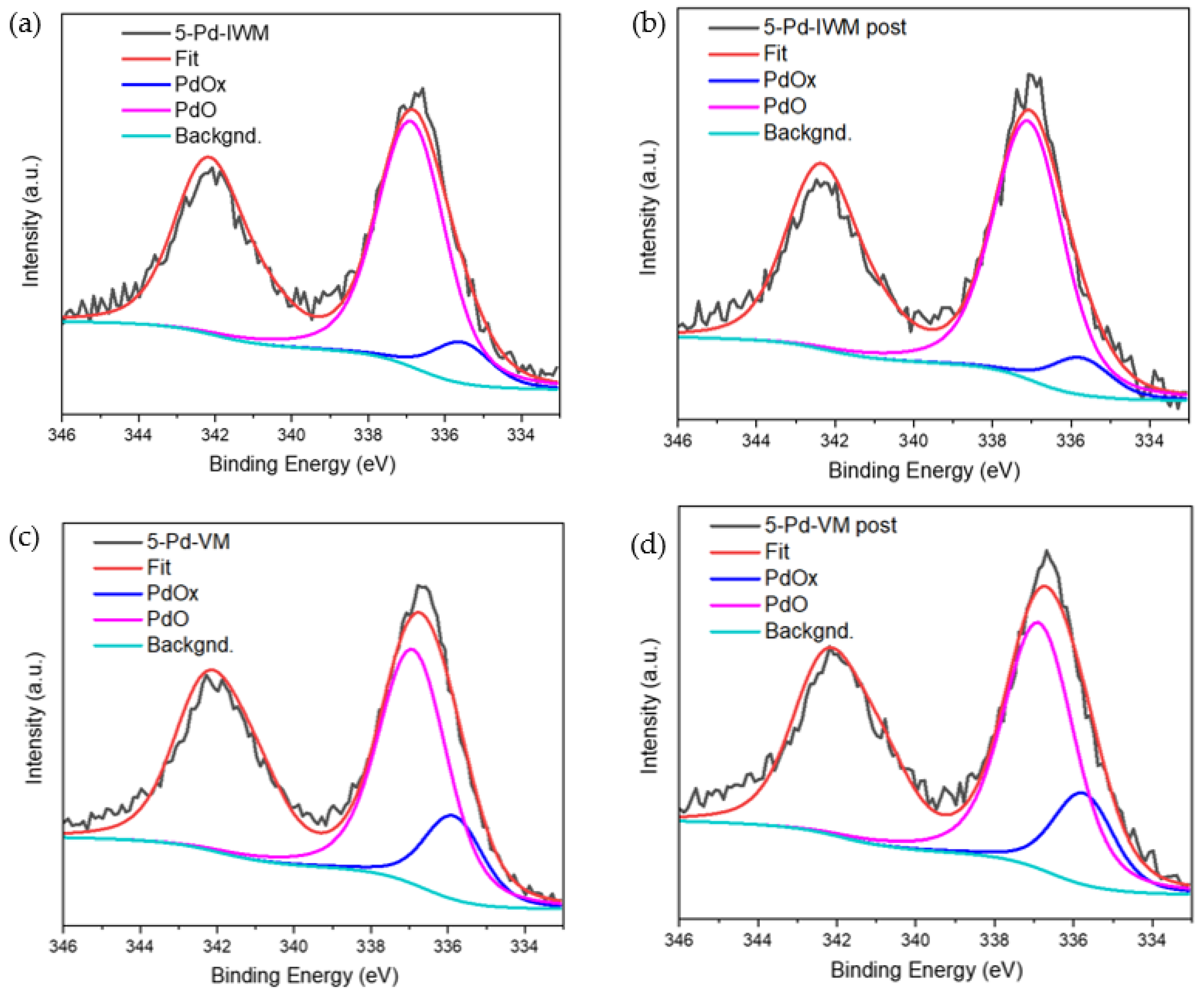

Figure 1. XPS deconvolution of pre- and post-reaction; 5-Pd-IWM (a,b) and 5-Pd-VM (c,d) in the Pd3d binding energy region.
Figure 1. XPS deconvolution of pre- and post-reaction; 5-Pd-IWM (a,b) and 5-Pd-VM (c,d) in the Pd3d binding energy region.
Catalysts 09 00336 g001

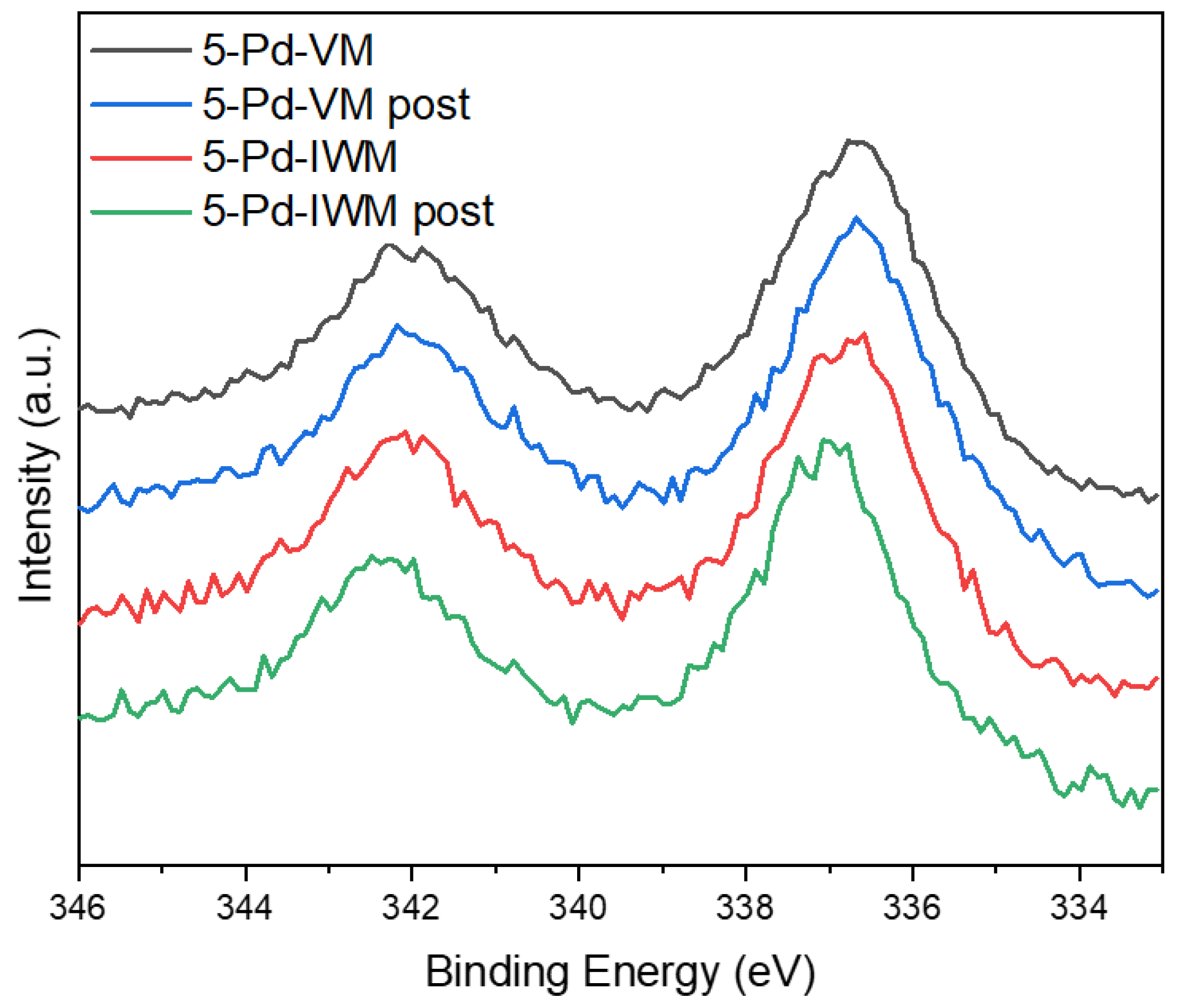

Figure 2. XPS of 5-Pd-VM and 5-Pd-IWM catalysts pre- and post-reaction in the Pd3d binding energy region.
Figure 2. XPS of 5-Pd-VM and 5-Pd-IWM catalysts pre- and post-reaction in the Pd3d binding energy region.
Catalysts 09 00336 g002
Figure 3. (a,b) Low-magnification high-angle annular dark field scanning transmission electron microscopy (HAADF-STEM) image of 5-Pd-VM catalyst. The tiny bright dots are PdO/PdOx nanoparticles; some are pointed by arrowheads. (ce) high magnification HAADF STEM images to show the crystal structure of PdO/PdOx clusters.
Figure 3. (a,b) Low-magnification high-angle annular dark field scanning transmission electron microscopy (HAADF-STEM) image of 5-Pd-VM catalyst. The tiny bright dots are PdO/PdOx nanoparticles; some are pointed by arrowheads. (ce) high magnification HAADF STEM images to show the crystal structure of PdO/PdOx clusters.
Catalysts 09 00336 g003
Figure 4. (a,b) Low-magnification HAADF-STEM image of 5-Pd-IWM catalyst. The tiny bright dots are PdO/PdOx nanoparticles; some are pointed by arrowheads. (cg) High magnification HAADF-STEM images to show the crystal structure of of PdO/PdOx clusters.
Figure 4. (a,b) Low-magnification HAADF-STEM image of 5-Pd-IWM catalyst. The tiny bright dots are PdO/PdOx nanoparticles; some are pointed by arrowheads. (cg) High magnification HAADF-STEM images to show the crystal structure of of PdO/PdOx clusters.
Catalysts 09 00336 g004
Figure 5. Size distribution of PdO/PdOx particles in (a) 5-Pd-VM and (b) 5-Pd-IWM.
Figure 5. Size distribution of PdO/PdOx particles in (a) 5-Pd-VM and (b) 5-Pd-IWM.
Catalysts 09 00336 g005
Figure 6. HAADF-STEM and SEM images. (a) HAADF-STEM image of 5-Pd-VM; (b) SEM image of 5-Pd-VM from the same area; (c) HAADF-STEM image of 5-Pd-IWM; (d) SEM image of 5-Pd-IWM from the same area. The bright particles of PdO/PdOx are on the surface of the support as showing in the SEM image.
Figure 6. HAADF-STEM and SEM images. (a) HAADF-STEM image of 5-Pd-VM; (b) SEM image of 5-Pd-VM from the same area; (c) HAADF-STEM image of 5-Pd-IWM; (d) SEM image of 5-Pd-IWM from the same area. The bright particles of PdO/PdOx are on the surface of the support as showing in the SEM image.
Catalysts 09 00336 g006

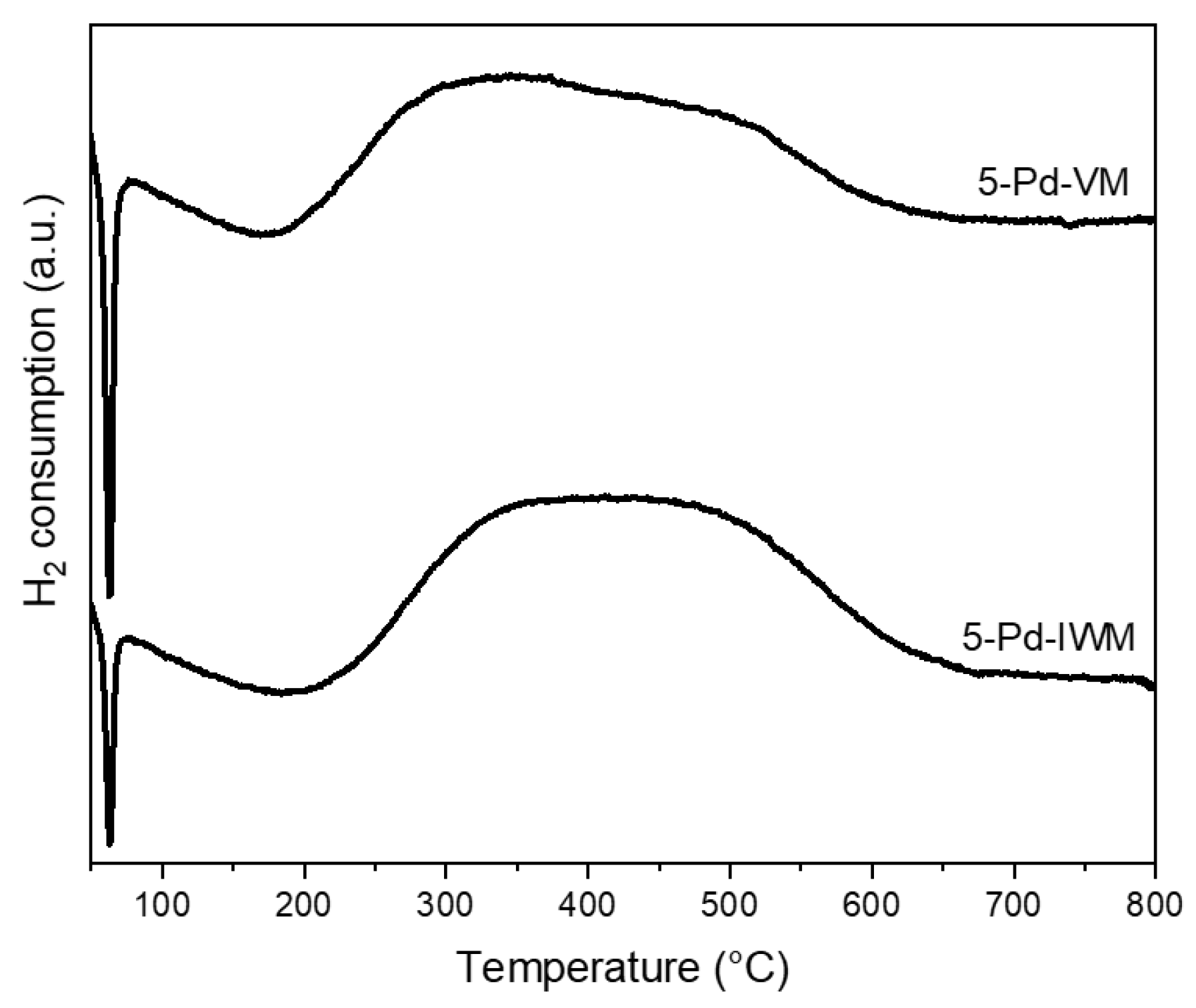

Figure 7. H2-TPR of catalyst 5-Pd-IWM and 5-Pd-VM.
Figure 7. H2-TPR of catalyst 5-Pd-IWM and 5-Pd-VM.
Catalysts 09 00336 g007

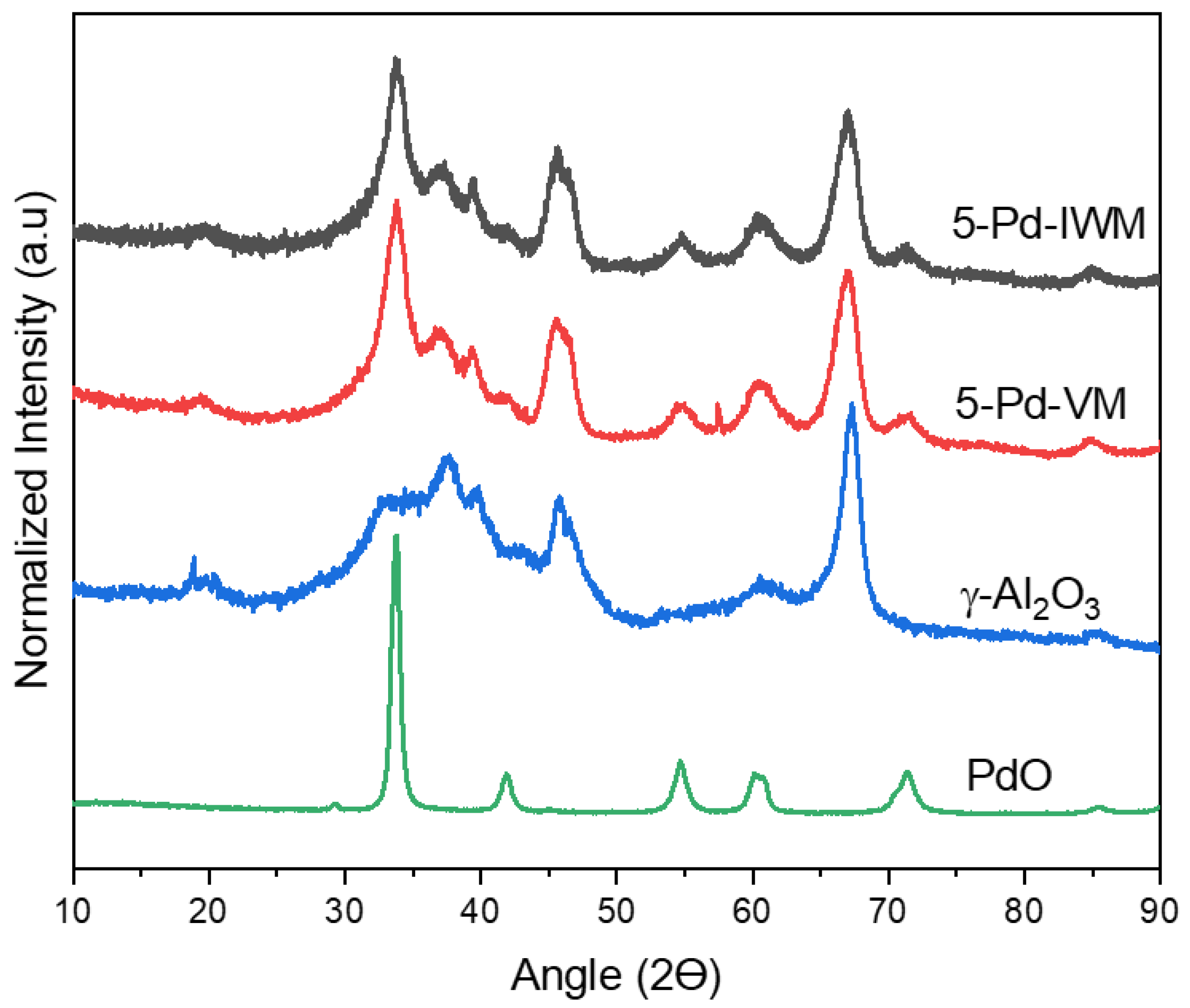

Figure 8. X-ray diffraction data.
Figure 8. X-ray diffraction data.
Catalysts 09 00336 g008

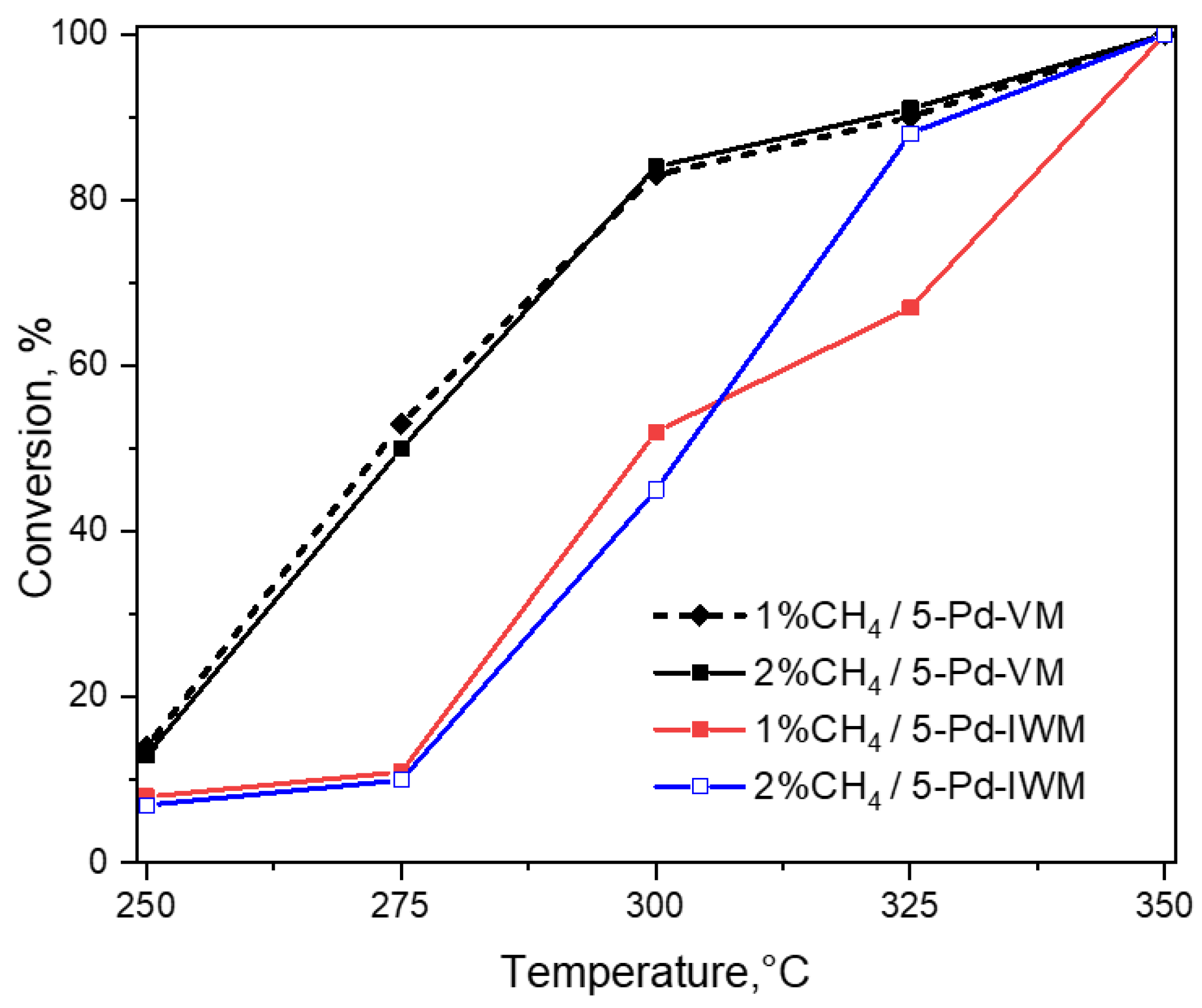

Figure 9. Activities of the 5-Pd-VM and 5-Pd-IWM catalysts at different temperatures and either 1% or 2% methane gas feed (GHSV = 45,000 cc.g.cat−1.h−1/gcat/h; reaction period = 20 min).
Figure 9. Activities of the 5-Pd-VM and 5-Pd-IWM catalysts at different temperatures and either 1% or 2% methane gas feed (GHSV = 45,000 cc.g.cat−1.h−1/gcat/h; reaction period = 20 min).
Catalysts 09 00336 g009
Table 1. Properties of the catalysts.
Table 1. Properties of the catalysts.
PropertiesValues
5-Pd-VM5-Pd-IWM
Targeted Wt% Pd5.0%5.0%
Pd Wt% [ICP-AES]4.6%4.1%
Surface Area *
CO uptake in chemisorption
127 m2/g
54.4 μmol/g
129 m2/g
49.9 μmol/g
Dispersion12.6%13.1%
Metal Surface Area2.6 m2/g2.4 m2/g
Nanoparticle diameter (hemisphere)8.9 nm8.6 nm
* From BET (Brunauer, Emmett and Teller) method.
Table 2. XPS deconvolution of catalysts pre- and post-reaction in Pd 3d5/2 region. VM: Vortex Method; IWM: Incipient Wetness Method.
Table 2. XPS deconvolution of catalysts pre- and post-reaction in Pd 3d5/2 region. VM: Vortex Method; IWM: Incipient Wetness Method.
SamplePdOx (Atomic %)PdO (Atomic %)
5-Pd-VM2377
5-Pd-VM Post2476
5-Pd-IWM1684
5-Pd-IWM Post1189
Table 3. Activities of catalysts in 1% methane, 4% oxygen, balance nitrogen.
Table 3. Activities of catalysts in 1% methane, 4% oxygen, balance nitrogen.
Temperature, °CMethane Conversion, %
5-Pd-VM5-Pd-IWM
2506118
27510046
300100100
GHSV= 45,000 cc.g.cat−1.h−1; reaction period = 20 min.
Table 4. Long-term stability tests of catalysts.
Table 4. Long-term stability tests of catalysts.
Reaction Period, hMethane Conversion, %
5-Pd-VM5-Pd-IWM
T25T100T25T100
24251001876
48241001575
72231001067
GHSV = 45,000 cc.g.cat−1.h−1; T25 = 265 °C and T100 = 350 °C for 5-Pd-VM; T25 = 288 °C and T100 = 350 °C for 5-Pd-IWM.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Catalysts EISSN 2073-4344 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
