Next Article in Journal
Duality in the Mechanism of Hexagonal ZnO/CuxO Nanowires Inducing Sulfamethazine Degradation under Solar or Visible Light
Previous Article in Journal
Surfactant Imprinting Hyperactivated Immobilized Lipase as Efficient Biocatalyst for Biodiesel Production from Waste Cooking Oil
Previous Article in Special Issue
Co(II/III) Complexes with Benzoxazole and Benzothiazole Ligands as Efficient Heterogenous Photocatalysts for Organic Dyes Degradation
Open AccessArticle

Photocatalytic Degradation of Different VOCs in the Gas-Phase over TiO2 Thin Films Prepared by Ultrasonic Spray Pyrolysis

1
Department of Materials and Environmental Technology, Laboratory of Thin Film Chemical Technologies Tallinn University of Technology, Ehitajate tee 5, 19086 Tallinn, Estonia
2
Department of Materials and Environmental Technology, Laboratory of Environmental Technology, Tallinn University of Technology, Ehitajate tee 5, 19086 Tallinn, Estonia
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(11), 915; https://doi.org/10.3390/catal9110915
Received: 20 September 2019 / Revised: 30 October 2019 / Accepted: 31 October 2019 / Published: 2 November 2019

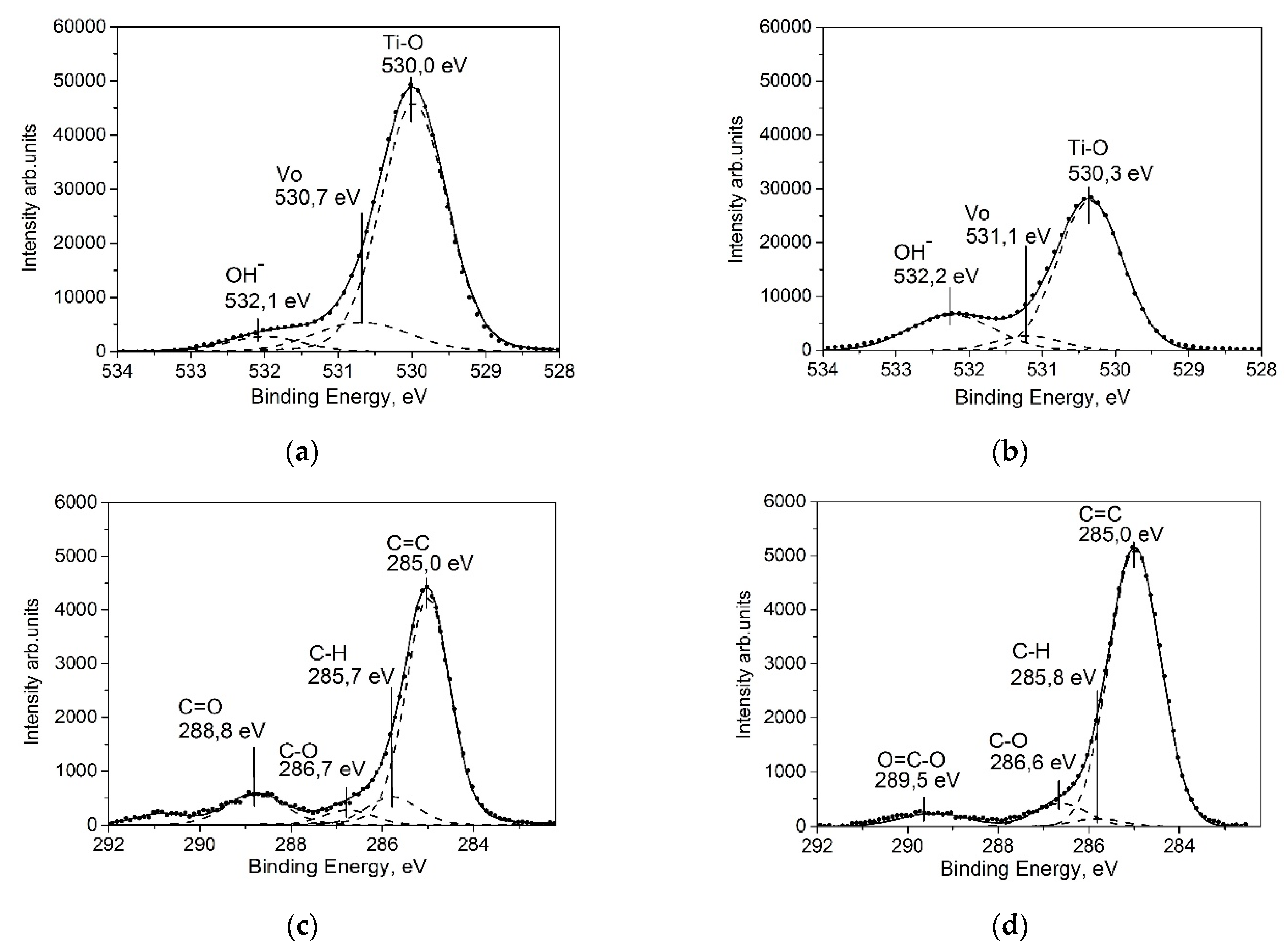

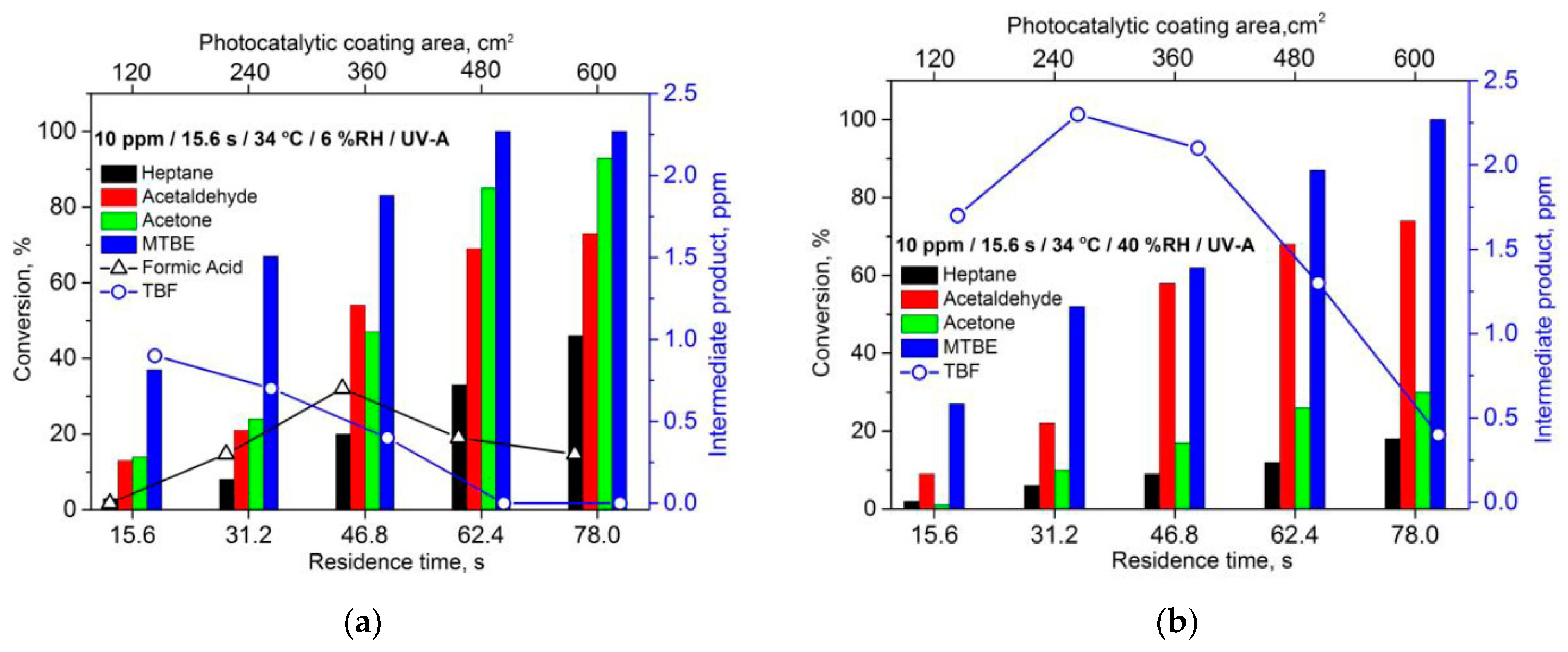

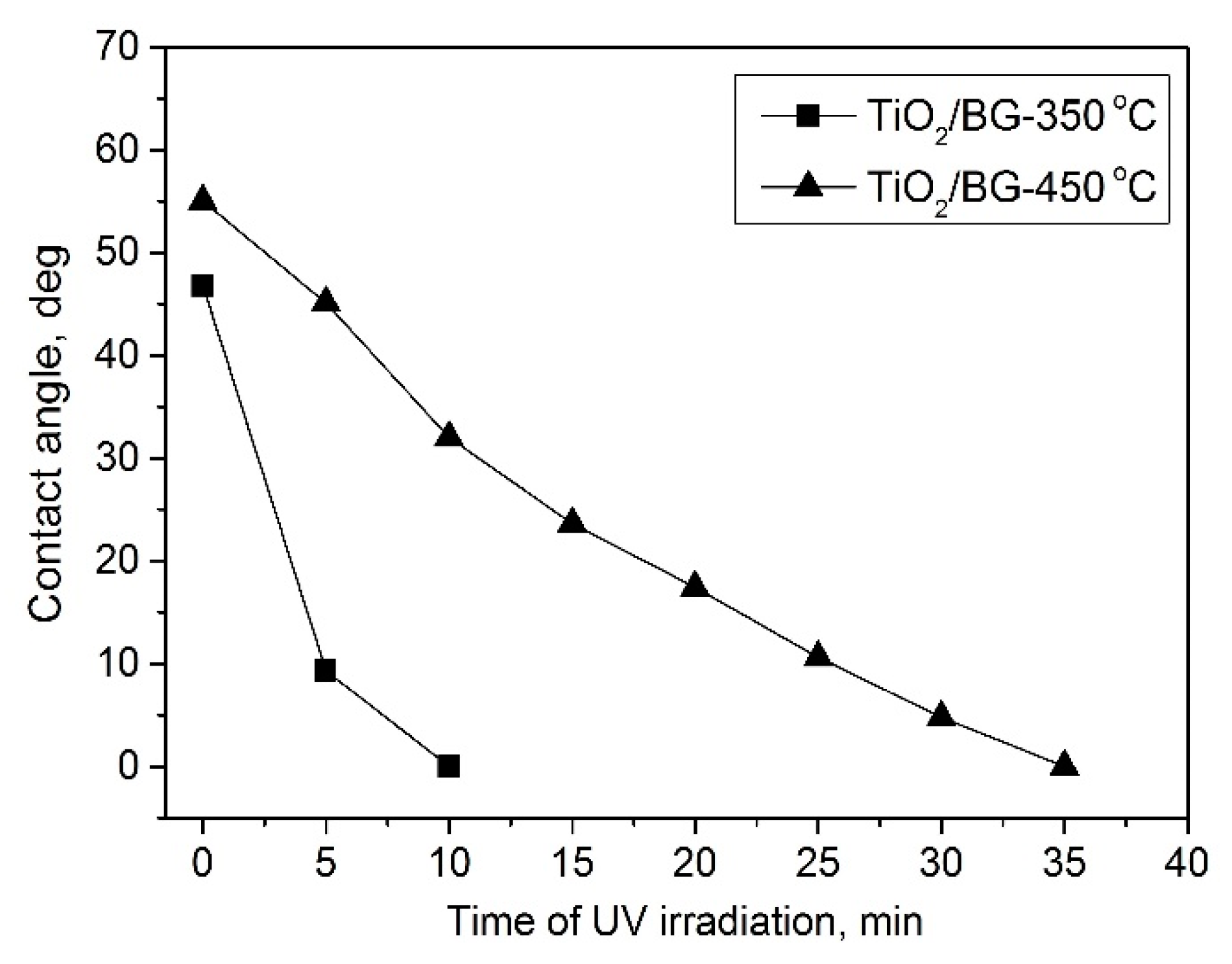

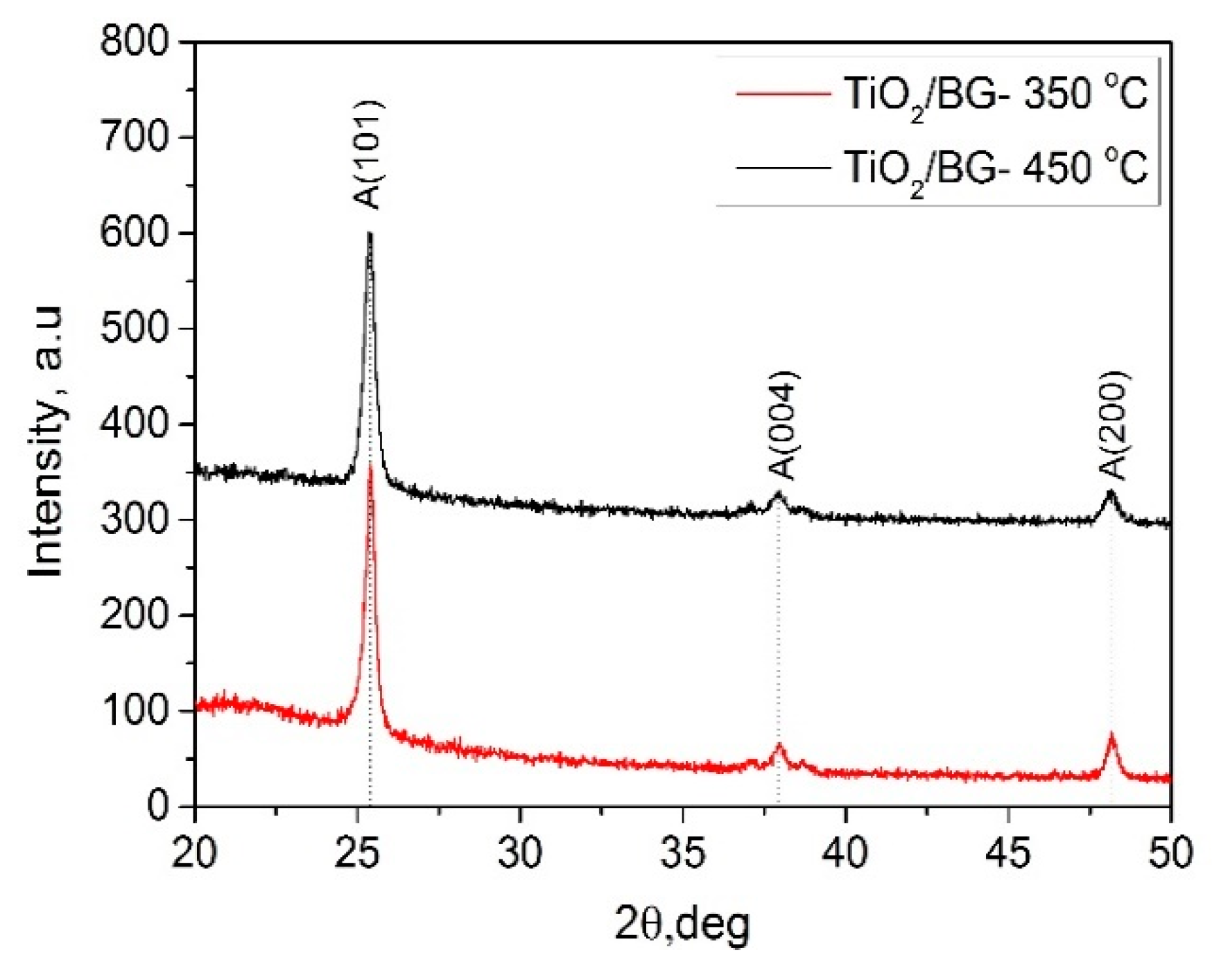

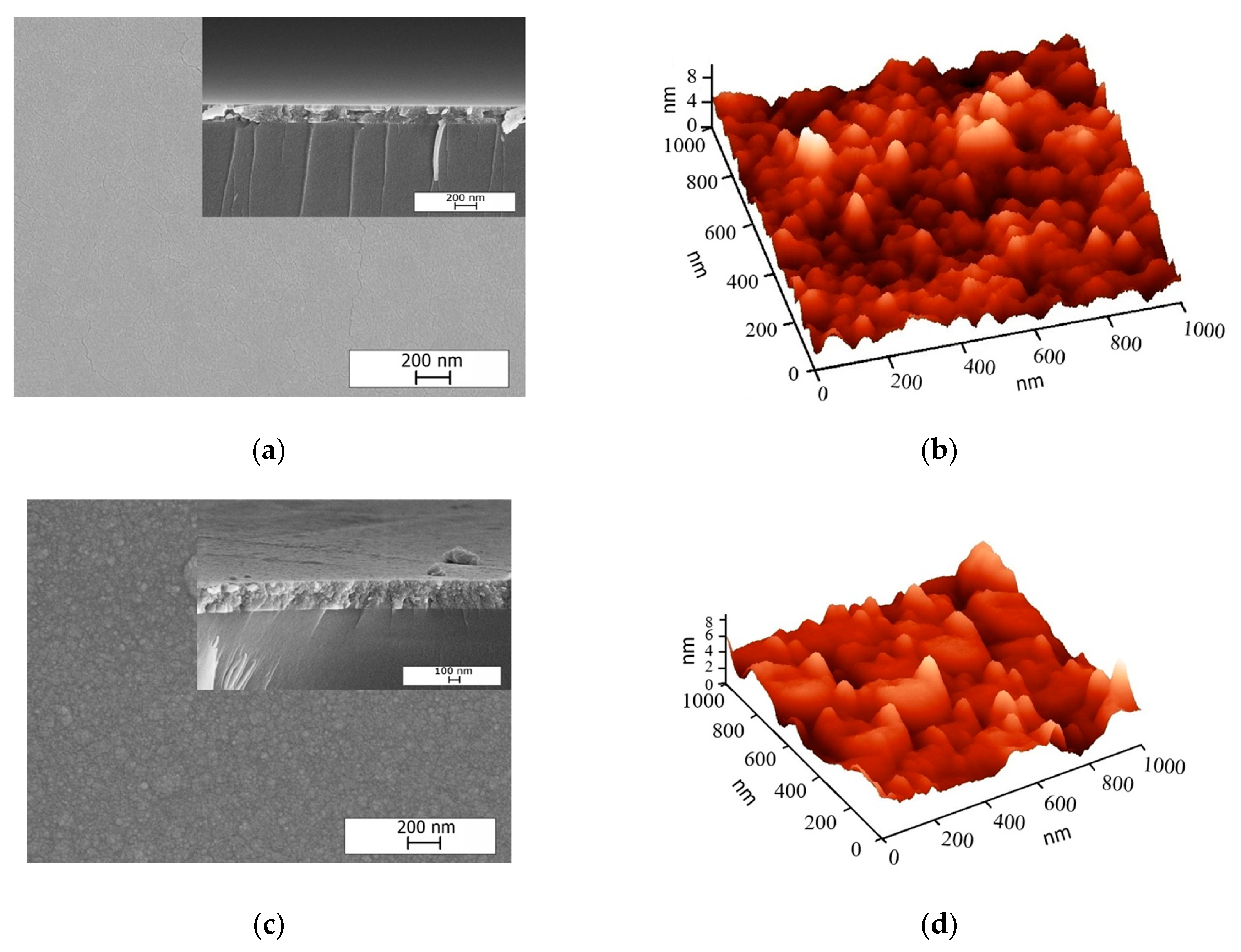

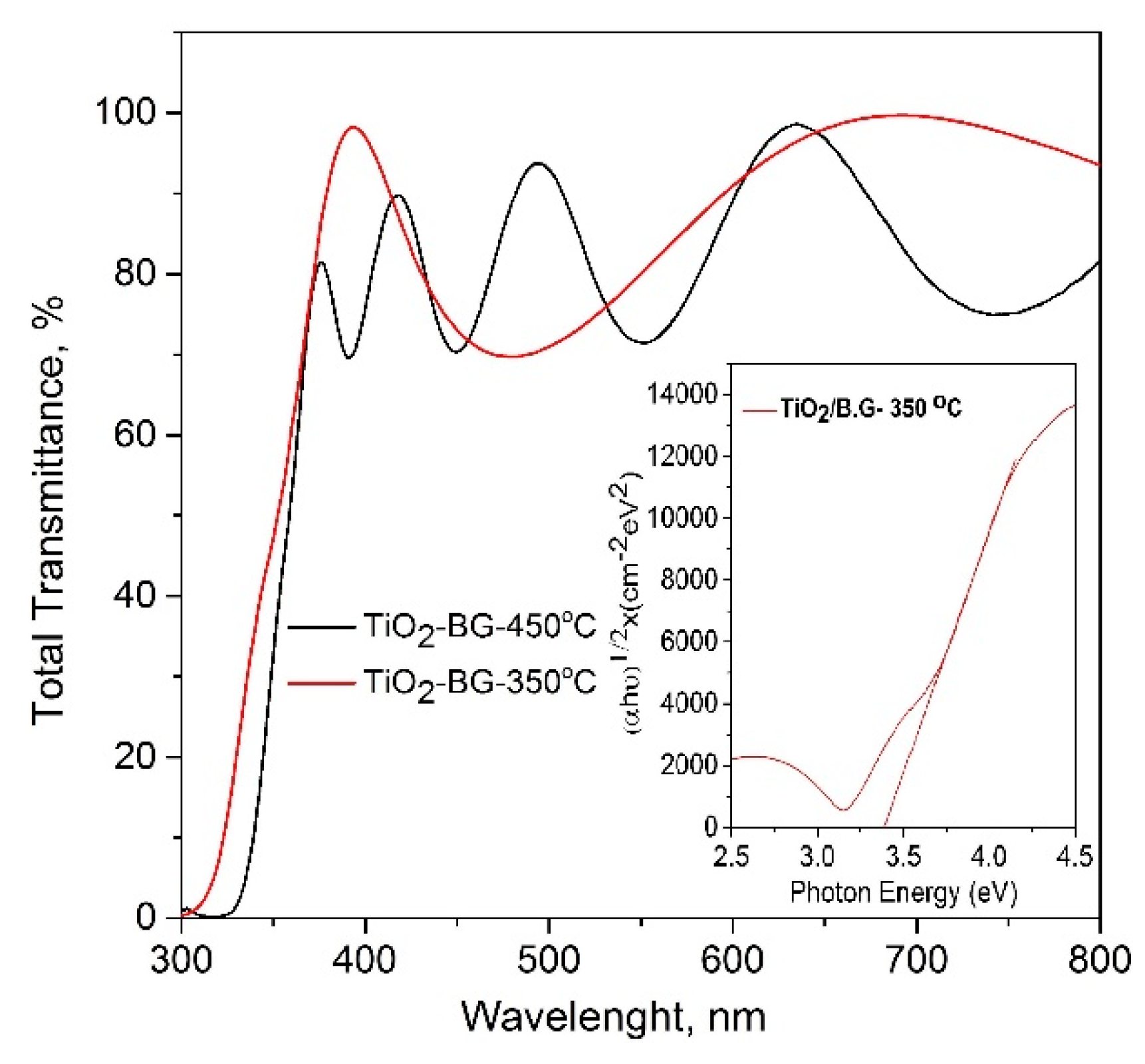

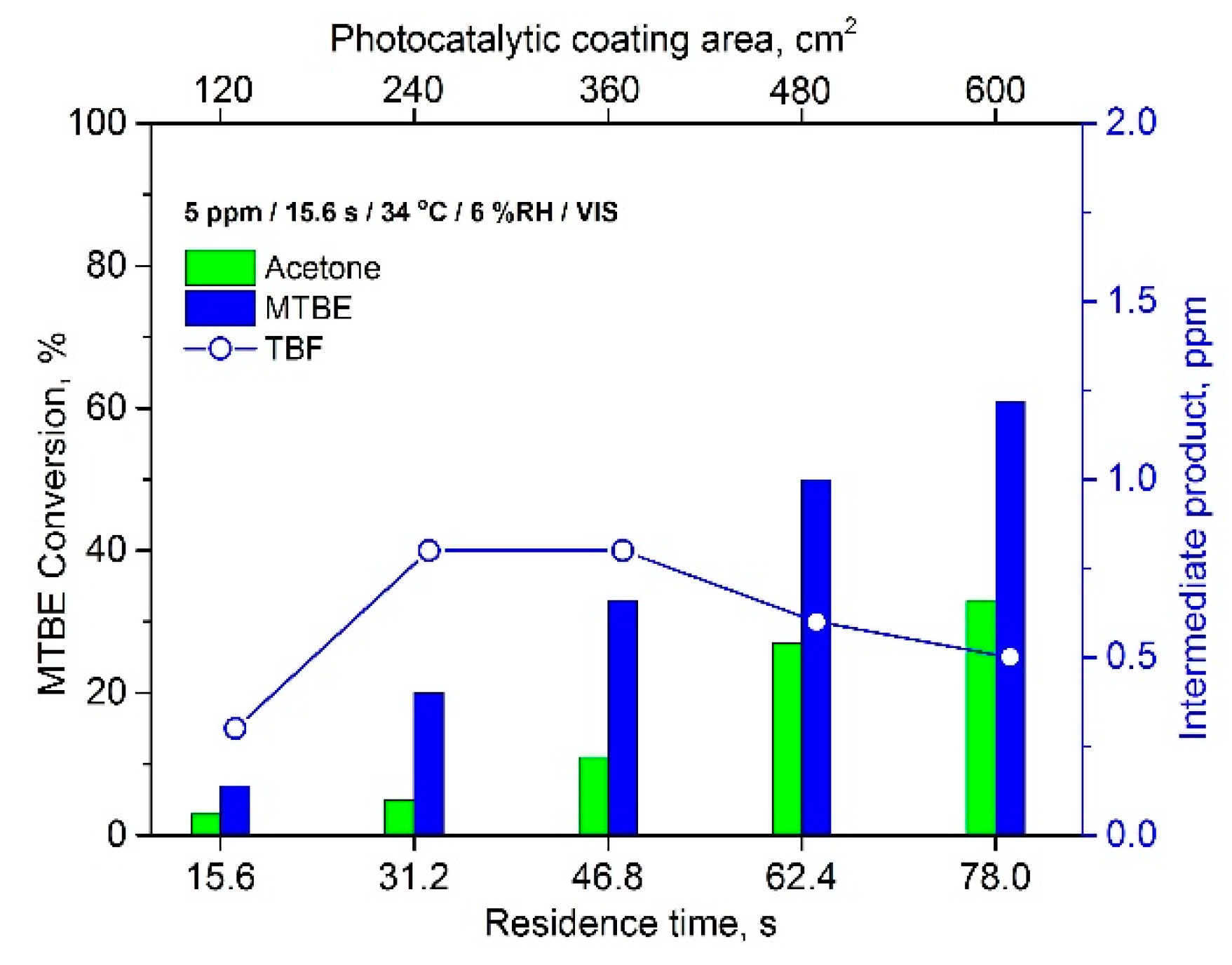

In this study, we deposited TiO2 thin films onto borosilicate glass by ultrasonic spray pyrolysis at 350 and 450 °C. The aim of study is to determine the effect of deposition temperature on photocatalytic activity of TiO2 thin films and to investigate the performance of TiO2 thin films on photocatalytic degradation of methyl tert-butyl ether (MTBE), acetone, acetaldehyde, and heptane as functions of different operating parameters. TiO2 thin films deposited at 350 and 450 °C have a thickness value of 190 and 330 nm, respectively. All as-prepared TiO2 films possess an anatase crystalline structure. According to the X-ray photon spectroscopy (XPS) study, the TiO2 thin film deposited at 350 °C showed a higher amount of oxygen vacancies and hydroxyl groups on the film surface after UV treatment. The aged-TiO2 thin film deposited at 350 °C showed a water contact angle (WCA) value of 0° after 10 min UV irradiation, showing superhydrophilic surface behavior. The TiO2 film deposited at 350 °C exhibited the highest amount of conversion of MTBE (100%). The results also showed that TiO2 films are capable of photocatalytic degradation of MTBE (100%) and acetaldehyde (approx. 80%) in humid air conditions and high airflow rate. The visible-light-activity of TiO2 thin films was tested with 5 ppm MTBE and acetone. TiO2 thin films deposited at 350 °C with a surface area of 600 cm2 showed 60% of MTBE and 33% of acetone degradation under VIS light. View Full-Text
Keywords: TiO2; thin film; spray pyrolysis; photocatalytic; VOCs; indoor air; superhydrophilic TiO2; thin film; spray pyrolysis; photocatalytic; VOCs; indoor air; superhydrophilic
Show Figures

Figure 1

MDPI and ACS Style

Dundar, I.; Krichevskaya, M.; Katerski, A.; Krunks, M.; Oja Acik, I. Photocatalytic Degradation of Different VOCs in the Gas-Phase over TiO2 Thin Films Prepared by Ultrasonic Spray Pyrolysis. Catalysts 2019, 9, 915.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
