An Improved Seeker Optimization Algorithm for Phase Sensitivity Enhancement of a Franckeite- and WS₂-Based SPR Biosensor for Waterborne Bacteria Detection

Abstract

For the purpose of detecting waterborne bacteria, a high-phase-sensitivity SPR sensor with an Ag–TiO₂–Franckeite–WS₂ hybrid structure is designed using an improved seeker optimization algorithm (ISOA). By optimizing each layer of sensor construction simultaneously, the ISOA guarantees a minimum reflectance of less than 0.01 by Ag (20.36 nm)–TiO₂ (6.08 nm)–Franckeite (monolayer)–WS₂ (bilayer) after 30 iterations for E. coli. And the optimal phase sensitivity is 2.378 × 10⁶ deg/RIU. Sensor performance and computing efficiency have been greatly enhanced using the ISOA in comparison to the traditional layer-by-layer technique and the SOA method. This will enable sensors to detect a wider range of bacteria with more efficacy. As a result, the ISOA-based design idea could provide SPR biosensors with new applications in environmental monitoring.

1. Introduction

Surface plasmon resonance (SPR) biosensors utilize plasmon waves to measure alterations in the refractive index occurring on the sensing surface [1]. Numerous benefits of the SPR biosensor include its low cost, straightforward design, excellent sensitivity, label-free detection, and real-time characteristics [2,3,4]. Its potential applications are extensive and include biological detection, food safety, environmental pollution detection, and other domains [5,6,7]. Therefore, several researchers have carried out in-depth investigations using novel modified configurations [8,9] and modifying the structure [10] to promote SPR biosensor’s performance [11,12].

Because phase sensitivity configuration is less sensitive to external impacts, it may be utilized to improve the sensitivity of SPR biosensors [13,14,15]. The fact that the phase of the incident light wave’s transverse magnetic (TM) polarized component varies significantly while the phase of the transverse electric (TE) stays mostly constant serves as the foundation for this configuration [16,17]. Silver (Ag) is favored as an active metal for SPR sensors due to its lower D-electron energy bands and bulk plasma frequency [18,19,20]. However, the oxidation susceptibility of the silver film at room temperature affects the sensor’s performance. This issue is resolved by using a guided wave structure, which is a thin dielectric nanolayer with a high dielectric constant on the metal film, to boost the SPR biosensor’s sensitivity [21,22,23,24]. For example, Deng used titanium dioxide (TiO₂) film in a SPR gas sensor and obtained high sensitivity in hydrogen detection at the telecommunications wavelength [25]. However, the waveguide layer also widens the dip of reflectivity and decrease its depth [26,27]. So to overcome this obstacle, two-dimensional (2D) materials have been employed to increase light absorption and compatibility with biological systems.

Franckeite belongs to the sulfosalt family, and is a van der Waals heterostructure stabilized in its natural state. It is made up of stacks of alternating PbS pseudotetragonal and SnS₂-like pseudohexagonal layers [28,29]. In addition, Franckeite is characterized by a narrow bandgap of less than 0.7 eV, a rare feature in 2D materials, with p-type semiconductor properties [30]. It has a crystalline structure and is reported to be stable in air. The combination of these features is rare, resembling those seen in just a few of 2D materials, such as black phosphorus and tungsten diselenide. Unlike black phosphorus, Franckeite exhibits stability in the surrounding environment [31]. Due to the aforementioned characteristics, Franckeite shows significant promise for application in optoelectronic devices. Gan et al. has proposed a SPR biosensor with a Ag–Franckeite–graphene hybrid structure, and obtained the highest sensitivity as 188 deg/RIU [32].

Furthermore, there has been significant interest in transition metal dichalcogenides like molybdenum disulfide (MoS₂) and tungsten disulfide (WS₂) due to their exceptional electron mobility, better surface volume ratio, and high dielectric constant [33,34,35]. Zeng has presented a SPR biosensor with a phase sensitivity of 8.185 × 10⁴ deg/RIU based on the graphene-MoS₂ structure [36]. Likewise, Han proposed an SPR sensor with a Ag–ITO–WS₂ configuration, which achieved a maximum phase sensitivity of 1.711 × 10⁶ deg/RIU [37]. Despite the progress made in sensitivity improvement, the traditional layer-by-layer optimization approach employed in these studies has been deemed inefficient for addressing multi-objective and multi-variable optimization issues when the number of SPR sensor layers rises. Consequently, the conventional methods based on direct assessment of targets under different values of variables become less effective. Hence, it is imperative to concurrently adjust the thickness of all layers in the biosensor to address these difficulties.

Hence, intelligent optimization algorithms have been created to produce a multi-layer SPR biosensor with enhanced sensitivity and resolution [38]. Amoosoltani proposed the particle swarm optimization (PSO) algorithm to optimize the thickness of metal thin films in SPR sensors, and the results show that the PSO algorithm has certain advantages in obtaining high-performance sensors by optimizing copper film thickness [39]. Further, Sun applied the PSO algorithm to SPR biosensors in four different modulation modes (wavelength, angle, intensity, and phase) [40], and the findings demonstrate that the PSO-based optimization structure outperforms the experimental structure. In addition, Lin optimized the sensor’s thickness, resulting in enhanced angular sensitivity within the visible spectrum [41]. However, there is still room for improvement of the SPR sensor based on phase modulation, as performance depends not only on the phase sensitivity, but also on the minimum reflectivity at resonance. The seeker optimization algorithm (SOA) is a swarm intelligence algorithm proposed by Dai and Chen in 2006 [42]. The SOA directly uses a range of good human social behaviors for modelling and analysis, such as individuals evolving into good individuals, good individuals evolving into good groups, and good groups evolving into good populations. All individuals participate in the search, determining the direction and step size of the search through individuals to update their position and obtain the optimal solution within their range [43]. However, in the SOA, the historical optimal fitness of all searchers in the population is calculated, and then ranked from high to low to form a linear affiliation function, which increases the complexity of the optimization computation. In addition, in the basic SOA, there is a need for later search steps as long processing is not precise enough. In addition, the basic SOA does not have measures to break away from local optima, which can easily lead to premature maturation [44]. In response to the above issues, an improved seeker optimization algorithm (ISOA) is introduced to simultaneously change all of these parameters. In contrast to the SOA, its adaptive search step effectively avoids bypassing the valley region, rendering it well suited for parallel computing and capable of handling a substantial number of design parameters.

This article utilizes the ISOA approach to create SPR sensors using a Ag–TiO₂–Franckeite–WS₂ structure. The sensor is specifically engineered to possess a heightened phase sensitivity to detect bacteria in water. The ISOA approach utilizes an objective function that ensures a minimum reflectance of less than 0.01. By tweaking the thickness of each layer in the Ag–TiO₂–Franckeite–WS₂ structure at the same time, we can enhance the efficacy of the sensor in detecting waterborne bacteria and also reduce the time required for designing.

The rest of this paper is organized as follows. First of all, the theory and design methodology of sensor structure is described in Section 2. Subsequently, the principle and improvement strategy of the SOA are discussed in Section 3. Then, in Section 4, the result of the simulation is presented. At last, the conclusion is presented in Section 5.

2. Theory and Design Methodology

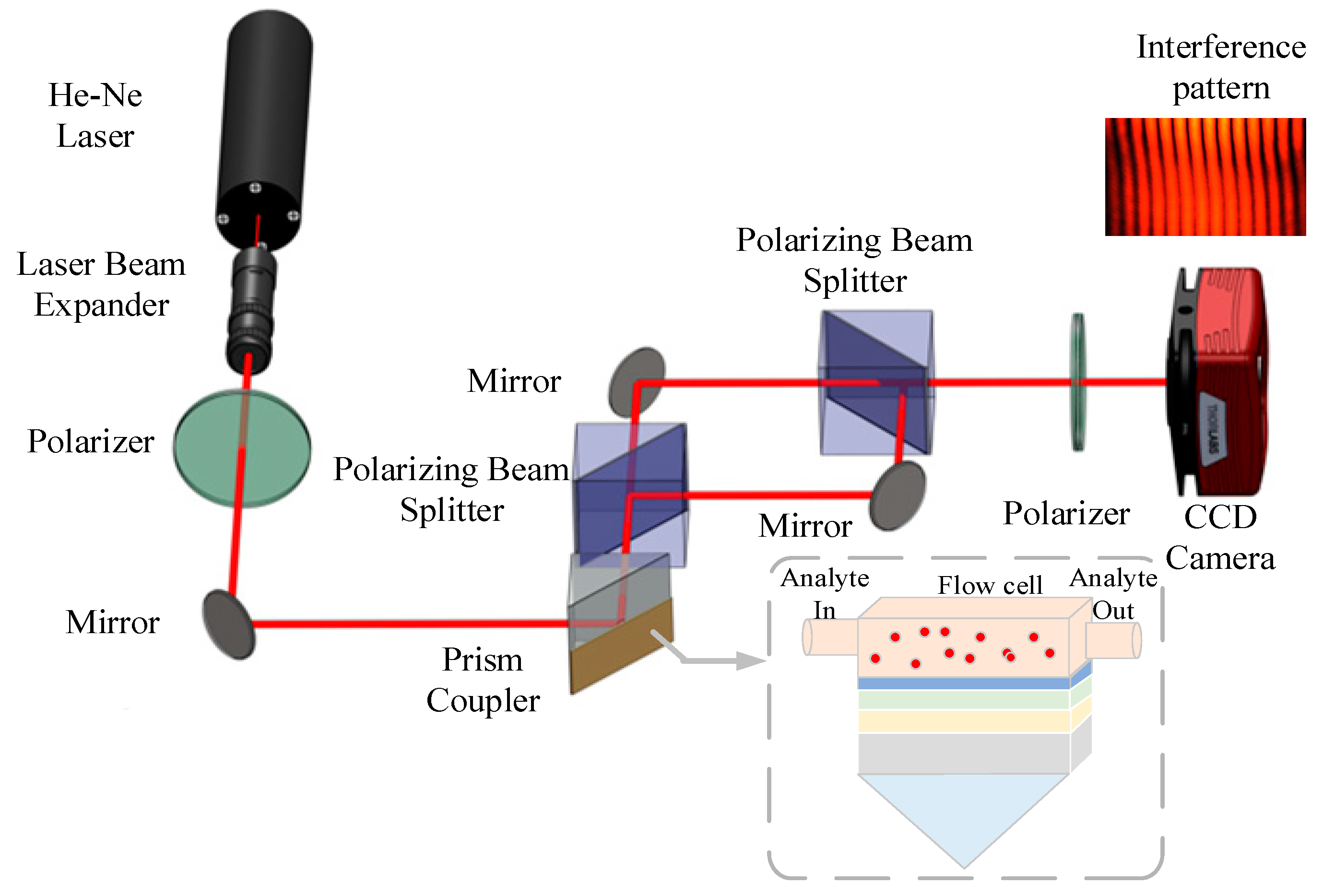

The schematic design of a phase-sensitive SPR system for water bacterium identification is depicted in Figure 1. The proposed biosensor consists of six layers: BK7 ($n_{BK7}=1.5151$), Ag ($n_{Ag}=0.0803+4.2347i$), TiO₂ ($n_{Ti{O}_2}=2.5837$), Franckeite, WS₂ and sensing medium. The data provided in

Table 1. The 2D materials’ monolayer thickness and RI at $\lambda =633$ nm.

Materials	Monolayer (nm)	RI	Reference
Franckeite	1.8	3.58 + 0.39i	[30]
WS2	0.8	4.9 + 0.3124i	[33]

summarize the characteristic parameter of 2D materials at 633 nm. The sensing medium comprises three categories of waterborne bacteria: pure water, V. cholera, and E. coli. The refractive indices (RIs) for each type are presented in

Table 2. The RI of three types of waking bacteria at $\lambda =633$ nm.

Type of Waterborne Bacteria	RI	Reference
Pure water	1.333	[45]
V. cholera	1.365	[46]
E. coli	1.388	[47]

. The viability of the suggested approach in the experiment is demonstrated in Figure 1, which forms the basis for the numerical simulation technique. To attain a linear polarization angle of 45° for both TM and TE waves, the He-Ne laser undergoes polarization by passing through a polarizer. Subsequently, the SPR biosensor is exposed to light within a defined range of angles. To accurately assess the phase sensitivity of the SPR biosensor, input the interference structure to determine the exact phase difference.

To calculate the reflectance of reflected light of a multi-layer structural model, the transfer matrix approach is utilized. The characteristic matrix is described as follows [48]:

$$M={\displaystyle \prod _{m=1}^N{M}_m=}\left[\begin{array}{cc}\cos {\beta }_m& -\frac{i}{q_m}\sin {\beta }_m\\ -q_m\sin {\beta }_m& \cos {\beta }_m\end{array}\right]$$

(1)

with

$$\left\{\begin{array}{ll}{q}_k=\frac{{({\epsilon }_k-n_0^2{\sin }^2{\theta }_0)}^{\frac{1}{2}}}{{\epsilon }_k}& TM-wave\hfill \\ q_k={({\epsilon }_k-n_0^2{\sin }^2{\theta }_0)}^{\frac{1}{2}}& TE-wave\hfill \end{array}\right.$$

(2)

$${\beta }_m=\frac{2\pi d_m}{\lambda }{({\epsilon }_{\mathrm{m}}-n_0^2{\sin }^2{\theta }_0)}^{\frac{1}{2}}$$

(3)

where ${\beta }_m$ and $q_k$ represent the phase factor and optical admittances, respectively. ${\epsilon }_m$ and ${\theta }_0$ are the dielectric permittivity and the angle of incidence.

The reflection coefficient, denoted as r, can be determined for both TM waves and TE waves using the following formula:

$$r=\frac{(M_{11}+M_{12}{q}_N)q_0-(M_{21}+M_{22}{q}_N)}{(M_{11}+M_{12}{q}_N)q_0+(M_{21}+M_{22}{q}_N)}$$

(4)

Therefore, the reflectivity of TM waves and the phase difference between TM waves and TE waves are obtained as:

$$R_{TM}={\left|r_{TM}\right|}^2$$

(5)

$${\varphi }_d=\left|{\varphi }_{TM}-{\varphi }_{TE}\right|$$

(6)

The biosensor’s phase sensitivity is described as follows:

$$S=\frac{\Delta {\varphi }_d}{\Delta n_{bio}}$$

(7)

3. The Improved Seeker Optimization Algorithm

The SOA is a kind of heuristic stochastic search algorithm proposed in recent years, The SOA directly analyses the stochastic search behaviors of humans, and analyses and researches the behaviors of humans as high-level agents, mainly with the help of the latest research results of brain science, agent systems, artificial intelligence and cognitive science in human research [49]. Unlike existing optimization algorithms, the SOA simulates human intelligent search behavior, where each individual is considered the optimal individual, but individuals have good communication, collaboration, learning, and reasoning abilities, search teams are used as the population and the seeker’s position is used as the candidate solution in the SOA, which mimics human intelligent search behavior. By simulating the human search for “experience gradients” and uncertain reasoning, the optimal solution to the problem is attained. Nevertheless, the SOA has limitations, such as low search accuracy and a tendency to become locked in the local optimum. An ISOA based on the adaptive membership degree is created to address these issues. Since it avoids skipping valley areas by decreasing search step sizes in the middle and late stages of the algorithm, it is suitable for multi-objective optimization.

The following are the procedures involved in creating a phase-sensitive SPR biosensor using the ISOA for waterborne bacteria detection. The population locations are first established randomly. Subsequently, adaptive search step and search direction operations are carried out on the updated positions of each seeker [50]:

$${\alpha }_{ij}=\omega abs(x_{\min }-x_{\max })\sqrt{-\ln (u_{ij})}$$

(8)

where ${\alpha }_{ij}$ represents the search step, ${\mu }_{ij}$ is the degree of membership, the inertia weight is denoted by $\omega$, and $x_{\min }$ and $x_{\max }$ correspond to the minimum and maximum objective function values.

$$u_{ij}=\mathrm{rand}(u_i,1),\hspace{1em}\hspace{1em}j=1,\mathrm{\dots }D$$

(9)

$$u_i=u_{\min }+(u_{\max }-u_{\min })\ast {(\frac{t}{T})}^{(1-\frac{t}{T})}$$

(10)

In the ISOA, the degree of membership is modified solely by the number of iterations t. Additionally, an adaptive power is introduced based on the linear degree of membership, as depicted in Equations (9) and (10), where T represents the maximum number of iterations. This adaptation causes the rate of change in the degree of membership to decrease with increases in iterations. Consequently, the algorithm undergoes a relatively small search step during the middle and late phases, effectively addressing the issue of the algorithm being susceptible to becoming stuck in the local optimum.

Moreover, search direction can be expressed as:

$$d_{ij}(t)=sign(\omega d_{i,pro}+{\phi }_1{d}_{i,ego}+{\phi }_2{d}_{i,alt})$$

(11)

where ${\phi }_1$ and ${\phi }_2$ are random real numbers on the interval of [0, 1]; $d_{i,ego}$, $d_{i,alt}$ and $d_{i,pro}$ represent self-interest direction, altruism direction and pre-action direction, respectively.

Ultimately, by using the aforementioned procedure to update the position of the seeker, new populations are created. Subsequently, these populations are then assessed, and until the termination condition is met, the global optimum is amended again. Algorithm 1 provides a detailed description of the ISOA’s pseudocode.

Algorithm 1: ISOA

Initialization: (1) Population N, dimension D, generation T, inertia weight $\omega$, degree of membership umin, umax (2) Randomly initialize seeker position x, ${\phi }_1$ and ${\phi }_2$, Pi and Pg of seeker (3) Cycle (4) For i = 1:N (5)  For j = 1:D (6)   $d_{ij}(t)=sign(\omega d_{i,pro}+{\phi }_1{d}_{i,ego}+{\phi }_2{d}_{i,alt})$ (7)   $u_i=u_{\min }+(u_{\max }-u_{\min })*{(\frac{t}{T})}^{(1-\frac{t}{T})}$ (8)   $u_{ij}=\mathrm{rand}(u_i,1)$ (9)   ${\alpha }_{ij}=\omega abs(x_{\min }-x_{\max })\sqrt{-\ln (u_{ij})}$    % Update the position of seeker (10)   $\Delta x_{i,j}(t+1)={\alpha }_{ij}(t)d_{ij}(t)$ (11)   $x_{ij}(t+1)=x_{ij}(t)+\Delta x_{ij}(t+1)$    % Update pbest and gbest value (12)    IF func($x_{ij}$) > func($p_{ij}$) then $p_{ij}=x_{ij}$ (13)    End IF (14)    IF func($x_{ij}$) > func($p_{gj}$) then $p_{gj}=x_{ij}$ (15)    End IF (16)  End (17) End

The ISOA employs an objective function (OF) with a constrained function to achieve multi-objective optimization and obtain high phase sensitivity and low reflectivity:

$$OF=\left\{\begin{array}{l}S ,R_{\min }<0.01\\ 0, others\end{array}\right.$$

(12)

The objective function is designed to a identify maximum value of S within the search area, with the objective of indirectly minimizing the value of R_min, which represents the minimum reflectivity at the resonance angle. R_min above 0.01 will result in discarding the solution.

4. Results and Discussion

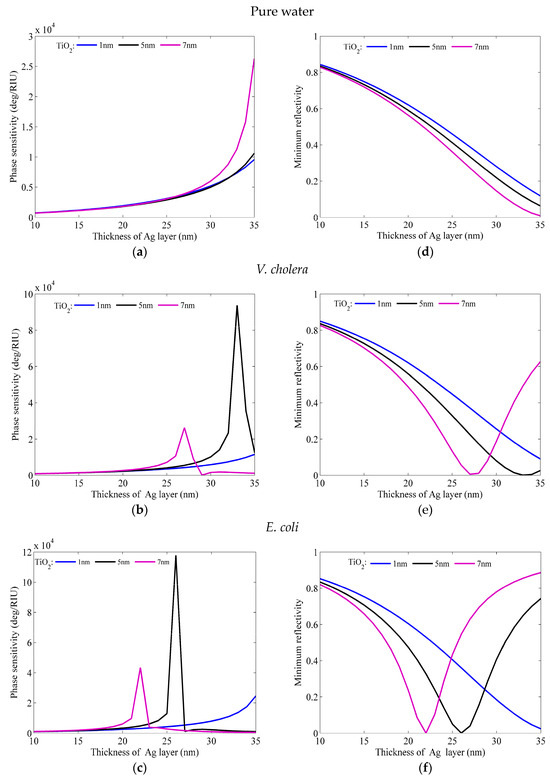

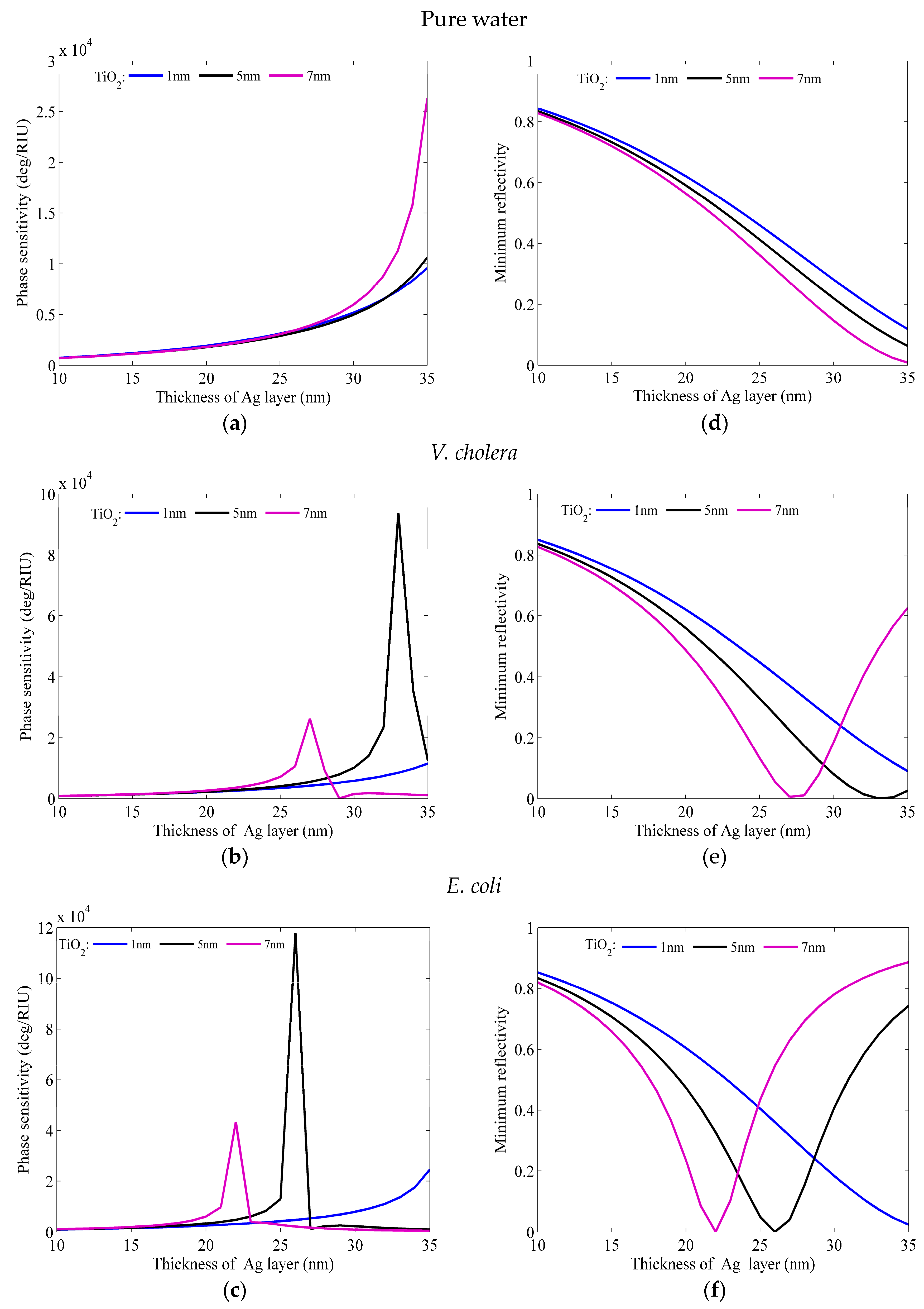

To validate the effectiveness of the methods presented in this paper, the conventional method and the SOA method are used to optimize and validate the same sensor structures. In the conventional layer-by-layer optimization approach, the primary objective is to optimize the thickness of Ag and TiO₂ at the monolayer of Franckeite and WS₂. To achieve the best possible thickness combination of Ag and TiO₂ film, it is important to minimize the R_min and maximize the phase sensitivity. Thus, when the sensing medium is waterborne bacteria, Figure 2 illustrates the change in phase sensitivity and minimum reflectivity with the different thicknesses of Ag (10 nm~35 nm) and TiO₂ (1 nm, 5 nm, 7 nm). As seen in Figure 2, the phase sensitivity increases monotonically from 10 nm to 35 nm. At 35 nm for Ag thickness and 7 nm for TiO₂ thickness, the maximum phase sensitivity of pure water is 2.631 × 10⁴ deg/RIU, and the lowest reflectance is 8.783 × 10⁻³. The maximum phase sensitivity of V. cholera is 9.374 × 10⁴ deg/RIU, and the Rmin is 9.739 × 10⁻⁴ at 33 nm and 5 nm thicknesses of Ag and TiO₂. The ideal Ag and TiO₂ layer thicknesses for E. coli are 26 nm and 5 nm, respectively. The lowest reflectivity is 4.893 × 10⁻⁴ and the maximum sensitivity is 1.178 × 10⁵ deg/RIU.

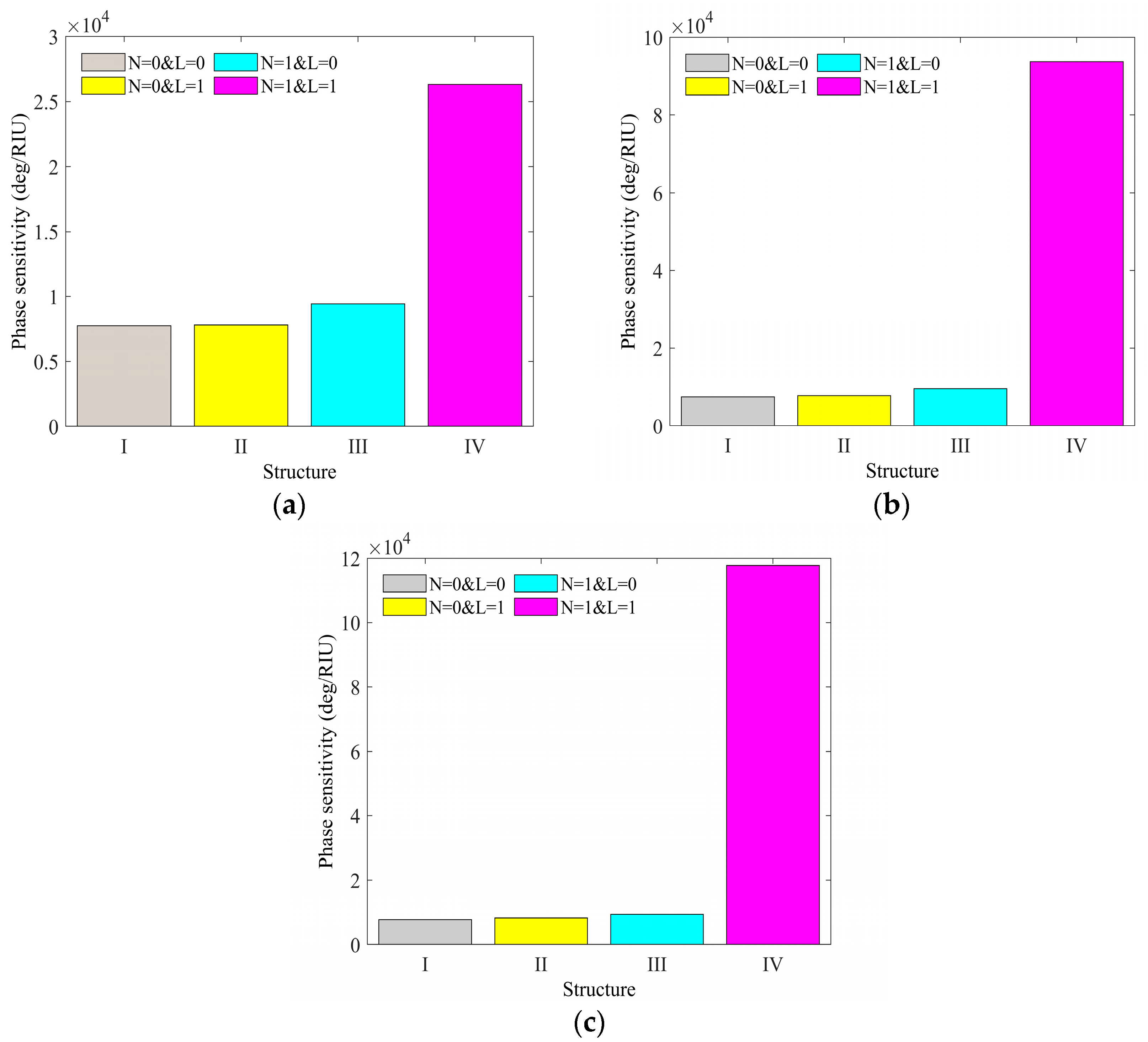

Furthermore, to provide additional evidence of the enhanced phase sensitivity attained by the amalgamation of the Franckeite and WS₂ layer, Figure 3 illustrates the phase sensitivity of another sensor construction at the optimal thickness of Ag and TiO₂. From the figure, it is evident that the sensor without the Franckeite layer and WS₂ layer (N = 0 and L = 0) exhibits the lowest phase sensitivity. The addition of either a monolayer of Franckeite (N = 1 and L = 0) or WS₂ layer (N = 0 and L = 1) does not considerably enhance the phase sensitivity of the sensor. The performance of sensors could be significantly enhanced by including both a monolayer of Franckeite and WS₂. This suggests that the sensor structure presented in this paper is more efficient in detecting water bacteria compared to conventional architectures.

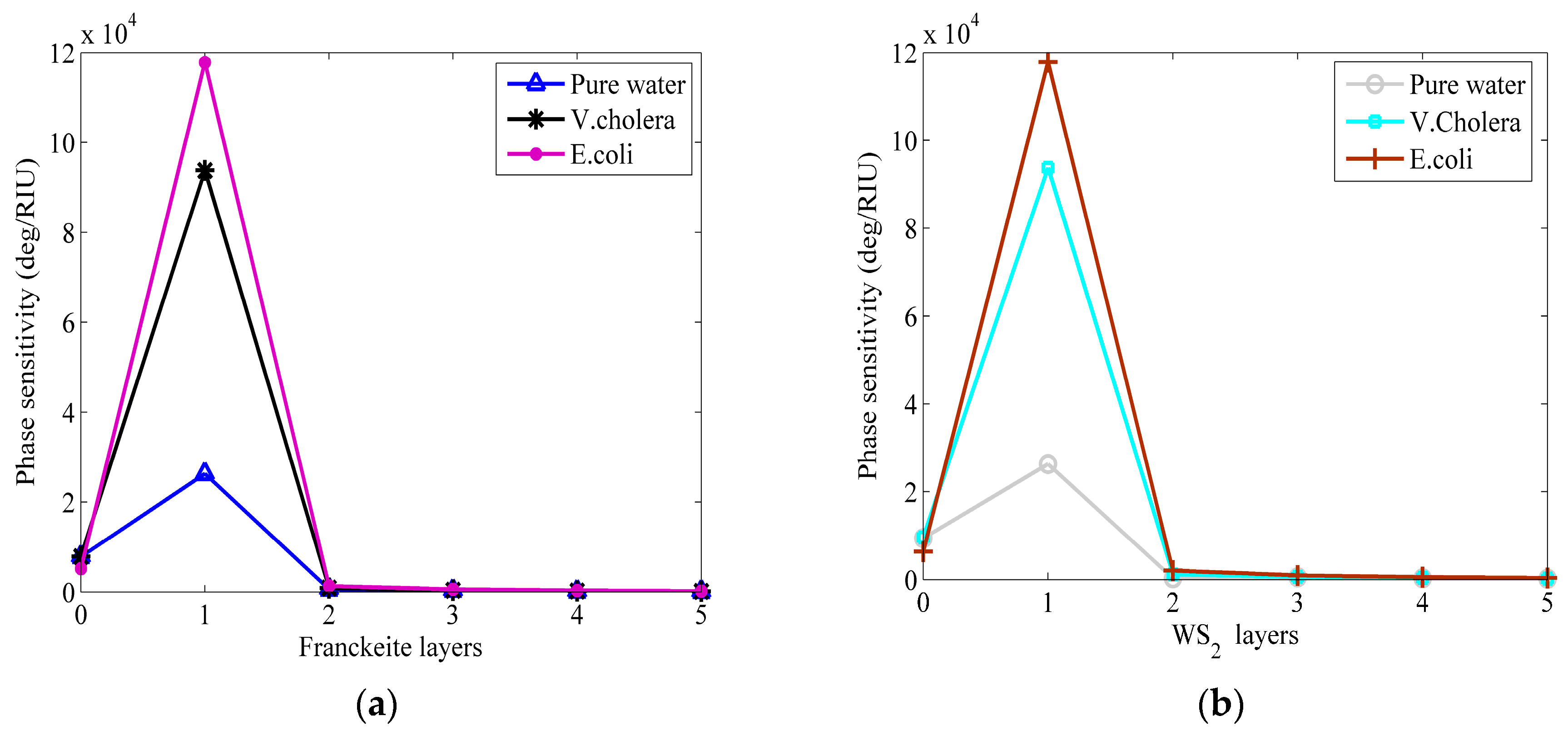

Moreover, Figure 4 illustrates the relationship between phase sensitivity and the number of Franckeite layers in the WS₂ monolayer, as well as the number of layers in the Franckeite monolayer. One can visualize from the figure that both the Franckeite and WS₂ layers are monolayers, and the sensor can obtain the best phase sensitivity value for the detection of waterborne bacteria at the optimum thickness of Ag and TiO₂.

Based on the analysis provided, it can be inferred that the sensor structure incorporating Franckeite and WS₂ layers is viable for enhancing phase sensitivity. However, the conventional approach of optimizing the layers one by one is computationally demanding and ineffective. Hence, it is crucial to concurrently tune every layer thickness of the sensor utilizing algorithms.

An Ag–TiO₂–Franckeite–WS₂ structure-based SPR biosensor for detecting the water bacteria was designed via the SOA and the ISOA to validate the feasibility of the method. From the theoretical model, we can see that the OF is determined by the thickness of Ag (d₁) and TiO₂ (d₂), the layer of Franckeite (N) and WS₂ (L), where $d_1\in [0,50]$, $d_2\in [0,50]$, $N\in (0,10]$, and $L\in (0,10]$. The search range is based on experience in order to obtain good sensing performance. Initialization parameter settings are provided in

Table 3. The settings of the initialization parameter of the algorithm.

Parameters	Algorithm
	SOA	ISOA
Population size	100	100
Maximum iterative times	100	100
Maximum degree of membership	0.95	0.95
Minimum degree of membership	0.0111	0.0111
Inertia weight coefficient range	[0.1, 0.9]	/

prior to execution of the algorithm.

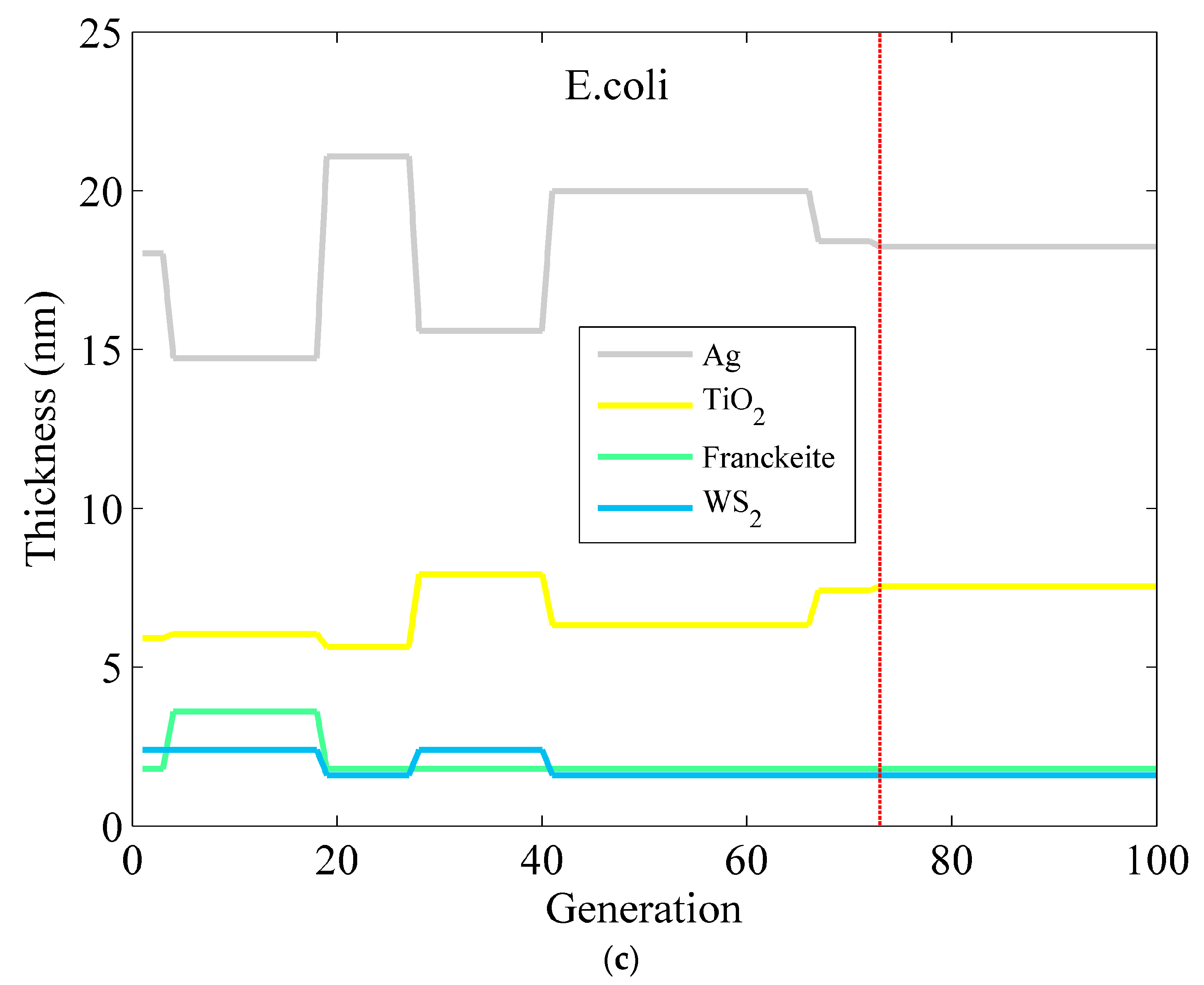

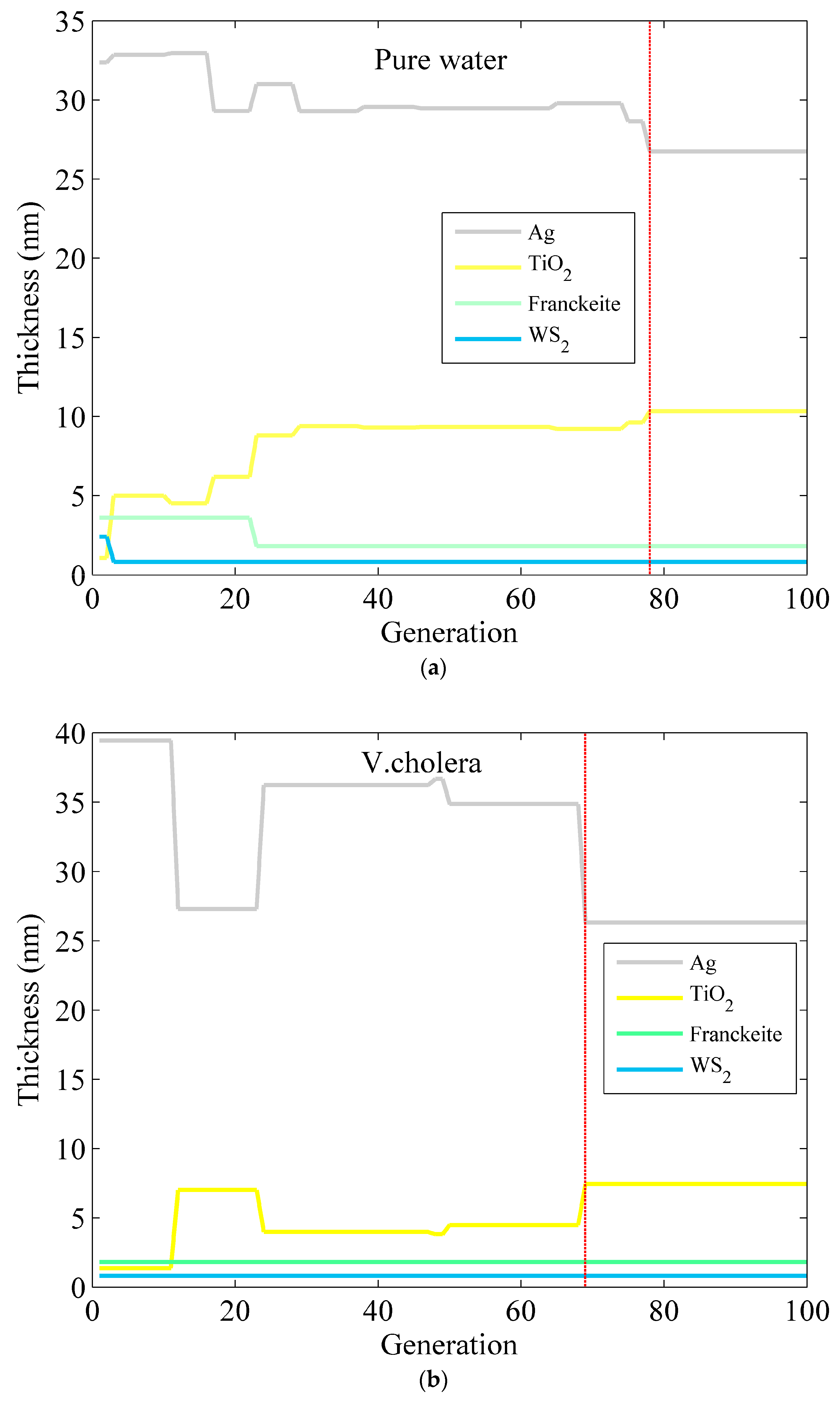

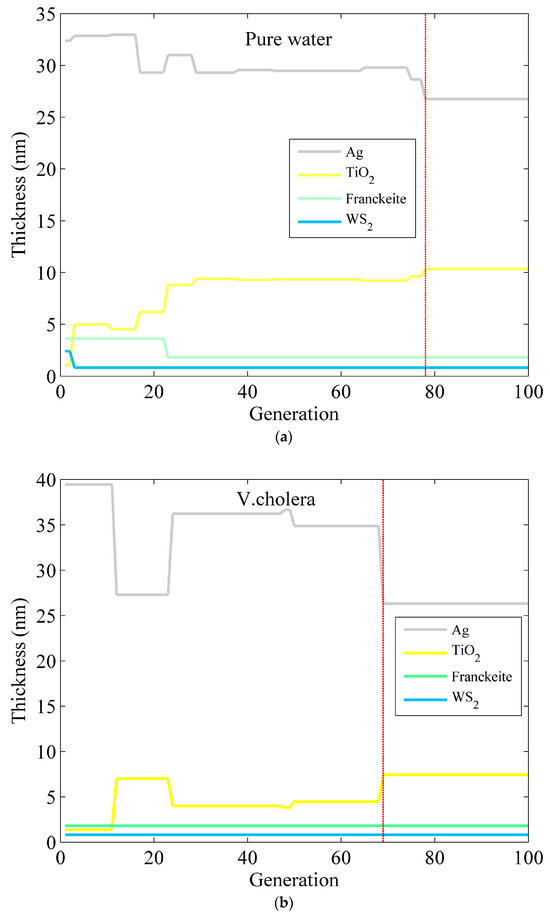

After 100 iterations, the SOA method is employed to optimize the layer thickness of the Ag–TiO₂–Franckeite–WS₂ structure for the detection of waterborne bacteria, as seen in Figure 5, the red line represents the location of the optimal parameters mentioned in

Table 4. The parameters of the optimized Ag–TiO₂–Franckeite–WS₂ structure via the SOA.

Waterborne Bacteria	Ag (nm)	TiO2 (nm)	Franckeite (N)	WS2 (L)	Minimum Reflectivity	Phase Sensitivity (deg/RIU)	Iterations
Pure water	26.75	10.33	1	1	3.373 × 10−6	1.841 × 106	79
V. cholera	26.30	7.45	1	1	2.307 × 10−7	1.909 × 106	70
E. coli	18.23	7.54	1	2	9.455 × 10−6	2.355 × 106	74

. Simultaneously, Table 4 displays the relevant characteristics such as the minimum reflectivity, maximum phase sensitivity, and number of iterations. After 79 iterations, the optimal phase sensitivity for detecting pure water is obtained when the thickness of the Ag and TiO₂ layers is 26.75 nm and 10.33 nm, respectively. The Franckeite and WS₂ layers are both monolayers. The greatest phase sensitivity reached is 1.841 × 10⁶ deg/RIU, while the lowest reflectivity value is 3.373 × 10⁻⁶. For V. cholera, the maximum phase sensitivity and minimum reflectivity are 1.909 × 10⁶ deg/RIU and 2.307 × 10⁻⁷ after 70 iterations, when the Ag is 26.30 nm, TiO₂ is 7.45 nm, and Franckeite and WS₂ are monolayers. At last, the optimization of the Ag–TiO₂–Franckeite–WS₂ structure for E. coli detection is achieved by using a one-layer Franckeite, a bilayer WS₂, a 18.23 nm-thick Ag layer, and a 7.54 nm-thick TiO₂ layer. The greatest phase sensitivity value obtained is 2.355 × 10⁶ deg/RIU. Simultaneously, the minimum reflectivity is 9.455 × 10⁻⁶. Based on the aforementioned findings, it is evident that the phase sensitivity of the sensing structure may be significantly enhanced, by a factor of 1~2 orders of magnitude, compared to the usual technique. This improvement is achieved by optimizing the thickness of each sensor layer using an algorithm.

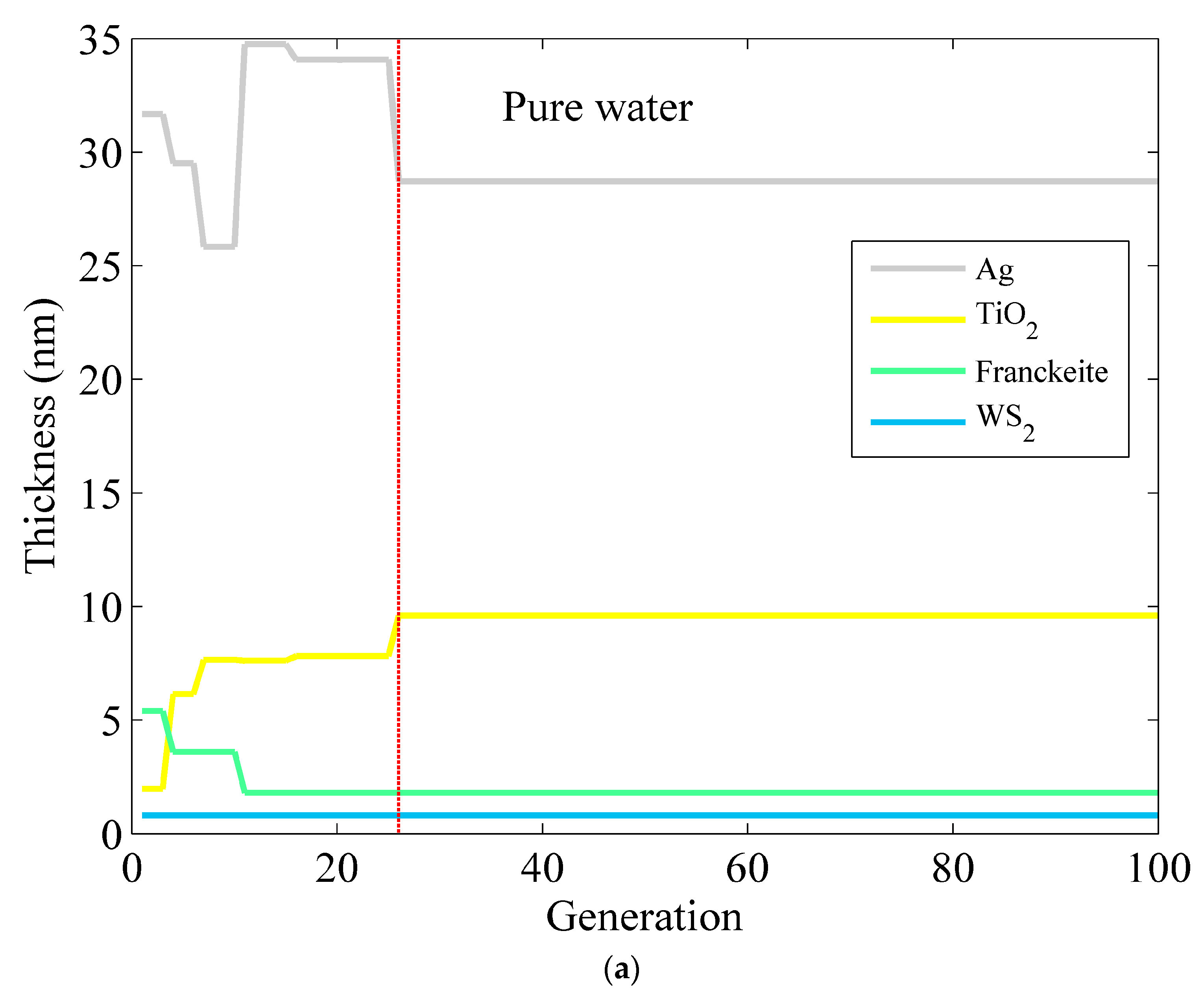

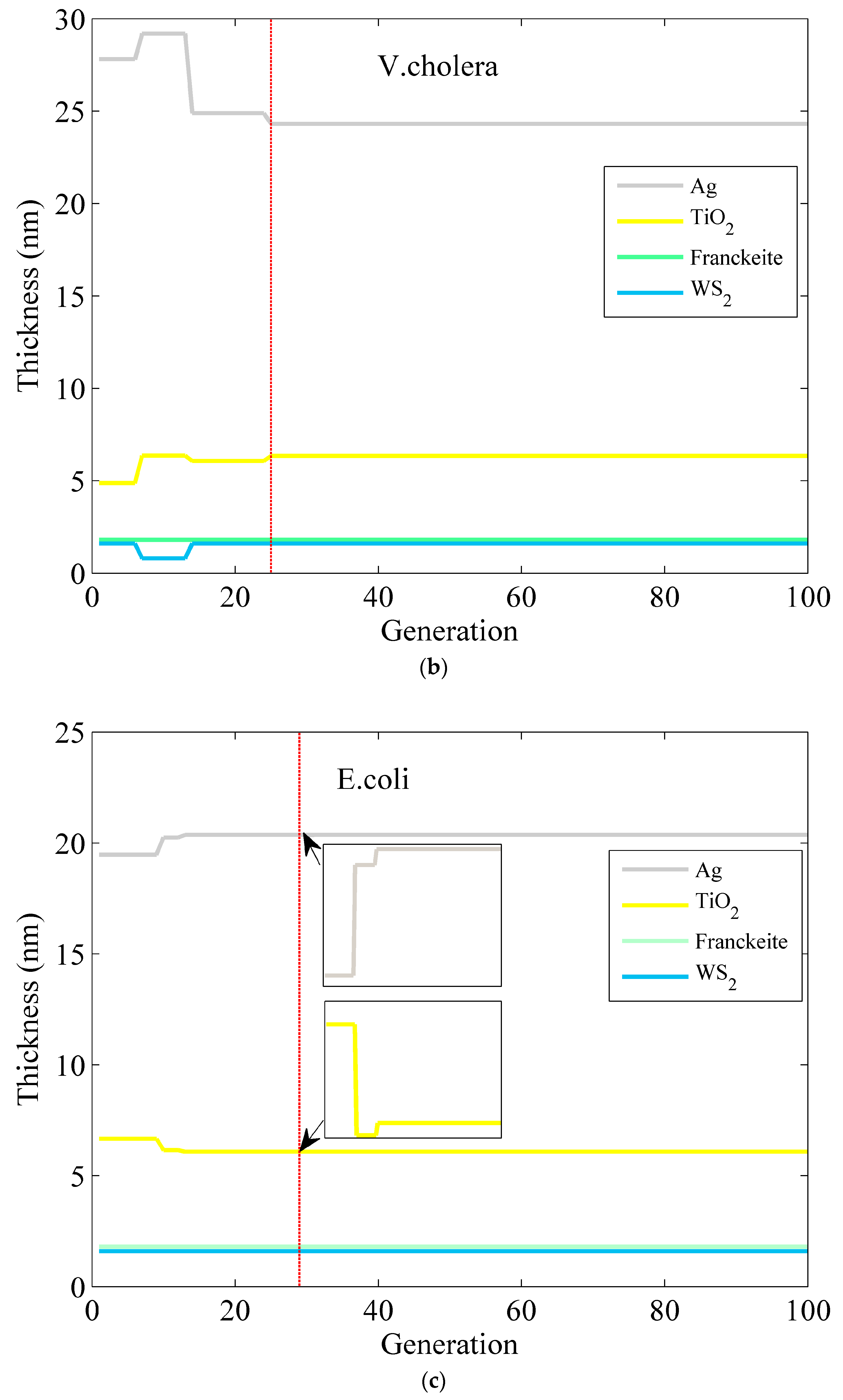

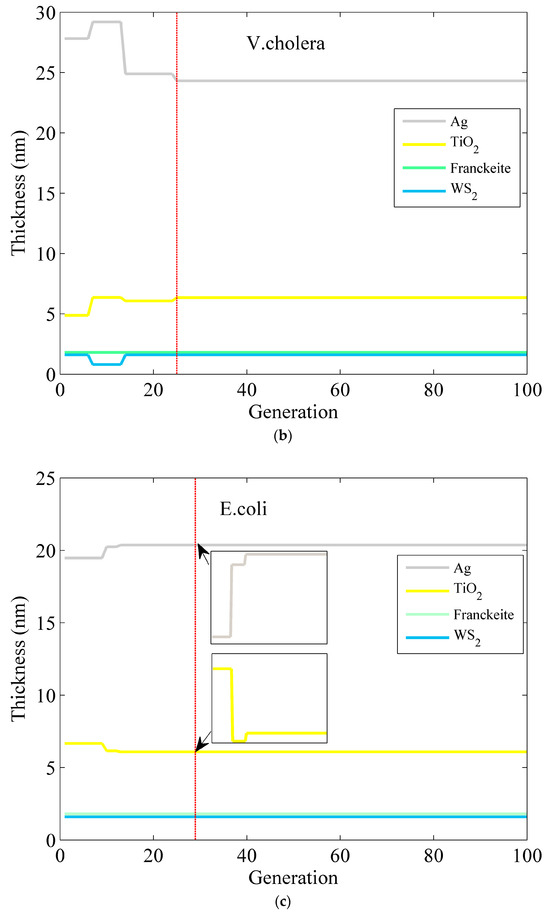

Meanwhile, Figure 6 and

Table 5. The parameters of the optimized Ag–TiO₂–Franckeite–WS₂ structure via the ISOA.

Waterborne Bacteria	Ag (nm)	TiO2 (nm)	Franckeite (N)	WS2 (L)	Minimum Reflectivity	Phase Sensitivity (deg/RIU)	Iterations
Pure water	28.72	9.59	1	1	2.058 × 10−6	1.871 × 106	27
V. cholera	24.31	6.34	1	2	4.957 × 10−6	1.950 × 106	26
E. coli	20.36	6.08	1	2	1.307 × 10−6	2.378 × 106	30

give the optimum layer thickness, the red line represents the location of the optimal parameters mentioned in Table 5, phase sensitivity and reflectivity of Ag–TiO₂–Franckeite–WS₂ for detecting the waterborne bacteria by the ISOA. With a guaranteed minimum reflectance of less than 0.01, it is evident that phase sensitivity based on the ISOA is greatly improved compared to base on the SOA and traditional techniques. Furthermore, the required number of algorithm iterations to obtain a stable optimal value is significantly decreased. The phase sensitivity of pure water may attain a maximum value of 1.871 × 10⁶ deg/RIU. The minimum reflectance occurs at a value of 2.058 × 10⁻⁶ when the Ag layer has a thickness of 28.72 nm, the TiO₂ layer has a thickness of 9.59 nm, and there are 27 iterations, with one layer each of Franckeite and WS₂. Subsequently, optimized Ag–TiO₂–Franckeite–WS₂ for detecting the V. cholera is obtained after 23 iterations. The phase sensitivity reaches a maximum value of 1.950 × 10⁶ deg/RIU when the thickness of Ag is 24.31 nm, that of TiO₂ is 6.34 nm, the Franckeite is in a monolayer configuration, and the WS₂ is in a bilayer configuration. Finally, the greatest phase sensitivity is 2.378 × 10⁶ deg/RIU, while the lowest reflectivity is 1.307 × 10⁻⁶. The presence of a single layer of Franckeite and a bilayer of WS₂, with a Ag thickness of 20.36 nm and a TiO₂ thickness of 6.08 nm, enables the detection of E. coli. By comparing the optimization data of the SOA and the ISOA, it is clear that the ISOA method exhibits improved convergence qualities since it needs fewer iterations to find the best solution. Furthermore, the ISOA method has an improved global search capability that allows it to bypass the local optimum and take full advantage of the high electron mobility of Franckeite and WS₂. This improves the ability of SPR sensors to detect small changes in phase and makes them suitable for detecting bacteria present in water. The ISOA technique has the advantage of efficiently managing many significant design parameters by simultaneously determining the optimal thickness of each layer. This results in time savings, particularly when dealing with a larger number of SPR sensor layers.

Figure 7 illustrates the curves of the objective function for the Ag–TiO₂–Franckeite–WS₂ structure of the SPR biosensor. These curves are used to identify waterborne bacteria and are obtained by employing both the SOA and the ISOA. The curve indicates that the merit function increases at a faster rate during iterations with the ISOA as opposed to the standard SOA. Furthermore, for the ISOA, the merit function stabilizes at a higher level after approximately 30 iterations, while the standard SOA takes approximately 80 iterations to achieve the same stabilization. This comparison reveals that the ISOA exhibits significant enhancements in phase sensitivity and minimum reflectivity compared to the standard SOA, while also requiring fewer iterations to converge. Consequently, the ISOA offers improved precision and efficiency in optimizing multi-layer SPR biosensors.

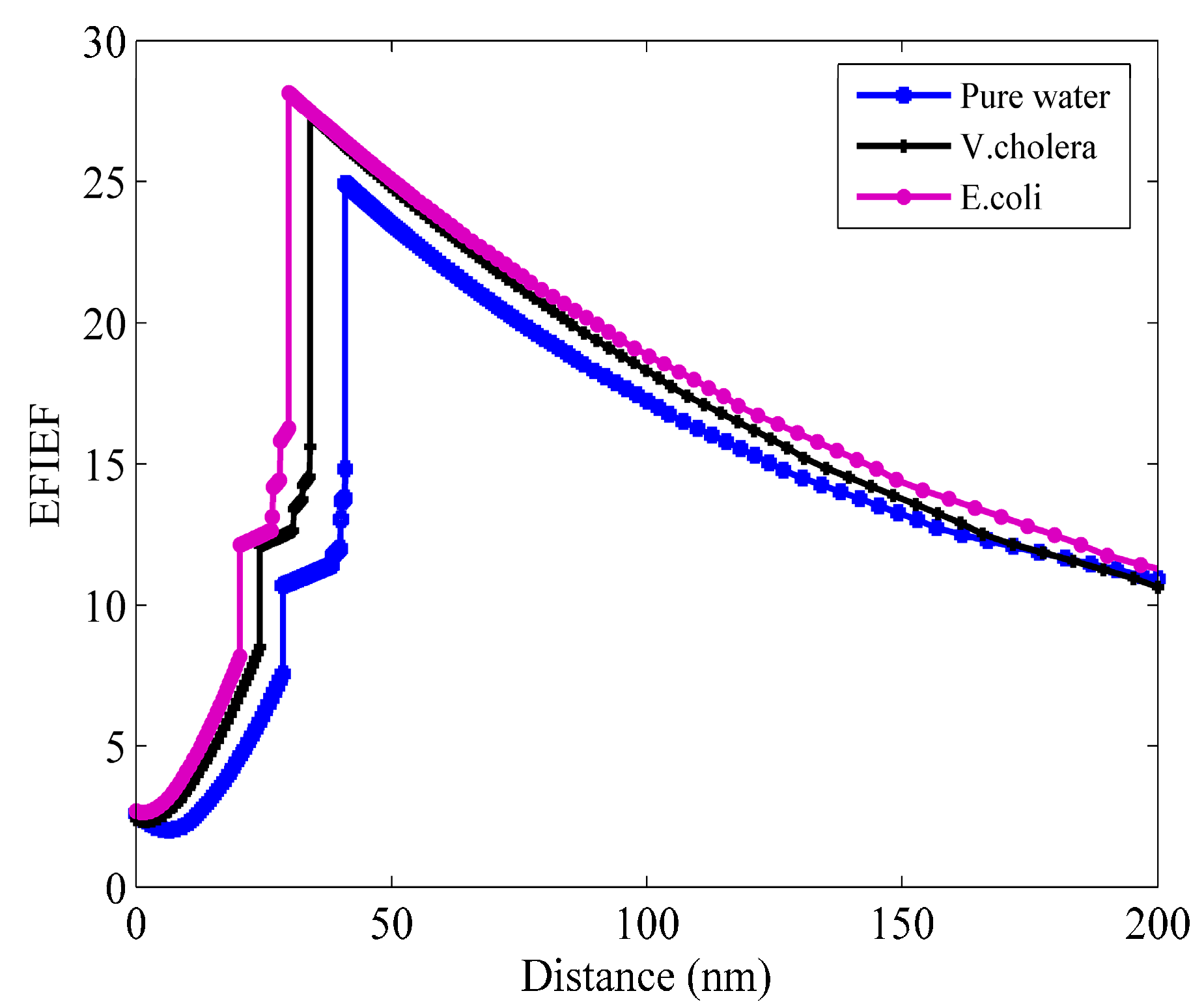

In order to further illustrate the feasibility of the methodology proposed in this paper, Figure 8 demonstrates the enhanced electric field intensity factor (EFIEF) to effectively showcase the high-phase-sensitivity properties of the improved sensor structure discussed in this paper. From the figure, it can be seen that after coating the Franckeite and WS₂ layer on the surface of the conventional SPR sensor, there is great improvement in the electric field intensity, which means the intense excitement of SPs. At the same time, the graph clearly illustrates that the sensing structure with greater sensitivity is likewise associated with a higher electric field intensity.

5. Conclusions

This paper utilizes an intelligent optimization technique to create a highly sensitive SPR biosensor. The biosensor incorporates a metal film, a waveguide layer, Franckeite, and WS₂ to specifically detect bacteria in water. Results show that by controlling the layer thickness of the sensor, while maintaining a minimum reflectance of less than 0.01, the ISOA achieves higher efficiency and accuracy compared to the conventional and SOA methods. The findings indicate that when the waterborne bacteria is E. coli, the optimum phase sensitivity is 2.378 × 10⁶ deg/RIU by Ag (20.36 nm)–TiO₂ (6.08 nm)–Franckeite (monolayer)–WS₂ (bilayer) after 30 iterations; when the waterborne bacteria is V. cholera, the highest phase sensitivity is 1.950 × 10⁶ deg/RIU by Ag (24.31 nm)–TiO₂ (6.34 nm)–Franckeite (monolayer)–WS₂ (bilayer) after 26 iterations; when the analyte is pure water, the maximum phase sensitivity is 1.871 × 10⁶ deg/RIU by Ag (28.72 nm)–TiO₂ (9.59 nm)–Franckeite (monolayer)–WS₂ (monolayer) after 27 iterations. Hence, the design concept of this article may provide new directions for improving the performance of biosensors applied in environmental detection.
