# Analytical Approach for a Heat Transfer Process through Nanofluid over an Irregular Porous Radially Moving Sheet by Employing KKL Correlation with Magnetic and Radiation Effects: Applications to Thermal System

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

## Abstract

**:**

_{2}O

_{3}nanofluid by using the Koo–Kleinstreuer–Li (KKL) correlation, is investigated. The impact of the magnetic field is also taken into account. KKL correlation is utilized to compute the thermal conductivity and effective viscosity. Analytical double solutions are presented for the considered axisymmetric flow model after implementing the similarity technique to transmute the leading equations into ordinary differential equations. The obtained analytic forms were used to examine and discuss the velocity profile, the temperature distribution, reduced heat transfer, and coefficient of reduced skin friction. The analytic solutions indicate that the velocity profile decreases in the branch of the first solution and uplifts in the branch of the second solution due to the presence of an aluminum particle, whereas the dimensionless temperature enhances in both solutions. In addition, the Casson parameter increases the friction factor, as well as the heat transport rate.

## 1. Introduction

_{2}O

_{3}nanofluid past a porous, radially shrinking sheet with radiation effect. In addition, the fluctuations in the velocity and thermal gradients are graphically deliberated.

## 2. Mathematical Modeling

#### 2.1. Constitutive Equation

#### 2.2. Basic Equations

_{2}O

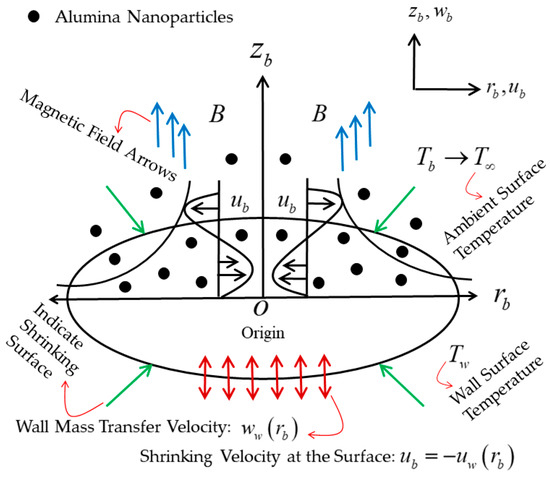

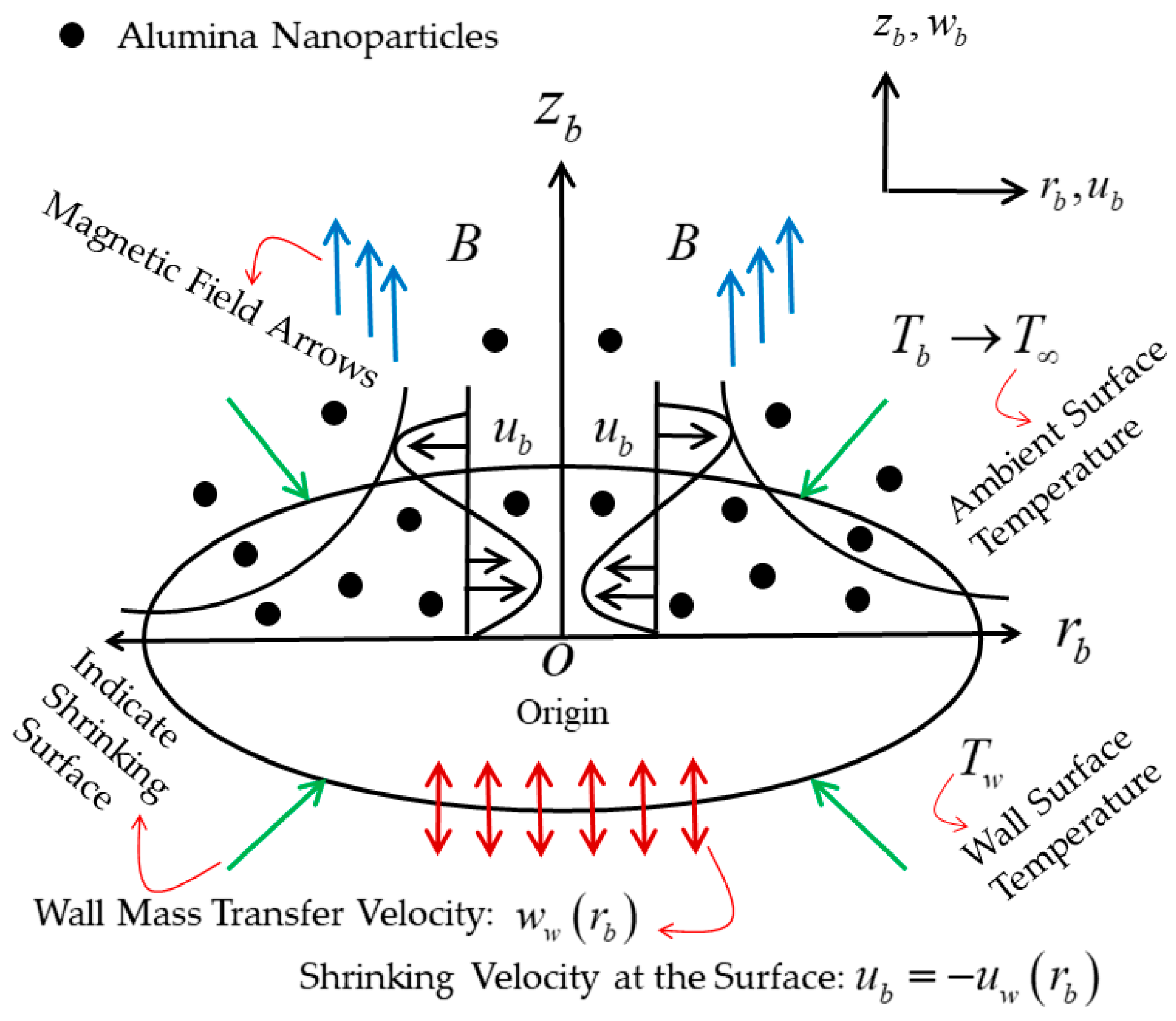

_{3}) Casson nanofluid are investigated from a continuously non-linear, radially shrinking permeable sheet with variable wall temperature, comprising the correlation of the Koo–Kleinstreuer and Li (KKL) model. Therefore, the flow problem configuration is schematically revealed in Figure 1, where the Cartesian cylindrical coordinates $\left({r}_{b},\delta ,{z}_{b}\right)$ are taken to be in such a way that the ${r}_{b}-$axis is considered parallel to the sheet and the ${z}_{b}-$axis is measured perpendicular to it, and the flow is occurring in the $\left({r}_{b},\delta \right)-$plane. The considered flow is symmetric as well as axisymmetric about the $\left({r}_{b},\delta \right)-$plane and ${z}_{b}-$axis, respectively. Meanwhile, the partial modification in all variables in relation to $\delta $ is going to be completely terminated, and mathematically, it is expressed as $\partial /\partial \delta =0$. In addition, the surface velocity is presumed as ${u}_{w}\left({r}_{b}\right)=c{r}_{b}{}^{3}$, where $c$ signifies as an arbitrary constant. Moreover, the exterior magnetic field is considered in changeable form as $B\left({r}_{b}\right)={r}_{b}{B}_{0}$, which carries out normally to the sheet’s surface (see Appendix A for derivation of the magnetic field). Furthermore, the sheet’s surface is also assumed to be permeable, and the corresponding wall mass transfer velocity is captured as ${w}_{w}\left({r}_{b}\right)=-{r}_{b}{v}_{0}$, with ${w}_{w}<0$ and ${v}_{0}>0$ referring to mass blowing or injection, while ${w}_{w}>0$ and ${v}_{0}<0$ denote a mass suction phenomenon, respectively. Additionally, the temperature is considered as ${T}_{\infty}<{T}_{w}$, where ${T}_{\infty}$ and ${T}_{w}$ designate the steady freestream temperature and the variable or power law wall temperature, respectively.

_{2}O

_{3}) nanoparticles and the base fluid (H

_{2}O) are taken to be constant and no slip happens between them. The nanofluid thermophysical features are specified in Table 1. Under these postulations, the steady basic governing equations in the partial differential equations form are written as follows [40]:

_{2}O

_{3}nanofluids, the following format should be read as follows:

_{2}O

_{3}nanofluid is 96% and 98%, respectively [48] (Table 2). The coefficients ${b}_{i}\hspace{0.17em}(i=1\dots 10)$ are based on the type of nanoparticles, and also on these coefficients. Finally, the correlation of KKL (Koo–Kleinstreuer–Li) is given by:

#### 2.3. Non-Dimensional Equations

#### 2.4. Gradients

## 3. Analytic Solutions Methodology

## 4. Results and Discussion

_{2}O

_{3}nanofluid problem for the two distinct solution branches (first and second solutions), which may be shown visually in Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 and Figure 13. In these prepared various distinct plots, we displayed the graphical behavior of the velocity profiles, temperature distribution, heat transfer, and wall drag force with the influence of various distinct factors, such as radiation parameter ${R}_{d}$, solid nanoparticle volume fractions $\varphi $, magnetic parameter ${M}_{b}$, mass suction parameter ${S}_{b}$, and non-Newtonian or Casson fluid parameter $\chi $. The problem exhibited two distinct branch solutions (first and second), where the first branch solution in the entire paper is accessible by the solid red lines, and the second branch solution is revealed by the solid green lines. Moreover, the thermophysical properties of the aluminum oxide (Al

_{2}O

_{3}) nanoparticles and the base fluid (H

_{2}O) are arranged in Table 1, while the values of their constants of the water-Al

_{2}O

_{3}nanofluid are written in Table 2. Table 3 and Table 4 are prepared to examine the suction effect on wall drag force and heat transfer. Table 3 indicates that the value of $\left({\mu}_{nf}/{\mu}_{f}\right)G\u2033\left(0\right)$ increases for the outcome of the first branch and declines for the outcome of the second branch. This trend may imply a flow with separation. This trend may imply a flow with separation, in which the structure of a tiny wake may minimize the wall drag force past a shrinkable sheet. Thus, the values of $\left({\mu}_{nf}/{\mu}_{f}\right)G\u2033\left(0\right)$ decline. Table 4 suggests the values of $-\left({k}_{nf}/{k}_{f}\right)\theta \prime \left(0\right)$ augmenting due to greater intensity of suction in both branches of the solution. Physically, as the suction uplifts, it enhances the porosity of the sheet, which ultimately permits more nanoparticles to disperse the sheet. As a consequence, the rate of heat transfer is augmented as suction enhances.

## 5. Conclusions

_{2}O

_{3}nanofluid past a radially shrinking sheet was investigated. In addition, the effectiveness of fluid flow, viscosity, and thermal conductivity were examined using the KKL model. Closed-form double solutions of leading transport equations were presented. The effects of relevant parameters on the explained flow are discussed with the assistance of graphs. The important results of the investigations are gathered as follows:

- The suction and magnetic parameters accelerate the velocity in the first branch solution and decelerate in the second branch solution, whilst declining the temperature distribution in both branch solutions.
- The temperature profile uplifts due to the solid nanoparticle volume fraction in both solutions, while the velocity increases and decreases due to the solid nanoparticle volume fraction in the first and second branch solutions, respectively.
- The heat transfer and the friction factor increase due to the Casson parameter.
- The nanoparticle volume fraction augments the heat transfer and declines the friction factor.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

${u}_{w}\left({r}_{b}\right)$ | Velocity of the shrinking disk (m/s) |

$B\left({r}_{b}\right)$ | Variable magnetic field strength (Tesla) |

${B}_{0}$ | Constant magnetic field strength (Tesla) |

${w}_{w}\left({r}_{b}\right)$ | Wall mass transfer velocity (m/s) |

${T}_{w}\left({r}_{b}\right)$ | Wall temperature (K) |

${v}_{0},c$ | Arbitrary constants |

${T}_{\infty}$ | Ambient temperature (K) |

${T}_{b}$ | Fluid temperature (K) |

${q}_{rad}$ | Radiative heat flux |

${T}_{0}$ | Constant reference temperature (K) |

$G\left(\xi \right)$ | Dimensionless velocity |

${M}_{b}$ | Magnetic parameter |

$\mathrm{Pr}$ | Prandtl number |

${S}_{b}$ | Mass transfer factor |

$N{u}_{{r}_{b}}$ | Heat transfer |

${C}_{g}$ | Skin friction coefficient |

${\mathrm{Re}}_{{r}_{b}}$ | Reynolds number |

$D$ | Denotes the roots of the equation |

$G\left(\xi \right)$ | Dimensionless velocity |

${R}_{d}$ | Radiation parameter |

$m$ | Relative factor of the power-law index |

${k}_{C}$ | Mean absorption coefficient (1/m) |

$k$ | Thermal conductivity (W/(m·K)) |

${u}_{b},{w}_{b}$ | Velocity components along the r_{b}- and z_{b}-axes (m/s) |

$\left({r}_{b},\delta ,{z}_{b}\right)$ | Cylindrical coordinates (m) |

${c}_{p}$ | Specific heat at constant pressure (J/Kg·K) |

${B}_{1}$ and ${B}_{2}$ | Arbitrary constants |

## Greek Symbols

${\nu}_{f}$ | Kinematic viscosity (m^{2}/s) |

$\gamma $ and $h$ | Empirical functions |

$\theta \left(\xi \right)$ | Dimensionless temperature |

$\chi $ | Non-Newtonian or Casson fluid parameter |

$\sigma $ | Electrical conductivity (Ω^{−1}m^{−1}) |

$\mu $ | Dynamic viscosity (N·s/m^{2}) |

$\xi $ | Pseudo-similarity variable |

$\rho $ | Density (kg/m^{3}) |

${\sigma}_{C}$ | Stefan-Boltzmann constant (W/(m^{2}·K^{4})) |

$\psi $ | Stream function |

$\eta $ | New similarity variable |

$\varphi $ | Solid nanoparticle volume fraction |

## Acronyms

KKL | Koo–Kleinstreuer–Li |

MHD | Magnetohydrodynamics |

EOF | Electro-osmotic forces |

Al_{2}O_{3} | Alumina |

2D, 3D | Two and three-dimensional |

BCs | Boundary conditions |

BLT | Boundary layer thickness |

BLF | Boundary layer flow |

VD | Viscous dissipation |

TIR | Thermal interfacial resistance |

## Subscripts

$pa$ | Nanoparticles |

$nf$ | Nanofluid |

$f$ | Regular based-fluid |

$w$ | Wall boundary condition |

$\infty $ | Far-field condition |

## Superscript

‘ | Derivative with respect to ξ |

## Appendix A

## References

- Choi, S.U.S. Enhancing thermal conductivity of fluids with nanoparticles. ASME Int. Mech. Eng.
**1995**, 66, 99–105. [Google Scholar] - Hamad, M.A.; Pop, I. Scaling transformations for boundary layer flow near the stagnation-point on a heated permeable stretching surface in a porous medium saturated with a nanofluid and heat generation/absorption effects. Transp. Porous Med.
**2010**, 87, 25–39. [Google Scholar] [CrossRef] - Makinde, O.D.; Aziz, A. Boundary layer flow of a nanofluid past a stretching sheet with a convective boundary condition. Int. J. Therm. Sci.
**2011**, 50, 1326–1332. [Google Scholar] [CrossRef] - Rana, P.; Bhargava, R. Flow and heat transfer of a nanofluid over a nonlinearly stretching sheet: A numerical study. Commun. Nonlinear Sci. Numer. Simul.
**2012**, 17, 212–226. [Google Scholar] [CrossRef] - Pal, D.; Mandal, G. Mixed convection-radiation on stagnation-point flow of nanofluids over a stretching/shrinking sheet in a porous medium with heat generation and viscous dissipation. J. Petrol. Sci. Eng.
**2015**, 126, 16–25. [Google Scholar] [CrossRef] - Hayat, T.; Khan, M.I.; Farooq, M.; Yasmeen, T.; Alsaedi, A. Water-carbon nanofluid flow with variable heat flux by a thin needle. J. Mol. Liq.
**2016**, 224, 786–791. [Google Scholar] [CrossRef] - Eid, M.R. Chemical reaction effect on MHD boundary layer flow of two-phase nanofluid model over an exponentially stretching sheet with a heat generation. J. Mol. Liq.
**2016**, 220, 718–725. [Google Scholar] [CrossRef] - Zaib, A.; Rashidi, M.M.; Chamkha, A.J. Flow of nanofluid containing gyrotactic microorganisms over static wedge in Darcy–brinkman porous medium with convective boundary condition. J. Porous Med.
**2018**, 21, 911–928. [Google Scholar] [CrossRef] - Soomro, F.A.; Zaib, A.; Haq, R.U.; Sheikholeslami, M. Dual nature solution of water functionalized copper nanoparticles along a permeable shrinking cylinder: FDM approach. Int. J. Heat Mass Transf.
**2019**, 129, 1242–1249. [Google Scholar] [CrossRef] - Khan, U.; Shafiq, A.; Zaib, A.; Baleanu, D. Hybrid nanofluid on mixed convective radiative flow from an irregular variably thick moving surface with convex and concave effects. Case Stud. Therm. Eng.
**2020**, 21, 100660. [Google Scholar] [CrossRef] - Zaher, A.Z.; Ali, K.K.; Mekheimer, K.S. Electroosmosis forces EOF driven boundary layer flow for a non-Newtonian fluid with planktonic microorganism: Darcy Forchheimer model. Int. J. Num. Meth. Heat Fluid Flow
**2021**, 31, 2534–2559. [Google Scholar] [CrossRef] - Gowda, R.J.P.; Kumar, R.N.; Prasannakumara, B.C.; Nagaraja, B.; Gireesha, B.J. Exploring magnetic dipole contribution on ferromagnetic nanofluid flow over a stretching sheet: An application of Stefan blowing. J. Mol. Liq.
**2021**, 335, 116215. [Google Scholar] [CrossRef] - Shahid, A.; Bhatti, M.M.; Ellahi, R.; Mekheimer, K.S. Numerical experiment to examine activation energy and bi-convection Carreau nanofluid flow on an upper paraboloid porous surface: Application in solar energy. Sustain. Energy Technol. Assess.
**2022**, 52, 102029. [Google Scholar] [CrossRef] - Mukhopaday, S. Casson fluid flow and heat transfer over a nonlinearly stretching surface. Chin. Phys. B
**2013**, 22, 074701. [Google Scholar] [CrossRef] - Nadeem, S.; Haq, R.U.; Lee, C. MHD flow of a Casson fluid over an exponentially shrinking sheet. Sci. Iran.
**2012**, 19, 1550–1553. [Google Scholar] [CrossRef] [Green Version] - Pramanik, S. Casson fluid flow and heat transfer past an exponentially porous stretching surface in presence of thermal radiation. Ain Shams Eng. J.
**2013**, 1, 205–212. [Google Scholar] [CrossRef] [Green Version] - Haq, R.U.; Nadeem, S.; Khan, Z.H.; Okedayo, T.G. Convective heat transfer and MHD effects on Casson nanofluid flow over a shrinking sheet. Cent. Eur. J. Phys.
**2014**, 12, 862–871. [Google Scholar] [CrossRef] - Makinde, O.D.; Sandeep, N.; Ajayi, T.M.; Animasaun, I.L. Numerical exploration of heat transfer and Lorentz force effects on the flow of MHD Casson fluid over an upper horizontal surface of a thermally stratified melting surface of a paraboloid of revolution. Int. J. Nonlinear Sci. Numer. Simul.
**2018**, 19, 93–106. [Google Scholar] [CrossRef] - Faraz, F.; Imran, S.M.; Ali, B.; Haider, S. Thermo-Diffusion and multi-slip effect on anaxisymmetric Casson flow over a unsteady radially stretching sheet in the presence of chemical reaction. Processes
**2019**, 7, 851. [Google Scholar] [CrossRef] [Green Version] - Khan, U.; Bilal, S.; Zaib, A.; Makinde, O.D.; Wakif, A. Numerical simulation of a nonlinear coupled differential system describing a convective flow of Casson gold–blood nanofluid through a stretched rotating rigid disk in the presence of Lorentz forces and nonlinear thermal radiation. Numer. Methods Partial Diff. Eq.
**2022**, 38, 308–328. [Google Scholar] [CrossRef] - Zaib, A.; Haq, R.U.; Chamkha, A.J. Mixed convective flow of a Casson fluid over a vertical plate in Darcy–Brinkman porous medium with slips. J. Porous Med.
**2021**, 24, 1–12. [Google Scholar] [CrossRef] - Jyothi, A.M.; Kumar, R.N.; Gowda, R.J.P.; Veeranna, Y.; Prasannakumara, B.C. Impact of activation energy and gyrotactic microorganisms on flow of Casson hybrid nanofluid over a rotating moving disk. Heat Transf.
**2021**, 96, 075210. [Google Scholar] [CrossRef] - Hossain, M.A.; Takhar, H.S. Radiation effect on mixed convection along a vertical plate with uniform surface temperature. Int. J. Heat Mass Transf.
**1996**, 31, 243–248. [Google Scholar] [CrossRef] - Takhar, H.S.; Gorla, R.S.R.; Soundalgekar, V.M. Radiation effects on MHD free convection flow of a gas past a semi-infinite vertical plate. Int. J. Numer. Methods Heat Fluid Flow
**1996**, 6, 77–83. [Google Scholar] [CrossRef] - Hossain, M.A.; Alim, M.A.; Rees, D.A. The effect of radiation on free convection from a porous vertical plate. Int. J. Heat Mass Transf.
**1999**, 42, 181–191. [Google Scholar] [CrossRef] - Hayat, T.; Qasim, M. Radiation and magnetic field effects on the unsteady mixed convection flow of a second grade fluid over a vertical stretching sheet. Int. J. Numer. Methods Fluids
**2011**, 66, 820–832. [Google Scholar] [CrossRef] - Mukhopadhyay, S.; Bhattacharyya, K.; Layek, G.C. Steady boundary layer flow and heat transfer over a porous moving plate in presence of thermal radiation. Int. J. Heat Mass Transf.
**2011**, 54, 2751–2757. [Google Scholar] [CrossRef] - Daniel, Y.S.; Aziz, Z.A.; Ismail, Z.; Shah, F. Thermal radiation on unsteady electrical MHD flow of nanofluid over stretching sheet with chemical reaction. J. King Saud Univ. Sci.
**2019**, 31, 804–812. [Google Scholar] [CrossRef] - Mekheimer, K.S.; Ramadan, S.F. New Insight into gyrotactic microorganisms for Bio-thermal convection of Prandtl nanofluid past a stretching/shrinking permeable sheet. SN Appl. Sci.
**2020**, 2, 450. [Google Scholar] [CrossRef] [Green Version] - Ramana, R.M.; Kumar, J.G.; Raju, K.V. Melting and radiation effects on MHD heat and mass transfer of Casson fluid flow past a permeable stretching sheet in the presence of chemical reaction. AIP Proced.
**2020**, 2246, 020021. [Google Scholar] - Abbas, W.; Mekheimer, K.S.; Ghazy, M.M.; Moawad, A.M.A. Thermal radiation effects on oscillatory squeeze flow with a particle-fluid suspension. Heat Transf.
**2021**, 50, 2129–2149. [Google Scholar] [CrossRef] - Khan, U.; Zaib, A.; Khan, I.; Nisar, K.S. Insight into the dynamics of transient blood conveying gold nanoparticles when entropy generation and Lorentz force are significant. Int. Commun. Heat Mass Transf.
**2021**, 127, 105415. [Google Scholar] [CrossRef] - Ariel, P.D. Axisymmetric flow due to a stretching sheet with partial slip. Comput. Math. Appl.
**2007**, 54, 1169–1183. [Google Scholar] [CrossRef] [Green Version] - Mirgolbabaei, H.; Ganji, D.D.; Etghani, M.M.E.; Sobati, A. Adapted variational iteration method and axisymmetric flow over a stretching sheet. Wolrd J. Model. Simul.
**2009**, 5, 307–314. [Google Scholar] - Ariel, P.D. Axisymmetric flow of a second grade fluid past a stretching sheet. Int. J. Eng. Sci.
**2001**, 39, 529–553. [Google Scholar] [CrossRef] - Sahoo, B. Effects of partial slip on axisymmetric flow of an electrically conducting viscoelastic fluid past a stretching sheet. Central Eur. J. Phys.
**2010**, 8, 498–508. [Google Scholar] [CrossRef] - Shahzad, A.; Ali, R.; Kamran, M.; Khan, S.U.D.; Khan, S.U.; Farooq, A. Axisymmetric flow with heat transfer over exponentiallystretching sheet: A computational approach. Phys. A
**2020**, 554, 124242. [Google Scholar] [CrossRef] - Mukhopadhyay, S. Effects of thermal radiation on Casson fluid flow and heat transfer over an unsteady stretching surface subjected to suction/blowing. Chin. Phys. B
**2013**, 22, 114702. [Google Scholar] [CrossRef] - Mondal, S.; Sibanda, P. Unsteady Casson nanofluid flow over a stretching sheet with thermal radiation, convective and slip boundary conditions. Alex. Eng. J. Eng.
**2016**, 55, 1025–1035. [Google Scholar] - Azeem, S.; Ramzan, A.; Masood, K. On the exact solution for axisymmetric flow and heat transfer over a nonlinear radially stretching sheet. Chin. Phys. Lett.
**2012**, 29, 084705. [Google Scholar] - Khan, U.; Zaib, A.; Khan, I.; Nisar, K.S. Activation energy on MHD flow of titanium alloy (Ti
_{6}Al_{4}V) nanoparticle along with a cross flow and streamwise direction with binary chemical reaction and non-linear radiation: Dual Solutions. J. Mater. Res. Technol.**2020**, 9, 188–199. [Google Scholar] [CrossRef] - Alghamdi, M.; Wakif, A.; Thumma, T.; Khan, U.; Baleanu, D.; Rasool, G. Significance of variability in magnetic field strength and heat source on the radiative-convective motion of sodium alginate-based nanofluid within a Darcy–Brinkman porous structure bounded vertically by an irregular slender surface. Case Stud. Therm. Eng.
**2021**, 28, 101428. [Google Scholar] [CrossRef] - Koo, J.; Kleinstreuer, C. Viscous dissipation effects in microtubes and microchannels. Int. J. Heat Mass Transf.
**2004**, 47, 3159–3169. [Google Scholar] [CrossRef] - Koo, J. Computational Nanofluid Flow and Heat Transfer Analyses Applied to Micro-Systems. Ph.D. Thesis, NC State University, Raleigh, NC, USA, 2005. [Google Scholar]
- Jang, S.P.; Choi, S.U. Role of Brownian motion in the enhanced thermal conductivity of nanofluids. Appl. Phys. Lett.
**2004**, 84, 4316–4318. [Google Scholar] [CrossRef] - Prasher, R.; Bhattacharya, P.; Phelan, P.E. Thermal conductivity of nanoscale colloidal solutions (nanofluids). Phys. Rev. Lett.
**2005**, 94, 025901. [Google Scholar] [CrossRef] - Li, J. Computational Analysis of Nanofluid Flow in Microchannels with Applications to Micro-Heat Sinks and Bio-MEMS. Ph.D. Thesis, University Libraries, North Carolina State University, Raleigh, NC, USA, 2008. [Google Scholar]
- Fang, T.; Yao, S.; Zhang, J.; Aziz, A. Viscous flow over a shrinking sheet with a second order slip flow model. Commun. Nonlinear Sci. Num. Simul.
**2010**, 15, 1831–1842. [Google Scholar] [CrossRef] - Nandeppanavar, M.M.; Vajravelu, K.; Abel, M.S.; Siddalingappa, M.N. Second order slip flow and heat transfer over astretching sheet with non-linear Navier boundary condition. Int. J. Therm. Sci.
**2012**, 58, 143–150. [Google Scholar] [CrossRef] - Turkyilmazoglu, M. Heat and mass transfer of MHD second order slip flow. Comp. Fluids
**2013**, 71, 426–434. [Google Scholar] [CrossRef] - Hakeem, A.K.A.; Ganesh, N.V.; Ganga, B. Magnetic field effect on second order slip flow of nanofluid over a stretching/shrinking sheet with thermal radiation effect. J. Magn. Magn. Mat.
**2015**, 381, 243–257. [Google Scholar] [CrossRef]

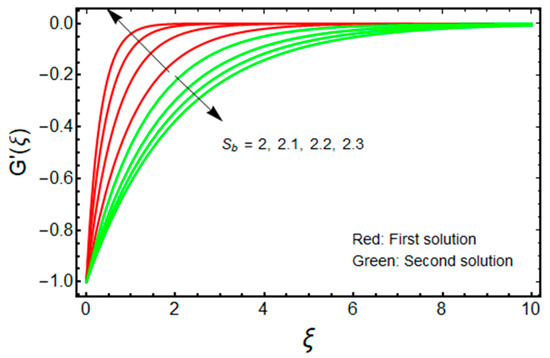

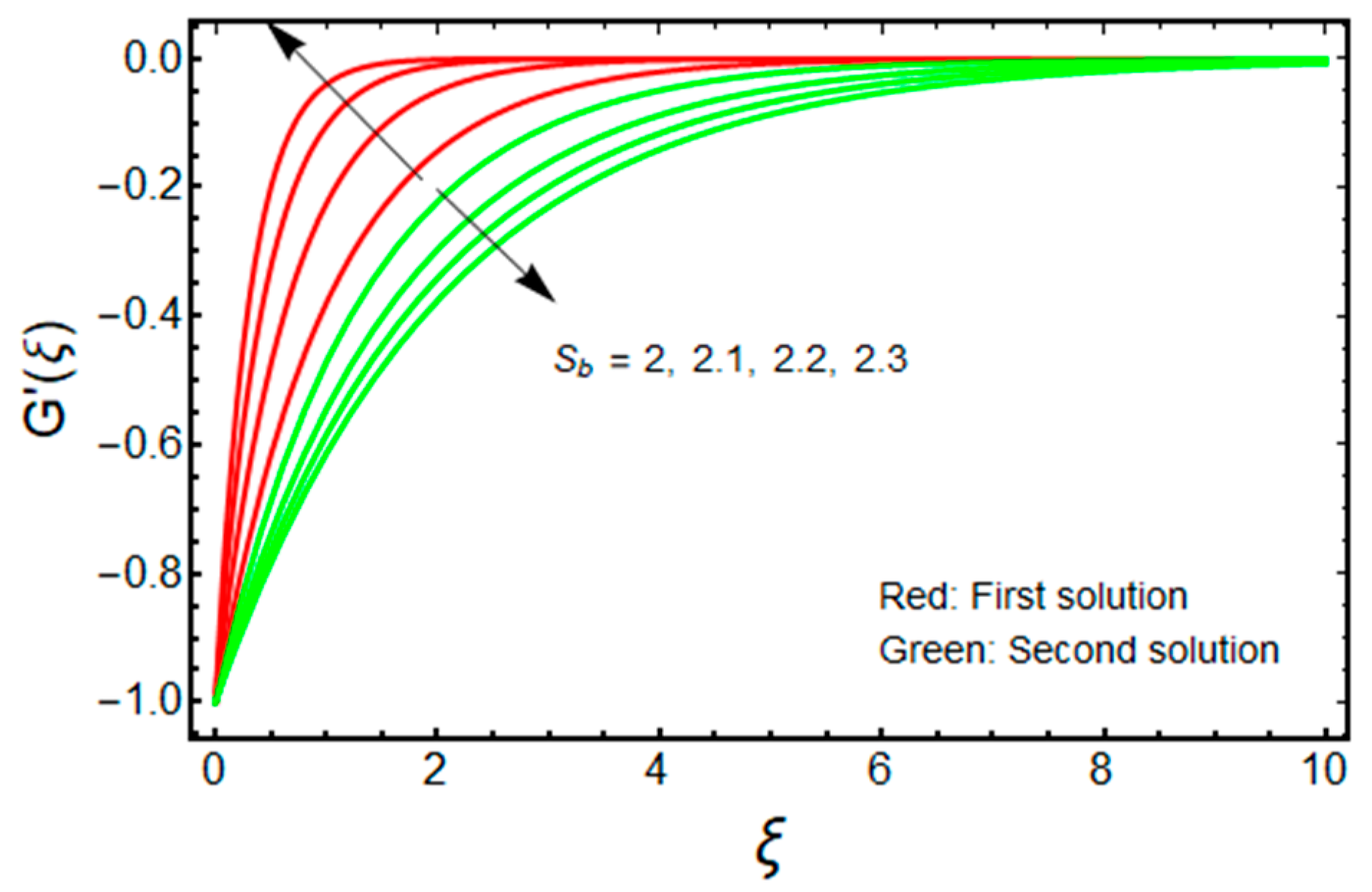

**Figure 2.**Effect of ${S}_{b}$ on $G\prime \left(\xi \right)$ when $\varphi =0.025,\chi =1,{M}_{b}=0.5$.

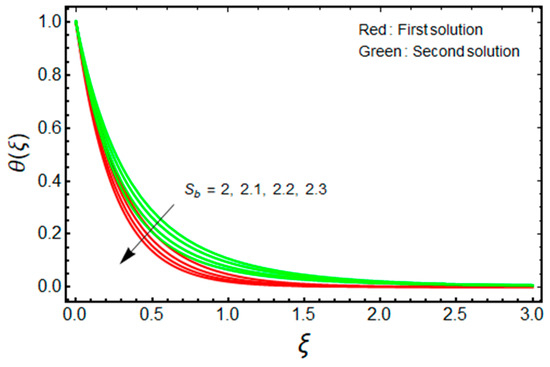

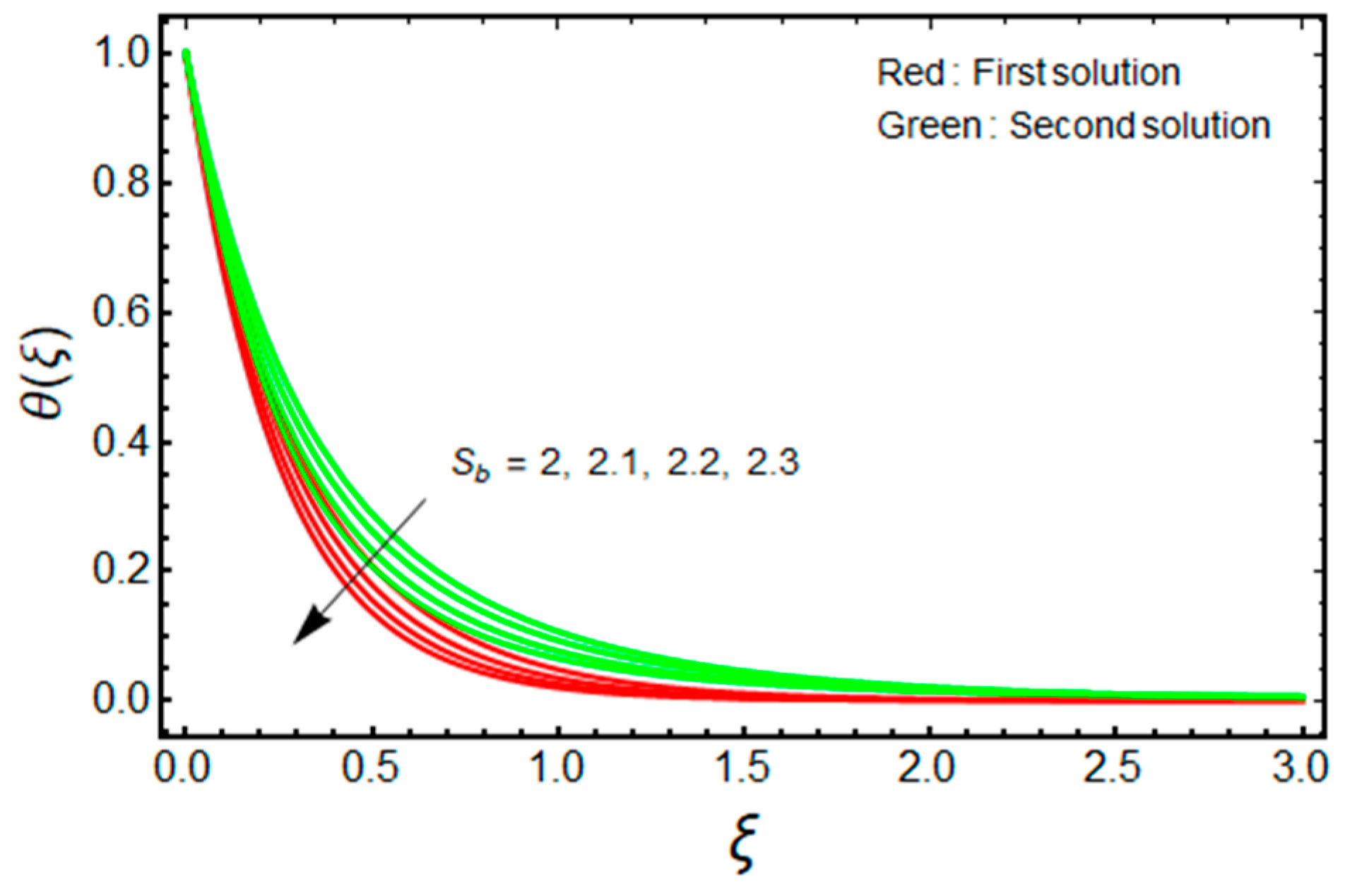

**Figure 3.**Effect of ${S}_{b}$ on $\theta \left(\xi \right)$ when $\varphi =0.025,\chi =1,{M}_{b}=0.5,{R}_{d}=1.5,m=1$.

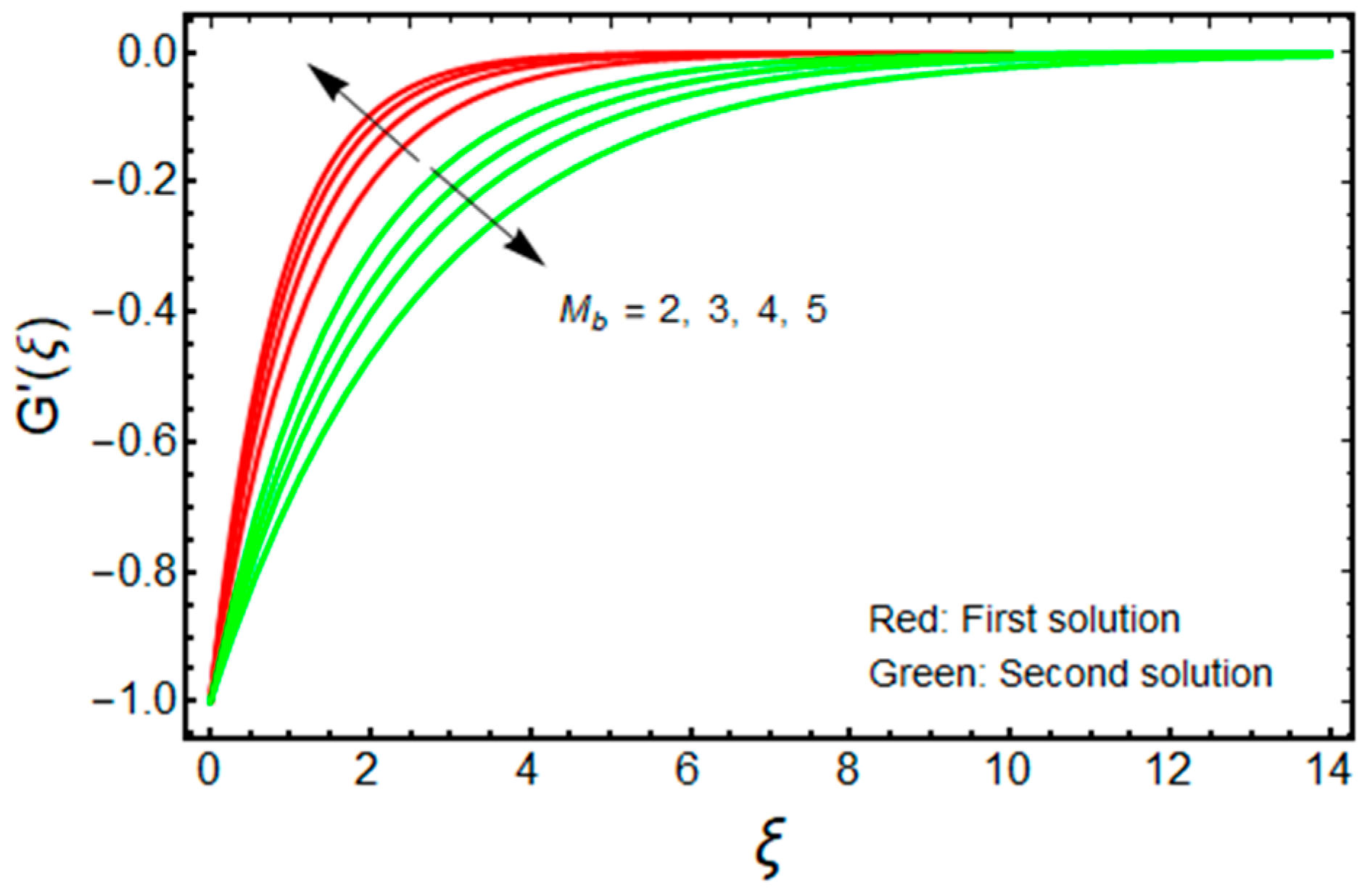

**Figure 4.**Effect of ${M}_{b}$ on $G\prime \left(\xi \right)$ when $\varphi =0.025,\chi =1,{S}_{b}=2.5$.

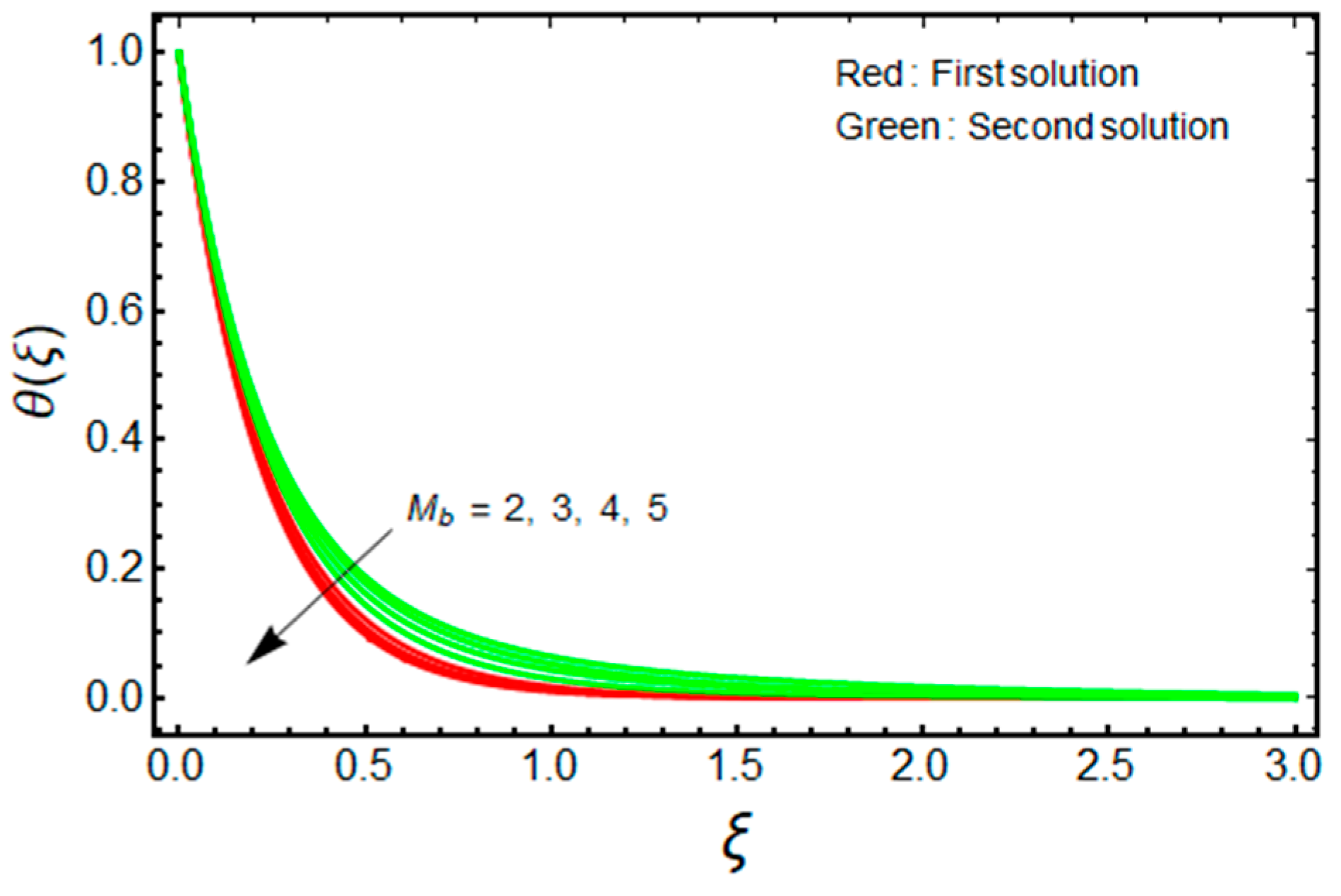

**Figure 5.**Effect of ${M}_{b}$ on $\theta \left(\xi \right)$ when $\varphi =0.025,\chi =1,{S}_{b}=2.5,{R}_{d}=1.5,m=1$.

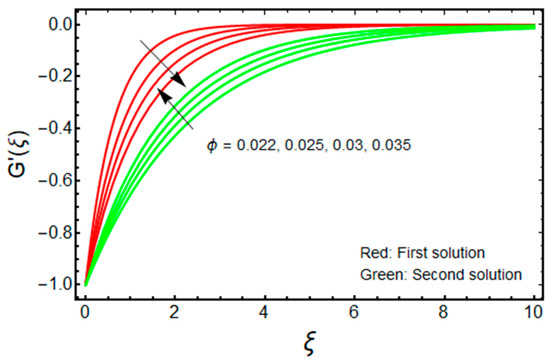

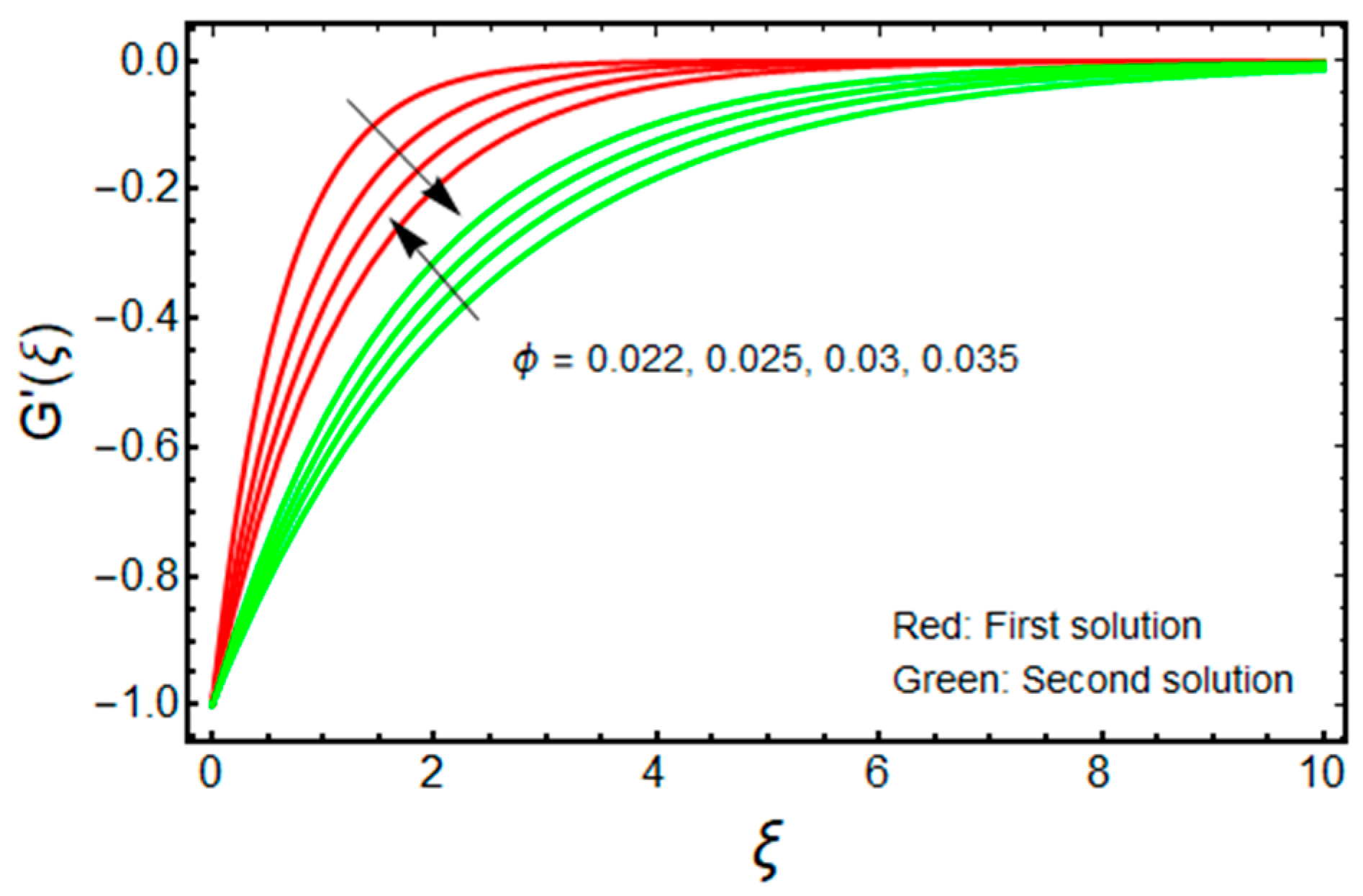

**Figure 6.**Effect of $\varphi $ on $G\prime \left(\xi \right)$ when ${S}_{b}=2.5,\chi =1,{M}_{b}=0.5$.

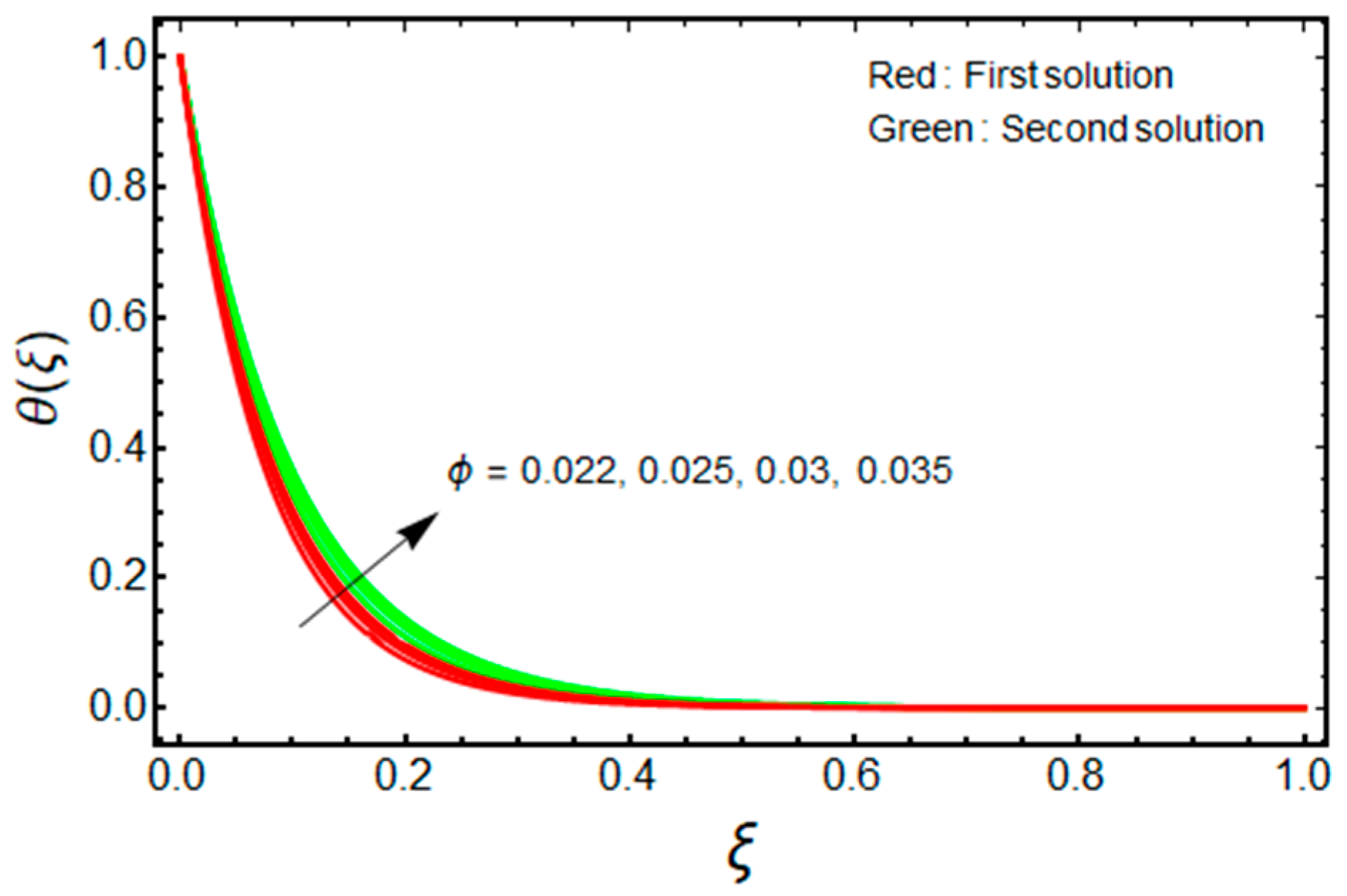

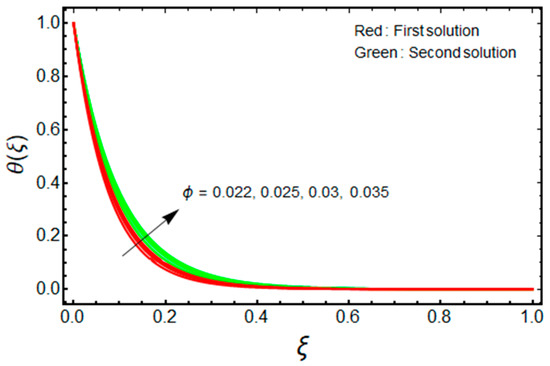

**Figure 7.**Effect of $\varphi $ on $\theta \left(\xi \right)$ when ${S}_{b}=2.5,\chi =1,{M}_{b}=0.5,{R}_{d}=1.5,m=1$.

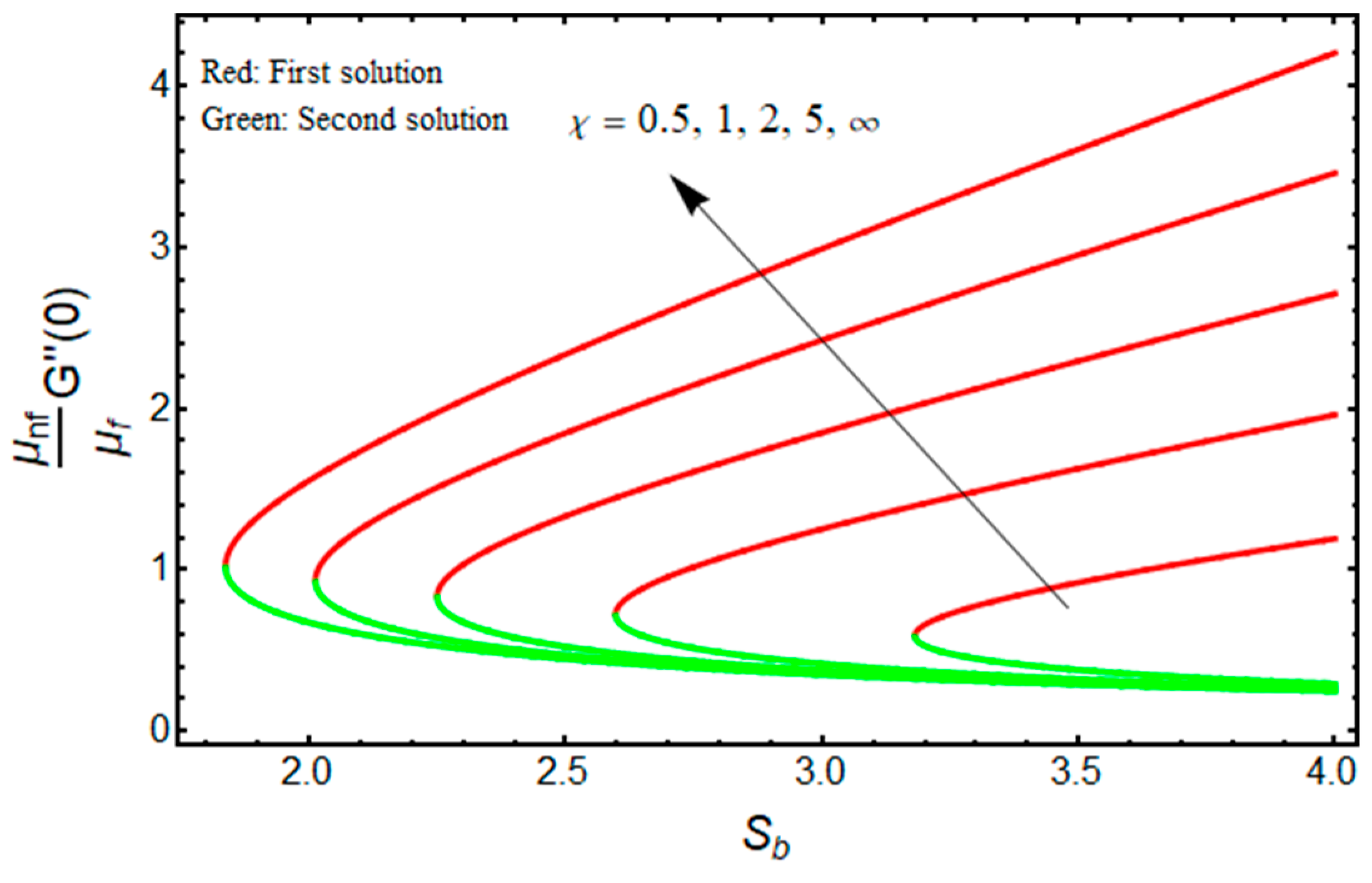

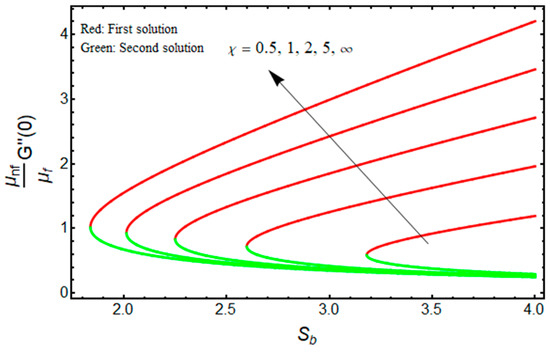

**Figure 8.**Effect of $\chi $ on $\left({\mu}_{nf}/{\mu}_{f}\right)G\u2033\left(0\right)\hspace{0.17em}$ versus ${S}_{b}$ when $\varphi =0.025,{M}_{b}=0.5$.

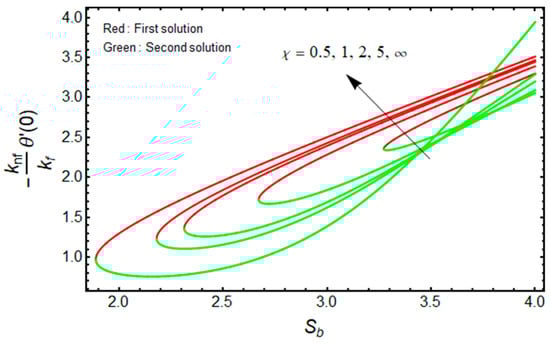

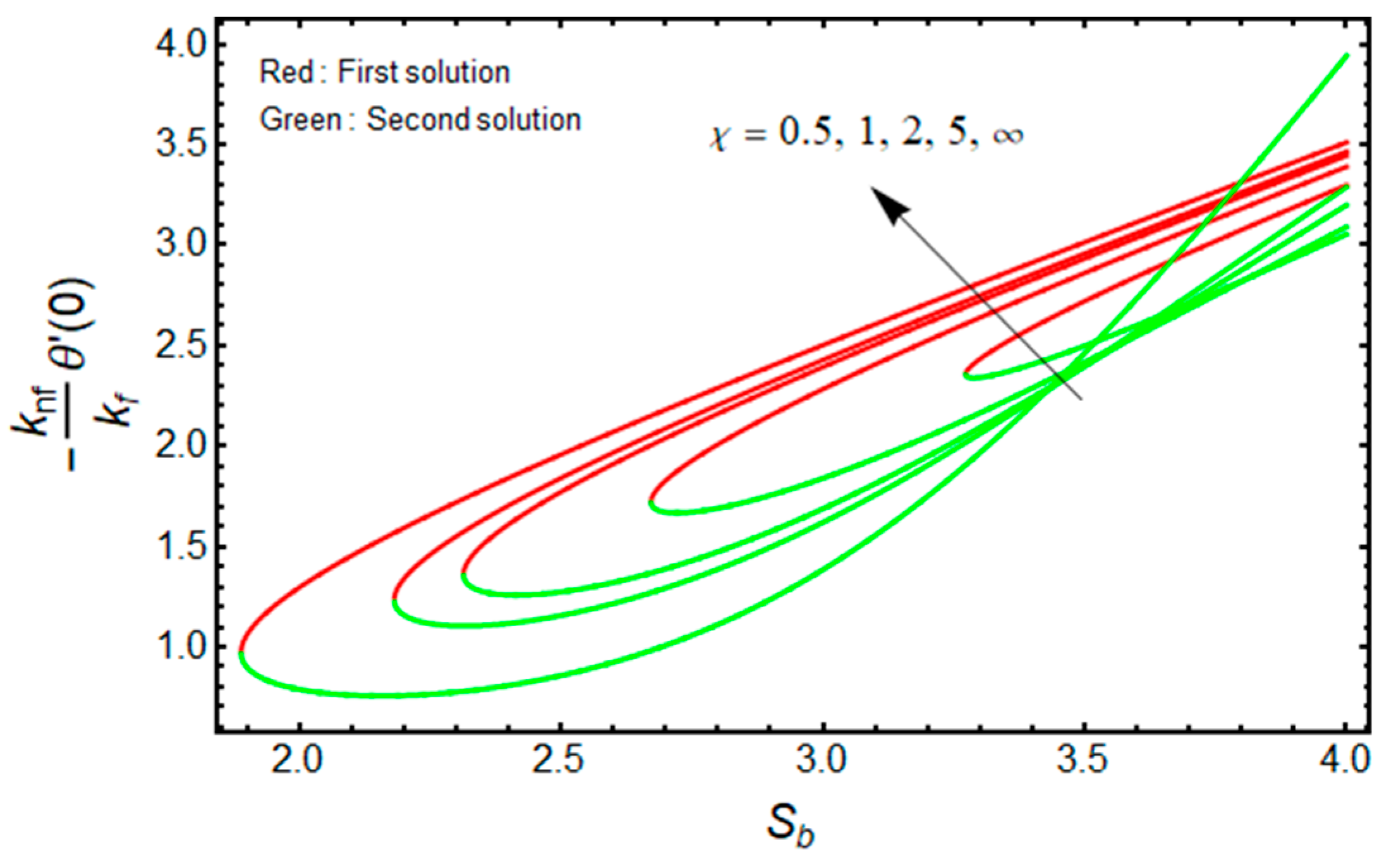

**Figure 9.**Effect of $\chi $ on $-\left({k}_{nf}/{k}_{f}\right)\theta \prime \left(0\right)$ versus ${S}_{b}$ when $\varphi =0.025,{M}_{b}=0.5,{R}_{d}=1.5,m=1$.

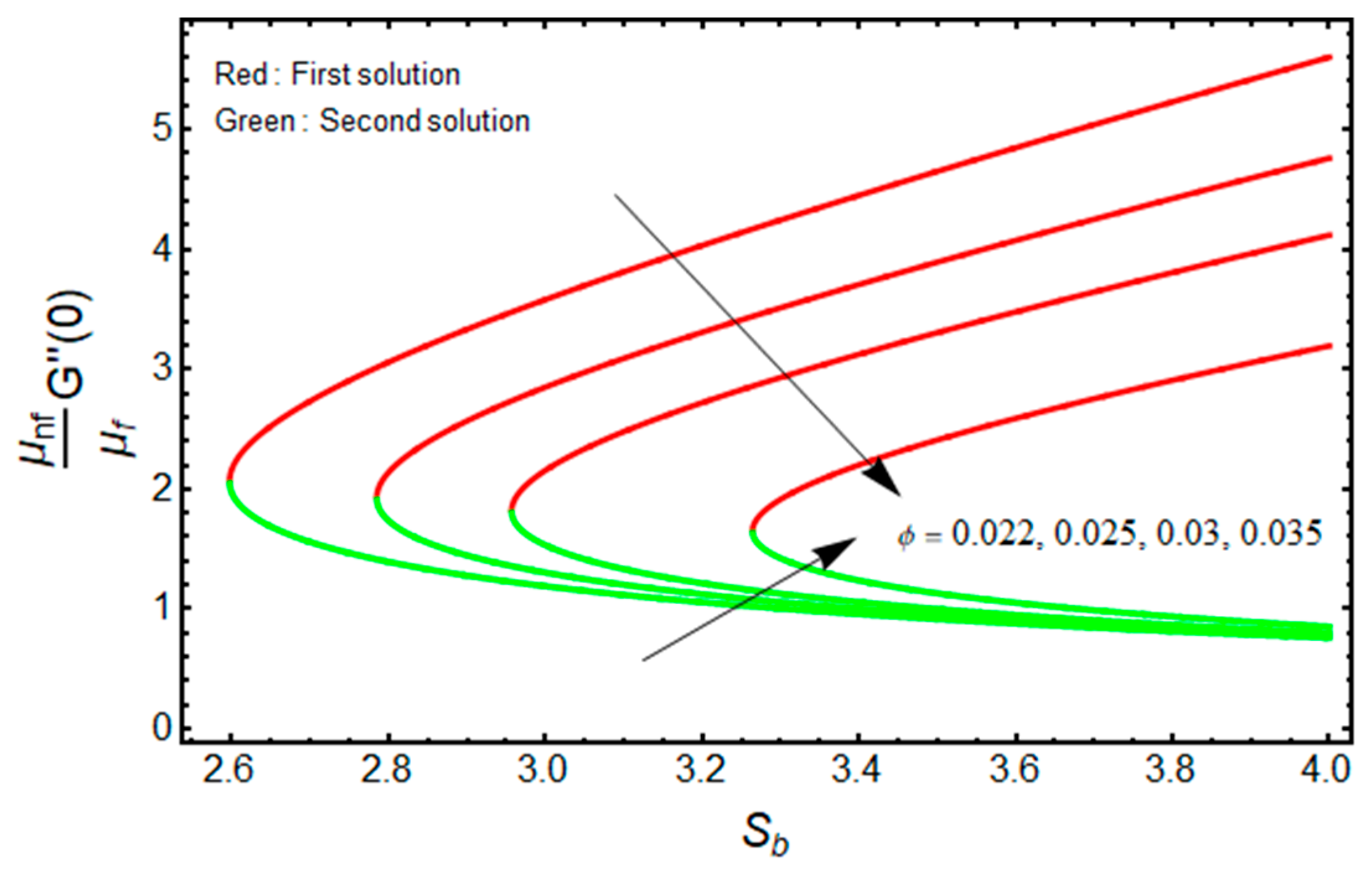

**Figure 10.**Effect of $\chi $ on $\left({\mu}_{nf}/{\mu}_{f}\right)G\u2033\left(0\right)\hspace{0.17em}$ versus ${S}_{b}$ when $\chi =1,{M}_{b}=0.5$.

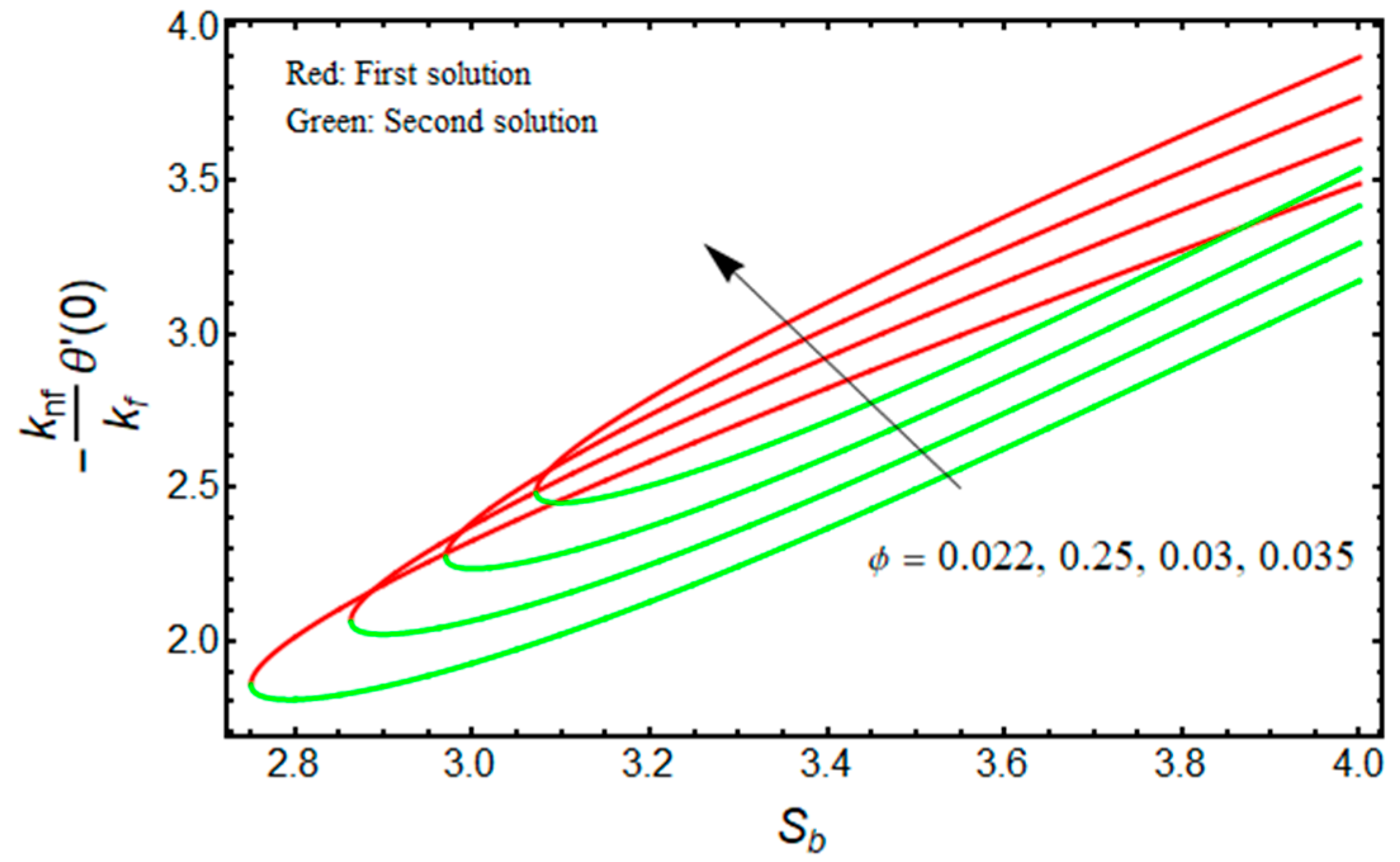

**Figure 11.**Effect of $\varphi $ on $-\left({k}_{nf}/{k}_{f}\right)\theta \prime \left(0\right)$ versus ${S}_{b}$ when $\chi =1,{M}_{b}=0.5,{R}_{d}=1.5,m=1$.

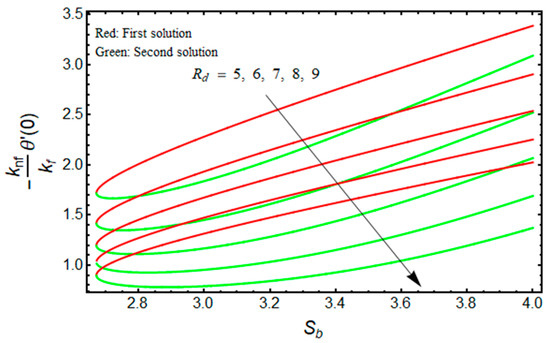

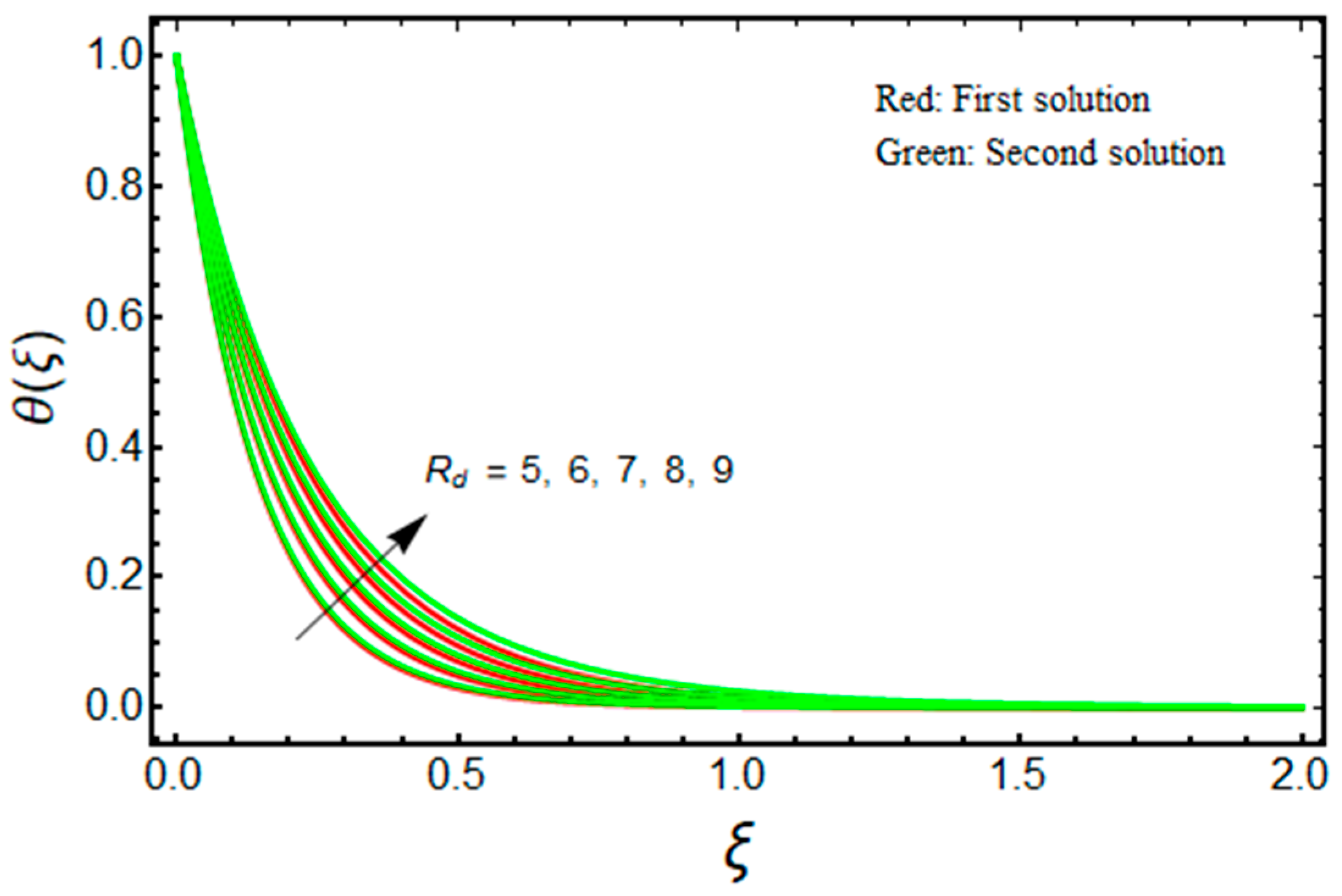

**Figure 12.**Effect of ${R}_{d}$ on $-\left({k}_{\mathit{nf}}/{k}_{f}\right)\theta \prime \left(0\right)$ versus ${S}_{b}$ when $\varphi =0.025,\chi =1,{M}_{b}=0.5,m=1$.

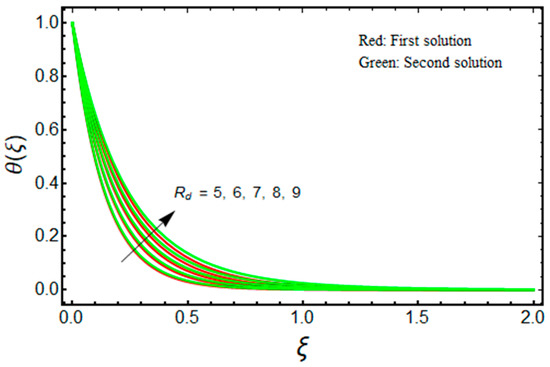

**Figure 13.**Effect of ${R}_{d}$ on $\theta \left(\xi \right)$ when $\varphi =0.025,\chi =1,{M}_{b}=0.5,m=1$.

Physical Properties | Water | Al_{2}O_{3} |
---|---|---|

$k$ (Wm^{−1}K^{−1}) | 0.613 | 25 |

${c}_{p}$ (J kg^{−1} K^{−1}) | 4179 | 765 |

$\rho $ (kg m^{−3}) | 997.1 | 3970 |

$\sigma {\left(\mathsf{\Omega}\mathrm{m}\right)}^{-1}$ | 0.05 | 1 × 10^{−10} |

${d}_{\mathit{pa}}$ (nm) | - | 47 |

Pr | 6.2 | - |

Coefficient Values | Water-Al_{2}O_{3} |
---|---|

${c}_{1}$ | 52.813 |

${c}_{2}$ | 6.115 |

${c}_{3}$ | 0.695 |

${c}_{4}$ | 4.1 × 10^{−2} |

${c}_{5}$ | 0.176 |

${c}_{6}$ | −2.98.198 |

${c}_{7}$ | −34.532 |

${c}_{8}$ | −3.922 |

${c}_{9}$ | −0.235 |

${c}_{10}$ | −0.999 |

**Table 3.**Values of $\left({\mu}_{nf}/{\mu}_{f}\right)G\u2033\left(0\right)$ for distinct values of ${S}_{b},\chi ,\varphi $, and ${M}_{b}$.

$\mathit{\chi}$ | ${\mathit{M}}_{\mathit{b}}$ | $\mathit{\varphi}$ | ${\mathit{S}}_{\mathit{b}}$ | 3.5 | 4 | 4.5 | 5 |
---|---|---|---|---|---|---|---|

0.5 | 0.5 | 0.025 | First solution | 2.58605 | 3.40613 | 4.09306 | 4.73029 |

Second solution | 1.17470 | 0.89187 | 0.74219 | 0.64220 | |||

1 | 0.5 | 0.025 | First solution | 4.66415 | 5.63891 | 6.55804 | 7.44685 |

Second solution | 0.97697 | 0.80809 | 0.69483 | 0.61190 | |||

2 | 0.5 | 0.025 | First solution | 6.60110 | 7.81896 | 8.99505 | 10.14620 |

Second solution | 0.92040 | 0.77704 | 0.67544 | 0.59881 | |||

5 | 0.5 | 0.025 | First solution | 8.50938 | 9.98435 | 11.42330 | 12.83980 |

Second solution | 0.89249 | 0.76064 | 0.66483 | 0.59149 | |||

∞ | 0.5 | 0.025 | First solution | 10.4065 | 12.1435 | 13.8436 | 15.5307 |

Second solution | 0.87575 | 0.75048 | 0.65812 | 0.58680 |

**Table 4.**Values of $-\left({k}_{nf}/{k}_{f}\right)\theta \prime \left(0\right)$ for distinct values of ${S}_{b},\chi ,\varphi ,{R}_{d},m$, and ${M}_{b}$.

$\mathit{\chi}$ | ${\mathit{M}}_{\mathit{b}}$ | $\mathit{\varphi}$ | ${\mathit{R}}_{\mathit{d}}$ | $\mathit{m}$ | ${\mathit{S}}_{\mathit{b}}$ | 3.5 | 4 | 4.5 | 5 |
---|---|---|---|---|---|---|---|---|---|

0.5 | 0.5 | 0.025 | 5 | 1 | First solution | 2.82016 | 3.52056 | 4.10507 | 4.66170 |

Second solution | 2.61293 | 3.32299 | 3.99296 | 4.68492 | |||||

1 | 0.5 | 0.025 | 5 | 1 | First solution | 3.04693 | 3.63183 | 4.18821 | 4.72967 |

Second solution | 2.66077 | 3.44115 | 4.28216 | 5.18029 | |||||

2 | 0.5 | 0.025 | 5 | 1 | First solution | 3.13405 | 3.69660 | 4.24086 | 4.77445 |

Second solution | 2.70750 | 3.72440 | 4.87577 | 6.24120 | |||||

5 | 0.5 | 0.025 | 5 | 1 | First solution | 3.19054 | 3.74125 | 4.27820 | 4.80674 |

Second solution | 2.85264 | 4.31988 | 6.24757 | 9.17801 | |||||

∞ | 0.5 | 0.025 | 5 | 1 | First solution | 3.23132 | 3.77438 | 4.30633 | 4.83129 |

Second solution | 3.18356 | 5.90969 | 11.6249 | 39.6040 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Khan, U.; Zaib, A.; Ishak, A.; Waini, I.; Raizah, Z.; Galal, A.M.
Analytical Approach for a Heat Transfer Process through Nanofluid over an Irregular Porous Radially Moving Sheet by Employing KKL Correlation with Magnetic and Radiation Effects: Applications to Thermal System. *Micromachines* **2022**, *13*, 1109.
https://doi.org/10.3390/mi13071109

**AMA Style**

Khan U, Zaib A, Ishak A, Waini I, Raizah Z, Galal AM.
Analytical Approach for a Heat Transfer Process through Nanofluid over an Irregular Porous Radially Moving Sheet by Employing KKL Correlation with Magnetic and Radiation Effects: Applications to Thermal System. *Micromachines*. 2022; 13(7):1109.
https://doi.org/10.3390/mi13071109

**Chicago/Turabian Style**

Khan, Umair, Aurang Zaib, Anuar Ishak, Iskandar Waini, Zehba Raizah, and Ahmed M. Galal.
2022. "Analytical Approach for a Heat Transfer Process through Nanofluid over an Irregular Porous Radially Moving Sheet by Employing KKL Correlation with Magnetic and Radiation Effects: Applications to Thermal System" *Micromachines* 13, no. 7: 1109.
https://doi.org/10.3390/mi13071109
