# A Piezoelectric MEMS Microgripper for Arbitrary XY Trajectory

## Abstract

**:**

## 1. Introduction

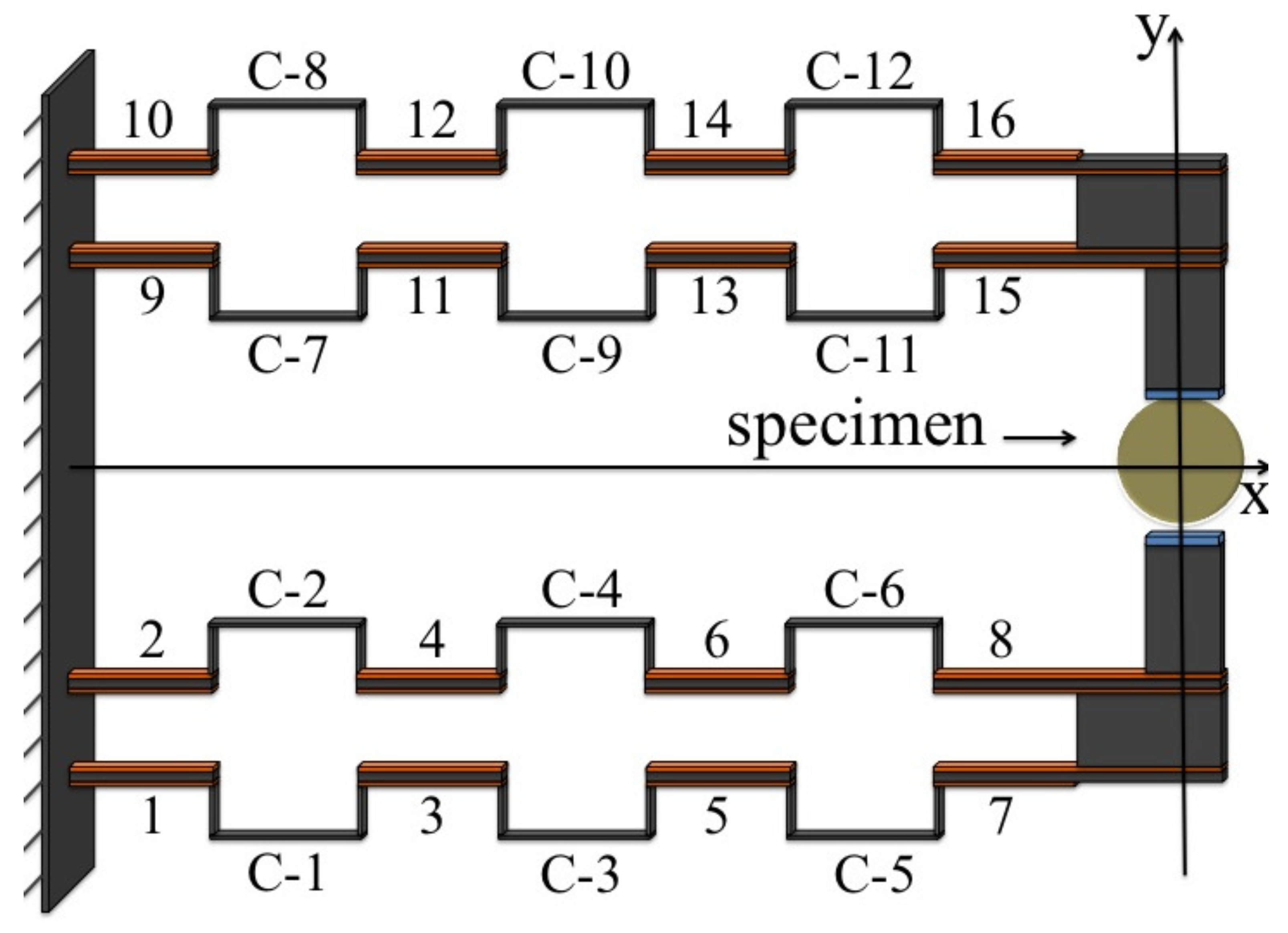

## 2. Analytical Model

## 3. Results and Discussion

## 4. Conclusions

## Funding

## Conflicts of Interest

## Nomenclature

b | out of plane thickness |

${E}_{M}$ | Young’s modulus of silicon |

${E}_{p}$ | Young’s modulus of PZT |

${h}_{M}$ | thickness of silicon |

${h}_{P}$ | thickness of PZT |

${M}_{a}$ | bending moment applied by PZTs |

u | displacement of the specimen along the x-axis |

v | displacement of the specimen along the y-axis |

${V}_{x},{V}_{y}$ | electrical voltages supplied to PZTs |

${x}_{p}\left(t\right),{y}_{p}\left(t\right)$ | parametric equations of the wanted trajectory |

## References

- Dong, J.; Mukhopadhyay, D.; Ferreira, P.M. Design, fabrication and testing of a silicon-on-insulator (SOI) MEMS parallel kinematics XY stage. J. Micromech. Microeng.
**2007**, 17, 1154–1161. [Google Scholar] [CrossRef] - Botta, F.; Verotti, M.; Bagolini, A.; Bellutti, P.; Belfiore, N.P. Mechanical response of four-bar linkage microgrippers with bidirectional electrostatic actuation. Actuators
**2018**, 7, 78. [Google Scholar] [CrossRef] [Green Version] - Otic, C.J.C.; Yonemura, S. Thermally Induced Knudsen Forces for Contactless Manipulation of a Micro-Object. Micromachines
**2022**, 13, 1092. [Google Scholar] [CrossRef] [PubMed] - Zhao, Y.; Huang, X.; Liu, Y.; Wang, G.; Hong, K. Design and Control of a Piezoelectric-Driven Microgripper Perceiving Displacement and Gripping Force. Micromachines
**2020**, 11, 121. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dawson, H.; Elias, J.; Etienne, P.; Calas-Etienne, S. The Rise of the OM-LoC: Opto-Microfluidic Enabled Lab-on-Chip. Micromachines
**2021**, 12, 1467. [Google Scholar] [CrossRef] [PubMed] - Zhu, H.; Zheng, F.; Leng, H.; Zhang, C.; Luo, K.; Cao, Y.; Yang, X. Simplified Method of Microcontact Force Measurement by Using Micropressure Sensor. Micromachines
**2021**, 12, 515. [Google Scholar] [CrossRef] - Tian, W.; Ling, Z.; Yu, W.; Shi, J. A Review of MEMS Scale Piezoelectric Energy Harvester. Appl. Sci.
**2018**, 8, 645. [Google Scholar] [CrossRef] [Green Version] - Gu, G.Y.; Zhu, L.M.; Su, C.Y.; Ding, H.; Fatikow, S. Modeling and control of piezo-actuated nanopositioning stages: A survey. IEEE Trans. Autom. Sci. Eng.
**2014**, 13, 313–332. [Google Scholar] [CrossRef] - Li, Y.; Xu, Q. Design and analysis of a totally decoupled flexure-based XY parallel micromanipulator. IEEE Trans. Robot.
**2009**, 25, 645–657. [Google Scholar] - Zhu, W.L.; Zhu, Z.; Shi, Y.; Wang, X.; Guan, K.; Ju, B.F. Design, modeling, analysis and testing of a novel piezo-actuated XY compliant mechanism for large workspace nano-positioning. Smart Mater. Struct.
**2016**, 25, 115033. [Google Scholar] [CrossRef] - Yong, Y.K.; Aphale, S.S.; Moheimani, S.R. Design, identification, and control of a flexure-based XY stage for fast nanoscale positioning. IEEE Trans. Nanotechnol.
**2008**, 8, 46–54. [Google Scholar] [CrossRef] - Laszczyk, K.; Bargiel, S.; Gorecki, C.; Krężel, J.; Dziuban, P.; Kujawińska, M.; Callet, D.; Frank, S. A two directional electrostatic comb-drive X–Y micro-stage for MOEMS applications. Sens. Actuators A Phys.
**2010**, 163, 255–265. [Google Scholar] [CrossRef] - Lin, C.; Shen, Z.; Wu, Z.; Yu, J. Kinematic characteristic analysis of a micro-/nano positioning stage based on bridge-type amplifier. Sens. Actuators A Phys.
**2018**, 271, 230–242. [Google Scholar] [CrossRef] - Zubir, M.N.M.; Shirinzadeh, B.; Tian, Y. Development of a novel flexure-based microgripper for high precision micro-object manipulation. Sens. Actuators A Phys.
**2009**, 150, 257–266. [Google Scholar] [CrossRef] - Yao, Q.; Dong, J.; Ferreira, P.M. Design, analysis, fabrication and testing of a parallel-kinematic micropositioning XY stage. Int. J. Mach. Tools Manuf.
**2007**, 47, 946–961. [Google Scholar] [CrossRef] - Zhou, M.; Fan, Z.; Ma, Z.; Zhao, H.; Guo, Y.; Hong, K.; Li, Y.; Liu, H.; Wu, D. Design and experimental research of a novel stick-slip type piezoelectric actuator. Micromachines
**2017**, 8, 150. [Google Scholar] [CrossRef] [Green Version] - Chen, X.; Li, Y. Design and analysis of a new high precision decoupled XY compact parallel micromanipulator. Micromachines
**2017**, 8, 82. [Google Scholar] [CrossRef] [Green Version] - Pang, J.; Liu, P.; Yan, P.; Zhang, Z. Modeling and experimental testing of a composite bridge type amplifier based nano-positioner. In Proceedings of the 2016 IEEE International Conference on Manipulation, Manufacturing and Measurement on the Nanoscale (3M-NANO), Chongqing, China, 18–22 July 2016; pp. 25–30. [Google Scholar]
- Botta, F.; Rossi, A.; Belfiore, N.P. A feasibility study of a novel piezo MEMS tweezer for soft materials characterization. Appl. Sci.
**2019**, 9, 2277. [Google Scholar] [CrossRef] [Green Version] - Botta, F.; Rossi, A.; Belfiore, N.P. A novel method to fully suppress single and bi-modal excitations due to the support vibration by means of piezoelectric actuators. J. Sound Vib.
**2021**, 510, 116260. [Google Scholar] [CrossRef] - Botta, F.; Marx, N.; Gentili, S.; Schwingshackl, C.; Di Mare, L.; Cerri, G.; Dini, D. Optimal placement of piezoelectric plates for active vibration control of gas turbine blades: Experimental results. In Sensors and Smart Structures Technologies for Civil, Mechanical, and Aerospace Systems; SPIE: San Diego, CA, USA, 2012; Volume 8345, pp. 655–665. [Google Scholar]
- Botta, F.; Marx, N.; Schwingshackl, C.; Cerri, G.; Dini, D. A wireless vibration control technique for gas turbine blades using piezoelectric plates and contactless energy transfer. In Turbo Expo: Power for Land, Sea, and Air; American Society of Mechanical Engineers: San Antonio, TX, USA, 2013; Volume 55263, p. V07AT32A006. [Google Scholar]
- Botta, F.; Scorza, A.; Rossi, A. Optimal Piezoelectric Potential Distribution for Controlling Multimode Vibrations. Appl. Sci.
**2018**, 8, 551. [Google Scholar] [CrossRef] [Green Version] - Shimizu, Y.; Peng, Y.; Kaneko, J.; Azuma, T.; Ito, S.; Gao, W.; Lu, T.F. Design and construction of the motion mechanism of an XY micro-stage for precision positioning. Sens. Actuators A Phys.
**2013**, 201, 395–406. [Google Scholar] [CrossRef] - Ai, W.; Xu, Q. New Structural Design of a Compliant Gripper Based on the Scott-Russell Mechanism. Int. J. Adv. Robot. Syst.
**2014**, 11, 192. [Google Scholar] [CrossRef] [Green Version] - Li, J.; Liu, H.; Zhao, H. A compact 2-DOF piezoelectric-driven platform based on “z-shaped” flexure hinges. Micromachines
**2017**, 8, 245. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, L.; Huang, H. Parasitic Motion Principle (PMP) Piezoelectric Actuators: Definition and Recent Developments; IntechOpen: London, UK, 2021. [Google Scholar]
- DeVoe, D.L.; Pisano, A.P. Modeling and optimal design of piezoelectric cantilever microactuators. J. Microelectromech. Syst.
**1997**, 6, 266–270. [Google Scholar] [CrossRef] - El-Sayed, A.M.; Abo-Ismail, A.; El-Melegy, M.T.; Hamzaid, N.A.; Abu Osman, N.A. Development of a micro-gripper using piezoelectric bimorphs. Sensors
**2013**, 13, 5826–5840. [Google Scholar] [CrossRef] [Green Version] - Sahoo, S.; Ratha, S.; Rout, C.S.; Nayak, S.K. Self-charging supercapacitors for smart electronic devices: A concise review on the recent trends and future sustainability. J. Mater. Sci.
**2022**, 57, 4399–4440. [Google Scholar] [CrossRef] - Aaryashree; Sahoo, S.; Walke, P.; Nayak, S.K.; Rout, C.S.; Late, D.J. Recent developments in self-powered smart chemical sensors for wearable electronics. Nano Res.
**2021**, 14, 3669–3689. [Google Scholar] [CrossRef] - Sahoo, S.; Krishnamoorthy, K.; Pazhamalai, P.; Mariappan, V.K.; Manoharan, S.; Kim, S.J. High performance self-charging supercapacitors using a porous PVDF-ionic liquid electrolyte sandwiched between two-dimensional graphene electrodes. J. Mater. Chem. A
**2019**, 7, 21693–21703. [Google Scholar] [CrossRef] - Crawley, E.F.; de Luis, J. Use of piezoelectric actuators as elements of intelligent structures. AIAA J.
**1987**, 25, 1373–1385. [Google Scholar] [CrossRef] - Botta, F.; Toccaceli, F. Piezoelectric plates distribution for active control of torsional vibrations. Actuators
**2018**, 7, 23. [Google Scholar] [CrossRef]

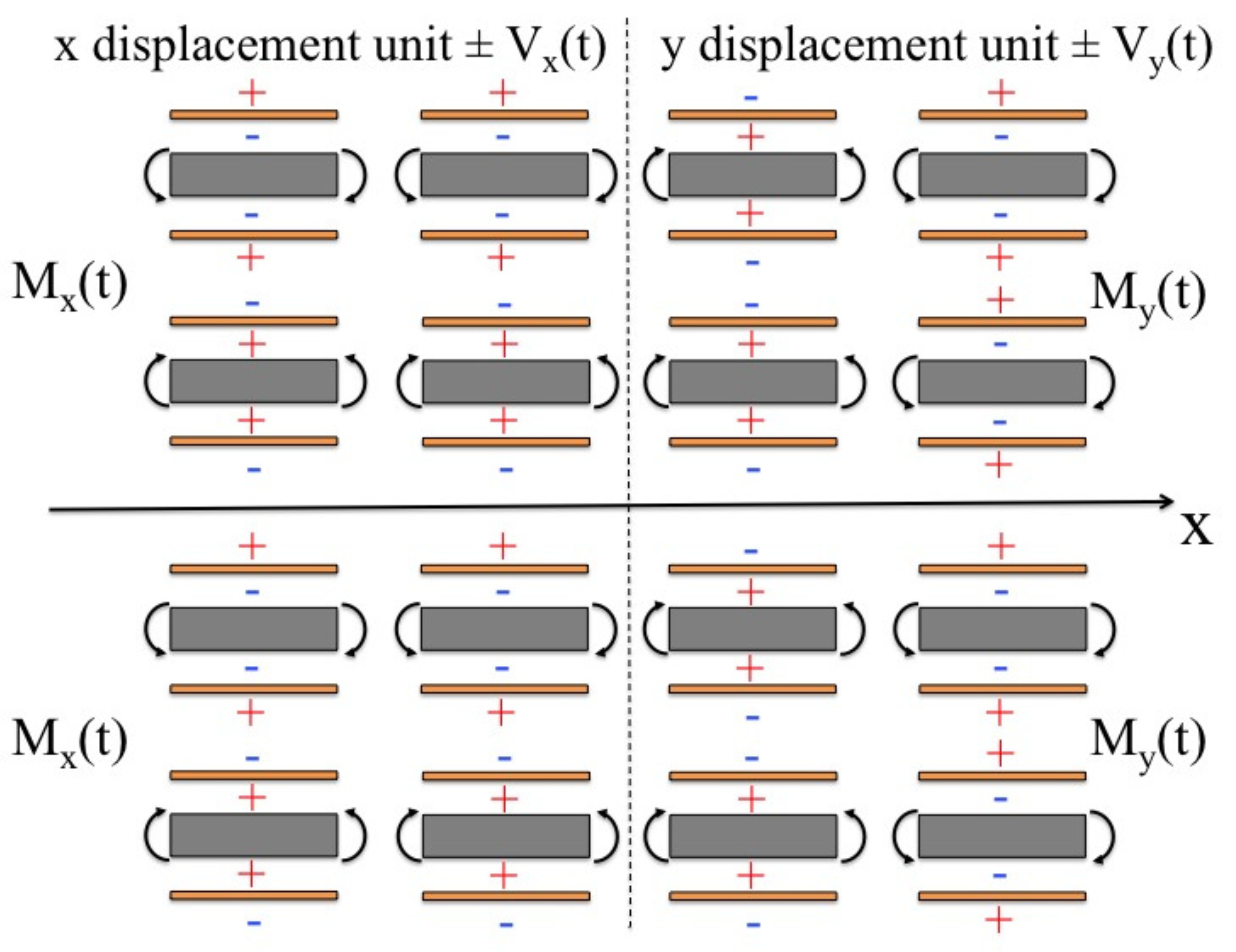

**Figure 3.**Example of symmetrical and antisymmetrical loads with respect to the x-axis. ${M}_{x}\left(t\right)$ and ${M}_{y}\left(t\right)$ denote, respectively, the bending moments which produce only x-axis and y-axis motion of the tip.

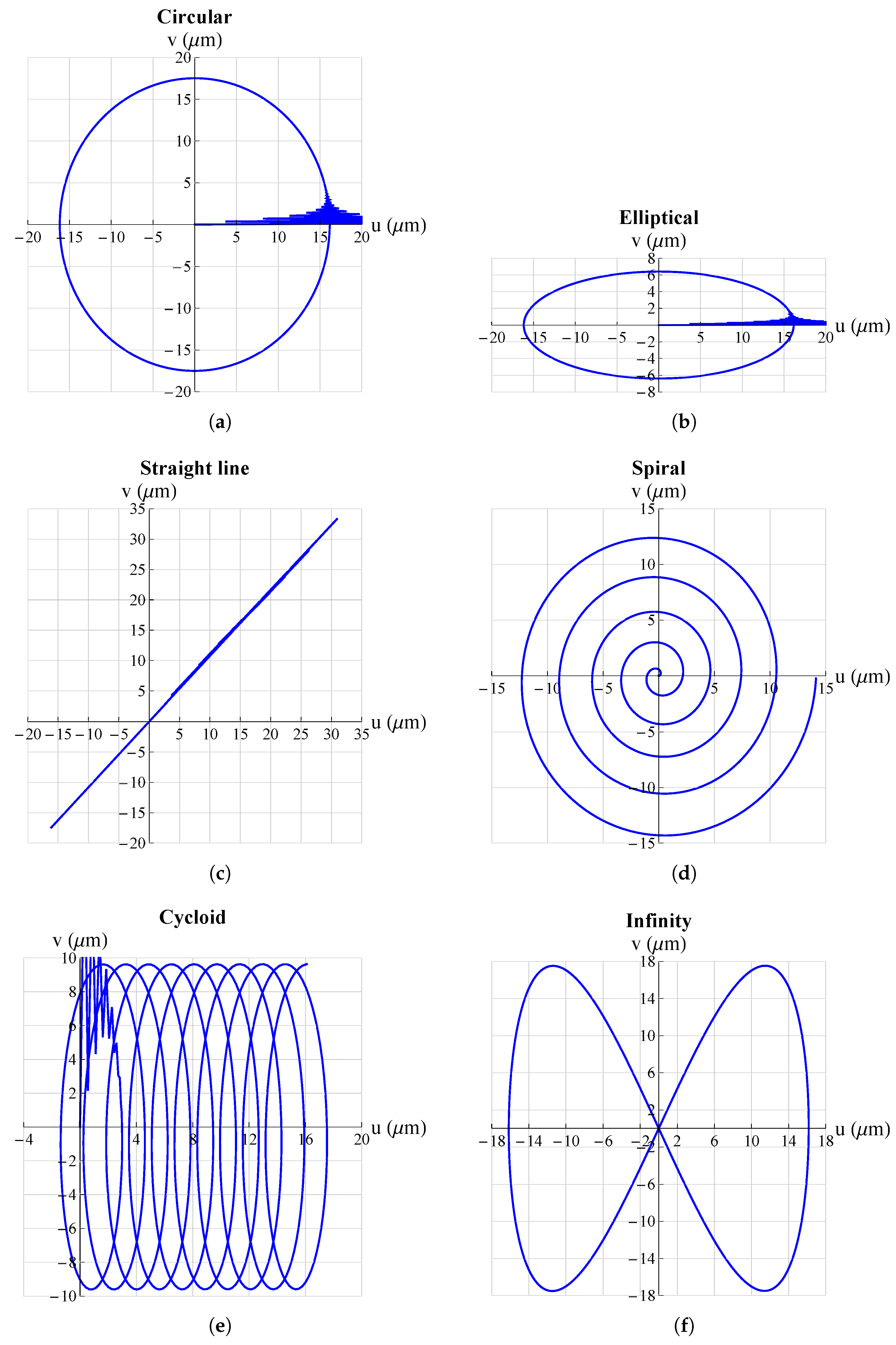

**Figure 5.**Some possible trajectories applicable, just to mention a few examples, in the medical field for atherectomy operations: (

**a**) circular; (

**b**) elliptical; (

**c**) straight line; (

**d**) spiral; (

**e**) cycloid; (

**f**) infinity. All graphs were obtained by means of FEM simulations.

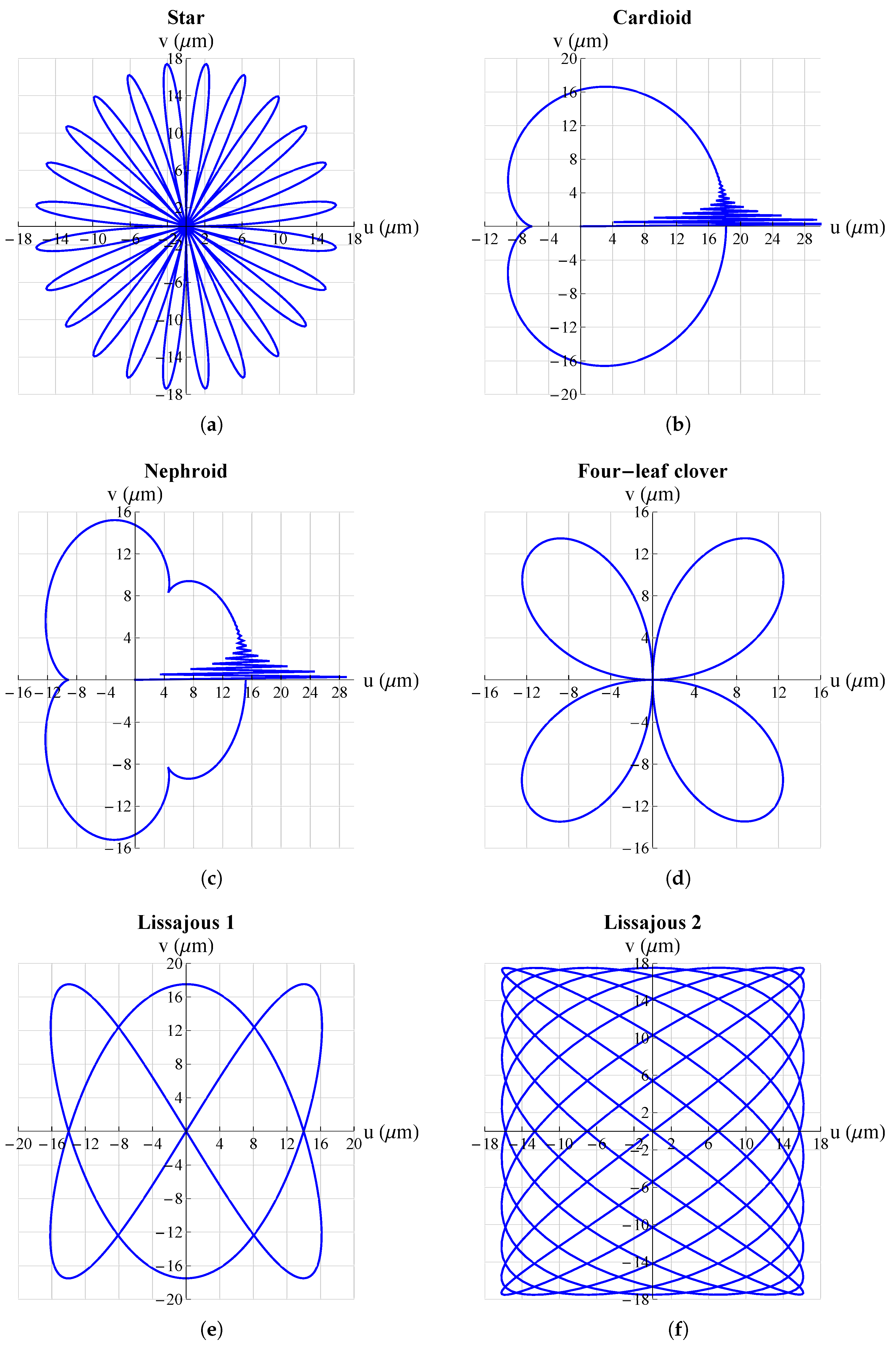

**Figure 6.**Some possible trajectories applicable, just to mention a few examples, for scanning methods in atomic force microscopes (AFM): (

**a**) star; (

**b**) cardioid; (

**c**) nephroid; (

**d**) four-leaf clover; (

**e**) Lisaajous-1; (

**f**) Lissajous 2. All graphs were obtained by means of FEM simulations.

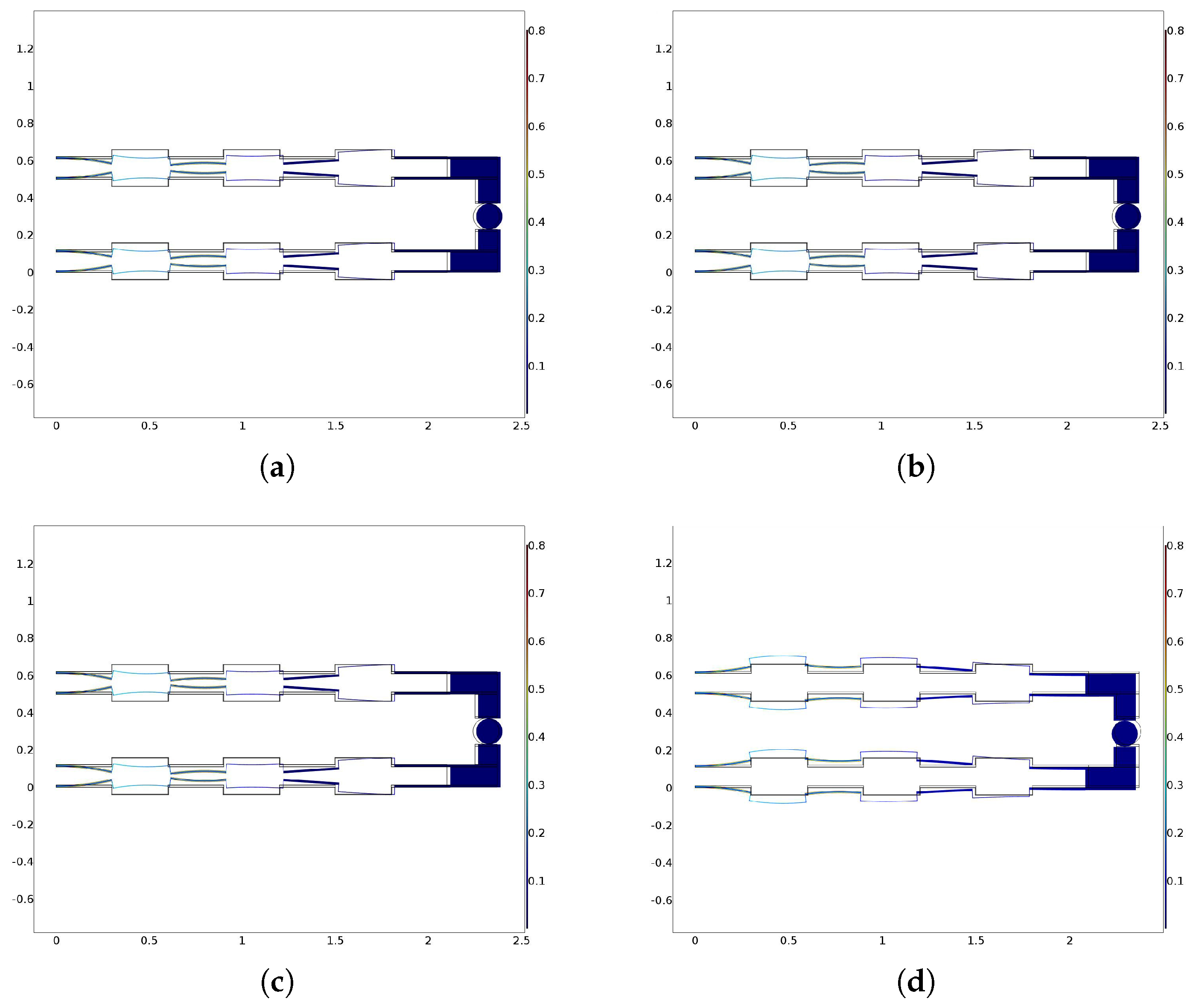

**Figure 7.**Von Mises stress for (

**a**) circular, (

**b**) elliptical, (

**c**) cycloidal, and (

**d**) Lissajous 1 trajectories. All graphs were obtained by means of FEM simulations. Stress scale is in GPa.

**Figure 8.**Effect of the electrical voltage supplied to piezoelectric plates on different trajectories. _______: $\{{V}_{x}$ = 50 V, ${V}_{y}$ = 20 V}; _______: $\{{V}_{x}$ = 30 V, ${V}_{y}$ = 12 V}; _______: $\{{V}_{x}$ = 5 V, ${V}_{y}$ = 2 V}: (

**a**) circular; (

**b**) infinity; (

**c**) star; (

**d**) four-leaf clover; (

**e**) Lissajous 1; (

**f**) Lissajous 2. All graphs were obtained by means of FEM simulations.

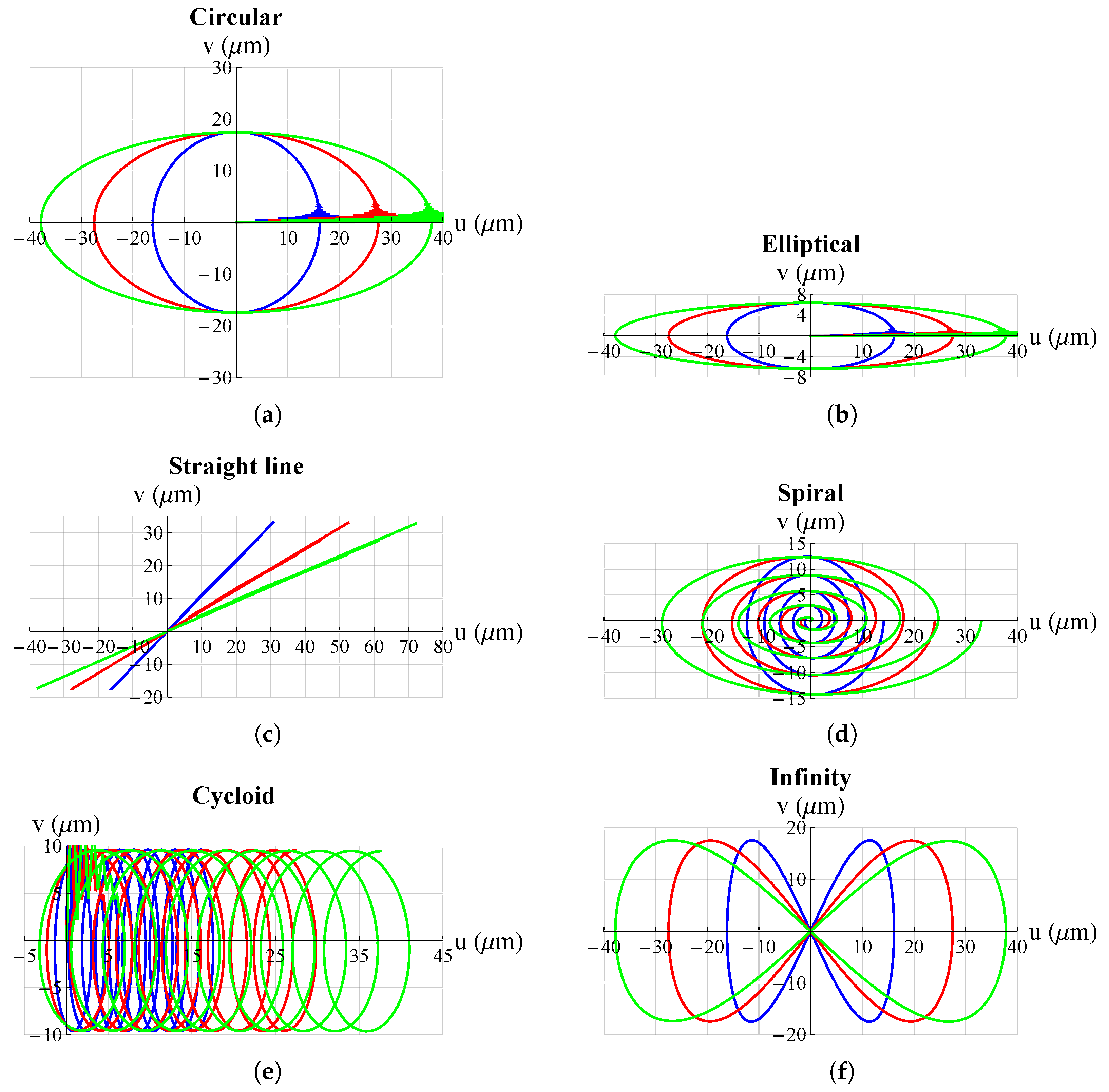

**Figure 9.**Effect of dimension ${h}_{C}$ on different trajectories. _______: ${h}_{C}=36$ μm, _______: ${h}_{C}=72$ μm, _______: ${h}_{C}=108$ μm: (

**a**) circular; (

**b**) elliptical; (

**c**) straight line; (

**d**) spiral; (

**e**) cycloid; (

**f**) infinity. All graphs were obtained by means of FEM simulations.

**Figure 10.**Effect of dimension ${h}_{C}$ on different trajectories. _______: ${h}_{C}=36$ μm, _______: ${h}_{C}=72$ μm, _______: ${h}_{C}=108$ μm: (

**a**) star; (

**b**) cardioid; (

**c**) nephroid; (

**d**) four-leaf clover; (

**e**) Lisaajous-1; (

**f**) Lissajous 2. All graphs were obtained by means of FEM simulations.

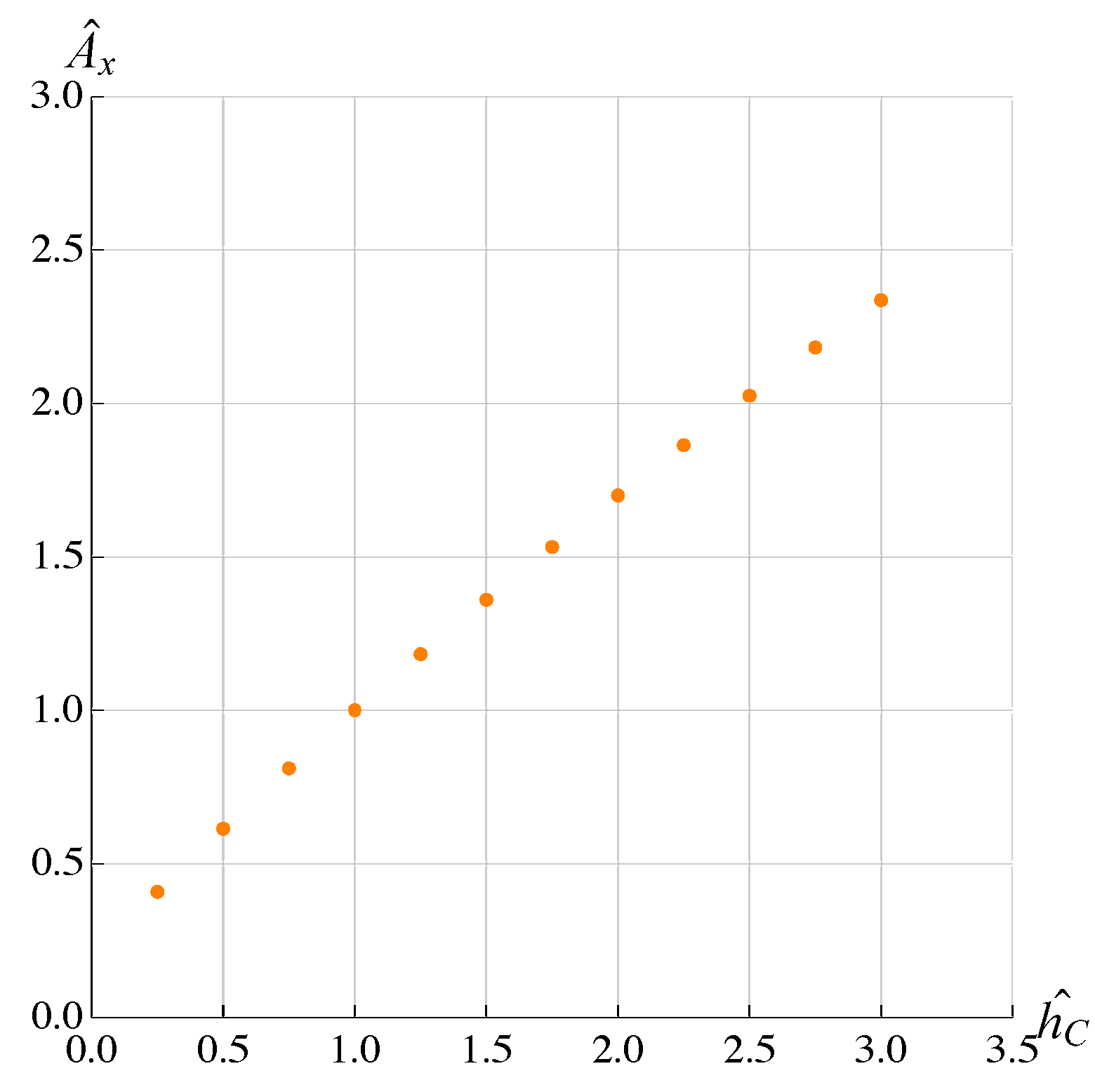

**Figure 12.**Effect of dimension ${L}_{MeP}$ on different trajectories.

**_______**: ${L}_{MeP}=300$ μm,

**_______**: ${L}_{MeP}=225$ μm,

**_______**: ${L}_{MeP}=150$ μm: (

**a**) four-leaf clover; (

**b**) infinity; (

**c**) Lissajous 1; (

**d**) Lissajous 2. All graphs were obtained by means of FEM simulations.

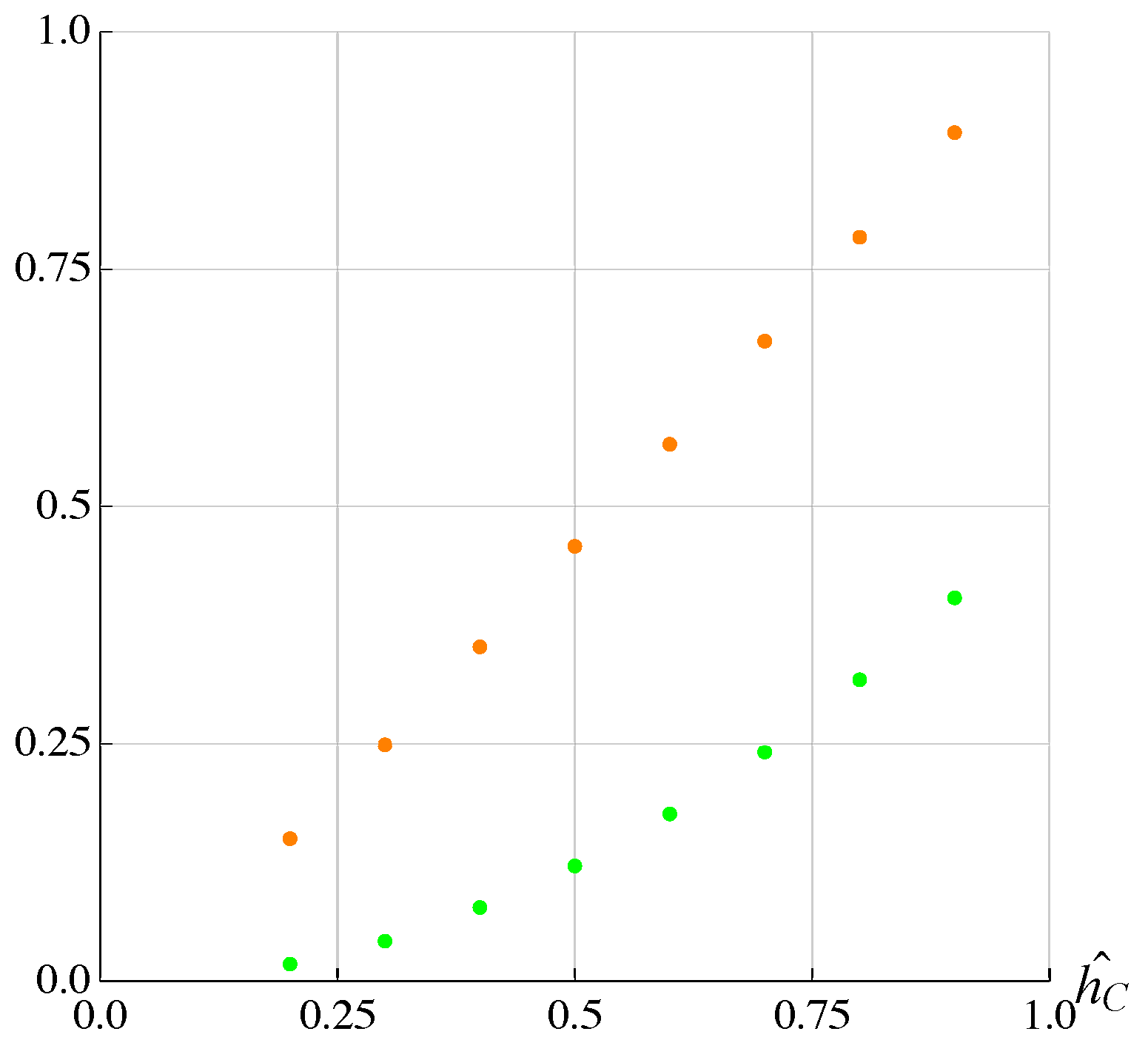

**Figure 13.**Effect of dimension ${L}_{MeP}$ on $\stackrel{\wedge}{{A}_{x}}$ (in orange) and $\stackrel{\wedge}{{A}_{y}}$ (in green).

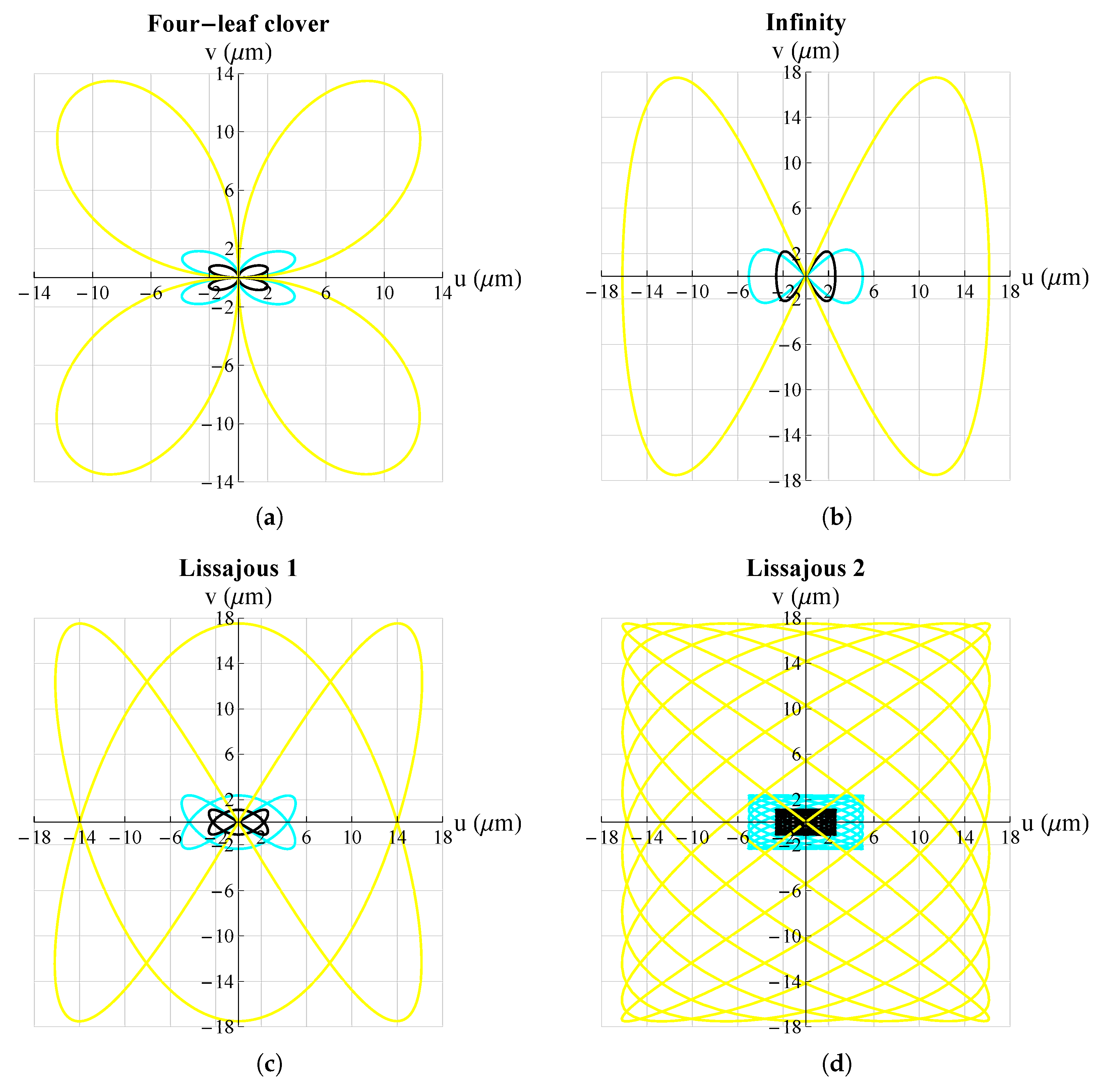

**Figure 14.**Effect of dimension ${h}_{M}$ on different trajectories.

**_______**: ${h}_{M}=10$ μm,

**_______**: ${h}_{M}=20$ μm, _______: ${h}_{M}=30$ μm: (

**a**) four-leaf clover; (

**b**) infinity; (

**c**) Lissajous 1; (

**d**) Lissajous 2. All graphs were obtained by means of FEM simulations.

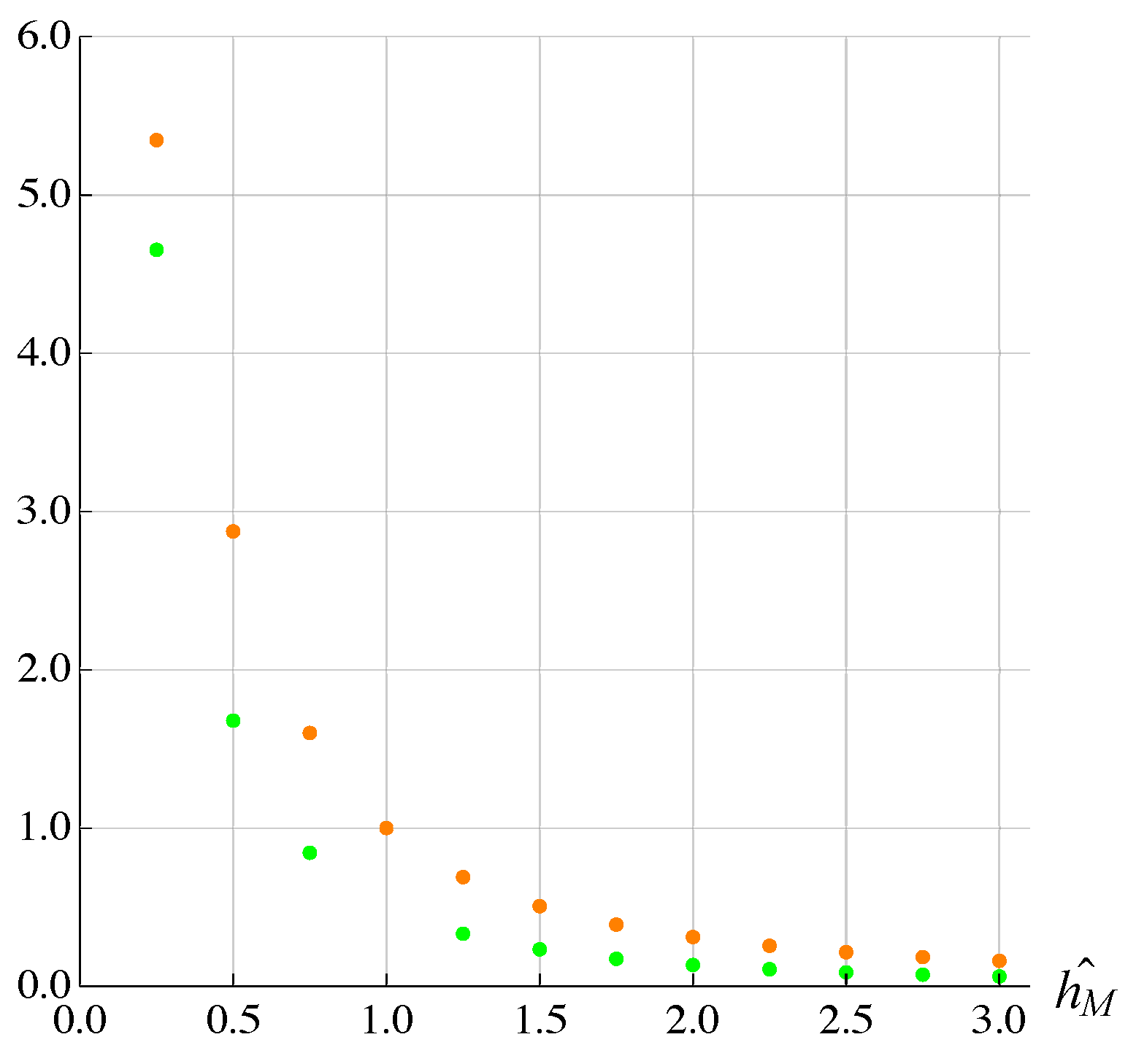

**Figure 15.**Effect of dimension ${h}_{M}$ on $\stackrel{\wedge}{{A}_{x}}$ (in orange) and $\stackrel{\wedge}{{A}_{y}}$ (in green).

Property | Silicon | PZT-5A | Unit |
---|---|---|---|

Density | 2329 | 7750 | kg/m^{3} |

Poisson’s ratio | 0.28 | – | – |

Young’s modulus | 170 | – | GPa |

${\mathrm{d}}_{31}={\mathrm{d}}_{32}$ | – | −1.71 | ${10}^{-10}$ C/N |

${\mathrm{d}}_{33}$ | – | 3.74 | ${10}^{-10}$ C/N |

${\mathrm{d}}_{51}={\mathrm{d}}_{42}$ | – | 5.84 | ${10}^{-10}$ C/N |

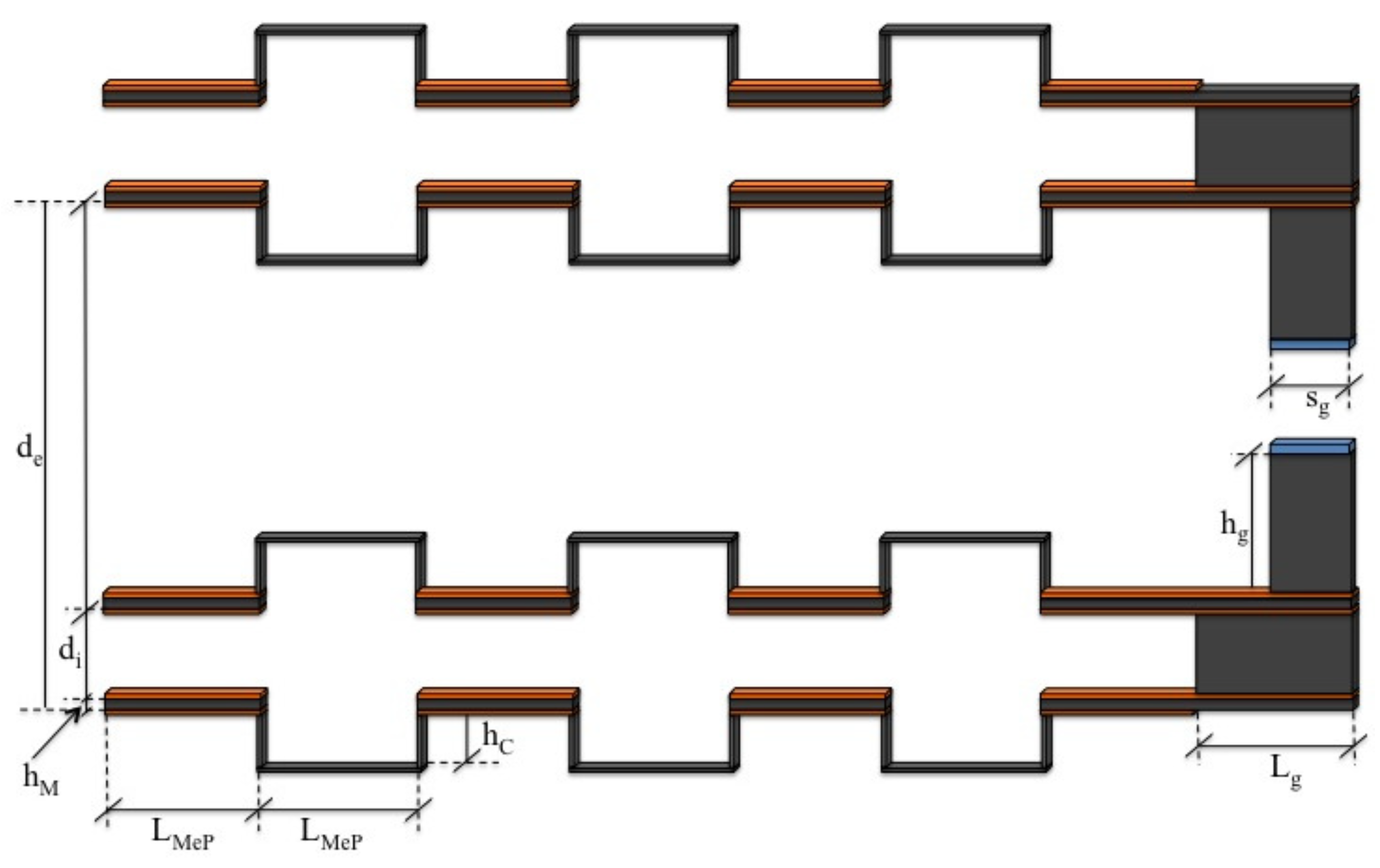

Label | Value (μm) | Label | Value (μm) |
---|---|---|---|

${L}_{MeP}$ | 300 | ${h}_{M}$ | 10 |

${L}_{g}$ | 270 | ${h}_{C}$ | 36 |

${d}_{i}$ | 100 | ${h}_{g}$ | 119 |

${d}_{e}$ | 500 | ${s}_{g}$ | 120 |

Out-of-plane thickness | 10 |

**Table 3.**Voltage functions ${V}_{x}\left(t\right)$ and ${V}_{y}\left(t\right)$ required to generate the desired pathways.

Trajectory | Voltage Functions | |||
---|---|---|---|---|

Label | ${\mathit{f}}_{\mathit{x}}\left(\mathit{t}\right)$ | ${\mathit{f}}_{\mathit{y}}\left(\mathit{t}\right)$ | ${\mathit{V}}_{\mathit{x}}\left(\mathit{t}\right)$ | ${\mathit{V}}_{\mathit{y}}\left(\mathit{t}\right)$ |

Circular | $acos\left(t\right)$ | $asin\left(t\right)$ | $40cos\left(t\right)$ | $5.473sin\left(t\right)$ |

Elliptical | $acos\left(t\right)$ | $bsin\left(t\right)$ | $40cos\left(t\right)$ | $2sin\left(t\right)$ |

Straight line | $acos\left(t\right)$ | $b\left(t\right)$ | $40cos\left(t\right)$ | $5.473sin\left(t\right)$ |

Spiral | $a({e}^{\frac{t}{10}}-1)cos\left(5t\right)$ | $b({e}^{\frac{t}{10}}-1)sin\left(5t\right)$ | $40({e}^{\frac{t}{10}}-1)cos\left(5t\right)$ | $5.473({e}^{\frac{t}{10}}-1)sin\left(5t\right)$ |

Cycloidal | $\frac{a}{2\pi}(t+sin\left(10t\right))$ | $bcos\left(10t\right)$ | $\frac{40}{2\pi}(t+sin\left(10t\right))$ | $3cos\left(10t\right)$ |

Infinity | $asin\left(t\right)$ | $bsin\left(2t\right)$ | $40sin\left(t\right)$ | $5.473sin\left(2t\right)$ |

Star | $asin\left(12t\right)cos\left(t\right)$ | $bsin\left(12t\right)sin\left(t\right)$ | $40sin\left(12t\right)cos\left(t\right)$ | $5.473sin\left(12t\right)sin\left(t\right)$ |

Cardioid | $a(2\ast cos(t)+cos(2t\left)\right)$ | $b\ast (2\ast sin(t)+sin(2t\left)\right)$ | $15(2\ast cos(t)+cos(2t\left)\right)$ | $2\ast (2\ast sin(t)+sin(2t\left)\right)$ |

Nephroid | $a(4\ast cos(t)+cos(4t\left)\right)$ | $b\ast (4\ast sin(t)+sin(4t\left)\right)$ | $7.5(4\ast cos(t)+cos(4t\left)\right)$ | $1\ast (4\ast sin(t)+sin(4t\left)\right)$ |

Four-leaf clover | $asin\left(2t\right)cos\left(t\right)$ | $bsin\left(2t\right)sin\left(t\right)$ | $40sin\left(2t\right)cos\left(t\right)$ | $5.473sin\left(2t\right)sin\left(t\right)$ |

Lissajous 1 | $asin\left(2t\right)$ | $bsin\left(3t\right)$ | $40sin\left(2t\right)$ | $5.473sin\left(3t\right)$ |

Lissajous 2 | $asin\left(10t\right)$ | $bsin\left(7t\right)$ | $40sin\left(10t\right)$ | $5.473sin\left(7t\right)$ |
