Article

Efficient Optomechanical Mode-Shape Mapping of Micromechanical Devices

1
Department of Physics, Technical University of Munich, 85748 Garching, Germany
2
Munich Center for Quantum Science and Technology (MCQST), 80799 Munich, Germany
3
Institute for Advanced Study, Technical University of Munich, 85748 Garching, Germany
4
Walter Schottky Institute, Technical University of Munich, 85748 Garching, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Joshua En-yuan Lee
Micromachines 2021, 12(8), 880; https://doi.org/10.3390/mi12080880
Received: 21 June 2021 / Revised: 21 July 2021 / Accepted: 22 July 2021 / Published: 27 July 2021

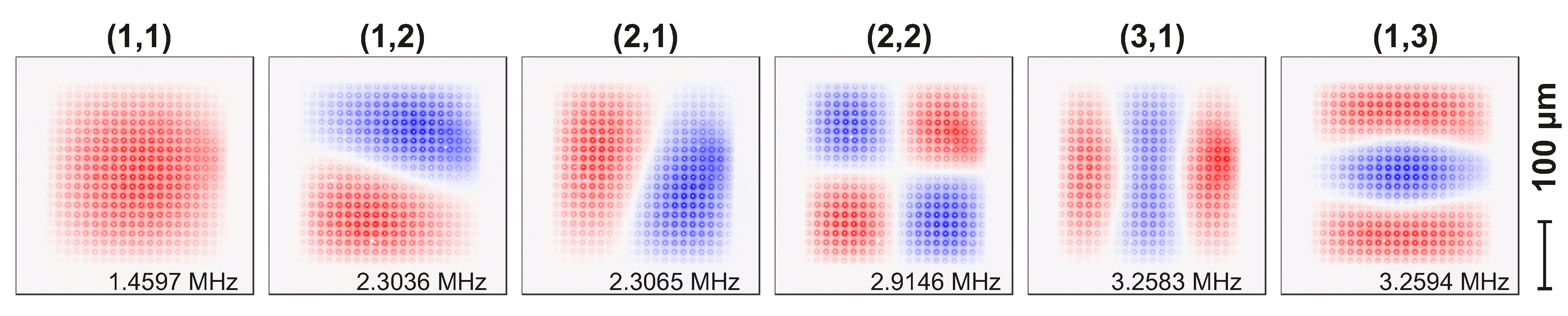

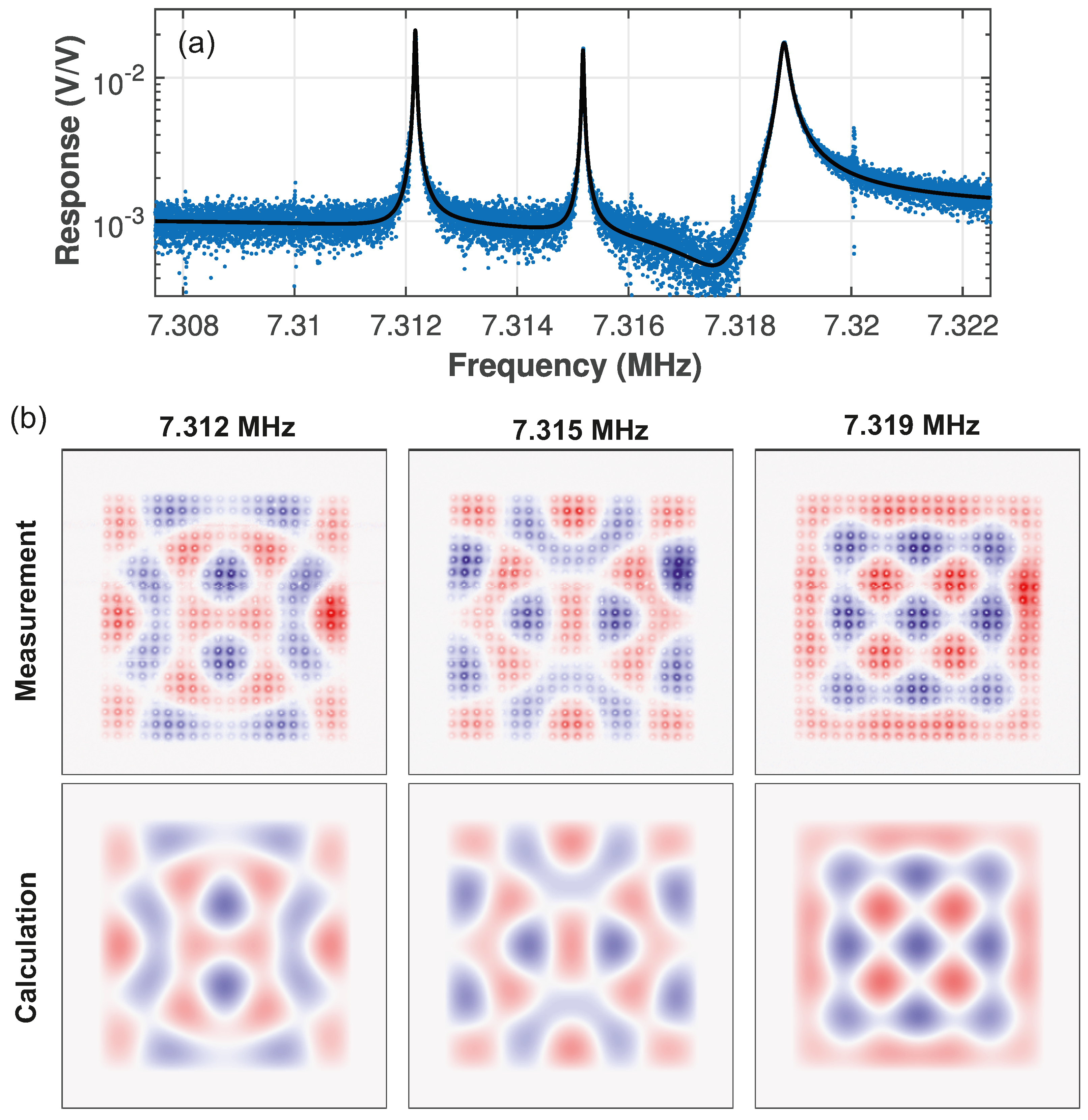

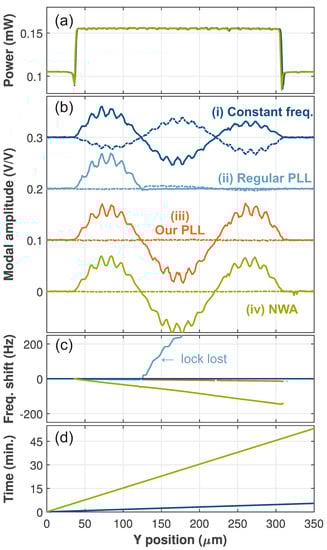

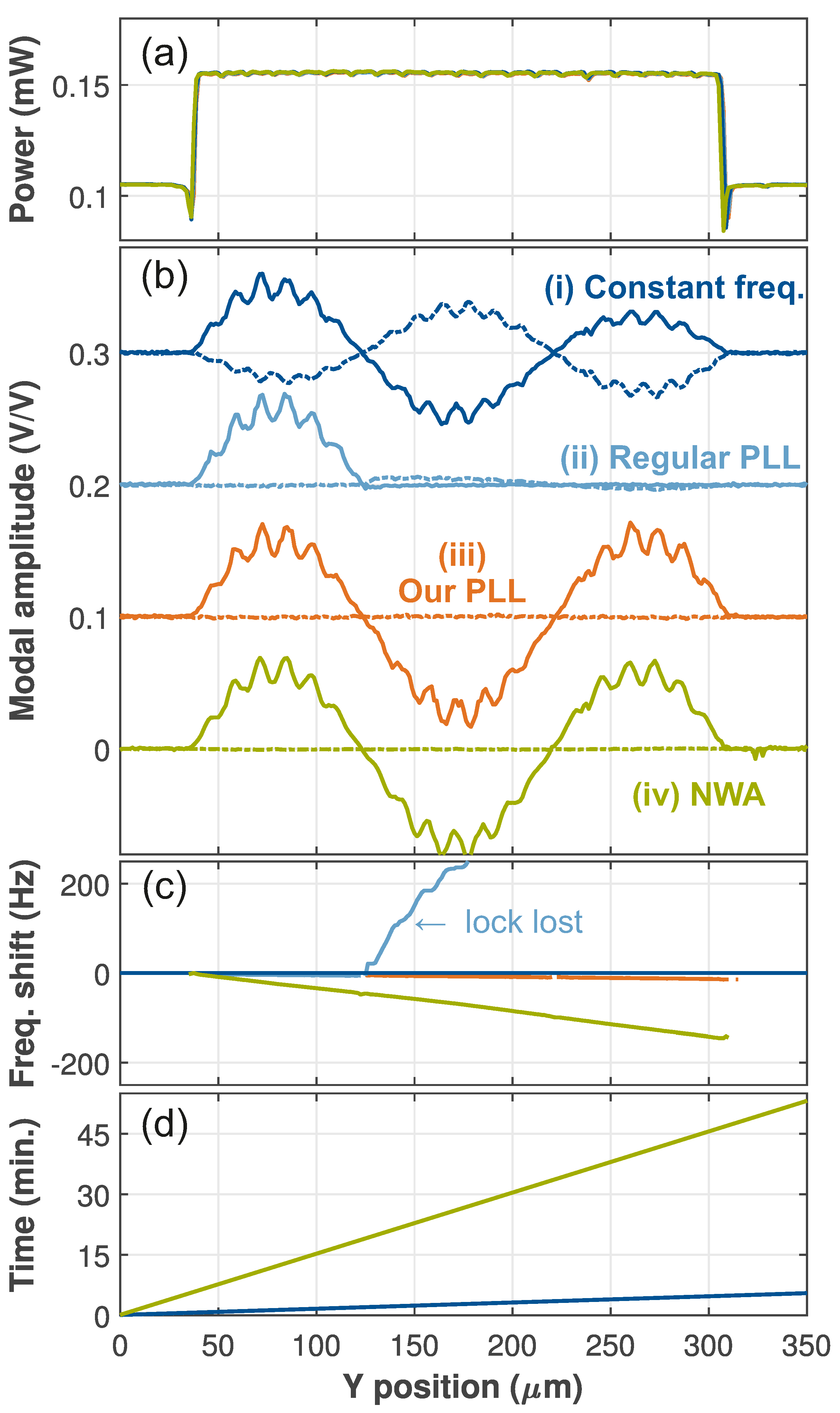

Visualizing eigenmodes is crucial in understanding the behavior of state-of-the-art micromechanical devices. We demonstrate a method to optically map multiple modes of mechanical structures simultaneously. The fast and robust method, based on a modified phase-lock loop, is demonstrated on a silicon nitride membrane and shown to outperform three alternative approaches. Line traces and two-dimensional maps of different modes are acquired. The high quality data enables us to determine the weights of individual contributions in superpositions of degenerate modes. View Full-Text
Keywords: optomechanics; mode-mapping; MEMS; phase-lock loop; silicon-nitride; membrane optomechanics; mode-mapping; MEMS; phase-lock loop; silicon-nitride; membrane
Show Figures

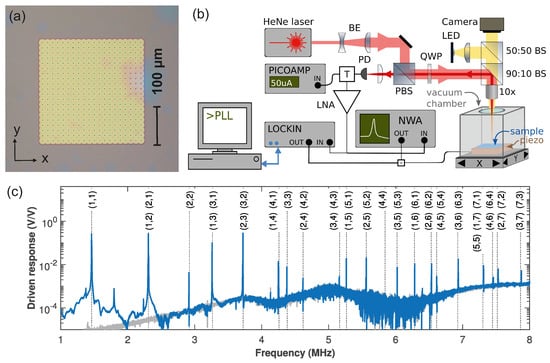

Figure 1
