Next Article in Journal
Concentration Gradient Constructions Using Inertial Microfluidics for Studying Tumor Cell–Drug Interactions
Next Article in Special Issue
Path Planning Strategies to Optimize Accuracy, Quality, Build Time and Material Use in Additive Manufacturing: A Review
Previous Article in Journal
Advances in the Development of Innovative Sensor Platforms for Field Analysis
Article

Novel Hybrid Manufacturing Process of CM247LC and Multi-Material Blisks

1
School of Metallurgy and Materials, University of Birmingham, Birmingham B15 2TT, UK
2
School of Engineering, University of Birmingham, Birmingham B15 2TT, UK
*
Authors to whom correspondence should be addressed.
Micromachines 2020, 11(5), 492; https://doi.org/10.3390/mi11050492
Received: 16 April 2020 / Revised: 28 April 2020 / Accepted: 7 May 2020 / Published: 12 May 2020
(This article belongs to the Special Issue Next-Generation Additive Manufacturing)

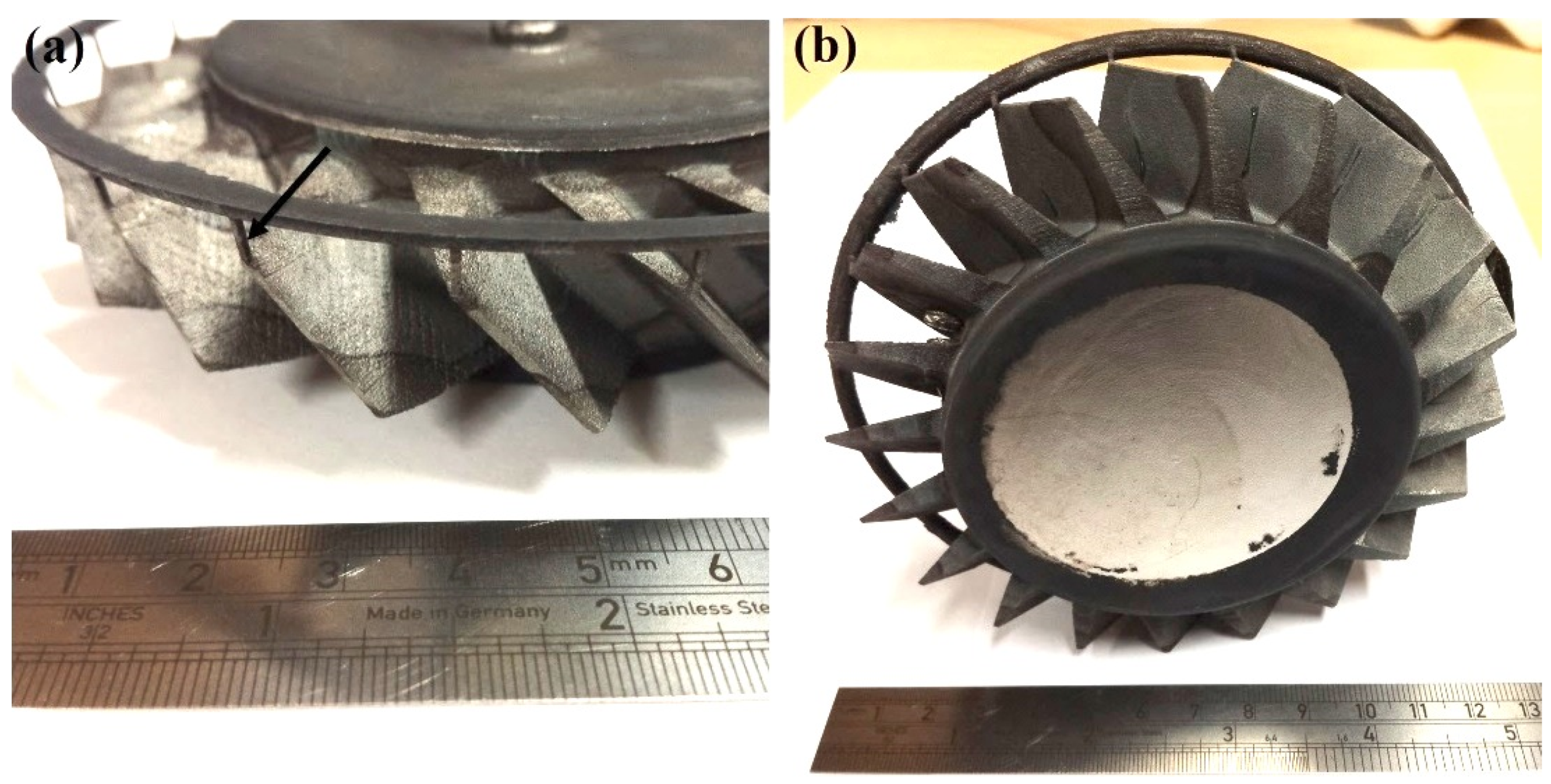

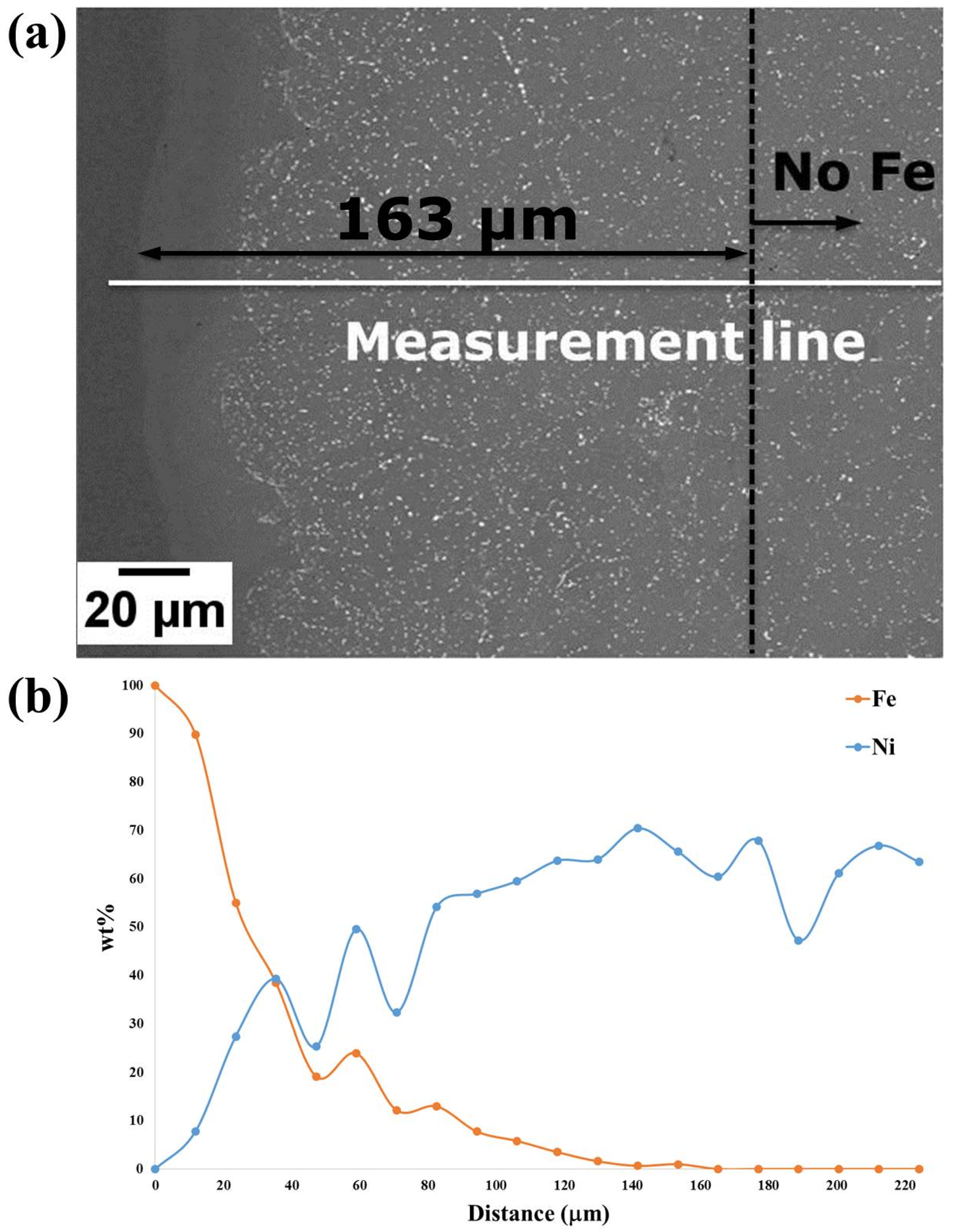

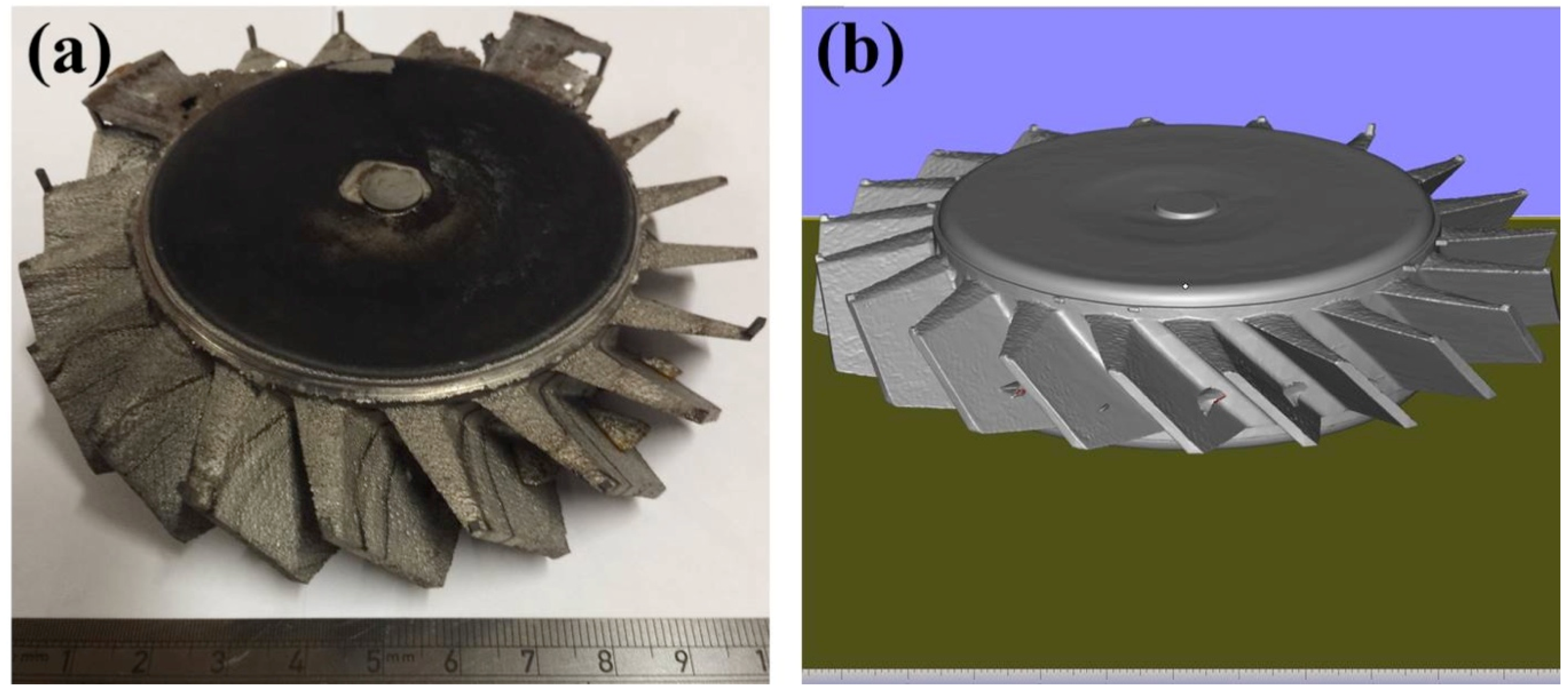

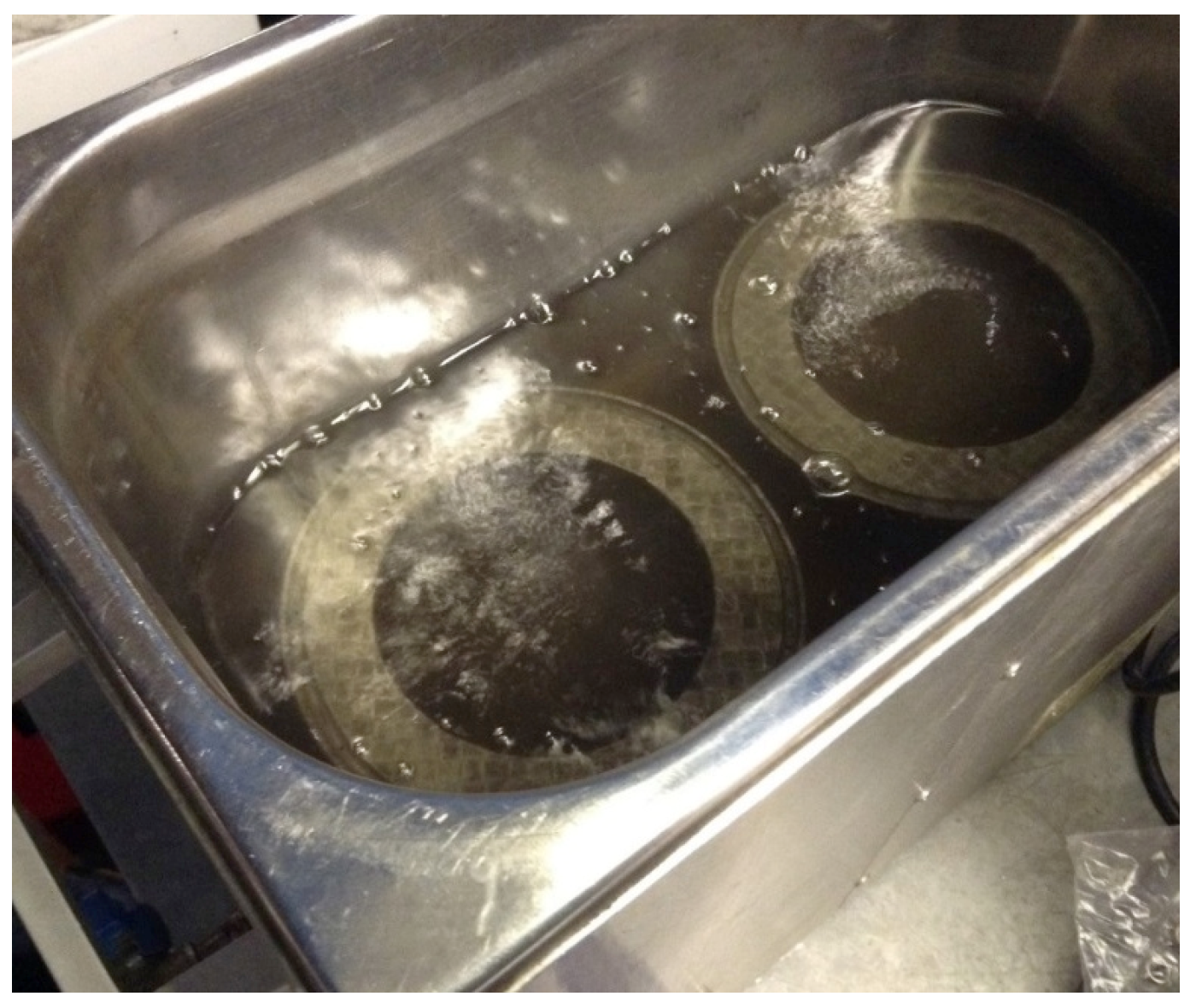

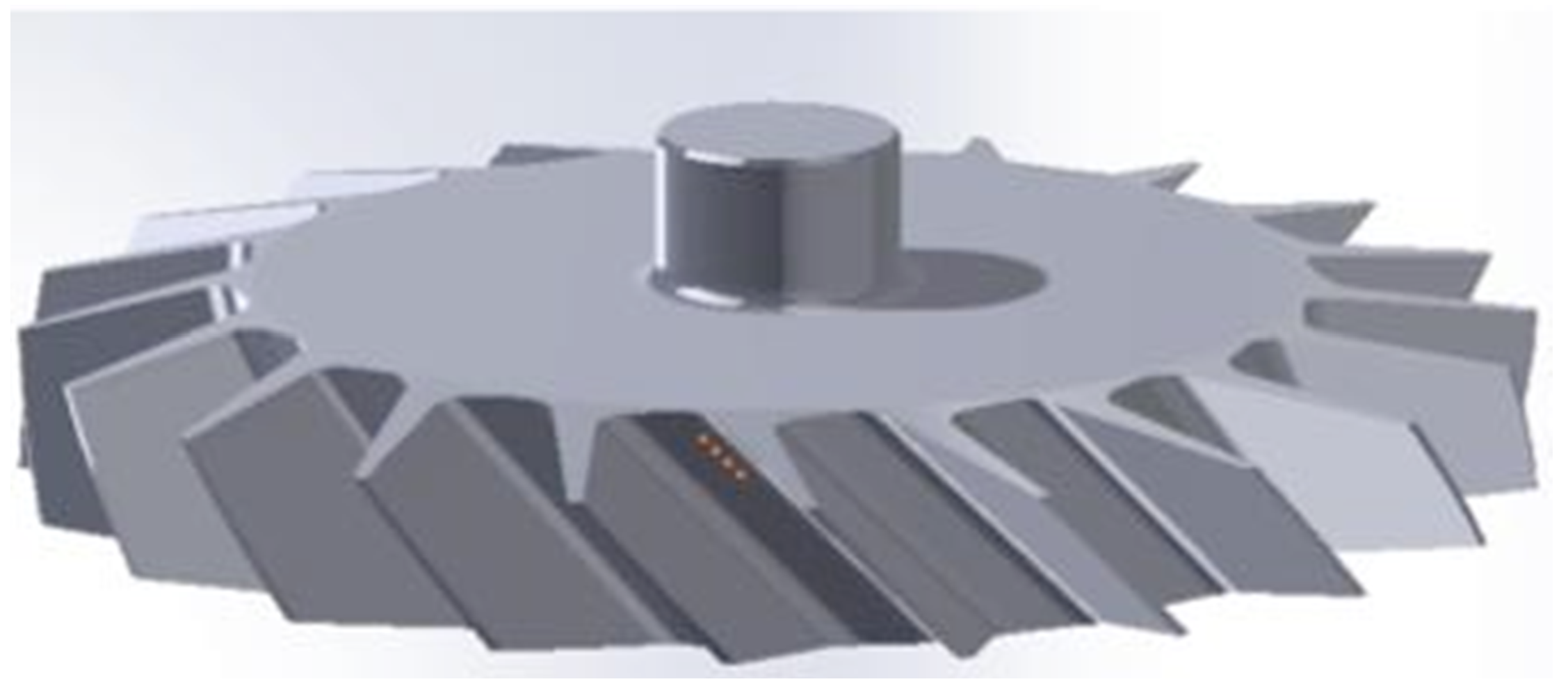

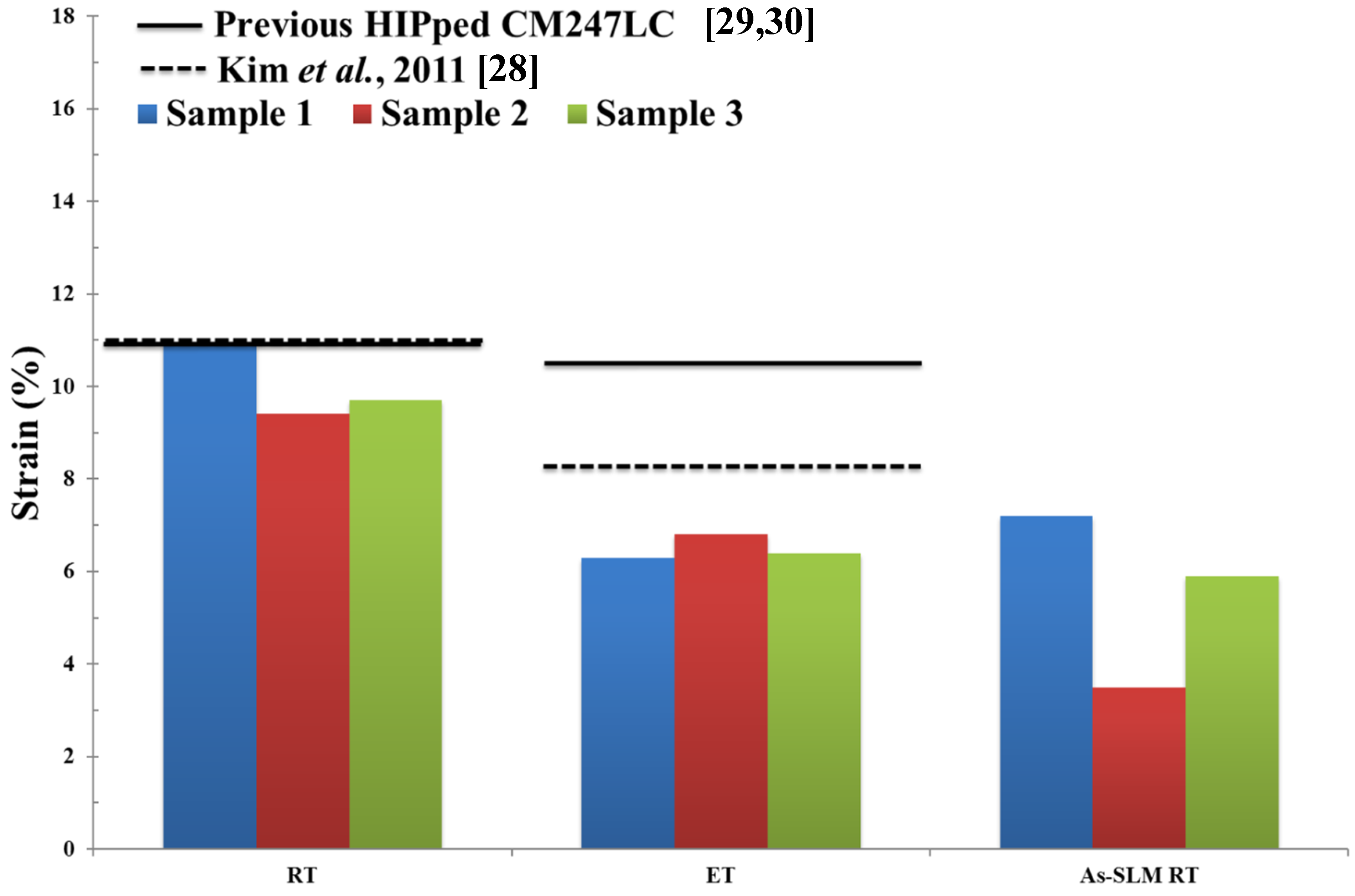

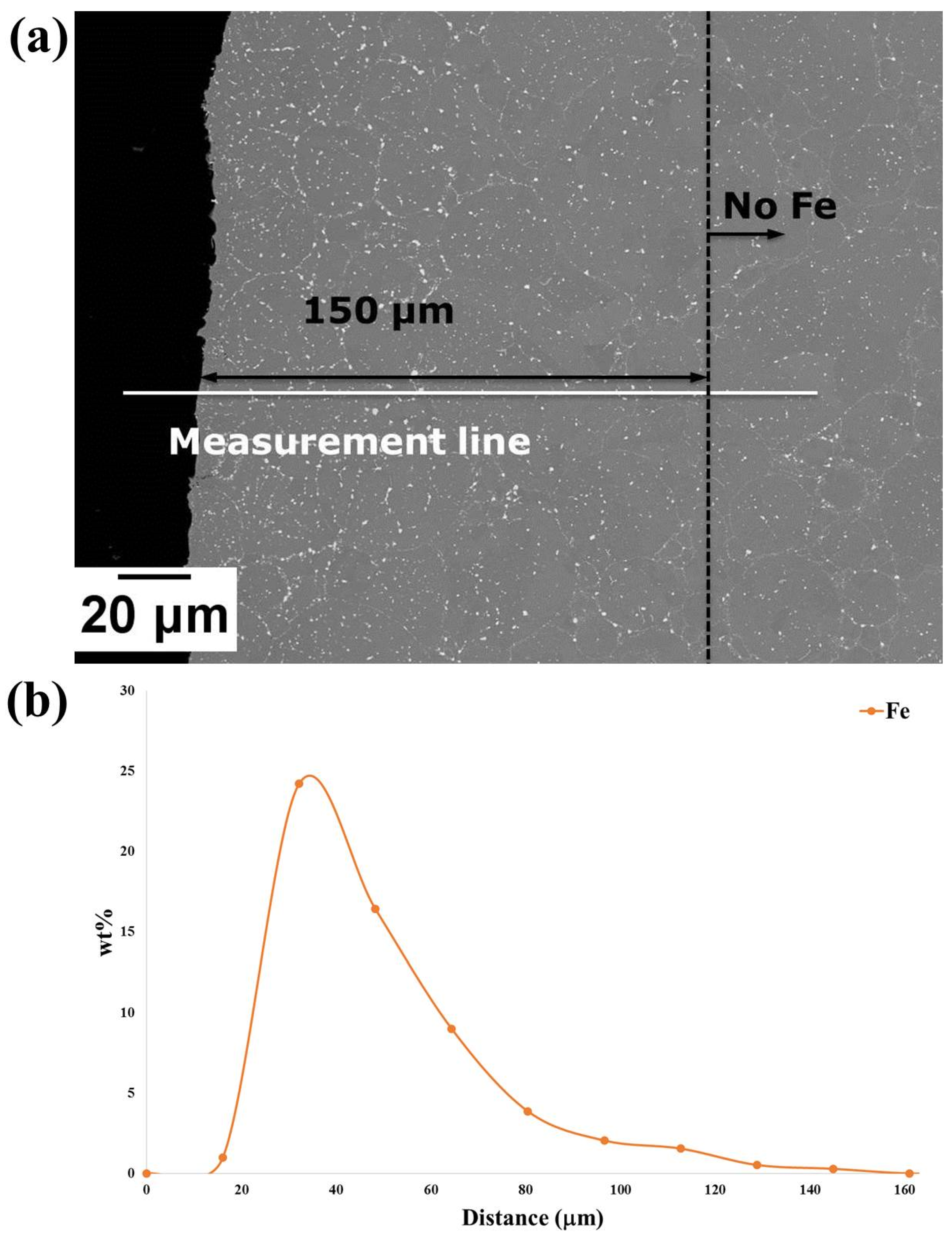

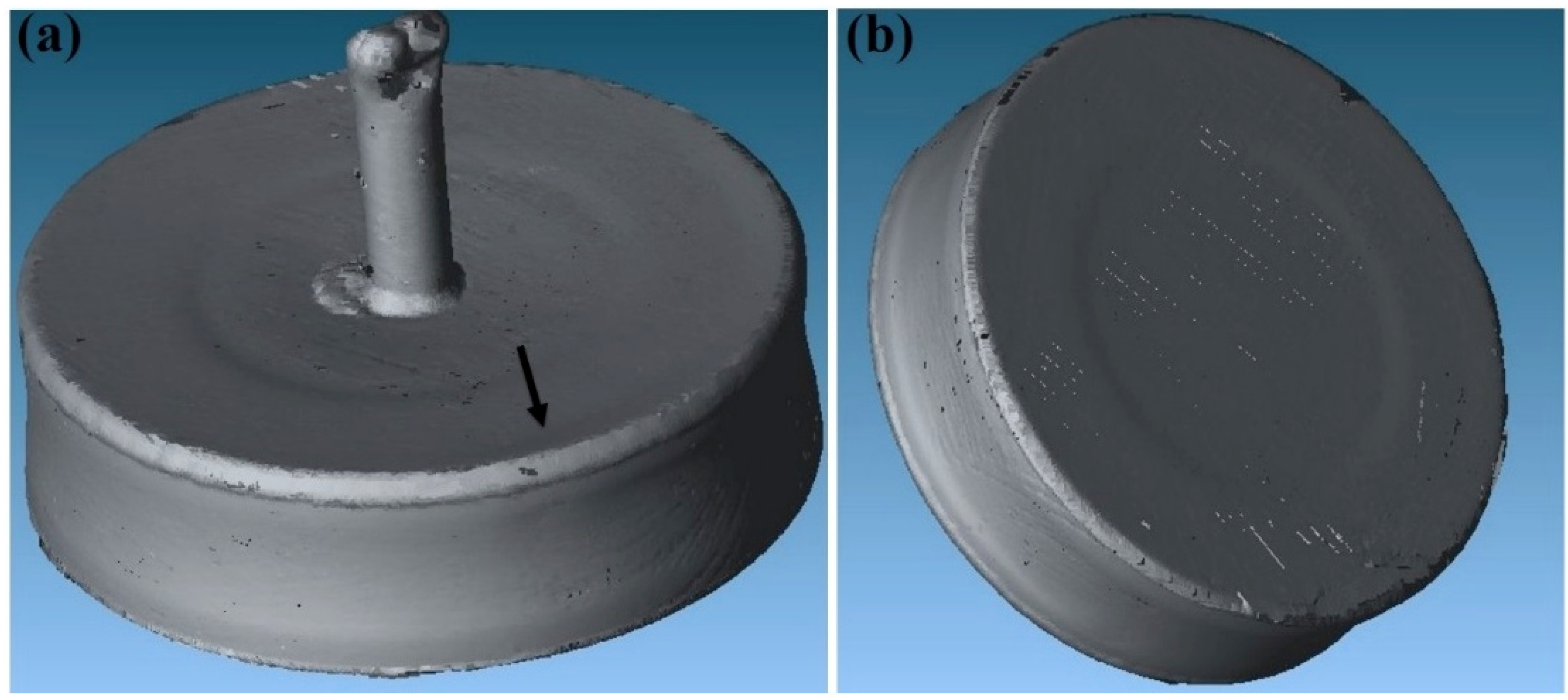

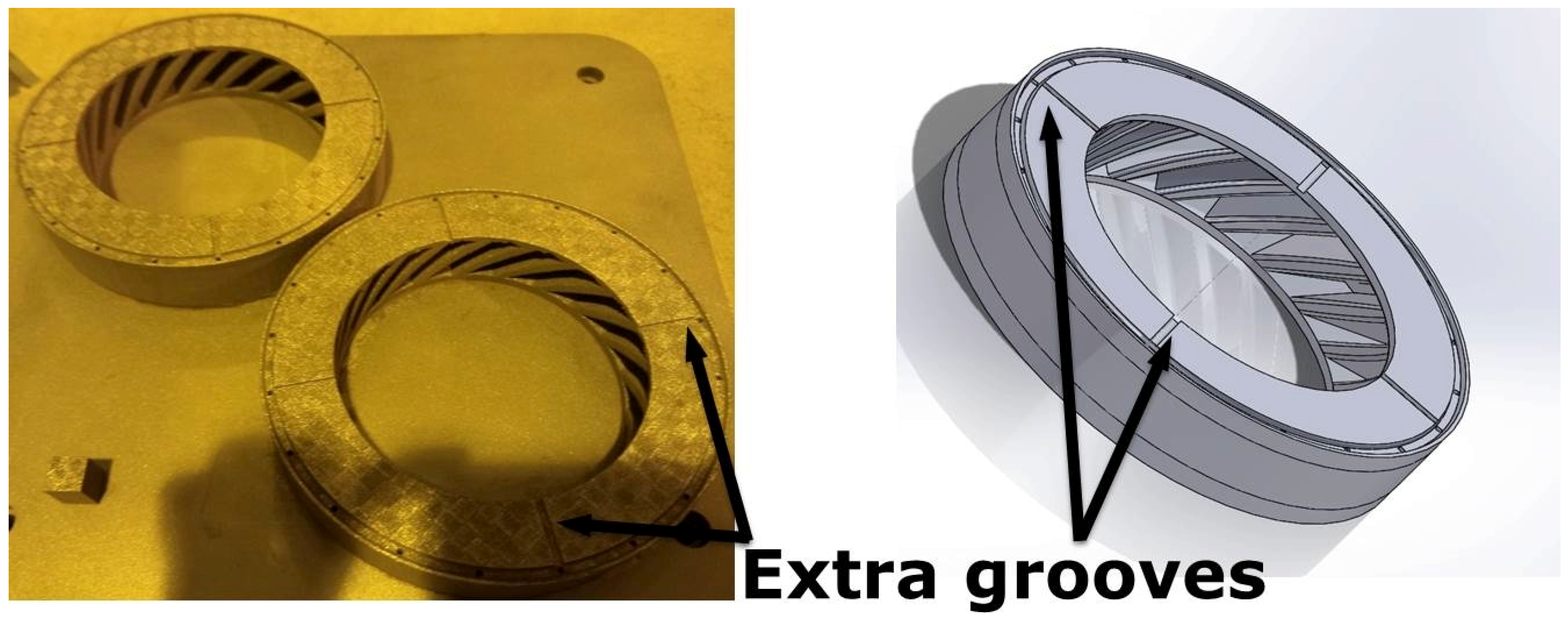

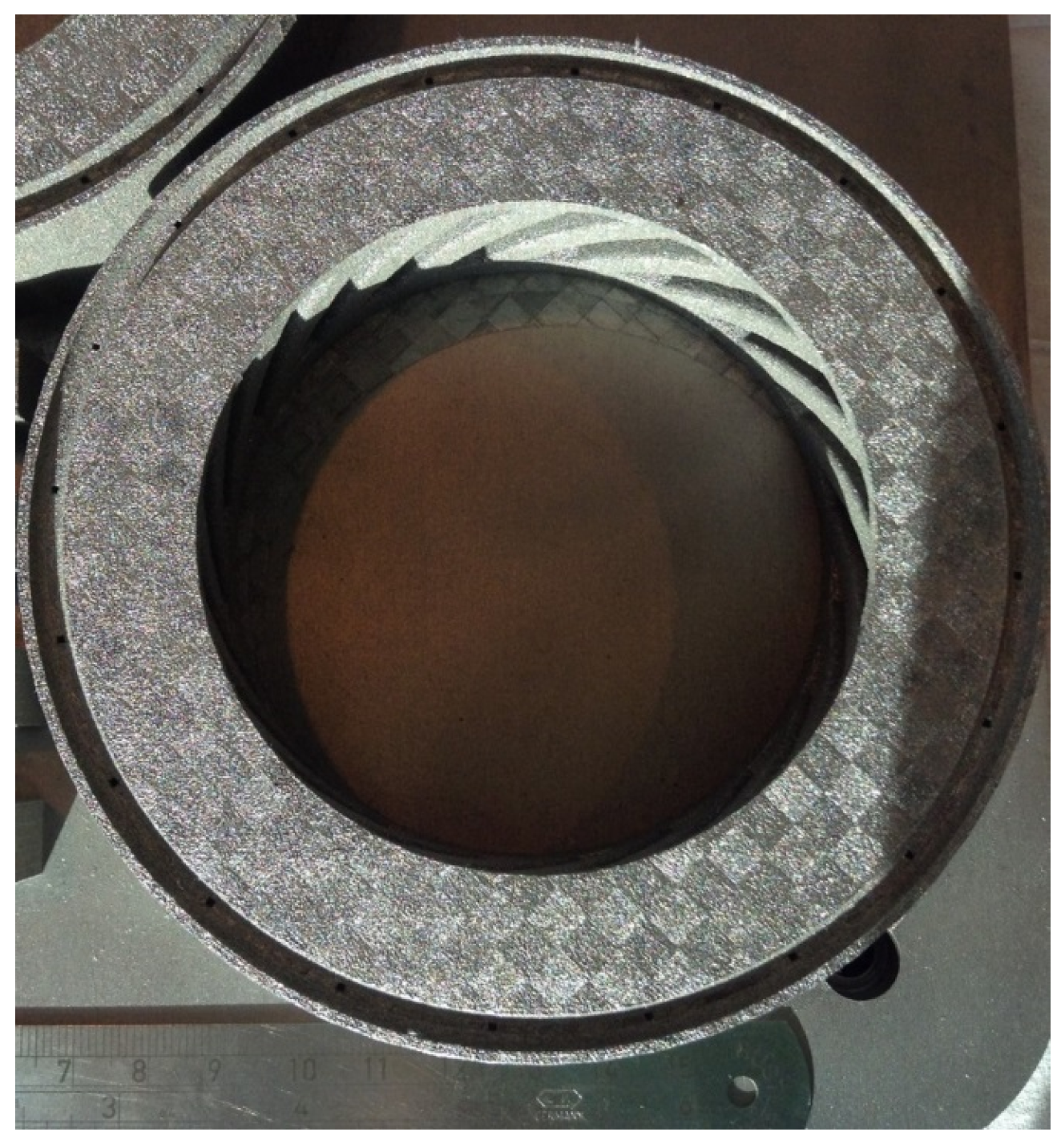

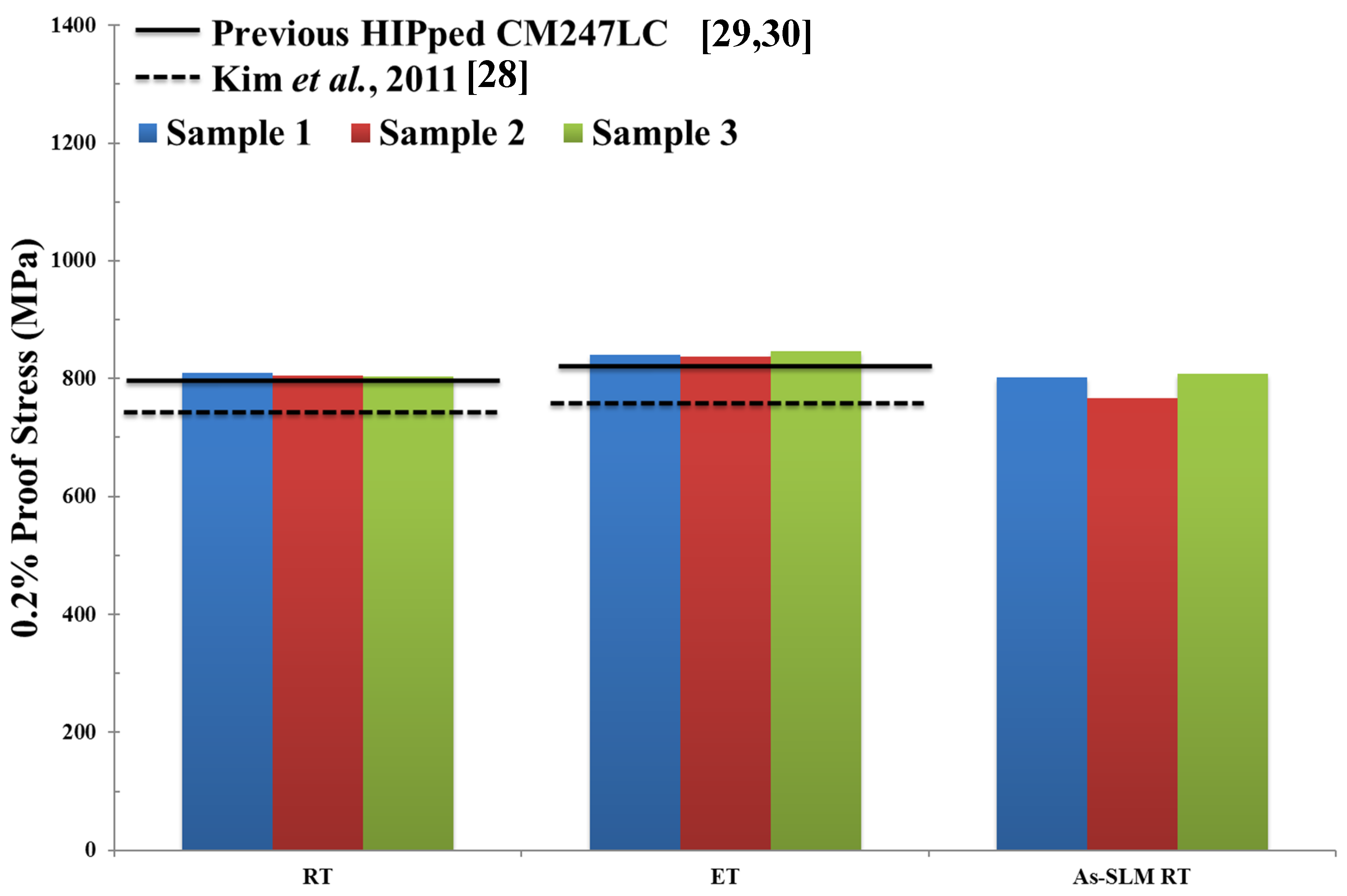

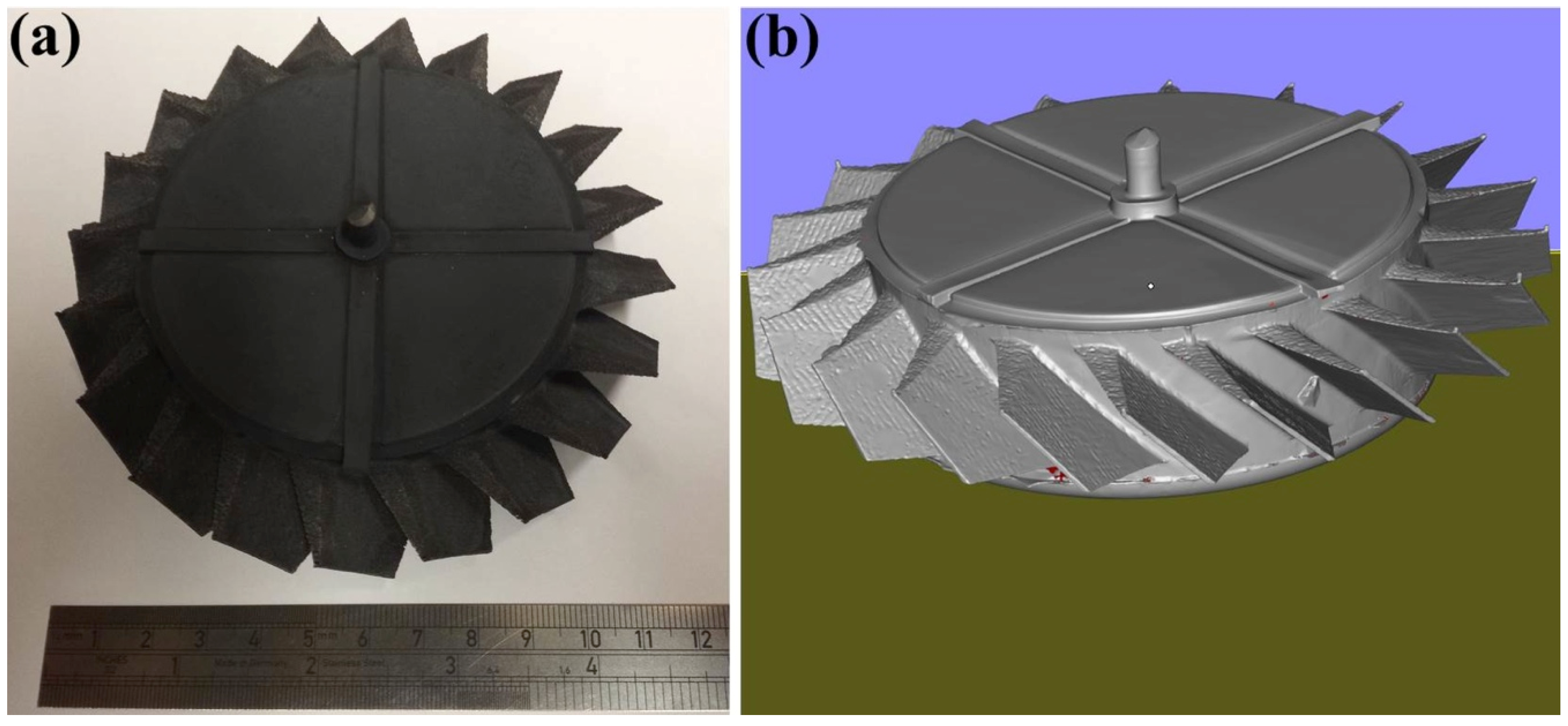

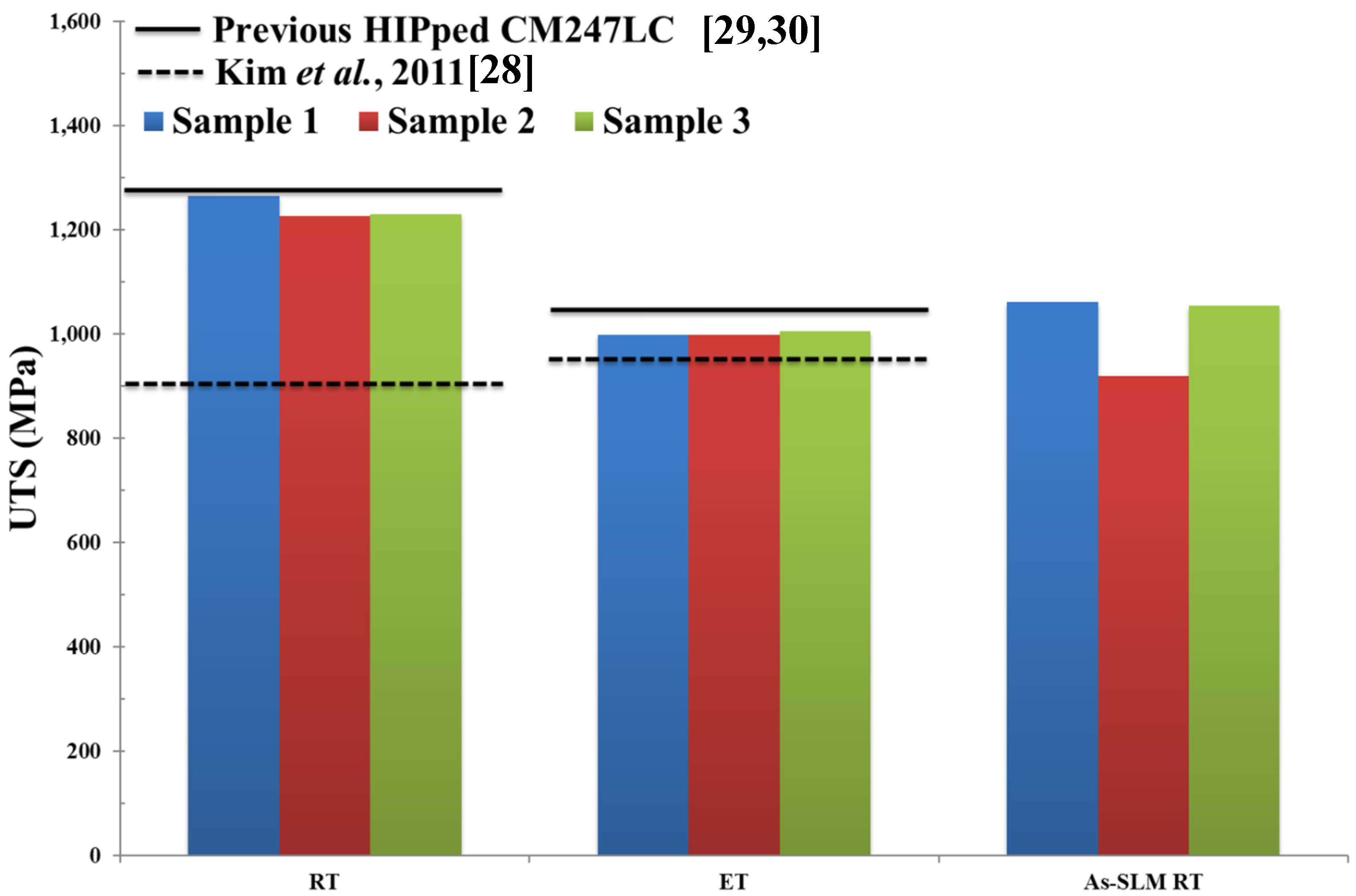

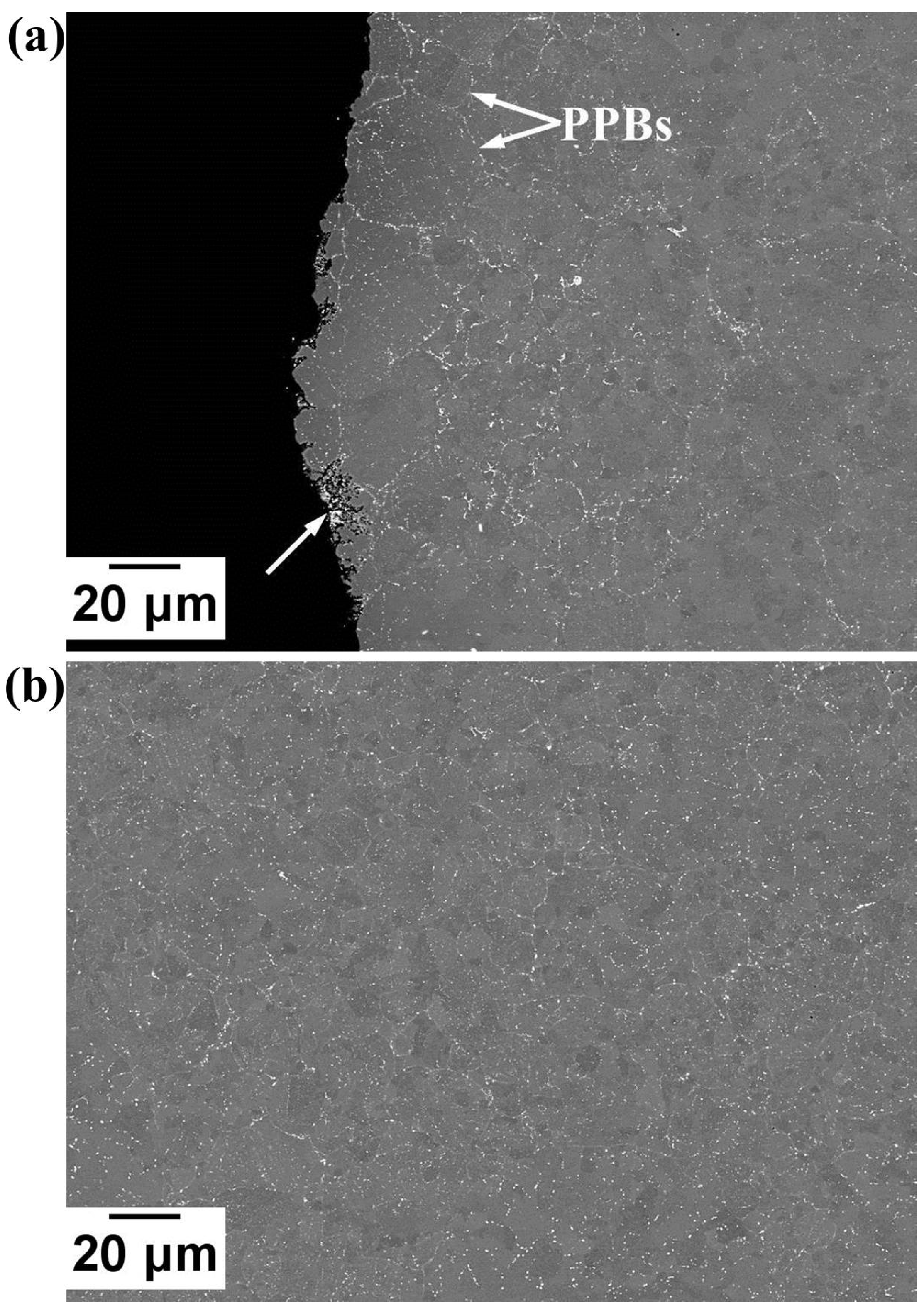

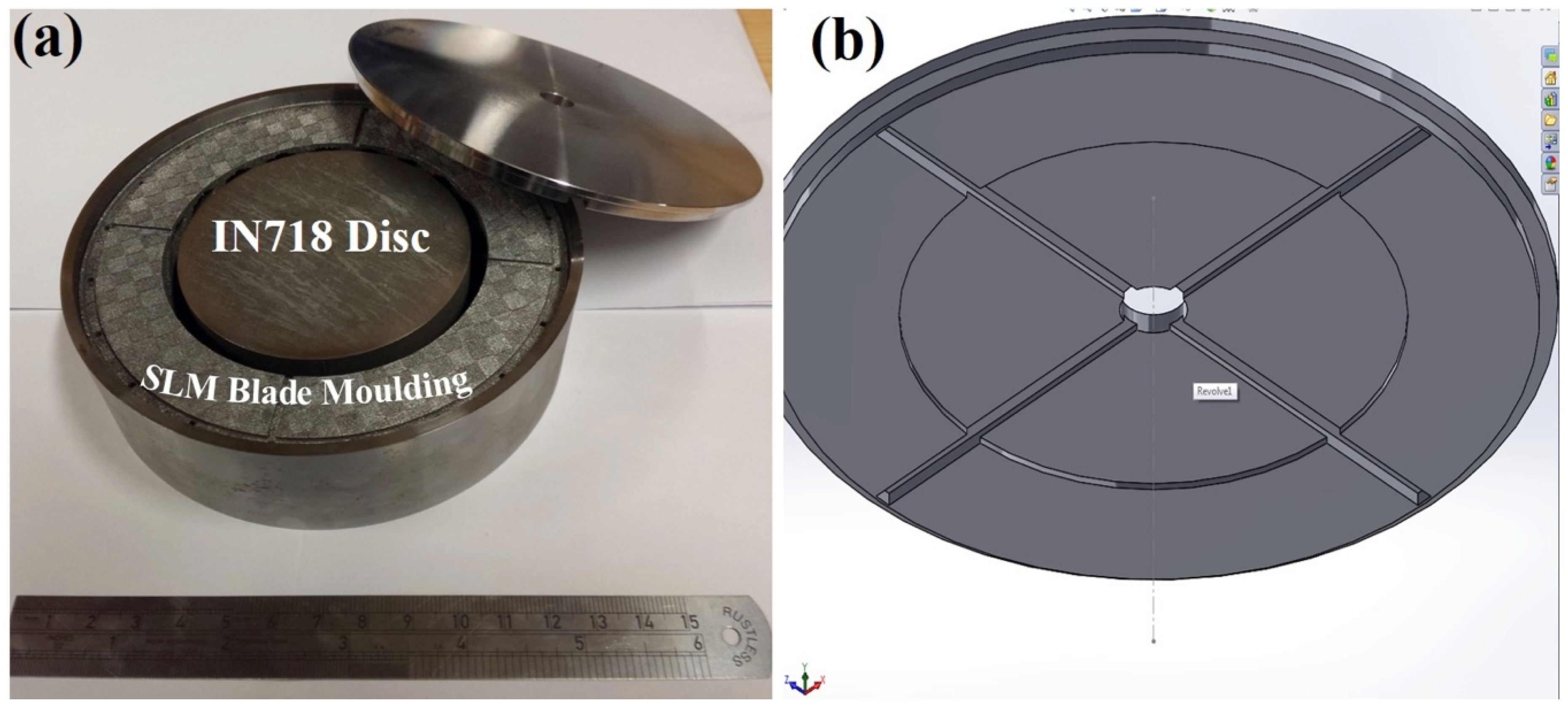

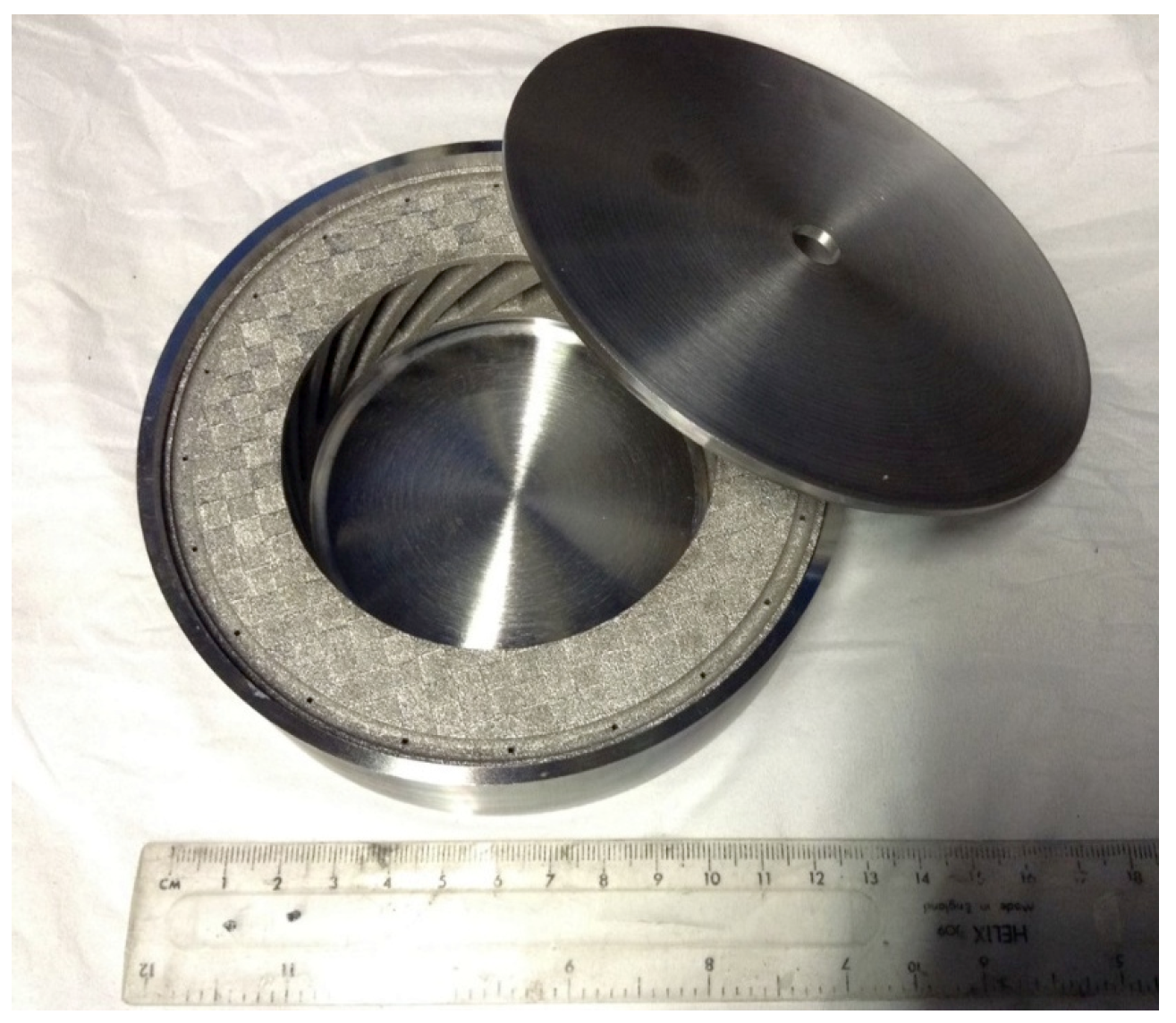

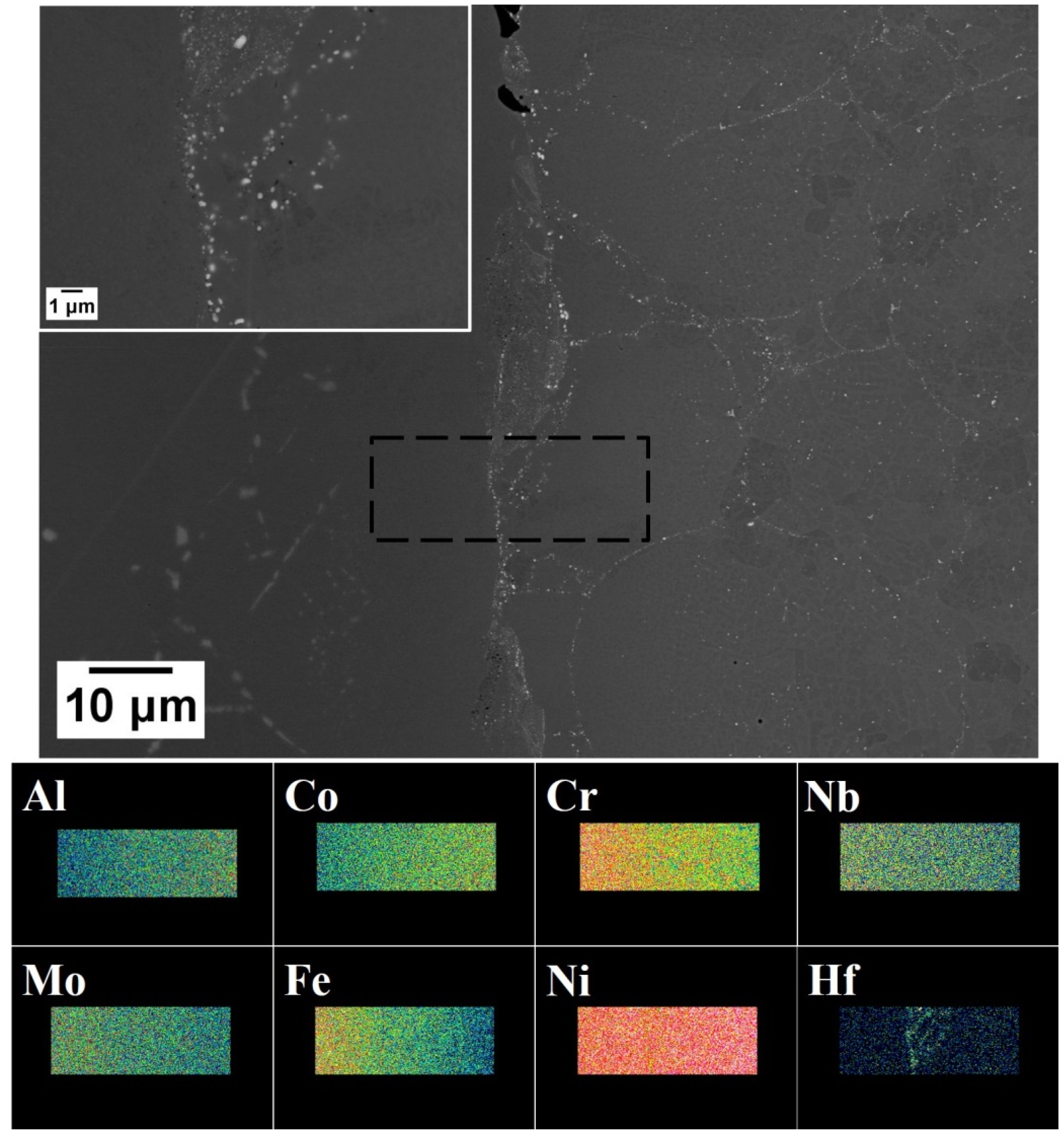

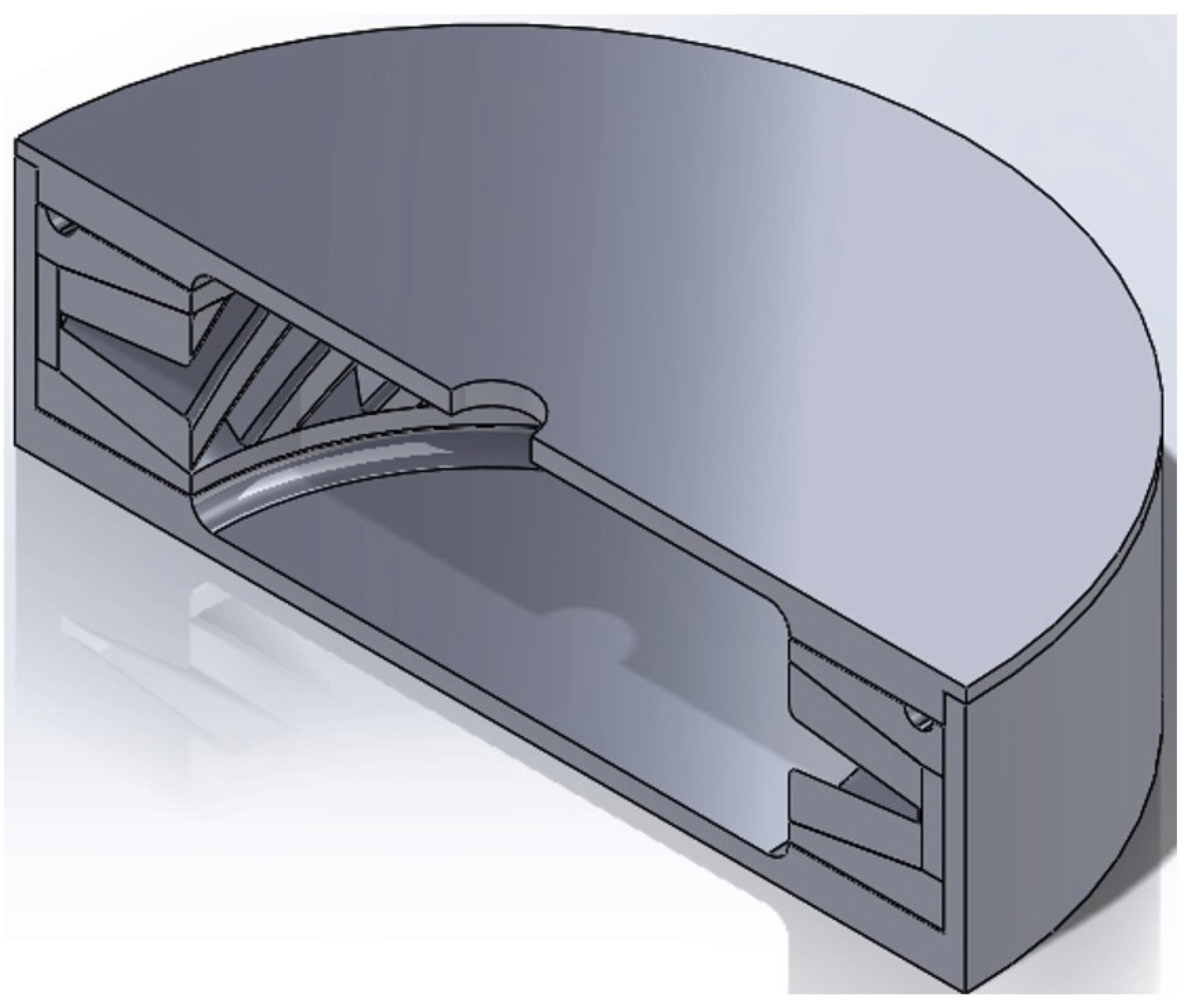

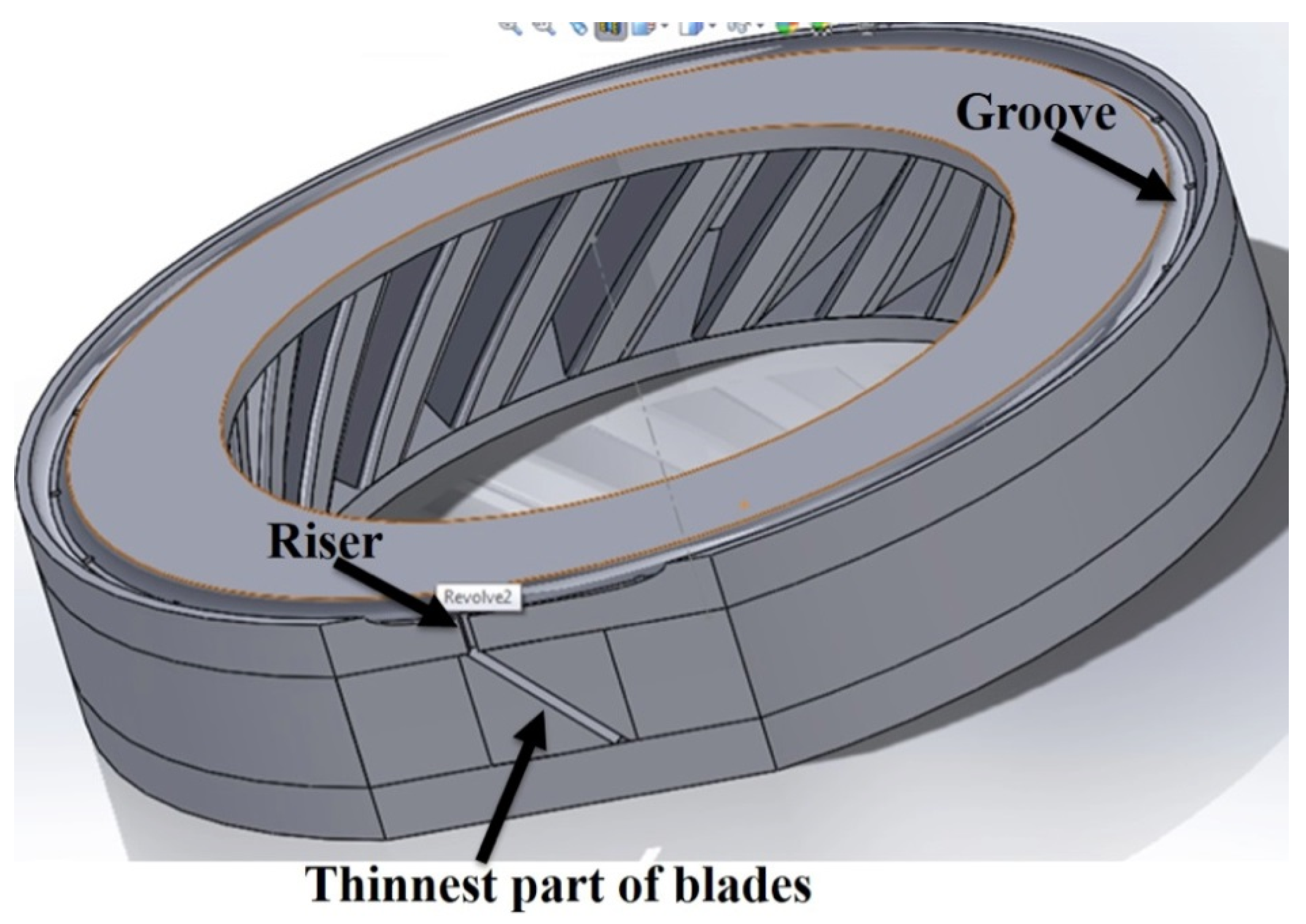

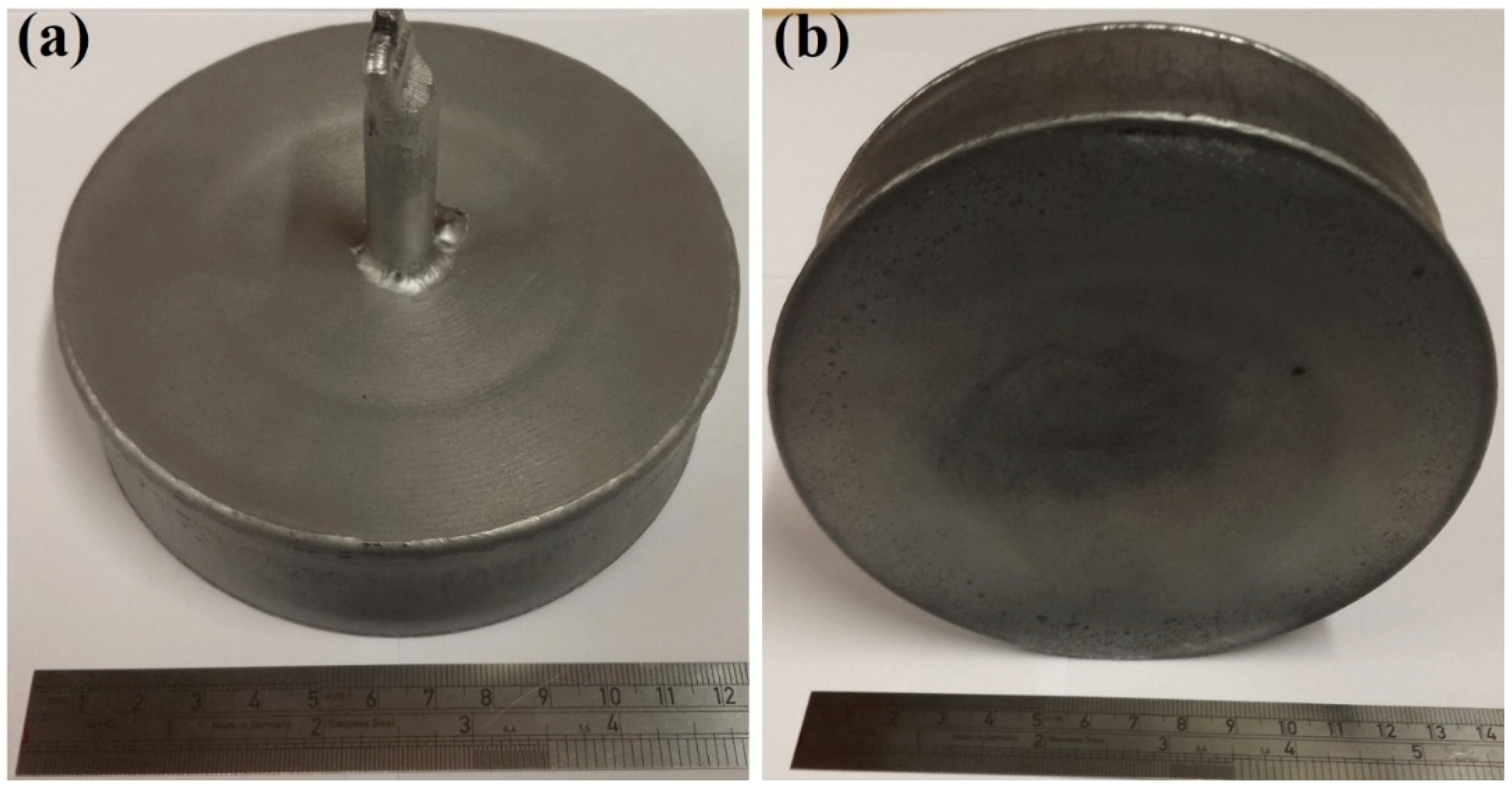

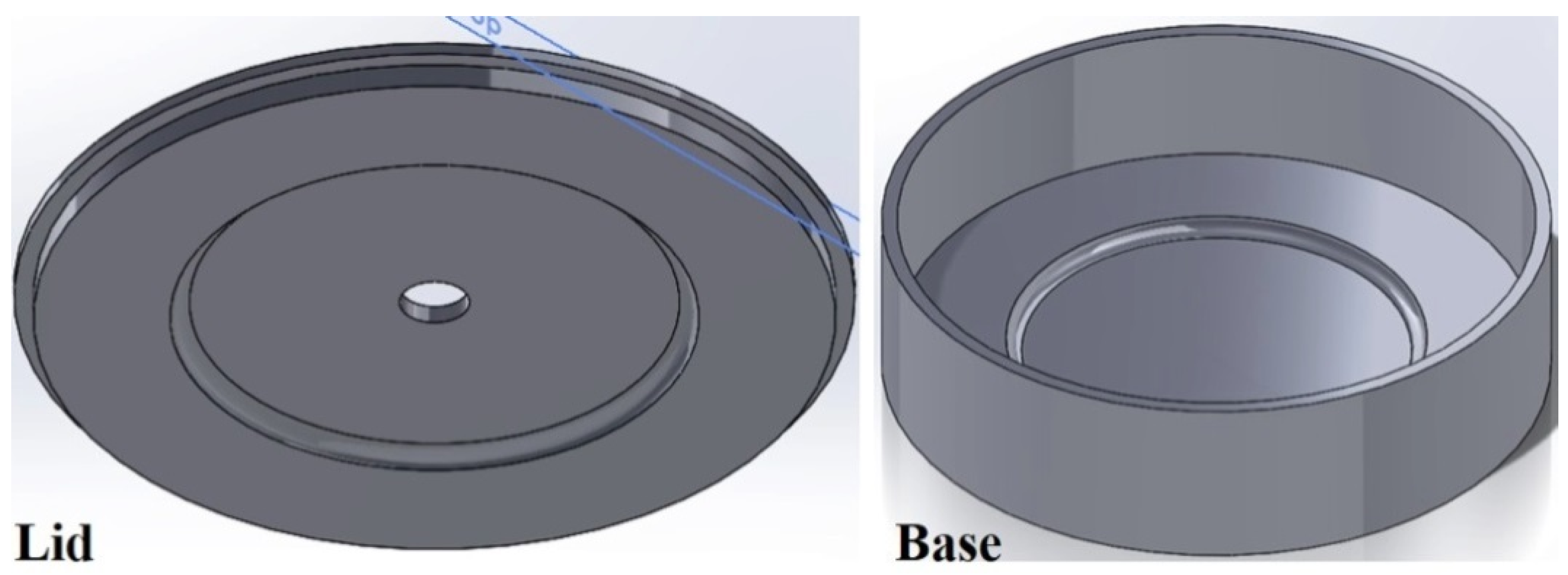

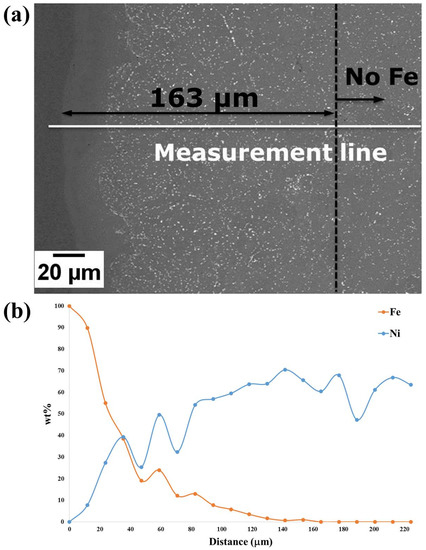

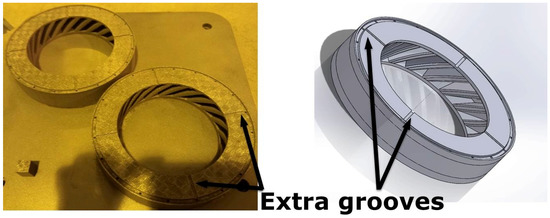

The study on CM247LC used the traditional approach for Near-Netshape Hot Isostatic Pressing (NNSHIP) with sacrificial low carbon steel tooling, which was built using Selective Laser Melting (SLM), to produce a shaped CM247LC blisk. The assessment of the microstructure focused on both the exterior components in order to determine the depth of the Fe-diffusion layer and on the interior microstructure. Samples were extracted from the Hot Isostatic Pressed (HIPped) components for tensile testing at both room and elevated temperatures. The components were scanned to assess the geometrical shrinkages due to Hot Isostatic Pressing (HIPping). An oversized blisk was also produced based on the measurements as a demonstrator component. In addition, a further study was carried out on a novel idea that used a solid IN718 disk in the centre of the blisk to create a multi-material component. View Full-Text
Keywords: selective laser melting; hot isostatis pressing; hybrid manufacturing; CM247LC; nickel superalloys; multi-material; blisks selective laser melting; hot isostatis pressing; hybrid manufacturing; CM247LC; nickel superalloys; multi-material; blisks
Show Figures

Figure 1

MDPI and ACS Style

Wang, X.; Carter, L.N.; Adkins, N.J.E.; Essa, K.; Attallah, M.M. Novel Hybrid Manufacturing Process of CM247LC and Multi-Material Blisks. Micromachines 2020, 11, 492. https://doi.org/10.3390/mi11050492

AMA Style

Wang X, Carter LN, Adkins NJE, Essa K, Attallah MM. Novel Hybrid Manufacturing Process of CM247LC and Multi-Material Blisks. Micromachines. 2020; 11(5):492. https://doi.org/10.3390/mi11050492

Chicago/Turabian Style

Wang, Xiqian, Luke N. Carter, Nicholas J.E. Adkins, Khamis Essa, and Moataz M. Attallah. 2020. "Novel Hybrid Manufacturing Process of CM247LC and Multi-Material Blisks" Micromachines 11, no. 5: 492. https://doi.org/10.3390/mi11050492

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
