Article

Vertical Leakage in GaN-on-Si Stacks Investigated by a Buffer Decomposition Experiment

1
Department of Information Engineering, University of Padova, 35151 Padova, Italy
2
Fraunhofer Institute for Integrated Systems and Device Technology IISB, 91058 Erlangen, Germany
3
EpiGaN, 3500 Hasselt, Belgium
4
IEMN-CNRS, 59652 Villeneuve d’Ascq, France
*
Authors to whom correspondence should be addressed.
Micromachines 2020, 11(1), 101; https://doi.org/10.3390/mi11010101
Received: 19 December 2019 / Revised: 10 January 2020 / Accepted: 12 January 2020 / Published: 17 January 2020
(This article belongs to the Special Issue Wide Bandgap Based Devices: Design, Fabrication and Applications)

Abstract

:
We investigated the origin of vertical leakage and breakdown in GaN-on-Si epitaxial structures. In order to understand the role of the nucleation layer, AlGaN buffer, and C-doped GaN, we designed a sequential growth experiment. Specifically, we analyzed three different structures grown on silicon substrates: AlN/Si, AlGaN/AlN/Si, C:GaN/AlGaN/AlN/Si. The results demonstrate that: (i) the AlN layer grown on silicon has a breakdown field of 3.25 MV/cm, which further decreases with temperature. This value is much lower than that of highly-crystalline AlN, and the difference can be ascribed to the high density of vertical leakage paths like V-pits or threading dislocations. (ii) the AlN/Si structures show negative charge trapping, due to the injection of electrons from silicon to deep traps in AlN. (iii) adding AlGaN on top of AlN significantly reduces the defect density, thus resulting in a more uniform sample-to-sample leakage. (iv) a substantial increase in breakdown voltage is obtained only in the C:GaN/AlGaN/AlN/Si structure, that allows it to reach VBD > 800 V. (v) remarkably, during a vertical I–V sweep, the C:GaN/AlGaN/AlN/Si stack shows evidence for positive charge trapping. Holes from C:GaN are trapped at the GaN/AlGaN interface, thus bringing a positive charge storage in the buffer. For the first time, the results summarized in this paper clarify the contribution of each buffer layer to vertical leakage and breakdown.

1. Introduction

Gallium nitride (GaN) high-electron-mobility transistors (HEMTs) on silicon (Si) substrate are excellent devices for power applications, and are expected to find wide application in switching power converters [1], owing to the high breakdown field of GaN (3.3 MV/cm) [2,3]. To grow GaN on Si substrates, it is necessary to develop complex buffer and transition layer architectures; these allow to obtain a good crystalline quality, which in turn leads to an improved electrical performance of the devices. However, the vertical leakage current (Figure 1) in OFF-state conditions may limit the breakdown voltage of power GaN-HEMTs. Recently, different efforts have been developed in order to improve the vertical robustness of such devices [4,5,6,7].
In this work, we investigated the vertical leakage current and breakdown of GaN-on-Si HEMTs by a sequential growth experiment. Specifically, we fabricated three tailored samples in order to analyze the contribution of the aluminum nitride (AlN) nucleation, the AlGaN buffer and the C-doped GaN layer (GaN:C) on the vertical leakage current and breakdown. Corresponding devices were characterized at room and high temperatures.
Furthermore, the physical origin of I–V hysteresis and charge trapping were analyzed; finally, UV LED irradiation was used to investigate the charge trapping phenomena in the Al-rich AlGaN buffer layers. Evidence for negative charge storage is found for the AlGaN and AlN layers, while we demonstrate that the GaN:C layer can lead to significant positive charge storage.

2. Experimental Details

Three different structures were grown using metal organic chemical vapor deposition (MOCVD) under the same growth conditions until growth stopped (Figure 2). The first structure consisted of a 200 nm thick layer of AlN, epitaxially grown on a conductive 1 × 1019 cm−3 boron-doped silicon substrate, referred to as structure A. Structure B had an additional 350 nm thick Al0.70Ga0.30N layer grown on top of the AlN layer. Lastly, structure C was made of a silicon substrate, a 200 nm AlN layer, a step-graded stack of AlGaN layers with a total thickness of 2350 nm, and a 2450 nm thick carbon doped GaN layer; the carbon doping concentration was 2 × 1019 cm−3. Ohmic Ti (100 nm)/Au (400 nm) contacts were defined by photolithography; 95 × 95 μm2 patterns that had been isolated by N-implantation were used for electrical measurements [8]. The wafer diameter of all structures was 200 mm.
Current-voltage characterization was carried out in order to investigate leakage current, breakdown, and its physical origins at room and high temperatures as well as charge trapping before and after UV irradiation. These measurements were done with a Keysight B1505A high-voltage parameter analyzer, equipped with a high-voltage source measurement unit. The breakdown voltage was extrapolated as the voltage at which the current of 8 mA was reached. Epitaxial quality in terms of surface morphology and threading dislocation (TD) density were investigated using a JSM-7500F scanning electron microscope (SEM) (JEOL Ltd., Tokyo, Japan), a Bruker Dimension Icon atomic force microscope (AFM) in tapping mode, and a JEM-2200FS transmission electron microscope (TEM) (JEOL Ltd., Tokyo, Japan).

3. Results and Discussion

3.1. Material Quality

To investigate the material quality of the various layers, we used several experimental techniques. Using cross-sectioning and TEM-analysis, the TD-densities were estimated to be 3.2 × 1010 cm−2 for the AlN nucleation layers of all three structures, 2.3 × 1010 cm−2 for the Al70Ga30N layers of structures B and C, and 3.1 × 109 cm−2 for the GaN:C of structure C. Surface morphologies were analyzed by SEM and AFM. The results observed by SEM are shown in Figure 3. Structure A exhibits a strongly V-pitted surface due to non-optimized nucleation conditions [9]. The V-pit density was ~1.5 × 1010 cm−2 with a typical V-pit diameter of ~60 nm. A smaller V-pit density of ~5 × 109 cm−2, but with a larger typical V-pit diameter of ~120 nm was observed for structure B. Finally, no V-pits were observed for structure C, which was due to successful overgrowth by or below GaN:C. The corresponding rms-roughness values obtained on a scale of 5 × 5 µm2 by AFM are 2.35 nm, 7.55 nm, and 0.25 nm for structures A, B, and C respectively.
A non-optimal coalescence of AlN islands on Si during the 3D growth mode gave a rough surface decorated by V-pits. Overgrowth of such a V-pitted AlN-layer led to enlarging of V-pits in subsequent layers due to a slower growth rate of V-pit side planes compared to the c-plane. Impurities, especially oxygen, can be trapped within the V-pit trace [9]. The presence of a large density of V-pits in wafers A and B resulted in a high variability in the vertical leakage characteristics, as shown in Figure 4 (notice that apart from a couple of outliers, the I–V curves of structure B were already much more uniform compared to those of structure A). On the other hand, the use of a thick GaN:C layer results in a much narrower distribution of the leakage curves due to the substantial reduction in V-pit and dislocation density obtained through the growth of a thick C-doped buffer layer.

3.2. Vertical Leakage

Vertical leakage characterizations with a grounded substrate and an ohmic contact sweep from 0 V up to catastrophic breakdown were performed on several samples of each structures. Figure 5 shows the typical leakage characteristics of the three heterostructures at room temperature and 170 °C. The vertical leakage current of sample A was not significantly thermally activated. This suggests that conduction through AlN is dominated by a field-driven tunneling of electrons from an electron inversion layer at the Si/AlN interface into the AlN layer (in agreement with [10]), possibly with the contribution of deep levels in AlN (Figure 6b). This process strongly depends on the availability of deep states within the AlN layer close to the interface with Si, i.e., on the local density of defects such as those described above.
Contrary to structure A, the leakage current of structure B is temperature dependent. The carriers in AlGaN moved towards the top ohmic contact by means of a thermally-activated defect-assisted conduction mechanism (Figure 7b), which became the bottleneck for conduction and therefore dominated the overall behavior. This might be because the AlGaN layer showed a lower defect density as compared to AlN in terms of V-pits and threading dislocations TDs.
Blue lines in Figure 5 show the strong impact of temperature on the vertical leakage of structure C, which was compatible to the presence of a acceptor level like CN within GaN:C. Thus, for this sample, conduction was likely not only related to electrons as in structures A and B, but also to holes generated by the 0.9 eV deep acceptor CN. Holes in GaN:C can easily flow towards the bottom of this layer and, especially at high temperature, towards the Si substrate. Hole generation was stronger at high temperatures (consistent with [3,11]).

3.3. Charge Trapping

In order to study the presence of charge trapping, we analyzed the hysteresis in the vertical leakage characteristics. To this end, the three structures under analysis were submitted to a double voltage sweep (upward and backward) at both room temperature and 150 °C. A large hysteresis is indicative of strong trapping effects: if negative charge is stored in the epitaxial stack during the upward sweep, the current during the backward sweep is significantly reduced [12]. The voltage step used was 1 V, while the integration time was 20 ms. Contrary to vertical leakage measurements, a maximum voltage was chosen in order to avoid catastrophic breakdown of the devices. This voltage was 40 V, 80 V, and 600 V for structures A, B, and C, respectively.
The results obtained in this study can be explained as follows:
For structure A (Figure 6a), the upward current was higher than the backward current (positive shift). This indicates that electrons that were injected from Si into AlN were trapped at defects in the AlN nucleation layer (Figure 6b). However, this effect was weaker at high temperature, leading to a considerably reduced hysteresis, possibly due to a thermally-assisted de-trapping process [13] compatible with the presence of a donor-like trap like oxygen in V-pit traces. In other words, at high temperature there was a lower amount of trapped charges during the backward sweep with respect to the room temperature condition (Figure 6b,c).
Structure B showed positive shifts for both temperatures as well. However, the shifts were much more prominent and, contrary to structure A, the shift at high temperature was stronger. As discussed above, leakage current in structure B was strongly temperature dependent due to a thermally-activated defect-assisted conduction mechanism (Figure 7b). At high temperature the contribution of trapped electrons to conduction was higher and therefore a larger hysteresis was observed.
In contrast to all other samples, sample C showed a negative shift (Figure 8a), i.e., a higher current was measured for the backward sweep, especially at high temperature. This effect was ascribed to the presence of positive charges (holes) trapped in the buffer. We suggest that holes flowed from GaN:C to the GaN:C/AlGaN heterointerface. Due to the valence band discontinuity, part of these holes may have been trapped there, thus modifying the band diagram as schematically represented in Figure 8b. This resulted in a higher current during the backward sweep. A high temperature enhanced this phenomenon, thanks to the higher number of holes available.

3.4. The Effect of UV Light Irradiation on Current–Voltage Charactrization

Figure 6 and Figure 7 show the presence of considerable electron trapping in the AlN and AlGaN layers. To characterize the traps which caused the experimentally observed hysteresis in the IV characteristic of structure B, we analyzed the effect of UV light with a wavelength of 385 nm on vertical leakage and charge trapping. For this, we performed I–V characterization before and after exposing the sample to UV light for 30 min.
Figure 9 shows the result for the current-voltage characterization upward and backward sweep from 0 V to 80 V. Three consecutive I–V measurements were carried out on a fresh device without UV irradiation. A considerable decrease of both the current (at 80 V) and the hysteresis (ΔV at 10 pA) at the second and the third I–V characterization was observed, indicating a slow de-trapping process. Remarkably, after UV irradiation, there was a full recovery of the I–V behavior, which can be explained as follows: during the upward sweep, electrons were injected and trapped into defects of the AlN and AlGaN layers and created a substantial hysteresis. When the sample was illuminated with UV-light corresponding to E = 3.22 eV, the trapped electrons are re-emitted leading to a recovery of I–V behavior. These results confirm the existence of deep-traps, as provided by TDs especially, in the Al-rich layers and explain why the I–V curves show a slowly recovering hysteresis.

3.5. Vertical Breakdown

The vertical breakdown voltage of the three stacks was investigated in detail by applying a voltage sweep on the top ohmic contact while keeping the substrate grounded. Several devices were tested for each structure. The mean values obtained for samples A, B, and C were 64 V, 142 V, and 780 V, respectively (Figure 10a). When comparing the breakdown voltages of structures A and B, it is worth noticing that, by increasing the thickness of the epi-layers by 175%, the breakdown voltage increased by 120%. This indicates a non-uniform distribution of the electric field among the epi-layers. This might be ascribed to the different conductivity of the layers, as well as to the piezoelectric and spontaneous polarization charges that originated at the AlN/AlGaN interface. On the other hand, Figure 10a also demonstrates the role of the thick carbon-doped layer in increasing the vertical robustness.
For a more detailed analysis, sample A was taken in order to evaluate the temperature dependence of the critical electrical field of the AlN nucleation layer. Considering that the energy gap of AlN at 0 K is 6.15 eV [14], and that such an energy gap decreases at high temperature accordingly with the Bose–Einstein equation [14] and knowing the dependence of the breakdown field on the energy gap [15], the expected (theoretical) breakdown electric field reduction in the range of 30–170 °C was calculated to be equal to 6%. The experimental results show a reduction of the critical electric field between 30 °C and 170 °C, higher than 12% (Figure 10b).
To understand why the breakdown voltage has a stronger temperature dependence than predicted, we plotted the failure voltage versus the leakage current at 30 V of the devices (Figure 11). A bias of 30 V was chosen, because corresponding current is above noise level, but low enough to cause no damage to the sample. As can be noticed, a clear trend can be observed: devices with higher leakage current show a lower breakdown voltage, and consequently a lower breakdown field, of the AlN nucleation layer. This demonstrates that the breakdown process of AlN grown on Si is not only field-dependent, but also current driven. The flow of current at localized defect sites may lead to a premature breakdown of the samples, consistent with the percolation theory mentioned in Borga et al.’s research [8]. This explains why the breakdown field of AlN-on-Si (3.25 MV/cm) is much lower than that of highly crystalline AlN (up to 12 MV/cm, [8]).

4. Conclusions

In this work we compared three structures obtained by sequential epitaxial growth on Si substrate. We were able to separately evaluate the contribution of AlN, AlGaN, and C-doped GaN to the vertical conduction in the GaN-on-Si stack. Also, we described the related trapping processes, showing that in presence of AlN/AlGaN layers trapping is dominated by negative charge, while in the presence of C-doped GaN, positive charge trapping also plays a role.
In addition, we investigated the breakdown voltage of the samples, indicating that a C-doped GaN layer is needed to substantially increase the breakdown strength. This is ascribed to both the insulating properties of C-doped GaN, and to the increased thickness of the vertical stack. In addition, SEM and AFM analysis were used to confirm the substantial absence of extended defects like V-pits at the surface of the C-doped layer. Finally, the temperature dependence of the critical electric field of AlN grown on a Si substrate was studied. Experimental results point out that the failure of the AlN is not related to the intrinsic breakage of the semiconductor crystal, but to a defect-related phenomenon.

Author Contributions

Data curation, D.B., R.P., R.K., S.B. and I.A.; writing—review and editing, A.T., M.B., M.M., C.D.S., S.B., J.D., S.D., M.G., E.M., E.Z., F.M. and G.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the project InRel-NPower (Innovative Reliable Nitride based Power Devices and Applications). This project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 720527.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Amano, H.; Baines, Y.; Beam, E.; Borga, M.; Bouchet, T.; Chalker, P.R.; Charles, M.; Chen, K.J.; Chowdhury, N.; Chu, R.; et al. The 2018 GaN power electronics roadmap. J. Phys. D Appl. Phys. 2018, 51, 163001. [Google Scholar] [CrossRef]
  2. Kaminski, N.; Hilt, O. SiC and GaN devices—Wide bandgap is not all the same. IET Circuits Devices Syst. 2014, 8, 227–236. [Google Scholar] [CrossRef]
  3. Meneghini, M.; Meneghesso, G.; Zanoni, E. Power GaN Devices; Springer: Cham, Switzerland, 2017. [Google Scholar]
  4. Zhou, C.; Jiang, Q.; Huang, S.; Chen, K.J. Vertical leakage/breakdown mechanisms in AlGaN/GaN-on-Si structures. IEEE Electron Device Lett. 2012, 33, 1132–1134. [Google Scholar] [CrossRef]
  5. Uren, M.J.; Karboyan, S.; Chatterjee, I.; Pooth, A.; Moens, P.; Banerjee, A.; Kuball, M. “Leaky Dielectric” Model for the Suppression of Dynamic Ron in Carbon-Doped AlGaN/GaN HEMTs. IEEE Trans. Electron Devices 2017, 64, 2826–2834. [Google Scholar] [CrossRef][Green Version]
  6. Moens, P.; Banerjee, A.; Uren, M.J.; Meneghini, M.; Karboyan, S.; Chatterjee, I.; Vanmeerbeek, P.; Cäsar, M.; Liu, C.; Salih, A.; et al. Impact of buffer leakage on intrinsic reliability of 650V AlGaN/GaN HEMTs. In 2015 IEEE International Electron Devices Meeting (IEDM); IEEE: Piscataway, NJ, USA, 2015. [Google Scholar] [CrossRef][Green Version]
  7. Umeda, H.; Suzuki, A.; Anda, Y.; Ishida, M.; Ueda, T.; Tanaka, T.; Ueda, D. Blocking-voltage boosting technology for GaN transistors by widening depletion layer in Si substrates. In 2010 International Electron Devices Meeting; IEEE: Piscataway, NJ, USA, 2010. [Google Scholar] [CrossRef]
  8. Borga, M.; Meneghini, M.; Benazzi, D.; Canato, E.; Püsche, R.; Derluyn, J.; Abid, I.; Medjdoub, F.; Meneghsso, G.; Zanoni, E. Buffer breakdown in GaN-on-Si HEMTs: A comprehensive study based on a sequential growth experiment. Microelectron. Reliab. 2019, 100, 113461. [Google Scholar] [CrossRef]
  9. Besendörfer, S.; Meissner, E.; Tajalli, A.; Meneghini, M.; Freitas, J.A., Jr.; Derluyn, J.; Medjdoub, F.; Meneghesso, G.; Friedrich, J.; Erlbacher, T. Vertical breakdown of GaN on Si due to V-pits. J. Appl. Phys. 2020, 127, 015701. [Google Scholar] [CrossRef]
  10. Yacoub, H.; Fahle, D.; Finken, M.; Hahn, H.; Blumberg, C.; Prost, W.; Kalisch, H.; Herken, M.; Vescan, A. The effect of the inversion channel at the AlN/Si interface on the vertical breakdown characteristics of GaN-based devices. Semicond. Sci. Technol. 2014, 29, 115012. [Google Scholar] [CrossRef]
  11. Meneghini, M.; Tajalli, A.; Moens, P.; Banerjee, A.; Zanoni, E.; Meneghesso, G. Trapping phenomena and degradation mechanisms in GaN-based power HEMTs. Mater. Sci. Semicond. Process. 2017, 78, 118–126. [Google Scholar] [CrossRef]
  12. Meneghini, M.; Tajalli, A.; Moens, P.; Banerjee, A.; Stockman, A.; Tack, M.; Gerardin, S.; Bagatin, M.; Paccagnella, A.; Zanoni, E.; et al. Total suppression of dynamic-ron in AlGaN/GaN-HEMTs through proton irradiation. In 2017 IEEE International Electron Devices Meeting (IEDM); IEEE: Piscataway, NJ, USA, 2017; pp. 33.5.1–33.5.4. [Google Scholar] [CrossRef]
  13. Stockman, A.; Uren, M.; Tajalli, A.; Meneghini, M.; Bakeroot, B.; Moens, P. Temperature dependent substrate trapping in AlGaN/GaN power devices and the impact on dynamic ron. In 2017 47th European Solid-State Device Research Conference (ESSDERC); IEEE: Piscataway, NJ, USA, 2017; pp. 130–133. [Google Scholar] [CrossRef]
  14. Guo, Q.; Yoshida, A. Temperature Dependence of Band Gap Change in InN and AlN. Jpn. J. Appl. Phys. 1994, 33, 2453–2456. [Google Scholar] [CrossRef]
  15. Hudgins, J.L.; Simin, G.S.; Santi, E.; Khan, M.A. An assessment of wide bandgap semiconductors for power devices. IEEE Trans. Power Electron. 2003, 18, 907–914. [Google Scholar] [CrossRef][Green Version]

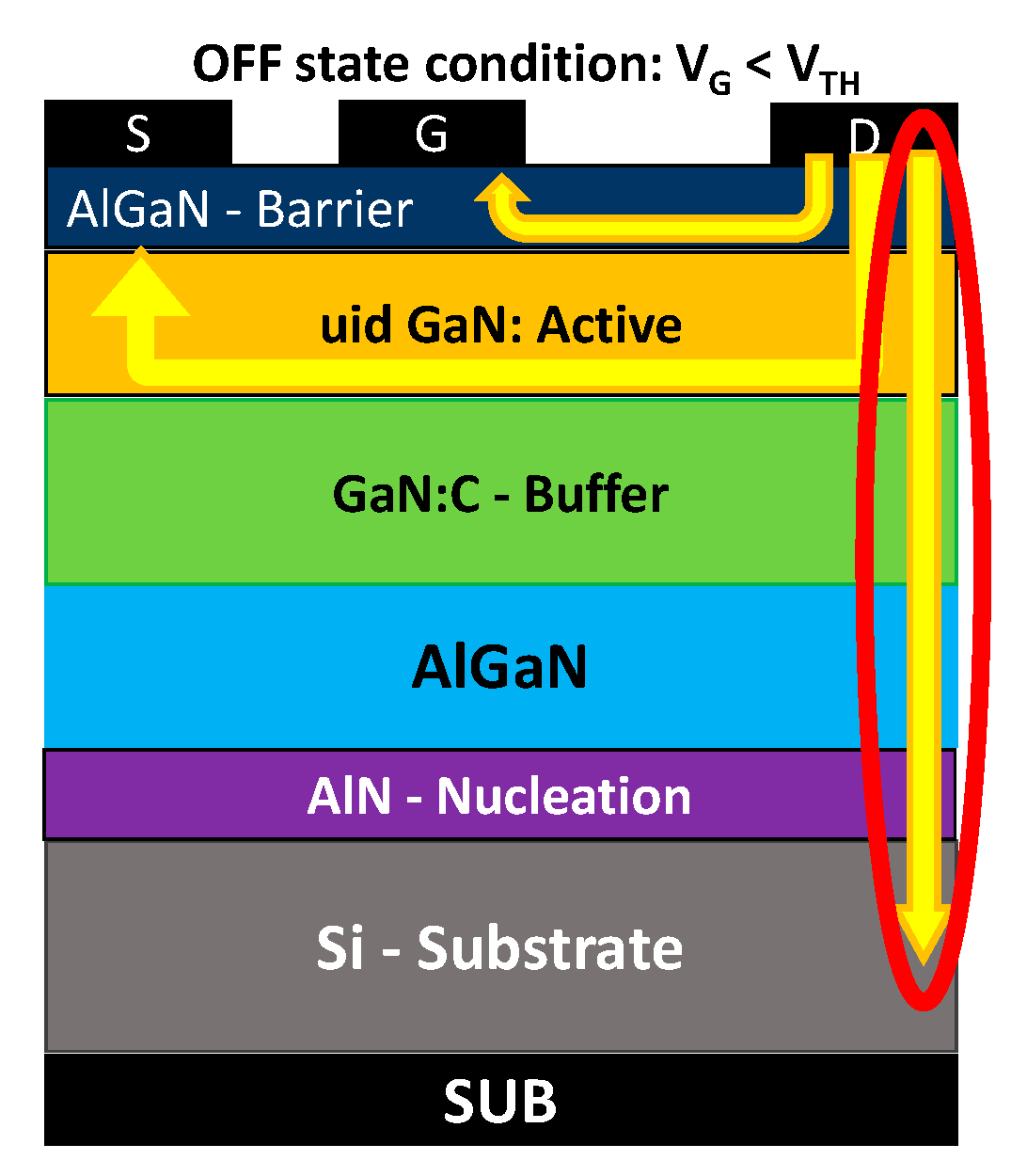

Figure 1. Schematic representation of GaN high-electron-mobility transistors (HEMTs), showing vertical leakage current between drain and substrate in the OFF-state condition.
Figure 1. Schematic representation of GaN high-electron-mobility transistors (HEMTs), showing vertical leakage current between drain and substrate in the OFF-state condition.
Micromachines 11 00101 g001

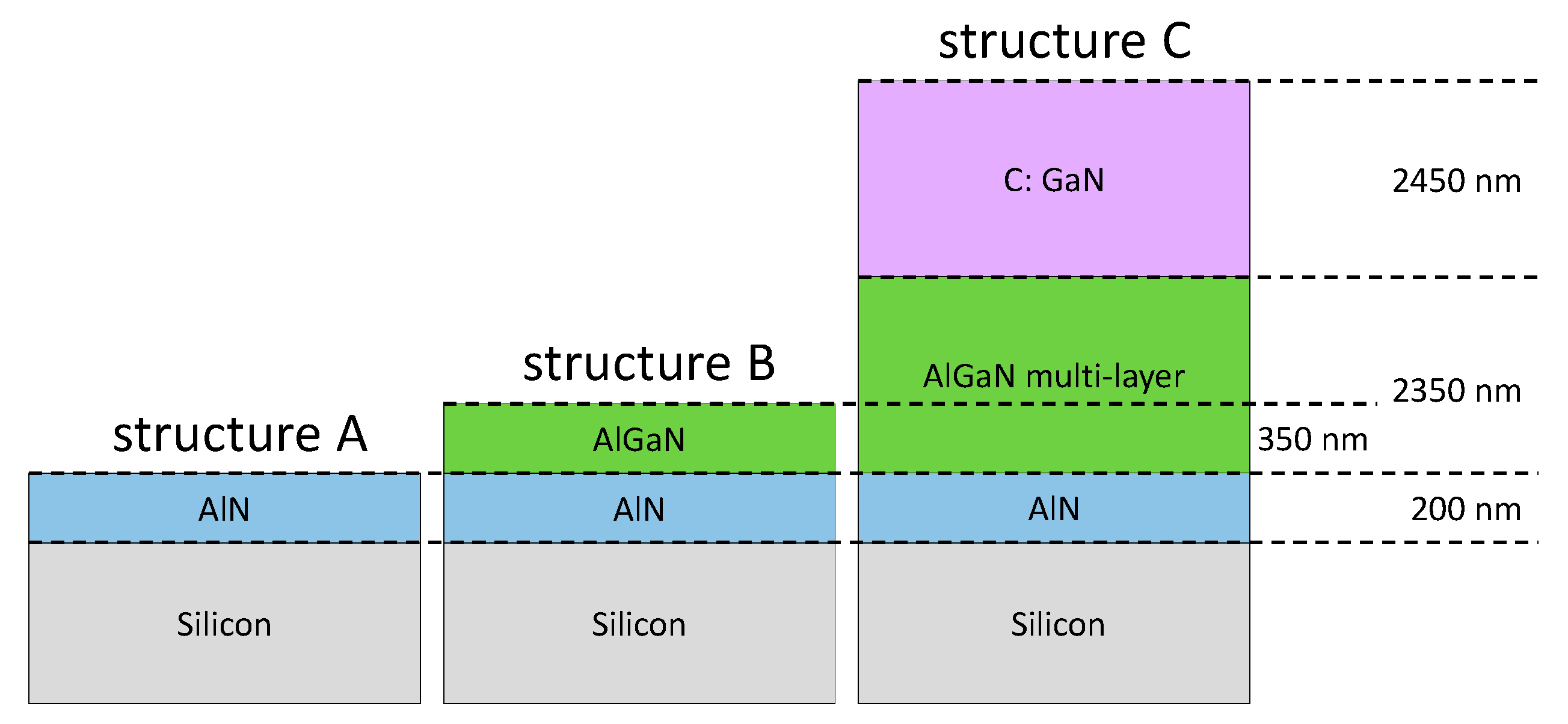

Figure 2. Schematic representation of the three investigated structures.
Figure 2. Schematic representation of the three investigated structures.
Micromachines 11 00101 g002

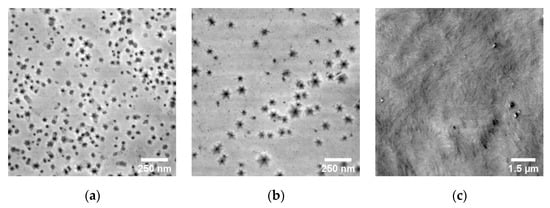

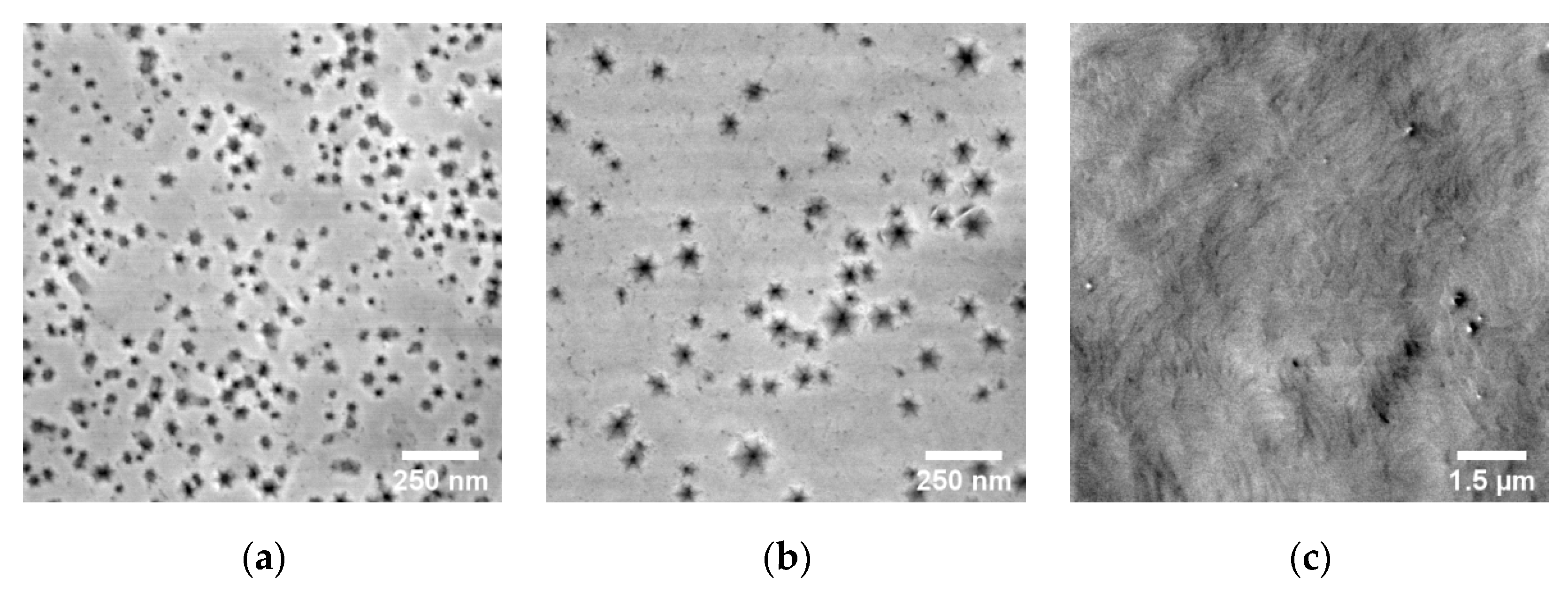

Figure 3. Representative scanning electron microscope (SEM) images of the as-grown surfaces of structure A (a), structure B (b), and structure C (c).
Figure 3. Representative scanning electron microscope (SEM) images of the as-grown surfaces of structure A (a), structure B (b), and structure C (c).
Micromachines 11 00101 g003
Figure 4. Vertical current-voltage (I–V) characteristics until breakdown for ten devices on structure A (left), structure B (center) and structure C (right).
Figure 4. Vertical current-voltage (I–V) characteristics until breakdown for ten devices on structure A (left), structure B (center) and structure C (right).
Micromachines 11 00101 g004

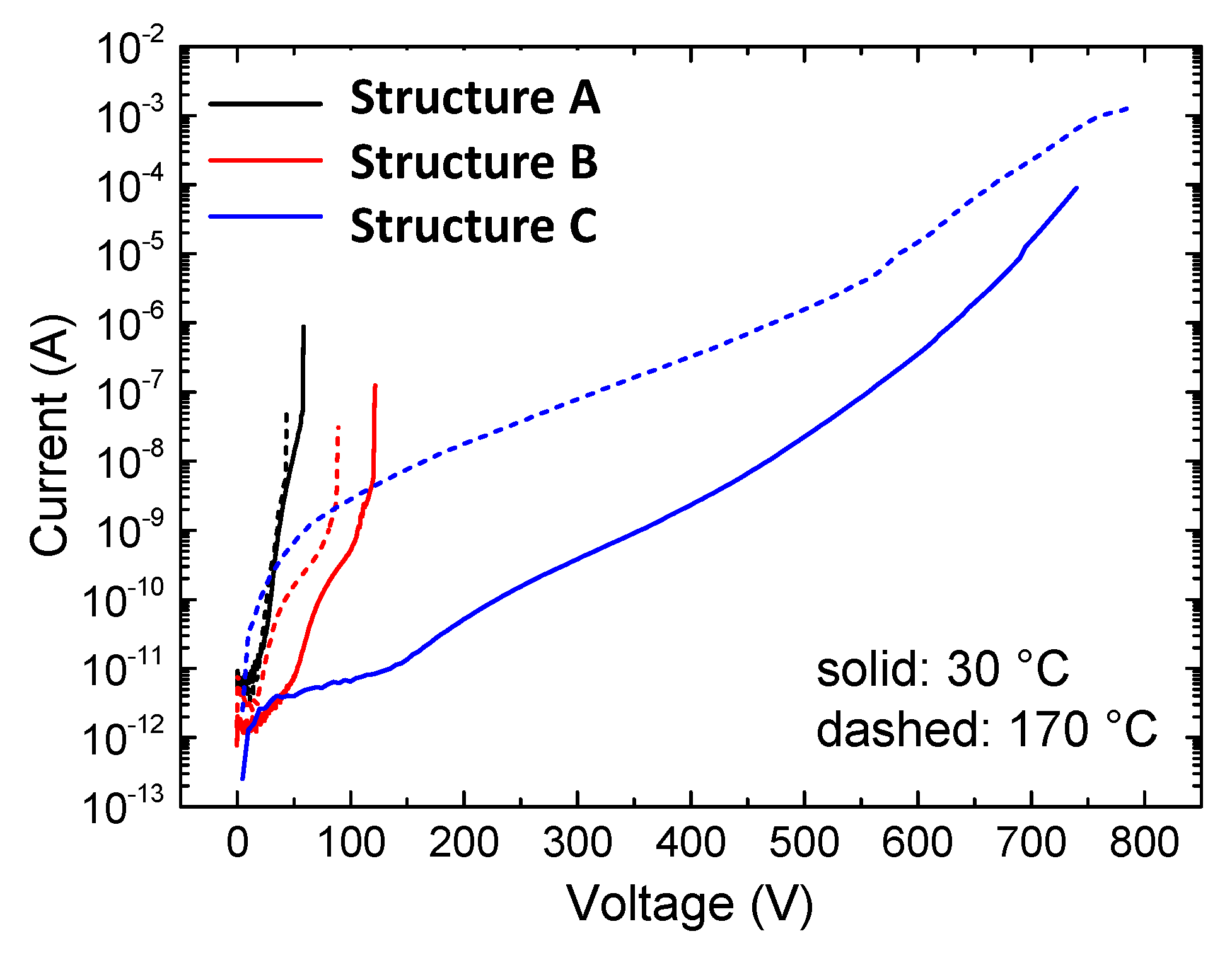

Figure 5. Current–voltage characteristics carried out at both low and high temperatures in the three structures under analysis.
Figure 5. Current–voltage characteristics carried out at both low and high temperatures in the three structures under analysis.
Micromachines 11 00101 g005

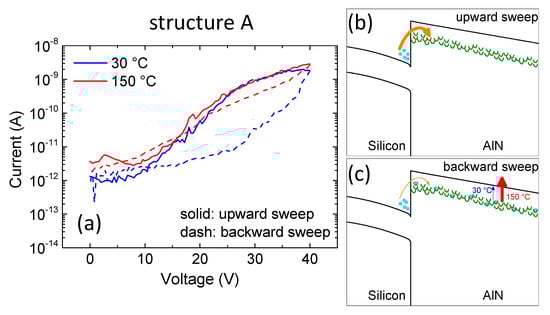

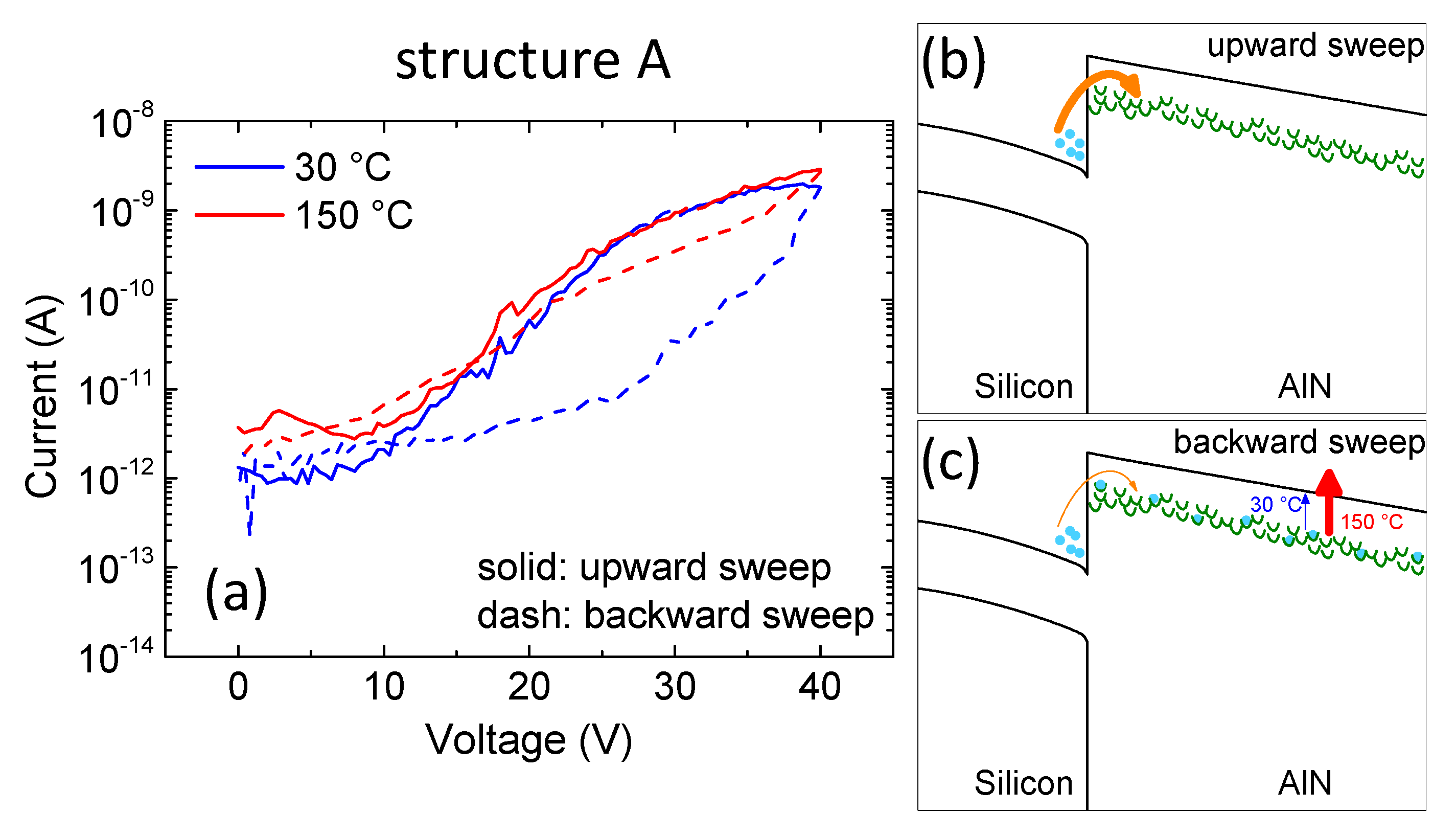

Figure 6. (a) Double sweep (upward: solid, backward: dashed) current-voltage characterization on sample A at both room and high temperature. (b,c) represent a schematic band diagram during the upward sweep and the backward sweep, respectively.
Figure 6. (a) Double sweep (upward: solid, backward: dashed) current-voltage characterization on sample A at both room and high temperature. (b,c) represent a schematic band diagram during the upward sweep and the backward sweep, respectively.
Micromachines 11 00101 g006

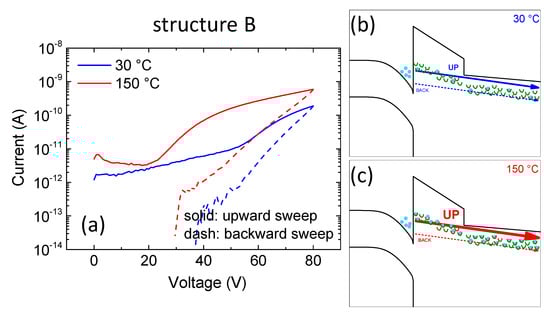

Figure 7. (a) Double sweep (upward: solid, backward: dashed) current-voltage characterization on the structure B at both room and high temperature. (b,c) represent a schematic band diagram at room and high temperature, respectively.
Figure 7. (a) Double sweep (upward: solid, backward: dashed) current-voltage characterization on the structure B at both room and high temperature. (b,c) represent a schematic band diagram at room and high temperature, respectively.
Micromachines 11 00101 g007

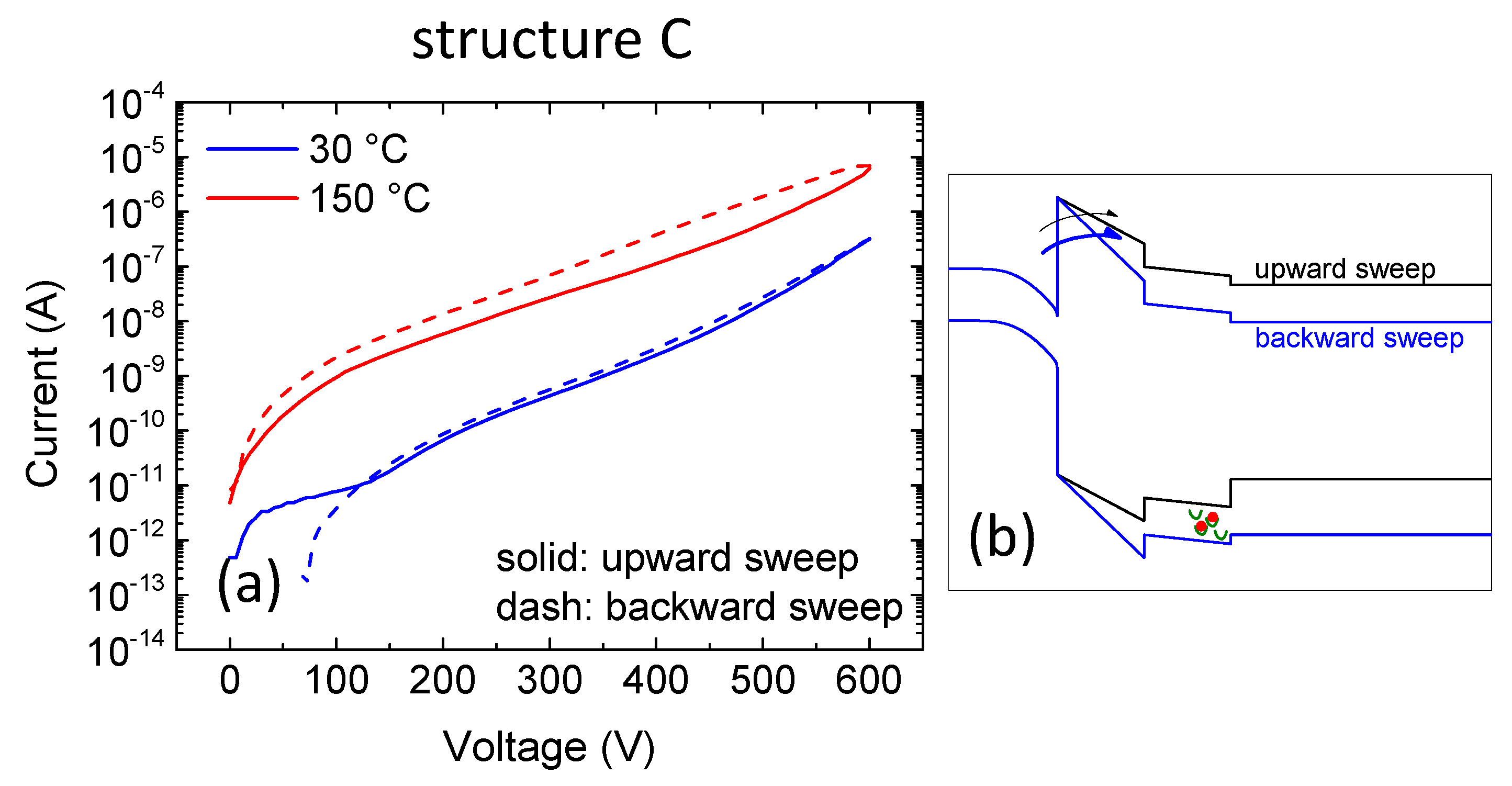

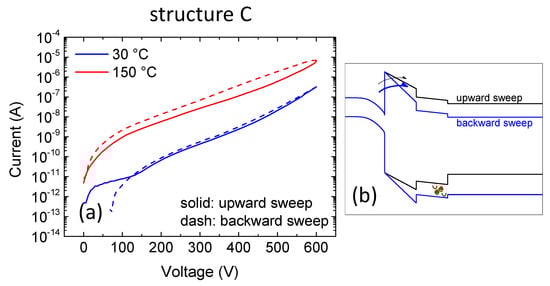

Figure 8. (a) Double sweep (upward: solid, backward: dashed) current-voltage characterization on structure C at both room and high temperature. (b) represents a schematic band diagram where the electrostatic effect of the positive trapped charges is highlighted.
Figure 8. (a) Double sweep (upward: solid, backward: dashed) current-voltage characterization on structure C at both room and high temperature. (b) represents a schematic band diagram where the electrostatic effect of the positive trapped charges is highlighted.
Micromachines 11 00101 g008

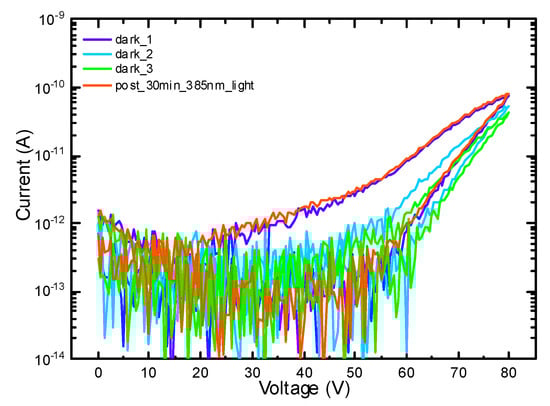

Figure 9. Double sweep current–voltage characterization on structure B, first, second, and third I–V on a fresh sample, then after 30 min irradiation with an LED light at a wavelength of 385 nm.
Figure 9. Double sweep current–voltage characterization on structure B, first, second, and third I–V on a fresh sample, then after 30 min irradiation with an LED light at a wavelength of 385 nm.
Micromachines 11 00101 g009
Figure 10. (a) Breakdown voltage evaluated on the three wafers under analysis; (b) dependence of the breakdown voltage of wafer A on temperature.
Figure 10. (a) Breakdown voltage evaluated on the three wafers under analysis; (b) dependence of the breakdown voltage of wafer A on temperature.
Micromachines 11 00101 g010
Figure 11. Failure voltage vs. leakage current measured at 30 V on sample A at different ambient temperatures.
Figure 11. Failure voltage vs. leakage current measured at 30 V on sample A at different ambient temperatures.
Micromachines 11 00101 g011
