Next Article in Journal
A Stripline-Based Planar Wideband Feed for High-Gain Antennas with Partially Reflecting Superstructure
Next Article in Special Issue
Synthesis and Applications of Silver Nanowires for Transparent Conductive Films
Previous Article in Journal
Matrix Mapping on Crossbar Memory Arrays with Resistive Interconnects and Its Use in In-Memory Compression of Biosignals
Previous Article in Special Issue
Polymeric Nanowires for Diagnostic Applications
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle

Surface Engineering of Carbon-Based Microelectrodes for High-Performance Microsupercapacitors

1
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan 430070, China
2
School of New Materials and New Energies, Shenzhen Technology University, Shenzhen 518118, China
*
Authors to whom correspondence should be addressed.
Micromachines 2019, 10(5), 307; https://doi.org/10.3390/mi10050307
Received: 14 April 2019 / Revised: 28 April 2019 / Accepted: 29 April 2019 / Published: 7 May 2019
  |
PDF [2348 KB, uploaded 7 May 2019]
  |

Abstract

In this research, the enhancement in electrochemical performance of pyrolyzed carbon microelectrodes by surface modification is investigated. For the proposed microfabrication process, pyrolyzed carbon microelectrodes with multi-walled carbon nanotubes (MWCNTs) on their surface are obtained by developing GM-1060 photoresist in mixture of propylene glycol methyl ether acetate (PGMEA) and CNTs, and following pyrolysis of a micropatterned photoresist. Polyvinyl alcohol (PVA)/H2SO4 electrolyte (1 M) was applied to assemble this carbon/CNT microelectrode-based all-solid-state microsupercapacitor (carbon/CNT-MSC). The carbon/CNT-MSC shows a higher electrochemical performance compared with that of pyrolyzed carbon microelectrode-based MSC (carbon-MSC). The specific areal and volumetric capacitances of carbon/CNT-MSC (4.80 mF/cm2 and 32.0 F/cm3) are higher than those of carbon-MSC (3.52 mF/cm2 and 23.4 F/cm3) at the scan rate of 10 mV/s. In addition, higher energy density and power density of carbon/CNT-MSC (2.85 mWh/cm3 and 1.98 W/cm3) than those of carbon-MSC (2.08 mWh/cm3 and 1.41 W/cm3) were also achieved. This facile surface modification and optimization are potentially promising, being highly compatible with modern microfabrication technologies and allowing integration of highly electrically conductive CNTs into pyrolyzed carbon to assemble MSCs with improved electrochemical performance. Moreover, this method can be potentially applied to other high-performance micro/nanostructures and microdevices/systems. View Full-Text
Keywords: microelectrode; supercapacitor; carbon microelectrode; supercapacitor; carbon
Figures

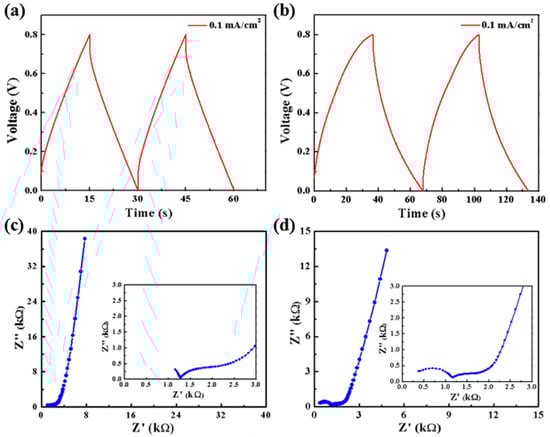

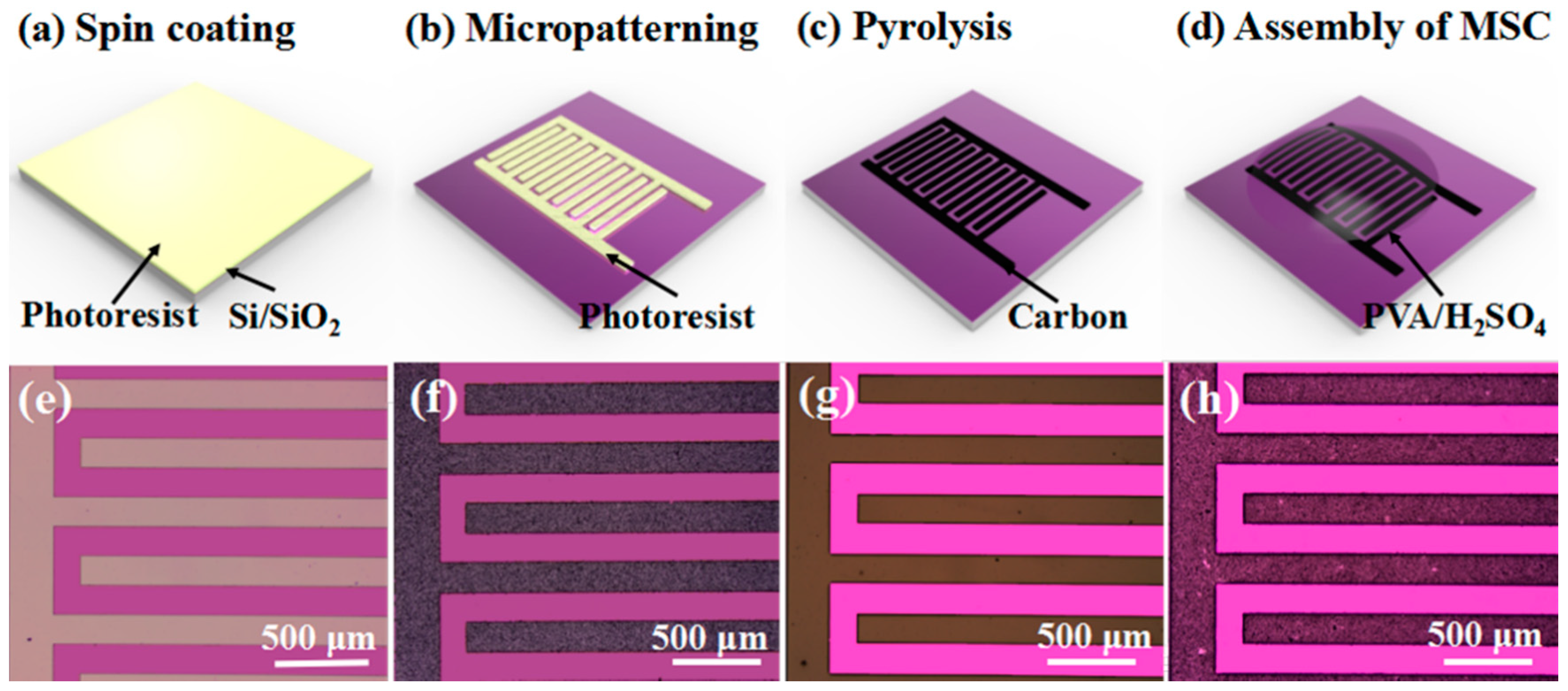

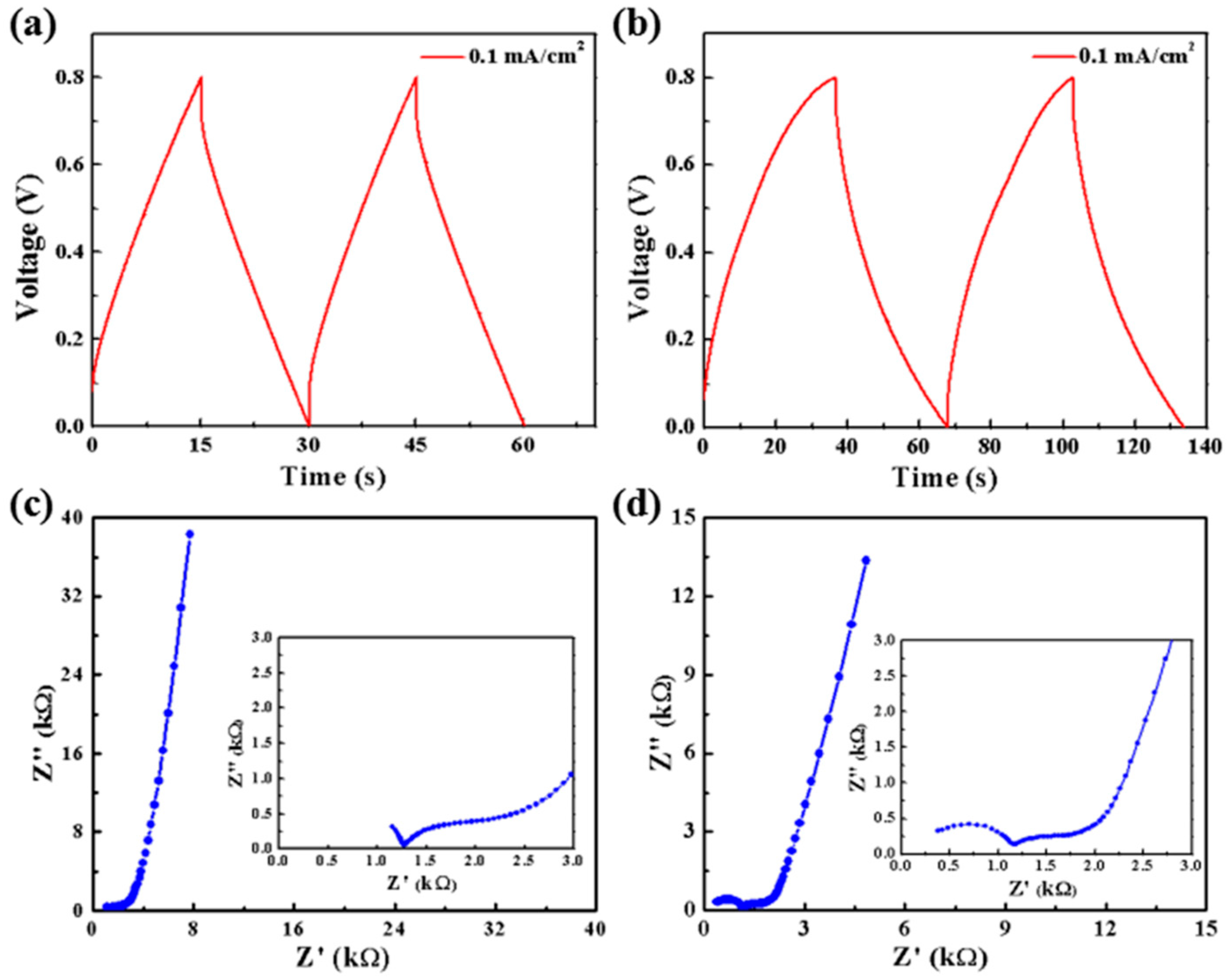

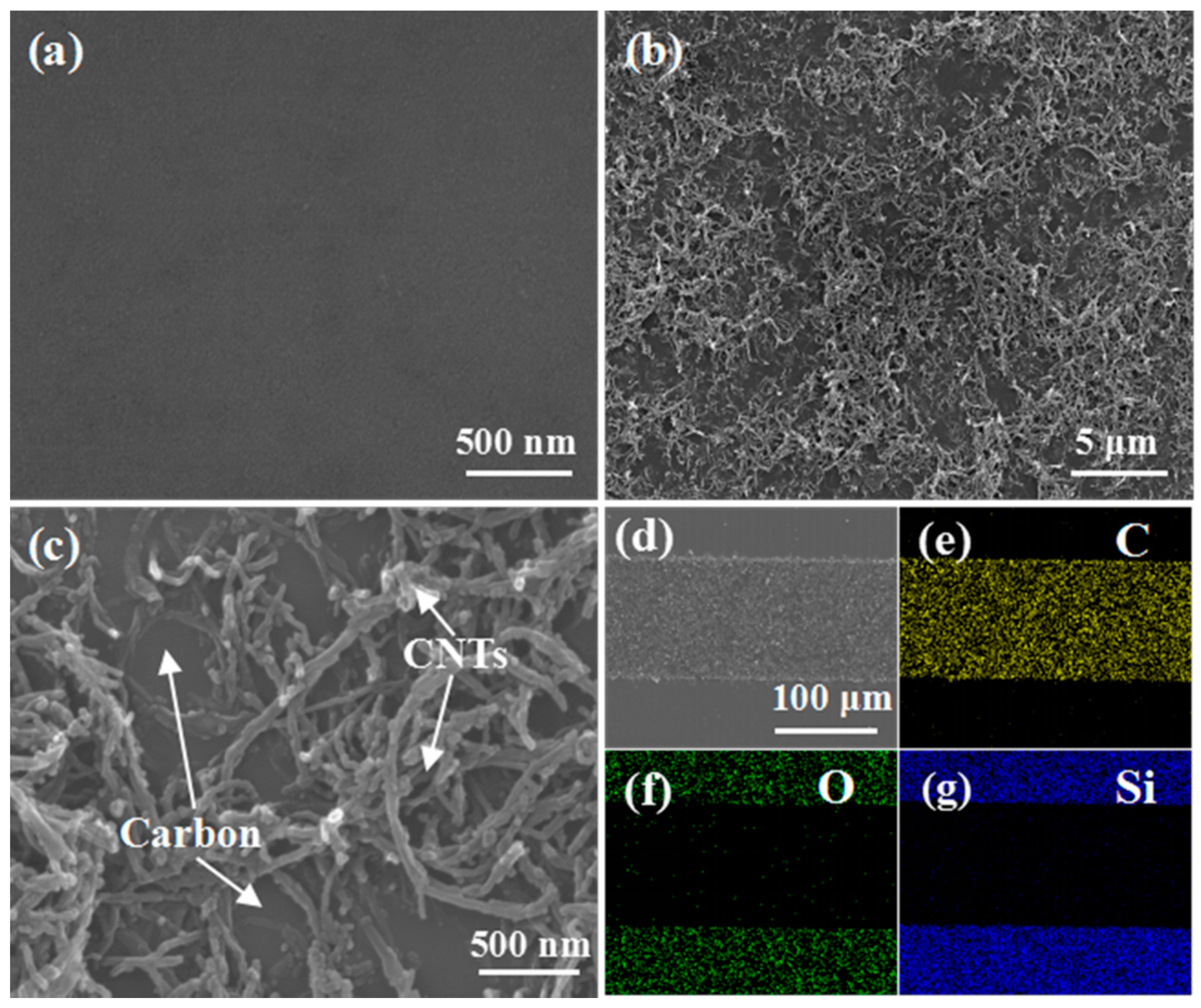

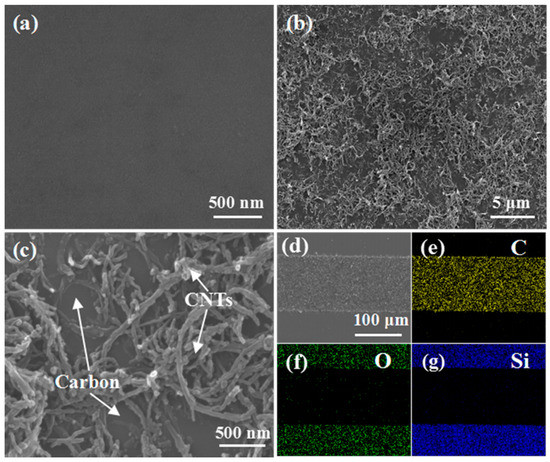

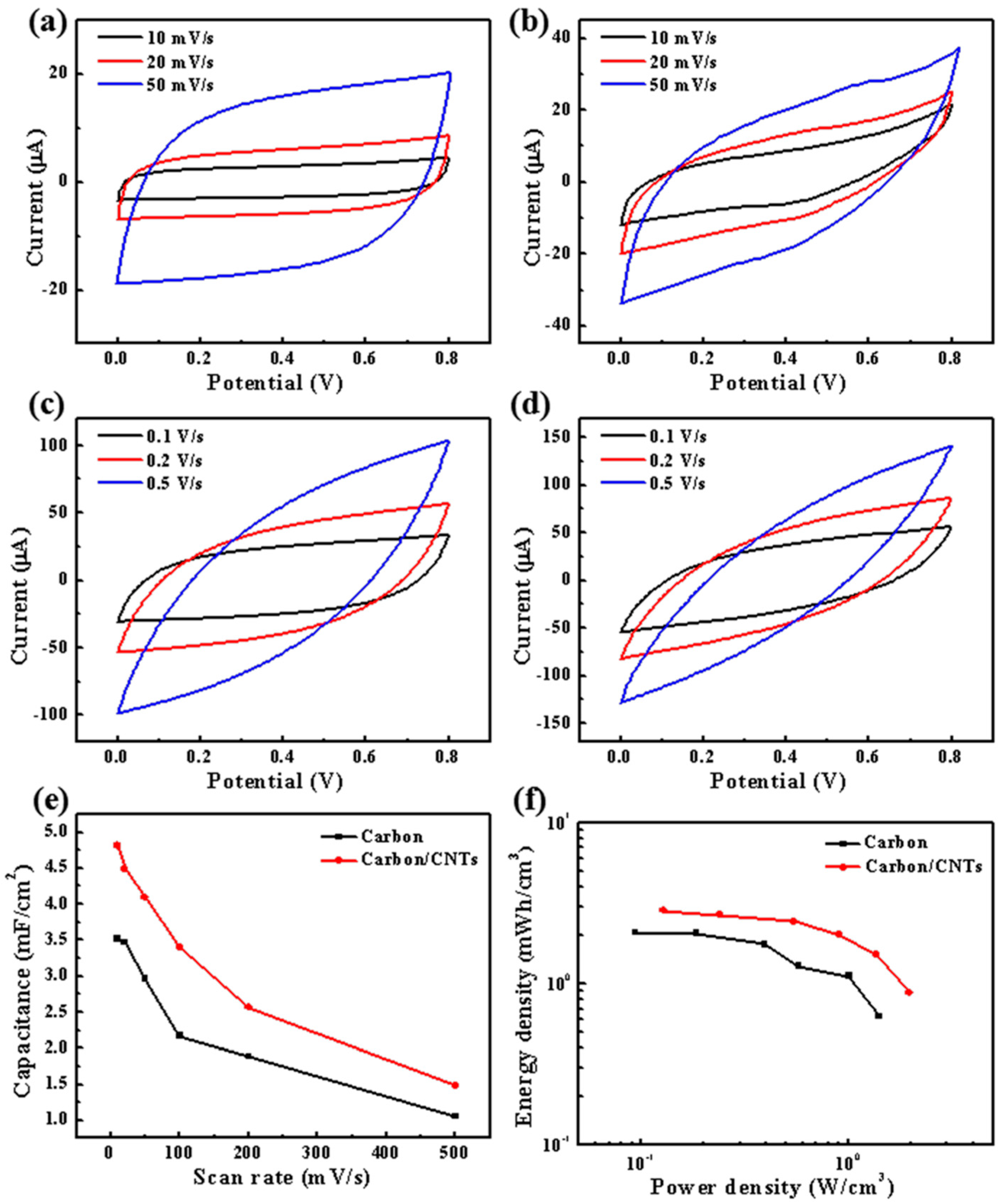

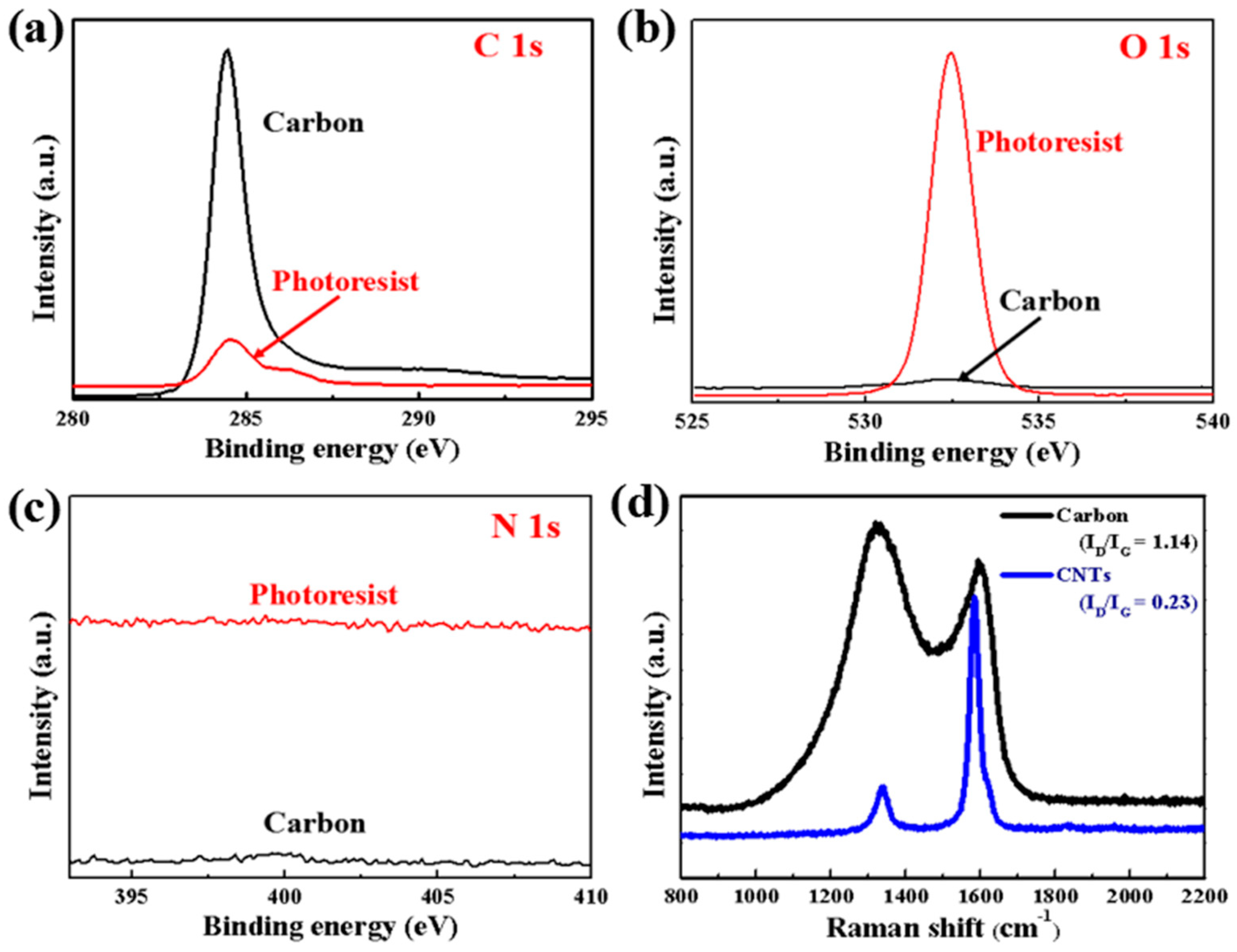

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

He, L.; Hong, T.; Huang, Y.; Xiong, B.; Hong, X.; Tahir, M.; Haider, W.A.; Han, Y. Surface Engineering of Carbon-Based Microelectrodes for High-Performance Microsupercapacitors. Micromachines 2019, 10, 307.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Micromachines EISSN 2072-666X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
