Optimization of Nozzle Inclination and Process Parameters in Air-Shielding Electrochemical Micromachining

Key Laboratory of Special Purpose Equipment and Advanced Processing Technology, Ministry of Education and Zhejiang Province, Zhejiang University of Technology, Hangzhou 310014, China
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(12), 846; https://doi.org/10.3390/mi10120846
Received: 27 October 2019 / Revised: 2 December 2019 / Accepted: 3 December 2019 / Published: 4 December 2019

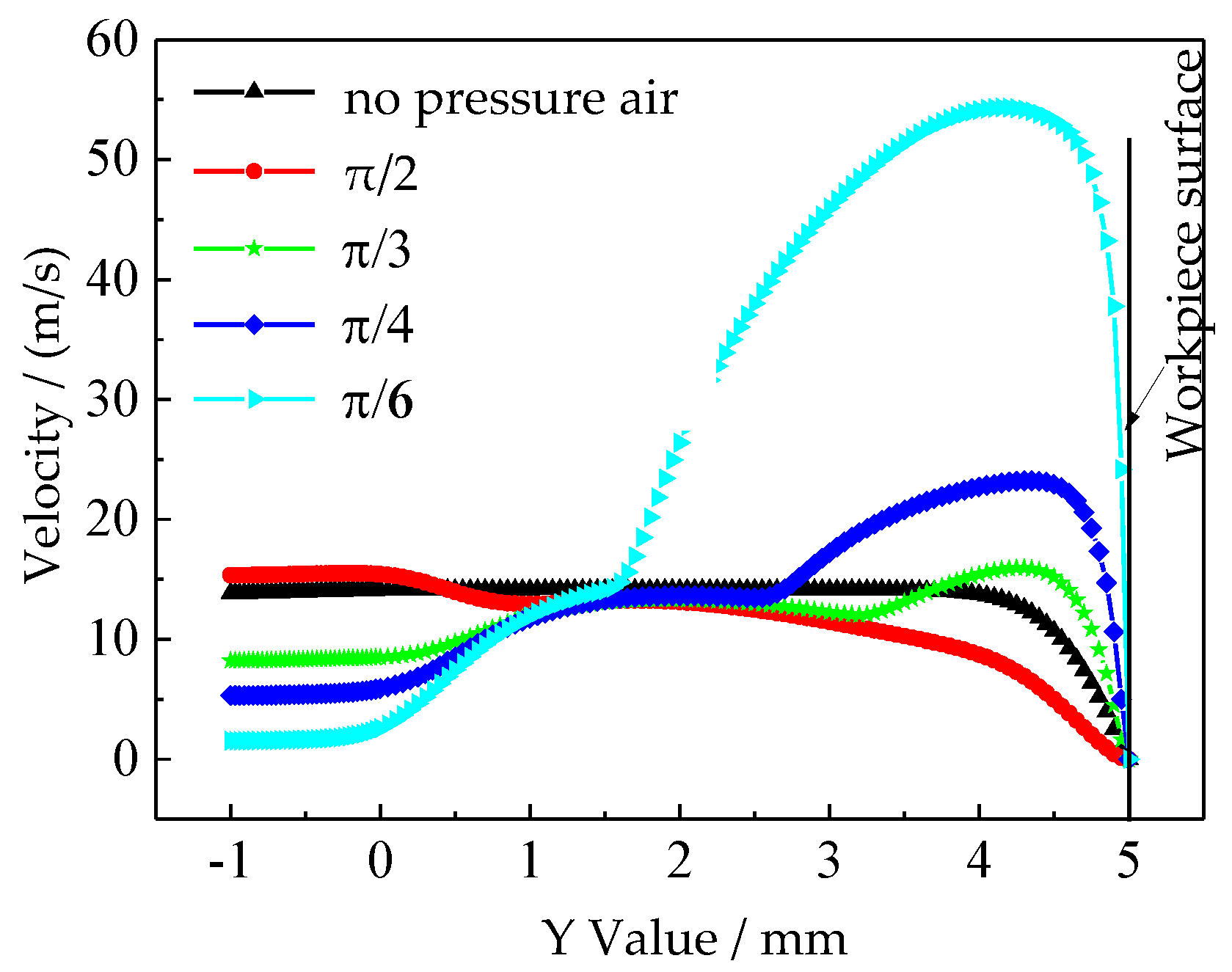

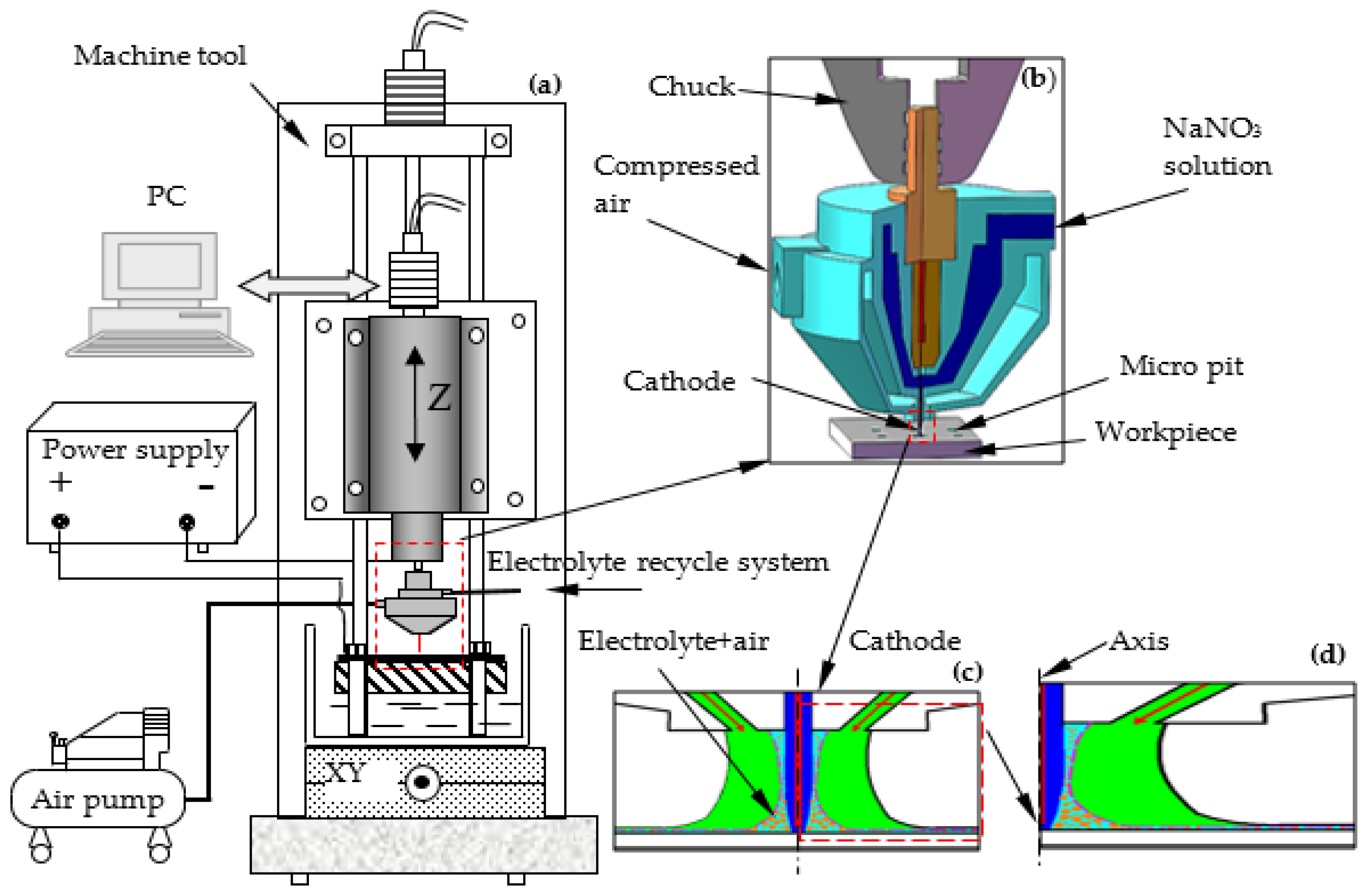

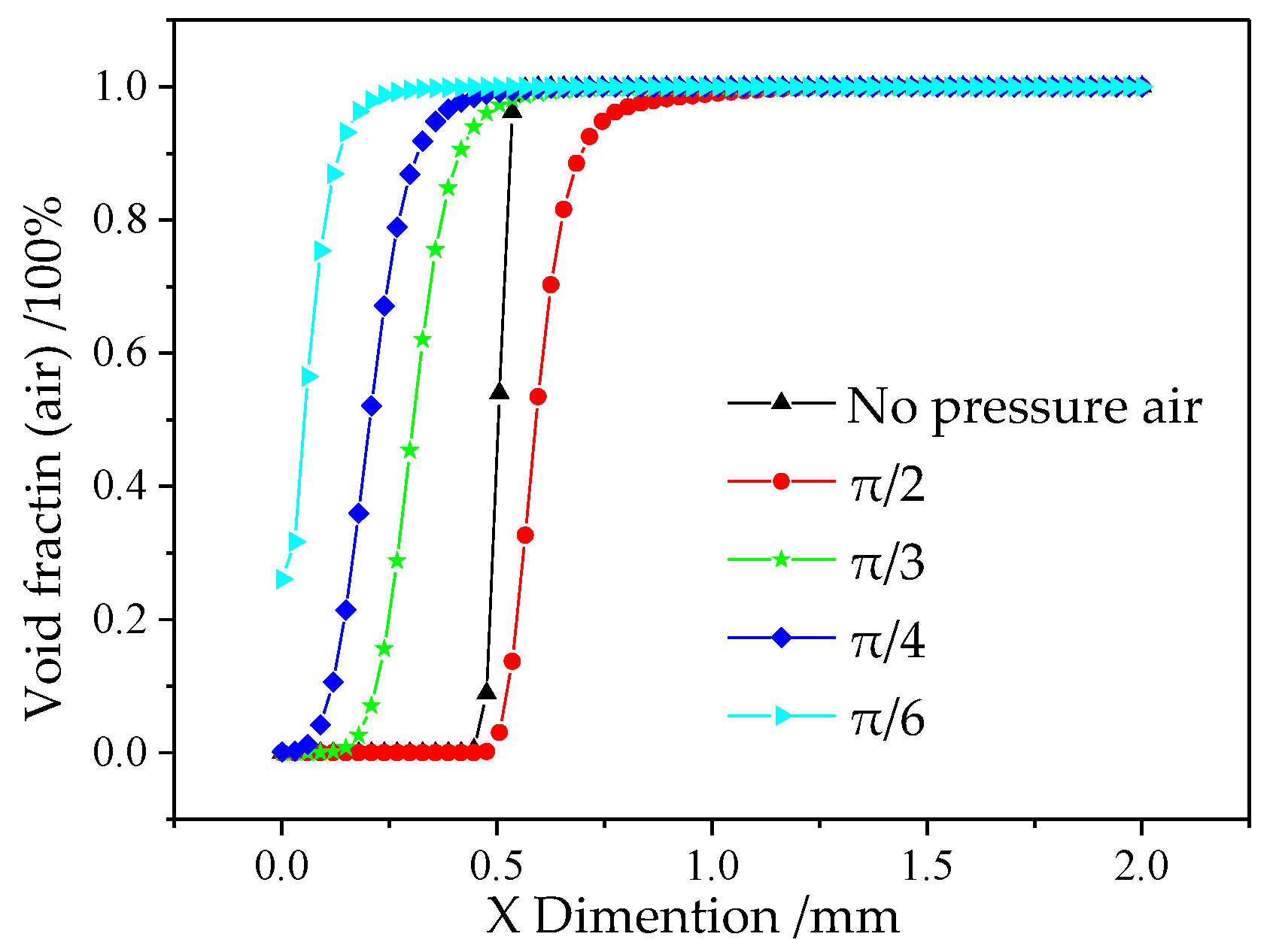

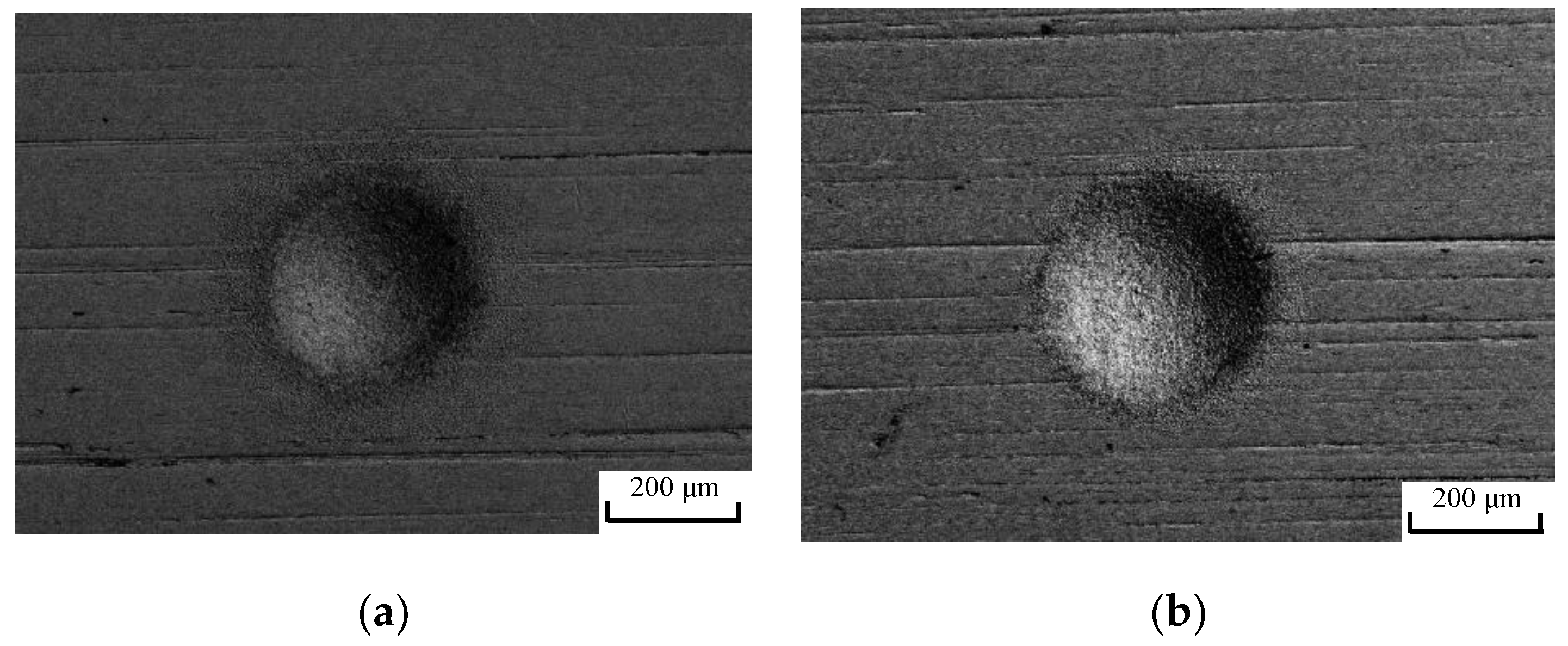

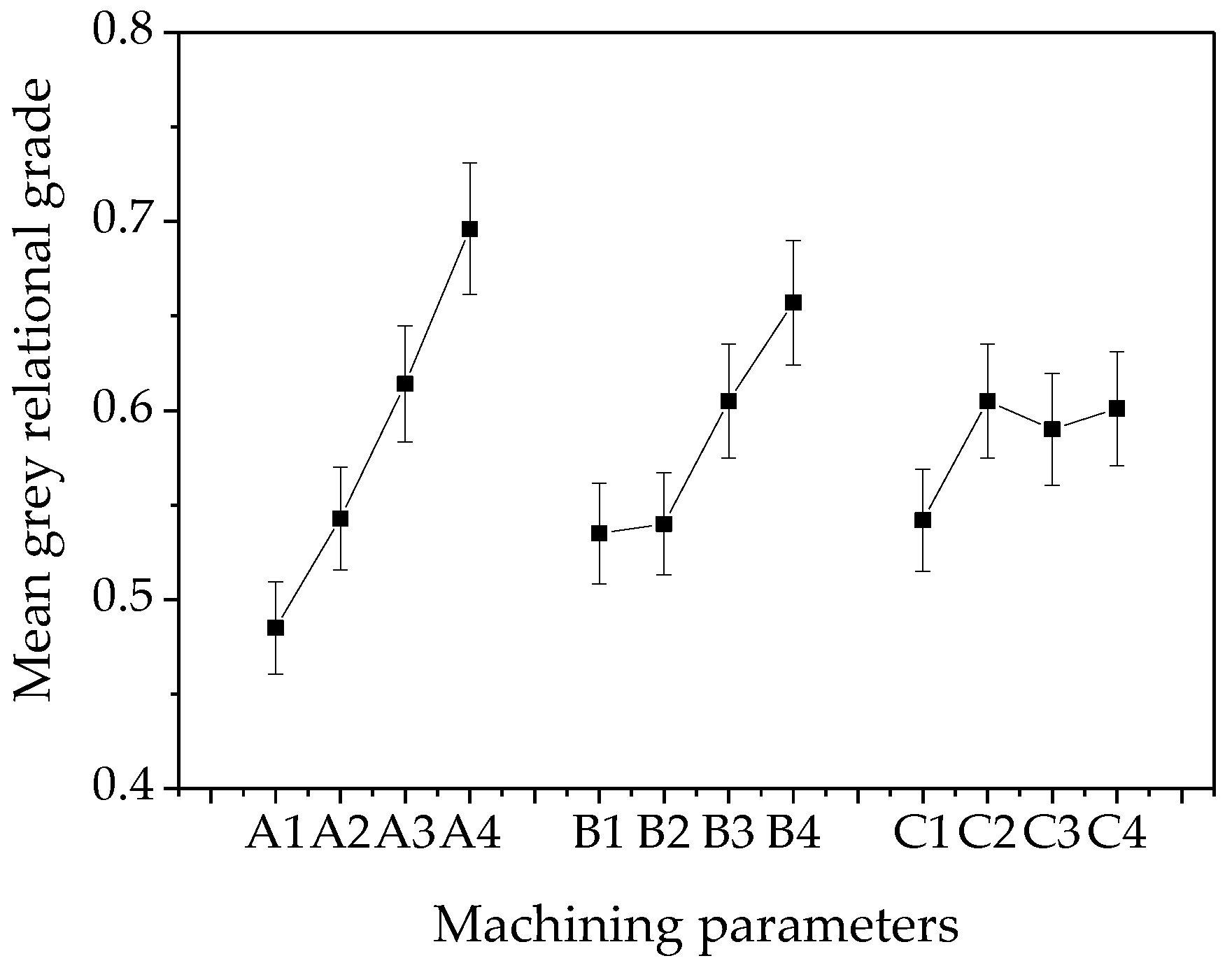

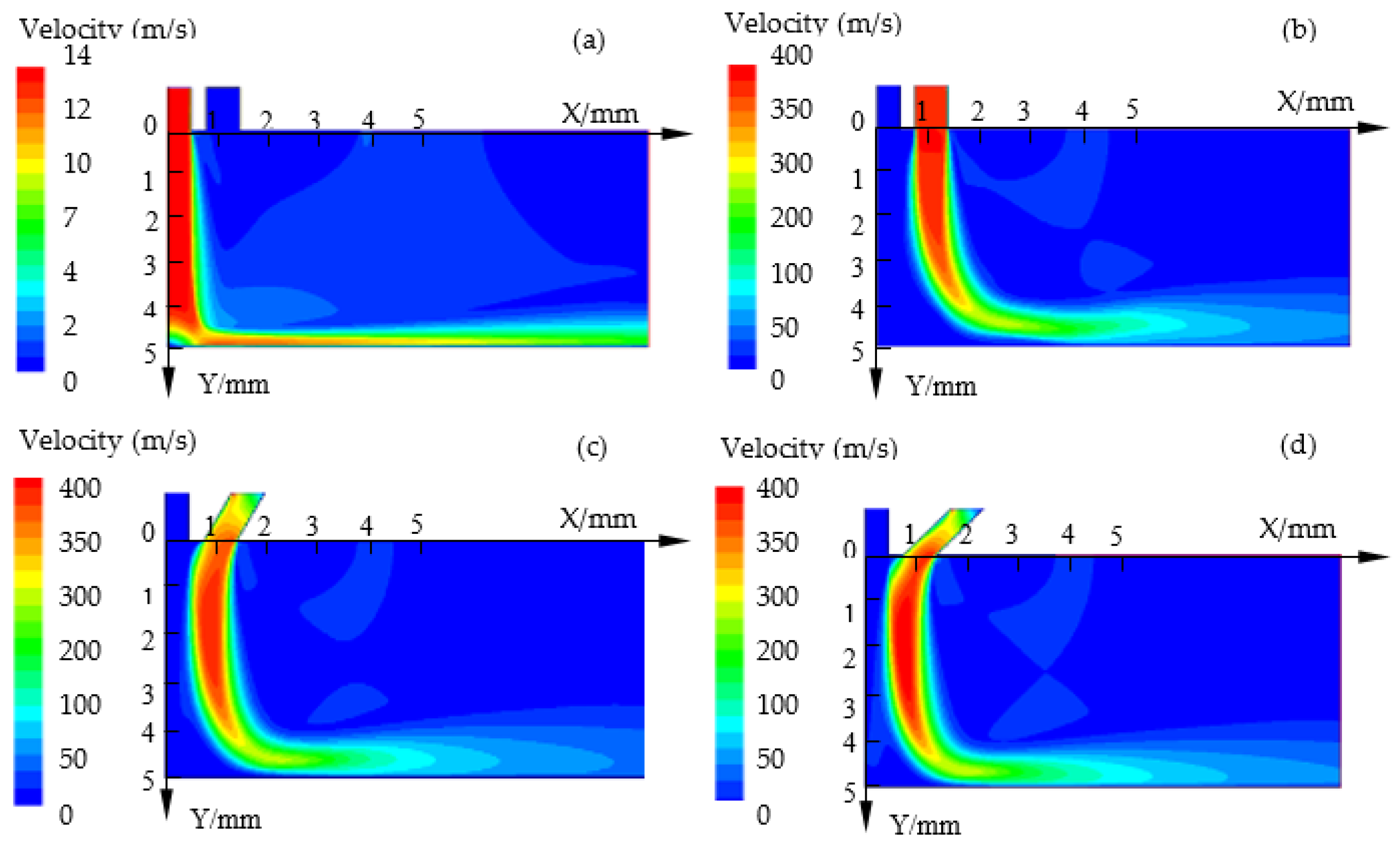

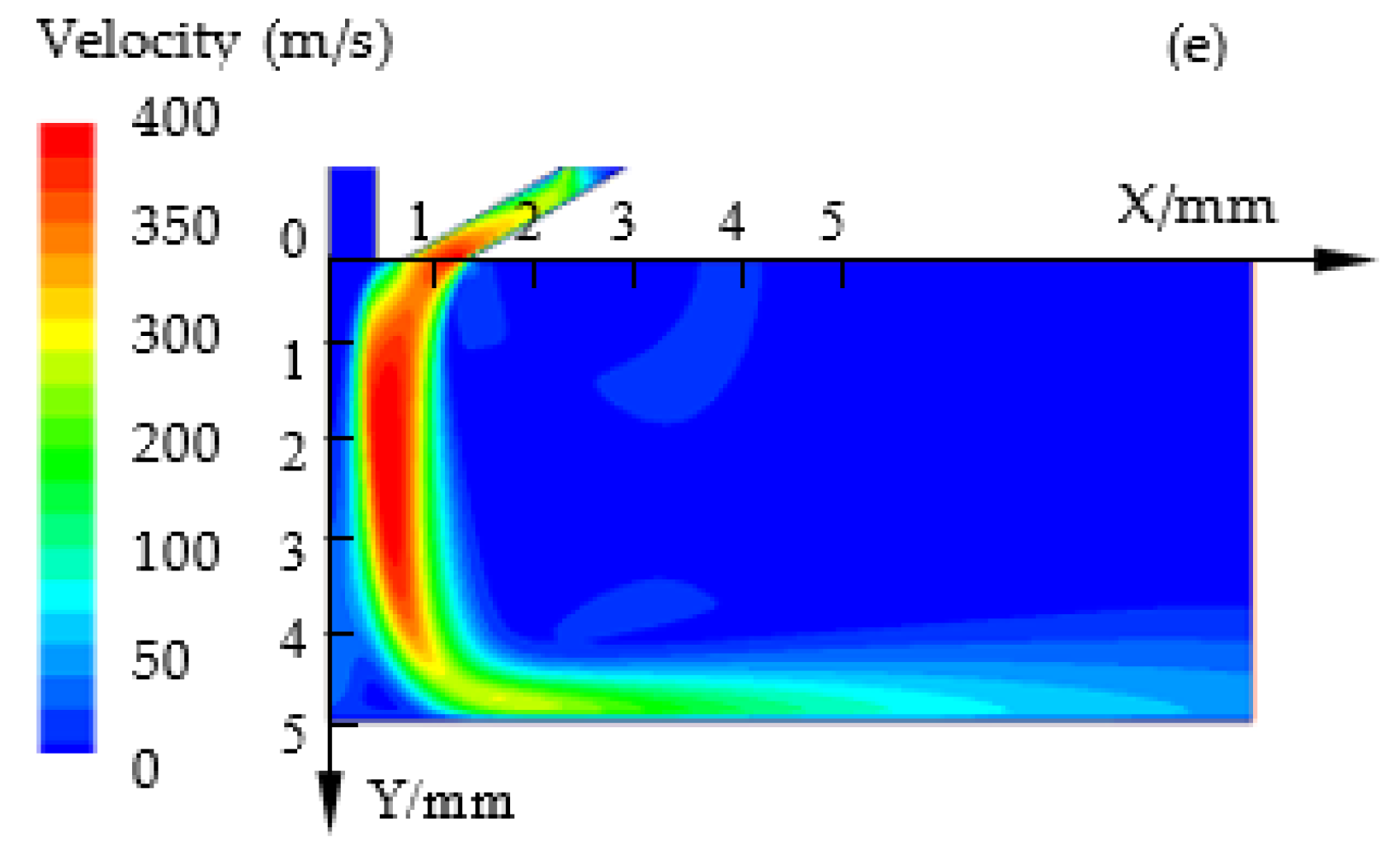

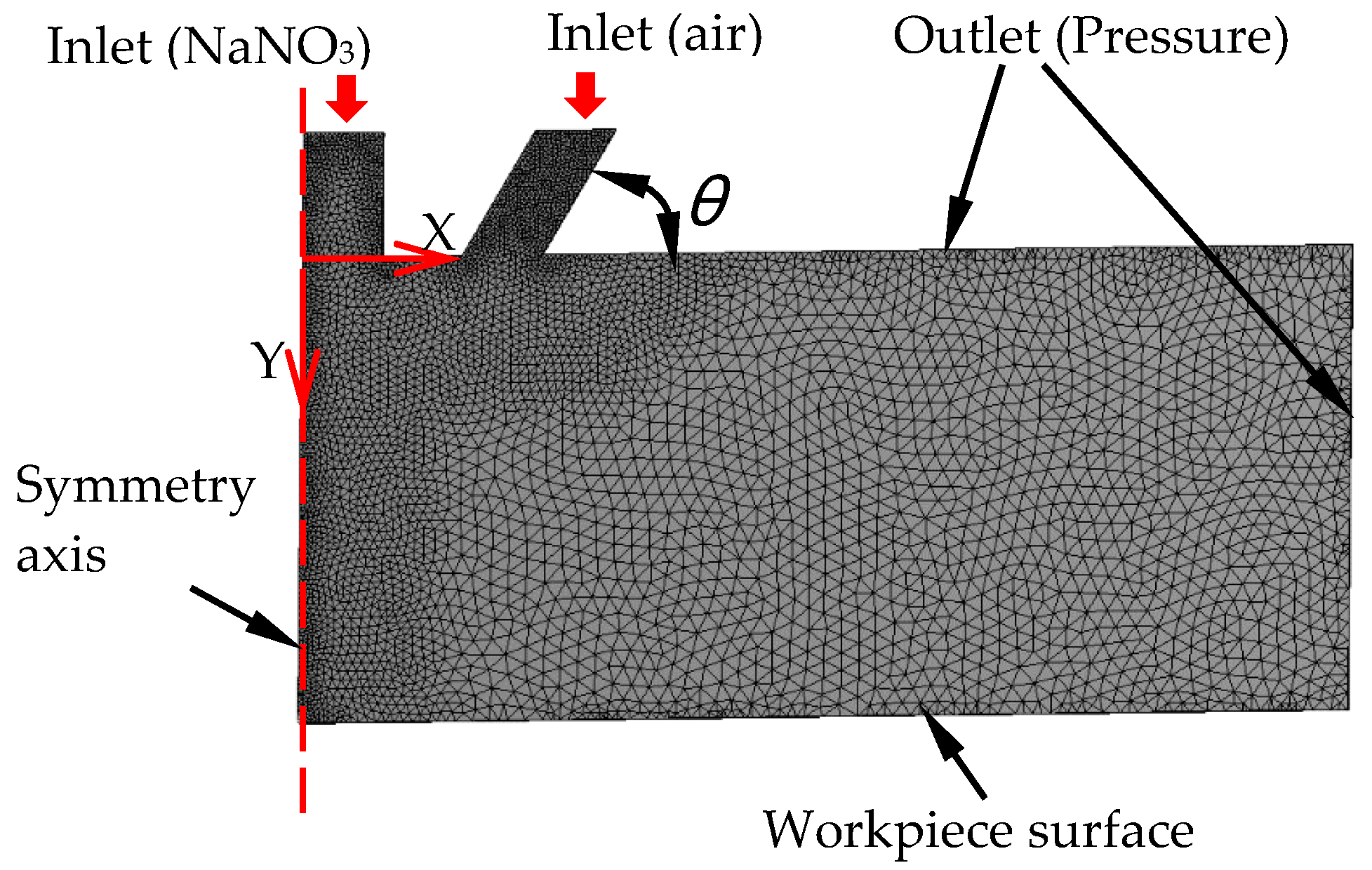

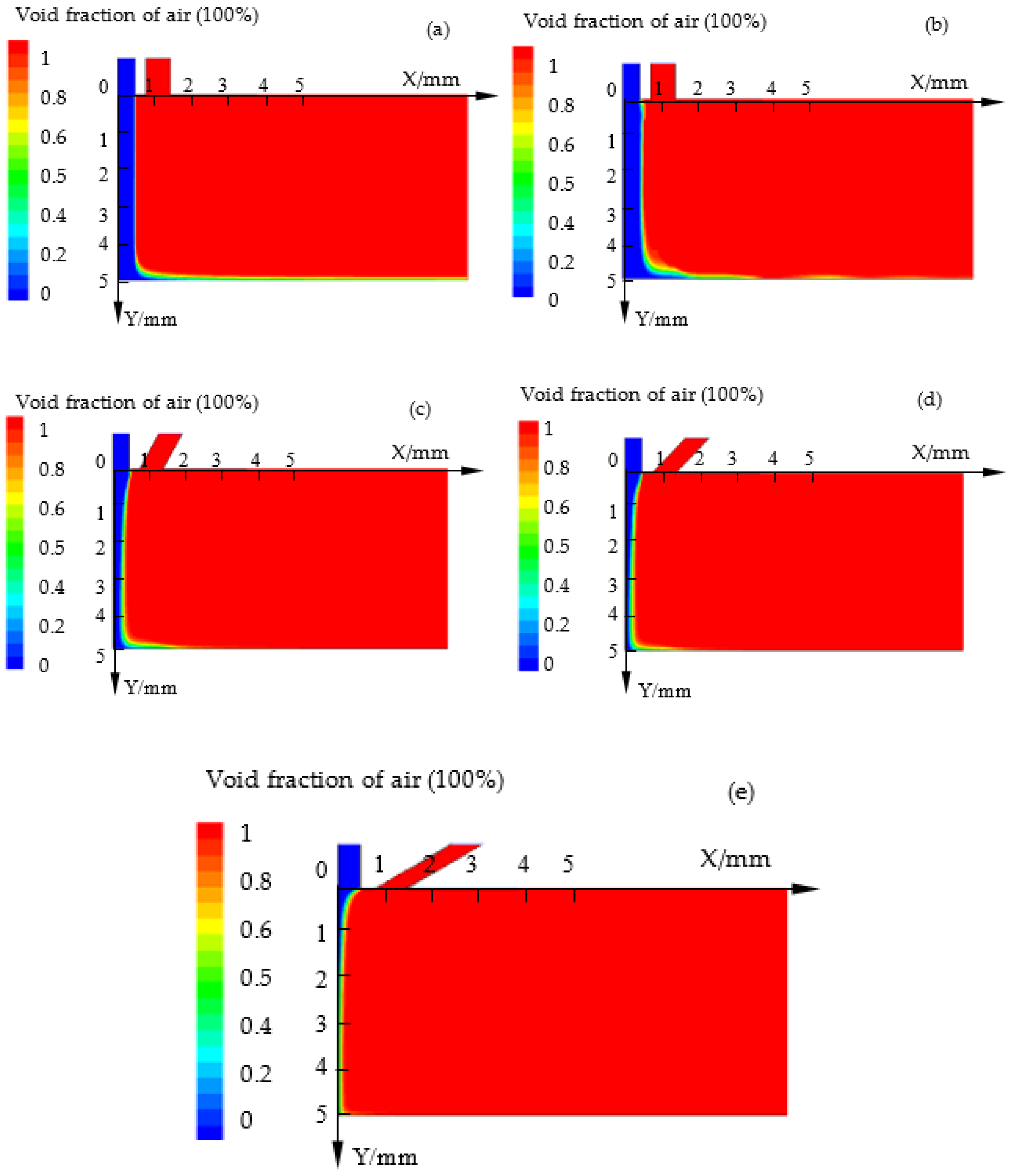

Microstructures on metal surfaces with diameters of tens to hundreds of micrometers and depths of several micrometers to tens of micrometers can improve the performance of engineering parts. Air-shielding electrochemical micromachining (AS-EMM) is a promising method for fabricating these microstructures, owing to its advantage of high efficient and better localization. However, the machining performance is often influenced by the machining or nonmachining parameters in AS-EMM. In order to get a better machining result in AS-EMM, the optimization of AS-EMM, including nozzle inclination and process parameters, was studied in this paper. Firstly, nozzle inclination was optimized by the different selected air incidence angles (θ) in simulation, and θ = π/4 was advised. Then, the grey relational analysis based on the orthogonal test method was used to analyze the grey relational grade for parameters and obtain the optimal parameter combination, i.e., at electrolyte velocity 5.5 m/s, gas velocity 160 m/s, and voltage 8 V. Finally, the optimization result was verified experimentally. View Full-Text
Keywords: air-shielding electrochemical micro-machining; nozzle design; flow field; grey relational analysis; optimization air-shielding electrochemical micro-machining; nozzle design; flow field; grey relational analysis; optimization
Show Figures

Figure 1

MDPI and ACS Style

Wang, M.; Shang, Y.; He, K.; Xu, X.; Chen, G. Optimization of Nozzle Inclination and Process Parameters in Air-Shielding Electrochemical Micromachining. Micromachines 2019, 10, 846.
