Article

Examination of Microcystin Adsorption by the Type of Plastic Materials Used during the Procedure of Microcystin Analysis

by
Chan Seo
1,
Joo Won Lee
2,
Won-Kyo Jung
3,4,
Yoon-Mi Lee
5,
Seungjun Lee
1 and
Sang Gil Lee
1,2,*
1
Department of Food Science and Nutrition, Pukyong National University, Nam-Gu, Busan 48513, Korea
2
Department of Smart Green Technology Engineering, Pukyong National University, Busan 48513, Korea
3
Research Center for Marine Integrated Bionics Technology, Pukyong National University, Busan 48513, Korea
4
Department of Biomedical Engineering, Pukyong National University, Busan 48513, Korea
5
Food Safety and Processing Research Division, National Institute Fisheries Science, Busan 46083, Korea
*
Author to whom correspondence should be addressed.
Toxins 2022, 14(9), 625; https://doi.org/10.3390/toxins14090625
Submission received: 1 August 2022 / Revised: 31 August 2022 / Accepted: 1 September 2022 / Published: 7 September 2022
(This article belongs to the Special Issue Recent Advances in Microcystins)
Browse Figures
Review Reports Versions Notes

Abstract

:
The incidence of eutrophication is increasing due to fertilizer abuse and global warming. Eutrophication can induce the proliferation of cyanobacteria such as Microcystis, which produces microcystins. Microcystins are toxic to specific organs such as the liver and the heart. Thus, monitoring of microcystins is strongly required to control drinking water and agricultural product qualities. However, microcystins could be adsorbed by plastic materials during sample storage and preparation, hindering accurate analysis. Therefore, the current study examined the recovery rate of microcystins from six plastics used for containers and eight plastics used for membrane filters. Among the six plastics used for containers, polyethylene terephthalate showed the best recovery rate (≥81.3%) for 48 h. However, polypropylene, polystyrene, and high- and low-density polyethylenes showed significant adsorption after exposure for 1 hr. For membrane materials, regenerated cellulose (≥99.3%) showed the highest recovery rate of microcystins, followed by polyvinylidene fluoride (≥94.1%) and polytetrafluoroethylene (≥95.7%). The adsorption of microcystins appeared to be strongly influenced by various molecular interactions, including hydrophobic interaction, hydrogen bonding, and electrostatic interaction. In addition, microcystins’ functional residues seemed to be critical factors affecting their adsorption by plastic materials. The present study demonstrates that polyethylene terephthalate and regenerated cellulose membrane are suitable plastic materials for the analysis of microcystins.
Keywords:
microcystin; adsorption; plastic; polyethylene terephthalate; regenerated cellulose
Key Contribution: This article highlights the adsorption effect on plastic materials of microcystins and provides useful information to select suitable materials for plastic containers and filters.

1. Introduction

The incidence of eutrophication due to environmental pollution and fertilizer abuse is increasing [1,2,3,4,5]. Eutrophication causes a massive proliferation of toxin-producing algae such as cyanobacteria, which harms animals and plants [6,7,8,9]. Among cyanobacteria, Microcystis produces microcystins (MCs), which have hepatotoxicity [10,11]. In general, MCs consist of seven amino acids, including the Adda structure separated by two variable residues. About 279 different MC congeners have been reported [12,13]. MCs are very harmful when ingested or inhaled. Humans are exposed to MCs by consuming foods grown with water contaminated by MCs and inhalation in underwater recreation [14,15]. For example, cases of MCs exposure in Brazil have been reported [16,17]. Massive acute exposure and chronic exposure to low concentrations of MCs can cause toxicity by accumulating in the liver, kidney, and heart [18,19,20,21,22]. Among various MC congeners, MC-LR is known to be the most toxic compound. The structure of MC-LR with modified amino acids of leucine and arginine shows high resistance to heat, hydrolysis, and oxidation [23]. Due to such toxic effects of MCs, monitoring concentrations of MCs in food ingredients and drinking or agricultural water is very critical [21,24,25,26]. The WHO recommended a concentration of MCs in drinking water that is less than 1.0 μg/L for chronic exposure and 12 μg/L for short-term exposure [27].
In general, the analysis of MCs is performed using liquid chromatography (LC) combined with UV/visible detector (UVD) or mass spectrometry (MS) [28]. To have accurate analytical results using HPLC with detectors, it is critical to remove various impurities through filtering, extracting (solid-phase or liquid-phase), or concentrating [29]. However, it has been reported that MC-LR can be adsorbed by various types of plastics such as polystyrene (PS), polypropylene (PP), and polyvinyl chloride (PVC) [30,31,32,33]. Since many laboratory tools are made of plastics, MCs will be exposed to plastics inevitably during the sample preparation for the analysis of MCs. The loss of MCs during analysis sample preparation can cause significant problems in accurate quantitation of MCs [31,32]. It has been reported that methanol could improve the recovery rate of MC-LR by reducing MC-LR adsorption into plastic materials [31]. However, for MC recovery, adding an organic solvent such as methanol can dilute the MC in water. In addition, it requires additional time and preparation steps such as a concentrating step. Therefore, selecting the appropriate plastic material for sample preparation is very important. However, little research has been conducted on the impact of adsorption loss caused by various plastic materials. In particular, information on adsorption of MCs on the syringe filter membrane, which is essential for analysis of MCs using LC, is insufficient. Therefore, the objective of this study was to thoroughly examine adsorption rates of MC-LR, -RR, and -YR by different plastic materials used for plastic containers and syringe filters.

2. Results

2.1. Method Validation for Microcystins

Method validation for analysis of three MCs in distilled water was performed using a published method [34] with slight modifications. Under optimal conditions, the retention time of MC-LR, -RR, and -YR ranged from 3.79 to 4.11 min (Supplementary Figure S1). In the concentration range from 1 µg/L to 20 µg/L, MC-LR, -RR, and -YR showed good linearity (R2 ≥ 0.999), with limits of detection ranging from 0.001 µg/L to 0.002 µg/L, and quantification from 0.002 µg/L to 0.005 µg/L. Accuracy (percent relative error) and repeatability (relative standard error) were −3.4 to 0.7% and 3.3 to 6.2%, respectively (Table 1).

2.2. Adsorption Effects of Six Plastic Containers on Analysis of Microcystins

Recovery rates of MC-LR, -RR, and -YR after exposure to plastic particles for 0, 1, 6, 12, 24, and 48 h were investigated using six different types of plastic particles (PET, PP, PFA, PS, HDPE, and LDPE) (Figure 1A for -LR, Figure 1B for -RR, and Figure 1C for -YR). After exposure for 48 h, PET (Figure 1A, Black Circle) showed the highest MC-LR recovery rate of 91.5%. PFA (Figure 1A, Black Triangle) showed a considerable recovery rate of 75.5% at 6 h. However, its recovery rate dramatically dropped to less than 21.8 at 12 h. In the case of PS (Figure 1A, White Circle), the recovery rate of MC-LR was about 60% at 6 h and less than 18.5% after 12 h. Among the six plastic particles, LDPE (Figure 1A, White Triangle) and HDPE (Figure 1A, Black Diamond) showed the most significant reduction in the recovery for the three MCs. LDPE and HDPE particles resulted in less than 45.4% of recovery rate at 1 h and a recovery rate of 18.5% after 12 hr. In the case of PP (Figure 1A, Black Square), the recovery rate of MC-LR dropped significantly (39.5%) by 1 h. This recovery rate lasted until 24 h exposure. It decreased to less than 20% after 48 h exposure.
Concerning MC-RR and -YR, their recovery rates showed a similar trend to recovery rates of MC-LR after exposure to the six plastic particles. PET (Figure 1B) was still a desirable material, resulting in a recovery rate of 81.6% after 48 h exposure. PFA (Figure 1B) resulted in a recovery rate of 67.7% after exposure for 6 h. The recovery rate was sharply decreased after 12 h of exposure. It was only 6.9% after 48 h of exposure. MC-RR exhibited similar recovery rates after exposure to PP, PS, HDPE, and LDPE (Figure 1B). After exposure to these four plastic particles (PP, PS, HDPE, and LDPE), over 59.8% of MC-RR were adsorbed after 1 h of exposure. The adsorption was then gradually increased after exposure for 48 h. The best MC-YR recovery rate was found when it was exposed to PET (Figure 1C). Its recovery rate remained at 81.3% after 48 h exposure. The MC-YR recovery rate after exposure to PFA (Figure 1C) showed a similar trend to the MC-LR and MC-RR recovery rates. After 6 h exposure, the recovery rate of MC-YR was 75.3%. After 12 h exposure, its recovery rate rapidly decreased from 31.1% to 8.3%. After exposure to PS for 1 h (Figure 1C), the recovery rate dropped to 53.8%. The recovery rate was maintained at a similar level (51.8%) for 6 h. After 12 h, the recovery rate of MC-YR dropped from 13.5% to undetectable levels. After exposure to PP, the recovery rate of MC-YR was decreased to 35.7%. This rate was maintained until 24 h. However, about 90% of MC-YR was lost after 48 h of exposure. The recovery rate of MC-YR exposed to LDPE (Figure 1C) and HDPE (Figure 1C, filled diamond) was decreased significantly to 38.8% after 1 h exposure. It was gradually decreased to 11.0% after 48 h exposure. A similar trend in adsorption of the three MCs on the six plastic materials was observed (Supplementary Figure S2).

2.3. Effects of Plastic Materials Used for Eight Membrane Filters on Adsorption of Microcystins

Effects of different membranes on the recovery rates of MC-LR, -RR, and -YR were determined after filtering 500 μL of standard solution (10 ng/mL in final) using eight different types of membrane syringe filters (RC, PVDF, PTFE, CA, MCE, PES, NY, and PP) (Figure 2). Among these eight membrane types, RC resulted in the highest recovery rate (≥99.3%) of MCs, followed by PTFE (≥95.7%) and PVDF (≥94.1%) (Figure 2A). In addition, RC, PTFE, and PVDF resulted in a similar trend of recovery for the three MCs. On the other hand, filtration using CA, MCE, NY, PES, and PP significantly decreased the recovery rates of the three MCs (Figure 2A). The MC-LR and -YR recovery rates using CA membrane filters were 92.9% and 95.0%, respectively. The recovery rate for MR-RR using the same CA filter was slightly reduced to 88.1%. With MCE membrane filters, MC-LR, -RR, and -YR showed relatively lower recovery rates of 91.4%, 79.9%, and 88.3%, respectively. NY, PES, and PP filters were found to be unsuitable for accurate measurements. When the NY filter was used, MC-RR showed a reasonable recovery rate of 99.1%. However, MC-YR and -LR showed the worst recovery rates of 37.7% and 67.7%, respectively (Figure 2B). In the case of the PES filter, MC-LR, -RR, and -YR showed recovery rates of 82.2%, 80.1%, and 61.4%, respectively (Figure 2B). Among the eight syringe filters, PP resulted in the lowest recovery rate and the most significant loss of MCs, leading to a recovery rate of 51.1% for -LR, 63.6% for -RR, and 51.8% for -YR (Figure 2A).

3. Discussion

As MC-LR in food and drinking water causes hepatotoxicity such as intrahepatic bleeding when it is administered orally, monitoring of MCs is essential for public health [35]. However, MC-LR is adsorbed by PP or PVC used for sample pretreatment, which may cause problems in accurate monitoring [32,36]. Nevertheless, few research studies have been conducted on the impact of adsorption loss by different plastic materials. In particular, studies about the adsorption effects of membrane materials are scarce. Adsorption of an organic compound to plastics can be affected by the plastics’ glassiness, crystallinity, and polarity [37,38]. Glass transition temperature (Tg) is a critical factor affecting glassy or rubbery characteristics of plastics. When plastics are under higher temperatures than their glass transition temperatures, they can keep an elastic state called the rubber state [39]. The rubber state contains more amorphous properties than the glassy state by which the plastic can adsorb more organic compounds, as intermolecular bonds are more flexible in the rubber state than in the glass state [40,41]. PE is generally considered a rubbery material, while PET is considered a glassy plastic [42]. In a previous study, PE showed higher absorption rates of organic compounds than PET [32,33,39]. Another study has reported that organic compounds have low permeability and adsorption rates by structurally aligned plastics (high crystallinity) [41].
The adsorption of organic compounds can be explained by chemical features such as hydrophobicity or hydrophilicity of functional groups [39,42]. Li et al. [43] have reported that hydrophobic antibiotics have higher affinities for PP, PS, and PE. Therefore, interactions between the plastic and two variable amino acids of MCs might affect the absorption capacity. Plastic adsorption rates for MC-LR, -RR, and -YR were compared using six containers (Figure 3A). Recovery rates of MC-LR, -RR, and -YR after exposure to plastic particles (400–800 μm) for 48 h are as follows: PET > PFA > PS > PP > LDPE > HDPE > HDPE. PET contains an ester group with a strong electronegativity. Ester groups can form strong bonds through electrical interactions. Such chemical characteristics of PET could have a strong bonding capacity within polymers of PET main chains [33,44,45]. Thus, strong bonding between polymers could minimize plastics’ bonding capacity for MC-LR, -RR, and -YR, providing excellent recovery rates (over 81% after 48 h). PFA is a plastic made of carbon-fluorine bonds with high thermal and chemical stability. Thus, it is useful for storing various chemicals. However, when MC-LR, -RR, and -YR were exposed to PFA (Figure 1) for 1 h, the recovery rates for MC-LR, -RR, and -YR were confirmed to be ≥ 75.3%, which were higher than those when they were exposed to four other plastic particles, except for PET. However, the recovery rates were dramatically reduced to ≤31.1% after 12 h. Although the C–F dipole of PFA is capable of electrostatic interactions with other dipoles or charges, the PFA is very stable with a low reactivity [46]. PP (Figure 1) was one of the plastics that resulted in poor recovery of MC-LR, -RR, and -YR. The three MCs used in the current study were adsorbed by PP to about 87% during 48 h of exposure. In previous studies on organic compounds such as antibiotics, PP has a higher adsorption capacity than PET, which is explained by the rubbery state, crystallinity, and van der Waals interactions [47,48,49,50]. Plastic with high crystallinity or that is glassy is expected to show low adsorption of MCs. PP is generally known as a rubbery material with a low crystallinity. However, PP showed higher MC recovery rates than PS and PE with high crystallinity [43]. This result indicates that various factors as well as the physicochemical properties of plastics could affect the adsorption rates of MCs. PS (Figure 1) showed a similar recovery rate to PE for 12 h, although the recovery rate was decreased to undetectable levels. The large adsorption capacity of PS might be due to π (Pi) interaction by aromatic rings [39,43,51]. Therefore, it is assumed that the adsorption of plastic is mainly due to van der Waals interactions and hydrophobic or π interactions of hydrocarbon chains as well as phenyl groups, rather than properties such as rubber state or crystallinity.
Syringe filtration is an essential process for analysis using LC. The structure of the housing system and the membrane of the syringe filter are similar to plastics. Thus, loss of MCs due to adsorption should be considered. The recovery rates of MC-LR, -RR, and -YR after exposure to syringe filters were investigated using seven filters, including RC membranes (Figure 3B). RC (≥99.3%), PVDF (≥94.1%), and PTFE (≥95.7%) were confirmed to be the best syringe filters for the recovery of the three MCs (Figure 2A). PVDF and PTFE are fluoropolymers like PFA. Membrane exposure after filtration was relatively short. PVDF and PTFE showed reasonable recovery rates at ≥94.1%. PVDF and PTFE contain solid carbon-fluorine bonds, which have a low space for chemically interacting with other compounds. CA is a membrane made by acetylation of cellulose. A loss of about 12% was observed for MC-RR due to adsorption by CA (Figure 2A). The loss of three MCs in filtration using CA is thought to be due to the two amino acids in variable residues of MC [33]. MC-LR, -RR, and -YR differ in two variable residues consisting of leucine (Leu, L), arginine (Arg, R), and tyrosine (Tyr, Y), which include an amine group or hydroxyl group with high hydrophilicity [52,53]. These characteristics of variable residues (Arg and Tyr) are more adsorbed due to hydrogen bonding and electrostatic interaction in the storage container [54,55,56]. The surface of the hydrophilic CA membrane contains an amine group and an acetyl group capable of hydrogen bonding or electrostatic interaction, which can account for the loss of the three MCs. Based on this mechanism, it is possible to explain the low recovery rate of MC-RR composed of two Arg. This adsorption mechanism by functional groups of variable residues can also be applied to MCE and PES. MCE is composed of cellulose nitrate and cellulose acetate. PES is an aromatic polymer consisting of two aromatic rings and a sulfone group (Figure 3B). MCE has little effect on hydrogen bonding, because the hydroxyl group is substituted with nitrate and acetate. Adsorption due to electrostatic interaction might be proposed. PES’s sulfonic groups and aromatic rings can exhibit electrostatic interactions, n-π interactions, and π-π interactions [57]. It suggests a high adsorption potential of hydrophilic compounds. In particular, the (all-S, all-E)-3-amino-9-methoxy-2,6,8-trimethyl-10-phenyldeca-4,6-dienoic acid) structure and Tyr of MC-YR, which are related to π interactions, are expected to be involved in the adsorption. It is consistent with MC-YR showing the lowest recovery (61.4%) after exposure to PES (Figure 2B) [43]. On the other hand, although RC has a similar structure to MCE and CA, RC resulted in a much better recovery (≥99.3%) than the other two. The cellulose of RC is crystalline with a high structure order. It has strong intermolecular interactions such as hydrogen bonds [58,59]. Thus, it is considered that RC has a low adsorption rate due to hydrophilicity and high chemical stability. NY membrane has a high adsorption capacity for proteins. It is known that acidic protein is adsorbed more than basic protein. This NY characteristic can be explained that MC-RR is composed of two arginines. Thus, MC-RR showed a lower adsorption rate than MC-LR and -YR (Figure 2B). This mechanism can explain the low recovery rate of MC-YR containing relatively acidic Tyr [60]. Hyenstrand et al. [32] have reported that MC-LR is quickly adsorbed by the PP disposable pipette tip in an aqueous solution. Among membranes used in the present study, PP resulted in a low recovery rate (≤ 63.6%) in a short time. PP also resulted in rapid and significant losses (≤ 39.5%) in comparison with other plastic particles of storage containers (Figure 1). Thus, it was considered that the absorption of the three MCs by PP was due to the hydrophobic interaction between the highly hydrophobic hydrocarbon polymer and MCs [61]. This is consistent with results showing that the MC-RR consisting of two Arg with high hydrophilicity has a higher recovery rate than MC-LR and -YR. Therefore, the adsorption of MC-LR, MC-RR, and -YR by membranes is considered to be mainly due to hydrophobic interactions and chemical properties of amino acids in variable residues. The adsorption of MC was investigated using particles of six plastic containers. This means that MC adsorption might be different in normal plastic containers. In addition, he confirmed results of interactions between the three MCs and plastic particles provide useful information to select suitable materials for plastic containers and filters.

4. Conclusions

The effects of plastic materials of six storage containers and eight membrane syringe filters on the recovery rates of MC-LR, -RR, and -YR were investigated. PET and RC membranes were the most desirable filter membranes for storing and analyzing MC-LR, -RR, and -YR. The adsorption rate of MCs tends to be influenced by hydrophobic interaction, hydrogen bonding, and electrostatic interaction. Different residues of MC congeners resulted in various chemical properties. Therefore, the material type of the storage container and membrane filter should be considered when performing simultaneous analysis of MC congeners.

5. Materials and Methods

5.1. Chemicals and Materials

Microcystins (RR, LR, and YR, ≥95.0%, 10 µg/mL in methanol, analytical standard) and formic acid were purchased from Sigma-Aldrich (St. Louis, MO, USA). HPLC-grade water and acetonitrile were purchased from Fisher Scientific (Ottawa, Canada). Regenerated cellulose (RC, 0.2 μm), polyether sulfone (PES, 0.2 μm), and nylon (NY, 0.2 μm) membrane syringe filters were purchased from Sartorius (Darmstadt, Germany). Polyvinylidene fluoride (PVDF, 0.2 μm), polytetrafluoroethylene (PTFE, 0.2 μm), mixed cellulose esters (MCE, 0.2 μm), and polypropylene (PP, 0.2 μm) membrane filters were purchased from JET BIOFIL (Guangzhou, China). Cellulose acetate (CA, 0.2 μm) membrane syringe filters were purchased from GVS (Sanford, ME, USA). Polystyrene (PS) and polypropylene (PP) tubes were purchased from SPL Life Science (Gyunggi-do, Korea). Low-density polyethylene (LDPE) and high-density polyethylene (HDPE) bottles were purchased from Thermo Fisher Scientific (Lexington, KY, USA). The sample bottle of polyethylene terephthalate (PET) was purchased from YD platech (Gyunggi-do, Korea). Polyfluoro alkoxy (PFA) was purchased from Lklab (Seoul, Korea).

5.2. Preparation of Standard Solution

Standard stock solutions for MC-LR, -RR, and -YR were prepared at 10 µg/mL in methanol. Working solutions for mixed MC standards were made by mixing and diluting with a calibrated micropipette at 1 µg/mL in distilled water. All standard solutions were stored at −20 °C.

5.3. Adsorption of Microcystins on Different Plastic Materials of Storage Containers

Six different types of plastic particles, including PS, PP, LDPE, HDPE, PET, and PFA from plastic bottles and tubes, were prepared by grinding these bottles and tubes (Figure 3A) using a steel grinder. Ground plastic particles were then filtered through a 400 μm sieve to remove small particles. Subsequently, the residue was filtered using 800 μm sieves to prepare plastic particles with sizes ranging from 400 μm to 800 μm. Briefly, 30 mg of the plastic particle were added to a 1.5 mL glass vial. Then, 500 μL (5 μL of working solution in methanol and 495 μL of distilled water) of mixed MC standard solution were added (final concentration at 10 ng/mL) to induce adsorption of MC-LR, -RR and -YR by plastic particles using a rotator shaker (SeouLin Bioscience, Seongnam, Gyeonggido, Korea) at 80 rpm for 1, 6, 12, 24, and 48 h at room temperature, respectively. After shaking, mixed samples were centrifuged at 13,500 rpm for 1 min. Subsequently, 50 μL of supernatant were used for LC-MS/MS analysis of adsorption rates for MCs. The experiment was conducted in triplicate. The results are presented as mean ± standard deviation (SD).

5.4. Adsorption of Microcystins by Different Plastic Materials of Membrane Syringe Filters

The effects of membrane syringe filters on the adsorption rate of MCs were investigated using eight different types of membranes, including RC, NY, PVDF, PTFE, MCE, PP, and CA (Figure 3B). 500 μL of a mixture of MCs (final concentration at 10 ng/mL) were filtered with each filter using a glass syringe. Filtrates were used for LC-MS/MS analysis. The experiment was conducted in triplicate. The results are presented as mean ± SD.

5.5. Microcystin Analysis Using UPLC-MS/MS

A Xevo TQ-MS triple quadrupole mass spectrometer (Waters, Guyancourt, France) equipped with a Waters Acquity UPLC system (Waters, Guyancourt, France) was used to analyze the MC recovery rate after exposure to different plastic materials. Chromatographic separation was achieved on a Waters BEH C18 column (2.1 mm × 100 mm of inner diameter, 1.7 μm of particle size; Waters, Guyancourt, France). The analytical condition was as follows: electrospray ionization with positive mode, desolvation temperature of 500 °C, desolvation gas flow rate of 700 L/h, and source temperature of 150 °C. Distilled water containing 0.1% formic acid (A) and acetonitrile containing 0.1% formic acid (B) were used for mobile phases. The gradient condition was as follows: 0–1 min, 5% (B); 1–5 min, 100% (B); 5–7.5 min, 100% (B); and 7.5–10 min, 5% (B). The column was maintained for 2.5 min with 95% (A). MC-LR, -RR and -YR were monitored in multiple reaction monitoring mode under optimized conditions as follows: MR-LR: m/z 995.4 > 134.9 and 106.95; MR-RR: m/z 520.0 > 134.9 and 106.9; and MR-YR: m/z 1045.4 >134.9 and 106.9.

5.6. Statistical Analysis

The experiment was conducted in triplicate. The results are presented as mean ± SD. One-way analysis of variance (ANOVA) and Tukey’s post hoc test were performed using GraphPad Prism version 9.00 (San Diego, CA, USA). Significant differences between the results were analyzed using a Tukey post hoc test at a significance level of p < 0.05.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/toxins14090625/s1, Figure S1: Multiple reaction monitoring chromatograms of (A) blank for MC-RR, (B) blank for MC-LR, (C) blank for MC-YR, (D) MC-RR, (E) MC-LR, and (F) MC-YR; Figure S2: Recovery rates of three MC variants by a given six-plastic storage container. (A) PET; (B) PP; (C) PFA; (D) LDPE; (E) HDPE; and (F) PS. Different letters (a–e) indicate significant difference (p < 0.05).

Author Contributions

Data curation, W.-K.J. and S.L.; formal analysis, C.S., J.W.L. and Y.-M.L.; investigation, J.W.L. and Y.-M.L.; methodology, W.-K.J.; project administration, S.G.L.; supervision, S.L. and S.G.L.; writing—original draft, C.S.; writing—review and editing, S.G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Future Fisheries Food Research Center of the Ministry of Oceans and Fisheries of the Republic of Korea under grant number 201803932, Korea Institute of Marine Science & Technology Promotion(KIMST) funded by the Ministry of Oceans and Fisheries, Korea (202205320001), the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2021R1A6A1A03039211), and the National Institute of Fisheries Science (NIFS) of the Republic of Korea under grant number R2022065.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Park, H.-K. Survey method relating freshwater phytoplantkon for the management of water resources. Daehan Hwangyeong Gonghag Hoeji 2007, 29, 593–609. [Google Scholar]
  2. Moss, B.; Kosten, S.; Meerhoff, M.; Battarbee, R.W.; Jeppesen, E.; Mazzeo, N.; Havens, K.; Lacerot, G.; Liu, Z.; De Meester, L. Allied attack: Climate change and eutrophication. Inland Waters 2011, 1, 101–105. [Google Scholar] [CrossRef]
  3. Cheung, M.Y.; Liang, S.; Lee, J. Toxin-producing cyanobacteria in freshwater: A review of the problems, impact on drinking water safety, and efforts for protecting public health. J. Microbiol. 2013, 51, 1–10. [Google Scholar] [CrossRef]
  4. De Senerpont Domis, L.N.; Elser, J.J.; Gsell, A.S.; Huszar, V.L.; Ibelings, B.W.; Jeppesen, E.; Kosten, S.; Mooij, W.M.; Roland, F.; Sommer, U. Plankton dynamics under different climatic conditions in space and time. Freshw. Biol. 2013, 58, 463–482. [Google Scholar] [CrossRef]
  5. Huang, W.; Bi, Y.; Hu, Z. Effects of fertilizer-urea on growth, photosynthetic activity and microcystins production of Microcystis aeruginosa isolated from Dianchi lake. Bull. Environ. Contam. Toxicol. 2014, 92, 514–519. [Google Scholar] [CrossRef] [PubMed]
  6. Kang, Y.H.; Kim, J.D.; Kim, B.H.; Kong, D.S.; Han, M.S. Isolation and characterization of a bio-agent antagonistic to diatom, Stephanodiscus hantzschii. J. Appl. Microbiol. 2005, 98, 1030–1038. [Google Scholar] [CrossRef]
  7. Negro, A.I.; Hoyos, C.D.; Vega, J.C. Phytoplankton structure and dynamics in Lake Sanabria and Valparaíso reservoir (NW Spain). In The Trophic Spectrum Revisited; Springer: Berlin/Heidelberg, Germany, 2000; pp. 25–37. [Google Scholar]
  8. Watson, S.B.; McCauley, E.; Downing, J.A. Patterns in phytoplankton taxonomic composition across temperate lakes of differing nutrient status. Limnol. Oceanogr. 1997, 42, 487–495. [Google Scholar] [CrossRef]
  9. Zhang, S.; Du, X.; Liu, H.; Losiewic, M.D.; Chen, X.; Ma, Y.; Wang, R.; Tian, Z.; Shi, L.; Guo, H. The Latest Advances in the Reproductive Toxicity of Microcystin-LR. Environ. Res. 2021, 192, 110254. [Google Scholar] [CrossRef]
  10. Codd, G.A.; Bell, S.G.; Kaya, K.; Ward, C.J.; Beattie, K.A.; Metcalf, J.S. Cyanobacterial toxins, exposure routes and human health. Eur. J. Phycol. 1999, 34, 405–415. [Google Scholar] [CrossRef]
  11. Ressom, R. Health Effects of Toxic Cyanobacteria (Blue-Green Algae); National Health and Medical Research Council: Canberra, Australia, 1994. [Google Scholar]
  12. Spoof, L.; Catherine, A. Appendix 3: Tables of microcystins and nodularins. In Handbook of Cyanobacterial Monitoring and Cyanotoxin Analysis; Wiley: Hoboken, NJ, USA, 2016; pp. 526–537. [Google Scholar]
  13. Chen, L.; Giesy, J.P.; Adamovsky, O.; Svirčev, Z.; Meriluoto, J.; Codd, G.A.; Mijovic, B.; Shi, T.; Tuo, X.; Li, S.-C. Challenges of using blooms of Microcystis spp. in animal feeds: A comprehensive review of nutritional, toxicological and microbial health evaluation. Sci. Total Environ. 2021, 764, 142319. [Google Scholar] [CrossRef] [PubMed]
  14. Lee, J.; Lee, S.; Jiang, X. Cyanobacterial toxins in freshwater and food: Important sources of exposure to humans. Annu. Rev. Food Sci. Technol. 2017, 8, 281–304. [Google Scholar] [CrossRef]
  15. Shi, L.; Du, X.; Liu, H.; Chen, X.; Ma, Y.; Wang, R.; Tian, Z.; Zhang, S.; Guo, H.; Zhang, H. Update on the adverse effects of microcystins on the liver. Environ. Res. 2021, 195, 110890. [Google Scholar] [CrossRef] [PubMed]
  16. Gupta, N.; Pant, S.; Vijayaraghavan, R.; Rao, P.L. Comparative toxicity evaluation of cyanobacterial cyclic peptide toxin microcystin variants (LR, RR, YR) in mice. Toxicology 2003, 188, 285–296. [Google Scholar] [CrossRef]
  17. Molica, R.J.; Oliveira, E.J.; Carvalho, P.V.; Costa, A.N.; Cunha, M.C.; Melo, G.L.; Azevedo, S.M. Occurrence of saxitoxins and an anatoxin-a (s)-like anticholinesterase in a Brazilian drinking water supply. Harmful Algae 2005, 4, 743–753. [Google Scholar] [CrossRef]
  18. Yang, S.; Chen, L.; Wen, C.; Zhang, X.; Feng, X.; Yang, F. MicroRNA expression profiling involved in MC-LR-induced hepatotoxicity using high-throughput sequencing analysis. J. Toxicol. Environ. Health Part A 2018, 81, 89–97. [Google Scholar] [CrossRef] [PubMed]
  19. Cao, L.; Massey, I.Y.; Feng, H.; Yang, F. A review of cardiovascular toxicity of microcystins. Toxins 2019, 11, 507. [Google Scholar] [CrossRef] [PubMed]
  20. Yi, X.; Xu, S.; Huang, F.; Wen, C.; Zheng, S.; Feng, H.; Guo, J.; Chen, J.; Feng, X.; Yang, F. Effects of chronic exposure to microcystin-LR on kidney in mice. Int. J. Environ. Res. Public Health 2019, 16, 5030. [Google Scholar] [CrossRef]
  21. Gorham, T.; Root, E.D.; Jia, Y.; Shum, C.; Lee, J. Relationship between cyanobacterial bloom impacted drinking water sources and hepatocellular carcinoma incidence rates. Harmful Algae 2020, 95, 101801. [Google Scholar] [CrossRef]
  22. Abderrahim, L.A.; Taibi, K.; Boussaid, M.; Al-Shara, B.; Abderrahim, N.A.; Abderrahim, S.A. Allium sativum mitigates oxidative damages induced by Microcystin-LR in heart and liver tissues of mice. Toxicon 2021, 200, 30–37. [Google Scholar] [CrossRef] [PubMed]
  23. Du, C.; Zheng, S.; Yang, Y.; Feng, X.; Chen, J.; Tang, Y.; Wang, H.; Yang, F. Chronic exposure to low concentration of MC-LR caused hepatic lipid metabolism disorder. Ecotoxicol. Environ. Saf. 2022, 239, 113649. [Google Scholar] [CrossRef]
  24. de la Cruz, A.A.; Antoniou, M.G.; Hiskia, A.; Pelaez, M.; Song, W.; O’Shea, K.E.; He, X.; Dionysiou, D.D. Can we effectively degrade microcystins?-Implications on human health. Anticancer Agents Med. Chem. 2011, 11, 19–37. [Google Scholar] [CrossRef]
  25. Poste, A.E.; Hecky, R.E.; Guildford, S.J. Evaluating microcystin exposure risk through fish consumption. Environ. Sci. Technol. 2011, 45, 5806–5811. [Google Scholar] [CrossRef]
  26. Schmidt, J.R.; Shaskus, M.; Estenik, J.F.; Oesch, C.; Khidekel, R.; Boyer, G.L. Variations in the microcystin content of different fish species collected from a eutrophic lake. Toxins 2013, 5, 992–1009. [Google Scholar] [CrossRef]
  27. Wijewickrama, M.M.; Manage, P.M. Accumulation of Microcystin-LR in grains of two rice varieties (Oryza sativa L.) and a leafy vegetable, Ipomoea aquatica. Toxins 2019, 11, 432. [Google Scholar] [CrossRef] [PubMed]
  28. World Health Organization (WHO). Cyanobacterial Toxins: Microcystins; WHO: Geneva, Switzerland, 2020. Available online: https://apps.who.int/iris/bitstream/handle/10665/338066/WHO-HEP-ECH-WSH-2020.6-eng.pdf (accessed on 1 June 2020).
  29. Greer, B.; McNamee, S.E.; Boots, B.; Cimarelli, L.; Guillebault, D.; Helmi, K.; Marcheggiani, S.; Panaiotov, S.; Breitenbach, U.; Akçaalan, R. A validated UPLC–MS/MS method for the surveillance of ten aquatic biotoxins in European brackish and freshwater systems. Harmful Algae 2016, 55, 31–40. [Google Scholar] [CrossRef] [PubMed]
  30. Dahlmann, J.; Budakowski, W.R.; Luckas, B. Liquid chromatography–electrospray ionisation-mass spectrometry based method for the simultaneous determination of algal and cyanobacterial toxins in phytoplankton from marine waters and lakes followed by tentative structural elucidation of microcystins. J. Chromatogr. A 2003, 994, 45–57. [Google Scholar] [CrossRef]
  31. Codd, G.A.; Bell, S. The Occurrence and Fate of Blue-Green Algal Toxins in Freshwaters; National Rivers Authority: Wales, UK, 1996. [Google Scholar]
  32. Hyenstrand, P.; Metcalf, J.; Beattie, K.; Codd, G. Effects of adsorption to plastics and solvent conditions in the analysis of the cyanobacterial toxin microcystin-LR by high performance liquid chromatography. Water Res. 2001, 35, 3508–3511. [Google Scholar] [CrossRef]
  33. Kamp, L.; Church, J.L.; Carpino, J.; Faltin-Mara, E.; Rubio, F. The effects of water sample treatment, preparation, and storage prior to cyanotoxin analysis for cylindrospermopsin, microcystin and saxitoxin. Chem.-Biol. Interact. 2016, 246, 45–51. [Google Scholar] [CrossRef] [PubMed]
  34. Beltrán, E.; Ibáñez, M.; Sancho, J.V.; Hernández, F. Determination of six microcystins and nodularin in surface and drinking waters by on-line solid phase extraction–ultra high pressure liquid chromatography tandem mass spectrometry. J. Chromatogr. A 2012, 1266, 61–68. [Google Scholar] [CrossRef]
  35. Svirčev, Z.; Baltić, V.; Gantar, M.; Juković, M.; Stojanović, D.; Baltić, M. Molecular aspects of microcystin-induced hepatotoxicity and hepatocarcinogenesis. J. Environ. Sci. Health C 2010, 28, 39–59. [Google Scholar] [CrossRef]
  36. Pillai, S.A.; Chobisa, D.; Urimi, D.; Ravindra, N. Filters and filtration: A review of mechanisms that impact cost, product quality and patient safety. J. Pharm. Sci. Res. 2016, 8, 271. [Google Scholar]
  37. Moura, D.S.; Pestana, C.J.; Moffat, C.F.; Hui, J.; Irvine, J.T.; Edwards, C.; Lawton, L.A. Adsorption of cyanotoxins on polypropylene and polyethylene terephthalate: Microplastics as vector of eight microcystin analogues. Environ. Pollut. 2022, 303, 119135. [Google Scholar] [CrossRef]
  38. Yao, S.; Cao, H.; Arp, H.P.H.; Li, J.; Bian, Y.; Xie, Z.; Cherubini, F.; Jiang, X.; Song, Y. The role of crystallinity and particle morphology on the sorption of dibutyl phthalate on polyethylene microplastics: Implications for the behavior of phthalate plastic additives. Environ. Pollut. 2021, 283, 117393. [Google Scholar] [CrossRef] [PubMed]
  39. Hüffer, T.; Hofmann, T. Sorption of non-polar organic compounds by micro-sized plastic particles in aqueous solution. Environ. Pollut. 2016, 214, 194–201. [Google Scholar] [CrossRef]
  40. Grinsted, R.A.; Clark, L.; Koenig, J.L. Study of cyclic sorption-desorption into poly (methyl methacrylate) rods using NMR imaging. Macromolecules 1992, 25, 1235–1241. [Google Scholar] [CrossRef]
  41. Pestana, C.J.; Moura, D.S.; Capelo-Neto, J.; Edwards, C.; Dreisbach, D.; Spengler, B.; Lawton, L.A. Potentially poisonous plastic particles: Microplastics as a vector for cyanobacterial toxins microcystin-LR and microcystin-LF. Environ. Sci. Technol. 2021, 55, 15940–15949. [Google Scholar] [CrossRef]
  42. Rochman, C.M.; Hoh, E.; Hentschel, B.T.; Kaye, S. Long-term field measurement of sorption of organic contaminants to five types of plastic pellets: Implications for plastic marine debris. Environ. Sci. Technol. 2013, 47, 1646–1654. [Google Scholar] [CrossRef]
  43. Li, J.; Zhang, K.; Zhang, H. Adsorption of antibiotics on microplastics. Environ. Pollut. 2018, 237, 460–467. [Google Scholar] [CrossRef]
  44. Amborski, L.E.; Flierl, D.W. Physical properties of polyethylene terephthalate films. Ind. Eng. Chem. Res. 1953, 45, 2290–2295. [Google Scholar] [CrossRef]
  45. Ravindranath, K.; Mashelkar, R. Polyethylene terephthalate—I. Chemistry, thermodynamics and transport properties. Chem. Eng. Sci. 1986, 41, 2197–2214. [Google Scholar] [CrossRef]
  46. O’Hagan, D. Understanding organofluorine chemistry. An introduction to the C–F bond. Chem. Soc. Rev. 2008, 37, 308–319. [Google Scholar] [CrossRef] [PubMed]
  47. Guo, X.; Wang, X.; Zhou, X.; Kong, X.; Tao, S.; Xing, B. Sorption of four hydrophobic organic compounds by three chemically distinct polymers: Role of chemical and physical composition. Environ. Sci. Technol. 2012, 46, 7252–7259. [Google Scholar] [CrossRef] [PubMed]
  48. Mei, W.; Chen, G.; Bao, J.; Song, M.; Li, Y.; Luo, C. Interactions between microplastics and organic compounds in aquatic environments: A mini review. Sci. Total Environ. 2020, 736, 139472. [Google Scholar] [CrossRef] [PubMed]
  49. Teuten, E.L.; Saquing, J.M.; Knappe, D.R.; Barlaz, M.A.; Jonsson, S.; Björn, A.; Rowland, S.J.; Thompson, R.C.; Galloway, T.S.; Yamashita, R. Transport and release of chemicals from plastics to the environment and to wildlife. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2009, 364, 2027–2045. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, F.; Shih, K.M.; Li, X.Y. The partition behavior of perfluorooctanesulfonate (PFOS) and perfluorooctanesulfonamide (FOSA) on microplastics. Chemosphere 2015, 119, 841–847. [Google Scholar] [CrossRef]
  51. Velzeboer, I.; Kwadijk, C.; Koelmans, A. Strong sorption of PCBs to nanoplastics, microplastics, carbon nanotubes, and fullerenes. Environ. Sci. Technol. 2014, 48, 4869–4876. [Google Scholar] [CrossRef] [PubMed]
  52. Kyte, J.; Doolittle, R.F. A simple method for displaying the hydropathic character of a protein. J. Mol. Biol. 1982, 157, 105–132. [Google Scholar] [CrossRef]
  53. Sivonen, K.; Jones, G. Toxic Cyanobacteria in Water; A Guide to Their Public Health Consequences Monitoring and Management; Wiley: London, UK, 1999. [Google Scholar]
  54. Chen, S.; Li, L.; Zhao, C.; Zheng, J. Surface hydration: Principles and applications toward low-fouling/nonfouling biomaterials. Polymer 2010, 51, 5283–5293. [Google Scholar] [CrossRef]
  55. Lu, D.R.; Lee, S.J.; Park, K. Calculation of solvation interaction energies for protein adsorption on polymer surfaces. J. Biomater. Sci. Polym. Ed. 1992, 3, 127–147. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, K.; Hou, D.; Wang, J.; Wang, Z.; Tian, B.; Liang, P. Hydrophilic surface coating on hydrophobic PTFE membrane for robust anti-oil-fouling membrane distillation. Appl. Surf. Sci. 2018, 450, 57–65. [Google Scholar] [CrossRef]
  57. Tran, H.N.; Wang, Y.-F.; You, S.-J.; Chao, H.-P. Insights into the mechanism of cationic dye adsorption on activated charcoal: The importance of π–π interactions. Process Saf. Environ. Prot. 2017, 107, 168–180. [Google Scholar] [CrossRef]
  58. Zugenmaier, P. Conformation and packing of various crystalline cellulose fibers. Prog. Polym. Sci. 2001, 26, 1341–1417. [Google Scholar] [CrossRef]
  59. Lindman, B.; Karlström, G.; Stigsson, L. On the mechanism of dissolution of cellulose. J. Mol. Liq. 2010, 156, 76–81. [Google Scholar] [CrossRef]
  60. Carlson, M.; Thompson, R. Analyte loss due to membrane filter adsorption as determined by high-performance liquid chromatography. J. Chromatogr. Sci. 2000, 38, 77–83. [Google Scholar] [CrossRef]
  61. Zhang, J.; Wei, J.; Massey, I.Y.; Peng, T.; Yang, F. Immobilization of Microbes for Biodegradation of Microcystins: A Mini Review. Toxins 2022, 14, 573. [Google Scholar] [CrossRef]
Toxins 14 00625 g001 550

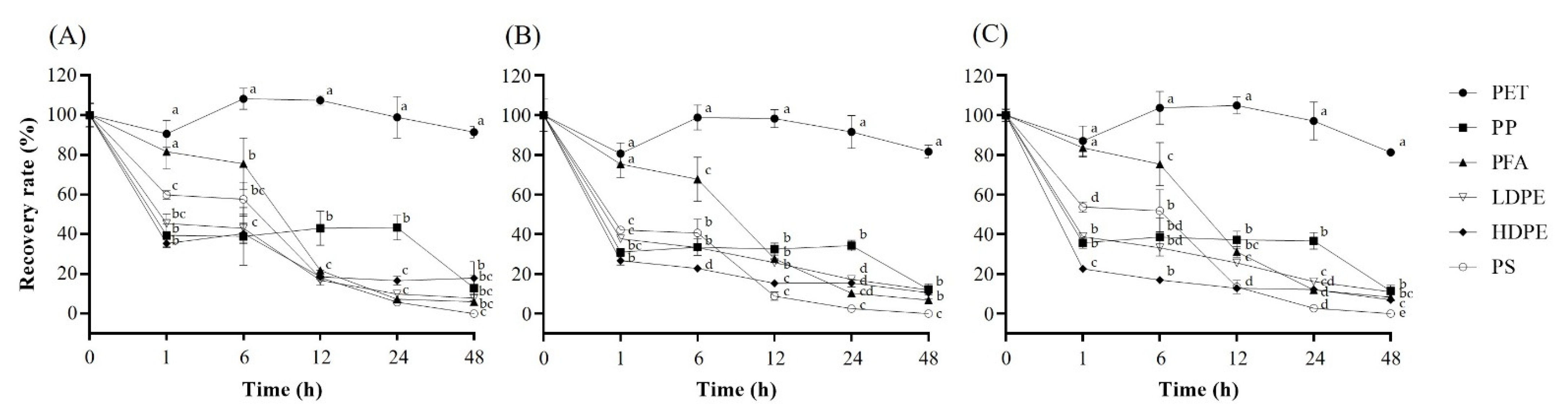

Figure 1. Effects of six plastic materials including polystyrene (PS), polypropylene (PP), low-density polyethylene (LDPE), high-density polyethylene (HDPE), polyethylene terephthalate (PET) and polyfluoro alkoxy (PFA) used for storage containers on recovery rates of (A) MC-LR, (B) MC-RR, and (C) MC-YR. The recovery rate was calculated as the peak area of standard solution exposed to plastic container material or membrane filter/peak area of pure standard solution ×100. Different letters (a–e) indicate significant difference (p < 0.05).
Figure 1. Effects of six plastic materials including polystyrene (PS), polypropylene (PP), low-density polyethylene (LDPE), high-density polyethylene (HDPE), polyethylene terephthalate (PET) and polyfluoro alkoxy (PFA) used for storage containers on recovery rates of (A) MC-LR, (B) MC-RR, and (C) MC-YR. The recovery rate was calculated as the peak area of standard solution exposed to plastic container material or membrane filter/peak area of pure standard solution ×100. Different letters (a–e) indicate significant difference (p < 0.05).
Toxins 14 00625 g001
Toxins 14 00625 g002 550

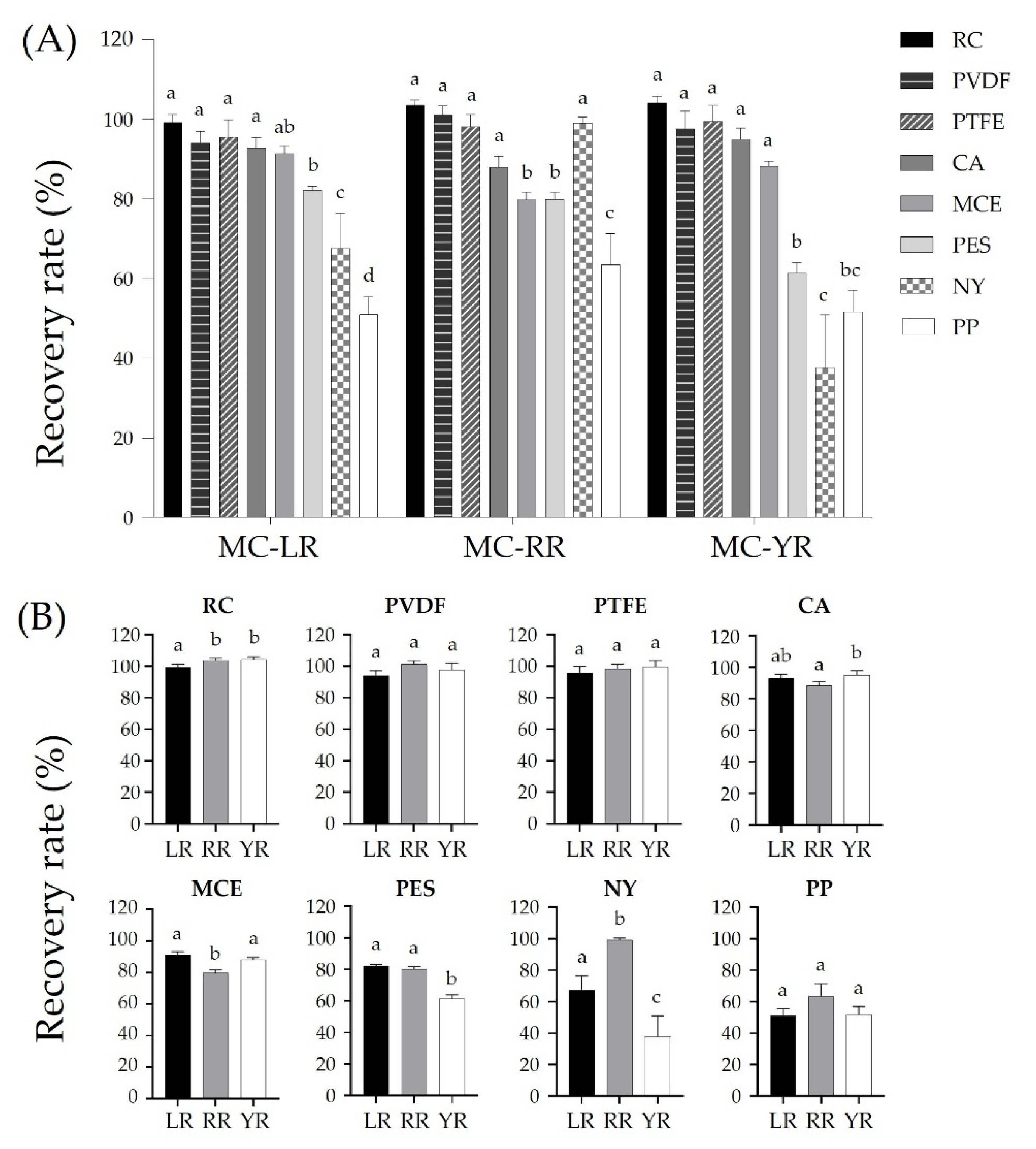

Figure 2. Recovery rates of three MCs. (A) Effects of eight membrane filters on recovery rates of the given three MCs; (B) Recovery rates of the three MCs with a given membrane filter. RC, regenerated cellulose; PVDF, polyvinylidene fluoride; PTFE, polytetrafluoroethylene; CA, cellulose acetate; MCE, mixed cellulose esters; PES, polyether sulfone; NY, nylon; PP, polypropylene. Recovery was calculated as the area of peaks of standard solutions after filtration divided by the area of peaks of standard solutions before filtration × 100. Different letters (a–d) indicate significant difference (p < 0.05).
Figure 2. Recovery rates of three MCs. (A) Effects of eight membrane filters on recovery rates of the given three MCs; (B) Recovery rates of the three MCs with a given membrane filter. RC, regenerated cellulose; PVDF, polyvinylidene fluoride; PTFE, polytetrafluoroethylene; CA, cellulose acetate; MCE, mixed cellulose esters; PES, polyether sulfone; NY, nylon; PP, polypropylene. Recovery was calculated as the area of peaks of standard solutions after filtration divided by the area of peaks of standard solutions before filtration × 100. Different letters (a–d) indicate significant difference (p < 0.05).
Toxins 14 00625 g002
Toxins 14 00625 g003 550

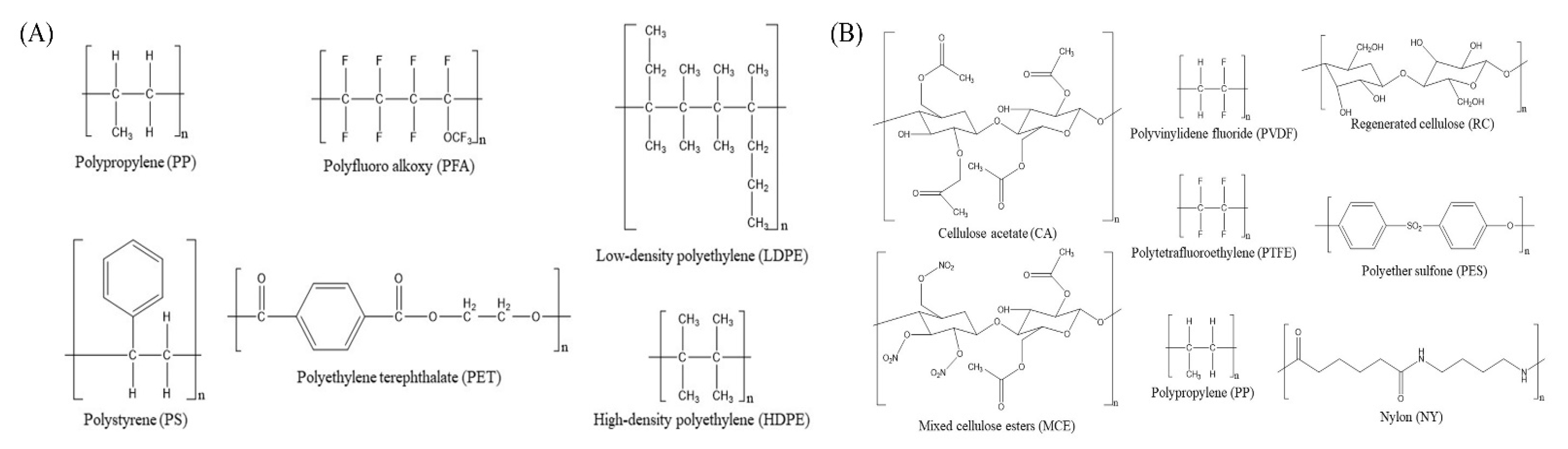

Figure 3. Chemical structures of plastic materials used in the current research. (A) Plastic materials for bottles and tubes, (B) Plastic materials for membranes of syringe filters.
Figure 3. Chemical structures of plastic materials used in the current research. (A) Plastic materials for bottles and tubes, (B) Plastic materials for membranes of syringe filters.
Toxins 14 00625 g003
Table
Table 1. Multiple reaction monitoring conditions and validation data set for MC-LR, -RR, and -YR.
Table 1. Multiple reaction monitoring conditions and validation data set for MC-LR, -RR, and -YR.
AnalyteRTIonization ModePrecursor Ion Product IonCalibration Range (μg/L)Linearity a (R2)LODLOQAccuracy b (%)Repeatability c (%)
(m/z)μg/L
MC-RR3.79+520.0134.91–200.9990.0010.0040.76.2
MC-LR4.07+995.4134.91–200.9990.0010.002−3.48.5
MC-YR4.16+1045.4134.91–200.9990.0020.005−2.93.3
RT, Retention time; LOD, Limit of detection; LOQ, Limit of quantification. Accuracy and repeatability were calculated at 10 μg/L. LOD and LOQ were estimated by 3.3 (LOD) or 10 (LOQ) × standard deviation of the blank/slope of the calibration curve. a Coefficient of determination. b Relative standard deviation. c Relative error.
