Nutrients 2019, 11(1), 186; doi:10.3390/nu11010186

Article
Influence of Ellagitannins Extracted by Pomegranate Fruit on Disulfide Isomerase PDIA3 Activity
1
Dipartimento di Scienze Biochimiche “A. Rossi Fanelli”, Università degli Studi di Roma “La Sapienza”, Piazzale A. Moro, 5-00185 Rome, Italy
2
Istituto Pasteur-Fondazione Cenci Bolognetti, 00161 Roma, Italy
3
Dipartimento di Chimica e Tecnologie del Farmaco, Università degli Studi di Roma “La Sapienza”, Piazzale Aldo Moro, 5-00185 Roma, Italy
4
Dipartimento di Farmacia, Università “G. d’Annunzio” di Chieti-Pescara, Via dei Vestini, 31-66100 Chieti, Italy
*
Authors to whom correspondence should be addressed.
Received: 27 December 2018 / Accepted: 14 January 2019 / Published: 17 January 2019

Abstract

:
Pomegranate fruit is a functional food of high interest for human health due to its wide range of phytochemicals with antioxidant properties are implicated in the prevention of inflammation and cancer. Ellagitannins, such as punicalagin and ellagic acid, play a role as anti-atherogenic and neuroprotective molecules in the complex fighting against the degenerative diseases. The aim of this work was to evaluate the composition in punicalagins and ellagic acid of differently obtained extracts from whole fruit, peels and juices, prepared by squeezing or by centrifugation, of pomegranate belonging to different cultivars. Moreover, a wider phenolic fingerprint was also determined. The bioactivity of the extracts was tested on the redox activity of PDIA3 disulfide isomerase, an enzyme involved in the regulation of several cellular functions and associated with different diseases such as cancer, prion disorders, Alzheimer’s and Parkinson’s diseases. The results demonstrate that the different ratios between punicalagin and ellagic acid modulate the enzyme activity and other ellagitannins could interfere with this activity.
Keywords:
pomegranate; punicalagin; ellagic acid; HPLC-DAD; PDIA3; redox activity

1. Introduction

The increasing awareness of the role played by foods and of the relationship between nutrition and health has raised the attention level toward their potential in the prevention of degenerative and chronic ailments. Consumers are increasingly oriented to look for a better lifestyle comprising correct behaviors in dietary choices. It is well known that degenerative illnesses, firstly cardiovascular diseases, represent the leading causes of death in industrialized countries and that diabetes and relative comorbidities are disabling and undermine well-being by lowering life expectancy.
Today’s worldwide dietary guidelines are based on the daily consumption of plant foods rich in phytochemicals able not only to prevent these pathologies but also to maintain a general state of health [1]. Scientific evidence has correlated a high intake of fruits and vegetables rich in phenolic compounds in the protection against cerebrovascular diseases, coronary heart disorders and neurodegenerative diseases [2,3,4]. Polyphenols exert a generic antioxidant and free radical scavenging role next to specific biological properties including anti-inflammatory and anticancer activity modulated by the antiproliferative and antimetastatic effects beyond the regulation of gene expression [5].
Among foods with recognized healthy properties, and belonging to plant-based diet, a dominant role is represented by the pomegranate. Fruits from Punica granatum L. represent a typical food of the Mediterranean area, with a tradition historically proven by authoritative ancient sources. Extensively used in the traditional medicine, the three parts of this fruit—the inedible exocarp and mesocarp (peels) and the edible endocarp made by pulp and seeds (arils)—are rich in interesting bioactive molecules, which have been the subjects of many studies in recent years [6,7]. In particular, pomegranate peels represent about the 50% of the whole fruit and are a rich source of phenolics, flavonoids and ellagitannins, such as punicalagins, punicalin, gallagic acid, ellagic acid and relative glycosides [8,9].
Recent clinical studies indicate that pomegranates may improve memory functioning and decrease the risk of ischemic stroke [10] and a recent review reports the many potentials of ellagic acid, which exerts cardiovascular and anti-cancer, anti-obesity, antimicrobial, antiviral and antioxidant activities [11,12]. This small molecule is able to reduce the lipidemic profile and lipid metabolism, modulate pro-inflammatory mediators (tumor necrosis factor-α, interleukin-1β, interleukin-6), and decrease the activity of nuclear factor-κB while increasing nuclear factor 2 erythroid-2 related, playing a pivotal role in anti-atherogenic, anti-inflammatory, and neuroprotective effects [13].
Moreover, among the European Community priorities, the first point is actually represented by “jobs, growth and investment”, and one of the first recognized critical points of these policy areas is the attainment of a circular economy; a goal to reach by helping “European business and consumers to make the transition to a strong and more circular economy, where resources are used in a more sustainable way”. By this point of view, pomegranate peels possess a very high added value, as they represent one of the most valuable by-products of the food industry in terms of ellagitannins [14]. A particularly high punicalagin content (up to about 120 mg/g dry matter) in the pomegranate peels has been reported in the literature [15]. Moreover, peel extracts have recently raised a great interest for their potential use as nutraceuticals or in dietary supplement and, in particular, punicalagin extraction by co-products of pomegranate juice preparation could represent an interesting goal as this polyphenolic component is widely taken into consideration given the wide spectrum of health-promoting activities exerted [16,17]. Despite several phytochemicals found in pomegranate fruits and moreover in peels being recognized as molecules counteracting oxidative stress and preventing some major diseases, their biological targets remain unclear. Then, the investigation of these biological targets could open a new research field in order to clarify the phytochemicals biological mechanisms.
In this regard, it has been repeatedly reported that the protein disulfide isomerase 3 (PDIA3) can be modulated by several types of polyphenols in different pathological conditions [18,19]. In vitro studies have shown that PDIA3 can interact with several macromolecules and small ligands, such as green tea catechins and flavonoids [20,21,22]. More recently, it has been demonstrated that punicalagin, alone as a single and pure component, can bind to PDIA3 and is a non-competitive inhibitor of PDIA3 reductase activity with an inhibition constant within the micromolar range [23]. PDIA3 is a protein mainly localized into the endoplasmic reticulum but, differently to others PDIs, PDIA3 is also present on the cellular surface and in other cellular compartments [24] and hence represents an attractive biological target for natural compounds.
PDIA3 is also involved in several cellular functions and consequently associated with different human diseases such as cancer, prion disorders, Alzheimer’s and Parkinson’s diseases [25,26,27,28]. Its structure is characterized by four thioredoxin-like domains, namely a, b, b’ and a’. The a and a’ domains contain the catalytic active sites constituted by the tetrapeptide Cys-Gly-His-Cys, which provides PDIA3 with redox activity, while b and b’ domains are redox inactive but are required for the PDIA3 complete activity [24,29].
Furthermore, PDIA3 is present on the platelet surface [30], where it is involved in platelet aggregation due to its redox activity towards the β3 integrin, a subunit of the fibrinogen receptor αIIbβ3, and induces a new pattern of disulfide bond formation. In fact, under thrombin stimulation, the fibrinogen receptor αIIbβ3 on the platelets surface requires several conformational changes to drive platelet activation [31,32,33,34]. Since the role of PDIA3 in platelet aggregation is well-known, many researchers are focusing on its possible inhibition [35]. Thus, the search of PDIA3 modulators could be interesting and pomegranate extracts can be a good source of these compounds.
In light of these interesting fields, the rationale of this work was to recover and valorize the co-products of agro-industrial processes, with the final goal of obtaining interesting biomolecules to use as pharmaceutics or with nutritional, nutraceutical and cosmetic health purposes. Indeed, this work provides information to confirm and extend the already obtained data exploiting the properties of the pomegranate fruit peel that generally represents a waste of pomegranate juice preparation, even though it contains significant amounts of phenolic bioactive compounds.
To achieve such goal, we focused our efforts on realizing different extracts from diversely worked-up pomegranates, optimizing the extraction procedure of the bioactive compounds of interest in order not only to obtain extracts enriched in polyphenols but also characterized by a different peculiar composition and finally, evaluating their effects as possible PDIA3 modulators. With this aim, we selected different pomegranate fruits coming from several Italian districts and belonging to different cultivars which were submitted to different work-up and extraction techniques. The resulting extracts, evaluated in their quali-quantitative composition by two different HPLC-DAD analyses, were then tested for their biological activity in terms of inhibition effect on PDIA3 reductase activity.

2. Materials and Methods

2.1. Materials

Bidistilled water, ethanol, 85% formic acid, ethyl acetate, glacial acetic acid, dimethyl sulfoxide (DMSO), acetonitrile RS for HPLC, punicalagin (≥98%), ellagic acid (≥95%), phosphate buffered saline (PBS), dithiothreitol (DTT), oxidized glutathione (GSSG) and eosin isothiocyanate were purchased from Sigma (Milan, Italy). EDTA (0.5 M solution pH 8.0) from IBI Scientific (Dubuque, Iowa).
Pomegranate fruits of cv. Mollar (Ml) were obtained from an Italian market. Some fruits of Italian origin, belonging to two sub-varieties of cv. Dente di Cavallo (DC1 and DC2) with a difference of about two weeks in the maturation stage and harvest time, were provided by a local supplier (Azienda Biologica Giovomel, Avellino, Italy). A pomegranate variety from Mozia island (South Italy) was provided by the “Missione Archeologica Mozia” of “Sapienza” University of Rome (Mz).

2.2. Samples Preparation

Whole fruits (F) or separated into two parts: arils and peels (exocarp and mesocarp) were washed, mixed for 30 s and submitted to the extraction procedure. Peels (P), manually separated from washed fruits, were blended in a mixer for 30 s and submitted to the extraction procedure. Juices were prepared from whole fruit by squeezing (S) or from arils by centrifugation (C).

2.3. Extraction Methods

2.3.1. Whole Fruit or Peels Extraction with Ethanol and Acidified Water

All samples (F and P) were submitted to the extraction procedure as previously described in Reference [7]. In brief, 10 g was blended and extracted with 40 mL ethanol:acidified water (5% acetic acid) in 3:1 (v:v) ratio by stirring for 24 h at room temperature in the dark. The extraction mixture was decanted, filtered on paper, evaporated at 40 °C in the dark under vacuum and immediately analyzed or stored at 4 °C.

2.3.2. Juice Extraction with Ethanol

Squeezed or centrifuged juice (2 mL) was submitted to extraction with ethanol (6 mL) under stirring at room temperature in the dark for 24 h. The extraction mixture, decanted and filtered on paper, was evaporated at 40 °C in the dark under vacuum and immediately analyzed or stored at 4 °C.

2.3.3. Partitioning in Ethyl Acetate

The so-obtained dried extracts, dissolved in 10 mL of water, were extracted thrice in a separating funnel with 10 mL of ethyl acetate, freeze-dried or evaporated at 40 °C under vacuum in the dark. The samples were immediately analyzed or stored at 4 °C.

2.4. HPLC-DAD Analyses

Dried extracts were weighed, dissolved in DMSO or water and filtered before injection into an HPLC Perkin Elmer apparatus (Waltham, MA, USA) consisting of a Series 200 LC pump, a Series 200 DAD and a Series 200 autosampler, including a Totalchrom Perkin Elmer software for the data acquisition. Chromatography was performed on a Luna RP18 column (250 × 4.6 mm i.d., 5 μm) using a mobile phase made by acetonitrile and water acidified by 5% formic acid, in gradient with a flow rate of 1 mL/min, at 360 and 530 nm. Punicalagin anomers α and β and ellagic acid were quantified as previously described [7]. The multi-component phenolic fingerprint was also studied for the most promising pomegranate extracts (DC and Mz) according to a validated method as reported in the Supplementary Materials [36].

2.5. PDIA3 Purification and Disulfide Reductase Activity Determination

2.5.1. Protein Expression and Purification

Human recombinant PDIA3 was cloned into a pET21 vector (Novagen) and expressed in E. coli strain BL21 as previously described [37]. Protein was purified by ammonium sulphate fractionation, ion exchange and heparin chromatography [38,39]. Protein purification was evaluated by SDS-PAGE and its concentration was spectrophotometrically determined (ε280 reduced form = 44,810 M−1·cm−1).

2.5.2. Determination of Protein Disulfide Reductase Activity

Disulfide reductase activity of PDIA3 was evaluated by sensitive fluorescent assay using dieosin glutathione disulfide (DiE-GSSG) as a fluorogenic probe. DiE-GSSG was synthesized by the reaction of eosin isothiocyanate with oxidized glutathione [40] with some modifications [20]. DiE-GSSG purification was carried out by HPLC and its concentration was determined spectrophotometrically (ε525 = 88,000 M−1·cm−1). A sample from each dried pomegranate extract (50 µL), from the peel and whole fruit of the different cultivars (Ml, Mz, DC1 and DC2, respectively), was dissolved in 100 µL of ultrapure water at a final concentration of 500 mg/mL. Their effects on PDIA3 disulfide reductase activity were evaluated, using DiE-GSSG 200 nM, PDIA3 20 nM, DTT 5 µM in reaction buffer (PBS and EDTA 0.2 mM). All tested extracts were tested at final concentrations of 666.0, 66.0, 6.60 and 0.66 µg/mL with a two-minute incubation before the analysis. GSSG reduction was monitored for 3 min at 545 nm, with excitation at 520 nm, at 25 °C under continuous stirring. Enzymatic activity was evaluated by fitting the slope of the initial fluorescence increase. The percentage of the inhibition was expressed as a residual activity in presence of the extracts compared to PDIA3 alone. IC50 was evaluated by fitting the inhibition effects vs. extracts concentration using the GraphPad Prism 7.0 software (GraphPad Software, San Diego, CA, USA).

2.6. Statistical Analysis

Each assay was replicated at least three times. Data are expressed as mean ± SEM and statistical significance was determined using the GraphPad Prism 7.0 software (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. Polyphenols Extraction

Fully ripe pomegranate fruits coming from different geographic origins and belonging to several cultivars selected as previously described in the section “Material and methods” (Mz, Ml, DC1, DC2), were supplied. These were characterized by different organoleptic quality (color and size, flavor, harvest dates, peel texture and thickness), and were submitted to different work-up with the aim to obtain products with diverse ellagitannin composition. Whole fruits were homogenized (F) or squeezed (S); separated peels were homogenized (P), separated arils were centrifuged (C). The resulting homogenates and juices were submitted to a mild extraction method, by a simple ethanol/water mixture, which grants a high yield in polyphenolic extraction, as previously reported [7]. All of the samples were submitted to hydroalcoholic extraction which yields range among 8–19% by dry weight in whole fruit, most likely in relation to the not evaluated sugar content but are not directly correlated to the polyphenolic content, as shown below by HPLC analyses. The range, only apparently similar for the peels (12–19%), assumes a different means because, in this case, sugars are almost completely absent. On the contrary, the extraction yields from juices showed a narrow range between 15–16% mainly accounting for the sugar content of the edible part.
The dried extracts obtained from these experiments were then extracted with a partitioning system made of water and ethyl acetate, which allows a preferential distribution of punicalagin in the aqueous phase and of ellagic acid, much less represented, in the organic phase of medium polarity. The extraction yields account for the partitioning of about 95% in the aqueous fraction and only a small part in the organic phase that accounts for a maximum of 6.2% in the sample P-DC2.

3.2. Quali-Quantitative Analysis of the Polyphenolic Fraction

The variability shown by the samples was taken into account, in terms of extraction yields of hydroalcoholic extracts, is highly significant in regards to the differences existing among geographic provenance, cultivars and even sub-varieties grown in the same geographic and pedoclimatic conditions but only the quali-quantitative profile obtained by HPLC-DAD analyses could show the real differences in terms of polyphenolics, and specifically for ellagitannins. Important differences could already be revealed by a simple glance to the chromatograms of the hydroalcoholic extracts (Figure 1) recorded at 360 nm, which show the dominant presence of punicalagin α and β anomers, followed by a lower ellagic content but also, in some cases (as for example in the Mz sample), of other non-negligible molecules.
The quantification of punicalagins as sum of anomers, reported as mg/g by dry extract (Table 1), evidenced relevant differences, in the range 5–16 mg/g dry aqueous extracts by fruit, 16–30 mg/g of aqueous extracts by peels and in amounts around or much less than 1 mg in the aqueous extracts by squeezed or centrifuged juices. In addition, if the values were very low, significant differences could be shown among the two kinds of applied work-up. Juices obtained by squeezing of the whole fruit show punicalagin and ellagic acid contents of about 17- and 2-fold respect to juices obtained by centrifugation of separated arils. The ellagic acid is concentrated in the organic phase in which it could reach contents of 37 mg/g dry extract (P-Mz). Taking into account the overall quantity of the extracts, we could evaluate the content of punicalagin ranging between 150 and 500 mg/100 g and of ellagic acid ranging between 15 and 65 mg/100 g of fresh homogenized peels which largely justify the employment of this matrix for the extraction of such a valuable moiety. Indeed, punicalagin seems to reach a high concentration in the organic phase, in which only the ellagitannin fraction is selectively extracted, but the 73.5 mg/g dry extract (P-Ml) of the richest sample correspond, taking into account the extract yield of 0.36%, only to an absolute quantity of about 25 mg/100 g fresh homogenized peels.
To further analyze the presence of other important phytochemicals in these extracts, we carried out an analysis of the multi-component phenolic pattern by a validated HPLC method. We looked for twenty-two secondary metabolites abundant in the plant kingdom. Surprisingly, few of them were detected and quantitated in some extracts. Pomegranate peel was richer in phenolic compounds than the whole fruit (~2-fold for Mz and ~11-fold for DC1 samples). Conversely, we found an opposite profile in F-DC2. The most characterizing compounds were rutin and catechin. Moreover, 3-hydroxy-4-methoxybenzaldehyde was only present in P-DC1, whereas P-Mz showed small amounts of 2,3-dimethoxy benzoic acid and benzoic acid. Finally, F-Mz was characterized by the presence of vanillic acid (Tables S1 and S2, Supplementary Materials). An important aspect to be considered is that both pomegranate treatments (centrifugation and squeezing) led to a complete loss of these secondary metabolites.

3.3. Pomegranate Extract Effects on Disulfide Redox Activity of the PDIA3

Pomegranate extracts by whole fruit, separated peels, squeezed and centrifuged juices from samples DC1 and DC2 were tested on PDIA3 redox activity. Decreasing amounts of selected extracts were added to the reaction mixture solution, to a final concentration ranging from 666 to 3.33 µg/mL, and PDIA3 residual activity was assayed. Generally, as shown in Figure 2, only peel and whole fruit aqueous extracts were able to significantly inhibit the PDIA3 redox activity in a dose-dependent manner, while juices, either prepared by squeezing or centrifugation, show inhibition only at the highest concentrations. For this reason, we extended the analysis only to peel and whole fruit extracts of the other selected samples; testing their activity at a concentration ranging from 666 to 0.66 µg/mL (Figure 3). Aqueous peel extracts, P-Ml, P-Mz, P-DC1 and P-DC2 always resulted in a higher capacity of PDIA3 inhibition compared to their corresponding aqueous whole fruit extracts, F-Ml, F-Mz, F-DC1 and F-DC2 respectively, even though at a higher concentration, completely inhibit the protein activity (Figure 3, confirming the high potency of Mollar cultivar respect to the other ones (Figure 3d).
Other interesting reported evidence is the higher activity of Ml and Mz aqueous extracts compared to the corresponding hydroalcoholic ones (Figure 3c–f), with a more evident difference in Mollar cultivar. In addition, the results from the hydroalcoholic extracts confirm that the separated peels appear more active than the whole fruit as already shown for aqueous extracts (Figure 3e,f).
In Table 1 is the reported punicalagin concentration and in Table 2 the ratio punicalagin/ellagic acid is compared to the effects on PDIA3 redox activity of the tested samples. From the data, it can be observed that the different inhibitory activity of each extract is highly correlated to its punicalagin concentration, suggesting that punicalagin is the main component responsible for PDIA3 inhibition. Considering that the IC50 value of pure punicalagin is within the micromolar range [23], the activity of this molecule seems not greatly affected when it is tested in a mixture with other ellagitannin components. On the contrary, assuming that the observed inhibitory effect is just related to punicalagin, the IC50 calculated on the basis of punicalagin content of each extract tested is always below 0.1 μM, strongly supporting a synergic effect between punicalagin and other components present in the extract.

4. Discussion

Given the rising interest for the biological properties exerted by pomegranate ellagitannin component and the related healthy aspects, the aim of this work was to evaluate the application of a simple and mild extraction procedure to a matrix which can provide a high added value. The recovery and valorization of the co-products of agro-industrial processes have the double advantage to recycle waste, reducing the global impact, and to obtain interesting biomolecules to use as pharmaceutics or with nutritional, nutraceutical and cosmetic healthy purposes [41]. Peels generally represent a waste of pomegranate juice preparation, while containing significant amounts of phenolic bioactive compounds, not only with antioxidant properties but also able to modulate protein activity as well as the disulphide redox activity of the PDIA3, an interesting biological target.
In the present work, the possibility to obtain extracts containing several amounts of differently purified ellagitannins represents a crucial starting point in the evaluation of the phytocomplex capacity to interfere with biological activity, assessing in which way the different extract composition could influence the protein activity. A very higher amount of ellagitannins was found, as expected, in the peels respect to the whole fruit, but also differently work-up juices were analyzed with the aim to highlight that simple domestic practices, such as fruit squeezing or arils centrifugation are, could deeply influence the final content of biomolecules in a home-made beverage. The extraction of homogenized whole fruit represents a medium content among the other evaluated samples and accounts for all the different extractable components. The use of safe reagents, such as water, ethanol and acetic acid, the easiness of processing and the reduced procedural costs, make the performed work-up directly applied for the preparation of food supplements. The partitioning in water, essential in our experimental design, to obtain differently distributed ellagitannin, may imply an expensive freeze drying or an undesired spray drying step, detrimental to thermosensible molecules, but these could be easily avoided if the aim is obtaining food supplements. The partitioning in ethyl acetate is necessary only if ellagic acid should be more selectively extracted and concentrated, and although considered acceptable for safe extraction techniques, this solvent should be removed very carefully before human use. For this reason and also because of a response of less than the 10% of total extracted punicalagin, the organic phase was not tested in the biological assays. It could become of interest only in view of evaluating further the different ratios between punicalagin and ellagic acid, the last one becoming comparable or preeminent in the acetate fraction.
As previously shown, in some cultivars, punicalagin rises to amounts of 400–500 mg/100 g fresh peels, representing an exceptionally high content of specific polyphenols such as ellagitannins are. In the preparations obtained by peels, the ratio between punicalagin and ellagic acid varies in a very wide range between 75:1 (P-Ml) in the aqueous extracts and 1:1 in the organic ones (P-Mz), up to organic extracts from juices in which punicalagin is almost absent.
Both peel and whole fruit extracts are able to inhibit the PDIA3 redox activity in a dose-dependent manner. The reported higher capacity on PDIA3 inhibition of the peel extracts could be due to the higher punicalagin content respect to the corresponding whole fruit, supporting the hypothesis that the inhibitory effect is mainly correlated to punicalagin. Indeed, analyzing the effect on PDIA3 activity of both punicalagin and ellagic acid, alone as single and pure components, previously published data showed a higher inhibitory effect of punicalagin compared to ellagic acid, although both molecules can bind to PDIA3 with a not so high different affinity [23]. Hence, the present analysis carried out on different pomegranate extracts, allowed us to test the effect of punicalagin and ellagic acid on PDIA3 activity directly from a natural mixture, evaluating the synergic or antagonist activity of these two molecules which can be present in different ratios. In addition, this analysis allowed also to speculate about the contribution of other species present into the extracts, besides punicalagin, in modulating PDIA3 redox activity inhibitory.
Extracts of the same kind, obtained by a hydroalcoholic (HA) extraction system or after partitioning of these in water (W), showed a different activity with the HA always less effective respect to W. This is more evident in P-Ml, where peels extracted by W present a higher PDIA3 inhibition activity respect to the HA (Table 2). This behavior could be correlated to the different punicalagin content but also to the different punicalagin/ellagic acid ratio that can be associated with different analytes distribution after partitioning in water (or in ethyl acetate). Indeed, the punicalagin/ellagic acid ratio drastically increases in aqueous extract of the P-Ml (75:1) compared to corresponding hydroalcoholic extract (32:1). Additionally, the aqueous P-Ml extract which shows the maximum PDIA3 inhibition effect with an IC50 around 0.69 µg/mL, has the highest punicalagin/ellagic ratio.
A synergic effect may be expected since the inhibitory activity of the tested extracts seems always higher than it would be expected considering only the punicalagin content. On the basis of data reported in Table 2, a hypothetical value of IC50 can be calculated by assuming that punicalagin is mainly responsible for the observed inhibitory effect and this is solely the result of the amount of punicalagin present in each fraction tested. Considering that the IC50 value previously calculated for punicalagin as the isolated component is within the micromolar range [23], the activity of this molecule seems not negatively affected when it is present in a complex mixture with other components. On the contrary, for all analyzed extracts, these hypothetical IC50 values were always smaller than the value of IC50 previously calculated for punicalagin alone. This observation strongly supports a synergistic effect due to the presence of other components in the analyzed extracts that are responsible for the better inhibitory activity observed. Analyzing data reported in Table 2, water extract (W), further considerations could be made. Ml extracts always appear more active than Mz ones, regardless of the type of extract (whole fruit or peels). However, both Ml and Mz extracts show a similar ratio of about 3 between the IC50 (Extract, mg/L) of whole fruit and of peel (F-Ml/P-Ml = 2.53/0.69 and F-Mz/P-Mz = 10.54/3.48) demonstrating the higher activity of peel components, mostly related to the higher content of punicalagin. When these extracts are compared for the hypothetical IC50, (Punic µg/L, amount of punicalagin present in each extract), this ratio decreases to about 2 and 1.2, respectively (IC50 µM Punic F-Ml/P-Ml = 0.037/0.019 and F-Mz/P-Mz = 0.101/0.080) indicating a similar synergistic effect, with peel extracts appearing always more active than whole fruit ones and Ml cultivar extracts showing a better inhibitory effect.
A different behavior can be instead observed for DC cultivar belonging to different sub-varieties, (DC1 and DC2). Although the inhibitory effect of the peel extracts is always better than whole fruit, DC2 shows a stronger activity than DC1 even if the P-DC2 extract is characterized by a lower content of punicalagin. Comparing the IC50 of both DC2 extracts (F and P) with the Ml ones, DC2 extracts seems to be less active. However, the hypothetical IC50 calculated on the basis of punicalagin content of both P-DC2 and F-DC2 are quite similar to the corresponding hypothetical IC50 calculated for the P-Ml extract. So, while these data still support a synergism in the inhibitory effect due to the presence of other components in the extracts, this effect is not the same among the analyzed cultivars, probably as a result of a different composition. Additionally, for DC cultivar the sub-variety may play an important role, affecting both the extract composition and punicalagin content as well as the observed inhibitory effect.
Besides, all the considered aqueous extracts at 66 µg punicalagin/mL, inhibit almost completely the protein activity with the exception of F-Mz, where a 30% residual activity is still observable. Thus, Mz whole fruit extracts seem to be less effective in PDIA3 inhibition. Although F-DC2 and F-Mz have similar punicalagin content and the same punicalagin/ellagic acid ratio, 30:1, they differ in PDIA3 inhibition activity. The F-Mz shows a different chromatographic profile in which several peaks not present in other analyzed cultivars are detectable. From literature [42] four reported peaks, identified as punicalagin-derivative, punicalagin-derivative, HHDP-hexoside and ellagic acid-O-pentoside, could interfere in PDIA3 inhibition. Then, further studies will be necessary in order to better investigate the effects of pomegranate components on PDIA3 activity and evaluate the activity of extracts obtained from different cultivar or maturation stage.
Many studies suggest that PDIA3 is involved in multiple cellular functions through its specific enzymatic activity and its wide binding capabilities, and these functions are not confined within the endoplasmic reticulum. Moreover, considering the role of PDIA3 in several types of diseases, it could become an important target for developing novel therapeutic strategies. Thus, the finding of strong and specific PDIA3 inhibitors could open a new field in the treatment of these diseases and this study opens the possibility to use pomegranate extract as a modulator of PDIA3 activity.

5. Conclusions

In an eco-sustainable context, a very simple hydroalcoholic extraction allows us to transform by-products of pomegranate juice industry in interesting co-products with high added value. In our opinion, the choice of this matrix and the biocompatible and economic adopted extraction technique could be of high interest for the scientific community and for the food supplement industry.
We here report evidence that pomegranate extracts can inhibit/modulate the reductase activity of PDIA3 as previously demonstrated for punicalagin. Considering the many cellular processes involving PDIA3, healthy uses of pomegranate extracts deserve to be evaluated. In the light of the recent reports showing that PDIA3 plays an important role in platelet aggregation, sperm maturation and egg fertilization as its redox and chaperone activities of PDIA3 were important for these functions, the reported inhibition effects of the differently obtained pomegranate extracts could be also useful for future drug application and their relative development.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6643/11/1/186/s1, HPLC-DAD method and equipment were described along with the quali-quantitative composition of the most promising extracts (DC and Mz) in terms of specific phenolic compounds. Table S1. Multi-component phenolic pattern of DC cultivars. Table S2. Multi-component phenolic pattern of Mz cultivar.

Author Contributions

Conceptualization, S.C. (Stefania Cesa) and F.A.; methodology and biological investigation, F.G. and S.C. (Silvia Chichiarelli); methodology and extraction, F.C. and S.C. (Simone Carradori); HPLC methodology, M.L.; data curation, S.C. (Stefania Cesa); writing—original draft preparation, S.C. (Stefania Cesa); writing—review and editing, F.A.; funding acquisition, S.C. (Stefania Cesa).

Funding

This work was financially supported by funding from the “Sapienza” University of Rome.

Acknowledgments

The authors would like to thank Professor Nigro, Director of “Missione Archeologica Mozia”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, Y.J.; Gan, R.Y.; Li, S.; Zhou, Y.; Li, A.N.; Xu, D.P.; Li, H.B. Antioxidant phytochemicals for the prevention and treatment of chronic diseases. Molecules 2015, 20, 21138–21156. [Google Scholar] [CrossRef] [PubMed]
  2. Pandey, K.B.; Rizvi, S.I. Plant polyphenols as dietary antioxidants in human health and disease. Oxid. Med. Cell. Longev. 2009, 2, 270–278. [Google Scholar] [CrossRef] [PubMed]
  3. Viuda-Martos, M.; Fernández-López, J.; Pérez-Álvarez, J.A. Pomegranate and its many functional components as related to human health: A review. Compr. Rev. Food Sci. Food Saf. 2010, 9, 635–654. [Google Scholar] [CrossRef]
  4. Shahidi, F.; Ambigaipalan, P. Phenolics and polyphenolics in foods, beverages and spices: Antioxidant activity and health effects—A review. J. Funct. Foods 2015, 18, 820–897. [Google Scholar] [CrossRef]
  5. Rodrigo, R.; Libuy, M.; Feliu, F.; Hasson, D. Polyphenols in disease: From diet to supplements. Curr. Pharm. Biotechnol. 2014, 15, 304–317. [Google Scholar] [CrossRef] [PubMed]
  6. Medjakovic, S.; Jungbauer, A. Pomegranate: A fruit that ameliorates metabolic syndrome. Food Funct. 2013, 4, 19–39. [Google Scholar] [CrossRef]
  7. Masci, A.; Coccia, A.; Lendaro, E.; Mosca, L.; Paolicelli, P.; Cesa, S. Evaluation of different extraction methods from pomegranate whole fruit or peels and the antioxidant and antiproliferative activity of the polyphenolic fraction. Food Chem. 2016, 202, 59–69. [Google Scholar] [CrossRef]
  8. Jalal, H.; Pal, M.A.; Ahmad, S.R.; Rather, M.; Andrabi, M.; Hamdani, S. Physico-chemical and functional properties of pomegranate peel and seed powder. J. Pharm. Innov. 2018, 7, 1127–1131. [Google Scholar]
  9. Khatib, M.; Innocenti, M.; Giuliani, C.; Al-Tamimi, A.; Romani, A.; Mulinacci, N. Mesocarp and exocarp of Laffan and wonderful pomegranate varieties: By-products as a source of ellagitannins. Int. J. Food Nutr. Sci. 2017, 4, 1–7. [Google Scholar]
  10. Bellone, J.A.; Murray, J.R.; Jorge, P.; Fogel, T.G.; Kim, M.; Wallace, D.R.; Hartman, R.E. Pomegranate supplementation improves cognitive and functional recovery following ischemic stroke: A randomized trial. Nutr. Neurosci. 2018, 1–6. [Google Scholar] [CrossRef]
  11. Tortora, K.; Femia, A.P.; Romagnoli, A.; Sineo, I.; Khatib, M.; Mulinacci, N.; Giovannelli, L.; Caderni, G. Pomegranate by-products in colorectal cancer chemoprevention: Effects in Apc-mutated Pirc rats and mechanistic studies in vitro and ex vivo. Mol. Nutr. Food Res. 2018, 62, 1700401. [Google Scholar] [CrossRef] [PubMed]
  12. Shakeri, A.; Zirak, M.R.; Sahebkar, A. Ellagic acid: A logical lead for drug development? Curr. Pharm. Des. 2017, 23, 1–17. [Google Scholar] [CrossRef] [PubMed]
  13. Ríos, J.L.; Giner, R.M.; Marín, M.; Recio, M.C. A pharmacological update of ellagic acid. Planta Med. 2018, 84, 1068–1093. [Google Scholar] [CrossRef] [PubMed]
  14. Boggia, R.; Turrini, F.; Villa, C.; Lacapra, C.; Zunin, P.; Parodi, B. Green extraction from pomegranate marcs for the production of functional foods and cosmetics. Pharmaceuticals (Basel) 2016, 9, 63. [Google Scholar] [CrossRef] [PubMed]
  15. Çam, M.; Hışıl, Y. Pressurised water extraction of polyphenols from pomegranate peels. Food Chem. 2010, 123, 878–885. [Google Scholar] [CrossRef]
  16. Faria, A.; Calhau, C. The bioactivity of pomegranate: Impact on health and disease. Crit. Rev. Food Sci. Nutr. 2011, 51, 626–634. [Google Scholar] [CrossRef] [PubMed]
  17. Akhtar, S.; Ismail, T.; Fraternale, D.; Sestili, P. Pomegranate peel and peel extracts: Chemistry and food features. Food Chem. 2015, 174, 417–425. [Google Scholar] [CrossRef]
  18. Qian, W.; Su, Y.; Zhang, Y.; Yao, N.; Gu, N.; Zhang, X.; Yin, H. Secretome analysis of rat osteoblasts during icariin treatment induced osteogenesis. Mol. Med. Rep. 2018, 17, 6515–6525. [Google Scholar] [CrossRef][Green Version]
  19. Lee, S.; Nam, M.; Lee, D.; Park, J.W.; Kang, B.; Lee, D.S.; Lee, H.S.; Kwon, O.S. Silibinin ameliorates O-GlcNacylation and inflammation in a mouse model of nonalcoholic steatohepatitis. Int. J. Mol. Sci. 2018, 19, 2165. [Google Scholar] [CrossRef]
  20. Trnková, L.; Ricci, D.; Grillo, C.; Colotti, G.; Altieri, F. Green tea catechins can bind and modify ERp57/PDIA3 activity. Biochim. Biophys. Acta 2013, 1830, 2671–2682. [Google Scholar] [CrossRef]
  21. Grillo, C.; Chichiarelli, S.; Gaucci, E.; Altieri, F.; Turano, C.; Cervoni, L. The binding of silibinin to ERp57. Chem. Biol. Interact. 2014, 213, 37–43. [Google Scholar] [CrossRef] [PubMed]
  22. Giamogante, F.; Marrocco, I.; Romaniello, D.; Eufemi, M.; Chichiarelli, S.; Altieri, F. Comparative analysis of the interaction between different flavonoids and PDIA3. Oxid. Med. Cell. Longev. 2016. [Google Scholar] [CrossRef] [PubMed]
  23. Giamogante, F.; Marrocco, I.; Cervoni, L.; Eufemi, M.; Chichiarelli, S.; Altieri, F. Punicalagin, an active pomegranate component, is a new inhibitor of PDIA3 reductase activity. Biochimie 2018, 147, 122–129. [Google Scholar] [CrossRef] [PubMed]
  24. Turano, C.; Gaucci, E.; Grillo, C.; Chichiarelli, S. ERp57/GRP58: A protein with multiple functions. Cell. Mol. Biol. Lett. 2011, 16, 539–563. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Hetz, C.; Russelakis-Carneiro, M.; Wälchli, S.; Carboni, S.; Vial-Knecht, E.; Maundrell, K.; Castilla, J.; Soto, C. The disulfide isomerase Grp58 is a protective factor against prion neurotoxicity. J. Neurosci. 2005, 25, 2793–2802. [Google Scholar] [CrossRef] [PubMed]
  26. Erickson, R.R.; Dunning, L.M.; Olson, D.A.; Cohen, S.J.; Davis, A.T.; Wood, W.G.; Kratzke, R.A.; Holtzman, J.L. In cerebrospinal fluid ER chaperones ERp57 and calreticulin bind β-amyloid. Biochem. Biophys. Res. Commun. 2005, 332, 50–57. [Google Scholar] [CrossRef] [PubMed]
  27. Kim-Han, J.S.; O’Malley, K.L. Cell stress induced by the parkinsonian mimetic, 6-hydroxydopamine, is concurrent with oxidation of the chaperone, ERp57, and aggresome formation. Antioxid. Redox Signal. 2007, 9, 2255–2264. [Google Scholar] [CrossRef]
  28. Laurindo, F.R.; Pescatore, L.A.; de Castro Fernandes, D. Protein disulfide isomerase in redox cell signaling and homeostasis. Free Radic. Biol. Med. 2012, 52, 1954–1969. [Google Scholar] [CrossRef]
  29. Maattanen, P.; Kozlov, G.; Gehring, K.; Thomas, D.Y. ERp57 and PDI: Multifunctional protein disulfide isomerases with similar domain architectures but differing substrate–partner associations. Biochem. Cell Biol. 2006, 84, 881–889. [Google Scholar] [CrossRef]
  30. Holbrook, L.M.; Sasikumar, P.; Stanley, R.G.; Simmonds, A.D.; Bicknell, A.B.; Gibbins, J.M. The platelet-surface thiol isomerase enzyme ERp57 modulates platelet function. J. Thromb. Haemost. 2012, 10, 278–288. [Google Scholar] [CrossRef]
  31. Wu, Y.; Ahmad, S.S.; Zhou, J.; Wang, L.; Cully, M.P.; Essex, D.W. The disulfide isomerase ERp57 mediates platelet aggregation, hemostasis, and thrombosis. Blood 2012, 119, 1737–1746. [Google Scholar] [CrossRef] [PubMed]
  32. Schulman, S.; Bendapudi, P.; Sharda, A.; Chen, V.; Bellido-Martin, L.; Jasuja, R.; Furie, B.C.; Flaumenhaft, R.; Furie, B. Extracellular thiol isomerases and their role in thrombus formation. Antioxid. Redox Signal. 2016, 24, 1–15. [Google Scholar] [CrossRef]
  33. Wang, C.; Li, W.; Ren, J.; Fang, J.; Ke, H.; Gong, W.; Wang, C.C. Structural insights into the redox-regulated dynamic conformations of human protein disulfide isomerase. Antioxid. Redox Signal. 2013, 19, 36–45. [Google Scholar] [CrossRef] [PubMed]
  34. Zhou, J.; Wu, Y.; Wang, L.; Rauova, L.; Hayes, V.M.; Poncz, M.; Essex, D.W. The disulfide isomerase ER p57 is required for fibrin deposition in vivo. J. Thromb. Haemost. 2014, 12, 1890–1897. [Google Scholar] [CrossRef] [PubMed]
  35. Cui, G.; Shan, L.; Guo, L.; Chu, I.K.; Li, G.; Quan, Q.; Zhao, Y.; Chong, C.M.; Zhang, Z.; Yu, P.; et al. Novel anti-thrombotic agent for modulation of protein disulfide isomerase family member ERp57 for prophylactic therapy. Sci. Rep. 2015, 5, 10353. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Boutaoui, N.; Zaiter, L.; Benayache, F.; Benayache, S.; Cacciagrano, F.; Cesa, S.; Secci, D.; Carradori, S.; Giusti, A.M.; Campestre, C.; et al. Atriplex mollis Desf. aerial parts: Extraction procedures, secondary metabolites and color analysis. Molecules 2018, 23, 1962–1973. [Google Scholar] [CrossRef]
  37. Coppari, S.; Altieri, F.; Ferraro, A.; Chichiarelli, S.; Eufemi, M.; Turano, C. Nuclear localization and DNA interaction of protein disulfide isomerase ERp57 in mammalian cells. J. Cell. Biochem. 2002, 85, 325–333. [Google Scholar] [CrossRef]
  38. Grillo, C.; D’ambrosio, C.; Scaloni, A.; Maceroni, M.; Merluzzi, S.; Turano, C.; Altieri, F. Cooperative activity of Ref-1/APE and ERp57 in reductive activation of transcription factors. Free Radic. Biol. Med. 2006, 41, 1113–1123. [Google Scholar] [CrossRef]
  39. Grillo, C.; D’Ambrosio, C.; Consalvi, V.; Chiaraluce, R.; Scaloni, A.; Maceroni, M.; Eufemi, M.; Altieri, F. DNA-binding activity of the ERp57 C-terminal domain is related to a redox-dependent conformational change. J. Biol. Chem. 2007, 282, 10299–10310. [Google Scholar] [CrossRef]
  40. Raturi, A.; Mutus, B. Characterization of redox state and reductase activity of protein disulfide isomerase under different redox environments using a sensitive fluorescent assay. Free Radic. Biol. Med. 2007, 43, 62–70. [Google Scholar] [CrossRef]
  41. Laufenberg, G.; Kunz, B.; Nystroem, M. Transformation of vegetable waste into value added products: (A) the upgrading concept; (B) practical implementations. Bioresour. Technol. 2003, 87, 167–198. [Google Scholar] [CrossRef]
  42. Kharchoufi, S.; Licciardello, F.; Siracusa, L.; Muratore, G.; Hamdi, M.; Restuccia, C. Antimicrobial and antioxidant features of ‘Gabsi’ pomegranate peel extracts. Ind. Crops Prod. 2018, 111, 345–352. [Google Scholar] [CrossRef]
Figure 1. Flow chart and chromatographic profile of the phenolic compounds of selected samples.
Figure 1. Flow chart and chromatographic profile of the phenolic compounds of selected samples.
Nutrients 11 00186 g001

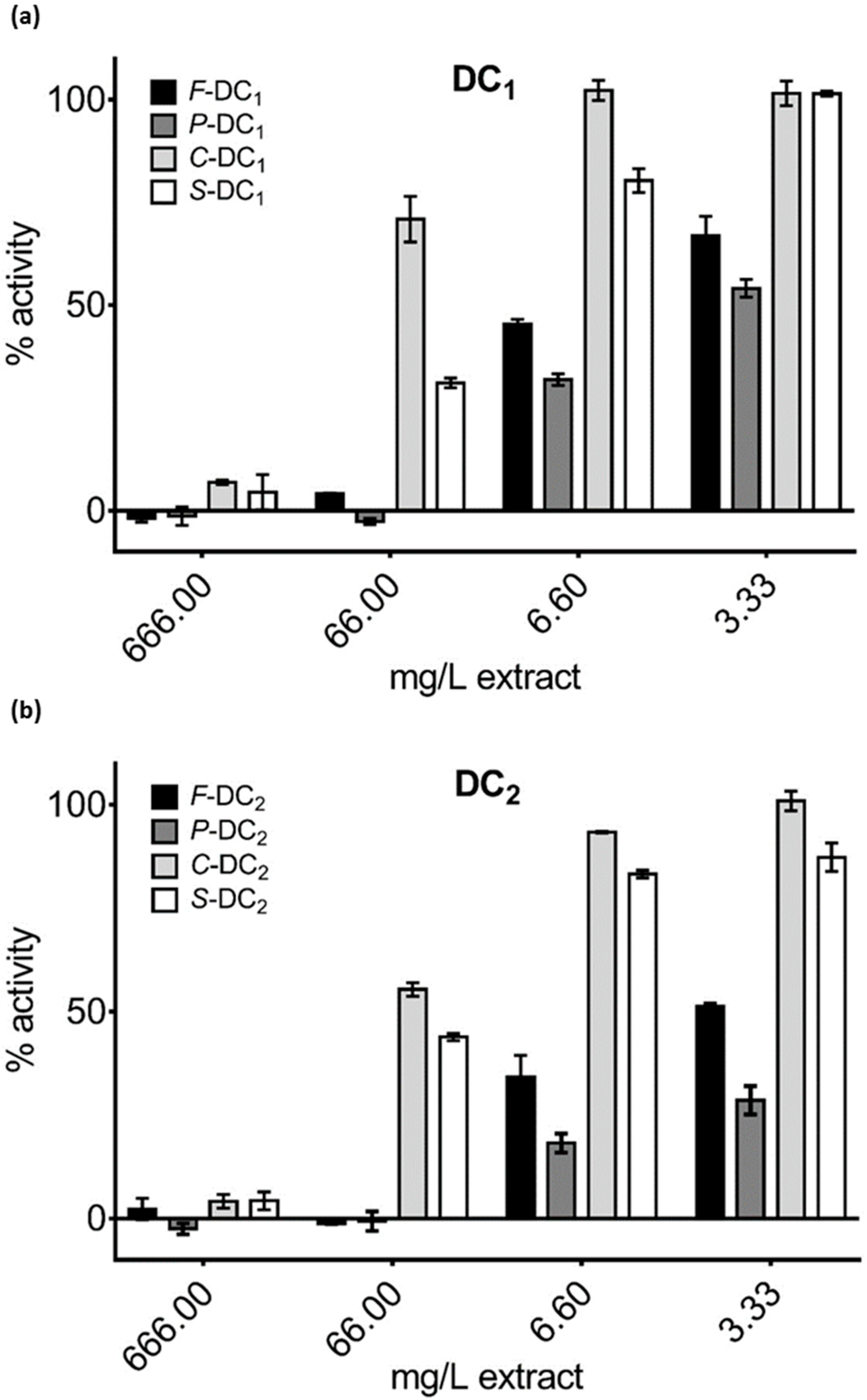

Figure 2. Residual activity of protein disulfide isomerase 3 (PDIA3) in the presence of (a) DC1 and (b) DC2 extracts.
Figure 2. Residual activity of protein disulfide isomerase 3 (PDIA3) in the presence of (a) DC1 and (b) DC2 extracts.
Nutrients 11 00186 g002
Figure 3. Comparison of the effects of the different obtained extracts on PDIA3 activity: (a) DC1 aqueous extract; (b) DC2 aqueous extract; (c) Mz aqueous extract; (d) Ml aqueous extract; (e) Mz hydroalcoholic extract; (f) Ml hydroalcoholic extract.
Figure 3. Comparison of the effects of the different obtained extracts on PDIA3 activity: (a) DC1 aqueous extract; (b) DC2 aqueous extract; (c) Mz aqueous extract; (d) Ml aqueous extract; (e) Mz hydroalcoholic extract; (f) Ml hydroalcoholic extract.
Nutrients 11 00186 g003
Table 1. Quali–quantitative analyses of the two studied metabolites in the differently obtained pomegranate extracts.
Table 1. Quali–quantitative analyses of the two studied metabolites in the differently obtained pomegranate extracts.
SampleHydroalcoholic (HA)Water (W)Organic
PunicalaginEllagic AcidPunicalaginEllagic AcidPunicalaginEllagic Acid
F-DC1--5.13 ± 0.110.07 ± 0.02--
P-DC1--25.9 ± 0.020.76 ± 0.07--
C-DC1--0.05 ± 0.020.006 ± 0.003--
S-DC1--1.26 ± 0.100.017 ± 0.003--
F-DC2--6.53 ± 0.090.22 ± 0.09--
P-DC2--16.2 ± 0.010.80 ± 0.04--
C-DC2--0.06 ± 0.040.007 ± 0.004--
S-DC2--0.72 ± 0.050.008 ± 0.004--
F-Mz11.2 ± 0.111.57 ± 0.0210.4 ± 0.120.34 ± 0.0836.7 ± 0.2024.6 ± 0.13
P-Mz25.7 ± 0.243.40 ± 0.1924.9 ± 0.051.08 ± 0.1335.1 ± 0.1437.4 ± 0.05
F-Ml19.1 ± 0.200.59 ± 0.0315.8 ± 0.150.32 ± 0.0754.8 ± 0.2614.7 ± 0.09
P-Ml32.2 ± 0.351.00 ± 0.2530.3 ± 0.170.40 ± 0.0873.5 ± 0.5817.8 ± 0.06
C-Ml0.06 ± 0.030.012 ± 0.0030.05 ± 0.010.007 ± 0.002BLD *2.45 ± 0.50
S-Ml0.85 ± 0.450.026 ± 0.0070.79 ± 0.070.01 ± 0.009BLD *1.25 ± 0.30
* BLD: Below Limit of Detection.
Table 2. Punicalagin relative effects on PDIA3 in hydroalcoholic (HA) and water (W) extracts after partitioning.
Table 2. Punicalagin relative effects on PDIA3 in hydroalcoholic (HA) and water (W) extracts after partitioning.
SampleHydroalcoholic (HA)Water (W)
From Table 1CalculatedFrom Table 1Calculated
Pun/extr
mg/g
IC50 extr
mg/L
IC50 Pun
µg/L
IC50 Pun
µM
Pun/extr
mg/g
IC50 extr
mg/L
IC50 Pun
µg/L
IC50 Pun
µM
ABAxBAxB/MWABAxBAxB/MW
F-Mz11.215.07168.80.15610.410.54109.20.101
P-Mz25.74.69120.30.11124.93.4886.70.080
F-Ml19.19.78186.80.17215.82.5340.00.037
P-Ml32.26.00193.20.17830.30.6920.90.019
F-DC1----5.135.8730.20.028
P-DC1----25.883.4288.60.082
F-DC2----6.533.422.20.020
P-DC2----16.141.3722.20.020

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
