Integrating Topographic Skeleton into Deep Learning for Terrain Reconstruction from GDEM and Google Earth Image

Abstract

The topographic skeleton is the primary expression and intuitive understanding of topographic relief. This study integrated a topographic skeleton into deep learning for terrain reconstruction. Firstly, a topographic skeleton, such as valley, ridge, and gully lines, was extracted from a global digital elevation model (GDEM) and Google Earth Image (GEI). Then, the Conditional Generative Adversarial Network (CGAN) was used to learn the elevation sequence information between the topographic skeleton and high-precision 5 m DEMs. Thirdly, different combinations of topographic skeletons extracted from 5 m, 12.5 m, and 30 m DEMs and a 1 m GEI were compared for reconstructing 5 m DEMs. The results show the following: (1) from the perspective of the visual effect, the 5 m DEMs generated with the three combinations (5 m DEM + 1 m GEI, 12.5 m DEM + 1 m GEI, and 30 m DEM + 1 m GEI) were all similar to the original 5 m DEM (reference data), which provides a markedly increased level of terrain detail information when compared to the traditional interpolation methods; (2) from the perspective of elevation accuracy, the 5 m DEMs reconstructed by the three combinations have a high correlation (>0.9) with the reference data, while the vertical accuracy of the 12.5 m DEM + 1 m GEI combination is obviously higher than that of the 30 m DEM + 1 m GEI combination; and (3) from the perspective of topographic factors, the distribution trends of the reconstructed 5 m DEMs are all close to the reference data in terms of the extracted slope and aspect. This study enhances the quality of open-source DEMs and introduces innovative ideas for producing high-precision DEMs. Among the three combinations, we recommend the 12.5 m DEM + 1 m GEI combination for DEM reconstruction due to its relative high accuracy and open access. In regions where a field survey of high-precision DEMs is difficult, open-source DEMs combined with GEI can be used in high-precision DEM reconstruction.

1. Introduction

The terrain is a description of the earth’s surface, encompassing various geomorphic evolutionary processes. Moreover, the terrain reflects major crustal movements (i.e., geological changes) and minor change processes (i.e., soil erosion and water loss) [1,2]. Terrain modeling serves as the foundation for various scientific research and engineering applications. These applications cover several areas, including meteorological analysis, disaster prevention and control, hydrological analysis, crop cultivation, geological analysis, feature construction, military battlefield simulations, and game modeling [3,4,5,6,7,8,9,10]. Over the years, scholars have proposed various terrain modeling approaches, which can be broadly categorized into two types: physical terrain modeling based on field measurements and virtual terrain modeling based on existing information and geological knowledge.

Physical terrain modeling primarily involves traditional geodetic surveying and remote-sensing methods based on field measurements. Elevation values, which simulate the physical terrain, are directly obtained from measuring instruments or from aerospace satellite remote-sensing platforms, unmanned aerial vehicle (UAV) photogrammetry, and Light Detection and Ranging (LIDAR) [11,12,13,14]. Modeling methods based on field measurements are expensive despite their accuracy. For terrain simulation methods based on known information, models are primarily constructed from known terrain and topographic knowledge, including constrained interpolation algorithms and the functionalized terrain modeling method. The former has typical interpolation algorithms, such as inverse distance weighting and cubic convolutional interpolation [15,16,17,18]. Meanwhile, the latter is a technique that uses various surface parameters and input formulas to create terrain output. This method uses fractal algorithms, physical modeling methods, meta-cellular automata, and simulation algorithms utilized in fluid particle systems [19,20,21,22,23]. Modeling methods based on existing data are direct. However, applying the generated terrain to geomorphological simulation is difficult because terrain formation involves geomorphic development processes and geographic laws. Describing surface details and reflecting geomorphic development processes using a single-function approach are also complicated.

The difficulty in reconstructing terrain based on known information and topographic knowledge lies in the complexity of the elevation pattern of the terrain slope; thus, establishing a global terrain model with certain formulas or constraints is difficult [24]. One of the most effective methods for dealing with big data, deep learning, can autonomously mine learning features for terrain modeling [25]. Consequently, deep-learning-based terrain modeling has been developing, and preliminary research has been conducted on Image Super-Resolution and image generation techniques. However, this direct scale-down method lacks theoretical support and is inappropriate for complex terrain, demonstrating poor interpretation, low stability, and limited model applicability based on the experience of some scholars [26,27]. The image generation method conceptualizes the DEM in a regular grid format as an image generation problem with feature elements, and the terrain features significantly influence the topography. The CGAN is a prevalent deep-learning technique for good-quality image generation [28,29]. Therefore, numerous researchers [30,31,32] introduced a CGAN training method by utilizing high-precision DEM-extracted terrain elements, which later created DEMs according to the trained networks. However, certain drawbacks are still evident despite the modern technique used in this approach for terrain modeling. On the one hand, obtaining a high-precision DEM is difficult in mountainous and remote areas, and the dependence of this method on high-precision DEMs limits its applicability. On the other hand, training to generate the corresponding high-precision DEM has minimal practical importance due to the already existing high-precision DEMs.

Acquiring coarse-resolution DEM and image data for a large spatial extent is easy. Meanwhile, a high-resolution DEM can be accessible through UAV photogrammetry. In such cases, utilizing the available topographic information and accurate data from a sub-region to train a model that can reconstruct elevations at the same geomorphic development features in other parts is scientifically and practically valuable. A group of scholars utilized global open-source Global Digital Elevation Models (GDEMs), including ALOS (Advanced Land Observing Satellite) DEM, ASTER (Advanced Spaceborne Thermal Emission and Reflection Radiometer) DEM, SRTM (Shuttle Radar Topography Mission) DEM, and other GDEMs, due to their extensive coverage [11,33,34,35,36]. This study is valuable because it employs the similarities of valley and ridge lines extracted by different DEM resolutions, the high-resolution property of remote-sensing images, and the advancement of CGAN technology [37]. The objectives of this study were as follows: (1) integrate topo- graphic skeleton lines into deep learning for terrain reconstruction from Google Earth Image and GDEM and (2) verify the effectiveness of two global open-source GDEMs and Google Earth Image for producing higher-resolution DEMs. This study also examined the potential of multiple datasets in creating a 5 m high-precision DEM, enabling the prompt creation of high-precision terrain modeling for various circumstances, such as engineering constructions, environmental assessments, and battlefield environment simulations, using the pre-existing datasets.

2. Method

2.1. Basic Ideas

Topographic skeletons, such as ridges, valleys, and gully lines, are derived from the terrain, representing the surface height and undulation, and are the basis for generating simulated terrain using deep-learning algorithms. A scale effect exists in a DEM, wherein different-resolution DEMs are not only similar in expressing the spatial location of mountains and river valleys but also the same length as the same catchment area [38,39,40]. Therefore, there is a certain conversion rule between the ridge and valley lines of different resolution DEMs. The gully line is the boundary line of gully erosion [41,42,43,44,45] and separates the water dispersion and convergence areas, distinguishing positive and negative landforms. To accurately convey the spatial location of the gully, it requires a higher-resolution DEM, but global open-source DEMs do not fulfill this requirement. This study integrated high-resolution GEI to produce accurate DEM reconstructions.

The current study designed three methods of topographic skeleton extraction (

Table 1. The experiments of terrain reconstruction by CGAN are based on different topographic skeletons from different data sources.

Experiment Name	Purpose of the Experiment
Terrain reconstruction experiment based on 5 m DEM + 1 m GEI	Evaluating the accuracy of the CGAN model as a control group
Terrain reconstruction experiment based on 12.5 m DEM + 1 m GEI	Investigating the feasibility of the topographic skeleton extracted from the 12.5 m DEM to generate a 5 m DEM
Terrain reconstruction experiment based on 30 m DEM + 1 m GEI	Investigating the ability of the topographic skeleton extracted from the 30 m DEM to generate a 5 m DEM

) to compare the advantages and limitations of open-source topographic skeletons with different resolutions.

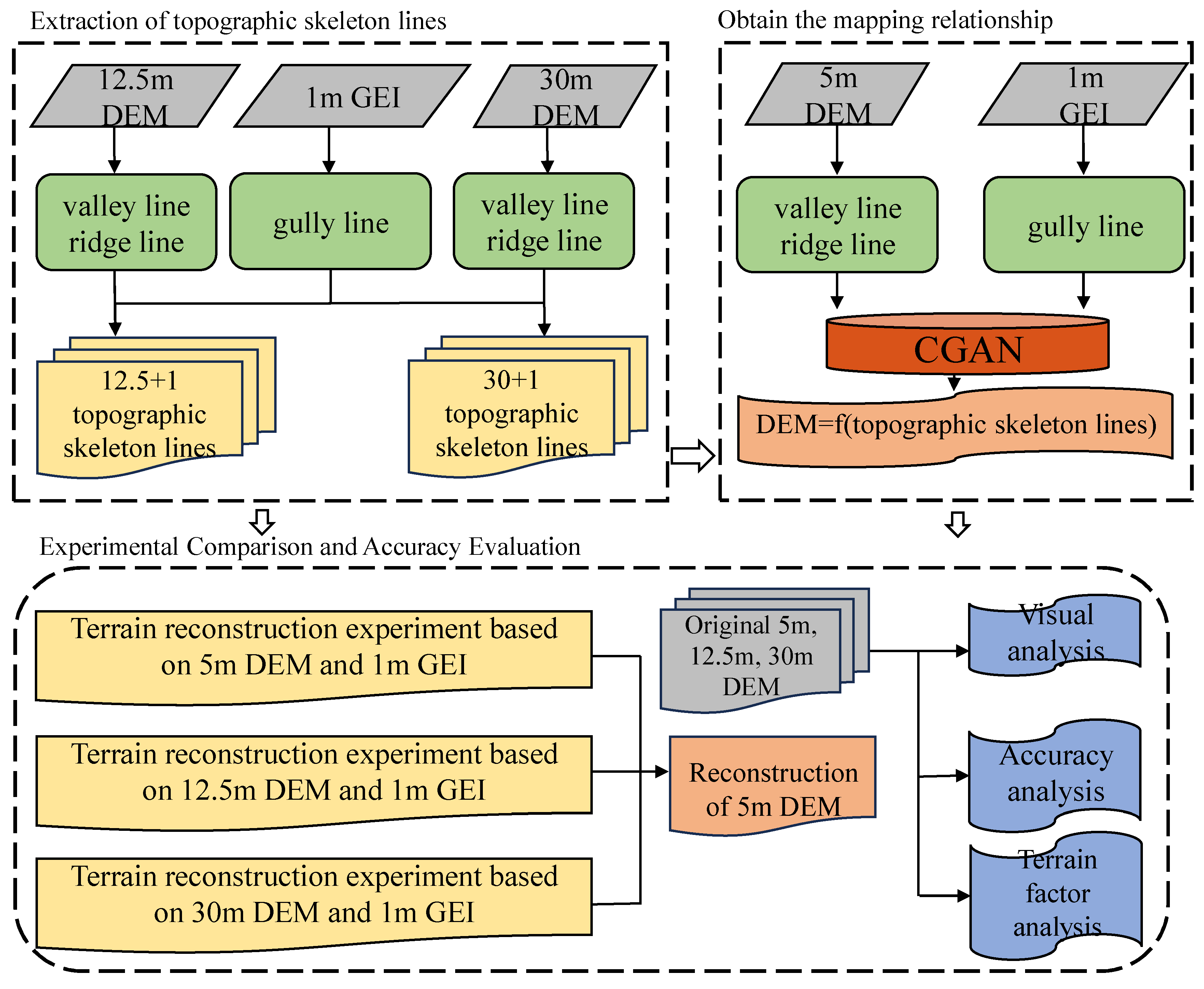

The overall workflow is shown in Figure 1. Firstly, ridge and valley lines were extracted using the original 5 m DEM, and gully lines were extracted using GEI. Moreover, ridge lines, valley lines, and gully lines were fused to obtain the mapping relationship between the DEM and the skeleton line, using CGAN. Then, ridge and valleys lines were extracted using the 12.5 m and 30 m DEMs and were separately fused with gully lines extracted from GEI. Finally, the 5 m DEM was reconstructed by merging three terrain datasets through a created mapping relationship. A visual analysis, accuracy analysis, and terrain factor analysis were carried out on the reconstructed DEM, as well as the original 5 m, 12.5 m, and 30 m DEMs.

2.2. Data Description

The Loess Plateau in Shaanxi Province, China (Figure 2c), was selected as the study area. The study area forms gullies and rugged landscapes due to the complex climate, loose soil, wind, and rainfall erosion, thereby complicating terrain modeling [44,45]. This selection allows the model to tackle complex terrain whilst confidently validating the outcome. Multi-scene 5 m DEMs of the Loess Plateau were selected to address the large volume of training samples needed (Figure 2c) and verified training effectiveness on the DEMs of two scenes, the Ganquan County area (Figure 2a) and the Yanchuan County area (Figure 2e), which were divided into 112 sample areas that represented the unique Hills and Gullies terrain of the Loess Plateau, respectively. Only four sample areas are displayed (Figure 2b) due to the limited size of the paper.

Three types of data were used in this study, as shown in

Table 2. Datasets used in this paper.

Data	Time	Source
5 m DEM	2000–2010	The National Administration of Surveying in China
12.5 m ALOS DEM 1	2006–2011	https://search.asf.alaska.edu/, accessed on 10 January 2008.
30 m ASTER GDEM	2000–2013	https://lpdaac.usgs.gov/products/astgtmv003/, accessed on 12 September 2010.
1 m Google Earth Image	2006	https://earthengine.google.com/, accessed on 6 March 2006.

¹ The data source of ALOS PALSAR RTC is SRTM GL1. Although its spatial resolution reaches 12.5 m, the vertical precision is very poor, but in this paper, we did not use the vertical precision information.

. The high-precision 5 m resolution DEM, obtained from the National Bureau of Surveying and Mapping of China, was employed to study elevation sequences between high-precision skeleton lines and the 5 m DEM. The ALOS PALSAR RTC (Phase Array type L-band Synthetic Aperture Radar Radiometric Terrain Correction) 12.5 m DEM and ASTER V3 30 m DEM were obtained from open-source platforms, and the 1 m resolution GEI was obtained from Google Earth.

Maintaining spatial resolution, which is the critical attribute in the field of geography, is essential to complying with the stringent input requirements of the CGAN. Therefore, the training and validation data must undergo cropping. The training samples in this paper were set as squares with a side length of 256 pixels, demonstrating an actual side length of 1.28 km for each sample. Consequently, the 12.5 m DEM, 30 m DEM, and 1 m GEI data were all cropped to squares with a side length of 1.28 km. A total of 112 samples were obtained after cropping the 5 m DEM and GEI of Ganquan (Figure 2a) and Yanchuan (Figure 2e), from which four were randomly selected as display samples for this study (Samples A, B, C, and D in Figure 2b).

2.3. CGAN Based on Topographic Skeleton

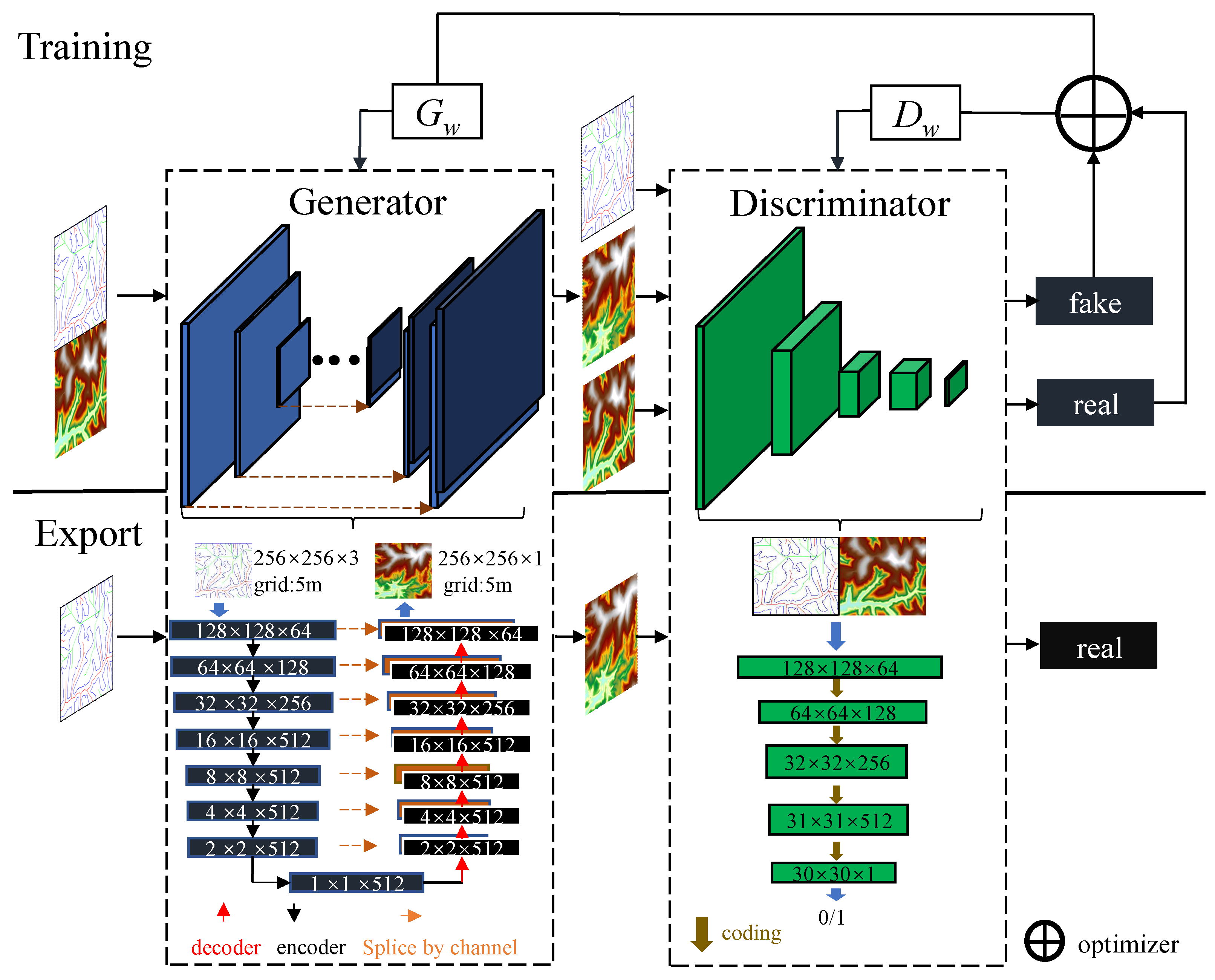

A network model based on CGAN and pix2pix was used in this paper [29,30] (Figure 3). CGAN comprises a generator and a discriminator, with the generator creating the image and the discriminator determining the similarity between the image generated by the generator and the original image. In addition to inputting random noise, CGAN differs in that it also adds control conditions such as topographic skeletons to enhance terrain control. The terrain is continuous; thus, terrain details must be preserved during down-sampling to maintain the topographic skeleton. The generator uses the U-Net structure to input the topographic skeleton into each layer of the down-sampling process [29] and adds a skip-connection layer between the input and output matching codecs to enhance feature maps and conditions. The computer vision technique generally processes RGB images. However, the DEM is a single-band image matrix; therefore, the output must be modified to one band in the final convolution layer of the generative model. The loss function of the generator needs an error function to compare the generated DEM to the original, and the total loss function of the generator is as follows:

$$los{s}_G=\frac{1}{n}\times (\sum \left[-\log \left(p_{fake}+\epsilon \right)\right]{\times W}_{GAN}+los{s}_{L1}\times W_{fake-real})$$

(1)

$$los{s}_{L1}=\frac{1}{n}\times (|y-y’|)$$

(2)

where $los{s}_G$ is the loss value of the generator, $n$ is the number of samples, $p_{fake}$ refers to the probability that the generated DEM is judged to be true by the discriminator, ε is the correction of error, $W_{GAN}$ is the weight of the original GAN, $W_{fake-real}$ is the weight of the difference between the fake and real, $y$ is the original DEM, and $y’$ is the fake DEM.

The discriminator operates by determining whether the input topographic skeleton resembles the original DEM. The network structure of the discriminator is illustrated in Figure 3, and this structure is comparable to that of the U-Net encoder in the generator, except for the first and last two layers. The primary layer of the discriminator’s input data is the topographic skeleton matrix alongside the corresponding original DEM after collocation. Equation (3) demonstrates that the discriminator optimization objective function is identical to the GAN loss function. The output of the loss function is then inputted into the generator to adjust the loss function, thereby facilitating the objective of using the discriminator to provide feedback to the generator.

$$los{s}_D=\frac{1}{n}\times \sum \left[\log \left(1-p_{fake}+\epsilon \right)-\log \left(p_{real}+\epsilon \right)\right]$$

(3)

where $los{s}_D$ is the loss value of the discriminator, $n$ is the number of samples, $p_{real}$ is the probability that the generated DEM is judged to be false by the discriminator, $\epsilon$ is the correction of error, and $p_{fake}$ refers to the probability that the generated DEM is judged to be true by the discriminator.

The overall loss function is the weighted sum of the generator and discriminator loss functions. This function can be represented by Formula (4).

$$los{s}_{all}=los{s}_G+\lambda los{s}_D$$

(4)

where $\lambda$ is the weight of the loss function of the discriminator.

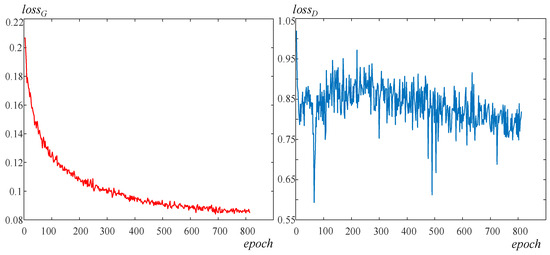

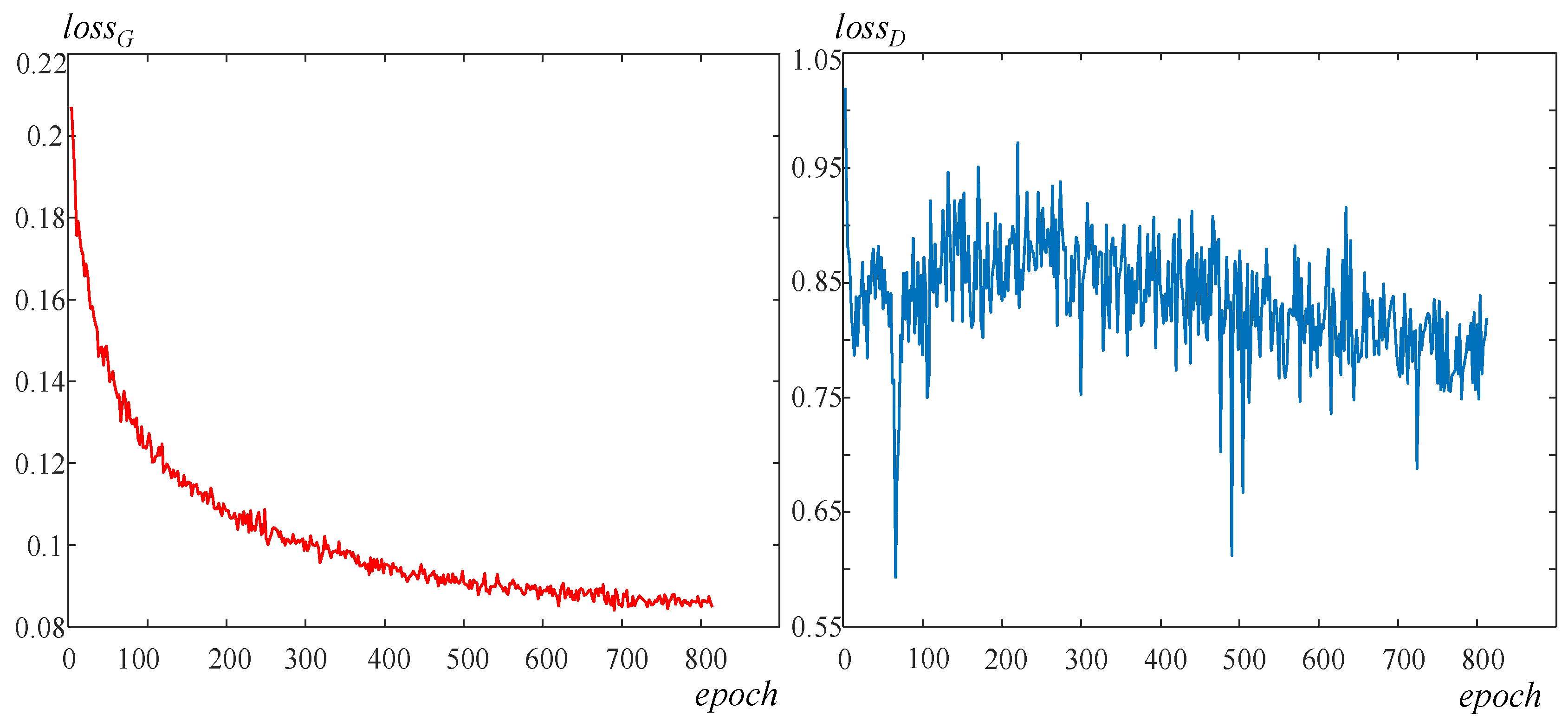

This article obtained about 2000 samples after cropping the existing 5 m DEM data of the Loess Plateau, set the batch size to 5, and used the Adam optimizer (with a learning rate of 0.002, a β1 of 0.5, and a β2 of 0.999), and the number of epochs was 600. Because DEM and the RGB images in computer vision are different, this article set the weight of the L1 loss in the generator loss function to 99. The generator’s loss function and the discriminator’s loss function curve are shown in Figure 4.

2.4. Similarity Transform of the Ridge and Valley Line

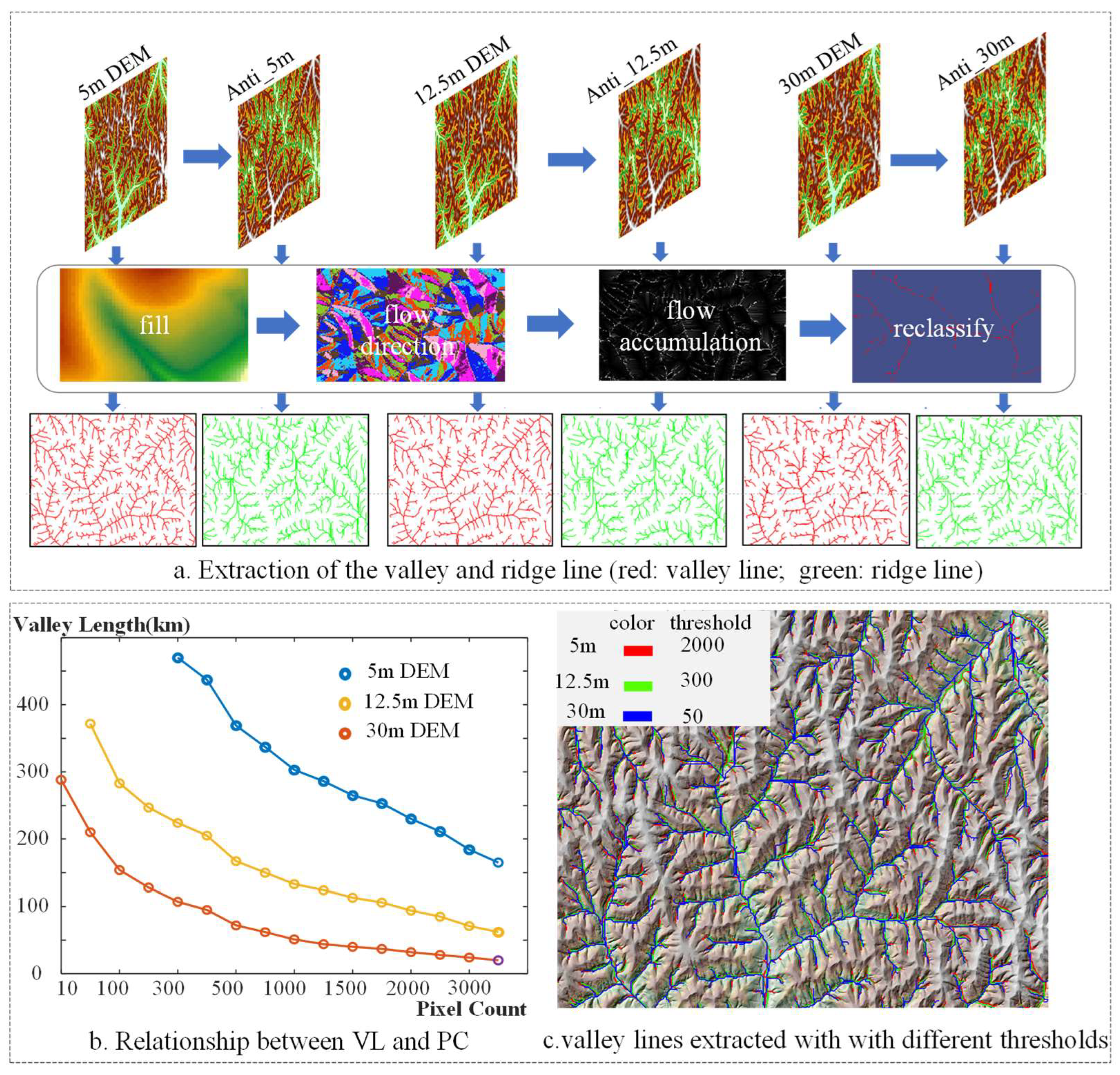

This study selected the hydrological analysis method [46] to extract ridge and valley lines (Figure 5a). The hydrological analysis method uses pixel elevation and searches for the lowest value of raster element amongst the eight surrounding neighborhoods as the outlet. The method involves puddle filling, flow direction calculation, flow accumulation calculation, and river network classification. The extraction of the ridge line is similar to the valley line of the inverse DEM. The extraction of the hydrological analysis method depends on the flow accumulation. A substantially small threshold value for extracting an excessive number of elements affects the network grading, whilst a substantially large threshold inadequately represents the details. Li et al. [30] found that the extraction of ridge and valley lines using a 5 m DEM threshold of 2000 (catchment pixels) has a superior effect on topography control in the Loess Plateau. The valleys extracted by different-resolution DEMs for the same number of catchment pixels vary significantly. From Figure 5, we see that the lengths of valley extracted from the 5 m DEM with a threshold of 2000 are close to those extracted from the 12.5 m DEM with a threshold of 300 and the 30 m DEM with a threshold of 50. Therefore, in this paper, ridge and valley lines are extracted with the 5 m DEM threshold of 2000, the 12.5 m DEM threshold of 300, and the 5 m DEM of 50. After transforming the ridge and valley lines obtained from DEMs of different resolutions to the same length, it is also necessary to convert the grid size to that of 5 m DEMs. The specific method is as follows: extract the ridge and valley lines after threshold conversion, and then resample the obtained skeleton lines to match the grid size of the training data.

2.5. CGAN Input Data Production

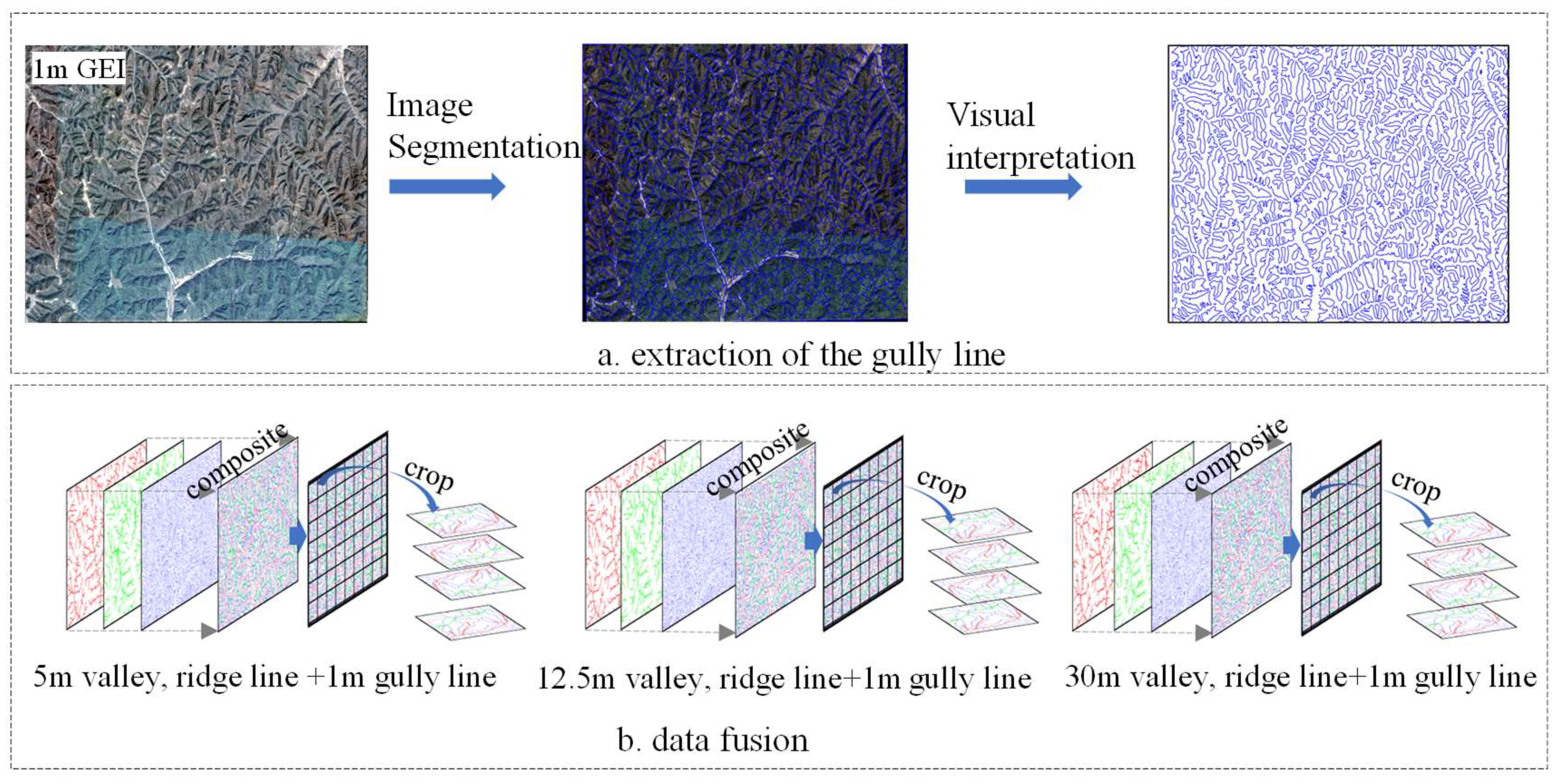

The gully lines were extracted by using an object-oriented analysis method that combines remote-sensing images and the DEM [47,48] in this study (Figure 6). In this study, the software named eCognition from the Trimble company was used for multiscale segmentation; we chose a multiscale segmentation scale of 120, a shape index of 0.1, and a tightness of 0.5. The ridge and valley lines of the three-resolution DEM, as well as the gully lines from the GEI, were combined into a three-band matrix. To meet the training requirements of CGAN, the three-band matrix composed of the ridge, valley, and gully line needed to be combined with the corresponding 5 m DEM in the training dataset.

2.6. Performance Evaluation

To evaluate the effectiveness of three deep-learning methods for reconstructing 5 m DEMs from three data sources, this assessment is categorized into three aspects: (1) The first is the analysis of the vision to determine whether the reconstructed 5 m DEM was visually similar to the original 5 m DEM. (2) The correlation analysis, RMSE analysis, and mathematical indicators of elevation examine the effect of the constructed DEM and measure the disparity between the reconstructed and the original 5 m DEM. The RMSE equation is provided as Equation (5) [49]. (3) The slope and aspect extracted from the original 5 m DEM, as well as those from the original 12.5 m and 30 m DEM, are utilized as reference models in this paper to compare the slope and aspect generated by various schemes and determine the differences in slope morphology between the generated and original terrain.

$$RMS{E}_{}=\sqrt{\frac{1}{n}{\displaystyle \sum _{i=1}^n}(X_i-{\overline{X}}_i{)}^2}$$

(5)

where $X_i$ in this paper refers to the comparison DEM pixel with 5 m DEM, and ${\overline{X}}_i$ is the corresponding reconstructed 5 m high-precision DEM image value.

3. Results

3.1. Visual Comparison

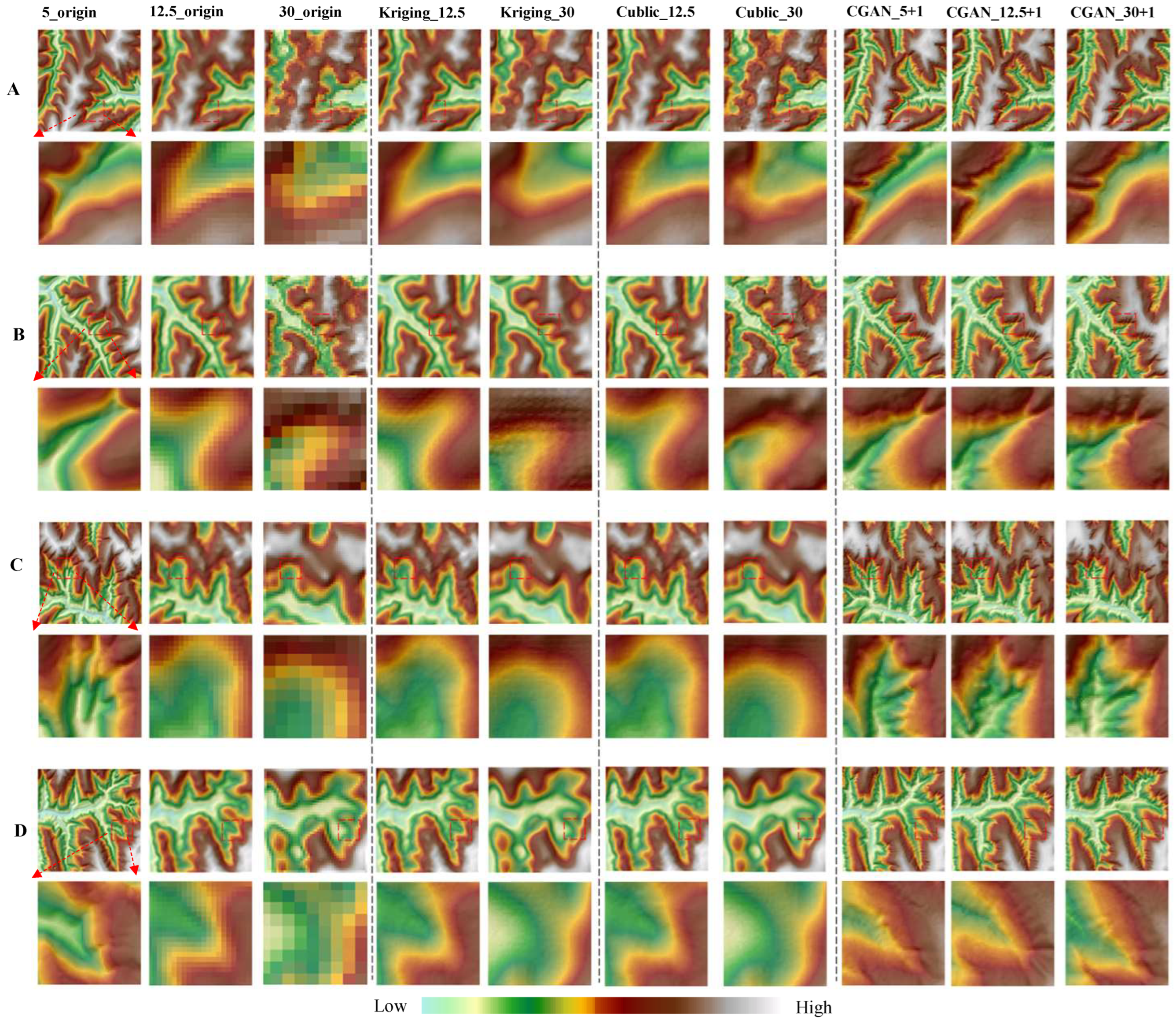

This paper proposes terrain-modeling methods and evaluates their performance against traditional interpolation methods, as shown in Figure 7. The traditional interpolation method used is ordinary Kriging and Cublic, the chosen semi-variogram model is the Spherical model, and the search radius is set to 50 in the Kriging method. Deep-learning methods generally outperform traditional interpolation methods in producing grayscale maps and hillshade with better-reconstructed contours and shapes. Traditional interpolation methods barely show any improvement when compared to the original 12.5 m and 30 m DEMs. Compared with the original DEM, the interpolation methods still lack the rich information provided by the deep-learning method to identify and add terrain information despite their improvement in smoothness and terrain detail. This limitation is attributed to the limited amount of information provided by interpolation methods during high-to-low-resolution conversion by utilizing the spatial autocorrelation law. By contrast, deep-learning methods have created an information repository through supervised learning, which allows them to obtain additional information. Therefore, the following discussion focuses solely on comparing the terrain modeling results of the deep-learning method.

Comparing the original three-resolution DEMs with the reconstructed terrain based on the deep-learning methods shows that the latter better reflects surface relief, especially in gully areas. This finding indicates that the trained model can preserve a topographic skeleton to the resultthat is comparable to the original 5 m DEM. Additionally, the reconstructed 5 m DEM captures more information and details regarding the gully slope than the original 5 m DEM due to the high-quality information and details provided by the 1 m GEI. Nevertheless, the reconstructed details do not accurately display the end of some branch gullies. This limitation is attributed to the threshold value selection of the hydrological analysis method, which fails to extract small threshold values of branch gullies, leading to a suboptimal reconstruction outcome. The comparison of the hillshade images reveals that the 5 m reconstructed DEM is smooth at the prominence of ridges, with a substantially gradual slope change. This phenomenon may be induced by the mismatch between the ridge line extracted from the 5 m DEM and the gully line extracted from the 1 m GEI. In conclusion, compared with the original three-resolution DEMs and the traditional interpolation method, the 5 m DEM reconstructed by deep-learning methods completely outperforms the original 12.5 m DEM, the 30 m DEM, and the traditional interpolation method in terms of the visual effects.

3.2. Accuracy Analysis

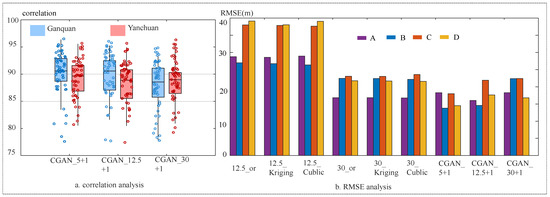

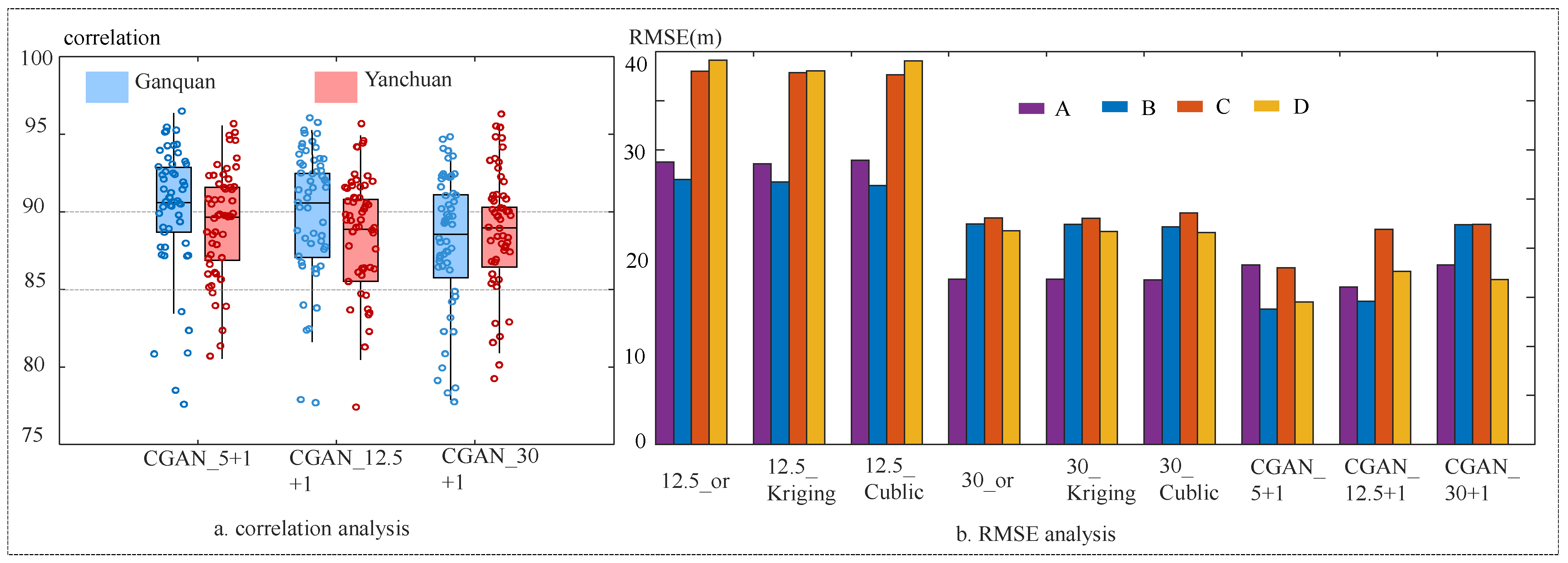

This study presented experimental designs on the correlations amongst 112 sample areas in two study fields to evaluate the efficacy of the elements extracted from three distinct data sources in reconstructing a 5 m DEM and reducing the impact of randomness. Box plots of the correlation coefficients of 112 experiment samples were illustrated to compare differences (Figure 8). The results show that the 5 m DEM combination of 1 m GEI reconstructed the best 5 m DEM, followed by the 12.5 m combination and then the 30 m combination for both research areas. Moreover, the reconstructed 5 m DEM from the three data sources in the sample areas’ analyses reveals a correlation greater than 0.85, with a median greater than 0.90, indicating the excellent reliability of the model output. Therefore, this study proves that the quality and data information in the reconstructed 12.5 m DEM and 30 m DEM data are remarkably superior; in some instances, they are equivalent to the DEM reconstructed by 5 m elements. This method can potentially reconstruct selected areas lacking high-resolution DEM by utilizing information from Google Earth Image and GDEM.

This study collected all points after vectorizing four sample areas, using the original 5 m DEM elevation values as checkpoints for the vertical elevation accuracy of seven data groups. The findings show that the ASTER 30 m DEM outperforms the ALOS 12.5 m DEM in vertical accuracy. Whilst the interpolation method has a minimal impact on vertical accuracy, deep-learning methods demonstrate different outcomes. Specifically, the proposed method in this study has a more significant impact on improving the ALOS 12.5 m DEM vertical accuracy compared to the other methods. However, the proposed method had a less significant effect on vertical accuracy for the 30 m DEM because the RMSE of vertical accuracy from the 5 m DEM reconstructed by deep learning is between 10 and 20 m compared to the original 5 m DEM. Therefore, the 5 m DEM reconstructed using other data by transferring methods does not exceed the original 5 m DEM. These findings indicate that the proposed method can enhance the quality of the ALOS 12.5 m DEM in horizontal and vertical dimensions. By contrast, this method can only improve ASTER 30 m DEM horizontal geomorphological information.

Table 3. The statistics of elevation.

	Data	Mean	Maximum	Minimum	Standard Deviation
A	5_origin	1325.92	1408	1220	39.43
	12.5_origin	1298.16	1369	1205	36.39
	30_origin	1322.08	1399	1229	35.33
	Kriging_12.5	1298.24	1369	1205	36.33
	Kriging_30	1322.35	1397	1231	34.52
	Cublic_12.5	1298.13	1369	1205	36.43
	Cublic_30	1322.09	1399	1229	35.14
	CGAN_5+1	1317.21	1398	1224	41.52
	CGAN12.5+1	1322.14	1403	1225	41.29
	CGAN30+1	1320.18	1401	1223	39.42
B	5_origin	1322.70	1421	1232	39.40
	12.5_origin	1297.29	1387	1218	37.26
	30_origin	1331.76	1412	1244	37.18
	Kriging_12.5	1297.17	1385	1219	36.89
	Kriging_30	1331.56	1407	1249	35.38
	Cublic_12.5	1297.34	1387	1218	37.26
	Cublic_30	1331.66	1413	1244	37.07
	CGAN_5+1	1322.43	1415	1235	40.77
	CGAN12.5+1	1321.98	1415	1236	40.57
	CGAN30+1	1322.39	1417	1234	45.89
C	5_origin	1119.31	1217	1005	51.31
	12.5_origin	1085.52	1187	985	46.42
	30_origin	1119.57	1215	1010	50.68
	Kriging_12.5	1085.56	1187	985	46.41
	Kriging_30	1119.61	1216	1010	50.64
	Cublic_12.5	1085.51	1187	985	46.41
	Cublic_30	1119.64	1216	1010	50.64
	CGAN_5+1	1115.23	1215	1009	49.80
	CGAN12.5+1	1120.34	1216	1009	49.83
	CGAN30+1	1121.22	1216	1011	51.12
D	5_origin	1093.66	1207	1003	46.90
	12.5_origin	1057.47	1177	979	42.77
	30_origin	1085.73	1198	1008	42.25
	Kriging_12.5	1057.29	1177	979	42.65
	Kriging_30	1085.65	1198	1008	42.13
	Cublic_12.5	1057.58	1177	979	42.84
	Cublic_30	1085.55	1198	1008	42.07
	CGAN_5+1	1090.75	1202	1008	42.89
	CGAN12.5+1	1096.95	1199	1007	43.16
	CGAN30+1	1097.45	1197	1007	43.48

shows the mathematical statistics of the elevation of the four sample areas by comparing the mean, maximum, minimum, and standard deviation of the raster elevation of the three data sources, the two interpolation methods, and the three deep-learning methods. It can be seen that the traditional interpolation methods have almost no change for the mathematical properties of the data, only affecting the smoothing, and the deep-learning methods have a greater improvement in the quality of the data. Among the three deep-learning methods, the effect of utilizing the 12.5 m DEM with the 1 m GEI is comparable to that of fusing the 5 m DEM with the 1 m GEI, but it is significantly better than that of fusing the 30 m DEM with the 1 m GEI. This indicates that utilizing the 12.5 m DEM with the 1 m GEI can achieve comparable results to the original DEM reconstruction.

3.3. Terrain Factors’ Analysis

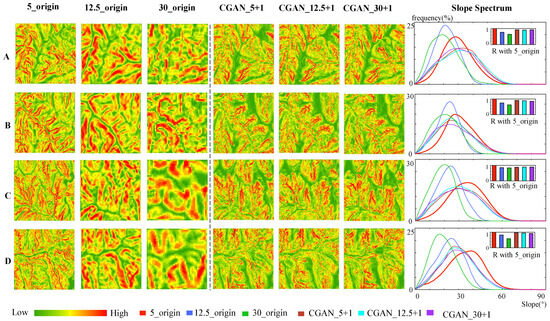

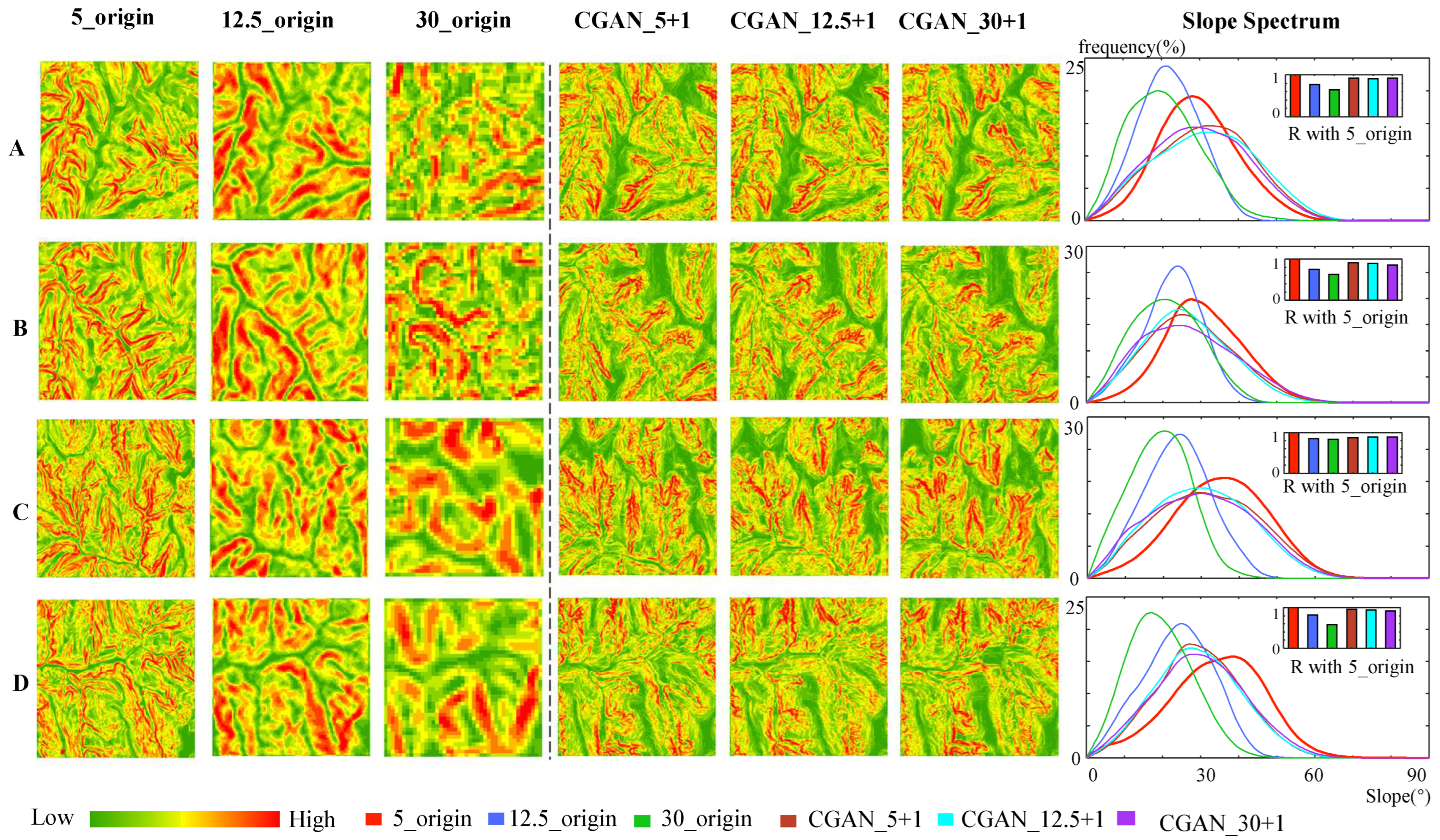

This study compared the slope maps and spectra of the reconstructed DEMs with the original 5 m DEM extracted using various methods, and the results are presented in Figure 9. The analysis results of the slope of the original 5 m DEM and the reconstructed DEM at three different resolutions revealed that all three deep-learning methods demonstrate a superior performance in reconstructing the 5 m DEM compared to the 12.5 and 30 m DEMs’ reconstruction results, as depicted in Figure 9. The 5 m DEM’s reconstruction provides a clearer and more detailed portrayal of the gully than that of the 12.5 and 30 m DEMs, particularly in terms of detail.

The comparison results of the slope profiles of different datasets indicate that the reconstructed slope trends of the 5 m DEM, which utilizes the deep-learning method, are significantly consistent (as illustrated in Figure 9), and the correlation with the slope curve of the 5 m DEM is high. All the reconstructed slopes propagate the same peak and slope configurations as the extracted slope of the original 5 m DEM, whilst also displaying higher slope reductions than the 12.5 and 30 m DEMs’ expressed slopes. In relatively complete watershed areas, the slope histogram is approximately a Gaussian distribution. Low-resolution DEMs fail to represent the small areas containing high slopes effectively due to the effects of external natural aspects, such as wind and water forces. Therefore, the slopes extracted from the 5 m DEMs obtained by the three deep-learning methods are close to those extracted from the original 5 m DEM.

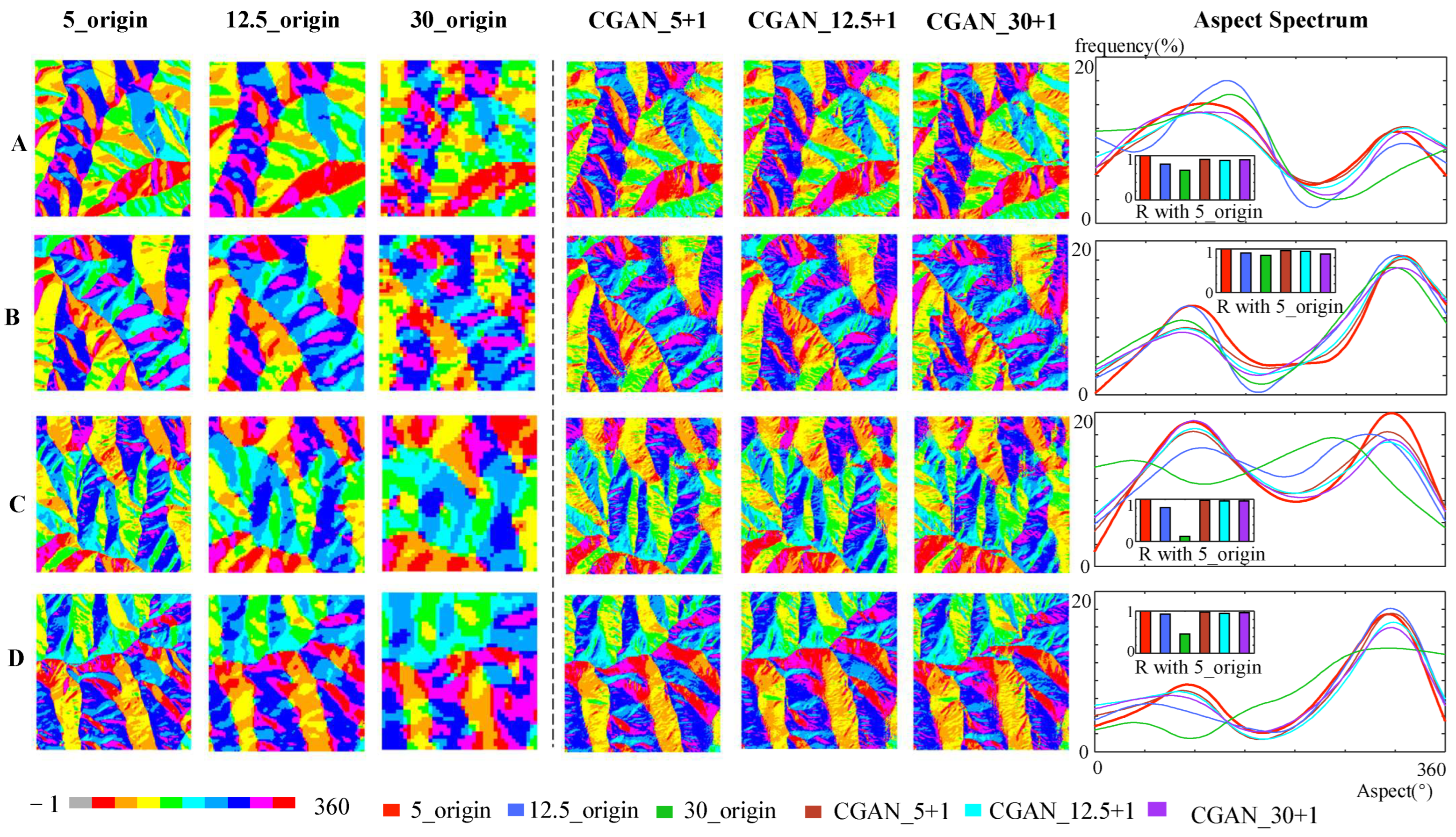

The aspect indicates the direction with the largest elevation change and helps determine the orientation of the terrain slope. Aspect information can be derived from sunlight, which is critical for plant growth and temperature. In the geographical studies, the aspect map is an image represented with element values ranging from −1 to 360. The aspect is categorized into eight directional interval values. When the aspect graphs of the three sets of original DEMs and the three sets of reconstructed DEM data were analyzed in eight directions (as shown in Figure 10), the datasets demonstrated significant differences in aspect expression, particularly those derived from the 30 m original DEM, compared to other datasets. This finding suggests that the resolution has a significant influence on the aspect. The aspect of the 5 m DEM extracted by the three deep-learning methods was closest to the original 5 m DEM, with the same trend noted in the reconstructed 5 m DEM. This finding demonstrates that this model works well for aspect expression and can effectively recover the aspect information of the original DEM.

4. Discussion

4.1. Effect of Similarity of Topographic Skeleton

4.1.1. Influence of the Topographic Skeleton Length

The ability to reconstruct the 5 m DEM from three different-resolution DEMs is primarily determined by the topographic skeleton, specifically the extraction of the topographic skeleton’s lines from the DEM. The gully line is used as a constant value in this experiment for reconstructing the DEM from the three data sources. Therefore, the reconstruction effect primarily depends on the ridge and valley lines. The extraction results of ridge and valley lines depend on the chosen threshold of flow accumulation. Due to different resolutions, the same threshold will cause significant differences in river network length, resulting in severe distortion when reconstructing DEMs at other resolutions (Figure 11). Therefore, a threshold transformation is needed to better enable other resolution DEMs to obtain an approximation of training 5 m DEMs. Similar input terrain skeletons guarantee similar output 5 m DEMs from the deep-learning network. From Figure 11, it can be seen that the distortion is larger when the 12.5 m and 30 m DEMs are used with a threshold of 2000. The ridge and valley lines of the 30 m DEM are missing when the threshold is too bad, resulting in a loss of control over the terrain, causing great deformation. The reconstructed 5 m DEM is less distorted compared to the original 5 m DEM after using the converted threshold obtained from Section 2.4.

4.1.2. Influence of the DEM Grid Size

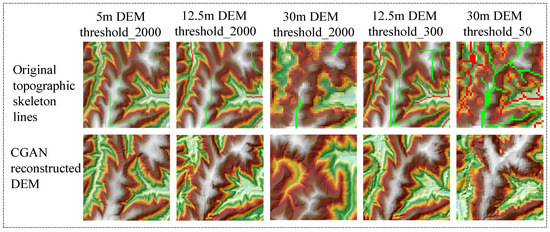

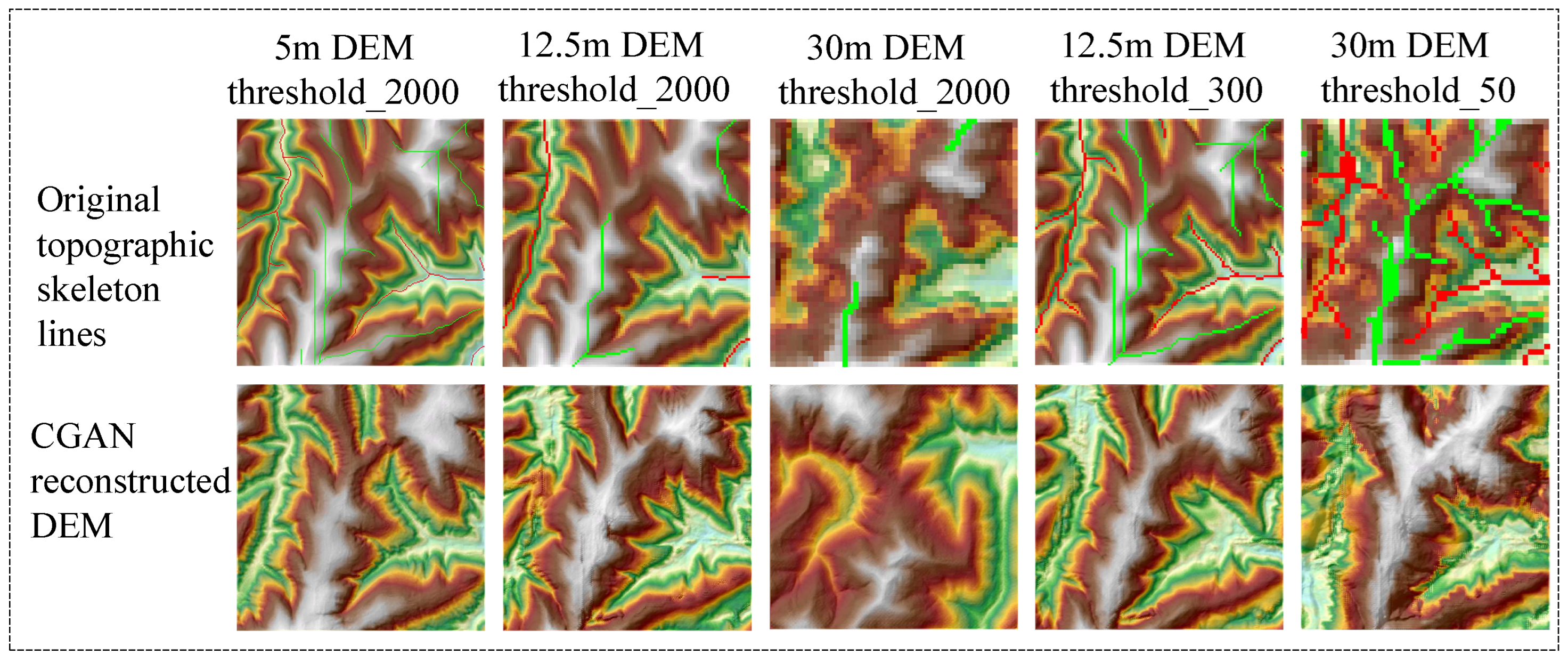

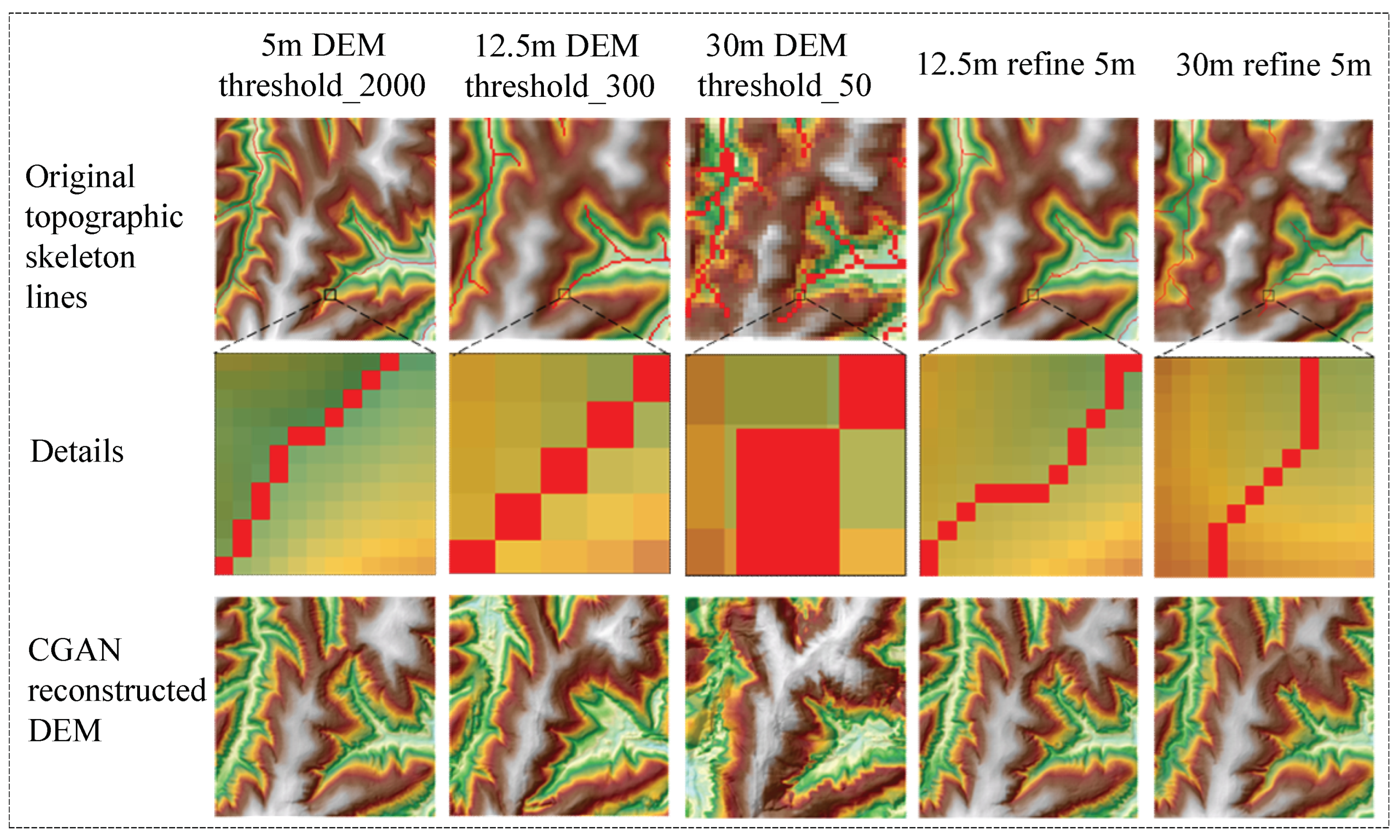

Although the ridge and valley lines at the same length constrain the generation of the terrain, it can be seen through Figure 11 that the 12.5 m and 30 m DEMs are still greatly distorted when utilizing the same length of skeleton lines as the 5 m DEM. Therefore, further work is needed, which is performed by refining the skeleton lines extracted from the 12.5 m DEM and 30 m DEM to obtain the same grid size of skeleton lines as that of the 5 m DEM. Figure 12 illustrates the terrain reconstructed by CGAN with different DEM resolutions at similar spatial locations and the same length of the river valley. When the difference in image elements between the 5 m grid and the training image element is large, the generated topography offset is high, resulting in a poor reconstruction effect. Therefore, refining the topographic skeleton lines of other resolution DEMs to the same grid size as the 5 m DEM is necessary.

4.2. Difference with the Traditional Interpolation Method

The traditional interpolation method uses mathematical rules for inferring unknown points’ values from the existing points. This method works well in the regions with flat terrain. The deep-learning method proposed in this paper is dependent on the terrain skeleton, so it is more effective in regions where the terrain skeleton is obvious (i.e., mountainous areas) but less effective in regions where the terrain skeleton is unobvious (i.e., a chain of undulating hills without obvious ridge and gully). The traditional interpolation method makes it hard to increase the additional information into the original data, while the deep-learning method has established a nonlinear fitting relationship through a large number of training data, and can add information through the established mapping relationship between the terrain skeleton and the DEM, which makes it possible to recover the terrain. This also explains the superior results of the deep-learning method.

Table 4. The difference with traditional interpolation method.

Method	Advantages	Limitations
Traditional interpolation method	Easy to use and works well for low-relief areas	The accuracy is relatively low in high-relief mountainous areas
The proposed method	Works well for areas with a distinct topographic skeleton and can increase the information contained in the training data	Methods are complex and require more priori data

demonstrates the difference between the deep-learning method in this paper and the interpolation method.

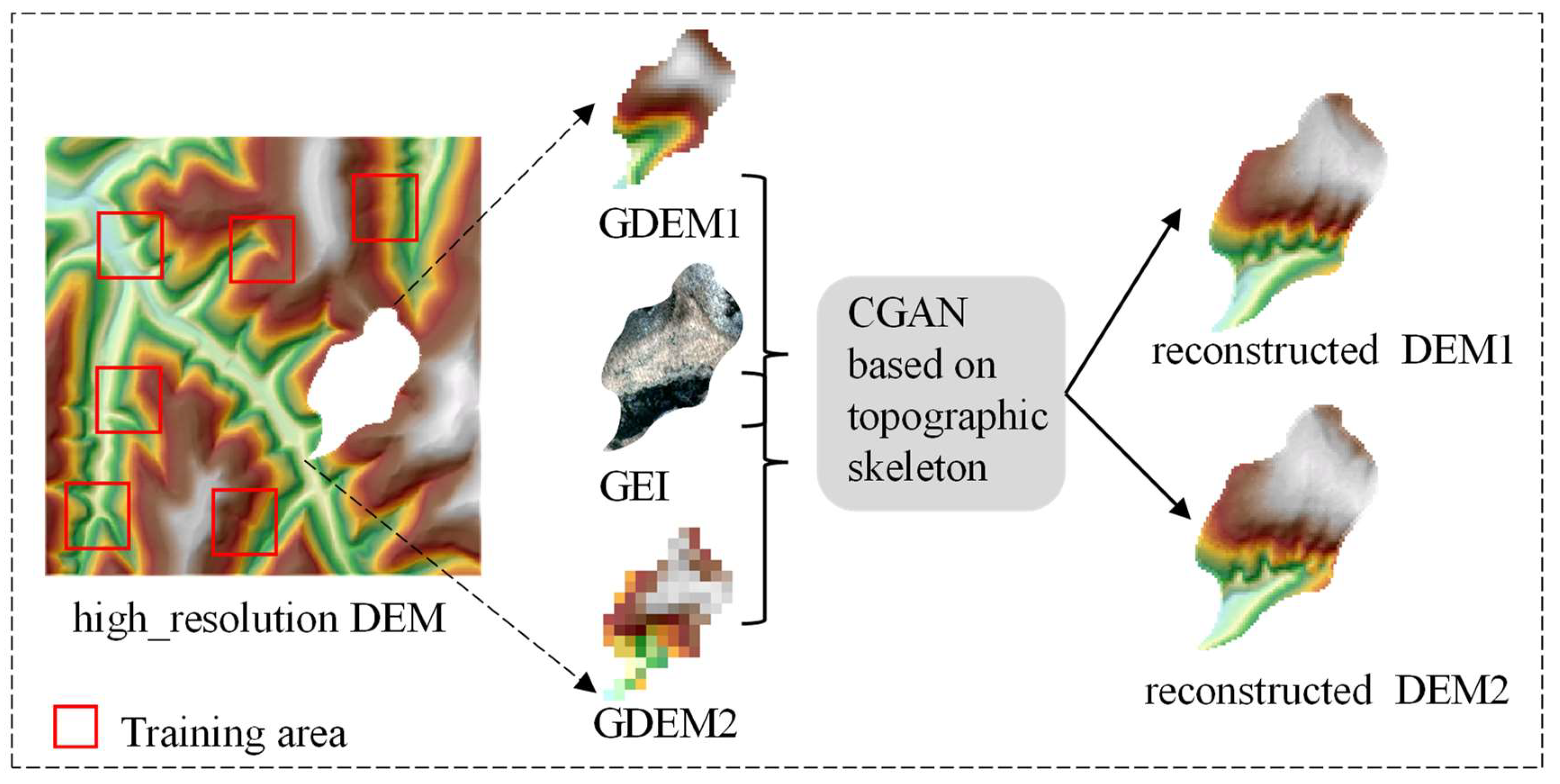

4.3. Application of the Void Filling of DEM

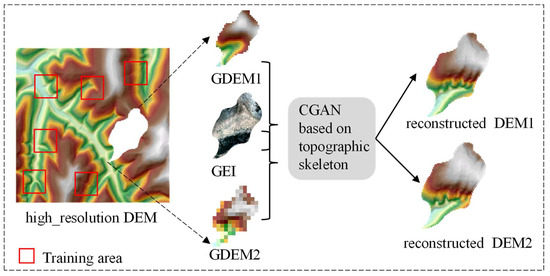

Nowadays, the mainstream acquisition techniques of DEM are mainly optical photogrammetry and radar interferometry; the former is susceptible to other factors, such as clouds, fog, etc., and the latter is of poorer quality in complex areas, such as mountainous regions, and prone to cause voids. The method proposed in this paper significantly outperforms traditional interpolation methods. Thus, this method can utilize existing data for training and extract topographic skeleton lines by GDEM to fill in voids in some high-resolution DEMs. As illustrated in Figure 13, if we have a high-resolution DEM for a certain study area but it contains missing data that need to be filled, we can utilize the existing data for training to establish the relationship between terrain skeleton lines and the DEM. Then, we can use an open-source GDEM to extract the terrain skeleton lines for the missing parts and transform the same length and grid conversion. Finally, we put the transformed terrain skeleton lines into the trained network to obtain terrain reconstruction.

5. Conclusions

This paper presents a framework for reconstructing high-precision DEM, using GEI, GDEM, and CGAN, which utilize feature-recovery details in computer vision. Topographic skeletons (valley, ridge, and gully lines) were extracted from GDEM and GEI. These elements are used as constraints to generate the DEM, using the CGAN model. Different combinations of topographic skeletons extracted from 5 m, 12.5 m, and 30 m DEMs and 1 m GEI were compared for reconstructing 5 m DEMs. The generated DEM is evaluated on the basis of its visual effect, accuracy analysis, and terrain factor analysis. The experiment’s results show that the 5 m DEMs generated with the three deep-learning methods are all similar to the original 5 m DEM (reference data), which provides a markedly increased level of terrain detail information when compared to the traditional interpolation methods. From the perspective of elevation accuracy, the correlation of reconstructed DEMs from three deep-learning methods to the original 5 m DEMs exceeds 0.9, while the vertical accuracy of the 12.5 m + 1 m combination is obviously higher than that of the 30 m DEM + 1 m GEI combination. From the perspective of topographic factors, the distribution trends of the reconstructed 5 m DEM are all close to the reference data in terms of the extracted slope and aspect. This study enhances the quality of open-source DEM and introduces innovative ideas for producing high-precision DEMs. In regions where the field survey of high-precision DEMs is difficult, open-source DEMs combined with GEI can be used in high-precision DEM reconstruction.

The difference in the effect of DEM generation from the extracted elements of different datasets primarily stems from the accuracy of the topographic skeleton extraction. Extracting topographic skeletons from open-source DEMs and GEI yielded a similar effect to the extraction of such elements from a high-precision DEM. Consequently, modeling DEMs based on open-source DEMs and GEI produces results that are similar to those of the original high-precision DEM.
