The Radar Signal Processor of the First Romanian Space Surveillance Radar

Abstract

This paper describes the work for the radar signal processor, the core of the Cheia space surveillance radar. It presents the basic operation, the requirements and the achieved processing performance together with a description of optimizations both in terms of signal-to-noise ratio and in terms of software processing. The Cheia Radar is financed by the European Space Agency and will be used for the tracking of low Earth orbit objects and for refining the international catalogs of space objects.

1. Introduction

Founded according to a decision in 2014 by the European Parliament and Council [1], the Space Surveillance and Tracking (SST) Consortium is currently composed of seven Member States of the European Union (EU), including Romania. As defined in [1], the SST system is a network of ground-based and space-based sensors capable of surveying and tracking space objects, together with processing capabilities focusing on providing information and services on space objects that orbit around our planet.

In order to extend and improve Romanian contribution to the EU SST system, studies have been undertaken by the Romanian company Rartel, funded by the European Space Agency (ESA), for the evaluation of the existing infrastructure that could be used for this scope. The purpose of a new Romanian SST Radar sensor is to detect and track objects and space debris in the low Earth orbit (LEO), in order to improve the orbital information of such objects and contribute to a European database for space debris.

It was decided that a promising option is to retrofit the two existing C-band 32 m dish antennas, built and originally commissioned in 1976 and 1979, available in the National Space Communication Center in Cheia [2], situated 120 km north of Bucharest. A subsequent project [3] has expanded the study into assessing the status of the antennas, considered at a system level, and the main changes and improvements which should be implemented to design and build a ground-based SST radar, by using a quasi-monostatic configuration, where one antenna is transmitting and the other is receiving.

This paper describes the processes of design, implementation, and testing of the software and hardware blocks that make up the signal processor (SP) of the Cheia SST Radar. Section 1 presents similar signal processing systems from other radars. Section 2 contains the description of the Cheia Radar system and the purpose of its signal processor. Section 3 shows the results of the signal processor benchmarking. The paper ends with the Conclusions.

State of the Art

Modern radar systems are complex signal processing systems, built of subsystems and functional components which interact with each other via well-defined and often standardized interfaces. The signal processor is one of the most important components, as it is responsible for generating the output information used to detect targets. The signal processors of several space radars are detailed in the following paragraphs.

The Italian Bistatic Radar for LEO Tracking (BIRALET) uses a radio frequency (RF) transmitter located close to Calgari, Sardinia, with a fully steerable 7 m diameter parabolic antenna and up to 10 kW of output power [4,5]. The receiver is located 20 km away, close to San Basilio, Sardinia. This bistatic P-band (420 MHz) radar receives the target-scattered signal with a 64 m parabolic antenna and feeds it to an RF receiver block, which is intended for increasing the signal-to-noise ratio, changing the polarization from linear to circular, noise calibration, and selecting a 20 MHz bandwidth of the received signal with a bandpass filter. The next subsystem of the BIRALET radar is the new back-end that is capable of measuring also the slant range of the target, together with the Doppler shift. The new back-end uses a commercial field-programmable-gate-array (FPGA) software-defined-radio (SDR) ETTUS/NI USRP 2954R board. A second one is installed also in the transmitter subsystem, with the purpose of generating the digitally modulated signal to be transmitted. Both are synchronized with Global Positioning System (GPS) timing signals.

The received signal outputted by the RF receiver passes through an antenna focus selector and a power combiner, and then is fed to the USRP, where it is conditioned, down-converted to a frequency of 10 MHz, and digitized using 14 bits. The resulting in-phase and quadrature data are stored and processed on a workstation. This is using the ETUUS drivers, a LabView radar processing application, and a graphical user interface (GUI). The processing program generates the slant range and Doppler shift measurements of the detected target. A matched filter is used for correlating the well-known transmitted signal, with the unknown received signal, in order to detect the presence of the transmitted signal in the unknown signal. The matched filter is an optimal linear filter for maximizing the SNR in the presence of additive stochastic noise [4]. The transmitted waveform is a mixed signal composed of a frequency-modulated continuous wave (FMCW) signal (chirp), plus a CW tone, with an overall bandwidth of 5 MHz. The pulse repetition interval and pulse repetition frequency of the chirp assure the detection of targets at distances up to 3000 km. Because of the mixed transmitted signal, the system acts as a pulsed radar and also as a CW radar. The GUI contains the control panel, the status display, the measurements extractor, a spectrogram, and plots for range and Doppler for the received signal.

Another European sensor is ATLAS, a tracking radar system for space object detection situated in Portugal, operating in the C-band (5.56 GHz). It is a monostatic pulse radar with a maximum transmission power of 5 kW for tracking debris objects in LEO. The receiver stage is completely coherent, with completely digital detection and processing, with a bandwidth of 50 MHz, and with the capability to detect Doppler speeds up to 10.79 km/s [6]. The receiver includes an analog block that has the role of amplifying the input signals to the necessary digital input levels of the analog-to-digital conversion ADC board. The receiver begins with a low-noise amplifier. Next, there is a mixer to convert the input signal down to a 400 MHz intermediate frequency. The down-converted signal then passes through a bandpass filter and a digital variable gain amplifier, which is commanded by the controller board.

At last, the in-phase/quadrature detector demodulates the input to the baseband and outputs the I and Q parts of the echo signal. The data acquisition contains the acquisition board and a single-board computer. The acquisition is commanded by the controller board and is in charge of converting the I/Q signal parts to the digital domain, by using two 16-bit ADCs at a maximum sample frequency of 100 MS/s. The I/Q signal in the digital domain is fed to the computer (an MIO 2360 from Advantech headquarted in Taipei, Taiwan), which performs the required digital signal processing [6]. Communication between the acquisition board and the single-board computer is conducted via universal serial bus USB 3.0 (100 MS/s). A Fast/Slow mode buffer is available, acting as an alternative between increased sample resolution and increased sample rate.

The Spanish Space Surveillance and Tracking Radar (S3TSR) is an L-band (1400 MHz) radar, that works in a close monostatic configuration. Its architecture is scalable and is using electronically scanning arrays as transmitter and receiver antennas. The receiver uses direct Radio frequency undersampling technology. Each reception module, which is connected to four antenna array elements, employs four RF blocks for low noise amplification, filtering, and equalizing the signal, as well as a divider and switches for inserting a test signal in the four channels from a common input. The test signal is necessary for synchronization and calibration uses. The four augmented RF signals are fed to ADCs and the digital samples are used by a high-performance FPGA for digital down-conversion and beamforming. The receiver (Rx) array connects with the Processing and Control system inside the Rx Building. It includes the subsystem for the generation of all signals (transmitter Tx, test, and reference oscillator) required by the Rx antenna and the up to three Tx antennas. It also contains power amplifiers for the reference oscillator and test signal used by the Rx antenna, as well as passive splitting networks for both signals [7].

Signal and data processing capacities are offered by commercial high-end computers. They are integrated into the Processing and Control system. The signal processor is working on a single computer fitted with a PCIe board with fiber optic communication and a high-end FPGA. This board connects with the Rx array controlling and receiving the beamforming channel samples from the Reception Modules. It is responsible for the final stage of beamforming, concerning the integration of samples from the different antenna array rings. Samples for all Rx antenna patterns are fed to the processing software running on host processors through PCIe interfaces. The results of the signal processor are target detections that are fed to the Data Processor (DP). Initially, a correlation operation is applied by the DP for generating a sum plot of all detections for the same object at the same moment, obtained from processing the different Rx beams of the group assigned to the same Tx signal. The DP is responsible for the object tracking process, which starts with the results of the correlation operation. The tracking involves the identification of the group of plots that are generated by the passing of a space object through the field of view and the elimination of the false alarm plots generated by noise. For this scope, a recursive Least Square Error minimization algorithm is used, with an improvement of the track state vector in each iteration. After a trace is obtained, the set of related plot data, consisting of measured positions and radar cross-section estimations, is organized and sent to the connected users. The DP performs also a continuous recording and data dissemination task. Users connected to the radar through local or remote connections can ask for raw plots and track data from the recorded period. The signal and data processing algorithms are implemented in standard C/C++ language and executed on real-time Linux [7].

Another European space debris radar system is the German Tracking and Imaging Radar (TIRA)-Effelsberg bistatic system. It contains a 34 m fully computer-controlled parabolic antenna with a Cassegrain reflector, installed in Wachtberg, Germany. It can operate both in L-band (1.33 GHz) as a narrow-band monopulse fully coherent tracking radar and Ku-band (16.7 GHz) as a high-range resolution imaging radar [8]. The L-band transmitter of TIRA can transmit high-frequency pulses, usually from 1 to 2 MW peak power, in Right-Handed Circular Polarization (RHCP), while the Ku-band transmitter has a peak power of 13 kW. Working as a monostatic radar, the TIRA can detect objects with a diameter of 2 cm at a range of 1000 km. Moreover, when connected with the Effelsberg radio telescope of the Max-Planck-Institute of Radio Astronomy (MPIfR), comprising a parabolic dish with a diameter of 100 m located in Bad Münstereifel (Germany), used as a receiver, the size of detectable objects reaches 0.9 cm in diameter. The TIRA antenna can be turned at a radial speed of 24° per second and is protected inside a radome [9].

GESTRA (German Experimental Space Surveillance and Tracking Radar) is a quasi-monostatic scientific radar. This L-Band phased array radar is designed to monitor the low Earth orbit. It supports the German Space Situational Awareness Center to generate a catalog of orbital data for objects at altitudes between 300 and 3000 km. It was developed at the Fraunhofer Institute for high-frequency physics and radar techniques, based in Wachtberg, Germany [10]. The radar uses different antennas and shelters for transmitting and receiving. They are set up at a distance of about 100 m. Both antenna apertures consist of 256 active cavity-backed stacked patch antennas in a circular arrangement, whereby the transmitting radiators are excited with linear polarization, and the receiver’s radiator elements are designed with double polarization. The corresponding transmitter modules at the rear of the transmitting antenna are water-cooled. The receiving antenna uses the principle of digital beamforming. In addition, the antenna array can be rotated in any direction using a mechanical steering system [11].

GRAVES (Grand réseau adapté à la veille spatiale) is a bistatic radar system operated by the French Air Force in the VHF band at 143 MHz for orbit determination of artificial earth satellites at an altitude up to 1000 km. It is a space surveillance system developed by the French Aerospace Research Establishment (ONERA). It is a full electronic scanning bistatic continuous wave (CW) sensor, operating in very high frequency (VHF), using Doppler detection and digital beam forming reception technique. It transmits in up to three envelopes, at different elevations, for maximizing the number of detected targets. The transmission is implemented using a phased array and the reception is by a technique of digital beam forming [12]. The reception array comprises 100 antennas distributed over a metallic disc forming a ground-level surface. Each antenna is linked to an individual receiver whose signals are then digitized. The addition, in phase, of all the signals issuing from the reception antennas results in the creation of a vertical reception beam equivalent to that which would be created by a single antenna of the same size as the disc carrying the antennas.

With the signals issuing from each antenna being digitized, it is possible to assign to the signal from each antenna a specific phase shift. The choice of an adapted phase set allows the creation of a beam oriented in any direction, not simply the vertical. This technique of digital beam forming allows, given a real-time calculator of sufficient power, simultaneous observation in all directions potentially illuminated by the transmission. The detection of the satellites is then made possible with a Doppler technique by applying a Fourier transform to the sum signal. The transmitter site is located at Broye-Aubigney-Montseugny, and the receiver site is 364 km south of it at Revest-du-Bion. The radar was put into operation in 2005.

The ABISS project (Antenna BIstatic for Space Surveillance) is a ground-based surveillance radar demonstrator for European Space Agency. This European Space Surveillance radar breadboard is a bistatic system that is located on two separate sites in the northern part of France around Paris. This radar operates in L-band for the detection of space objects over a steerable Field of Regard (FoR) defined as 30° in azimuth by 25° in elevation oriented preferably to the south. One of the advantages of such a system is its operation with a continuous wave (CW) signal, which is easier for spectral management as it is strictly limited to the carrier frequency. The demonstrator has been designed on the basis of simulations of performances, as a radar which should have a reference detection range at 500 km for a reference target of 0 dBm² as radar cross section (RCS) for a revisit time of 10 s, meaning that the beam of the radar should revisit the same azimuth and elevation position within 10 s. These are the reference values that have been used in the power budget computation for the design of the system. The principle of the detection for such radar is only based on Doppler measurement; there is no evaluation of the distance of the target.

The transmitting system (Tx) is constituted of one antenna array of surface area 1.5 m² with 49 radiating elements, and 49 CW solid state power amplifiers, controlled in both phase and gain, associated with each radiating element. All electronic equipment for transmitting and control is in a shelter. The antenna array is set up under a radome on the roof oriented to the south. The positioner which hosts the antenna array can be steered through +/−90° in azimuth around a central position oriented in the south direction, and 0° to 90° in elevation. The receiving site (Rx) is within the ONERA center in Palaiseau. The antenna panel, with a surface area of 10.5 m² and 64 receiving antennas, is installed on the roof of an office building. The antenna array can be steered through +/−90° in azimuth around a central position oriented in the south direction, and it can be inclined from 0° to 90° in elevation. The receiving system is constituted of 64 analog front-end stages in one cabinet, four digital receivers with sixteen channels, and a cluster of ten computer servers to process the data.

The Field of Regard is completely covered with an average gain greater than 22 dB. The signal processing implemented in the radar consists of Doppler/acceleration measurements (i.e., speed estimation), detection, and monopulse compression for precise direction finding. As the Field of Regard is covered by 10 positions of the transmitting beam in 10 s, one second of signal is analyzed at each position. Consequently, the coherent integration time is 1 s. Thus, detections of objects that pass through the Field of Regard are characterized by Doppler traces versus time. The passage of one space object is signaled by a series of closely spaced radar plots. Each extracted plot contains all measurement parameters, namely azimuth, elevation, Doppler (speed), radial acceleration, and time of detection. Tracking of a previously detected target is realized with consecutive plots using the Track-While-Scan (TWS) method, which combines both search and track functions [13].

CASTR (Chilbolton Advanced Satellite Tracking Radar) is an S-band radar mounted on the 25 m steerable antenna at the Chilbolton Observatory in southern England. The dish is a fully steerable elevation over azimuth mount and is capable of tracking most satellites in LEO. A pulse repetition frequency (PRF) of 71.428 Hz, corresponding to a pulse repetition interval (PRI) of 14.0 ms and a maximum unambiguous range of 2100 km, was chosen so as to achieve alias-free range measurements for targets in low Earth orbit (LEO). Under these conditions, although the peak power is some 700 kW, the average transmitted power is only 25 W. The system’s polarizer was configured to transmit pulses of fixed, horizontal polarization, while the radar’s receivers simultaneously recorded both co-polar (horizontal, H) and cross-polar (vertical, V) target returns [14].

2. Materials and Methods

2.1. Radar System Description and Purpose of Radar Signal Processor (SP)

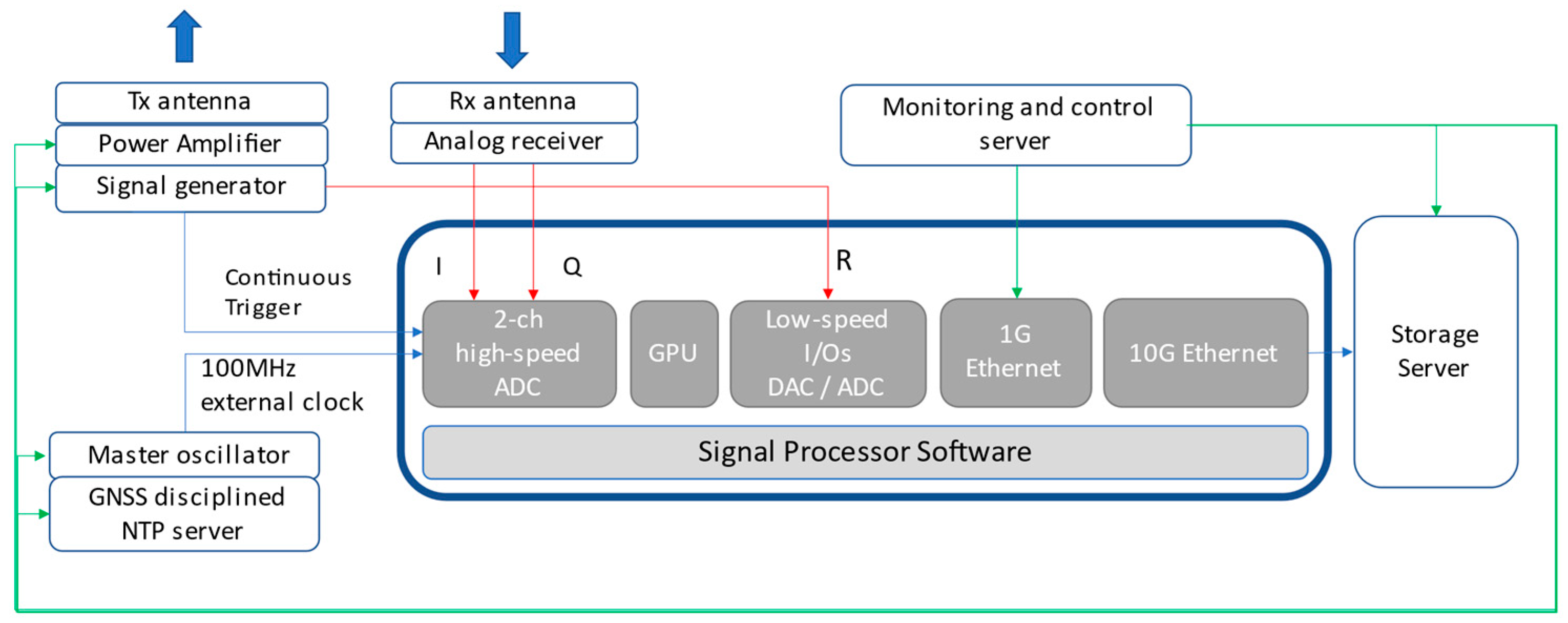

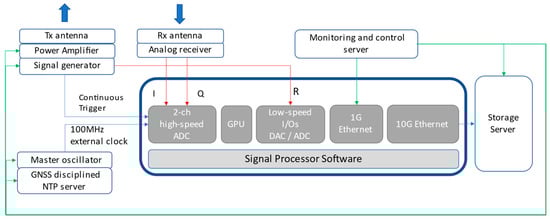

The Cheia Radar set-up has been finalized and has begun functional tests at the end of 2022. The ultimate set-up of the space radar installation is shown in Figure 1, containing: a transmitter (Tx), receivers (Rx), monitoring and control (M&C) server, and other subsystems.

The master oscillator (MO), the signal generator and the power amplifier (PA) are subsystems of the Tx. The transmitted signal and trigger pulses are generated by the low-noise signal generator, which is controlled by the M&C server and uses a reference signal from the MO. The generated signals are increased to the necessary level by the linear PA and then fed to the Tx antenna. A limited fraction of the transmitted signal is withdrawn in order to be employed as a local oscillator signal in the receiver [15].

The input signals are received by the Rx antenna, filtered, frequency translated/demodulated, and amplified into the Rx subsystem, to the level required for the best functioning of the analog-to-digital converter (ADC), that belongs to the signal processor (SP) [16].

The RF receiver (Rx) and the signal processor (SP) are the components of the Cheia radar’s receiver. The SP transfers the input signal into the frequency domain, time stamps, and analyzes it, using a constant false alarm rate method. The output is the space object’s range, relative speed and signal-to-noise ratio (SNR), which is used to evaluate the target’s radar cross-section. These output data are transferred to the M&C server. The M&C server is a computational system that controls the radar’s functioning through software process-based commands, implemented through the M&C software [17]. The hardware specifications and the functional parameters of the radar can be found in [18].

The purpose of the SP is to acquire analog data from the receiver, transform it into digital data, process it, detect space objects and describe their trajectory (distance to the object in time, speed of the object in time). A full system schematic is drawn in Figure 1 below where one can see top-level data exchange between the components of the radar.

The radar’s signal processor is a 4U Xeon server fitted with high-speed high-resolution ADC cards used in acquiring analog signals from the receiver and also fitted with a high-performance GPU used to accelerate digital data processing. The SP runs a Linux-based OS and on top of it a full suite of drivers topped with the FSM (finite state machine) of the SP, the top-most level software running on it.

2.2. The Hardware of the Signal Processor (SP)

In

Table 1. Components and characteristics of the signal processor.

Component Type	Model	Purpose
CPU	Intel(R) Xeon(R) W-3223 8C/16T @ 3.50 GHz	Runs the OS. Moves data to/from GPU, builds logs, assures command and control
GPU	Tesla V100S-32 GB/5 k cores	SIMD accelerator: parallel processing for digital wave data
ADCs	AlazarTech ATS9462, 2 × 16-bit data @ 180 MSa/s	Acquires analog data from the receiver and converts it to digital data
NIC	10 Gbps	Interface used to transfer acquired data to storage server
NIC	1 Gbps	Interface used to receive command and control from M&C system
SSDs	1TB PCI-x4 NVMe, Samsung SM981/PM891/PM983	Short-term data storage before transfer to storage server
RAM	3 × 32 GB DDR4 2933 MT/s	Working memory

below, one may see the main hardware components of the signal processor. The SP is a 4U server, with redundant power supply units and enough PCI-e slots to fit all components.

2.3. The Software of the Signal Processor (SP)

The SP runs a Linux-based OS on which a kill-safe multithreaded application runs (SPapp). The application handles the GPU using OpenCL API, the ADCs, the general-purpose IO board which also provides time tags (Ts) for timestamping the received signals, the TCP server which allows SP to be controlled remotely, the WDT, which restarts the SPapp if it becomes non-responsive and last, but not least, a service to reliably move acquired data towards the storage server.

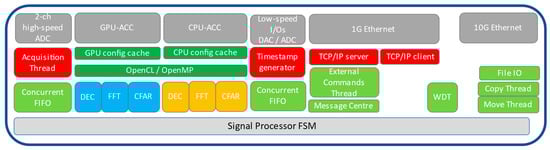

In Figure 2, one may see the layered hardware (gray), and low-mid-high level software (up to down).

2.4. The Performance Requirements for the Signal Processor

The SP should assure real-time data processing of incoming data. Analog data are sampled at 100 MSa/s using 4 channels (two ADCs) of 16-bit; this results in a data rate of 100 M × 4 × 16 = 6.4 Gbps

As seen in Table 2 below, multiple scales for distances between 400 and 4000 km were used (and accordingly multiple settings for RF modulation and digital processing); this is due to the following reasons:

• It allows to keep a constant, relatively small RF bandwidth (2 MHz) which allows the receiver chain to keep noise under control (the noise is a product of bandwidth with spectral density). Constant bandwidth allows simpler receiver design, and one would prefer to modify the parameters of the receiving pipeline, in software (digital domain) in the SP, as opposed to temper with the analog part in the receiver. The complex receiver means complex tuning across different frequencies (we use frequency modulation).
• The power scattered by the target (the echo signal) decreases with a power of 4 of distance, so the further away the target is, the much worse would be for the SNR. This requires a much better noise cancellation algorithm, which requires a larger FFT, which requires a longer signal in time (continuous emission over larger distances requires a longer time-duration of the signal due to longer round-trip time).

There is only one performance requirement, and it is for the processing of an acquired wave, depending on the processing time of this required acquisition, as can be seen in Table 2:

Table 2. Radar scales for different ranges.

Scale Number	Description (Range)	Range (km)	Trigger Period (ms)	Acquired Wave Size (Samples)	Maximum Processing Time (ms)
1	Close	<400	40	256 k	40
2	Mid-close	<900	100	512 k	100
3	Mid-far	<1800	250	1 M	186
4	Far	<3900	500	2 M	290

Table 2. Radar scales for different ranges.

Scale Number	Description (Range)	Range (km)	Trigger Period (ms)	Acquired Wave Size (Samples)	Maximum Processing Time (ms)
1	Close	<400	40	256 k	40
2	Mid-close	<900	100	512 k	100
3	Mid-far	<1800	250	1 M	186
4	Far	<3900	500	2 M	290

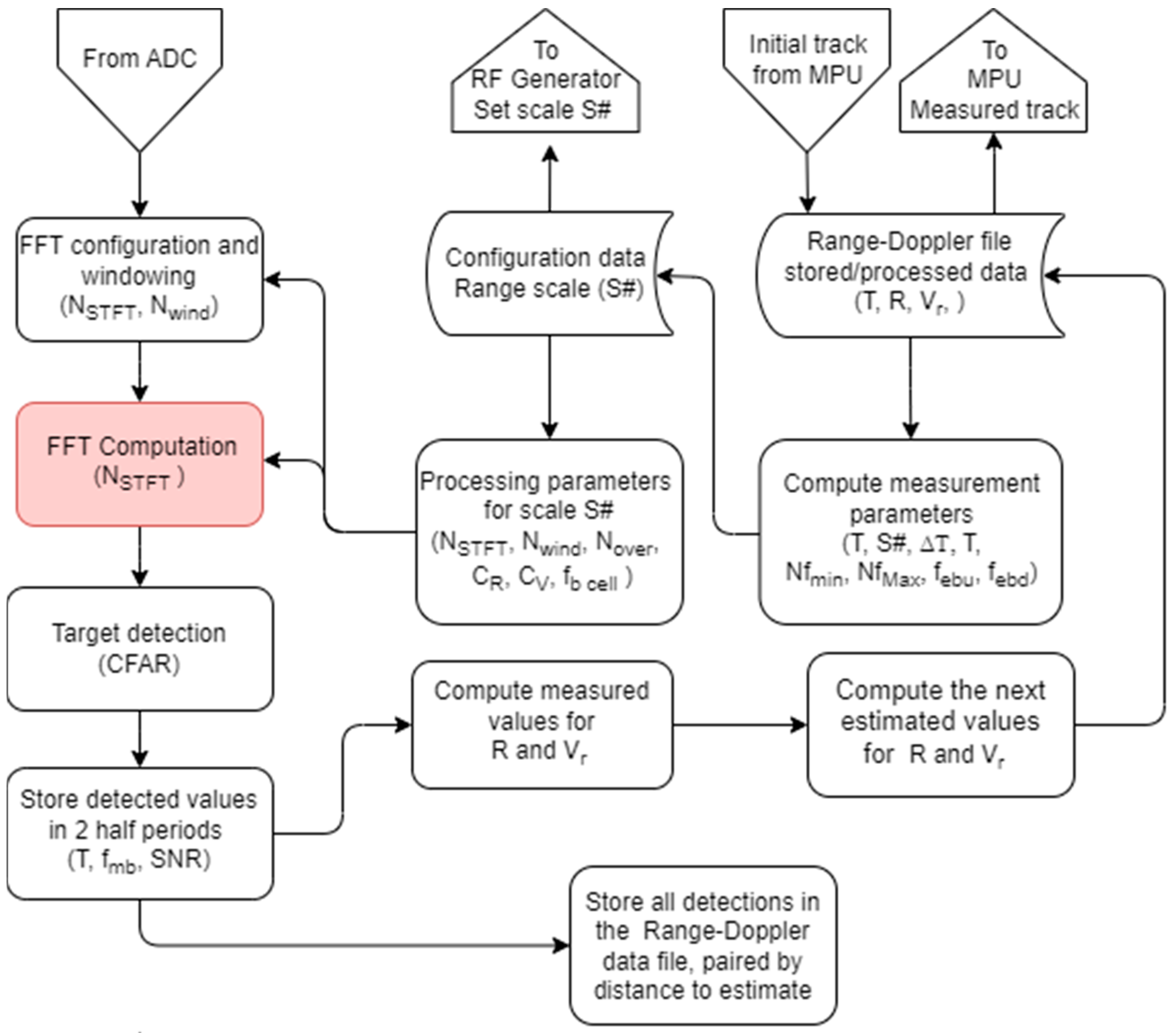

2.5. The FSM of the Main Signal Processor

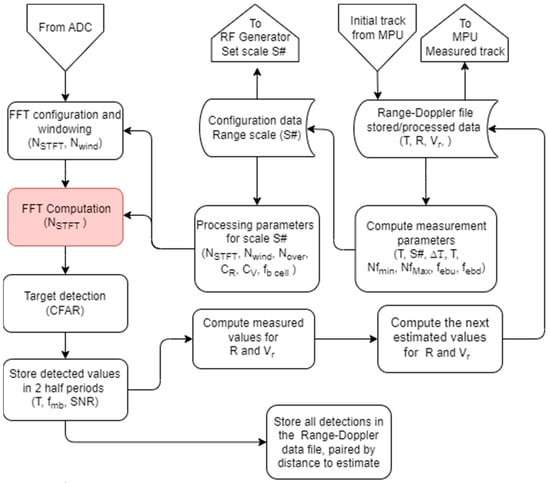

The signal processor acquires data from the receiver, processes it, and logs data and results. In addition to this functionality, it also allows for fine-tuning of its 40+ parameters. Its finite state machine diagram is visible in Figure 3.

2.6. The Modifiable Parameters of the Signal Processor

The behavior of the signal processor may be altered by changing the values of several parameters. A list of such parameters is presented in

Table 3. Working parameters of the signal processor (selection).

Param Index	Param Name	Param Type	Param Description
1	Thr_ADC_AM	Int32	(1) ADC level—threshold value for MSP
3	N_Thresh_AM	Int32	Percent of detections over threshold @ 10 k
5	N_dec	Int32	Decimation factor
6	N_S	Int32	Number of range scales (4, 5 or 6)
7	N_STFT	Int32array	Size for Fourier transforms
8	W_Type	Int32	Windowing type
9	N_cfarSP	Int32	CFAR Number of samples used for avg
10	N_guardSP	Int32	CFAR Number of guard samples
11	K_detCA	Int32	CA-CFAR Detection factor
12	K_detGO	Int32	GO-CFAR Detection factor
13	K_detLO	Int32	LO-CFAR Detection factor
14	CFAR_Type	Text	CFAR algorithm type (CA, GO, LO)
15	KW_det	Fp64	Detection window coefficient for the beat frequencies
16	SFW_det	Fp64	Scale factor for computing the CFAR windows on all scales
17	SC_det	Int32	MSP detections selection criteria
18	KSC_det	Fp64	MSP multiple detection selection coefficient
19	S_Max	Int32array	Maximum range for all scales
20	T_trig	Int32array	Trigger period (UP-DOWN-UP) for all scales
21	Nf_min	Int32array	Min freq bin cell to be processed in all scales
22	Nf_max	Int32array	Max freq bin cell to be processed in all scales
23	C_R1	Int32array	Range computation factor 1 for fbu in all scales
24	C_R2	Int32array	Range computation factor 2 for fbu in all scales
25	C_V	Int32array	Doppler computation factor in all scales
26	Fb_cell	Int32array	STFT frequency cell on all scales
27	R_alpha	Fp64	Range ABG filter coefficient—alpha
28	R_beta	Fp64	Range ABG filter coefficient—beta
29	R_gamma	Fp64	Range ABG filter coefficient—gamma
30	V_alpha	Fp64	Doppler ABG filter coefficient—alpha
31	V_beta	Fp64	Doppler ABG filter coefficient—beta
32	V_gamma	Fp64	Doppler ABG filter coefficient—gamma

.

2.7. Other Considerations Regarding the System Reliability and Performance

A few techniques were used to improve the quality of the signal processor:

• Creating and using a simulator to play back the data without the need for a real space target;
• Using references instead of memory pointers;
• Using the software Watchdog Timer;
• Intercepting all OS signals sent to the application, to graciously close used resources in case of system errors/crashes;
• Auto-restart the app with the last auto-saved settings and commands received from the M&C system;
• All data processing operations were tested against Octave implementation to check for precision loss;
• All computation was performed in double precision (fp64).

2.8. Software Inside the Signal Processor

2.8.1. Software Class Diagram

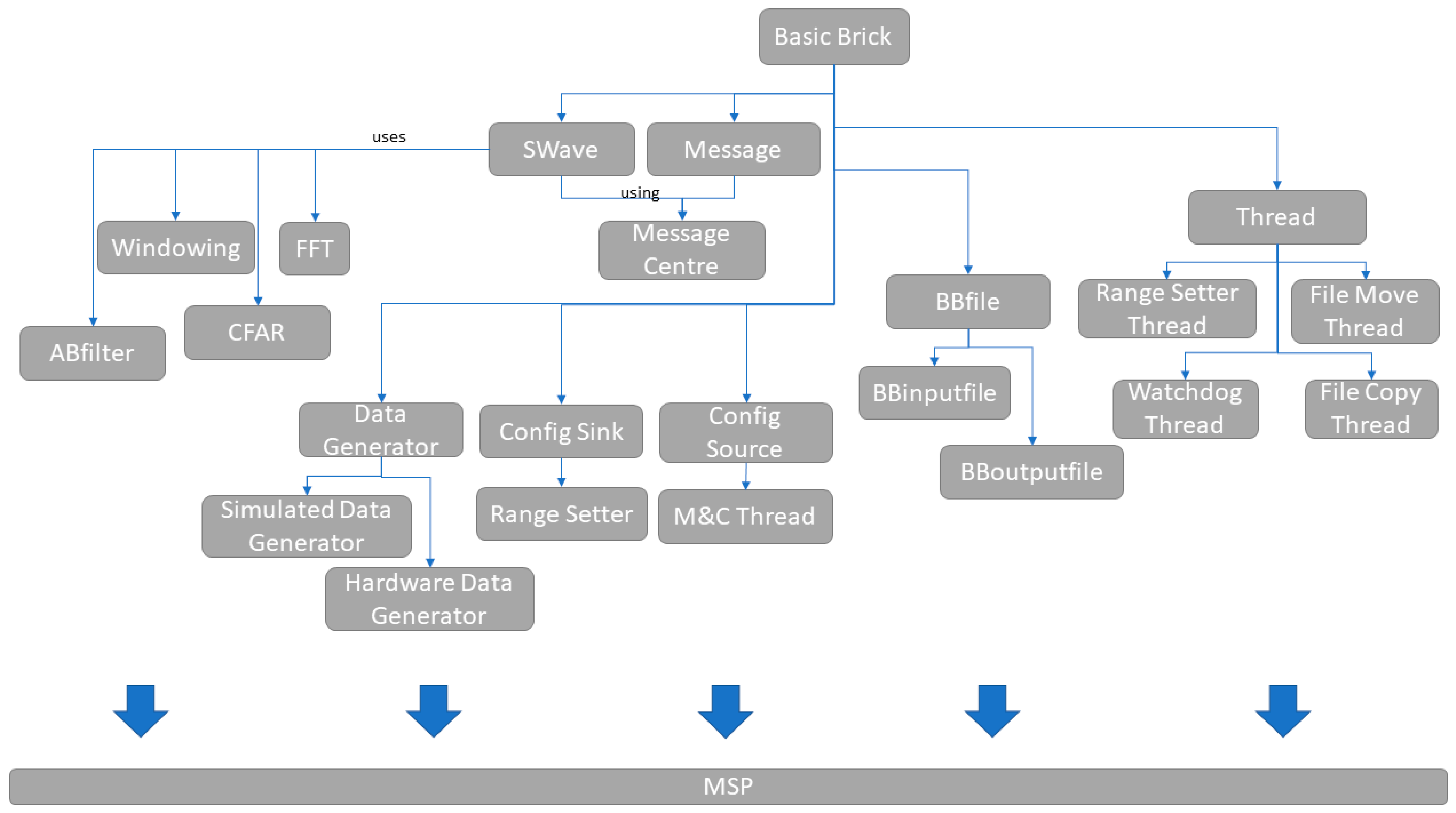

The software for the SP (illustrated in the diagram from Figure 4) is split into various components:

• Components that assure communication with the outside systems (range setter, M&C thread, Message Center, Message);
• Components that assure communication between SP’s components (SWave, ConcurrentQueue);
• Components that assure data processing (CFAR, ABfilter, FFT, Windowing);
• Components that assure data acquisition (Data Generator, Config Sink);
• Components that enable data output (File Move Thread, File Copy Thread, BB*file);
• Components that enable testing;
• Components that assure reliable behavior in case of errors (WatchDog Thread, CPUusage Thread);
• Top-level component of MSP (Main Signal Processor which uses all the other components).

Regarding the data flow, the SP was fitted with an inheritance class hierarchy so that data may come and go from either hardware or software (simulator) source/sink.

2.8.2. Digital Processing Operations

The intensive digital processing operations performed by the SP are:

• DEC (decimation using a custom factor 5);
• FFT (1D complex-to-complex conversion of time-domain to frequency-domain data);
• ABS (absolute value of complex numbers);
• CFAR (applying a constant false alarm rate detection algorithm);
• ABF (alpha-beta filter, for predictive range and radial speed).

DEC (Decimation)

Two versions of decimation with factor F were tested:

• Decimation by sampling: output sample is one of the F consecutive samples;
• Decimation by averaging: output sample is the average of F consecutive samples.

The DEC computation since it was in O(N), was more efficient to be performed in parallel in the CPU using OpenMP.

FFT (Fast Fourier Transform)

The FFT is a faster way (as opposed to DFT) of creating a frequency representation of a periodic signal. Initially discovered by Gauss around the same period of time as Fourier discovered the Fourier transform (1800s), it was rediscovered in the 1960s in the context of Soviet Union-US meetings for differentiating underground nuclear tests from the earthquakes, with the higher purpose of the worldwide partial nuclear test ban. In 1963, it effectively reduced the time needed to process an incoming seismograph data stream of an analyzed event, from 3 years to 30 min (that is the difference between O(NlogN) DFT’s complexity of O(N²)). FFT takes advantage of similarities found in the sinewaves that have the frequencies multiple of the fundamental frequency, which allowed for far fewer multiplications than in DFT. In both cases, FFT and DFT, the more samples the time-signal contains, the more frequency bins we obtain; this is why we thought of using a larger FFT transform to obtain a better determination of frequency components in the radar’s received signal (it effectively reduces noise in that bin and allows for weaker signals to be detected with a frequency-based CFAR algorithm)

We used an OpenCL implementation of O (5*N*log(N)) similar to the Cooley–Tuckey version. In addition, an extra layer of cache was developed (the first run takes more, subsequent ones take less time); in this software cache, we saved the plans (mainly the fiddle factors) and GPU memory allocation buffers and just-in-time compiled programs, for common sizes, so a warm-up phase is executed at application start-up to improved performance on subsequent runs.

ABS (Absolute Value)

The ABS is a straightforward absolute value computation of complex numbers. This is also an O(N) complexity so unless other advantages are drawn running in the GPU, it will be run in the CPU. Since the log is applied to extract SNR, at some point, the sqrt may be skipped (let us note that operation, as absm) by using a factor of 2 afterward (log a^b = b log a).

Assuming $x=a+bi$, a complex number, the $abs(x)=\sqrt{a^2+b^2}$, and therefore the $absm(x)=(a^2+b^2)$.

CFAR (Constant False-Alarm Rate Algorithm)

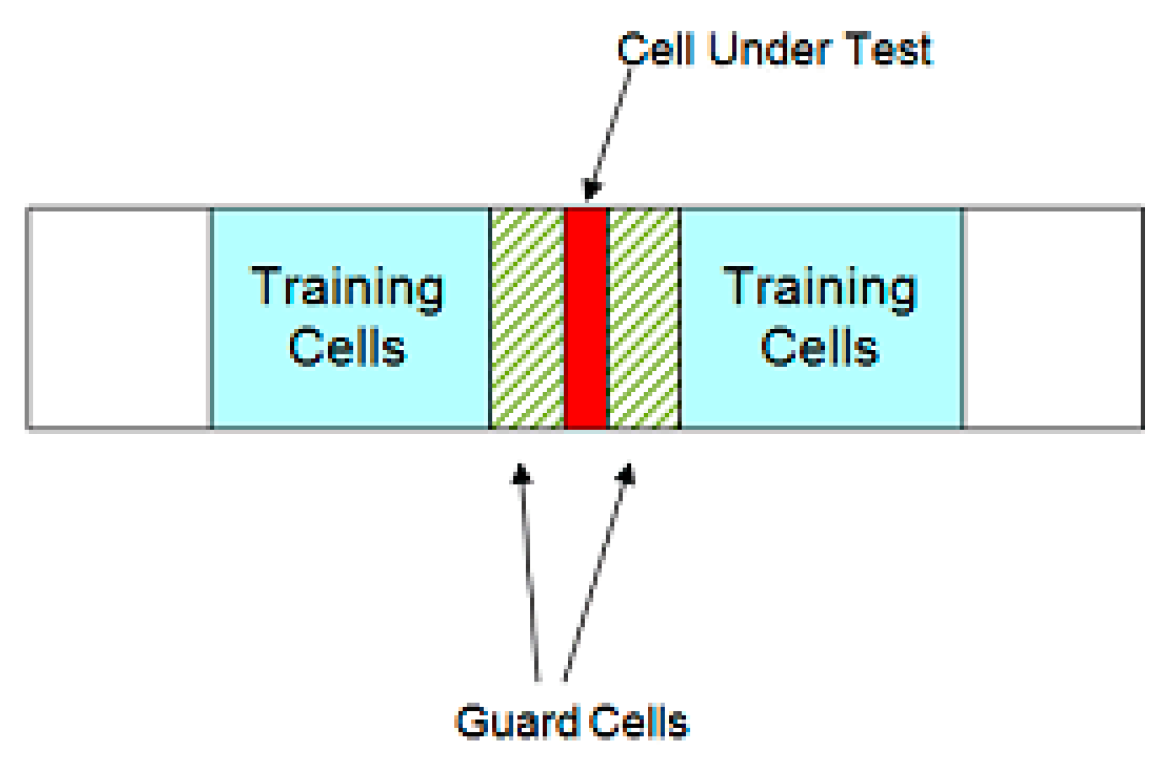

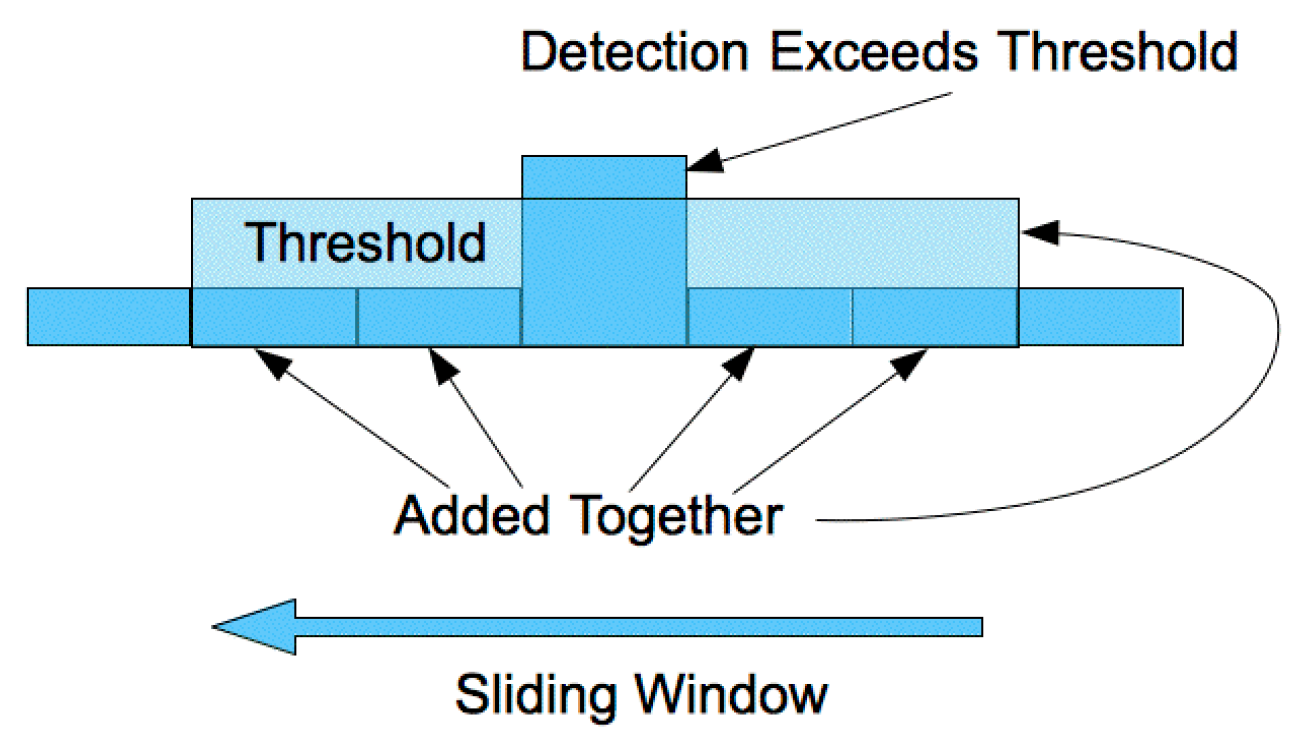

The CFAR algorithm uses a moving window to detect peaks in a wave. It can be used in both time-domain and frequency-domain, to detect local peaks. Local peaks are selected using an average of left training cells and right training cells on one side and the other of the peak-candidate value (cell under test). To avoid false peak detections near an actual peak, usually one uses “guard” samples between the candidate value and the left/right samples, as depicted in Figure 5 and Figure 6.

An avg of left-side training cells is computed AVGL = sum (left_samples)/num_left_samples.

An avg of right-side training cells is computed AVGR = sum (right_samples)/num_left_samples.

There are three versions of threshold calculation, usually used to compute the threshold, depending on how much weight the two halves (left and right) have:

• CA-CFAR (Cell Averaging), Threshold = (AVGL + AVGR)/2;
• GO-CFAR (Greatest Of), Threshold = max(AVGL, AVGR);
• LO-CFAR (Least Of), Threshold = min(AVGL, AVGR).

ABF (Alpha-Beta filter)

The alpha-beta filter was fitted with multiple simulated trajectories to see its behavior when trying to predict the next range or radial speed. An example of the trajectory that was tested may be found in Section 3.1.2 below.

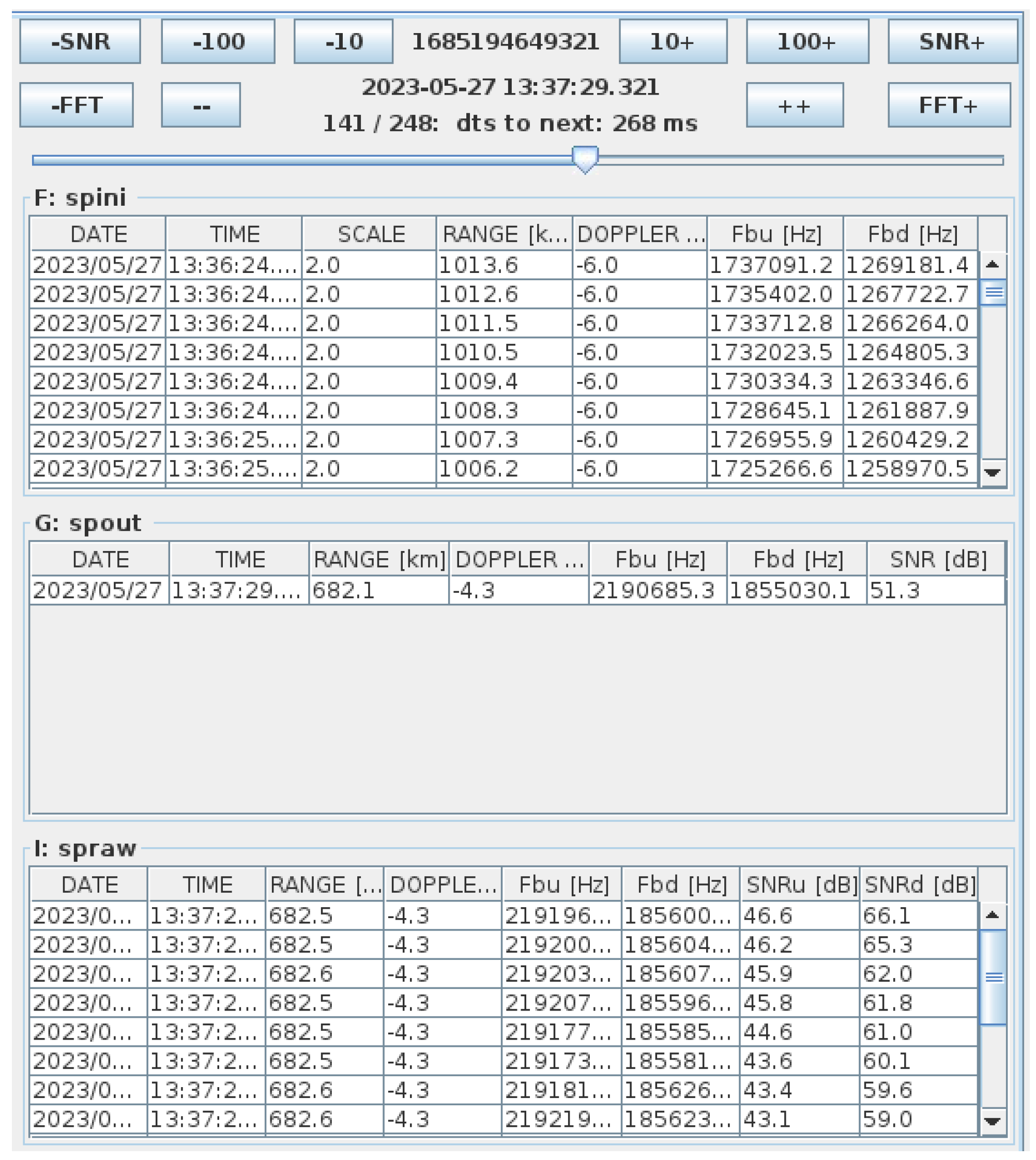

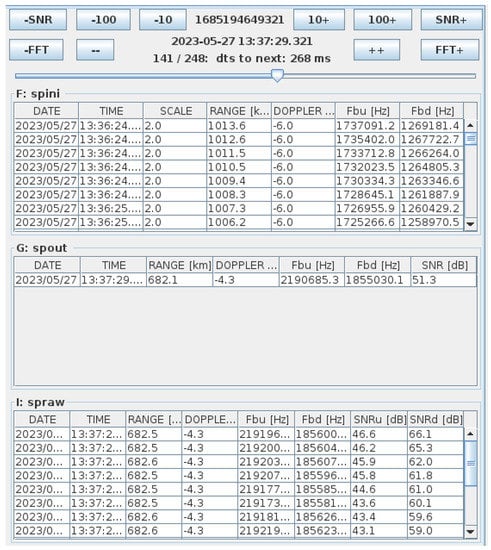

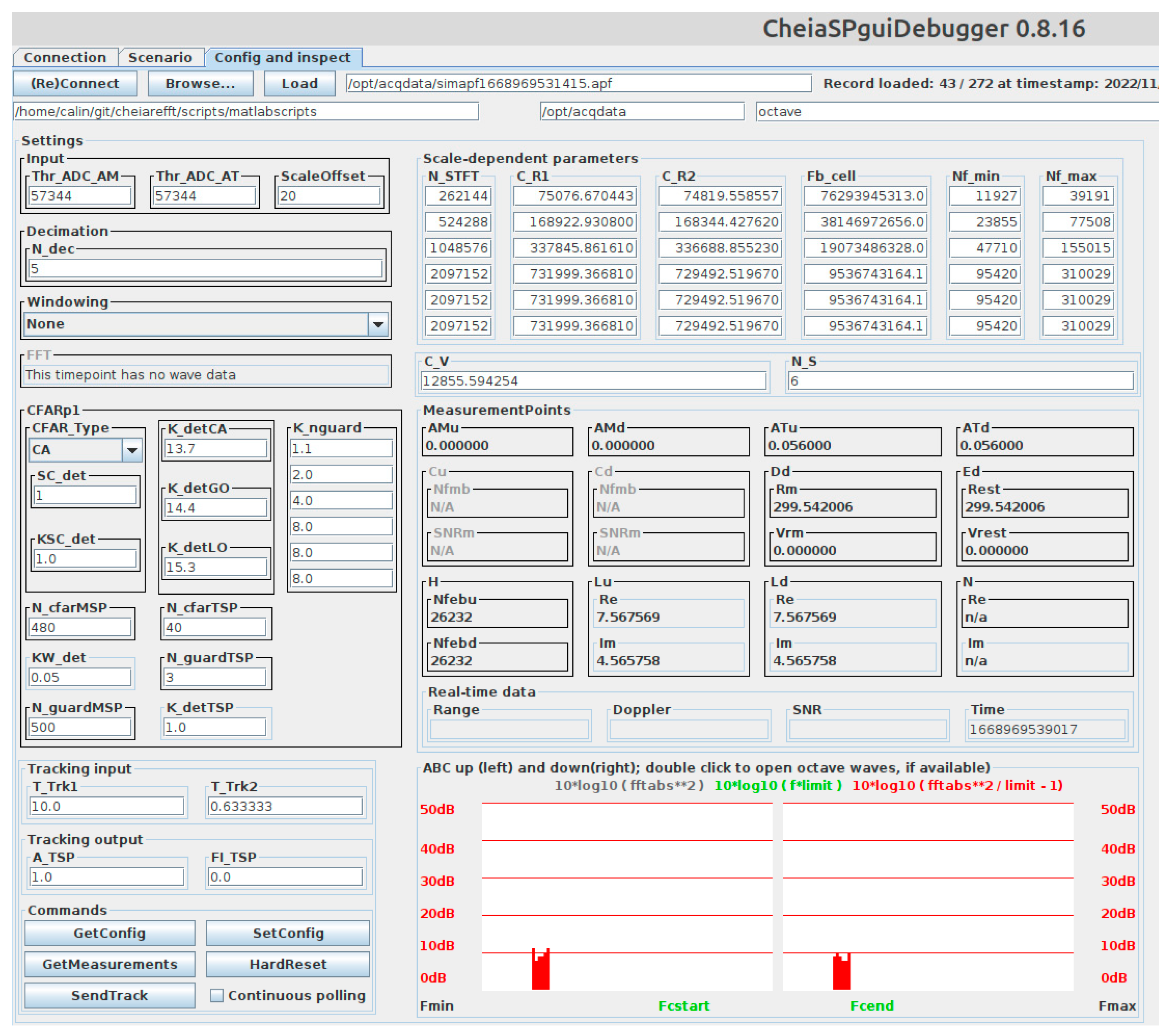

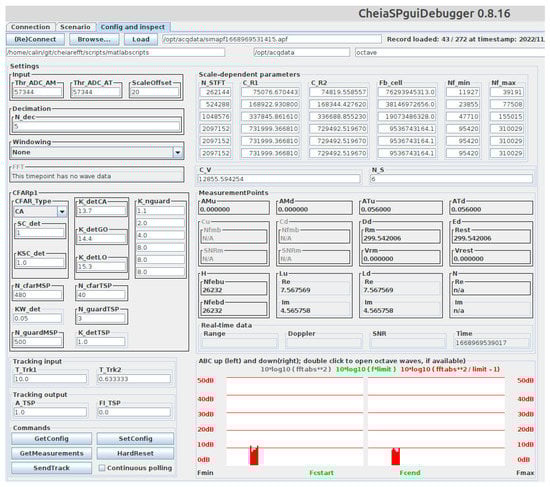

2.9. Graphical User Interface of Signal Processor (SP gui)

While the SP may be used without a graphical user interface (gui), during test phases (where various hardware or satellites to be tracked may be unavailable) one needs to be able to simulate the SP’s activity. For this purpose, a simulator module was developed (which is based on real acquisitions made previously). The graphical interface can connect itself either to the real SP or to the simulated SP and provides an insight into the data acquisition and processing (configuration, status, and data) for either a real-time run (“real-time mode”) or a previous run (“analysis mode”). In addition, the gui allows issuing commands as if they were coming from the M&C system, to allow SP’s testing even when M&C was in development or upgrade.

In real-time mode, all runtime parameters, configuration, and limited data of the SP are monitored while the acquisition is performed.

In analysis mode, the previously captured data (and acquisition settings), may be visually inspected and played back frame by frame to see if the SP works as expected. If the captured data need to be detailed, an Octave script will be invoked from the gui, to parse the large debugging data. Figure 7 shows a caption from the SP gui application, while in real-time mode with real-time data disabled, Figure 8 shows the SP gui application in analysis mode, and Figure 9 shows the Octave script’s figure display for an acquisition that produced valid data.

3. Results of the Signal Processor Benchmarking

The results of SP processing may be split in two categories:

• quality of computation
• performance of computation

The performance was evaluated on a Xeon W-3223 CPU @ 3.50 GHz (8C/16T) with 3 × 32 GB of DDR4 and an Nvidia GPU Tesla V100s-32 GB with CUDA 11.0 and Driver Version: 450.80.02 on Linux 5.4.0-89.

3.1. Measuring the Quality of Digital Processing

3.1.1. Measuring the Quality of the FFT

We tested our CPU and GPU-accelerated version against the Octave implementation, then we calculated the sum of squared differences for various FFT sizes. The results are summarized in

Table 4. FFT computation error CPU or GPU implementation when compared with baseline Octave implementation for a rectangular periodic signal. CPU-only OpenCL driver crashed when testing with sizes larger than 512 k (hence, n/a).

FFT Size	CPU rms Error	GPU rms Error	Allowed Error
512	2.99 × 10−15	3.01 × 10−15	1 × 10−9
128 k	8.48 × 10−14	8.27 × 10−14	1 × 10−9
256 k	9.47 × 10−14	1.00 × 10−13	1 × 10−9
512 k	1.28 × 10−13	1.28 × 10−13	1 × 10−9
1024 k	n/a	1.93 × 10−13	1 × 10−9
2048 k	n/a	2.91 × 10−13	1 × 10−9
4096 k	n/a	4.18 × 10−9	1 × 10−9

.

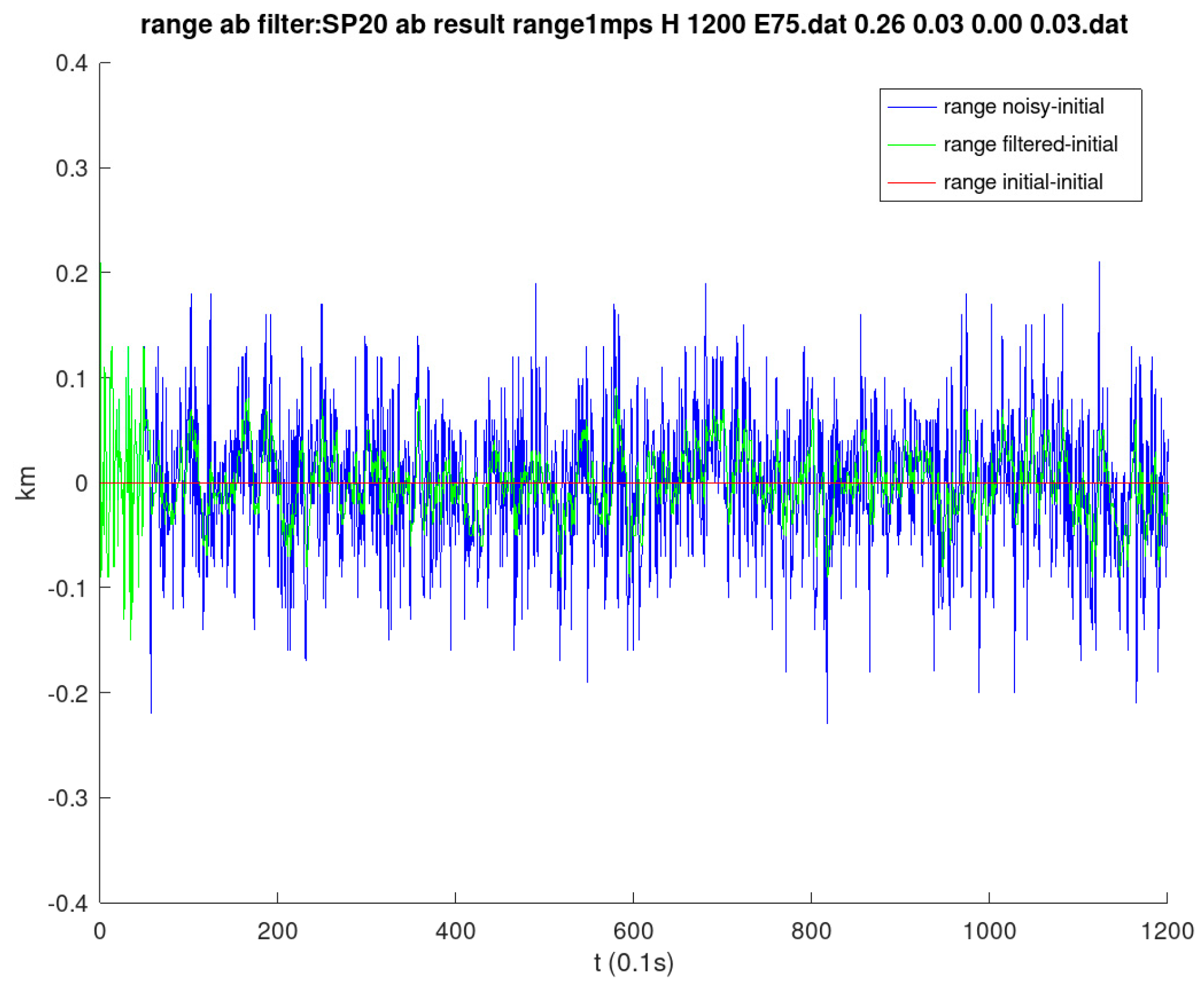

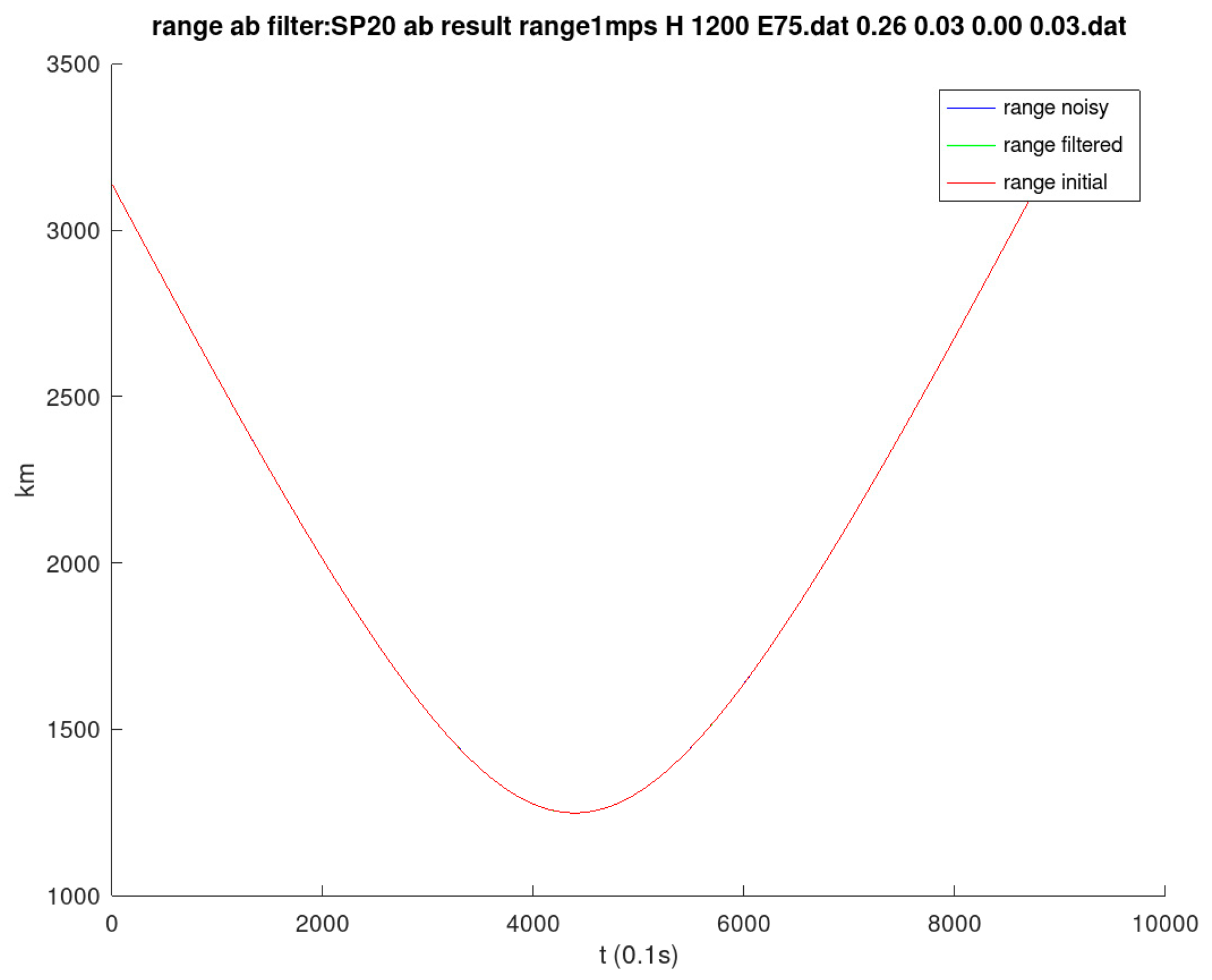

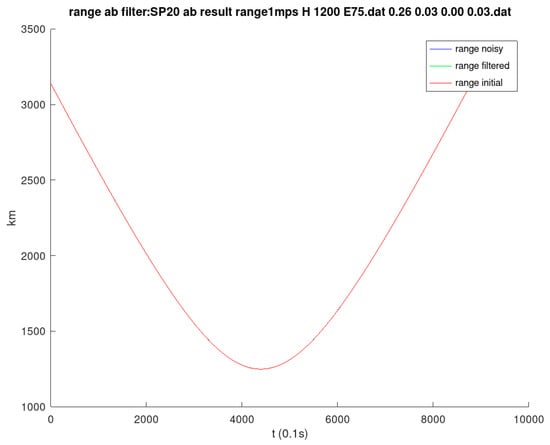

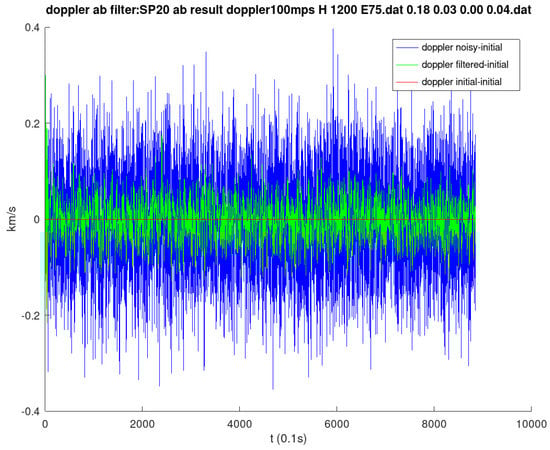

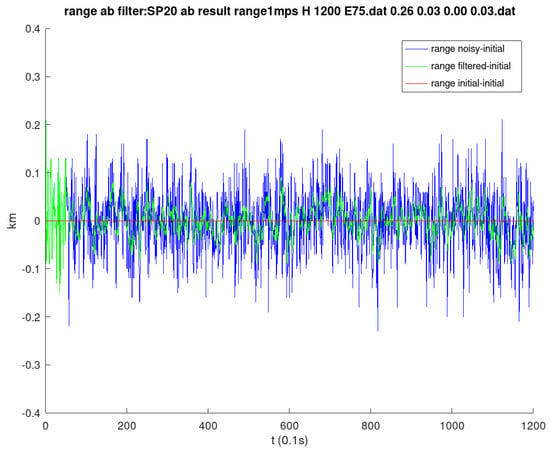

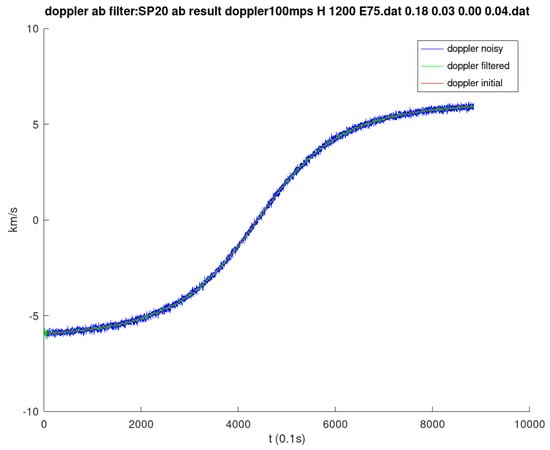

3.1.2. Measuring the Quality of the ABF

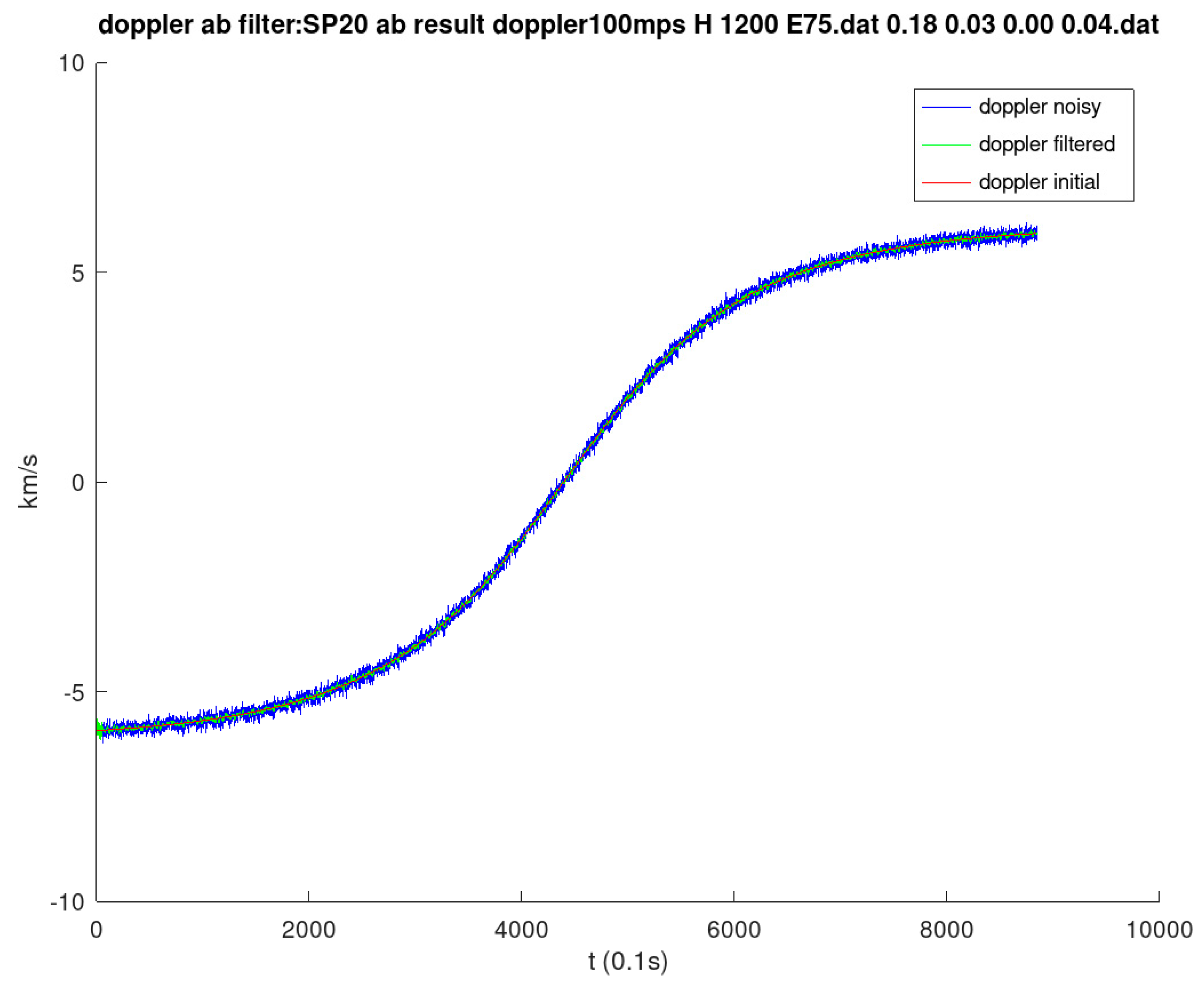

We first generated simulated range and Doppler tracks (22 scenarios, generated by experts in space trajectories), added noise then filtered them to check how well the alpha-beta filter works. Then we swept all values from 0.01 to 0.99 step 0.01 for both alpha and beta (in total 10,000 combinations) for all range or Doppler scenarios. The best (least RMS between filtered and initial values) was selected out of them and transformed into drawings to allow visual checks. Such a scenario is depicted in Figure 10, Figure 11, Figure 12 and Figure 13 below, where alpha is set to 0.26 and beta to 0.03. We plotted for each case, the filtered–initial and the noisy–initial so we can compare them visually. Figure 10 and Figure 11 are for range, Figure 12 and Figure 13 for radial speed (but with alpha of 0.18 and beta of 0.03).

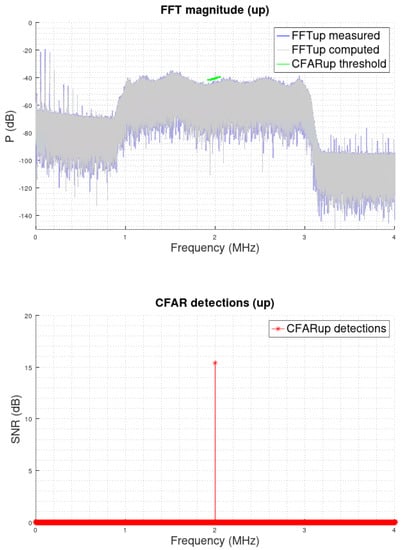

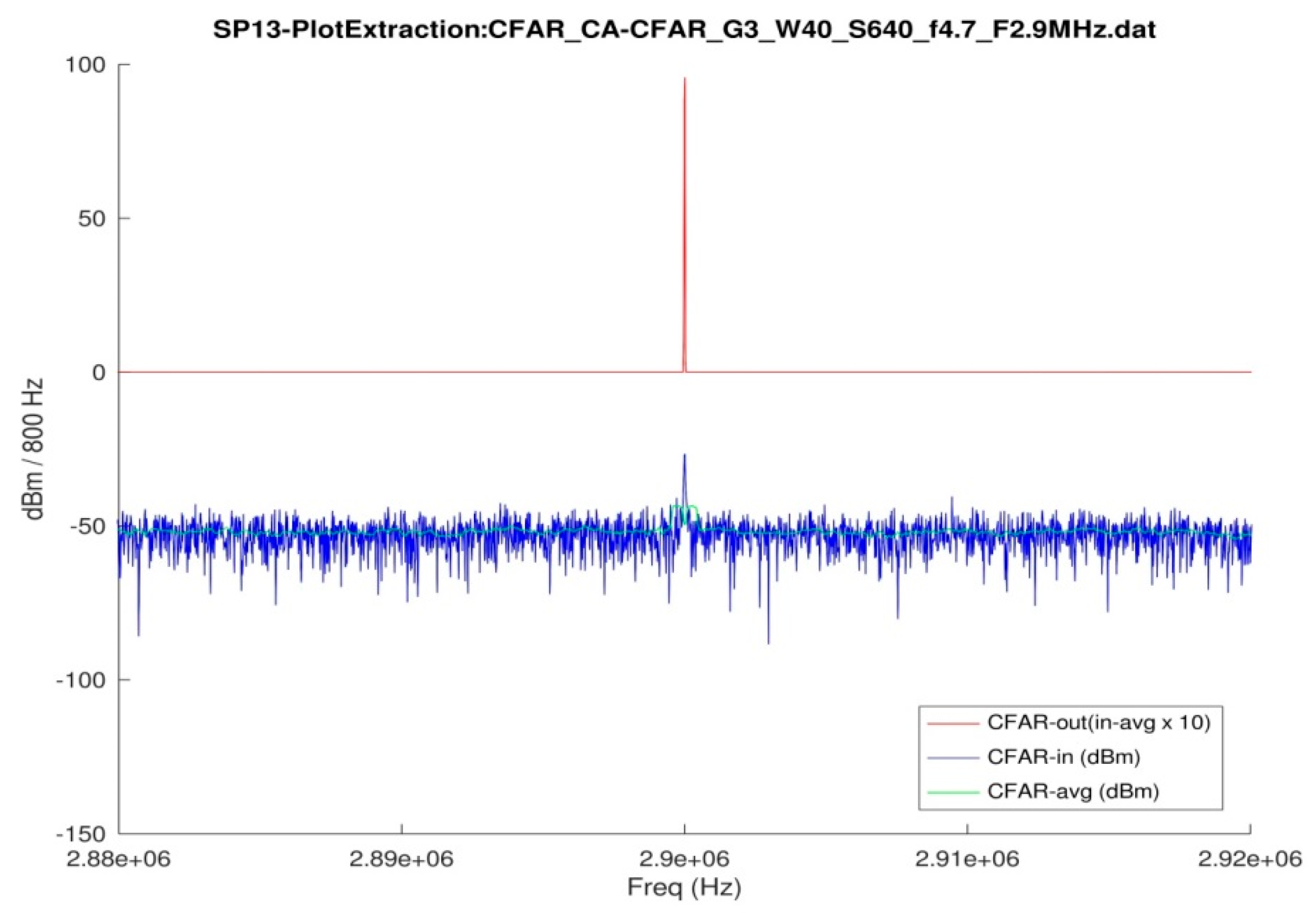

3.1.3. Checking the Quality of CFAR Algorithms

We generated scenarios with sinewaves of 1 MHz and 2.9 MHz (expected minimum and maximum values) and we swept various ranges of guard cells, averaging window size, and CFAR factor. An example of such a scenario is in Figure 14 below. The algorithms were thus validated.

3.2. Measuring the Performance of Digital Processing

The main performance-intensive operations for the longest data acquisition are listed in

Table 5. Performance results for intensive data processing tasks for the largest scale (4), using 10 M elements before decimation and 2M FFT bins. GPUa timings are measured with warm-up. GPU timings are measured without warm-up. Green values are the best values, data copy, and decimation will therefore always be run on the CPU.

Operations (ops)	GPUa (ms)	GPU (ms)	CPU (ms)
DEC 1	60	198	16
COPY	15	105	1
FFT	15	126	5
ABS	15	116	5
CFAR	16	n/a	13
WIN	15	119	28
FFT_ABS	16	174	40
FFT_ABS_CFAR	17	134	25
WIN_FFT_ABS_CFAR	16	133	30

¹ Decimation has 5 times more data, as it defaults to decimation by 5, using average. COPY is the operation of moving data from CPU-RAM to CPU-RAM; FFT performs Fast Fourier Transform using O(5*N*logN) Cooley-Tuckey variant. ABS computes absolute value of complex numbers. FFTABS does the FFT and then ABS without moving data to/from GPU between those operations. CFAR is the operation of a constant false alarm rate, and WINDOW applies a time-window to the data. GPUa version has warm-up performed, as opposed to the GPU version.

below. The operation of WIN_FFT_ABS_CFAR does all these ops in a chained manner (without transfers to/from GPU memory while between the ops). The difference between chained operations and non-chained operations is quite large. For example, the WIN_FFT_ABS_CFAR if chained, can be performed in 16 ms whereas when WIN + FFT + ABS + CFAR are performed independently, one will only finish the operations in 61 ms; the advantage of having the operations independently is the ability to save intermediate results for later investigations. This was mitigated in the end, by creating a buffer in the GPU memory where only one such intermediate result may be saved, per each WIN_FFT_ABS_CFAR operation (usually it was used for the absolute value output).

3.3. Measuring the Network Performance

Multiple software commands are available for using the signal processor (SP). The SP has two hardware network interfaces:

• A NIC with 1 Gbps is used for command and control (an SP server listens on a TCP port);
• A NIC with 10 Gbps is used for large data transfer/long-term storage (over Samba/CIFS protocol).

3.3.1. Measuring the Network Performance (Commands)

To test network latency, we chose the get_status command, which returns a JSON-based string over a TCP connection with data about the state of the SP. Usually, the command contains 20 bytes whereas the answer usually contains 166 Bytes. We benchmarked the command in the local scenario (client and server are on the same machine, the signal processor) and remote scenarios (the server is on the signal processor machine and the client is around 111 km afar). The turnaround time is measured from the moment the client sends the command until the client receives the answer from the SP’s server. The results are listed in

Table 6. Network latency using the get_status command.

Characteristic Name	Local	Remote1 1	Remote2 2	Units
Turnaround time (min)	0	6	6	milliseconds
Turnaround time (avg)	0.22	8.52	8.70	milliseconds
Turnaround time (max)	5	32	234	milliseconds

¹ Client’s location is somewhat central to Bucharest and the Internet provider is Telekom; the client is about 111 km afar from the Cheia SP’s server. ² Client’s location is somewhat more peripheric in Bucharest and the Internet provider is Digi Communications; the client is about 112 km afar from Cheia SP’s server.

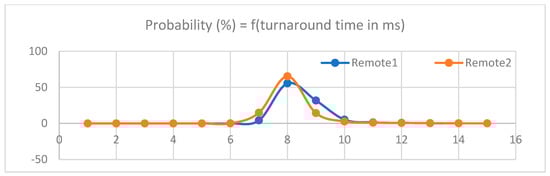

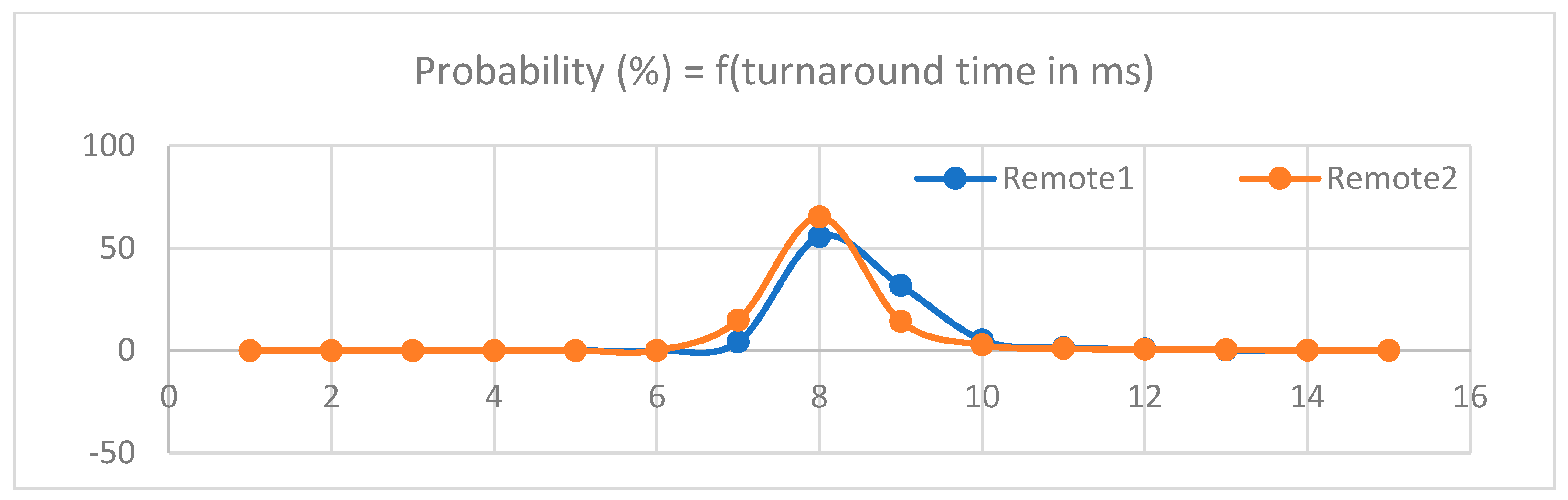

. The spread (histogram) of the turnaround time is plotted in Figure 15 below. It shows that 8 ms is the most probable turnaround time.

3.3.2. Measuring the Network Performance (Large Data)

As previously stated, the 10 Gbps network interface card is used to transfer large data from the SP to the storage server, for future analysis. The SP functions as follows:

• SP is powered-up and its main software starts;
• SP runs self-tests (speed and accuracy tests) to ensure correct operation;
• SP warms-up (builds a data cache with most common operations and compiles all the OpenCL programs to be run on GPU, to save time when executing a real-life measurement);
• The SP receives a command from the Monitor & Control (M&C) system, where the expected track during expected timestamps (beginning (T), ending and a few timestamps in the middle) are given;
• The SP arms itself, interpolates the track (with position and time data) at 100 ms;
• At about T-4 s a short system check is performed to make sure SP module work as expected; in case of problems various misbehaving subsystems are restarted;
• At about T-1 s, data acquisition starts (using a parallel software thread), but data are dropped until T time occurs;
• Data are acquired every 100 ms and are pushed into data queues. A separate software thread starts processing it. The SP switches from debug mode (acquiring and storing large data wave from ADC output, decimated output, FFT output, and CFAR output) to fast mode (only one debug wave is saved, usually the FFT output) dynamically depending on the time budget;
• When the acquisition end occurs, SP stops data acquisition and starts transferring output and debug data into the storage server; simultaneously the M&C system polls it to check the status and retrieve the results.

The data generated for debugging purposes (or later analysis) may be quite large, so the faster 10 Gbps link was used to transfer it to the storage server. In

Table 7. Data rate measurement for large data transfers (via 10 Gbe network interface).

Characteristic Name	CHEIA	Units
Data rate (min)	392	MB/s
Data rate (avg)	450	MB/s
Data rate (max)	525	MB/s

, we present the results of such measurements of data transfer (the data contained about 6 GB of waves: DEC output, ABS output, CFAR output, CFAR threshold, and CFAR output; all waves were 8 MB long and were acquired at a rate of 2× per every 100 ms, therefore would amount for about 8 s of processed data).

The results are somewhat expectable since the data storage is using SSD storage memory for source and large HDDs in RAID5 configuration, as destination.

3.4. Performance Impact of Hardware and Digital Processing

The ABISS radar uses two phased array antennas and low transmitted power but is intended only for re-entry (altitude < 200 km) and objects of size higher than 2 m.

The Cheia Radar is designed for LEO tracking (200–2000 km altitude), having a potential detection capability of 5 cm at 1000 km. The Cheia Radar makes use of 2 decommissioned Cassegrain antennas, previously used for satellite communication, and exhibits detection capabilities similar to TIRA but, due to a special signal processing needs to transmit only a fraction of TIRA’s transmitting power.

Although the Main Signal Processor is not the only contributor to these results, together with a good choice of frequency generator and a custom implementation of the analog receiver, they enable the radar to perform side by side with the BIRALET system, as seen in

Table 8. Comparison with the BIRALET Radar [4,5,8,18,21].

Characteristic Name	BIRALET	Cheia	Units
Frequency stability	5 × 10−9 *	3 × 10−12	Hz
Phase noise	??	−130	dBc/Hz
Receiver noise coef.	5–7 *	1.74	dB
Rx ADC resolution	14 *	16	bits
Max receiver gain	37.5 *	63	dB
Receiver bandwidth	5 ^	2 1	MHz

¹ Instantaneous receiver bandwidth is further decreased to 10 Hz for far-away targets using a large FFT, which is highly unusual in radars. The large FFT of N size assures full bandwidth coverage with a number of N receivers used simultaneously, where the band of each receiver is dictated by the duration of the processed signal. ?? depicts undeclared/unavailable data. * These data are extracted from [21] Copyright © 2023 National Instruments Corp. ^ These data are extracted from [4].

.

4. Discussion and Conclusions

In radars, there is always a tradeoff between the transmitted power and the minimum RCS of the detectable target, for a given range or between the transmitted power and the maximum range, for a given RCS of the target.

The limit is always determined by the target’s signal-to-noise ratio (SNR) at the input of the target’s extractor. The article shows that this limit can be drastically reduced by signal processing. For example, assuming a Swerling 5 radar case model, to obtain a detection probability of 0.9 and a false alarm probability of 10⁻⁶, an SNR of 13.2 dB is required at the input of the target detector. The noise power is proportional to the receiver bandwidth, which is in the ranges of MHz to tens of MHz, for a regular time processing radar. A frequency processing radar, using a 1 M sample FFT would then generate a bank of 1 million filters with a bandwidth of Hz to tens of Hz each. In each of those filters, the noise power will be 60 dB less, due to the 60 dB reduction of the bandwidth, while the signal power will be contained by a single or a reduced number of filters. If the total power of the received signal is contained within one filter bandwidth, the SNR at the input of a target detector analyzing the output of each filter is reduced by 60 dB, thus requiring an SNR of −47 dB (60 dB less) at the output of the receiver. Some additional digital processing losses of 2 dB should be also considered.

Reducing the required SNR at the output of the receiver translates in significantly greater sensitivity and/or reduced transmitted power.

Reduced transmitted power translates into smaller costs of operation, reduced power requirements, and consequently a reduced ecological fingerprint.

This reduction comes with the cost of increased complexity of the signal processing as well as with some restrictions that have to be well understood. For the space radars, operating at very large ranges, this kind of processing is particularly suitable.

The advances in signal processing-related devices, especially high dynamic range ADCs and high-speed GPUs or FPGAs will make this kind of processing more and more common once its advantages are understood and mastered.

Future research directions include further reducing the required SNR by increasing the dynamic range of the ADC and designing new types of probing signals and processing algorithms to overcome the received signal length limitations.

The improvements in increasing the dynamic range of the ADC need to be studied and tested as soon as ADCs having more than 16 bits will be available in the video domain.

The design of new types of probing signals and processing algorithms have to be studied for implementation in shorter-range radars that are limited by the short time length of the received signal and by the reduced GPU and FPGA processing speed.

In conclusion, this paper presents in detail, the design, implementation, and testing of the software and hardware elements that compose the signal processor used by the Cheia Space radar for the acquisition and tracking of the targets. The first part of this work contains a review of the state of the art, with similar signal processing systems from other radars. Next, the architecture of the signal processor is explained, together with its state diagram and parameters. Also, a comparison is shown between the outputs of the signal processor and the results obtained with benchmark processing algorithms.

The novel contributions of the presented architecture come from the uncommonly large FFT length (up to 4096 k points) that is employed, allowing the tracking of targets with low RCS, in the context of Tx power lower than what other space radars are emitting [18]. The usage of frequency processing, using large-sized FFTs, allows a significant reduction of transmission power requirements and consequently a reduced ecological fingerprint in radars, to a degree similar to the implementation of the chirp pulse instead of the unmodulated pulse. The strong points of the Cheia receiver are also illustrated by the comparison with the BIRALET bistatic radar, which shows the higher optimization and sensitivity of the Romanian design, due mostly to the superior signal processor.

As of the first quarter of 2023, the Cheia Radar is completely implemented on-site and is undergoing calibration, functional testing, and validation procedures according to EUSST requirements.
