Consistency Analysis and Accuracy Assessment of Three Global 30-m Land-Cover Products over the European Union using the LUCAS Dataset
Abstract
:1. Introduction
2. Study Area and Datasets

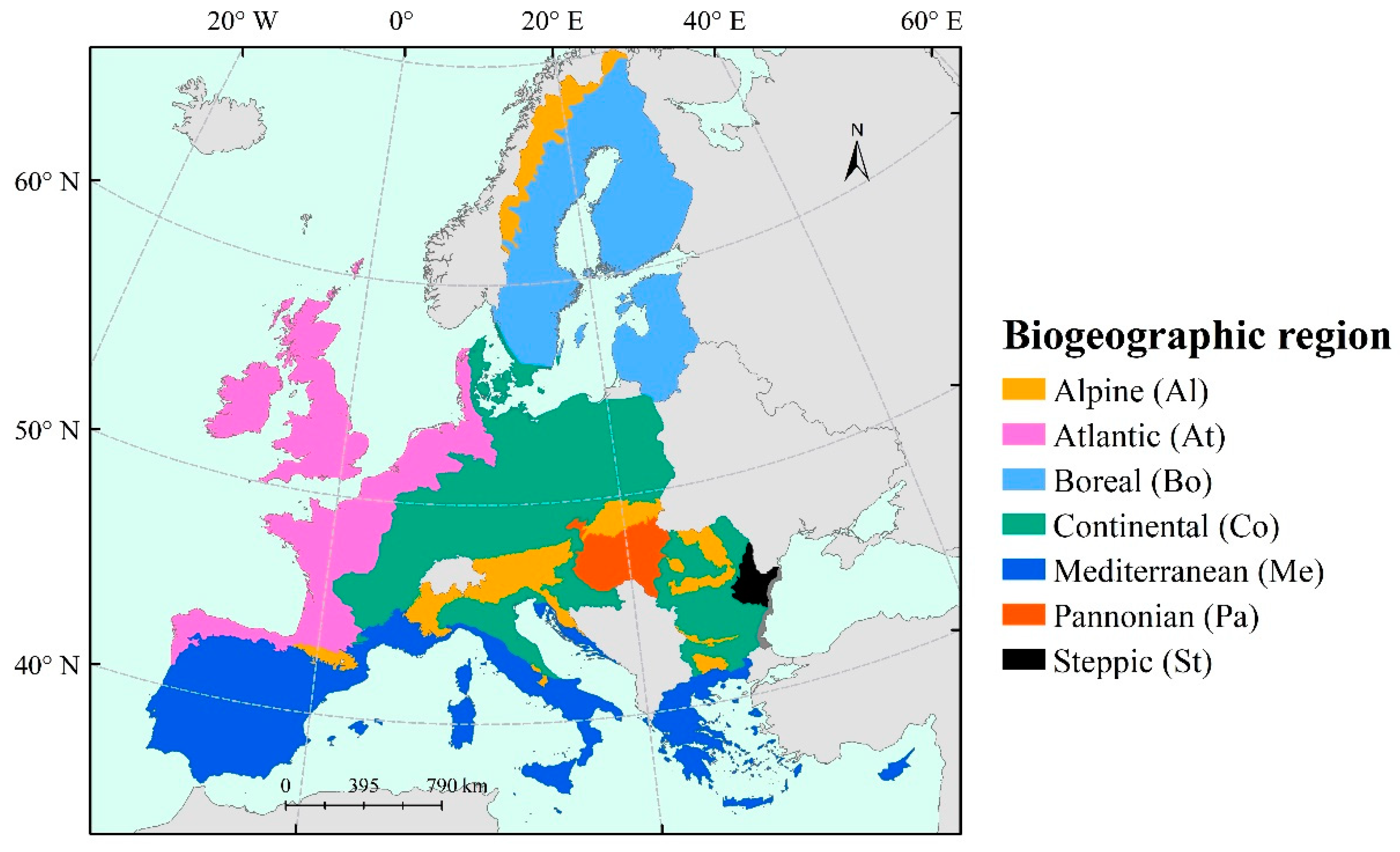

2.1. Study Area

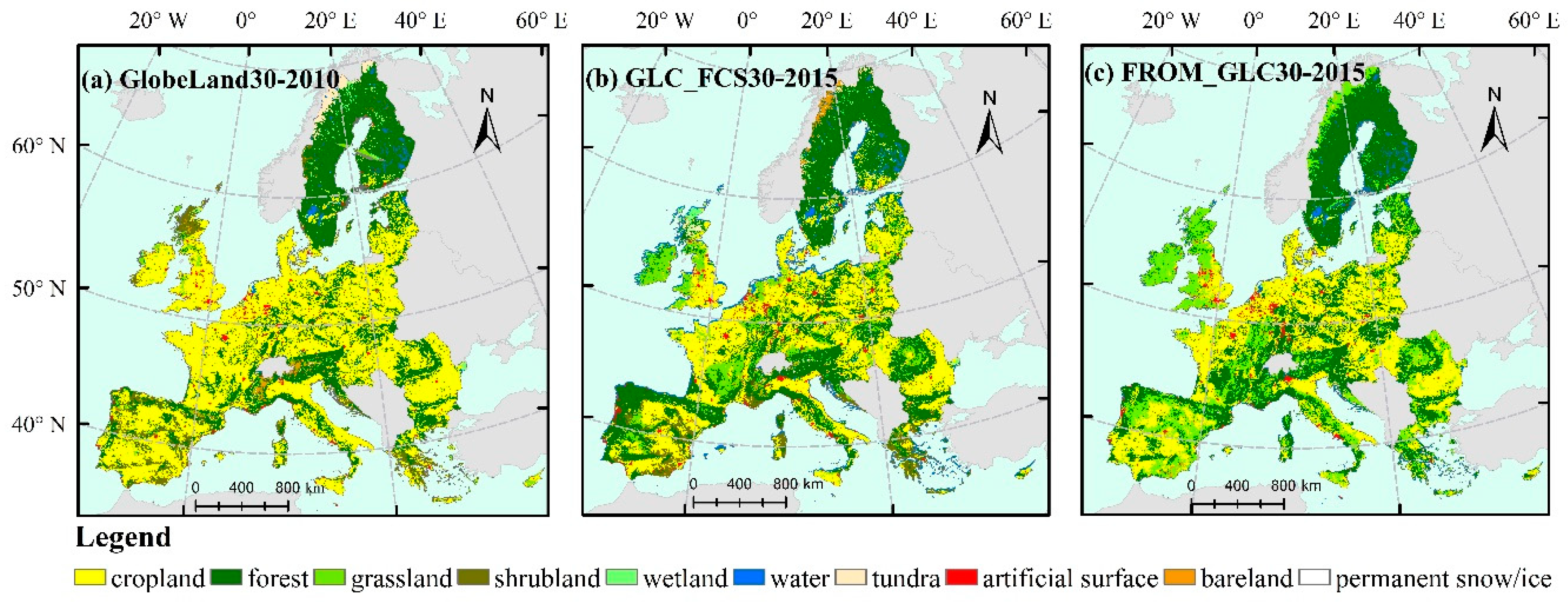

2.2. Global Land-Cover Products
2.3. LUCAS Validation Dataset
3. Methods

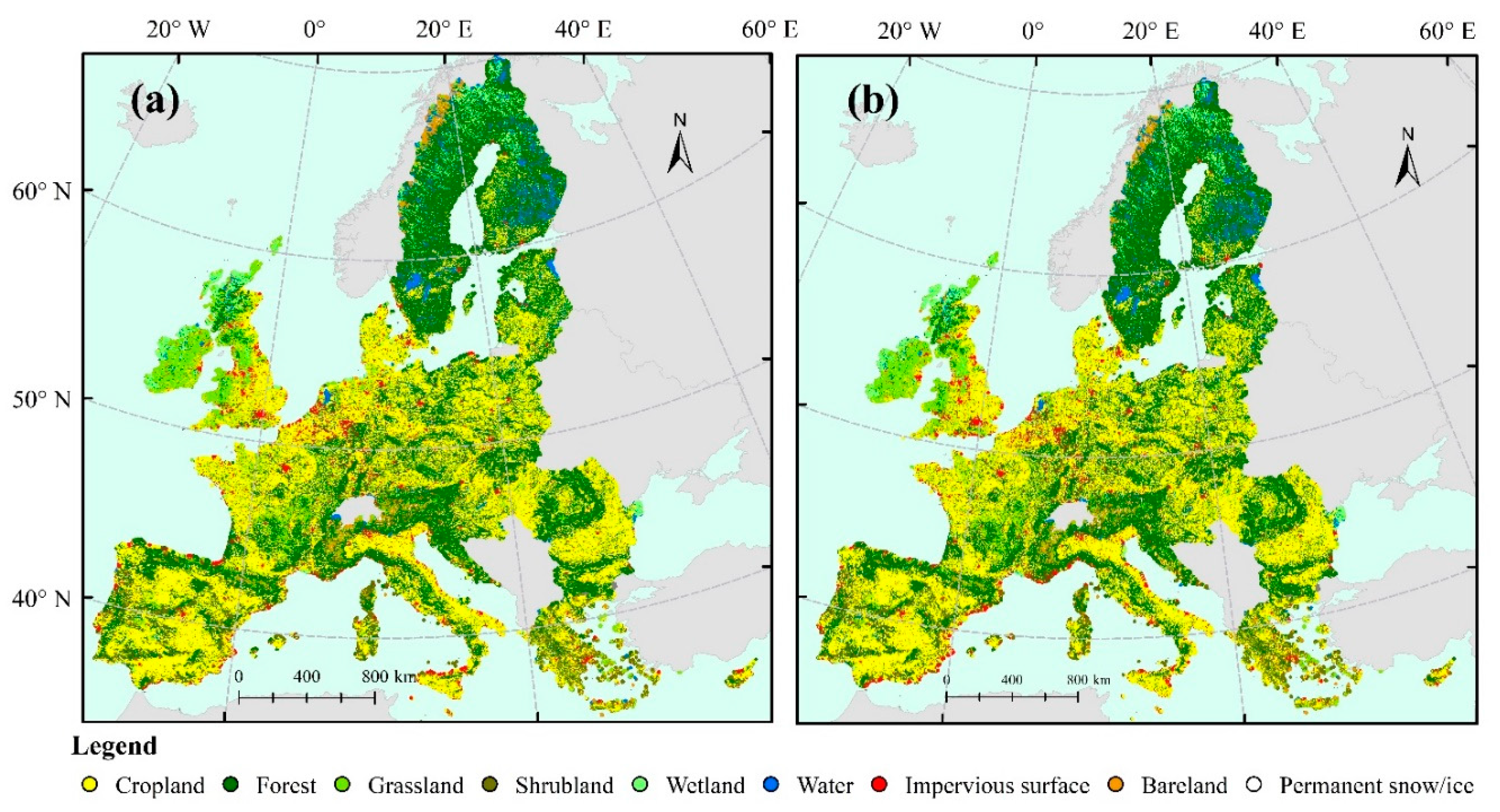

3.1. Harmonization of the Classification Systems Used for Different GLC Products
3.2. Consistency Analysis for GLC Products
3.2.1. Area-Based Consistency Analysis
3.2.2. Pixel-Based Consistency Analysis
- High consistency: the target classes for the three GLC products were exactly the same at a given pixel;
- Moderate consistency: any two products had the same target class at a given pixel;
- Low consistency: the three GLC products all had different target classes at a given pixel.
3.3. Accuracy Assessment Using the Validation Dataset
4. Results
4.1. Evaluation of Areal Consistency

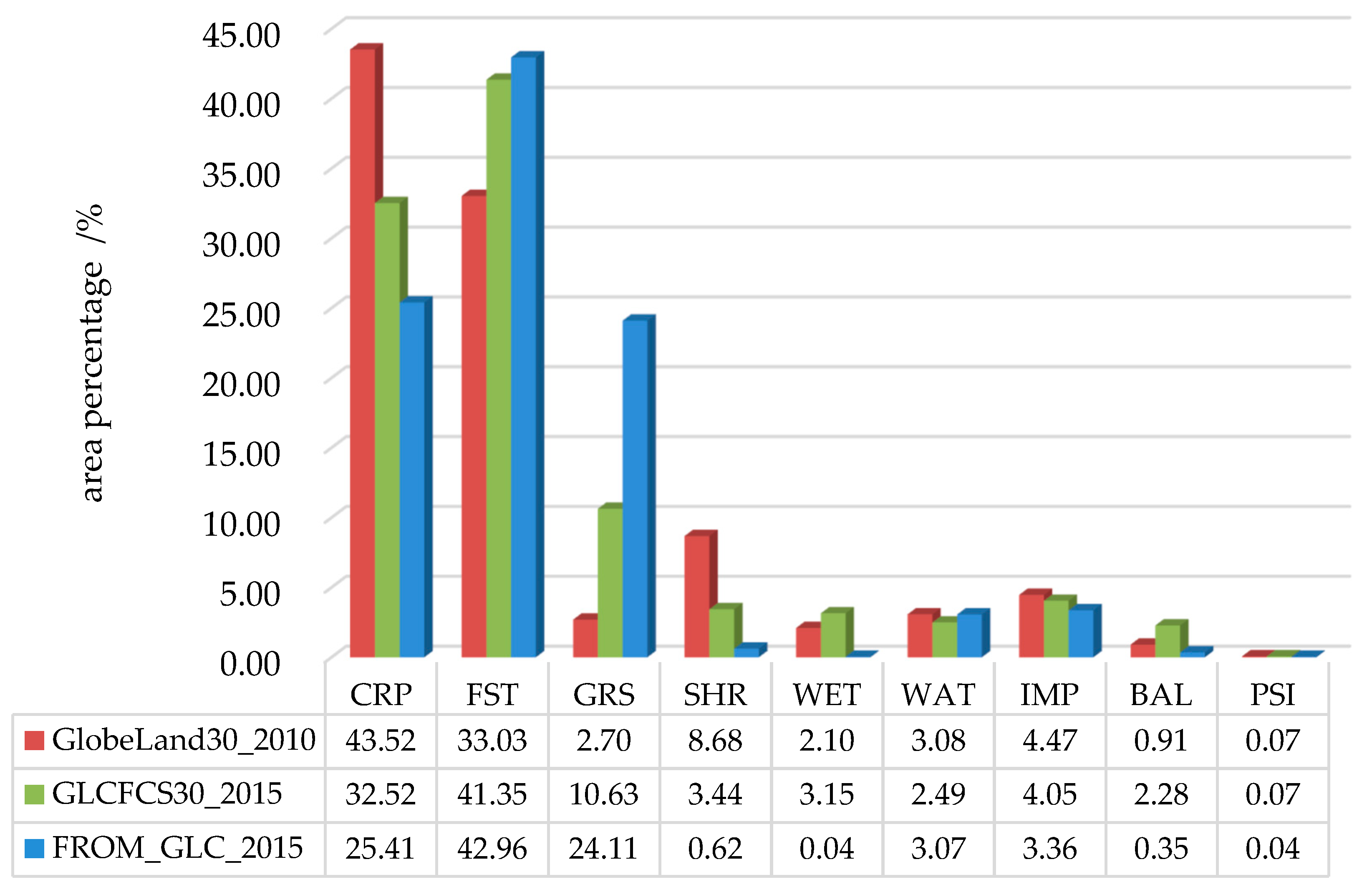

4.1.1. Areal Consistency between the Three 30-m GLC Products
4.1.2. Areal Consistency between the Three 30-m GLC Products
4.2. Evaluation of Spatial Consistency

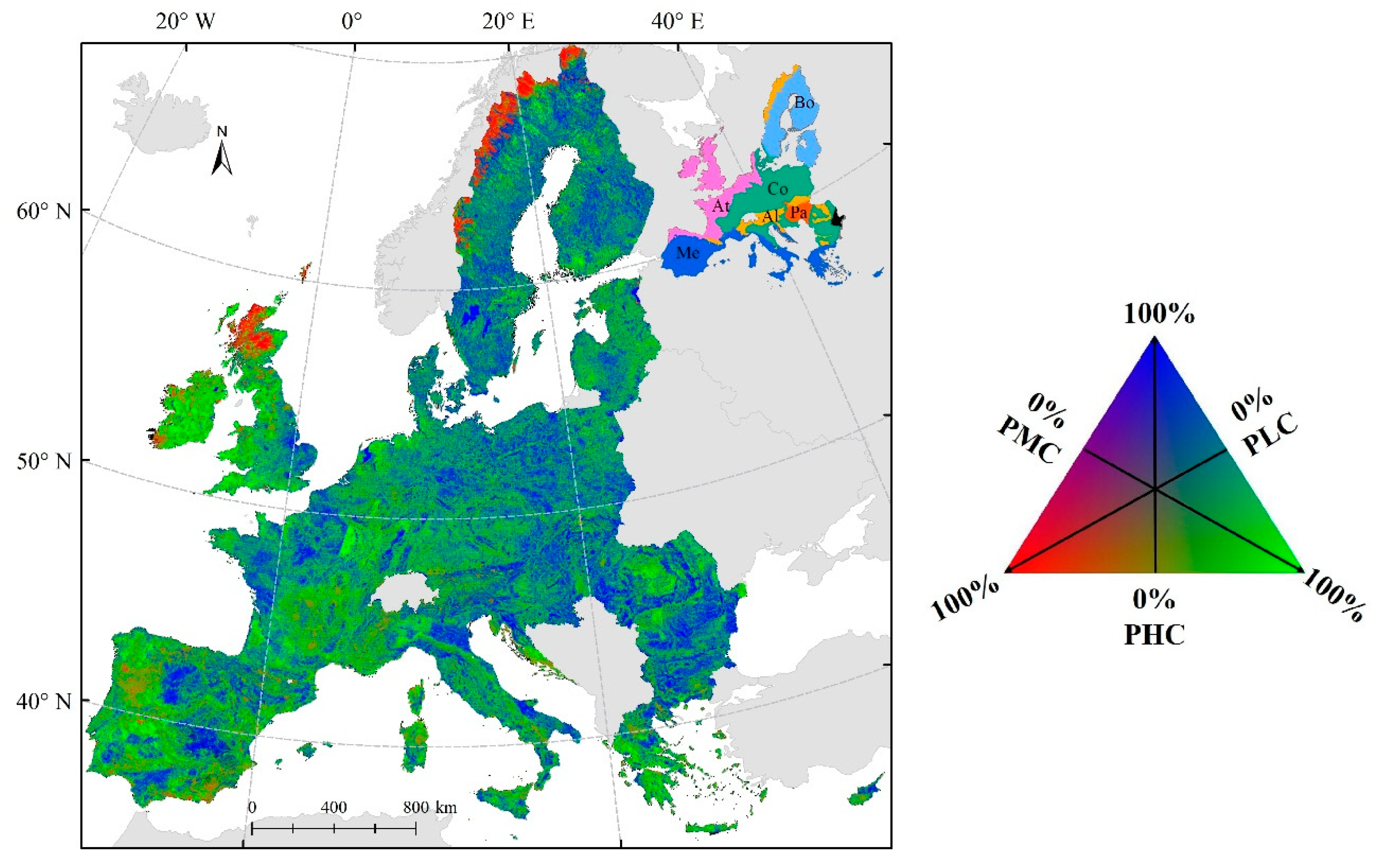

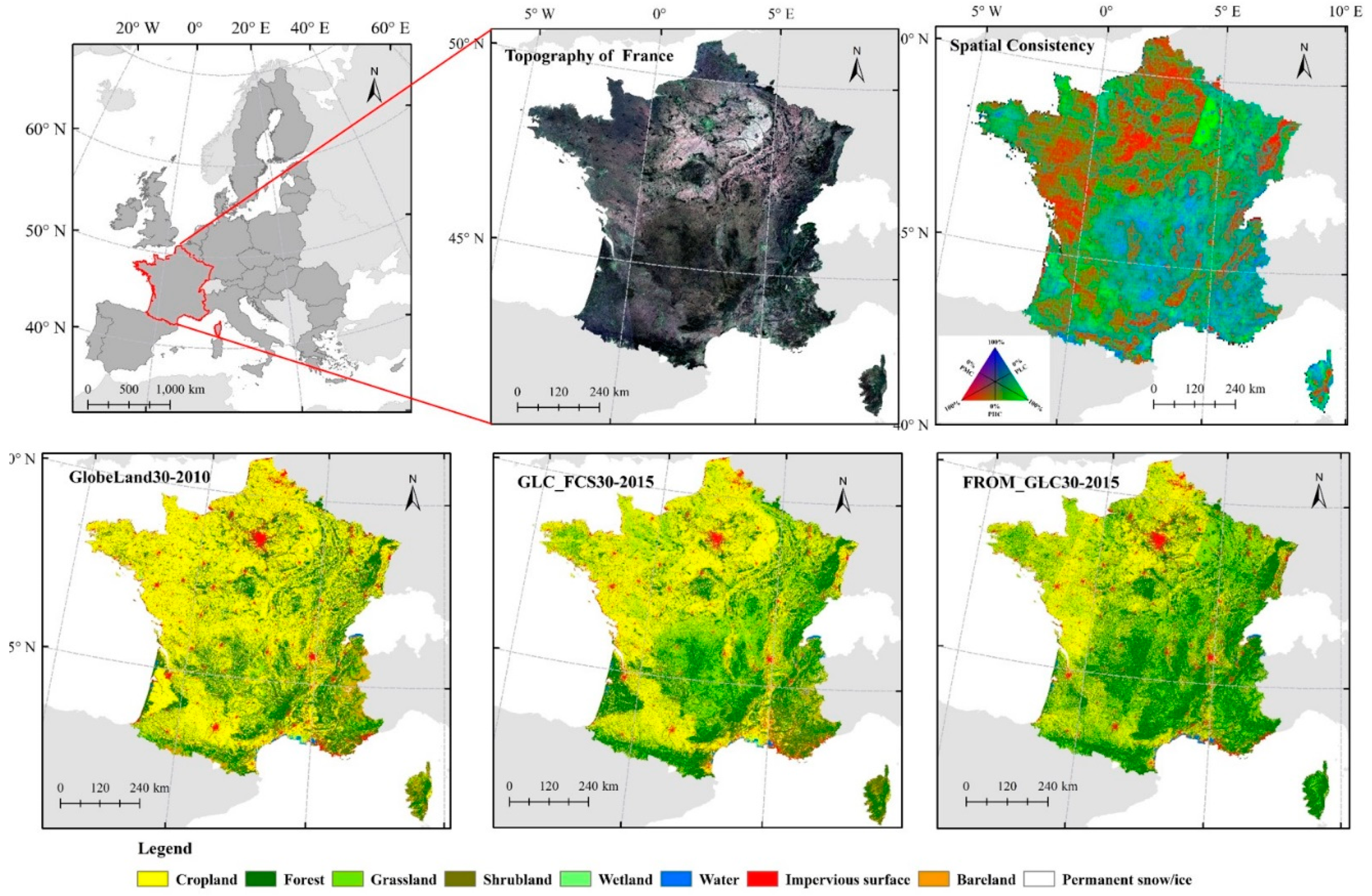

4.2.1. Spatial Consistency between All Three Products

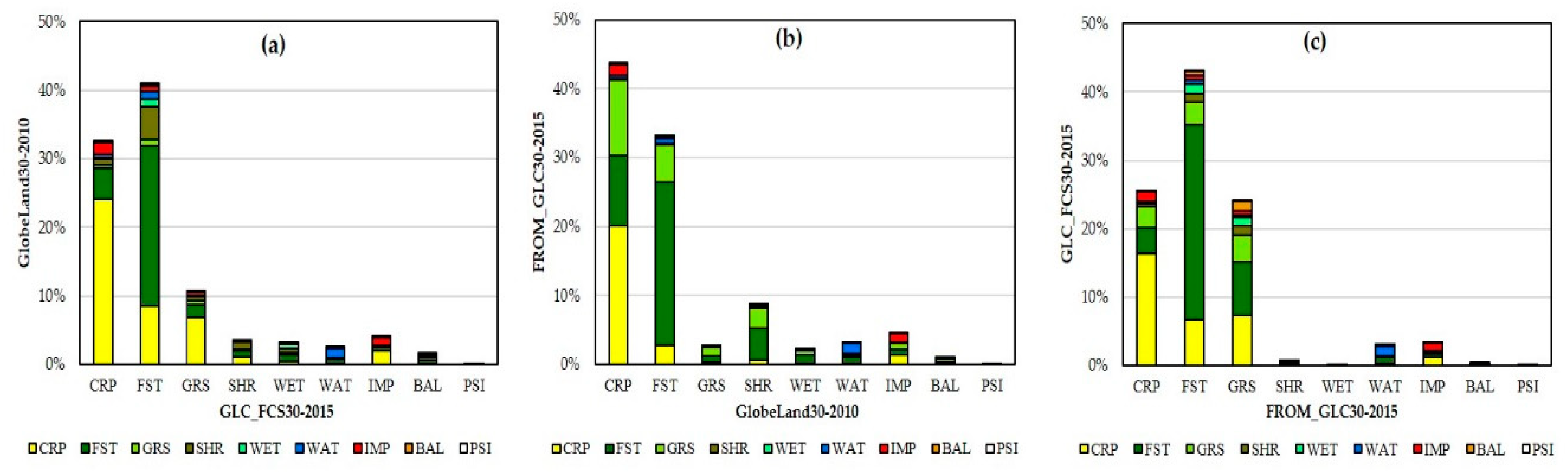

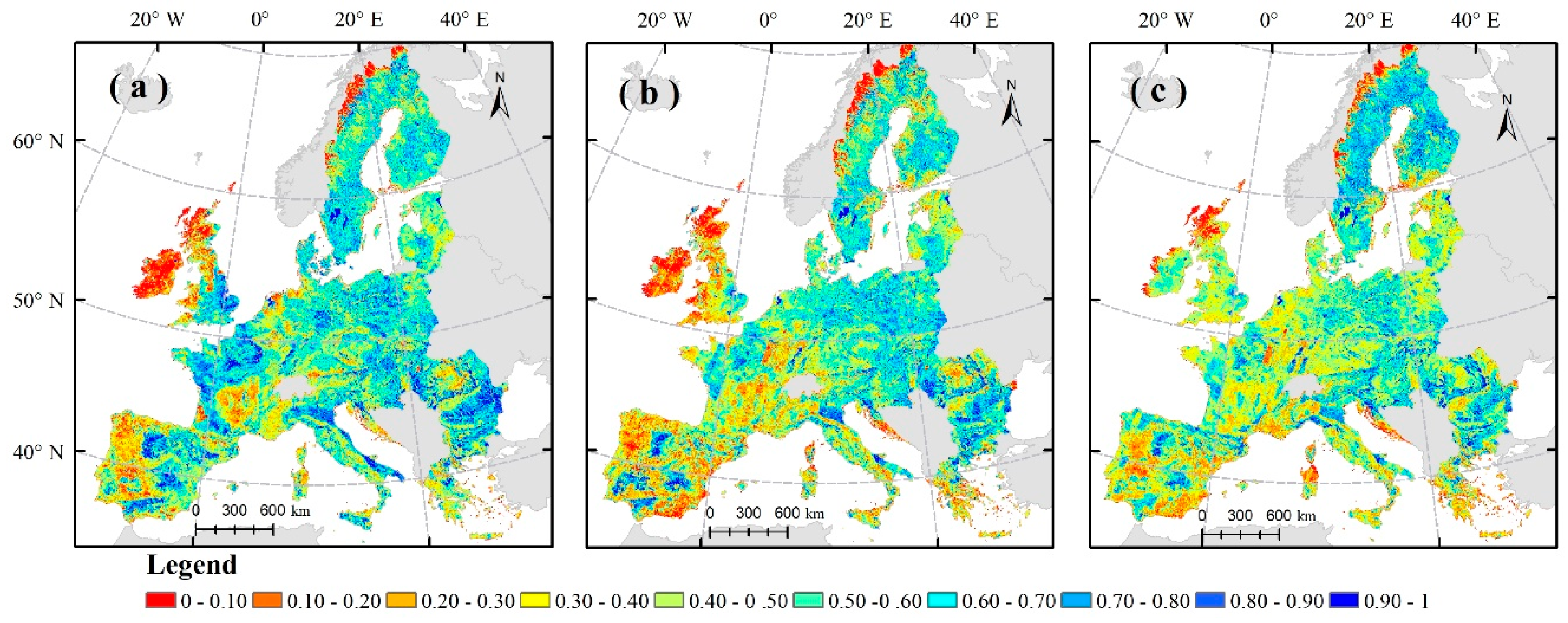

4.2.2. Spatial Consistency between Pairs of Product
4.3. Accuracy of the Three GLC Products
5. Discussion
5.1. Reasons for the Low Level of Consistency between the Different Products
5.2. Uncertainty Due to Different Classification Systems
5.3. Issues Related to the Comparative Assessment of GLC Products for Specific Applications
6. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Gong, P.; Liu, H.; Zhang, M.; Li, C.; Wang, J.; Huang, H.; Clinton, N.; Ji, L.; Li, W.; Bai, Y.; et al. Stable classification with limited sample: Transferring a 30-m resolution sample set collected in 2015 to mapping 10-m resolution global land cover in 2017. Sci. Bull. 2019, 64, 370–373. [Google Scholar] [CrossRef] [Green Version]
- Pérez-Hoyos, A.; García-Haro, F.J.; San-Miguel-Ayanz, J. Conventional and fuzzy comparisons of large scale land cover products: Application to CORINE, GLC2000, MODIS and GlobCover in Europe. ISPRS J. Photogramm. Remote Sens. 2012, 74, 185–201. [Google Scholar] [CrossRef]
- Pflugmacher, D.; Rabe, A.; Peters, M.; Hostert, P. Mapping pan-European land cover using Landsat spectral-temporal metrics and the European LUCAS survey. Remote Sens. Environ. 2019, 221, 583–595. [Google Scholar] [CrossRef]
- Feng, M.; Bai, Y. A global land cover map produced through integrating multi-source datasets. Big Earth Data 2019, 3, 191–219. [Google Scholar] [CrossRef] [Green Version]
- Loveland, T.R.; Reed, B.C.; Brown, J.F.; Ohlen, D.O.; Zhu, Z.; Yang, L.; Merchant, J.W. Development of a global land cover characteristics database and IGBP DISCover from 1 km AVHRR data. Int. J. Remote Sens. 2000, 21, 1303–1330. [Google Scholar] [CrossRef]
- Hansen, M.C.; DeFries, R.S.; Townshend, J.R.G.; Sohlberg, R. Global land cover classification at 1 km spatial resolution using a classification tree approach. Int. J. Remote Sens. 2000, 21, 1331–1364. [Google Scholar] [CrossRef]
- Bartholomé, E.; Belward, A.S. GLC2000: A new approach to global land cover mapping from Earth observation data. Int. J. Remote Sens. 2005, 26, 1959–1977. [Google Scholar] [CrossRef]
- Friedl, M.A.; Sulla-Menashe, D.; Tan, B.; Schneider, A.; Ramankutty, N.; Sibley, A.; Huang, X. MODIS Collection 5 global land cover: Algorithm refinements and characterization of new datasets. Remote Sens. Environ. 2010, 114, 168–182. [Google Scholar] [CrossRef]
- Friedl, M.A.; McIver, D.K.; Hodges, J.C.F.; Zhang, X.Y.; Muchoney, D.; Strahler, A.H.; Woodcock, C.E.; Gopal, S.; Schneider, A.; Cooper, A.; et al. Global land cover mapping from MODIS: Algorithms and early results. Remote Sens. Environ. 2002, 83, 287–302. [Google Scholar] [CrossRef]
- Bicheron, P.; Leroy, M.; Brockmann, C.; Krämer, U.; Miras, B.; Huc, M.; Niño, F.; Defourny, P.; Vancutsem, C.; Arino, O.; et al. Globcover: A 300 m global land cover product for 2005 using ENVISAT MERIS time series. In Proceedings of the Second International Symposium on Recent Advances in Quantitative Remote Sensing, Torrent, Valencia, Spain, 25–29 September 2006; pp. 538–542. [Google Scholar]
- Lamarche, C.; Santoro, M.; Bontemps, S.; D’Andrimont, R.; Radoux, J.; Giustarini, L.; Brockmann, C.; Wevers, J.; Defourny, P.; Arino, O. Compilation and Validation of SAR and Optical Data Products for a Complete and Global Map of Inland/Ocean Water Tailored to the Climate Modeling Community. Remote Sens. 2017, 9, 36. [Google Scholar] [CrossRef] [Green Version]
- Herold, M.; Mayaux, P.; Woodcock, C.; Baccini, A.; Schmullius, C. Some challenges in global land cover mapping: An assessment of agreement and accuracy in existing 1 km datasets. Remote Sens. Environ. 2008, 112, 2538–2556. [Google Scholar] [CrossRef]
- Tchuenté, A.T.K.; Roujean, J.-L.; De Jong, S.M. Comparison and relative quality assessment of the GLC2000, GLOBCOVER, MODIS and ECOCLIMAP land cover data sets at the African continental scale. Int. J. Appl. Earth Obs. Geoinf. 2011, 13, 207–219. [Google Scholar] [CrossRef]
- Gong, P.; Wang, J.; Yu, L.; Zhao, Y.; Zhao, Y.; Liang, L.; Niu, Z.; Huang, X.; Fu, H.; Liu, S.; et al. Finer resolution observation and monitoring of global land cover: First mapping results with Landsat TM and ETM+ data. Int. J. Remote Sens. 2012, 34, 2607–2654. [Google Scholar] [CrossRef] [Green Version]
- Chen, J.; Chen, J.; Liao, A.; Cao, X.; Chen, L.; Chen, X.; He, C.; Han, G.; Peng, S.; Lu, M.; et al. Global land cover mapping at 30m resolution: A POK-based operational approach. ISPRS J. Photogramm. Remote Sens. 2015, 103, 7–27. [Google Scholar] [CrossRef] [Green Version]
- Zhang, X.; Liu, L.; Chen, X.; Gao, Y.; Xie, S.; Mi, J. GLC_FCS30: Global land-cover product with fine classification system at 30 m using time-series Landsat imagery. Earth Syst. Sci. Data Discuss. 2020, 2020, 1–31. [Google Scholar] [CrossRef]
- Pflugmacher, D.; Krankina, O.N.; Cohen, W.B.; Friedl, M.A.; Sulla-Menashe, D.; Kennedy, R.E.; Nelson, P.; Loboda, T.V.; Kuemmerle, T.; Dyukarev, E.; et al. Comparison and assessment of coarse resolution land cover maps for Northern Eurasia. Remote Sens. Environ. 2011, 115, 3539–3553. [Google Scholar] [CrossRef]
- Yang, Y.; Xiao, P.; Feng, X.; Li, H. Accuracy assessment of seven global land cover datasets over China. ISPRS J. Photogramm. Remote Sens. 2017, 125, 156–173. [Google Scholar] [CrossRef]
- Kang, J.; Wang, Z.; Sui, L.; Yang, X.; Ma, Y.; Wang, J. Consistency Analysis of Remote Sensing Land Cover Products in the Tropical Rainforest Climate Region: A Case Study of Indonesia. Remote Sens. 2020, 12, 1410. [Google Scholar] [CrossRef]
- Kang, J.; Sui, L.; Yang, X.; Wang, Z.; Huang, C.; Wang, J. Spatial Pattern Consistency among Different Remote-Sensing Land Cover Datasets: A Case Study in Northern Laos. ISPRS Int. J. Geo-Inf. 2019, 8, 201. [Google Scholar] [CrossRef] [Green Version]
- Tsendbazar, N.-E.; De Bruin, S.; Mora, B.; Schouten, L.; Herold, M. Comparative assessment of thematic accuracy of GLC maps for specific applications using existing reference data. Int. J. Appl. Earth Obs. Geoinf. 2016, 44, 124–135. [Google Scholar] [CrossRef]
- Zhang, X.; Liu, L.; Wu, C.; Chen, X.; Gao, Y.; Xie, S.; Zhang, B. Development of a global 30 m impervious surface map using multisource and multitemporal remote sensing datasets with the Google Earth Engine platform. Earth Syst. Sci. Data 2020, 12, 1625–1648. [Google Scholar] [CrossRef]
- Bai, Y.; Feng, M.; Jiang, H.; Wang, J.; Zhu, Y.; Liu, Y. Assessing Consistency of Five Global Land Cover Data Sets in China. Remote Sens. 2014, 6, 8739–8759. [Google Scholar] [CrossRef] [Green Version]
- Tsendbazar, N.-E.; De Bruin, S.; Herold, M. Assessing global land cover reference datasets for different user communities. ISPRS J. Photogramm. Remote Sens. 2015, 103, 93–114. [Google Scholar] [CrossRef]
- Zhao, Y.; Gong, P.; Yu, L.; Hu, L.; Li, X.; Li, C.; Zhang, H.; Zheng, Y.; Wang, J.; Zhao, Y.; et al. Towards a common validation sample set for global land-cover mapping. Int. J. Remote Sens. 2014, 35, 4795–4814. [Google Scholar] [CrossRef]
- Tsendbazar, N.-E.; Herold, M.; De Bruin, S.; Lesiv, M.; Fritz, S.; Van De Kerchove, R.; Buchhorn, M.; Duerauer, M.; Szantoi, Z.; Pekel, J.-F. Developing and applying a multi-purpose land cover validation dataset for Africa. Remote Sens. Environ. 2018, 219, 298–309. [Google Scholar] [CrossRef] [Green Version]
- Bayas, J.C.L.; Lesiv, M.; Waldner, F.; Schucknecht, A.; Duerauer, M.; See, L.; Fritz, S.; Fraisl, D.; Moorthy, I.; McCallum, I.; et al. A global reference database of crowdsourced cropland data collected using the Geo-Wiki platform. Sci. Data 2017, 4, 170136. [Google Scholar] [CrossRef]
- Tsendbazar, N.-E.; De Bruin, S.; Fritz, S.; Herold, M. Spatial Accuracy Assessment and Integration of Global Land Cover Datasets. Remote Sens. 2015, 7, 15804–15821. [Google Scholar] [CrossRef] [Green Version]
- Collaboration in Research and Methodology for Official Statistics (CROS). Methodology for Data Validation 2.0. Handbook of the European Statistical System (ESS). 2018. Available online: https://ec.europa.eu/eurostat/cros/system/files/methodology_for_data_validation_v1.0_rev-2016-06_final.pdf (accessed on 13 July 2020).
- Card, D.H. Using Known Map Category Marginal Frequencies to Improve Estimates of Thematic Map Accuracy. Photogramm. Eng. Remote Sens. 1982, 48, 431–439. [Google Scholar]
- Olofsson, P.; Foody, G.M.; Herold, M.; Stehman, S.V.; Woodcock, C.E.; Wulder, M.A. Good practices for estimating area and assessing accuracy of land change. Remote Sens. Environ. 2014, 148, 42–57. [Google Scholar] [CrossRef]
- European Environmental Agency (EEA). Biogeographical Regions. Available online: https://www.eea.europa.eu/data-and-maps/data/biogeographical-regions-europe-3 (accessed on 13 July 2020).
- Wang, J.; Li, C.; Gong, P. Adaptively weighted decision fusion in 30 m land-cover mapping with Landsat and MODIS data. Int. J. Remote Sens. 2015, 36, 3659–3674. [Google Scholar] [CrossRef]
- Gallego, F.J.; Bamps, C. Using CORINE land cover and the point survey LUCAS for area estimation. Int. J. Appl. Earth Obs. Geoinf. 2008, 10, 467–475. [Google Scholar] [CrossRef]
- Orgiazzi, A.; Ballabio, C.; Panagos, P.; Jones, A.; Fernández-Ugalde, O. LUCAS Soil, the largest expandable soil dataset for Europe: A review. Eur. J. Soil Sci. 2017, 69, 140–153. [Google Scholar] [CrossRef] [Green Version]
- Weigand, M.; Staab, J.; Wurm, M.; Taubenböck, H. Spatial and semantic effects of LUCAS samples on fully automated land use/land cover classification in high-resolution Sentinel-2 data. Int. J. Appl. Earth Obs. Geoinf. 2020, 88, 102065. [Google Scholar] [CrossRef]
- Panagos, P.; Meusburger, K.; Ballabio, C.; Borrelli, P.; Alewell, C. Soil erodibility in Europe: A high-resolution dataset based on LUCAS. Sci. Total Environ. 2014, 479-480, 189–200. [Google Scholar] [CrossRef] [PubMed]
- Karydas, C.G.; Gitas, I.Z.; Kuntz, S.; Minakou, C. Use of LUCAS LC Point Database for Validating Country-Scale Land Cover Maps. Remote Sens. 2015, 7, 5012–5041. [Google Scholar] [CrossRef] [Green Version]
- Defourny, P.; Kirches, G.; Brockmann, C.; Boettcher, M.; Peters, M.; Bontemps, S.; Lamarche, C.; Schlerf, M.; Santoro, M. Land Cover CCI: Product User Guide Version 2; European Space Agency (ESA): Louvain-la-Neuve, Belgium, 2016. [Google Scholar]
- Buchhorn, M.; Lesiv, M.; Tsendbazar, N.-E.; Herold, M.; Bertels, L.; Smets, B. Copernicus Global Land Cover Layers—Collection 2. Remote Sens. 2020, 12, 1044. [Google Scholar] [CrossRef] [Green Version]
- Arnold, S.; Kosztra, B.; Banko, G.; Smith, G.; Hazeu, G.W.; Bock, M.; Valcarcel, N. The EAGLE Concept—A Vision of a Future European Land Monitoring Framework. In Proceedings of the 33rd EARSeL symposium“Towards Horizon 2020”, Matera, Italy, 3–6 June 2013. [Google Scholar]
- Mozak, S. Comparing Global Land Cover Datasets through the Eagle Matrix Land Cover Components for Continental Portugal; James I University: Castelló de la Plana, Valencia, Spain, 2016. [Google Scholar]
- McCallum, I.; Obersteiner, M.; Nilsson, S.; Shvidenko, A. A spatial comparison of four satellite derived 1 km global land cover datasets. Int. J. Appl. Earth Obs. Geoinf. 2006, 8, 246–255. [Google Scholar] [CrossRef]
- Xu, Z.Y.; Luo, Q.H.; Xu, Z.L. Consistency of Land Cover Data Derived from Remote Sensing in Xinjiang. J. Geo-Inf. Sci. 2019, 21, 427–436. [Google Scholar] [CrossRef]
- Olofsson, P.; Foody, G.M.; Stehman, S.V.; Woodcock, C.E. Making better use of accuracy data in land change studies: Estimating accuracy and area and quantifying uncertainty using stratified estimation. Remote Sens. Environ. 2013, 129, 122–131. [Google Scholar] [CrossRef]
- Albertone, G.; Allen, S.; Redpath, A.B. Environment and natural resources. In The EU in the World; Strandell, H., Wolff, P., Eds.; Eurostat: Kirchberg quarter of Luxembourg City, Luxembourg, 2020; pp. 136–137. [Google Scholar]
- Mayaux, P.; Eva, H.; Gallego, J.; Strahler, A.H.; Herold, M.; Agrawal, S.; Naumov, S.; De Miranda, E.; Di Bella, C.M.; Ordoyne, C.; et al. Validation of the global land cover 2000 map. IEEE Trans. Geosci. Remote Sens. 2006, 44, 1728–1739. [Google Scholar] [CrossRef] [Green Version]
Name | Number of Land Cover Types | Time | Method | O.A. Provided by Data Producer | Production Institution | Satellite | Link and Reference |
---|---|---|---|---|---|---|---|
GlobeLand30 | 10 | 2010 | POK (based on pixels, objects, and knowledge rules) | 0.803 | National Geomatics Center of China | Landsat TM/ETM+, HJ-1 A/B | http://www.globallandcover.com/ |
FROM_GLC30 | 26 | 2015 | Random forest | 0.773 | Tsinghua University | Landsat TM/ETM+/OLI | http://data.ess.tsinghua.edu.cn/ |
GLC_FCS30 | 30 | 2015 | Local random forest | 0.814 | Chinese Academy of Sciences | Landsat TM/ETM+/OLI | https://doi.org/10.5281/zenodo.3986872 |
Target Class 1 | GlobeLand30 | FROM_GLC30 | GLC_FCS30 |
---|---|---|---|
Cropland | Cropland | Rice paddy | Rainfed cropland |
Greenhouse | Herbaceous cover | ||
Other/orchard | Tree or shrub cover (orchard) | ||
Bare farmland | Irrigated cropland | ||
Forest | Forest | Broadleaf, leaf-on | Evergreen broadleaf forest |
Broadleaf, leaf-off | Closed/open deciduous broadleaf forest | ||
Needleleaf, leaf-on | Closed/open evergreen needleleaf forest | ||
Needleleaf, leaf-off | Closed/open deciduous needleleaf forest | ||
Mixed leaf, leaf-on | Mixed-leaf forest | ||
Mixed leaf, leaf-off | Sparse vegetation (fc < 15%) associated with forest | ||
Grassland | Grassland | Pasture | Grassland |
Natural grassland | Sparse herbaceous cover | ||
Grassland, leaf-off | Sparse vegetation (fc < 15%) associated with grassland | ||
Shrubland | Shrubland | Shrubland, leaf-on | Shrubland |
Shrubland, leaf-off | Evergreen/Deciduous shrubland | ||
Sparse shrubland | |||
Sparse vegetation (fc < 15%) associated with shrubland | |||
Wetland | Wetland | Marshland | Wetlands |
Marshland, leaf-off | |||
Mudflat | |||
Water | Water | Water | Water |
Impervious surface | Impervious surface | Impervious surface | Impervious surface |
Bare land | Bare land | Bare land | Bare areas |
Consolidated bare areas | |||
Unconsolidated bare areas | |||
Sparse vegetation (fc < 15%) associated with bare land | |||
Permanent ice/snow | Permanent ice/snow | Snow/Ice | Permanent ice and snow |
GlobeLand30_2010 | GLCFCS30_2015 | FROM_GLC_2015 | |
---|---|---|---|
GlobeLand30_2010 | 1.00 | ||
GLCFCS30_2015 | 0.930 | 1.00 | |
FROM_GLC_2015 | 0.538 | 0.679 | 1.00 |
GlobeLand30-2010 | GLC_FCS30-2015 | FROM_GLC30-2015 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
P.A. ± c.i. % | U.A. ± c.i. % | P.A. ± c.i. % | U.A. ± c.i. % | P.A. ± c.i. % | U.A. ± c.i. % | |||||||
CRP | 99.01 | 0.01 | 88.79 | 0.01 | 83.64 | 0.01 | 91.53 | 0.01 | 63.46 | 0.01 | 85.93 | 0.01 |
FST | 93.6 | 0.01 | 97.36 | 0.01 | 92.86 | 0.01 | 92.14 | 0.01 | 81.59 | 0.02 | 74.91 | 0.02 |
GRS | 17.12 | 0.02 | 59.05 | 0.09 | 70.95 | 0.05 | 48.11 | 0.04 | 57.96 | 0.09 | 17.09 | 0.02 |
SHR | 79.12 | 0.07 | 56.75 | 0.05 | 53.64 | 0.07 | 39.5 | 0.06 | 2.06 | 0.02 | 35.82 | 0.31 |
WET | 35.81 | 0.02 | 91.88 | 0.08 | 36.15 | 0.04 | 70.19 | 0.11 | 0 | 0 | 28.44 | 11.35 |
WAT | 93.41 | 0.03 | 95.75 | 0.03 | 90.41 | 0.02 | 96.68 | 0.02 | 35.6 | 0.09 | 23.13 | 0.07 |
IMP | 84.88 | 0.06 | 87.39 | 0.07 | 85.46 | 0.08 | 73.96 | 0.08 | 51.68 | 0.05 | 69.21 | 0.09 |
BAL | 71.43 | 0.09 | 78.06 | 0.12 | 34.14 | 0.11 | 36.12 | 0.14 | 8.81 | 0.06 | 35.73 | 0.28 |
PSI | 47.4 | 0.67 | 43.83 | 0.84 | 77.4 | 0.27 | 75.59 | 0.33 | 33.85 | 0.47 | 42.09 | 0.72 |
O.A./% | 88.90 ± 0.68 | 84.33 ± 0.80 | 65.31 ± 1.00 |
