Quantifying the Congruence between Air and Land Surface Temperatures for Various Climatic and Elevation Zones of Western Himalaya

by
Shaktiman Singh
1,*,
Anshuman Bhardwaj
1,
Atar Singh
2,
Lydia Sam
1,
Mayank Shekhar
3,
F. Javier Martín-Torres
1,4 and
María-Paz Zorzano
1,5
1
Division of Space Technology, Department of Computer Science, Electrical and Space Engineering, Luleå University of Technology, 97187 Luleå, Sweden
2
Department of Environmental Science, Sharda University, Greater Noida 201310, India
3
Birbal Sahni Institute of Palaeosciences, Lucknow 226007, India
4
Instituto Andaluz de Ciencias de la Tierra (CSIC-UGR), Armilla, 18100 Granada, Spain
5
Centro de Astrobiología (INTA-CSIC), Torrejón de Ardoz, 28850 Madrid, Spain
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(24), 2889; https://doi.org/10.3390/rs11242889
Submission received: 21 October 2019 / Revised: 27 November 2019 / Accepted: 2 December 2019 / Published: 4 December 2019
(This article belongs to the Special Issue Remote Sensing Monitoring of Land Surface Temperature (LST))
Browse Figures
Versions Notes

Abstract

:
The surface and near-surface air temperature observations are primary data for glacio-hydro-climatological studies. The in situ air temperature (Ta) observations require intense logistic and financial investments, making it sparse and fragmented particularly in remote and extreme environments. The temperatures in Himalaya are controlled by a complex system driven by topography, seasons, and cryosphere which further makes it difficult to record or predict its spatial heterogeneity. In this regard, finding a way to fill the observational spatiotemporal gaps in data becomes more crucial. Here, we show the comparison of Ta recorded at 11 high altitude stations in Western Himalaya with their respective land surface temperatures (Ts) recorded by Moderate Resolution Imagining Spectroradiometer (MODIS) Aqua and Terra satellites in cloud-free conditions. We found remarkable seasonal and spatial trends in the Ta vs. Ts relationship: (i) Ts are strongly correlated with Ta (R2 = 0.77, root mean square difference (RMSD) = 5.9 °C, n = 11,101 at daily scale and R2 = 0.80, RMSD = 5.7 °C, n = 3552 at 8-day scale); (ii) in general, the RMSD is lower for the winter months in comparison to summer months for all the stations, (iii) the RMSD is directly proportional to the elevations; (iv) the RMSD is inversely proportional to the annual precipitation. Our results demonstrate the statistically strong and previously unreported Ta vs. Ts relationship and spatial and seasonal variations in its intensity at daily resolution for the Western Himalaya. We anticipate that our results will provide the scientists in Himalaya or similar data-deficient extreme environments with an option to use freely available remotely observed Ts products in their models to fill-up the spatiotemporal data gaps related to in situ monitoring at daily resolution. Substituting Ta by Ts as input in various geophysical models can even improve the model accuracy as using spatially continuous satellite derived Ts in place of discrete in situ Ta extrapolated to different elevations using a constant lapse rate can provide more realistic estimates.

Graphical Abstract

1. Introduction

Air temperature (Ta) is an important proxy for energy exchange between land-surface and atmosphere, making Ta one of the most important parameters in climate research [1,2]. Ta is generally observed at a height of about 2 m above the land surface and it is considered as a critical parameter for glacio-hydrological studies because it controls the rate of melting of snow and ice and the proportion of form of precipitation [3,4]. In addition, it also regulates the evolution of flora and fauna in an area, ultimately controlling the evolution of the ecological niche [5]. Ta is also important for determining the atmospheric water vapor saturation point and thus for the formation of fogs and clouds. The gradient between the air and ground temperature is relevant for estimating the sensible heat flux (i.e., the convective heat flux loss from surface to the air) for calculations of the surface energy balance [6]. The surface-to-air temperature difference is particularly important for evapotranspiration [7]. In other regions, such as the Arctic, the Ta difference is taken as a critical parameter to monitor climate change [8]. Therefore, it is imperative to have accurate estimates of Ta for various natural science disciplines including glaciology, hydrology, ecology, and climatology. The measurement of Ta using in situ automatic meteorological stations is cost intensive due to involved instrumentation and maintenance which makes the spatial continuity of data sparse, particularly in remote environments. This spatially discontinuous nature of in situ Ta measurements adds uncertainty in geospatial modelling in mountainous terrain when the Ta representing single data points are extrapolated to a continuous surface based on fixed lapse rates [9,10,11].
The land surface temperature (Ts) in a remote sensing perspective is the measure of how hot or cold the top canopy skin layer of the Earth at a particular location will feel when touched [12]. The measure of Ts is largely dependent on net solar radiation, sensible heat flux, reflectance property of the surface, aerodynamic resistance, and the density of air [13]. Although the Ts is closely related to Ta, it can be significantly influenced by the surface characteristics, buffering effects of vegetation and the periodicity of the shortwave radiation emitted from the sun [14]. Over the past decade, the remotely-sensed Ts measurements have been used to map permafrost in different parts of the world [14,15,16,17]. There have been several attempts to estimate Ta using remotely-sensed Ts in different ecological systems [18,19,20,21,22]. The root mean square difference (RMSD) between Ta from meteorological stations and Ts from Moderate Resolution Imagining Spectroradiometer (MODIS) on Terra [23] and Aqua [24] satellites was estimated to be ±2.20 °C in Indo-Gangetic plain [25], ±1.33 °C in Portugal [18], ±5.48 °C in mountainous regions of Nevada, United states of America [19], ±2.97 to ±7.45 °C in northern Tibetan Plateau, China [26], ±4.09 to ±4.53 °C in a mountainous region of sub-Arctic Canada [27], and ±1.51 to ±3.74 °C over different ecosystems in Africa [22]. A recent study attempted to analyze the temperature trend using the 8-day Ts corrected using the difference between Ts and Ta calculated for 87 meteorological stations in the Chinese part of Himalaya and Tibetan Plateau [28]. Most of these published studies have compared the Ta and Ts at monthly or 8-day scales while several prominently used ecological and glacio-hydrological models in Himalaya that require daily temperature data as input parameter [4,29]. Moreover, such comparative studies for high mountains of Central or Western parts of Himalaya are completely missing.
The observed temperatures in Himalaya are scarce and fragmented in spatiotemporal domain due to difficult terrain, inhospitable weather conditions, and logistic difficulties in setting-up the weather stations [29]. The Himalayan mountains serve as a source of fresh water supply [30,31] and hydropower generation [32] to the densely populated mountainous regions of Indian Subcontinent. The Himalayan rivers mainly consist of the meltwaters coming from snow and glaciers [30] and this runoff is largely dependent on the seasonal temperatures [4,33]. The glaciers in Himalaya are losing mass in general with a few exceptions [29,33]. However, the quantification of the changes evident in glacierized regions in Himalaya with respect to the changing temperatures are largely uncertain due to unavailability of well-distributed and spatiotemporally continuous network of meteorological stations [29]. Furthermore, the lack of a definite and abiding framework for mutual climatological data sharing among various research and academic organizations in Himalayan countries makes regional-scale glacio-hydro-climatological modelling and interpretations more uncertain [29]. In this respect, there are two significant research gaps: (i) the studies comparing Ta with Ts for a large spatial domain are completely missing for the Central and Western Himalaya, and (ii) owing to this research gap, the glacio-hydrological community is further unsure of the significant role that spatiotemporally continuous satellite-derived surface temperatures can play as a substitute for spatially discontinuous Ta observations. The land-surface temperature is more likely proxy of energy exchange between land-surface and atmosphere for phenomena which are more strongly linked to ground processes [27]. The main aim of the present study is to understand and quantify the statistically significant trends in Ts − Ta variation over a large spatiotemporal domain in Western Himalaya. Here, we start with providing a description of the study area, followed by data and used methods, and finally we discuss and conclude the main findings of the analyses.

2. Study Area

In the present paper, we analyze the relationship between daily and 8-day mean Ta from 11 high-altitude weather stations (Table 1) in Western Himalaya (Figure 1) and the respective daily and 8-day mean Ts measured by MODIS. The daily and 8-day night- and day-time Ts observations from Version 6 of Terra MODIS (MOD11A1 and MOD11A2 available from February, 2000) and Aqua MODIS (MYD11A1 and MYD11A2 available from July, 2002) were used to calculate average daily and 8-day Ts, respectively.
The stations in the present study are located over a large elevation range above sea level (1587–4280 m) (Figure 1). All the stations used in the analysis are located above 2100 m except for Srinagar which is located at 1587 m. These stations are located in three different Himalayan states of India namely Uttarakhand, Himachal Pradesh, and Jammu and Kashmir. In addition, we have also included one station (Shiquanhe) from the Chinese part of the region in the study (Figure 1). These stations represent various precipitation regimes of the region such as monsoon dominance, westerly dominance, the precipitation-transition zone from monsoon-to-westerly dominance, and orographic precipitation-shadow zone. The topographic variations, i.e., altitudes and orography, among the Himalayan ranges not only govern the temperatures but also the precipitation [34]. Here, we aim to further untangle the degree of control of the altitude and orography in deciding the correlation between Ts and Ta in the Himalaya.

3. Materials and Methods

3.1. Air Temperature (Ta)

The Ta is generally observed at a height of about 2 m above the land surface. Ta data observed at 11 different stations was used in the present study (Table 1). The data for five stations from Global Historical Climatology Network (GHCN) which was acquired from National Centre for Environmental Information (NCEI), NOAA web portal (https://www.ncei.noaa.gov/) [35] had observed daily mean Ta estimated using hourly or 6-hourly observations (Version 3). For the other six stations of Bhakra Beas Management Board (BBMB) and India Meteorology Department (IMD), the Ta was calculated using the daily maximum and minimum observations due to unavailability of daily mean Ta. This method of averaging the daily maximum and minimum temperatures for calculation daily mean temperature is widely used due to the instrumentation, logistic, and computational simplicity [36]. Although the method produces bias in the output due to inability to track the diurnal asymmetry [37], it has been used by considerable number of studies to make acceptable estimates requiring Ta [36]. In order to understand the degree of bias for our study area, we compared the given daily mean Ta with mean of daily maximum and minimum Ta for the five stations of GHCN for which all the three parameters were available. The analysis showed that the RMSD was less than 1.62 °C with a very high correlation (R2 > 0.96) for all the stations. In addition to the daily Ta, we also calculated 8-day mean Ta for comparison with the corresponding 8-day Ts explained in next section. The observations were carefully checked for systematic and random errors before using it for further comparison. The stations used in the present study are distributed broadly over four different precipitation zones (Table 1, Figure 1). The precipitation varies significantly in these precipitation zones. The monsoon dominated, transition zone, westerlies dominated, and precipitation shadow zone receive >1500, 200–800, 600–800, and <150 mm total annual precipitation on an average, respectively.

3.2. MODIS Data

The daily, and 8-day night- and day-time Ts from MODIS satellites on Terra (MOD11A1 and MOD11A2 available from February, 2000) and Aqua (MYD11A1 and MYD11A2 available from July, 2002) satellites [23,24] was downloaded from NASA Earthdata portal (https://earthdata.nasa.gov/) [38] and was used to calculate average of daily and 8-day Ts (Table 2). The remotely-sensed Ts from MODIS (version 006) has been observed to have RMSD of less than 0.5 K in comparison to the in situ measurements of the Ts [39] and therefore has been widely used for multiple scientific applications [18,19,22,25,26,27,28,40].
The local time for the pass over the study area for Terra is around 10:30 and 22:30 and for Aqua is around 13:30 and 01:30 during day and night, respectively. The 8-day land surface temperature data MOD11A2 and MYD11A2 is a simple pixel wise average of all the respective MOD11A1 and MYD11A2 data collected during the 8-day period. The days with all the four observations, including the day and night-time measurements available from both Terra and Aqua were included in the comparison at both daily and 8-day scale. Equation (1) was used to compute the average of four MODIS observations during a day or 32 MODIS observations during an 8-day period (referred as Ts in °C) from the pixel value corresponding to every station given in Table 1.
T s = T   d T + T   n T + T   d A + T   n A 4 − c ,
where,
T   d T = Terra day-time observation
T   n T = Terra night-time observation
T   d A = Aqua day-time observation
T   n A = Aqua night-time observation
c = Constant for conversion from kelvin to Celsius (273.15)
For every data point of daily and 8-day Ts, two night-time and two day-time satellite observations were used. It moderated the calculated daily Ts for further comparison with Ta. Therefore, every data point of daily Ts is average of four MODIS observations during that day and 8-day Ts is average of 32 MODIS observations during that 8-day period. Since, the satellite observation from MODIS is unavailable in cloud cover condition and the calculated daily Ts for comparison with Ta can have large data gaps, we decided to also include MODIS 8-day Ts in the analyses. For 8-day Ts, the data available is comparatively more continuous due to correction of cloud contamination [39]. Although, the 8-day MODIS observations are more efficient in terms of temporal continuity, it compromises with the temporal resolution. Additionally, the number of data points available for comparison for 8-day average is significantly less than the dataset available for daily average. Thus, the average Ts used in our analyses, and referred to hereafter, is essentially the average of four-times daily and 8-day MODIS Ts observations and all the results should be considered accordingly. Therefore, based on these data limitations, we finally compared the average of four-times daily and 8-day MODIS Ts observations with observed daily mean Ta for five GHCN stations and with the average of observed daily maximum and minimum temperatures for the remaining six stations.

3.3. Statistical Analyses

We applied different statistical tools and tests to analyze the relationship between Ts and Ta. Firstly, the coefficient of correlation (r), coefficient of determination (R2), standard error of regression (SE), and root mean square difference (RMSD) between Ts and Ta for all the stations was calculated. The SE is the standard deviation of the difference between two datasets while RMSD is the square root of mean of squared difference between two datasets. The R2 explains the efficiency of the regression model. In other words, it is the degree to which the independent variable will be able to explain the dependent variable. During the analysis, the Ta was considered to be the dependent variable (y) and Ts was considered as the independent variable (x). The p-values for all the analyses were <0.01 at 99% confidence level. Additionally, we estimated these statistical parameters for all available data for different climate zones namely monsoon-dominated, transition, westerlies-dominated, and precipitation shadow and for all the stations. The value of modified R2 which is adjusted for the number of predictors was observed to be around unadjusted R2 and therefore was not shown in the table. The p-value for each of the analyses was found to be less than 0.01 at 99% confidence level showing the effect of predictors. In addition, we analyzed the variation in the magnitude of the coefficient of the difference between Ts and Ta observed after the multiple regression taking January as the base month. We also plotted the box and whisker plots for the daily difference between Ts and Ta to graphically represent the overall range of the data, median of the data, and distribution of the data in different quartiles.

4. Results

4.1. Ts vs. Ta Relationship

We performed different statistical analyses to derive several first-hand conclusions regarding the relationship between Ts and Ta in the Himalayan region. The results show a strong relationship between observed daily mean Ta and its respective daily mean Ts in general for all the stations (R2 = 0.77, RMSD = 5.9 °C, SE = 4.76, n = 11,101, p-value <0.01 at 99% confidence level) with variations corresponding to the altitudinal locations of the stations (Figure 2 and Table 3). The strongest relationship between Ta and Ts at daily scale was observed for Shimla (R2 = 0.94; RMSD = 1.5 °C, SE = 1.2 °C, n = 304, p-value <0.01 at 99% confidence level) and Mukteshwar stations (R2 = 0.94; RMSD = 1.6 °C, SE = 1.2 °C, n = 355, p-value <0.01 at 99% confidence level) which are located on the southern slopes in monsoon-dominated precipitation regime. The coefficient of determination is considerable for all the stations (R2 > 0.69, p-value <0.01 at 99% confidence level) at daily scale.
The R2 and RMSD for all the stations show slight improvement for 8-day average (Figure 3 and Table 3). The relationship between Ta and Ts for 8-day average was also found to be strongest for Shimla (R2 = 0.97; RMSD = 1.4 °C, SE = 0.96 °C, n = 55, p-value <0.01 at 99% confidence level) and Mukteshwar stations (R2 = 0.96; RMSD = 1.2 °C, SE = 1.05, n = 63, p-value <0.01 at 99% confidence level). Overall, the Ta and Ts relationship was found to be stronger (R2 = 0.96; RMSD = 5.7 °C, SE = 4.5, n = 3552, p-value <0.01 at 99% confidence level) at 8-day scale for all the stations as well. The regression equation for all the analyses was also given which can be used for estimating Ta for different climate regimes with continuity over large spatiotemporal domain using Ts (Table 3) at both daily and 8-day scales.
The number of data points available for 8-day analysis is significantly less in comparison to the daily analysis (Table 1). Additionally, the use of 8-day data gives spatiotemporal continuity due to correction of cloud contaminated pixels but poses a restriction on the frequency of comparisons. We decided to represent the analysis of the relationship between Ta and Ts at daily scale henceforth because there was very small improvement in the results observed after the use of 8-day data and the daily observation are crucial for different geophysical models as explained in the Introduction section. We noticed certain spatial patterns in the daily differences between Ts and Ta which are discussed in detail in the following paragraphs.

4.2. Altitudinal Relationship

First, we present the relationship between Ts − Ta by considering altitudinal positions of the stations. The variation in altitude affects the Ta due to difference in density of air which causes a reduced green-house effect in the higher reaches. The RMSD between Ts and Ta for stations has a direct correlation with the elevation of the station (Figure 2, Figure 3 and Figure 4). Although, the RMSD increases systematically with increase in elevation in general, small variation in this trend is observed for northernmost stations (Skardu and Srinagar). The annual mean RMSD is strongly correlated to the elevation (R2 = 0.74) in general (Figure 5a) except for two stations (Skardu and Srinagar), which even when located at comparatively low elevations show higher magnitude of RMSD (Figure 4). The R2 is stronger for monsoon season (Figure 5b) in comparison to annual (Figure 5a) and summer season values (Figure 5c). The observed Ta was unavailable for Skardu for winter months (Figure 5d). Therefore, the R2 is highest for winter when compared to monsoon, summer, and annual analysis. Furthermore, the magnitude of Ts − Ta is observed to be higher in summer months in comparison to the winter months for all the stations in general (Figure 4).

4.3. Seasonal Relationship

The difference between mean monthly Ta and Ts (i.e., Ts − Ta) for the entire period of study shows high inter-monthly variability for all the stations except for the stations in monsoon-dominated regions (Figure 5 and Figure 6). The mean monthly Ts is lower in comparison to mean monthly Ta for southern slopes (Figure 6a) and increases with increasing latitudes (Figure 6c) except for the stations in westerlies dominated areas (Figure 6d). The magnitude of difference between mean monthly Ts and mean monthly Ta is negative for the stations in monsoon-dominated areas and positive for the stations in precipitation shadow and westerly-dominated regions. In the precipitation-transition zone, the difference is positive for summer months and negative for winter months except for Rakchham, the southernmost station of the transition zone (Figure 5). For Rakchham, the Ts − Ta values are negative throughout the year similar to the stations in monsoon-dominated areas (Figure 6b). This might be a result of the added effect of humidity in the near-surface atmosphere and presence of snow on land surface which moderates the difference between Ts and Ta [42] throughout the year in monsoon-dominated regions. In the precipitation-transition zone, the difference is partly moderated by the presence of snow during winter months and partly humidity during summer months, particularly for the southernmost stations of the zone (Rakchham and Kalpa) (Figure 5 and Figure 6b) which receive enough precipitation through both monsoon and westerlies. Ts − Ta values for the stations in westerly-dominated region are regulated mainly by the presence of snow during winters (Figure 5 and Figure 6d), which tends to cool the surface due to high albedo [42]. The Ts − Ta values for the stations in precipitation-shadow zone are significantly high and positive in magnitude throughout the year in comparison to all the other stations due to the perennial cold-arid atmospheric conditions (Figure 5 and Figure 6c). This confirms the role of water cycle on this gradient and shows that in the absence of soil-atmosphere water cycle (dry conditions) the magnitude of the difference between Ts − Ta increases and is more positive.
The comparison of Ts and Ta showed high inter-monthly variability throughout the study period. Therefore, we performed an additional analysis where we estimated the seasonal effect of each month on the difference between Ts and Ta (Figure 7) in reference to a base month. For this multiple regression analysis, January was considered as the base month since the Ts − Ta values in January were least for all the stations in general (Figure 6). This analysis further corroborates the above-discussed aspect that the Ts − Ta coefficient values are larger in summer months in comparison to winter months (Figure 7). Additionally, the difference in coefficient and RMSD is high for stations in precipitation shadow regions (Kaza, Shiquanhe and Losar) in comparison to the stations in monsoon-dominated areas (Shimla and Mukteshwar) (Figure 6 and Figure 7).
To further corroborate the effect of seasonality and the presence of snow and humidity on the Ts − Ta values, we created monthly box and whisker plots of daily difference between Ts and Ta (Figure 8). The whisker for the stations in precipitation shadow zone and transition zone is longer showing the high monthly variability of the difference value in comparison to the stations in monsoon and westerlies-dominated areas. This is due to the presence of snow during the winter and humidity in the atmosphere in summer regulating the difference between Ts and Ta in the monsoon dominated areas. Additionally, the size of the boxes are smaller for the stations in monsoon and westerlies-dominated areas explaining the presence of maximum data points close to the median representing that throughout the year the difference between Ts and Ta is regulated by presence of snow or atmospheric moisture. On the contrary, the boxes for stations in precipitation shadow zones which receive significantly less precipitation throughout the year, are wider in size representing large variation in the difference between Ts and Ta throughout the year. The boxes for the stations in the southern part of the transition zone are smaller in summer and wider in winter showing the effect of humidity due to some influence of monsoon owing to their spatial closeness to the monsoon-dominated region. Besides, both the boxes and whiskers for the stations in north-eastern part of the transition zone, closer to the precipitation shadow zone, are wider in size showing the variability due to lack of both snow and humidity.

5. Discussion

The observed near-surface air temperature is one of the most important climate parameters used in different kinds of environmental studies particularly in Himalaya where the interaction between high elevation, climate, and cryosphere is highly significant and complex. It is extremely difficult to capture the spatial heterogeneity of the near-surface temperature [43] which is the primary forcing data for different glacio-hydrological models [3,4,44,45,46]. It is also used as primary data for climate change assessment [47,48], agro-climatic [40], ecological [49,50], and socio-economic [51,52] studies. Our results present a freely available substitute for station recorded Ta with high temporal and spatial resolution. Conclusively, the Ts is highly correlated with Ta throughout the study area at both daily and 8-day scales. The correlation is highest at the stations located at Southern slope (Shimla and Mukteshwar) with significantly low RMSD in comparison to the stations located in the Eastern part (Losar and Shiquanhe). Although, the degree of congruence between Ts and Ta is slightly higher in the 8-day dataset (R2 > 0.77) in comparison to the daily dataset (R2 > 0.69), the number of data points available for comparison is significantly low. The overall RMSD improved by 0.2 °C on an average by using the 8-day dataset. The largest improvement in RMSD was observed for Skardu (1.1 °C) but the number of data points available for correlation was significantly less than other stations. The overall SE improved by 0.38 °C except for Kalpa and Kaza for which it deteriorated by 0.02 and 0.08 °C, respectively. It is interesting to note that for Shiquanhe which is located in precipitation shadow zone and highest altitude among all the stations, shows largest improvement in SE (by 1.63 °C) and reduction in RMSD (0.2 °C).
The difference between Ts and Ta is primarily controlled by elevation, the land surface cover characteristics, and near-surface humidity. At higher altitudes, the thinner atmosphere shows lesser water holding capacity and the atmosphere saturates faster, thus allowing for lesser evaporation/sublimation in a given pressure-temperature scenario [53]. This puts a constraint on the limit of specific humidity in the high elevations and the comparatively lesser number of available water molecules in the near-surface atmosphere cannot trap the same amount of heat as those at lower elevations. This can provide a basis for the observed high values of Ts − Ta at the higher altitudes. The intercept of the regression between Ts and Ta shows increase for the stations in monsoon, transition, and westerlies-dominated areas. On the contrary, the stations in precipitation shadow zone show a sharp decrease in the intercept of the regression at high elevations (>3600 m). The slope of the regression between Ts and Ta is higher for stations in low elevation and precipitation-dominated areas (0.80–1.03) in comparison to the stations in high elevation and in transition-to-precipitation shadow zones (0.59–0.86). This observation is supported by a study which shows decrease in slope and degree of correlation in high elevation [54]. The high difference between Ts and Ta for the stations in dry atmosphere at high altitude may partially be due to the heat from the Sun and cooling of near-surface atmosphere due to heat exchange from surrounding air and temperature lapse rate [55]. The presence of more humidity moderates the difference between Ts and Ta in precipitation dominant areas. The difference between Ts and Ta is highest with positive magnitude when the land surface is snow-free and the near-surface atmosphere is dry. On the contrary, the Ts and Ta is negative and lower in magnitude when the land surface is covered by snow and/or atmosphere is more saturated with moisture regardless of high altitude. In addition to the elevation and precipitation regime, season was observed to have significant control over the difference between Ts and Ta. The summer months were observed to have a significantly higher effect on Ta in reference to January, in general for all the stations. The inter-monthly variability was observed to be very high for year-round humidity-deficient transition zones and precipitation shadow zones in comparison to the monsoon-dominated and westerlies-dominated regions. It can be interpreted that the energy exchange between the surface and near-surface atmosphere in the precipitation dominant areas is more efficient in comparison to the precipitation deficient areas.
The lower magnitude of RMSD between Ts and Ta represents lower gradient of temperature between the land surface and near-surface air due to the cold bias caused by snow cover which protects the surface from warming because of its high albedo [42]. A possible contributing factor to this seasonal disparity can be the reported perpetually melting seasonal snow in Himalayan mountains [55] under the changing regional climate. The causal mechanism for this relationship deserves a separate detailed investigation. However, a possible cause of such observations can be linked to the fact that the diurnal temperatures even in the mid-winter months often cross the freezing point causing a certain degree of melting to prevail [56]. This can start a cascading event where during the preliminary warming phase, the average snowpack temperature reaches and stays at 0 °C isotherm until the melting typically starts within the snowpack prior to the ripening phase as meltwater is retained within the snowpack [57]. This meltwater may subsequently refreeze owing to the diurnal cycles of temperature and the latent heat released during this process can additionally warm the snow surface and the surrounding air, further minimizing the temperature difference [56]. In addition to the seasonal change in the land cover characteristics, the variation in humidity in the near-surface atmosphere is an important factor controlling the difference between Ts and Ta. It was recently proposed that the amount of moisture content on the land surface has a cooling effect on land surface temperature [40]. Thus, the precipitation regime in which a particular station is located can further provide us several clues regarding the observed variations in Ts − Ta values. These precipitation regimes have been previously characterized [34] and in the following discussion, we take a focused approach towards revisiting the Ts − Ta variations with respect to the respective precipitation scenarios.
All the statistical results and the regression equation between Ts and Ta have specific trends for particular climate setting and elevation which can be used to estimate Ta using Ts (Table 3) for glacio-hydrological and climate change studies in data-deficient Himalaya. For example, the RMSD ranges between 1.2–1.6, 2.6–5., 2.5–4.3, and 7.2–8.9 °C for the stations in monsoon-dominated, transition, westerlies-dominated, and precipitation shadow zones, respectively, for both daily and 8-day products. The slope and intercept of the regression equations between Ts and Ta are also similar for the stations in the same precipitation regime. The paper demonstrates different patterns of variation of Ts − Ta in different climate regimes within the region of study. Due to the inherent limitations of the available data, some of this analysis may be revised in the future by specific dedicated studies, in particular to asses if the relationships hold on daily scales and with what error bar. Some possible error sources for this analysis may come from the scarcity of the data, and the fact that we compared data from different instrumentation accuracies and cadences. Ta is measured by three different organizations and two calculation methods are used for daily mean air temperature during different observation periods. The correlation of the instantaneous observation of Ta in relation to satellite derived Ts can be investigated by analyzing the diurnal variation of Ta in relation to the time of pass of the satellite [58]. There are different parameters like wind speed and fractional vegetation which have additional effects on the difference between Ts and Ta, which have not been investigated in the present study [54,55] and can be interesting research questions for future investigations in the region.

6. Conclusions

Unavailability of reliable temperature observations with spatial continuity along with the extreme weather conditions and difficult terrain in the remoteness of Himalaya hampers our understanding of the cryosphere-climate coupling in these mountains. Here we attempt to compare remotely sensed Ts with respect to in situ Ta observations over different precipitation and altitudinal zones of the Western Himalaya. Although, there are several studies available from different parts of the globe attempting to estimate Ta using Ts or vice-versa using monthly or 8-day MODIS data, we provide an understanding of the spatiotemporal variability of the Ta vs. Ts relationship at diurnal scales. The results show a strong and statistically significant relationship between Ts and Ta in general with a spatiotemporal consistency, thus projecting satellite-derived Ts as a viable alternative to the in situ Ta for glacio-hydro-climatological studies. We also provide regression equations to facilitate modeling of gridded Ta using corresponding Ts for different regions of Western Himalaya. MODIS in combination with Sea and Land Surface Temperature Radiometer (SLSTR) onboard Sentinel-3 can provide better capability to overcome cloud gaps and ensuring spatiotemporal continuity for Ts future studies in this direction.

Author Contributions

S.S. conceptualized and designed the research and wrote the manuscript. S.S., A.B., A.S., L.S., and M.S. performed statistical tests, and wrote the manuscript and methods section with inputs from all the co-authors. S.S., A.B., and A.S., performed raw data generation and analysis. F.J.M.-T. and M.-P.Z. helped in analyzing the results and correlating them with the different variables.

Funding

This research received no external funding.

Acknowledgments

The authors would like to acknowledge National Snow and Ice Data Centre, USA and National Oceanic and Atmospheric Administration, USA for providing freely available MODIS satellite products and Global Historical Climatology Network station data, respectively. The authors are also grateful to India Meteorology Department (IMD), India, Bhakhra Beas Management Board (BBMB), India and Hendrik Wulf, University of Zurich, Switzerland for providing the station data. A.B. acknowledges the Swedish Research Council for supporting his research in Himalaya. M.S. acknowledges Director, Birbal Sahni Institute of Palaeosciences and Birbal Sahni Research Associate fellowship.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hansen, J.; Ruedy, R.; Sato, M.; Lo, K. Global surface temperature change. Rev. Geophys. 2010, 48, RG4004. [Google Scholar] [CrossRef] [Green Version]
  2. Jones, P.D. Hemispheric Surface Air Temperature Variations: A Reanalysis and an Update to 1993. J. Clim. 1994, 7, 1794–1802. [Google Scholar] [CrossRef]
  3. Hock, R. Temperature index melt modelling in mountain areas. J. Hydrol. 2003, 282, 104–115. [Google Scholar] [CrossRef]
  4. Kumar, R.; Singh, S.; Kumar, R.; Singh, A.; Bhardwaj, A.; Sam, L.; Randhawa, S.S.; Gupta, A. Development of a glacio-hydrological model for discharge and mass balance reconstruction. Water Resour. Manag. 2016, 30, 3475–3492. [Google Scholar] [CrossRef]
  5. Hatfield, J.L.; Prueger, J.H. Temperature extremes: Effect on plant growth and development. Weather Clim. Extrem. 2015, 10, 4–10. [Google Scholar] [CrossRef] [Green Version]
  6. Stoll, M.J.; Brazel, A.J. Surface-air temperature relationships in the urban environment of Phoenix, Arizona. Phys. Geogr. 1992, 13, 160–179. [Google Scholar] [CrossRef]
  7. Seiler, C.; Moene, A.F. Estimating Actual Evapotranspiration from Satellite and Meteorological Data in Central Bolivia. Earth Interact. 2011, 15, 1–24. [Google Scholar] [CrossRef]
  8. Screen, J.A.; Simmonds, I. The central role of diminishing sea ice in recent Arctic temperature amplification. Nature 2010, 464, 1334. [Google Scholar] [CrossRef] [Green Version]
  9. Ishida, T.; Kawashima, S. Use of cokriging to estimate surface air temperature from elevation. Theor. Appl. Climatol. 1993, 47, 147–157. [Google Scholar] [CrossRef]
  10. Snehmani; Bhardwaj, A.; Singh, M.K.; Gupta, R.D.; Joshi, P.K.; Ganju, A. Modelling the hypsometric seasonal snow cover using meteorological parameters. J. Spat. Sci. 2015, 60, 51–64. [Google Scholar] [CrossRef]
  11. Willmott, C.J.; Robeson, S.M. Climatologically aided interpolation (CAI) of terrestrial air temperature. Int. J. Climatol. 1995, 15, 221–229. [Google Scholar] [CrossRef]
  12. Bense, V.F.; Read, T.; Verhoef, A. Using distributed temperature sensing to monitor field scale dynamics of ground surface temperature and related substrate heat flux. Agric. For. Meteorol. 2016, 220, 207–215. [Google Scholar] [CrossRef] [Green Version]
  13. Sellers, P.J.; Dickinson, R.E.; Randall, D.A.; Betts, A.K.; Hall, F.G.; Berry, J.A.; Collatz, G.J.; Denning, A.S.; Mooney, H.A.; Nobre, C.A.; et al. Modeling the exchanges of energy, water, and carbon between continents and the atmosphere. Science 1997, 275, 502–509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Luo, D.; Jina, H.; Marchenkoa, S.S.; Romanovsky, V.E. Difference between near-surface air, land surface and ground surface temperatures and their influences on the frozen ground on the Qinghai-Tibet Plateau. Geoderma 2018, 312, 74–85. [Google Scholar] [CrossRef]
  15. Hachem, S.; Allard, M.; Duguay, C. Using the MODIS land surface temperature product for mapping permafrost: An application to northern Québec and Labrador, Canada. Permafr. Periglac. Process. 2009, 20, 407–416. [Google Scholar] [CrossRef]
  16. Hachem, S.; Duguay, C.R.; Allard, M. Comparison of MODIS-derived land surface temperatures with ground surface and air temperature measurements in continuous permafrost terrain. Cryosphere 2012, 6, 51–69. [Google Scholar] [CrossRef] [Green Version]
  17. Ran, Y.; Li, X.; Jin, R.; Guo, J. Remote sensing of the mean annual surface temperature and surface frost number for mapping permafrost in China. Arct. Antarct. Alp. Res. 2015, 47, 255–265. [Google Scholar] [CrossRef] [Green Version]
  18. Benali, A.; Carvalho, A.C.; Nunes, J.P.; Carvalhais, N.; Santos, A. Estimating air surface temperature in Portugal using MODIS LST data. Remote Sens. Environ. 2012, 124, 108–121. [Google Scholar] [CrossRef]
  19. Mutiibwa, D.; Strachan, S.; Albright, T. Land Surface Temperature and Surface Air Temperature in Complex Terrain. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 4762–4774. [Google Scholar] [CrossRef]
  20. Prihodko, L.; Goward, S.N. Estimation of air temperature from remotely sensed surface observations. Remote Sens. Environ. 1997, 60, 335–346. [Google Scholar] [CrossRef]
  21. Stisen, S.; Sandholt, I.; Nørgaard, A.; Fensholt, R.; Eklundh, L. Estimation of diurnal air temperature using MSG SEVIRI data in West Africa. Remote Sens. Environ. 2007, 110, 262–274. [Google Scholar] [CrossRef]
  22. Vancutsem, C.; Ceccato, P.; Dinku, T.; Connor, S.J. Evaluation of MODIS land surface temperature data to estimate air temperature in different ecosystems over Africa. Remote Sens. Environ. 2010, 114, 449–465. [Google Scholar] [CrossRef]
  23. Wan, Z.; Hook, S.; Hulley, G. MOD11A1 MODIS/Terra Land Surface Temperature/Emissivity Daily L3 Global 1km SIN Grid V006 [Data set]. NASA EOSDIS LP DAAC 2015. [Google Scholar] [CrossRef]
  24. Wan, Z.; Hook, S.; Hulley, G. MYD11A1 MODIS/Aqua Land Surface Temperature/Emissivity Daily L3 Global 1km SIN Grid V006 [Data set]. NASA EOSDIS LP DAAC 2015. [Google Scholar] [CrossRef]
  25. Shah, D.B.; Pandya, M.R.; Trivedi, H.J.; Jani, A.R. Estimating minimum and maximum air temperature using MODIS data over Indo-Gangetic Plain. J. Earth Syst. Sci. 2013, 122, 1593–1605. [Google Scholar] [CrossRef] [Green Version]
  26. Zhu, W.; Lű, A.; Jia, S. Estimation of daily maximum and minimum air temperature using MODIS land surface temperature products. Remote Sens. Environ. 2013, 130, 62–73. [Google Scholar] [CrossRef]
  27. Williamson, S.; Hik, D.; Gamon, J.; Kavanaugh, J.; Flowers, G. Estimating temperature fields from MODIS land surface temperature and air temperature observations in a sub-arctic alpine environment. Remote Sens. 2014, 6, 946–963. [Google Scholar] [CrossRef] [Green Version]
  28. Pepin, N.; Deng, H.; Zhang, H.; Zhang, F.; Kang, S.; Yao, T. An examination of temperature trends at high elevations across the Tibetan Plateau: The use of MODIS LST to understand patterns of elevation-dependent warming. J. Geophys. Res. Atmos. 2019, 124, 5738–5756. [Google Scholar] [CrossRef] [Green Version]
  29. Singh, S.; Kumar, R.; Bhardwaj, A.; Sam, L.; Shekhar, M.; Singh, A.; Kumar, R.; Gupta, A. The Indian Himalayan Region: A review of signatures of changing climate and vulnerability. WIREs Clim. Chang. 2016, 7, 393–410. [Google Scholar] [CrossRef] [Green Version]
  30. Immerzeel, W.W.; Van Beek, L.P.H.; Bierkens, M.F.P. Climate Change Will Affect the Asian Water Towers. Science 2010, 328, 1382–1385. [Google Scholar] [CrossRef]
  31. Sam, L.; Bhardwaj, A.; Kumar, R.; Buchroithner, M.F.; Martín-Torres, F.J. Heterogeneity in topographic control on velocities of Western Himalayan glaciers. Sci. Rep. 2018, 8, 12843. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Sam, L.; Bhardwaj, A.; Sinha, V.S.P.; Joshi, P.K.; Kumar, R. Use of Geospatial Tools to Prioritize Zones of Hydro-Energy Potential in Glaciated Himalayan Terrain. J. Indian Soc. Remote Sens. 2016, 44, 409–420. [Google Scholar] [CrossRef]
  33. Shekhar, M.; Bhardwaj, A.; Singh, S.; Ranhotra, P.S.; Bhattacharyya, A.; Pal, A.K.; Roy, I.; Martín-Torres, F.J.; María-Paz, Z. Himalayan glaciers experienced significant mass loss during later phases of little ice age. Sci. Rep. 2017, 7, 10305. [Google Scholar] [CrossRef] [PubMed]
  34. Bookhagen, B.; Burbank, D.W. Toward a complete Himalayan hydrological budget: Spatiotemporal distribution of snowmelt and rainfall and their impact on river discharge. J. Geophys. Res. 2010, 115. [Google Scholar] [CrossRef] [Green Version]
  35. National Centre for Environmental Information (NCEI). Available online: https://www.ncei.noaa.gov/ (accessed on 5 November 2019).
  36. Villarini, G.; Khouakhi, A.; Cunningham, E. On the impacts of computing daily temperatures as the average of the daily minimum and maximum temperatures. Atmos. Res. 2017, 198, 145–150. [Google Scholar] [CrossRef]
  37. Ma, Y.; Guttorp, P. Estimating daily mean temperature from synoptic climate observations. Int. J. Climatol. 2013, 33, 1264–1269. [Google Scholar] [CrossRef]
  38. NASA Earthdata Portal. Available online: https://earthdata.nasa.gov/ (accessed on 5 November 2019).
  39. Wan, Z. New refinements and validation of the MODIS land-surface temperature/emissivity products. Remote Sens. Environ. 2008, 112, 59–74. [Google Scholar] [CrossRef]
  40. Shah, H.L.; Zhou, T.; Huang, M.; Mishra, V. Strong influence of irrigation on water budget and land surface temperature in Indian sub-continental river basins. J. Geophys. Res. Atmos. 2019, 124, 1449–1462. [Google Scholar] [CrossRef]
  41. Goddard Earth Sciences Data and Information Services Center. TRMM (TMPA) Precipitation L3 1 Day 0.25 Degree × 0.25 Degree V7; Savtchenko, A., Ed.; GES DISC: Greenbelt, MD, USA, 2016. [Google Scholar] [CrossRef]
  42. Williamson, S.N.; Hik, D.S.; Gamon, J.A.; Jarosch, A.H.; Anslow, F.S.; Clarke, G.K.; Rupp, T.S. Spring and summer monthly MODIS LST is inherently biased compared to air temperature in snow covered sub-Arctic mountains. Remote Sens. Environ. 2017, 189, 14–24. [Google Scholar] [CrossRef]
  43. Immerzeel, W.W.; Petersen, L.; Ragettli, S.; Pellicciotti, F. The importance of observed gradients of air temperature and precipitation for modeling runoff from a glacierized watershed in the Nepalese Himalayas. Water Resour. Res. 2014, 50, 2212–2226. [Google Scholar] [CrossRef] [Green Version]
  44. Singh, S.; Kumar, R.; Bhardwaj, A.; Kumar, R.; Singh, A. Changing climate and glacio-hydrology: A case study of Shaune Garang basin, Himachal Pradesh. Int. J. Hydrol. Sci. Technol. 2018, 8, 258–272. [Google Scholar] [CrossRef]
  45. Singh, P.; Haritashya, U.K.; Kumar, N. Modelling and estimation of different components of streamflow for Gangotri Glacier basin, Himalayas. Hydrol. Sci. J. 2008, 53, 309–322. [Google Scholar] [CrossRef]
  46. Wulf, H.; Bookhagen, B.; Scherler, D. Differentiating between rain, snow, and glacier contributions to river discharge in the western Himalaya using remote-sensing data and distributed hydrological modeling. Adv. Water Resour. 2016, 88, 152–169. [Google Scholar] [CrossRef] [Green Version]
  47. Kraaijenbrink, P.D.A.; Bierkens, M.F.P.; Lutz, A.F.; Immerzeel, W.W. Impact of a global temperature rise of 1.5 degrees Celsius on Asia’s glaciers. Nature 2017, 549, 257–260. [Google Scholar] [CrossRef]
  48. Shekhar, M.S.; Chand, H.; Kumar, S.; Srinivasan, K.; Ganju, A. Climate-change studies in the western Himalaya. Ann. Glaciol. 2010, 51, 105–112. [Google Scholar] [CrossRef] [Green Version]
  49. Liang, E.; Dawadi, B.; Pederson, N.; Eckstein, D. Is the growth of birch at the upper timberline in the Himalayas limited by moisture or by temperature? Ecology 2014, 95, 2453–2465. [Google Scholar] [CrossRef] [Green Version]
  50. Xu, J.; Grumbine, R.E.; Shrestha, A.; Eriksson, M.; Yang, X.; Wang, Y.; Wilkes, A. The Melting Himalaya: Cascading Effects of Climate Change on Water, Biodiversity, and Livelihoods. Conserv. Biol. 2009, 23, 520–530. [Google Scholar] [CrossRef]
  51. Archer, D.R.; Forsythe, N.; Fowler, H.J.; Shah, S.M. Sustainability of water resources management in the Indus Basin under changing climatic and socio economic conditions. Hydrol. Earth Syst. Sci. 2010, 14, 1669–1680. [Google Scholar] [CrossRef] [Green Version]
  52. Malla, G. Climate Change and Its Impact on Nepalese Agriculture. J. Agric. Environ. 2009, 9, 62–71. [Google Scholar] [CrossRef] [Green Version]
  53. Kimball, J.S.; Running, S.W.; Nemani, R. An improved method for estimating surface humidity from daily minimum temperature. Agric. For. Meteorol. 1997, 85, 87–98. [Google Scholar] [CrossRef]
  54. Good, E.J. An in situ-based analysis of the relationship between land surface “skin” and screen-level air temperatures. J. Geophys. Res. Atmos. 2016, 121, 8801–8819. [Google Scholar] [CrossRef]
  55. Good, E.J.; Ghent, D.J.; Bulgin, C.E.; Remedios, J.J. A spatiotemporal analysis of the relationship between near-surface air temperature and satellite land surface temperatures using 17 years of data from the ATSR series. J. Geophys. Res. Atmos. 2017, 122, 9185–9210. [Google Scholar] [CrossRef]
  56. Kulkarni, A.V.; Rathore, B.P.; Singh, S.K. Distribution of seasonal snow cover in central and western Himalaya. Ann. Glaciol. 2010, 51, 123–128. [Google Scholar] [CrossRef] [Green Version]
  57. Bhardwaj, A.; Singh, S.; Sam, L.; Bhardwaj, A.; Martin-Torres, F.J.; Singh, A.; Kumar, R. MODIS-based estimates of strong snow surface temperature anomaly related to high altitude earthquakes of 2015. Remote Sens. Environ. 2017, 188, 1–8. [Google Scholar] [CrossRef]
  58. Niclos, R.; Valiente, J.A.; Barberà, M.J.; Caselles, V. Land surface air temperature retrieval from EOS-MODIS images. IEEE Geosci. Remote Sens. Lett. 2013, 11, 1380–1384. [Google Scholar] [CrossRef] [Green Version]
Remotesensing 11 02889 g001 550

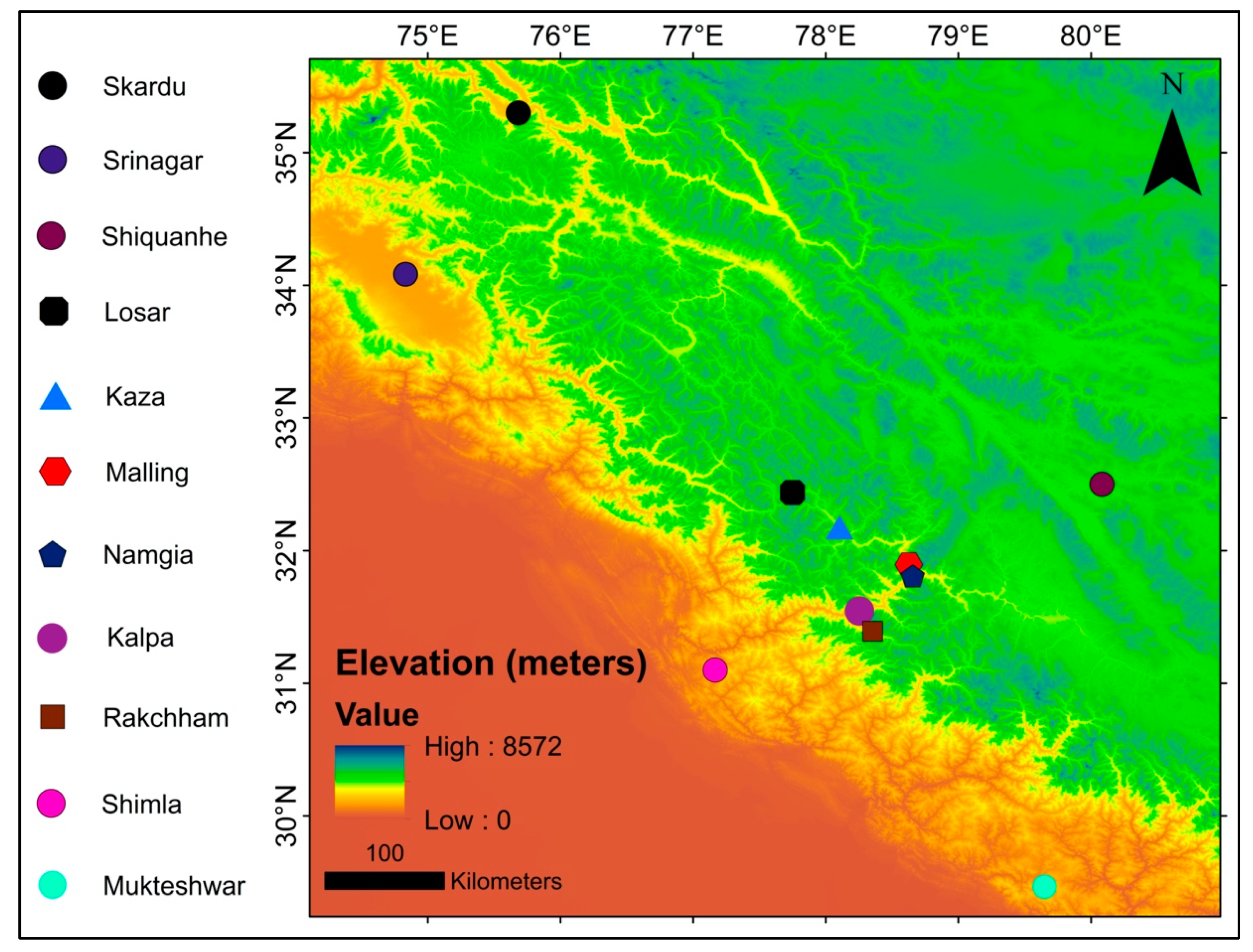

Figure 1. The map showing the location of the stations considered in the study for comparison of land surface temperature (Ts) and air temperature (Ta) with elevation (Aster GDEM v2, 2011) profile of the region.
Figure 1. The map showing the location of the stations considered in the study for comparison of land surface temperature (Ts) and air temperature (Ta) with elevation (Aster GDEM v2, 2011) profile of the region.
Remotesensing 11 02889 g001
Remotesensing 11 02889 g002 550

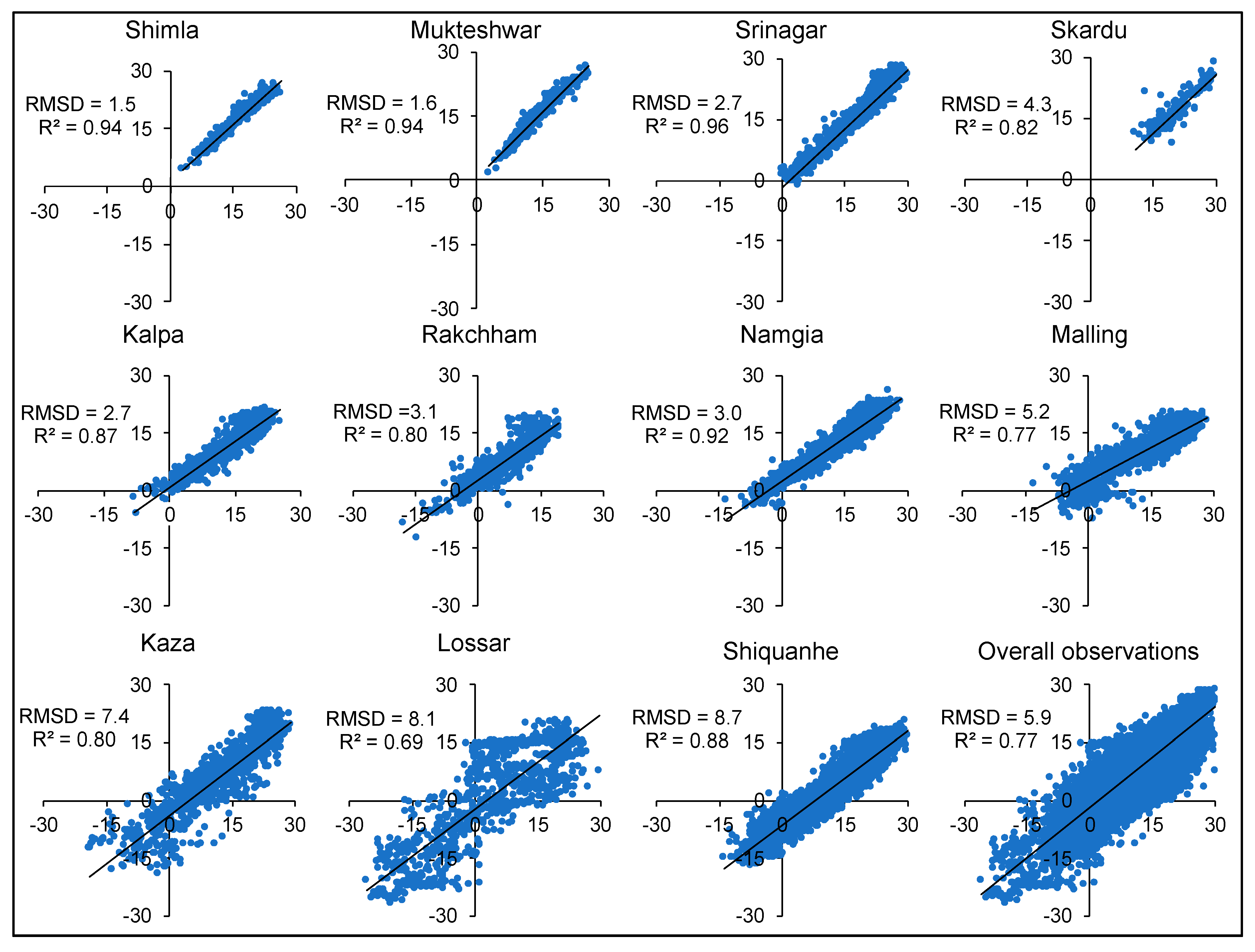

Figure 2. The scatter plot between daily Ts (x-axis) and Ta (y-axis) for all the stations and overall observations with respective coefficient of determination (R2) and root mean square difference (RMSD) in °C.
Figure 2. The scatter plot between daily Ts (x-axis) and Ta (y-axis) for all the stations and overall observations with respective coefficient of determination (R2) and root mean square difference (RMSD) in °C.
Remotesensing 11 02889 g002
Remotesensing 11 02889 g003 550

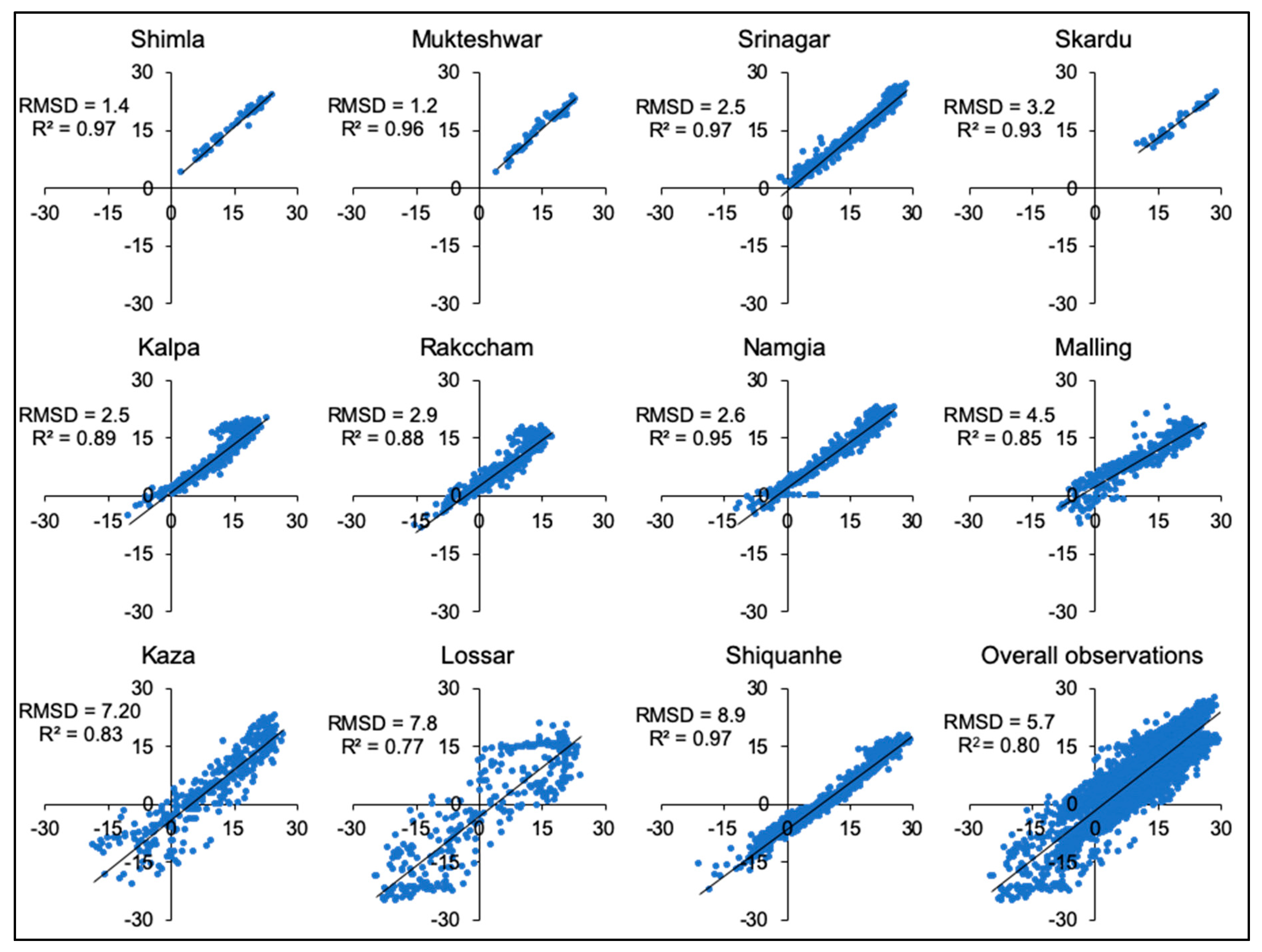

Figure 3. The scatter plot between 8-day Ts (x-axis) and Ta (y-axis) for all the stations and overall observations with respective coefficient of determination (R2) and RMSD in °C.
Figure 3. The scatter plot between 8-day Ts (x-axis) and Ta (y-axis) for all the stations and overall observations with respective coefficient of determination (R2) and RMSD in °C.
Remotesensing 11 02889 g003
Remotesensing 11 02889 g004 550

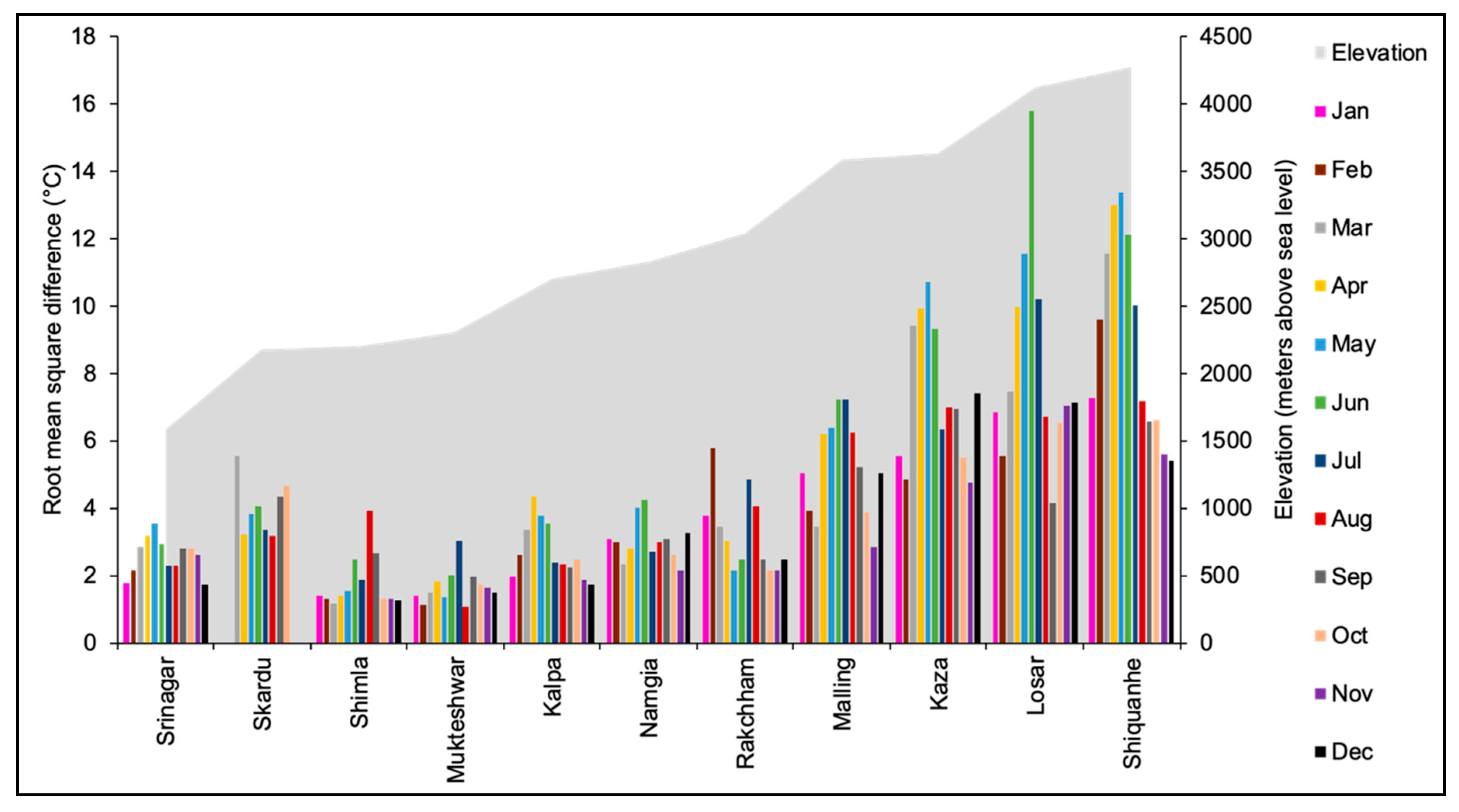

Figure 4. Graph showing the monthly mean of RMSD between daily Ts and Ta for different stations with respective elevation. The RMSD is higher in summer months and increases with increase in elevation.
Figure 4. Graph showing the monthly mean of RMSD between daily Ts and Ta for different stations with respective elevation. The RMSD is higher in summer months and increases with increase in elevation.
Remotesensing 11 02889 g004
Remotesensing 11 02889 g005 550

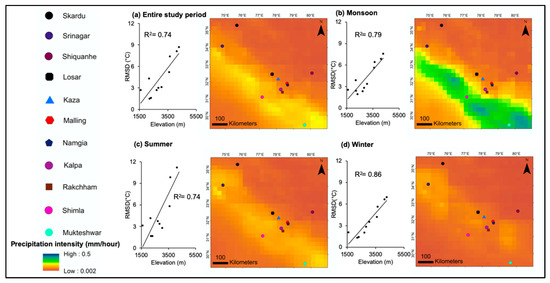

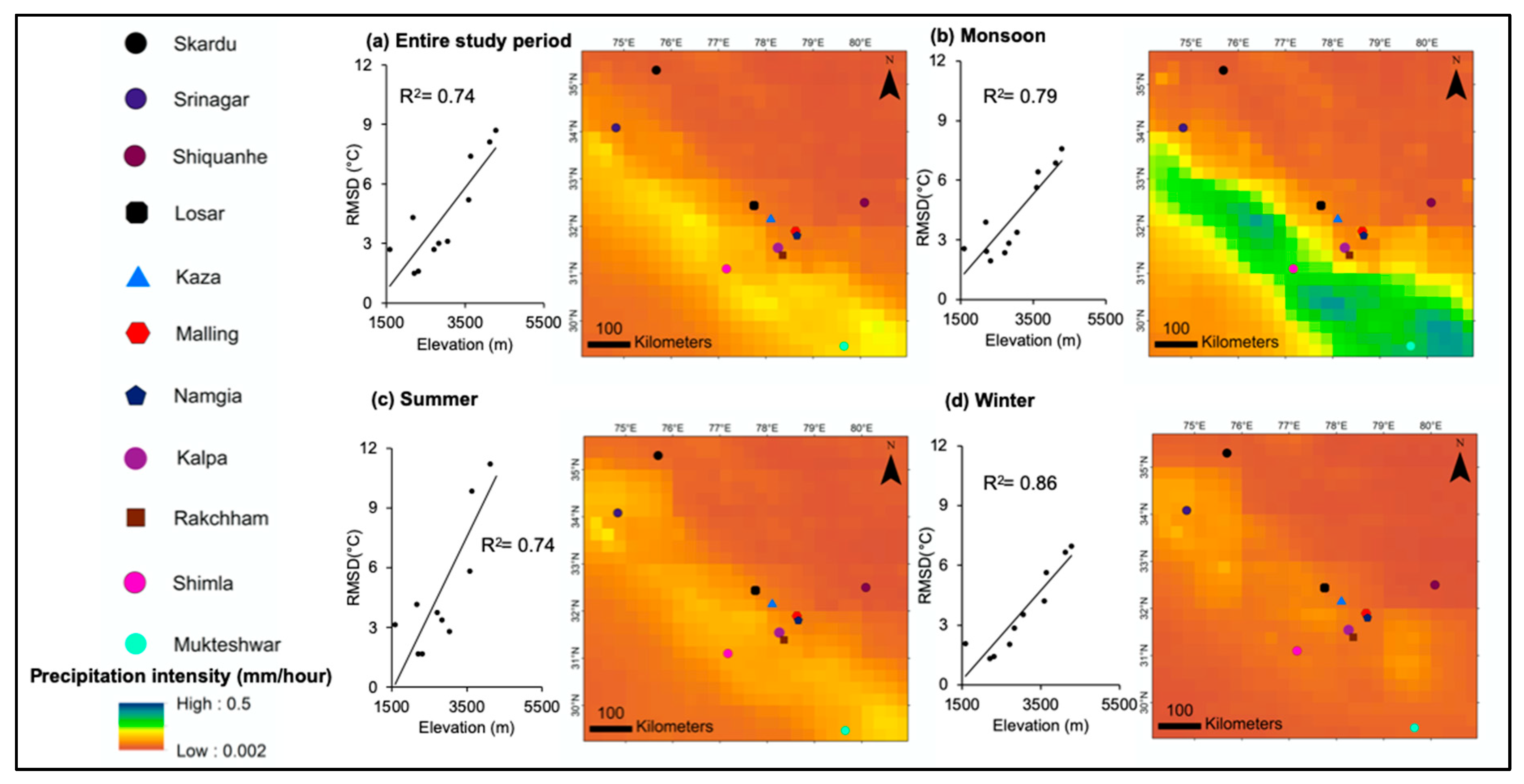

Figure 5. The graph showing the relationship between average of RMSD between daily Ts and Ta for each station and its corresponding elevation for (a) the entire study period, (b) monsoon (JASO), (c) summer (MAMJ), and (d) winter (NDJF). The map shows the precipitation intensity (mm/h) data from Tropical Rainfall Measuring Mission (GES DISC, 2016) for the period 1 January 1999 to 31 December 2017 plotted through GIOVAANI (https://giovanni.gsfc.nasa.gov/giovanni/) [41].
Figure 5. The graph showing the relationship between average of RMSD between daily Ts and Ta for each station and its corresponding elevation for (a) the entire study period, (b) monsoon (JASO), (c) summer (MAMJ), and (d) winter (NDJF). The map shows the precipitation intensity (mm/h) data from Tropical Rainfall Measuring Mission (GES DISC, 2016) for the period 1 January 1999 to 31 December 2017 plotted through GIOVAANI (https://giovanni.gsfc.nasa.gov/giovanni/) [41].
Remotesensing 11 02889 g005
Remotesensing 11 02889 g006 550

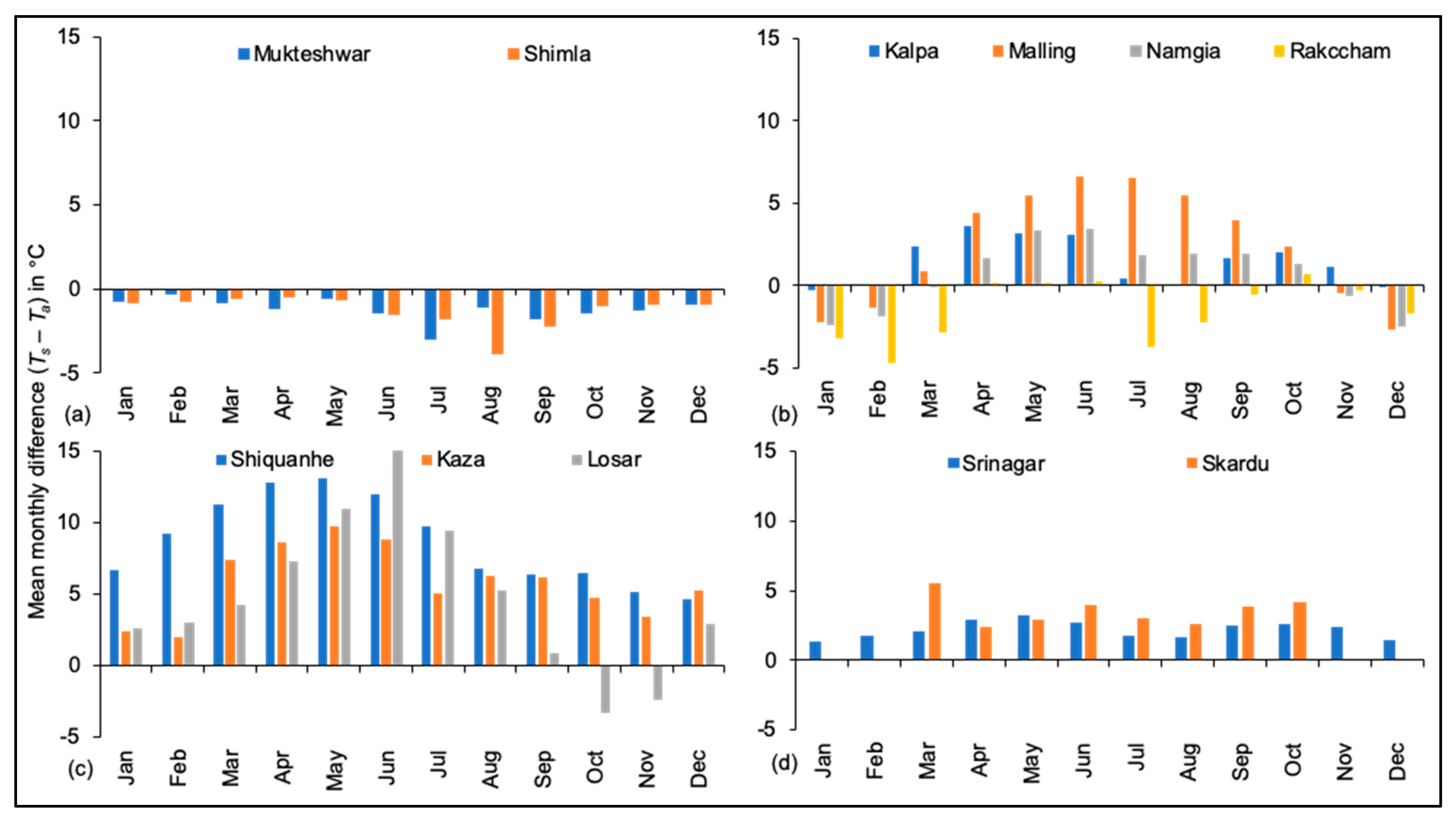

Figure 6. Graph showing the mean monthly difference between daily Ts and Ta for the entire period for which the data is available for stations in (a) monsoon-dominated areas, (b) transition zone, (c) precipitation shadow zone, and (d) westerlies-dominated areas. The observed Ta for Skardu for winter months was unavailable. The Ts − Ta values for the stations in the precipitation-shadow zone (c) are significantly higher and positive in magnitude, due to the perennial cold-arid atmospheric conditions.
Figure 6. Graph showing the mean monthly difference between daily Ts and Ta for the entire period for which the data is available for stations in (a) monsoon-dominated areas, (b) transition zone, (c) precipitation shadow zone, and (d) westerlies-dominated areas. The observed Ta for Skardu for winter months was unavailable. The Ts − Ta values for the stations in the precipitation-shadow zone (c) are significantly higher and positive in magnitude, due to the perennial cold-arid atmospheric conditions.
Remotesensing 11 02889 g006
Remotesensing 11 02889 g007 550

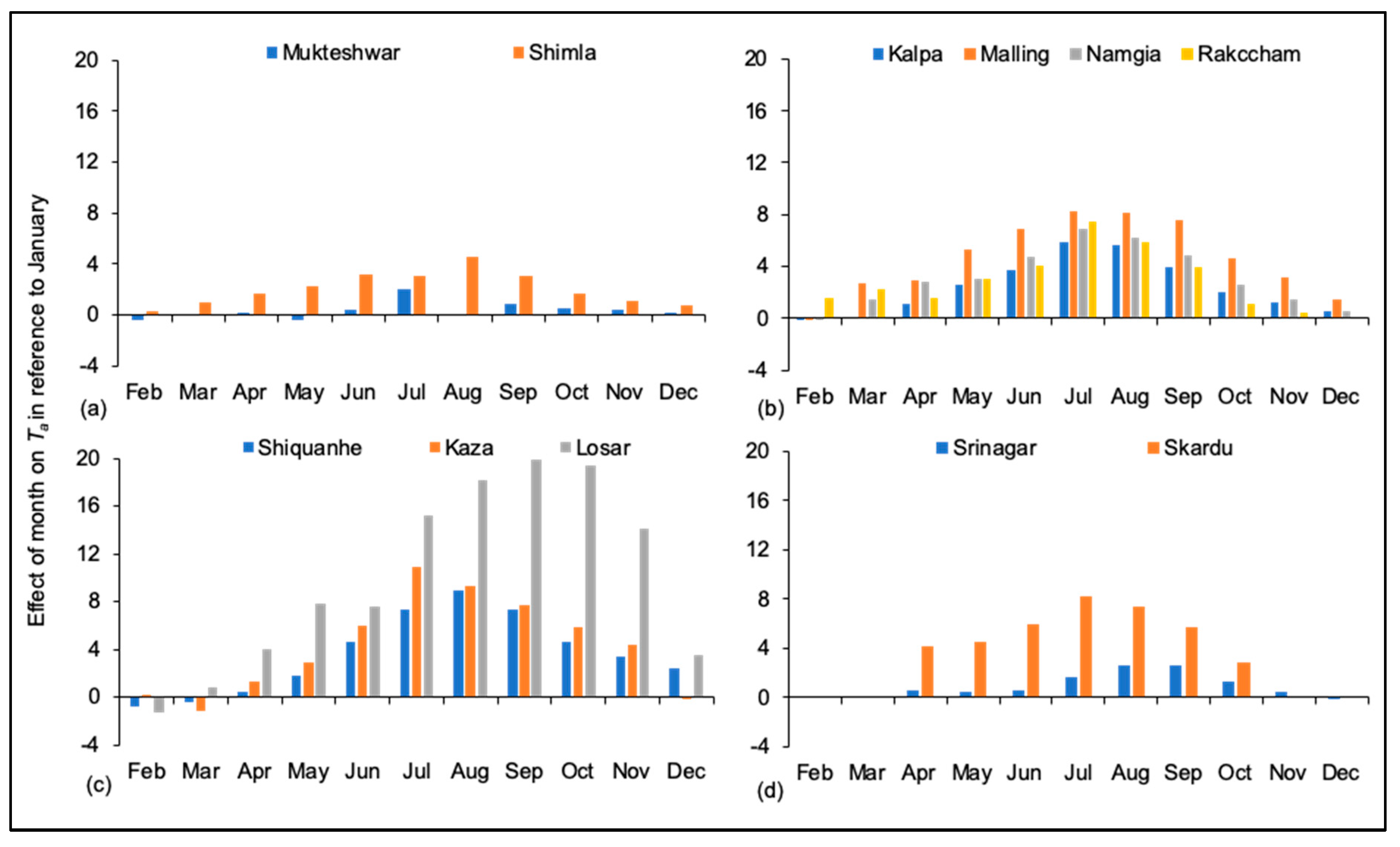

Figure 7. Graph showing the effect of each month on the Ta in reference to the month of January for stations in (a) monsoon-dominated areas, (b) transition zone, (c) precipitation shadow zone, and (d) westerlies-dominated areas. The observed Ta for Skardu for winter months was unavailable.
Figure 7. Graph showing the effect of each month on the Ta in reference to the month of January for stations in (a) monsoon-dominated areas, (b) transition zone, (c) precipitation shadow zone, and (d) westerlies-dominated areas. The observed Ta for Skardu for winter months was unavailable.
Remotesensing 11 02889 g007
Remotesensing 11 02889 g008 550

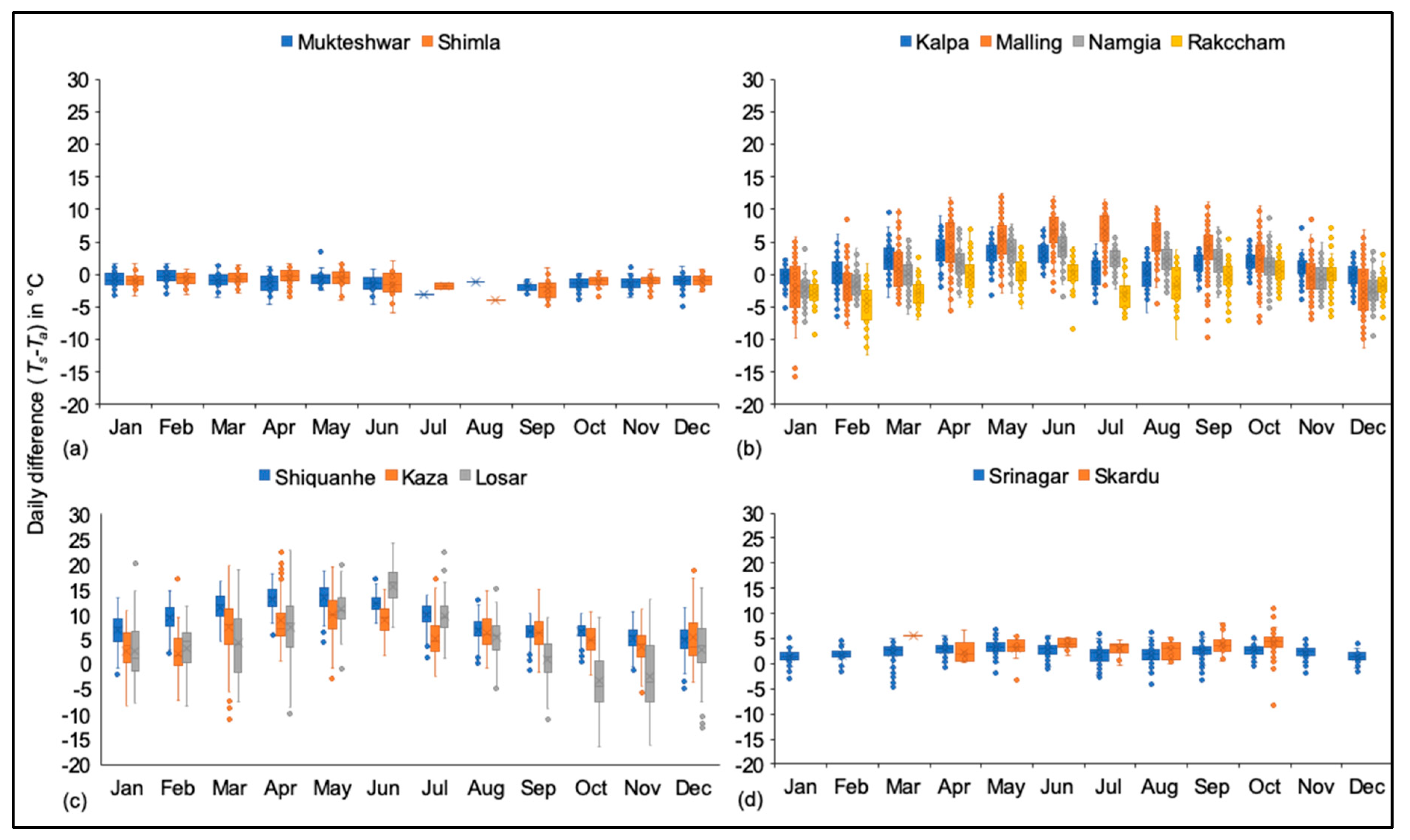

Figure 8. Box and whisker plots showing the monthly variation of daily difference between Ts and Ta for the entire period for which the data is available for stations in (a) monsoon-dominated areas, (b) transition zone, (c) precipitation shadow zone, and (d) westerlies-dominated areas.
Figure 8. Box and whisker plots showing the monthly variation of daily difference between Ts and Ta for the entire period for which the data is available for stations in (a) monsoon-dominated areas, (b) transition zone, (c) precipitation shadow zone, and (d) westerlies-dominated areas.
Remotesensing 11 02889 g008
Table
Table 1. Details of meteorological stations used for comparison in the present study.
Table 1. Details of meteorological stations used for comparison in the present study.
Sl. No.Name of the StationElevation (m)PeriodOrganizationPrecipitation Regime
1.Kalpa270707-Jul-02–31-Dec-09IMDTransition
2.Kaza363107-Jul-02–31-Dec-09IMDShadow
3.Namgia283207-Jul-02–31-Dec-09BBMBTransition
4.Rakchham304607-Jul-02–31-Dec-09BBMBTransition
5.Malling358807-Jul-02–31-Dec-09BBMBTransition
6.Losar412207-Jul-02–31-Dec-09BBMBShadow
7.Mukteshwar231113-Dec-15–30-Sept-19GHCNMonsoon
8.Shimla220201-Jan-16–30-Sept-19GHCNMonsoon
9.Shiquanhe428006-Jul-02–30-Sept-19GHCNShadow
10.Skardu218102-Oct-02–30-Sept-19GHCNShadow
11.Srinagar158705-Jul-02–30-Sept-19GHCNShadow
Table
Table 2. Details of Moderate Resolution Imagining Spectroradiometer (MODIS) data used in the present study.
Table 2. Details of Moderate Resolution Imagining Spectroradiometer (MODIS) data used in the present study.
Sl. No.Data CharacteristicsTerraAqua
MOD11A1MOD11A2MYD11A1MYD11A2
1.Temporal resolutionDaily8-dayDaily8-day
2.Spatial resolution1 km1 km
3.Available fromFebruary, 2000July, 2002
4.Local day time of observation10:30–11:3012:30–13:30
5.Local night time of observation21:30–22:3000:30–01:30
Table
Table 3. Summary of all the statistical tests used for analysis between Ts and Ta for all the stations, climate regimes and for all observations at daily and 8-day scale. (R2 = Coefficient of determination; SE = Standard Error of Regression; RMSD = Root mean square difference).
Table 3. Summary of all the statistical tests used for analysis between Ts and Ta for all the stations, climate regimes and for all observations at daily and 8-day scale. (R2 = Coefficient of determination; SE = Standard Error of Regression; RMSD = Root mean square difference).
Name of the StationObservationsR2SERMSDRegression Equation
Daily8-dayDaily8-dayDaily8-dayDaily8-dayDaily8-day
Srinagar17716640.960.971.381.232.72.5Ta = 0.96Ts − 1.64Ta = 0.92Ts − 0.72
Skardu193350.820.932.061.224.33.2Ta = 0.94Ts − 2.67Ta = 0.82Ts − 0.71
Shimla304550.940.971.220.961.51.4Ta = 0.97Ts + 1.43Ta = 0.94Ts + 1.78
Mukteshwar355630.940.961.161.051.61.2Ta = 1.03Ts + 0.62Ta = 0.99Ts + 0.76
Kalpa8663370.870.891.931.952.72.5Ta = 0.80Ts + 0.93Ta = 0.83Ts + 0.98
Namgia11413380.920.951.961.783.02.6Ta = 0.75Ts + 2.39Ta = 0.79Ts + 2.14
Rakchham8203100.790.882.452.093.12.9Ta = 0.77Ts + 2.63Ta = 0.79Ts + 2.71
Malling10933320.770.852.832.515.24.5Ta = 0.59Ts + 2.51Ta = 0.64Ts + 2.30
Kaza10283330.800.834.294.377.47.2Ta = 0.83Ts − 3.92Ta = 0.86Ts − 4.17
Losar10193080.690.777.126.598.17.8Ta = 0.81Ts − 2.16Ta = 0.84Ts − 3.23
Shiquanhe25117770.880.973.191.568.78.9Ta = 0.82Ts − 6.43Ta = 0.80Ts − 6.46
Monsoon-Dominated6591180.940.961.191.021.51.3Ta = 1.00Ts + 1.01Ta = 0.96Ts + 1.31
Transition392013170.820.882.562.313.73.2Ta = 0.69Ts + 2.45Ta = 0.74Ts + 2.27
Westerlies-Dominated19646990.950.971.511.242.92.5Ta = 0.95Ts − 1.61Ta = 0.91Ts − 0.69
Precipitation Shadow455814180.770.854.924.228.48.4Ta = 0.80Ts − 4.70Ta = 0.80Ts − 5.06
Overall Observations11,10135520.770.804.764.495.95.7Ta = 0.87Ts − 1.83Ta = 0.85Ts − 1.63

Share and Cite

MDPI and ACS Style

Singh, S.; Bhardwaj, A.; Singh, A.; Sam, L.; Shekhar, M.; Martín-Torres, F.J.; Zorzano, M.-P. Quantifying the Congruence between Air and Land Surface Temperatures for Various Climatic and Elevation Zones of Western Himalaya. Remote Sens. 2019, 11, 2889. https://doi.org/10.3390/rs11242889

AMA Style

Singh S, Bhardwaj A, Singh A, Sam L, Shekhar M, Martín-Torres FJ, Zorzano M-P. Quantifying the Congruence between Air and Land Surface Temperatures for Various Climatic and Elevation Zones of Western Himalaya. Remote Sensing. 2019; 11(24):2889. https://doi.org/10.3390/rs11242889

Chicago/Turabian Style

Singh, Shaktiman, Anshuman Bhardwaj, Atar Singh, Lydia Sam, Mayank Shekhar, F. Javier Martín-Torres, and María-Paz Zorzano. 2019. "Quantifying the Congruence between Air and Land Surface Temperatures for Various Climatic and Elevation Zones of Western Himalaya" Remote Sensing 11, no. 24: 2889. https://doi.org/10.3390/rs11242889

APA Style

Singh, S., Bhardwaj, A., Singh, A., Sam, L., Shekhar, M., Martín-Torres, F. J., & Zorzano, M.-P. (2019). Quantifying the Congruence between Air and Land Surface Temperatures for Various Climatic and Elevation Zones of Western Himalaya. Remote Sensing, 11(24), 2889. https://doi.org/10.3390/rs11242889

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
