Enhancing the Durability of Reinforced Concrete Structures Using Carbonation-Inhibiting and CO₂-Absorbing Microcapsules

Abstract

This study aimed to establish fabrication methods for two types of functional microcapsules (MCs) and to verify their fundamental performance in cementitious materials. The alkaline-supplying and CO₂-absorbing MCs were evaluated independently. It was hypothesized that alkaline-supplying MCs could suppress carbonation while limiting strength loss to ≤20%, whereas CO₂-absorbing MCs could increase long-term CO₂ uptake by ≥30% relative to plain mortar. The alkaline-supplying MCs reduced the 24-week carbonation depth by approximately 35%, with a ~20% reduction in compressive strength at a 5% addition level. In contrast, CO₂-absorbing MCs resulted in a ~30% strength reduction at 5% addition but increased CO₂ uptake by 1.4 times that of plain mortar over 140 d. In conclusion, the results demonstrate that MCs can effectively impart carbonation-resistance or CO₂-absorption functionality; however, a clear trade-off exists between functional enhancement and mechanical degradation due to capsule stiffness and density limitations. Because the two types of MCs rely on different mechanisms, they were tested in separate mortar systems. As this study focused on MC fabrication and fundamental functional verification, future work should optimize shell design, density control, and amine selection to balance structural performance with durability enhancement and CO₂-sequestration capability.

1. Introduction

In recent years, a strong demand has occurred for extending the service life of reinforced concrete (RC) structures to reduce maintenance costs and environmental impact. However, degradation phenomena such as carbonation, salt damage, and alkali-silica reaction (ASR) make it difficult to achieve these goals. Among the preventive measures employed to counter carbonation, the effective approaches include reducing the water-cement ratio to densify concrete and coating surfaces with waterproofing materials or paints [1]. However, these methods require a high cement content and periodic maintenance. Recent studies have also reported that engineered cementitious composites (ECC) enhanced durability by improving ductility and limiting crack width development [2]. Although ECC represents an effective durability-oriented material design strategy, additional approaches are needed to address carbonation and other long-term deterioration mechanisms. Furthermore, recent self-healing studies conducted in CO₂-rich environments, such as sludge-based composites and systems using steel slag and chitosan, have demonstrated that carbonation-induced CaCO₃ formation could seal cracks and contribute to durability enhancement. In particular, capsules incorporating water-treatment sludge (WTS) have shown rapid crack-closure performance in 3% CO₂ environments, achieving more than 60–70% healing within 7 d owing to accelerated calcite and aragonite precipitation [3]. In addition, attention has been drawn to the combined effects of carbonation, freeze–thaw cycles, and functional additives such as microencapsulated phase-change materials (mPCMs), which can significantly influence concrete durability by altering pore structure and microstructure [4].

Although supplementary cementitious materials (SCMs), improved curing, and surface coatings are widely used to mitigate carbonation, these approaches primarily provide uniform material modification or external protection. By contrast, microcapsules (MCs) enable localized, trigger-based release or uptake functions within the matrix, offering a mechanism that conventional methods, including carbonation-driven self-healing systems, cannot achieve. Therefore, MC-based functionalization represents a complementary strategy that can address durability issues that remain unresolved by existing techniques.

Technologies that minimize CO₂ emissions from cement production are important for further reducing its environmental impact. However, the introduction of substitute materials and new processes has been challenging both with respect to their cost and availability, and no material comparable to cement has emerged. Therefore, the focus on technologies that reduce or sequester CO₂ both before and after concrete production has increased.

Amine compounds, known for their CO₂-absorbing properties, have attracted considerable attention. Typical examples include monoethanolamine (MEA), diethanolamine (DEA), triethanolamine (TEA), triisopropanolamine (TIPA), and trioctylamine (TOA) (

Table 1. Classification of amine utilization in previous studies [5,6,7,8,9].

Amine	Category	Usage Example
MEA	Primary amine	Carbonation promotion
DEA	Secondary amine	Early strength enhancer
TEA	Tertiary amine	Set accelerator
TIPA	Tertiary amine	Long-term strength enhancer
TOA	Tertiary amine	No reported usage in cement

) [5,6,7,8,9]. These alkanolamines differ in the number of hydrogen atoms in ammonia that are replaced by hydrocarbon groups [10].

Many applications of amines in concrete exist. The use of MEA and DEA in cementitious materials, including the use of post-CO₂-capture amine solutions for carbonation [5,11,12], and their effective inclusion as accelerators in sprayed concrete to improve early strength and hardening time have been investigated [6,13]. TEA, a widely used cement accelerator, enhances the initial strength of hardened cement by promoting setting. However, it has been reported to cause a slight decrease in long-term strength [7,8,14]. In addition, TIPA is used as a grinding aid to prevent electrostatic agglomeration of particles during cement grinding and hardening accelerator similar to TEA [15]. Although the early strength of cementitious materials is comparable to that of those containing TEA, they show superior long-term strength owing to the formation of denser hydration products such as calcium silicate hydrate (C-S-H) [9,16]. TOA has limited applications in the concrete field, where it is still largely at the research stage. By contrast, its applications in the chemical and environmental fields include solvent extraction and wastewater treatment [17,18,19,20].

However, adding large amounts of these amine compounds to concrete is known to adversely affect strength development. Therefore, this study aimed to develop modified concrete by encapsulating amine compounds within MCs. This approach protects the amines from the concrete during mixing and allows their functional properties to be activated after hardening.

MCs are micrometer-sized capsules, and the process of encapsulating a core substance within a shell material to form MCs is termed MC encapsulation [21]. This technology has been widely applied in the food, medical, and environmental sectors. In the food sector, MCs are used to produce foods with functional claims and for specified health uses, which is driven by health concerns arising from severe acute respiratory syndrome (SARS), Middle East respiratory syndrome (MERS), and coronavirus disease 2019 (COVID-19), as well as societal factors such as an aging population [22,23]. In the medical field, they serve as a useful drug delivery system. For example, they can efficiently deliver live probiotics to the large intestine [24]. MC encapsulation enables core isolation, protection, preservation, and release, solidification of liquid or gaseous cores into solid particles, and core density adjustment. By leveraging these characteristics in the field of concrete, long-term functionality may be maintained without requiring post-production maintenance. However, as the function of MCs varies with the preparation method, tailoring MCs according to the intended purpose is necessary.

Previous studies on MC technology have mainly focused on enhancing the self-healing capability and durability of concrete. Specifically, polymeric materials such as urea-formaldehyde resin and sodium silicate have been used as shell materials for MCs, where they have demonstrated certain effectiveness in crack repair and improvement of mechanical properties [25,26,27]. However, the use of MC technology to improve environmental durability, such as carbonation resistance and CO₂ uptake, has been limited, and its effectiveness in these contexts has not been investigated sufficiently.

Therefore, this study aimed to develop a method to extend the service life and enhance the sustainability of RC structures using concrete mixed with MC-based functional materials. Two types of functional mortars were prepared, each incorporating a different type of MC, and their physical properties and functional performance were evaluated. For MC preparation, an alkali-supplying type MC targeting concrete carbonation inhibition was first prepared. However, this MC was low in density, leading to a floating phenomenon within the fresh mortar, indicating a need for improving the preparation method. Furthermore, considering the recent advances in research on technologies to fix CO₂ within concrete, a CO₂-absorbing-type MC was also prepared to broaden the application scope of MCs. Notably, these two types of MCs were developed and evaluated in separate mortar systems and were not incorporated simultaneously into the same mixture.

To clarify the performance expectations of this study, target criteria were established for each MC type. For the alkaline-supplying MCs, the objective was to achieve at least a 30% improvement in carbonation-suppression performance relative to plain mortar, while limiting the reduction in compressive strength to no more than 20%. For the CO₂-absorbing MCs, the target was to achieve a ≥30% increase in long-term CO₂ uptake compared with plain mortar, while maintaining the strength loss within 20%. These performance targets were set to enable a clearer assessment of the balance between functional enhancement and acceptable mechanical performance.

This study is unprecedented in that it prepares MCs with alkaline-releasing and CO₂-absorptive properties, incorporates them into mortar, and systematically evaluates both the physical properties and functional performance of the resulting materials, particularly with respect to carbonation resistance and CO₂ uptake. This study is expected to contribute to the development of new construction materials that enhance the longevity of RC structures and reduce environmental impact.

The remainder of this paper is organized as follows. Section 2 describes the preparation methods for functional mortars using two types of MCs and the test methods for evaluating their corresponding physical properties and functionalities. Section 3 presents the results of various performance evaluation tests conducted on the mortars containing alkali-supplying and CO₂-absorbing MCs. Section 4 summarizes the findings and outlines future research.

2. Materials and Methods

2.1. Preparation and Experimental Methods for Carbonation-Resistant Mortar

2.1.1. Preparation of Alkali-Supplying MCs

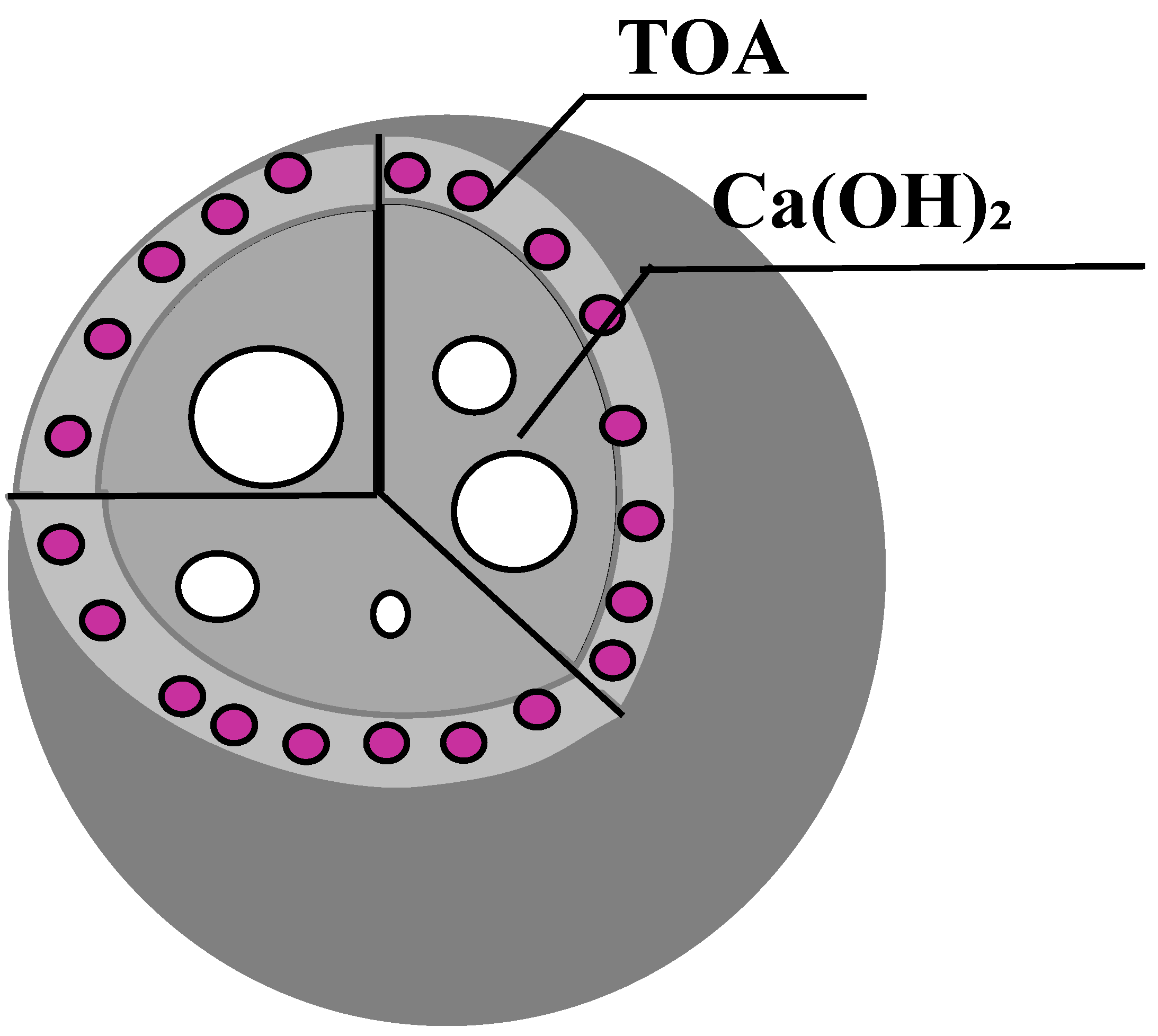

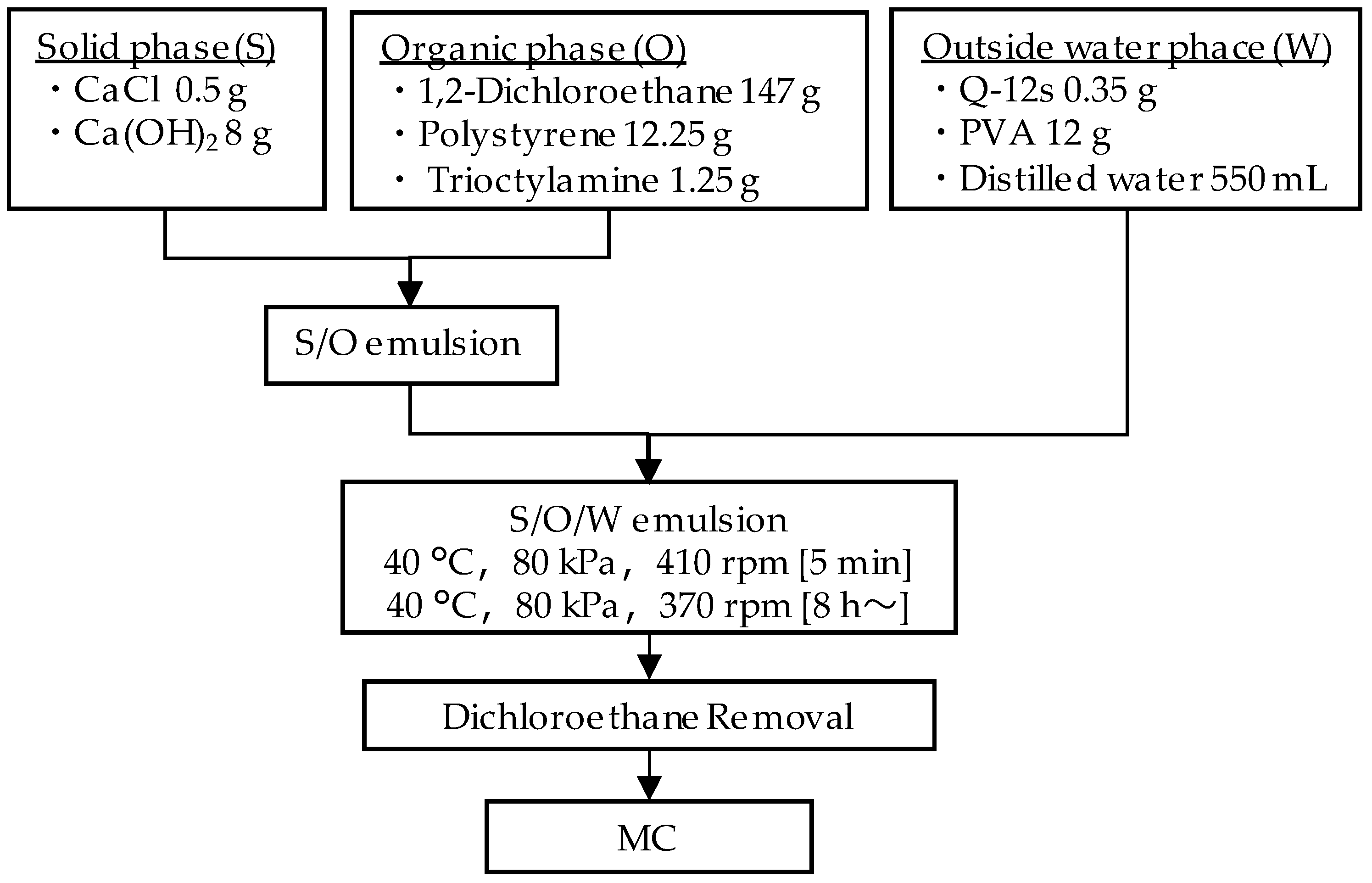

Figure 1 shows a scanning electron microscopy (SEM) image of the MC used in this study. Figure 2 shows a schematic cross-section of the MC. Figure 3 shows the preparation flow, and Figure 4 shows the MC regulating device. The MC was prepared via the in-liquid drying method using an emulsion composed of a solid phase (S)/organic phase (O)/external aqueous phase (W) as the starting material (Figure 3) [28,29]. The preparation method is described below.

• The solid phase containing Ca(OH)₂ as an alkaline source and the organic phase containing TOA were stirred at 3000 rpm for 24 h using a homogenizer (CM-100S, AS ONE Corporation, Osaka, Japan) to prepare the S/O emulsion.
• A 1 L separable flask was placed in a water bath (SB-350, Tokyo Rikakikai Co., Ltd., Tokyo, Japan) maintained at 40 °C, and the external aqueous phase was stirred using a stirrer (ZZ-1010, Tokyo Rikakikai Co., Ltd., Tokyo, Japan) inside the flask (Figure 4).
• While continuing to stir, the internal pressure of the flask was reduced to 80 kPa using a vacuum pump (DTC-41, ULVAC, Inc., Chigasaki, Japan), and the S/O emulsion was added under this reduced-pressure condition.
• Under the same conditions, the flask was stirred at 410 rpm for 5 min, followed by stirring at 370 rpm for 8 h to prepare the S/O/W emulsion. Volatile gases, including dichloroethane, generated during this process were extracted using a vacuum pump and then condensed and recovered using a cooling trap and a chiller (CCA-1112A, Tokyo Rikakikai Co., Ltd., Tokyo, Japan).
• The external aqueous phase was removed by filtration and washing, and the MC was obtained by drying in an oven (DSN-114, Isuzu Manufacturing Co., Ltd., Sanjo, Japan) at 70 °C for 24 h.

The in-liquid drying method has the advantage that the amount of the shell material directly reflects the membrane thickness of the MC, allowing for easy control of the film thickness [30]. MCs prepared using a liquid-phase drying method exhibited sustained release through their shell structure, and various controlled-release mechanism designs have been reported [31]. Furthermore, because the pore size of the MCs prepared using this method can be varied by changing the solvent type and removal rate, the core-release rate can be controlled. The resulting MCs consist of a polystyrene shell encapsulating Ca(OH)₂ as the core, with their particle size ranging from 300 to 1200 μm (Figure 1).

The mechanism underlying the alkaline compound supply via the MC is as follows. The MC has a structure in which molecular level micropores are present in the polystyrene shell and sealed with TOA (Figure 2). When the pH around the MC shifts toward acidic to mildly acidic conditions, TOA becomes more hydrophilic, thereby facilitating the release of Ca(OH)₂ retained in the MC core. As Ca(OH)₂ is released, the local pH increases, causing TOA to regain hydrophobic characteristics, which helps suppress further diffusion of Ca(OH)₂. Thus, using this gradual and reversible change in the hydrophilicity and hydrophobicity of TOA, the release of Ca(OH)₂ is controlled until it is depleted.

2.1.2. Procedure for Verifying the pH Responsiveness of Alkali-Supplying MC

To confirm the pH responsiveness of the alkaline-supplying MC, a suspension was prepared by dispersing 1.0 g of the MC in 50 mL of distilled water, and measurements were performed using a pH meter. To this suspension, 1 mol/L hydrochloric acid was added dropwise in 200 µL increments, and the pH change was recorded after each addition. A temporary reduction in the pH was observed immediately after each addition of hydrochloric acid. However, the pH subsequently recovered to an alkaline state as hydroxide ions were supplied from the MC. Therefore, the pH at the point of stabilization was adopted as the measured value, and the maintainable pH range of the MC was evaluated accordingly.

2.1.3. Preparation of Alkaline-Supplying Mortar

Table 2. Mix proportions of carbonation-resistant mortar samples.

W/C (%)	kg/m3			g/m3
	Water	Cement	Sand	MC
65	220	338	1756	14.1 *

* MCs added externally at 1 vol% of the total mortar.

shows the mix design for the alkali-supplying mortar prepared in this study. The target compressive strength of the mortar was set to 21 N/mm², as this strength class was commonly used in concrete structures. During the preparation procedure, ordinary Portland cement (OPC) and crushed sand were dry-mixed at 64 rpm for 1 min, followed by the addition of water while mixing in a mortar mixer (KC-8, Kansai Kiki Co., Ltd., Amagasaki, Japan) at 107 rpm for 2 min. Subsequently, the MC was added at 0%, 1%, 5%, and 10% of mortar volume, followed by mixing at 107 rpm for 30 s. The resulting mortar was filled into cylindrical molds (inner diameter: 50 mm, height: 100 mm) and sealed for curing at a temperature of 20 °C for 28 d.

2.1.4. Evaluation Test for Alkali-Supplying Mortar

Compressive strength tests were conducted on the mortar specimens cured for 7 and 28 d in accordance with Japanese Industrial Standard (JIS) A 1108 [32]. Accelerated carbonation tests were also performed in accordance with JIS A 1153 [33] under the following conditions: 20 °C, 60% relative humidity, and 5% CO₂ concentration.

To perform the accelerated carbonation test, the exposed surface was set as the casting surface of the mortar, while the other surfaces were sealed with an epoxy resin (Resiguard WP-NS, Dainippon Toryo Co., Ltd., Osaka, Japan). The accelerated carbonation periods were set to 4, 12, and 24 w. After the carbonation period, a 1% phenolphthalein solution was sprayed onto the fracture surfaces of the test specimens, and coloration was observed. The carbonation depth was determined by measuring the depth of the colorless region from the exposed surface at 10 locations using digital calipers and calculating the average value.

2.2. Preparation and Experimental Methods for CO₂-Absorbing Mortar

2.2.1. Preparation of CO₂-Absorbing MCs

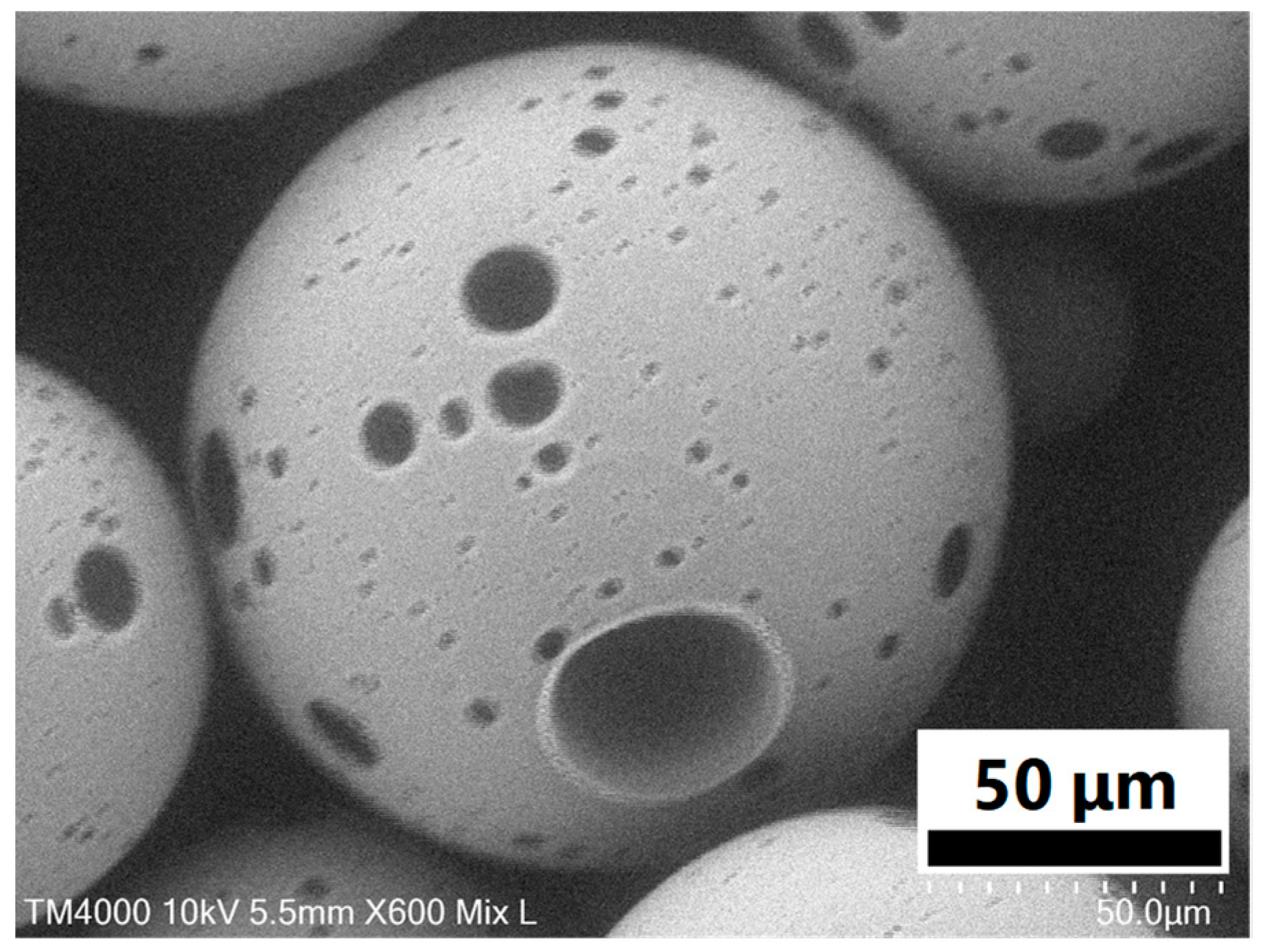

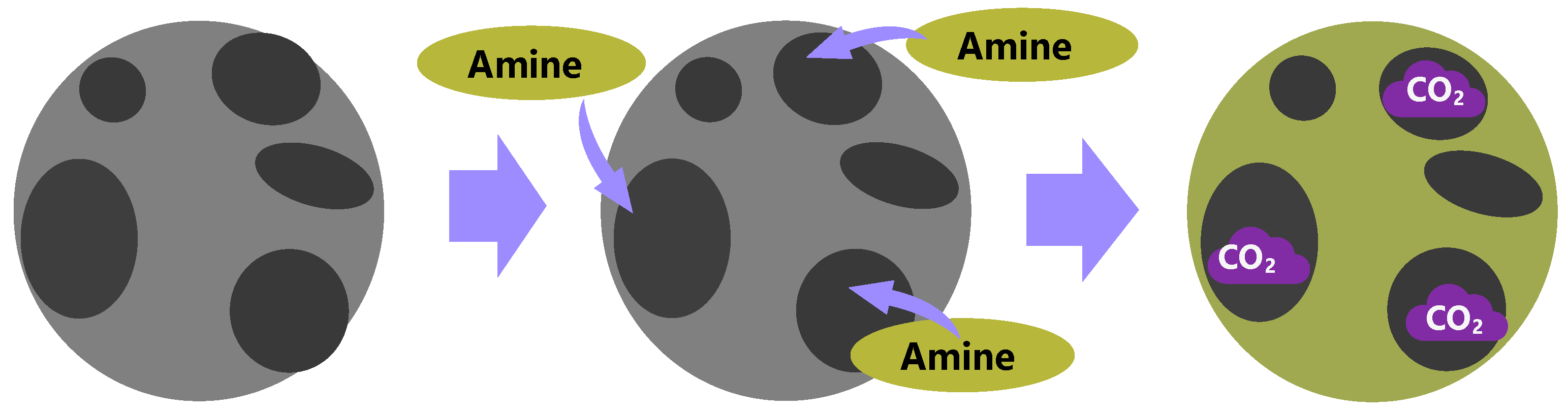

Figure 5 shows the SEM image of the CO₂-absorbing-type MC used in this study. Figure 6 shows a schematic cross-section of the MC, and Figure 7 shows the preparation flow. The MC was prepared via a polymerization method using a solid phase (S)/organic phase (O)/external aqueous phase (W) as the starting material [34]. The preparation method is described below.

• The solid and organic phases were stirred using a homogenizer at 5000 rpm for 10 min to prepare the S/O emulsion.

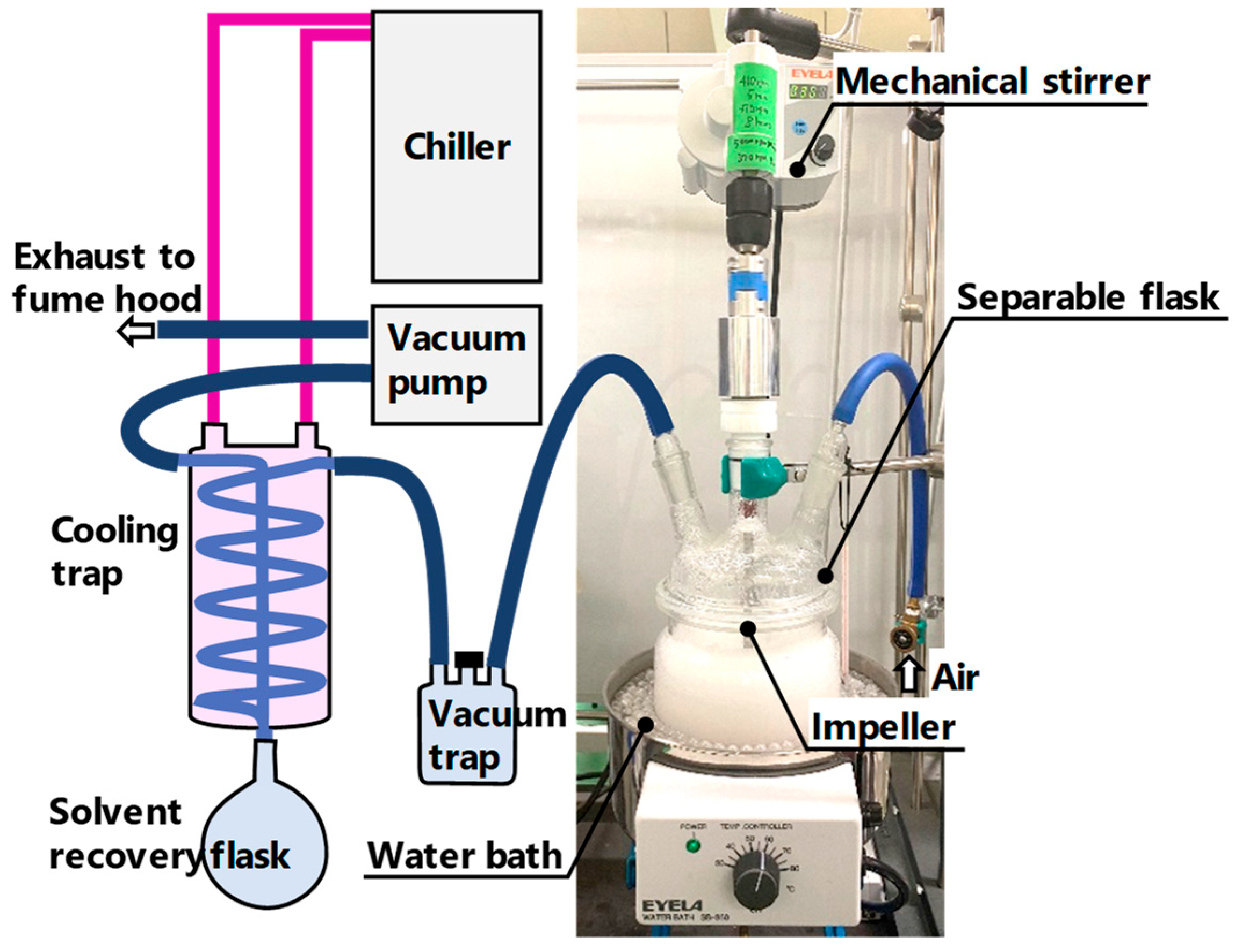

• Using the preparation apparatus shown in Figure 4, the external aqueous phase was placed in a separable flask within a water bath set to 55 °C and stirred at 370 rpm, followed by the addition of the S/O emulsion.
• Subsequently, stirring at 370 rpm for 3 h at 60 °C and atmospheric pressure yielded an S/O/W emulsion. During this process, because of the volatility and flammability of toluene present in the organic phase, all operations were conducted in a fume hood equipped with local exhaust ventilation.
• The MC was obtained by suction filtration while washing with distilled water, followed by drying for 24 h in a drying oven set to 70 °C.

In comparison to the liquid-phase drying method, the polymerization method enables MC preparation under high-temperature conditions without requiring vacuum, thus enabling large-scale production. MCs using interfacial polymerization form thick shells, demonstrating sustained release properties and high encapsulation retention [35]. Furthermore, as shown in Figure 5, a large number of pores were formed on the surface and inside the MCs, facilitating the preparation of porous MCs [36]. The particle size of the obtained MC was 100–130 μm.

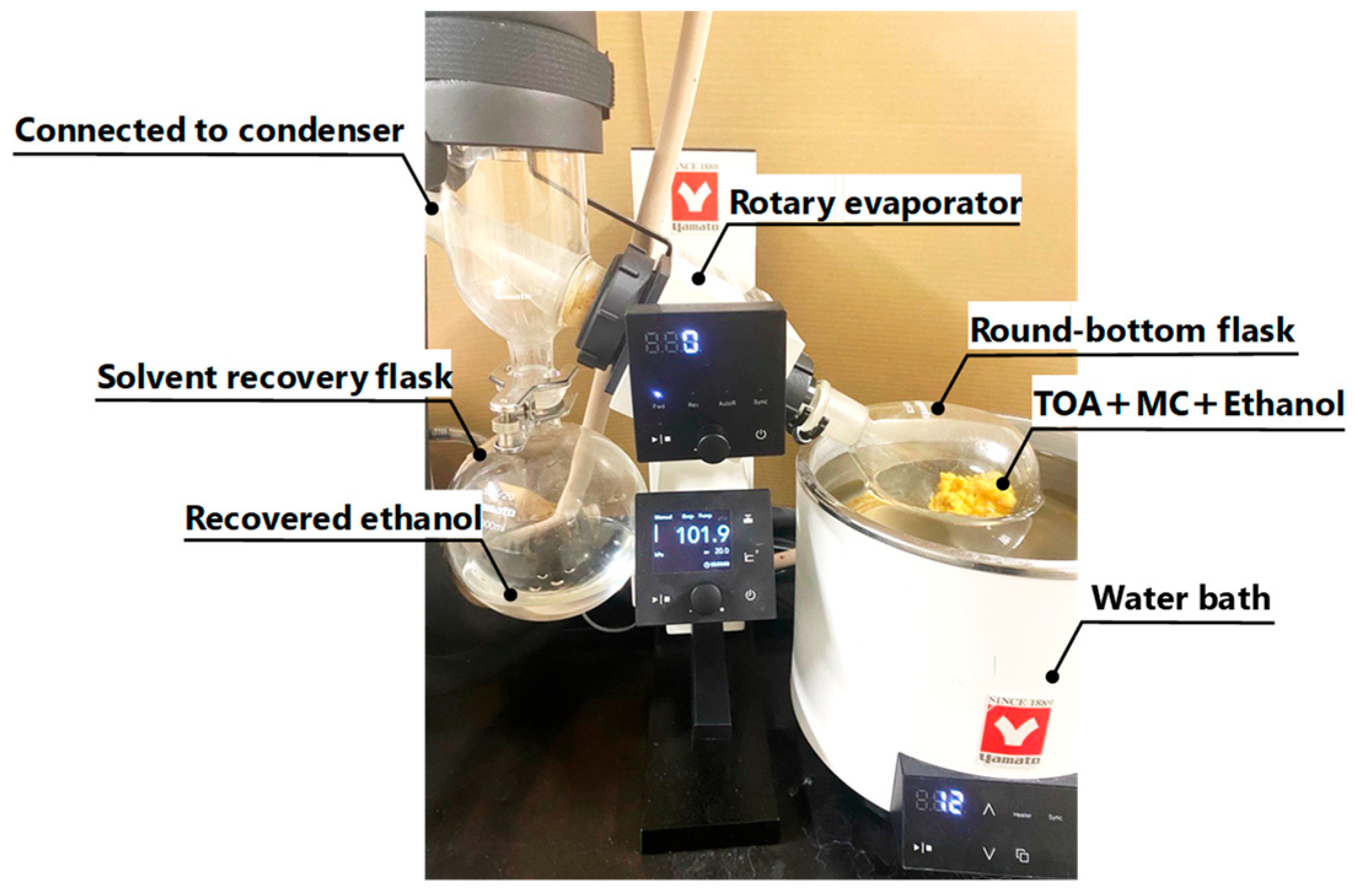

Subsequently, an impregnation treatment was performed to disperse and fix TOA onto the MC prepared by the polymerization method. Impregnation is a technique that allows liquids or agents to penetrate the fine gaps and pores within a material. Figure 8 shows the apparatus used for the MC impregnation process. Specifically, 10 g of MCs and 1 g of TOA were added to a 500 mL round-bottom flask, and an adequate amount of ethanol was added to ensure sufficient immersion. The flask was placed in a water bath attached to a rotary evaporator (REV202M, Yamato Scientific Co., Ltd., Tokyo, Japan), which was set to 30–40 °C. Under stirring at 80–100 rpm, the pressure was gradually reduced from 20 to 10 kPa in stages, avoiding boiling. This process achieved 10% TOA impregnation relative to the MC mass while vaporizing and recovering ethanol. Subsequently, the resulting TOA-impregnated MC (TOA-MC) was dried for 24 h in a drying oven at 70 °C.

In addition to TOA, amine compounds reported to exhibit CO₂ absorption effects (DEA, TEA, and MEA) were considered for impregnation into the MCs [5,11,12,14,37,38]. However, in preliminary experiments, the mortar produced using the MC impregnated with these water-soluble amines did not develop sufficient strength, likely because compounds such as DEA readily dissolved in water and leached out during mortar mixing, preventing them from being retained within the MCs. However, this study did not quantitatively evaluate the encapsulation efficiency or retention rate of the amines within the MCs, which requires further investigation. Therefore, oil-soluble TOA, an oil-soluble amine, was selected. Impregnating MC with this compound resulted in the formation of a structure whose stability was retained within the mortar. The CO₂ absorption mechanism by amines involves the reaction where amines react with atmospheric CO₂ to form carbamates, thereby capturing CO₂ [39,40].

Although it is technically possible to incorporate TOA directly into the MC structure because of the organic phase in the polymerization process [41], a risk that amines can be lost along with distilled water during the filtration and washing steps exists.

This section describes the characteristics of encapsulation and impregnation during polymerization. Encapsulation via polymerization could prevent amine leakage and ensure stability and reusability, and it has been applied in studies focused on long-term use and recyclability [42,43]. However, issues such as the design of shells to prevent core leakage and optimization of encapsulation efficiency have been reported [44]. By contrast, impregnation is a simple and cost-effective method that allows high-concentration amine loading and used in studies focused on capsule adsorption performance and economic efficiency [45,46,47,48]. However, the adsorption capacity tends to decrease with repeated CO₂ adsorption–desorption cycles, which makes it unsuitable for long-term use [49,50]. This study was focused on experimental process development; therefore, the impregnation method was used to ensure reliable fixation of the amine within the MCs [47]. Because the two types of MCs were designed for different purposes and fabricated using different mechanisms, a detailed comparison of their fabrication parameters was not the focus of this study.

2.2.2. Preparation of CO₂-Absorbing-MC-Added Mortar

Table 3. Mix proportions of CO₂-absorbing mortar samples.

W/C (%)	kg/m3			g/m3
	Water	Cement	Sand	MC
55	208	378	1756	12.9 *

* MC is added externally at 5 vol% of the total mortar.

lists the specified mix proportions for the prepared mortar samples, and

Table 4. Conditions for MC addition to mortar.

No.	Name	MC Present	MC Contents	Addition Rate (%)
1	PL	No	Not used	―
2	MC-0	Yes	No amine	5
3	MC-TOA	Yes	10% TOA added	5

lists the conditions for MC addition to the mortar. The test levels were plain (no MC), a mixed MC without impregnation, or a mixed MC with TOA impregnation (Table 4). The target compressive strength of the mortars was set to 30 N/mm² to accommodate the concrete structures. To evaluate the CO₂ absorption effect of the MCs, three types of mortars were prepared: plain mortar without MC addition (PL), mortar with MCs containing no TOA (MC-0), and mortar with MCs impregnated with 10% TOA by weight (MC-TOA).

The preparation procedure was as follows. First, OPC and water were mixed in a mortar mixer at 64 rpm for 1 min. Then, the MC equivalent to 5% of the mortar volume was added separately after initial mixing. Then, crushed sand was added and mixed at 107 rpm for 3 min. The resulting mortar was then filled into cylindrical molds with an inner diameter of 50 mm and a height of 100 mm, and sealed curing was conducted in a constant-temperature room at 20 °C for 28 d.

2.2.3. Evaluation Test of CO₂-Absorbing-MC-Added Mortar

On days 7 and 28 after curing, compression strength tests were conducted on the specimens in accordance with JIS A1108 [32]. For the accelerated CO₂ absorption test, three specimens for each condition aged for 1 d were dried in a drying oven at 40 °C for 24 h. As shown in Figure 9, the specimens were placed in a 12 L vacuum desiccator (VL-C, AS ONE Corporation, Osaka, Japan), where CO₂ was forcibly supplied to accelerate its absorption. CO₂ gas was periodically injected to maintain a CO₂ concentration of ~5% in the desiccator, and changes in the CO₂ concentration inside the desiccator were measured using a CO₂ concentration meter (E31-6979-10, Narika Co., Ltd., Tokyo, Japan).

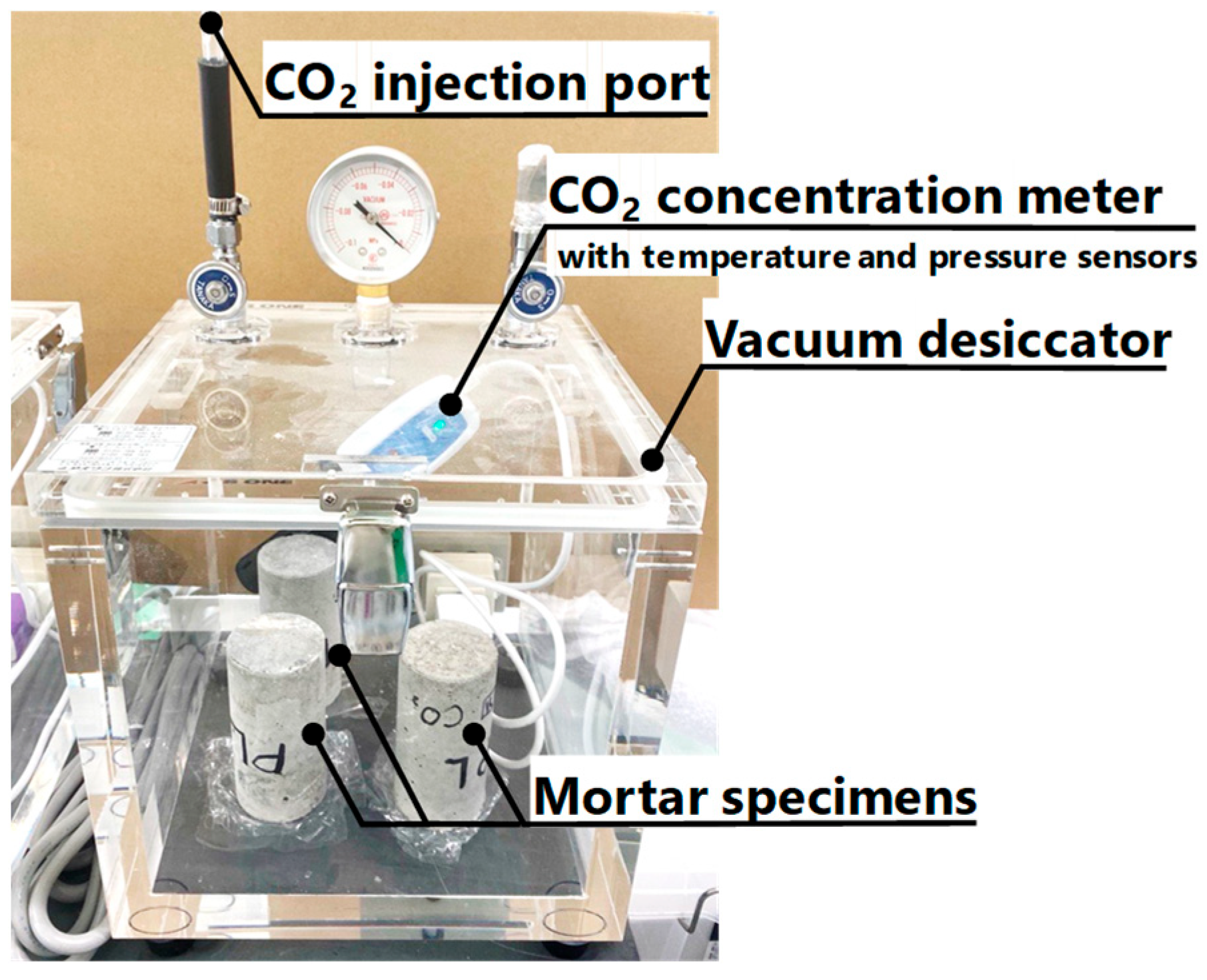

For the test, an epoxy resin (Bond Quick Mender, Konishi Co., Ltd., Osaka, Japan) was applied to the bottom surface of the cylindrical specimens, leaving the remaining surfaces exposed. The CO₂ absorption periods were set at 20 weeks. Specimens were split at 4, 12, and 20 weeks after the start of the test, phenolphthalein solution was sprayed onto the fracture surface to visualize the carbonation areas, and the carbonation depth was measured. Furthermore, the CO₂ absorption amount in the carbonation area was measured at 20 weeks in accordance with JIS Z 2615 [51].

3. Results and Discussion

3.1. Performance of Mortar Containing Alkali-Supplying MC

3.1.1. Results of pH Responsiveness Verification for Alkali-Supplying MC

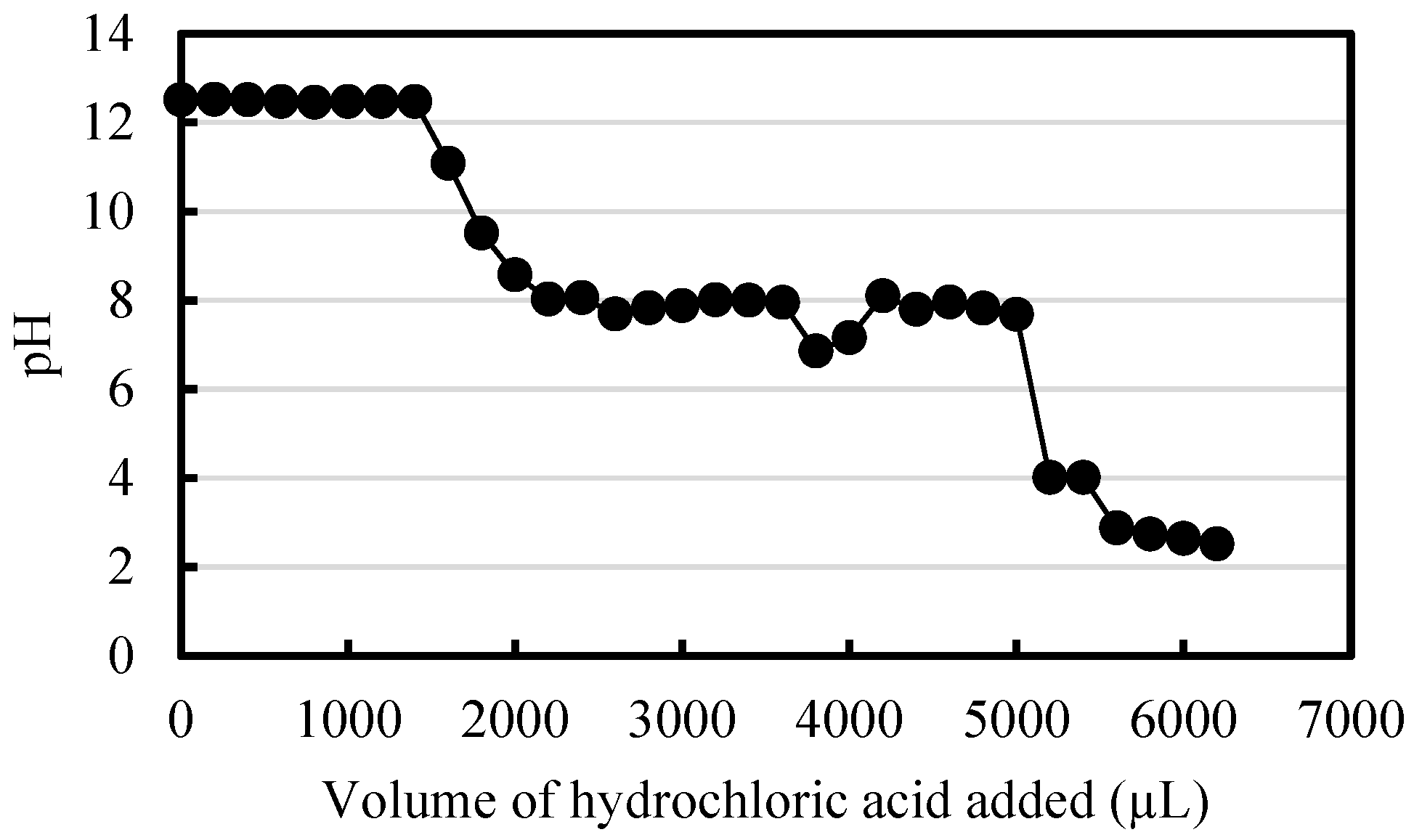

Figure 10 shows the pH change observed when hydrochloric acid is added dropwise to the suspension with the dispersed MC containing distilled water. Immediately after hydrochloric acid addition, the pH stabilized at ~12.5. Subsequently, the pH decreased with the continued addition of hydrochloric acid, reaching a temporary stable state around pH 8. Continuing the addition of hydrochloric acid caused the pH to drop sharply once the added volume exceeded 5200 µL, ultimately reaching a pH of less than 4. These behaviors suggested that Ca(OH)₂ contained in the MC dispersed in distilled water was gradually released. In particular, the temporary stabilization observed around pH 8 may be attributed to either a concurrence of the release rate of Ca(OH)₂ and the addition rate of HCl or the preferential release of Ca(OH)₂ located near the surface of the MC. In other words, the pH required to inhibit steel corrosion (approximately 10–11) was not maintained, indicating that the alkali-supplying MC did not achieve the intended corrosion-protection function under the tested conditions.

3.1.2. Compressive Strength Test of Alkali-Supplying-MC-Added Mortar

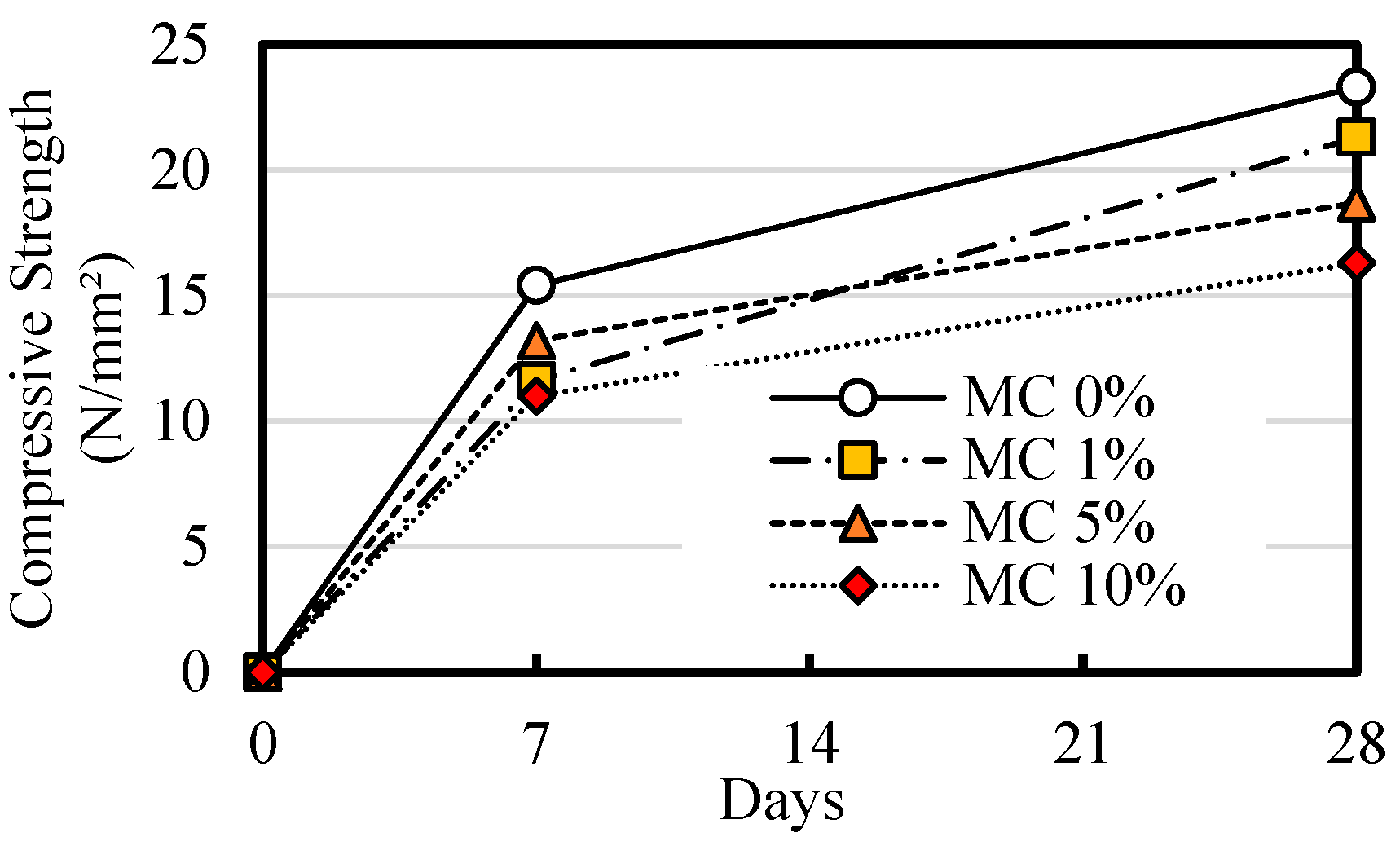

Figure 11 shows the relationship between the MC addition rate and mortar compressive strength. The legend indicates the MC addition rate relative to the mortar volume. After 28 d, the compressive strength, the strength of the specimen decreased with an increasing MC addition rate. The strength at 5% MC addition was only ~80% of that without MC addition.

The factors contributing to this strength reduction include the composition of the MC, which contains polystyrene, resulting in lower capsule strength than that of cement paste. Furthermore, adding the MC externally likely reduces the cement content per unit volume with an increase in the addition rate, consequently leading to strength reduction.

According to a report by Jawahar et al. [52], when a polyurethane-based MC was added to a cement mortar at 0.5–5.5% by cement weight, the addition of the MC at 4.5% (equivalent to ~1.0% by volume in this study) increased the compressive strength by 33.88% owing to secondary hydration reactions involving sodium silicate. Conversely, when the MC was added at 5.5% (equivalent to 1.3% in this study), the strength decreased by 25.31% owing to compromised structural integrity.

This strength reduction was attributed to the potential degradation of structural integrity caused by increased porosity and weakened interfaces, consistent with the trends observed in this study. Future efforts should focus on improving the mechanical strength of the MCs and optimizing their dosage so that functional performance can be achieved without compromising the structural integrity of the mortar.

3.1.3. Accelerated Carbonation Test of Alkali-Supplying-MC-Added Mortar

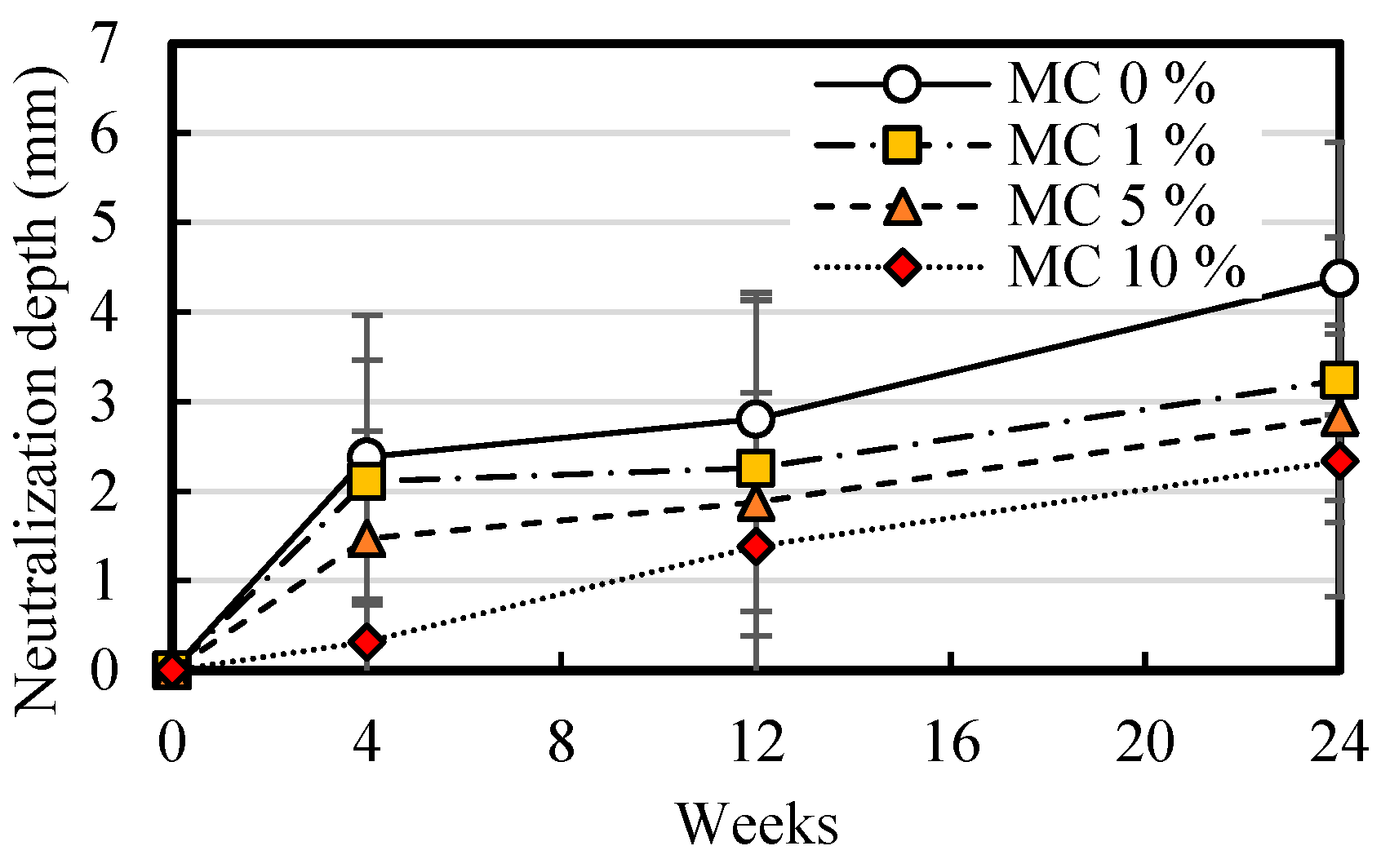

Figure 12 shows the relationship between the MC addition rate and carbonation depth. Here, error bars represent the mean ± 2× standard deviation. Focusing on week 4 after the accelerated carbonation initiation, the carbonation depth of the mortar with 10% MC addition was 0.3 mm, whereas carbonation progressed to 2.4 mm for the mortar without the MC sample. This trend was confirmed at 12 and 24 weeks. At week 24, the carbonation depth for the 10%-MC-added mortar was 2.3 mm, whereas carbonation progressed to 4.3 mm for the mortar without the MC. These results indicate that increasing the MC addition rate reduces the carbonation depth from the exposed surface, thereby suppressing carbonation progression. However, based on the results shown in Figure 10, the suppression of carbonation was highly likely due to the release of Ca(OH)₂ located near the surface of the MC, rather than the pH responsiveness of TOA.

Table 5. Cleaved specimens after the accelerated carbonation test.

MC Addition Rate	Promotion Period
	4 Weeks	12 Weeks	24 Weeks
0%
1%
5%
10%

shows the cross-sectional photographs of the specimens taken during carbonation depth measurements. As shown in Figure 12, the differences in the MC addition rate caused variations in the carbonation depth. The photographs in the table show colorless regions in the specimen cross-sections. This was likely due to a reduced cement content per unit volume caused by the MC addition, which reduced the compactness. Consequently, capillary voids may have formed at the casting (exposed) surface, potentially causing localized carbonation. The large error bars for the carbonation depth of the mortars with 1% and 5% MC addition were considered to be due to variations in the presence and extent of the colorless regions, which caused fluctuations in the measurement results.

Based on these results, the characteristics of the alkali-supplying MC are summarized below. First, as the TOA used in this experiment releases Ca(OH)₂ without exhibiting pH responsiveness, improving the MC structure is necessary so that it responds at a pH higher than 11, where reinforcement corrosion begins. Then, because the main material of the MC was polystyrene, the compressive strength of the mortar with the added MC decreased. In addition, the density of the polystyrene-based MC is low at 0.3 g/cm³, making it prone to floating during mortar preparation and potentially causing difficulties in achieving uniform dispersion. Therefore, increasing the density of the MC is a challenge that must be overcome in future studies. Specifically, increasing the density of the MCs through core modification and the introduction of high-density fillers is considered a promising strategy. To increase the mass of the microcapsules, the incorporation of ferric oxide or silica particles into the core is being investigated as a potential approach. Further studies are required to optimize density control and mitigate floating behavior.

3.2. Performance Evaluation of Mortar Containing CO₂-Absorbing MCs

3.2.1. Compressive Strength Test of CO₂-Absorbing-MC-Added Mortar

Figure 13 shows the change in the compressive strength over time for each MC content condition. The MC-TOA mortar achieved a target strength of 30 N/mm² at 28 d, which was only ~71% of the strength of PL without MC addition. Furthermore, the strength of MC-0, which did not incorporate TOA, was ~78% of that of PL.

This indicates that MC addition reduces mortar strength, and impregnating MC with TOA accentuates this reduction effect. The strength loss arises from the acrylic-based MC, whose strength is lower than that of cement paste. Because the MC is added to cement by external mixing, the amount of cement per unit volume is reduced, thereby lowering the mortar strength.

Furthermore, the strength difference observed between MC-0 and MC-TOA is presumed to be due to the influence of TOA, suggesting that a small amount of TOA may have leached from the MC and suppressed the strength development of the mortar. By contrast, Song et al. [15] demonstrated that adding tertiary amines such as TIPA, di-ethanol isopropanolamine (DEIPA), and methyl di-ethanolamine (MDEA) at 0.04% to fly ash cement can enhance early strength. This suggests that TOA has a different effect on strength development than other tertiary amines.

Furthermore, in preliminary experiments, all mortars containing the MC impregnated with the water-soluble amine compounds DEA, MEA, and TEA failed to develop strength. Based on these results, the CO₂ absorption tests in this study were conducted using MC-TOA, as it was the only amine-based sample that exhibited acceptable strength development among those prepared.

Moreover, although the compressive strength tests in this study demonstrated that the type of amine-containing MC influenced strength development, the specific effects of amine molecular structure on cement hydration and microstructural evolution were not examined. Clarifying these chemical interactions will be an important subject for future research.

3.2.2. Accelerated CO₂ Absorption Test of CO₂-Absorbing-MC-Added Mortar

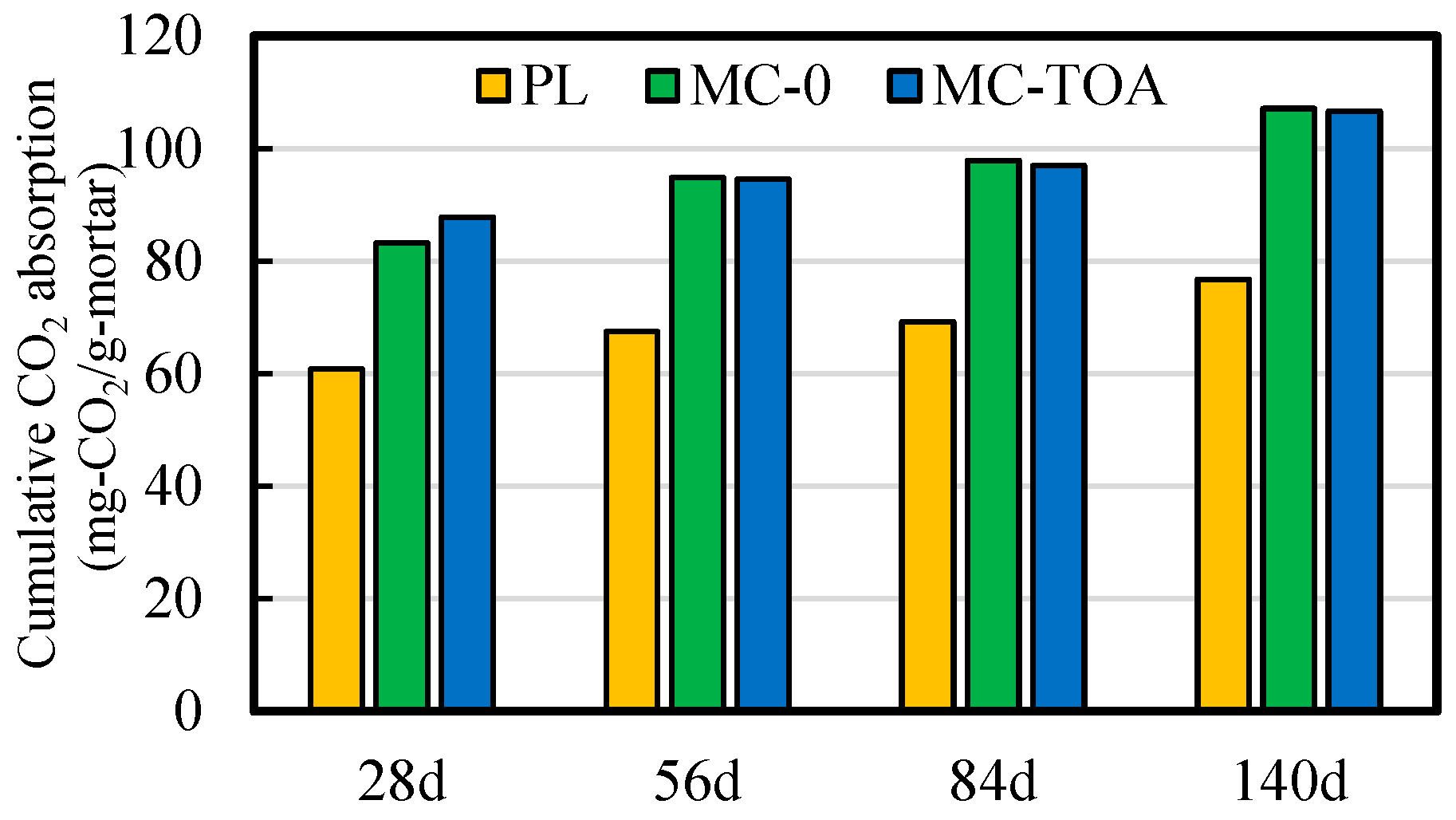

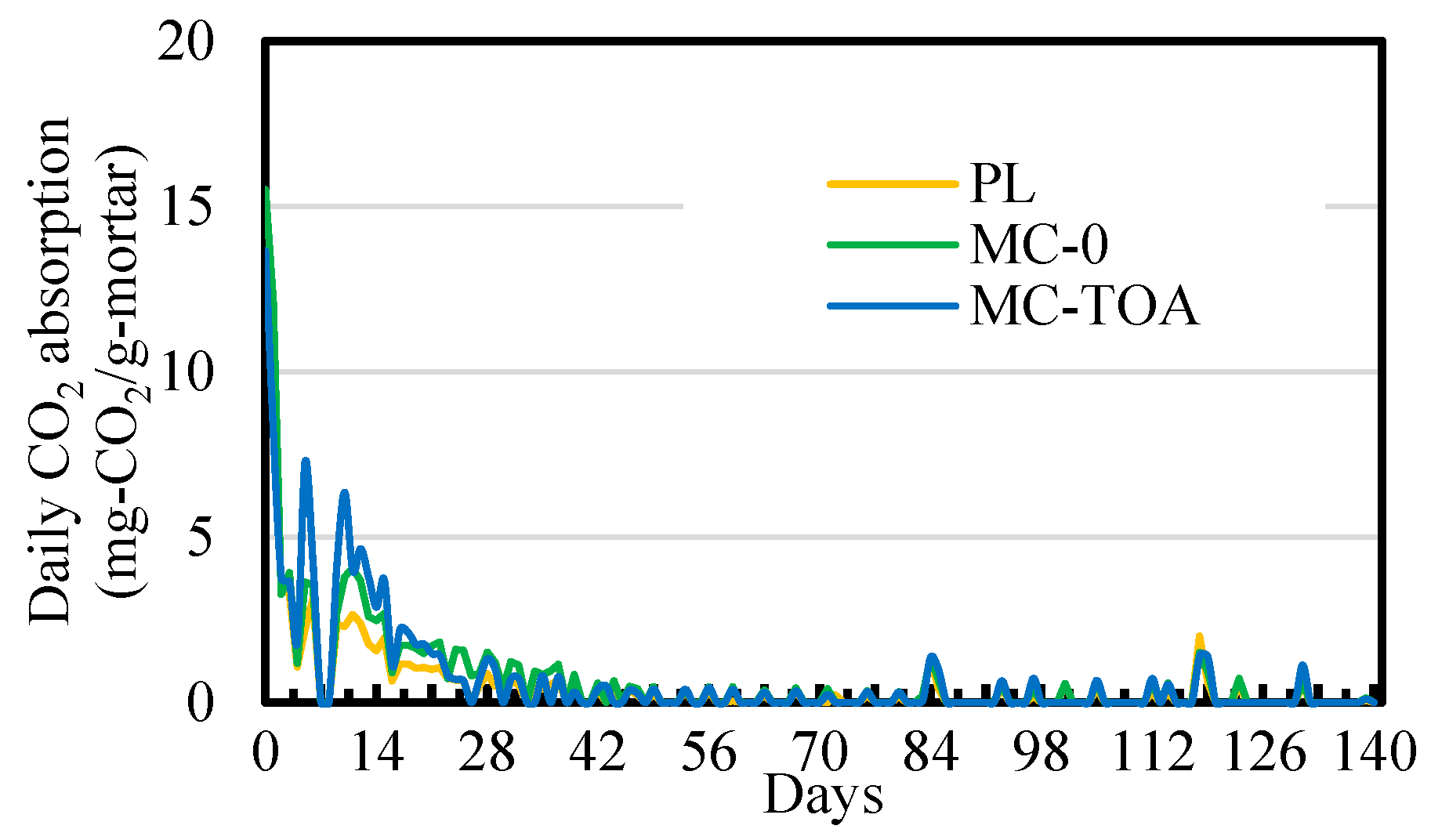

Figure 14 shows the time-dependent change in CO₂ absorption for each mortar specimen and test conditions during the accelerated CO₂ absorption tests. Figure 15 shows the cumulative CO₂ absorption for each specimen after testing for 28, 56, 84, and 140 d.

Here, the absorption rate $q_{{CO}_2}$ (mg) per gram of mortar, calculated from the CO₂ concentration changes measured using the CO₂ sensor, was calculated using Equations (1)–(3).

$${∆n}_{{CO}_2}=\left({\displaystyle \frac{C_1}{{10}^6}}·{\displaystyle \frac{P_1·V}{R·T_1}}\right)-\left({\displaystyle \frac{C_2}{{10}^6}}·{\displaystyle \frac{P_2·V}{R·T_2}}\right)$$

(1)

$$m_{{CO}_2}={∆n}_{{CO}_2}·M_{{CO}_2}$$

(2)

$$q_{{CO}_2}={\displaystyle \frac{m_{{CO}_2}}{m_{mortar}}}$$

(3)

where ${∆n}_{{CO}_2}$ is the reduction in CO₂ moles due to concentration decrease (mol); $C_1$ is the CO₂ concentration (ppm) inside the container immediately after CO₂ injection; $C_2$ is the CO₂ concentration (ppm) inside the container after CO₂ absorption and immediately before the next CO₂ injection; $P_1$ and $P_2$ are the pressures inside the container at the time when $C_1$ and $C_2$ are measured (Pa), respectively; $V$ is the volume of the container (m³) (12 L = 0.012 m³); $R$ is the gas constant (8.314 J/mol·K); $T_1$ and $T_2$ are the temperatures inside the container at the time when $C_1$ and $C_2$ are measured (°C), which are converted to absolute temperature using the equation T + 273.15 (K); $m_{{CO}_2}$ is the amount of CO₂ absorbed by the mortar (g); $M_{{CO}_2}$ is the molar mass of CO₂ (44.01 g/mol); and $m_{mortar}$ is the total mass of the mortar that absorbs CO₂ in the container (g).

The CO₂ absorption decreased over time for all mortars. Notably, CO₂ absorption temporarily decreased on days 2, 7, and 8 after the start of the test owing to interruptions in the CO₂ supply. This decrease is unrelated to the CO₂ absorption performance of the mortars.

For the cumulative CO₂ absorption over 140 d, the mortar containing MC-TOA showed the high value at 107 mg-CO₂/g-mortar, exhibiting ~1.4 times the absorption amount of the unmodified PL mortar (77 mg-CO₂/g-mortar). Furthermore, the mortar containing the MC (MC-0) without TOA impregnation also absorbed more CO₂ than the PL mortar. The absorption amount of the MC-0 mortar did not differ significantly from that of MC-TOA because of the possibility that the MC readily absorbed CO₂, and TOA was considered to have low CO₂ absorption capacity.

Table 6. Cumulative CO₂ uptake of the mortar specimens at 20 weeks.

MC Addition Condition	Cumulative CO2 Uptake (Mass %)
	Start of the Test	20 Weeks
PL	1.97	7.40
MC-0	1.96	7.72
MC-TOA	2.06	7.18

shows the cumulative CO₂ absorption amounts obtained by analyzing the mortar collected at the start of the test and at 20 weeks (140 d). The CO₂ uptake was 1.96–2.06 wt% at the start of the test and reached a maximum of 7.72 mass % in the MC-0 specimen by the end of the test. This value was of the same order of magnitude (7.72 mass % = 77.2 mg-CO₂/g-mortar) as that of the CO₂ absorption calculated from the measured CO₂ concentration changes in the vacuum desiccator shown in Figure 5 (also Figure 15) but showed particularly low values for MC-0 and MC-TOA. A comparison of the results from these test methods showed that, based on the calculated CO₂ absorption over time, MC-TOA exhibited the highest absorption tendency among the three conditions in the initial stage. However, the analytical results at 140 d indicated that MC-TOA had the lowest absorption amount. This discrepancy is attributed to stem from differences in the measurement principles. Furthermore, specimens exposed for 140 d in a 5% CO₂ environment correspond to approximately 48 years of exposure in the natural environment (average CO₂ concentration: 400 ppm). As this period is close to the typical design service life of 50 years for concrete structures, even if MC-TOA shows high absorption in the early stage, its long-term CO₂ uptake performance is considered unsustainable. In this study, no desorption step was included because the intended application was for the mortar to continuously absorb CO₂. Therefore, the decrease in uptake observed over the long exposure period is considered to be related to the inherent retention characteristics of impregnated amines. As this study focused on establishing the fabrication method and verifying the basic functionality of the MCs, detailed optimization for long-term performance was beyond the scope of the present study. Improving the material design to enhance long-term stability will be an important direction for future research.

The CO₂ absorption test in this study was conducted under a high CO₂ concentration (5%); therefore, the conditions differed from those of natural exposure. The gradual decrease in uptake with prolonged exposure provides a useful indication for long-term application. In natural environments with lower CO₂ concentrations, the absorption rate would be significantly slower; however, the present results still provide a basic reference for estimating the duration over which the MCs may continue to absorb CO₂ during the typical service life of concrete structures. Further long-term evaluations under natural environmental conditions will be necessary to clarify their practical applicability.

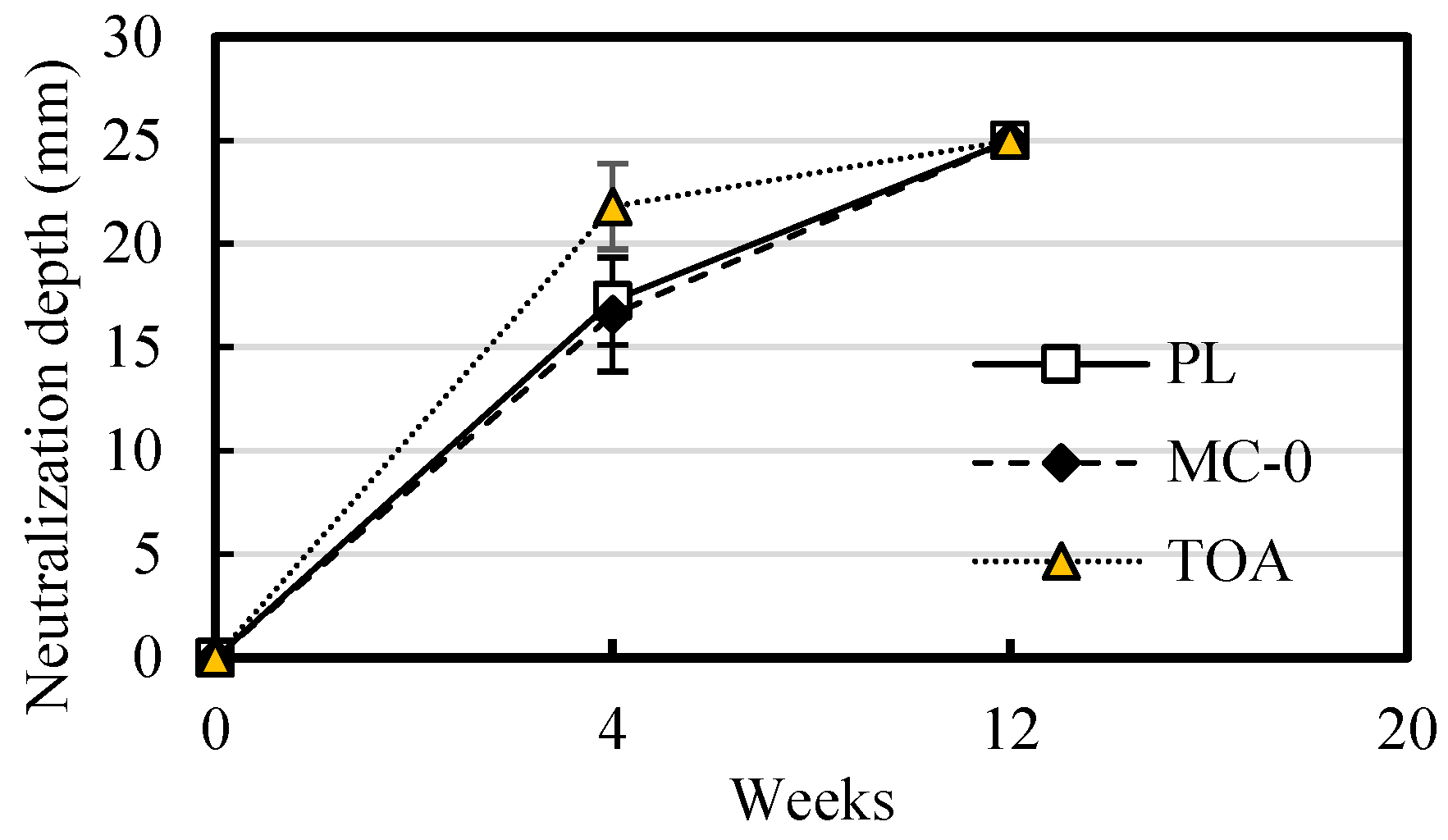

Figure 16 shows the relationship between the MC addition rate and carbonation depth in the specimens after the accelerated CO₂ absorption tests. In the accelerated CO₂ absorption test, focusing on 4 weeks after exposure initiation, the carbonation depth of MC-TOA was 22 mm, which was greater than the approximately 17 mm observed for PL and MC-0. This was likely because MC-TOA absorbed a greater amount of CO₂. Figure 15 confirms that MC-0 absorbs more CO₂ than PL, possibly because MC-0 is porous, which allows easier CO₂ absorption compared to PL. However, no clear difference was observed between their carbonation depths.

However, carbonation (pH reduction) proceeds through the reaction between calcium hydroxide (Ca(OH)₂), a cement hydration product, and CO₂. As MC-0 does not contain any substances inside the capsule that react with CO₂, the absorbed CO₂ does not contribute to the carbonation reaction. As a result, the carbonation depth of MC-0 is similar to that of PL.

At 12 weeks, the carbonation depth reached ~25 mm under all conditions. As shown in the cross-sectional photographs taken after the accelerated CO₂ absorption test (

Table 7. Specimen cross-sections after the accelerated carbonation test.

MC Addition Rate	Exposure Period
	4 Weeks	12 Weeks	20 Weeks
PL
MC-0
MC-TOA

), the carbonation depth could be clearly determined at week 4, but by week 12, carbonation had progressed throughout the entire cross-section, making accurate measurement of the carbonation depth difficult. Therefore, the actual carbonation depth may have reached beyond 25 mm, making it difficult to evaluate the effect of TOA.

Thus, we confirmed that the exposure method adopted in this experiment allowed for effective evaluation of the carbonation depth only up to approximately 4 weeks after the start of exposure. Consequently, improvements to the test method are required to enable a quantitative evaluation of the carbonation depth over a long period, such as limiting the exposed surface to only the top surface of the cylindrical specimen.

Based on these results, the characteristics of the CO₂-absorbing MC are summarized below. First, as the TOA used in this experiment is an oil-soluble amine compound, its impact on compressive strength reduction when added to the mortar tends to be weaker than that observed when the water-soluble amine compounds are added to the MC. However, as strength reduction is still observed in relation to that in MC-0, investigating the methods for adjusting the MC to prevent amine leaching is necessary. Furthermore, even if leaching occurs, selecting amine compounds that contribute to strength development is critical. Second, the mortar containing the MC showed increased CO₂ absorption, with the addition of TOA-MC resulting in a further increase. Moreover, the density of the acrylic MC is relatively high at 1.1 g/cm³; thus, the acrylic MC potentially suppresses flotation during mortar preparation to a greater extent than the polystyrene MC. Therefore, future improvements to MCs to balance structural performance and functionality, including the selection of oil-soluble amine compounds with high CO₂ absorption capacity, are important challenges.

A concern regarding the use of CO₂-absorbing MCs is that increased CO₂ uptake may accelerate carbonation and potentially promote steel corrosion. However, organic amines have also been reported to function as corrosion inhibitors for steel reinforcement in concrete [53]. Therefore, depending on the choice of amine, it may be possible to design CO₂-absorbing MCs that simultaneously capture CO₂ while suppressing rebar corrosion. This concept warrants further investigation as a future research direction.

In this study, the CO₂ uptake was calculated based on concentration changes inside a sealed container, and it was difficult to fully eliminate potential errors arising from CO₂ leakage, temperature and pressure fluctuations, and adsorption or desorption by the apparatus. To minimize such effects, 100 mL of gas was withdrawn prior to injecting 100 mL of CO₂ to maintain a constant internal pressure. A vacuum desiccator was used to ensure adequate sealing, and the measurement intervals and procedures were kept consistent. However, over the five-month accelerated test period, these external factors and apparatus-induced effects may still have influenced the measurements. Accordingly, improvements to the CO₂ absorption test method are necessary to enable more stable long-term monitoring. In addition, this research remains at a fundamental investigation stage; therefore, future verification in outdoor environments and long-term service conditions is required.

4. Conclusions

In this study, functional mortars incorporating MC technology were developed to enhance the durability and sustainability of RC structures. First, a mortar mixed with alkali-supplying MCs was prepared to suppress carbonation, and a mortar mixed with CO₂-absorbing MCs was prepared to promote carbon fixation. The effects of these MCs on the mechanical properties and functional performance of mortars were evaluated. The key findings are summarized as follows.

First, although clear pH responsiveness was not observed, a verification of the pH responsiveness of the alkali-supplying MCs suggested that Ca(OH)₂ was gradually released from the MC. Second, as the dosage of alkali-supplying MCs increased, the compressive strength decreased. This was attributed to the low strength of the polystyrene-based MCs and reduction in the cement content owing to external addition. Third, the suppression of carbonation depth became more pronounced with an increasing MC dosage, and a significant reduction in carbonation was observed at 10% MC. Fourth, when 5% of the CO₂-absorbing MCs was added to the mortar, both the PL and MC-0 specimens reached the target strength of 30 N/mm² after 7 d, whereas the MC-TOA specimens achieved it after 28 d. Further, the incorporation of MCs (MC-0) enhanced the CO₂-absorption capacity of the mortar in relation to that of the PL, and impregnation of the MC-TOA further increased their CO₂ uptake performance. Although MC-0 absorbed more CO₂ than PL, no difference in the carbonation depth was observed, likely because MC-0 did not contain reactive substances that contributed to carbonation reactions. Finally, under continuous CO₂ exposure, the CO₂ absorption capacity of the mortar gradually decreased over time.

Because this study focused on the fabrication of MCs and evaluation of their basic functionality under laboratory conditions, further verification would be required to assess their practical applicability. Future work will include long-term testing under conditions closer to real-world environments and evaluation at the structural-element level.

This study confirmed that the initially developed alkali-supplying MCs effectively suppressed carbonation; however, their low-density limited dispersion in mortar, restricting their applicability. Therefore, CO₂-absorbing MCs were developed by modifying the fabrication process. These MCs exhibited high CO₂ absorption performance and were expected to contribute to environmental impact reduction. However, they did not suppress carbonation in the mortar, raising concerns about the risk of reinforcement corrosion in structures. Accordingly, future work should focus on improving MC density and dispersion, preventing amine leaching, and identifying amine compounds that can achieve CO₂ absorption without accelerating carbonation.

Notably, the amine compounds used here are limited to DEA, TEA, MEA, and TOA. The performance of other amines remains unverified. Future work should evaluate oil-soluble amines with higher CO₂ absorption capacities and investigate how to balance strength development and CO₂ uptake.

The potential multifunctionality of these MCs, including corrosion-inhibiting effects, should also be explored. In this study, the decrease in compressive strength was primarily attributed to reduced capsule strength and a decrease in cement content. However, a microstructural evaluation to confirm interfacial structures and hydration products is insufficient. Future work should clarify the effects of local stress concentration and hydration inhibition through SEM observation and other methods.

In conclusion, functional concrete utilizing MC technology is expected to contribute to the development of environmentally friendly concrete technologies and toward a more sustainable society. Furthermore, by modifying the core materials of MCs, diverse functionalities can be imparted to concrete, which may provide solutions to the wide range of challenges in infrastructure maintenance.
