The Impact of Sewage-Sludge- and Olive-Mill-Waste-Derived Biochar Amendments to Tomato Cultivation

by
Maria A. Lilli
1,*,
Nikolaos V. Paranychianakis
1,
Konstantinos Lionoudakis
1,
Anna Kritikaki
2,
Styliani Voutsadaki
1,
Maria L. Saru
1,
Konstantinos Komnitsas
2 and
Nikolaos P. Nikolaidis
1
1
School of Chemical and Environmental Engineering, Technical University of Crete, 73100 Chania, Greece
2
School of Mineral Resources Engineering, Technical University of Crete, 73100 Chania, Greece
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(5), 3879; https://doi.org/10.3390/su15053879
Submission received: 9 January 2023 / Revised: 7 February 2023 / Accepted: 17 February 2023 / Published: 21 February 2023
(This article belongs to the Special Issue Upcycling Biowaste into Biobased Products)
Browse Figures
Versions Notes

Abstract

:
This study elucidated the impact of sewage-sludge (SS) and olive-mill-waste (OMW) biochar amendments to soil using tomatoes as a test crop. Four treatments were evaluated: the “control” with no biochar amendment, two SS biochar treatments with the addition of 10 t/ha and 25 t/ha, respectively, and an OMW biochar treatment with the addition of 25 t/ha. Higher yields were observed in both SS biochar treatments, providing evidence that biochar acts as a plant bio-stimulant. Biochar application had positive impacts on carbon sequestration and soil structure. The uptake of heavy metals by all plant parts was very low, indicating that biochar is an appropriate product for land application. Biochar dose and type induced changes in the composition due to the different unique species and biodiversity of microbial communities. Venn diagrams revealed that the majority of the identified taxa were shared among the treatments, and only a small proportion of them were unique in bulk soil between treatments. In the rhizosphere, the OMW-biochar-treated plants showed a higher number of unique taxa. Microbiota structure plays a major role in the stimulation of plant growth; however, further research is needed to understand the impact of these shifts in the functioning of agroecosystems.

1. Introduction

Over the last century, the global population has increased, driving up the global demand for food. Concurrently, the expected impacts of climate change on agricultural production, the limited opportunities for arable land expansion, and soil degradation underline the need to maintain/enhance the productivity of existing agricultural land by adopting approaches that use soil and water resources efficiently and restore soil fertility [1]. The ultimate challenge of modern agriculture is to increase the productivity of agricultural land while enhancing the quality of produce [2]. It has been widely accepted that agroecological practices, such as recycling of organic amendments, improve soil fertility and reverse soil degradation while improving agroecosystem services [3,4]. One such organic amendment is biochar, which has long lasting beneficial effects on the soil.
Biochar is a carbon-rich, fine-grained, porous material, which is produced by the thermal processing of biomass under oxygen-limited conditions at temperatures ranging from 250 to 700 °C [5,6]. Biochar is alkaline and hydrophobic in nature and contains both aliphatic and aromatic compounds [7]. According to the International Biochar Initiative (IBI), biochar is a charcoal that can be applied to soil to offer both agricultural and environmental benefits [8]. Biochar has a strong impact on soil physical properties, altering soil structure, bulk density, porosity, macro-aggregate, and water content [9]. Biochar can be used as a soil amendment in agriculture [10], since it has the potential to improve soil fertility and quality [11], enhance crop productivity [12], and increase carbon and nutrient sequestration [13,14]. Furthermore, biochar application in soil has been associated with improved nutrient-use efficiency [15], either through nutrients contained within it or through physicochemical processes that allow better utilization of soil-inherent or fertilizer-derived nutrients. Strong interactions between nitrogen (N) availability and biochar addition have been reported [16]; for example, in reducing N fertilizer demand in maize plants [17]. Biochar is also characterized by increased biological and chemical stability [18]. Due to its porosity and large surface area, biochar can be also used as an adsorbent for the removal of organic and inorganic contaminants from wastewaters and soils [19,20,21].
Apart from its improvement of soil physical and chemical properties, biochar may also affect agroecosystem functioning and performance through its effect on the composition and functioning of microbial communities. Increases in the diversity and shifts in the metabolic potential of the root microbiome were reported as a result of biochar recalcitrance [22]. There are also reports that biochar increases the complexity and improves the stability of microbial networks [23]. However, most of these effects appear to be site-specific and dose-dependent [24].
So far, numerous feedstocks have been used in biochar production [25], including wood [13,26], corn cobs [27,28], wheat and maize residues [29], sugar beet tailings [30], rice straw [31], biogas residues [32], grape husks [33], olive mill solid wastes and wastewater (OMW) [34], and sewage sludge (SS) [35,36]. Europe alone produces approximately 13 × 106 tons of SS biosolids [37], while their management remains one of the most complicated tasks for wastewater treatment plants. Its use as feedstock for biochar production is a feasible management and valorization alternative [38]. The use of SS biochar as a soil amendment is considered a cost-efficient alternative, offering opportunities to reuse the essential nutrients and organic-C to the soil for crop production. In parallel, it decreases the bioavailability of toxic elements and eliminates the environmental and public health risks associated with its direct use or disposal [39]. SS-based biochars that are produced at relatively higher temperature (>500 °C) have porous structure, larger surface area, and higher pH, whereas those produced at lower temperature have high electrical conductivity (EC), cation exchange capacity, and surface functional groups; thus, they are more suitable for agricultural applications (e.g., soil conditioning and fertilization) [40]. Similarly, OMW constitutes a notable amount of waste in the Mediterranean region, and significant volumes are produced annually (3 × 107 m3) during olive oil processing [41]. The conversion of OMW to biochar is an efficient valorization option, which apart from its environmental and economic benefits results in the elimination of the impacts caused by its improper disposal in soils and water reservoirs.
Although several studies have been conducted to investigate the impact of biochar produced from different feedstocks on soil properties, crop growth, yield, and fruit quality in greenhouse and field-grown tomatoes [34,42,43,44,45], limited information is available for SS- and OMW-produced biochar. Moreover, most published studies do not clearly assess the effect of biochar on soil microbial communities, and hence its potential use as a bio-stimulant. The main objective and novelty of this research was to further elucidate the impacts of SS- and OMW-derived biochar amendments to soil using tomatoes as a test crop. More specifically, the present study intended to (a) evaluate SS- and OMW-based biochar as a soil improver and bio-stimulant in agriculture, (b) investigate whether the different effects of the application of biochar to soil are mediated by the feedstock type, and (c) further examine the role of microbiota in the stimulation of plant growth.

2. Materials and Methods

2.1. Production and Properties of Biochar

The primary feedstock material used for the production of biochar was SS, which was provided by the Municipal Enterprise for Water and Sewage of Chania. In addition, the production of biochar from another local feedstock, OMW produced from a 3-phase organic olive mill in Akrotiri, Chania, was explored. The material sampled was the dried sludge remaining after the evaporation of the wastewaters disposed of in an evaporation pond. Both feedstocks were subjected to slow pyrolysis at 400 °C in a furnace with an operating capacity of 1 m3. The temperature was selected based on the results of earlier studies in order to achieve a reasonable yield and obtain biochar with sufficient C and N content. It is noted that pyrolysis at temperatures higher than 500 °C results in reduced yield and higher pH for almost all feedstocks. Thus, during pyrolysis, a balance between yield, quality of biochar, energy requirements, and type of soil to which the biochar will be applied is needed, in order to produce a biochar with beneficial properties and reasonable cost [5]. Oxygen-free conditions were maintained in the furnace with the flow of 99% pure nitrogen. The heating rate was 20 °C/min, and the residence time at the desired temperature was 1 h.

2.2. Field Experiment Description

The experiment was conducted between May 2021 and September 2021 in a field in the Akrotiri area of Chania, Greece (35°33′14.77″ N, 24°07′50.26″ E). Four treatments were evaluated: the “control” with no biochar amendment, the “SS_(10 t/ha)” with biochar addition of 10 t/ha, the “SS_(25 t/ha)” with biochar of 25 t/ha of biochar, and the “OMW_(25 t/ha)”, also with a biochar addition of 25 t/ha. Biochar was mixed manually with the surface soil prior to cultivation (0–20 cm). The plot size of each experimental unit was 4 m2 and included 6 tomato plants. In addition to the high value of tomato as a food crop, this plant was chosen for evaluation due to its short life cycle. The tomato variety used for the experiments was esculenta “Bobcat F1”, which is a hybrid, mid-early, self-pruning, low-growing, and large-fruited variety, and it is suitable for field cultivation.
All treatments received the same amount of fertilizer, which was applied in a water-soluble form during the growing season. The total amount of N-P-K added to each plant during the experiment was 29 g, 13 g, and 36 g for N, P, and K, respectively. The total amount of water added through irrigation for each plant was 161 L. It should be noted that if it is assumed that there are 1800 plants for 1000 m2 land, this means that 288 mm water/year is needed. The irrigation rates recommended by the agricultural organizations and Ministries of most countries are in the order of 700–800 mm/year for vegetables, which is 2.5 higher than the actual needs of the plant.
An initial soil-sampling campaign was conducted during the application of the biochar in May 2021 to define the initial conditions, in which 3 soil samples were collected from each of the 4 treatments. A final soil sampling (3 samples per treatment) was also conducted at the end of the growing cycle in September 2021. Soil samples were taken from the surface (top of 20 cm), homogenized, air dried, and processed for physical and chemical analyses. Three soil and three rhizosphere samples per treatment were also taken in June (middle of the experiment) and in September (end of the experiment) to evaluate the effect of treatments on the soil microbiome. Finally, the growth of tomato plants was monitored during the growing season by monitoring plant height. Tomato yield and dry weight of roots, shoots, and leaves for each plant were also recorded at the end of the experiment.

2.3. Physicochemical Analyses of Soil, Biochars and Plants

SS and OMW biochar and soil samples were analyzed for physical and chemical properties, including pH and electrical conductivity (EC) (EPA Method 9045D/ASTM D4972-19). SS and OMW biochars were also analyzed for dry matter/moisture (APHA-AWWA-WΕF 2540 B/ASTM D2216–19), volatile solids, ash (APHA-AWWA-WΕF 2540 G/ASTM E1755–01), volatile matter and char. Biochar samples were analyzed before its application to soil.
The distribution of water-stable aggregates (WSA) in the different size classes was determined by wet-sieving, adopting the protocols developed by Elliott (1986) [46] and Cambardella and Elliott (1993) [47]. All samples (biochar, soils, tomatoes, leaves, stems, and roots) were also analyzed for moisture content, total organic carbon (TOC) (ASTM D6316), total nitrogen (TN) (multi N/C 2100S, Analytik Jena, Jena, Germany), nutrients, trace elements (EPA Method 3051a, EPA Method 6010b), phenols (EPA Method 1312, DIN 38409-16:1984-06), chlorides and sulfates (EPA Method 1312, EPA Method 9038, EPA Method 9251), ammonium and nitrates (ISO/TS 14256-1:2003, ISO 7890-1-2-1986, EPA Method 350.2), and available phosphorus (ISO 11263, 1994, EPA Method 365.1). The leachable (bioavailable) part of the chemical elements was also determined (EPA Method 1312).

2.4. DNA Extraction, High-Throughput Sequencing, and Bioinformatic Analysis

Soil and rhizosphere genomic DNA was extracted from a 0.3 g of dry soil using the DNeasy Power Soil kit (Qiagen). Bulk soil was homogenized in a mortar with liquid nitrogen before DNA extraction. Rhizosphere soil was sampled by using the protocol of Lakshmanan et al. (2017) [48]. The quality of DNA was checked by running 4 μL in 2% agarose gel, and its concentration was quantified in a QFX fluorometer using the Qubit dsDNA HS kit. The V4 region of 16S rRNA gene was amplified using primer pair 515F (5 ′-GTGCCAGCMGCCGCGGTAA-3′) and 806R (5′-GGACTACHVGGGTWTCTAAT-3′). Library construction and sequencing at a minimum depth of 50,000 sequences per sample was performed by the NOVOGENE UK using the NovaSeq 6000 platform (Illumina) to obtain 2 × 250 bp paired-end reads.
First, primers, adapters, and barcodes were removed from raw reads, and the remaining paired-end reads were joined to amplicon sequence variants (ASVs) using the DADA2 (v. 1.22) pipeline [49], following the typical workflow described by the authors (https://benjjneb.github.io/dada2/tutorial.html (accessed on 22 July 2022), and using R (v. 4.2.1) (R Core Team 2017). Forward and reverse reads were trimmed and filtered using default parameters (maxN = 0, maxEE = 2, truncQ = 2). The adoption of ASVs makes marker-gene sequencing more precise, reusable, and reproducible and reduces the computation costs. Chimeric ASVs were identified and removed using the “removeBimeraDenovo” function. Taxonomy was assigned to the reads by training the naïve Bayesian classifier [50] against the SILVA database [51] (v. 139) implemented within the DADA2 pipeline. Multiple alignment was performed with the DECIPHER package [52], and a maximum likelihood phylogenetic tree was constructed with the phangorn package [53], with a neighbor-joining tree as the starting point [54]. During the processing of sequences, sequences that were not assigned at the phylum level were discarded. In addition, a conservative threshold value of three was applied.
α- and β-diversity: α-diversity of microbial communities was estimated by the Shannon index with the microeco package [55]. Beta diversity was assessed by Bray–Curtis dissimilarity as well as by the weighted UniFrac distances calculated by log transformation of the non-rarefied 16S rRNA data. PERMANOVA, with 999 randomizations, was performed to assess the statistical significance.
Network analysis: Microbial networks were constructed in the NetCoMi package [56] using Pearson correlation association. To avoid compositional effects, the data were clr-transformed. Zero treatment was necessary in this case. ASVs with an abundance higher than 100 were used in network construction, and a threshold of 0.6 was used as a sparsification method [54].

3. Results and Discussion

3.1. Physical and Chemical Conditions of the Experiment

The physicochemical properties of SS and OMW feedstocks and the produced biochars are summarized in Table 1.
Evidently, the yield was quite similar for both biochars, and ranged between 21% and 25% for OMW- and SS-based biochars, respectively. This was due to the condensation of aliphatic compounds and loss of CH4, H2, and CO during pyrolysis. At higher temperatures (500 and 700 °C), dehydration of hydroxyl groups and thermal degradation of lignocellulose structures also took place, and the yield was even lower. This is one of the reasons for the selection of 400 °C as the pyrolysis temperature [5]. Significant and opposing effects were observed in the pH of both feedstocks and the produced biochars. The pH of sewage sludge was higher (8.52) compared to that of OMW (5.57), and this was mainly due to the addition of lime, which is a registered biocide, at the wastewater treatment plant for its stabilization, the reduction of pathogens, and the elimination of odors. On the other hand, the biochar produced from OMW had a much higher pH (9.86) compared to the value measured for the SS-based biochar (6.8). The high value of the pH in the OMW-based biochar makes it suitable for application in acidic soils.
The EC of biochars increased slightly compared to the respective value of the feedstocks, measuring 3.35 mS/cm and 1.66 mS/cm for the SS- and OMW-based biochar, respectively. The char content was lower (42%) in the OMW-based biochar, while the specific surface area for the SS-based biochar was much higher compared to that of OMW-based biochar (130 and 17.5 m2/g respectively). Despite their difference, both values are considered adequate and justify their application as soil amendment.
In both biochars, a decrease in their C, H, and N content was observed compared to the respective content in the feedstocks. This decrease, which is more noticeable in the SS-based biochar, is related to the volatilization of these elements during pyrolysis [35].
The content of heavy metals, namely Cr, Ni, Cd, Pb, Cu, and Zn, increased in the SS-based biochar, due to the presence of these elements in the initial feedstock. However, these values were significantly lower than the defined thresholds in the existing regulations. In addition, the low application rates of biochars as soil amendments ensure that SS biochar does not pose any threat to soil functioning or public health [57].
The main properties of the produced biochars, both from SS and OMW, are quite similar to those reported in earlier studies [34,35,58,59,60].
Table S1 (Supplementary Information) presents the physicochemical characterization of the soil samples collected from each of the four treatments during the application of biochar in May 2021, in order to determine the initial experimental conditions, while Table S2 (Supplementary Information) presents the physicochemical characterization of the soil samples collected from each of the four treatments at the end of the experiment in September 2021, in order to determine the final conditions and assess the effect of biochar addition.
The nutrients and heavy metal content in fruits in aboveground (shoots and leaves) and belowground (roots) plant tissues collected from each of the four treatments at the end of the experiment are presented in Tables S3–S6 (Supplementary Information). As expected, no differences were detected among the four treatments. Specifically, Ni, As, Pb, Se, and Cd in the tomato fruits were below detection limit, and Cr was below 0.34 mg/kg in all treatments, significantly lower than the threshold for Cr (2.3 mg/kg) in vegetables according to FAO/WHO (2001) [61].

3.2. Crop Growth and Productivity

The yield of tomato plants and the number of fruits harvested during the harvesting period are summarized in Figure 1. Overly, higher yields were observed in both SS biochar treatments (“SS_(10 t/ha)” and “SS_(10 t/ha)”) (Figure 1) compared to the other treatments. Specifically, 20.0 kg and 126 tomatoes in total were produced in soils not treated with biochar (“control”). The corresponding figures for the biochar-treated soils were 39.7 kg and 218 tomatoes for “SS_(10 t/ha)”, 55.7 kg and 250 tomatoes for “SS_(25 t/ha)” treatment, and 25.8 kg and 144 tomatoes for “OMW_(25 t/ha)” treatment (Figure 1). In conclusion, the yield of tomato plants treated with “SS_(10 t/ha)”, “SS_(25 t/ha)”, and “OMW_(25 t/ha)” biochar was 98.5%, 178.5%, and 29% higher than control treatment.
Similar results were also observed for the total biomass of tomato plants and its distribution in the individual organs (leaves, shoots, and roots) (Figure 2). The biomass per plant was greater in “SS_(25 t/ha)” treatment (Figure 2). The positive effect of biochar on the dry weight of belowground and aboveground plant tissues has been speculated to be due to its structure [62], which is related to nutrient availability as well as to the presence of microbial communities. Biochar improves soil water retention and aeration through its effect on porosity. Consequently, organic matter and other nutrients were available and accessible, while a favorable environment for microorganisms and crop growth was created.
Overall, significantly higher productivity due to the SS and OMW biochar amendments is observed. The OMW biochar amendment stimulated lower productivity that the equivalent-dose SS biochar. It is believed that this was due to phenol toxicity at the early stages of plant growth; the phenol content of OMW-based biochar was 164 mg/kg, almost 40 times higher compared to the SS-based biochar. The plants during the first month of growth exhibited signs of stress and slower growth. This stress was overcome, and the plants continued to grow to higher levels of production than the control.
At the end of the experiment, the shoots of the plants subjected to the treatment with “SS_(25 t/ha)” biochar addition had a larger diameter (2.45 ± 0.42 cm) compared to the other treatments (1.62 ± 0.26 cm, 2.02 ± 0.39 cm, and 1.95 ± 0.36 cm for “control”, “SS_(10 t/ha)”, and “OMW_(25 t/ha)” treatment, respectively); however, the difference was not statistically significant.

3.3. Soil Fertility and Structure

Figure 3 presents the TOC and TN content of the treatments at the beginning and the end of the study period. The higher TOC content in the treatments compared to the control was consistent with the amended biochar. Following the application of biochar, the TOC in the “SS_(10 t/ha)” soil increased by approximately 6 g C/kg (from 15.18 in the control to 21.23 g/kg) and 15 g/kg in the “SS_(25t/ha)”, which is 2.5 times higher than “SS_(10 t/ha)”. The application of SS biochar resulted in a slightly increased C/N in the soil for the two SS biochar doses (7.5 in the “control” vs. 8.7 and 8.8 for the two SS biochar doses). The OMW biochar increased the TOC content in the 0–20 cm soil depth by 18 g/kg and increased the C/N ratio to 15.
TOC content, however, decreased in SS-biochar-treated soils at the end of the experiment, particularly for the highest dose (Figure 3). This effect implies a downward movement of SS biochar (from the upper 20 cm to deeper soil layers), which was likely stimulated by the applied irrigation, the sandy texture (90% sand) of the soil, and the very small size of biochar particles. To confirm the downward movement of SS biochar, an additional soil sampling was conducted 3 months after the end of the experiment. The results confirmed that SS biochar was present to a depth up to 60 cm. A similar trend has also been observed in greenhouse experiments (unpublished data). Even though the SS biochar was incorporated in the top 20 cm of soil in 30 L pots, at the end of the experiment it was distributed throughout the pot. A downward transport was not observed in the case of OMW treatment. In the “control” and “OMW_25 t/ha” treatments, soil TOC content remained the same at the end of the experiment (Figure 3).
TN decreased in all treatments by the end of the experiment compared to the start (Figure 3). The TN content decreased by 1.14 g/kg in the control treatment, 1.23 g/kg and 2 g/kg for the two doses of SS biochar, and 0.86 g/kg for the OMW biochar. These findings document a preferential stimulation of N mineralization, likely induced by the properties of biochar and/or the increased crop demand for N. However, this effect was milder in the case of OMW biochar. Although the mechanisms responsible for this differential effect on N among biochar treatments remain obscure, Tsiknia et al. (2014) [63] reported a lower availability of N in OMW-treated soils and lower rates of nitrification. Biochar dose and type of feedstock likely have important effects on the availability of nutrients in agroecosystems and could potentially improve its use efficiency and eliminate losses to the environment. Such an influence is consistent with the lower content of inorganic N in soils treated with OMW biochar.
The C/N ratio increased in all treatments; however, soils amended with SS biochar showed a smaller increase compared to the control (unamended).
Regarding the soil structure, the effects of dose and feedstock of biochar are summarized in Figure 4. The mass distribution of WSA shows an increase in the mass of macro-aggregates in the highest doses of both feedstocks (“SS_(25 t/ha)”: 21.3% and “OMW_(25 t/ha”: 27.1%) compared to control and “SS_(10 t/ha)” (10.7% and 10.6%, respectively). The difference in the mass of macro-aggregates between the highest doses of both feedstocks may partly explain the lack of difference in the TOC in OMW treatment compared to SS treatment (Figure 3A). The sandy (90%) texture of the soil was considered responsible for the small percentage of particles that corresponded in the silt-clay fraction and microaggregates. In addition, the observed feedstock-dependent effect of biochar on soil macro-aggregates was partially responsible for the lower downward movement of OMW biochar compared to SS biochar, implying probable differences in the charge or size of biochar.

3.4. Microbial Communities

3.4.1. Bacterial Community Composition

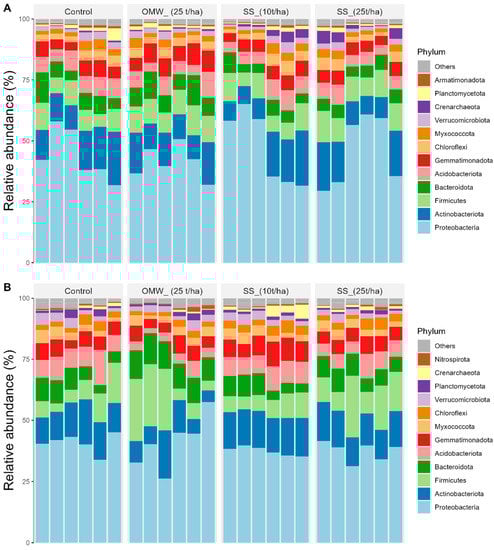

Similar patterns of bacterial community composition were found in the bulk soil and rhizosphere of the tomato plants treated with different types and doses of biochar. Six phylum, Proteobacteria, Actinobacteria, Firmicutes, Bacteroides, Acidobacteriota, and Gemmatimonadota accounted for more than 80% of procaryotic communities in the bulk soil and rhizosphere compartments (Figure 5A,B). However, differences were also observed between compartments. Rhizosphere communities showed lower relative abundance of Proteobacteria and Actinobacteria. More striking differences in the communities were detected between developmental stages. In the bulk soil, the relative abundance of Proteobacteria increased at the harvest period, while that of Chloroflexi, Myxococcota, and Verrucomicrobiota decreased (Figure S1A). In the rhizosphere the relative abundance of Proteobacteria showed a milder increase compared to the bulk soil. An increase was also observed for Acidobacteria and Chloroflexi, while Myxococcota decreased (Figure S1B). Venn diagrams revealed that the majority of the identified taxa were shared among the treatments, and only a small proportion of them were unique in the bulk soil between treatments (Figure 6A,B). In the rhizosphere, however, the OMW-biochar-treated plants showed a higher number of unique taxa (Figure 6B.)

3.4.2. Alpha and Beta Diversity

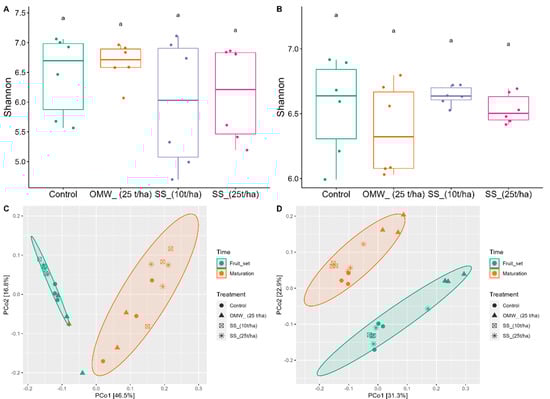

The treatments investigated in this study did not affect a-diversity either in the bulk soil (Figure 7A) or the rhizosphere (Figure 7B). Significant effects in α-diversity were detected between samplings (fruit set vs. harvest), with soil communities sampled during the fruit set having a higher α-diversity in bulk soil compared to the sampling that took place during the harvest time (Figure S2A). By contrast no effect on a-diversity between samplings was found in the rhizosphere (Figure S2B). These findings are in agreement with those of earlier studies, which reported minor effects of biochar on α-diversity. Latini et al. (2019) [64] found no effect, or even a decrease in α-diversity of microbial communities to biochar application depending on the feedstock type or the activation of biochar. Similarly, amendment of soils with rice straw or mixed rice and corn straw biochar did not affect the α-diversity of bacterial communities [65].
Beta diversity was evaluated separately in each soil compartment (bulk soil, rhizosphere) using both the Bray–Curtis dissimilarity and weighted UniFrac distance to assess the effect of treatment and sampling time. In the bulk soil principal coordinates analysis (PCoA) of the Bray–Curtis dissimilarity explained 31% of the variance in the first axis, which corresponded mainly to the different sampling times, while the second axis explained a lower proportion (14.9%), addressing the main effect of the applied treatments (Figure S3A). A similar pattern was observed with the weighted UniFrac distance, which explained a higher percentage of variance (46% and (Figure 7C). Regarding the β-diversity in the rhizosphere, the effect of the treatments was even more pronounced in the rhizosphere in soils treated with OMW to form a separate cluster (PERMANOVA of Adonis test (p < 0.01), that was mainly addressed by the first component (Figure 7D). The second component mainly addressed the effect of sampling time (Figure 7D). As in the case of bulk soil, the metrics, Bray–Curtis dissimilarity (Figure S3B) followed a similar pattern to that of weighted UniFrac distance (Figure 7D).

3.4.3. Network Analysis

Microbial networks and their topological properties have been linked to the stability of microbial communities to abiotic factors, ecosystem services, and soil functioning [66,67,68]. To understand whether biochar type and/or dose affect the complexity of microbial networks, the topological properties of the individual networks using Pearson correlation were evaluated. The results revealed minor differences in the topological properties of networks (clustering coefficient, modularity, positive edge percentage, edge density, edge connectivity, average path length) between treatments and control soils (Table S7). Specifically, soils treated with OMW biochar showed a higher modularity and clustering coefficient compared to the other treatments in the rhizosphere. All the biochar-treated soils were also characterized by a higher edge connectivity. In contrast, these differences nearly disappeared in bulk soil (Table S7). These findings contrast with a previous study that reported significant shifts in the structure of networks in biochar-amended soils [22,23]. Strong shifts in the topological properties of networks in soils amended with different doses of biochar were also reported in a recent study [69]. The reasons for this deviation in our study remain obscure and may be related to environmental conditions or the feedstocks used.

4. Conclusions

The aim of this research study was to provide evidence that biochar acts as an effective and safe soil improver and plant bio-stimulant in agricultural applications. The detailed assessment of the biochar produced from two bio wastes, SS and OMW, under real field conditions documented the potential for their valorization and yielded some key conclusions that can be summarized as follows:
  • SS biochar is a bio-stimulant to plant growth, but this effect is mediated by the feedstock. Fruit marketable yield and crop performance increased significantly. The mechanism that stimulated plant growth was not fully identified. Microbiota structure in the presence of the SS biochar may play a major role, and further research is needed to better understand the impact of these shifts in the functioning of agroecosystems and crop performance.
  • Biochar application also had positive impacts on C and P sequestration in the soil, improved soil structure, and improved soil nutrient content at deeper soil levels.
  • The OMW-derived biochar did not exhibit results as positive as the SS biochar. This likely arose from the low availability of N and/or higher C/N ratio, which favored N immobilization, revealing additional criteria for biochar selection for application on agricultural lands, depending on variability.
This study may act as a guideline for farmers and agronomists for maximizing the growth and yield of agricultural crops in Mediterranean environments using tomato as reference crop, improving soil health, and contributing to the sustainable management of agroecosystems. Co-valorization of locally available by-products of agricultural or municipal origin is more advantageous, provides better opportunities for success, is in line with the principles of the circular economy, generates new knowledge, and is an added value for the local community and the environment. Τhe significance of the experimental results has implications in all aspects of the global challenges, from climate change adaptation to food security, water management, soil ecosystem services, and environmental health.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su15053879/s1. Table S1: Characterization of the soil samples collected from each of the 4 treatments (initial conditions); Table S2: Characterization of the soil samples collected from each of the 4 treatments (final conditions); Table S3: Characterization of the tomato samples collected from each of the 4 treatments (final conditions); Table S4: Characterization of the leaf samples collected from each of the 4 treatments (final conditions); Table S5: Characterization of the shoot samples collected from each of the 4 treatments (final conditions); Table S6: Characterization of the root samples collected from each of the 4 treatments (final conditions); Table S7: Topological properties of microbial networks in the bulk soil and rhizosphere of soils treated with biochar (SS, OMW) and non-treated (controls); Figure S1: Effect of sampling time on the composition of microbial communities in the bulk soil (A) and rhizosphere (B); Figure S2. Effect of sampling period on the a diversity of microbial communities in the bulk soil (A) and rhizosphere (B); Figure S3. Beta diversity of microbial communities using the Bray distance in the bulk soil (A) and the rhizosphere (B).

Author Contributions

The authors contributed as follows to the manuscript: conceptualization, M.A.L. and N.P.N.; methodology, M.A.L. and N.P.N.; formal analysis, M.A.L. and N.V.P.; investigation, K.L., A.K., M.L.S. and S.V.; resources, N.V.P., K.L., A.K., M.L.S. and S.V.; data curation, N.V.P.; writing—original draft preparation, M.A.L.; writing—review and editing, N.V.P., K.K. and N.P.N.; visualization, M.A.L. and N.V.P.; supervision, N.P.N.; project administration, N.P.N.; funding acquisition, K.K. and N.P.N. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the European Union’s Horizon 2020 research and innovation program under grant agreement no.818308 (WaysTUP! Project), https://waystup.eu/ (accessed on 1 September 2019).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data generated by this study are available in the Supplementary Material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gong, X.W.; Liu, H.; Sun, J.S.; Gao, Y.; Zhang, H. Comparison of Shuttleworth-Wallace model and dual crop coefficient method for estimating evapotranspiration of tomato cultivated in a solar greenhouse. Agric. Water Manag. 2019, 217, 141–153. [Google Scholar] [CrossRef]
  2. Susawaengsup, C.; Jaradrattanapaiboon, A.; Sornsakdanuphap, J.; Choengpanya, K.; Jaradrattanapaiboon, Y.; Tongkoom, K.; Bhuyar, P. Effect of Fertilization Combined with Shading on Growth and Aromatic Constituents of Niamhom (Strobilanthes nivea Craib) Using an Internet of Things (IoT) Controlled Irrigation System. Horticulturae 2022, 8, 1130. [Google Scholar] [CrossRef]
  3. Banwart, S.A.; Nikolaidis, N.P.; Zhu, Y.G.; Peacock, C.L.; Sparks, D.L. Soil Functions: Connecting Earth’s Critical Zone. Annu. Rev. Earth Planet. Sci. 2019, 47, 333–359. [Google Scholar] [CrossRef]
  4. Sullivan, P.L.; Billings, S.A.; Hirmas, D.; Li, L.; Zhang, X.; Ziegler, S.; Murenbeeld, K.; Ajami, H.; Guthrie, A.; Singha, K.; et al. Embracing the dynamic nature of soil structure: A paradigm illuminating the role of life in critical zones of the Anthropocene. Earth-Sci. Rev. 2022, 225, 103873. [Google Scholar] [CrossRef]
  5. Komnitsas, K.; Zaharaki, D.; Pyliotis, I.; Vamvuka, D.; Bartzas, G. Assessment of Pistachio Shell Biochar Quality and Its Potential for Adsorption of Heavy Metals. Waste Biomass Valorization 2015, 6, 805–816. [Google Scholar] [CrossRef]
  6. Wang, B.; Gao, B.; Fang, J. Recent advances in engineered biochar productions and applications. Crit. Rev. Environ. Sci. Technol. 2017, 47, 2158–2207. [Google Scholar] [CrossRef]
  7. El-Naggar, A.; Lee, S.S.; Rinklebe, J.; Farooq, M.; Song, H.; Sarmah, A.K.; Zimmerman, A.R.; Ahmad, M.; Shaheen, S.M.; Ok, Y.S. Biochar application to low fertility soils: A review of current status, and future prospects. Geoderma 2019, 337, 536–554. [Google Scholar] [CrossRef]
  8. Luo, L.; Xu, C.; Chen, Z.; Zhang, S. Properties of biomass-derived biochars: Combined effects of operating conditions and biomass types. Bioresour. Technol. 2015, 192, 83–89. [Google Scholar] [CrossRef]
  9. de Jesus Duarte, S.; Glaser, B.; Pano, B.L.P.; Cerri, C.E.P. Biochar and sugar cane filter cake interaction on physical and hydrological soil properties under tropical field conditions. Biochar 2020, 2, 195–210. [Google Scholar] [CrossRef]
  10. Gul, S.; Whalen, J.K.; Thomas, B.W.; Sachdeva, V.; Deng, H. Physico-chemical properties and microbial responses in biochar-amended soils: Mechanisms and future directions. Agric. Ecosyst. Environ. 2015, 206, 46–59. [Google Scholar] [CrossRef]
  11. Basak, B.B.; Sarkar, B.; Saha, A.; Sarkar, A.; Mandal, S.; Biswas, J.K.; Wang, H.; Bolan, N.S. Revamping highly weathered soils in the tropics with biochar application: What we know and what is needed. Sci. Total Environ. 2022, 822, 153461. [Google Scholar] [CrossRef] [PubMed]
  12. Jeffery, S.; Verheijen, F.; van der Velde, M.; Bastos, A. A quantitative review of the effects of biochar application to soils on crop productivity using meta-analysis. Agric. Ecosyst. Environ. 2011, 144, 175–187. [Google Scholar] [CrossRef]
  13. Joseph, S.; Pow, D.; Dawson, K.; Rust, J.; Munroe, P.; Taherymoosavi, S.; Mitchell, D.R.G.; Robb, S.; Solaiman, Z.M. Biochar increases soil organic carbon, avocado yields and economic return over 4 years of cultivation. Sci. Total Environ. 2020, 724, 138153. [Google Scholar] [CrossRef]
  14. Gross, A.; Bromm, T.; Glaser, B. Soil Organic Carbon Sequestration after Biochar Application: A Global Meta-Analysis. Agronomy 2021, 11, 2474. [Google Scholar] [CrossRef]
  15. Crowley, D. Biochar as a soil amendment for avocado production. In California Avocado Society 2012 Yearbook; Nabu Press: Charleston, SC, USA, 2012; Volume 95, pp. 44–61. [Google Scholar]
  16. Li, B.; Fan, C.H.; Zhang, H.; Chen, Z.Z.; Sun, L.Y.; Xiong, Z.Q. Combined effects of nitrogen fertilization and biochar on the net global warming potential, greenhouse gas intensity and net ecosystem economic budget in intensive vegetable agriculture in southeastern China. Atmos. Environ. 2015, 100, 10–19. [Google Scholar] [CrossRef]
  17. Cheng, N.; Peng, Y.; Kong, Y.; Li, J.; Sun, C. Combined effects of biochar addition and nitrogen fertilizer reduction on the rhizosphere metabolomics of maize (Zea mays L.) seedlings. Plant Soil 2018, 433, 19–35. [Google Scholar] [CrossRef]
  18. Wang, J.; Xiong, Z.; Kuzyakov, Y. Biochar stability in soil: Meta-analysis of decomposition and priming effects. GCB Bioenergy 2016, 8, 512–523. [Google Scholar] [CrossRef] [Green Version]
  19. Komnitsas, K.; Zaharaki, D. Morphology of modified biochar and its potential for phenol removal from aqueous solutions. Front. Environ. Sci. 2016, 4, 26. [Google Scholar] [CrossRef] [Green Version]
  20. Qi, C.; Wang, R.; Jia, S.; Chen, J.; Li, Y.; Zhang, J.; Li, G.; Luo, W. Biochar amendment to advance contaminant removal in anaerobic digestion of organic solid wastes: A review. Bioresour. Technol. 2021, 341, 125827. [Google Scholar] [CrossRef]
  21. Issaka, E.; Fapohunda, F.O.; Amu-Darko, J.N.O.; Yeboah, L.; Yakubu, S.; Varjani, S.; Ali, N.; Bilal, M. Biochar-based composites for remediation of polluted wastewater and soil environments: Challenges and prospects. Chemosphere 2022, 297, 134163. [Google Scholar] [CrossRef]
  22. Kolton, M.; Graber, E.R.; Tsehansky, L.; Elad, Y.; Cytryn, E. Biochar-stimulated plant performance is strongly linked to microbial diversity and metabolic potential in the rhizosphere. New Phytol. 2017, 213, 1393–1404. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, L.; Jiang, Y.; Liang, C.; Luo, Y.; Xu, Q.; Han, C.; Zhao, Q.; Sun, B. Competitive interaction with keystone taxa induced negative priming under biochar amendments. Microbiome 2019, 7, 77. [Google Scholar] [CrossRef] [PubMed]
  24. Jenkins, J.R.; Viger, M.; Arnold, E.C.; Harris, Z.M.; Ventura, M.; Miglietta, F.; Girardin, C.; Edwards, R.J.; Rumpel, C.; Fornasier, F.; et al. Biochar alters the soil microbiome and soil function: Results of next-generation amplicon sequencing across Europe. GCB Bioenergy 2017, 9, 591–612. [Google Scholar] [CrossRef] [Green Version]
  25. Ghodake, G.S.; Shinde, S.K.; Kadam, A.A.; Saratale, R.G.; Saratale, G.D.; Kumar, M.; Palem, R.R.; AL-Shwaiman, H.A.; Elgorban, A.M.; Syed, A.; et al. Review on biomass feedstocks, pyrolysis mechanism and physicochemical properties of biochar: State-of-the-art framework to speed up vision of circular bioeconomy. J. Clean. Prod. 2021, 297, 126645. [Google Scholar] [CrossRef]
  26. Bista, P.; Ghimire, R.; Machado, S.; Pritchett, L. Biochar Effects on Soil Properties and Wheat Biomass vary with Fertility Management. Agronomy 2019, 9, 623. [Google Scholar] [CrossRef] [Green Version]
  27. Kizito, S.; Luo, H.; Lu, J.; Bah, H.; Dong, R.; Wu, S. Role of Nutrient-Enriched Biochar as a Soil Amendment during Maize Growth: Exploring Practical Alternatives to Recycle Agricultural Residuals and to Reduce Chemical Fertilizer Demand. Sustainability 2019, 11, 3211. [Google Scholar] [CrossRef] [Green Version]
  28. Apori, S.O.; Byalebeka, J. Contribution of corncob biochar to the chemical properties of a ferralsol in Uganda. Arab. J. Geosci. 2021, 14, 1290. [Google Scholar] [CrossRef]
  29. Dong, X.; Singh, B.P.; Li, G.; Lin, Q.; Zhao, X. Biochar application constrained native soil organic carbon accumulation from wheat residue inputs in a long-term wheat-maize cropping system. Agric. Ecosyst. Environ. 2018, 252, 200–207. [Google Scholar] [CrossRef]
  30. Yao, Y.; Gao, B.; Inyang, M.; Zimmerman, A.R.; Cao, X.; Pullammanappallil, P.; Yang, L. Biochar derived from anaerobically digested sugar beet tailings: Characterization and phosphate removal potential. Bioresour. Technol. 2011, 102, 6273–6278. [Google Scholar] [CrossRef] [PubMed]
  31. Peng, X.; Ye, L.L.; Wang, C.H.; Zhou, H.; Sun, B. Temperature- and duration-dependent rice straw-derived biochar: Characteristics and its effects on soil properties of an Ultisol in southern China. Soil Tillage Res. 2011, 112, 159–166. [Google Scholar] [CrossRef]
  32. Stefaniuk, M.; Oleszczuk, P.; Bartmiński, P. Chemical and ecotoxicological evaluation of biochar produced from residues of biogas production. J. Hazard. Mater. 2016, 318, 417–424. [Google Scholar] [CrossRef] [PubMed]
  33. Vamvuka, D.; Esser, K.; Komnitsas, K. Investigating the suitability of grape husks biochar, municipal solid wastes compost and mixtures of them for agricultural applications to Mediterranean soils. Resources 2020, 9, 33. [Google Scholar] [CrossRef] [Green Version]
  34. El-Bassi, L.; Azzaz, A.A.; Jellali, S.; Akrout, H.; Marks, E.A.N.; Ghimbeu, C.M.; Jeguirim, M. Application of olive mill waste-based biochars in agriculture: Impact on soil properties, enzymatic activities and tomato growth. Sci. Total Environ. 2021, 755 Pt 1, 142531. [Google Scholar] [CrossRef]
  35. Agrafioti, E.; Bouras, G.; Kalderis, D.; Diamadopoulos, E. Biochar production by sewage sludge pyrolysis. J. Anal. Appl. Pyrolysis 2013, 101, 72–78. [Google Scholar] [CrossRef]
  36. Zong, Y.; Wang, Y.; Sheng, Y.; Wu, C.; Lu, S. Ameliorating soil acidity and physical properties of two contrasting texture ultisols with wastewater sludge biochar. Environ. Sci. Pollut. Res. 2018, 25, 25726–25733. [Google Scholar] [CrossRef]
  37. Mierzwa-Hersztek, M.; Gondek, K.; Klimkowicz-Pawlas, A.; Baran, A.; Bajda, T. Sewage sludge biochars management—Ecotoxicity, mobility of heavy metals, and soil microbial biomass. Environ. Toxicol. Chem. 2018, 37, 1197–1207. [Google Scholar] [CrossRef]
  38. Rangabhashiyam, S.; Lins, P.V.S.; Oliveira, L.M.T.M.; Sepulveda, P.; Ighalo, J.O.; Rajapaksha, A.U.; Meili, L. Sewage sludge-derived biochar for the adsorptive removal of wastewater pollutants: A critical review. Environ. Pollut. 2022, 293, 118581. [Google Scholar] [CrossRef]
  39. Singh, S.; Kumar, V.; Dhanjal, D.S.; Datta, S.; Bhatia, D.; Dhiman, J.; Samuel, J.; Prasad, R.; Singh, J. A sustainable paradigm of sewage sludge biochar: Valorization, opportunities, challenges and future prospects. J. Clean. Prod. 2020, 269, 122259. [Google Scholar] [CrossRef]
  40. Raj, A.; Yadav, A.; Arya, S.; Sirohi, R.; Kumar, S.; Rawat, A.P.; Thakur, R.S.; Patel, D.K.; Bahadur, L.; Pandey, A. Preparation, characterization and agri applications of biochar produced by pyrolysis of sewage sludge at different temperatures. Sci. Total Environ. 2021, 795, 148722. [Google Scholar] [CrossRef]
  41. Komnitsas, K.; Zaharaki, D. Pre-treatment of olive mill wastewaters at laboratory and mill scale and subsequent use in agriculture: Legislative framework and proposed soil quality indicators. Resour. Conserv. Recycl. 2012, 69, 82–89. [Google Scholar] [CrossRef]
  42. Zhang, C.; Lia, X.; Yan, H.; Ullah, I.; Zuo, Z.; Li, L.; Yu, J. Effects of irrigation quantity and biochar on soil physical properties, growth characteristics, yield and quality of greenhouse tomato. Agric. Water Manag. 2020, 241, 106263. [Google Scholar] [CrossRef]
  43. Almaroai, Y.A.; Eissa, M.A. Effect of biochar on yield and quality of tomato grown on a metal-contaminated soil. Sci. Hortic. 2020, 265, 109210. [Google Scholar] [CrossRef]
  44. Guo, L.; Bornø, M.L.; Niu, W.; Liu, F. Biochar amendment improves shoot biomass of tomato seedlings and sustains water relations and leaf gas exchange rates under different irrigation and nitrogen regimes. Agric. Water Manag. 2021, 245, 106580. [Google Scholar] [CrossRef]
  45. Sani, M.N.H.; Hasan, M.; Uddain, J.; Subramaniam, S. Impact of application of Trichoderma and biochar on growth, productivity and nutritional quality of tomato under reduced N-P-K fertilization. Ann. Agric. Sci. 2020, 65, 107–115. [Google Scholar] [CrossRef]
  46. Elliott, E.T. Aggregate Structure and Carbon, Nitrogen, and Phosphorus in Native and Cultivated Soils. Soil Sci. Soc. Am. J. 1986, 50, 627–633. [Google Scholar] [CrossRef]
  47. Cambardella, C.A.; Elliott, E.T. Carbon and Nitrogen Distribution in Aggregates from Cultivated and Native Grassland Soils. Division S-6—Soil & Water Management & Conservation. Soil Sci. Soc. Am. J. 1993, 57, 1071–1076. [Google Scholar] [CrossRef] [Green Version]
  48. Lakshmanan, V.; Ray, P.; Craven, K.D. Rhizosphere Sampling Protocols for Microbiome (16S/18S/ITS rRNA) Library Preparation and Enrichment for the Isolation of Drought Tolerance-Promoting Microbes. Methods Mol. Biol. 2017, 1631, 349–362. [Google Scholar] [CrossRef]
  49. Callahan, B.J.; McMurdie, P.J.; Rosen, M.J.; Han, A.W.; Johnson, A.J.A.; Holmes, S.P. DADA2: High-resolution sample inference from Illumina amplicon data. Nat. Methods 2016, 13, 581–583. [Google Scholar] [CrossRef] [Green Version]
  50. Wang, Q.; Garrity, G.M.; Tiedje, J.M.; Cole, J.R. Naive Bayesian classifier for rapid assignment of rRNA sequences into the new bacterial taxonomy. Appl. Environ. Microbiol. 2007, 73, 5264–5267. [Google Scholar] [CrossRef] [Green Version]
  51. Quast, C.; Pruesse, E.; Yilmaz, P.; Gerken Schweer, J.T.; Yarza, P.; Peplies, J.; Glöckner, F.O. The SILVA ribosomal RNA gene database project: Improved data processing and web-based tools. Nucleic Acids Res. 2013, 41, D590–D596. [Google Scholar] [CrossRef]
  52. Wright, E.S. Using DECIPHER v2.0 to Analyze Big Biological Sequence Data in R. R J. 2016, 8, 352–359. [Google Scholar] [CrossRef] [Green Version]
  53. Schliep, K.P. phangorn: Phylogenetic analysis in R. Bioinformatics 2010, 27, 592–593. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Callahan, B.; Sankaran, K.; Fukuyama, J.; McMurdie, P.; Holmes, S. Bioconductor Workflow for Microbiome Data Analysis: From raw reads to community analyses. F1000Research 2016, 5, 1492. [Google Scholar] [CrossRef] [PubMed]
  55. Liu, C.; Cui, Y.; Li, X.; Yao, M. Microeco: An R package for data mining in microbial community ecology. FEMS Microbiol. Ecol. 2021, 97, fiaa255. [Google Scholar] [CrossRef] [PubMed]
  56. Peschel, S.; Müller, C.L.; von Mutius, E.; Boulesteix, A.-L.; Depner, M. NetCoMi: Network construction and comparison for microbiome data in R. Brief. Bioinform. 2020, 22, bbaa290. [Google Scholar] [CrossRef]
  57. Paz-Ferreiro, J.; Nieto, A.; Méndez, A.; Askeland, M.P.J.; Gascó, G. Biochar from Biosolids Pyrolysis: A Review. Int. J. Environ. Res. Public Health 2018, 15, 956. [Google Scholar] [CrossRef] [Green Version]
  58. Marra, R.; Vinale, F.; Cesarano, G.; Lombardi, N.; d’Errico, G.; Crasto, A.; Pierluigi Mazzei Piccolo, A.; Incerti, G.; Woo, S.L.; Scala, F.; et al. Biochars from olive mill waste have contrasting effects on plants, fungi and phytoparasitic nematodes. PLoS ONE 2018, 13, e0198728. [Google Scholar] [CrossRef] [PubMed]
  59. Rashid, M.S.; Liu, G.; Yousaf, B.; Yasir, H.; Rehman, A.; Munir, M.A.M.; Arif, M.; Ahmed, R.; Song, Y. Assessing the influence of sewage sludge and derived-biochar in immobilization and transformation of heavy metals in polluted soil: Impact on intracellular free radical formation in maize. Environ. Pollut. 2021, 309, 119768. [Google Scholar] [CrossRef]
  60. Abid, N.; Masmoudi, M.A.; Megdiche, M.; Barakat, A.; Ellouze, M.; Chamkha, M.; Ksibi, M.; Sayadi, S. Biochar from olive mill solid waste as an eco-friendly adsorbent for the removal of polyphenols from olive mill wastewater. Chem. Eng. Res. Des. 2022, 81, 384–398. [Google Scholar] [CrossRef]
  61. FAO/WHO. Food Additives and Contaminants. Joint Codex Alimentarius Commission. FAO/WHO Food Standards Programme, ALINORM 01/12A. 2001. Available online: https://www.fao.org/input/download/report/27/Al0112Ae.pdf (accessed on 12 March 2001).
  62. Agbna, G.H.D.; Dongli, S.; Zhipeng, L.; Elshaikh, N.A.; Guangcheng, S.; Timm, L.C. Effects of deficit irrigation and biochar addition on the growth, yield, and quality of tomato. Sci. Hortic. 2017, 222, 90–101. [Google Scholar] [CrossRef]
  63. Tsiknia, M.; Tzanakakis, V.A.; Oikonomidis, D.; Paranychianakis, N.; Nikolaidis, N.P. Effects of olive mill wastewater on soil carbon and nitrogen cycling. Appl. Microbiol. Biotechnol. 2014, 98, 2739–2749. [Google Scholar] [CrossRef]
  64. Latini, A.; Bacci, G.; Teodoro, M.; Gattia, D.M.; Bevivino, A.; Trakal, L. The Impact of Soil-Applied Biochars from Different Vegetal Feedstocks on Durum Wheat Plant Performance and Rhizospheric Bacterial Microbiota in Low Metal-Contaminated Soil. Front. Microbiol. 2019, 10, 2694. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Yin, D.; Li, H.; Wang, H.; Guo, X.; Wang, Z.; Lv, Y.; Ding, G.; Jin, L.; Lan, Y. Impact of Different Biochars on Microbial Community Structure in the Rhizospheric Soil of Rice Grown in Albic Soil. Molecules 2021, 26, 4783. [Google Scholar] [CrossRef] [PubMed]
  66. Yuan, M.M.; Guo, X.; Wu, L.; Zhang, Y.; Xiao, N.; Ning, D.; Shi, Z.; Zhou, X.; Wu, L.; Yang, Y.; et al. Climate warming enhances microbial network complexity and stability. Nat. Clim. Chang. 2021, 11, 343–348. [Google Scholar] [CrossRef]
  67. Morriën, E.; Hannula, S.E.; Snoek, L.B.; Helmsing, N.R.; Zweers, H.; de Hollander, M.; Soto, R.L.; Bouffaud, M.-L.; Buée, M.; Dimmers, W.; et al. Soil networks become more connected and take up more carbon as nature restoration progresses. Nat. Commun. 2017, 8, 14349. [Google Scholar] [CrossRef] [Green Version]
  68. Banerjee, S.; Walder, F.; Büchi, L.; Meyer, M.; Held, A.Y.; Gattinger, A.; Keller, T.; Charles, R.; van der Heijden, M.G.A. Agricultural intensification reduces microbial network complexity and the abundance of keystone taxa in roots. ISME J. 2019, 13, 1722–1736. [Google Scholar] [CrossRef] [Green Version]
  69. Jin, B.-J.; Liu, X.-P.; Roux, X.L.; Bi, Q.-F.; Li, K.-J.; Wu, C.-Y.; Sun, C.-L.; Zhu, Y.-G.; Lin, X.-Y. Biochar addition regulates soil and earthworm gut microbiome and multifunctionality. Soil Biol. Biochem. 2022, 173, 108810. [Google Scholar] [CrossRef]
Sustainability 15 03879 g001 550

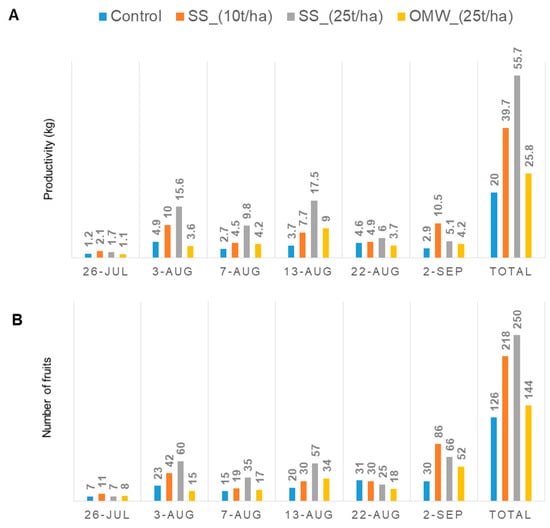

Figure 1. (A) Tomato yield (in kg) per treatment in each harvest, and total productivity at the end of the harvesting period (B) Number of tomatoes per treatment at each harvest and total number of tomatoes collected at the end of the harvesting period. Dates in the horizontal axis represent each harvest date and refer to year 2021.
Figure 1. (A) Tomato yield (in kg) per treatment in each harvest, and total productivity at the end of the harvesting period (B) Number of tomatoes per treatment at each harvest and total number of tomatoes collected at the end of the harvesting period. Dates in the horizontal axis represent each harvest date and refer to year 2021.
Sustainability 15 03879 g001
Sustainability 15 03879 g002 550

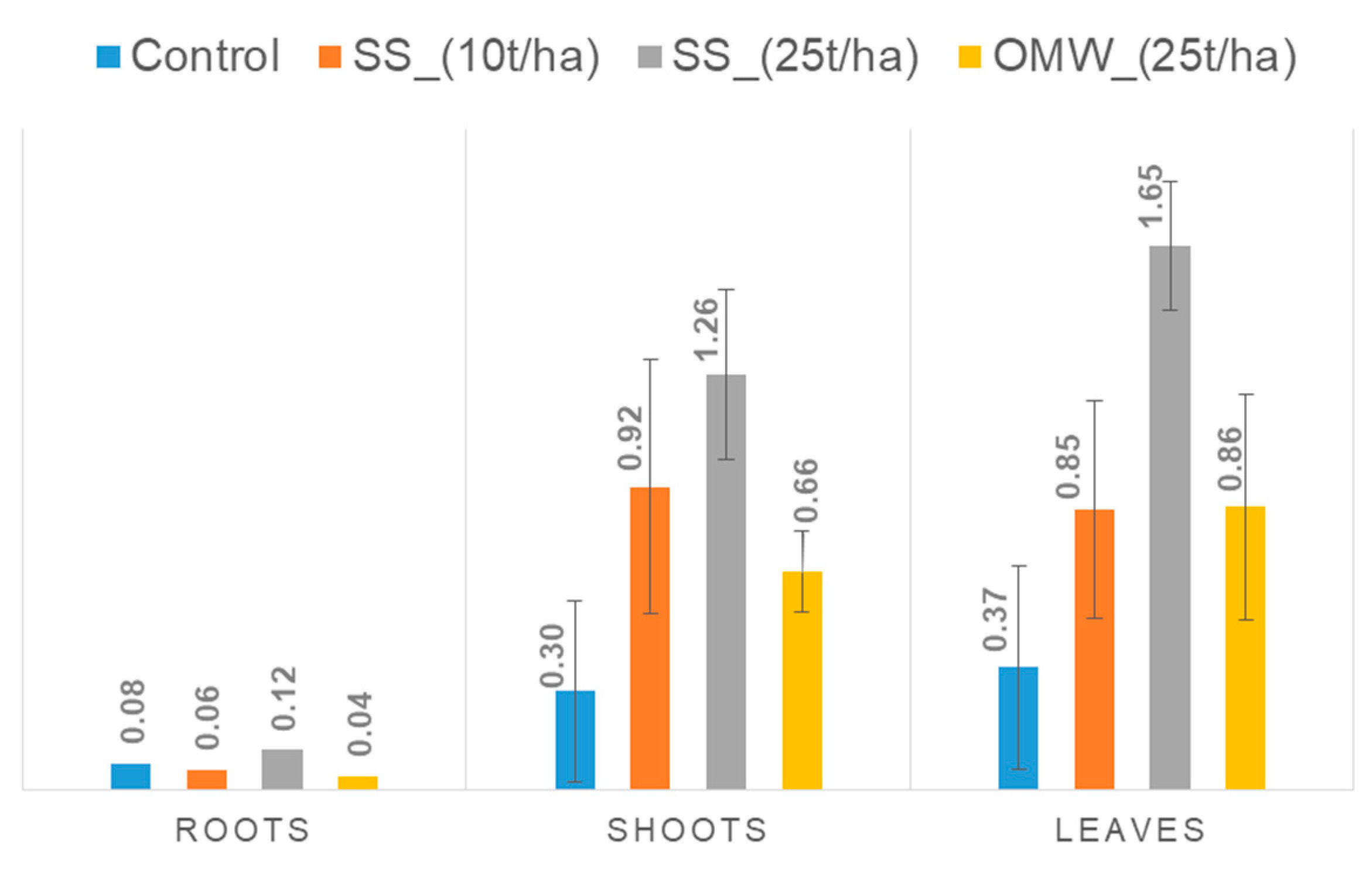

Figure 2. Biomass (in kg/plant) of roots, shoots, and leaves per plant per treatment at the end of the experiment. Lines in the Figure present the standard deviation of the replicates.
Figure 2. Biomass (in kg/plant) of roots, shoots, and leaves per plant per treatment at the end of the experiment. Lines in the Figure present the standard deviation of the replicates.
Sustainability 15 03879 g002
Sustainability 15 03879 g003 550

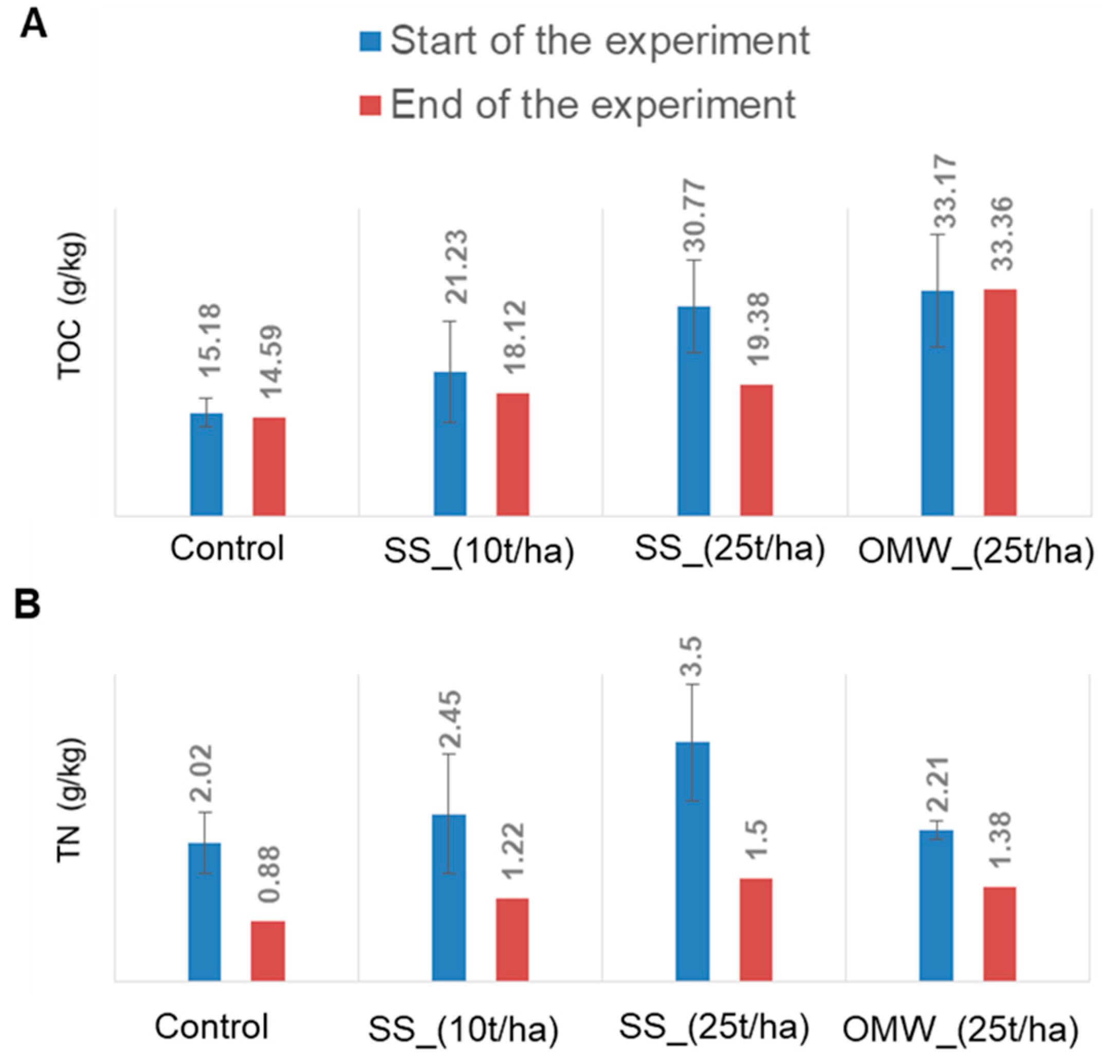

Figure 3. (A) Total organic carbon (TOC) and (B) nitrogen (TN) per treatment at the start and end of the experiment. Lines in the Figure present the standard deviation of the replicates.
Figure 3. (A) Total organic carbon (TOC) and (B) nitrogen (TN) per treatment at the start and end of the experiment. Lines in the Figure present the standard deviation of the replicates.
Sustainability 15 03879 g003
Sustainability 15 03879 g004 550

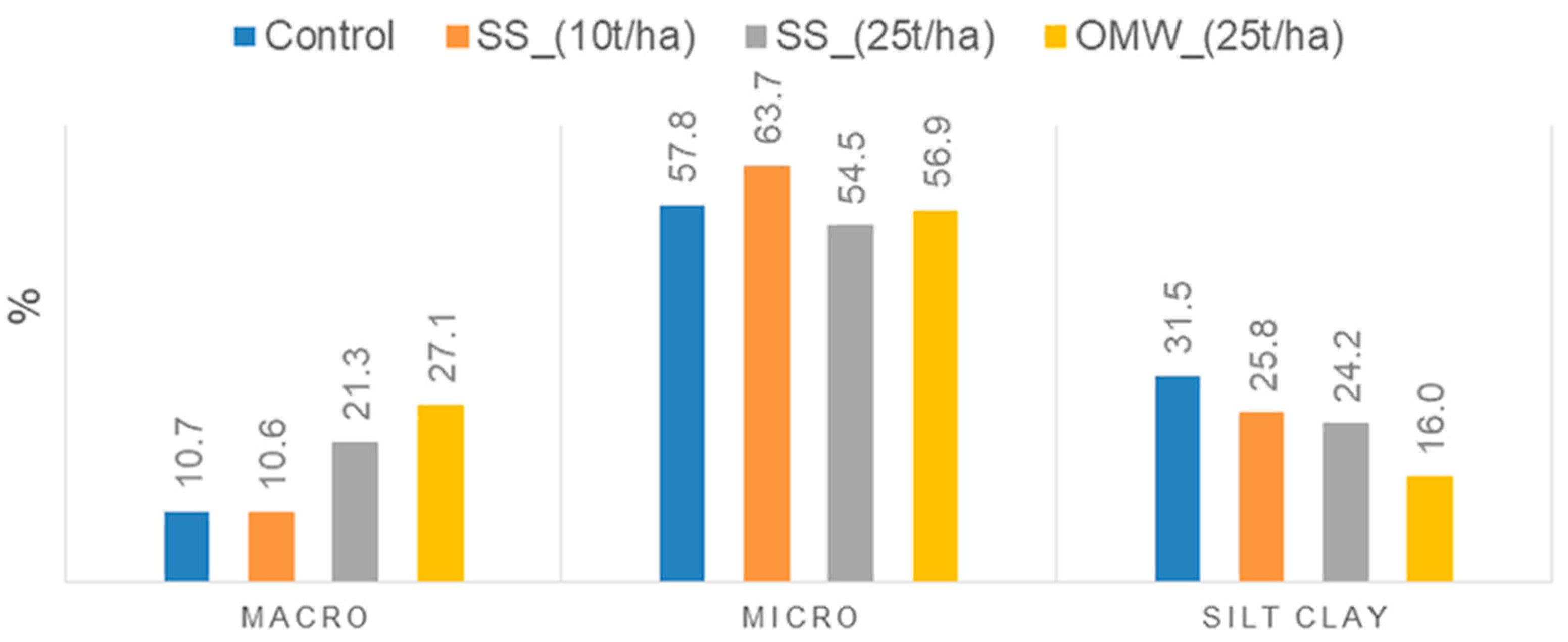

Figure 4. Macro-aggregates, micro-aggregates, and silt-clay-sized micro-aggregates per treatment at the end of the experiment.
Figure 4. Macro-aggregates, micro-aggregates, and silt-clay-sized micro-aggregates per treatment at the end of the experiment.
Sustainability 15 03879 g004
Sustainability 15 03879 g005 550
Figure 5. Composition of microbial communities in the bulk soil (A) and in the rhizosphere (B) of tomato plants treated with biochar from different sources.
Figure 5. Composition of microbial communities in the bulk soil (A) and in the rhizosphere (B) of tomato plants treated with biochar from different sources.
Sustainability 15 03879 g005
Sustainability 15 03879 g006 550

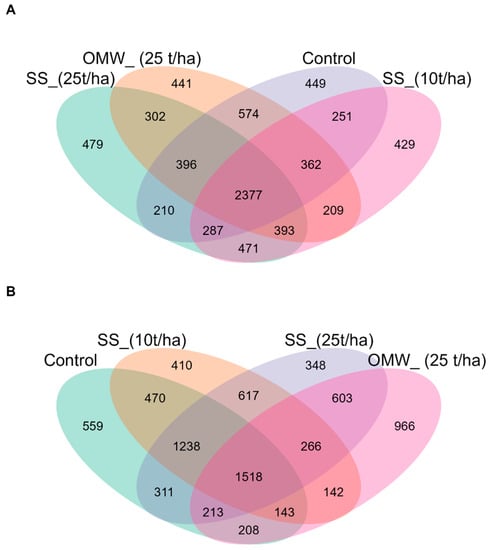

Figure 6. Venn diagrams indicating the sharing of microbial taxa between soils treated with different sources of biochar and untreated in the bulk soil (A) and the rhizosphere (B).
Figure 6. Venn diagrams indicating the sharing of microbial taxa between soils treated with different sources of biochar and untreated in the bulk soil (A) and the rhizosphere (B).
Sustainability 15 03879 g006
Sustainability 15 03879 g007 550
Figure 7. α- and β-diversity in soils treated with biochar from various sources and different doses in the bulk soil (A,C) and the rhizosphere (B,D) of tomato plants grown under field conditions. In panels (A,B) the colors denote the treatments; green; Control, Yellow: 25 t/ha OMW biochar, Blue: 10 t/ha SS biochar and Magenta: 25 t/ha SS biochar.
Figure 7. α- and β-diversity in soils treated with biochar from various sources and different doses in the bulk soil (A,C) and the rhizosphere (B,D) of tomato plants grown under field conditions. In panels (A,B) the colors denote the treatments; green; Control, Yellow: 25 t/ha OMW biochar, Blue: 10 t/ha SS biochar and Magenta: 25 t/ha SS biochar.
Sustainability 15 03879 g007
Table
Table 1. SS and OMW feedstock and biochar properties. Parentheses show standard deviation of the replicates.
Table 1. SS and OMW feedstock and biochar properties. Parentheses show standard deviation of the replicates.
SSOMW
ParameterFeedstockBiocharFeedstockBiochar
Yield (%)-25 (0.03)-21 (0.06)
pH8.52 6.81 5.57 9.86
EC (mS/cm)2.38 (0.22)3.35 (0.23)0.96 (0.11)1.66
Dry Matter/(TS%)32.6 (1.36)92.01 (0.01)61.9 (2.22)97.85 (0.02)
Moisture (%)67.39 (3.61)7.98 (0.02)38.11 (2.27)2.14 (0.03)
Volatile Solids (%)70.77 (2.55)67.50 (0.65)93.22 (4.08)86.35 (1.20)
Ash (%)29.23 (2.11)32.49 (0.13)6.78 (0.25)13.64 (0.3)
Volatile Matter (%) (TG)92 (2.12)34 (0.01)59.45 (1.39)58.01 (0.01)
Char (%) (TG)7.99 (0.33)65 (0.01)40.54 (1.21)41.98 (0.01)
Specific Surface Area (m2/gr) 130 (0.02) 16
S (%)1.78 (0.12)0.95 (0.02)0.440.09 (0.01
K (g/kg)2.3 (0.23)3.4 (0.02)19.8 (1.4)45.7 (0.4)
Cr (mg/kg)60.2 (4.7)68.4 (1.7)2.9 (0.2)3.9 (0.04)
Ni (mg/kg)31.7 (2.8)53.5 (2.1)3.4 (0.3)4.3 (0.13)
Cd (mg/kg)<DL2.4 (0.01)<DL<DL
Pb (mg/kg)144.8 (9.5)206 (4.2)<DL1.2 (0.03)
Cu (mg/kg)343.2 (26.8)263.6 (6.6)84.7 (8.4)88.7 (0.8)
Zn (mg/kg)1409 (89.8)1647 (6.4)56.1(7.3)81.9 (2.1)
As (mg/kg)2.8 (0.12)<DL<DL<DL
Hg (mg/kg)2.3 (0.08)0.2 (0.01)0.24(0.03)<DL
Cl (mg/kg)640 (220)<8002290 (830)6551 (427)
SO4 (mg/kg)12,290 (1890)33,597(2257)7640 (6000)<600
Phenols (mg/kg)128.9 (23.4)4.4 (0.4)460.1 (150)163.7 (26.3)
N-NO3 (mg/kg)35.2 (7.2)44.1 (4.2)167.7 (52.3)32.7 (4.8)
N-NH4 (mg/kg)3258 (644)120.5 (6.9)155.9 (39.2)4.58 (0.93)
Olsen-P (mg/kg)376.5 (58.2)564.9 (143)111.7 (27.9)132.8 (9.9)
TOC (%)38.9 (3.6)20.02 (1.48)55.4 (4.2)58.5 (3.04)
TN (%)6.0 (0.8)2.49 (0.24)6.2 (0.7)3.9 (0.48)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lilli, M.A.; Paranychianakis, N.V.; Lionoudakis, K.; Kritikaki, A.; Voutsadaki, S.; Saru, M.L.; Komnitsas, K.; Nikolaidis, N.P. The Impact of Sewage-Sludge- and Olive-Mill-Waste-Derived Biochar Amendments to Tomato Cultivation. Sustainability 2023, 15, 3879. https://doi.org/10.3390/su15053879

AMA Style

Lilli MA, Paranychianakis NV, Lionoudakis K, Kritikaki A, Voutsadaki S, Saru ML, Komnitsas K, Nikolaidis NP. The Impact of Sewage-Sludge- and Olive-Mill-Waste-Derived Biochar Amendments to Tomato Cultivation. Sustainability. 2023; 15(5):3879. https://doi.org/10.3390/su15053879

Chicago/Turabian Style

Lilli, Maria A., Nikolaos V. Paranychianakis, Konstantinos Lionoudakis, Anna Kritikaki, Styliani Voutsadaki, Maria L. Saru, Konstantinos Komnitsas, and Nikolaos P. Nikolaidis. 2023. "The Impact of Sewage-Sludge- and Olive-Mill-Waste-Derived Biochar Amendments to Tomato Cultivation" Sustainability 15, no. 5: 3879. https://doi.org/10.3390/su15053879

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
